WWW.PUMPS.COM

PENTEK®

ELECTRONICS CATALOG

MOTORS, CONTROLS AND DRIVES

From the dawn of civilization, providing and

managing a dependable source of water has been

essential to mankind's survival. Serving this most

basic human need has driven the development of

countless new technologies. In the 21st century,

Pentek® is at the forefront of developing new and

better electronic technology for water management.

We start with the fact that our motors, controls

and other products have to be exceptionally

tough. Submersible pumps live deep inside a

difficult environment, and only a tough motor with

a hard-working, precision-engineered control

system can meet the constant demand for water.

Where technology must be tough, Pentek has

been tested and trusted by our customers.

Pentek will continue to bring you new innovations

in motors and controls, because of our rich

heritage of expertise in water management

systems. Pentek is the leading electronics brand

of Pentair, North America's largest water pump

manufacturer. Pentair sets demanding standards

for pumps, motors and controls that are lab-

tested and field-tested, to prove they're tough

enough, before they ever ship to our customers.

Pentek offers the exceptional technical support you

expect from Pentair, and a level of advanced “tough

technology” unmatched in the industry. So, demand

more, and put us to the test. Our vision is to prove,

time and time again, we are your best choice.

Tested. Tough. Proven.

Table of Contents

4" SUBMERSIBLE XE MOTORS 1/2  10 HP 4

Materials of Construction, Dimensional Data 5

Features & Benefits 6

Technical Data 8,9

Coal Bed Methane 10

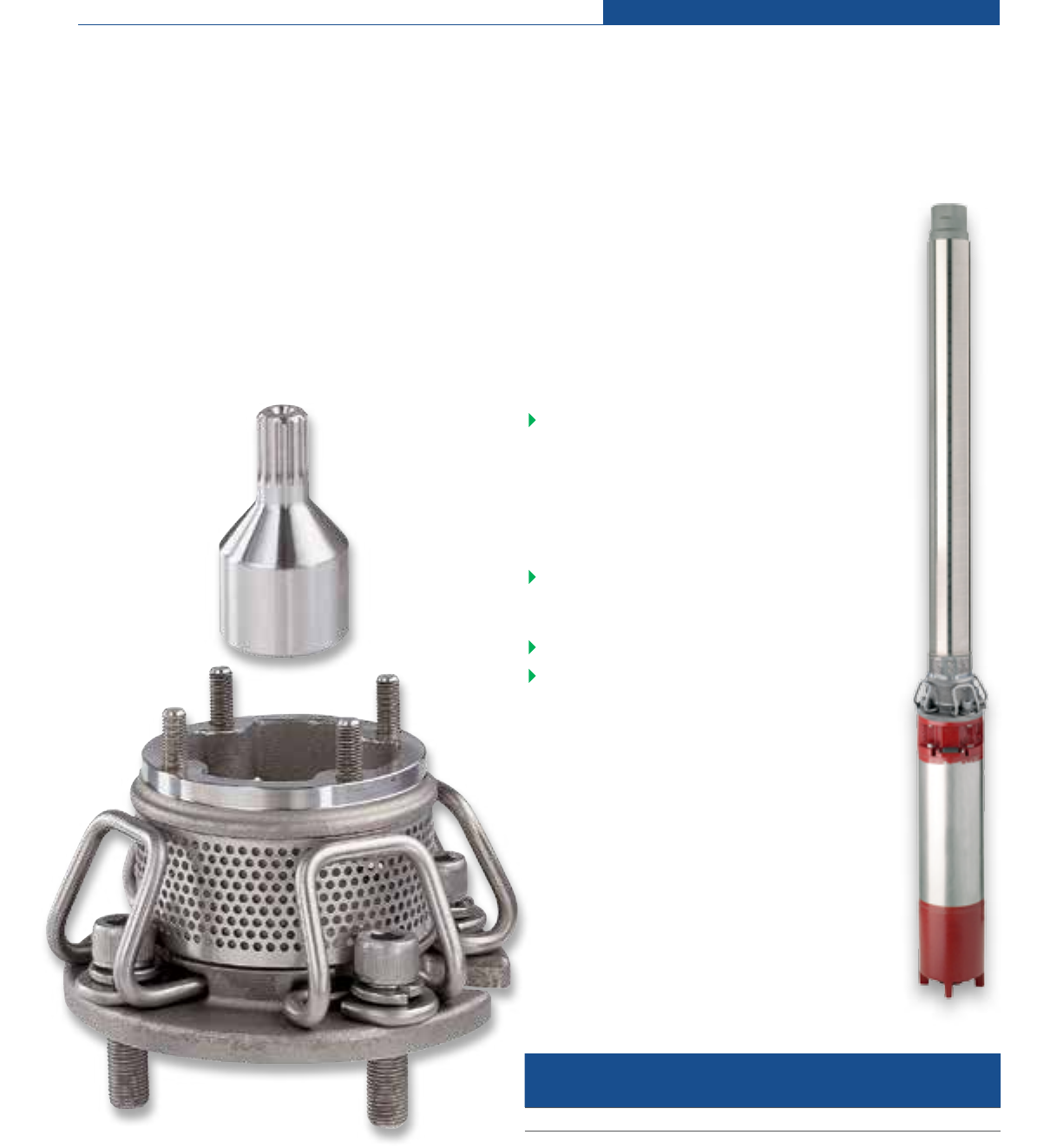

4" Submersible Motor Adapter 11

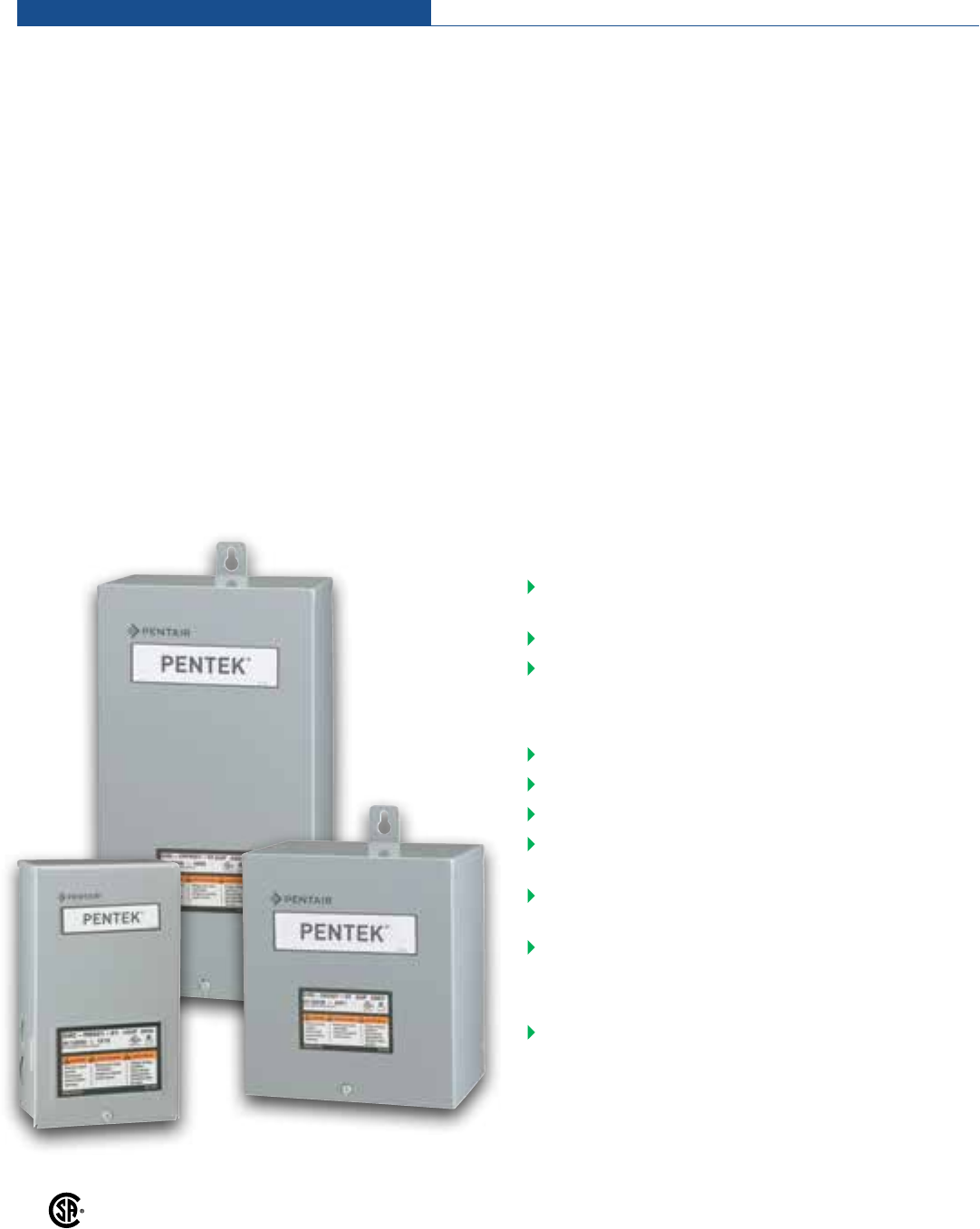

4" SINGLEPHASE MOTOR CONTROLS 1/2  5 HP 12

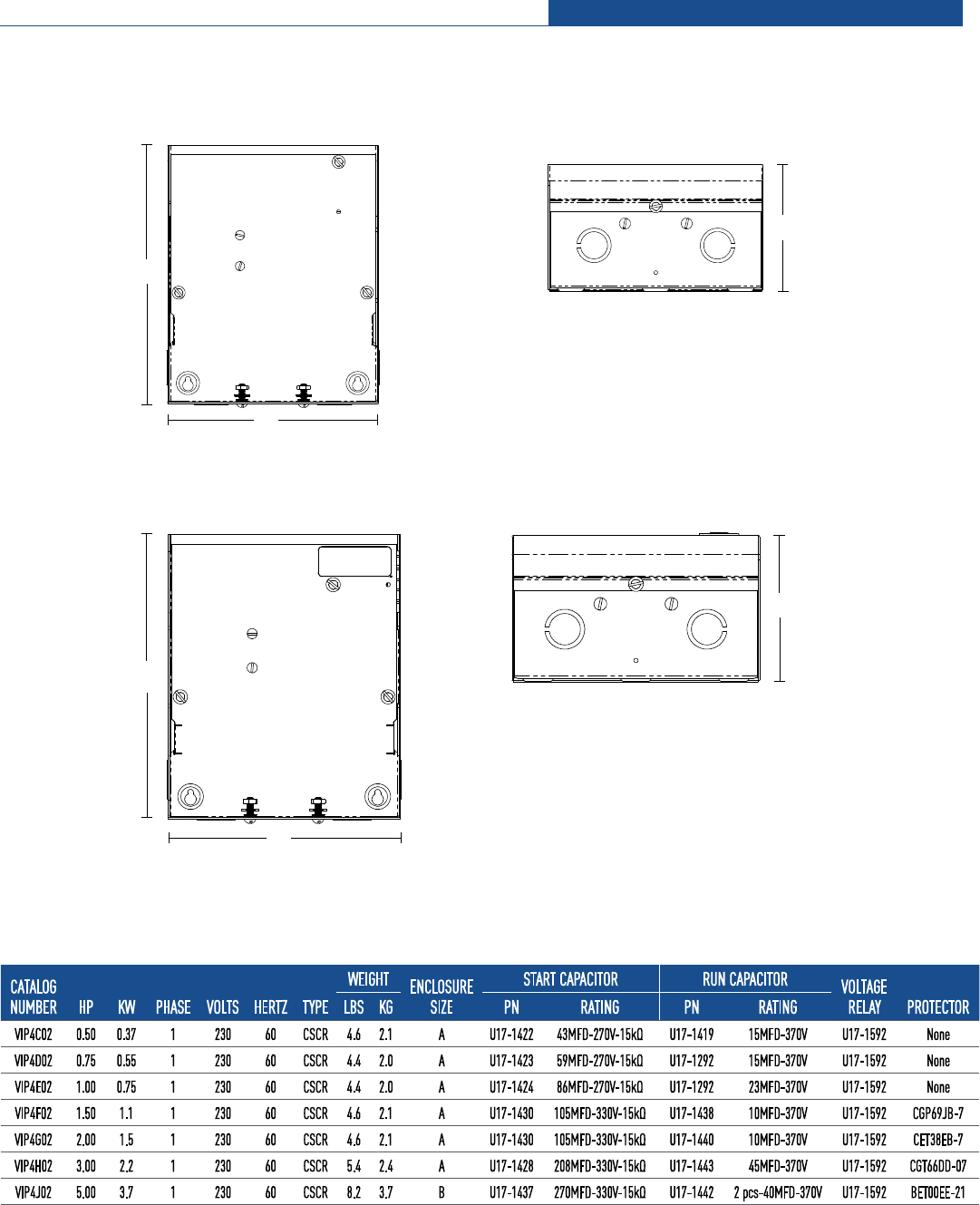

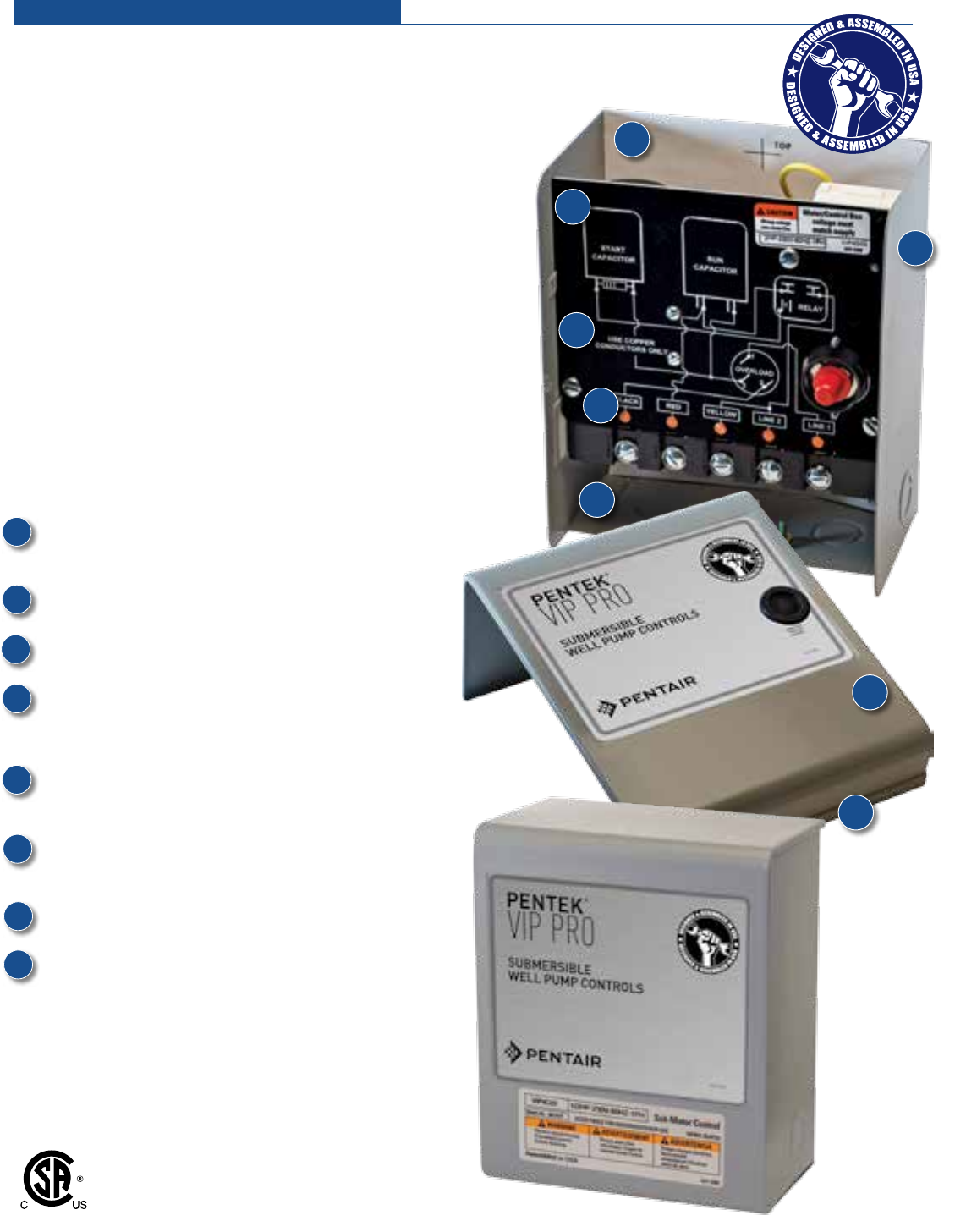

Single-Phase Controls, CSIR, CSCR, VIP Pro 12-15

PUMP PROTECTION 16

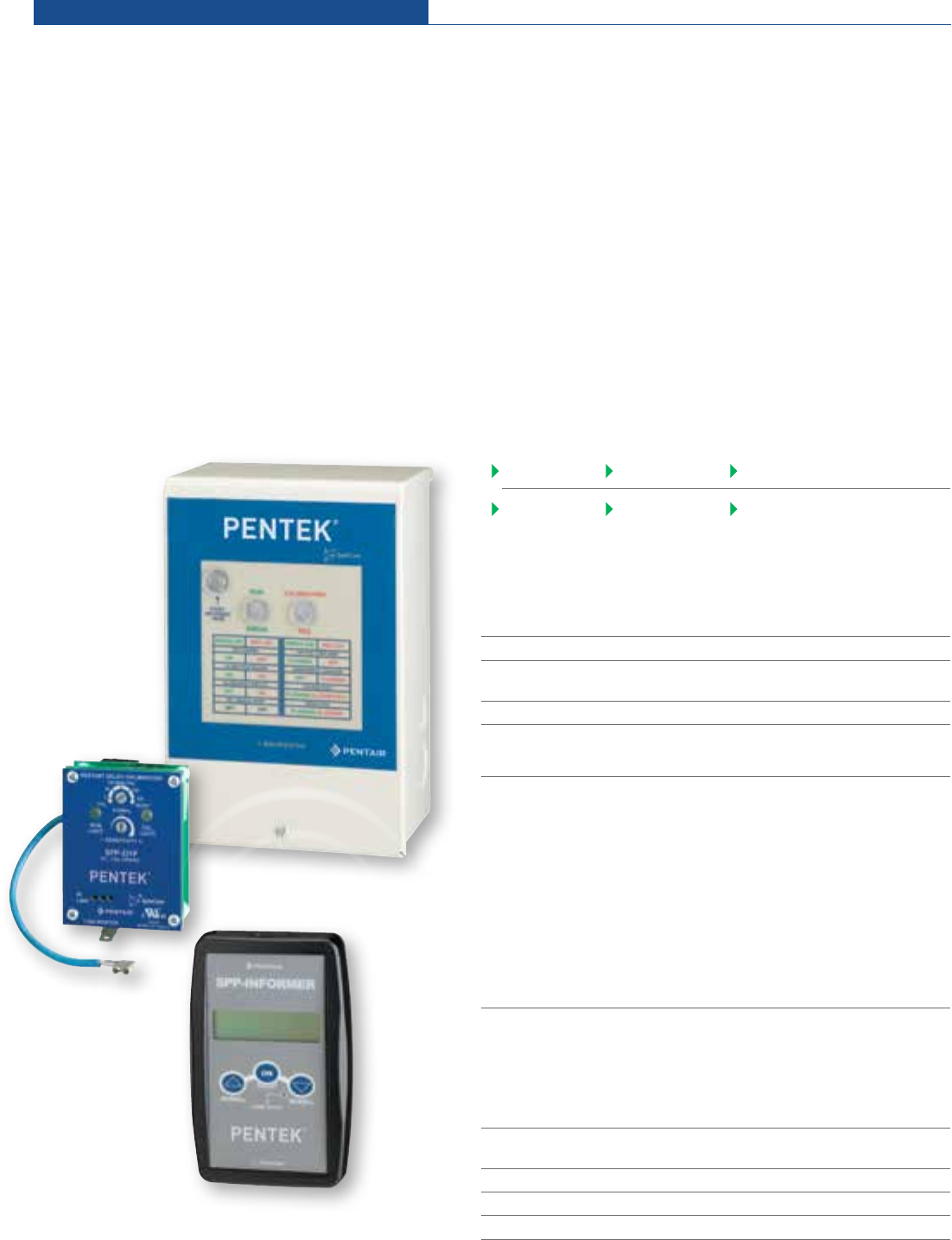

Single-Phase Protectors 16

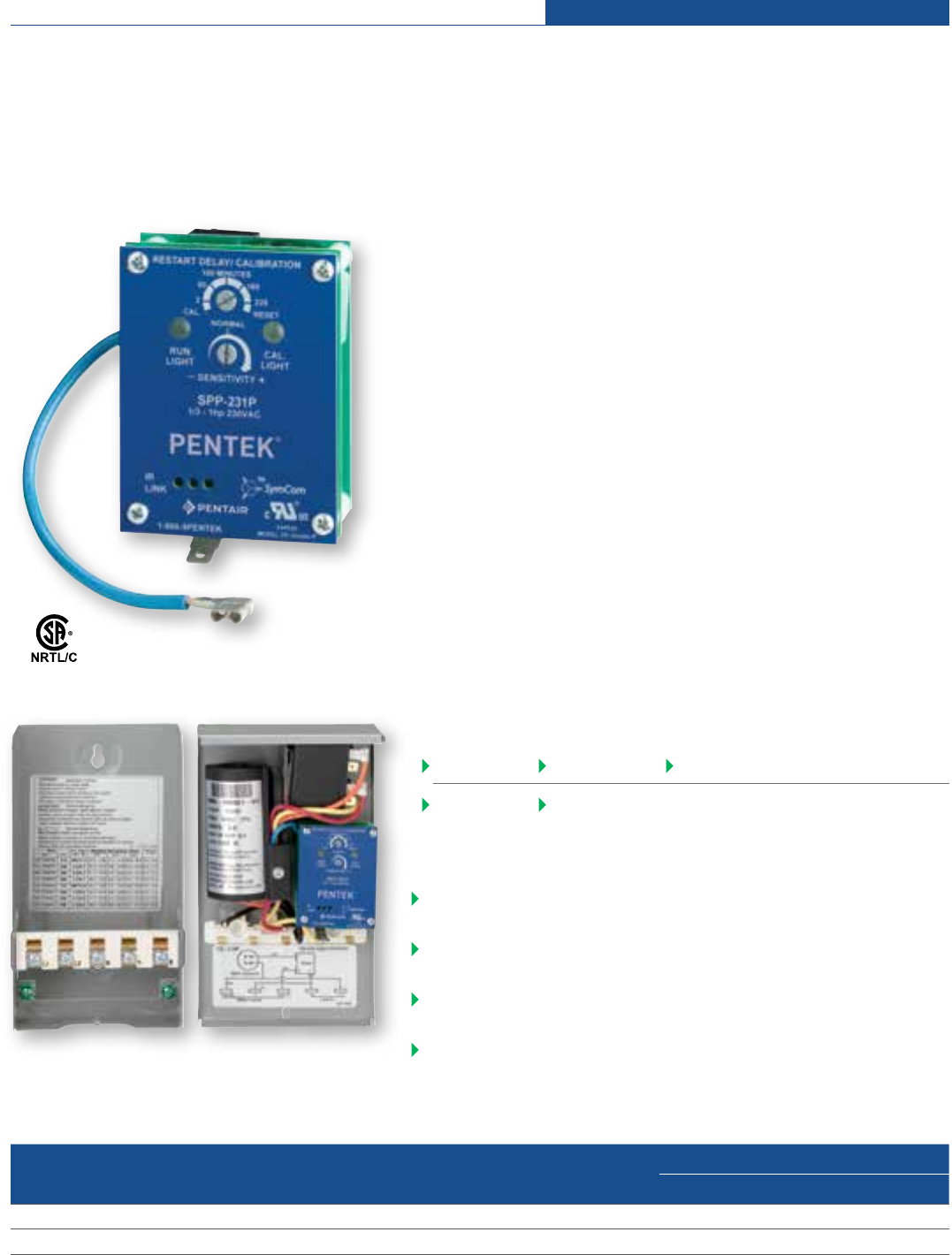

SPP-111P & 231P 1/3 – 1 HP 17

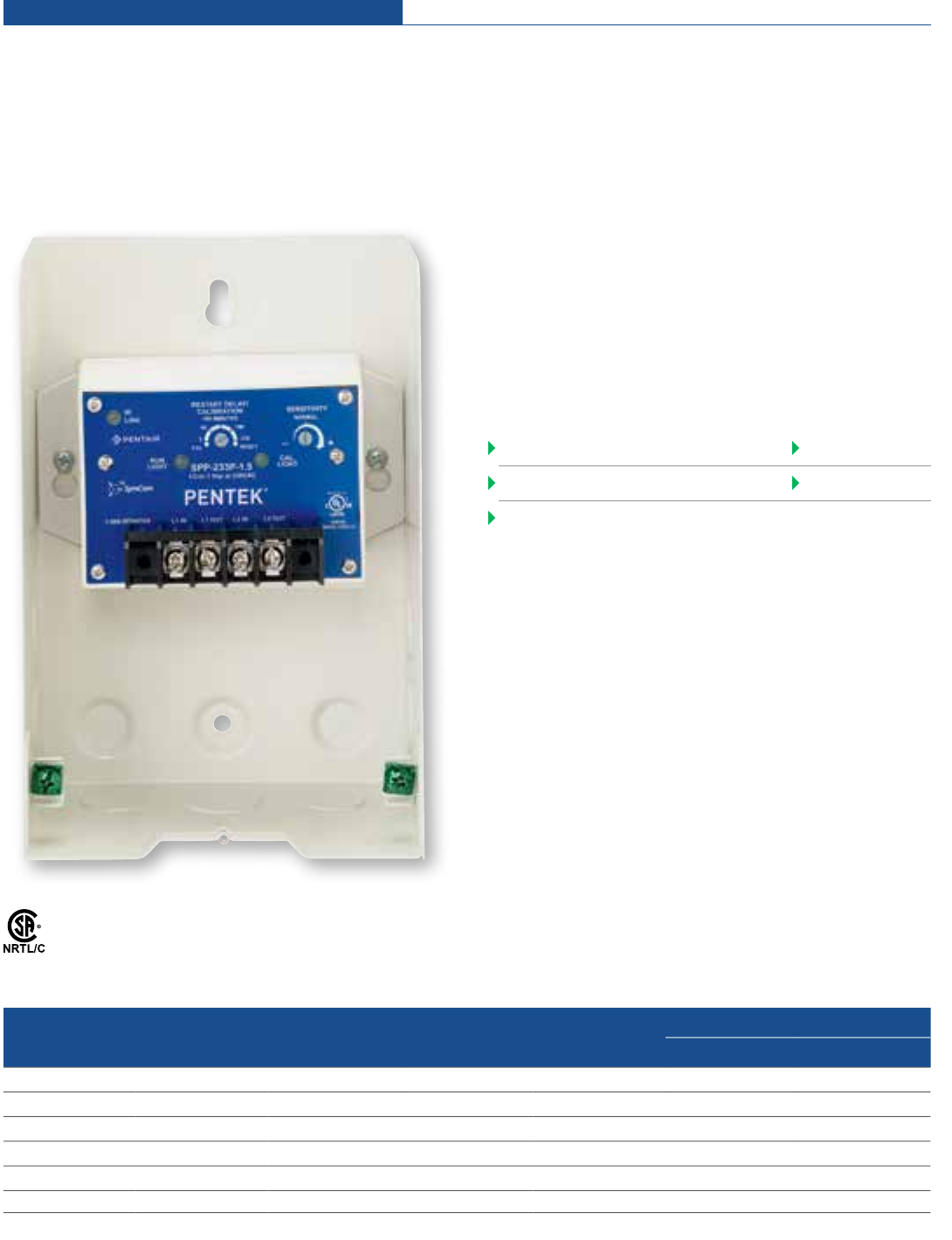

SPP-111P-3RL, SPP-233P & 235P 1/2 – 15 HP 18

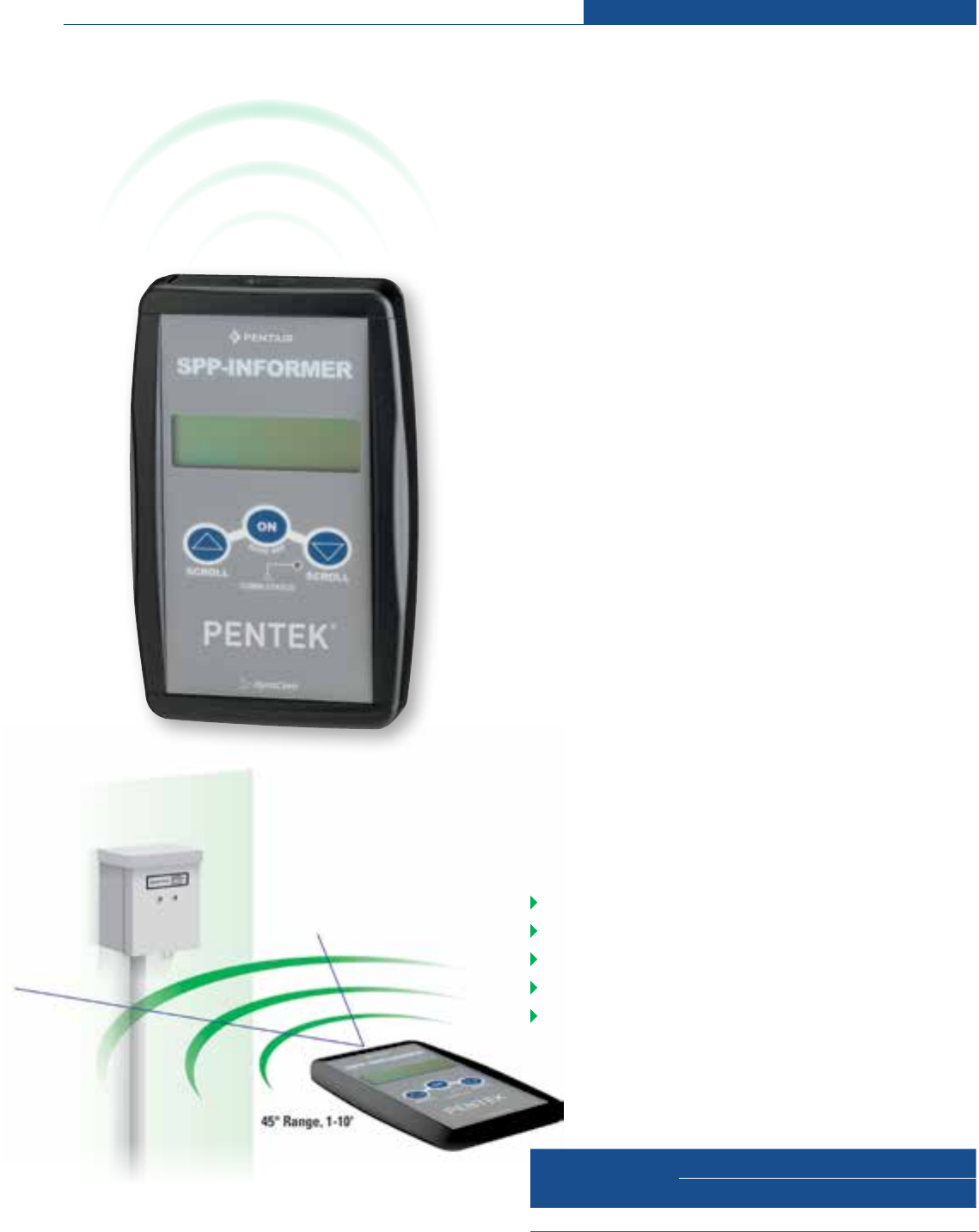

The Informer 19

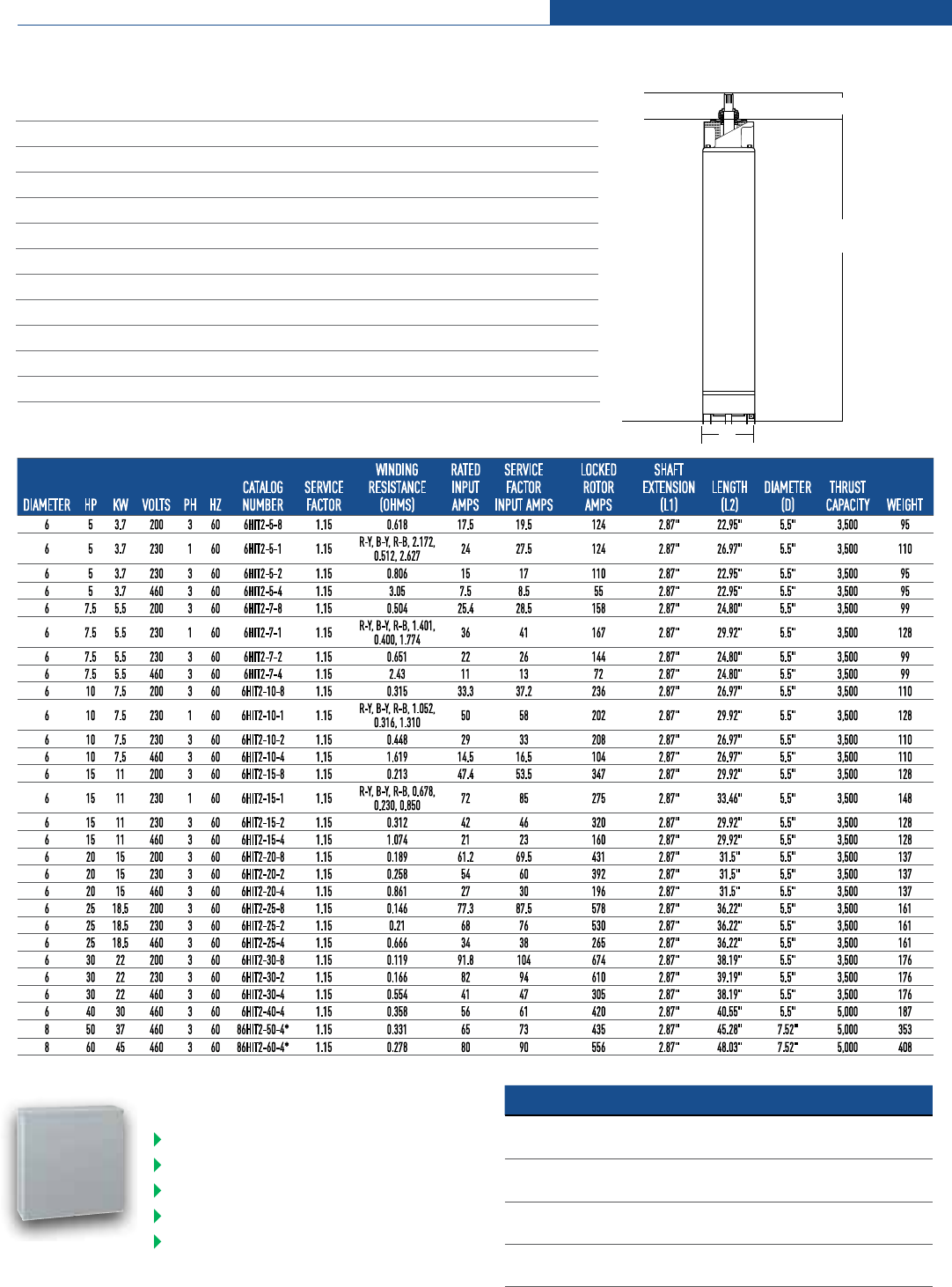

6" SUBMERSIBLE MOTORS 5  50 HP 20

Features & Benefits 20

Materials of Construction, Dimensional Data 21

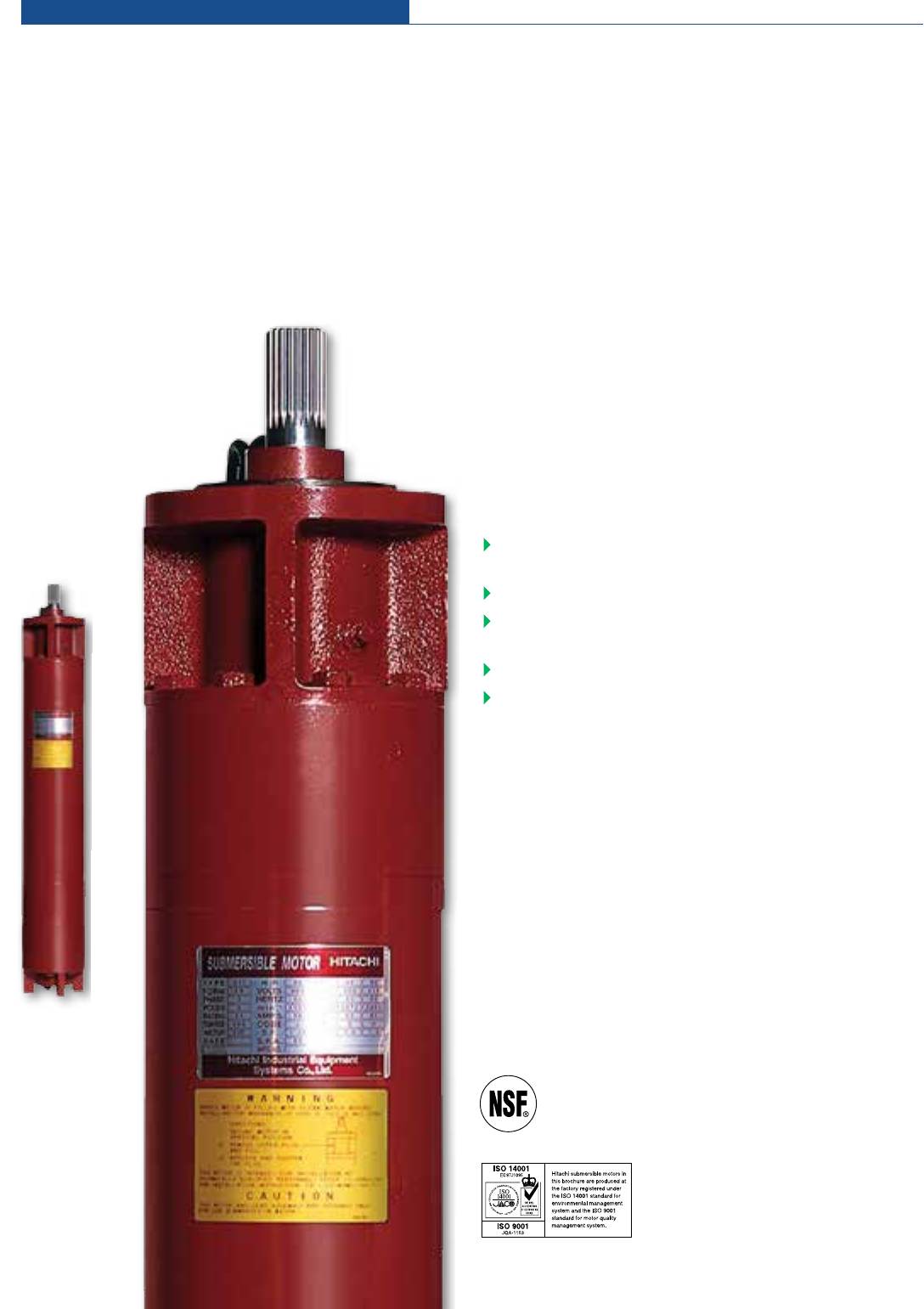

Hitachi® Submersible Motors 22

Hitachi Control Boxes 23

Technical Data 23

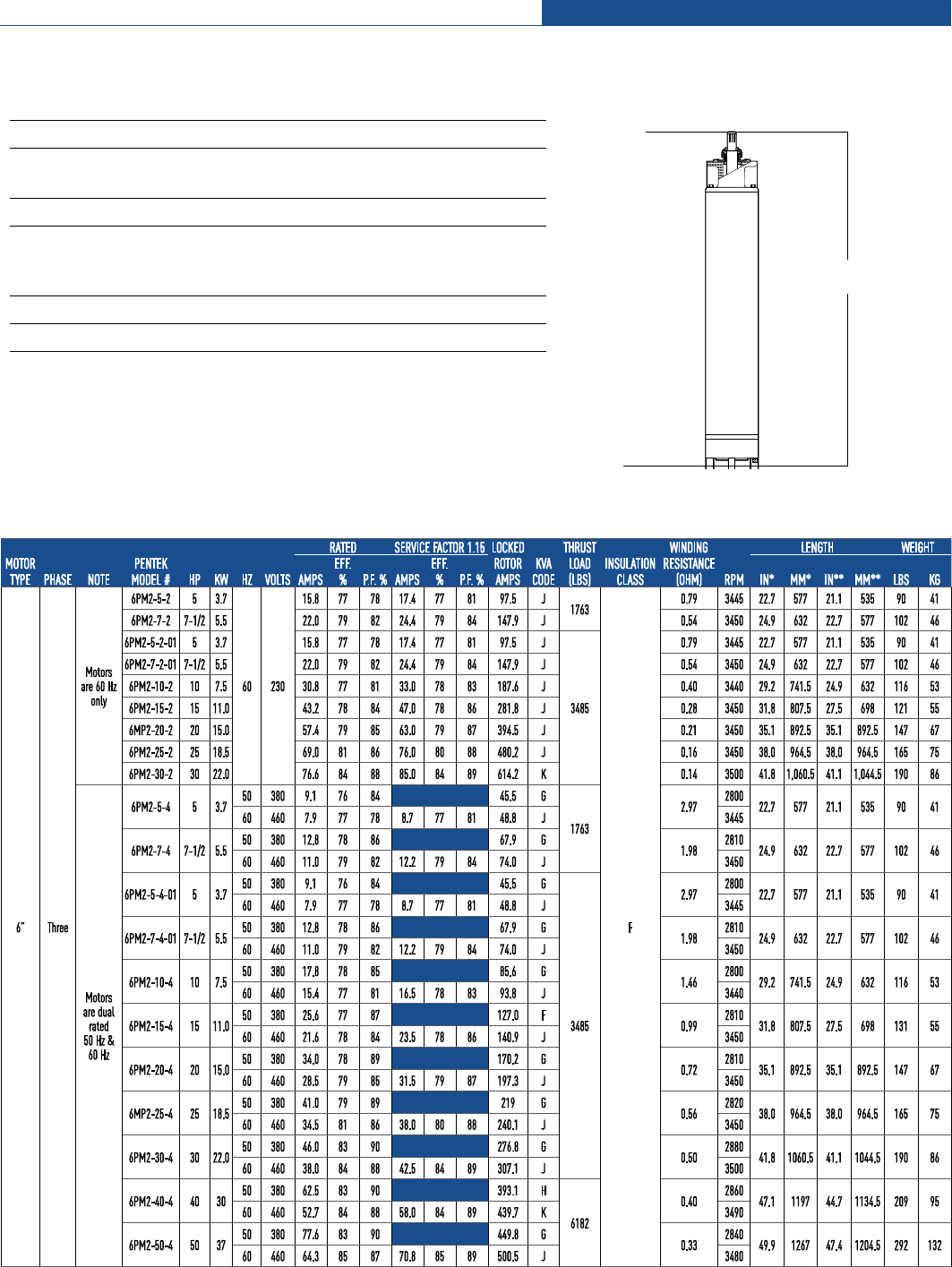

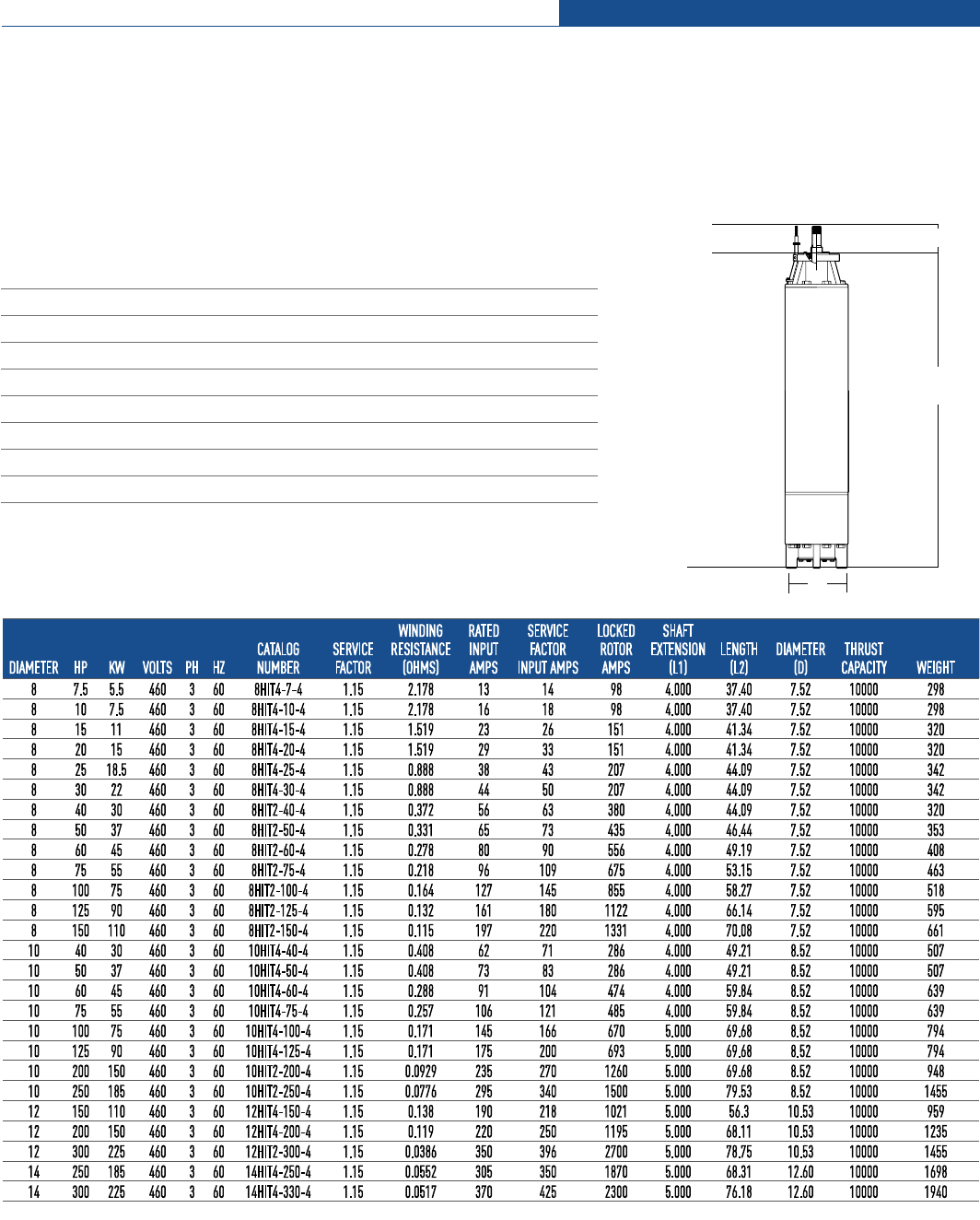

8" 14" SUBMERSIBLE MOTORS 71/2  300 HP 24

Features & Benefits 24

Materials of Construction, Dimensional Data, Technical Data 25

THREEPHASE STARTERS 26

PPX NEMA Pump Panels 26,27

DRIVE PRODUCTS 28

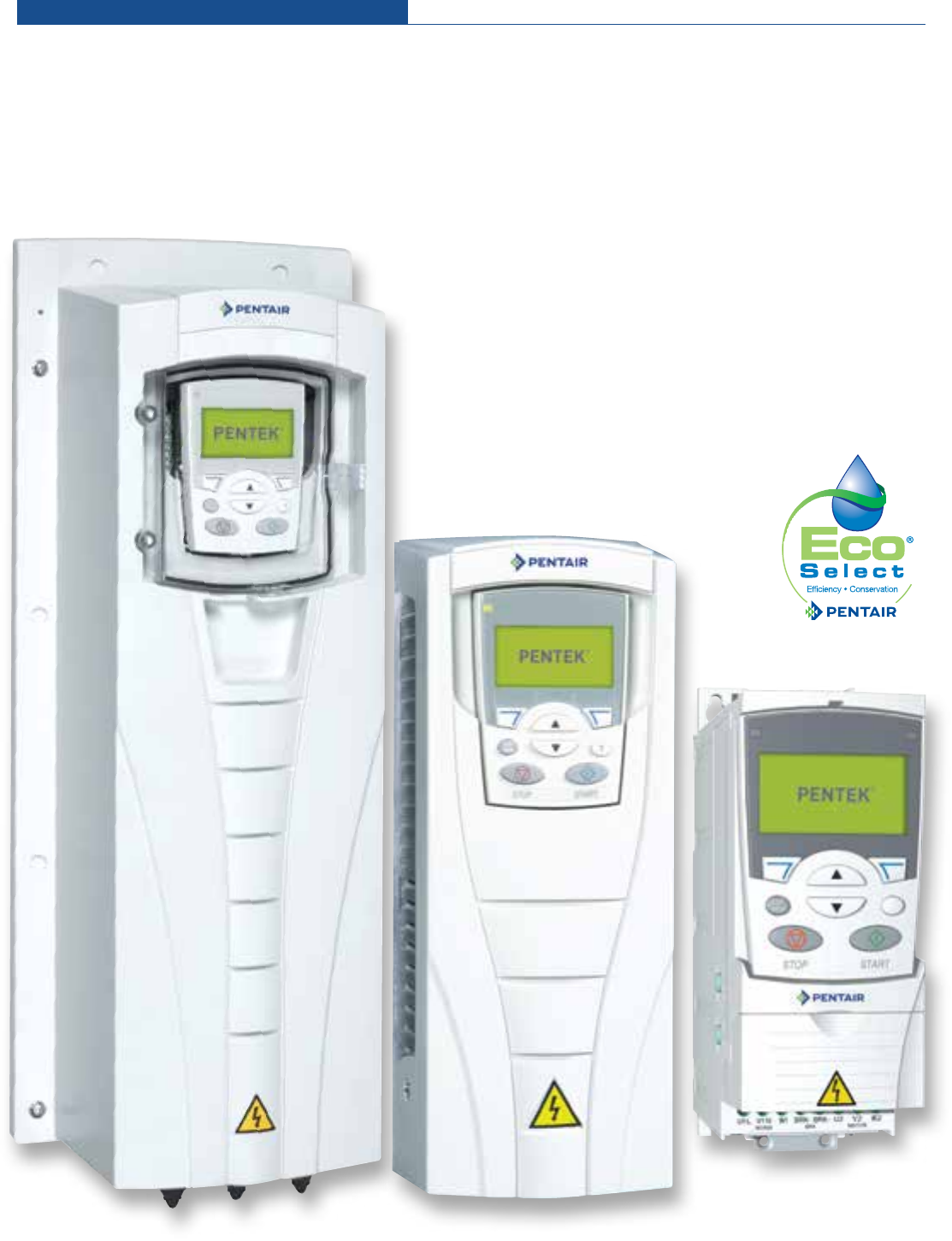

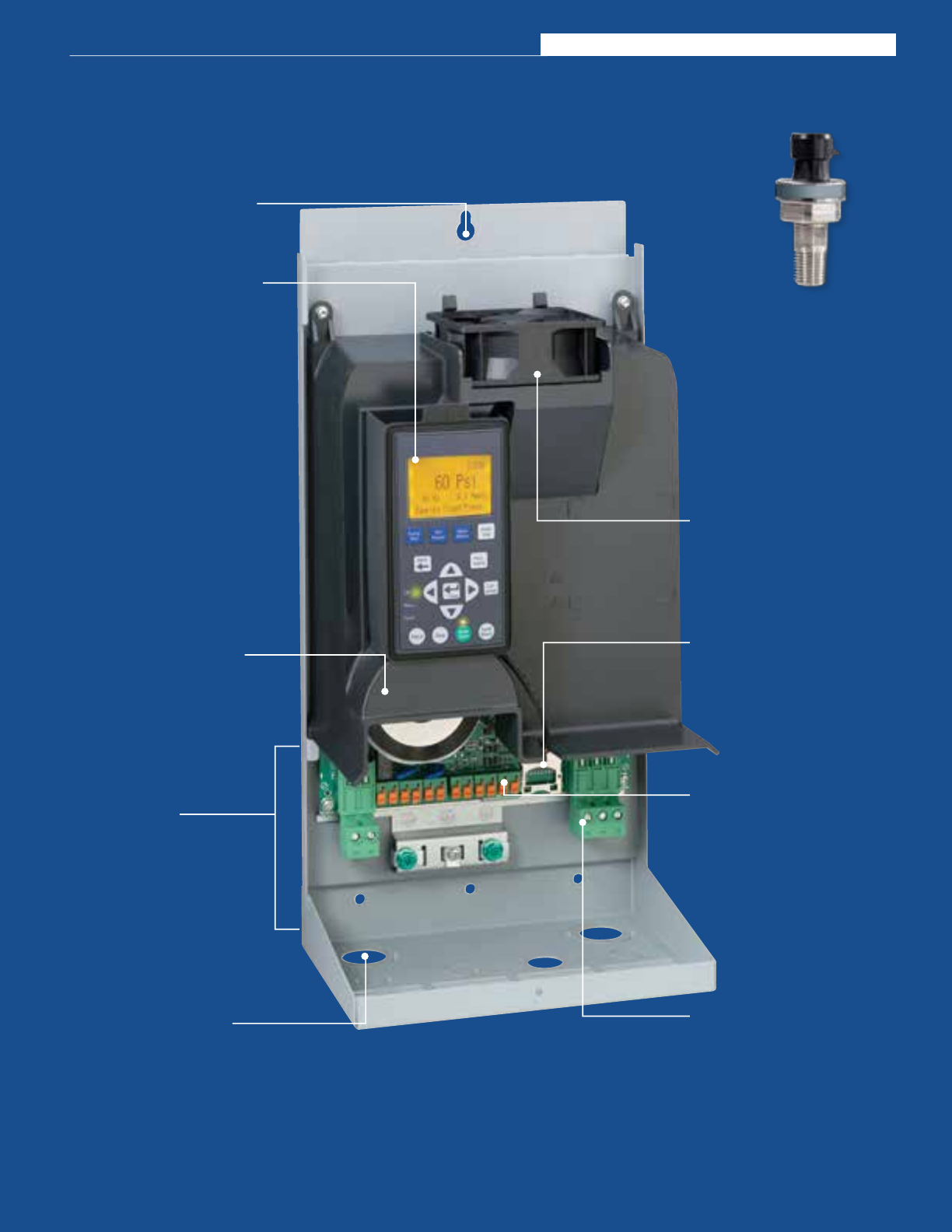

Pentek Intellidrive™ 1/2 – 3 HP 28-31

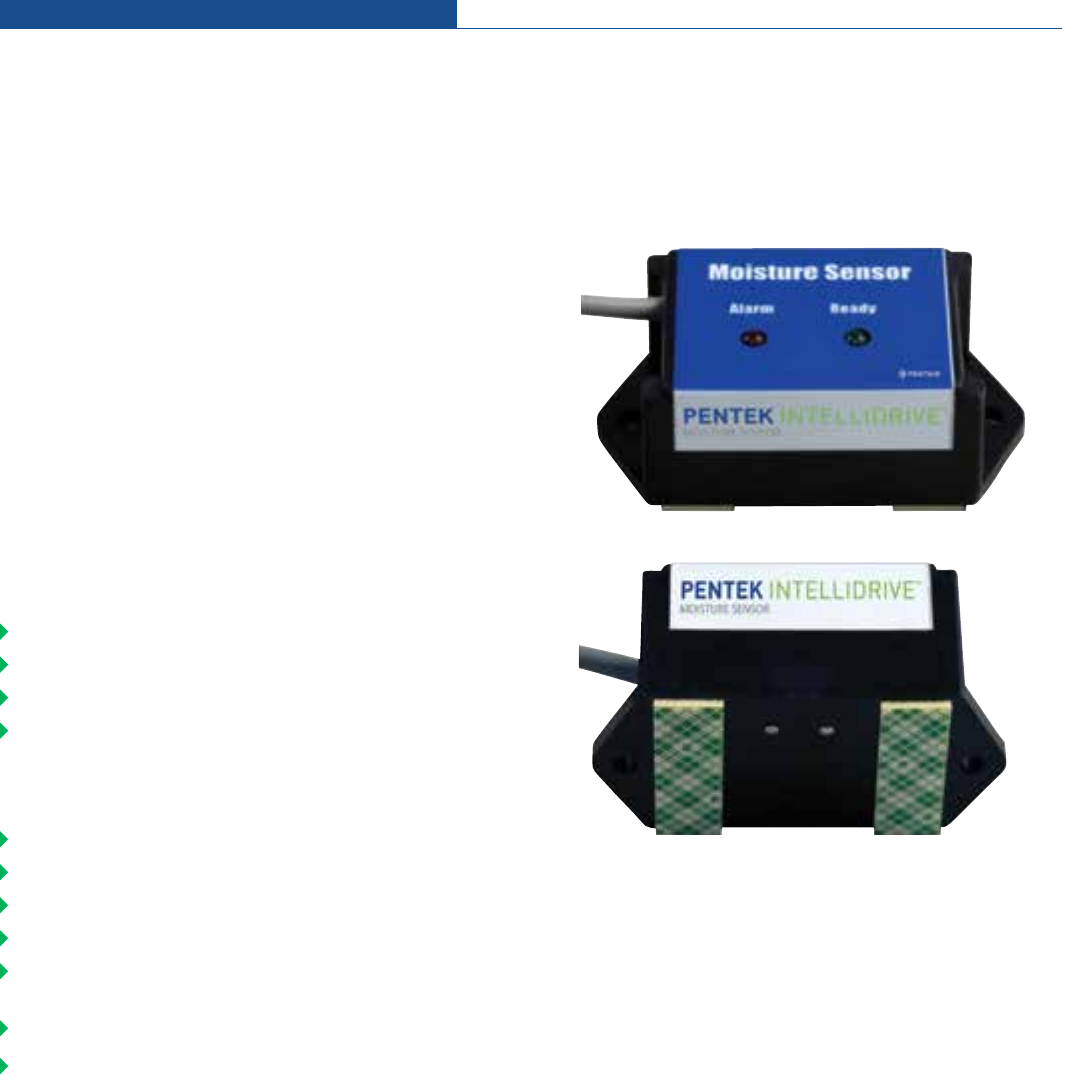

Pentek Intellidrive Accessories 32-35

PPC3 & PPC5 1/2 – 200 HP 36,37

PPC Selection Guide 38,39

ACCESSORIES 40

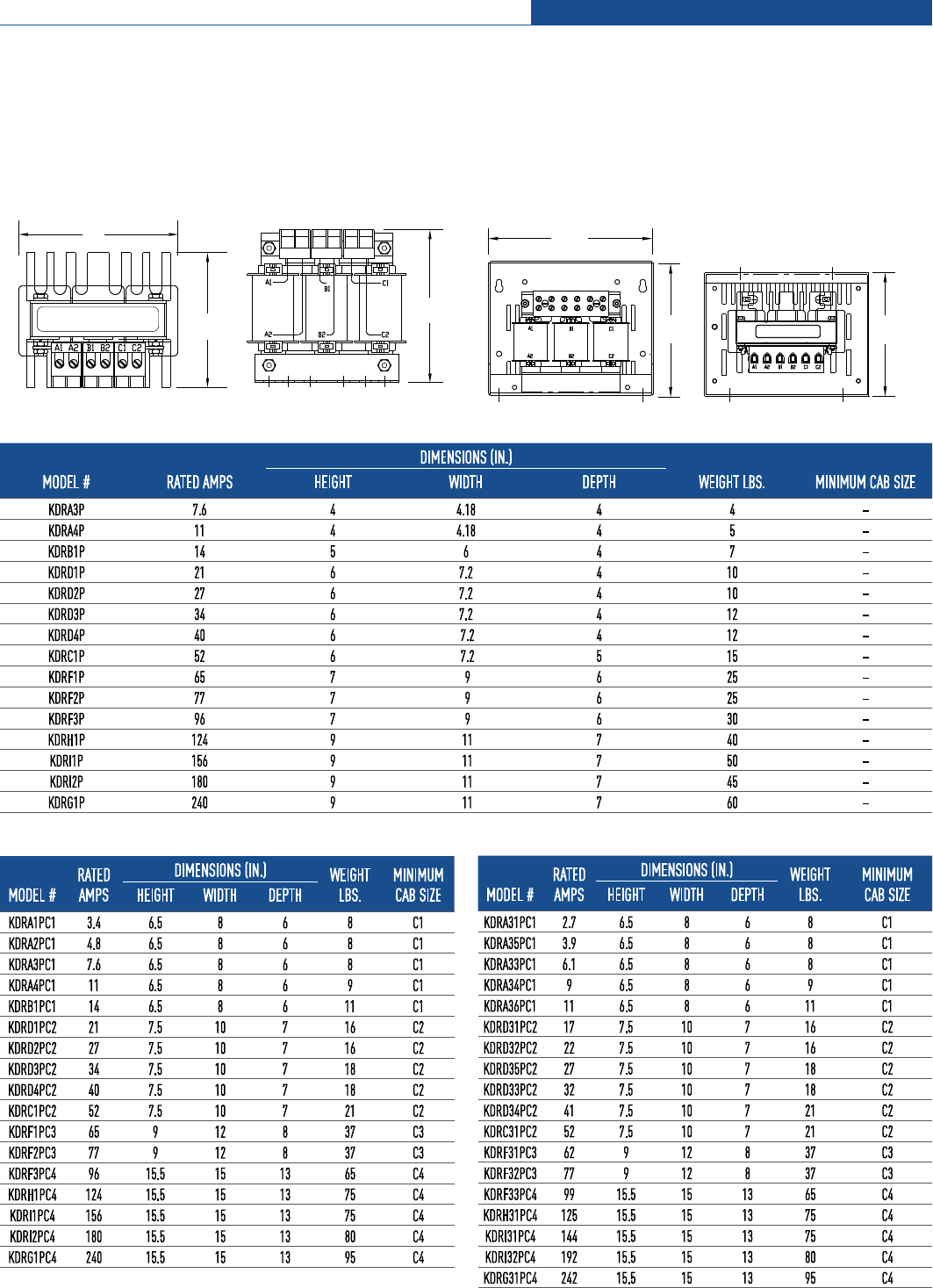

Reactors & Filters 40-42

Transducers, Leads & Repair Parts 43

NOMENCLATURE APPENDIX 40

1/2

−

5 HP, Single Phase, 2 & 3 Wire, 115V and 230V, 60 Hz

1/2 – 10 HP, Three Phase, 3 Wire, 200V, 230V, 460V and 575V, 60 Hz

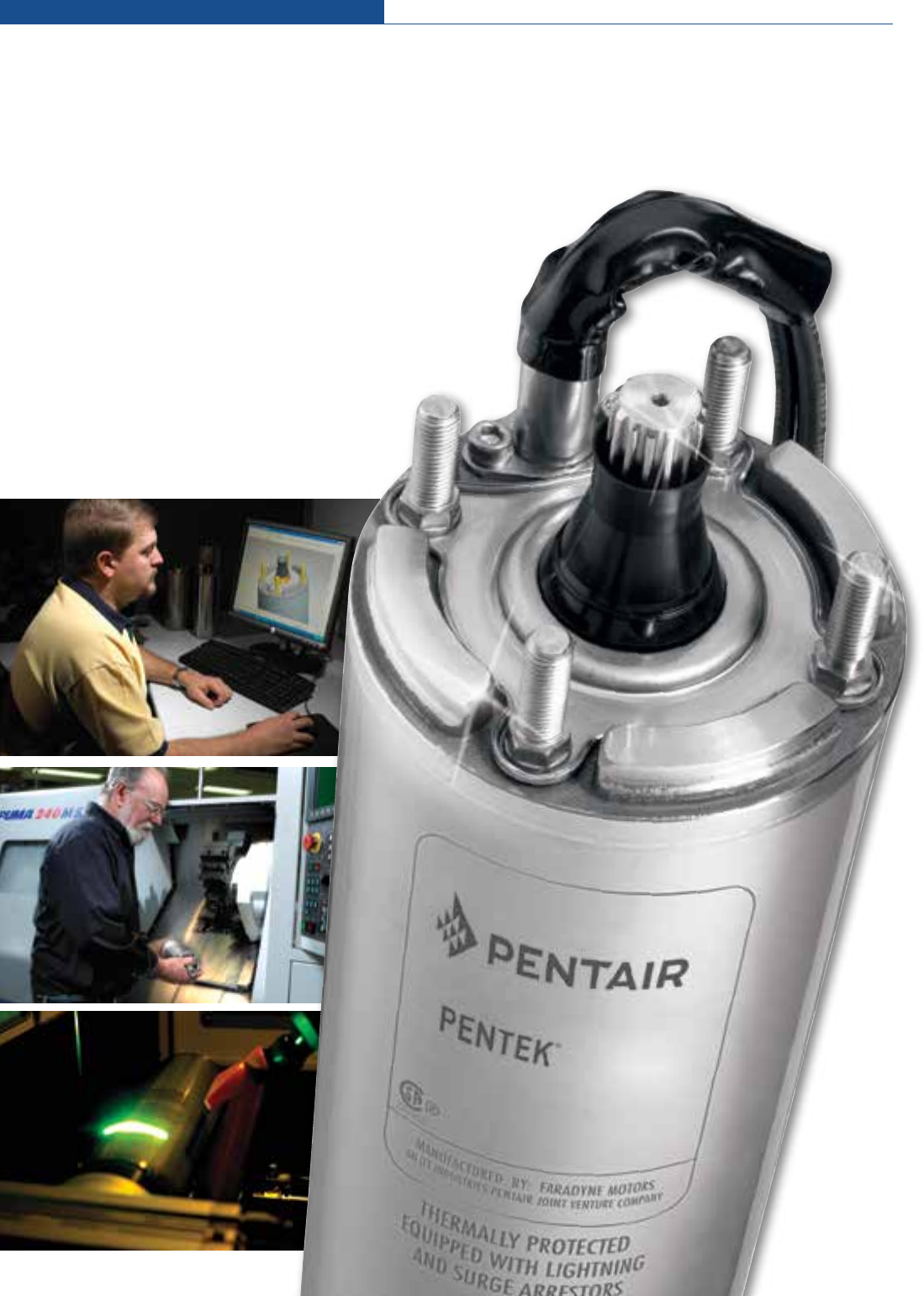

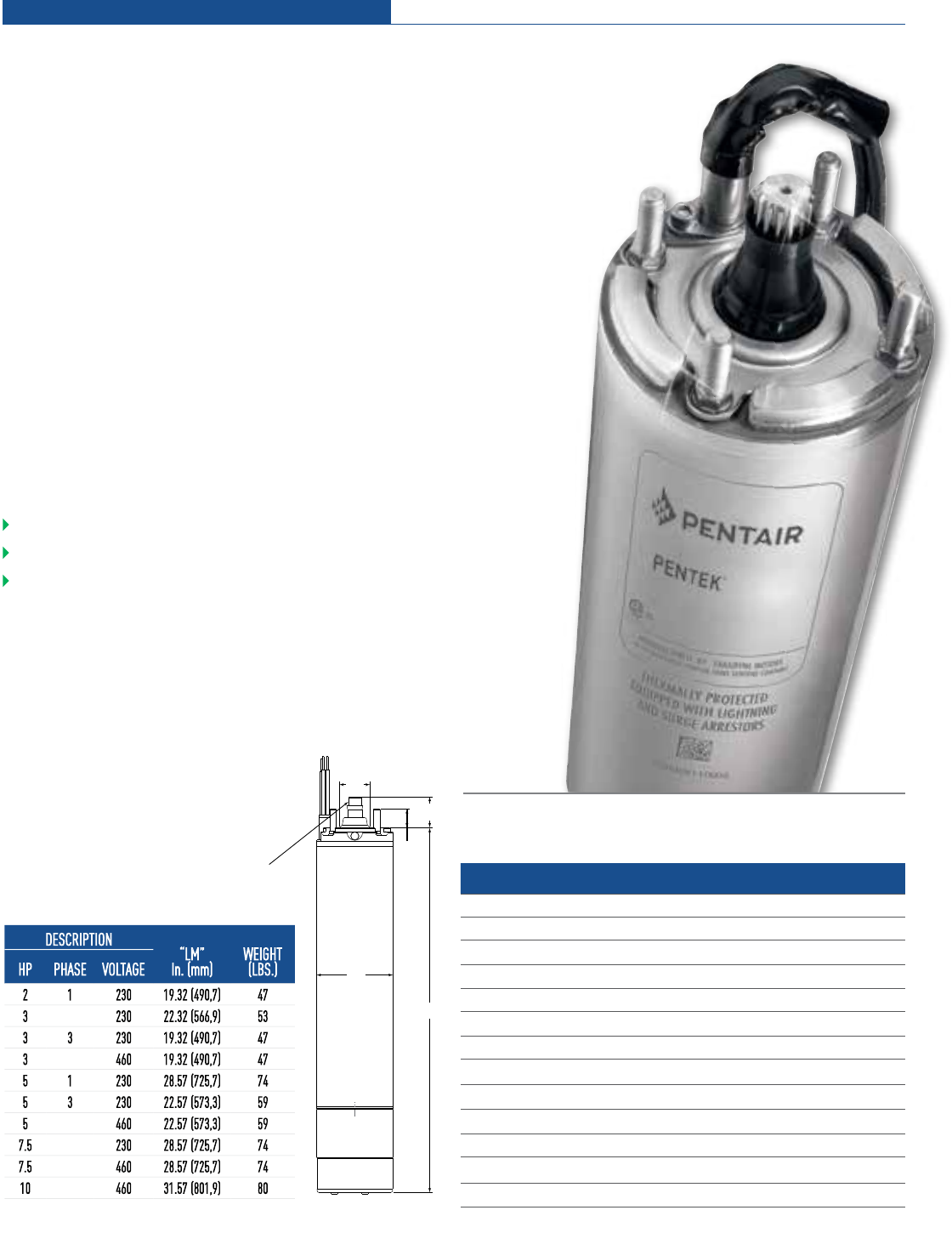

Pentek® offers a complete line of XE Series 4" Submersible

High-Thrust Motors. Built with the latest design,

manufacturing, and testing technology, they feature

laser-welded 304L stainless steel construction,

higher-thrust capacities and higher efficiencies.

4" Submersible Motors XESERIES

For high-thrust water well applications

4" submersible motors

Engineered EPOXY STATOR Design

The Pentek® XE Series submersible motors utilize

a 304L stainless steel “encapsulated, epoxy stator

design,” and professional-grade Class F insulation

providing longer life in harsh environments. Each

motor is 100% factory pressure and run tested to

support our high quality standards.

Features

Pentek submersible motors are unique in providing the

industry with innovative and robust design features that

will extend the life of your installation:

Oversized Kingsbury-type Thrust Bearing Design–

Large high-performance bearings are standard on

all HPs allowing for higher thrust loads, providing

many years of trouble-free service under

severe-duty operation

2-Wire Permanent Split Capacitor Design insures

quiet operation and improved operating efficiency

3-Wire Motors operate with Pentek SMC-CR,

VIP Pro and Pentek Intellidrive™ products

All Stainless Steel Exterior

Professional-Grade Class F-Compliant Motor

Insulation – Allows for longer service life

100% Factory Pressure and Run Tested

Automatic Thermal Protection on 2-wire designs

to 1-1/2 HP models and 3-wire designs to

1 HP single-phase

All 115V and 230V motors are equipped with surge

arrestors to provide maximum protection against

lightning, transient and voltage surge conditions

Technical data can be found on page 8

Materials of Construction

PARTS MATERIALS

End Bell 304L cast stainless steel, rounded bottom

Shell 304L stainless steel, laser-welded to end bells

Motor Shaft 17-4 precipitation hardened SS

Insulation Class F, 311°F (155°C)

Max. Water Temp. 86°F (30°C)

Fasteners 304-grade stainless steel

Lip Seal Nitrile

Sand Boot Nitrile

Cable Field-serviceable, controlled compression design

UL, CSA, NSF approved

Cable Length 48" - 1/2 HP to 1-1/2 HP; 100" - 2 HP and above

Diaphragm EPDM

Thrust Bearings Kingsbury-type, pivot shoe, carbon graphite

mating ring

Thrust Load Capacity Varies by rating. See table on page 8

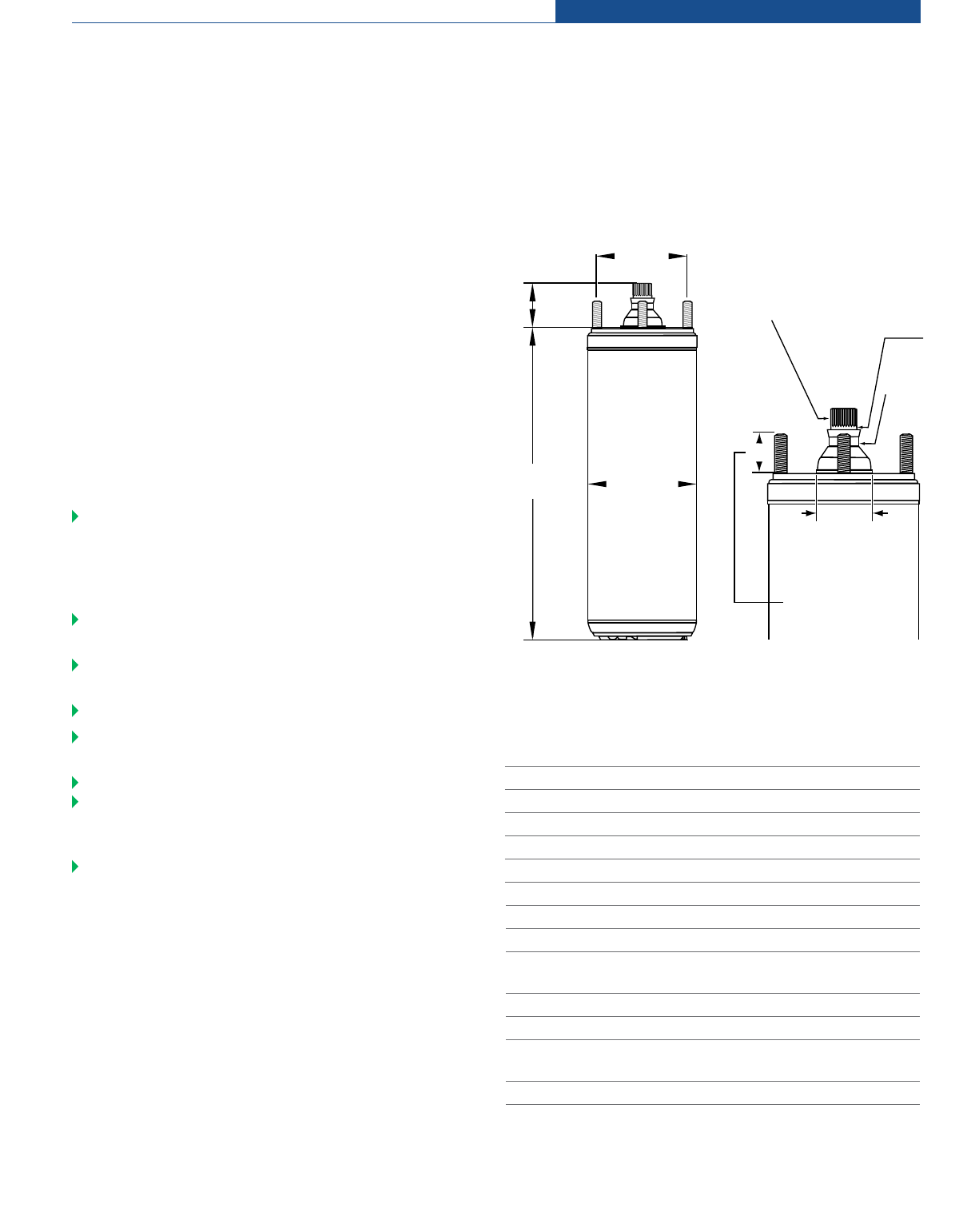

Mounting Configuration

P 8111 WS

3.00”

(76.2)mm)

1.50”

(38.1mm)

3.75”

(92.25mm)

1.5”max

Sand

Boot

0.91”

(4) 5/16-24

UNF-2A Threaded

Studs on 3” Dia. Circle

0.6255”

0.6245”

14 Teeth 24/48 Pitch

30º Pressure Angle

Min. 0.50 Full Spline

ANSI B92.1 Compliant

“L”

XESERIES

Consult Pentek Electronics Manual for high-temperature applications

4" submersible motors

PENTEK CUSTOMER HOTLINE: 18669PENTEK

4" Submersible Motors XESERIES

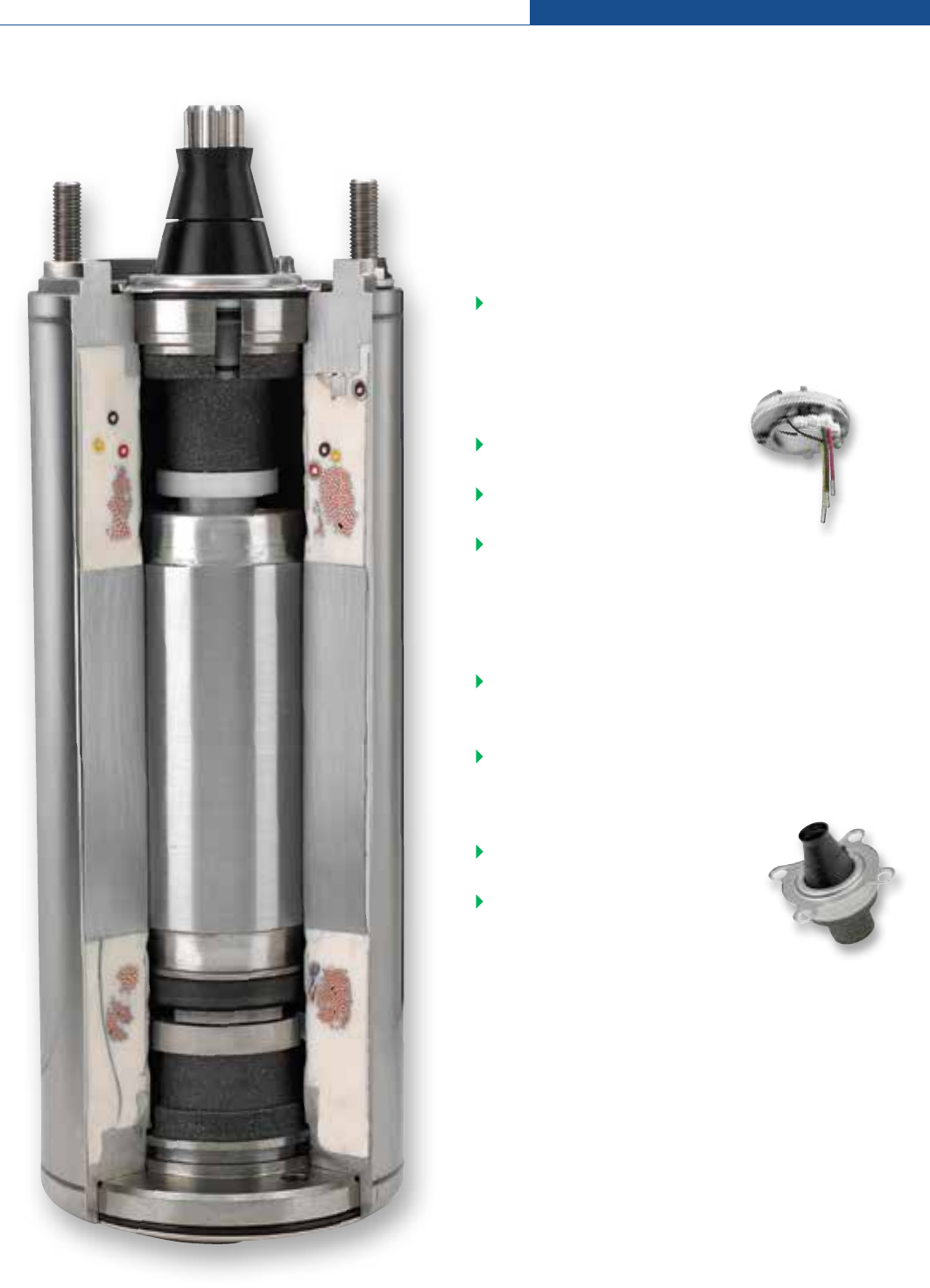

Innovations focused on dependable performance

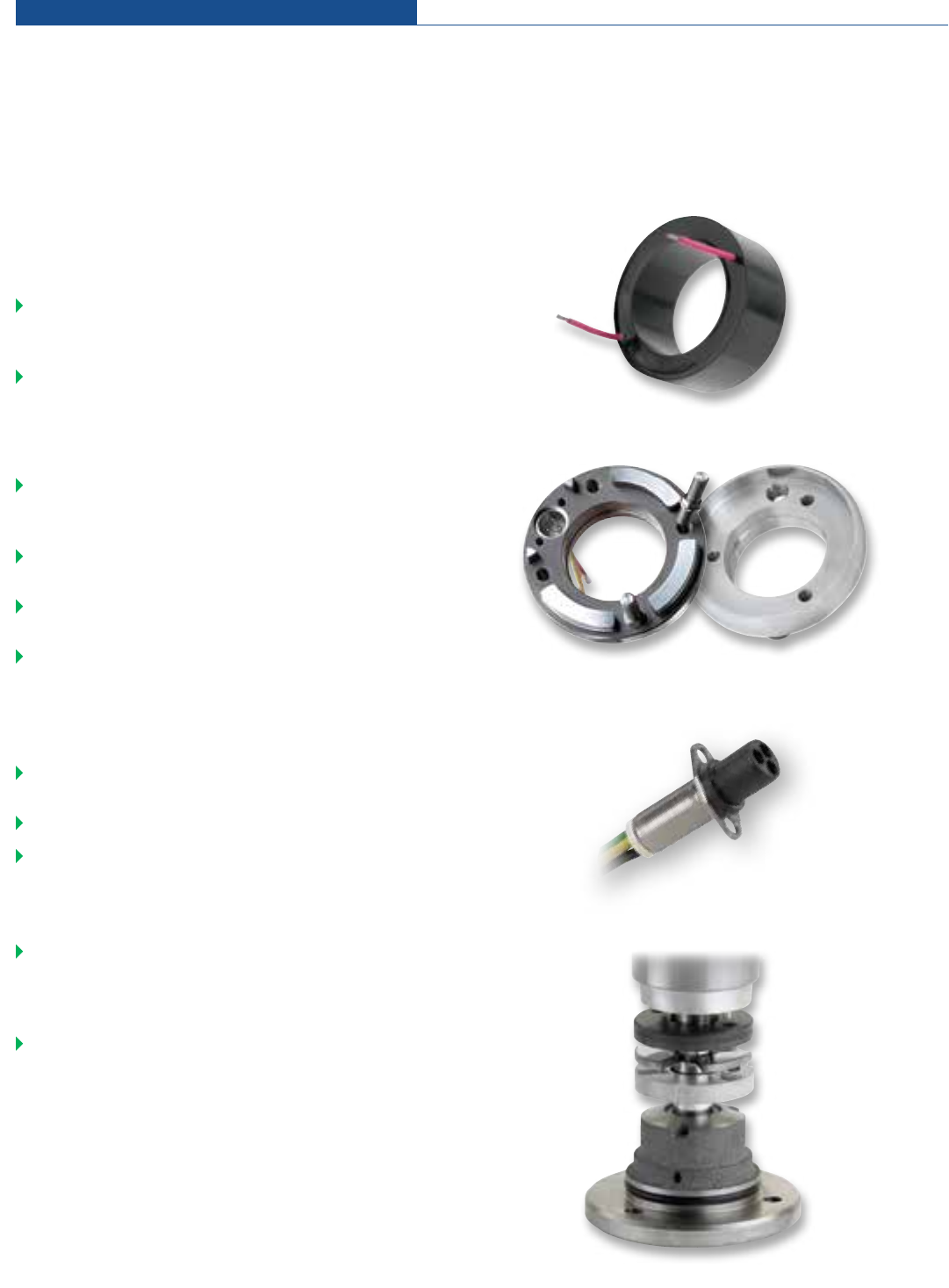

Capacitor

Patented encapsulated toroidal capacitor on

2-wire motor design provides smoother, noise-free

operation without the need for a control box

Lower starting current with both main and start

windings engaged at all times

Motor End Bells & Shell

Upper & lower 304L stainless steel (SS) end bells

are designed for 100% corrosion-resistance and

durability

Rounded bottom on lower end bell reduces well

casing interference

Upper 304L SS end bell is designed with internal

cord entry feature

Motor shell is constructed of 304L SS tubing, with a

laser-etched nameplate and warning label

Motor Leads

Replaceable lead is held in place by 2 screws

for controlled compression

Each lead is tested twice to 250 PSI

UL, CSA, NSF approved

Kingsbury-type Thrust Bearings

Large high-performance bearings are standard

on all HPs, allowing higher thrust loads, for many

years of trouble-free service under severe-duty

operation

Stainless steel pivot shoe is securely positioned

over the carbon graphite disk for even load

disbursement

4" SUBMERSIBLE MOTORS

6PENTEK CUSTOMER HOTLINE: 18669PENTEK

XESERIES

Class F Insulation

Professional-grade Class F-compliant motor

insulation allows for longer service life and

more reliable motor operation

Surge Arrestors

Surge arrestors are mounted

within the upper end bell

Design provides each conductor

circuit with its own surge arrestor

Designed to optimize clamping voltage,

energy absorption/dissipation and

response time

Drive Shaft

17-4 precipitation hardened

stainless steel shaft with precision

finished bearing surfaces

NEMA standard mounting and shaft height

Sand Slinger

Provides ultimate protection

against sand and grit intrusion

Stamped stainless steel

upper cover is designed to

prevent sand entry

4" submersible motors

PENTEK CUSTOMER HOTLINE: 18669PENTEK

4" Submersible Motors

For high-thrust water well applications — 1/2 - 10 HP, single- and three-phase

PENTEK CUSTOMER HOTLINE: 18669PENTEK

4" submersible motors

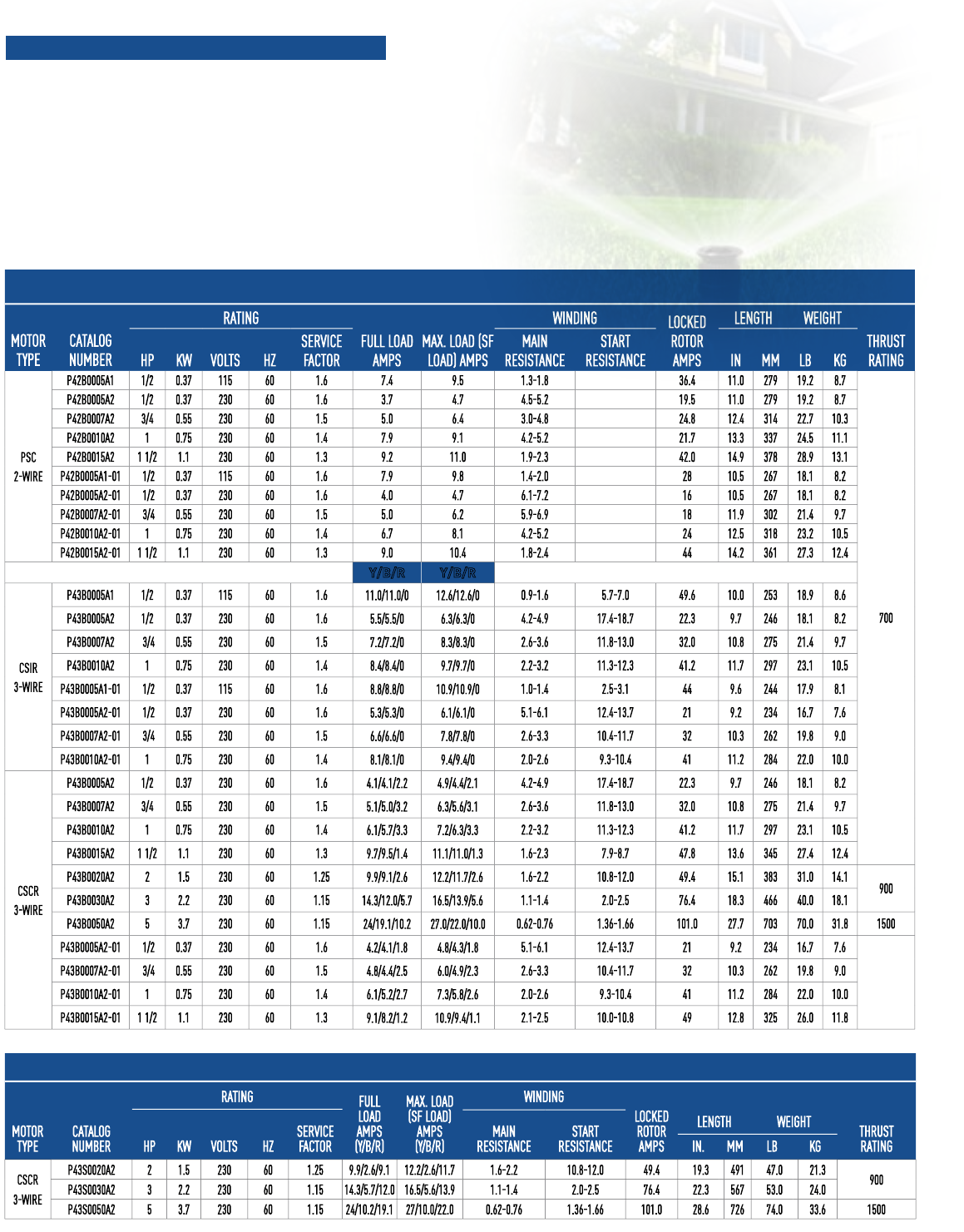

XE SERIES PERFORMANCE

MOTOR

TYPE

CaTaLOg

NuMbER

RaTINg

FuLL LOad

aMPS

Max. LOad (SF

LOad) aMPS

WINdINg

LOCkEd

ROTOR

aMPS

LENgTH

WEIgHT

THRuST

RaTINg

VOLTS

SERVICE

FaCTOR

MaIN

RESISTaNCE

STaRT

RESISTaNCE

PSC

2-WIRE

P42b0005a1

1/2

0.37

115

1.6

7.4

9.5

1.3-1.8

36.4

11.0

279

19.2

8.7

700

P42b0005a2

1/2

0.37

230

1.6

3.7

4.7

4.5-5.2

19.5

11.0

279

19.2

8.7

P42b0007a2

3/4

0.55

230

1.5

5.0

6.4

3.0-4.8

24.8

12.4

314

22.7

10.3

P42b0010a2

0.75

230

1.4

7.9

9.1

4.2-5.2

21.7

13.3

337

24.5

11.1

P42b0015a2

1 1/2

1.1

230

1.3

9.2

11.0

1.9-2.3

42.0

14.9

378

28.9

13.1

P42b0005a1-01

1/2

0.37

115

1.6

7.9

9.8

1.4-2.0

10.5

267

18.1

8.2

P42b0005a2-01

1/2

0.37

230

1.6

4.0

4.7

6.1-7.2

10.5

267

18.1

8.2

P42b0007a2-01

3/4

0.55

230

1.5

5.0

6.2

5.9-6.9

11.9

302

21.4

9.7

P42b0010a2-01 1 0.75 230 60 1.4 6.7 8.1 4.2-5.2 24 12.5 318 23.2 10.5

P42b0015a2-01

1 1/2

1.1

230

1.3

9.0

10.4

1.8-2.4

14.2

361

27.3

12.4

Y/B/R

CSIR

3-WIRE

P43b0005a1 1/2 0.37 115 60 1.6 11.0/11.0/0 12.6/12.6/0 0.9-1.6 5.7-7.0 49.6 10.0 253 18.9 8.6

P43b0005a2 1/2 0.37 230 60 1.6 5.5/5.5/0 6.3/6.3/0 4.2-4.9 17.4-18.7 22.3 9.7 246 18.1 8.2

P43b0007a2 3/4 0.55 230 60 1.5 7.2/7.2/0 8.3/8.3/0 2.6-3.6 11.8-13.0 32.0 10.8 275 21.4 9.7

P43b0010a2 1 0.75 230 60 1.4 8.4/8.4/0 9.7/9.7/0 2.2-3.2 11.3-12.3 41.2 11.7 297 23.1 10.5

P43b0005a1-01 1/2 0.37 115 60 1.6 8.8/8.8/0 10.9/10.9/0 1.0-1.4 2.5-3.1 44 9.6 244 17.9 8.1

P43b0005a2-01 1/2 0.37 230 60 1.6 5.3/5.3/0 6.1/6.1/0 5.1-6.1 12.4-13.7 21 9.2 234 16.7 7.6

P43b0007a2-01 3/4 0.55 230 60 1.5 6.6/6.6/0 7.8/7.8/0 2.6-3.3 10.4-11.7 32 10.3 262 19.8 9.0

P43b0010a2-01 1 0.75 230 60 1.4 8.1/8.1/0 9.4/9.4/0 2.0-2.6 9.3-10.4 41 11.2 284 22.0 10.0

CSCR

3-WIRE

P43b0005a2 1/2 0.37 230 60 1.6 4.1/4.1/2.2 4.9/4.4/2.1 4.2-4.9 17.4-18.7 22.3 9.7 246 18.1 8.2

P43b0007a2 3/4 0.55 230 60 1.5 5.1/5.0/3.2 6.3/5.6/3.1 2.6-3.6 11.8-13.0 32.0 10.8 275 21.4 9.7

P43b0010a2 1 0.75 230 60 1.4 6.1/5.7/3.3 7.2/6.3/3.3 2.2-3.2 11.3-12.3 41.2 11.7 297 23.1 10.5

P43b0015a2 1 1/2 1.1 230 60 1.3 9.7/9.5/1.4 11.1/11.0/1.3 1.6-2.3 7.9-8.7 47.8 13.6 345 27.4 12.4

P43b0020a2 2 1.5 230 60 1.25 9.9/9.1/2.6 12.2/11.7/2.6 1.6-2.2 10.8-12.0 49.4 15.1 383 31.0 14.1 900

P43b0030a2 3 2.2 230 60 1.15 14.3/12.0/5.7 16.5/13.9/5.6 1.1-1.4 2.0-2.5 76.4 18.3 466 40.0 18.1

P43b0050a2 5 3.7 230 60 1.15 24/19.1/10.2 27.0/22.0/10.0 0.62-0.76 1.36-1.66 101.0 27.7 703 70.0 31.8 1500

P43b0005a2-01 1/2 0.37 230 60 1.6 4.2/4.1/1.8 4.8/4.3/1.8 5.1-6.1 12.4-13.7 21 9.2 234 16.7 7.6

P43b0007a2-01 3/4 0.55 230 60 1.5 4.8/4.4/2.5 6.0/4.9/2.3 2.6-3.3 10.4-11.7 32 10.3 262 19.8 9.0

P43b0010a2-01 1 0.75 230 60 1.4 6.1/5.2/2.7 7.3/5.8/2.6 2.0-2.6 9.3-10.4 41 11.2 284 22.0 10.0

P43b0015a2-01 1 1/2 1.1 230 60 1.3 9.1/8.2/1.2 10.9/9.4/1.1 2.1-2.5 10.0-10.8 49 12.8 325 26.0 11.8

COALBED MEthANE - XE SERIES PERFORMANCE

MOTOR

TYPE CaTaLOg

NuMbER

RaTINg FuLL

LOad

aMPS

(Y/b/R)

Max. LOad

(SF LOad)

aMPS

(Y/b/R)

WINdINg

LOCkEd

ROTOR

aMPS

LENgTH WEIgHT THRuST

RaTINgHP kW VOLTS HZ SERVICE

FaCTOR MaIN

RESISTaNCE STaRT

RESISTaNCE

IN.

CSCR

3-WIRE

P43S0020a2

1.5

230

1.25

9.9/2.6/9.1

12.2/2.6/11.7

1.6-2.2

10.8-12.0

49.4

19.3

491

47.0

21.3

900

P43S0030a2 3 2.2 230 60 1.15 14.3/5.7/12.0 16.5/5.6/13.9 1.1-1.4 2.0-2.5 76.4 22.3 567 53.0 24.0

P43S0050a2 5 3.7 230 60 1.15 24/10.2/19.1 27/10.0/22.0 0.62-0.76 1.36-1.66 101.0 28.6 726 74.0 33.6 1500

XESERIES

PENTEK CUSTOMER HOTLINE: 18669PENTEK

4" submersible motors

P 8148 WS

XE SERIES PERFORMANCE

Motor

type

Catalog

NuMber

ratiNg

Full load

aMps

Max. load

(sF load)

aMps

liNe to

liNe resistaNCe

ohMs

loCked

rotor

aMps

leNgth Weight thrust

ratiNg

Volts

serViCe

FaCtor

3-phase

p43b0005a8

1/2

0.37

200

1.6

2.9

3.4

4.1-5.2

254

18.9

8.6

700

p43b0005a3

1/2

0.37

230

1.6

2.4

2.9

5.72-7.2

17.3

254

18.9

8.6

p43b0005a4

1/2

0.37

460

1.6

1.3

1.5

23.6-26.1

254

18.9

8.6

p43b0007a8

3/4

0.55

200

1.5

3.8

4.5

2.6-3.0

32.0

10.8

274

21.4

9.7

p43b0007a3

3/4

0.55

230

1.5

3.3

3.9

3.3-4.3

10.8

274

21.4

9.7

p43b0007a4

3/4

0.55

460

1.5

1.7

2.0

14.4-16.2

10.8

274

21.4

9.7

p43b0010a8

0.75

200

1.4

4.6

5.5

3.4-3.9

29.0

11.7

297

23.1

10.5

p43b0010a3

0.75

230

1.4

4.0

4.7

4.1-5.1

26.1

11.7

297

23.1

10.5

p43b0010a4

0.75

460

1.4

2.2

2.5

17.8-18.8

13.0

11.7

297

23.1

10.5

p43b0015a8

1 1/2

1.1

200

1.3

6.3

7.2

1.9-2.5

40.0

11.7

297

23.1

10.5

p43b0015a3

1 1/2

1.1

230

1.3

5.2

6.1

2.8-3.4

32.4

11.7

297

23.1

10.5

p43b0015a4

1 1/2

1.1

460

1.3

2.8

3.2

12.3-13.1

16.3

11.7

297

23.1

10.5

p43b0015a5

1 1/2

1.1

575

1.3

2.4

19.8-20.6

11.5

11.7

297

23.1

10.5

p43b0020a8

1.5

200

1.25

7.5

8.8

1.4-2.0

51.0

13.8

351

27.4

12.4

900

p43b0020a3

1.5

230

1.25

6.5

7.6

1.8-2.4

44.0

13.8

351

27.4

12.4

p43b0020a4

1.5

460

1.25

3.3

3.8

8.00-8.67

23.0

13.8

351

27.4

12.4

p43b0020a5

1.5

575

1.25

2.7

3.3

9.4-9.7

21.4

15.3

389

14.5

p43b0030a8

2.2

200

1.15

10.9

12.0

0.9-1.3

71.0

15.3

389

14.5

p43b0030a3

2.2

230

1.15

9.2

10.1

1.3-1.7

58.9

15.3

389

14.5

p43b0030a4

2.2

460

1.15

4.8

5.3

5.9-6.5

30.0

15.3

389

14.5

p43b0030a5

2.2

575

1.15

3.7

4.1

9.4-9.7

21.4

15.3

389

14.5

p43b0050a8

3.7

200

1.15

18.3

20.2

0.4-0.8

113.0

21.7

551

24.9

1500

p43b0050a3

3.7

230

1.15

15.7

17.5

0.85-1.25

93.0

21.7

551

24.9

p43b0050a4

3.7

460

1.15

7.6

8.5

3.58-4.00

48.0

21.7

551

24.9

p43b0050a5

3.7

575

1.15

7.0

7.6

3.6-4.2

55.0

27.7

703

31.8

p43b0075a8

7 1/2

5.6

200

1.15

27.0

30.0

0.5-0.6

165.0

27.7

703

31.8

p43b0075a3

7 1/2

5.6

230

1.15

24.0

26.4

0.55-0.85

140.0

27.7

703

31.8

p43b0075a4

7 1/2

5.6

460

1.15

12.2

13.5

1.9-2.3

87.0

27.7

703

31.8

p43b0075a5

7 1/2

5.6

575

1.15

9.1

10.0

3.6-4.2

55.0

27.7

703

31.8

p43b0100a4

7.5

460

1.15

15.6

17.2

1.8-2.2

110.0

30.7

780

35.4

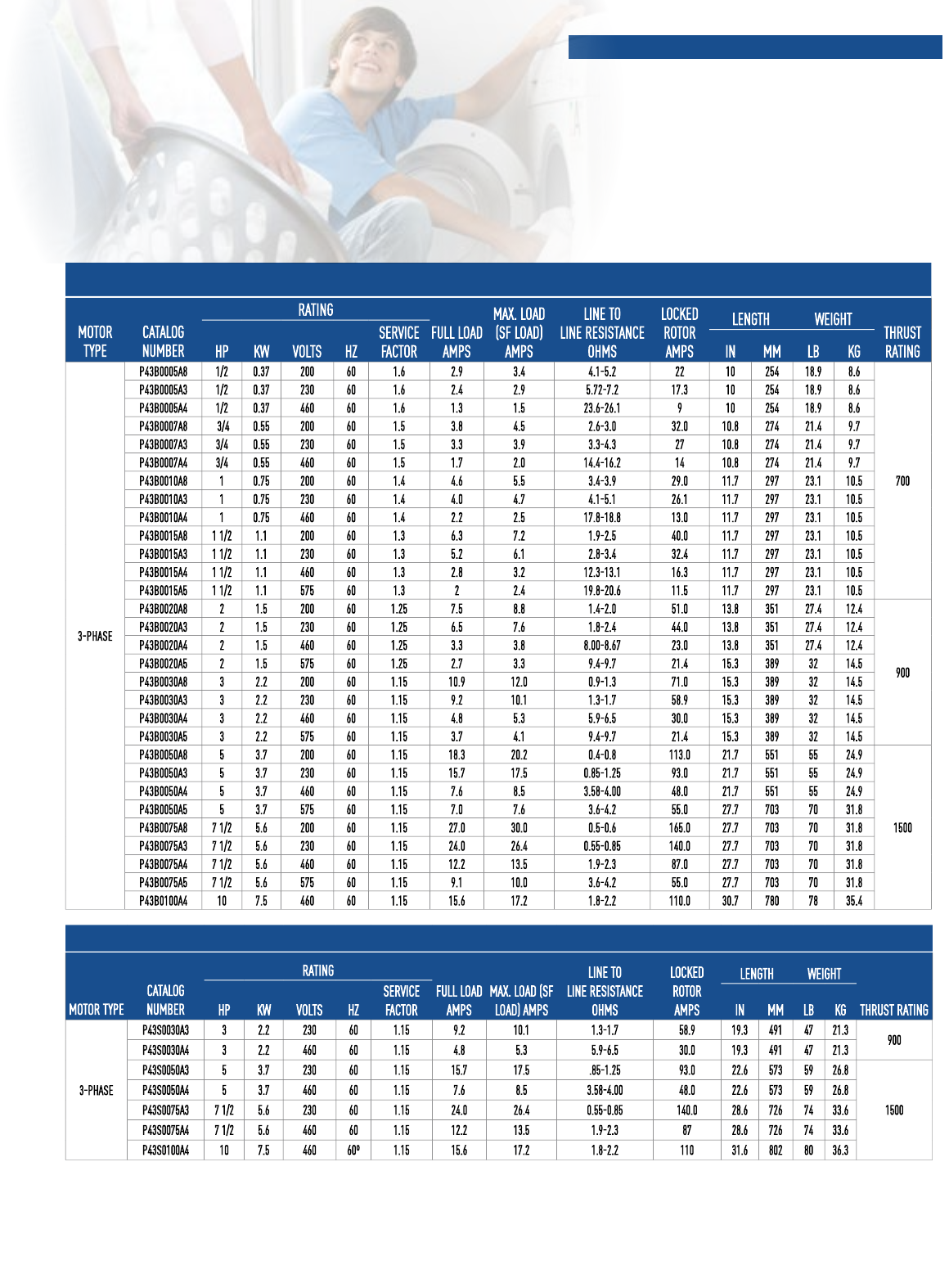

COALBED MEthANE - XE SERIES PERFORMANCE

Motor type

Catalog

NuMber

ratiNg

Full load

aMps

Max. load (sF

load) aMps

liNe to

liNe resistaNCe

ohMs

loCked

rotor

aMps

leNgth

Weight

thrust ratiNghp kW Volts hZ

serViCe

FaCtor iN MM lb kg

3-phase

p43s0030a3

2.2

230

1.15

9.2

10.1

1.3-1.7

58.9

19.3

491

21.3

900

p43s0030a4

2.2

460

1.15

4.8

5.3

5.9-6.5

30.0

19.3

491

21.3

p43s0050a3 5 3.7 230 60 1.15 15.7 17.5 .85-1.25 93.0 22.6 573 59 26.8

1500

p43s0050a4 5 3.7 460 60 1.15 7.6 8.5 3.58-4.00 48.0 22.6 573 59 26.8

p43s0075a3

7 1/2

5.6

230

1.15

24.0

26.4

0.55-0.85

140.0

28.6

726

33.6

p43s0075a4

7 1/2

5.6

460

1.15

12.2

13.5

1.9-2.3

28.6

726

33.6

p43s0100a4 10 7.5 460 60º 1.15 15.6 17.2 1.8-2.2 110 31.6 802 80 36.3

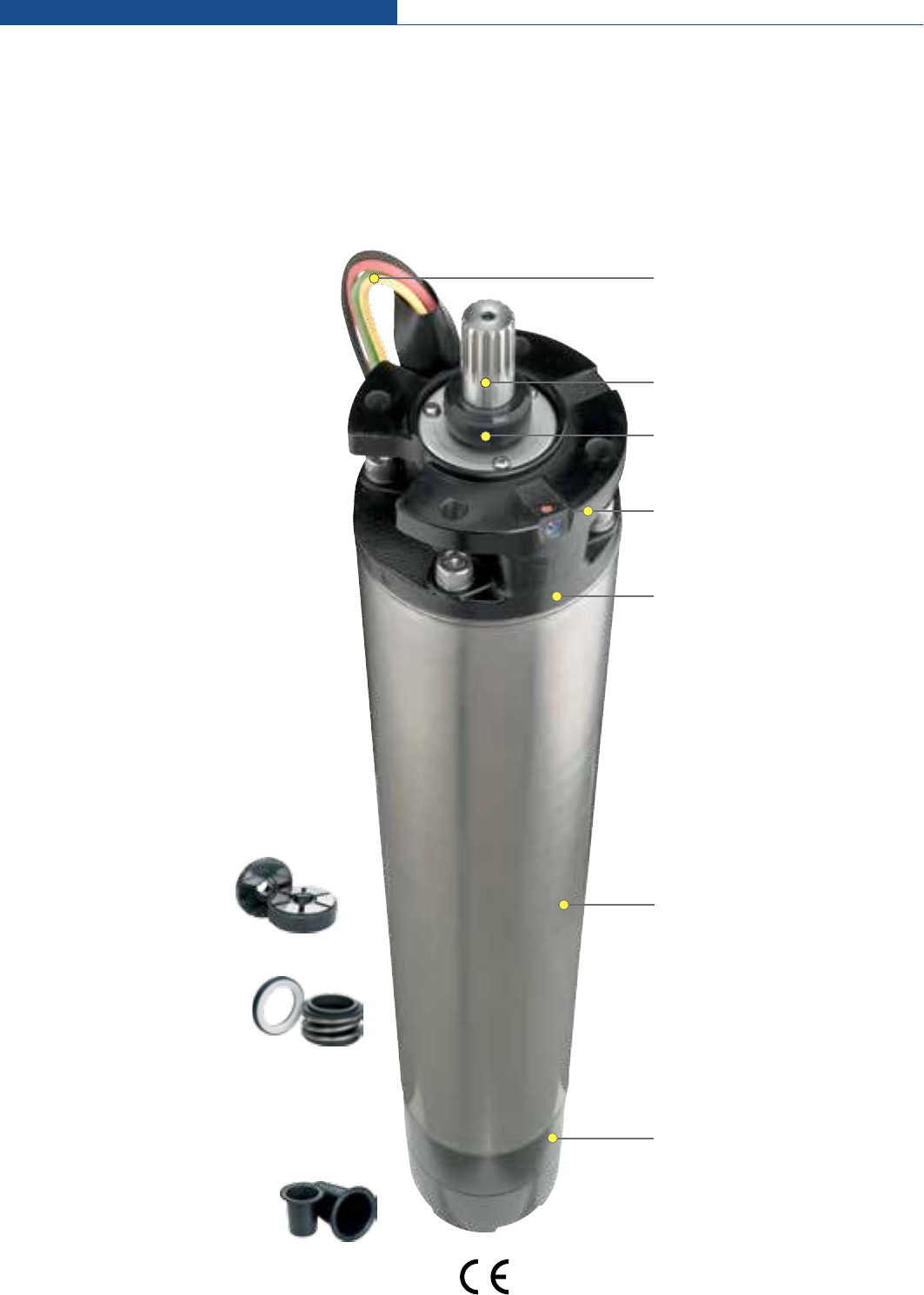

4" Submersible Motors

Innovations focused on dependable performance

4" submersible motors

4” SUBMERSIBLE MOTORS

The quality of the water-filled Pentek® XE Series 4” submersible

motors has been proven through years of operation in the field.

The new Series features water-filled motors

which are built for reliability in potentially contaminated

(sand or coal fines) well installations.

The Pentek XE Series gives you 40 different choices,

including the new coal Bed lineup:

230-Volt Single-Phase 2 to 5 HP

230-Volt Three-Phase 3 to 7.5 HP

460-Volt Three-Phase 3 to 10 HP

Pentek Severe Duty Series Motors are rated for

continuous duty in 86˚ F water, and feature a silicon carbide

mechanical seal and diaphragm filter to help prevent sand/debris entry.

PENTEK® XESERIES

PENTEK CUSTOMER HOTLINE: 18669PENTEK

Motor Dimensions

14 teeth 24/48 pitch

30˚ pressure angle

Min .50” full spline

Class A sliding fit

ANSI B92.1 compliant

1.51

1.508

1.498

(4) .97

.79

3.76

DESCRIPTION “LM”

In. (mm) WEIGHT

(LBS.)HP PHASE VOLTAGE

2 1 230 19.32 (490,7) 47

230

22.32 (566,9)

230

19.32 (490,7)

460

19.32 (490,7)

230

28.57 (725,7)

230

22.57 (573,3)

460

22.57 (573,3)

7.5

230

28.57 (725,7)

7.5

460

28.57 (725,7)

460

31.57 (801,9)

Materials of Construction

PARTS MATERIALS

Upper bearing housing

304L SS

Lower bearing housing

Cast iron

Shell

304L SS

Stator ends

304L SS

Shaft

17-4SS

Seal cover

Sintered bronze

Seal

SiC/SiC mech seal

Diaphragm

Nitrile rubber

Slinger

Nitrile butadyne rubber

Lead wire (or cable) XLPE

Lead potting

Epoxy

Lead screws/clamp 316 SS

Filter

Polyethylene

Specifications subject to change without notice.

4" submersible motors

Applications

Water Systems... For residential, industrial,

commercial, multiple housing and farm use.

Specifications

All Stainless Steel Construction – adapter

casting, coupling, intake screen, beveled

wire forms, socket head cap-screws, studs,

and fasteners

Features

Extends Single-Phase Power Availability

to 4" submersible pumps through 10 HP

using 6" single-phase motors

Easy Assembly – Easy jobsite assembly

Double-Suction Screens – Reduces inlet

suction velocity, reducing the amount of

suspended solids ingested by pump

4" Submersible Motor Adapter

For high-thrust water well applications

The PKG 4 x 6, Pump/Motor Adapter

allows you to use a 6" motor to power

your 4" submersible pump.

Patent #6, 398,521 B1

PENTEK CUSTOMER HOTLINE: 18669PENTEK

CATALOG

NUMBER

PUMP

END MOTOR MAXIMUM

WEIGHT

LBS.

PKG 4X6 4" NEMA 6" NEMA 10 5

* The PKG 4 x 6, Pump/Motor Adapter Is Sold Separately

Applications

Water systems…for residential, multiple housing, farm

and commercial installations, where a submersible

3-wire motor is used.

Design Features

Enclosure

Rugged NEMA 3R Enclosure – suitable for indoor/

outdoor use

Multiple-Size Electrical Knockouts

Rated for 50°C (122°F)

Internals

High-Load Voltage Relay

Heavy-Duty Contacts

External Access to Overload Reset – 1.5HP - 5HP

Heavy-Duty Terminal Connectors –

suitable for up to #4 AWG wire

Industry Standard Wiring Connections –

easy-to-read wiring diagrams

Overload Protection Built-in (50 Hz models)

Agency Approvals

CSA CUS Certified

Pentek Submersible Motor Controls can be used with

Pentek XE Series and other 4" single-phase motors.

Submersible Motor Controls

Standard controls for single-phase 3-wire submersible motors

1/2 - 5 HP, Single-Phase Controls, 50/60 Hz

For Hitachi® Submersible Motors see pages 22-25.

Pentek® offers a full range of 1/2 - 5 HP models

that are interchangeable with existing motor

controls for Capacitor Start/Induction Run

(CSIR) and Capacitor Start/Capacitor Run

(CSCR) applications. Pentek is the professional

choice in harsh and high temperature

installations.

C US

Hitachi® is a registered trademark of Hitachi Industrial Equipment Systems Co., Ltd.

4" SINGLEPHASE CONTROL BOXES

12 PENTEK CUSTOMER HOTLINE: 18669PENTEK

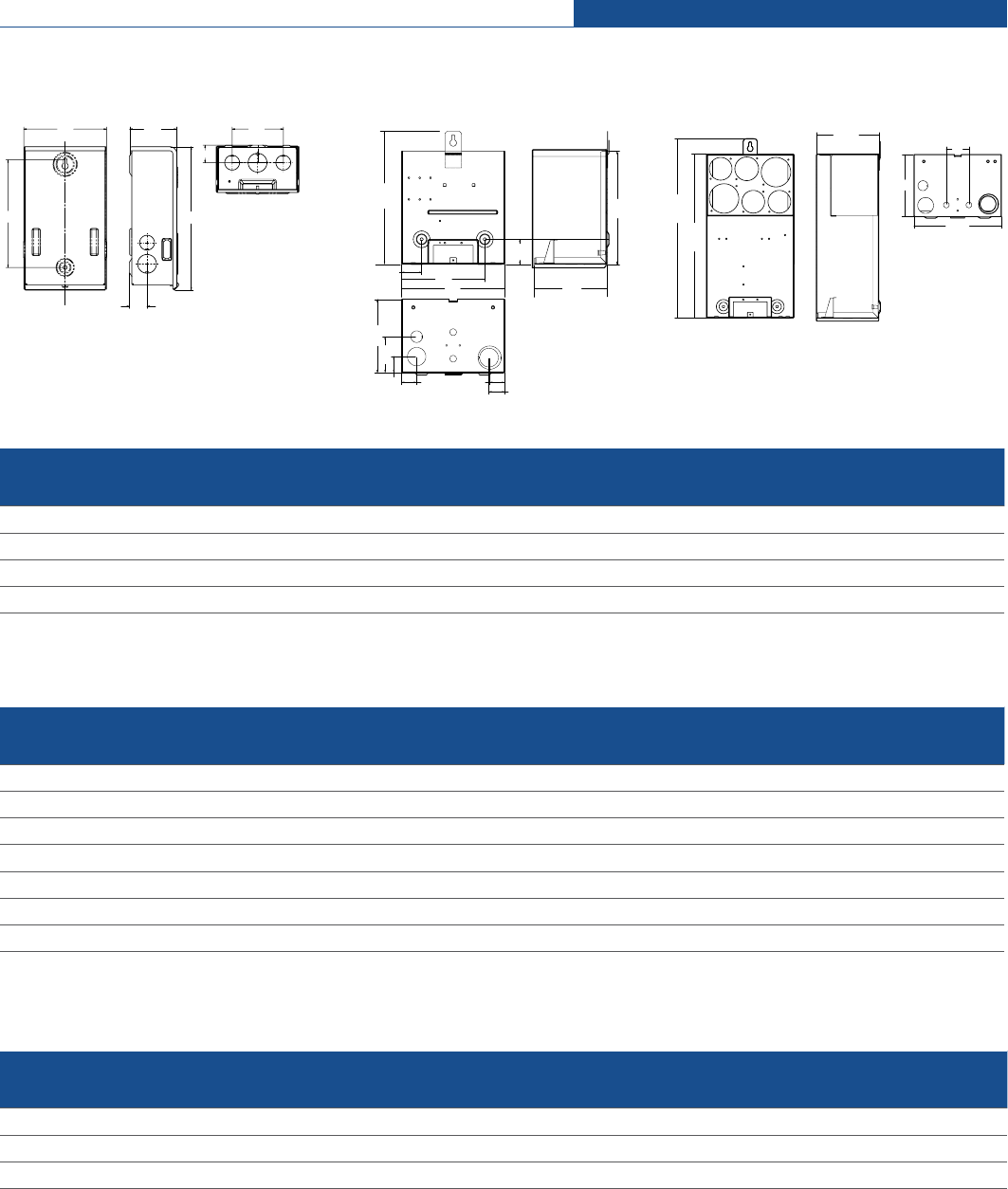

SIZE BSIZE A SIZE C

CSCR – Capacitor Start/Capacitor Run

CSIR – Capacitor Start/Induction Run

CSCR PLUS – Capacitor Start/Capacitor Run PLUS Magnetic Contactor

HP KW PHASE VOLTS WEIGHT ENCLOSURE

SIZE

60 HZ

CATALOG NO.

50 HZ

CATALOG NO.

LBS. KG

1/2 0.37 1 115 4 1.8 A SMC-IR0511 (-6pk)*

1/2 0.37 1 230 4 1.8 A SMC-IR0521 (-6pk)*

3/4 0.55 1 230 4 1.8 A SMC-IR0721 (-6pk)*

1 0.75 1 230 4 1.8 A SMC-IR1021 (-6pk)*

HP KW PHASE VOLTS WEIGHT ENCLOSURE

SIZE

60 HZ

CATALOG NO.

50 HZ

CATALOG NO.

LBS. KG

1/2 0.37 1 230 5 2.3 A

SMC-CR0521 (-6pk)*

3/4 0.55 1 230 5 2.3 A

SMC-CR0721 (-6pk)* SMC5-CR0721

1 0.75 1 230 5 2.3 A

SMC-CR1021 (-6pk)* SMC5-CR1021

1-1/2 1.1 1 230 7 3.2 B

SMC-CR1521 SMC5-CR1521

2 1.5 1 230 7 3.2 B

SMC-CR2021 SMC5-CR2021

3 2.2 1 230 7 3.2 B

SMC-CR3021 SMC5-CR3021

5 3.7 1 230 8 3.6 B

SMC-CR5021 SMC5-CR5021

HP KW PHASE VOLTS WEIGHT ENCLOSURE

SIZE

60 HZ

CATALOG NO.

50 HZ

CATALOG NO.

LBS. KG

2 1.5 1 230 7 3.2 B SMC-CRP2021 SMC5-CRP2021

3 2.2 1 230 8 3.6 B SMC-CRP3021 SMC5-CRP3021

5 3.7 1 230 12 5.4 C SMC-CRP5021 -

* Submersible Motor Controls are available in single and six packs. Include the suffix ‘-6pk’ after the PN if 6 packs are required.

4" SINGLEPHASE CONTROL BOXES

P 8114 WS

14.50

7.75

5.50

2.00

5.50

16.25

10.25

1.50 6.25

7.75

1.88

8.50

5.50

1.13

1.18

1.13

1.20

2.70

5.50

8.5

1.0

2.8 3.04.9

6.35

1.0

PENTEK CUSTOMER HOTLINE: 18669PENTEK 13

Applications

Water systems…for residential, multiple housing,

farm and commercial installations, where a 4"

submersible 3-wire motor is used.

Design Features

Enclosure

1 Weather resistant construction –

NEMA 3R/IP24 rated enclosure for

indoor/outdoor use

2 Control box rated for 50°C (122°F)

ambient temperature

3 One screw removal for easy panel

access with motor running

4 Pentek® proprietary dielectric control

panel board, UL and CSA Certified

Internals

5 Universal controls -designed to

work on most manufacturers

3-wire submersible motors

6 Large wiring area offers generous

space to make your wiring connections.

Incorporates 1/2”, 3/4” and 1” conduit knock-outs

7 Control box is functional with the cover removed,

offering easier in-the-field troubleshooting

8 Made in USA, 330 Volt Start Capacitor

Agency Approvals

CSA CUS Certified

Capacitor start, capacitor run —

designed for the full range of single-phase

1/2, 3/4, 1, 1-1/2, 2, 3 and 5 HP, 3-wire submersible motors 1

4" SINGLEPHASE CONTROL BOXES

VIP Pro Controls

PENTEK CUSTOMER HOTLINE: 18669PENTEK

SIZE B

SIZE A

VIP Control Box Specification

BLACKREDYELLOWLINE 2LINE 1

PANEL BOARD ASSEMBLY

PANEL BOARD ASSEMBLY, BOTTOM VIEW

( ADDED "0" TO ALL BALLONS)

FRONT VIEW

BOTTOM VIEW

INSIDE COVER

B500000048365

9/20/2013

RCC

NOTES:

1. ASSEMBLED 230 VOLT UNITS TO BE HI-POT TESTED AT 1750 VOLTS

FOR 1 SECOND. UNIT LEAD CURRENT NOT TO EXCEED 5mA.

ASSEMBLED 115 VOLT UNITS TO BE HI-POT TESTED AT 1500 VOLTS

FOR 1 SECOND. UNIT LEAD CURRENT NOT TO EXCEED 5mA.

2. TOLERANCE FOR ALL LABELS:

ANGULAR ±3º

LINEAR ± .05 [1.3]

1 OF 1

SHE ET:

A500000045918

4/15/2013

SCA LE:

DR.

CH.

AP.

HENNIG

HERRING

1:1

DATE :

All drawings and specifications as well

as processes, materials, compounds

and other similar criteria are to be strictly

adhered to. No modifications allowed

without prior written approval.

CONFIDENTIAL contains trade secrets and

other proprietary information of Pentair

Water. Duplication, disclosure or use are

forbidden without the written consent of

Pentair Water. SYMBOL

W/O PROTECTOR

(ASSEMBLY)

CONTROL BOX

DATE

CHANGE

ORDER

No.

REV.

LETTE R

DO NOT SCALE DRAWING

ANGULAR ½

TOLERANCE EXCEPT AS NOTED

THIRD ANGLE PROJECTION

WAS

125 [3.2]

.005 [.13]

[.XX]

.XXX

.015 [.38]

[.X]

.XX

.030 [.76]

[X.]

DESIGNED IN INCHES

[XXX] DIMENSIONS IN mm

P400-177

CRITICAL FE ATURES ARE CIRCLED

1 OF 1

THE COMPONENT, PART, OR ASSEMBLY DESCRIBED IN THIS DOCUMENT MUST COMPLY WITH THE FO LLOWING EU (EUROPE AN UNION) DIRECTIVE, INCLUDIN G

.25% MAXIMUM LEA D LEVEL FOR A LL COPPER ALLOYS. ROHS DIRECTIVE 2002.95 EC RESTR ICTS THE USE OF LEAD, CADM IUM, MERCURY , CHROMIUM, TBT’S

AND OTHER HAZARDOUS MATERIA LS. SEE THE TE RMS AND CONDITIONS OF THE CONTRACT (PURCHASE ORDER) FOR MO RE IN FORMATION.

P400-177

BLACKREDYELLOWLINE 2LINE 1

PANEL BOARD ASSEMBLY

PANEL BOARD ASSEMBLY, BOTTOM VIEW

( ADDED "0" TO ALL BALLONS)

FRONT VIEW

BOTTOM VIEW

INSIDE COVER

B500000048365

9/20/2013

RCC

NOTES:

1. ASSEMBLED 230 VOLT UNITS TO BE HI-POT TESTED AT 1750 VOLTS

FOR 1 SECOND. UNIT LEAD CURRENT NOT TO EXCEED 5mA.

ASSEMBLED 115 VOLT UNITS TO BE HI-POT TESTED AT 1500 VOLTS

FOR 1 SECOND. UNIT LEAD CURRENT NOT TO EXCEED 5mA.

2. TOLERANCE FOR ALL LABELS:

ANGULAR ±3º

LINEAR ± .05 [1.3]

1 OF 1

SHE ET:

A500000045918

4/15/2013

SCA LE:

DR.

CH.

AP.

HENNIG

HERRING

1:1

DATE :

All drawings and specifications as well

as processes, materials, compounds

and other similar criteria are to be strictly

adhered to. No modifications allowed

without prior written approval.

CONFIDENTIAL contains trade secrets and

other proprietary information of Pentair

Water. Duplication, disclosure or use are

forbidden without the written consent of

Pentair Water. SYMBOL

W/O PROTECTOR

(ASSEMBLY)

CONTROL BOX

DATE

CHANGE

ORDER

No.

REV.

LETTE R

DO NOT SCALE DRAWING

ANGULAR ½

TOLERANCE EXCEPT AS NOTED

THIRD ANGLE PROJECTION

WAS

125 [3.2]

.005 [.13]

[.XX]

.XXX

.015 [.38]

[.X]

.XX

.030 [.76]

[X.]

DESIGNED IN INCHES

[XXX] DIMENSIONS IN mm

P400-177

CRITICAL FE ATURES ARE CIRCLED

1 OF 1

THE COMPONENT, PART, OR ASSEMBLY DESCRIBED IN THIS DOCUMENT MUST COMPLY WITH THE FO LLOWING EU (EUROPE AN UNION) DIRECTIVE, INCLUDIN G

.25% MAXIMUM LEA D LEVEL FOR A LL COPPER ALLOYS. ROHS DIRECTIVE 2002.95 EC RESTR ICTS THE USE OF LEAD, CADM IUM, MERCURY , CHROMIUM, TBT’S

AND OTHER HAZARDOUS MATERIA LS. SEE THE TE RMS AND CONDITIONS OF THE CONTRACT (PURCHASE ORDER) FOR MO RE IN FORMATION.

P400-177

500000048374B RCC

9/23/2013

BOX ASSEMBLY WITH COVER REMOVED

NOTES:

1. ASSEMBLED UNIT TO BE HI-POT TESTED AT 1750 VOLTS FOR 1 SECOND.

UNIT LEAK CURRENT NOT TO EXCEED 5mA.

2. TOLERANCE FOR ALL LABELS:

ANGULAR ±3º

LINEAR ±.05 [1.3]

= RENUMBERED ALL BALLONS.

1 OF 1

SHEET :

A500000045918RCC

4/16/2013

SCA LE :

DR.

CH.

AP.

HENNIG

HERRING

1:1

RCC

DAT E:

All drawings and specifi cations as well

as processes, m ater ials, com pounds

and other similar cr iteria are to be st rict ly

adhered to. No m odifi cations allowed

without prior wr itten approval .

CONFIDE NTIAL contains trade secr ets and

other proprietary informat ion of Pent air

Water . Duplicati on, disclosur e or use ar e

forbidden without the wri tten consent of

Pentair Wat er. SYMBO L

1.5 HP - 230 V0LT

(ASSEMBLY

CONTROL BOX

DAT E

CH AN GE

ORD ER

No .

REV.

LETTE R

DO NOT SCALE DRAWING

ANGULAR ½

TOLERA NCE EXCEPT AS NOTE D

THIRD ANG LE PR OJECTION

WAS

WITH PROTECTOR

125 [3.2]

.005 [.13]

[.XX]

.XXX

.015 [.38]

[.X]

.XX

.030 [.76]

[X.]

DESIGNED IN INCHES

[XXX] DIMENSIONS IN mm

P400-178

CRITICAL FEATURES ARE CIRCLED

1 OF 1

THE COMPONENT, PART, OR ASSEMBLY DESCRIBED IN THIS DOCUMENT MUST COMPLY WITH THE FOLLOWING EU (EUROPEAN UNION) DIRECTIVE, INCLUDING

.25% MAXIMUM LEAD LEVEL FOR ALL COPPER ALLOYS. ROHS DIRECTIVE 2002.95 EC RESTRICTS THE USE OF LEAD, CADMIUM, MERCURY, CHROMIUM, TBT’S

AND OTHER HAZARDOUS MATERIALS. SEE THE TERMS AND CONDITIONS OF THE CONTRACT (PURCHASE ORDER) FOR MORE INFORMATION.

P400-178

INSIDE COVER

FRONT VIEW

BLACKREDYELLOWLINE 2LINE 1

(RUN)

(START)

PANEL BOARD ASSEMBLY, BOTTOME VIEW

PANEL BOARD ASSEMBLY

BOTTOM VIEW

10/1/2013 1:28:38 PM -

500000048374B RCC

9/23/2013

BOX ASSEMBLY WITH COVER REMOVED

NOTES:

1. ASSEMBLED UNIT TO BE HI-POT TESTED AT 1750 VOLTS FOR 1 SECOND.

UNIT LEAK CURRENT NOT TO EXCEED 5mA.

2. TOLERANCE FOR ALL LABELS:

ANGULAR ±3º

LINEAR ±.05 [1.3]

= RENUMBERED ALL BALLONS.

1 OF 1

SHEET :

A500000045918RCC

4/16/2013

SCA LE :

DR.

CH.

AP.

HENNIG

HERRING

1:1

RCC

DAT E:

All drawings and specifi cations as well

as processes, mater ials, com pounds

and other similar cr iter ia ar e to be stri ctly

adhered to. No modifi cations allowed

without prior wr itten approval.

CONFIDE NTIAL contai ns trade secr ets and

other propri etary informat ion of Pentair

Water . Duplicati on, disclosur e or use ar e

forbidden without the wri tten consent of

Pentair Wat er. SYMBOL

1.5 HP - 230 V0LT

(ASSEMBLY

CONTROL BOX

DAT E

CH AN GE

ORD ER

No .

REV.

LETTE R

DO NOT SCALE DRAW ING

ANGULAR ½

TOLERA NCE EXCEPT AS NOTED

THIRD ANG LE PR OJECTION

WAS

WITH PROTECTOR

125 [3.2]

.005 [.13]

[.XX]

.XXX

.015 [.38]

[.X]

.XX

.030 [.76]

[X.]

DESIGNED IN INCHES

[XXX] DIMENSIONS IN mm

P400-178

CRITICAL FEATURES ARE CIRCLED

1 OF 1

THE COMPONENT, PART , OR ASSEMBLY DESCRIBED IN THIS DOCUMENT MUST COMPLY WITH THE FOLLOWING EU (EUROPEAN UNION) DIRECTIVE, INCLUDING

.25% MAXIMUM LEAD LEVEL FOR ALL COPPER ALLOYS. ROHS DIRECTIVE 2002.95 EC RESTRICTS THE USE OF LEAD, CADMIUM, MERCURY, CHROMIUM, TBT’S

AND OTHER HAZARDOUS MATERIALS. SEE THE TERMS AND CONDITIONS OF THE CONTRACT (PURCHASE ORDER) FOR MORE INFORMATION.

P400-178

INSIDE COVER

FRONT VIEW

BLACKREDYELLOWLINE 2LINE 1

(RUN)

(START)

PANEL BOARD ASSEMBLY, BOTTOME VIEW

PANEL BOARD ASSEMBLY

BOTTOM VIEW

10/1/2013 1:28:38 PM -

CATALOG

NUMBER HP KW PHASE VOLTS HERTZ TYPE

WEIGHT ENCLOSURE

SIZE

START CAPACITOR RUN CAPACITOR VOLTAGE

RELAY PROTECTORLBS KG PN RATING PN RATING

VIP4C02 0.50 0.37 1 230 60 CSCR 4.6 2.1 A U17-1422 43MFD-270V-15kΩ U17-1419 15MFD-370V U17-1592 None

VIP4D02 0.75 0.55 1 230 60 CSCR 4.4 2.0 A U17-1423 59MFD-270V-15kΩ U17-1292 15MFD-370V U17-1592 None

VIP4E02 1.00 0.75 1 230 60 CSCR 4.4 2.0 A U17-1424 86MFD-270V-15kΩ U17-1292 23MFD-370V U17-1592 None

VIP4F02 1.50 1.1 1 230 60 CSCR 4.6 2.1 A U17-1430 105MFD-330V-15kΩ U17-1438 10MFD-370V U17-1592 CGP69JB-7

VIP4G02 2.00 1.5 1 230 60 CSCR 4.6 2.1 A U17-1430 105MFD-330V-15kΩ U17-1440 10MFD-370V U17-1592 CET38EB-7

VIP4H02 3.00 2.2 1 230 60 CSCR 5.4 2.4 A U17-1428 208MFD-330V-15kΩ U17-1443 45MFD-370V U17-1592 CGT66DD-07

VIP4J02 5.00 3.7 1 230 60 CSCR 8.2 3.7 B U17-1437 270MFD-330V-15kΩ U17-1442 2 pcs-40MFD-370V U17-1592 BET00EE-21

Control boxes are designed to be used on Pentair motors with the same HP and Voltage ratings. Do not use on motors with different ratings.

8.31

6.81

4.00

4.25

11.19

8.19

4" SINGLEPHASE CONTROL BOXES

PENTEK CUSTOMER HOTLINE: 18669PENTEK

Single-Phase Protectors

Engineered protection for single-phase motors

1/3 - 15 HP, Single Phase, 50/60 Hz applications

Pentek® offers a full range of 1/3 - 15 HP

Protectors for Residential, Commercial,

Multiple Housing and Farm Water System

applications where a 4" submersible, 2 and

3-wire motor is used and for above-ground

pressure-boost applications.

Applications

Pentek offers 5 models for your application

needs based on HP and Motor Type: SPP-111P,

SPP-111P-3RL, SPP-231P,SPP-233P and SPP-235P.

Protects Pumps From

Dry Well Overvoltage Overcurrent (Jammed Impeller)

Rapid Cycling Undervoltage Flow Restriction (Dead Head)

Specifications

115 VOLT MODELS 230 VOLT MODELS

Model # SPP-111P SPP-111P-3RL SPP-231P SPP-233P SPP-235P

Enclosure Type Insider NEMA 3R Insider NEMA 3R NEMA 3R

1-Phase

Line Voltage 115VAC 115VAC 230VAC 230VAC 230VAC

Load Range 1/3 - 1/2 HP 1/3 - 1 HP 1/2 - 1 HP 1/2 - 3 HP 5 - 15 HP

Frequency 50 - 60 Hz 50 - 60 Hz 50 - 60 Hz 50 - 60 Hz 50 - 60 Hz

Operating Points

Overload

(% of Cal. Point) 125% 125% 125% 125% 125%

Overvoltage

Reset Point 132VAC 132VAC 265VAC 265VAC 265VAC

Undervoltage

Reset Point 95VAC 95VAC 190VAC 190VAC 190VAC

Trip Delay

(Overload) 10 sec. 10 sec. 10 sec. 5 sec. 5 sec.

Trip Delay (Dry Well) 2 sec. 2 sec. 2 sec. 2 sec. 2 sec.

Optional Trip Delay 4 sec. 4 sec. 4 sec. 4 sec. 4 sec.

Restart Delay Time

Over/Under

Voltage Delay 5 sec. 5 sec. 5 sec. 5 sec. 5 sec.

All Other Faults 2-225 min. 2-225 min. 2-225 min. 2-225 min. 2-225 min.

(Dry Well REC. Timer)

Output Contact 1 HP 1 HP 1 HP 3 HP 480VA @

Rating (SPST)

(17 amps max.)

240VAC

Power Consumption

(max.) 5 amps 5 amps 5 amps 5 amps 5 amps

Weight w/o Enclosure 10 oz. - 10 oz. 14 oz. 14 oz.

Weight w/Enclosure - 1.6 lbs. - 1.6 lbs. 1.6 lbs.

Enclosure Size 2.2" x 2.8" 6"x 6"x 4" 2.2"x 2.8" 6"x 6"x 4" 6"x 6"x 4"

PUMP PROTECTION

16 PENTEK CUSTOMER HOTLINE: 18669PENTEK

Applications

Water systems…for residential, multiple housing, farm and

commercial installations, where a 4" submersible 3-wire motor

is used.

SPP-111P & SPP-231P Insiders are “current monitors” designed

to protect Single-Phase pumps, which fit inside 1/3 - 1 HP 115V and

230V CSIR control boxes. A simple adjustment allows the Insider to

be calibrated to your specific pumping applications, reducing the

possibility of false or nuisance tripping. Its unique microprocessor

constantly monitors the incoming power for fluctuations in voltage

and current. If loss of suction or other abnormality is detected, the

Insider deactivates its output relay and directly disconnects the

pump motor. Then it begins its user-selectable “Restart Delay/

Dry Well Recovery” timer. When the timer counts zero or power is

removed and reapplied, the Insider reactivates its output relay and

turns the pump back on.

The Pentek® Informer Remote Handheld Diagnostic Tool (sold separately) communicates directly

with all Pentek Pump Protectors and instantly displays 16 parameters including calibration

points, running points and last fault (see page 15).

“The Insider ” SPP-111P & SPP-231P

For 1/3–1 HP applications

SPP-231P installed

Protects pumps from

Dry Well Overvoltage Flow Restriction (Dead Head)

Undervoltage Overcurrent (Jammed Impeller)

Features

Restart delay can be set up to 225 minutes or placed in

manual reset mode

Can be calibrated to specific pump/motor combinations

and various conditions

Infrared communication with the Pentek Informer makes

diagnostics simple

Fits in existing 3-wire motor control boxes

PUMP PROTECTION

P 8115 WS

PENTEK CUSTOMER HOTLINE: 18669PENTEK

HP PHASE VOLTS FREQUENCY CATALOG

NUMBER

WEIGHT

LBS.

1/3–1/2 1 115 50-60 Hz SPP-111P 1 0.45

1/3–1

230

50-60 Hz

SPP-231P

0.45

SPP-111P-3RL, SPP-233P & SPP-235P

For 1/2–15 HP applications

Applications

Water systems…for residential, multiple housing, farm

and commercial installations, where a 4" 2 or 3-wire

submersible motor or above-ground motor is used.

Features

The SPP-111P-3RL, SPP-233P & SPP-235P single-phase

protectors include a unique microcontroller-based volt-

age and current-sensing circuit that constantly monitors

the incoming power for fluctuations including overcurrent

and undercurrent. When an abnormality, such as loss

of suction, is detected, the control deactivates its output

relay and directly disconnects the pump motor. The SPP

then begins its user-selectable restart delay (dry-well

recovery) timer. When the timer counts to zero or power

is removed and reapplied, the SPP reactivates its output

relay and turns the pump back on. An infrared LED com-

municates directly with a handheld diagnostic tool called

the Informer (sold separately). The Informer displays 16

parameters including calibration point, trip point, run-

ning points, and last fault. The SPPs are all mounted in a

NEMA 3R enclosure.

Protects Pumps From

Dry Well Overvoltage

Flow Restriction (Dead Head) Undervoltage

Overcurrent (Jammed Impeller)

* Current transformer included.

PUMP PROTECTION

18 PENTEK CUSTOMER HOTLINE: 18669PENTEK

HP PHase VOLTs FReQUeNCY

CaTaLOg

NUmbeR

WeigHT

Lbs.

1/2 – 1 1 115 50-60 Hz SPP-111P-3RL 1.6 0.7

1/2 – 1-1/2 1 230 50-60 Hz SPP-233P-1.5 1.6 0.7

1/2 – 3 1 230 50-60 Hz SPP-233P 1.6 0.7

5 & 7-1/2 1 230 50-60 Hz SPP-235P-75* 2 0.9

10 1 230 50-60 Hz SPP-235P-100* 2 0.9

230

50-60 Hz

SPP-235P-150*

0.9

Applications

The Pentek® Informer is a handheld diagnostic tool

designed for use with Pentek Single-Phase Pump

Protectors equipped with infrared LED transmitters

(SPP-111P, 231P, 233P & 235P models).

Features

The Pentek Informer uses an infrared receiver to access

data sent from the SPP, allowing remote troubleshooting

of the system.

Each Pentek SPP is equipped with an infrared LED that

transmits information from the device. The Informer

must be aimed at the SPP as shown in the figure below.

As soon as power is applied, the Informer begins

receiving both past and present information and

displays it on the LCD.

The green COMM STATUS light indicates when the

Informer is receiving data from the SPP. If communication

is lost, the Informer will hold the last values it received.

Displayed Parameters

Diagnostic information received

and displayed in real-time:

Voltage, Current, Power, Dry Well

Overload Trip Points

Calibration Voltage

Last Fault

Highest/Lowest Voltage Since Last Calibration

The Informer

Remote handheld diagnostic tool

PUMP PROTECTION

P 8116 WS

PENTEK CUSTOMER HOTLINE: 18669PENTEK

CATALOG

NUMBER

WEIGHT

LBS.

SPP-Informer 1 0.45

Motor casing – 304 stainless

steel; excellent forming and

welding characteristics, and

corrosion resistance

Lower bracket – epoxy-coated

cast iron; applied via

electrodesposition – provides

better adhesion of the coating

and more consistent coverage,

delivering a longer lasting, more

durable coating

Pentair's line of Pentek® motors are

designed for long service life and years

of dependable operation. Innovative

design and robust characteristics

make this the perfect motor for

your pumping applications.

5-30hp, 230V, 60hz, 3 phase, 5-50hp, 460/380V, 60/50hz, 3 phase

6˝ Submersible Motors

For high-thrust water well applications

Motor lead – 157” / 4m – potted

connection, including ground wire.

Non-jacketed wire assembly for

easier handling and connections.

Fully replaceable.

Shaft – standard NEMA-splined,

431 stainless steel; excellent

tensile and torque strength, and

corrosion resistance

External sand slinger – added

protection against sand and other

abrasives

Upper bracket – “dual-flange”-

style; easier and faster assembly

to the pump

Upper bracket – epoxy-coated

cast iron; applied via

electrodesposition – provides

better adhesion of the coating

and more consistent coverage,

delivering a longer lasting, more

durable coating

ENCAPSULATED,

WATER-FILLED DESIGN

The Pentek submersible motor combines

internal lubrication (a cooling blend of

water, glycol, and propylene), along with

superior materials, to provide the industry

with innovative and advanced design

features that will extend the serviceable

life of your installation. The encapsulated

design provides superior insulation, heat

transfer properties, and stability to the

motor’s windings (protecting the windings

from “flexing” or “vibration”).

ADDITIONAL FEATURES

Exceptional insulation rating (Class F) and

temperature rating (95°F / 35°C)

Vertical or horizontal mounting orientation

VFD-compatible

IP 68 protection rating

Thrust Bearing

Water lubricated, Kingsbury-

Type – industry-accepted

standard for thrust bearing

construction.

Mechanical Seal

Silicone Carbide – excellent

abrasion, wear, and corrosion

resistance; resists deflection in

high-pressure, high heat, and high-

speed conditions; high thermal

conductivity (heat dissipation).

Provides superior protection against

sand intrusion.

Pressure Equalizing Diaphragm

Minimizes expansion pressure

inside the motor due to changes

in temperature and pressure.

6" SUBMERSIBLE MOTORS

20 PENTEK CUSTOMER HOTLINE: 18669PENTEK

MOTOR

TYPE PHASE NOTE

PENTEK

MODEL # HP KW HZ VOLTS

RATED SERVICE FACTOR 1.15 LOCKED

ROTOR

AMPS

KVA

CODE

THRUST

LOAD

(LBS)

INSULATION

CLASS

WINDING

RESISTANCE

(OHM) RPM

LENGTH WEIGHT

AMPS

EFF.

%P.F. % AMPS

EFF.

%P.F. % IN* MM* IN** MM** LBS KG

6” Three

Motors

are 60 Hz

only

6PM2-5-2 5 3.7

60 230

15.8 77 78 17.4 77 81 97.5 J 1763

0.79 3445 22.7 577 21.1 535 90 41

6PM2-7-2 7-1/2 5.5 22.0 79 82 24.4 79 84 147.9 J 0.54 3450 24.9 632 22.7 577 102 46

6PM2-5-2-01 5 3.7 15.8 77 78 17.4 77 81 97.5 J

3485

0.79 3445 22.7 577 21.1 535 90 41

6PM2-7-2-01 7-1/2 5.5 22.0 79 82 24.4 79 84 147.9 J 0.54 3450 24.9 632 22.7 577 102 46

6PM2-10-2 10 7.5 30.8 77 81 33.0 78 83 187.6 J 0.40 3440 29.2 741.5 24.9 632 116 53

6PM2-15-2 15 11.0 43.2 78 84 47.0 78 86 281.8 J 0.28 3450 31.8 807.5 27.5 698 121 55

6MP2-20-2 20 15.0 57.4 79 85 63.0 79 87 394.5 J 0.21 3450 35.1 892.5 35.1 892.5 147 67

6PM2-25-2 25 18.5 69.0 81 86 76.0 80 88 480.2 J 0.16 3450 38.0 964.5 38.0 964.5 165 75

6PM2-30-2 30 22.0 76.6 84 88 85.0 84 89 614.2 K 0.14 3500 41.8 1,060.5 41.1 1,044.5 190 86

Motors

are dual

rated

50 Hz &

60 Hz

6PM2-5-4 5 3.7 50 380 9.1 76 84 45.5 G

1763

2.97 2800 22.7 577 21.1 535 90 41

60 460 7.9 77 78 8.7 77 81 48.8 J 3445

6PM2-7-4 7-1/2 5.5 50 380 12.8 78 86 67.9 G 1.98 2810 24.9 632 22.7 577 102 46

60 460 11.0 79 82 12.2 79 84 74.0 J 3450

6PM2-5-4-01 5 3.7 50 380 9.1 76 84 45.5 G

3485

2.97 2800 22.7 577 21.1 535 90 41

60 460 7.9 77 78 8.7 77 81 48.8 J 3445

6PM2-7-4-01 7-1/2 5.5 50 380 12.8 78 86 67.9 G 1.98 2810 24.9 632 22.7 577 102 46

60 460 11.0 79 82 12.2 79 84 74.0 J 3450

6PM2-10-4 10 7.5 50 380 17.8 78 85 85.6 G 1.46 2800 29.2 741.5 24.9 632 116 53

60 460 15.4 77 81 16.5 78 83 93.8 J 3440

6PM2-15-4 15 11.0 50 380 25.6 77 87 127.0 F 0.99 2810 31.8 807.5 27.5 698 131 55

60 460 21.6 78 84 23.5 78 86 140.9 J 3450

6PM2-20-4 20 15.0 50 380 34.0 78 89 170.2 G 0.72 2810 35.1 892.5 35.1 892.5 147 67

60 460 28.5 79 85 31.5 79 87 197.3 J 3450

6MP2-25-4 25 18.5 50 380 41.0 79 89 219 G 0.56 2820 38.0 964.5 38.0 964.5 165 75

60 460 34.5 81 86 38.0 80 88 240.1 J 3450

6PM2-30-4 30 22.0 50 380 46.0 83 90 276.8 G 0.50 2880 41.8 1060.5 41.1 1044.5 190 86

60 460 38.0 84 88 42.5 84 89 307.1 J 3500

6PM2-40-4 40 30 50 380 62.5 83 90 393.1 H

6182

0.40 2860 47.1 1197 44.7 1134.5 209 95

60 460 52.7 84 88 58.0 84 89 439.7 K 3490

6PM2-50-4 50 37 50 380 77.6 83 90 449.8 G 0.33 2840 49.9 1267 47.4 1204.5 292 132

60 460 64.3 85 87 70.8 85 89 500.5 J 3480

* = Motors with serial numbers beginning with 200, and serial numbers between 20105213xxxx and 20109113xxxx, are equipped with a 4-stud, “single-flange”-style mounting bracket.

** = Motors with serial numbers beginning with 20109213xxxx are equipped with a “dual-flange”-style mounting bracket.

50 Hz performance numbers are at a service factor of 1.0.

Materials of Consturction

PARTS MATERIALS

Motor sleeve, fasteners 304 stainless steel

Castings cast iron - epoxy coated (applied via

electrodesposition)

Shaft NEMA splined, 431 stainless steel

Thrust bearings Kingsbury-type disc - carbon (resin

impregnated) pad - 420 stainless

steel

Mechanical seal silicon carbide

Diaphragm, sand slinger nitrile rubber

PENTEK 6" encapsulated - motor data sheet

Nominal diameter 6"/152.4 mm

Effective diameter 5.43"/138 mm

Shaft extension length 2.87" / 73 mm

Motor Dimensions

6" SUBMERSIBLE MOTORS

PENTEK CUSTOMER HOTLINE: 18669PENTEK

Hitachi® Motors are designed for long service life

and years of dependable operation. Innovative

design and robust characteristics make this the

perfect motor for your pumping applications.

Encapsulated, Water-Filled Design

Combined with exceptional insulation and a patented

epoxy fill resin, these motors exceed NEMA requirements

for high water temperature by 18°F (-7.7°C). Designed with

internal lubrication and cooling blend of water, antifreeze, and

an antirust mixture, Hitachi submersible motors are unique

in providing the industry with innovative and robust design

features that will extend the serviceable life of your installation.

Features

Higher Efficiencies and Lower Current Consumption –

For reduced energy costs

Corrosion-Resistant Design – For long life

High-Capacity Kingsbury-type Bearings –

For dependable performance

Low-Profile NEMA Design – For ease of installation

Replaceable Plug-in Motor Lead – For ease of maintenance

Dual Voltage Type – For application versatility

(5 HP – 30 HP 3-Phase Motors)

VFD-Compatible

6" Hitachi® Submersible Motors

For high-thrust water well applications

5-50 HP, Single and Three Phase, 200V, 230V and 460V, 60 Hz, 3,600 RPM

Hitachi® is a registered trademark

of Hitachi Industrial Equipment

Systems Co., Ltd.

6" SUBMERSIBLE MOTORS

22 PENTEK CUSTOMER HOTLINE: 18669PENTEK

Materials Of Construction

PARTS MATERIALS

Motor Sleeve Stainless steel construction

Castings Baked epoxy-coated gray iron

Fasteners Stainless steel

Shaft NEMA splined stainless steel

Flange NEMA standard type

Rotor Double epoxy-coated

Thrust Bearings Kingsbury-type 420 stainless steel

Mechanical Seal Nitrile rubber (NBR), grease packed

Diaphragm Nitrile rubber

Sand Cap Polyurethane

Sand Slinger Stainless steel

Lead Wire (or Cable) Double-insulated, heat and water-resistant,

167°F/75°C, 600V

6" SUBMERSIBLE MOTORS

P 8174 WS

PENTEK CUSTOMER HOTLINE: 18669PENTEK

Hitachi® Control Boxes:

Type 1 NEMA Enclosure

In-Panel Circuit Breaker

Magnetic Contactor

Terminal Blocks for External Controls

UL Recognized

HP KW PH VOLTS CATALOG NUMBER

5 3.7 1 230 HIT-5CBD

7.5 5.5 1 230 HIT-7.5CBD

10 7.5 1 230 HIT-10CBD

15 11 1 230 HIT-15CBD

DIAMETER HP KW VOLTS PH HZ

CATALOG

NUMBER

SERVICE

FACTOR

WINDING

RESISTANCE

(OHMS)

RATED

INPUT

AMPS

SERVICE

FACTOR

INPUT AMPS

LOCKED

ROTOR

AMPS

SHAFT

EXTENSION

(L1)

LENGTH

(L2)

DIAMETER

(D)

THRUST

CAPACITY WEIGHT

6 5 3.7 200 3 60 6HIT2-5-8 1.15 0.618 17.5 19.5 124 2.87" 22.95" 5.5" 3,500 95

6 5 3.7 230 1 60 6HIT2-5-1 1.15 R-Y, B-Y, R-B, 2.172,

0.512, 2.627 24 27.5 124 2.87" 26.97" 5.5" 3,500 110

6 5 3.7 230 3 60 6HIT2-5-2 1.15 0.806 15 17 110 2.87" 22.95" 5.5" 3,500 95

6 5 3.7 460 3 60 6HIT2-5-4 1.15 3.05 7.5 8.5 55 2.87" 22.95" 5.5" 3,500 95

6 7.5 5.5 200 3 60 6HIT2-7-8 1.15 0.504 25.4 28.5 158 2.87" 24.80" 5.5" 3,500 99

6 7.5 5.5 230 1 60 6HIT2-7-1 1.15 R-Y, B-Y, R-B, 1.401,

0.400, 1.774 36 41 167 2.87" 29.92" 5.5" 3,500 128

6 7.5 5.5 230 3 60 6HIT2-7-2 1.15 0.651 22 26 144 2.87" 24.80" 5.5" 3,500 99

6 7.5 5.5 460 3 60 6HIT2-7-4 1.15 2.43 11 13 72 2.87" 24.80" 5.5" 3,500 99

6 10 7.5 200 3 60 6HIT2-10-8 1.15 0.315 33.3 37.2 236 2.87" 26.97" 5.5" 3,500 110

6 10 7.5 230 1 60 6HIT2-10-1 1.15 R-Y, B-Y, R-B, 1.052,

0.316, 1.310 50 58 202 2.87" 29.92" 5.5" 3,500 128

6 10 7.5 230 3 60 6HIT2-10-2 1.15 0.448 29 33 208 2.87" 26.97" 5.5" 3,500 110

6 10 7.5 460 3 60 6HIT2-10-4 1.15 1.619 14.5 16.5 104 2.87" 26.97" 5.5" 3,500 110

6 15 11 200 3 60 6HIT2-15-8 1.15 0.213 47.4 53.5 347 2.87" 29.92" 5.5" 3,500 128

6 15 11 230 1 60 6HIT2-15-1 1.15 R-Y, B-Y, R-B, 0.678,

0.230, 0.850 72 85 275 2.87" 33.46" 5.5" 3,500 148

6 15 11 230 3 60 6HIT2-15-2 1.15 0.312 42 46 320 2.87" 29.92" 5.5" 3,500 128

6 15 11 460 3 60 6HIT2-15-4 1.15 1.074 21 23 160 2.87" 29.92" 5.5" 3,500 128

6 20 15 200 3 60 6HIT2-20-8 1.15 0.189 61.2 69.5 431 2.87" 31.5" 5.5" 3,500 137

6 20 15 230 3 60 6HIT2-20-2 1.15 0.258 54 60 392 2.87" 31.5" 5.5" 3,500 137

6 20 15 460 3 60 6HIT2-20-4 1.15 0.861 27 30 196 2.87" 31.5" 5.5" 3,500 137

6 25 18.5 200 3 60 6HIT2-25-8 1.15 0.146 77.3 87.5 578 2.87" 36.22" 5.5" 3,500 161

6 25 18.5 230 3 60 6HIT2-25-2 1.15 0.21 68 76 530 2.87" 36.22" 5.5" 3,500 161

6 25 18.5 460 3 60 6HIT2-25-4 1.15 0.666 34 38 265 2.87" 36.22" 5.5" 3,500 161

6 30 22 200 3 60 6HIT2-30-8 1.15 0.119 91.8 104 674 2.87" 38.19" 5.5" 3,500 176

6 30 22 230 3 60 6HIT2-30-2 1.15 0.166 82 94 610 2.87" 39.19" 5.5" 3,500 176

6 30 22 460 3 60 6HIT2-30-4 1.15 0.554 41 47 305 2.87" 38.19" 5.5" 3,500 176

6 40 30 460 3 60 6HIT2-40-4 1.15 0.358 56 61 420 2.87" 40.55" 5.5" 5,000 187

8 50 37 460 3 60 86HIT2-50-4* 1.15 0.331 65 73 435 2.87" 45.28" 7.52" 5,000 353

8 60 45 460 3 60 86HIT2-60-4* 1.15 0.278 80 90 556 2.87" 48.03" 7.52" 5,000 408

*Models are 8" motors with 6" pump connection.

Hitachi® is a registered trademark of Hitachi Industrial Equipment Systems Co., Ltd.

Motor Dimensions

8"-14" Hitachi® Submersible Motors

For high-thrust water well applications

7.5-300 HP, Three Phase, 460V, 60 Hz, 2-Pole, 3,600 RPM. 4-Pole, 1800 RPM

Rewindable, water-tight Design

Specially developed leak-resistant denatured

polypropylene completely protects the copper coil

conductors from internal cooling fluids for long service

life in severe operating condidtions. Hitachi submersible

motors are unique in providing the industry with innovative

and robust design features that will extend the serviceable

life of your installation.

Features

Higher Efficiencies and Lower Current Consumption –

For reduced energy costs

Corrosion-Resistant Design – For long life

High-Capacity Kingsbury-type Bearings –

For dependable performance

Low-Profile NEMA Design – For ease of installation

VFD-Compatible

Hitachi® Motors are designed for long service

life and years of dependable operation.

Innovative design and robust

characteristics make this

the perfect motor for your

pumping applications.

Hitachi® is a registered trademark

of Hitachi Industrial Equipment

Systems Co., Ltd.

814" SUBMERSIBLE MOTORS

24 PENTEK CUSTOMER HOTLINE: 18669PENTEK

Materials Of Construction

PARTS MATERIALS

Housing Baked epoxy-coated gray iron

Fasteners Stainless steel

Shaft Splined or keyed stainless steel

Rotor Double epoxy-coated

Thrust Bearings Kingsbury®-type 420 stainless steel

Mechanical Seal Nitrile rubber (NBR), grease packed

Diaphragm Nitrile rubber

Sand Slinger Baked epoxy-coated gray iron

Lead Wire (or Cable) Double-insulated, heat and water-

resistant, 167°F/75°C, 600V

8"-14" Hitachi® Submersible Motors

For high-thrust water well applications

DIAMETER HP KW VOLTS PH HZ

CATALOG

NUMBER

SERVICE

FACTOR

WINDING

RESISTANCE

(OHMS)

RATED

INPUT

AMPS

SERVICE

FACTOR

INPUT AMPS

LOCKED

ROTOR

AMPS

SHAFT

EXTENSION

(L1)

LENGTH

(L2)

DIAMETER

(D)

THRUST

CAPACITY WEIGHT

8 7.5 5.5 460 3 60 8HIT4-7-4 1.15 2.178 13 14 98 4.000 37.40 7.52 10000 298

8 10 7.5 460 3 60 8HIT4-10-4 1.15 2.178 16 18 98 4.000 37.40 7.52 10000 298

8 15 11 460 3 60 8HIT4-15-4 1.15 1.519 23 26 151 4.000 41.34 7.52 10000 320

8 20 15 460 3 60 8HIT4-20-4 1.15 1.519 29 33 151 4.000 41.34 7.52 10000 320

8 25 18.5 460 3 60 8HIT4-25-4 1.15 0.888 38 43 207 4.000 44.09 7.52 10000 342

8 30 22 460 3 60 8HIT4-30-4 1.15 0.888 44 50 207 4.000 44.09 7.52 10000 342

8 40 30 460 3 60 8HIT2-40-4 1.15 0.372 56 63 380 4.000 44.09 7.52 10000 320

8 50 37 460 3 60 8HIT2-50-4 1.15 0.331 65 73 435 4.000 46.44 7.52 10000 353

8 60 45 460 3 60 8HIT2-60-4 1.15 0.278 80 90 556 4.000 49.19 7.52 10000 408

8 75 55 460 3 60 8HIT2-75-4 1.15 0.218 96 109 675 4.000 53.15 7.52 10000 463

8 100 75 460 3 60 8HIT2-100-4 1.15 0.164 127 145 855 4.000 58.27 7.52 10000 518

8 125 90 460 3 60 8HIT2-125-4 1.15 0.132 161 180 1122 4.000 66.14 7.52 10000 595

8 150 110 460 3 60 8HIT2-150-4 1.15 0.115 197 220 1331 4.000 70.08 7.52 10000 661

10 40 30 460 3 60 10HIT4-40-4 1.15 0.408 62 71 286 4.000 49.21 8.52 10000 507

10 50 37 460 3 60 10HIT4-50-4 1.15 0.408 73 83 286 4.000 49.21 8.52 10000 507

10 60 45 460 3 60 10HIT4-60-4 1.15 0.288 91 104 474 4.000 59.84 8.52 10000 639

10 75 55 460 3 60 10HIT4-75-4 1.15 0.257 106 121 485 4.000 59.84 8.52 10000 639

10 100 75 460 3 60 10HIT4-100-4 1.15 0.171 145 166 670 5.000 69.68 8.52 10000 794

10 125 90 460 3 60 10HIT4-125-4 1.15 0.171 175 200 693 5.000 69.68 8.52 10000 794

10 200 150 460 3 60 10HIT2-200-4 1.15 0.0929 235 270 1260 5.000 69.68 8.52 10000 948

10 250 185 460 3 60 10HIT2-250-4 1.15 0.0776 295 340 1500 5.000 79.53 8.52 10000 1455

12 150 110 460 3 60 12HIT4-150-4 1.15 0.138 190 218 1021 5.000 56.3 10.53 10000 959

12 200 150 460 3 60 12HIT4-200-4 1.15 0.119 220 250 1195 5.000 68.11 10.53 10000 1235

12 300 225 460 3 60 12HIT2-300-4 1.15 0.0386 350 396 2700 5.000 78.75 10.53 10000 1455

14 250 185 460 3 60 14HIT4-250-4 1.15 0.0552 305 350 1870 5.000 68.31 12.60 10000 1698

14 300 225 460 3 60 14HIT4-330-4 1.15 0.0517 370 425 2300 5.000 76.18 12.60 10000 1940

*Motor is 8" diameter, but constructed to operate with a 6" liquid end.

** 8" motors with 6" flange when using stainless steel bolts have a thrust rating of 5,000 lbs.

A thrust value of 10,000 lbs. can be obtained using grade-8 heat-treated stainless steel bolts.

Hitachi® is a registered trademark of Hitachi Industrial Equipment Systems Co., Ltd.

814" SUBMERSIBLE MOTORS

P 8174 WS

PENTEK CUSTOMER HOTLINE: 18669PENTEK

Motor Dimensions

Pentek® PPX Pump Panels are designed for agricultural

and commercial above-ground pumping applications

and provide full-voltage control of AC motors up to

200 HP. PPX panels are offered in NEMA 3R (outdoor

rated) enclosures with a door gasket to protect

electrical components from harsh environments.

50°

OFF

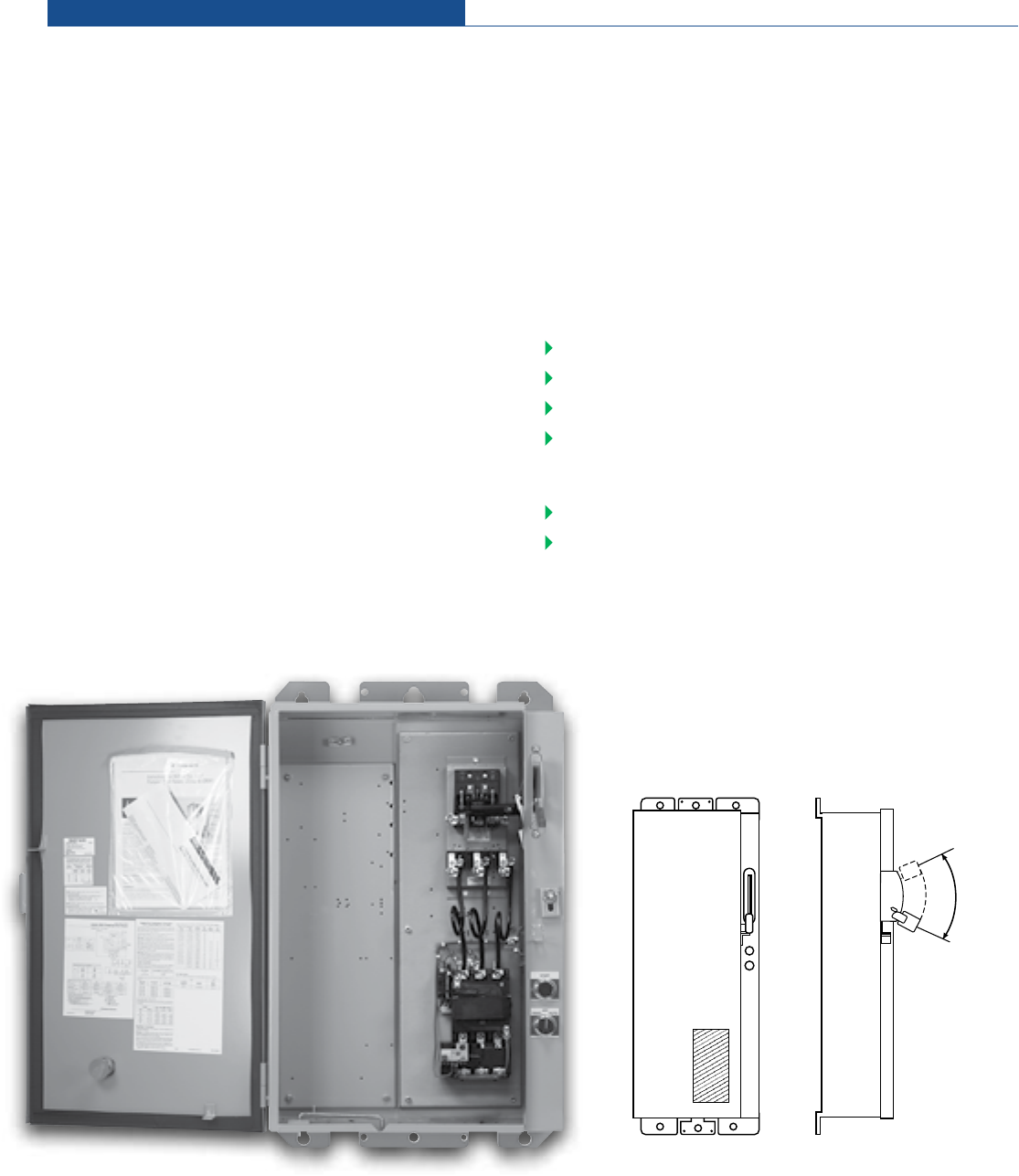

PPX NEMA Pump Panels

NEMA Certified, heavy-duty design for outdoor applications

NEMA Pump Panels, Size 1 – 5, 208V, 230 – 240V, 460 – 480V, 575 – 600V

Features

NEMA 3R (Outdoor Rated) Enclosure

Class R Fusible Disconnect (fuses not included)

NEMA rated components

Electronic overloads with user-selectable

current ranges, trip characteristic and manual/

automatic restart

External Overload Reset

Split mounting plate design enables easy mounting of

devices without disconnecting the main motor circuit

Mounting Configuration

THREEPHASE STARTERS

26 PENTEK CUSTOMER HOTLINE: 18669PENTEK

PPX Selection Guide

THREEPHASE STARTERS

P 8175 WS

PENTEK CUSTOMER HOTLINE: 18669PENTEK

NEMA SIZE MAX HP OF

CONTACTOR DISCONNECT A MAX TOTAL A

OF PPX PANEL OIL CURRENT

RANGE CATALOG

NUMBER

DIMENSIONS

H x W x D WEIGHT

(LBS.)

1 7.5 30

13.5

6.5 – 13.5

PPX-1A-13-30R

34 x 21 x 7

13 – 27

PPX-1A-27-30R

34 x 21 x 7

2 10 60 50 25 – 50 PPX-2A-50-60R 34 x 21 x 7 90

3 25 100 70 35 – 70 PPX-3A-70-100R 47.5 x 25 x 9 195

100 65 – 135 PPX-3A-135-100R 47.5 x 25 x 9 195

4 40 200 135 65 – 135 PPX-4A-135-200R 47.5 x 25 x 9 195

208 VAC

Note: For HPs with multiple part numbers, use motor amperage to select a panel.

NEMA SIZE MAX HP OF

CONTACTOR DISCONNECT A MAX TOTAL A

OF PPX PANEL OIL CURRENT

RANGE CATALOG

NUMBER

DIMENSIONS

H x W x D WEIGHT

(LBS.)

1 7.5 30

13.5

6.5 – 13.5

PPX-1B-13-30R

34 x 21 x 7

13 – 27

PPX-1B-27-30R

34 x 21 x 7

2 15 60 50 25 – 50 PPX-2B-50-60R 34 x 21 x 7 90

3 30 100 70 35 – 70 PPX-3B-70-100R 47.5 x 25 x 9 195

100 65 – 135 PPX-3B-135-100R 47.5 x 25 x 9 195

230-240 VAC

Note: For HPs with multiple part numbers, use motor amperage to select a panel.

NEMA SIZE MAX HP OF

CONTACTOR DISCONNECT A MAX TOTAL A

OF PPX PANEL OIL CURRENT

RANGE CATALOG

NUMBER

DIMENSIONS

H x W x D WEIGHT

(LBS.)

1 10 30

13.5

6.5 – 13.5

PPX-1C-13-30R

34 x 21 x 7

13 – 27

PPX-1C-27-30R

34 x 21 x 7

2 25 60 50 25 – 50 PPX-2C-50-60R 34 x 21 x 7 90

3 50 100 70 35 – 70 PPX-3C-70-100R 47.5 x 25 x 9 195

100 65 – 135 PPX-3C-135-200R 47.5 x 25 x 9 195

4 100 200 135 65 – 135 PPX-4C-135-200R 47.5 x 25 x 9 195

5 200 400 270 130 – 270 PPX-5C-270-400R 52 x 22 x 10 285

460-480 VAC

Note: For HPs with multiple part numbers, use motor amperage to select a panel.

NEMA SIZE MAX HP OF

CONTACTOR DISCONNECT A MAX TOTAL A

OF PPX PANEL OIL CURRENT

RANGE CATALOG

NUMBER

DIMENSIONS

H x W x D WEIGHT

(LBS.)

1 10 30

13.5

6.5 – 13.5

PPX-1D-13-30R

34 x 21 x 7

13 – 27

PPX-1D-27-30R

34 x 21 x 7

2 25 60 50 25 – 50 PPX-2D-50-60R 34 x 21 x 7 90

3 50 100 70 35 – 70 PPX-3D-70-100R 47.5 x 25 x 9 195

100 65 – 135 PPX-3D-135-100R 47.5 x 25 x 9 195

4 100 200 135 65 – 135 PPX-4D-135-200R 47.5 x 25 x 9 195

5 200 400 270 130 – 270 PPX-5D-270-400R 52 x 22 x 10 285

575-600 VAC

CONSTANT PRESSURE

FOR WELL PUMP SYSTEMS

For use with both Submersible and Above Ground

Well Pumps to Control Changes in Water Demand

Most homeowners with well systems know what happens

when demand for water changes. If they’re taking a shower,

water pressure drops when someone starts the dishwasher

or turns on a faucet. Weak showers, unclean dishes and

other water pressure problems become frustrating daily

experiences.

A “Variable Frequency Drive” for Submersible

or Above Ground Well Pumps.

The Pentek Intellidrive™ Water Pressure Control

Center directs changes in pump motor speed,

responding to fluctuations in demand. If water

pressure starts dropping, an electronic pressure

transducer signals the drive to accelerate the pump

motor to increase water volume going into the home.

The Benefit? Strong, equal pressure, everywhere.

Homeowners will recognize the difference right away.

Water flows smoothly and evenly throughout the home.

Regardless of changes in demand, water pressure stays

the same: in the shower, the dishwasher, and from every

other faucet and fixture.

And when homeowners are outside, they’ll enjoy a lush,

green lawn and landscaping. Sprinkler systems will

perform at their best, with consistent spray patterns,

constantly pressurized to achieve complete coverage.

The pump and motor will last longer.

Pentek Intellidrive™ features “Soft Start/Coast to Stop”

design, which minimizes mechanical stress. And during

long-running applications like lawn irrigation, pressure-

cycling is eliminated…another system stress reducer.

Pentek Intellidrive Leading-edge technology for a

premium residential water system that makes life better!

PENTEK INTELLIDRIVE™

WATER PRESSURE CONTROL CENTER

DRIVE PRODUCTS

ADVANCED TECHNOLOGY. SUPERIOR PERFORMANCE.

ELECTRONIC

PRESSURE TRANSDUCER

More accurate and reliable

than mechanical pressure

switch, with piezo resistive

technology designed to

resist water hammer

TEMPERATURE-

SENSITIVE

INTELLIGENT FAN

Operates when needed

for quiet operation

SD CARD SLOT

For easy software

updates when provided

by manufacturer

SPRING TERMINALS

For secure connections

and easy installation

without special tools

REMOVABLE

TERMINAL BLOCKS

For easy wiring of motor

and power supply – field

replaceable

EASY-ACCESS

CONDUIT OPENINGS

Align with appropriate

terminals for straight-in

accessibility. Fits 1/2", 3/4"

or 1-1/4"

PROGRAMMABLE

INPUT/OUTPUT RELAYS

Provide application

flexibility

SPACIOUS

WIRING AREA

For fast and easy

installation

BEST-IN-CLASS

EMI/RFI FILTER

Superior noise and

interference protection,

including AM radio signals

LCD INFORMATION

CENTER

Displays installation,

status and fault

information in easy-to-

understand language

instead of codes

GROUND DETECTION

Message Center shows

if there is a grounding

problem

KEYHOLE MOUNT

For fast and easy installation

MULTIPLE

ACCESSORY INPUTS

Additional inputs allow use

of multiple drive accessories

at the same time

DRIVE PRODUCTS

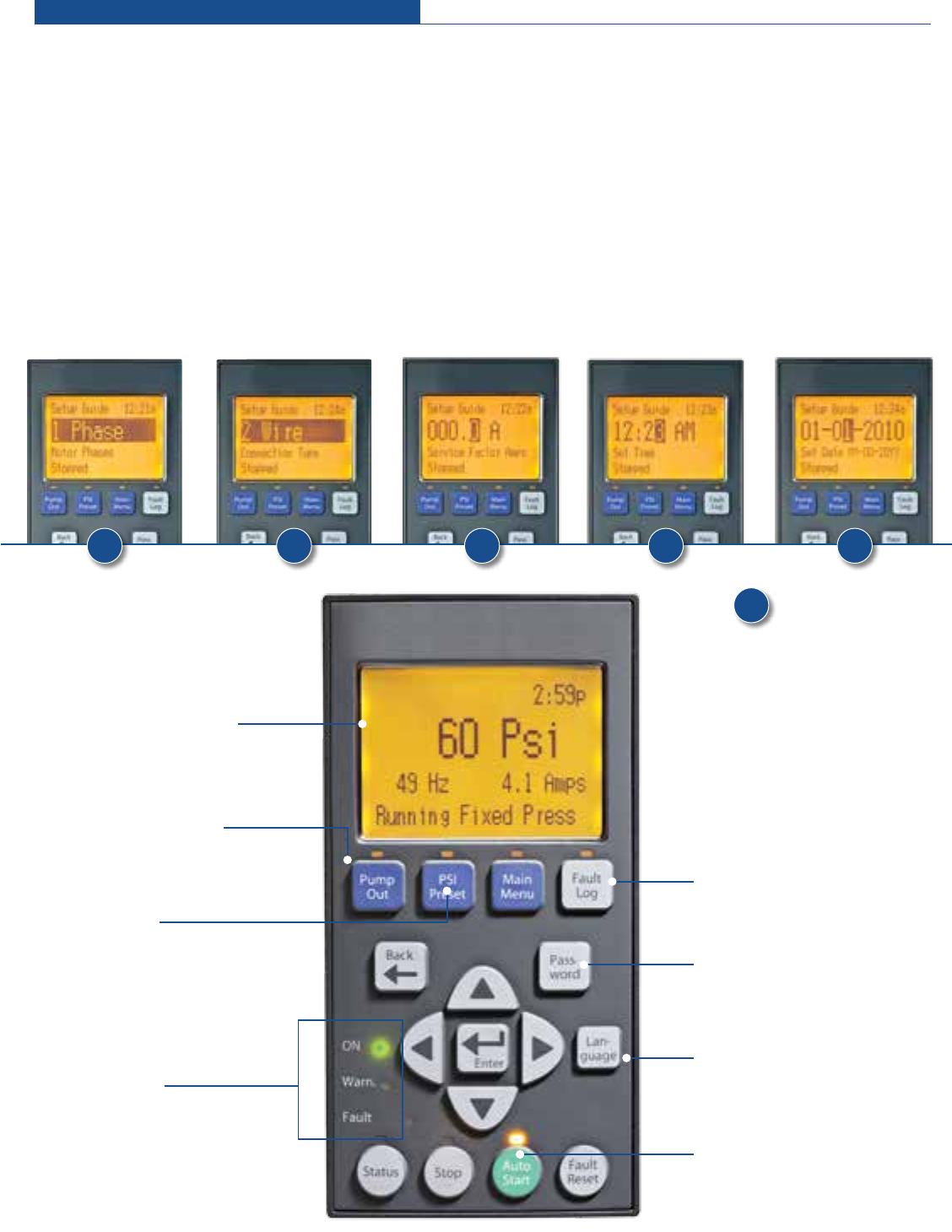

AN INTELLIGENT CONTROL...

SIMPLE TO OPERATE,

EASY TO UNDERSTAND.

No other variable frequency drive provides such an

effective operator interface with easy touchpad operation

and a spectrum of features that allows easy configuration

for most residential water control applications. And the

LCD Information Center communicates clearly in words,

instead of confusing light codes.

START-UP IS SIMPLE…

ENTER MOTOR PHASE ENTER MOTOR TYPE ENTER SERVICE FACTOR AMPS ENTER CURRENT TIME ENTER CURRENT DATE

6CHOOSE “PUMP OUT”

OR “AUTO START”

1 2 3 4 5

BACKLIT LCD DISPLAY

PUMP-OUT BUTTON

For cleaning of new

wells and fixed frequency

operation

PSI PRESET

Sets pressure to

any value desired

LED STATUS

INDICATION

DIAGNOSTICS INDICATOR

Self diagnostic messaging

for ease of service

FAULT LOG

Stores 15 faults

with timestamps

KEYPAD LOCKOUT

For security against tampering

and unintended adjustments

MULTI-LINGUAL OPTIONS

English, French or Spanish

AUTO-START

With automatic line-fill

functionality, providing

constant pressure operation

DRIVE PRODUCTS

30 PENTEK CUSTOMER HOTLINE: 18669PENTEK

y p pump motor.

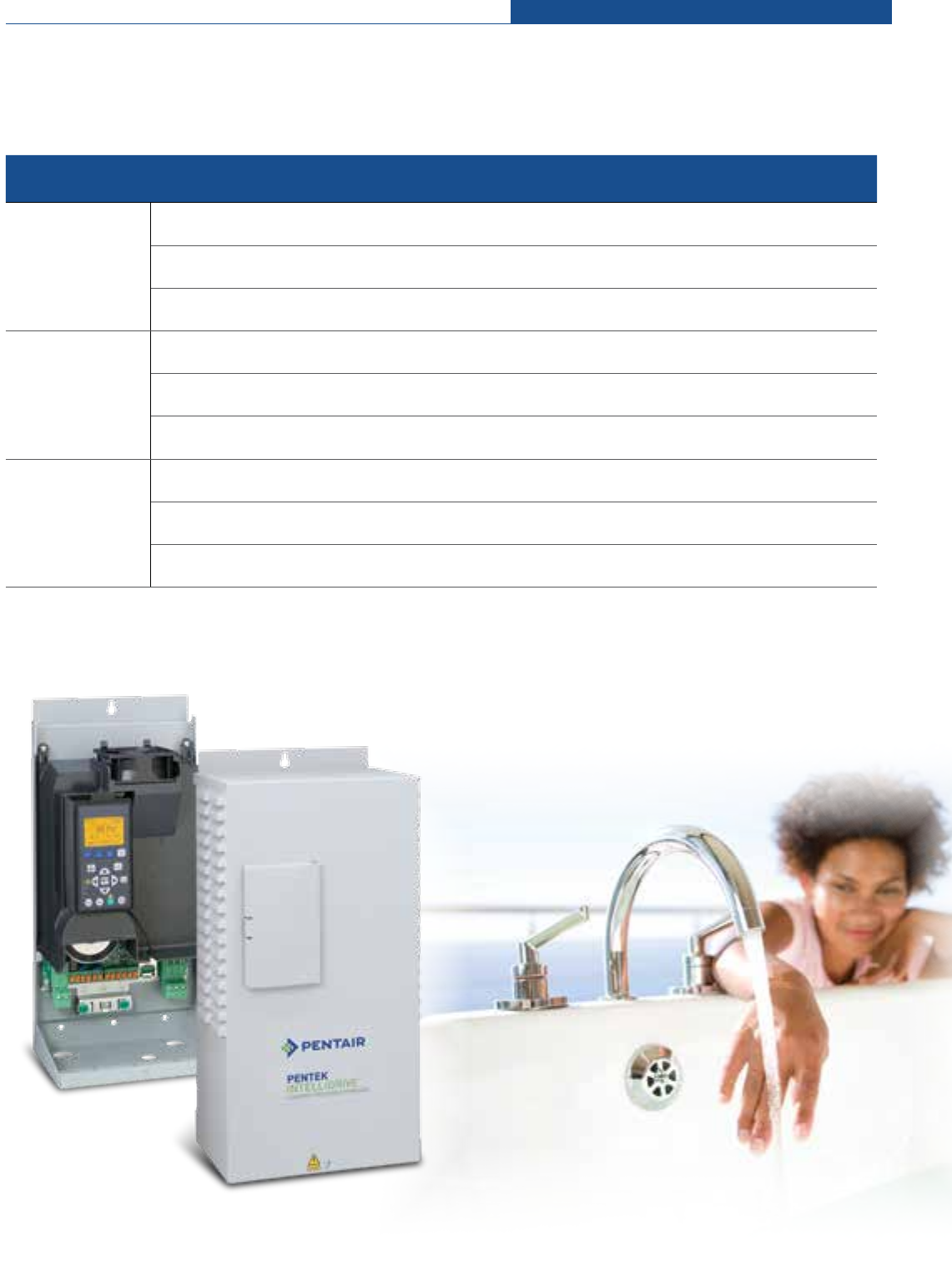

Product Line Overview

*Pentek® (PSC) 2-wire motors only

DRIVE PRODUCTS

PENTEK CUSTOMER HOTLINE: 18669PENTEK

MODEL NUMBER MOTOR TYPE MAXIMUM HP INPUT VOLTAGE OUTPUT AMPS

ENCLOSURE

RATING

PID10

1-PHASE

2-WIRE* 1.0 190-265 9.5 3R

1-PHASE

3-WIRE 1.0 190-265 7.5 3R

3-PHASE 1.0 190-265 5.0 3R

PID20

1-PHASE

2-WIRE* 1.5 190-265 11.0 3R

1-PHASE

3-WIRE 2.0 190-265 13.5 3R

3-PHASE 2.0 190-265 8.5 3R

PID50

1-PHASE

2-WIRE* 1.5 190-265 11.0 3R

1-PHASE

3-WIRE 2.0 190-265 13.5 3R

3-PHASE 5.0 190-265 18.0 3R

The Alternating Panel is designed to equalize wear on the

pumps by alternating two Pentek Intellidrive™ VFD’s every

24 hours. This panel alternates which pump is the lead and

lag in a duplex system. It can also be used independently

of the lead/lag function.

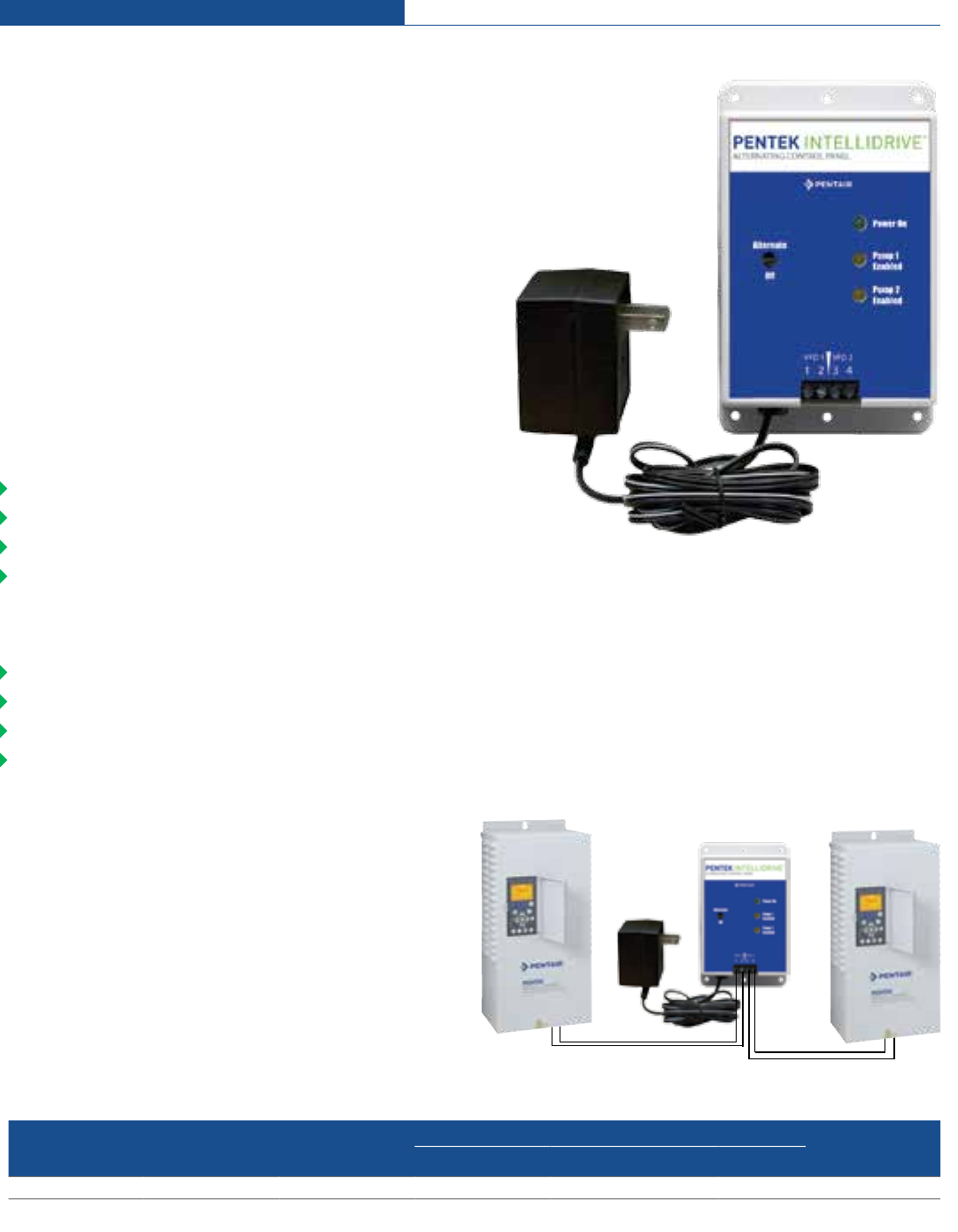

VFD-ALT

Alternating Control Panel for the PENTEK INTELLIDRIVE™

The Alternating Pentek Intellidrive

Control Panel will alternate pumps that

are connected to the Pentek Intellidrive.

* Additional programming is necessary

in the Pentek Intellidrive.

Applications

Alternate Pentek Intellidrive VFD's on pressure boosting

systems. Equalize wear on pumps.

Power On Indicator

Pump 1 Enabled Indicator

Pump 2 Enabled Indicator

Alternate/Off Switch

Specifications

120 VAC

6 ft. Power Cord

NEMA 1 Enclosure

4 Terminal Blocks To Connect VFD's - Use 18 AWG Wire

System Overview

After the panel is mounted, wire the panel, plug it into

a 120 VAC outlet, and turn the switch to Alternate.

“Pump 1” will turn on and the “pump 1 enable” LED

will illuminate. After 24 hours “Pump 2” will turn on

and the “pump 2 enable” LED will illuminate.

model

Number rated volts HZ

dimeNsioNs (iN.)

weigHt lbs.

HeigHt

widtH

deptH

VFD-ALT

120 VAC

50/60

5.375

3.25

1.625

1.0

PENTEK INTELLIDRIVE™ ACCESSORIES

32 PENTEK CUSTOMER HOTLINE: 18669PENTEK

Surge protection device for use with any 230V Pentek Intellidrive™. Line side arrester

easily installed in the circuit breaker. Load side installed on the drive output. LED

Diagnostic lights help provide positive indication of power and surge protection.*

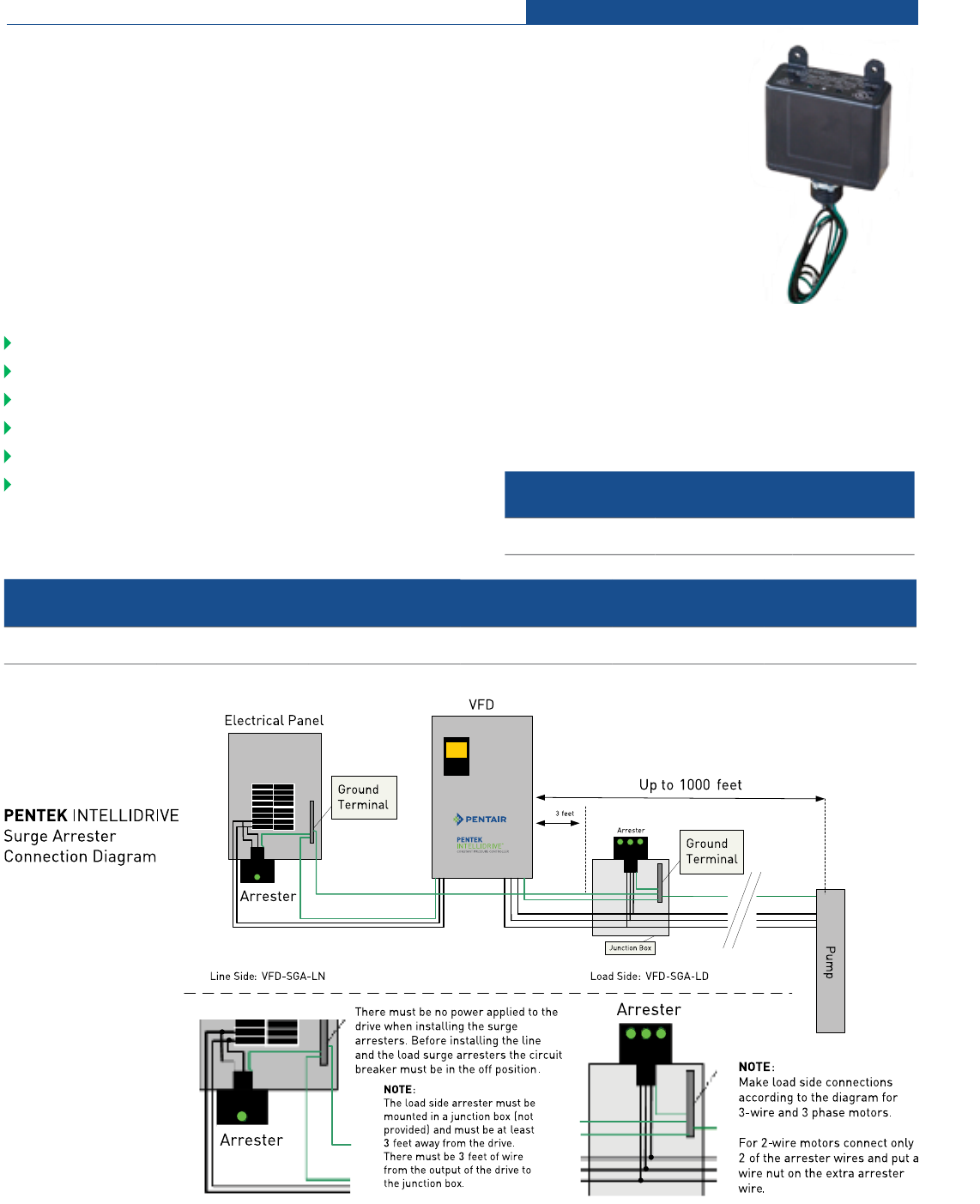

Surge Protection Kits

120/240 VAC Protection for PENTEK INTELLIDRIVE™

VFD-SGA: Surge Protection Kit (includes line & load side)

VFD-SGA-LN: Line Side Surge Protection

VFD-SGA-LD: Load Side Surge Protection

Features

Compact size to fit most applications

Diagnostic LEDs to indicate system power & surge protection

Weatherproof design allows for use in most environments

Service Voltage: 240 VAC (line side); 240VAC (Load side)

Parallel connection for easy installation

Auto reset to handle multiple surges

Line Side:

Load Side:

SERVICE WIRING

PEAK SURGE

CURRENT MCOV

UL 1449, 3rd Ed,

V.P.R.

SHORT CIRCUIT

RATING

UL 1449, 3rd Ed. In

V.P.R.

Two Power Cords

+ Ground

72,000A/Phase

36,000A/Mode 130/260V 500V L-G, 900V L-L 10,000A 10,000A

Service Wiring Peak Surge

current McOv

Two Power Cords +

Ground 75,000A 320V

PENTEK INTELLIDRIVE™ ACCESSORIES

PENTEK CUSTOMER HOTLINE: 18669PENTEK

The Moisture Sensor is designed to shut off your

Pentek Intellidrive™ if water is detected. When water

touches the two detection points on the bottom of the

Moisture Sensor, it sends a signal to the VFD to shut it off.

VFD-WS

Moisture Sensor

Pentek® Moisture Sensors detect water

and shut down your Pentek Intellidrive

in the event of a water leak.

Applications

Prevent flooding from broken pipes or leaks! The

VFD-WS is designed to connect to, and shut off, the

Pentek Intellidrive when water from broken pipes is

detected. The entire property you are providing water

to is protected from flooding.

Detects water At 1/16"

Waterproof epoxy encapsulated enclosure

Indicators for alarm condition and ready condition

Auto reset

Specifications

24 VDC

Detects water at 1/16"

Auto reset

Red alarm indicator for a water alarm

Green ready indicator to indicate the

systems is ready for operation

4 Conductor 18 gauge cable

15 Foot cord length

PENTEK INTELLIDRIVE™ ACCESSORIES

34 PENTEK CUSTOMER HOTLINE: 18669PENTEK

MODEL

NUMBER RATED VOLTS HZ

DIMENSIONS (IN.)

WEIGHT LBS.

HEIGHT

WIDTH

DEPTH

VFD-WS

24VDC

N/A

1.075

3.0

1.5

1.0

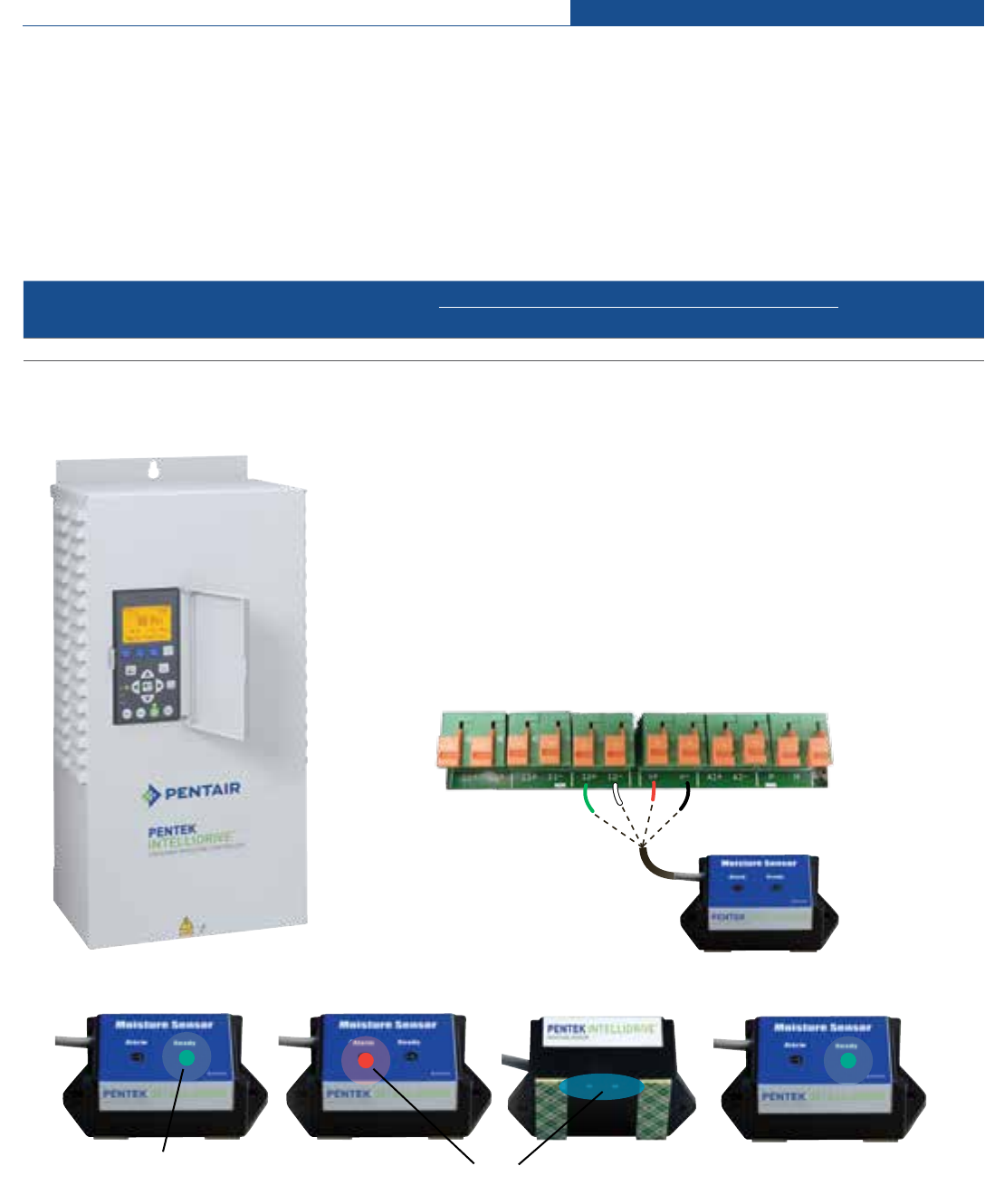

System Overview

(Fig. 1 - When the sensor is dry and the system has power, the green “Ready”

indicator will be illuminated.) (Fig. 2 - The red “Alarm” indicator light will

illuminate if water is touching both detection points on the bottom of the

Moisture Sensor.) The Moisture Sensor can be automatically reset by wiping of

the sensors on the bottom of the unit. (Fig. 3 - When the Moisture Sensor is dry,

the green “Ready” indicator will illuminate.) The Pentek Intellidrive™ must be

"Reset" to return to normal operation.

Fig. 1

Green "Ready"

Indicator

Illuminated

Fig. 2

Red “Alarm” Indicator is illuminated if

water is touching the two detection points

on the bottom of the Moisture Sensor.

Fig. 3

Green "Ready"

Indicator Illuminated

Model Number & System Overview

PENTEK INTELLIDRIVE™ ACCESSORIES

PENTEK CUSTOMER HOTLINE: 18669PENTEK

PPC3 & PPC5

State-of-the-art pump protection and controllers

Pentek® Pump Controllers provide innovative pumping

solutions for maximizing pump functionality, optimizing pump

system design and reducing operating energy costs.

Pentek PPCs can be used on all centrifugal motor-driven

pumps including close-coupled motor drive, frame mount,

submersible and line shaft turbine pumps, in a wide range of

applications.

PPC3 NEMA 1

PPC5 NEMA 1

*NEMA 1 Enclosure meant for Indoor Use

DRIVE PRODUCTS

36 PENTEK CUSTOMER HOTLINE: 18669PENTEK

Pentek Assistant

Guides the user through the setup

process for constant pressure

applications, taking less than 2

minutes to program; allows for

local or remote operation

Includes macros for both

submersible and above-ground

pump applications

System harmonics evaluation process

Additional Application Functions

Auto-Restart Functionality – re-starts pump

after power loss

Easily configured for constant flow applications

by adjusting 2 additional menu parameters

Multiple System Setpoints or Operating Condition –

includes 2 independent process control setpoints to

allow operation under a second process

Time Function supports 4 Daily and Weekly

START/STOP/BOOST times

Process Benefits

Variable Speed Control

Meets requirements of process control with constant

pressure at variable flow conditions or constant flow

at variable pressure conditions

Reduced Energy Costs

Calculate energy savings online using BEC2

software at www.bec2.net

Pump Protection

From loss of prime, dead head and blocked suction

Motor Protection

From ground fault, short circuit, phase loss and

imbalance, overload, undervoltage and overvoltage

System Protection (PPC5 only)

From harmonics, featuring an input choke that exceeds

the performance of a fixed 5% impedance line reactor

Phase Conversion

The PPC5 will convert 1-phase power into 3-phase

power, allowing the use of a 3-phase motor

The PPC3 is available in both 1 & 3 phase models

PPC Features

The Pentek® PPC3 and PPC5 Pump Controllers are programmed with the Pentek Assistant and pre-jumpered, providing

ease of setup for constant pressure applications. The Pentek Assistant defaults to pre-defined parameters and prompts

the user for application-specific information. The ‘Help’ key activates parameter descriptions, providing easy reference

to the programming guide.

P 8118 WS

DRIVE PRODUCTS

PENTEK CUSTOMER HOTLINE: 18669PENTEK

PPC Selection Guide

PPC3, PPC5

OUTPUT

AMPS

EnclOSUrE

SizE MOUnTing

MOdEl

nUMbEr

nEMA 1

4.7

WALL

PPC3-1-4A7-1

6.7

WALL

PPC3-1-6A7-1

7.5

WALL

PPC3-1-7A5-1

9.8

WALL

PPC3-1-9A8-1

OUTPUT

AMPS

EnclOSUrE

SizE MOUnTing

MOdEl

nUMbEr

nEMA 1

4.7

WALL

PPC3-2-4A7-1

6.7

WALL

PPC3-2-6A7-1

7.5

WALL

PPC3-2-7A5-1

9.8

WALL

PPC3-2-9A8-1

17.6

WALL

PPC3-2-17A6-1

24.4

WALL

PPC3-2-24A4-1

31.0

WALL

PPC3-2-31A0-1

46.2

WALL

PPC3-2-46A2-1

200-240 Volt – 1-Phase IN, 3-Phase OUT

PPC3 Selection

200-240 Volt – 3-Phase IN, 3-Phase OUT

380-480 Volt – 3-Phase IN, 3-Phase OUT

PPC3 / PPC5 Comparison

The output current (or amps) of the PPC must be greater than or equal to the maximum rated motor current.

PENTEK CUSTOMER HOTLINE: 18669PENTEK

DRIVE PRODUCTS

Features PPC3 PPC5

HP Ratings

1 – 30

1/2 – 200

Voltages 230, 460 230, 460, 575

Frequency 50/60 Hz 50/60 Hz

Floating Choke No Yes

Harmonic Signature Good Best

No. of Relays 1 3 (ext. to 6 available)

Digital Inputs 5 6

Multiple Pump Capable

Yes

Mod. Bus

Yes

Enclosure Type

NEMA 1

NEMA 1, 12

OUTPUT AMPS EnclOSUrE SizE MOUnTing MOdEl nUMbEr nEMA 1

2.4

WALL

PPC3-4-2A4-1

3.3

WALL

PPC3-4-3A3-1

4.1

WALL

PPC3-4-4A1-1

5.6

WALL

PPC3-4-5A6-1

8.8

WALL

PPC3-4-8A8-1

12.5

WALL

PPC3-4-12A5-1

15.6

WALL

PPC3-4-15A6-1

23.1

WALL

PPC3-4-23A1-1

31.0

WALL

PPC3-4-31A0-1

38.0

WALL

PPC3-4-38A0-1

44.0

WALL

PPC3-4-44A0-1

500-600 Volt – 3-Phase IN, 3-Phase OUT

PPC5 Selection

OUTPUT

AMPS

EnclOSUrE

SizE

MOUnTing

MOdEl

nUMbEr

nEMA 1

4.7

WALL

PPC3-2-4A7-1

6.7

WALL

PPC3-2-6A7-1

7.5

WALL

PPC3-2-7A5-1

9.8

WALL

PPC3-2-9A8-1

17.6

WALL

PPC3-2-17A6-1

24.4

WALL

PPC3-2-24A4-1

31.0

WALL

PPC3-2-31A0-1

46.2

WALL

PPC3-2-46A2-1

OUTPUT

AMPS

ENCLOSURE

SIZE MOUNTING

MODEL

NUMBER

NEMA 1

MODEL

NUMBER

NEMA 12

4.6

Wall

PPC5-2-4A6-1

PPC5-2-4A6-12

6.6

Wall

PPC5-2-6A6-1

PPC5-2-6A6-12

7.5

Wall

PPC5-2-7A5-1

PPC5-2-7A5-12

11.8

Wall

PPC5-2-11A-1

PPC5-2-11A-12

16.7

Wall

PPC5-2-16A-1

PPC5-2-16A-12

24.2

Wall

PPC5-2-24A-1

PPC5-2-24A-12

30.8

Wall

PPC5-2-30A-1

PPC5-2-30A-12

46.2

Wall

PPC5-2-46A-1

PPC5-2-46A-12

59.4

Wall

PPC5-2-59A-1

PPC5-2-59A-12

74.8

Wall

PPC5-2-74A-1

PPC5-2-74A-12

Wall

PPC5-2-88A-1

PPC5-2-88A-12

114

Wall

PPC5-2-114A-1

PPC5-2-114A-12

143

Wall

PPC5-2-143A-1

178

Wall

PPC5-2-178A-1

221

Wall

PPC5-2-221A-1

248

Wall

PPC5-2-248A-1

OUTPUT

AMPS

ENCLOSURE

SIZE MOUNTING

MODEL

NUMBER

NEMA 1

MODEL NUMBER

NEMA 12

3.3

Wall

PPC5-4-3A3-1

PPC5-4-3A3-12

4.1

Wall

PPC5-4-4A1-1

PPC5-4-4A1-12

6.9

Wall

PPC5-4-6A9-1

PPC5-4-6A9-12

8.8

Wall

PPC5-4-8A8-1

PPC5-4-8A8-12

11.9

Wall

PPC5-4-11A-1

PPC5-4-11A-12

15.4

Wall

PPC5-4-15A-1

PPC5-4-15A-12

Wall

PPC5-4-23A-1

PPC5-4-23A-12

Wall

PPC5-4-31A-1

PPC5-4-31A-12

Wall

PPC5-4-38A-1

PPC5-4-38A-12

Wall

PPC5-4-44A-1

PPC5-4-44A-12

Wall

PPC5-4-59A-1

PPC5-4-59A-12

Wall

PPC5-4-72A-1

PPC5-4-72A-12

Wall

PPC5-4-77A-1

PPC5-4-77A-12

Wall

PPC5-4-96A-1

PPC5-4-96A-12

124

Wall

PPC5-4-124A-1

157

Wall

PPC5-4-157A-1

180

Wall

PPC5-4-180A-1

196

Floor

PPC5-4-196A-1

245

Floor

PPC5-4-245A-1

400-480 Volt – 3-Phase IN, 3-Phase OUT

208-240 Volt – 3-Phase IN, 3-Phase OUT

Specifications are based on a 3-phase supply voltage, 208 volt or 230

volt. For operation on 1-phase input power, de-rate the drive output

current by 50%. Drive output is always 3-phase voltage.

The output current (or amps) of the PPC must be greater than or equal

to the maximum rated motor current.

PENTEK CUSTOMER HOTLINE: 18669PENTEK

DRIVE PRODUCTS

OUTPUT AMPS ENCLOSURE SIZE MOUNTING MODEL NUMBER NEMA 1 MODEL NUMBER NEMA 12

2.7

Wall

PPC5-5-2A7-1

PPC5-5-2A7-12

3.9

Wall

PPC5-5-3A9-1

PPC5-5-3A9-12

6.1

Wall

PPC5-5-6A1-1

PPC5-5-6A1-12

Wall

PPC5-5-9A0-1

PPC5-5-9A0-12

Wall

PPC5-5-11A-1

PPC5-5-11A-12

Wall

PPC5-5-17A-1

PPC5-5-17A-12

Wall

PPC5-5-22A-1

PPC5-5-22A-12

Wall

PPC5-5-27A-1

PPC5-5-27A-12

Wall

PPC5-5-32A-1

PPC5-5-32A-12

Wall

PPC5-5-41A-1

PPC5-5-41A-12

Wall

PPC5-5-52A-1

PPC5-5-52A-12

Wall

PPC5-5-62A-1

PPC5-5-62A-12

Wall

PPC5-5-77A-1

PPC5-5-77A-12

Wall

PPC5-5-99A-1

PPC5-5-99A-12

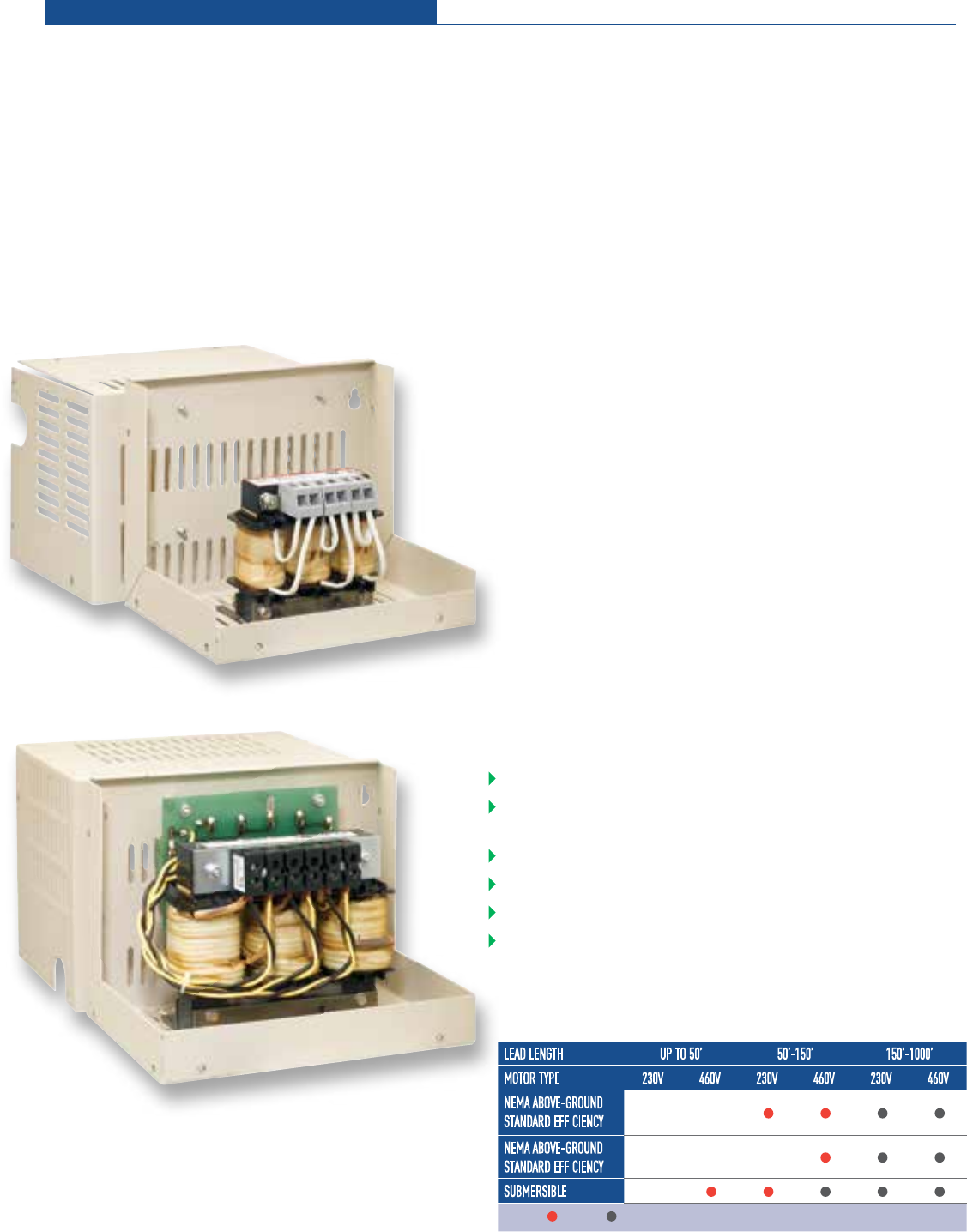

Reactors & Filters

Increase motor life expectancy

Application

Variable frequency drives produce voltage spikes that are a

function of voltage rise time and length of motor cable. In

extreme cases, peak voltages may exceed three times nominal

operating voltage. Ideal for use with Pentek® PPC3 and PPC5

Pump Controllers.

Reactors and Filters

A reactor is a resistance and inductance device that reduces

the voltage spikes. This is accomplished both by increasing the

voltage rise time as well as by improving the impedance match

of the motor and cable.

A filter combines a reactor with a capacitor network. The

capacitor network absorbs a portion of the voltage spike,

further reducing the peak voltage seen by the motor.

When to use a Reactor and Filter

The chart below will provide some guidelines as to when

to use a reactor or filter. Careful considerations should be

given when:

Long motor lead lengths are used

Using NEMA standard, premium efficiency,

submersible motors

Quality and age of the motor are unknown

Using a submersible motor over 230V

The cost of replacing the motor is prohibitive

Consistency of environment and/or power quality is unknown

Installing an output reactor or filter can

increase motor life and performance in

many applications.

Reactor Enclosed

Filter Enclosed

ACCESSORIES

LEAD LENGTH UP TO 50’ 50’-150’ 150’-1000’

MOTOR TYPE 230V 460V 230V 460V 230V 460V

NEMA ABOVE-GROUND

STANDARD EFFICIENCY – –

NEMA ABOVE-GROUND

STANDARD EFFICIENCY –––

SUBMERSIBLE –

REACTOR FILTER

PENTEK CUSTOMER HOTLINE: 18669PENTEK

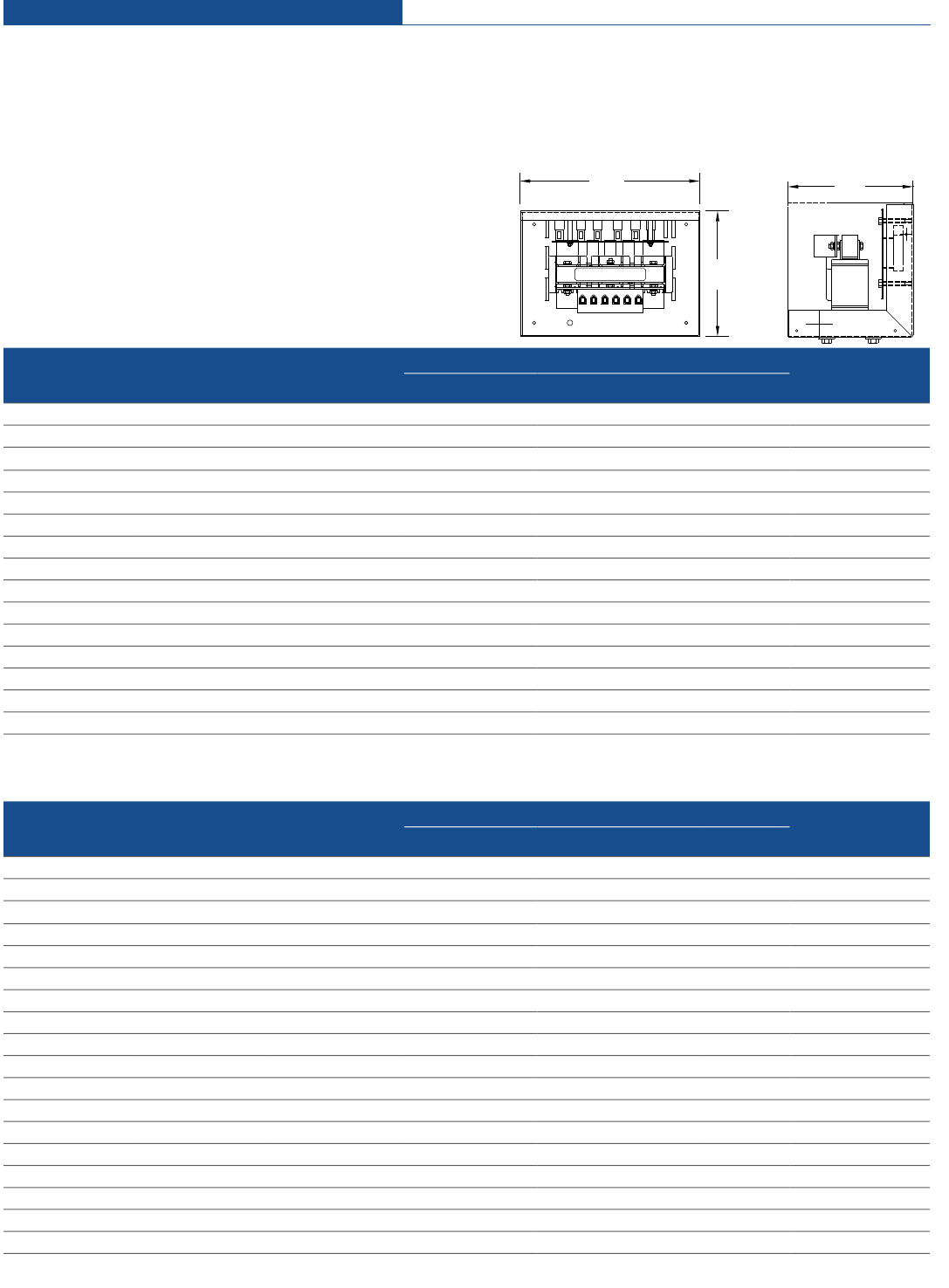

Reactor enclosed

Reactor open

MODEL #

RATED

AMPS

DIMENSIONS (IN.)

WEIGHT

LBS.

MINIMUM

CAB SIZEHEIGHT WIDTH DEPTH

KDRA1PC1

3.4

6.5

KDRA2PC1

4.8

6.5

KDRA3PC1

7.6

6.5

KDRA4PC1

6.5

KDRB1PC1

6.5

KDRD1PC2

7.5

KDRD2PC2

7.5

KDRD3PC2

7.5

KDRD4PC2

7.5

KDRC1PC2

7.5

KDRF1PC3

KDRF2PC3

KDRF3PC4

15.5

KDRH1PC4

124

15.5

KDRI1PC4

156

15.5

KDRI2PC4

180

15.5

KDRG1PC4

240

15.5

Enclosed NEMA 1 Design – CSA Listed, 230V or 460V Input

MODEL #

RATED

AMPS

DIMENSIONS (IN.) WEIGHT

LBS.

MINIMUM

CAB SIZE

HEIGHT

WIDTH

DEPTH

KDRA31PC1

2.7

6.5

KDRA35PC1

3.9

6.5

KDRA33PC1

6.1

6.5

KDRA34PC1

6.5

KDRA36PC1

6.5

KDRD31PC2

7.5

KDRD32PC2

7.5

KDRD35PC2

7.5

KDRD33PC2

7.5

KDRD34PC2

7.5

KDRC31PC2

7.5

KDRF31PC3

KDRF32PC3

KDRF33PC4

15.5

KDRH31PC4

125

15.5

KDRI31PC4

144

15.5

KDRI32PC4

192

15.5

KDRG31PC4

242

15.5

Enclosed NEMA 1 Design – CSA Listed, 575V Input

Reactors

Increase motor life by eliminating voltage spikes

ACCESSORIES

P e r f o r m a n c e a n d P r o t e c t i o n f o r D r i v e s .

PENTEK CUSTOMER HOTLINE: 18669PENTEK

Open Design (Low-Z) – CSA Listed, 230V or 460V Input, 50/60 Hz

MODEL # RATED AMPS

DIMENSIONS (IN.)

WEIGHT LBS. MINIMUM CAB SIZE

HEIGHT

WIDTH

DEPTH

KDRA3P

7.6

4.18

–

KDRA4P

4.18

–

KDRB1P

–

KDRD1P

7.2

–

KDRD2P

7.2

–

KDRD3P

7.2

–

KDRD4P

7.2

–

KDRC1P

7.2

–

KDRF1P

–

KDRF2P

–

KDRF3P

–

KDRH1P

124

–

KDRI1P

156

–

KDRI2P

180

–

KDRG1P

240

–

MODEL # RatED aMPS HZ

DiMEnSiOnS (in.)

WEigHt LbS.

HEigHt

WiDtH

DEPtH

KLC4BE

50/60

6.5

KLC6BE

50/60

6.5

KLC8BE 8 50/60 6.5 8 6 11

KLC12BE

50/60

6.5

KLC16BE

50/60

6.5

KLC25BE

50/60

7.5

KLC35BE

50/60

7.5

KLC45BE

50/60

7.5

KLC55BE

50/60

7.5

KLC80BE

50/60

KLC110BE

110

50/60

KLC130BE

130

50/60

KLC160BE

160

50/60

100

KLC200BE

200

50/60

115

KLC250BE

250

50/60

116

Enclosed NEMA 1 Design, 230V, 460V or 575V Input

MODEL # RatED aMPS HZ

DiMEnSiOnS (in.)

WEigHt LbS.

HEigHt

WiDtH

DEPtH

KLCUL4A1

50/60

12.25

12.5

6.75

KLCUL6A1

50/60

12.25

12.5

6.75

KLCUL8A1 8 50/60 12.25 12.5 6.75 15

KLCUL12A1

50/60

12.25

12.5

6.75

KLCUL16A1

50/60

12.25

12.5

6.75

KLCUL18A1

50/60

12.25

12.5

6.75

KLCUL21A1

50/60

12.25

12.5

6.75

KLCUL25A1

50/60

12.25

12.5

6.75

KLCUL27A1

50/60

12.25

12.5

6.75

KLCUL35A1

50/60

12.25

12.5

6.75

KLCUL45A1

50/60

12.25

12.5

6.75

KLCUL55A1

50/60

12.25

12.5

6.75

KLCUL80A2

50/60

19.13

15.5

KLCUL110A2

110

50/60

19.13

15.5

KLCUL130A2

130

50/60

19.13

15.5

KLCUL160A2

160

50/60

19.13

15.5

KLCUL200A3

200

50/60

22.13

20.5

24.37

108

KLCUL250A3

250

50/60

22.13

20.5

24.37

117

Enclosed NEMA 1 Design, CUL Listed, 230V, 460V or 575V Input

Filters Enclosed

P 8177 WS

ACCESSORIES

Filters

Eliminate and dampen voltage spikes for long motor life

42 PENTEK CUSTOMER HOTLINE: 18669PENTEK

Transducers, Leads & Repair Parts

ACCESSORIES

PENTEK CUSTOMER HOTLINE: 18669PENTEK

Pentek Intellidrive™ Repair Parts

MODEL # ITEM DESCRIPTION MANUFACTURER

PIDCON2

2POLE CONNECTOR (LINE IN)

PENTEK

PIDCON3

3POLE CONNECTOR (LINE OUT)

PENTEK

PIDFAN REPLACEMENT FAN REPLACEMENT FAN PENTEK

PIDHMI

REPLACEMENT KEYPAD

PENTEK

U171561

TRANSDUCER (PID CONTROL)

0  100 PSIG, 4~20MA, LESS LEAD

PENTEK

U181593R

TRANSDUCER CABLE, FOR U171561

10 FT.  18GAUGE SHIELDED

PENTEK

U181594R

TRANSDUCER CABLE, FOR U171561

25 FT.  18GAUGE SHIELDED

PENTEK

U181595R

TRANSDUCER CABLE, FOR U171561

50 FT.  18GAUGE SHIELDED

PENTEK

U181596R

TRANSDUCER CABLE, FOR U171561

100 FT.  18GAUGE SHIELDED

PENTEK

U181597R

TRANSDUCER CABLE, FOR U171561

150 FT.  18GAUGE SHIELDED

PENTEK

U181598R

TRANSDUCER CABLE, FOR U171561

200 FT.  18GAUGE SHIELDED

PENTEK

MODEL # ITEM DESCRIPTION MANUFACTURER

U171336

PPC3/PPC5 CONTROL PANEL (KEYPAD)

PENTEK

U97188

DRIVE WINDOWS LIGHT

PENTEK

U97189

PPC5 JUMPER COMB

PENTEK

U97190

PPC3 JUMPER COMB

PENTEK

U171329

TRANSDUCER

060 PSIG, 4~20MA, LESS LEAD

TURCK

U171330

TRANSDUCER

0100 PSIG, 4~20MA, LESS LEAD

TURCK

U171331

TRANSDUCER

0200 PSIG, 4~20MA, LESS LEAD

TURCK

U171332

TRANSDUCER

0500 PSIG, 4~20MA, LESS LEAD

TURCK

U171333

RIGHT ANGLE LEAD, FOR U171329 TO 1332

2WIRE, 6.5 FEET

TURCK

U171334

RIGHT ANGLE LEAD, FOR U171329 TO 1332

2WIRE, 13.0 FEET

TURCK

U171335

RIGHT ANGLE LEAD, FOR U171329 TO 1332

2WIRE, 19.6 FEET

TURCK

PPC3/PPC5 Repair Parts

Nomenclature

Hitachi® is a registered trademark of Hitachi Industrial Equipment Systems Co., Ltd.

NOMENCLATURE

44 PENTEK CUSTOMER HOTLINE: 18669PENTEK

P 42 B 0005 A 1

PID-50

4" Submersible Motors

PPC Model Number Key

PPC5-4-4A1-1

PENTEK INTELLIDRIVE™

SERIES

VOLTAGE

hORSEpOwER

ENCLOSURE RATING

PID

1-230V 1-Phase In/230V 3-Phase Out/1-Phase Out

50=5HP

3 (NEMA 3R)

Brand

Motor Size

Motor Material

HorSepower

Frequency

Voltage / pH

P – PENTEK

42 – Four Inch 2-Wire

A – Stainless Steel w/Cast Iron End Bells

0005 – 1/2 HP

A – 60 Hz

1 – 115V, 1 PH

0007 – 3/4 HP

B – 50 Hz

2 – 230V, 1 PH

43 – Four Inch 3-Wire

B – All Stainless Steel

0010 – 1 HP

C – 50/60 Hz

3 – 230V, 3 PH

0015 – 1-1/2 HP

4 – 460V, 3 PH

0020 – 2 HP

5 – 575V, 3 PH

0030 – 3 HP

8 – 200V, 3 PH

0050 – 5 HP

0075 – 7-1/2 HP

0100 – 10 HP

SERIES

INPUT VOLTAGE

OUTPUT AMP RATING

ENCLOSURE RATING

PPC5

2 – 230V, 3 PH

4A1

1 (NEMA 1)

PPC3

4 – 460V, 3 PH

4A1 = 4.1 AMPS

12 (NEMA 12)

5 – 575V, 3 PH

(Amps A tenths)

The output current (or amps) of the PPC must be greater than or equal to the maximum rated motor current. Output of all drives is 3-phase power.

6"-14"

Submersible Motors 6 HIT 2 - 15 - 1

MOTOR DIAMETER

HITACHI MOTOR

POLE

HORSEPOWER

VOLTAGE/PH

HIT/PM

2 = 2-POLE

15 = 15 HP

1 - 230V, 1-PHASE

4 = 4-POLE

2 - 230V, 3-PHASE

4 - 460V, 3-PHASE

8 - 200V, 3-PHASE

Pentair is the premier supplier of innovative products and systems used worldwide in the movement, treatment,

storage and enjoyment of SAFE, CLEAN WATER.

Pentair is operating in more than 50 locations worldwide, and is positioned to serve the global marketplace with

innovative products while improving life and industry.

Americas

Anaheim, CA

Ashland, OH

Aurora, IL

Brantford, Ontario

Brookfield, WI

Chardon, OH

Cypress, CA

Delavan, WI

Denham Springs, LA

Dover, NH

El Monte CA

Grand Island, NE

Hanover Park, IL

Kansas City, KS

Kitchener, Ontario

LaGrangeville, NY

Minneapolis, MN

Monterrey, Mexico

Moorpark, CA

New Brighton, MN

Reynosa, Mexico

Sanford, NC

Sheboygan, WI

South El Monte, CA

Union City, TN

Europe

Billingham, UK

Buc, France

Cambridge, UK

Colombes, France

Crawley, UK

Griesheim, Germany

Herentals, Belgium

Houilles, France

Montespertoli, Italy

Pisa, Italy

Pregnana, Italy

International

Auckland, New Zealand

Goa, India

Johannesburg, S.A.

Melbourne, Australia

New Delhi, India

Santiago, Chile

Shanghai, China

Suzhou, China

Global Operations

GLOBAL OPERATIONS

PENTEK CUSTOMER HOTLINE: 18669PENTEK

This Page Intentionally Left Blank

46 PENTEK CusTomEr HoTliNE: 1-866-9PENTEK

This Page Intentionally Left Blank

PENTEK CusTomEr HoTliNE: 1-866-9PENTEK

P8063WS (04/08/14)

PENTEK®

293 WRIGHT STREET, DELAVAN, WI 53115 WWW.PUMPS.COM

PH: 866-9-PENTEK ORDERS FAX: 800-426-9446

Because we are continuously improving our products and services, Pentair reserves the right to change specifications without prior notice.

552461 1 Berkeley SPP 111P 3RL Brochure

Navigation menu

Versions of this User Manual:

Views

Navigation
