Puretek Co PT-3032 Modem User Manual 3030

Puretek Industrial Co Ltd Modem 3030

users manual

Quick Installation GuideVer. A 3030-0005Fax Modem

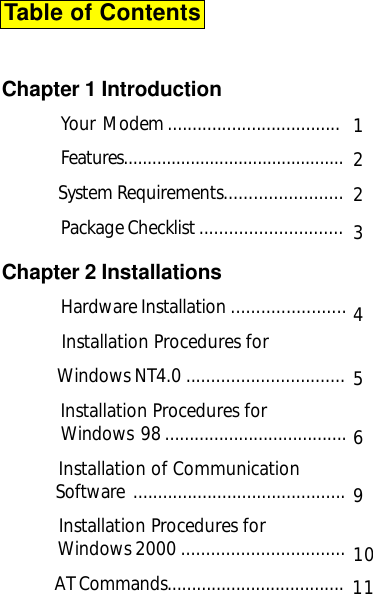

Table of ContentsChapter 1 IntroductionYour Modem ...................................Features.............................................. System Requirements........................Package Checklist .............................Chapter 2 InstallationsHardware Installation ....................... Installation Procedures for Windows NT4.0 ................................ Installation Procedures forWindows 98 ..................................... Installation of Communication Software ........................................... Installation Procedures for Windows 2000 .................................  AT Commands....................................122456910Table of Contents311

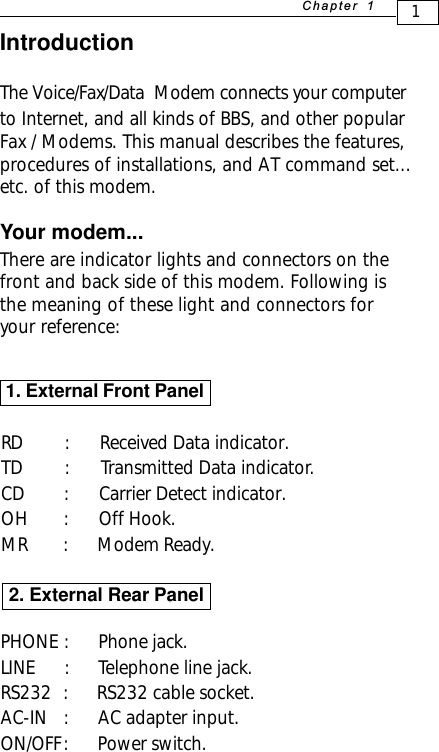

1+D=FJAH IntroductionThe Voice/Fax/Data Modem connects your computerto Internet, and all kinds of BBS, and other popularFax / Modems. This manual describes the features,procedures of installations, and AT command set...etc. of this modem.Your modem...There are indicator lights and connectors on thefront and back side of this modem. Following isthe meaning of these light and connectors foryour reference: 1. External Front PanelRD : Received Data indicator.TD : Transmitted Data indicator.CD : Carrier Detect indicator.OH : Off Hook.MR : Modem Ready.PHONE : Phone jack.LINE : Telephone line jack.RS232 : RS232 cable socket.AC-IN : AC adapter input.ON/OFF : Power switch.2. External Rear Panel

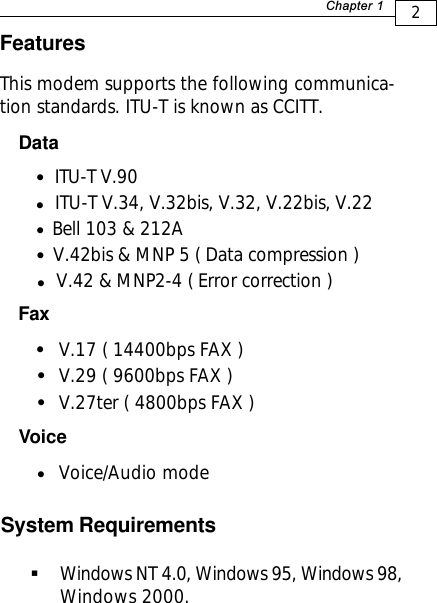

2+D=FJAHFeaturesThis modem supports the following communica-tion standards. ITU-T is known as CCITT.Data ITU-T V.90 z ITU-T V.34, V.32bis, V.32, V.22bis, V.22Bell 103 & 212AV.42bis & MNP 5 ( Data compression ) V.42 & MNP2-4 ( Error correction )FaxV.17 ( 14400bps FAX )V.29 ( 9600bps FAX )V.27ter ( 4800bps FAX )zzzzzzzVoiceVoice/Audio modezSystem RequirementsWindows NT 4.0, Windows 95, Windows 98,Windows 2000.

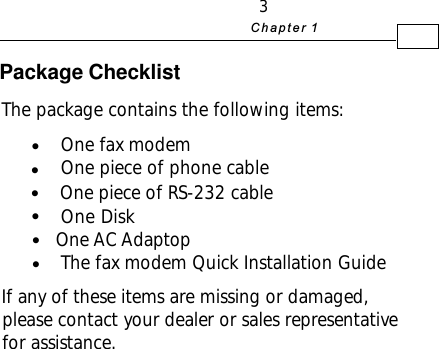

3+D=FJAHThe package contains the following items:One fax modemOne piece of phone cableOne Disk One AC AdaptopThe fax modem Quick Installation GuideIf any of these items are missing or damaged,please contact your dealer or sales representativefor assistance.zzOne piece of RS-232 cablezzzPackage Checklistz

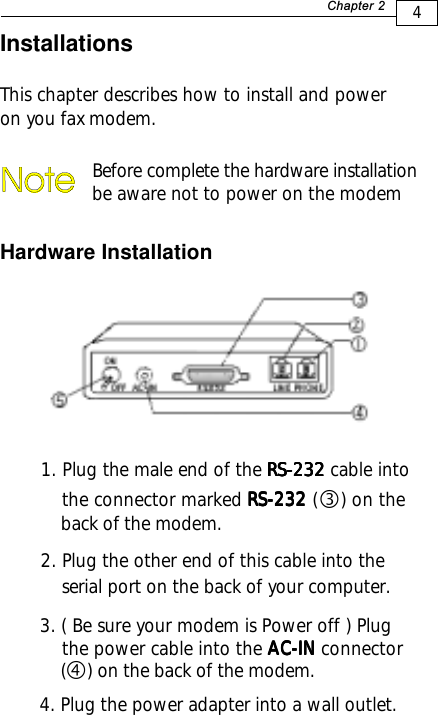

4+D=FJAH InstallationsThis chapter describes how to install and poweron you fax modem.Hardware InstallationBefore complete the hardware installation be aware not to power on the modem1. Plug the male end of the RS-232RS-232RS-232RS-232RS-232 cable into the connector marked RS-232RS-232RS-232RS-232RS-232 ( ) on the back of the modem.2. Plug the other end of this cable into the serial port on the back of your computer.3.( Be sure your modem is Power off ) Plug the power cable into the AC-INAC-INAC-INAC-INAC-IN connector ( ) on the back of the modem.ef4. Plug the power adapter into a wall outlet.

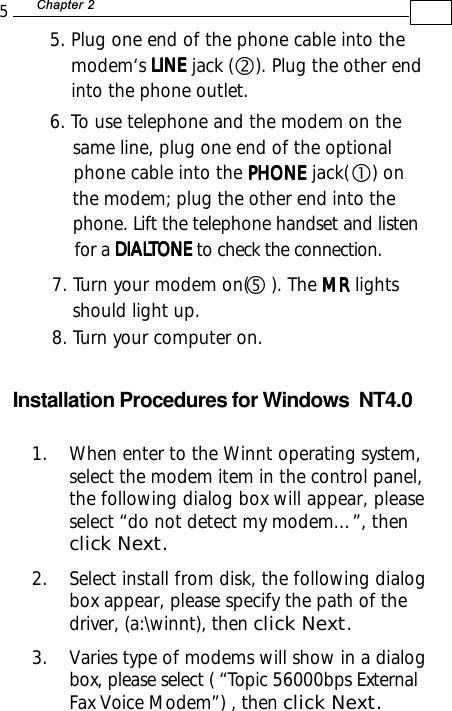

5+D=FJAH 7. Turn your modem on( ). The MR MR MR MR MR lights should light up.8. Turn your computer on.g5. Plug one end of the phone cable into the modem‘s LINELINELINELINELINE jack ( ). Plug the other end into the phone outlet.6. To use telephone and the modem on the same line, plug one end of the optional phone cable into the PHONE PHONE PHONE PHONE PHONE jack( ) on the modem; plug the other end into the phone. Lift the telephone handset and listen for a DIALDIALDIALDIALDIALTONE TONE TONE TONE TONE to check the connection.Installation Procedures for Windows NT4.0cd1. When enter to the Winnt operating system,select the modem item in the control panel,the following dialog box will appear, pleaseselect “do not detect my modem…”, thenclick Next.2. Select install from disk, the following dialogbox appear, please specify the path of thedriver, (a:\winnt), then click Next.3. Varies type of modems will show in a dialogbox, please select ( “Topic 56000bps ExternalFax Voice Modem”) , then click Next.

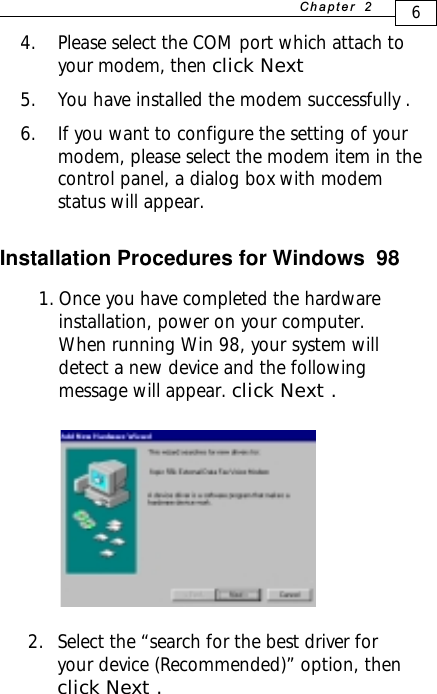

Installation Procedures for Windows 98 1. Once you have completed the hardwareinstallation, power on your computer.When running Win 98, your system willdetect a new device and the followingmessage will appear. click Next .6+D=FJAH 4. Please select the COM port which attach toyour modem, then click Next5. You have installed the modem successfully .6. If you want to configure the setting of yourmodem, please select the modem item in thecontrol panel, a dialog box with modemstatus will appear.2. Select the “search for the best driver foryour device (Recommended)” option, thenclick Next .
7+D=FJAH 3. Place the disk containing the driver of Win 9Xinto your floppy disk drive. Specify thelocation of the modem driver, e.g.,A:\ WIN9X . click Next .4. The following message will appear. click Next .

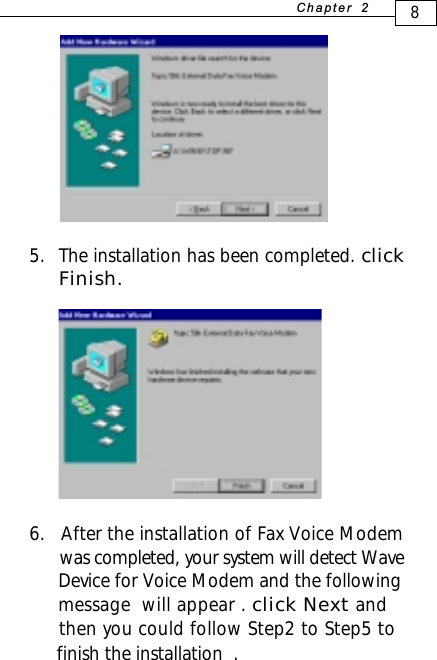

5. The installation has been completed. clickFinish.8+D=FJAH 6. After the installation of Fax Voice Modem was completed, your system will detect Wave Device for Voice Modem and the following message will appear . click Next and then you could follow Step2 to Step5 to finish the installation .
9+D=FJAH

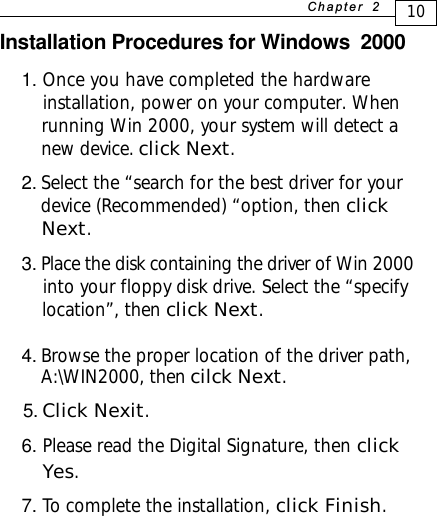

Installation Procedures for Windows 20001. Once you have completed the hardware installation, power on your computer. When running Win 2000, your system will detect a new device. click Next.2. Select the “search for the best driver for your device (Recommended) “option, then click Next.3. Place the disk containing the driver of Win 2000 into your floppy disk drive. Select the “specify location”, then click Next.4. Browse the proper location of the driver path, A:\WIN2000, then cilck Next. 5. Click Nexit.6. Please read the Digital Signature, then click Yes.7. To complete the installation, click Finish.10+D=FJAH

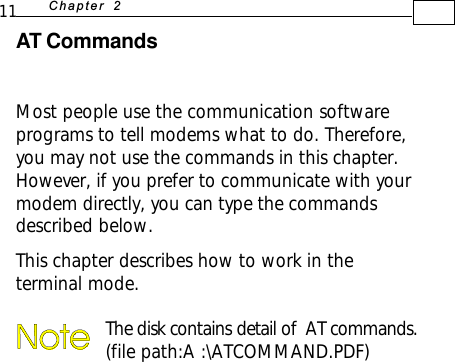

11 +D=FJAH AT CommandsMost people use the communication softwareprograms to tell modems what to do. Therefore,you may not use the commands in this chapter.However, if you prefer to communicate with yourmodem directly, you can type the commandsdescribed below.This chapter describes how to work in theterminal mode.The disk contains detail of AT commands.(file path:A :\ATCOMMAND.PDF)
