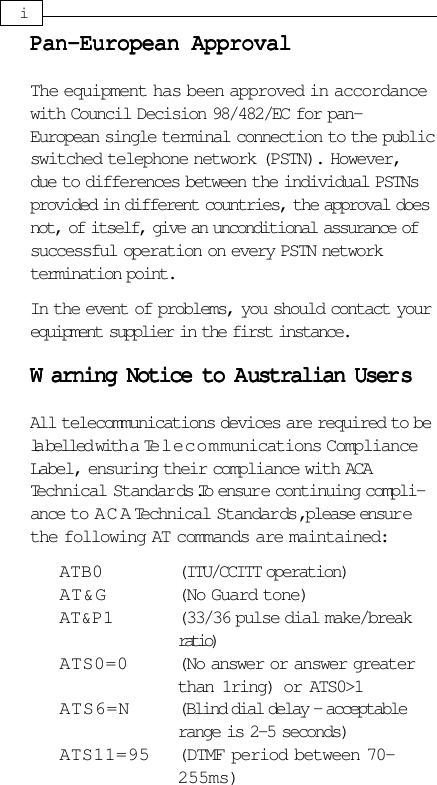

iPan-European ApprovalPan-European ApprovalPan-European ApprovalPan-European ApprovalPan-European ApprovalThe equipment has been approved in accordancewith Council Decision 98/482/EC for pan-European single terminal connection to the publicswitched telephone network (PSTN). However,due to differences between the individual PSTNsprovided in different countries, the approval doesnot, of itself, give an unconditional assurance ofsuccessful operation on every PSTN networktermination point.In the event of problems, you should contact yourequipment supplier in the first instance.WWWWWarning Notice to Aarning Notice to Aarning Notice to Aarning Notice to Aarning Notice to Australian Userustralian Userustralian Userustralian Userustralian User sssssAll telecommunications devices are required to bela belled with a Telecommunications ComplianceLabel, ensuring their compliance with ACATechnical Standards. To ensure continuing compli-ance to A C A Technical Standards, please ensurethe following AT commands are maintained:ATB0 (ITU/CCITT operation)AT&G (No Guard tone)AT&P1 (33/36 pulse dial make/breakratio)ATS0=0 (No answer or answer greaterthan 1ring) or ATS0>1ATS6=N (Blind dial delay - acceptablerange is 2-5 seconds)ATS11=95 (DTMF period between 70-255ms)

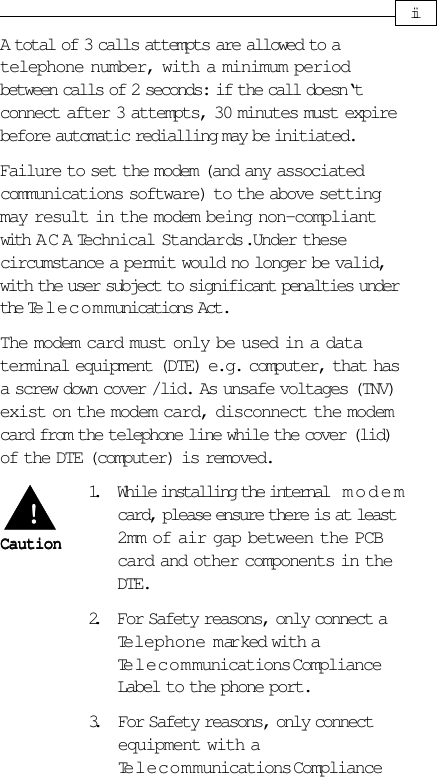

iiA total of 3 calls attempts are allowed to atelephone number, with a minimum periodbetween calls of 2 seconds: if the call doesn‘tconnect after 3 attempts, 30 minutes must expirebefore automatic redialling may be initiated.Failure to set the modem (and any associatedcommunications software) to the above settingmay result in the modem being non-compliantwith A C A Technical Standards. Under thesecircumstance a permit would no longer be valid,with the user subject to significant penalties underthe Telecommunications Act.The modem card must only be used in a dataterminal equipment (DTE) e.g. computer, that hasa screw down cover /lid. As unsafe voltages (TNV)exist on the modem card, disconnect the modemcard from the telephone line while the cover (lid)of the DTE (computer) is removed.1. While installing the internal modemcard, please ensure there is at least2mm of air gap between the PCBcard and other components in theDTE.2. For Safety reasons, only connect aTelephone marked with aTelecommunications ComplianceLabel to the phone port.3. For Safety reasons, only connectequipment with aTelecommunications ComplianceCautionCautionCautionCautionCaution!!!!!

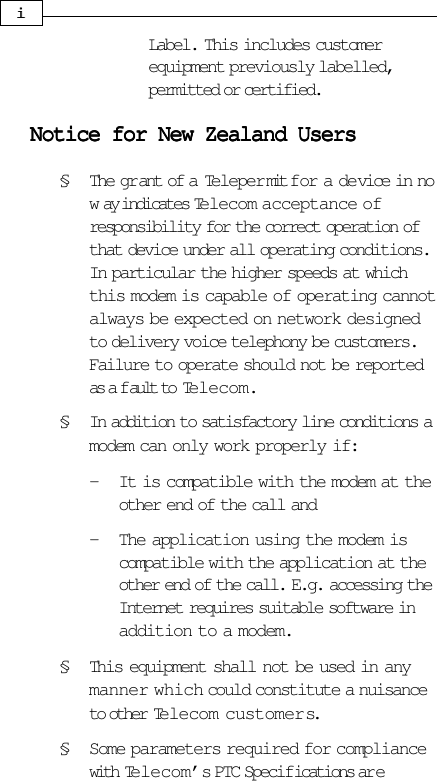

Label. This includes customerequipment previously labelled,permitted or certified.Notice for New Zealand UsersNotice for New Zealand UsersNotice for New Zealand UsersNotice for New Zealand UsersNotice for New Zealand Users§ The gr ant of a Teleper mit for a device in now ay indicates Telecom acceptance ofresponsibility for the correct operation ofthat device under all operating conditions.In particular the higher speeds at whichthis modem is capable of operating cannotalways be expected on network designedto delivery voice telephony be customers.Failure to operate should not be reportedas a f ault to Telecom.§ In addition to satisfactory line conditions amodem can only work properly if:- It is compatible with the modem at theother end of the call and- The application using the modem iscompatible with the application at theother end of the call. E.g. accessing theInternet requires suitable software inaddition to a modem.§ This equipment shall not be used in anymanner which could constitute a nuisanceto other Telecom customers.§ Some parameters required for compliancewith Telecom’s PTC Specifications ar eiii

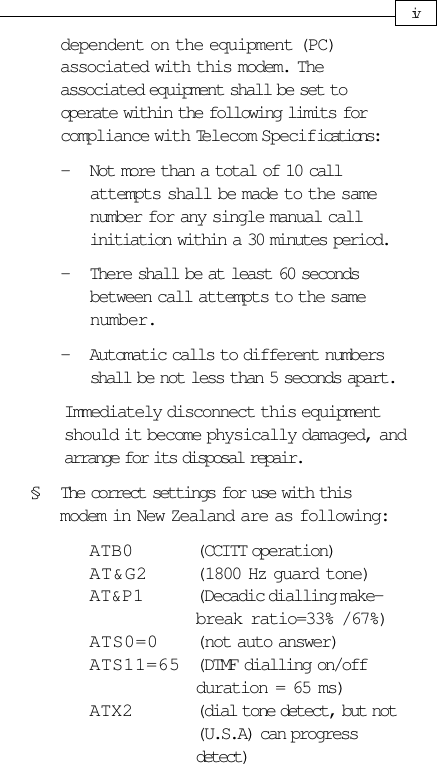

dependent on the equipment (PC)associated with this modem. Theassociated equipment shall be set tooperate within the following limits forcompliance with Telecom Specifications:- Not more than a total of 10 callattempts shall be made to the samenumber for any single manual callinitiation within a 30 minutes period.- There shall be at least 60 secondsbetween call attempts to the samenumber.- Automatic calls to different numbersshall be not less than 5 seconds apart.Immediately disconnect this equipmentshould it become physically damaged, andarrange for its disposal repair.§ The correct settings for use with thismodem in New Zealand are as following:ATB0 (CCITT operation)AT&G2 (1800 Hz guard tone)AT&P1 (Decadic dialling make-break ratio=33% /67%)ATS0=0 (not auto answer)ATS11=65 (DTMF dialling on/offduration = 65 ms)ATX2 (dial tone detect, but not(U.S.A) can progressdetect)iv

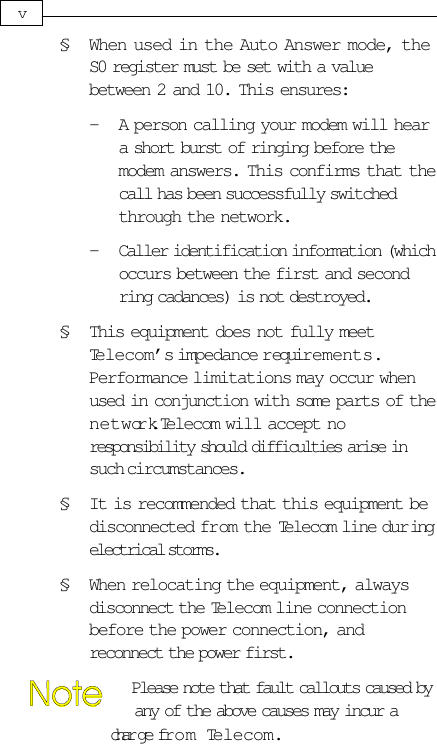

§ When used in the Auto Answer mode, theS0 register must be set with a valuebetween 2 and 10. This ensures:- A person calling your modem will heara short burst of ringing before themodem answers. This confirms that thecall has been successfully switchedthrough the network.- Caller identification information (whichoccurs between the first and secondring cadances) is not destroyed.§ This equipment does not fully meetTelecom’s impedance r equirements.Performance limitations may occur whenused in conjunction with some parts of thenetwork. Telecom will accept noresponsibility should difficulties arise insuch circumstances.§ It is recommended that this equipment bedisconnected from the Telecom line duringelectrical storms.§ When relocating the equipment, alwaysdisconnect the Telecom line connectionbefore the power connection, andreconnect the power first. Please note that fault callouts caused by any of the above causes may incur a char ge from Telecom.v

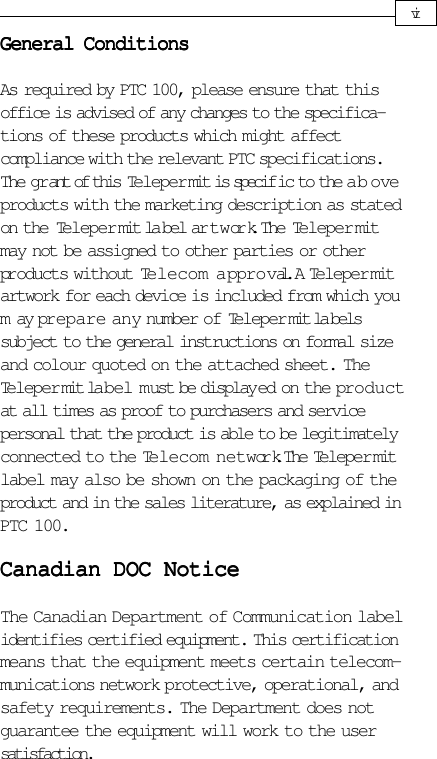

General ConditionsGeneral ConditionsGeneral ConditionsGeneral ConditionsGeneral ConditionsAs required by PTC 100, please ensure that thisoffice is advised of any changes to the specifica-tions of these products which might affectcompliance with the relevant PTC specifications.The gr ant of this Teleper mit is specif ic to the aboveproducts with the marketing description as statedon the Teleper mit la bel ar t w ork. The Teleper mitmay not be assigned to other parties or otherproducts without Telecom approval. A Telepermitartwork for each device is included from which youm ay prepare any number of Teleper mit la belssubject to the general instructions on formal sizeand colour quoted on the attached sheet. TheTeleper mit label must be display ed on the productat all times as proof to purchasers and servicepersonal that the product is able to be legitimatelyconnected to the Telecom network. The Teleper mitlabel may also be shown on the packaging of theproduct and in the sales literature, as explained inPTC 100.Canadian DOC NoticeCanadian DOC NoticeCanadian DOC NoticeCanadian DOC NoticeCanadian DOC NoticeThe Canadian Department of Communication labelidentifies certified equipment. This certificationmeans that the equipment meets certain telecom-munications network protective, operational, andsafety requirements. The Department does notguarantee the equipment will work to the usersatisfaction.vi

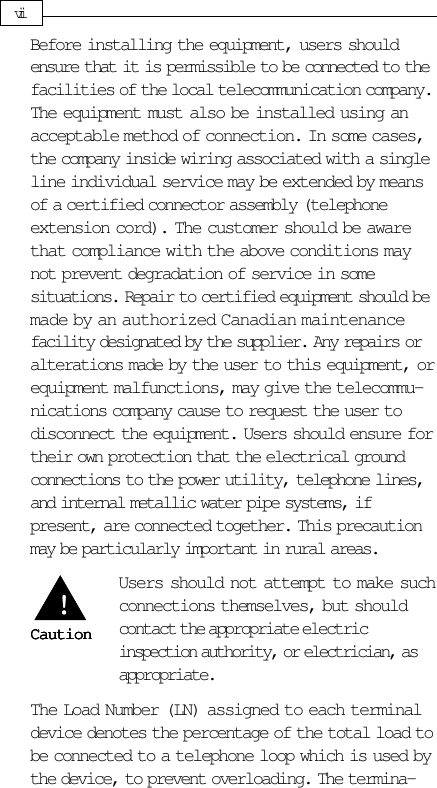

Before installing the equipment, users shouldensure that it is permissible to be connected to thefacilities of the local telecommunication company.The equipment must also be installed using anacceptable method of connection. In some cases,the company inside wiring associated with a singleline individual service may be extended by meansof a certified connector assembly (telephoneextension cord). The customer should be awarethat compliance with the above conditions maynot prevent degradation of service in somesituations. Repair to certified equipment should bemade by an authorized Canadian maintenancefacility designated by the supplier. Any repairs oralterations made by the user to this equipment, orequipment malfunctions, may give the telecommu-nications company cause to request the user todisconnect the equipment. Users should ensure fortheir own protection that the electrical groundconnections to the power utility, telephone lines,and internal metallic water pipe systems, ifpresent, are connected together. This precautionmay be particularly important in rural areas.Users should not attempt to make suchconnections themselves, but shouldcontact the appropriate electricinspection authority, or electrician, asappropriate.The Load Number (LN) assigned to each terminaldevice denotes the percentage of the total load tobe connected to a telephone loop which is used bythe device, to prevent overloading. The termina-viiCautionCautionCautionCautionCaution!!!!!

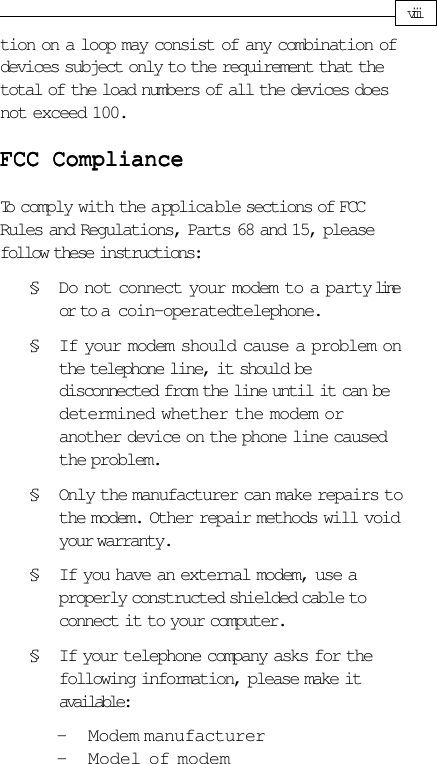

tion on a loop may consist of any combination ofdevices subject only to the requirement that thetotal of the load numbers of all the devices doesnot exceed 100.FCC ComplianceFCC ComplianceFCC ComplianceFCC ComplianceFCC ComplianceTo comply with the a pplica ble sections of FCCRules and Regulations, Parts 68 and 15, pleasefollow these instructions:§ Do not connect your modem to a party lineor to a coin-operated telephone.§ If your modem should cause a problem onthe telephone line, it should bedisconnected from the line until it can bedetermined whether the modem oranother device on the phone line causedthe problem.§ Only the manufacturer can make repairs tothe modem. Other repair methods will voidyour warranty.§ If you have an external modem, use aproperly constructed shielded cable toconnect it to your computer.§ If your telephone company asks for thefollowing information, please make itavailable:- Modem manufacturer- Model of modemviii

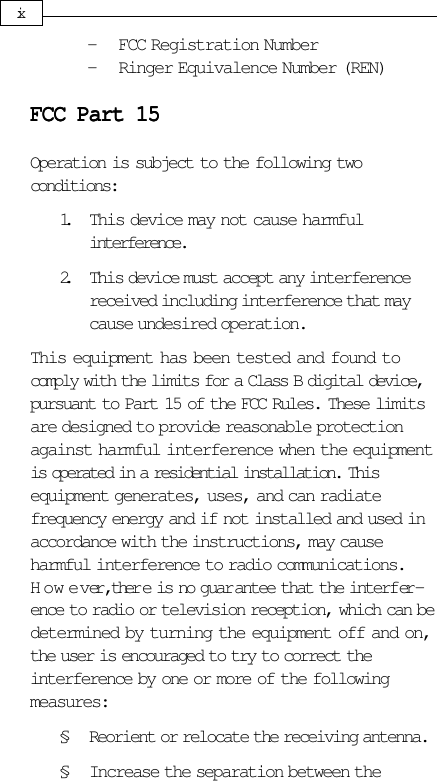

- FCC Registration Number- Ringer Equivalence Number (REN)FCC Part 15FCC Part 15FCC Part 15FCC Part 15FCC Part 15Operation is subject to the following twoconditions:1. This device may not cause harmfulinterference.2. This device must accept any interferencereceived including interference that maycause undesired operation.This equipment has been tested and found tocomply with the limits for a Class B digital device,pursuant to Part 15 of the FCC Rules. These limitsare designed to provide reasonable protectionagainst harmful interference when the equipmentis operated in a residential installation. Thisequipment generates, uses, and can radiatefrequency energy and if not installed and used inaccordance with the instructions, may causeharmful interference to radio communications.However, ther e is no guar antee that the interfer-ence to radio or television reception, which can bedetermined by turning the equipment off and on,the user is encouraged to try to correct theinterference by one or more of the followingmeasures:§ Reorient or relocate the receiving antenna.§ Increase the separation between theix

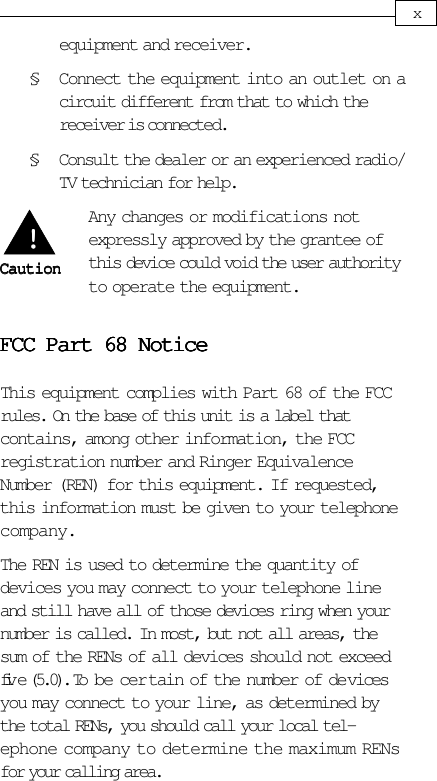

equipment and receiver.§ Connect the equipment into an outlet on acircuit different from that to which thereceiver is connected.§ Consult the dealer or an experienced radio/TV technician for help.Any changes or modifications notexpressly approved by the grantee ofthis device could void the user authorityto operate the equipment.FCC Part 68 NoticeFCC Part 68 NoticeFCC Part 68 NoticeFCC Part 68 NoticeFCC Part 68 NoticeThis equipment complies with Part 68 of the FCCrules. On the base of this unit is a label thatcontains, among other information, the FCCregistration number and Ringer EquivalenceNumber (REN) for this equipment. If requested,this information must be given to your telephonecompany.The REN is used to determine the quantity ofdevices you may connect to your telephone lineand still have all of those devices ring when yournumber is called. In most, but not all areas, thesum of the RENs of all devices should not exceedfive (5.0). To be cer tain of the number of devicesyou may connect to your line, as determined bythe total RENs, you should call your local tel-ephone company to determine the maximum RENsfor your calling area.xCautionCautionCautionCautionCaution!!!!!

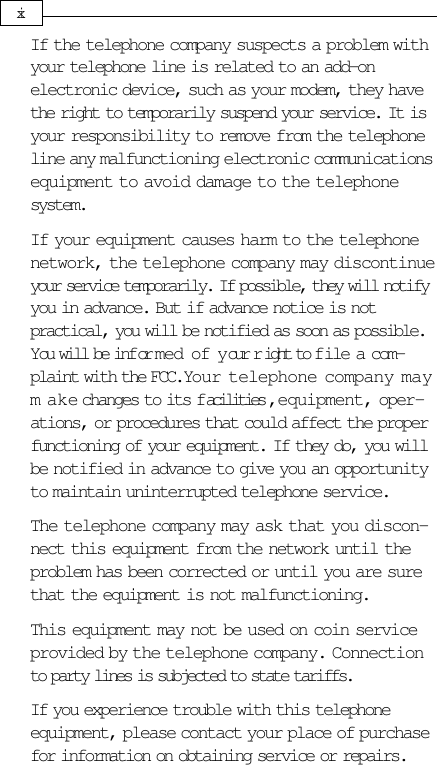

If the telephone company suspects a problem withyour telephone line is related to an add-onelectronic device, such as your modem, they havethe right to temporarily suspend your service. It isyour responsibility to remove from the telephoneline any malfunctioning electronic communicationsequipment to avoid damage to the telephonesystem.If your equipment causes harm to the telephonenetwork, the telephone company may discontinueyour service temporarily. If possible, they will notifyyou in advance. But if advance notice is notpractical, you will be notified as soon as possible.You will be infor med of your r ight to file a com-plaint with the FCC. Your telephone company maym ake changes to its facilities, equipment, oper-ations, or procedures that could affect the properfunctioning of your equipment. If they do, you willbe notified in advance to give you an opportunityto maintain uninterrupted telephone service.The telephone company may ask that you discon-nect this equipment from the network until theproblem has been corrected or until you are surethat the equipment is not malfunctioning.This equipment may not be used on coin serviceprovided by the telephone company. Connectionto party lines is subjected to state tariffs.If you experience trouble with this telephoneequipment, please contact your place of purchasefor information on obtaining service or repairs.xi

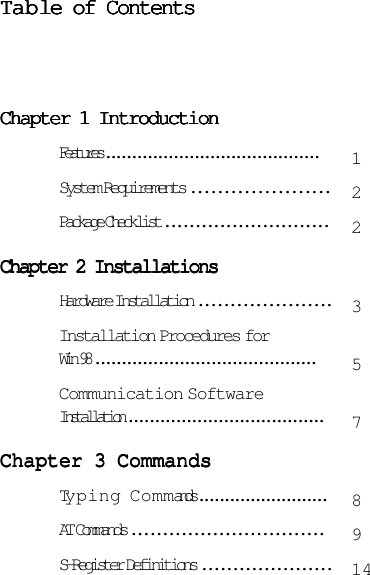

TTTTTababababable of Contentsle of Contentsle of Contentsle of Contentsle of ContentsChapter 1 IntroductionChapter 1 IntroductionChapter 1 IntroductionChapter 1 IntroductionChapter 1 IntroductionFeatures .........................................System Requirements .....................Package Checklist ...........................Chapter 2 InstallationsChapter 2 InstallationsChapter 2 InstallationsChapter 2 InstallationsChapter 2 InstallationsHardware Installation .....................Installation Procedures forWin 98 ..........................................Communication SoftwareInstallation .....................................Chapter 3 CommandsChapter 3 CommandsChapter 3 CommandsChapter 3 CommandsChapter 3 CommandsTyping Commands .........................AT Commands ...............................S-Register Definitions .....................1223578914

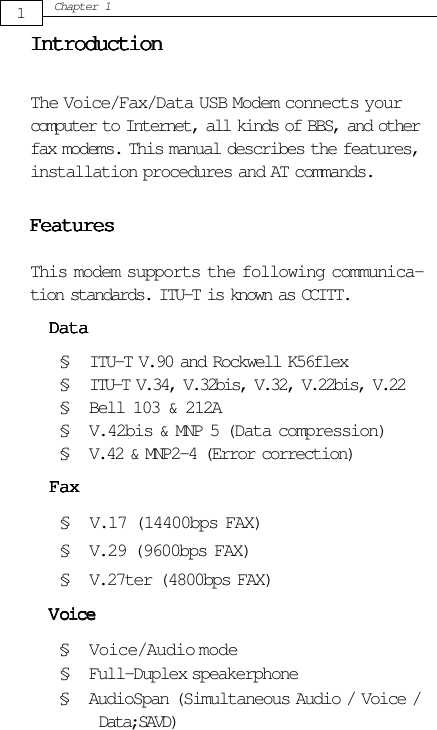

1Chapter 1IntroductionIntroductionIntroductionIntroductionIntroductionThe Voice/Fax/Data USB Modem connects yourcomputer to Internet, all kinds of BBS, and otherfax modems. This manual describes the features,installation procedures and AT commands.FeaturesFeaturesFeaturesFeaturesFeaturesThis modem supports the following communica-tion standards. ITU-T is known as CCITT.DataDataDataDataData§ ITU-T V.90 and Rockwell K56flex§ ITU-T V.34, V.32bis, V.32, V.22bis, V.22§ Bell 103 & 212A§ V.42bis & MNP 5 (Data compression)§ V.42 & MNP2-4 (Error correction)§ V.29 (9600bps FAX)§ V.27ter (4800bps FAX)§ Full-Duplex speakerphoneFaxFaxFaxFaxFax§ V.17 (14400bps FAX)VVVVVoiceoiceoiceoiceoice§ Voice/Audio mode§ AudioSpan (Simultaneous Audio / Voice / Data;SAVD)

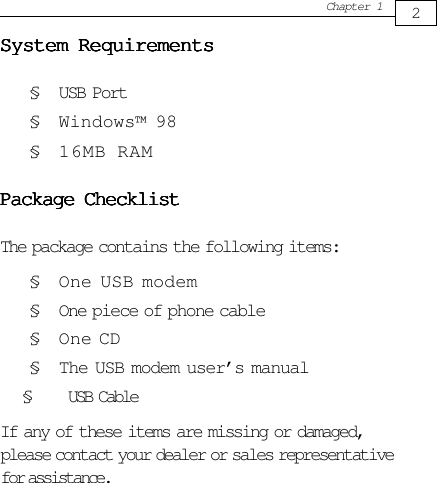

2Chapter 1System RequirementsSystem RequirementsSystem RequirementsSystem RequirementsSystem Requirements§ USB Port§ Windows™ 98§ 16MB RAMPackage ChecklistPackage ChecklistPackage ChecklistPackage ChecklistPackage ChecklistThe package contains the following items:§ One USB modem§ One piece of phone cable§ One CD§ The USB modem user’s manual § USB CableIf any of these items are missing or damaged,please contact your dealer or sales representativefor assistance.

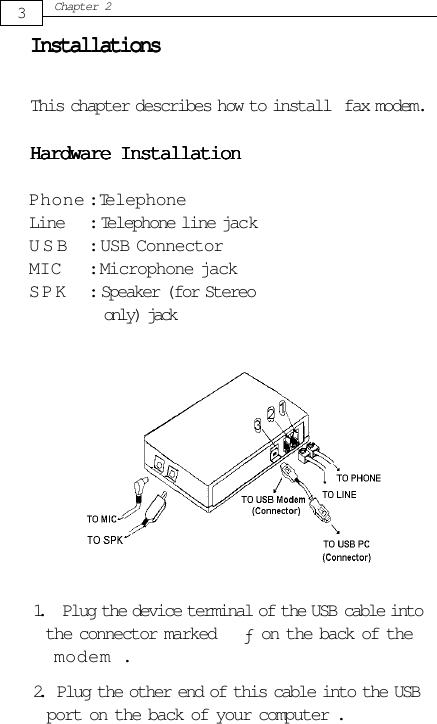

3Chapter 2InstallationsInstallationsInstallationsInstallationsInstallationsThis chapter describes how to install fax modem.Hardware InstallationHardware InstallationHardware InstallationHardware InstallationHardware InstallationPhone : TelephoneLine : Telephone line jackUSB : USB ConnectorMIC : Microphone jackSPK : Speaker (for Stereo only) jack1. Plug the device terminal of the USB cable into the connector marked on the back of the modem .2. Plug the other end of this cable into the USB port on the back of your computer .ƒ

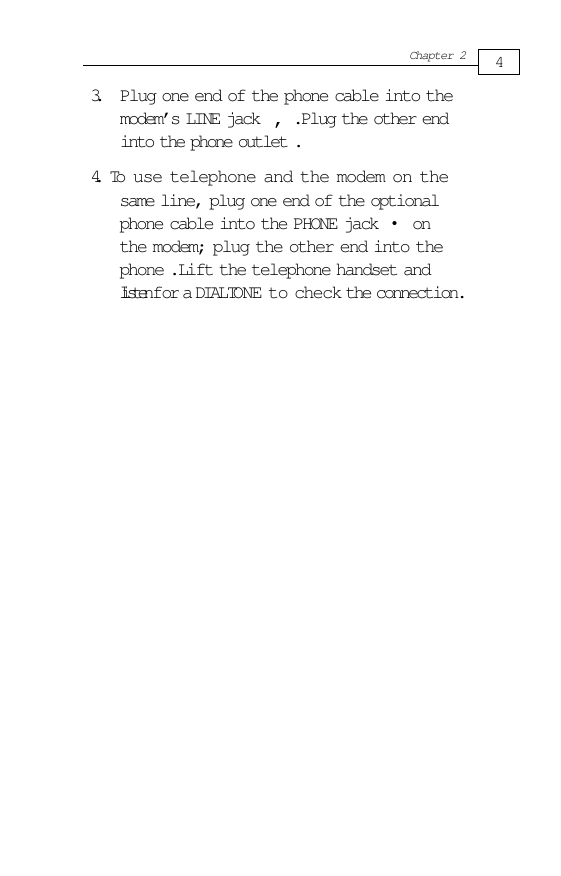

4Chapter 2same line, plug one end of the optionalphone cable into the PHONE jack onthe modem; plug the other end into thephone .Lift the telephone handset andlisten for a DIALTONE to check the connection.3. Plug one end of the phone cable into themodem’s LINE jack .Plug the other endinto the phone outlet .4. To use telephone and the modem on the•‚

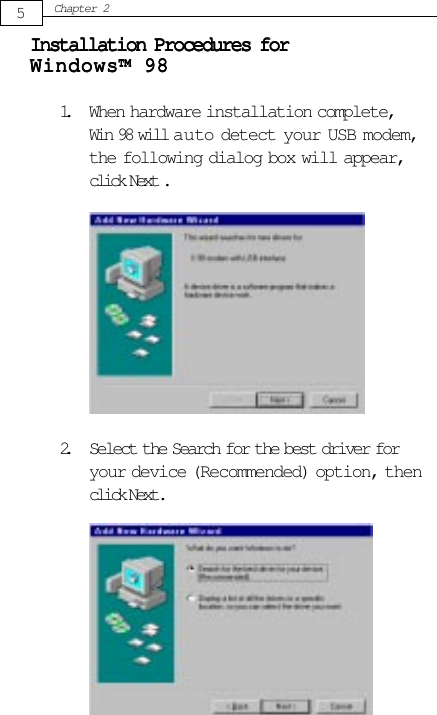

5Chapter 22. Select the Search for the best driver foryour device (Recommended) option, thenclick Next.Installation Procedures forInstallation Procedures forInstallation Procedures forInstallation Procedures forInstallation Procedures forWindows™ 98Windows™ 98Windows™ 98Windows™ 98Windows™ 981. When hardware installation complete,Win 98 will auto detect your USB modem,the following dialog box will appear,click Next .

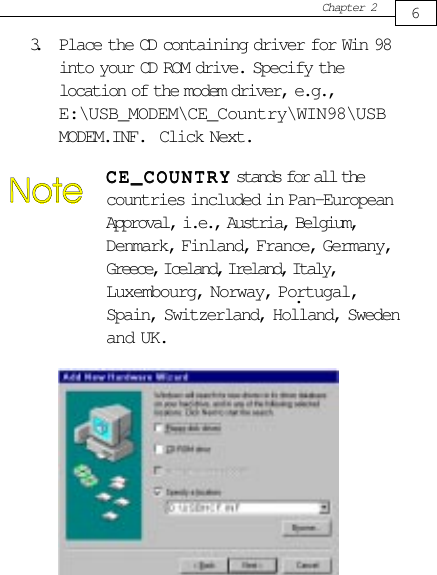

$Chapter 263. Place the CD containing driver for Win 98into your CD ROM drive. Specify thelocation of the modem driver, e.g.,E:\USB_MODEM\CE_Country\WIN98\USBMODEM.INF. Click Next.CE_COUNTRYCE_COUNTRYCE_COUNTRYCE_COUNTRYCE_COUNTRY stands for all thecountries included in Pan-EuropeanApproval, i.e., Austria, Belgium,Denmark, Finland, France, Germany,Greece, Iceland, Ireland, Italy,Luxembourg, Norway, Portugal,Spain, Switzerland, Holland, Swedenand UK..$

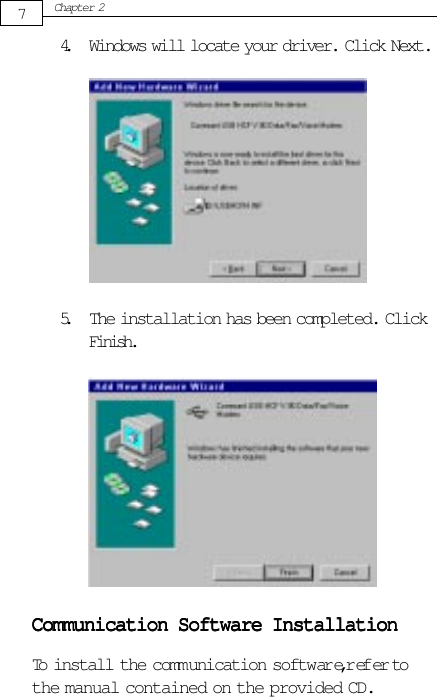

7Chapter 2Communication Software InstallationCommunication Software InstallationCommunication Software InstallationCommunication Software InstallationCommunication Software InstallationTo install the communication software, ref er tothe manual contained on the provided CD.5. The installation has been completed. ClickFinish.4. Windows will locate your driver. Click Next.

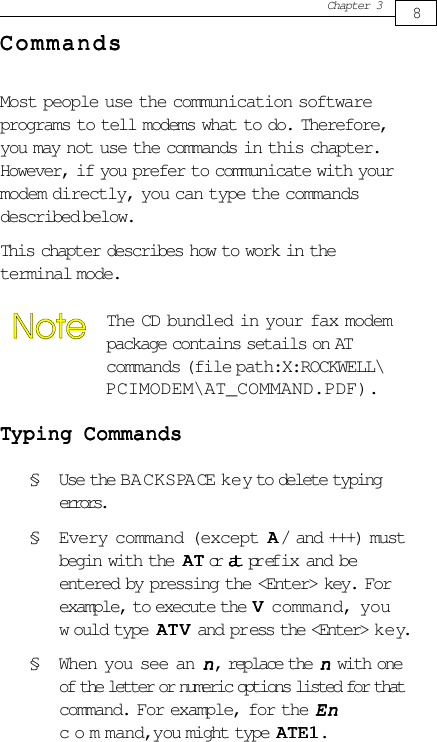

$Chapter 3CommandsCommandsCommandsCommandsCommandsMost people use the communication softwareprograms to tell modems what to do. Therefore,you may not use the commands in this chapter.However, if you prefer to communicate with yourmodem directly, you can type the commandsdescribed below.This chapter describes how to work in theterminal mode.The CD bundled in your fax modempackage contains setails on ATcommands (file path:X:ROCKWELL\PCIMODEM\AT_COMMAND.PDF).TTTTTyping Commandsyping Commandsyping Commandsyping Commandsyping Commands§ Use the BACKSPACE key to delete typingerrors.§ Every command (except AAAAA/ and +++) mustbegin with the AAAAATTTTT or atatatatat prefix and beentered by pressing the <Enter> key. Forexample, to execute the VVVVV command, youw ould type AAAAATVTVTVTVT V and press the <Enter> key.§ When you see an nnnnn, replace the nnnnn with oneof the letter or numeric options listed for thatcommand. For example, for the EnEnEnEnEncommand, you might type AAAAATE1TE1TE1TE1TE1.8$
