Puretek Co PT-8030 MP3 PLAYER User Manual Phanta Music

Puretek Industrial Co Ltd MP3 PLAYER Phanta Music

Manual

Phanta-MusicVer. A 8030 - 0005User’s Manual

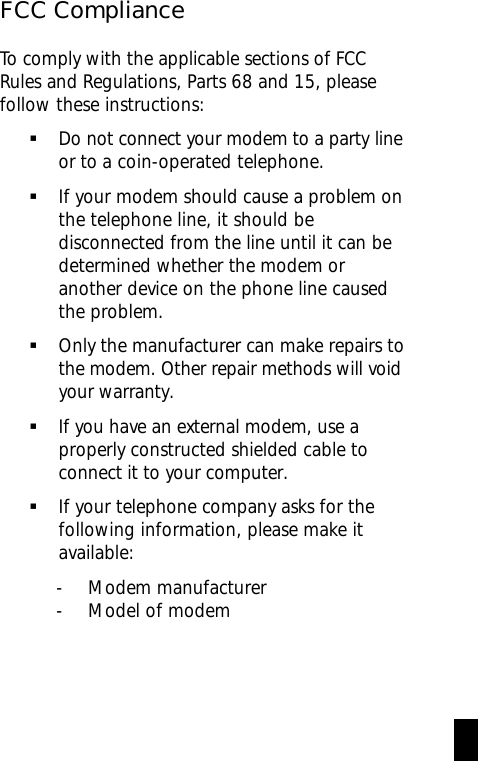

FCC ComplianceTo comply with the applicable sections of FCCRules and Regulations, Parts 68 and 15, pleasefollow these instructions:§Do not connect your modem to a party lineor to a coin-operated telephone.§If your modem should cause a problem onthe telephone line, it should bedisconnected from the line until it can bedetermined whether the modem oranother device on the phone line causedthe problem.§Only the manufacturer can make repairs tothe modem. Other repair methods will voidyour warranty.§If you have an external modem, use aproperly constructed shielded cable toconnect it to your computer.§If your telephone company asks for thefollowing information, please make itavailable:- Modem manufacturer- Model of modemi

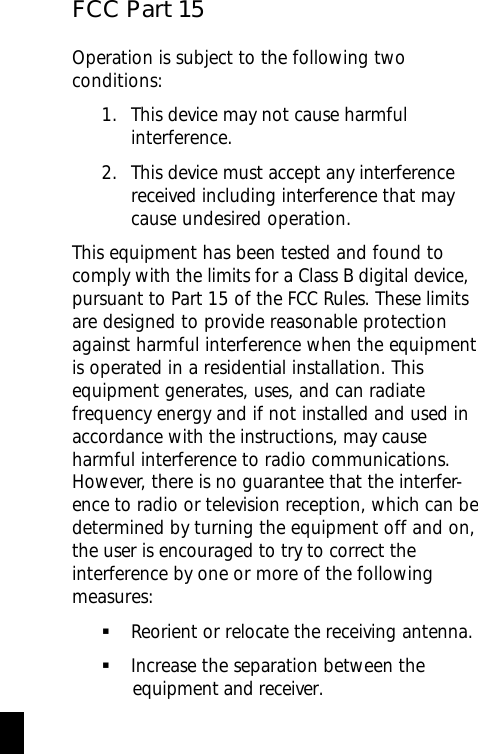

FCC Part 15Operation is subject to the following twoconditions:1. This device may not cause harmfulinterference.2. This device must accept any interferencereceived including interference that maycause undesired operation.This equipment has been tested and found tocomply with the limits for a Class B digital device,pursuant to Part 15 of the FCC Rules. These limitsare designed to provide reasonable protectionagainst harmful interference when the equipmentis operated in a residential installation. Thisequipment generates, uses, and can radiatefrequency energy and if not installed and used inaccordance with the instructions, may causeharmful interference to radio communications.However, there is no guarantee that the interfer-ence to radio or television reception, which can bedetermined by turning the equipment off and on,the user is encouraged to try to correct theinterference by one or more of the followingmeasures:§Reorient or relocate the receiving antenna.§Increase the separation between the equipment and receiver.ii

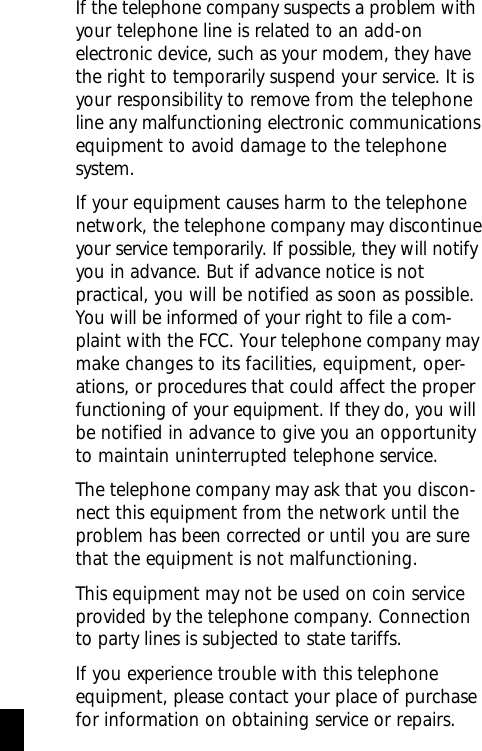

If the telephone company suspects a problem withyour telephone line is related to an add-onelectronic device, such as your modem, they havethe right to temporarily suspend your service. It isyour responsibility to remove from the telephoneline any malfunctioning electronic communicationsequipment to avoid damage to the telephonesystem.If your equipment causes harm to the telephonenetwork, the telephone company may discontinueyour service temporarily. If possible, they will notifyyou in advance. But if advance notice is notpractical, you will be notified as soon as possible.You will be informed of your right to file a com-plaint with the FCC. Your telephone company maymake changes to its facilities, equipment, oper-ations, or procedures that could affect the properfunctioning of your equipment. If they do, you willbe notified in advance to give you an opportunityto maintain uninterrupted telephone service.The telephone company may ask that you discon-nect this equipment from the network until theproblem has been corrected or until you are surethat the equipment is not malfunctioning.This equipment may not be used on coin serviceprovided by the telephone company. Connectionto party lines is subjected to state tariffs.If you experience trouble with this telephoneequipment, please contact your place of purchasefor information on obtaining service or repairs. iv

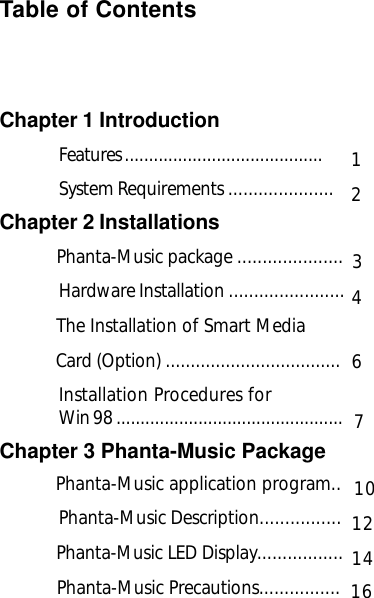

Table of ContentsChapter 1 IntroductionFeatures .........................................System Requirements .....................Chapter 2 Installations Phanta-Music package .....................Hardware Installation ....................... The Installation of Smart Media Card (Option) ...................................Installation Procedures forWin 98 ...............................................Chapter 3 Phanta-Music Package Phanta-Music application program..Phanta-Music Description................ Phanta-Music LED Display................. Phanta-Music Precautions................12461214371610
1IntroductionFeatures Palm-sized and Shock Resistant CD Digital-quality music Anti-Noise capability Stereo surround sound Repeat Playing High Speed transfer rate with USB port (12Mbps Max) Low power consumptionzzzzzzzChapter 1Welcome to the Phanta-Music World.Phanta-Music brings you the latest melodyfeeling, its sound quality brings you the mostfantastic experience on having a portable walkman.Instead of buying a cassette, Phanta-Music’sprovide you a way to download the songs fromInternet, no more cassette is needed. With Anti-shocking features, Phanta-Music can bringalong with you in anyway, anytime.Phanta-Music satisfies on all your musicrequirement.

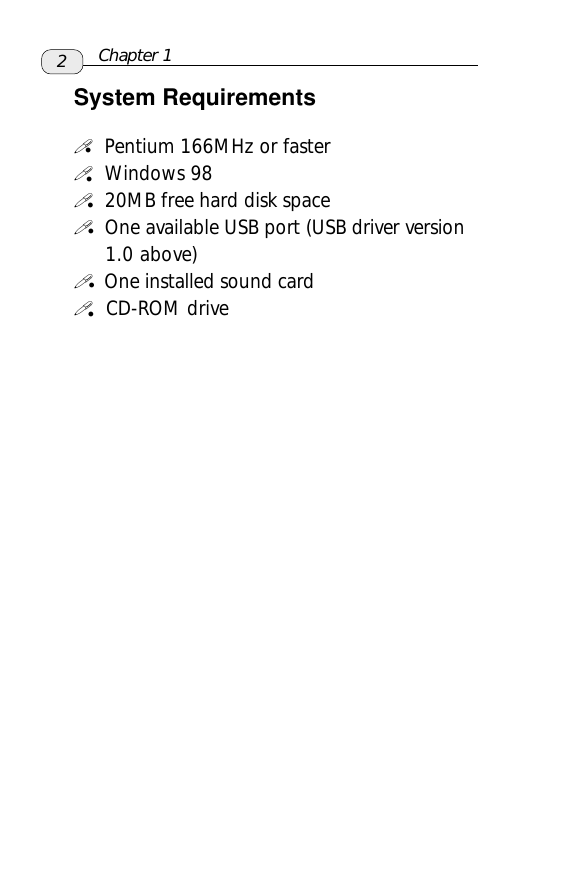

2System Requirements Pentium 166MHz or faster Windows 98 20MB free hard disk space One available USB port (USB driver version 1.0 above) One installed sound card CD-ROM drivezzzzChapter 1zz

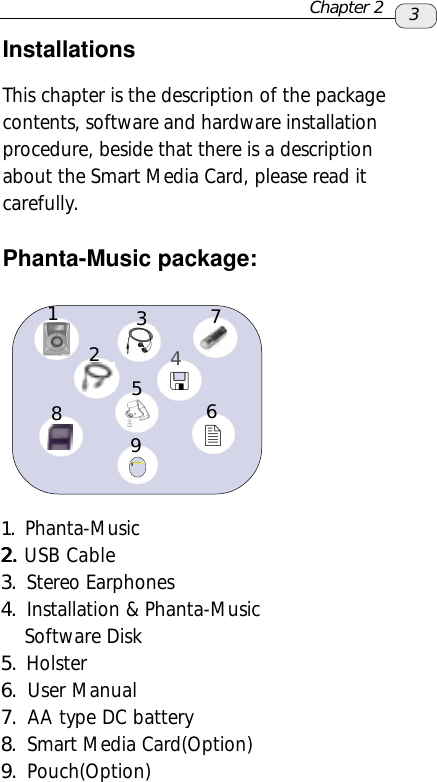

InstallationsThis chapter is the description of the packagecontents, software and hardware installationprocedure, beside that there is a descriptionabout the Smart Media Card, please read itcarefully.Phanta-Music package:1. Phanta-Music2.2.2.2.2. USB Cable3. Stereo Earphones4. Installation & Phanta-Music Software Disk5. Holster6. User Manual7. AA type DC battery8. Smart Media Card(Option)9. Pouch(Option)3Chapter 2123476859

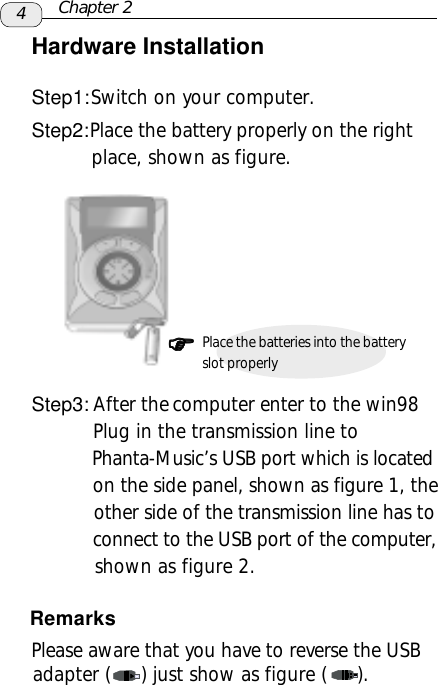

4Hardware InstallationStep1: Switch on your computer.Step2: Place the battery properly on the right place, shown as figure.Step3: After the computer enter to the win98 Plug in the transmission line to Phanta-Music’s USB port which is located on the side panel, shown as figure 1, the other side of the transmission line has to connect to the USB port of the computer, shown as figure 2.Chapter 2)))))Place the batteries into the batteryslot properly Please aware that you have to reverse the USB adapter ( ) just show as figure ( ).Remarks

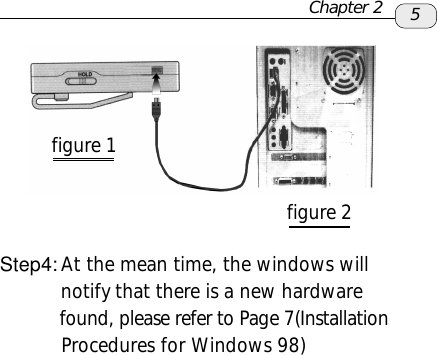

Step4: At the mean time, the windows will notify that there is a new hardware found, please refer to Page 7(Installation Procedures for Windows 98)5figure 1figure 2Chapter 2

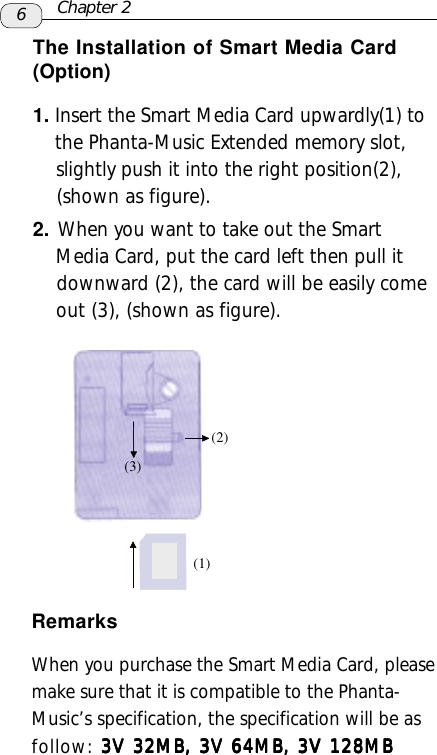

6The Installation of Smart Media Card(Option)1. Insert the Smart Media Card upwardly(1) to the Phanta-Music Extended memory slot, slightly push it into the right position(2), (shown as figure).2. When you want to take out the Smart Media Card, put the card left then pull it downward (2), the card will be easily come out (3), (shown as figure).(1)RemarksWhen you purchase the Smart Media Card, pleasemake sure that it is compatible to the Phanta-Music’s specification, the specification will be asfollow: 3V 32MB, 3V 64MB, 3V 128MB3V 32MB, 3V 64MB, 3V 128MB3V 32MB, 3V 64MB, 3V 128MB3V 32MB, 3V 64MB, 3V 128MB3V 32MB, 3V 64MB, 3V 128MBChapter 2(2)(3)

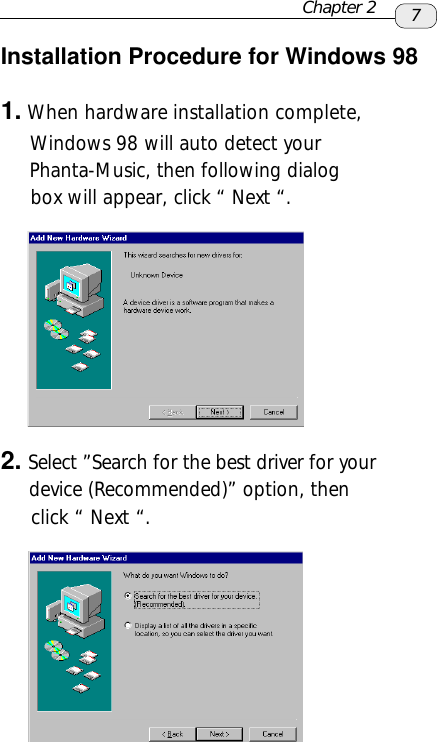

7Installation Procedure for Windows 981. When hardware installation complete, Windows 98 will auto detect your Phanta-Music, then following dialog box will appear, click “ Next “.2. Select ”Search for the best driver for your device (Recommended)” option, then click “ Next “.Chapter 2

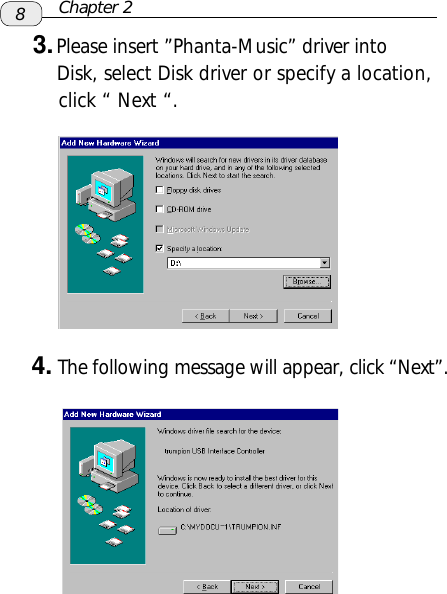

83. Please insert ”Phanta-Music” driver into Disk, select Disk driver or specify a location, click “ Next “.4. The following message will appear, click “Next”.Chapter 2

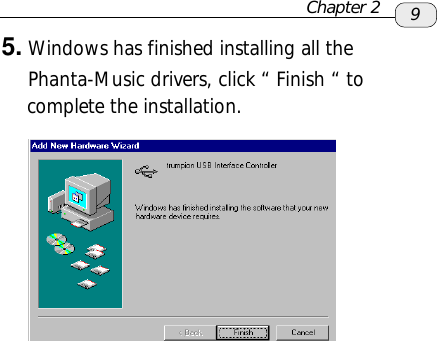

95. Windows has finished installing all the Phanta-Music drivers, click “ Finish “ to complete the installation.Chapter 2

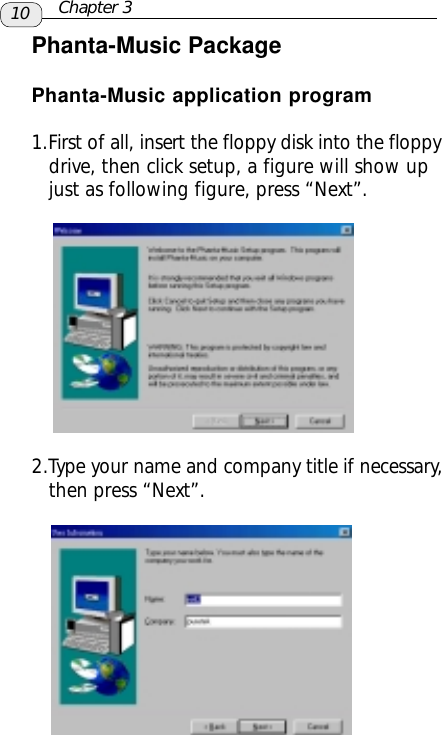

10Phanta-Music PackagePhanta-Music application program2.Type your name and company title if necessary, then press “Next”.Chapter 31.First of all, insert the floppy disk into the floppy drive, then click setup, a figure will show up just as following figure, press “Next”.

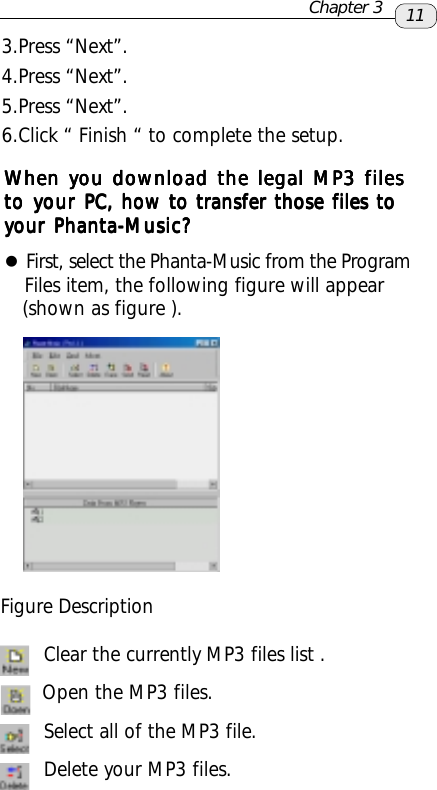

3.Press “Next”.4.Press “Next”.5.Press “Next”.6.Click “ Finish “ to complete the setup.When you download the legal MP3 filesWhen you download the legal MP3 filesWhen you download the legal MP3 filesWhen you download the legal MP3 filesWhen you download the legal MP3 filesto your to your to your to your to your PC, how to transfer those files toPC, how to transfer those files toPC, how to transfer those files toPC, how to transfer those files toPC, how to transfer those files toyour Phanta-your Phanta-your Phanta-your Phanta-your Phanta-Music?Music?Music?Music?Music?zFirst, select the Phanta-Music from the Program Files item, the following figure will appear (shown as figure ).Figure Description Clear the currently MP3 files list . Open the MP3 files. Select all of the MP3 file. Delete your MP3 files.11Chapter 3

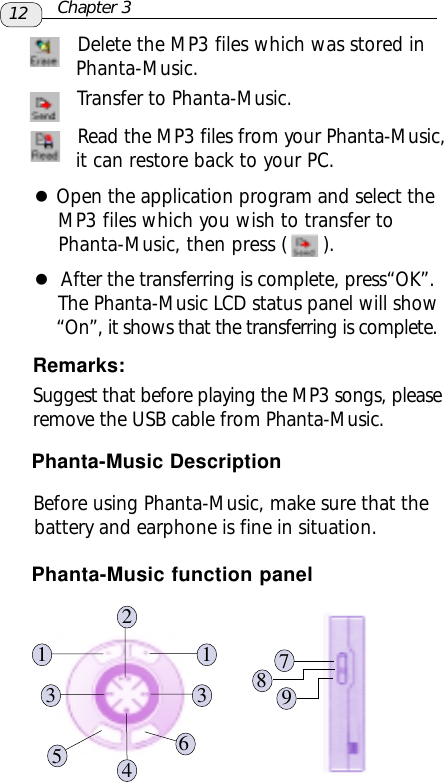

Phanta-Music Description Before using Phanta-Music, make sure that the battery and earphone is fine in situation. Delete the MP3 files which was stored in Phanta-Music. Transfer to Phanta-Music. Read the MP3 files from your Phanta-Music, it can restore back to your PC.Remarks:Suggest that before playing the MP3 songs, pleaseremove the USB cable from Phanta-Music.Phanta-Music function panel11236453789zOpen the application program and select the MP3 files which you wish to transfer to Phanta-Music, then press ( ).z After the transferring is complete, press“OK”. The Phanta-Music LCD status panel will show “On”, it shows that the transferring is complete.12 Chapter 3

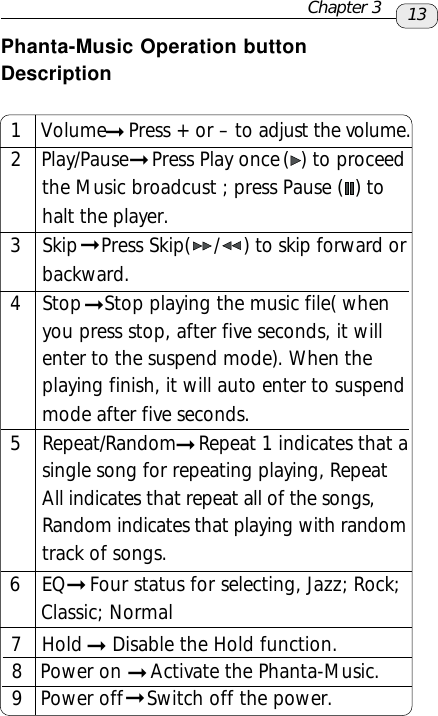

.13 1 VolumePress +or – to adjust the volume. 2 Play/Pause Press Play once ( ) to proceedthe Music broadcust ; press Pause ( ) tohalt the player. 3 Skip Press Skip( / ) to skip forward orbackward. 4 Stop Stop playing the music file( whenyou press stop, after five seconds, it willenter to the suspend mode). When theplaying finish, it will auto enter to suspendmode after five seconds. 5 Repeat/Random Repeat 1 indicates that asingle song for repeating playing, RepeatAll indicates that repeat all of the songs,Random indicates that playing with randomtrack of songs. 7 Hold Disable the Hold function. 8 Power on Activate the Phanta-Music. 9 Power off Switch off the power. 6 EQ Four status for selecting, Jazz; Rock; Classic; NormalChapter 3Phanta-Music Operation buttonDescription

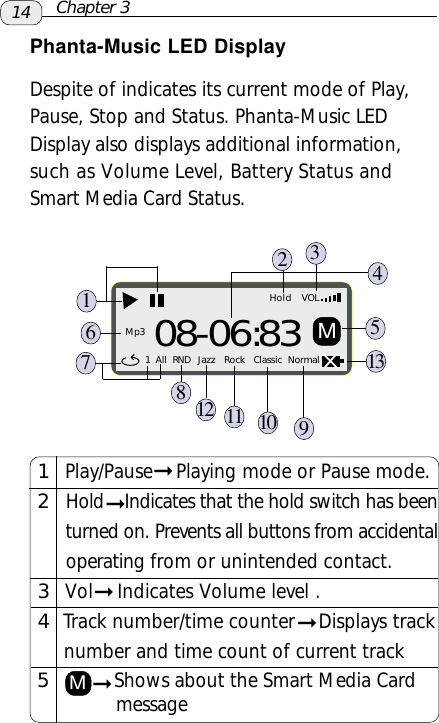

Hold08-06:831 All RND Jazz Rock Classic NormalVOLM Mp3Phanta-Music LED DisplayDespite of indicates its current mode of Play,Pause, Stop and Status. Phanta-Music LEDDisplay also displays additional information,such as Volume Level, Battery Status andSmart Media Card Status.16728391351011124 1 Play/Pause Playing mode or Pause mode. 2 Hold Indicates that the hold switch has been turned on. Prevents all buttons from accidental operating from or unintended contact. 3 Vol Indicates Volume level . 4 Track number/time counter Displays track number and time count of current track 5 Shows about the Smart Media Card messageMChapter 314

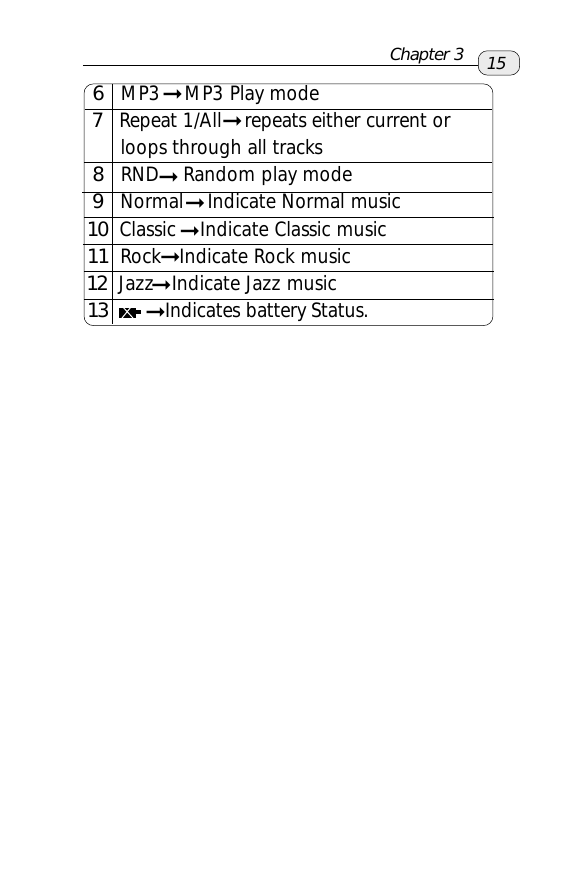

6 MP3 MP3 Play mode 7 Repeat 1/All repeats either current or loops through all tracks 8 RND Random play mode 9 Normal Indicate Normal music 10 Classic Indicate Classic music 11 Rock Indicate Rock music 12 Jazz Indicate Jazz music 13 Indicates battery Status.Chapter 3 15

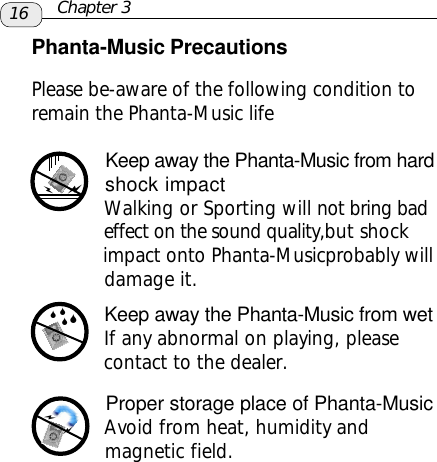

Phanta-Music PrecautionsPlease be-aware of the following condition toremain the Phanta-Music life Keep away the Phanta-Music from hard shock impact Walking or Sporting will not bring bad effect on the sound quality,but shock impact onto Phanta-Musicprobably will damage it. Keep away the Phanta-Music from wet If any abnormal on playing, please contact to the dealer. Proper storage place of Phanta-Music Avoid from heat, humidity and magnetic field.aa6666aa16 Chapter 3
