USER'S MANUAL www.pyramidcaraudio.com

PB

700

PB

1000

PB

1100

PB

1500

PB 2600

PB

1200

PB

1700

PB 2200

PB 2700

congratulations...

on your purchase of a Pyramid America Series

amplifier. This amplifier extends the Pyramid

tradition into a totally new series of amps,

designed from the ground up to deliver the

power, performance and flexibility the modern

car audio enthusiast demands.

When you check the list of features offered by

the PB 700, PB 1000, PB 1100, PB 1200, PB 1500,

PB 1700, PB 2200, PB 2600, PB 2700, you’ll know

you made the right choice with a Pyramid

Power amplifier.

1

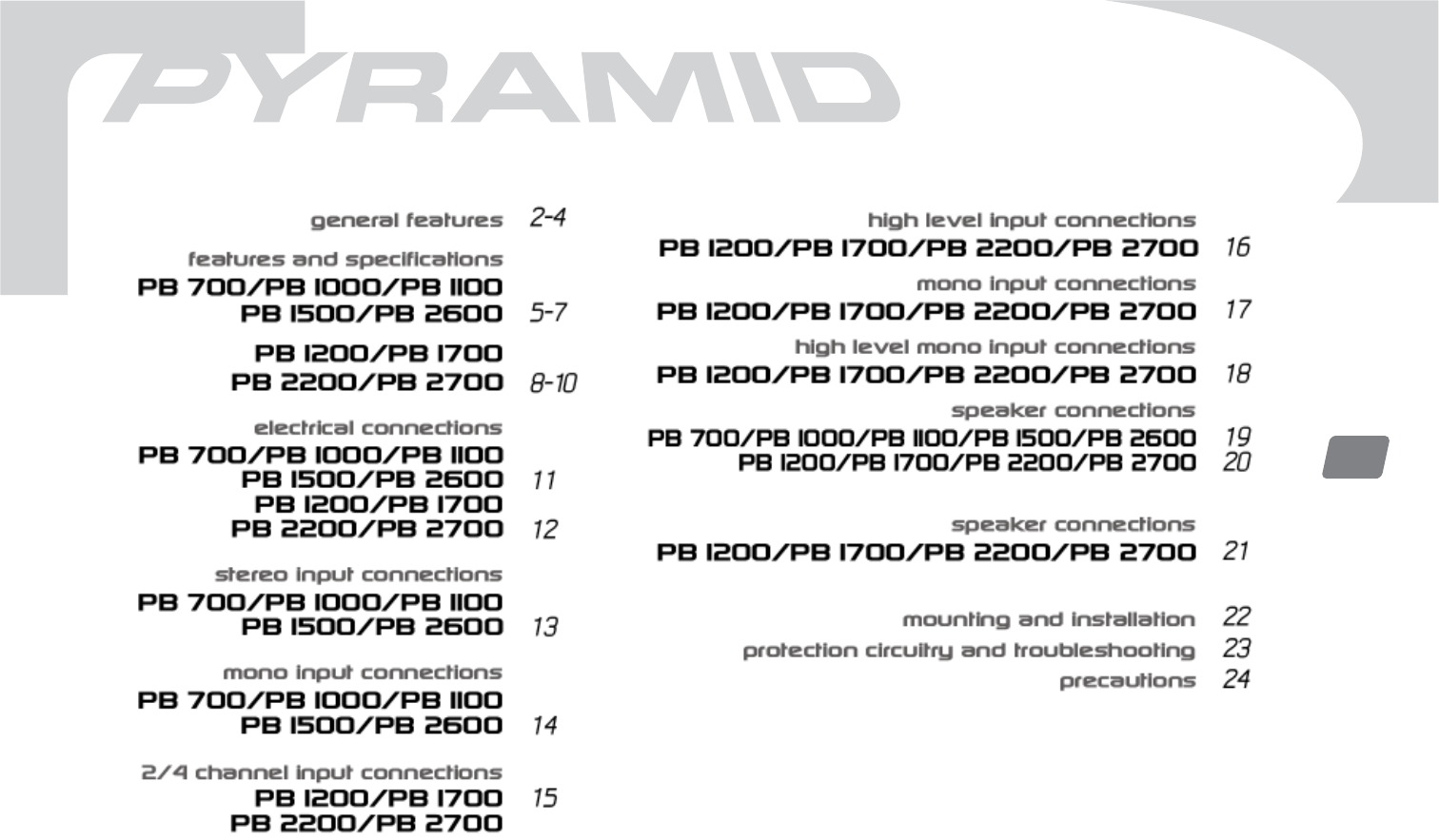

table of contents

2

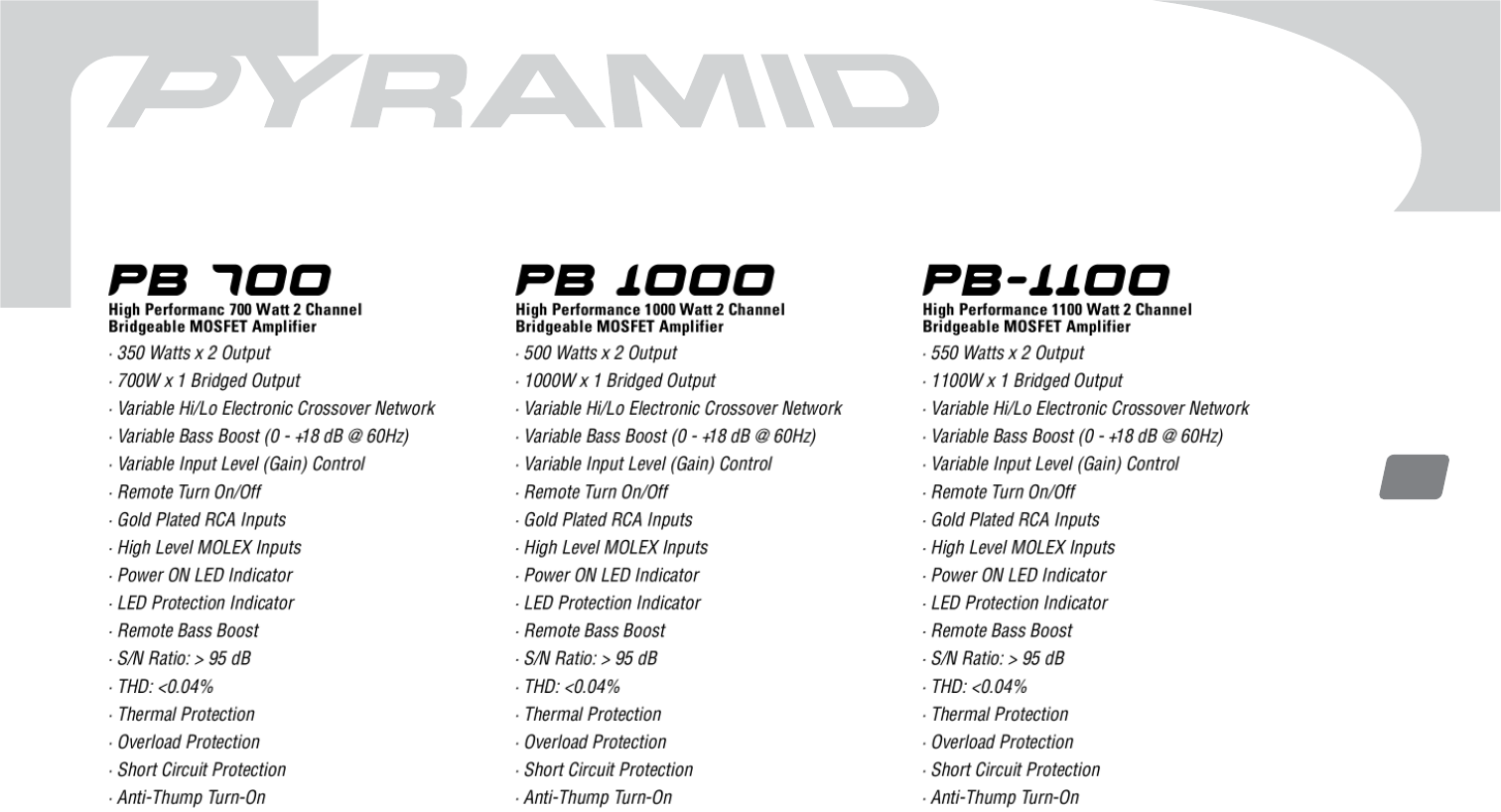

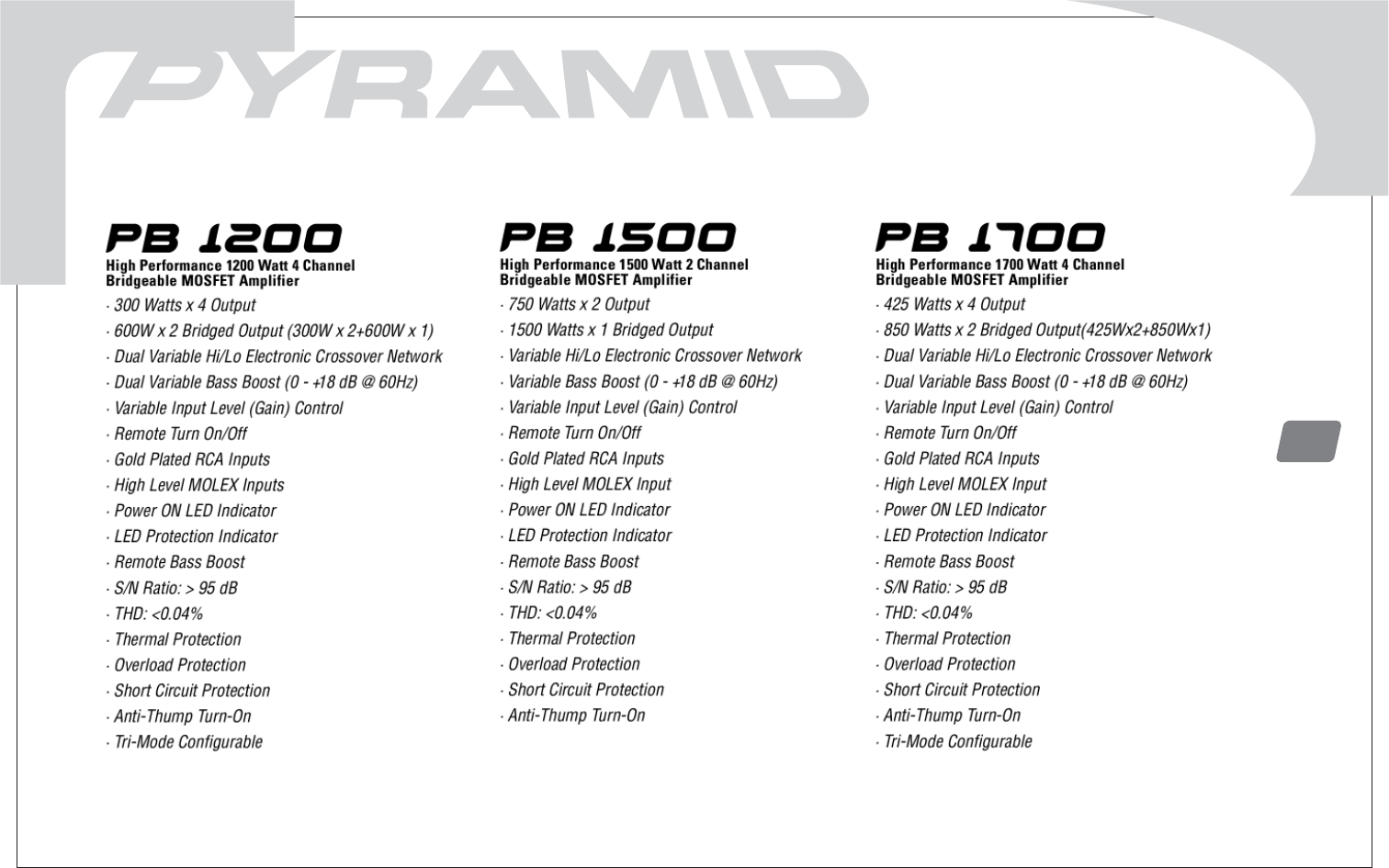

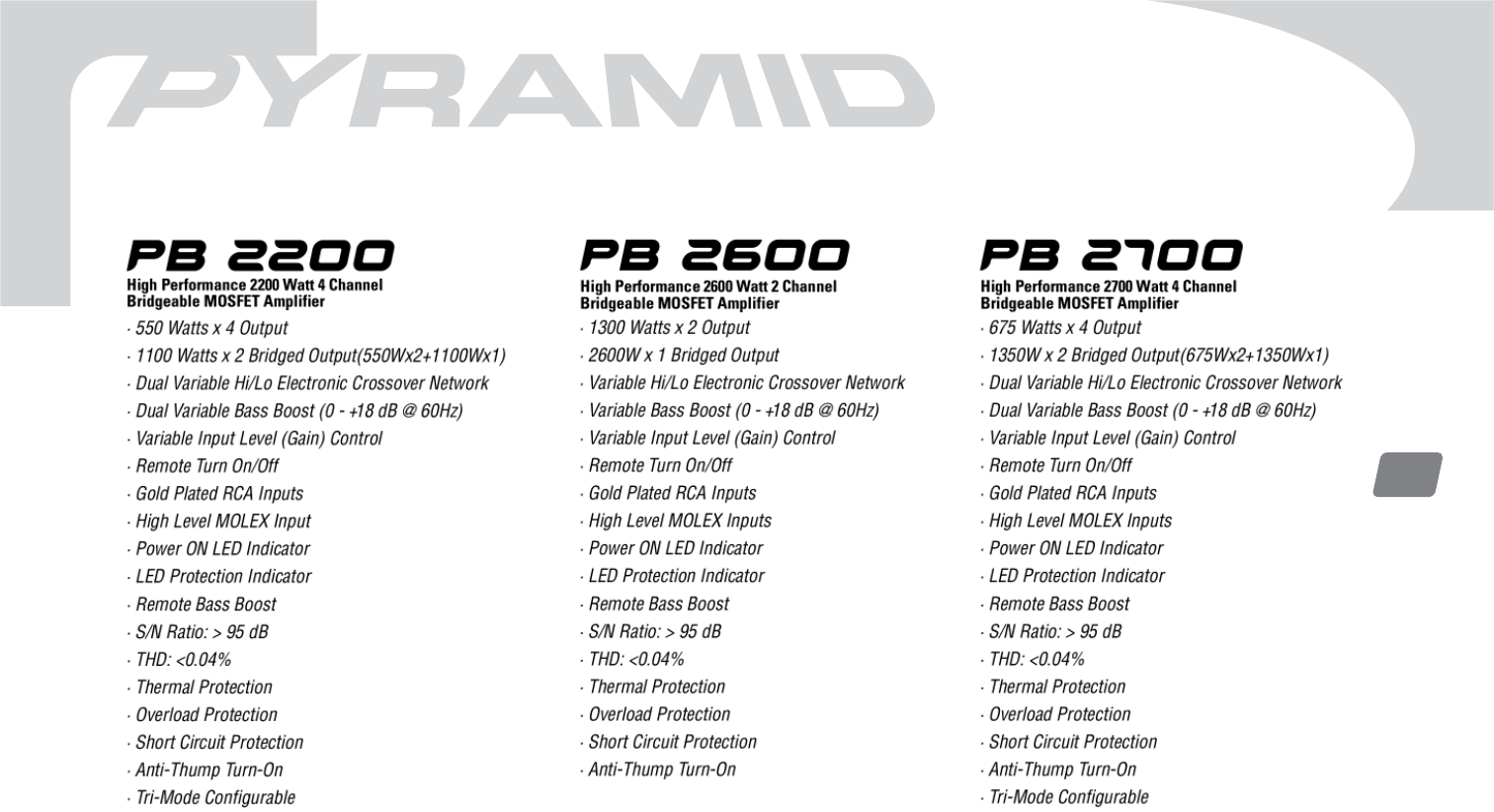

general features

3

general features

4

general features

5

2 ch amp PB700 • PB1000 • PB1100 • PB1500 • PB2600

pb700

pb1100

pb1500

pb 2600

Remote Bass Boost

crossover mode selector

protection LED

low pass frequency control

bass boost level

power LED

high pass frequency control high level inputs

input level control

low level inputs

pb1000

speaker connections power terminals

power fuse

40 Watts x 2

60 Watts x 2

350 Watts x 2

271 x 60 x 175

10.7 x 2.4 x 6.9

6

50 Watts x 2

70 Watts x 2

500 Watts x 2

271 x 60 x 190

10.7 x 2.4 x 7.5

crossover mode selector

input level control

low pass frequency control

high pass frequency control

bass boost level control

low level inputs

high level inputs

power LED

protection LED

power fuse

power terminals

speaker connections

when used with normal, full range systems, set this switch to “FULL.” If

you wish to use the internal crossover to power a driver of specific frequency

range, use the “LOWPASS” or “HIGHPASS” settings.

use this control to match the outputs of your head unit to the amplifier.

Starting with your head unit set at about the 2 o’clock position, increase

the amp level control until distortion begins to occur, and reduce slightly

from this point.

when the crossover selector switch is in “low pass” mode, this control

sets the upper frequency limit for audio program sent to the speakers.

when the crossover selector switch is in “high pass” mode, this control

sets the lower frequency limit for audio program sent to the speakers.

this control permits adjustment of the bass level up to an increase of

approximately 18 dB.

this amp features gold-plated RCA input jacks for high impedance input.

Use these with car stereo output which uses RCA-type connector cables.

if your car stereo lacks RCA-type output jacks, you may connect speaker

output leads to these input connectors.

this indicator is illuminated when power is applied.

this indicator is illuminated when built-in protection circuitry is activated.

the fuse protects the amplifier and your car’s electrical system from short

circuit conditions.

use these connectors to deliver power, ground and remote turn-on control

to the amplifier.

these terminals are 14K gold plated to guarantee high conductivity and

minimum signal loss.

Remote Bass Boost Plug in the Remote Bass Boost Control wire in here.

frequency response

power supply voltage

output power @ 14.4v DC, 1KHz

RMS Power @ 4 Ohms

RMS Power @ 2 Ohms

Maximum Power Output

input sensitivity

low level inputs

high level inputs

maximum current draw

dimensions (W x H x L)

mm

inches

input impedance

low level inputs

high level inputs

matching speaker impedance

stereo mode

bridged mode

50 Watts x 2

75 Watts x 2

550 Watts x 2

15 Hz-30 KHz

250mV

2.5V

14.4V DC Neg. Ground (10.5-16V)

2-4 Ohms

4-8 Ohms

10K Ohms

100 Ohms

15A 15A 15A

271 x 60 x 210

10.7 x 2.4 x 8.3

features and specifications

2 ch amp PB700 • PB1000 • PB1100

frequency response

power supply voltage

output power @ 14.4v DC, 1KHz

RMS Power @ 4 Ohms

RMS Power @ 2 Ohms

Maximum Power Output

input sensitivity

low level inputs

high level inputs

65 Watts x 2

125 Watts x 2

750 Watts x 2

15 Hz-30 KHz

250mV

2.5V

14.4V DC Neg. Ground (10.5-16V)

90 Watts x 2

150 Watts x 2

1300 Watts x 2

maximum current draw

dimensions (W x H x L)

mm

inches

2-4 Ohms

4-8 Ohms

matching speaker impedance

stereo mode

bridged mode

input impedance

low level inputs

high level inputs 10K Ohms

100 Ohms

20 A 30 A

271 x 60 x 250

10.7 x 2.4 x 9.8 271 x 60 x 300

10.7 x 2.4 x 11.8

when used with normal, full range systems, set these switches to “FULL.”

If you wish to use the internal crossovers to power a driver of specific

frequency range, use the “LOWPASS” or “HIGHPASS” settings.

use these controls to match the outputs of your head unit to the amplifier.

Starting with your head unit set at about the 2 o’clock position, increase

the amp level controls until distortion begins to occur, and reduce slightly

from this point.

when one or both of the crossover selector switches is in “low pass”

mode, one can set the upper frequency limit for audio program sent to

the speakers.

when the one or both of crossover selector switch is in “high pass” mode,

one can set the lower frequency limit for audio program sent to the

speakers.

this control permits adjustment of the bass level up to an increase of

approximately 18 dB in either or both pairs of channels.

this amp features gold-plated RCA input jacks for high impedance input.

Use these with car stereo output which uses RCA-type connector cables.

if your car stereo lacks RCA-type output jacks, you may connect speaker

output leads to these input connectors.

this indicator is illuminated when power is applied.

this indicator is illuminated when built-in protection circuitry is activated.

the fuse protects the amplifier and your car’s electrical system from short

circuit conditions.

use these connectors to deliver power, ground and remote turn-on control

to the amplifier.

these terminals are 14K gold plated to guarantee high conductivity and

minimum signal loss.

7

crossover mode selectors

input level controls

low pass frequency controls

high pass frequency controls

bass boost level controls

low level inputs

high level inputs

power LED

protection LED

power fuse

power terminals

speaker connections

CH3/4 Remote Bass Boost Plug in the Remote Bass Boost Control wire in here.

features and specifications

2 ch amp PB1500 • PB2600

pb 1200

8

pb 1700

pb 2200

pb 2700

speaker connections power terminals

power fuse

protection LED

power LED

ch 1/2 low level inputs

ch 1/2 high level inputs

ch 3/4 low level inputs

ch 3/4 high level inputs

ch 1/2 input level control

ch 1/2 bass boost level control

ch 1/2 low pass frequency control

ch 1/2 high pass frequency control

ch 1/2 crossover mode selector switch

ch 3/4 bass boost level control

ch 3/4 low pass frequency control

ch 3/4 high pass frequency control

ch 3/4 crossover mode selector switch

ch 3/4 input level control

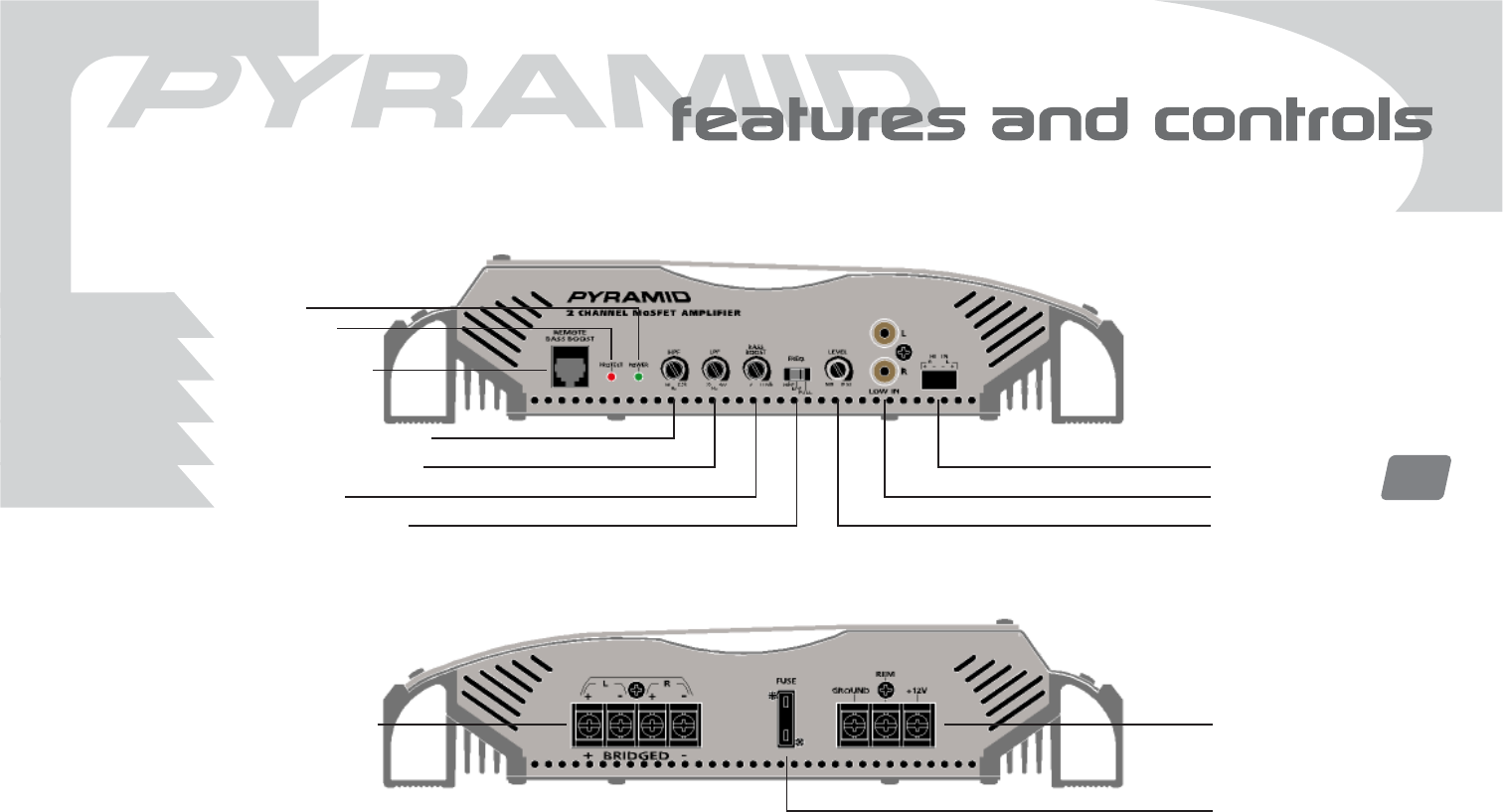

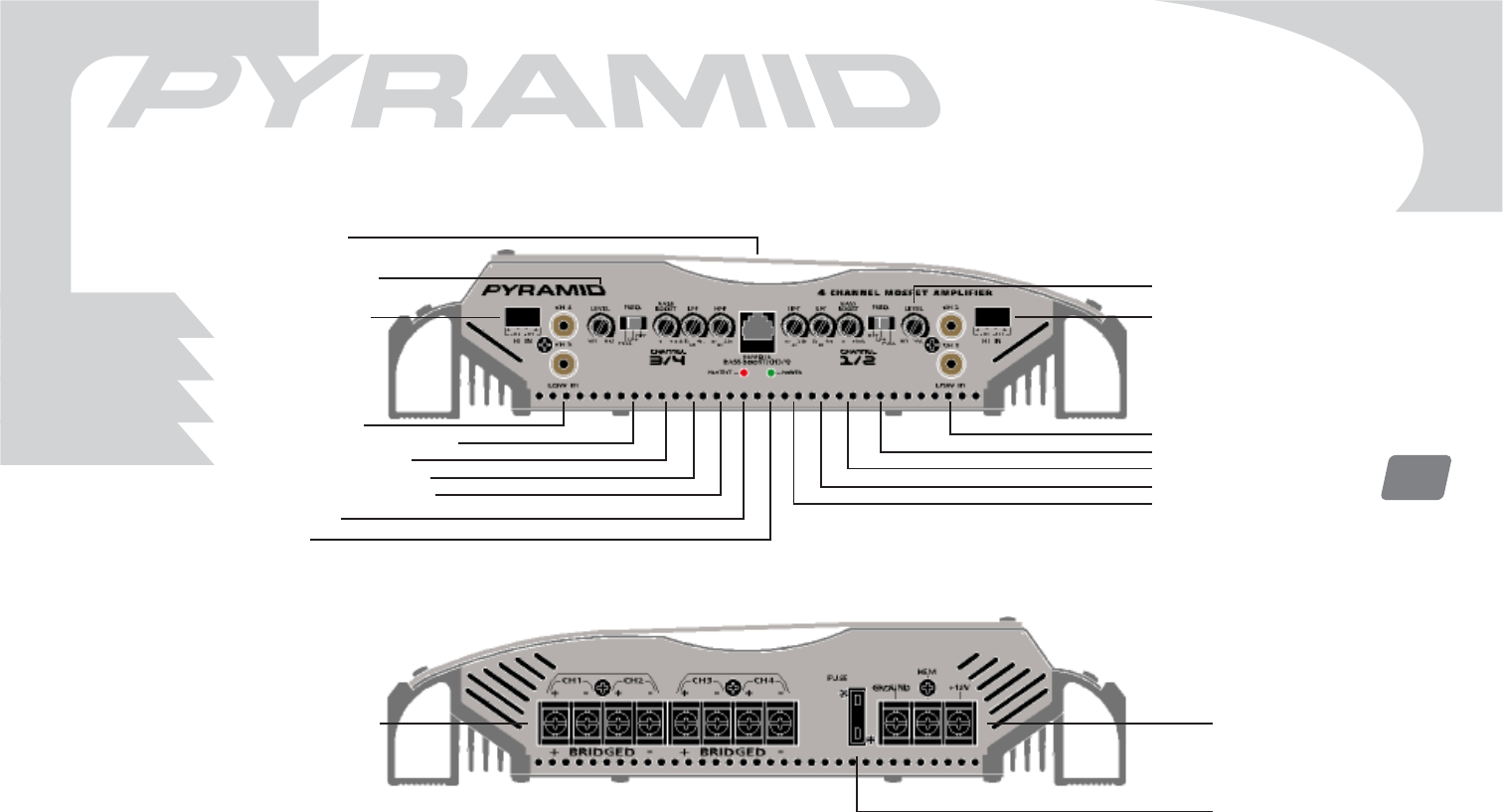

features and controls

4 ch amp PB1200 • PB1700 • PB2200 • PB2700

Remote Bass Boost

9

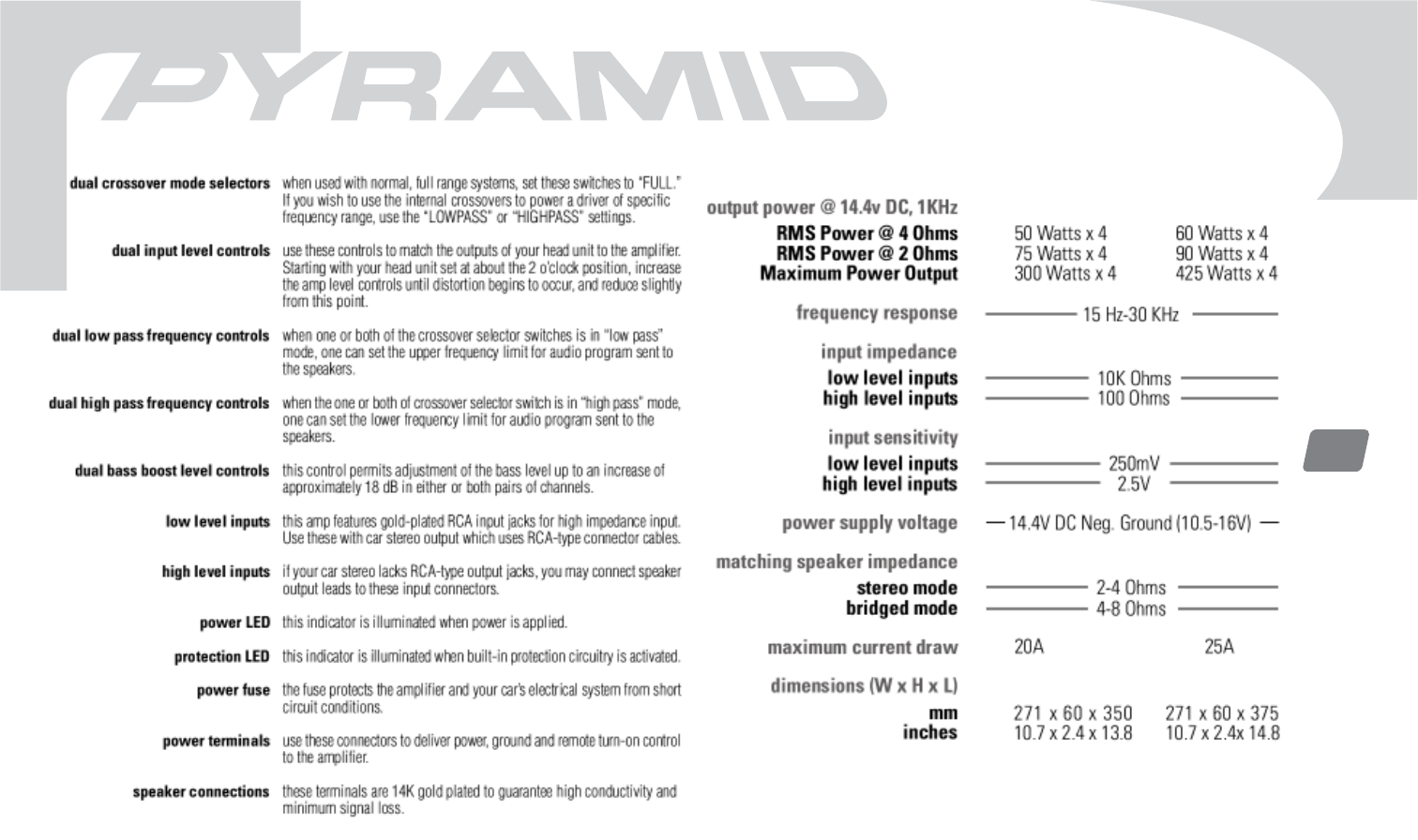

features and specifications

4 ch amp PB1200 • PB1700

10

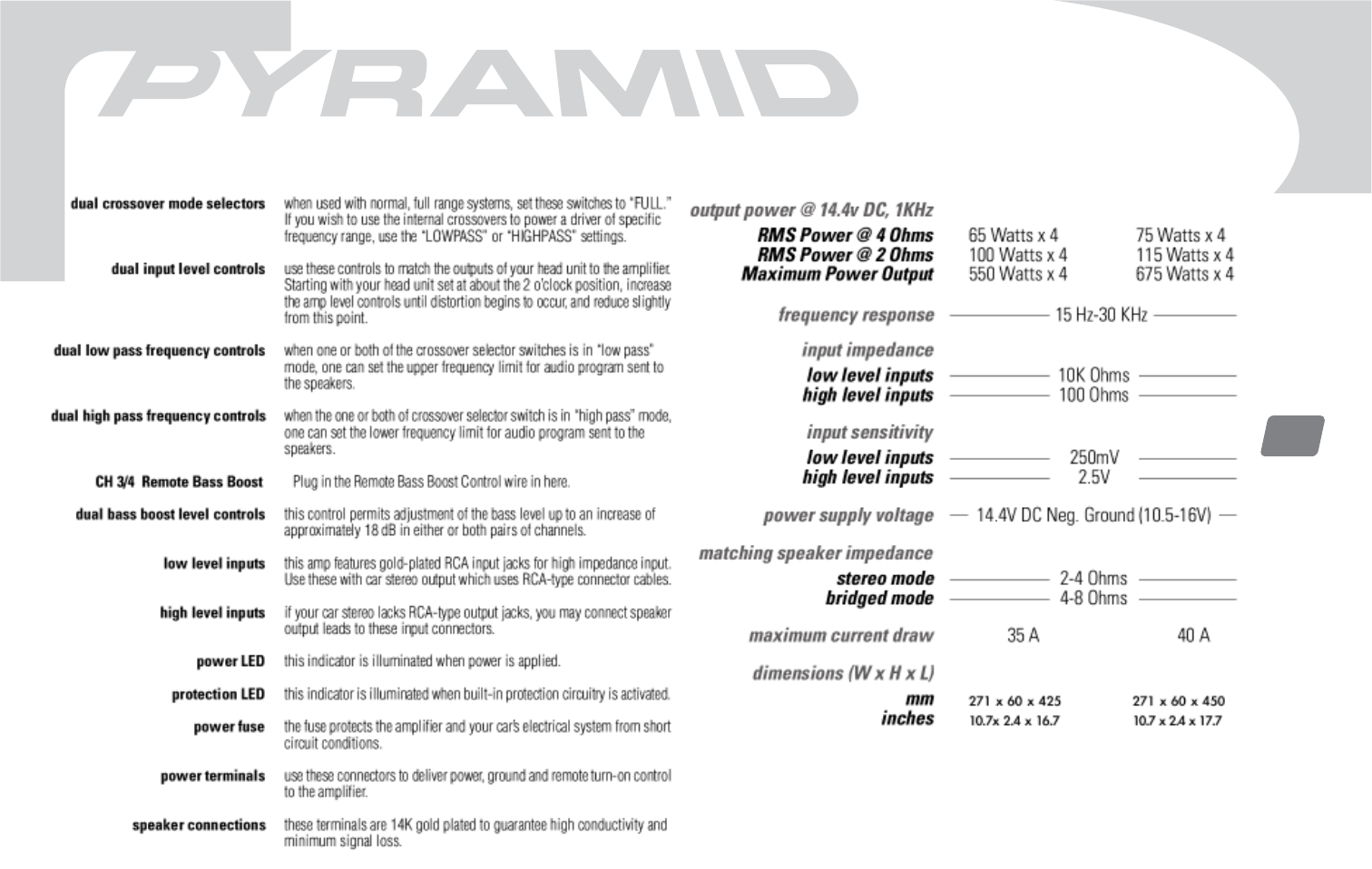

features and specifications

4 ch amp PB2200 • PB2700

pb700

11

pb1100

pb1500

pb 2600

pb 1000

to remote turn-on

+12V

head unit

12V battery

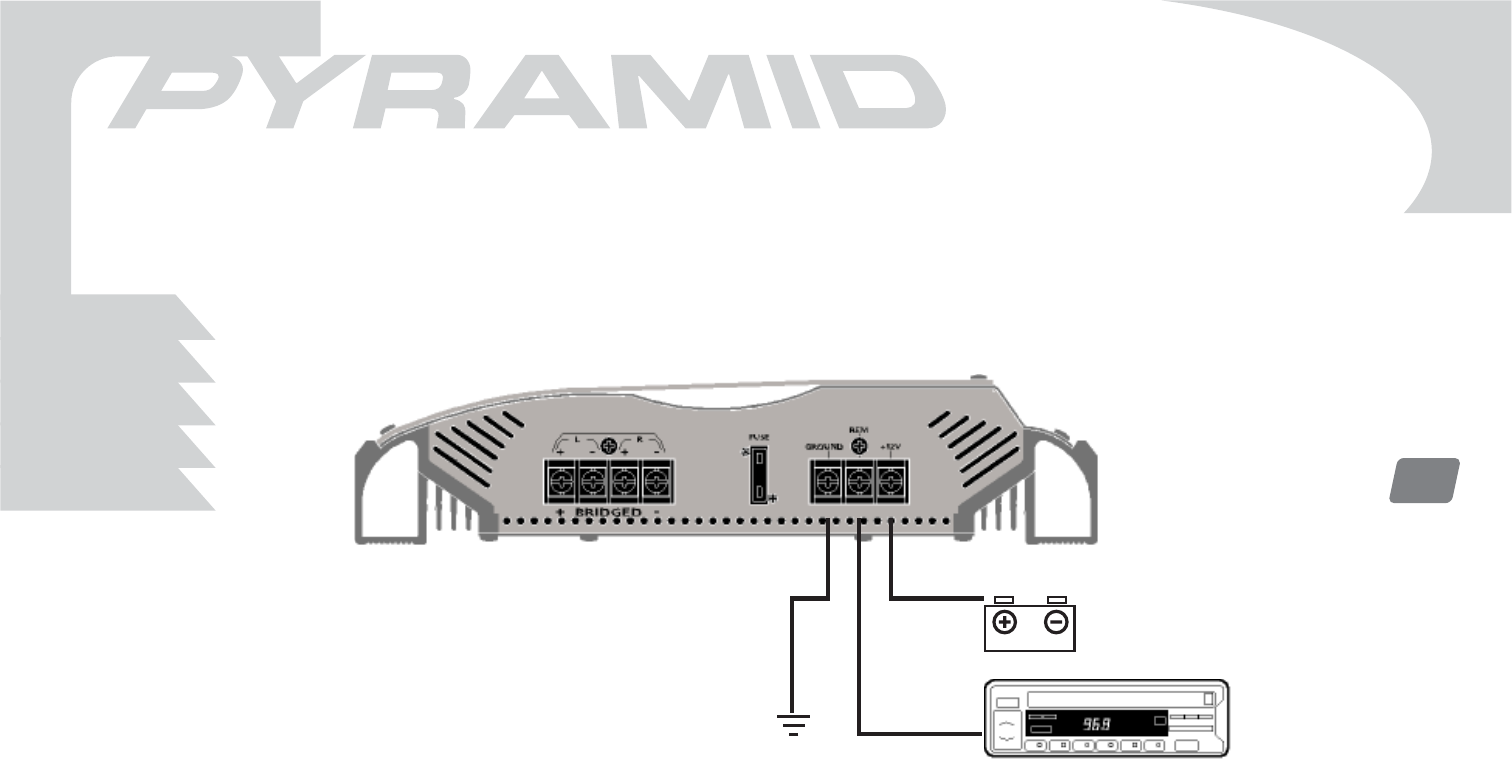

electrical connections

2 ch amp PB700 • PB1000 • PB1100

PB1500 • PB2600

pb 1200

12

to remote turn-on

+12V

head unit

12V battery

pb 1700

pb 2200

pb 2700

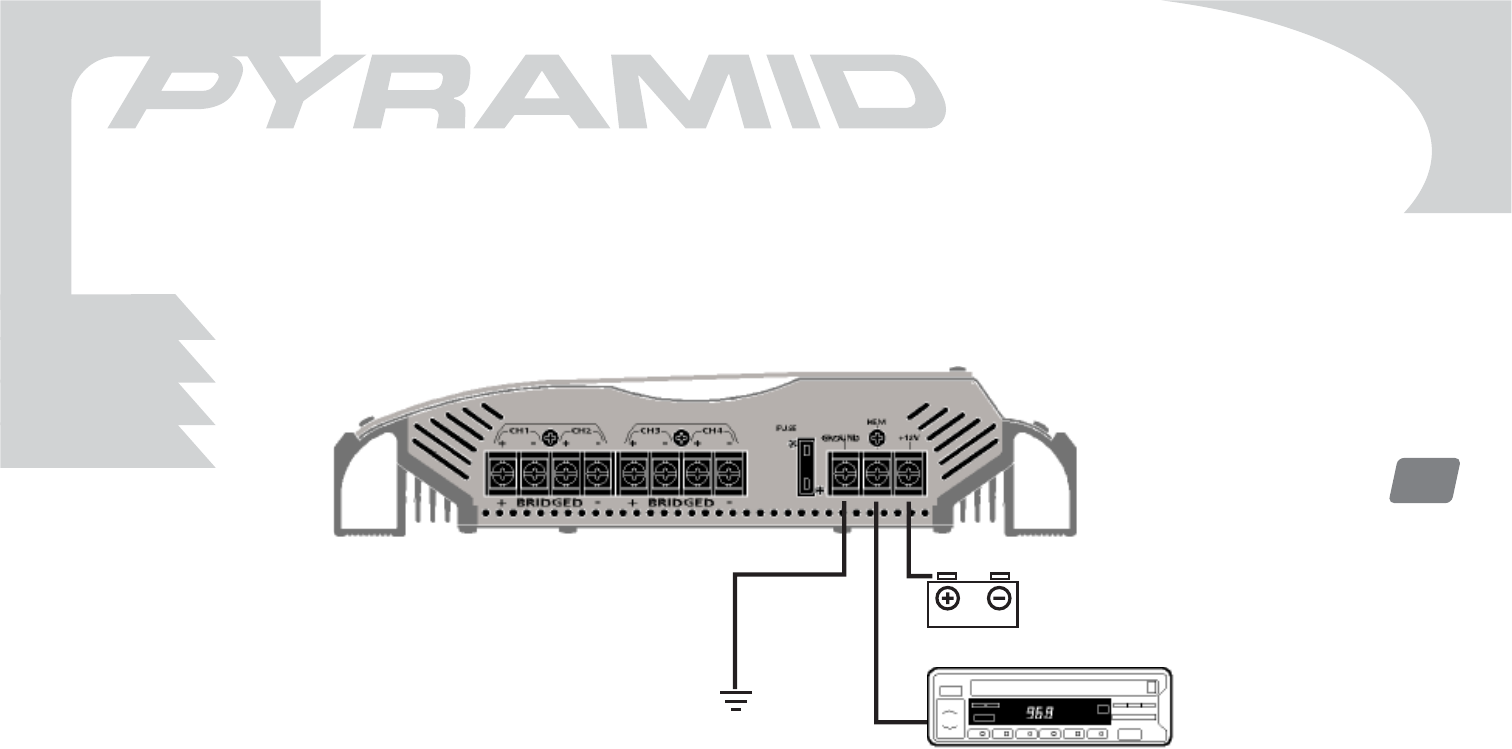

electrical connections

4 ch amp PB1200 • PB1700 • PB2200 • PB2700

13

head unit

using low level inputs

PLEASE NOTE! If using high level

inputs, do not use the low level RCA

inputs at the same time!

using high level inputs

Y Adaptors

L/R Audio

Outputs

from speaker terminals

LL RR

head unit

pb700

pb1100

pb1500

pb 2600

pb 1000

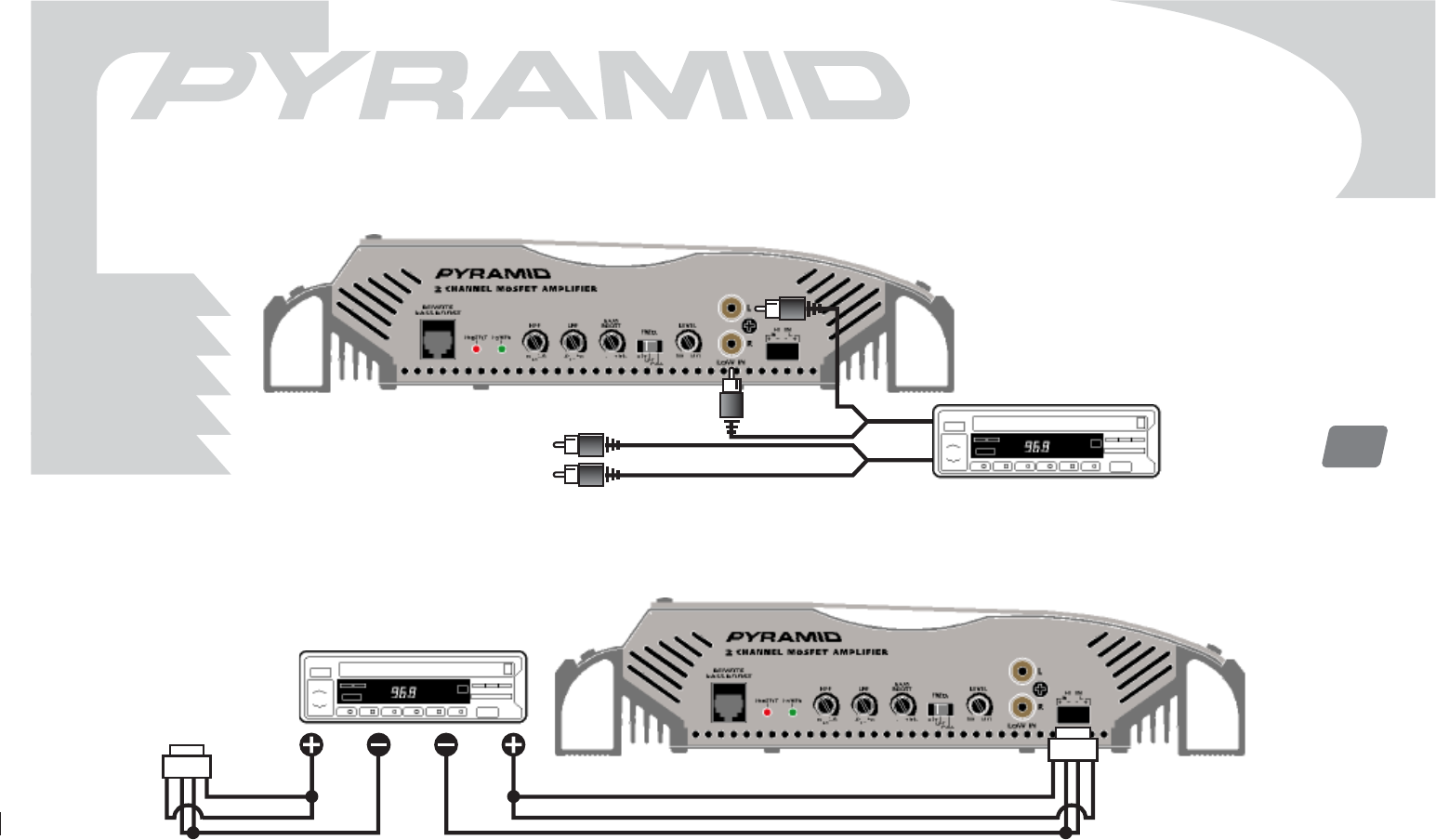

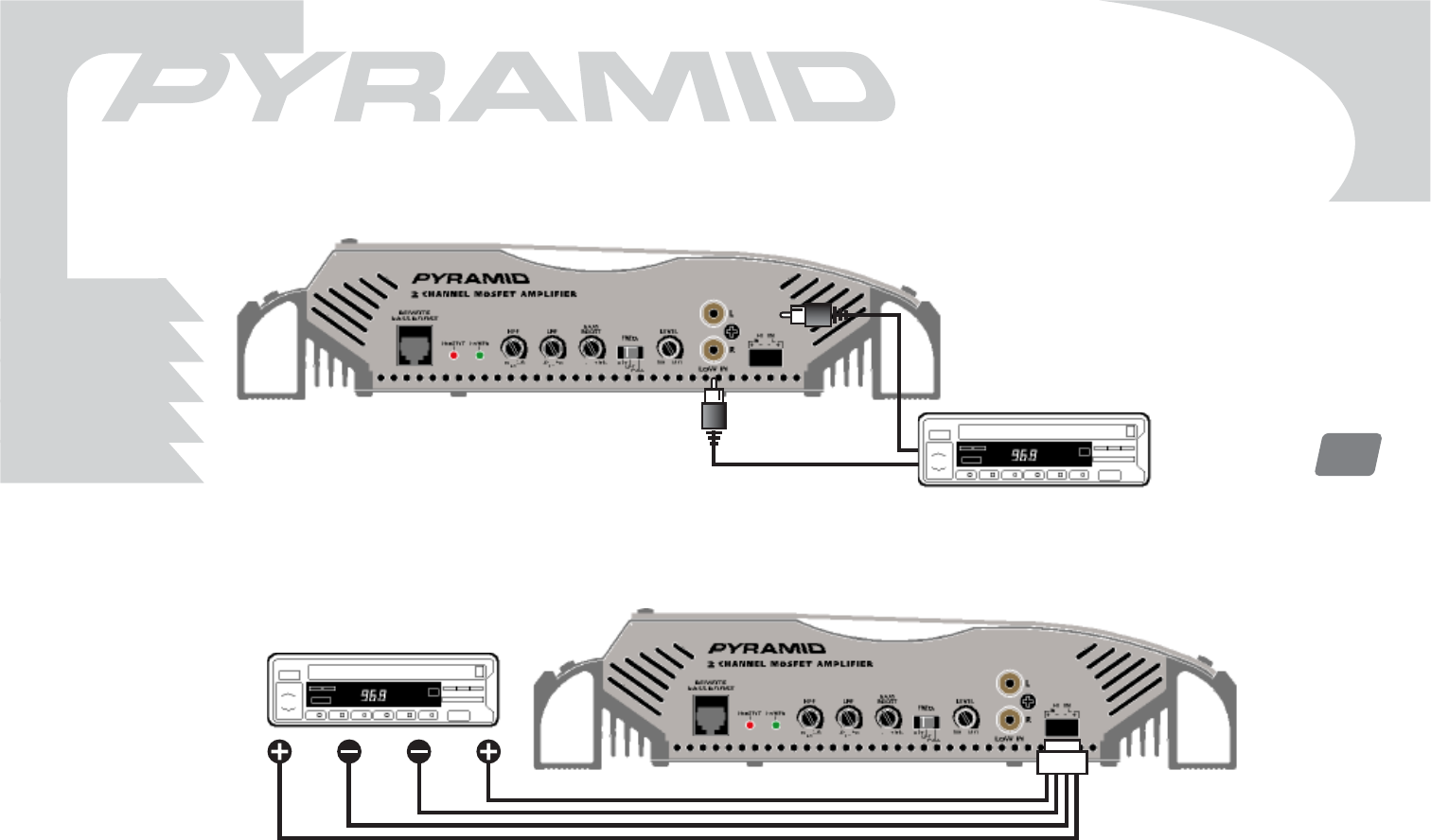

stereo input connections

2 ch amp PB700 • PB1000 • PB1100

PB1500 • PB2600

head unit

using low level inputs

PLEASE NOTE! If using high level

inputs, do not use the low level RCA

inputs at the same time!

using high level inputs

To a second amplifier

Y Adaptors

head unit

wiring harnesswiring harness

To a second amplifier RRLL

from speaker terminals

14

pb700

pb1100

pb1500

pb 2600

pb 1000

mono input connections

2 ch amp PB700 • PB1000 • PB1100

PB1500 • PB2600

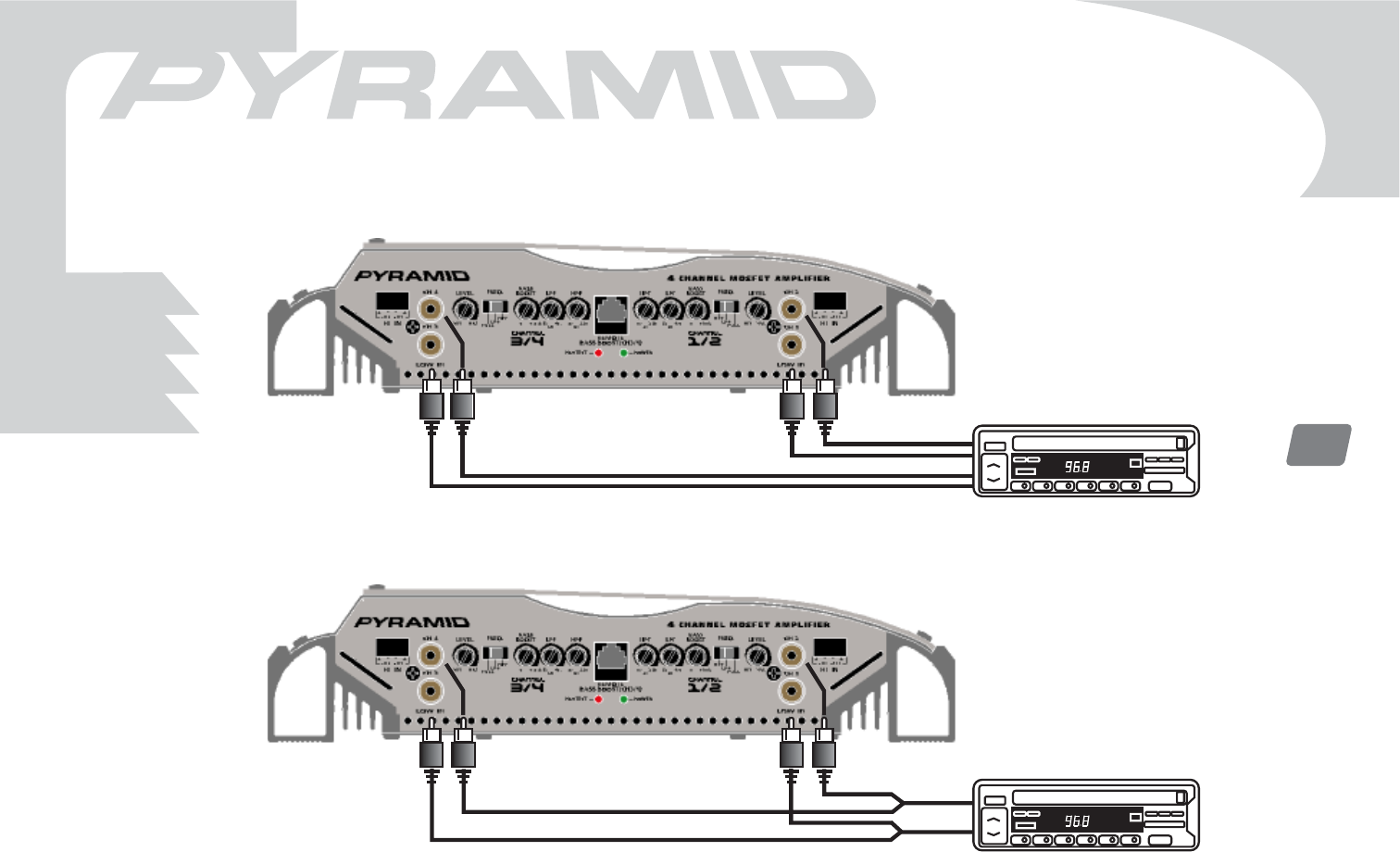

4 CH Stereo input connections using low level inputs

2 CH Stereo input connections using low level inputs

Y adaptors

R

L

head unit

15

L/R REAR

Audio Outputs

L/R FRONT

Audio Outputs

pb1200

pb1700

pb 2200

pb 2700

4 ch amp PB1200 • PB1700 • PB2200 • PB2700

Stereo

input connections

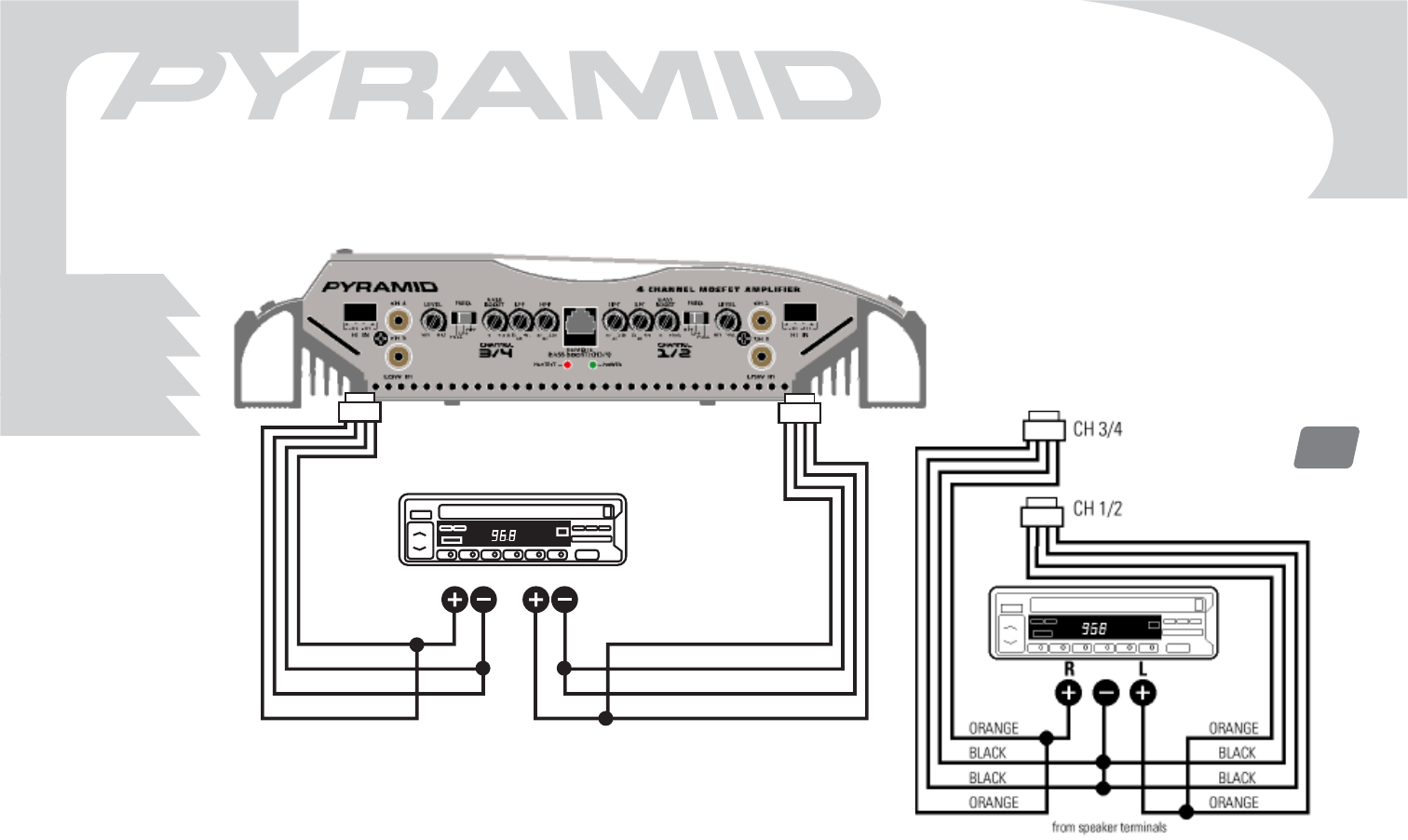

4 CH floating ground connections

16

4 CH floating ground connections

from speaker terminals

L R FRONTLRREAR

ORANGE

ORANGE

ORANGE

ORANGE

BLACK

BLACK

BLACK

BLACK

PLEASE NOTE! If using high level inputs,

do not use the low level RCA inputs at the

same time!

CH 1/2

4 CH harness wiring for common ground connections

from speaker terminals

L R FRONTRLREAR

ORANGE

ORANGE

ORANGE

ORANGE

BLACK

BLACK

BLACK

BLACK

CH 3/4

pb1200

pb1700

pb 2200

pb 2700

4 ch amp PB1200 • PB1700 • PB2200 • PB2700

high level

Stereo input connections

RIGHT FRONT Audio Outputs

LEFT FRONT Audio Outputs

4 CH mono input connections using low level inputs

2 CH mono input connections using low level inputs

Y adaptors

L

R

head unit

LEFT REAR Audio Outputs

RIGHT REAR Audio Outputs

17

pb1200

pb1700

pb 2200

pb 2700

mono

input connections

4 ch amp PB1200 • PB1700 • PB2200 • PB2700

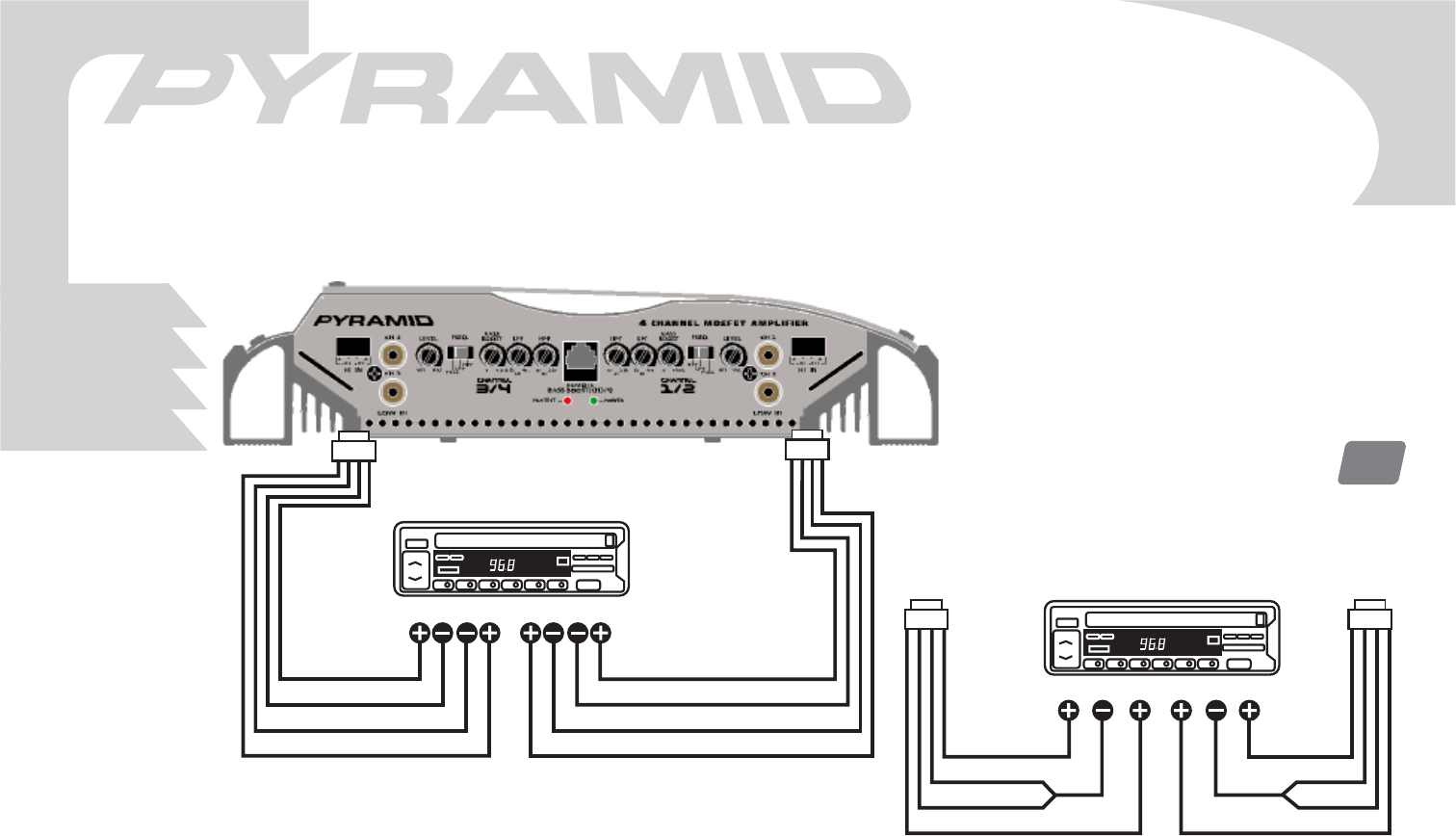

4 CH floating ground connections

4 CH harness wiring

for common ground connections

from speaker terminals

PLEASE NOTE! If using high level inputs, do

not use the low level RCA inputs at the same

time!

RL

ORANGE

ORANGE

ORANGE

ORANGE

BLACK

BLACK BLACK

BLACK

18

pb1200

pb1700

pb 2200

pb 2700

high level mono

input connections

4 ch amp PB1200 • PB1700 • PB2200 • PB2700

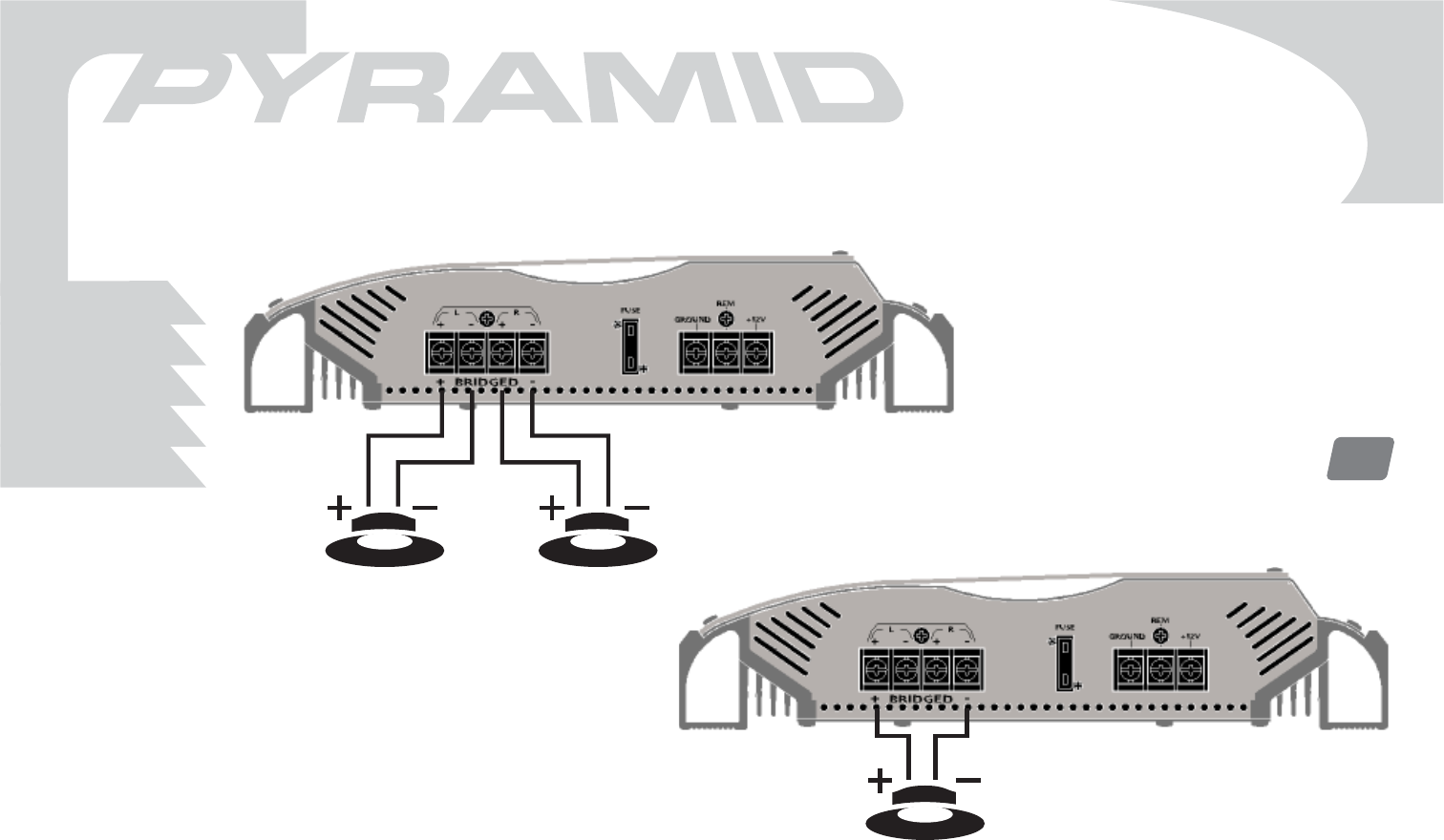

Stereo Output Mode

Bridged Mono Output Mode

speaker

MINIMUM

SPEAKER

IMPEDANCE

4 OHMS!

RIGHT speaker

LEFT speaker

19

pb700

pb1100

pb1500

pb 2600

pb 1000

speaker connections

2 ch amp PB700 • PB1000 • PB1100

PB1500 • PB2600

20

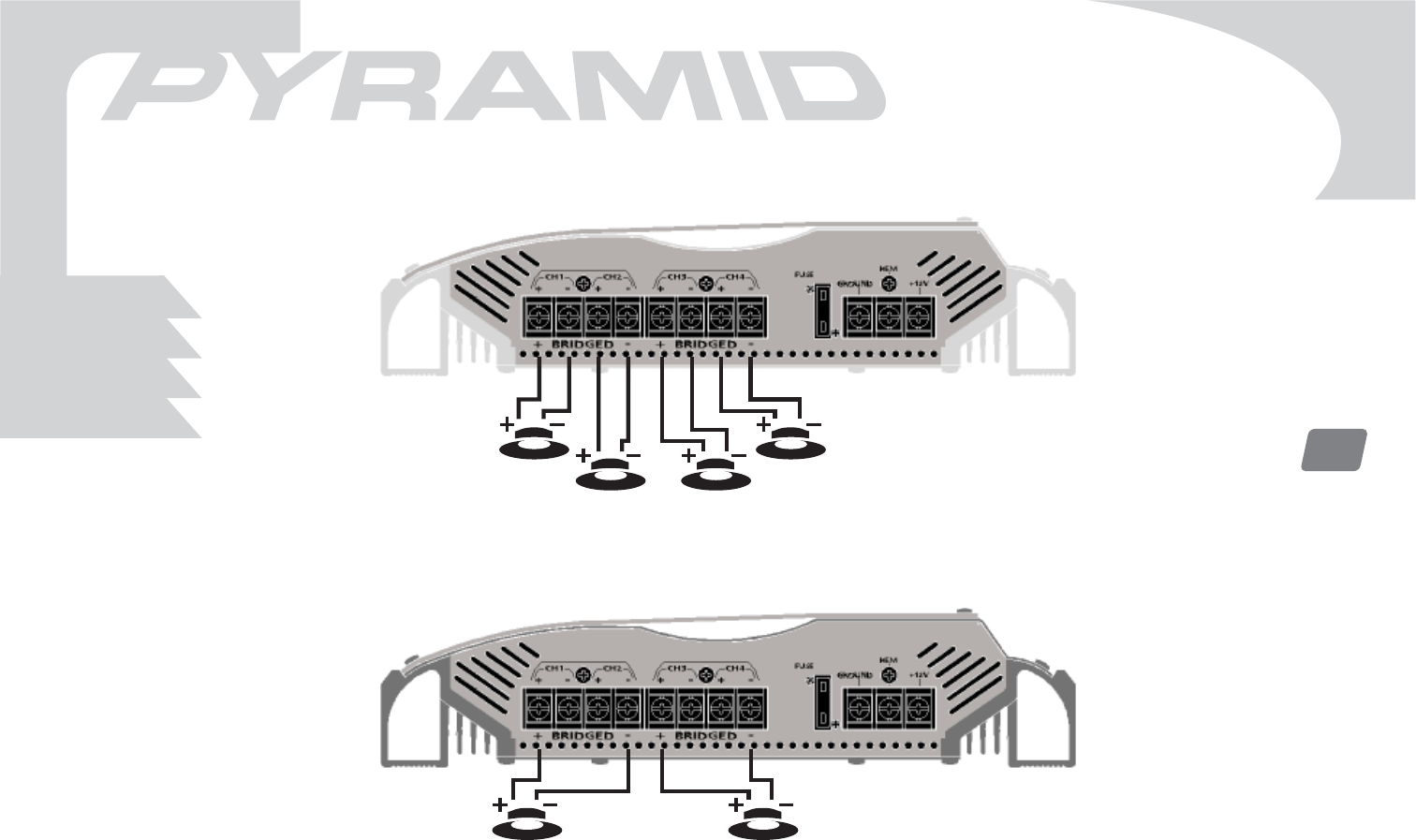

4 CH Output Mode

Bridged Dual Mono Output Mode

MINIMUM

SPEAKER

IMPEDANCE

4 OHMS!

speakers

LR

REAR speakers

FRONT speakers

LR

RL

pb1200

pb1700

pb 2200

pb 2700

speaker connections

4 ch amp PB1200 • PB1700 • PB2200 • PB2700

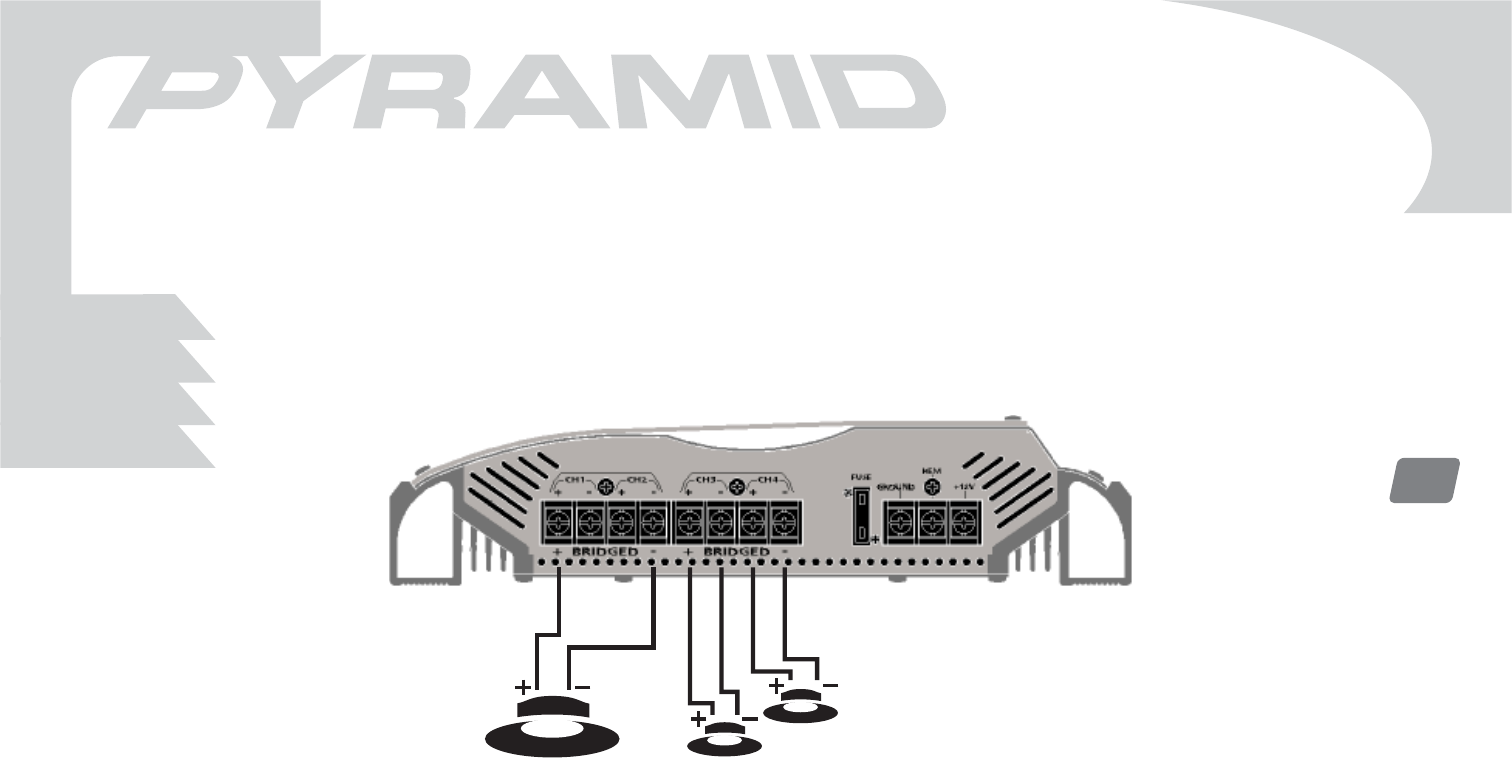

2 CH Stereo Output Mode with Subwoofer Output

MINIMUM

SPEAKER

IMPEDANCE

4 OHMS!

SPEAKERS

R

L

SUBWOOFER

pb1200

pb1700

pb 2200

pb 2700

speaker connections

4 ch amp PB1200 • PB1700 • PB2200 • PB2700

21

22

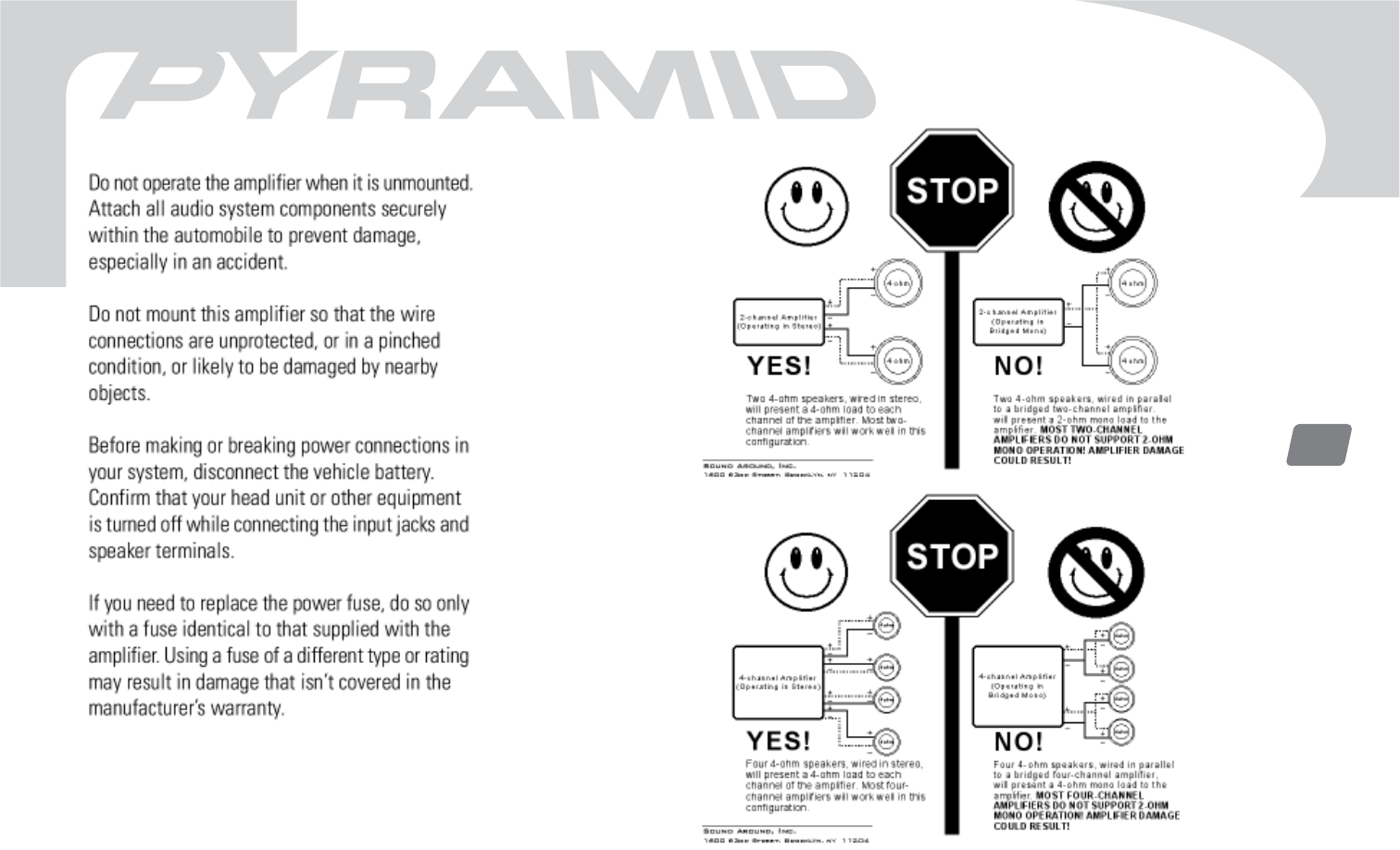

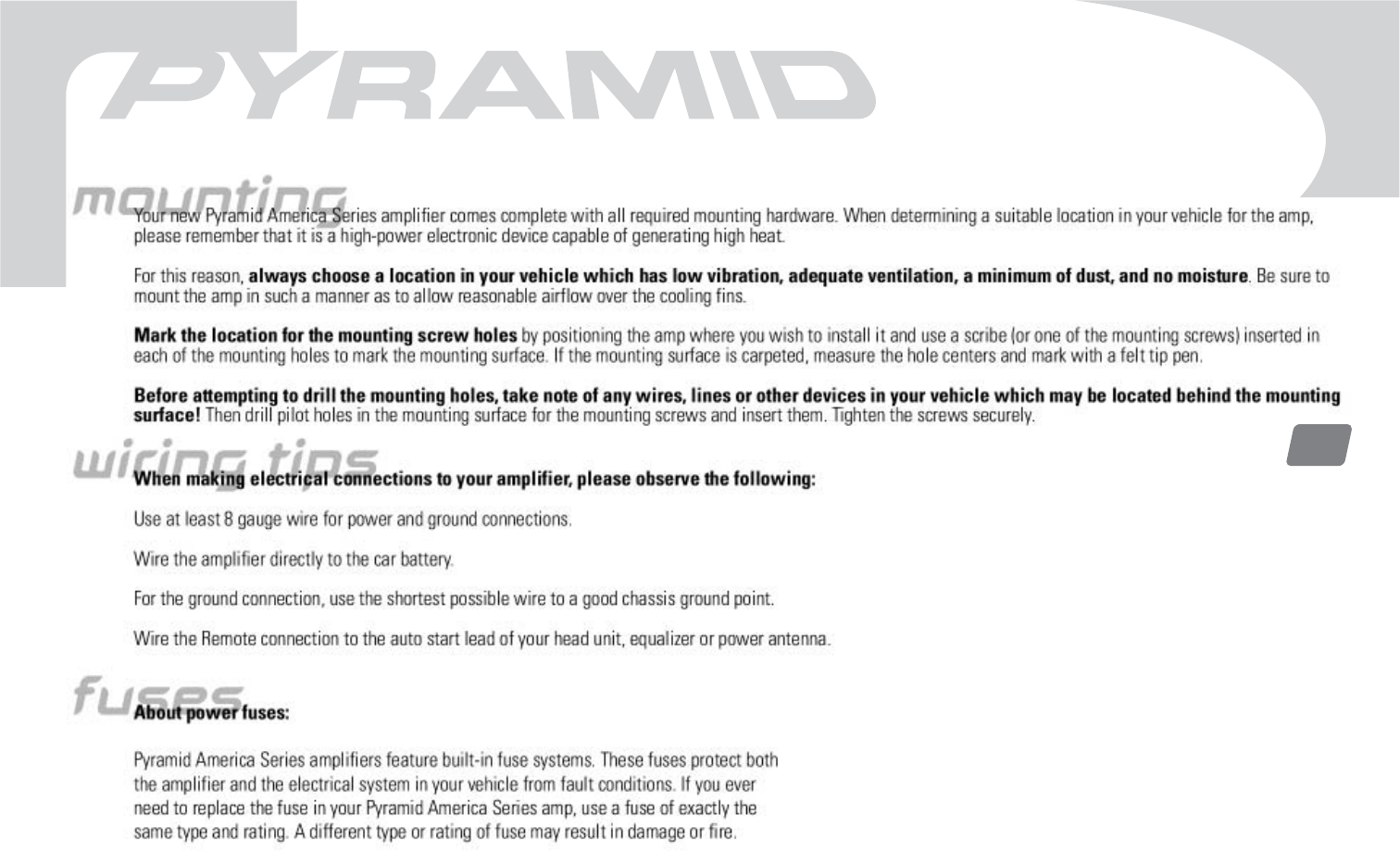

mounting and installation

23

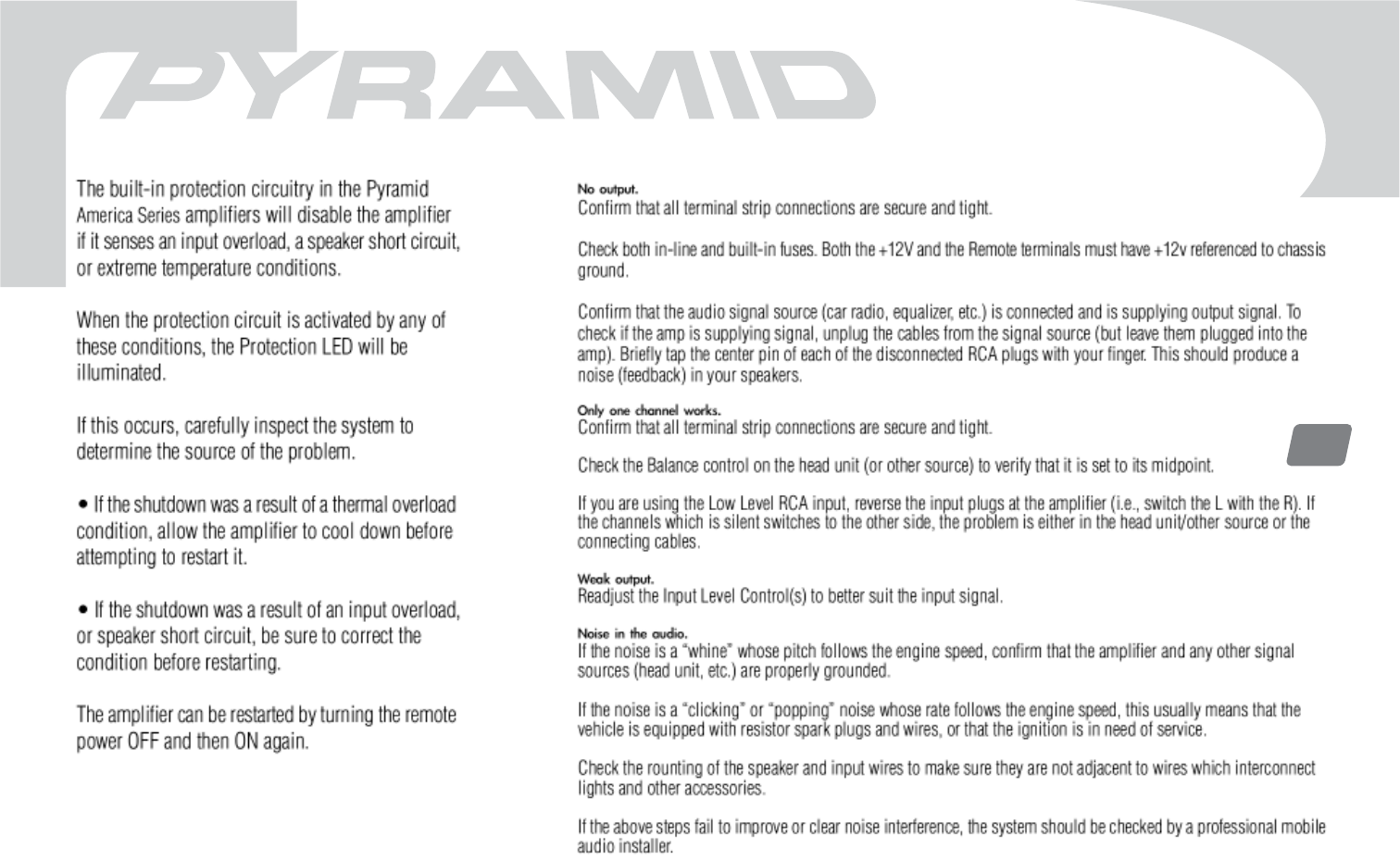

protection

circuitry troubleshooting

24

precautions notes
