Q3 Innovations RH-SE Radar Detector on X, K, Ka and Ku Band User Manual FRONT

Q3 Innovations, LLC Radar Detector on X, K, Ka and Ku Band FRONT

Users Manual

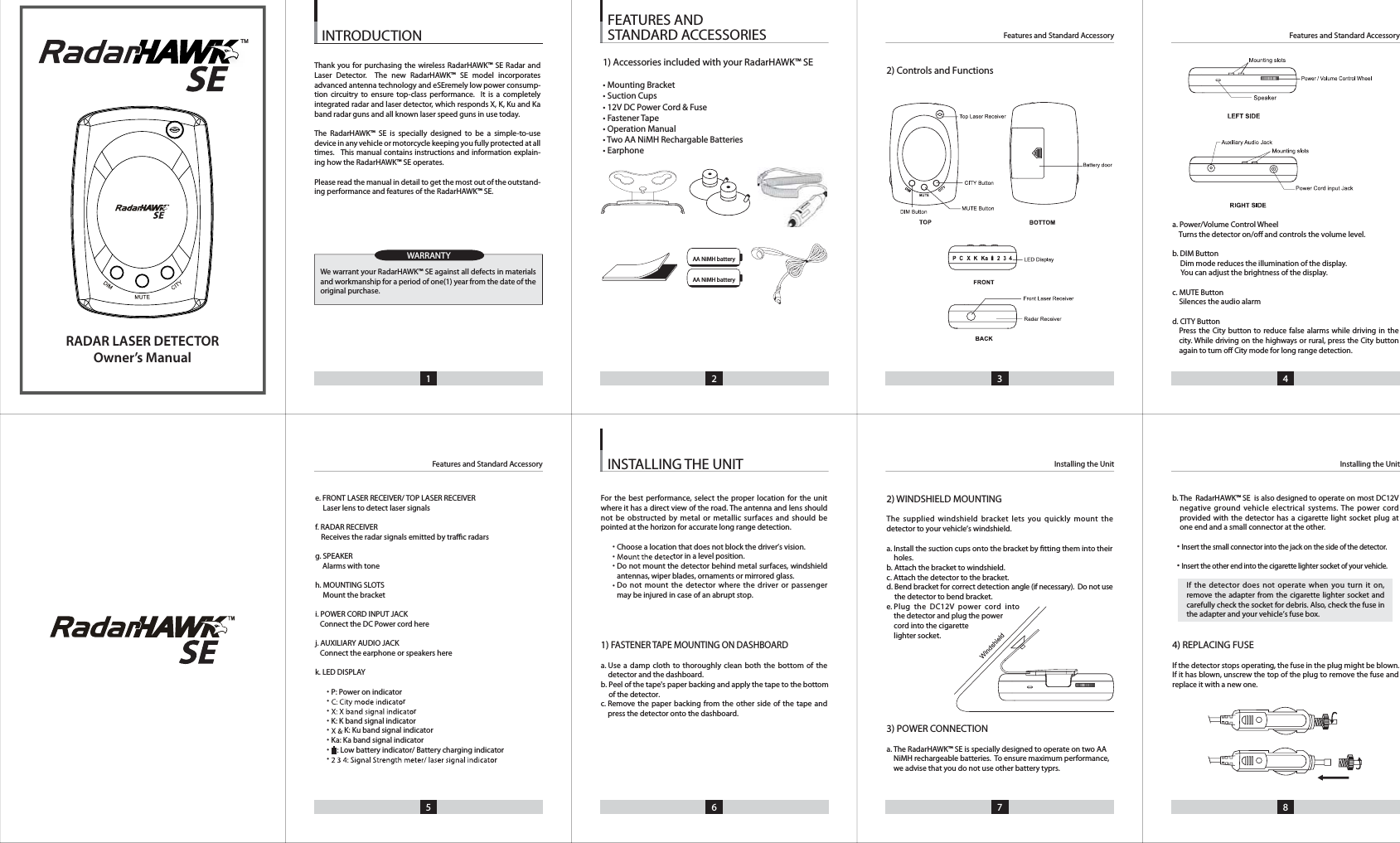

e. FRONT LASER RECEIVER/ TOP LASER RECEIVER    Laser lens to detect laser signalsf. RADAR RECEIVER    Receives the radar signals emitted by trac radarsg. SPEAKERAlarms with toneh. MOUNTING SLOTS    Mount the bracketi. POWER CORD INPUT JACK    Connect the DC Power cord herej. AUXILIARY AUDIO JACK    Connect the earphone or speakers herek. LED DISPLAYP: Power on indicatorrrK: K band signal indicatorK: Ku band signal indicatorKa: Ka band signal indicator   : Low battery indicator/ Battery charging indicatorrFor the best performance, select the proper location for the unit where it has a direct view of the road. The antenna and lens shouldnot be obstructed by metal or metallic surfaces and should bepointed at the horizon for accurate long range detection.tor in a level position.Do not mount the detector behind metal surfaces, windshieldantennas, wiper blades, ornaments or mirrored glass.Do not mount the detector where the driver or passengermay be injured in case of an abrupt stop.1)FASTENER TAPE MOUNTING ON DASHBOARDa. Use a damp cloth to thoroughly clean both the bottom of the detector and the dashboard.b. Peel of the tape's paper backing and apply the tape to the bottomof the detector.c.  Remove the paper backing from the other side of the tape andpress the detector onto the dashboard.2) WINDSHIELD MOUNTINGThe supplied windshield bracket lets you quickly mount thedetector to your vehicle’s windshield.a. Install the suction cups onto the bracket by tting them into their holes.b. Attach the bracket to windshield.c. Attach the detector to the bracket.d.  Bend bracket for correct detection angle (if necessary).  Do not usethe detector to bend bracket.e. Plug the DC12V power cord intothe detector and plug the powercord into the cigarettelighter socket.3) POWER CONNECTIONa.b.  The  RadarHAWK™ SE is also designed to operate on most DC12Vnegative ground vehicle electrical systems. The power cordprovided with the detector has a cigarette light socket plug atone end and a small connector at the other.Insert the small connector into the jack on the side of the detector.Insert the other end into the cigarette lighter socket of your vehicle.If the detector does not operate when you turn it on,remove the adapter from the cigarette lighter socket andcarefully check the socket for debris. Also, check the fuse inthe adapter and your vehicle’s fuse box.4) REPLACING FUSEIf the detector stops operating, the fuse in the plug might be blown. If it has blown, unscrew the top of the plug to remove the fuse andreplace it with a new one.2) Controls and FunctionsINSTALLING THE UNIT1 2 3 4INTRODUCTION5 6 7 8Installing the UnitFeatures and Standard AccessoryFeatures and Standard AccessoryInstalling the UnitFeatures and Standard AccessoryFEATURES AND STANDARD ACCESSORIESWARRANTYa. Power/Volume Control WheelTurns the detector on/o and controls the volume level.b. DIM Button     Dim mode reduces the illumination of the display.You can adjust the brightness of the display.c. MUTE Button    Silences the audio alarm d. CITY ButtonPress the City button to reduce false alarms while driving in the city. While driving on the highways or rural, press the City buttonagain to turn o City mode for long range detection.AA NiMH batteryAA NiMH batteryRADAR LASER DETECTOROwner’s ManualTM1) Accessories included with your RadarHAWK™ SE• Mounting Bracket• Suction Cups• 12V DC Power Cord & Fuse• Fastener Tape• Operation Manual• Two AA NiMH Rechargable Batteries• Earphone••••••Choose a location that does not block the driver’s vision.••••••••We warrant your RadarHAWK™ SE against all defects in materials and workmanship for a period of one(1) year from the date of the original purchase.Thank you for purchasing the wireless RadarHAWK™ SE Radar and Laser Detector.  The new RadarHAWK™ SE model incorporates advanced antenna technology and eSEremely low power consump-tion circuitry to ensure top-class performance.  It is a completely integrated radar and laser detector, which responds X, K, Ku and Ka band radar guns and all known laser speed guns in use today.The RadarHAWK™ SE is specially designed to be a simple-to-use device in any vehicle or motorcycle keeping you fully protected at all times.   This manual contains instructions and information explain-ing how the RadarHAWK™ SE operates.Please read the manual in detail to get the most out of the outstand-ing performance and features of the RadarHAWK™ SE.The RadarHAWK™ SE is specially designed to operate on two AA NiMH rechargeable batteries.  To ensure maximum performance, we advise that you do not use other battery typrs.

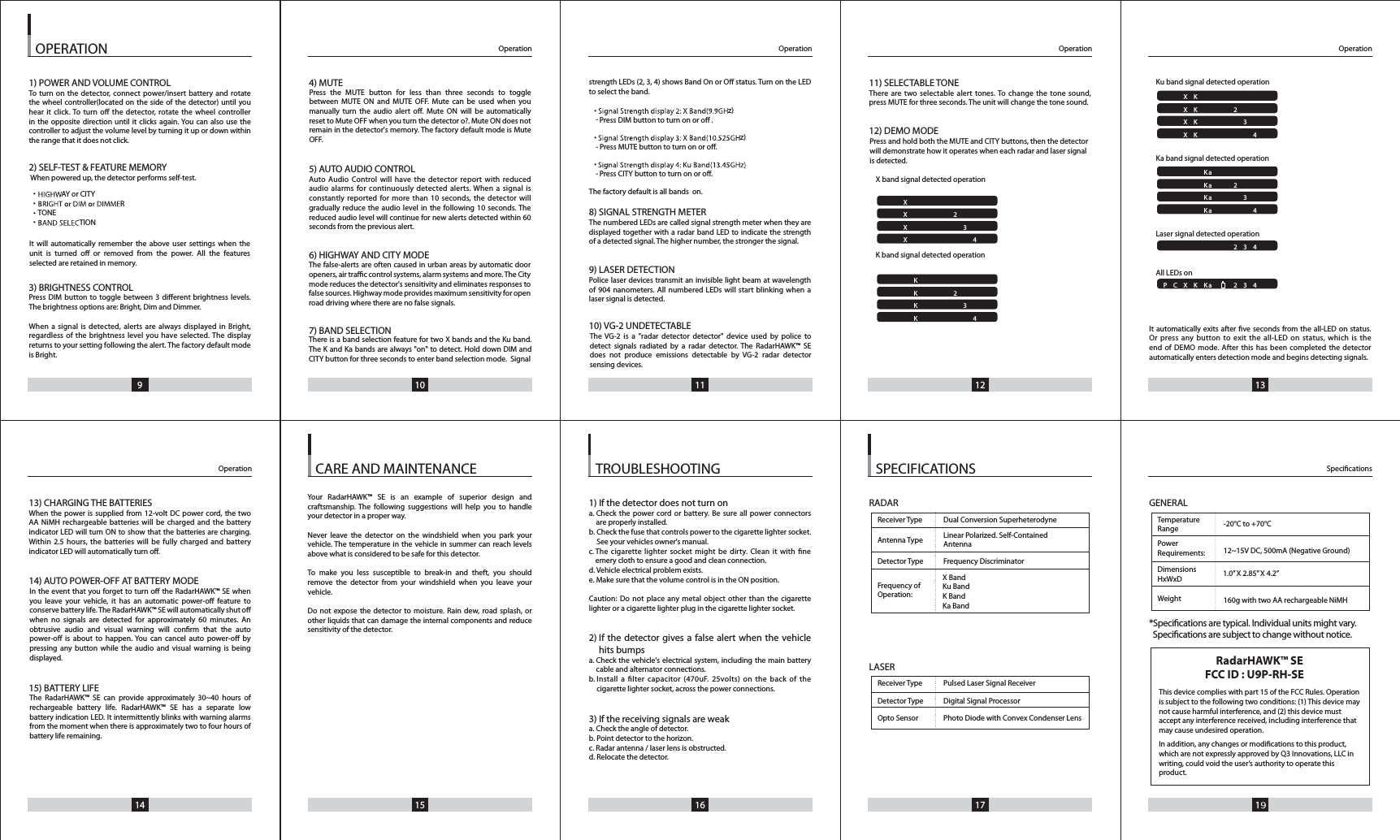

9 10 11 12 1314 15 16 17 19OPERATION1) POWER AND VOLUME CONTROLTo turn on the detector, connect power/insert battery and rotatethe wheel controller(located on the side of the detector) until youhear it click. To turn o the detector, rotate the wheel controller in the opposite direction until it clicks again. You can also use thecontroller to adjust the volume level by turning it up or down withinthe range that it does not click.2) SELF-TEST & FEATURE MEMORYWhen powered up, the detector performs self-test.AY or CITYRTONETION3) BRIGHTNESS CONTROL Press  DIM  button  to  toggle  between  3  dierent  brightness  levels.The brightness options are: Bright, Dim and Dimmer.When a signal is detected, alerts are always displayed in Bright,regardless of the brightness level you have selected. The displayreturns to your setting following the alert. The factory default mode is Bright.13) CHARGING THE BATTERIESWhen the power is supplied from 12-volt DC power cord, the twoAA NiMH rechargeable batteries will be charged and the batteryindicator LED will turn ON to show that the batteries are charging.Within 2.5 hours, the batteries will be fully charged and batteryindicator LED will automatically turn o.14) AUTO POWER-OFF AT BATTERY MODE15) BATTERY LIFE1) If the detector does not turn ona. Check the power cord or battery. Be sure all power connectorsare properly installed.b. Check the fuse that controls power to the cigarette lighter socket. See your vehicles owner's manual.c. The cigarette lighter socket might be dirty. Clean it with neemery cloth to ensure a good and clean connection.d. Vehicle electrical problem exists.e. Make sure that the volume control is in the ON position.Caution: Do not place any metal object other than the cigarettelighter or a cigarette lighter plug in the cigarette lighter socket.2) If the detector gives a false alert when the vehicle hits bumpsa. Check the vehicle's electrical system, including the main batterycable and alternator connections.b. Install a lter capacitor (470uF. 25volts) on the back of the cigarette lighter socket, across the power connections.3) If the receiving signals are weaka. Check the angle of detector.b. Point detector to the horizon.c. Radar antenna / laser lens is obstructed.d. Relocate the detector.RADARLASERGENERAL*Specications are typical. Individual units might vary.  Specications are subject to change without notice.4) MUTE5) AUTO AUDIO CONTROLAuto Audio Control will have the detector report with reducedaudio alarms for continuously detected alerts. When a signal isconstantly reported for more than 10 seconds, the detector willgradually reduce the audio level in the following 10 seconds. The reduced audio level will continue for new alerts detected within 60seconds from the previous alert.6) HIGHWAY AND CITY MODE7) BAND SELECTIONstrength LEDs (2, 3, 4) shows Band On or O status. Turn on the LEDto select the band.z)Press DIM button to turn on or o .z)Press MUTE button to turn on or o.Press CITY button to turn on or o.The factory default is all bands  on.8) SIGNAL STRENGTH METERThe numbered LEDs are called signal strength meter when they aredisplayed together with a radar band LED to indicate the strengthof a detected signal. The higher number, the stronger the signal.9) LASER DETECTIONPolice laser devices transmit an invisible light beam at wavelength of 904 nanometers. All numbered LEDs will start blinking when a laser signal is detected.10) VG-2 UNDETECTABLE11) SELECTABLE TONEThere are two selectable alert tones. To change the tone sound,press MUTE for three seconds. The unit will change the tone sound.12) DEMO MODEX band signal detected operationK band signal detected operationKu band signal detected operation                Ka band signal detected operationLaser signal detecAll LEDs onted operationIt automatically exits after ve seconds from the all-LED on status.Or press any button to exit the all-LED on status, which is theend of DEMO mode. After this has been completed the detector automatically enters detection mode and begins detecting signals.Operation OperationSpecicationsOperationOperationOperation SPECIFICATIONSTROUBLESHOOTINGCARE AND MAINTENANCEPCXKKa  234PCXKKa  234PCXKKa  234PCXKKa  234PCXKKa  234PCXKKa 234PCXKKa   2 34PCXKKa  234PCXKKa  234PCXKKa 234PCXKKa   2 34PCXKKa  234PCXKKa   234PCXKKa 2 34PCXKKa   234PCXKKa   234PCXKKa  234PCXKKa  234Receiver Type Pulsed Laser Signal ReceiverDetector Type Digital Signal ProcessorOpto Sensor   Photo Diode with Convex Condenser LensReceiver Type Dual Conversion SuperheterodyneAntenna Type   Linear Polarized. Self-ContainedAntennaDetector Type Frequency DiscriminatorFrequency of Operation:X BandKu BandK BandKa BandTemperatureRangePower 12~15V DC, 500mA (Negative Ground)Requirements:DimensionsHxWxDWeight 160g with two AA rechargeable NiMH 1.0” X 2.85” X 4.2”-20°C to +70°CPress and hold both the MUTE and CITY buttons, then the detector will demonstrate how it operates when each radar and laser signal is detected.• -• -• -••••Press the MUTE button for less than three seconds to toggle between MUTE ON and MUTE OFF. Mute can be used when you manually turn the audio alert o. Mute ON will be automatically reset to Mute OFF when you turn the detector o?. Mute ON does not remain in the detector's memory. The factory default mode is Mute OFF.The false-alerts are often caused in urban areas by automatic door openers, air trac control systems, alarm systems and more. The City mode reduces the detector's sensitivity and eliminates responses to false sources. Highway mode provides maximum sensitivity for open road driving where there are no false signals.There is a band selection feature for two X bands and the Ku band. The K and Ka bands are always "on" to detect. Hold down DIM and CITY button for three seconds to enter band selection mode.  SignalThe VG-2 is a "radar detector detector" device used by police to detect signals radiated by a radar detector. The RadarHAWK™ SE does not produce emissions detectable by VG-2 radar detector sensing devices.Your RadarHAWK™ SE is an example of superior design and craftsmanship. The following suggestions will help you to handle your detector in a proper way.Never leave the detector on the windshield when you park your vehicle. The temperature in the vehicle in summer can reach levels above what is considered to be safe for this detector.To make you less susceptible to break-in and theft, you should remove the detector from your windshield when you leave your vehicle.Do not expose the detector to moisture. Rain dew, road splash, or other liquids that can damage the internal components and reduce sensitivity of the detector.The RadarHAWK™ SE can provide approximately 30~40 hours of rechargeable battery life. RadarHAWK™ SE has a separate low battery indication LED. It intermittently blinks with warning alarms from the moment when there is approximately two to four hours of battery life remaining.In the event that you forget to turn o the RadarHAWK™ SE when you leave your vehicle, it has an automatic power-o feature to conserve battery life. The RadarHAWK™ SE will automatically shut o when no signals are detected for approximately 60 minutes. An obtrusive audio and visual warning will conrm that the auto power-o is about to happen. You can cancel auto power-o by pressing any button while the audio and visual warning is being displayed.It will automatically remember the above user settings when the unit is turned o or removed from the power. All the features selected are retained in memory.This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.In addition, any changes or modications to this product, which are not expressly approved by Q3 Innovations, LLC in writing, could void the user’s authority to operate this product.RadarHAWK™ SEFCC ID : U9P-RH-SE

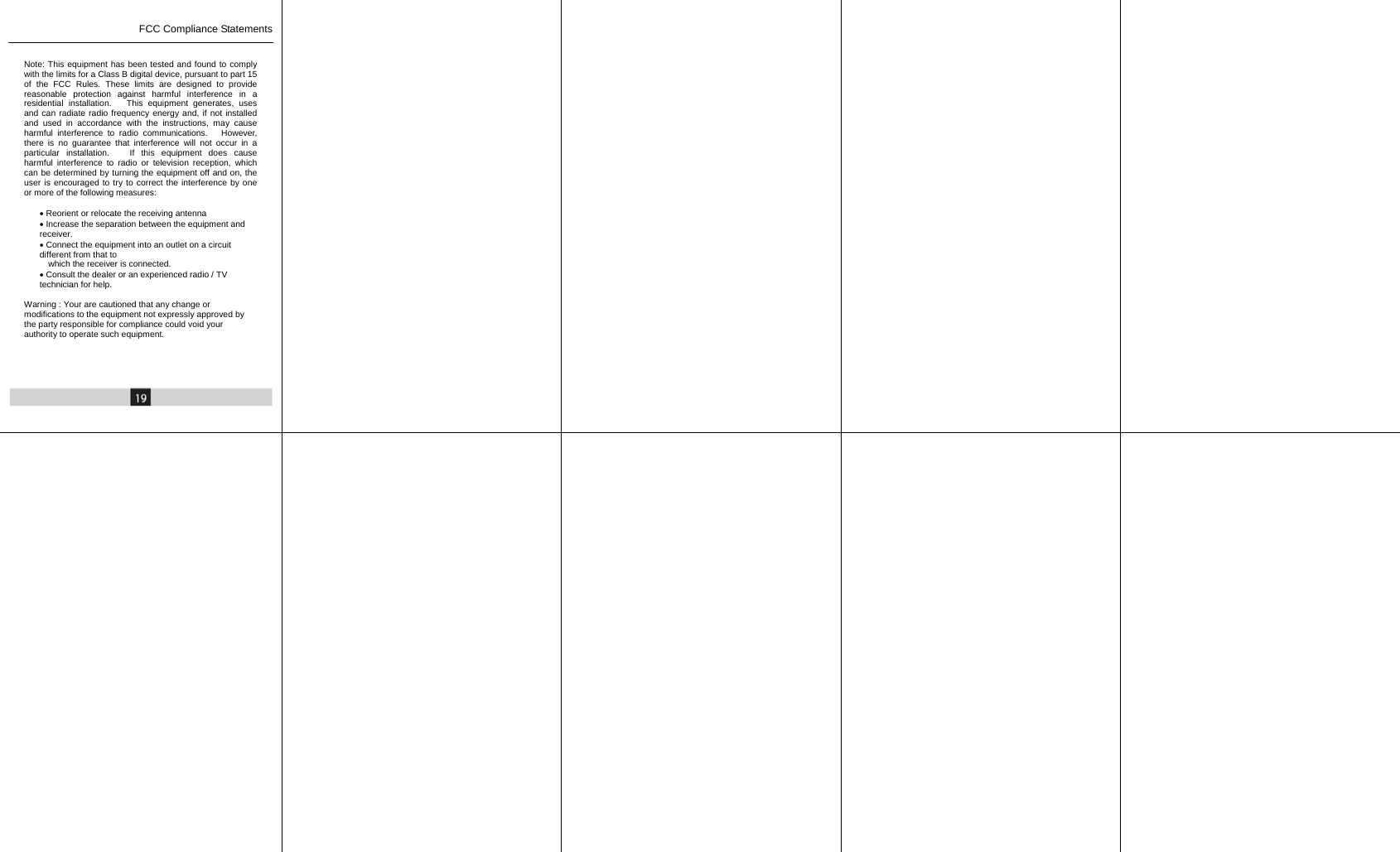

     FCC Compliance Statements  Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.   This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.   However, there is no guarantee that interference will not occur in a particular installation.   If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  • Reorient or relocate the receiving antenna • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to     which the receiver is connected. • Consult the dealer or an experienced radio / TV technician for help.  Warning : Your are cautioned that any change or modifications to the equipment not expressly approved by the party responsible for compliance could void your authority to operate such equipment.
