QI SHENGLONG IST QSLC12C37 VIDEO GAME User Manual

SHENZHEN QI SHENGLONG INDUSTRIALIST CO.,LTD. VIDEO GAME

User Manual

INSTRUCTION MANUAL
THREE-IN-ONE GAMING SYSTEM
2.4 GHz EDITION
www.qishenglong.com
VIDEO GAME
C-12
Thank you for purchasing the RetroN® 3 Gaming System. For your safety and the safety of others, please
carefully read the instruction manual before using this product.
For troubleshooting, contact us at support@hyperkin.com.

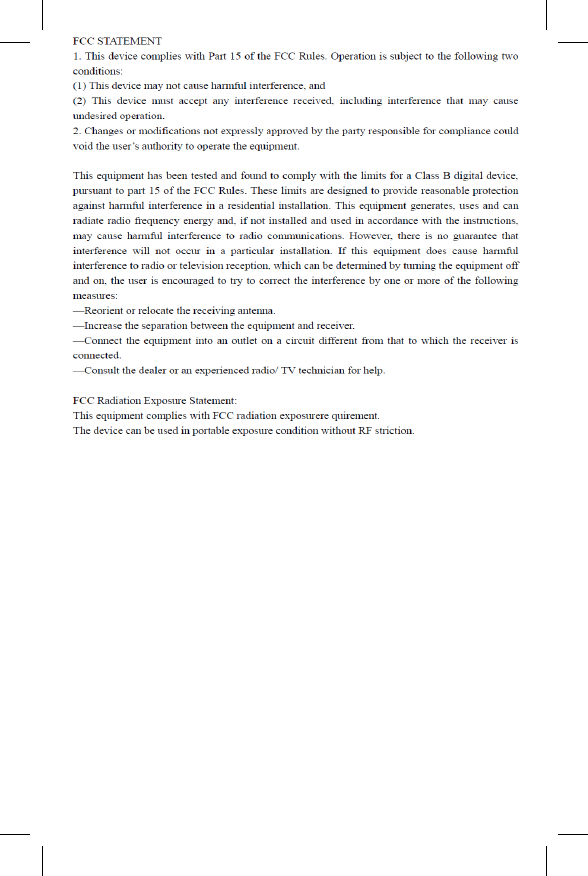

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
2
PACKAGE CONTENTS
2- RetroN® 3
Wireless Controllers
RetroN® 3 Console
AC Adapter S-Video Cable
AV-Cable
POWER RESET
NES Cartridge Slot
Infrared Sensor
S-Video Out
DC In
SNES Controller Port 1
Genesis Controller Port 1
Region Selector
(Genesis Only)
AV-Out
NES Controller Port 1
Genesis Controller Port 2
NES Controller Port 2
SNES Controller Port 2
SNES Cartridge Slot
Game Selector
Power Button
Reset Button
FRONT
BACK
Genesis Cartridge Slot
RetroN® 3 LAYOUT
3
4
1. Insert the AV/S Cable into the AV or S-Video Out (video output only) on the RetroN 3.
The S-Video function only works on SNES and Genesis games.
2. Insert the other end of the AV/S Cable into the AV or S-Video ports on the TV.
3. Insert the AC Adapter into the DC port on the RetroN 3.
4. Plug the AC Adapter into a power outlet.
AC Adapter
S-AV Cable
RetroN® 3 SETUP
3
4
TV
S-VIDEOAUDIO IN
VIDEO
L R
POWER RESET
SYNCING AND USING THE WIRELESS CONTROLLERS
1. Turn on RetroN 3.
2. Within 30 seconds after turning on the console, hold down the Select/Mode button and the Start/Reset
button simultaneously for 10-15 seconds. Your controller should now be synced.
1. Unscrew the screw on the battery cover and remove the battery cover.
2. Insert two (not included) AAA batteries into the battery port.
3. Place the cover back on the battery port and secure it with the screw.
4. Begin using the wireless controller by positioning yourself in front of the RetroN 3’s Infrared Sensor,
located in the front of the RetroN 3.
Note: The dot located on the face of the controller indicates which controller is synced to which player. One
dot indicates Player 1, while two dots indicate Player 2.
RetroN® 3 WIRELESS CONTROLLER SETUP
5
6
SELECT/MODE
START/RESET
BB X
AA Y
A B
B A
Y X
X Y
Z Z
B A
A B
C C
Y X
X Y
R Z
B A
A B
L C
NES GENESIS SNES
GHz
PLAYING GAMES
Using NES, SNES, or Genesis Controllers
1. Insert the cartridge into its appropriate slot (NES, SNES, or Genesis).
2. Turn the Game Selector Knob to the corresponding system (NES, SNES, or Genesis).
3. Turn ON the RetroN 3 by pressing the Power button.
Note: There is a switch on the back labeled “O/J” which lets you switch the region of your Genesis slot.
“O” for Genesis and “J” for Mega Drive (Japan).
With the RetroN 3 turned OFF, insert the controller(s) into their corresponding slot (NES, SNES, or Genesis).
Note: NES, SNES, and Genesis controllers (not included) are only playable with their corresponding systems.
5
6
NES
GENESIS
SNES
Genesis ControllerNES Controller SNES Controller
Y X
X Y
R Z
B A
A B
L C
©2015 Hyperkin®. Hyperkin® and RetroN® and their logos are trademarks and/or registered trademarks of Hyperkin, and/or
its afliated companies. All other product names and images, trademarks or registered trademarks are properties of their
respective owners. This is a product 100% NOT ofcial and is NOT manufactured, guaranteed, sponsored, endorsed or approved
by Nintendo nor Sega. Made in China. All rights reserved. Product features, appearances and specications may be subject to
change without notice. Please retain this information for future.
© 2015 Hyperkin®. Hyperkin® et RetroN® et leurs logos sont des marques commerciales et/ou des marques déposées de
Hyperkin, et/ou de ses sociétés afliées. Tous les autres noms et images de produits, des marques ou des marques déposées
sont les propriétés de leurs propriétaires respectifs. C’est un produit 100% non-ofciel et n’est pas fabriqué, garanti et parrainé,
homologués ou approuvéspar Nintendo ni Sega. Fabriqué en Chine. Tous droits réservés. Caractéristiques du produit, les apparences
et les spécications peuvent être soumises à modication sans préavis. Veuillez conserver cette che d’information dans l’avenir.
©2015 Hyperkin®. Hyperkin® and RetroN® y sus logotipos son marcas y/o marcas registradas de Hyperkin, y/o sus compañias
aliadas. Todos los nombres de productos e imagines, marcas o marcas registradas son propiedad de sus dueños respectivos.
Este producto es 100% no ocial y no es fabricado, garantizado, patrocinado, endosado o aprobado por Nintendo ni Sega. Hecho
en China. Todos los derechos reservados. Las características de los productos, apariencia y especicaciones podrían estar sujetas
a cambios sin previo aviso. Por favor guarde esta información para un futuro.
