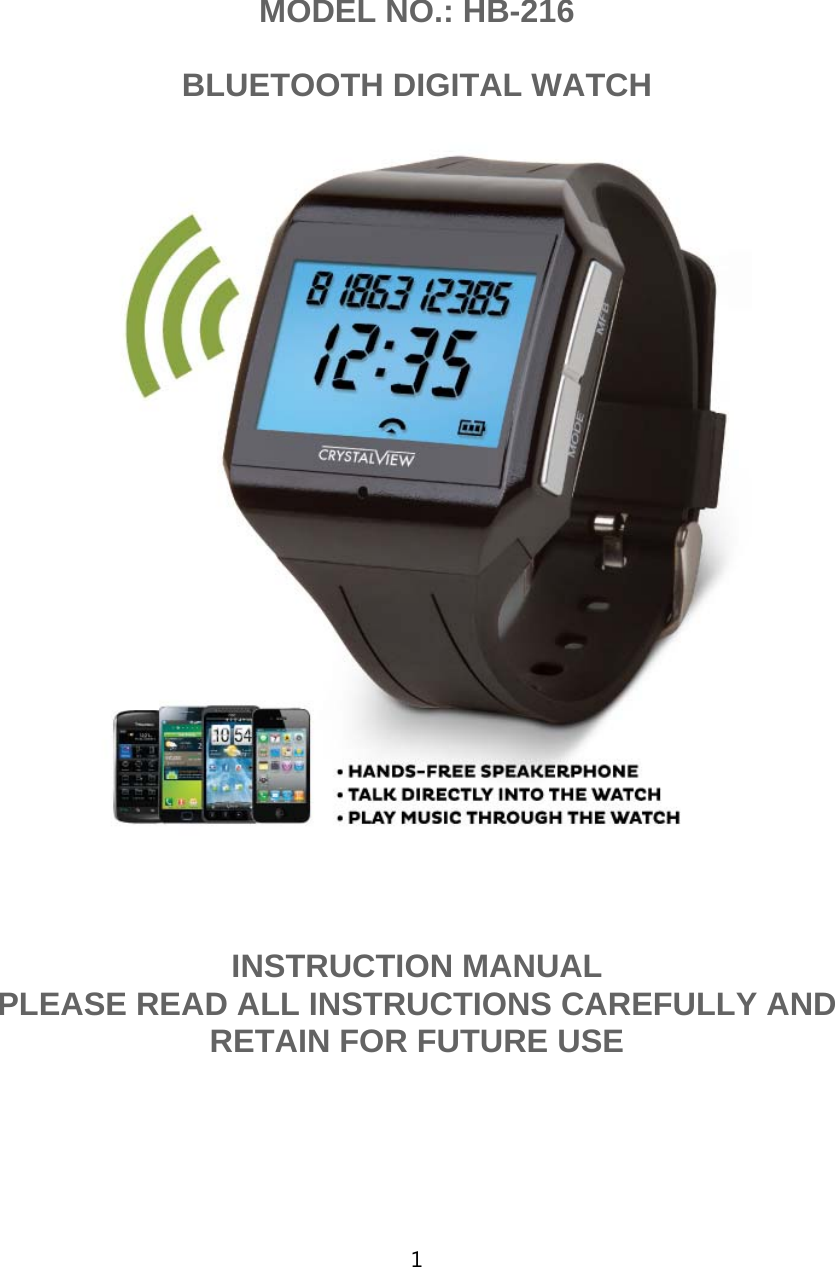

1 MODEL NO.: HB-216 BLUETOOTH DIGITAL WATCH INSTRUCTION MANUAL PLEASE READ ALL INSTRUCTIONS CAREFULLY AND RETAIN FOR FUTURE USE

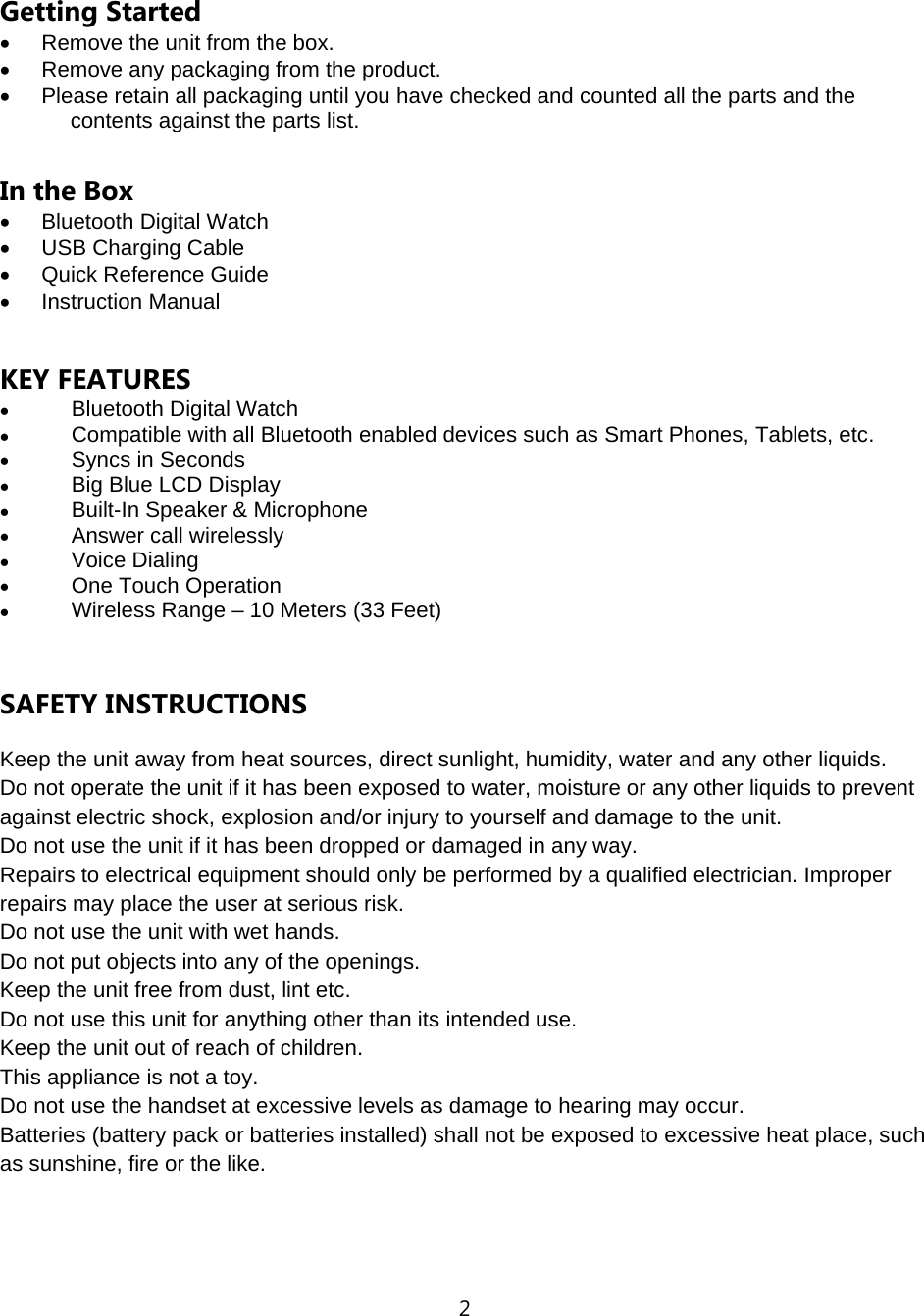

2 Getting Started • Remove the unit from the box. • Remove any packaging from the product. • Please retain all packaging until you have checked and counted all the parts and the contents against the parts list. In the Box • Bluetooth Digital Watch • USB Charging Cable • Quick Reference Guide • Instruction Manual KEY FEATURES • Bluetooth Digital Watch • Compatible with all Bluetooth enabled devices such as Smart Phones, Tablets, etc. • Syncs in Seconds • Big Blue LCD Display • Built-In Speaker & Microphone • Answer call wirelessly • Voice Dialing • One Touch Operation • Wireless Range – 10 Meters (33 Feet) SAFETY INSTRUCTIONS Keep the unit away from heat sources, direct sunlight, humidity, water and any other liquids. Do not operate the unit if it has been exposed to water, moisture or any other liquids to prevent against electric shock, explosion and/or injury to yourself and damage to the unit. Do not use the unit if it has been dropped or damaged in any way. Repairs to electrical equipment should only be performed by a qualified electrician. Improper repairs may place the user at serious risk. Do not use the unit with wet hands. Do not put objects into any of the openings. Keep the unit free from dust, lint etc. Do not use this unit for anything other than its intended use. Keep the unit out of reach of children. This appliance is not a toy. Do not use the handset at excessive levels as damage to hearing may occur. Batteries (battery pack or batteries installed) shall not be exposed to excessive heat place, such as sunshine, fire or the like.

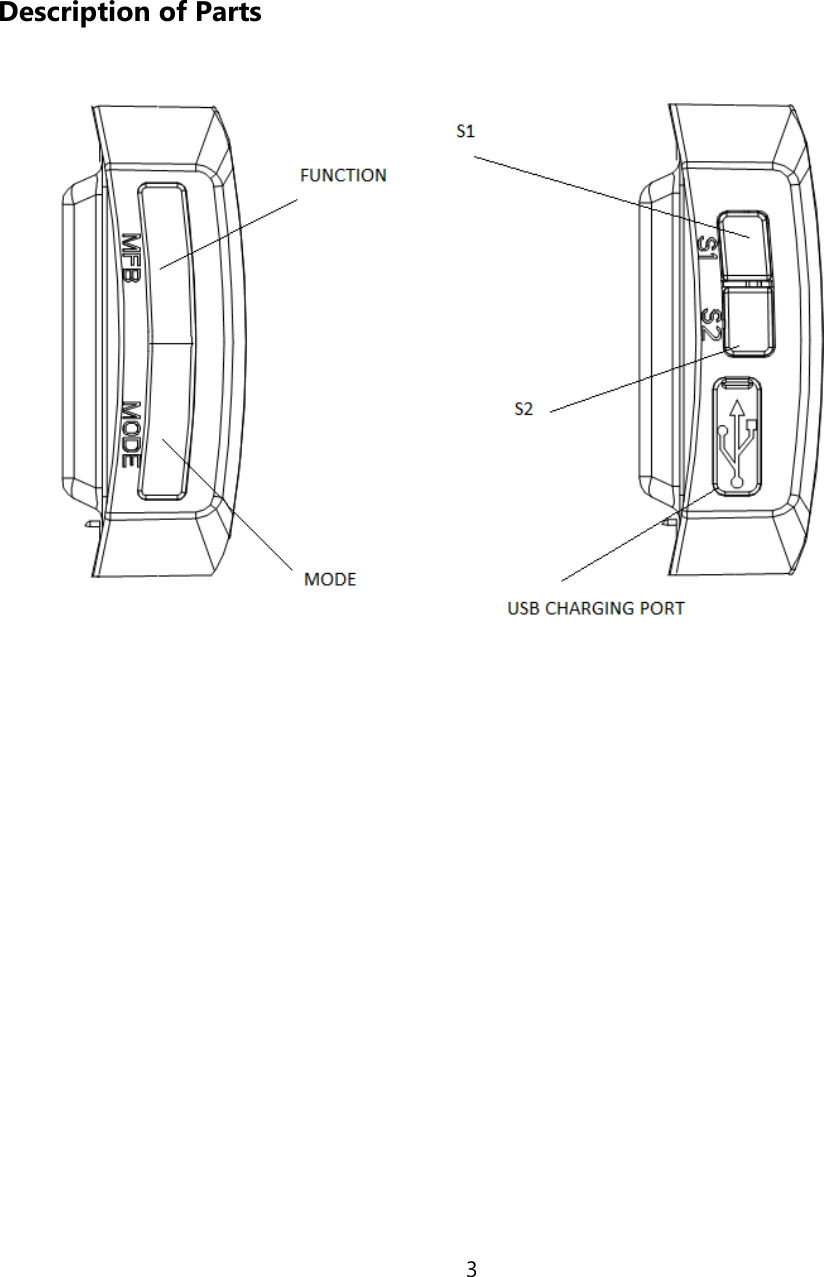

3 Description of Parts

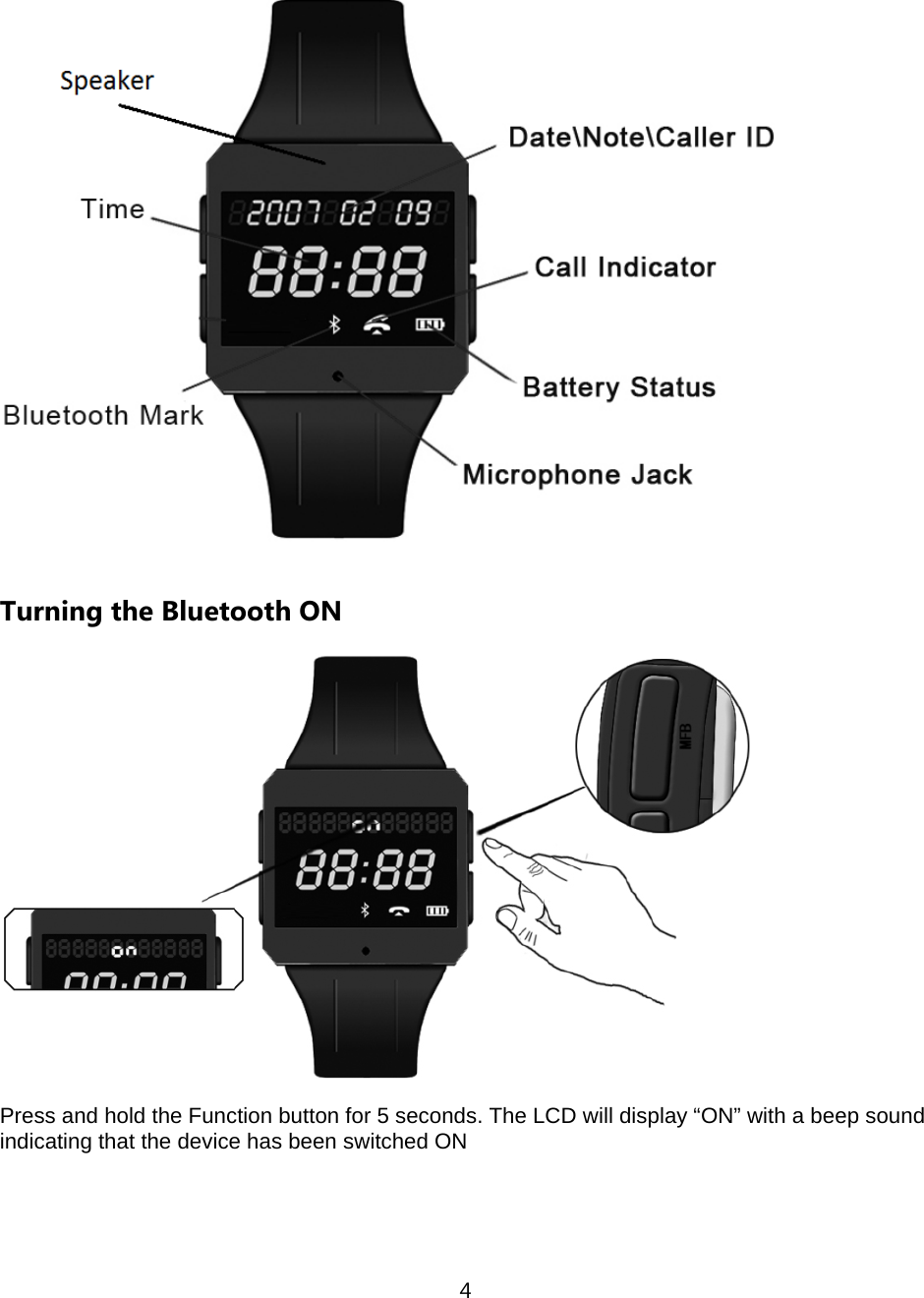

4 Turning the Bluetooth ON Press and hold the Function button for 5 seconds. The LCD will display “ON” with a beep sound indicating that the device has been switched ON

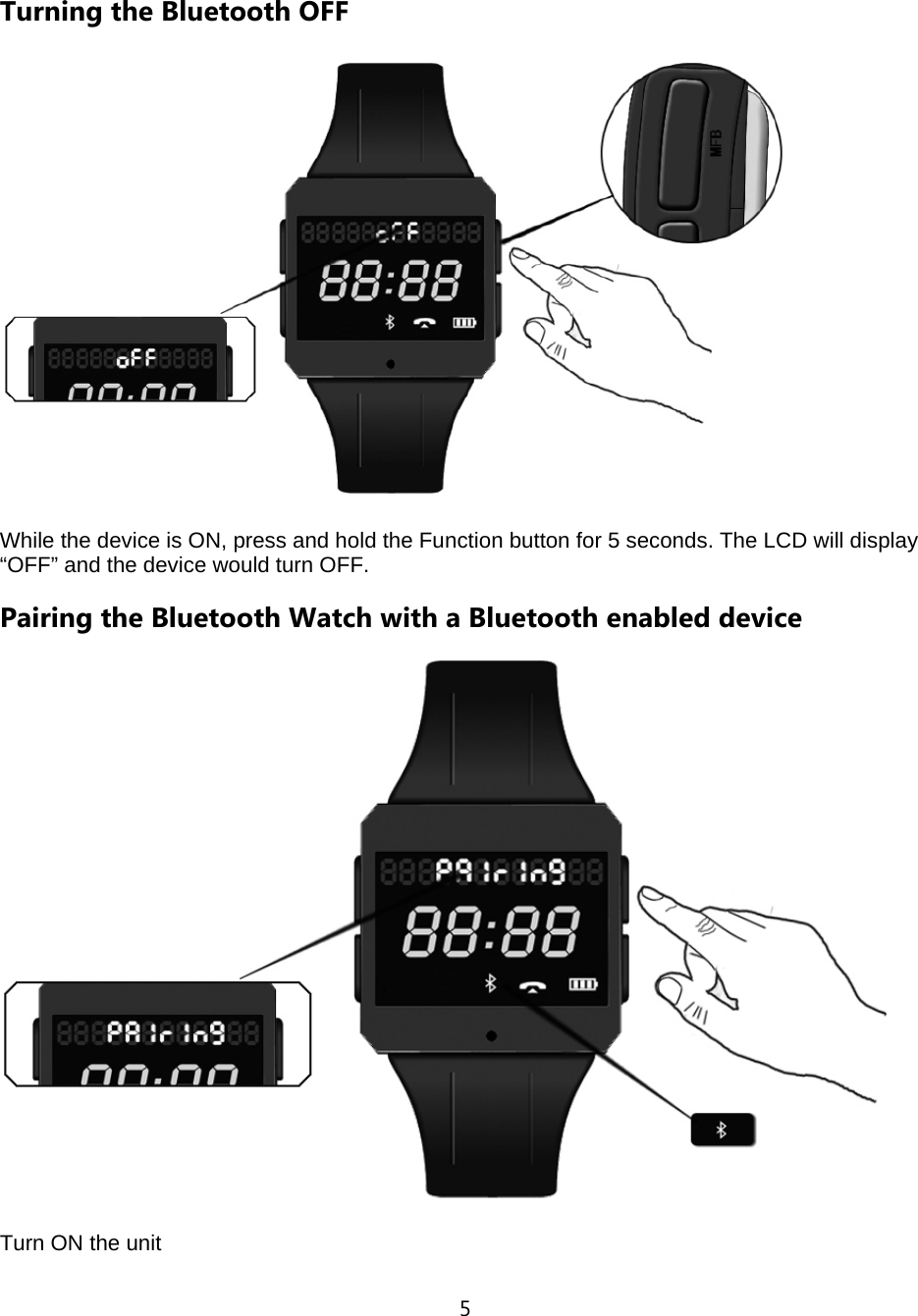

5 Turning the Bluetooth OFF While the device is ON, press and hold the Function button for 5 seconds. The LCD will display “OFF” and the device would turn OFF. Pairing the Bluetooth Watch with a Bluetooth enabled device Turn ON the unit

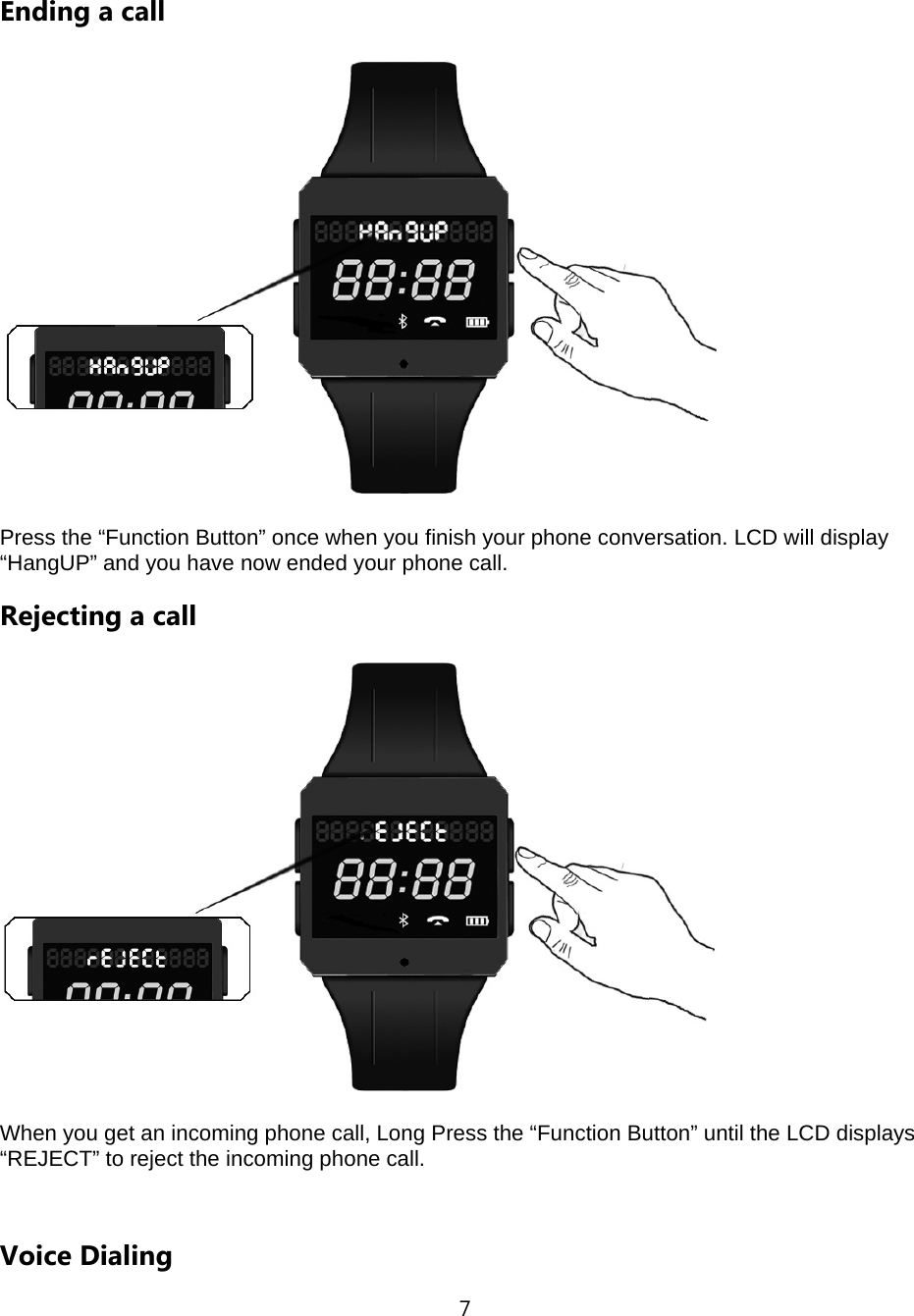

7 Ending a call Press the “Function Button” once when you finish your phone conversation. LCD will display “HangUP” and you have now ended your phone call. Rejecting a call When you get an incoming phone call, Long Press the “Function Button” until the LCD displays “REJECT” to reject the incoming phone call. Voice Dialing

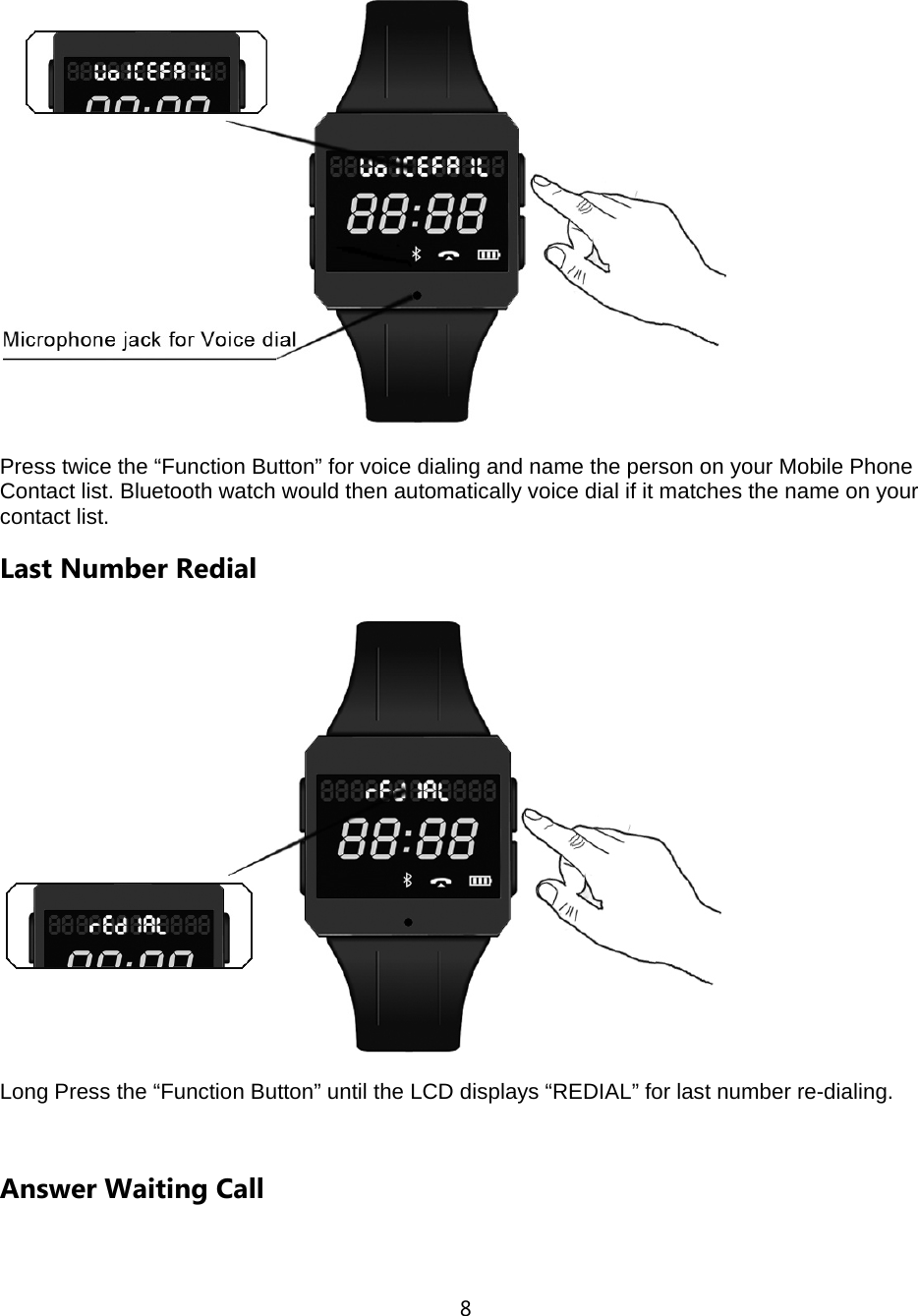

8 Press twice the “Function Button” for voice dialing and name the person on your Mobile Phone Contact list. Bluetooth watch would then automatically voice dial if it matches the name on your contact list. Last Number Redial Long Press the “Function Button” until the LCD displays “REDIAL” for last number re-dialing. Answer Waiting Call

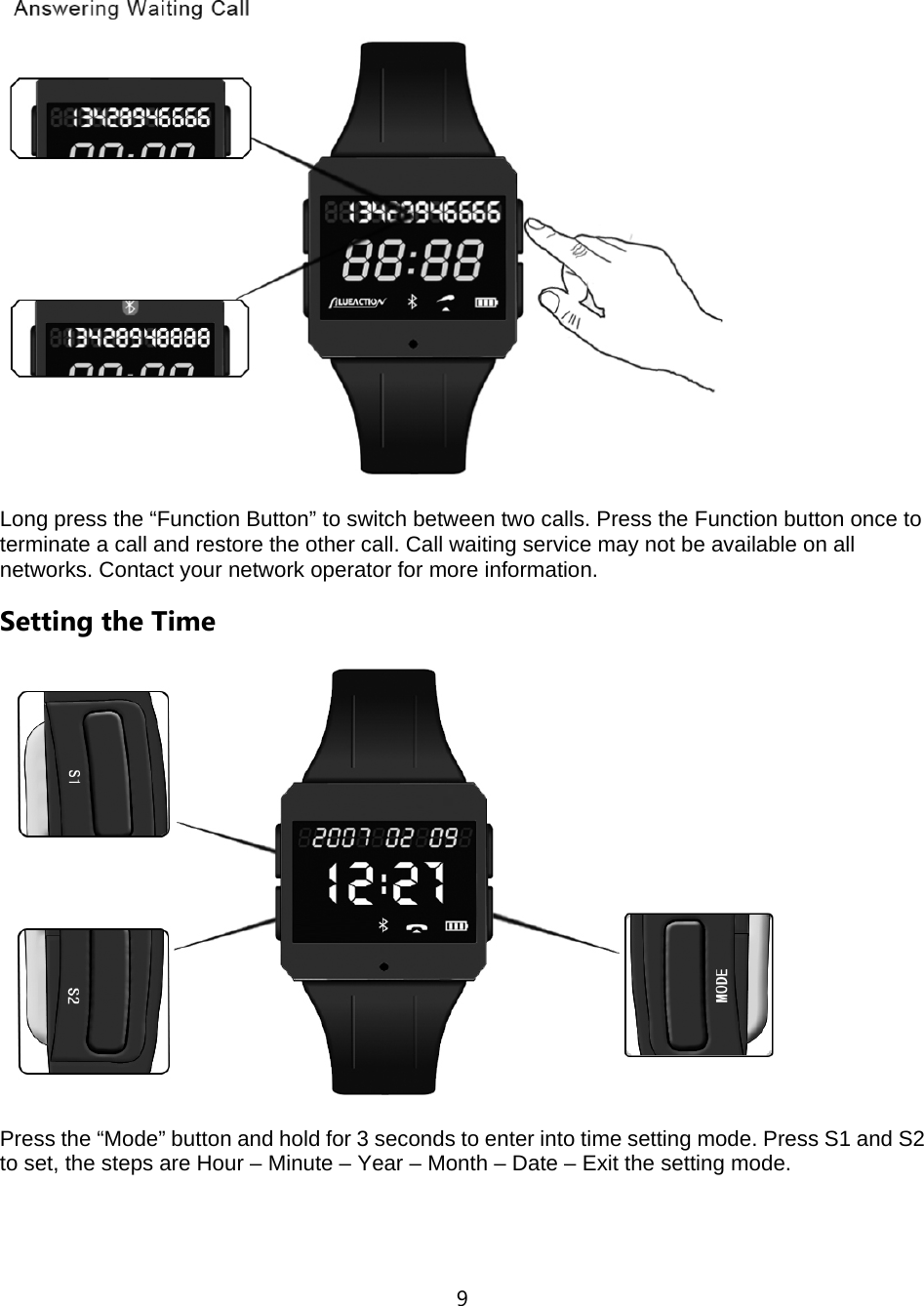

9 Long press the “Function Button” to switch between two calls. Press the Function button once to terminate a call and restore the other call. Call waiting service may not be available on all networks. Contact your network operator for more information. Setting the Time Press the “Mode” button and hold for 3 seconds to enter into time setting mode. Press S1 and S2 to set, the steps are Hour – Minute – Year – Month – Date – Exit the setting mode.

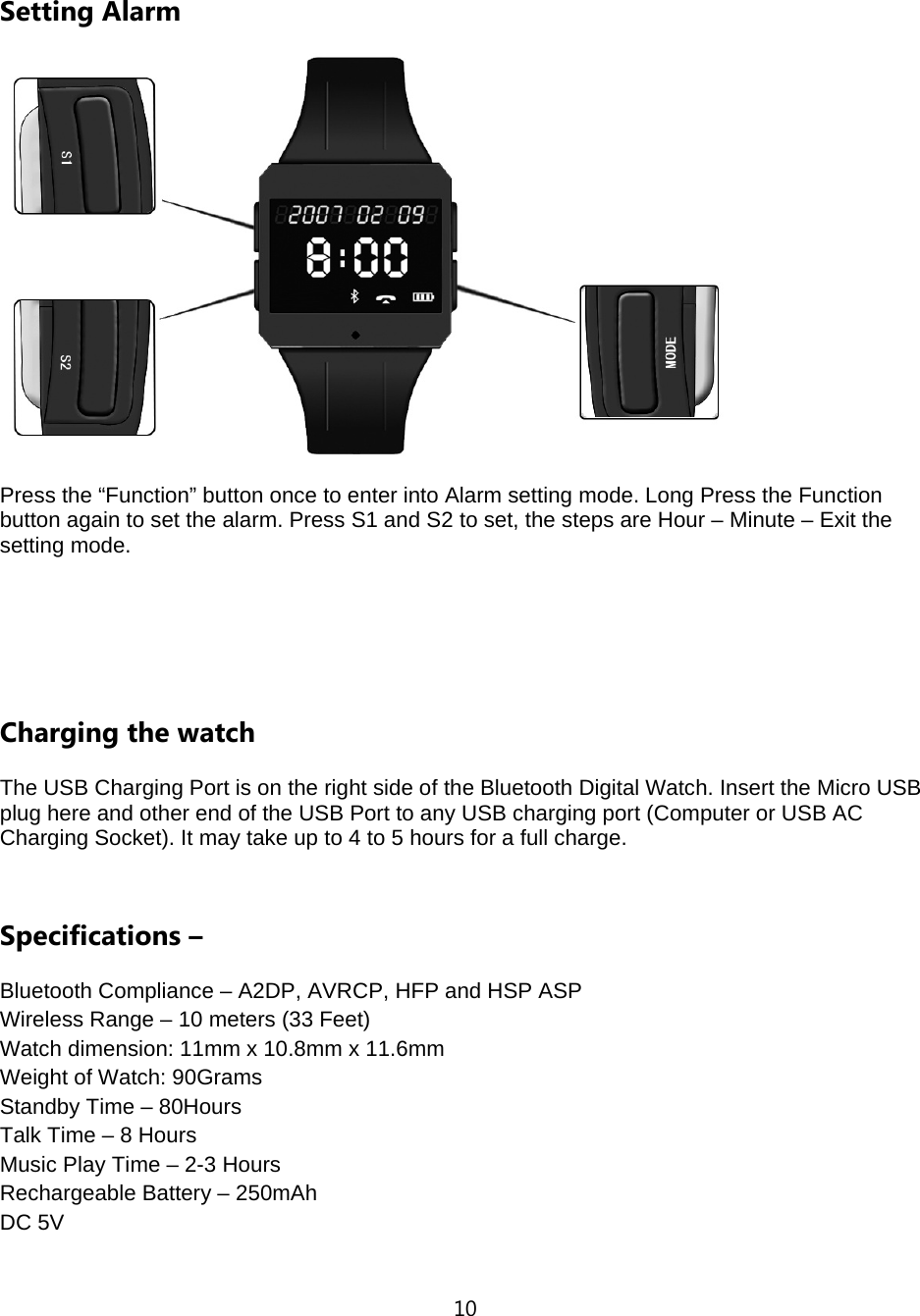

10 Setting Alarm Press the “Function” button once to enter into Alarm setting mode. Long Press the Function button again to set the alarm. Press S1 and S2 to set, the steps are Hour – Minute – Exit the setting mode. Charging the watch The USB Charging Port is on the right side of the Bluetooth Digital Watch. Insert the Micro USB plug here and other end of the USB Port to any USB charging port (Computer or USB AC Charging Socket). It may take up to 4 to 5 hours for a full charge. Specifications – Bluetooth Compliance – A2DP, AVRCP, HFP and HSP ASP Wireless Range – 10 meters (33 Feet) Watch dimension: 11mm x 10.8mm x 11.6mm Weight of Watch: 90Grams Standby Time – 80Hours Talk Time – 8 Hours Music Play Time – 2-3 Hours Rechargeable Battery – 250mAh DC 5V

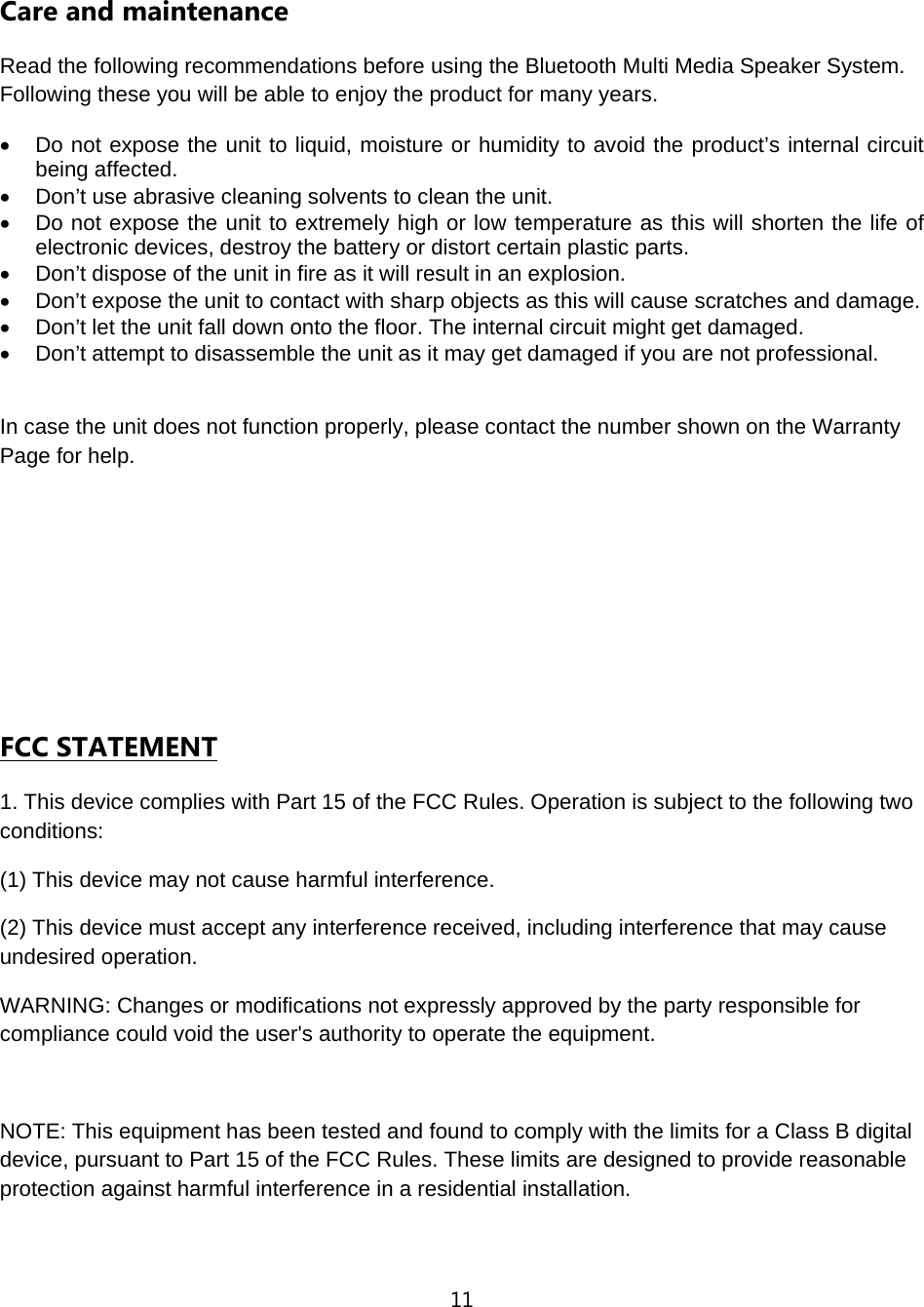

11 Care and maintenance Read the following recommendations before using the Bluetooth Multi Media Speaker System. Following these you will be able to enjoy the product for many years. • Do not expose the unit to liquid, moisture or humidity to avoid the product’s internal circuit being affected. • Don’t use abrasive cleaning solvents to clean the unit. • Do not expose the unit to extremely high or low temperature as this will shorten the life of electronic devices, destroy the battery or distort certain plastic parts. • Don’t dispose of the unit in fire as it will result in an explosion. • Don’t expose the unit to contact with sharp objects as this will cause scratches and damage. • Don’t let the unit fall down onto the floor. The internal circuit might get damaged. • Don’t attempt to disassemble the unit as it may get damaged if you are not professional. In case the unit does not function properly, please contact the number shown on the Warranty Page for help. FCC STATEMENT 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. WARNING: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

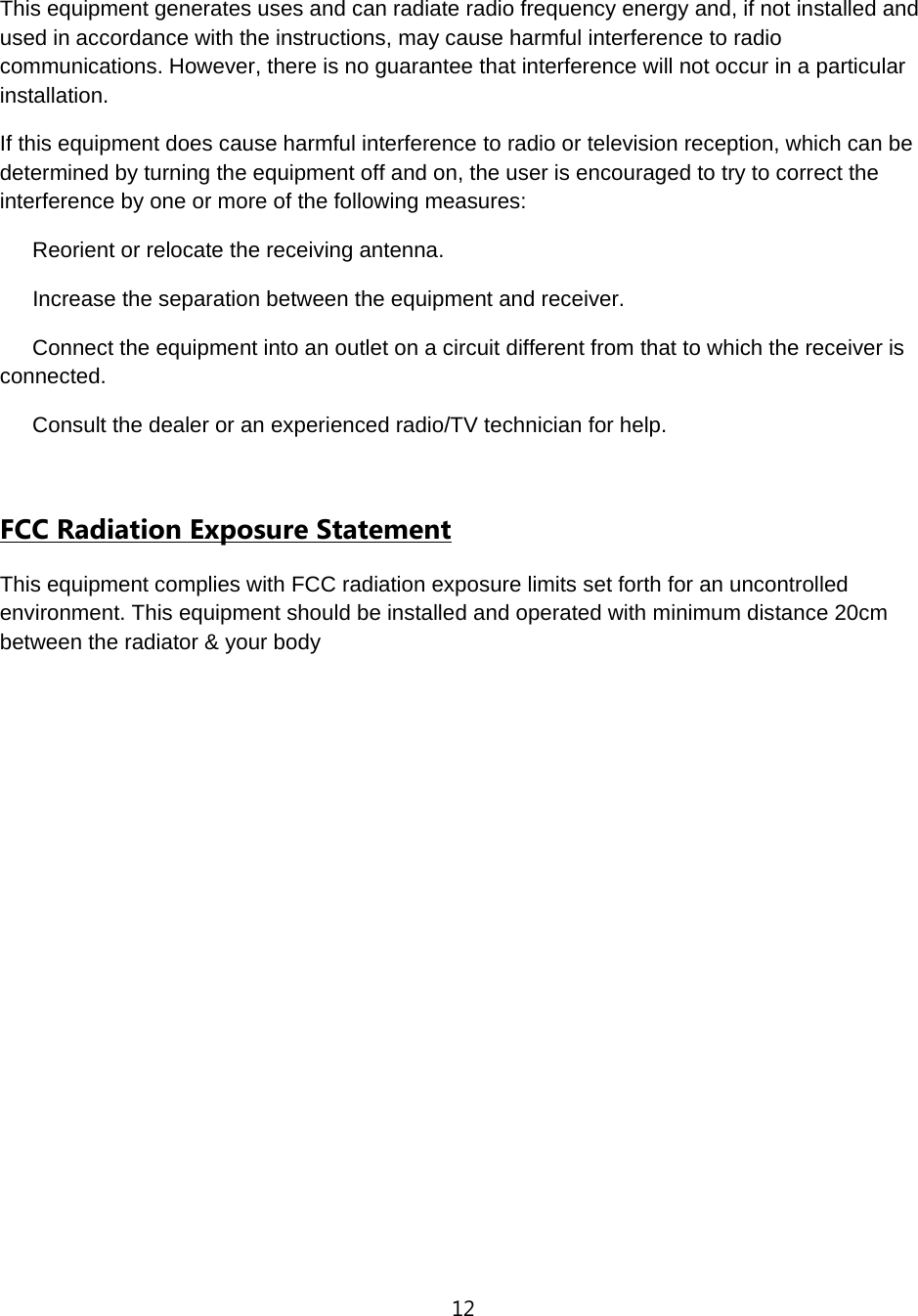

12 This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body

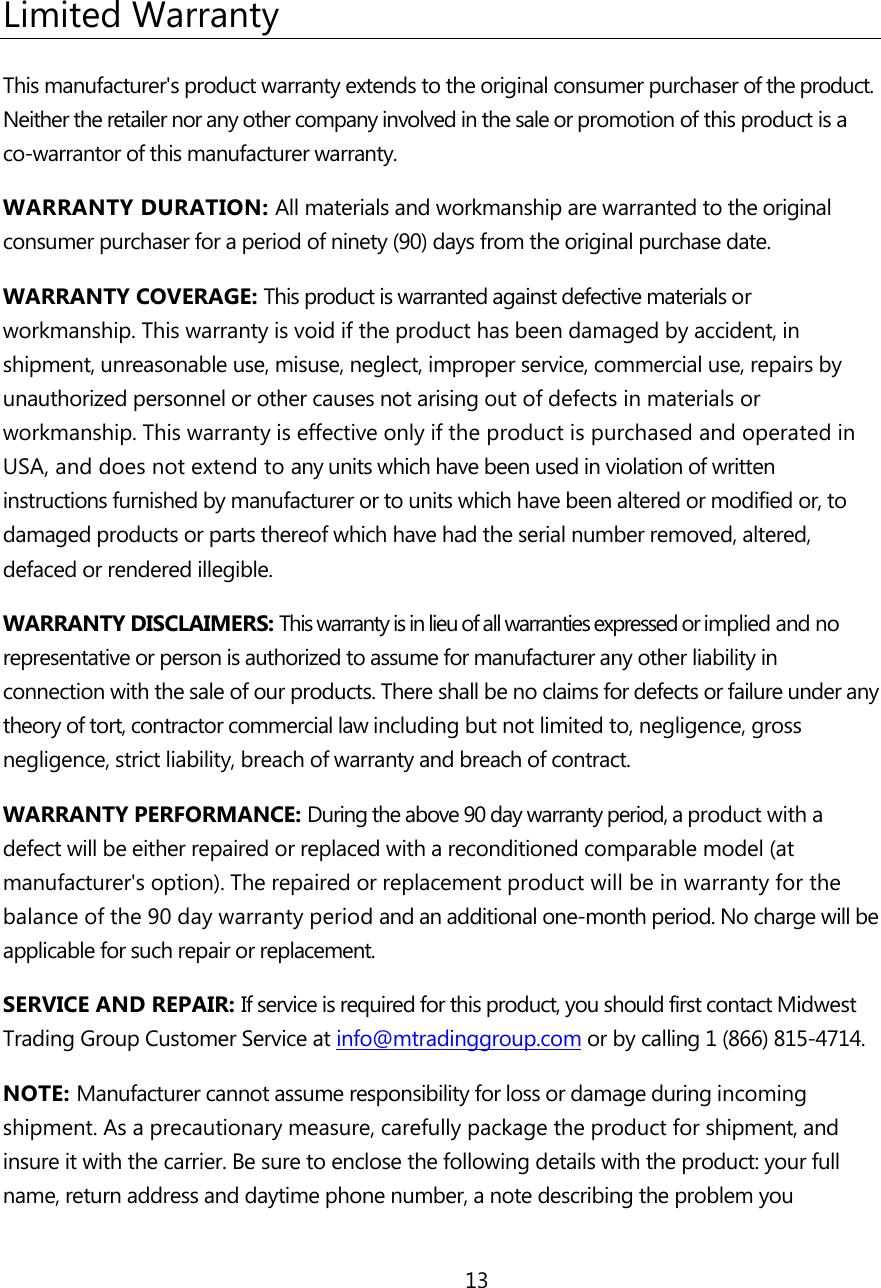

13 Limited Warranty This manufacturer's product warranty extends to the original consumer purchaser of the product. Neither the retailer nor any other company involved in the sale or promotion of this product is a co-warrantor of this manufacturer warranty. WARRANTY DURATION: All materials and workmanship are warranted to the original consumer purchaser for a period of ninety (90) days from the original purchase date. WARRANTY COVERAGE: This product is warranted against defective materials or workmanship. This warranty is void if the product has been damaged by accident, in shipment, unreasonable use, misuse, neglect, improper service, commercial use, repairs by unauthorized personnel or other causes not arising out of defects in materials or workmanship. This warranty is effective only if the product is purchased and operated in USA, and does not extend to any units which have been used in violation of written instructions furnished by manufacturer or to units which have been altered or modified or, to damaged products or parts thereof which have had the serial number removed, altered, defaced or rendered illegible. WARRANTY DISCLAIMERS: This warranty is in lieu of all warranties expressed or implied and no representative or person is authorized to assume for manufacturer any other liability in connection with the sale of our products. There shall be no claims for defects or failure under any theory of tort, contractor commercial law including but not limited to, negligence, gross negligence, strict liability, breach of warranty and breach of contract. WARRANTY PERFORMANCE: During the above 90 day warranty period, a product with a defect will be either repaired or replaced with a reconditioned comparable model (at manufacturer's option). The repaired or replacement product will be in warranty for the balance of the 90 day warranty period and an additional one-month period. No charge will be applicable for such repair or replacement. SERVICE AND REPAIR: If service is required for this product, you should first contact Midwest Trading Group Customer Service at info@mtradinggroup.com or by calling 1 (866) 815-4714. NOTE: Manufacturer cannot assume responsibility for loss or damage during incoming shipment. As a precautionary measure, carefully package the product for shipment, and insure it with the carrier. Be sure to enclose the following details with the product: your full name, return address and daytime phone number, a note describing the problem you

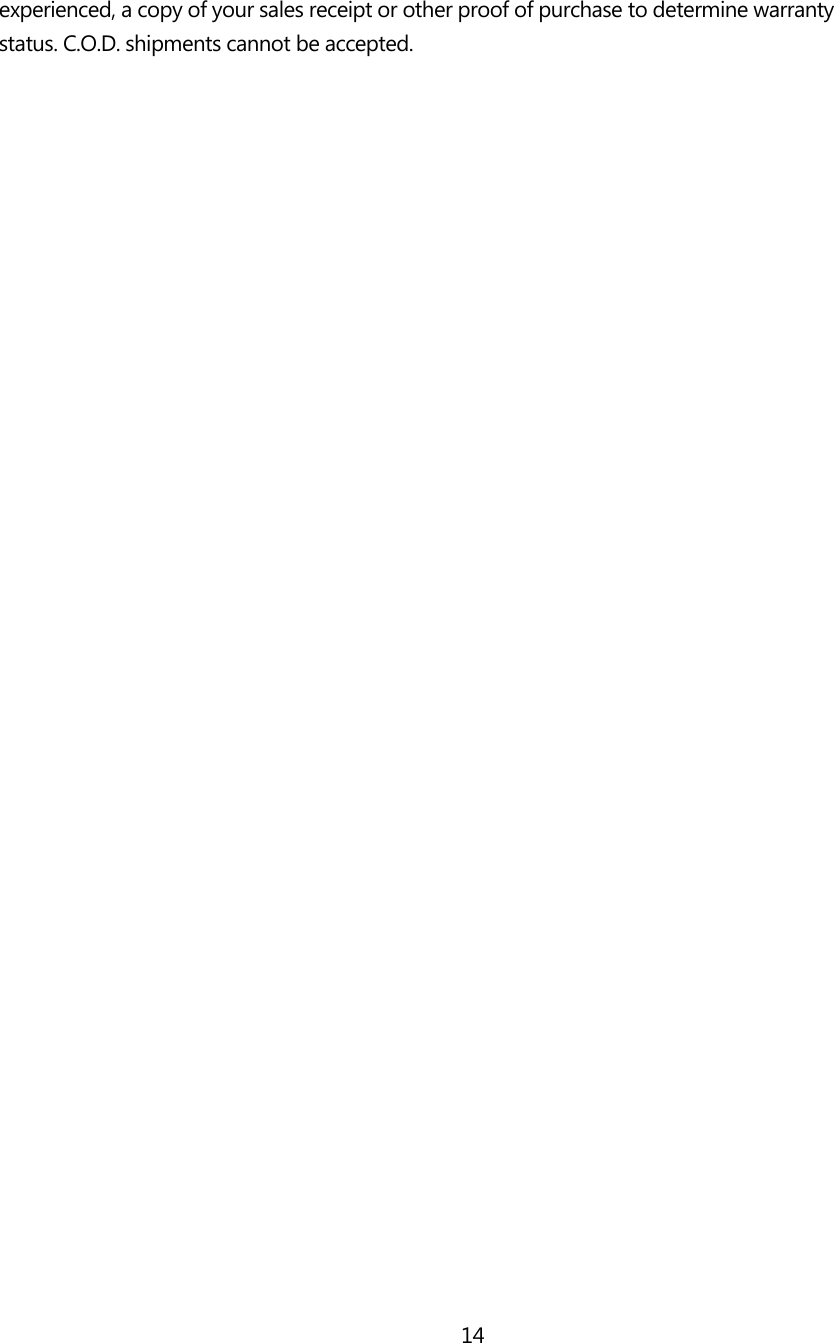

14 experienced, a copy of your sales receipt or other proof of purchase to determine warranty status. C.O.D. shipments cannot be accepted.
