SHENZHEN QI SHENGLONG INDUSTRIALIST CO.,LTD. Bluetooth Digital Watch Manual
Manual
1
MODEL NO.: HB-216
BLUETOOTH DIGITAL WATCH
INSTRUCTION MANUAL
PLEASE READ ALL INSTRUCTIONS CAREFULLY AND
RETAIN FOR FUTURE USE
2
Getting Started
• Remove the unit from the box.
• Remove any packaging from the product.
• Please retain all packaging until you have checked and counted all the parts and the
contents against the parts list.
In the Box
• Bluetooth Digital Watch
• USB Charging Cable
• Quick Reference Guide
• Instruction Manual
KEY FEATURES
• Bluetooth Digital Watch
• Compatible with all Bluetooth enabled devices such as Smart Phones, Tablets, etc.
• Syncs in Seconds
• Big Blue LCD Display
• Built-In Speaker & Microphone
• Answer call wirelessly
• Voice Dialing
• One Touch Operation
• Wireless Range – 10 Meters (33 Feet)
SAFETY INSTRUCTIONS
Keep the unit away from heat sources, direct sunlight, humidity, water and any other liquids.
Do not operate the unit if it has been exposed to water, moisture or any other liquids to prevent
against electric shock, explosion and/or injury to yourself and damage to the unit.
Do not use the unit if it has been dropped or damaged in any way.
Repairs to electrical equipment should only be performed by a qualified electrician. Improper
repairs may place the user at serious risk.
Do not use the unit with wet hands.
Do not put objects into any of the openings.
Keep the unit free from dust, lint etc.
Do not use this unit for anything other than its intended use.
Keep the unit out of reach of children.
This appliance is not a toy.
Do not use the handset at excessive levels as damage to hearing may occur.
Batteries (battery pack or batteries installed) shall not be exposed to excessive heat place, such
as sunshine, fire or the like.
3

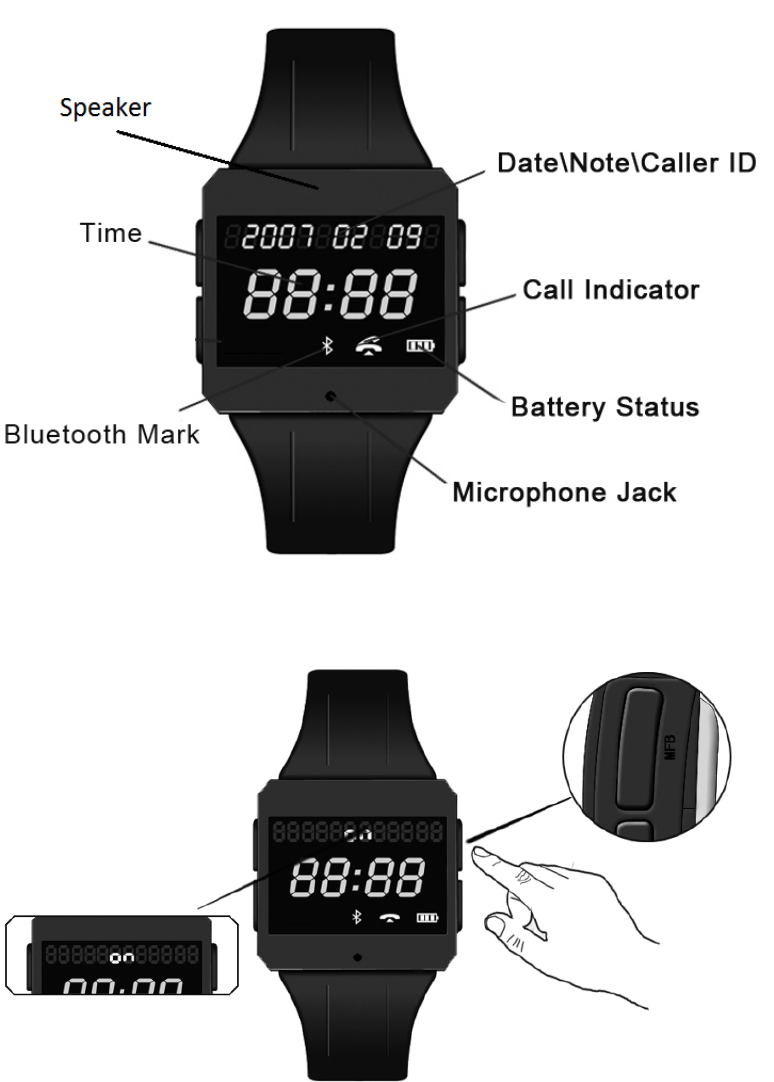

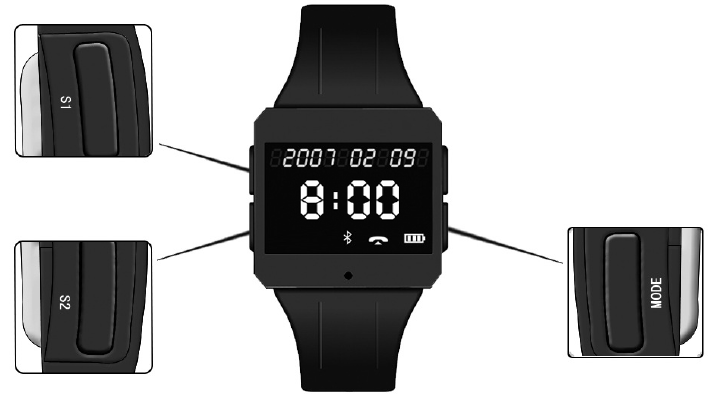

Description of Parts
4
Turning the Bluetooth ON
Press and hold the Function button for 5 seconds. The LCD will display “ON” with a beep sound
indicating that the device has been switched ON
5

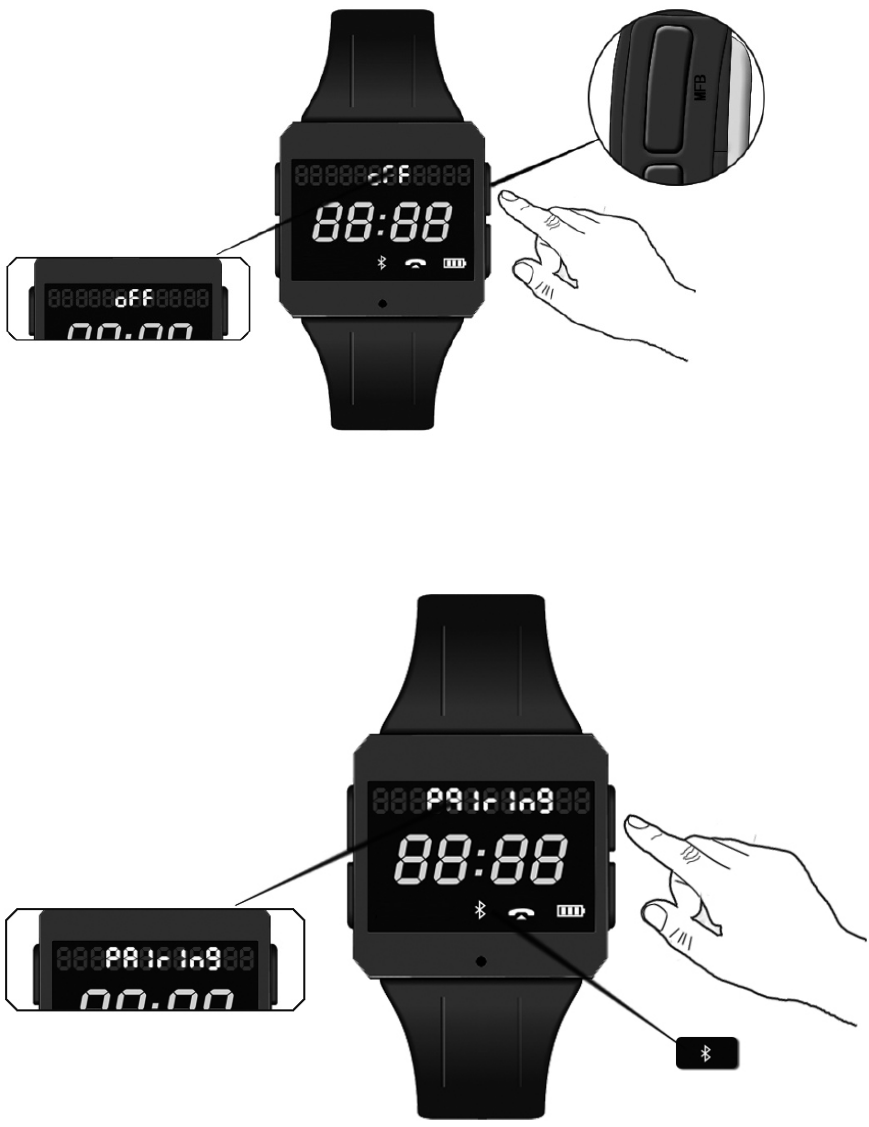

Turning the Bluetooth OFF
While the device is ON, press and hold the Function button for 5 seconds. The LCD will display
“OFF” and the device would turn OFF.
Pairing the Bluetooth Watch with a Bluetooth enabled device
Turn ON the unit
6
Long Press and hold the Function Button for 7 to 8 seconds until the LCD displays “PAIring”
indicating that the device is now in pairing mode.
Activate the Bluetooth function on your Bluetooth Device (Mobile Phone or Tablet). Please refer to
manufacturer’s instructions for instructions on enabling Bluetooth on your device.
Once you have activated Bluetooth on your device, select the earphones “BT DIGITAL WATCH”
from the list of available Bluetooth devices.
If required, enter the password ‘0000’ to confirm to finalize pairing.
LCD will display “Connected” indicating successful connection and the Bluetooth Logo would
light up on the LCD Display.
Note: The Bluetooth Logo would light off on the LCD Display once the Bluetooth
connection has been disconnected.
Play Music wirelessly on Bluetooth Watch
Once your Bluetooth enabled device (For example iPhone or Android Smartphone) is paired with
Bluetooth Watch, play music from your phone and it would stream music wirelessly through the
Bluetooth Watch speakers

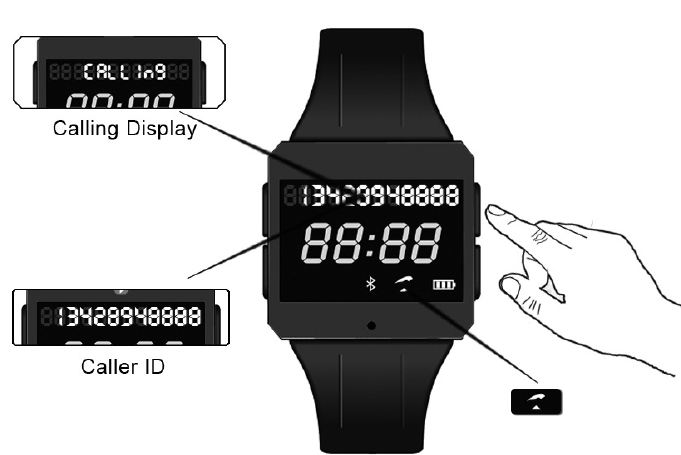

Answering a call
LCD display would show Caller-ID when you get any incoming phone call. Press the “Function
Button” once to answer the call. LCD will display “Calling” indicating that you are now on a Call.
7

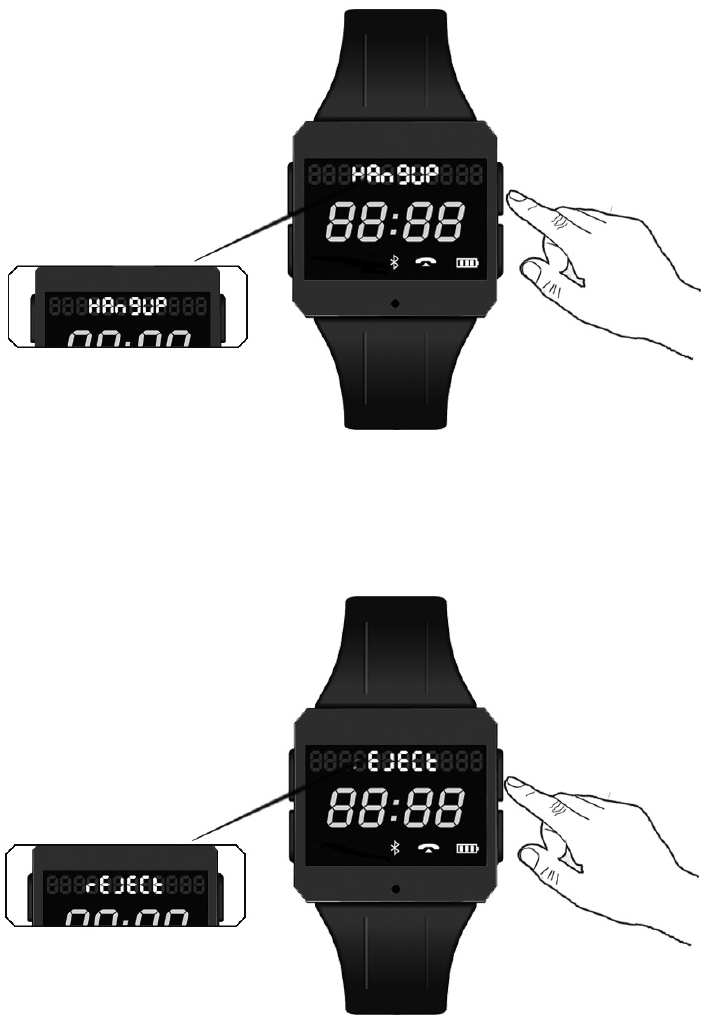

Ending a call
Press the “Function Button” once when you finish your phone conversation. LCD will display
“HangUP” and you have now ended your phone call.
Rejecting a call
When you get an incoming phone call, Long Press the “Function Button” until the LCD displays
“REJECT” to reject the incoming phone call.

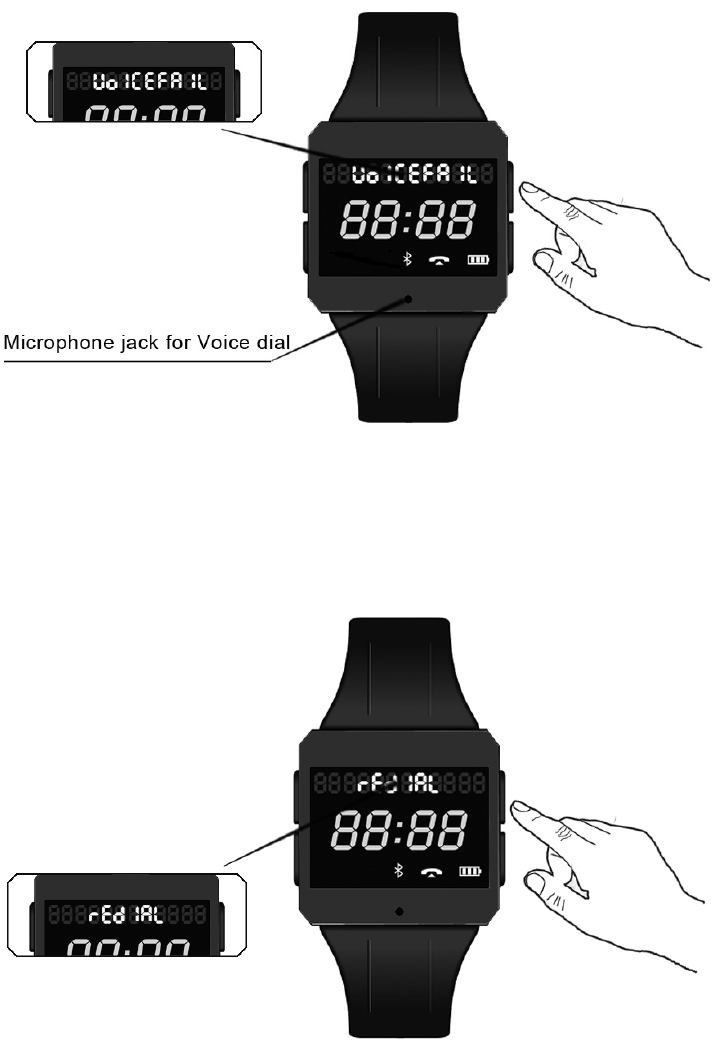

Voice Dialing
8
Press twice the “Function Button” for voice dialing and name the person on your Mobile Phone
Contact list. Bluetooth watch would then automatically voice dial if it matches the name on your
contact list.
Last Number Redial
Long Press the “Function Button” until the LCD displays “REDIAL” for last number re-dialing.
Answer Waiting Call
9
Long press the “Function Button” to switch between two calls. Press the Function button once to
terminate a call and restore the other call. Call waiting service may not be available on all
networks. Contact your network operator for more information.

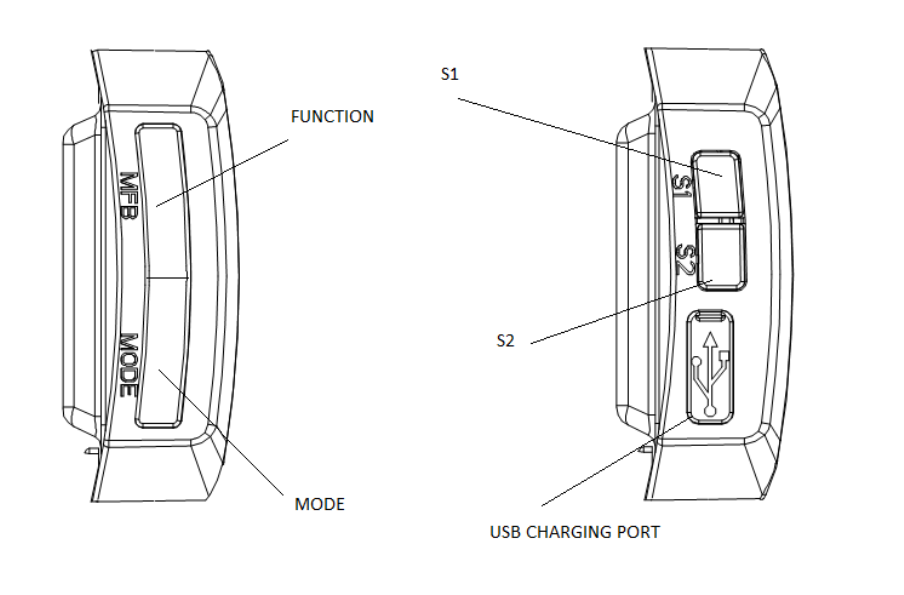

Setting the Time
Press the “Mode” button and hold for 3 seconds to enter into time setting mode. Press S1 and S2
to set, the steps are Hour – Minute – Year – Month – Date – Exit the setting mode.
10
Setting Alarm
Press the “Function” button once to enter into Alarm setting mode. Long Press the Function
button again to set the alarm. Press S1 and S2 to set, the steps are Hour – Minute – Exit the
setting mode.
Charging the watch
The USB Charging Port is on the right side of the Bluetooth Digital Watch. Insert the Micro USB
plug here and other end of the USB Port to any USB charging port (Computer or USB AC
Charging Socket). It may take up to 4 to 5 hours for a full charge.
Specifications –
Bluetooth Compliance – A2DP, AVRCP, HFP and HSP ASP
Wireless Range – 10 meters (33 Feet)
Watch dimension: 11mm x 10.8mm x 11.6mm
Weight of Watch: 90Grams
Standby Time – 80Hours
Talk Time – 8 Hours
Music Play Time – 2-3 Hours
Rechargeable Battery – 250mAh
DC 5V
11
Care and maintenance
Read the following recommendations before using the Bluetooth Multi Media Speaker System.
Following these you will be able to enjoy the product for many years.
• Do not expose the unit to liquid, moisture or humidity to avoid the product’s internal circuit
being affected.
• Don’t use abrasive cleaning solvents to clean the unit.
• Do not expose the unit to extremely high or low temperature as this will shorten the life of
electronic devices, destroy the battery or distort certain plastic parts.
• Don’t dispose of the unit in fire as it will result in an explosion.
• Don’t expose the unit to contact with sharp objects as this will cause scratches and damage.
• Don’t let the unit fall down onto the floor. The internal circuit might get damaged.
• Don’t attempt to disassemble the unit as it may get damaged if you are not professional.
In case the unit does not function properly, please contact the number shown on the Warranty
Page for help.
FCC STATEMENT
1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause
undesired operation.
WARNING: Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
12
This equipment generates uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular
installation.
If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body
13
Limited Warranty
This manufacturer's product warranty extends to the original consumer purchaser of the product.
Neither the retailer nor any other company involved in the sale or promotion of this product is a
co-warrantor of this manufacturer warranty.
WARRANTY DURATION: All materials and workmanship are warranted to the original
consumer purchaser for a period of ninety (90) days from the original purchase date.
WARRANTY COVERAGE: This product is warranted against defective materials or
workmanship. This warranty is void if the product has been damaged by accident, in
shipment, unreasonable use, misuse, neglect, improper service, commercial use, repairs by
unauthorized personnel or other causes not arising out of defects in materials or
workmanship. This warranty is effective only if the product is purchased and operated in
USA, and does not extend to any units which have been used in violation of written
instructions furnished by manufacturer or to units which have been altered or modified or, to
damaged products or parts thereof which have had the serial number removed, altered,
defaced or rendered illegible.
WARRANTY DISCLAIMERS: This warranty is in lieu of all warranties expressed or implied and no
representative or person is authorized to assume for manufacturer any other liability in
connection with the sale of our products. There shall be no claims for defects or failure under any
theory of tort, contractor commercial law including but not limited to, negligence, gross
negligence, strict liability, breach of warranty and breach of contract.
WARRANTY PERFORMANCE: During the above 90 day warranty period, a product with a
defect will be either repaired or replaced with a reconditioned comparable model (at
manufacturer's option). The repaired or replacement product will be in warranty for the
balance of the 90 day warranty period and an additional one-month period. No charge will be
applicable for such repair or replacement.
SERVICE AND REPAIR: If service is required for this product, you should first contact Midwest
Trading Group Customer Service at info@mtradinggroup.com or by calling 1 (866) 815-4714.
NOTE: Manufacturer cannot assume responsibility for loss or damage during incoming
shipment. As a precautionary measure, carefully package the product for shipment, and
insure it with the carrier. Be sure to enclose the following details with the product: your full
name, return address and daytime phone number, a note describing the problem you
14
experienced, a copy of your sales receipt or other proof of purchase to determine warranty
status. C.O.D. shipments cannot be accepted.
