QI SHENGLONG IST QSLHD255 Bluetooth Speaker Watch User Manual MA 255 ok indd

SHENZHEN QI SHENGLONG INDUSTRIALIST CO.,LTD. Bluetooth Speaker Watch MA 255 ok indd

Manual

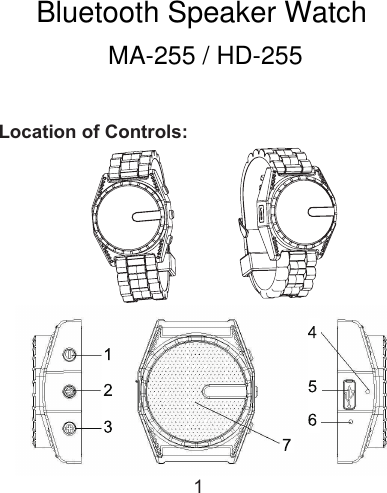

1 Location of Controls: MA-255 / HD-255Bluetooth Speaker Watch

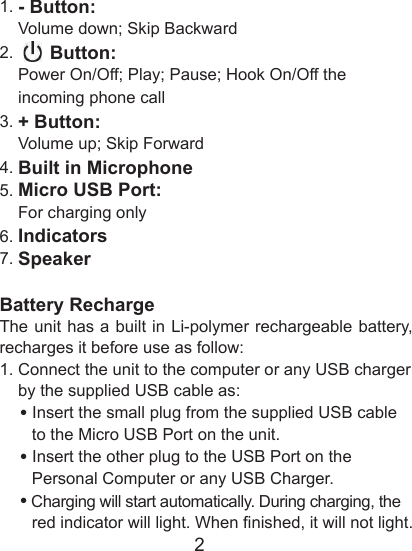

21. - Button: Volume down; Skip Backward2. Button: Power On/Off; Play; Pause; Hook On/Off the incoming phone call3. + Button: Volume up; Skip Forward4. Built in Microphone5. Micro USB Port: For charging only6. Indicators7. SpeakerBattery RechargeThe unit has a built in Li-polymer rechargeable battery, recharges it before use as follow:1. Connect the unit to the computer or any USB charger by the supplied USB cable as: • Insert the small plug from the supplied USB cable to the Micro USB Port on the unit. • Insert the other plug to the USB Port on the Personal Computer or any USB Charger. • Charging will start automatically. During charging, the red indicator will light. When nished, it will not light.

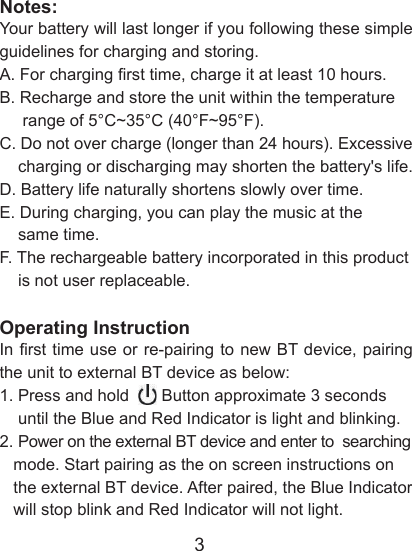

3Notes:Your battery will last longer if you following these simple guidelines for charging and storing.A. For charging rst time, charge it at least 10 hours. B. Recharge and store the unit within the temperature range of 5°C~35°C (40°F~95°F).C. Do not over charge (longer than 24 hours). Excessive charging or discharging may shorten the battery's life.D. Battery life naturally shortens slowly over time.E. During charging, you can play the music at the same time.F. The rechargeable battery incorporated in this product is not user replaceable.Operating Instruction In rst time use or re-pairing to new BT device, pairing the unit to external BT device as below:1. Press and hold Button approximate 3 seconds until the Blue and Red Indicator is light and blinking.2. Power on the external BT device and enter to searching mode. Start pairing as the on screen instructions on the external BT device. After paired, the Blue Indicator will stop blink and Red Indicator will not light.

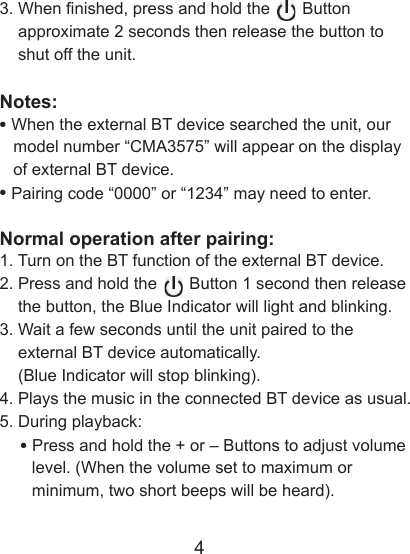

43. When nished, press and hold the Button approximate 2 seconds then release the button to shut off the unit.Notes:• When the external BT device searched the unit, our model number “CMA3575” will appear on the display of external BT device.• Pairing code “0000” or “1234” may need to enter.Normal operation after pairing: 1. Turn on the BT function of the external BT device. 2. Press and hold the Button 1 second then release the button, the Blue Indicator will light and blinking. 3. Wait a few seconds until the unit paired to the external BT device automatically. (Blue Indicator will stop blinking).4. Plays the music in the connected BT device as usual.5. During playback: • Press and hold the + or – Buttons to adjust volume level. (When the volume set to maximum or minimum, two short beeps will be heard).

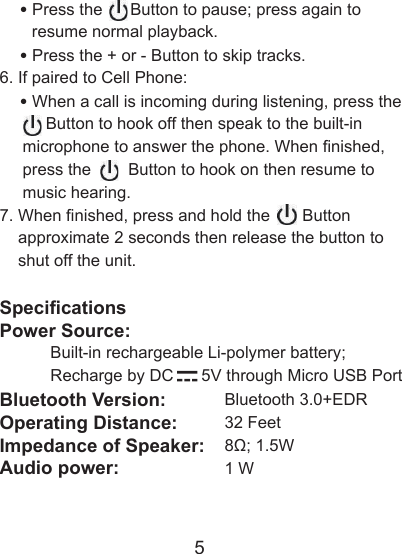

5 • Press the Button to pause; press again to resume normal playback. • Press the + or - Button to skip tracks.6. If paired to Cell Phone: • When a call is incoming during listening, press the Button to hook off then speak to the built-in microphone to answer the phone. When nished, press the Button to hook on then resume to music hearing. 7. When nished, press and hold the Button approximate 2 seconds then release the button to shut off the unit.SpecicationsPower Source: Built-in rechargeable Li-polymer battery; Recharge by DC 5V through Micro USB Port Bluetooth Version: Bluetooth 3.0+EDROperating Distance: 32 FeetImpedance of Speaker: 8Ω; 1.5WAudio power: 1 W

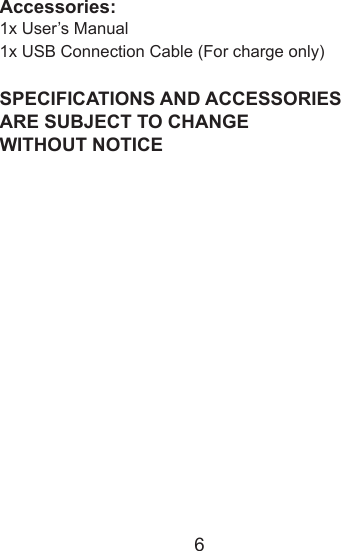

6Accessories:1x User’s Manual1x USB Connection Cable (For charge only)SPECIFICATIONS AND ACCESSORIES ARE SUBJECT TO CHANGE WITHOUT NOTICE

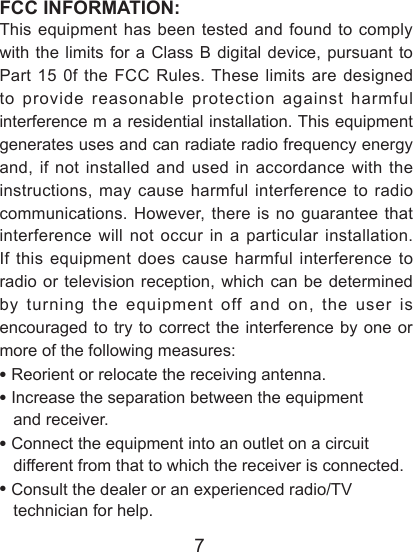

7FCC INFORMATION:This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 0f the FCC Rules. These limits are designed to provide reasonable protection against harmful interference m a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:• Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.• Consult the dealer or an experienced radio/TV technician for help.

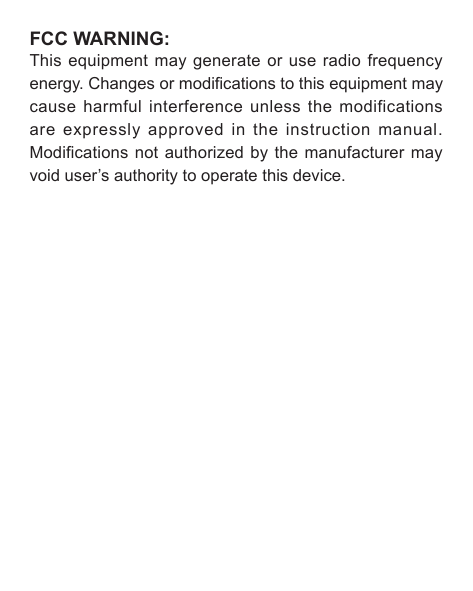

FCC WARNING:This equipment may generate or use radio frequency energy. Changes or modications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. Modications not authorized by the manufacturer may void user’s authority to operate this device.
