QI SHENGLONG IST QSLHD255 Bluetooth Speaker Watch User Manual MA 255 ok indd
SHENZHEN QI SHENGLONG INDUSTRIALIST CO.,LTD. Bluetooth Speaker Watch MA 255 ok indd
Manual
1

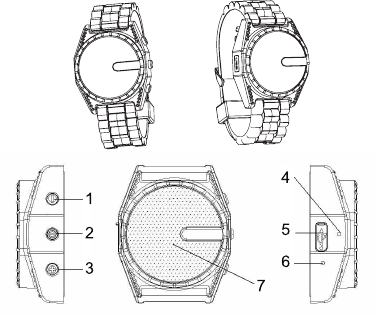

Location of Controls:
MA-255 / HD-255
Bluetooth Speaker Watch
2
1. - Button:
Volume down; Skip Backward
2. Button:
Power On/Off; Play; Pause; Hook On/Off the
incoming phone call
3. + Button:
Volume up; Skip Forward
4. Built in Microphone
5. Micro USB Port:
For charging only
6. Indicators
7. Speaker
Battery Recharge
The unit has a built in Li-polymer rechargeable battery,
recharges it before use as follow:
1. Connect the unit to the computer or any USB charger
by the supplied USB cable as:
• Insert the small plug from the supplied USB cable
to the Micro USB Port on the unit.
• Insert the other plug to the USB Port on the
Personal Computer or any USB Charger.
• Charging will start automatically. During charging, the
red indicator will light. When nished, it will not light.
3
Notes:
Your battery will last longer if you following these simple
guidelines for charging and storing.
A. For charging rst time, charge it at least 10 hours.
B. Recharge and store the unit within the temperature
range of 5°C~35°C (40°F~95°F).
C. Do not over charge (longer than 24 hours). Excessive
charging or discharging may shorten the battery's life.
D. Battery life naturally shortens slowly over time.
E. During charging, you can play the music at the
same time.
F. The rechargeable battery incorporated in this product
is not user replaceable.
Operating Instruction
In rst time use or re-pairing to new BT device, pairing
the unit to external BT device as below:
1. Press and hold Button approximate 3 seconds
until the Blue and Red Indicator is light and blinking.
2. Power on the external BT device and enter to searching
mode. Start pairing as the on screen instructions on
the external BT device. After paired, the Blue Indicator
will stop blink and Red Indicator will not light.
4
3. When nished, press and hold the Button
approximate 2 seconds then release the button to
shut off the unit.
Notes:
• When the external BT device searched the unit, our
model number “CMA3575” will appear on the display
of external BT device.
• Pairing code “0000” or “1234” may need to enter.
Normal operation after pairing:
1. Turn on the BT function of the external BT device.
2. Press and hold the Button 1 second then release
the button, the Blue Indicator will light and blinking.
3. Wait a few seconds until the unit paired to the
external BT device automatically.
(Blue Indicator will stop blinking).
4. Plays the music in the connected BT device as usual.
5. During playback:
• Press and hold the + or – Buttons to adjust volume
level. (When the volume set to maximum or
minimum, two short beeps will be heard).
5
• Press the Button to pause; press again to
resume normal playback.
• Press the + or - Button to skip tracks.
6. If paired to Cell Phone:
• When a call is incoming during listening, press the
Button to hook off then speak to the built-in
microphone to answer the phone. When nished,
press the Button to hook on then resume to
music hearing.
7. When nished, press and hold the Button
approximate 2 seconds then release the button to
shut off the unit.
Specications
Power Source:
Built-in rechargeable Li-polymer battery;
Recharge by DC 5V through Micro USB Port
Bluetooth Version: Bluetooth 3.0+EDR
Operating Distance: 32 Feet
Impedance of Speaker: 8Ω; 1.5W
Audio power: 1 W
6
Accessories:
1x User’s Manual
1x USB Connection Cable (For charge only)
SPECIFICATIONS AND ACCESSORIES
ARE SUBJECT TO CHANGE
WITHOUT NOTICE
7
FCC INFORMATION:
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to
Part 15 0f the FCC Rules. These limits are designed
to provide reasonable protection against harmful
interference m a residential installation. This equipment
generates uses and can radiate radio frequency energy
and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation.
If this equipment does cause harmful interference to
radio or television reception, which can be determined
by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment
and receiver.
• Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV
technician for help.
FCC WARNING:
This equipment may generate or use radio frequency
energy. Changes or modications to this equipment may
cause harmful interference unless the modifications
are expressly approved in the instruction manual.
Modications not authorized by the manufacturer may
void user’s authority to operate this device.
