QINGDAO WINTEC SYSTEM OB1000 Time and Attendance Device User Manual

QINGDAO WINTEC SYSTEM CO., LTD Time and Attendance Device

user manual

OB1000www.wintec.cn 1Hotline:400 708 9898OB1000User ManualQINGDAO WINTEC SYSTEM CO., LTD

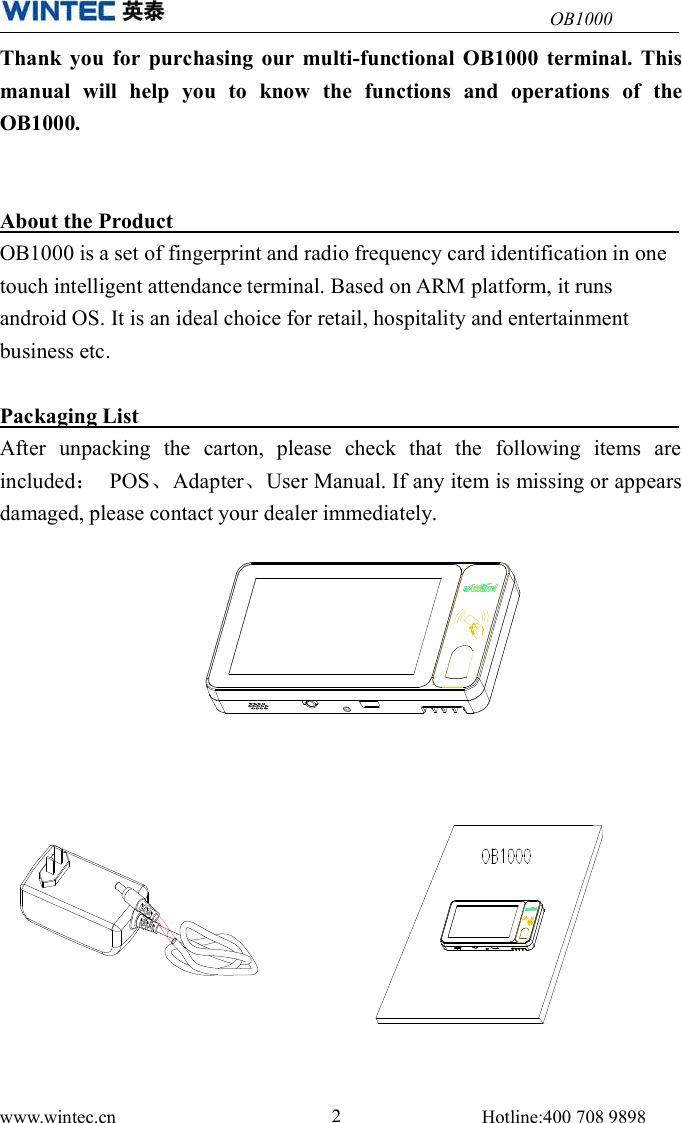

OB1000www.wintec.cn 2Hotline:400 708 9898Thank you for purchasing our multi-functional OB1000 terminal. Thismanual will help you to know the functions and operations of theOB1000.About the ProductOB1000 is a set of fingerprint and radio frequency card identification in onetouch intelligent attendance terminal. Based on ARM platform, it runsandroid OS. It is an ideal choice for retail, hospitality and entertainmentbusiness etc.Packaging ListAfter unpacking the carton, please check that the following items areincluded：POS、Adapter、User Manual. If any item is missing or appearsdamaged, please contact your dealer immediately.

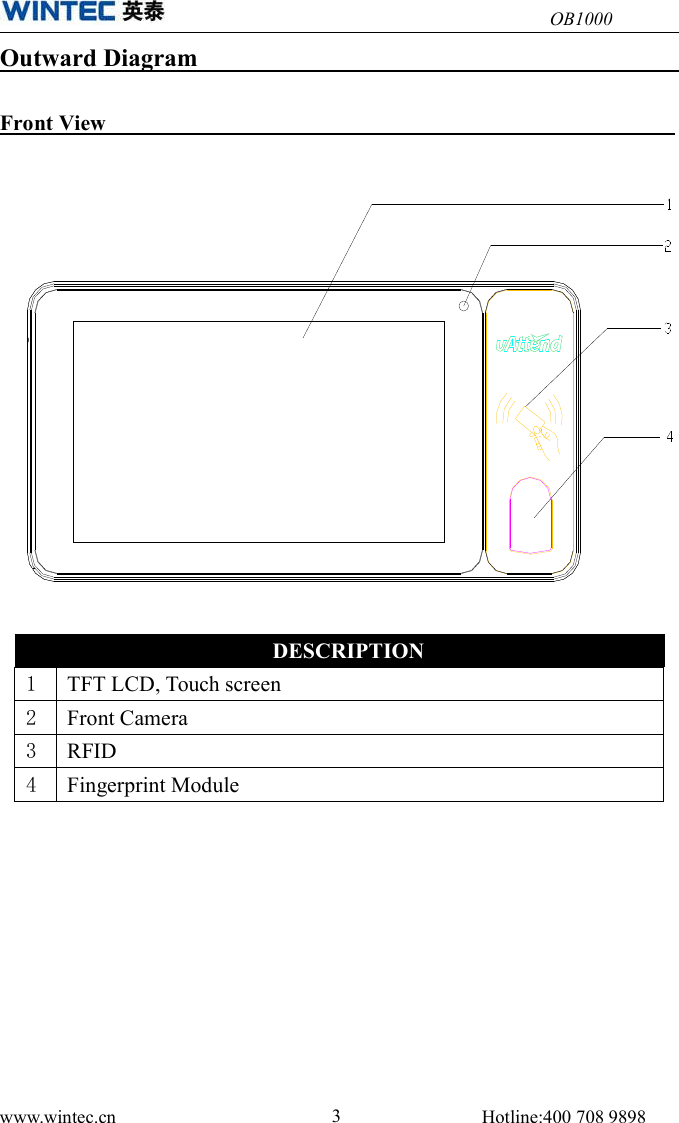

OB1000www.wintec.cn 3Hotline:400 708 9898Outward DiagramFront ViewDESCRIPTION1TFT LCD, Touch screen2Front Camera3RFID4Fingerprint Module

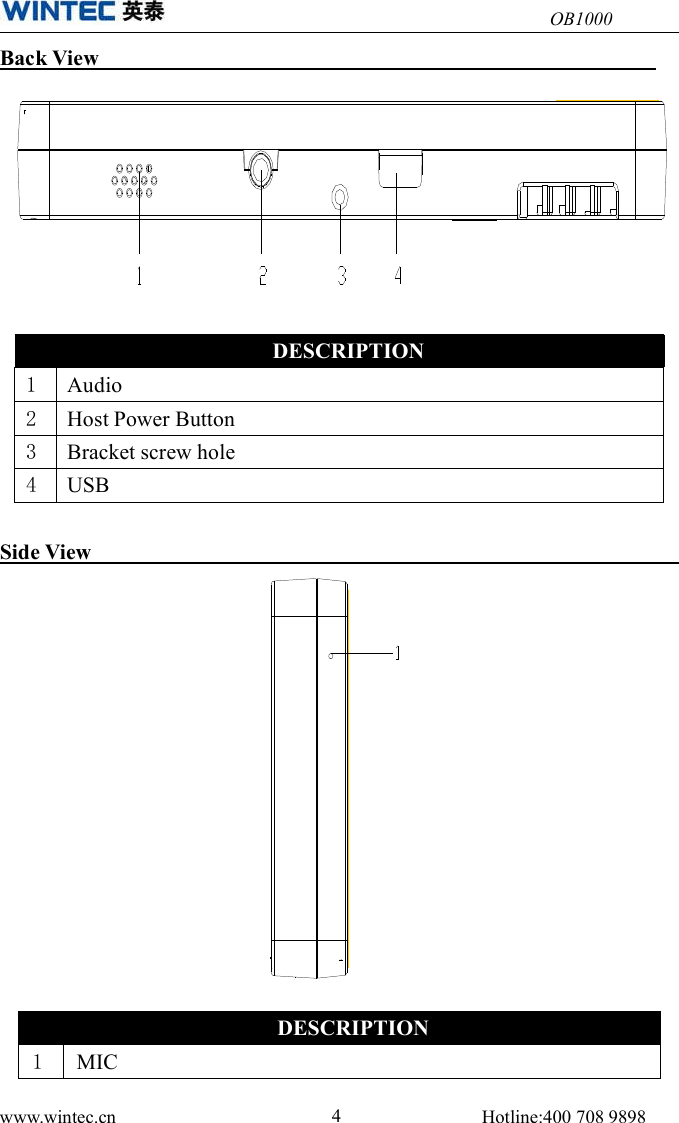

OB1000www.wintec.cn 4Hotline:400 708 9898Back ViewSide ViewDESCRIPTION1Audio2Host Power Button3Bracket screw hole4USBDESCRIPTION1MIC

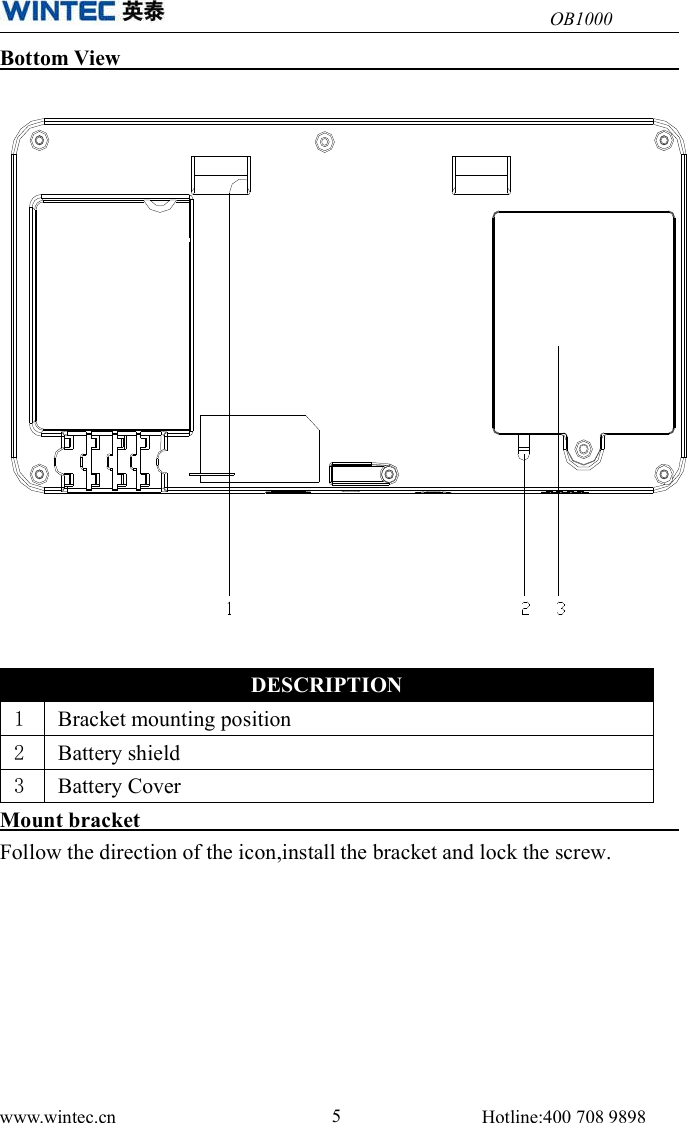

OB1000www.wintec.cn 5Hotline:400 708 9898Bottom ViewMount bracketFollow the direction of the icon,install the bracket and lock the screw.DESCRIPTION1Bracket mounting position2Battery shield3Battery Cover
OB1000www.wintec.cn 6Hotline:400 708 9898IO Ports
OB1000www.wintec.cn 7Hotline:400 708 9898Booting/Shutdown Operation/Charge1、Booting：Press the host switch button to start the machine。2、Shutdown :To shut down the machine, press the power switch for awhile till the shutting down interface appears, then confirm to shut it down ornot.3、Charge:When you need to charge the insertion of the machine comeswith the adapter to charge.NOTE：When first booting, take out the battery insulating strip .NOTE: Please don’t dismantle the machine without related guide.Please consult your supplier or service provider first if problem can’t besolved.Related technical materials can be download from http://www.wintec.cn.DESCRIPTION1DC adapter2RJ-45 LAN port3RJ-11 IO port4USB port5USB OTG port
