Thank you for purchasing our multi-functional OB1000 terminal. This
manual will help you to know the functions and operations of the
OB1000.
About the Product
OB1000 is a set of fingerprint and radio frequency card identification in one
touch intelligent attendance terminal. Based on ARM platform, it runs
android OS. It is an ideal choice for retail, hospitality and entertainment
business etc.
Packaging List
After unpacking the carton, please check that the following items are
included：POS、Adapter、User Manual. If any item is missing or appears
damaged, please contact your dealer immediately.
OB1000
www.wintec.cn 3Hotline:400 708 9898
Outward Diagram
Front View
DESCRIPTION
1TFT LCD, Touch screen
2Front Camera
3RFID
4Fingerprint Module
OB1000
www.wintec.cn 4Hotline:400 708 9898
Back View
Side View
DESCRIPTION
1Audio
2Host Power Button
3Bracket screw hole
4USB
DESCRIPTION
1MIC
OB1000
www.wintec.cn 5Hotline:400 708 9898
Bottom View
Mount bracket
Follow the direction of the icon,install the bracket and lock the screw.
DESCRIPTION
1Bracket mounting position
2Battery shield
3Battery Cover
OB1000
www.wintec.cn 6Hotline:400 708 9898

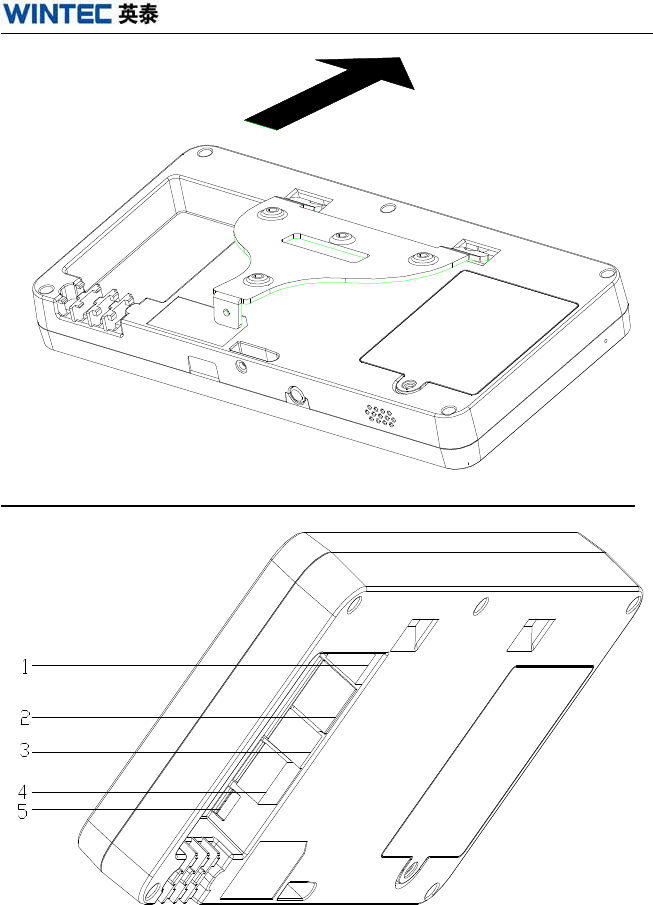

IO Ports
OB1000
www.wintec.cn 7Hotline:400 708 9898
Booting/Shutdown Operation/Charge
1、Booting：Press the host switch button to start the machine。
2、Shutdown :To shut down the machine, press the power switch for a
while till the shutting down interface appears, then confirm to shut it down or
not.
3、Charge:When you need to charge the insertion of the machine comes
with the adapter to charge.
NOTE：When first booting, take out the battery insulating strip .
NOTE: Please don’t dismantle the machine without related guide.
Please consult your supplier or service provider first if problem can’t be
solved.
Related technical materials can be download from http://www.wintec.cn.
DESCRIPTION
1DC adapter
2RJ-45 LAN port
3RJ-11 IO port
4USB port
5USB OTG port
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-- Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:(1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with minimum distance 20cm between the radiator &
your body.
