QSR Automations, Inc. BLE Dongle Manual

Manual

5945 Cabot Parkway, Suite 100 Alpharetta, GA 30005 USA Voice: 678-341-5900 Certification Exhibit FCC ID: 2AJX7KP9000D IC: 21998-KP9000D FCC Rule Part: 15.247 IC Radio Standards Specification: RSS-247 Project Number: 16-0272 Manufacturer: QSR Automations, Inc. Model: KP-9000D Manual
KP-9000 Wireless Keypad User’s Manual November 2016
KP-9000 Wireless Keypad: User’s Guide 2 Contents Product Overview........................................................................................................................................ 3 Product Specifications ................................................................................................................................ 3 Out of the Box ............................................................................................................................................. 4 LED Indicators ............................................................................................................................................. 4 Troubleshooting .......................................................................................................................................... 6 Sample Images ........................................................................................................................................... 8 Control Point 3.1 ......................................................................................................................................... 8 Appendix A: Device Compliance Information ......................................................................................... 9
KP-9000 Wireless Keypad: User’s Guide 3 Product Overview The KP-9000 is a low-power, longer life, wireless keypad that is backward compatible with QSR’s other keypads. It is a Bluetooth Low Energy (BLE), twenty button, customizable keypad that does not require any cabling. Product Specifications Feature Specification Key Rating 30 Million Pushes Mounting Options Optional Bracketing Available Overlay Options Customizable Keypad Overlays, Installs without Tools Features Software Programmable Scan Codes Downloadable Firmware for Easy Updates and Support ConnectSmart Battery Level Indication Chassis Durable, Premium Grade Polycarbonate Metal Reinforced Top for Extended Life Resistant to Extreme Temperatures, Water and Grease Dimensions 1.25” x 8.25” x 2.75” (H x W x D) Weight 11.2 ounces (without batteries) Power Two, Four or Six AAA Batteries Audio On-board Annunciator Interface Bluetooth Low Energy (BLE) via USB Dongle Range Up to 30 feet, in direct line-of-sight Environmental Operating Temperature 0° – 50° Celsius Storage Temperature -20° – 95° Celsius Humidity 10% - 95%, non-condensing Altitude 15,000 feet Certifications FCC Part 15, Class A Warranty Limited 3-Year Hardware Warranty
KP-9000 Wireless Keypad: User’s Guide 4 Out of the Box The KP-9000 Wireless Keypad arrives with dongle stored inside. 1. Unscrew the back of the keypad and remove the dongle. 2. Install six AAA batteries. (The keypad only requires two AAA batteries to function, but up to six batteries may be installed at once to increase the keypad’s battery life.) 3. Plug the dongle into the Kitchen controller. 4. The keypad and dongle have been pre-paired, and will pair automatically. Note: It is recommended that you label the keypad and its corresponding dongle upon unpacking to avoid confusion should they ever become separated. LED Indicators Keypad LED There is one LED visible in the upper left portion of the keypad. The following table describes what the different LED messages are conveying. Mode LED Description Unpaired No LED The default when not paired with a dongle. Special keypress (upper left and bottom right keys for 3s) required to enter pairing mode. Unpaired is the mode for factory storage and shipping. Keypad will shut ‘off’ in this state, using the lowest power consumption possible with batteries installed. Searching Blinking low-duty Amber (Amber also on very low-duty cycle for low battery) Dongle has been previously paired but is not currently found. The keypad will search indefinitely in an attempt to reconnect. However, it will only search 1 minute at high speed (10Hz) before dropping back to power savings (1Hz).
KP-9000 Wireless Keypad: User’s Guide 5 Special keypress can force into pairing mode. In BLE terms, a keypad ‘Searching’ means sending only directed advertisements to the address of its paired dongle. Connected Solid Green for one second (Also blinks Green on each key press or SCROLL LOCK) Normal operating behavior with paired dongle found and communicating. Wireless poll period and slave latency depend on whether beeper is enabled (power savings are greater when in its default state – beeper disabled). Special keypress can force into pairing mode. Pairing Blinking Amber once every 10 seconds until paired Allows pairing with a new dongle. Requires special keypress to enter. It has a 1 minute timeout, as pairing consumes high power to advertise. Keypad will auto-pair to first dongle found in pairing mode. If timeout is reached, behavior depends on whether it was previously paired to a dongle. In BLE terms, ‘Pairing’ means sending undirected advertisements. Low Battery Double blinking Amber every 10 seconds Dongle LED There are two LEDs visible. One on either side of the dongle. The following table describes what the different LED messages are conveying. Mode LEDs Description Unpaired Off Only entered when not paired and when software has commanded dongle to not auto pair. Searching Slow Blinking Blue Keypad has been previously paired, but is not currently found. Dongle will search for 1 minute to attempt to reconnect. Afterwards, it will automatically enter pairing mode. Software commands can override this behavior. In BLE terms, ‘Searching’ on the dongle means passive scanning for only directed advertisements from its paired keypad. Connected Solid Blue Normal operating behavior with paired keypad found and communicating. In BLE terms, ‘Connected’ here means connected and bonded. Pairing Rapid Blinking (low-duty) Blue Allows pairing with a new keypad. If previously paired, the dongle will still auto-connect with
KP-9000 Wireless Keypad: User’s Guide 6 that keypad if found (same as searching). If a new keypad in pairing mode is found, a new pairing (and connection) is established with that keypad. Other keypads not in pairing mode are ignored. In BLE terms, ‘Pairing’ means active scanning for advertisements from any keypad, but also accepting directed advertisements from its paired keypad. Troubleshooting What Does This Light Mean? Dongle If the light is… This means… What next… Off Unpaired Pair with keypad.* Slow blinking blue Searching Dongle will attempt to reconnect. Solid blue Connected The device is ready to go! Rapid blinking blue Pairing Dongle is pairing with keypad. Keypad If the light is… This means… What next… Off Unpaired Pair with dongle.* Blinking low-duty amber Searching Keypad will attempt to reconnect. Blinking low-duty green Connected The device is ready to go! Rapid blinking amber Pairing Keypad is pairing with dongle. *Manually Pairing the Devices 1. Insert dongle in the USB port of target controller. 2. Turn the controller on. 3. Hold the KP-9000 (prepared with batteries installed) so that the light is in the upper left corner. 4. Press and hold both top left key and bottom right key simultaneously for 3 seconds. 5. The LED will quickly blink on and off in amber while it is trying to talk to the dongle. 6. If it establishes the pairing with the dongle, the light will blink green briefly and then remain quiet.
KP-9000 Wireless Keypad: User’s Guide 7 Set Pairing Mode The Set Pairing Mode command impacts both the dongle and keypad. When the command is given to change the pairing mode to Unpaired, the dongle goes idle and the keypad goes into searching mode. That means the keypad is still looking for the dongle to which it was previously paired, so if you send a command to change the pairing mode back to Pairing, the dongle will "wake up" and automatically reconnect to the keypad. If you want to pair the keypad with a different dongle while the current dongle is idle, press and hold keys 1 and 20 simultaneously on the keypad to force the keypad into pairing mode. When in this mode, the keypad will pair with the first available dongle it finds. It's most effective to do this with only one keypad powered on at a time.
KP-9000 Wireless Keypad: User’s Guide 8 Sample Images Control Point 3.1 The KP-9000 Wireless Keypad can be configured and managed through ControlPoint 3.1. For more information, see the ControlPoint 3.1 User’s Guide. Keypad - Opened Back Keypad - Front

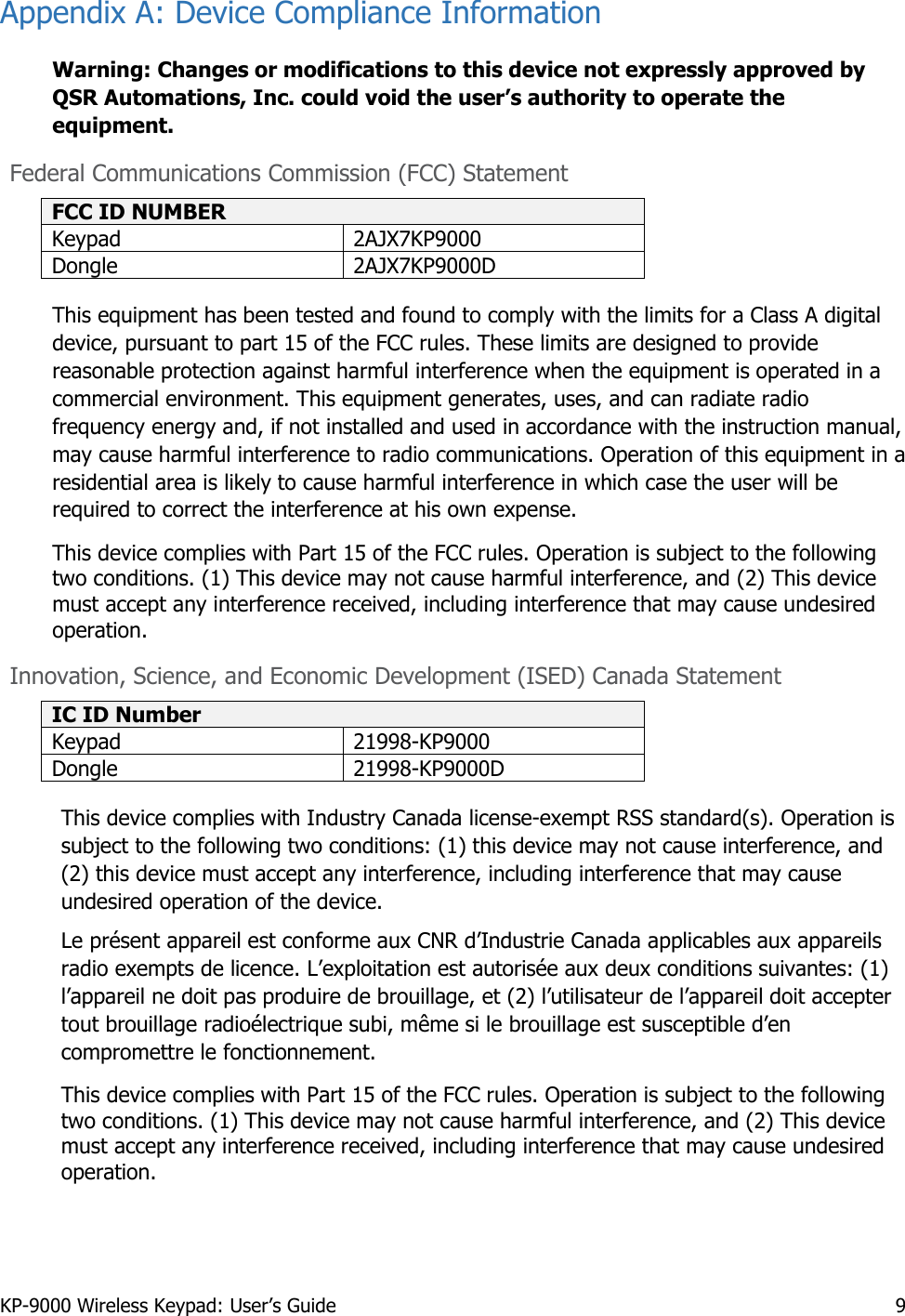

KP-9000 Wireless Keypad: User’s Guide 9 Appendix A: Device Compliance Information Warning: Changes or modifications to this device not expressly approved by QSR Automations, Inc. could void the user’s authority to operate the equipment. Federal Communications Commission (FCC) Statement FCC ID NUMBER Keypad 2AJX7KP9000 Dongle 2AJX7KP9000D This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions. (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Innovation, Science, and Economic Development (ISED) Canada Statement IC ID Number Keypad 21998-KP9000 Dongle 21998-KP9000D This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes: (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions. (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

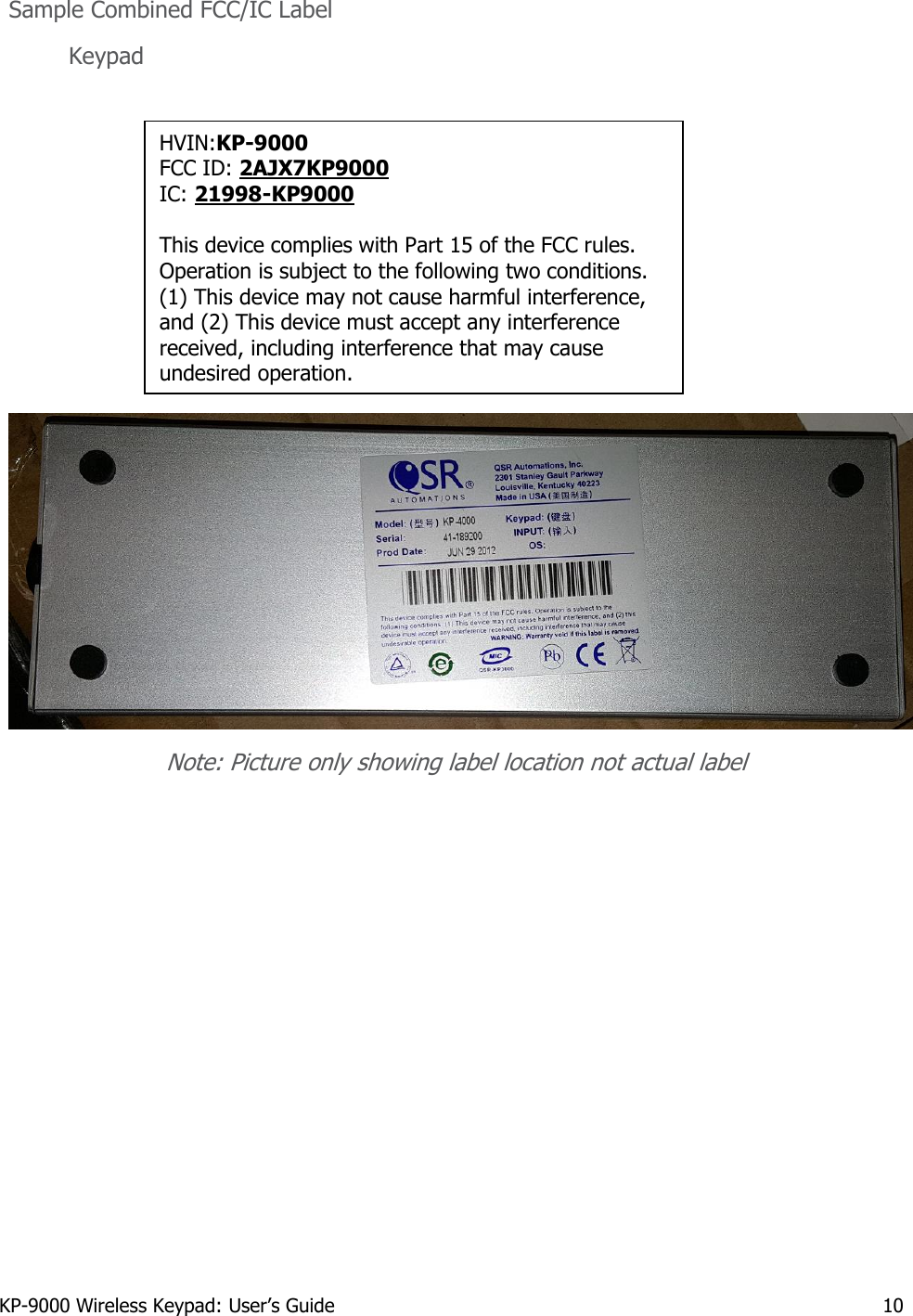

KP-9000 Wireless Keypad: User’s Guide 10 Sample Combined FCC/IC Label Keypad Note: Picture only showing label location not actual label HVIN:KP-9000 FCC ID: 2AJX7KP9000 IC: 21998-KP9000 This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions. (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

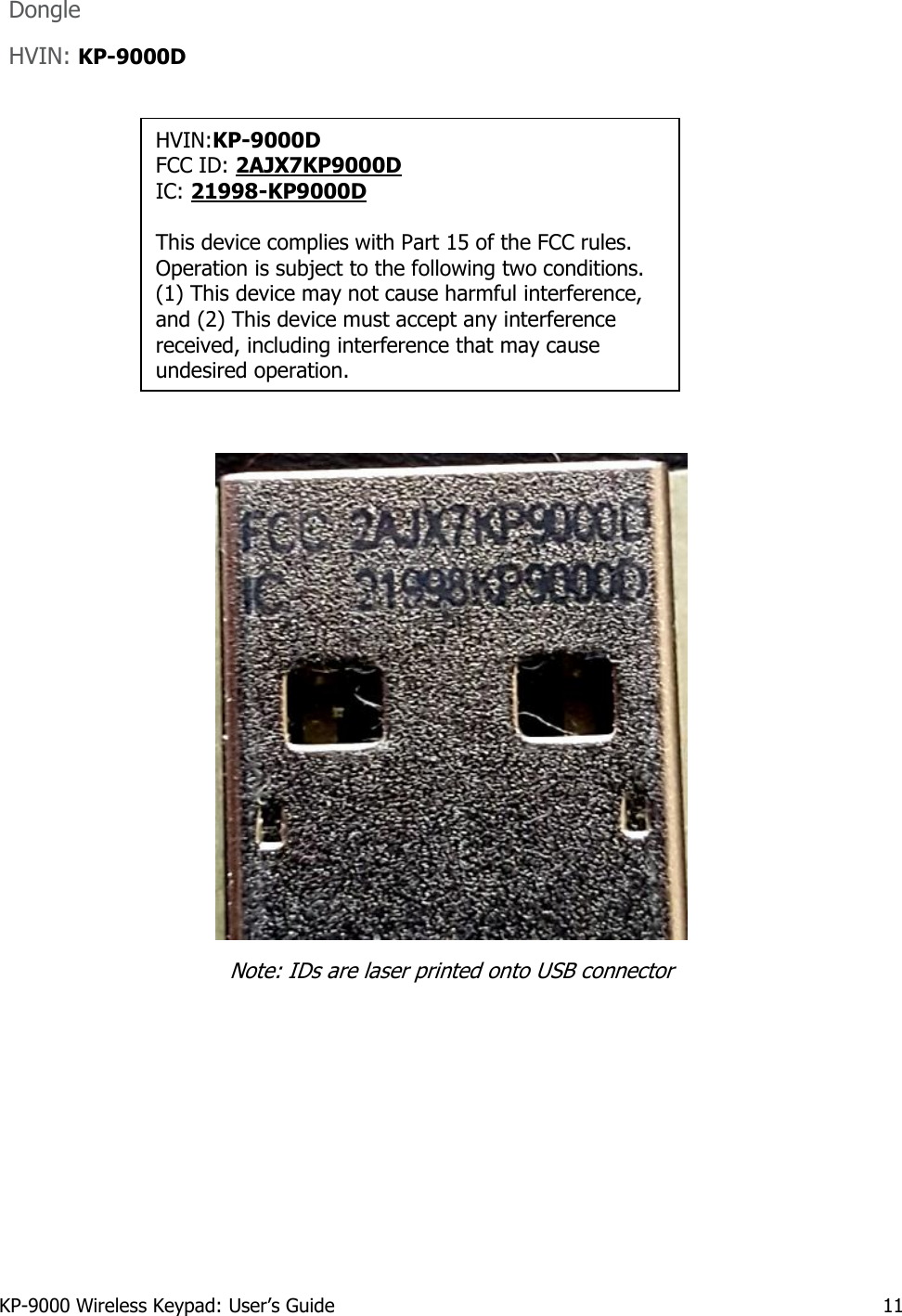

KP-9000 Wireless Keypad: User’s Guide 11 Dongle HVIN: KP-9000D Note: IDs are laser printed onto USB connector HVIN:KP-9000D FCC ID: 2AJX7KP9000D IC: 21998-KP9000D This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions. (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
KP-9000 Wireless Keypad: User’s Guide 12 QSR Automations, Inc. © 1996-2016 QSR Automations, Inc. All rights reserved. Printed in the U.S.A. QSR AUTOMATIONS, INC. SHALL NOT BE LIABLE FOR TECHNICAL OR EDITORIAL ERRORS OR OMISSIONS CONTAINED HEREIN, NOR FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE FURNISHING, PERFORMANCE, OR USE OF THIS MATERIAL. THIS INFORMATION IS PROVIDED “AS IS" AND QSR AUTOMATIONS, INC. DISCLAIMS ANY WARRANTIES, EXPRESS OR IMPLIED OR STATUTORY AND EXPRESSLY DISCLAIMS THE IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR PARTICULAR PURPOSE, GOOD TITLE AND AGAINST INFRINGEMENT. QSR Automations, Inc. 2301 Stanley Gault Pkwy Louisville, KY 40223 502-297-0221 www.qsrautomations.com This publication contains information protected by copyright and is considered confidential. No part of this publication may be photocopied or reproduced in any form without the prior written consent from QSR Automations, Inc. The marks QSR Automations®, ePic®, ConnectSmart®, eXpert®, xCeed®, WebAhead®, WebReserve®, and DineTime® are registered trademarks of QSR Automations, Inc. Other products mentioned herein may be trademarks and/or registered trademarks of their respective companies. The information in this publication is subject to change without notice.
