Qisda M01M001 Mobile Internet Device User Manual Austin A5 bk0
Qisda Corporation Mobile Internet Device Austin A5 bk0
Qisda >
Contents
Manual 1
Dell™ Mini 5
User's Manual
COMMENT
Notes, Cautions, and Warnings
NOTE: A NOTE indicates important information that helps you make better use of
your device.
CAUTION: A CAUTION indicates potential damage to hardware or loss of data if
instructions are not followed.
WARNING: A WARNING indicates a potential for property damage, personal
injury, or death.
____________________
Information in this document is subject to change without notice.
© 2009 Dell Inc. All rights reserved.
Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc.
is strictly forbidden.
Trademarks used in this text: Dell and the DELL logo are trademarks of Dell Inc.
Adobe Acrobat is a trademark of Adobe Systems Incorporated which may be registered in certain
jurisdictions; Microsoft, Windows, Microsoft Office Word, Microsoft Office Excel, and Microsoft
Office PowerPoint, are either trademarks or registered trademarks of Microsoft Corporation in the
United States and/or other countries.
Other trademarks and trade names may be used in this document to refer to either the entities claiming
the marks and names or their products. Dell Inc. disclaims any proprietary interest in trademarks and
trade names other than its own.
January 2010
Federal Communications Commission (FCC) Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1) this device may not cause harmful interference and
2) this device must accept any interference received, including interference that may cause undesired
operation of the device.
FCC RF Radiation Exposure Statement:
For body worn operation, this phone has been tested and meets FCC RF exposure guidelines when
used with an accessory that contains no metal and that positions the handset a minimum of 1.5 cm
from the body. Use of other accessories may not ensure compliance with FCC RF exposure guidelines.
Contents 3
Contents
1 Package Contents . . . . . . . . . . . . . . . . . . . 7
2 Mini 5 Features . . . . . . . . . . . . . . . . . . . . . 8
3 Setting Up Your Mini 5 Device. . . . . . . . . 11
Getting Your Device Ready for Use . . . . . . . . . . . 11
Turning On Your Device . . . . . . . . . . . . . . . . . 14
Setting Up Your Google Account . . . . . . . . . . . . 14
Turning Off Your Device . . . . . . . . . . . . . . . . . 15
Turning Off the Screen . . . . . . . . . . . . . . . . . . 15
4 Understanding Your Mini 5 Device . . . . . 16

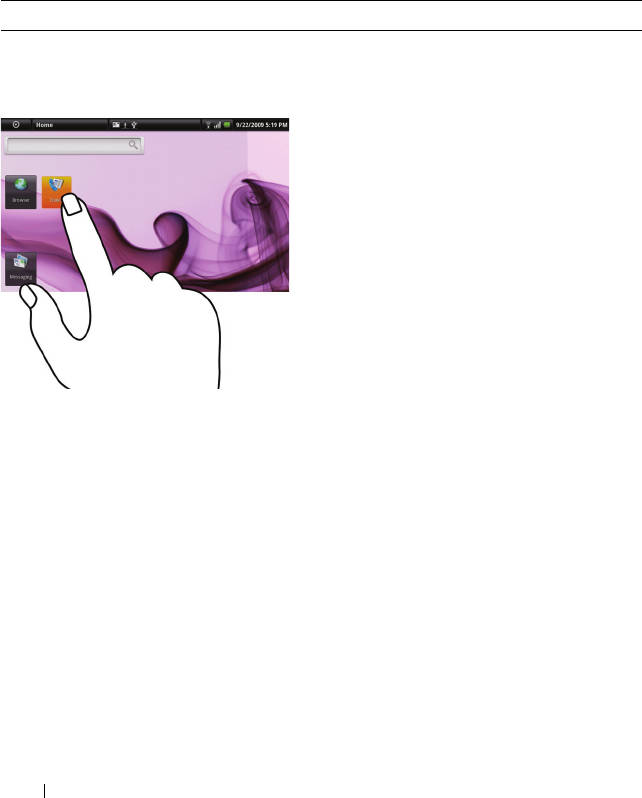

Touch Screen . . . . . . . . . . . . . . . . . . . . . . 16
Screen Orientation. . . . . . . . . . . . . . . . . . . . 19
Home Screen. . . . . . . . . . . . . . . . . . . . . . . 20
Multiple Home Screens. . . . . . . . . . . . . . . 20
Customizing Your Home Screen . . . . . . . . . . 21
Status Bar . . . . . . . . . . . . . . . . . . . . . . . . 26
Navigating the Applications. . . . . . . . . . . . . . . 28
4Contents
Favorites Bar . . . . . . . . . . . . . . . . . . . . 28
Application Shortcuts. . . . . . . . . . . . . . . . 29
Recent applications. . . . . . . . . . . . . . . . . 29
5 Using Your Mini 5 Device. . . . . . . . . . . . 30
Calling . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Making Calls . . . . . . . . . . . . . . . . . . . . 30
Manage Your Calls . . . . . . . . . . . . . . . . . 32
Adjust Call Settings . . . . . . . . . . . . . . . . . 34
Messaging . . . . . . . . . . . . . . . . . . . . . . . . 36
Pop-Up Menu. . . . . . . . . . . . . . . . . . . . . . . 42
On-Screen Keyboard . . . . . . . . . . . . . . . . . . . 42
Widgets. . . . . . . . . . . . . . . . . . . . . . . . . . 46
Google Search . . . . . . . . . . . . . . . . . . . 46
RSS . . . . . . . . . . . . . . . . . . . . . . . . . 47
Facebook . . . . . . . . . . . . . . . . . . . . . . 47
Twitter . . . . . . . . . . . . . . . . . . . . . . . . 48
Managing Contacts . . . . . . . . . . . . . . . . . . . 48
Managing Your Device Settings . . . . . . . . . . . . . 51
6Web . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Connecting to the Web. . . . . . . . . . . . . . . . . . 53
GPRS/EDGE/3G/HSPA. . . . . . . . . . . . . . . . 53
Wi-Fi. . . . . . . . . . . . . . . . . . . . . . . . . 54
Disable all Connections Using the Airplane Mode . 56
Browsing the Web . . . . . . . . . . . . . . . . . . . . 56
Contents 5
Viewing Web Pages . . . . . . . . . . . . . . . . 57
Using Web Links, History, and Downloads . . . . . 59
Manage Bookmarks . . . . . . . . . . . . . . . . 60
E-mail . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Web Applications . . . . . . . . . . . . . . . . . . . . 64
Gmail . . . . . . . . . . . . . . . . . . . . . . . . 64
Google Talk . . . . . . . . . . . . . . . . . . . . . 66
Maps . . . . . . . . . . . . . . . . . . . . . . . . 70
YouTube . . . . . . . . . . . . . . . . . . . . . . . 79
Android Market . . . . . . . . . . . . . . . . . . . 81
Synchronizing Your Google Data . . . . . . . . . . 83
Amazon MP3 . . . . . . . . . . . . . . . . . . . . 84
7 Customizing Your Mini 5 Device . . . . . . . 85
To change display settings . . . . . . . . . . . . . . . 85
To change sound and ringtone settings . . . . . . . . . 86
8 Protecting Your Mini 5 Device. . . . . . . . . 89
Protect Your Device Data With a Screen Unlock Pattern 89
Protect Your SIM Card With the SIM Lock Password . 92
9 Applications . . . . . . . . . . . . . . . . . . . . . . 93
Camera . . . . . . . . . . . . . . . . . . . . . . . . . . 93
MicroSD . . . . . . . . . . . . . . . . . . . . . . . . . 97
Bluetooth®. . . . . . . . . . . . . . . . . . . . . . . . 99
6Contents
Photos & Videos . . . . . . . . . . . . . . . . . . . . 101
Music . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Calendar . . . . . . . . . . . . . . . . . . . . . . . . 106
Alarm Clock . . . . . . . . . . . . . . . . . . . . . . 107
Calculator . . . . . . . . . . . . . . . . . . . . . . . 109
Sound Recorder . . . . . . . . . . . . . . . . . . . . 109
Voice Control . . . . . . . . . . . . . . . . . . . . . . 110
Tasks . . . . . . . . . . . . . . . . . . . . . . . . . . 111
SIM Manager. . . . . . . . . . . . . . . . . . . . . . 112
Notes . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Quickoffice . . . . . . . . . . . . . . . . . . . . . . . 113
10 Playing videos on HDMI devices . . . . . . 115
11 Troubleshooting . . . . . . . . . . . . . . . . . . . 116
Package Contents 7
Package Contents
Check the contents of your package to verify that you have the following:
U.S.A
Mini5 device
Battery
Quick Start Guide
Safety, Environmental, and Regulatory Information
Warranty Service Information
USB cable
Charger
US plug
Pouch
Headset
EMEA
Mini5 device
Battery
Quick Start Guide
Safety, Environmental, and Regulatory Information
Warranty Service Information
USB cable
Charger
UK plug
EURO plug
Pouch
Headset
8Mini 5 Features
Mini 5 Features
Buttons/Connectors/Parts Functionality
1
Headphone connector
Connects to headphones.
2
Volume up/down button
Landscape mode:
Volume up button /
Volume down button
Portrait mode:
Volume up button /
Volume down button
•While playing media such as music
tracks or video clips:
– Press to increase or decrease the
media volume by one level.
– Press and hold to continuously
increase or decrease the media
volume.
• Press either button to mute the ringer
while receiving a call.
• In all other situations:
– Press to increase or decrease the ringer
volume by one level.
– Press and hold to continuously
increase or decrease the ringer
volume.
1 2 3 4
5
6
9
7
8
10
11
Mini 5 Features 9
3
Power button • If the device is off, press and hold to
power on the device.
• If the device is on, but the screen is off,
press to turn on the screen.
• If both the device and the screen are on,
– Press to turn the screen off.
– Press and hold to select one of these
options:
Silent mode
: The device does not
vibrate and disables all sounds except
for alarms.
Airplane Mode
: Select to disable all
wireless connections.
Power off
: Turn off the device.
4
Camera button • If the camera is not active, press to start
the camera.
• If the camera is active, press to capture a
photo or record a video.
• When recording a video, press to stop.
5
Back button
Touch to return to the previous screen,
close a dialog box, menu, or pop-up
message, and to dismiss the keyboard.
6
Menu button • Touch to open or close the pop-up
menu displaying available options for
the current application or actions that
you can perform on the current screen.
• Touch and hold to bring up the on-
screen keyboard for text input.
7
Home button • Touch to return to the Home screen.
•Touch and hold:
–For quick access to the recently
accessed applications.
– Add or delete additional Home
screens.
Buttons/Connectors/Parts Functionality
10 Mini 5 Features
8
Microphone
Use for voice calls
9
USB port • Connects to a USB cable to transfer files
to a computer.
• Connects to a charger to charge the
device.
• Connects to the Home Dock for audio
and video output.
10
Earpiece
Use to listen to phone conversations.
11
Front-facing camera lens
Use for taking a front view picture, e.g.
self-portrait.
Parts/controls Functionality
12
Speaker
Audio output for video and music
playback.
13
Back cover
Secures the battery in place.
14
Camera lens
Captures pictures and videos.
15
Camera flash
For using flash to take pictures.
Buttons/Connectors/Parts Functionality
15
14
12
13
Setting Up Your Mini 5 Device 11
Setting Up Your Mini 5 Device
Getting Your Device Ready for Use
1
Remove the back cover
2
Insert the SIM card
a
Slide the back cover downwards in the
direction towards the end of the
device.
b
Lift the back cover off the device.
NOTE: The device will shut down automatically if you remove the back cover while
the device is on.
NOTE: You cannot turn on the device if the back cover is removed.
Insert the SIM card in the illustrated direction under the metal plate that covers the
SIM card holder.
NOTE: If you have trouble inserting the card, ensure that you have aligned the
angled corner on the card with the corner of the card holder.
12 Setting Up Your Mini 5 Device

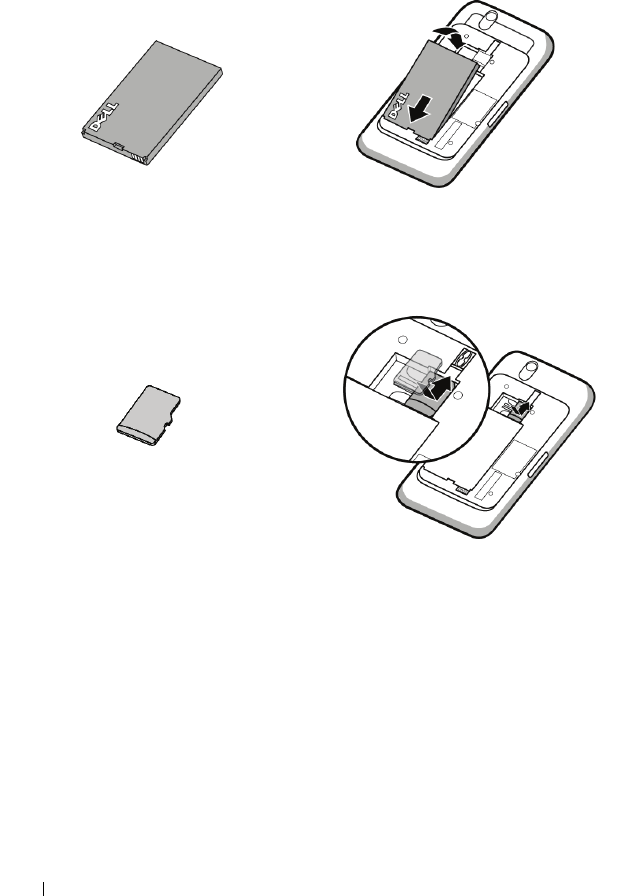

3
Insert the battery
4
Install the microSD card
Align the metal contacts on the battery with the contacts on the battery holder and
insert the battery.
a
Hold the microSD card with the
metal contacts facing down.
b
Slide the microSD card into the
microSD card holder.
Setting Up Your Mini 5 Device 13
5
Close the back cover
6
Charge the device
NOTE: Please charge the battery in an environmental temperature between 0 °C
and 45 °C.
a
Push the end of the back cover against
the groove near the bottom of the
device.
b
Place the cover onto the back of the
device, and then push the cover
towards the top of the device to secure
the cover in place.
.
The battery is not fully charged when first unpacked.
a
Connect the charger to the USB port on the device.
b
Connect the other end of the charger to a power outlet and charge the device till
the battery is fully charged.
NOTE: To charge your device using a
computer, connect the supplied USB
cable’s 30-pin connector to the
device’s USB port, and the cable’s
USB connector to a USB port on the
computer.
14 Setting Up Your Mini 5 Device
Turning On Your Device
NOTE: Please use this device in an environmental temperature between -10 °C and
55 °C.
1
Press and hold the Power button . The operating system starts up.
2
Touch the Menu button to unlock the screen if it is automatically
locked.
3
If your SIM card is locked by a Personal Identification Number (PIN), type
the PIN by touching the corresponding number keys using the on-screen
keypad. Touch the
OK
button to confirm your input.
4
The device is ready for use when the home screen is displayed.
Setting Up Your Google Account
After you turn on the phone for the first time, you are given the option to sign
in to your Google Account. You need to sign in to a Google account to use
Google applications and services such as Google Talk, Gmail, and Android
Market. Signing in to your Google account also synchronizes all e-mails and
contacts on your Google account with your device.
1
Touch the Android image in the center of the screen.
2
Touch the
Begin
button to view the tutorial about using the on-screen
keyboard and setting up a Google account; touch the
Skip
button to skip
the tutorial and proceed with the next step.
3
Touch the
Sign in
button. Enter your Google user name and password,
then touch the
Sign in
button.
NOTE: Signing in to your Google Account requires an Internet connection. Ensure
that your device has an active Wi-Fi or mobile data connection (GPRS, EDGE, 3G, or
HSPA) before you sign in. See
Connecting to the Web
for more information on how to
set up a data connection.
NOTE: Touch the Create button if you do not have a Google Account.
NOTE: Touch the Skip button if you prefer to set up your account at a later time and
start using the device. If you choose not to sign in to your Google Account, you will
not be able to use the services and applications that require signing in to your
Google account, such as Google Talk, Gmail, and Android Market.
Setting Up Your Mini 5 Device 15
NOTE: To find your current location using Google Maps, you need to select the first
option to let Google’s location service collect anonymous location data. You can
disable this feature at a later time by selecting Settings → Security & location →
Use wireless networks.
4
Touch the
Finish setup
button to complete setup.
Turning Off Your Device
1
Press and hold the Power button .
2
Touch the
Power off
option on the screen.
Turning Off the Screen
If both the device and the screen are on, press the Power button to turn
off the screen.
NOTE: If the device is on, but the screen is off, press the Power button to
turn on the screen.
16 Understanding Your Mini 5 Device
Understanding Your Mini 5 Device
Touch Screen
Your device has a multi-touch sensitive screen. You can touch the surface of
the screen with your fingers to operate the device.
Finger Gestures Tasks
Touch
Tap gently on the screen with your
fingertip.
• Select the items on the screen including
options, entries, images, and icons.
• Start applications.
• Press the buttons on the screen.
• Input text using the on-screen keyboard
or numeric keypad.
Understanding Your Mini 5 Device 17
Touch and hold
Touch and hold your finger on the screen.
• Make an on-screen item movable on the
Home screen.
• Touch and hold the Home button
to add Home screens.
•Touch and hold the Menu button to
open or close the on-screen keyboard.
Drag
1
Touch and hold your finger on an item
on the screen.
2
Keeping your finger in contact with the
screen, move your fingertip to the
desired location.
3
Take your finger off the screen to drop
the item in the desired location.
Move items such as images and icons on
the screen.
Finger Gestures Tasks
18 Understanding Your Mini 5 Device
Flick or swipe
Move your finger in a vertical or
horizontal direction on the screen.
Scroll through Home screens, web pages,
lists, entries, photo thumbnails, contacts,
and so on.
Zoom-out
Move two fingers close together on the
screen.
Reduce the view of an image or web page
(zoom out).
Finger Gestures Tasks
Understanding Your Mini 5 Device 19
Screen Orientation
For optimal viewing experience, the screen orientation changes automatically
to portrait or landscape depending on how you hold the device.
NOTE: To modify the default behavior, open the orientation settings by touching the
Home button → the Menu button → Settings → Sound & display →
Orientation.
Zoom-in
Move two fingers apart on the screen. Enlarge the view of an image or web page
(zoom in).
Finger Gestures Tasks
20 Understanding Your Mini 5 Device
Home Screen
The home screen displays widgets, folders, and shortcuts that provides easy
access to your favorite or frequently-used applications. You can also display
your favorite pictures as your Home screen wallpapers.
NOTE: Touch the Home screen button to return to the current home screen.
Multiple Home Screens
Your device supports additional Home screens to give you more space to
display widgets, shortcuts or folders.
NOTE: The dots in the Home status area of the
status bar indicate the total number of the Home screens. The colored dot indicates
which Home screen is being viewed.
To navigate across the Home screens
Flick the Home screens horizontally until the desired one is displayed.
To add a Home screen
1
Touch
in the Home status area or touch and
hold the Home button to view the thumbnail of the available Home
screens.
2
Touch the + icon to add a selected Home screen.
NOTE: Your device supports a maximum of six Home screens.
To delete a Home screen
1
Touch in the Home status area or touch and
hold the Home button to view the thumbnail of the available Home
screens.
2
Touch the icon on the top right corner of the Home screen that you
desire to delete. The
Delete Room
message box appears.
3
Touch the
Yes
button to confirm deletion.
NOTE: You cannot delete your last remaining Home screen.
Understanding Your Mini 5 Device 21
Customizing Your Home Screen
To add an item to a Home screen
1
Touch the Home button .
2
To access the
Add to Home screen
menu:
• Touch and hold an empty area on the home screen. The
Add to Home
screen
menu appears.
• Touch the Menu button and then touch the
Add
option. The
Add
to Home screen
menu appears.
22 Understanding Your Mini 5 Device
3
Touch the item you want to add on the Home screen:
Items Steps
Shortcuts
Add shortcuts for items that you wish to
access directly from the Home screen.
•
Applications
:
1
Scroll through the application menu to
locate the desired application.
2
Touch the desired application to create
the shortcut on the current Home
screen.
•
Bookmark
:
1
Flick through the
Bookmarks
list to
locate the desired bookmark.
2
Touch the desired bookmark to create
the shortcut on the current Home
screen.
•
Contacts
:
1
Flick through the Contacts entries to
locate the desired contact.
2
Touch the desired contact entry to
create the shortcut on the current
Home screen.
•
Direct Dial
:
Touch the desired phone number to
create the shortcut on the Home screen.
You can touch the shortcut to dial the
number directly.
•
Direct Message
:
Touch the desired phone number to
create the shortcut on the Home screen.
You can touch the shortcut to compose
and send a message to the number.
Understanding Your Mini 5 Device 23
Shortcuts
•
Gmail label
: Touch to create a desired
Gmail label shortcut so that you can
access your e-mails with that label from
the Home screen.
•
Settings
:
1
Scroll through the settings to locate the
desired one.
2
Touch the desired setting to create the
shortcut on the current Home screen,
where you can touch the shortcut to
access the setting.
Widgets
Add widgets to display active Home
screen windows or controls for your
favorite applications or web-based
services, such as
an analog clock, the music
player, the Google Quick Search Box, or a
calendar showing upcoming events
.
1
Flick through the available applications
or services to locate the desired one.
2
Touch the desired widget to add it on
the Home screen
.
Folders
You can create the following folders:
New folder: Add a folder where you can
store your Home screen shortcuts.
All contacts: Add a shortcut to all your
contacts stored in the Contacts
application.
Contacts with phone numbers: Add a
shortcut to the contacts with phone
numbers.
Starred contacts: Add a shortcut to the
contacts marked with a star.
Touch the desired folder to create one on
the Home screen.
Items Steps
24 Understanding Your Mini 5 Device
To add application shortcuts directly from the main application view or from
the favorites bar:
1
Touch the Application button on top of the screen to open the Favorites bar.
2
If the main applications menu is not displayed, touch the
More
icon on the right
end of the Favorites bar to open the main applications menu.
3
On the main applications view or the Favorites bar, drag a desired application onto the
current Home screen, then the application’s icon appears on the Home screen.
To move a Home screen item
1
Touch and hold the item you want to reposition until it magnifies and
becomes movable. The device vibrates to indicate that the item’s moving
mode is activated.
NOTE: To disable the item’s moving mode, touch the item again.
2
With your finger remaining in contact with the screen, drag the item to
another location on the screen.
Wallpapers
Change the wallpaper of your Home
screen.
NOTE: You can also touch the Home
button → the Menu button →
Wallpaper to change your Home
screen wallpaper.
•
Photos
: Select a picture stored on the
device as a wallpaper.
1
Flick the picture thumbnails
horizontally to locate the desired
picture.
2
Touch the picture to display it.
3
To cut a portion of the picture as the
wallpaper, move the crop frame and drag
the angles to locate the desired part.
4
Touch the check button to set the
wallpaper.
•
Wallpaper gallery
: Select a preinstalled
wallpaper.
1
Flick the wallpaper thumbnails
horizontally along the bottom of the
screen to locate the desired one.
2
Touch the wallpaper’s thumbnail.
3
Touch the
Set wallpaper
button.
Items Steps
Understanding Your Mini 5 Device 25
3
Release the item in the desired location.
To remove a Home screen item
1
Touch and hold an item such as a widget, shortcut, or folder that you want
to remove, until it magnifies and becomes movable.
2
Touch the Menu button and then touch
Remove from Home
.
To open a Home screen folder
1
Touch the folder to open a black panel representing the contents of the
folder.
2
Touch the desired application shortcut to run the application.
To close a Home screen folder
Touch the folder again to close the black panel.
To move a Home screen shortcut into a folder
1
Touch a Home screen folder to view the contents of the folder.
2
Touch and hold a shortcut to make it movable.
3
Drag the item over to the folder contents.
NOTE: You can also drag items directly into a folder without opening the folder.
NOTE: Widgets and folders cannot be moved inside a folder.
To remove a Home screen shortcut from a folder
1
Touch a Home screen folder to view the contents of the folder.
2
Touch and hold a shortcut to make it movable.
3
Drag the shortcut out of the folder to another location on the Home
screen.
To rename a folder
1
Touch and hold the folder until it magnifies.
2
Touch the Menu button and then touch
Rename Folder
.
3
Touch the Folder name input field to type the folder name using the on-
screen keyboard.
26 Understanding Your Mini 5 Device
4
To close the on-screen keyboard, touch the icon on the keyboard, or
touch and hold the Menu button .
5
Touch
OK
to confirm.
Status Bar
The status bar displays the application button, title area, date and time, and
status area.
1
Application button
Touch the application button
to display the
applications available on your device:
– The Favorites bar can be customized to display up
to seven preferred or frequently used applications.
– The main applications menu incorporates all of
the applications available on you device.
– Touch an application to run it.
NOTE: Touch the More
or Less
icon on
the right corner of the Favorites bar to set the option for
the application button to open only the Favorites bar, or
open both the Favorites bar and the main applications
menu.
2
Title area
Displays the name of the current application in use.
3
Notification area • The Notification area displays notification icons to
inform you of missed calls, new messages, e-mail,
and so on.
• Touch the Notification area to view the notifications
listed in arrival time order, and then touch a
notification to view the desired message, e-mail, or
missed call record.
1 2 3 4 5
Understanding Your Mini 5 Device 27
The status area may also display some of the following icons:
4
Status area • Displays status icons to show the current state of
your device, such as battery power, charging progress,
alarms set, network connections, and so on.
• Touch the status area to view the information
regarding the carrier currently in use, remaining
battery charge, and so on.
• Touch the status area to view the wireless control
menu. You can enable or disable the airplane mode,
wireless mode, or Bluetooth mode.
5
Date and time area
Displays the current date and time.
Alarm is set 3G data network is connected
Battery status, — 100% full 3G data network is in use
Battery is low and needs to be
charged
GPRS data network is connected
Battery is extremely low and needs
to be charged immediately
GPRS data network is in use
Battery is empty and needs to be
charged immediately
EDGE data network is connected
Battery is charging EDGE data network is in use
Vibrate mode is enabled HSPA data network is connected
Silent mode is enabled HSPA data network is in use
Signal strength, — strong Roaming signal strength, — strong
No signal Connected to a Wi-Fi network
28 Understanding Your Mini 5 Device
The notification area may also display some of the following icons:
Navigating the Applications
You can find applications available on your device in these screen elements:
Favorites Bar
You can customize the Favorites bar to include frequently used applications.
You can add up to seven applications in the favorites bar.
To add applications to the Favorites bar
1
Touch the application button on top of the screen to open the
Favorites bar.
2
If the main applications menu is not displayed, touch the
More
icon
on the right end of the Favorites bar to open the main applications menu.
Airplane mode is enabled No SIM card is inserted
Bluetooth is enabled Ongoing data synchronization
Connected to a new Bluetooth
device
If the GPS satellites function is
enabled, this icon appears when
you use Google Maps
Missed call New SMS/MMS
Call in progress New e-mail
Call on hold Upcoming calendar event
Call forwarding is enabled USB cable is connected
Microphone is on mute A Wi-Fi network is found
The SD card is safe to remove
Understanding Your Mini 5 Device 29
3
On the main applications menu, touch and hold the application that you
want to add to the Favorites bar.
4
Once the application becomes movable, drag and drop it on the Favorites
bar.
To remove applications from the Favorites bar
1
Touch the application button on top of the screen to open the
Favorites bar.
2
On the Favorites bar, touch and hold the application to remove.
3
Drag the application out of the Favorites bar.
Application Shortcuts
To quickly launch applications on the Home screen, you can add shortcut
icons for frequently-used applications to the Home screen or to the Home
screen folders you have created. For more information, see
Customizing Your
Home Screen
.
To open an application using the application shortcuts
1
Touch the Home button .
2
If the desired application shortcut displays on the Home screen, touch the
shortcut to run the application.
If the desired application is stored in a Home screen folder, touch the
folder to bring up the black panel to display the contents of the folder, and
then touch the desired application shortcut within the black panel.
Recent applications
To open a recently used application
1
Touch or touch and hold the Home button
to view the recently used applications.
NOTE: Recent applications are displayed below the thumbnail views of the Home
screens.
2
Touch the desired application on the bar to run the application.
30 Using Your Mini 5 Device
Using Your Mini 5 Device
Calling
Making Calls
To make calls, touch Phone on the Home screen to open
the
Phone
application
.
To make a call
1Touch to call a desired phone number or contact from the call log.
2Touch the typed number to make a call to the number.
3Type the number to call using the on-screen dialpad.
3
25
1
7
4
6
Using Your Mini 5 Device 31
To cancel dialing
Touch
on the Dialing screen to cancel a dialed call.
To manage and redial missed, dialed, and received calls
On the Phone screen, scroll the call log to locate a call displayed either as a
phone number or as a contact’s name. You can choose to do the following
with the call:
• Touch to call the number or contact.
• Touch the name or number to view the call’s details displayed at the top of
the options menu.
You can choose to call back, send a text or multimedia message to the
caller, add the number as a contact to your Contacts list, or view the
contact’s details if the caller is already a contact saved in your Contacts
list.
• Touch and hold the name or number for more options, such as erase the
call from the call log.
• To erase all calls from the call log, touch the Menu button
→
Clear call
log
.
To answer a call
Touch
on the Incoming call screen to answer an incoming call.
4Touch to call the typed number.
5Touch to clear an incorrect number.
6Touch a call record to view the call information, call or send a message to the
caller, or save or view the caller in Contacts. See
Managing Contacts
for
information about using Contacts.
7Touch to select a contact to call from Contacts. For more information, see
To
call, e-mail, or send a message to a contact from your Contacts list
.
32 Using Your Mini 5 Device
To end or reject a call
Touch on the Dialing screen to end an active call; touch
on the Incoming call screen to reject an incoming call.
NOTE: Touching the Menu button → End call also ends a call.
To make an international call
1
Touch and hold the number 0 key on the dialpad until + appears.
2
Enter the country code, area code, and phone number.
3
Touch the displayed phone number to make a call.
To listen to your voicemail
Touch and hold the number 1 key on the dialpad to call your voicemail box.
NOTE: If no voicemail number is stored on your SIM card, you will be asked to
create one. Touch Add number to enter and save your voicemail number.
Manage Your Calls
To hold an active call
Touch to hold a call in progress. When a call is being held, the on
hold icon appears in the status bar. To resume a held call, touch .
To mute the microphone during a call
Touch to turn the microphone on or off. The mute icon
appears in the status bar when the microphone is muted.
Using Your Mini 5 Device 33
To use the speakerphone during a call
WARNING: Ensure that you turn off the speakerphone before you hold the device
close to your ear as this could damage your hearing.
Touch to turn the speakerphone on or off.
To accept calls using a Bluetooth headset
When a Bluetooth headset is connected to your device, you can accept calls
on the Bluetooth headset by touching . For details on how to connect
a Bluetooth headset to your device, see
Bluetooth®
.
To accept a waiting call
If there is an incoming call while you are on another call, the device notifies
you with a call waiting tone. The phone number or name of the waiting call is
displayed.
• Touch or
touch the Menu button
→
Hold current call &
answer
to accept the waiting call and put the active call on hold.
• To end the first call and take the waiting call,
touch the Menu button
→
End current call & answer
.
To dial another call during an active call
• Touch the Menu button
→
Add call
. Make the call (see To make a
call). The first call is placed on hold automatically.
• Drag upward to reveal the full dialpad, and type the
number using the dialpad. Touch to call the typed
number.
To swap between active and held calls
Touch
the Menu button
→ Swap calls to swap between two calls.
34 Using Your Mini 5 Device
To conduct a conference call
1
During a call, touch the Menu button
→
Add call
.
2
Make the second call that you want to add to the conference call. The first
call is automatically placed on hold.
3
When the second call is connected, touch the Menu button
→
Merge
calls
to start the conference call.
4
To add more participants to the conference call, repeat step 1 to step 4.
5
During a conference call,
touch
the Menu button
→
Manage
conference call
to manage call participants:
• Touch to drop a selected participant from the conference.
• Touch to talk to a selected participant in private and place the other
participants on hold.
•Touch
Back to call
to rejoin the remaining call participants.
NOTE: To end a conference call and disconnect all participants, touch
.
Adjust Call Settings
You can change call settings to suit your personal needs, or enable the call
services available from your network service provider.
Touch the Home button
→
the Menu button
→ Settings → Call
settings.
Fixed Dialing Numbers
(FDN)
Restricts outgoing calls to the phone numbers on the FDN
list. To enable this service, you need to enter your SIM
card’s PIN2 that you can obtain from your network service
provider.
Voicemail Stores another voicemail number other than the one
already on your SIM card.
Using Your Mini 5 Device 35
Additional call settings
•
Call forwarding
: Diverts incoming calls to a designated
phone number when your device is busy, unreachable, or
does not answer.
To enable call forwarding, enter the number to divert to
or touch
to select a contact from your Contacts list.
Then touch
Enable
.
NOTE: Your network service provider must support
the call forwarding service.
•
Call barring
: Blocks certain types of incoming or
outgoing calls.
•
Caller ID
: Shows the caller id or number on the display
based on the setting.
NOTE: Your network service provider must support
this service.
•
Call waiting
: Alerts an incoming call with a call waiting
tone or message when you are on another call.
NOTE: To use call waiting, you may need to register
this service with your service provider.
•
Auto Answer
: Sets how long your device waits before
automatically answering an incoming call.
Teletypewriter (TTY)
mode
Enable this mode to let the user with speech or hearing
disabilities conduct phone conversations by typing.
Hearing Aid Compatible
(HAC) mode
Enable this mode to minimize interference from the
device with the user’s hearing aid, and optimize audio
output for the hearing aid.
NOTE: Enabling the HAC mode will disable the
Bluetooth and WiFi transmitter functions.
36 Using Your Mini 5 Device
Messaging
To compose, send, and read text (SMS) or multimedia (MMS) messages,
touch
→
Messaging. The messaging screen opens with a list of
messages or message threads representing all the received, sent and draft
messages.
NOTE: For information about the message thread, see
Receiving text and
multimedia messages
.
To compose and send a text message
1
On the messaging screen, touch the
New message
thread. The composer
screen opens.
2
In the
To
field, type the mobile phone number or the contact name of the
recipient. As you type a phone number or contact name, matching
contacts with their mobile numbers appear below the
To
field. Touch a
matched contact to enter the contact’s mobile number, or continue typing
the desired phone number.
3
Repeat step 2 to enter more mobile numbers if you wish to send the
message to multiple mobile phone users.
4
You can add a subject line to the message by touching
the Menu button
→
Add subject
.
5
Touch the
Type to compose
text field to start composing your message.
6
Touch the
Send
button to send the text message.
7
To start a text conversation similar to online instant messaging, you can
continue to compose and send messages to the same recipient(s). All of
the sent and received messages between you and recipient(s) appear in the
form of chat logs.
Using Your Mini 5 Device 37
To compose and send a multimedia message
1
In the
To
field, type the recipient’s mobile phone number, e-mail address,
or contact name. Matching contacts with their mobile numbers or e-mail
addresses appear below the
To
field. Touch a matched contact, or continue
manually typing the desired phone number or e-mail address.
2
Repeat step 1 to enter more mobile numbers if you wish to send the
message to multiple mobile phone users.
3
You can add a subject line to the message by touching
the Menu button
→
Add subject
.
4
Touch the
Ty p e t o c o m p o s e
text field to start composing your message.
5
While editing your message, you can touch the Menu button
→
Attach
to insert media items into the message (see below).
6
When you have completed editing the multimedia message, touch the
Send
button to send the message.
You can attach any of the following items to a multimedia message:
Picture Open the Photos & Videos application and touch a
picture file to attach it to your message.
Capture picture Open the Camera application to take a picture, then
attach it to your message. For details about the
Camera application, see
Camera
.
Video
Open the
Photos & Videos
application
and
touch a
video clip
to attach it to your message.
Capture video Open the Camera application to take a video clip,
then attach it to your message. For more information
about the Camcorder application, see
Camera
.
38 Using Your Mini 5 Device
Audio Open the Select audio menu. Touch a desired audio
file, and then touch OK to attach the file to your
message.
NOTE: To attach an audio file stored on the SD
card to MMS:
1
Create a folder named Ringtones in the SD card.
2
Open the Ringtones folder.
3
Copy the audio file you want to attach to MMS into
the Ringtones folder.
4
On the MMS composer screen, touch the Menu key
>Attach >Audio.
5
Select the audio file to attach it to the MMS.
Record audio Open the Sound Recorder application to record an
audio clip.
•Touch
to start recording.
•Touch
to stop recording.
•Touch
to listen to the recording.
•Touch
Use this recording
to attach the recording to
your message.
Using Your Mini 5 Device 39
Slideshow Open the Edit slideshow screen to create a slide show
and attach it to your message.
1
Touch
Add slide
to create new slides.
2
Touch a created slide such as
Slide 1
to open the
slideshow editor screen.
3
Touch
Add picture
, and then select the picture you
want to add to the slide.
4You can touch the text field on the lower part of
the screen to compose a caption for the displayed
slide
.
5
Touch the Menu button to preview the slide,
remove the picture, add a music to the current slide,
add a new slide, or change the slide duration or the
text and picture layout.
6
When editing multiple slides, touch to edit
the next slide; touch to return to the previous
slide.
NOTE: You can create a slideshow of up to ten
slides.
7
To replace a picture, on the slideshow editor screen,
touch the
Replace picture
button and select a new
one to replace. To remove the current slide, touch
the
Remove Slide
button. To preview the slideshow,
touch the
Preview
button.
8
When complete, touch the
Done
button at the
bottom right to attach the slideshow to your
message.
9
On the message composer screen, touch the
slideshow attachment icon to playback the
slide show; touch
Edit
to modify the slideshow.
10
To remove the slideshow attachment from your
message, touch
Edit
→
the Menu button
→
Discard slideshow
.
40 Using Your Mini 5 Device
Receiving text and multimedia messages
Depending on your notification settings, the device rings, vibrates, or displays
a message briefly in the status bar as a new text or multimedia message
arrives.
A new message icon then appears and stays in the notifications area of
the status bar to remind you of a new message.
NOTE: To alter notification settings for new messages, in the Messaging
application touch the Menu button → Settings → Notifications. You can then
decide whether to receive a text notification in the status bar when a new message
arrives, select a ringtone that rings with the arrival of a new message, or let the
device vibrate to report a new message.
Text and multimedia messages that are sent to and received from the same
contact or a number are grouped into message threads similar to text
conversations of an online chat. You can see all of the messages exchanged
between you and the contact. Message threads are listed according to when
they are sent or received, with the latest one at the top.
To read a text message
• Touch the notification area on the status bar where the new message icon
is displayed. A list of notifications opens. Touch a new message
notification to open and read the message.
•
Touch
→
Messaging to open
the message list, and then touch a
text message or message thread to open and read it.
If the message contains:
• Web site—touch the link to open the
Browser
application and visit the
web site.
• Phone number—touch the number to open the
Phone
application and call
the number.
• E-mail address—touch the e-mail address to open the
Email
application
and compose an e-mail to send to the address.
Using Your Mini 5 Device 41
To forward the message
1
Touch and hold the message. The
Message options
menu pops up.
2
Select
Forward
to forward the message.
To view a multimedia message
1
Touch the notification area on the status bar where the new message icon
is displayed. A list of notifications opens. Touch a new message
notification to open the message.
Or
Touch
→
Messaging to open
the message list, and then touch
a multimedia message or message thread to open the message.
2
Touch the thumbnail of the attached picture to display the picture; touch
the
Play
button to play back the attached video.
NOTE: Touch the Download button, to manually download the media file in the
message.
NOTE: To save the attached media item to your microSD card, touch and hold the
message and the Message options menu pops open. Touch Copy attached to SD
card.
To reply to a text or multimedia message
1
Touch a message or message thread to open it.
2
Type your reply message into the text field.
3
Touch
Send
to send your message to the sender.
To delete a message or a message thread
1
In the messaging list, touch and hold the message thread that you want to
delete.
2
To delete the entire thread, touch
Delete thread
and then touch
OK
to
confirm deletion.
To delete a message within a thread, touch and hold the message to delete,
and then touch
Delete message
on the Message options menu. Touch
OK
to confirm deletion.
42 Using Your Mini 5 Device
NOTE: To delete all messages on the message list, touch the Menu button →
Delete threads.
To edit message settings
In the message list, touch the Menu button →
Settings to change the text
or multimedia message settings. Follow the instructions on the screen.
Pop-Up Menu
Touch the
Menu button
to open or close the pop-up menu that lists
available options for the current application, or actions that you can perform
on the current screen.
To select an option or item on the pop-up menu
1
Touch the Menu button to open the pop-up menu.
2
Touch the desired item on the pop-up menu.
3
If the menu has a scroll bar on the right side, you can flick the menu until
the desired item is found.
4
Touch the Menu button again to close the pop-up menu.
On-Screen Keyboard
You can type text using the on-screen keyboard. When you start an
application or touch a field that requires text input, the on-screen keyboard
opens. The keyboard automatically rotates to either the portrait or landscape
mode based on the device orientation.
To close the keyboard, touch the icon on the keyboard, or touch and hold
the Menu button .
To display the keyboard again,
• Touch and hold the Menu button .
•Touch a text field.
Using Your Mini 5 Device 43
Keyboard controls
1
• Touch to type letters into the field where the cursor appears.
• Touch and hold to type accented letters for applicable languages.
2
• Based on the letters being typed, the keyboard shows suggested words along
the top, the most probable one highlighted in color.
• You can touch a suggested word to enter it into the text field.
3Touch to see more suggested words.
4
• Touch to show the uppercase keyboard for typing an uppercase letter.
• Touch to change back to the lowercase keyboard.
5
•Touch
to move the cursor to the left; touch
to move the cursor to
the right.
6
• Touch to show the symbol keyboard for typing punctuation marks and symbols
other than the period.
• Touch to switch back to the alphabet keyboard.
7
• Touch to type the smiley ":-)".
• Touch and hold to see more emoticons available for typing.
8
• Touch to delete a typed character, symbol, or a space.
• Touch and hold to quickly delete typed text.
1
23
6 7 8
4
5
44 Using Your Mini 5 Device
To configure the keyboard settings
1
Touch the Home button
→
the Menu button
→
Settings
→
Locale
& text
→
Android keyboard
, or
touch the Application button
→
the
Settings
icon
→
Locale &
text
→
Android keyboard
.
2
To enable a setting, touch the setting option to select the check box ;
to disable a setting, touch the setting option to clear the check box .
Available keyboard settings
Create your personal dictionary
The keyboard uses the default dictionary to display suggested words as you
type. You can create a personal dictionary to include words not found in the
main dictionary. The keyboard will also look at the words that are added to
your personal dictionary to make word suggestions.
To add a word to the dictionary
1
Touch the Home button
→
the Menu button
→
Settings
→
Locale
& text
→
User dictionary
, or
touch the Application button
→
the
Settings
icon
→
Locale &
text
→
User dictionary
.
2
Touch the Menu button
→
Add
.
Vibrate on keypress The device vibrates when you touch a key.
Sound on keypress The device beeps when you touch a key.
Auto-capitalization The first letter of the word in a new sentence is
capitalized.
Show suggestions Show suggested words as you type.
Quick fixes Mark and correct wrong spellings and typos.
Auto-complete A space or a proper punctuation mark is automatically
inserted after a typed word.
Using Your Mini 5 Device 45
3
Type a desired word into the
Add to dictionary
text field.
4
Touch
OK
.
To edit a word in the dictionary
1
Touch Home button
→
the Menu button
→
Settings
→
Locale &
text
→
User dictionary
, or
touch the Application button
→
the
Settings
icon
→
Locale &
text
→
User dictionary
.
2
Touch a desired word.
3
Touch
Edit
.
4
Edit the spelling of the word in the
Edit word
text field.
5
Touch
OK
.
To delete a word from the dictionary
1
Touch Home button
→
the Menu button
→
Settings
→
Locale &
text
→
User dictionary
, or
touch the Application button
→
Settings
icon
→
Locale & text
→
User dictionary
.
2
Touch the word to delete.
3
Touch
Delete
.
46 Using Your Mini 5 Device
Widgets
NOTE: To use applications, you need to create their widgets on the Home screen of
your device, and have a data network connection to be able to connect to the web.
For information on configuring the web see
Connecting to the Web
. For information
on adding widgets to the Home screen see
Customizing Your Home Screen
.
Google Search
You can use the Google Quick Search Box to find websites and information
on Google, or access applications installed on your device.
To search by typing
1
On the Home screen of your device, touch the
Google Quick Search Box
.
The on-screen keyboard opens.
2
Type a keyword or full name into the box using the keyboard. As you are
typing, the search results that fully or partially match the text being typed
appear below the search box.
3
Scroll the listed search results and touch to select a desired one. If you only
want to view matching web links on Google, either touch the
Search
key
on the keyboard or the search icon on the search box.
4
The matching application or the browser with matching web links opens.
5
Touch a desired link if you want to view a web page.
To search by voice
1
Touch on the right corner of the search box.
2
Say the fully name or keyword of the item you are looking for.
3
The browser with matching web links opens.
Using Your Mini 5 Device 47
RSS
Real Simple Syndication (RSS) is a web format for website owners to publish
RSS feeds—full or summarized texts of frequently updated web contents
such as blog entries and news headlines.
After you subscribe to an RSS feed, you will receive an update once the RSS
publisher releases new content. You can then use your device’s RSS reader to
read RSS feeds that you have subscribed to.
To subscribe to RSS feeds
Enter a RSS feed URL into the RSS reader:
1
On the RSS Feed Widget, touch
Configure
.
2
Type your RSS feed’s URL and touch
Set
.
To read RSS feeds
Touch the RSS feed widget to open the RSS reader. A list of RSS channels
appears. Touch a channel to read the RSS feeds inside.
Your device’s RSS reader checks your subscribed feeds regularly and
downloads updates that it finds from those feeds.
NOTE: Some RSS publishers may require a payment for downloading RSS feeds.
Facebook
Facebook is a social networking website where you can post your personal
profile, find and contact your friends, classmates or work associates, and
exchange messages with them.
1
On the Home screen of your device, touch the
Sign in
button at the top
right of the Facebook widget.
2
To use Facebook, you need to create a Facebook account if you do not have
one. Touch the
Sign Up
button and follow the instructions to proceed.
3
To sign in to Facebook, type your e-mail and password and touch
Login
.
NOTE: For information on using Facebook, visit facebook.com/help.
48 Using Your Mini 5 Device
Twitter
Twitter is a social networking service application that allows you to keep in
touch with people on the web by posting simple questions and answers.
1
On the Home screen of your device, touch the
Sign in
button at the top
right of the
Twitter
widget.
2
To use
Twi t t e r
, you need to create a
Twitter
account if you do not have
one. Touch the
Get started
button and follow the instructions to proceed.
3
To sign in to
Twitter
, type your user name or e-mail address and your
password, and then touch
Sign in
.
NOTE: For information on how to use Twitter, visit Twitter.com/Help.
Managing Contacts
To view and manage your contacts, touch the Application button
→
Contacts.
NOTE: If you have signed in to your Google account and have selected Auto-sync
and Contacts from: Home button → the Menu button → Settings →
Data
synchronization, your Google contacts will be automatically added to your Contacts
list.
To add a new contact
1
Touch the Menu button
→
New contact
.
2
Enter the contact information using the on-screen keyboard. Scroll the
screen to find more items to fill.
3
When you have entered all the required information, touch either the
Save
button on the upper right or touch the Menu button
→
Save
to save
the contact.
Using Your Mini 5 Device 49
While entering the contact details, you can:
To view your contacts
1
To locate a contact:
• Flick the contact list until you find the contact.
• Touch an alphabet displayed on the top that matches the first letter of
the contact’s first or last name. The screen then displays the contacts
whose first or last names starts with the selected alphabet.
1Touch and select a photo from
Photos & Videos
to use as the contact’s visual
caller ID.
2Touch to replace a default information label with another one that you choose
from the Select label list, for example from Mobile phone number to Home
phone number. To create a new information label for the current item, you can
flick down to the end of the Select label list and touch Custom.
3Touch to remove an item from the current information category.
4Touch to select a ringtone for the contact’s incoming calls.
5Touch to add a new item to the current information category, for example a
second phone number.
6Touch to save the new contact to your Contacts list.
7Touch to star the contact as a favorite.
3
2
6
1
5
4
7
50 Using Your Mini 5 Device
•Touch the
Search
button at the upper right of the screen, and then
type either the contact’s full name or only the first letters of it into the
Search For
text field. The screen then displays the matching contacts.
• Touch the contact group tab on the upper left of the screen, and then
touch the desired group,
Family
, for example. The screen shows the
contacts within that group.
2
Once the contact is located, touch the contact’s entry to view the contact’s
details.
To call, e-mail, or send a message to a contact from your Contacts list
1
Locate the desired contact’s entry on the contact list.
2
Select the action you want to do by touching a corresponding icon:
• To call the contact, touch .
• To send text or multimedia message to the contact, touch .
• To e-mail the contact, touch .
• To start an instant messaging chat with the contact, such as on Google
Talk, touch .
3
If the contact has multiple phone numbers, e-mail addresses or instant
messaging accounts, and you want to find out which one to use:
a
Touch the contact’s entry to open the contact information screen.
b
Touch a corresponding icon that immediately follows the desired
phone number, e-mail address or instant messaging account.
NOTE: For information about composing and sending SMS and MMS, see
Messaging
. To find out how to start an instant messaging chat on Google Talk, see
Google Talk
. For information about using the e-mail applications, see
Gmail
and
E-
mail
.
Using Your Mini 5 Device 51
To add contacts from your SIM card
You can copy contacts saved on your SIM card to your device’s Contacts.
1
In the contact list, touch the Menu button
→
Import contacts
.
2
Touch the contact to add to the device, or touch the Menu button
→
Import all
to copy all the contacts to the device.
Managing Your Device Settings
To check storage spaces
Touch the Home button
→
the Menu button
→
Settings
→
SD card &
device storage.
The screen displays total and available spaces on the device
and on the microSD card.
To erase unwanted application data to free storage space
1
Touch the Home button
→
the Menu button
→
Settings
→
Applications
→
Manage applications
.
2
From the Manage applications list, touch the application whose cache or
data you want to remove.
3
In the Application info screen, touch
Clear data
under
Storage
to erase
unwanted application data; touch
Clear cache
under
Cache
to erase
unwanted cache.
To format the microSD card
1
Touch the Home button
→
the Menu button
→
Settings
→
SD
card & device storage.
2
Touch
Unmount SD card
to enable the
Format SD card
option.
CAUTION: Formatting a microSD card erases all data and downloaded
applications store on it. Ensure that you back up the data that you need before
formatting your microSD card.
3
Touch
Format SD card
→
the
Format SD card
button.
52 Using Your Mini 5 Device
To erase all data from your device
CAUTION: The following steps will erase all the data including your Google
account and downloaded applications from your device. Ensure that you back up
all the required data before you do this.
1
Touch the Home button
→
the Menu button
→
Settings
→
Privacy
→
Factory data reset
.
2
Touch
Reset device
.
NOTE: You need to draw your screen unlock pattern if it is enabled.
3
Touch
Erase everything
after you read the warning.
To reset your device to the default state
CAUTION: The following steps will restore your device to the default state and
erase all data and downloaded applications stored on it. Ensure that you back up
all the required data before you reset the device.
1
Press and hold the power button and then touch the
Power off
option on the screen to turn off the device.
2
Simultaneously press and hold the volume up button and volume
down button .
3
Without releasing the volume buttons, press and hold the power button,
until the device turns on with the configuration screen.
4
Press the volume buttons to move the yellow bar on the screen to the
Factory reset
option.
5
Touch the Camera button to start the reset process.
6
Wait for the device to reboot.
To upgrade the software version on your device
1
Follow steps 1 to 3 in To reset your device to the default state to turn on
the configuration screen.
2
Press the volume buttons to move the yellow bar on the screen to the
Software upgrade from Update.zip
option.
3
Touch the Camera button to confirm the action.
Web 53
Web
Connecting to the Web
To browse the web and access web-based utilities such as instant messaging,
one of these data networking connections must be available:
•GPRS
•EDGE
•3G
•HSPA
•Wi-Fi
GPRS/EDGE/3G/HSPA
To connect to the web using GPRS, EDGE, 3G, or HSPA
Your device is configured with GPRS, EDGE, 3G, or HSPA network available
with the service provider of the SIM card installed in your device. However,
this is only limited to voice calling and text messaging. If a Wi-Fi connection
is currently available, the device automatically uses the Wi-Fi connection to
access the web. The web connection through GPRS, EDGE, 3G, or HSPA
becomes temporarily inactive, until the Wi-Fi connection ends.
If you wish to connect to the web using a GPRS, EDGE, 3G, or HSPA data
network:
1
Touch the Home button
→
the Menu button
→
Settings
→
Wireless controls
, then touch
Wi-Fi
to disable it.
2
Touch the Home button
→
the Menu button
→
Settings
→
Wireless controls
→
Mobile networks
, then touch
Data connection
to
enable it.
NOTE: Depending on whether a GPRS, EDGE, 3G, or HSPA network is currently in
use, a corresponding data network icon appears on the status bar after a data
connection is established. See
Status Bar
on
page 27
for a mapping of the data
network icons.
54 Web
You can set the device to search for available networks if you are outside your
home network or want to register to a different network.
To manually select a new network
1
Touch the Home button
→
the Menu button
→
Settings
→
Wireless controls
→
Mobile networks
→
Network operators
→
Search
networks
. The list of networks currently available is displayed.
2
Select a network manually from the network list.
To automatically select a new network
Touch the
Home button → the Menu button → Settings → Wireless
controls → Mobile networks → Network operators → Select automatically.
Wi-Fi
You can connect your device to the Internet using Wi-Fi.
To use Wi-Fi on your device, you need access to a wireless point or "hotspot"
within a distance of up to 300 feet (100 meters).
NOTE: The range and quality of the Wi-Fi signal is affected by the number of
connected devices, infrastructure, and objects through which the signal passes.
To turn on Wi-Fi and connect to a network
1
Touch
the
Home button
→
the Menu button
→
Settings
→
Wireless controls
→
Wi-Fi
to select the Wi-Fi check box. The device scans
for available wireless networks.
2
Touch
Wi-Fi settings
. The network names and security settings (
Open
network
or
Secured with WEP
) of discovered Wi-Fi networks display in
the
Wi-Fi networks
list.
3
Flick the list and touch to select a Wi-Fi network to connect to.
4
Touch
Connect
to confirm connection.
NOTE: To connect a network protected by Wired Equivalent Privacy (WEP), you
need to enter the WEP security key to obtain authorized access to the network. The
next time your device connects to a previously accessed secured wireless
network, you will not be asked to enter the WEP key again, unless you reset your
device to its factory default settings.
Web 55
NOTE: Your device has the ability to maintain a constant web connection through
Wi-Fi or mobile networks (GPRS,EDGE,3G, or HSPA). However, Wi-Fi connection
has priority over mobile network connection if both are available.
To check the current Wi-Fi network connection
From the status bar:
When your device is connected to a wireless network, the Wi-Fi icon
appears in the status bar to indicate the signal strength (number of bands
that light up). If Wi-Fi settings → Network notification is enabled, this icon
appears in the status bar as the device discovers an accessible Wi-Fi
network within range.
From the Wi-Fi network:
1
Touch the Home button
→
the Menu button
→
Settings
→
Wireless controls
→
Wi-Fi settings
.
2
Touch the Wi-Fi network that the device is currently connected to
(labeled
Connected
). A window opens displaying the Wi-Fi network’s
name, status, speed, signal strength, security info, and IP address.
NOTE: If you want to disconnect the Wi-Fi network from your device, touch Forget
on this window. You will need to configure the Wi-Fi settings again if you want to
restore connection to this wireless network.
To connect to another Wi-Fi network
1
Touch the Home button
→
the Menu button
→
Settings
→
Wireless controls
→
Wi-Fi settings
. Detected Wi-Fi networks are
displayed in the
Wi-Fi networks
list.
NOTE: To start a new search for available Wi-Fi networks, on the Wi-Fi settings
screen, touch the Menu button → Scan.
2
Touch another Wi-Fi network to connect to it.
NOTE: If the wireless network you want to connect to is not in the list of detected
networks, flick to the bottom of the list to touch Add Wi-Fi network. Enter the Wi-Fi
network settings, and then touch Save.
56 Web
Disable all Connections Using the Airplane Mode
Selecting the Airplane mode disables all mobile and Wi-Fi connections. This
feature is useful when wireless connectivity is strictly prohibited, such as on
an airplane.
Touch the
Home button → the Menu button →
Settings
→
Wireless
controls
→
Airplane mode to enable or disable the Airplane mode.
Browsing the Web
To open the browser
Touch Browser .
To use the browser controls bar
To go to a web page
1
On the browser screen,
• Touch the web page address field on the upper part of the screen.
• Touch the Menu button
→
Go
.
2
Type the web page address with the on-screen keyboard. As you type the
address, matching web page addresses appear.
1Touch to view the previous page.
2Touch to view the next page.
3Touch the web page address field and type the address of the web page you
want to go to.
4Touch to refresh the current page.
5Touch to show bookmarks or add the current web page to the bookmark list.
1 2 3 4 5
Web 57
3
Touch an address displayed on the screen to go directly to that web page,
or complete typing the web page address, then touch
Go
.
To set up your home page
1
Touch the Menu button
→
Settings
→
Set home page
.
2
Enter the web address of the web site you want to use as your home page
and then touch
OK
.
Viewing Web Pages
To navigate on a web page
Flick your finger horizontally or vertically on the screen to scroll and view
desired areas of a web page.
To zoom in on a web page
Pinch-out a desired area of a web page by moving two fingers apart on the
screen.
To zoom out on a web page
Pinch-in a desired area of a web page by bringing two fingers closer together
on the screen.
To open a new window
• If there is only one active window, touch the Menu button
→
New
window
. A new browser window opens and leads you to the home page.
• If there are several active windows:
1
Touch the Menu button
→
Window overview
. The
Current windows
screen opens to display multiple browser windows in a smaller view.
2
Flick to the
New window
browser window and then touch it. A new
browser window opens and takes you to the home page.
58 Web
To switch between browser windows
You can open multiple browser windows to easily switch from one web page to
another.
1
On a browser window, touch the Menu button
→
Window overview
.
The
Current windows
screen opens to display multiple browser windows
in a smaller view.
2
Touch a browser window with the web page you want to view. The window
is then displayed in full screen.
3
To close a browser window, touch
on the browser window you want to
close.
To find text within a web page
1
When viewing a web page, touch the Menu button
→
Find on page
.
2
Type the search item into the search bar.
3
Touch the left or right arrow to go to the previous or next matching item.
NOTE: Touch to close the search bar.
To copy text on a web page
You can copy and paste text from a web page to your e-mail, text, or
multimedia messages.
1
Go to the web page from where you want copy the text.
2
Locate the text you want to copy and then touch the Menu button
→
Select text
.
3
Position your finger at the start of the text you want to copy and then drag
to the end of the text you want to copy. The copied text is highlighted in
pink.
4
Release your finger from the screen.
5
To paste text on an e-mail, text, or multimedia message, touch and hold
the text field on a message or e-mail screen and then touch
Paste
on the
pop menu.
Web 59
Using Web Links, History, and Downloads
To select a link on a web page
Move to a link you want on a web page. The link is framed by an orange box
when you touch it.
To check the history of visited web pages
1
On the browser screen, touch or touch the Menu button
→
Bookmarks
.
2
Touch the
History
tab.
3
Touch the day when your desired web page was last visited.
4
Touch a web address to open the web page.
NOTE: To check your most visited web pages, touch the Most visited tab.
Link type Functionality
Web page address
• Touch the link to open the web page.
• Touch and hold the link to open a pop-up menu that
allows you to open, bookmark, save, copy to the
clipboard, or share the link through text messaging.
E-mail address
• Touch to send an e-mail to the e-mail address.
• Touch and hold till a pop-up menu appears. Touch
Copy
to copy the e-mail address to the clipboard.
You can paste the e-mail address later to a new
contact or while composing a new e-mail.
Phone number Touch to open the Phone application to call the
phone number.
NOTE: You can call a number from the web page
only if the feature is supported by your service
provider.
60 Web
To allow download of web applications
CAUTION: Applications downloaded from the web can be from unknown
sources. To protect your device and personal data, download applications only
from trusted sources such as Android Market.
To download web applications, enable your device’s downloading feature.
1
Touch the Home button
→
the Menu button
→
Settings
→
Applications
.
2
Touch
Unknown sources
to select the check box.
3
When the
Attention
dialog box opens, touch
OK
.
NOTE: All downloaded applications are saved to the microSD card. Before you
download an application from the web, ensure that you have installed a microSD
card on your device. For information on how to install a microSD card, see
Install
the microSD card
.
To install an application
1
On the browser screen, touch the application you want to download.
2
The application details screen opens. Read details about the application,
such as its cost, overall rating, comments by users, the developer contact
info, and more.
3
To install the application, select either
Install
if item is free or
Buy
if it
requires purchase.
To check downloads
On the browser screen, touch the Menu button →
Downloads.
Manage Bookmarks
You can store as many bookmarks as you want on your device.
To bookmark a web page
1
On the browser screen, go to the web page you want to bookmark.
2
Touch or touch the Menu button
→
Bookmarks
. The
Bookmarks
window opens.
3
On the
Bookmarks
tab, touch
Add bookmark...
.
Web 61
4
Enter the bookmark name or edit the web address as needed.
5
Touch
OK
to save the web page as a bookmark.
To open a bookmark
1
On the browser screen, touch or touch the Menu button
→
Bookmarks
. The
Bookmarks
window opens.
2
On the
Bookmarks
window:
• Touch the bookmark you want to open in the same browser window.
• Touch and hold the bookmark you want to open, then on the pop-up
menu touch
Open
to open the book mark in the same browser window, or
Open in new window
to open the bookmark on a new window.
To manage your bookmarks
1
On the browser window, touch or touch the Menu button
→
Bookmarks
.
2
On the
Bookmarks
window, touch and hold a desired bookmark to open a
pop-up menu that provides the following options:
To configure browser settings
On the browser screen, touch
the Menu button
→ Settings to adjust the
browser settings.
Edit bookmark Touch to open the Edit bookmark window. Enter the
bookmark’s name and address and touch OK.
Add shortcut to Home Touch to create the bookmark’s shortcut on the current
Home screen. Then you can touch the shortcut on the
Home screen to start the Browser and go directly to the
bookmarked page.
Share link Touch to open the message composer with the bookmark’s
address automatically pasted on the text field. Then send
the bookmark’s address to others with a text message.
Delete bookmark Touch to delete the selected bookmark.
62 Web
E-mail
You can create POP3, IMAP, and exchange e-mail accounts from web-based e-
mail services on your device.
To open the e-mail application
Touch the Application button →
Email
.
To set up an e-mail account
1
On the
Accounts
screen, touch
Next
.
2
Type the e-mail address and password of the e-mail account you want to
add and then touch
Next
.
NOTE: If the e-mail account you want to set up is not in the device e-mail database,
you will be asked to manually enter the e-mail account settings, including the e-mail
server, protocol, and so on after touching Next.
NOTE: Touch Manual setup rather than Next to directly enter incoming and
outgoing settings for the account being set up.
3
Enter the name for the account and the name you want displayed in
outgoing e-mails and then touch
Done
.
After creating one e-mail account, touch the Menu button → Add account
if you need to create another e-mail account.
To compose and send e-mails
1
Touch the Application button
→
Email
.
2
In an e-mail account inbox, touch the Menu button
→
Compose
.
3
Type the recipient’s e-mail address in the
To
field. As you type
information, matching contacts appear on the screen. Touch the recipient
to automatically add the e-mail address, or continue entering the e-mail
address manually. If you are sending the e-mail to multiple recipients,
separate their e-mail addresses with a comma. You can add as many
recipients as you need.
4
Type the subject.
Web 63
5
Compose your message.
6
Touch the Menu button
→
Send
.
NOTE: If you want to save the message as a draft and modify it later, touch or
touch the Menu button → Save as draft, and then select yes.
To delete an e-mail
1
On the e-mail account inbox, touch and hold the e-mail you want to
delete.
2
On the pop-up menu, touch
Delete
.
To delete or edit an e-mail account on your device
1
Touch the Application button
→
Email
.
2
To delete an e-mail account, touch and hold the account you want to
remove, then touch
Remove account
on the popup menu. When asked to
confirm deletion, touch
OK
.
3
To edit an e-mail account, touch and hold the account you want to edit,
then touch
Account settings
on the popup menu.
64 Web
Web Applications
NOTE: You require an active Wi-Fi or mobile data network connection (GPRS,
EDGE, 3G, or HSPA) to be able to connect to the Web. For more information about
configuring your device for web connectivity, see
Connecting to the Web
.
Gmail
Gmail is a web-based e-mail service provided by Google.
To open Gmail
1
Touch the Application button
→
Gmail
.
2
Follow the instructions on the screen to create a Google account if you
don’t have one, or sign in with your account if you already have one.
NOTE: Skip step 2 if you have already signed in to your Google Account during the
first-time-use setup of your device. See
Setting Up Your Google Account
.
3
Your Gmail inbox opens as the default Gmail view. All your received e-
mails are delivered to your inbox.
1Folder (or Label) and number of unread e-mails.
2Touch the check box to select the e-mail. To use this feature, touch the Menu
button
→ Settings, then enable Batch operations.
3Touch to store the selected e-mail in the All Mail folder.
4Touch to label the selected e-mail.
5Touch to delete the selected e-mail.
43
1
6
2
5
78
Web 65
To refresh Gmail
Touch the Menu button → Refresh to send or receive e-mails and to
synchronize your e-mails with your Gmail account on the web.
To view e-mails in different folders or with labels
To view e-mails stored in the folders other than the inbox, such as in the Sent
or All Mail folders, or to view labeled or starred e-mails:
1
Touch the Menu button
→
View Labels
.
2
Touch the folder that stores the e-mails you want to view, or touch the
label with which the e-mails are marked.
To read e-mails
• When you receive a new e-mail, the e-mail icon appears on the status
bar to alert you of a new e-mail. Touch the notifications area of the status
bar to open the Notifications panel and touch the new e-mail to view it.
• While in the inbox or in any other folder, scroll the e-mail list on the
screen, and then touch an e-mail to open it.
6Starred e-mail. Touch the star to add or remove the star.
7The number of e-mails grouped under the same subject.
8Subject.
1The green dot indicates that a contact is available on Google Talk.
2Touch to reply to the contact, reply to all contacts in the mail loop, or forward the
e-mail to another contact.
1
3
2
66 Web
To create and send an e-mail
1
Touch the Menu button
→
Compose
.
2
Enter the contact’s e-mail address in the To field. To send e-mail to
multiple contacts, separate their e-mail addresses with a comma. To send a
carbon copy (Cc) or a blind carbon copy (Bcc), touch the Menu button
→
Add Cc/Bcc
.
3
Enter the e-mail subject.
4
Compose your e-mail. To attach a picture, touch the Menu button
→
Attach
. Select the picture you want to attach from the Photos & Videos
application (for more information, see Photos & Videos).
NOTE: Touch to remove an attachment.
5
Touch
Send
to send the e-mail.
Google Talk
Google Talk is an instant messaging program provided by Google.
To run Google Talk
1
Touch the Application button
→
Google Talk
.
2
Follow the instructions on the screen to create a Google account if you
don’t have one, or sign in with your account if you already have one.
NOTE: Skip step 2 if you have already signed in to your Google Account during the
first-time-use setup of your device. See
Setting Up Your Google Account
.
3
The Google Talk window opens with your friends list.
To sign in automatically
You can sign in to your Google Talk account automatically whenever you turn
on the device.
1
In the friends list, touch the Menu button
→
Settings
.
2
Select
Automatically sign in
.
3Touch to view previous e-mails with the same subject.
Web 67
To add a new friend to your friends list
NOTE: You can only add people who have a Google Account.
1
In the friends list, touch the Menu button
→
Add friend
.
2
Enter the Google Talk instant messaging ID or Gmail address of the friend
you want to add to your friends list.
NOTE: When you type the instant messaging ID of a friend who is already a contact
saved in Contacts with the same ID, this matching contact will display on the
screen before you finish typing. You can touch the contact whose ID is then entered
automatically.
3
Touch
Send invitation
.
To view and accept an invitation
1
In the friends list, touch the Menu button
→
Invites
. All chat
invitations you have sent or received but have not been answered are listed
on the pending invitations screen.
2
Touch a pending invitation.
3
Touch
Accept
or
Cancel
.
When a friend accepts your chat invitation, the pending invitation disappears
from the list.
To change your online status and message
1
Touch the online status icon next to your name.
2
Select the status you want from the menu.
3
To enter your status message, touch the text box on the left of your online
status icon and enter your message.
4
To change your ID photo, touch the photo icon to open Photos & Videos,
then select the photo to use.
To start a chat
1
Touch to select a friend in the friends list.
2
Chat with your friend by typing your message into the text box.
3
Touch the
Send
button to send the message.
68 Web
To add a friend to an active chat
1
On the chat screen, touch the Menu button
→
Add to chat
.
2
Select the friend you want to invite to the current chat.
To disable the chat log
On the chat screen, touch the Menu button → Chat off record. The
subsequent chat conversations will not be recorded. To resume the chat log,
touch Chat on record.
To switch between active chats
1
While on a chat screen or in the friends list, touch the Menu button
→
Switch chats
.
2
In the panel that opens, touch the name of the friend you want to chat
with.
To close a chat
• In your friends list, touch and hold the name of a friend with an active
chat. Touch
End chat
on the menu that pops up.
• On a chat screen, touch the Menu button
→
End chat
.
To display all friends in your friends list
Only the friends that you chat with most frequently are listed as the most
popular ones. If you want to display all your friends,
touch the Menu button
→
All friends.
To show a friend in the most popular list
1
In the friends list, touch and hold the friend’s name to open the options
menu.
2
Touch
Show friend
.
Web 69
To pin a friend
You can pin a friend so that the friend always appears in your most popular
friends list.
1
In the friends list, touch and hold the friend’s name to open the options
menu.
2
Touch
Pin friend
.
NOTE: To unpin a friend, in the friends list, touch and hold the friend you want to
unpin and then touch Unpin friend in the options menu.
NOTE: To keep a friend from appearing in the most popular list, touch and hold the
friend’s name, and then touch Hide friend in the menu. If you pinned the friend, the
pin will be removed when you hide the friend.
To block a friend from sending you messages
1
In the friends list, find the friend to block.
2
Touch and hold the friend’s name, and then touch
Block friend
.
Your friend is removed from your friends list and is added to the blocked
friends list.
NOTE: To unblock a friend, in the friends list, touch the Menu button → Blocked.
In the blocked friends list, touch the name of the friend to unblock, then touch OK
when asked.
To permanently remove a friend
1
In the friends list, find the friend to remove.
2
Touch and hold the friend’s name, and then touch
Remove friend
.
To find out what device your friend uses to chat on Google talk
1
In the friends list, ensure that the Menu button
→
Settings
→
Mobile
indicator
is selected.
2
In the friends list, check the image that appears to the right of your friend’s
name. For example, if your friend is using an Android phone, the Android
image will appear. If no image is displayed, it indicates that your friend has
signed in to Google using a computer.
70 Web
To sign out from Google Talk
In the friends list, t
ouch the Menu button
→
Sign out.
Maps
Google Maps help you find your current location, view real-time traffic
situations, and get directions to your destination. You can also use the search
tool to locate addresses or places of interest on a map or in a street view.
NOTE: The Google Maps application does not completely cover every location.
To enable location source
To search for desired places or find your current location using Google Maps,
you need to enable My location sources:
1
Touch Home button
→
the Menu button
→
Settings
→
Security &
location
.
2
Select
Use wireless networks
,
Enable GPS satellites
, or both.
NOTE: Selecting Enable GPS satellites allows you to pinpoint locations down to the
street-level. However, this mode requires a clear view of the sky and more battery
power.
To open Google Maps
Touch the Application button
→
Maps.
To see your location on a map
On the Maps screen,
touch the Menu button
→ My Location. Your
location is marked on the map with a blinking blue dot.
NOTE: Selecting Enable GPS satellites allows you to pinpoint your current location
down to the street-level. However, this mode requires a clear view of the sky and
more battery power.
To find a location on the map
1
On the Maps screen, touch the Menu button
→
Search
.
2
To search by typing:
Web 71
a
Type the place you want to find into the search box. You can enter an
address, a city or country, or a type of business or organization such
“restaurant” or “school”.
b
Touch the search key on the keyboard or the search icon on the
search box.
To search by voice:
a
Touch .
b
Say your destination.
NOTE: As you enter information, a list of the places you have already searched for
or visited appears on the screen. You can also touch an address on the list to show
its location on the map.
3
The search results are marked on the map by lettered balloons.
1Touch to show the list of search results.
2If there are multiple search results, touch to view the previous or next result on
the map.
3Touch the place name to show the address, details, and reviews for the place if
the information is available.
1
3
2
4
72 Web
To move around a map
1
Flick or drag the map in any direction on the screen to view desired areas.
To zoom in or out on a map
Touch to zoom in and to zoom out.
4The search result is marked by a lettered balloon. Touch the balloon to display
the name of the place.
2
If you spot a place of interest while
navigating the map, touch and hold the place
to display the address (a picture thumbnail is
also displayed if the street view for the
location is available).
Web 73
To change map modes
1
Touch the Menu button
→
Map mode
.
2
Select one of the following modes to display the map:
Map
The default map mode displays streets, highways, buildings, main establishments,
mass transit stations, parks, rivers, lakes, mountains, boundaries, and so on.
Satellite
The satellite mode displays maps in non-real-time satellite view.
74 Web
To view a map in street view
You can switch to street view for the location that you found on the map. The
street view is composed of imagery captured from the streets.
1
Locate a place of interest on the map. For more information, see To find a
location on the map and To move around a map.
2
On the map, touch the name or address of the place.
3
On the location details screen, touch
Street view
.
4
To view the area around the place, turn the view on the screen with your
finger.
5
To move the view along the street, touch the arrows displayed on the
screen, or touch the Menu button
→
Step forward
or
Step backward
.
NOTE: While viewing a street view of a location, touch the Menu button →
Compass mode to enable the compass mode, which allows you to view the area
around the selected location by tilting or turning your device, rather than by moving
the view on the screen with your finger.
To get directions
Use Google Maps to obtain directions to your destination.
Traffic
The traffic mode displays colored lines along the roads where real-time traffic data
can be collected. Green lines indicate good traffic speeds, yellow ones indicate slower
speeds, and brown ones indicate congested traffic.
Web 75
1
When viewing a map:
touch the Menu button
→
Directions
.
Or
When a place is found:
a
Touch the place’s name or address displayed on the map.
b
On the location details screen, touch
Get directions
.
2
Enter the starting point in the first text box and your destination in the
second text box.
NOTE: By default, your current location is the starting point, and the place you
found on the map is your destination.
3
Touch
Go
. The directions to your destination are listed.
4
Touch
Show on map
or touch a direction instruction on the list to show
the directions or routes on the map.
To clear a map
Touch
the Menu button
→
Clear Map. All the search results, directions
and traffic indicators are deleted from the map.
1Starting point
2Destination
3Choose how you want to get to your destination: driving, public transportation, or
walking.
4Touch to render directions.
5Touch to set your current location, a contact address, or a place on the map as the
starting point or destination.
1
34
5
2
76 Web
Using Google Latitude
NOTE: To use Google Latitude, you need to have a Google account to sign in with.
The Google Latitude location service allows you to share locations with your
friends and family who have signed in to the service with their Google
accounts. You can also send instant messages and e-mails, make phone calls,
and get directions to your friends’ locations.
To let your friends view your location and accept their invitations, you need to
enable Join Latitude.
1
While viewing a map in any mode, touch the Menu button
→
Join
Latitude
.
2
Follow the instructions on the screen to create a Google account if you
don’t have one, or sign in with your account if you already have one.
NOTE: Skip step 2 if you have already signed in to your Google Account during the
first-time-use setup of your device. See
Setting Up Your Google Account
.
3
Read the privacy policy. If you accept, touch
Agree & share
.
To run Latitude
While viewing a map, touch
the Menu button
→ Latitude.
To invite friends to share locations
1
On the Latitude screen, t
ouch
the Menu button
→ Add friends
.
2
Choose the friends you want to share locations with:
•
Select from Contacts
: Select friends from your contacts. Friends
already using Latitude have an icon next to their names.
•
Add via email address
: Enter an e-mail address.
3
Touch
Add friends
then
OK
.
4
Your friends already using Latitude receive an e-mail request and a
notification on Latitude that ask them to share locations. If they have not
yet joined Latitude, they receive an e-mail that requests them to sign in to
Latitude with their Google accounts.
Web 77
To accept an invitation
When you receive a request to share your location with a friend on Latitude,
choose how you want to respond:
•
Accept and share back
: You can see your friend’s location, and your friend
can see yours.
•
Accept, but hide my location
: You can see your friend’s location, but they
cannot see yours.
•
Don’t accept
: Reject the sharing request. No location information is
shared.
To show your friends
You can show your friends on the map or in the list view.
•Map view
When you open Google Maps, it displays the locations of your friends.
Each friend is marked by a photo icon with an arrow that indicates their
location. To see a friend’s profile and
communicate
with them, touch the
photo, then touch their location callout right above their photo. To see
other friends, touch either one of the arrow buttons next to the callout.
•List view
To show a list of your friends, touch the Menu button
→
Latitude
. To
see a friend’s profile and communicate with them, touch the friend’s name
from the list.
To connect with your friends
Touch a friend’s name in map view or list view to open the friend’s profile. In
the profile screen, you can communicate with your friend and configure
privacy options.
Show on map See a friend’s location on the map.
Shout out to <this friend> Post a shout-out message that your friends can see on
your map callout or in their list of friends.
Chat using Google Talk Send an instant message using Google Talk. A
conversation window opens with that friend.
Send email Compose and send an e-mail addressed to this friend.
Directions Get directions to the friend’s location.
78 Web
To control what to share and change your public profile
1
In Maps, touch the Menu button
→
Latitude
.
2
Touch your location callout on the map, or your name on the list of
friends.
3
Set the following options to your preferences.
Hide from this friend Your friend cannot see your photo icon on the map. To
resume location sharing with this friend, touch
Unhide from this friend.
Share only city level location Share only the city or the approximate area you are in,
not the street-level location. Your friend can see your
photo icon in the middle of the city you are in. To
share street-level location, touch Best available
location.
Remove Remove this friend from your list and end all location
sharing.
Show on map See your location on the map.
Change your photo Change the picture that your friends see on the map
or in their list of friends.
You can take a picture using the Camera application,
or select one stored in
Photos & Videos
.
Edit privacy setting Manage how your location is shared with your friends:
•
Detect your location
: Latitude automatically detects
and updates your current location.
NOTE: To let Latitude report your location, you
must enable My location sources. See
To enable
location source
.
•
Set your location
: Select a location from the map,
contact addresses or nearby places, or type an
address.
•
Hide your location
. All of your friends will not be
able to see your location on their maps.
•
Turn off Latitude
: Disable Latitude and end
location sharing.
Web 79
YouTube
YouTube is a web video streaming service that allows you to view videos
uploaded by YouTube members.
NOTE: Browsing and viewing videos does not require you to sign in to a YouTube
account. However, to use all of the YouTube features, such as rating or commenting
on a video or viewing "My account", you must create and sign in to a YouTube
account.
To open YouTube
Touch the Application button
→
YouTube
.
The YouTube screen opens with the videos grouped into categories such as
Most viewed, Most discussed, Top rated, and so on.
To search for a video by typing
1
Touch the icon on the top right of the YouTube screen, or touch the
Menu button
→
Search
to open the search bar.
2
Type the video name or keyword into the search box using the on-screen
keyboard. The search results that fully or partially match the text being
typed appear below the search box. You can:
a
Scroll the search results and touch a desired one.
b
Touch the search key on the keyboard or the search icon on the
search box to search for results that match the entered text, then
touch a desired search result.
3
The videos that match the selected result are listed.
4
Touch the video to start playing the video.
To search for a video by voice command
1
Touch the icon on the top right corner of the YouTube screen, or
touch the Menu button
→
Search
to open the search bar.
2
Touch .
80 Web
3
Say the video name or a keyword.
4
The videos that match the words you said are listed.
5
Touch the video to start playing the video.
To search for a video by category
1
Touch the Menu button
→
Categories
.
2
Scroll the listed categories and touch the category under which the video
appears.
3
Touch to start playing the video.
To filter videos by different time frames
1
Touch the Menu button
→
Settings
→
Filter videos by time
or
Time
filter
.
2
Select a time frame such as Today or This week.
3
The videos that match the selected time frame are listed.
To watch videos
1
Select a video listed on the on the YouTube screen. The video starts
playing automatically.
2
To control video playback, touch anywhere on the screen to display and use
the playback controls.
3
To end playback, touch the Back button or the Home button .
To manage a video
1
When browsing videos in a list, touch and hold a video to open the options
menu.
When playing a video, touch the Menu button .
2
You can perform these actions that require signing in to your YouTube
account.
Rate Rate the video with stars.
Comments Write and send your comments about the video.
Favorite Add the video’s web link to your browser bookmarks.
Web 81
Android Market
You can use Android Market to download and install applications and games
on your device.
To open Android Market
Touch the Application button → Market.
Share Send the video’s web link to others by e-mail.
Flag If you find the video inappropriate to get posted and want
to have it removed, you can flag the video to notify the
service provider.
1
•Touch the
Apps
tab to view the application categories. All applications
available for download are sorted by these categories.
•Touch the
Games
tab to view the game categories. All games available for
download are sorted by these categories.
2The Market screen opens with featured applications for direct access.
3Shows user rating about the item and whether it is free or requires a purchase.
4Touch the Downloads tabs to view your downloads.
5Touch to search Android Market for applications or games.
5
1
2
4
3
82 Web
When a category is selected, for example, touch the Games tab → Brain &
Puzzle:
To download and install an application or game
1
Scroll and browse listed applications or games to locate the desired one.
2
Touch the application or game you want to download and install.
3
On the application details screen, you can read the introduction to the
application or game, user ratings and comments, and developer
information.
NOTE: Touch the Menu button and select Security to view the functions or data
this can access on your device.
4
On the application details screen, touch
Install
to start download and
installation. The application’s downloading screen will show the download
progress.
NOTE: If the application requires access to any of your data or functions on your
device, Market tells you what the application can access. Touch the OK button to
start download and installation.
NOTE: During installation, the icon appears in the notification area of the
status bar. Touch the notification area of the status bar to open the Notifications
panel and check download progress.
NOTE: To stop downloading an application, touch Cancel download on the
application’s downloading screen.
5
After the application is downloaded and installed on your device, the
download icon
appears in the notification area of the status bar.
1Touch Top free to sort the items by rating.
2Touch Just in to sort by date.
12
Web 83
To open an application or game
To uninstall an application or game
1
On the downloads screen, touch the application you want to uninstall.
2
Touch
Uninstall
.
3
After uninstallation is completed, you can select the reason for removing
the application.
Synchronizing Your Google Data
Through a web connection, your device can synchronize your Google data
including Gmail, calendar, and contacts with your computer or any other
device that you use to access your Google account.
To select the applications to synchronize
1
Touch Home button
→
the Menu button
→
Settings
→
Data
synchronization
.
2
Touch to select
Background data
to make all the sync options available.
3
Touch to select
Auto-sync
to let the device automatically synchronize the
selected data:
Gmail
,
Calendar
, and/or
Contacts
.
4
Select the data that you want the device to synchronize automatically:
Gmail
,
Calendar
, and/or
Contacts
.
From the Market screen:
1
Touch the
Downloads
tab on the Market screen.
2
Touch the installed application in the list.
3
Touch the
Open
button. The selected application starts running.
From the main application menu:
1
Touch the Application button .
2
Touch the application’s icon.
From the status bar:
1
Touch the notification area of the status bar where the download icon
appears to indicate a recently downloaded application.
2
Touch the name of the application you want to open.
84 Web
NOTE: If you wish to synchronize individual applications manually, touch to clear
Auto-sync, then touch a data option to start synchronization of the touched data.
Touch the Menu button → Sync now to sync all of the data manually.
NOTE: While data is syncing, the sync icon appears on the status bar, and the
sync icon appears on the option of the data being synced.
Amazon MP3
Touch the Application button
→
Amazon MP3
.
The Amazon downloader allows you to browse, search, download, purchase
and play MP3 music from the Amazon MP3 store.
NOTE: Wireless connection is required to download music; however, searching
and listening can be done using a 3G mobile network.
NOTE: Music downloads may require a purchase.
NOTE: To download an album or track, touch the price tag button at the right end of
the album or track’s entry.
NOTE: To listen to a track’s sample clip, touch the track’s entry. If you want to stop
playback, touch the stop playback button at the left end of the entry.
NOTE: For details on using Amazon MP3, visit Amazon.com/Help.
Customizing Your Mini 5 Device 85
Customizing Your Mini 5 Device
With the Settings menu, you can customize the way your device works to suit
your individual needs.
To change display settings
1
Touch the Home button
→
the Menu button
→
Settings
→
Sound
& display
, or
touch the Application button
→
the
Settings
icon
→
Sound &
display
.
2
Scroll down the menu to use the options grouped under the
Display
settings
bar, and then touch the desired option.
3
Flick the list to locate and touch a desired item.
4
To enable a setting, touch the setting option to select the check box ;
to disable a setting, touch the setting option to clear the check box .
Orientation By default, the screen will switch the orientation to
landscape or portrait as you rotate the device.
Animation Set the device to play an animation for opening and
closing windows.
Light Adaptive Brightness
Control (LABC) Mode
Set the device to adjust the screen brightness
automatically based on the surrounding light
conditions.
Brightness Manually adjust screen brightness.
1
Drag the brightness slider horizontally or touch the
desired portion of it to increase or decrease the
yellow bar. The longer the yellow bar is to the right,
the brighter the screen.
2
Touch
OK
to confirm adjustment.
86 Customizing Your Mini 5 Device
To change sound and ringtone settings
1
Touch the Home button
→
the Menu button
→
Settings
→
Sound
& display
, or
touch the Application button
→
Settings
icon
→
Sound &
display
.
2
Use the options grouped under the
Sound settings
bar, and then touch a
desired option.
3
Flick the list to locate and touch a desired item.
4
To enable a setting, touch the setting option to select the check box ;
to disable a setting, touch the setting option to clear the check box .
Screen timeout
• Set how long the screen remains on after the last
operation. Scroll the options and touch a preferred
timeout period; to disable this feature select
Never
timeout.
• The screen automatically turns off and locks itself
after an inactivity timeout selected here has passed.
• To turn on and unlock the screen, press and
then touch the Menu button .
NOTE: If you select Never timeout, the screen
remains on indefinitely and quickly consumes
battery power.
NOTE: If Settings → Security & location →
Screen unlock pattern is enabled, you need to
draw the unlock pattern to unlock the screen. See
Protect Your Device Data With a Screen Unlock
Pattern
for details.
Customizing Your Mini 5 Device 87
Silent mode Mute everything except alarms, music and videos.
NOTE: If Silent mode is enabled, only Media
volume and Phone vibrate are adjustable.
Ringer volume Adjust ringer volume for incoming calls and
notifications.
1
To adjust ringer volume for incoming calls, drag the
Incoming call volume
slider horizontally or touch
the desired portion of it to increase or decrease
volume.
2
If you want to set a different volume for
notifications, touch
Use incoming call volume for
notifications
to clear its check box. Then adjust the
volume in the same way.
3
Touch
OK
to confirm adjustment.
Media volume Adjust volume for music and video playback.
1
Drag the
Media volume
slider horizontally or touch
the desired portion of it to increase or decrease
volume.
2
Touch OK to confirm adjustment.
Phone ringtone Select a desired ringtone for incoming calls.
Phone vibrate Set the device to vibrate for incoming calls.
Notification ringtone Select a desired ringtone for notifications.
Audible touch tones You can hear a tone as you dial using the on-screen
dial pad.
Audible selection You can hear a tone as you touch the screen to select
items.
SD card & USB notifications You can hear a tone when you unmount the SD card
and insert the USB cable.
88 Customizing Your Mini 5 Device
To manually set the date, time and time zone
1
Touch the Home button
→
the Menu button
→
Settings
→
Date
& time
, or
touch the Application button
→
the
Settings
icon
→
Date &
time
.
2
Touch a desired option.
3
Flick the list to locate and touch a desired item.
4
To enable a setting, touch the setting option to select the check box ;
to disable a setting, touch the setting option to clear the check box .
Select time source
•
Manual
: To manually adjust the date, time and time
zone, select this item.
•
Mobile Cell Network
: Your device automatically
displays the network-provided date, time zone and
time.
•
Internet
: Your device automatically displays the
Internet based date and time.
Set date 1
Touch or touch and hold or to adjust
the month, day and year; you can also touch the
month, day or year to type a date using the on-screen
keyboard.
2
Touch
Set
to confirm the date.
Set time zone Select a city or region that represents the time zone
for your device. Touch the Menu button to sort the
time zone list alphabetically or by time zone.
Set time 1
Touch or touch and hold or to adjust
the hour and minute; you can also touch the hour or
minute to type a time using the on-screen keyboard.
2
Touch the AM/PM button if the 12-hour format is in
use.
3
Touch set to confirm the time.
Protecting Your Mini 5 Device 89
To choose a language
Set the language of the display text.
1
Touch the Home button
→
the Menu button
→
Settings
→
Locale
& text
→
Select locale
, or
touch the Application button
→
Settings
icon
→
Locale & text
→
Select locale
.
2
Select a language of your choice from the list that appears.
Protecting Your Mini 5 Device
Protect Your Device Data With a Screen Unlock
Pattern
You can protect your device data against unauthorized access by locking the
touch screen with a screen unlock pattern. Once the unlock pattern is enabled
and the screen is locked, you need to draw the correct unlock pattern to
unlock the screen.
NOTE: After you fail to draw the correct unlock pattern on the screen for five
consecutive times, you will be asked to wait for 30 seconds before you can try
again. If you no longer remember your screen unlock pattern, follow these steps to
unlock your screen:
1
Touch
Forgot pattern
.
2
When prompted, sign on to the Google website using your Google account name and
password.
3
Draw a new screen unlock pattern as described in To create a screen unlock pattern.
4
If you fail to obtain a new unlock pattern following the above steps, visit
Dell.com/support.
Use 24-hour format Clear the check box of this feature if you want to
display time using the 12-hour format.
Select date format Select a format used for displaying the date on the
status bar.
90 Protecting Your Mini 5 Device
To create a screen unlock pattern
1
Touch the Home button
→
the Menu button
→
Settings
→
Security & location
→
Set unlock pattern
, or
touch the Application button
→
the
Settings
icon
→
Security &
location
→
Set unlock pattern
.
2
Read the instructions on the screen and then touch
Next
.
3
You can touch the Menu button to study the animated example of how
to draw a pattern. Then touch
OK
.
4
Drag your finger to draw the unlock pattern by connecting at least four
dots in a vertical, horizontal and/or diagonal direction. Take your finger off
the screen when a pattern is drawn.
NOTE: You must flick your finger on the screen to create the pattern and not touch
individual dots.
5
The device records the pattern if it is correctly drawn. Touch
Continue
.
6
Draw the pattern again as prompted, and then touch
Confirm
.
NOTE: To change your unlock screen pattern, you need to draw the old pattern
before proceeding with steps 4 to 6 to draw a new one.
Protecting Your Mini 5 Device 91
To enable or disable the screen unlock pattern and change related settings
1
Touch the Home button
→
the Menu button
→
Settings
→
Security & location
→
Require pattern
, or
touch the Application button
→
the
Settings
icon
→
Security &
location
2
To enable a setting, touch the setting option to select the check box ;
to disable a setting, touch the setting option to clear the check box .
Require pattern Select or clear the Require pattern check box to
enable or disable the screen unlock pattern.
Use visible pattern Clear the Use visible pattern check box if you do not
want the lines of the unlock pattern to display on the
screen when you draw it.
Use tactile feedback Clear this option if you do not want the device to give
you tactile feedback when drawing the unlock pattern.
92 Protecting Your Mini 5 Device
Protect Your SIM Card With the SIM Lock
Password
You can protect your SIM card against unauthorized use with a personal
identification number (PIN). After a PIN is enabled to lock your SIM, you will
need to enter the PIN each time you turn on the device in order to unlock
your SIM.
NOTE: The SIM card will be permanently locked if you enter the incorrect PIN for
three consecutive times. You must then enter the Personal Unblocking Key (PUK) to
unlock the SIM card. Please contact your service provider to obtain the PUK.
NOTE: You can make emergency calls without unlocking the SIM.
To enable the SIM card PIN
1
Touch the Home button
→
the Menu button
→
Settings
→
Security & location
→
Set up SIM card lock
,
→
Lock SIM Card
, or
touch
→
Settings
→
Security & location
→
Set up SIM card
lock
→
Lock SIM Card
.
2
Type your SIM card PIN using the on-screen keyboard, and then touch
OK
.
To change the SIM card PIN
1
Touch the Home button
→
the Menu button
→
Settings
→
Security & location
→
Set up SIM card lock
→
Change SIM PIN
, or
touch the Application button
→
Settings
→
Security &
location
→
Set up SIM card lock
→
Change SIM PIN
.
2
Type the old SIM card PIN using the on-screen keyboard, and then touch
OK
.
3
Type the new SIM card PIN, and then touch
OK
.
4
Type the new SIM card PIN again, and then touch OK
Applications 93
Applications
Camera
Your device has a 5.0 megapixel camera with auto-focus feature that allows
you to capture and share high-quality pictures and videos.
NOTE: Before you use the camera application, you need to install a microSD card
in your device. All pictures and videos that you capture using your device camera
are stored on the microSD card. For more information on how to install a microSD
card on your device, see
Install the microSD card
.
To start the camera
• Press or press and hold the camera button .
• Touch the Application button
→
Camera
.
The screen automatically shifts to landscape orientation after you start the
camera.
To change the capture mode
1
Touch the viewfinder screen to display the on-screen camera controls.
2
On the upper left corner of the camera screen, touch
if you want to
capture photos; touch
Video
if you want to shoot videos.
To take pictures
1
Touch the viewfinder screen to display the on-screen camera controls.
2
Touch
to switch to the photo mode.
3
Focus on the object in the viewfinder screen. If necessary, touch + or - to
zoom in or zoom out the viewfinder.
4
Press or press and hold the camera button to capture the picture.
NOTE: To achieve optimal focus such as for taking a close shot, press and hold the
camera button to use the auto-focus function. Then without releasing
press it again to take a picture.
94 Applications
NOTE: To capture a picture such as a self-portrait using the front-facing camera
lens,
touch the Menu button → Use Front-Facing Camera.
To manage pictures
1
Touch the viewfinder screen to display the on-screen camera controls.
The pictures you have captured most recently appear as thumbnails on the
Recent Pics
bar along the left of the screen.
2
Touch a picture thumbnail to display the full picture on the picture
viewing screen. Touch
More...
to open Photos & Videos and see more
thumbnails of the captured pictures.
3
On the right side of the picture viewing screen, you can touch the
following task buttons to manage the displayed picture:
Share
•
Bluetooth Printer
: Print out the picture with a
Bluetooth printer that is paired with your device.
•
Email
: Send the picture to someone using your e-
mail address. For more information, see E-mail.
•
Facebook
: Upload the picture to this social
networking website where your online friends can
view your posted pictures. To upload photos to
Facebook, you must first sign in to your Facebook
account.
•
Flickr
: Upload the picture to this photo album
website where you can share pictures with your
online friends. To upload photos to Flickr, you must
first sign in to your Flickr account (Yahoo! account).
•
Gmail
: Send the picture to someone using your
Gmail address. See Gmail for details.
•
Picasa
: Upload the picture to this photo album
website where you can share pictures with your
online friends. To upload photos to Picasa, you must
first sign in to your Picasa account (Google account).
•
Text Messages
: Send the picture with a multimedia
message. For more information about multimedia
messaging, see To compose and send a multimedia
message.
Applications 95
To adjust camera settings
1
Touch the viewfinder screen to display the on-screen camera controls.
2
Flick the settings bar along the right side of the camera viewfinder and
touch the desired setting.
3
Touch the desired value for the setting, for example, to change the
Scene
mode from
Automatic
to
Night
.
Edit Scroll the tools listed along the left hand side of the
screen and select one to edit your picture:
•
Rotate & Flip
: Touch a rotate style on the left to
decide how you want to rotate the picture.
•
Crop
: Cut the desired portion of the picture using
these techniques:
–Touch the
Select Ratio
button, then touch
Freedom
,
Original
or
Custom
to set the
dimension ratio of the crop frame.
– Drag the crop frame to where you want it to be.
– To increase or reduce the crop frame size, touch
any of the frame’s angles.
•
Adjust Colors
: Touch a coloring tool to adjust the
picture’s color presentation.
•
Effects
: Select an effect style and see how the effect
is applied to the picture.
•
Frames
: Create a frame to add to the picture.
•
Text
: Add a text callout to the picture. You can adjust
the size, color and style of the text callout.
•
Clipart
: Add an image to the picture. You can rotate
and adjust the size of the image.
•
Draw
: Draw an image to add to the picture using the
supplied drawing styles.
•
Resize
: Resize the dimension of the picture.
Set as Set the picture as a contact’s visual caller ID or display
it as a Home screen wallpaper.
Delete Delete the displayed picture.
96 Applications
To shoot videos
1
Touch the viewfinder screen to display the on-screen video controls.
2
Touch
Video
to switch to the video recording mode.
3
Frame your subject on the viewfinder.
4
Press to start recording.
5
Press again to stop recording.
To adjust video settings
1
Touch the viewfinder screen to display the on-screen video controls.
2
Flick the settings bar along the right side of the video viewfinder and touch
a desired setting.
3
Touch the desired value for the setting, for example, to change the
Scene
mode from
Automatic
to
Night
.
To play videos
1
Touch the viewfinder screen to display the on-screen video controls.
2
The videos you have just recorded appear as thumbnails on the
Recent
Videos
bar along the left side of the screen. Touch
More...
to see more
thumbnails of the videos on Photos & Videos.
3
Touch a thumbnail to display the video image on the video viewing screen.
Touch the video image to start video playback.
4
To control playback, use these controls below the viewing screen:
• Touch the button to pause and the button to resume
playback.
• Touch or drag the yellow playback progress bar to rewind or fast-
forward the video.
Applications 97
To manage videos
On the right hand side of the picture viewing screen, you can perform these
tasks for the displayed video:
MicroSD
The files on your device are stored on the microSD card. To exchange
pictures, videos, music, and other files between your device and a computer,
use the microSD card as a USB drive by connecting the device to a computer
with the included USB cable.
To set the microSD card as a USB drive
1
Connect the device to the computer using the USB cable. Plug the USB
30-pin connector on the USB cable to the USB port of the device, and
then the cable's USB connector to a USB port on the computer.
2
The USB notification icon
appears on the status bar’s notification
area. Touch the notification area to open the notification menu.
3
In the notification menu, touch
USB connected
.
4
Depending on your own needs, touch to select one of these options:
•
Use MTP
: Select this option if you wish to load media files through
applications that require the Media Transfer Protocol (MTP).
•
Use USB Mass Storage
: Select this option if you wish to have full
access to all the files stored on your microSD card.
NOTE: Select Don't mount if you simply wish to charge your device using your
computer.
Share
•
Gmail
: Send the video with a Gmail.
•
Text Messages
: Send the video with a multimedia
message. See To compose and send a multimedia
message.
•
YouTube
: Upload the video to the video streaming
website YouTube, where people can view the posted
video. To upload videos to YouTube, you must first
sign in to your YouTube account.
Delete Delete the video.
98 Applications
NOTE: After you select Use USB Mass Storage, open the My Computer
window on your computer to locate a removable drive which is the microSD
card installed in your device. Then copy desired files such as music or
pictures from another drive/folder to the removable drive, or vice versa.
To turn off USB storage
The device will not recognize the microSD card when the card is being used
as a USB drive. You will not be able to use the device’s applications that
involve saving or retrieving files on the microSD card, such as camera or
music playback. You need to turn off USB storage for the device to recognize
the microSD card when the device is connected to a computer.
To turn off the USB storage function:
1
Touch the notification area on the status bar to open the notification
menu.
2
Touch
Turn off USB storage
→
Turn Off
.
To remove the microSD card:
1
Press and hold the Power button and then touch the
Power off
option to turn
the device off.
2
Remove the back cover.
3
Slide and lift the microSD card out of the slot on the device.
.
Applications 99
Bluetooth®
Bluetooth is a short-range wireless communications technology that lets your
device connect over a wireless network to other Bluetooth-enabled devices for
data exchange.
Bluetooth on your device operates in three different modes:
To turn on Bluetooth and make the device discoverable
1
Touch the Home button
→
the Menu button
→
Settings
→
Wireless controls
.
2
Select the
Bluetooth
check box to turn on Bluetooth. The Bluetooth icon
appears in the status bar.
3
Touch
Bluetooth settings
, then select the
Discoverable
check box to make
the device recognizable by other nearby Bluetooth devices.
To pair and connect a Bluetooth headset
1
Touch the Home button
→
the Menu button
→
Settings
→
Wireless controls
→
Bluetooth settings
.
2
Touch and select the
Bluetooth
check box. Your device starts to scan for
Bluetooth devices within range and then displays all detected devices
below the
Bluetooth devices
banner.
NOTE: To detect more devices, touch Scan for devices.
3
Touch the name of the device you wish to initiate a connection with.
4
You may be prompted to enter a password to authenticate. Enter the same
password on both devices, or enter the specific one provided by the device
manufacturer. Ensure that you read the documentation of the pairing
device to check if it requires a default password.
On Bluetooth is turned on. Your device is enabled to detect Bluetooth
devices within range, but will not be found by them.
Discoverable Bluetooth is turned on, and other Bluetooth devices can detect your
device.
Off Bluetooth is turned off. Your device is unable to send and receive data
using Bluetooth.
100 Applications
5
When the pairing is successful,
Paired but not connected
is displayed
under the paired device.
6
Touch the paired device to start connection. When the paired device is
successfully connected to your device, the Bluetooth connected icon
appears in the status bar.
NOTE: To make and receive calls or listen to the music using a Bluetooth headset,
pair it first with your device.
NOTE: Pairing is a one-time process. Once your device successfully pairs with
another device, your device recognizes that device without re-entering your
password.
To end a Bluetooth connection
1
Touch the Home button
→
the Menu button
→
Settings
→
Wireless controls
→
Bluetooth settings
.
2
Touch and hold the name of a connected device.
3
On the pop-up menu touch
Disconnect
.
To terminate a pairing partnership
1
Touch the Home button
→
the Menu button
→
Settings
→
Wireless controls
→
Bluetooth settings
.
2
Touch and hold the name of a paired device.
3
On the pop-up menu touch
Unpair
to erase all pairing information with
that device. You need to enter the password again if you want to restore a
Bluetooth connection to that device.
To change your device’s Bluetooth name
1
Ensure that you have turned on Bluetooth on your device ( indicates in
the status bar that Bluetooth is enabled).
2
Touch the Home button
→
the Menu button
→
Settings
→
Wireless controls
→
Bluetooth settings
→
Device name
.
3
Enter a name to identify the device when you connect using Bluetooth.
4
Touch
OK
.
Applications 101
Photos & Videos
To view and manage the pictures and videos stored on your device, touch the
Application button
→
Photos & Videos .
NOTE: Before you run the Photos & Videos application, ensure that a microSD card
containing media files is installed on your device. All pictures and videos that you
capture using your device camera are stored on the microSD card. For more
information on how to install a microSD card on your device, see
Install the microSD
card
.
To view pictures
1
Touch the
Photos & Videos
tab to choose to display the thumbnails of all
pictures and videos, the files you have stored separately as Favorites, only
the pictures or videos, or only the pictures or videos captured with the
device camera.
2
On the Photos & Videos screen, flick the picture thumbnails horizontally
until the desired one is located.
3
Touch the picture thumbnail to display the full picture.
4
When a picture is displayed in full screen:
• Flick the picture to view the next or previous picture.
• Zoom the picture in or out: Pinch the picture with two fingers, then
move the fingers apart to enlarge the picture, or bring them closer
together to reduce the picture.
• When a picture view is being enlarged, drag the enlarged picture
across the screen until the required portion appears.
To manage a picture
When a picture is displayed in full screen, touch the Menu button or touch
and hold a picture to open the options menu for the following actions.
Share To print the picture using the Bluetooth printer, or
send the picture or video using the available
applications described on page 94.
Edit To edit the picture using the available tools described
on page 95.
102 Applications
To play videos
1
Touch a video thumbnail to start playback of the video.
2
To control playback, use these controls below the viewing screen:
• Touch the button to pause and the button to resume
playback.
• Touch or drag the yellow playback progress bar to rewind or fast-
forward the video.
To mark pictures and videos
1
In the thumbnail view of the pictures and videos, touch the Menu button
→
Mark
.
2
Touch the thumbnails to mark the pictures or videos that you want.
3
Touch the Menu button and choose to delete the marked pictures or
videos, or add them as your favorites.
Slideshow Playback all of the pictures as a slideshow. To stop a
slideshow, touch the screen or touch the Back button
.
Add to Favorites Copy the picture or video as your favorites that you
can access by touching the Favorites tab.
Delete Delete the picture or video.
Rename Change the name of the picture or video.
Set as Set the picture as the Home screen wallpaper. or as
the visual ID for a contact:
1
Drag the crop frame to where you want it to be.
2
To increase or reduce the crop frame size, touch any
of the frame’s angles.
3
Touch the check button to cut the picture.
Setting Set up slideshow playback duration, transition style,
and background music.
Details View the information of the picture or video.
Applications 103
Music
NOTE: The Music application only plays audio files saved on the microSD card of
your device. Before opening Music, ensure that the needed audio files have been
copied to the microSD card of your device.
To open Music
Touch the Application button →
Music
.
The Music screen opens to display the Recently Added, Your Most Played,
and Random Sampler albums as a slideshow. You can swipe the screen to
display your desired album category.
All the music files available on your device are grouped into these categories:
Albums, Artists, Genres, Playlists, and Songs.
To select a song
1
Touch an album or category to view the list within it.
2
Inside a category, flick the list until you find the music you want to play.
For instance, to select music by artist:
a
Touch
Artists
. A list of artists opens in alphabetical order.
b
Flick the list and touch the name of an artist. A list displays the songs
by the artist according to the album name.
c
Touch a music file to open the music playback screen and play the
music.
104 Applications
To control music playback
1The album’s cover image if it has one.
2The name of the song being played.
3The name of the artist.
4
• If the song is playing for more than five seconds, touch to jump to the
beginning of the song.
• If the song is playing for less than five seconds, touch to play the previous song.
5The passing playback time.
6
• Touch the playback control bar to jump to any part of the song.
• Drag and scroll the playback control bar forward to fast-forward the song.
• Drag and scroll the playback control bar backward to rewind the song.
7Touch ( ) to pause playback; touch ( ) resume playback.
8Touch to play the next song.
9The duration of the song.
7
9
1
10
11
3
4
5
8
2
6
Applications 105
NOTE: Press the volume up button or volume down button to adjust
the playback volume.
NOTE: If you are listening to the music with the supplied 3.5 mm headphones, press
the button on the wire of the headphones to pause and resume playback. Press and
hold the button to jump to the next song.
NOTE: On the Music screen, touch Shuffle All Songs to play all songs in your
library in random order. The first randomly selected song starts to play.
To create a playlist
1
On the
Music
screen, touch an album or category to open the list inside
the album or category.
2
Flick the screen until you reach the album, artist, or song that you want to
add to the playlist.
3
Touch and hold the album, artist, or song that you want to add in the
playlist.
4
A pop-up menu opens. Touch
Add album/artist/song to playlist...
.
NOTE: To add an album or artist to the playlist, you can also touch the album or
artist, and then touch the Menu button → Add album/artist to playlist....
5
In the
Add to playlist
window, touch
New playlist
.
NOTE: If you want to add the artist, album, or song to an existing playlist, touch the
playlist’s name in the Add to playlist options menu.
6
Enter the name for your new playlist in the text field and then touch
Create Playlist
.
10 Touch to cycle through the repeat modes.
11 Touch to turn the shuffle mode on and off.
106 Applications
Calendar
Use the calendar to schedule and manage your events, meetings, and
appointments.
To open the Calendar
Touch the Application button →
Calendar
.
To set up an event
1
On any calendar view, touch the Menu button
→
New event
to open
the
Event details
screen.
2
Type the event name using the on-screen keyboard.
3
If there is a time period for the event, touch and type the
From
and
To
date and time.
If the event is a special occasion such as a birthday or takes a whole day, set
the
From
and
To
date, and then select the
All Day
check box.
4
Type the event location and description.
5
Set the event reminder time in
Reminders
, then decide whether it is a
recurring event in
Repetition
.
6
Touch
Done
and the event is created.
NOTE: To quickly set up an event in day, week, or month view, touch and hold an
empty time slot → New event. A new Event details screen opens with the selected
time slot and date in the From and To fields.
To view the calendar
You can display the calendar in daily, weekly, monthly, or agenda view. To
change the calendar view,
touch the Menu button
→
Day
/
Week
/
Month
/
Agenda
.
While viewing the calendar you can do these things:
• In day or week views, touch an event to open a quick view window of the
event on the lower part of the screen.
• Touch the quick view window to view details about the event.
Applications 107
• Touch and hold an event to open a menu with options for viewing, editing,
or deleting the event, or creating a new event.
Event reminders
If you set a reminder for an event, the upcoming event icon appears in
the notifications area of the status bar when the reminder time arrives.
To view, dismiss, or snooze a reminder
1
Touch the
notification area of the
status bar, to open the notification
menu.
2
Touch the upcoming event name to display the event.
NOTE: If you have other pending event reminders, these events will also appear on
the screen.
3
Touch
Snooze all
to put off all event reminders for five minutes.
Touch
Dismiss
all
to turn off all event reminders.
Press to keep the reminders pending in the notification area of the
status bar.
Alarm Clock
Your device can work as an alarm clock. You can set as many alarms as you
require.
To open the alarm clock
Touch the Application button →
Alarm Clock
.
NOTE: To hide the current time clock from the screen, touch the Menu button
→ Hide clock; to display the current time clock, touch the Menu button → Show
clock.
To set an alarm
1
Touch one of the available alarms.
2
The
Set alarm
menu opens with these settings:
108 Applications
NOTE: On the Alarm Clock screen you can also add a new alarm by touching the
Menu button → Add alarm.
To temporarily disable an alarm
On the Alarm Clock screen, clear the check box of alarm time you want to
disable.
To delete an alarm
1
On the
Alarm Clock
screen, touch the alarm time you want to delete.
2
On the Set alarm screen, touch the Menu button
→
Delete alarm
.
To silence all alarms
You can change the settings to choose if the alarm should ring when the
device is in Silent mode.
1
On the
Alarm Clock
screen, touch the Menu button
→
Settings
.
2
Touch
Alarm in silent mode
to set if the alarm should ring when the
device is in Silent mode.
Turn on alarm Turn on the alarm that you have set on the device.
Time Set the alarm time. Adjust the time by touching
or
, or touch the hour and minute fields to enter a time.
Touch AM to change to PM or vice versa, then touch Set
when done.
Ringtone Select the alarm ringtone.
Vibrate Select the check box if you want the device to vibrate
when the alarm goes off.
Repeat Select the days you want the alarm to ring, then touch
OK.
NOTE: If you did not select any days for the alarm,
Never appears to hint that your alarm will only go off
once.
Label Give the alarm a name for a special event.
Applications 109
Calculator
1
Touch the Application button
→
Calculator
. The basic
calculator panel opens.
2
Perform calculations by touching the corresponding buttons on the
calculator panel; touch the CLEAR button to clear the displayed numbers
or symbols.
3
To perform advanced calculations, flick the basic calculator panel away to
the left and reveal the advanced panel, or touch the Menu button
→
Advanced panel
.
Sound Recorder
Open this application to record voice and sounds and then play them back.
You can also set the recording as a ringtone for your device.
NOTE: Sound Recorder only supports recording in the amr format.
1
Touch the Application button
→
Sound Recorder
.
2
Touch to start recording.
3
Touch to end recording.
4
Touch to start playback of the recording; touch to stop playback.
5
Touch
Save this recording
to save the recording on the microSD card.
6
To play back a sound recording again, touch the Application button
→
Music
→ Songs, then select a recording to play. For information
about Music, see
Music.
110 Applications
Voice Control
Touch the Application button →
Voice Control
.
Voice Control is a voice commander tool for you to say voice commands to
call contacts, find contacts, and dial numbers.
NOTE: To learn how to say the voice commands to start call actions, touch the
Menu button → Tutorial and follow the instructions on the screen.
To adapt the device to your voice
To make your device easily recognize your voice commands to start desired
actions, you need to get it used to your voice.
1
Touch the Menu button
→
Settings
→
Adaptation
→
Adapt Voice
.
2
Touch the Menu button
→
Start
.
3
Follow the instructions to say the command examples, preferably in a
quiet place with minimum noise around.
To say a voice command to start an action
1
When Voice Control prompts you with available voice commands, say the
command that includes the number or the name of the contact you want
to call. These items are displayed as variable strings within the brackets.
For example, if you want to call a contact named John, use this command
Call <Name or #>
and say "Call John" to your device.
2
Once your device recognizes your command, it automatically calls the
contact or number. If you have enabled
Settings
→
Confirmation
→
Always confirm
, the device waits for your confirmation before it takes the
action.
Applications 111
Tasks
Touch the Application button →
Tasks
.
Use this application to keep track of your to-do items.
To add a task
1
Touch the Application button
→
Tasks
to open the
Task list
.
2
Touch the
New task
entry.
3
Fill in the following information about the task:
4
Touch
Save
and the task is listed on the Tasks list.
What Enter the subject of the task.
When Set when the task starts and when it should be completed.
Description Summarize what the task is about.
Reminder Select this option and enter a reminder time if you need
your device to remind you about the task at a particular
time.
Extra options
•
Status
:
Touch the Status area to mark the task’s status
using the available labels.
•
Priority
: Touch the Priority area to set the task’s priority
using the available labels.
•
Privacy
: Touch the Privacy area to decide whether it is a
private or public task.
112 Applications
To adjust task settings
On the Tasks list,
touch the Menu button
→ Settings.
To manage a task reminder
1
Touch the notification area of the status bar when the icon appears.
2
Touch a
Task al e r t
entry to view the task info.
3
Touch
Snooze all
if you want the reminder to alert you a few minutes later;
touch
Dismiss all
if you want to permanently disable the reminder.
SIM Manager
Touch the Application button → SIM manager .
You can add and delete contacts on your SIM card, and check the number of
the contacts and messages stored on it.
To copy selected entries from your device’s Contacts to your SIM card,
touch
the Menu button
→ Import Contacts.
Hide completed tasks After you select this option, tasks marked as Completed
become invisible.
Set alerts & notifications Choose one of these reminder modes:
•
Alert
: The screen displays task information directly when
the reminder time arrives.
•
Status bar notification
: The
Task Al e r t
icon appears in
the notification area of the status bar when the reminder
time arrives.
•
Off
: Disable the reminder.
Select ringtone Choose a ringtone for the reminder.
Vibrate Choose if the device vibrates to alert you about the task.
Applications 113
Notes
To enter a note
1
Touch the Application button
→
Notes
to open the Notes
screen.
2
Touch the
New note
entry to open the
Create note
screen.
3
Type your note into the note field using the on-screen keyboard.
4
Touch the
Save
button to save the note that you have completed and
return to the Notes screen, where the new note entry is displayed.
NOTE: Touch the Cancel button if you do not want to save the note.
To delete a note
1
Touch the Application button
→
Notes
to open the Notes
screen.
2
Touch the entry of the note you wish to delete. The
Edit note
screen
opens.
3
Touch the
Delete
button to permanently delete the note from your device
.
Quickoffice
Touch the Application button → Quickoffice .
With Quickoffice you can view Microsoft® Office Word® (.doc), Microsoft
Office Excel® (.xls), Microsoft Office PowerPoint® (.ppt), and Adobe
Acrobat® PDF files stored on your device’s microSD card or attached to e-
mail.
To open and view a document saved on the microSD card
1
Touch
Memory card.
2
Navigate folders stored on the card to locate your desired file.
3
Touch the file to open it.
NOTE: If you want to open a recently viewed document, touch Recent documents.
114 Applications
To view a document or spreadsheet
1
Swipe the document to view the desired section.
2
To zoom in or out the desired area of a document, touch anywhere on the
document to activate the zoom mode, and then touch the zoom controls
or .
To find text in a document
1
Touch the Menu button
→
Search
. The search box opens.
2
Type the text you want to find into the search box.
3
The matching texts are highlighted.
4
On the right end of the search box, touch
the search icons
or to
locate the matching texts along the document.
To sort folders or files using Quickoffice
Touch the Menu button
→
Sort by
to rearrange folder and file listings by
name, type, size or modification date.
To rename, delete, copy, move folders or files, or view folder or file properties.
Touch and hold a file or folder, and from the pop-up menu select the task you
want to do.
NOTE: Quickoffice supports the following file formats:
•Microsoft Word: .doc
•Microsoft Excel: .xls
•Microsoft PowerPoint: .ppt
•Adobe Acrobat PDF: .pdf
•Text Files: .txt
NOTE: Quickoffice for Android supports viewing for 2007 and earlier versions of
Microsoft Word, Excel, and PowerPoint documents.
Playing videos on HDMI devices 115
Playing videos on HDMI devices
1
Insert the USB port on the bottom of your device into the 30-pin
connector on the home dock.
2
Connect your device to a HDMI device for example a HDMI monitor or
TV using a HDMI data cable.
3
Touch the Application button
→
Photos & Videos
.
4
Touch a video thumbnail to start playback of the video.
5
The device screen displays
Video out
to ask for your confirmation. Touch
Yes
to play the video on the display of the connected HDMI device. Touch
No
if you want to play the video on the device.
6
To switch video playback between the device screen and the HDMI
display, touch the Menu button
→
Change video out
.
7
To control playback, use these controls on the device screen:
• Touch the button to pause and the button to resume
playback.
• Touch or drag the yellow playback progress bar to rewind or fast-
forward the video.
116 Troubleshooting
Troubleshooting
Problem Possible causes Possible solutions
Call-related problems
SIM card error SIM card malfunction or
damage.
Take the SIM card to your
service provider for testing.
The SIM card is inserted
improperly.
Insert the SIM card properly.
Dirt or dust on the SIM card’s
metal contacts.
Use a soft, dry cloth to clean
the SIM card’s metal contacts.
Poor reception The network signal is too weak
at your current location, for
example, in a basement or near
a tall building. Wireless
transmissions can not
effectively reach it.
Move to a location where the
network signal can be properly
received.
The network is busy at the
current time (for example,
during peak times, there may
be too much network traffic to
handle additional calls).
Avoid using the device at such
times, or try again after waiting
a short time.
You are too far away from a
base station for your service
provider.
You can request a service area
map from your service
provider.
Troubleshooting 117
You cannot make outgoing
calls
The SIM card is not installed. Install a valid SIM card into
your device.
Poor signal. Move to an open space, or if
you are inside a building, move
closer to a window.
Your device is in Airplane
mode with no wireless
connectivity.
Touch the status area on the
status bar and clear the
Airplane mode check box.
You have enabled the Call
barring feature. Touch the Home button
→ the Menu button →
Settings → Call settings →
Additional call settings →
Call barring → Deactivate all.
You have enabled Fixed
Dialing Numbers. Touch the Home button
→ the Menu button →
Settings → Call settings →
Fixed Dialing Numbers.
Disable Fixed Dialing
Numbers (FDN).
You cannot answer
incoming calls
Poor signal. Move to an open space, or if
you are inside a building, move
closer to a window.
Your device is in Airplane
mode with no wireless
connectivity.
Touch the status area on the
status bar and clear the
Airplane mode checkbox.
You have enabled the Call
barring feature. Touch Home button →
the Menu button →
Settings → Call settings →
Additional call settings →
Call barring → Deactivate all.
Unable to add contacts to
the device
Memory for storing contacts is
already full.
Delete unnecessary contact
information from the device.
Echo or noise Poor network trunk quality on
the part of your service
provider, or poor local
telephone line quality.
Hang up and dial again. You
may be switched to a better-
quality network trunk or phone
line.
Problem Possible causes Possible solutions
118 Troubleshooting
Noises during a call You may be near a strong
electromagnetic source (such
as a TV, a microwave oven,
etc.) during a call.
Move to another location to
reduce the interference effects.
You cannot enable certain
call features
Your service provider does not
support these features, or you
have not applied for services
that provide these features.
Contact your service provider.
PIN Code is blocked You have entered an incorrect
PIN code three consecutive
times.
Contact your service provider.
If the service provider provides
the SIM card's PUK code, use
the PUK code to unlock the
SIM card.
System problems
Battery does not charge The battery or battery charger
is damaged.
Contact the dealer.
The device’s temperature is
below 0 °C or higher than
45 °C.
Adjust the battery charging
environment to avoid extreme
temperatures.
Poor contact between the
battery and charger.
Check all connectors to make
sure all connections have been
properly made.
Unable to turn the device
on.
The battery is empty. Charge the device.
The back cover has come off. Ensure that the back cover is
firmly secured to the device.
Battery contacts are not clean. Seek your dealer's help to clean
the contacts.
The device turns off
automatically
The back cover has come off. Ensure that the back cover is
firmly secured to the device.
Problem Possible causes Possible solutions
Troubleshooting 119
Shortened standby time The length of standby time is
affected by your service
provider’s system
configuration. The same
device used with different
service providers' systems does
not have the same length of
standby time.
If you are located in an area
where the network signal is
weak, temporarily turn off your
device.
The battery is depleted. In
high-temperature
environments, battery life will
be shortened.
Use a new battery.
If you are not able to connect
to the network, the device will
continue to send out signals as
it attempts to locate a base
station. Doing this consumes
battery power and
consequently shortens standby
time.
Change your location to one
where the network is
accessible, or temporarily turn
off your device.
Messaging problems
Unable to send or receive
text messages.
Your device is in Airplane
mode with no wireless
connectivity.
Touch the status area on the
status bar and clear the
Airplane mode checkbox.
The signal strength is not
strong enough.
Try moving to a different
location for better signal
reception.
Problem Possible causes Possible solutions
120 Troubleshooting
Unable to send or receive
multimedia messages.
Your device is in Airplane
mode with no wireless
connectivity.
Touch the status area on the
status bar and clear the
Airplane mode checkbox.
No MMS service is available. Subscribe to the MMS service
from your network service
provider.
Your MMS settings are not
configured properly.
Check your network
connection, and confirm with
your network service provider
if your MMS settings are
configured correctly.
Not enough space left on your
device memory.
Check if there is enough space
on your device memory. Delete
useless data to free space if
necessary.
Unable to send or receive e-
mail.
The Internet connection or the
e-mail setting is not configured
properly.
Check your network
connection, and confirm with
your e-mail service provider if
your e-mail setting has been
configured correctly.
Internet problems
Unable to connect to the
network.
Invalid SIM card. Contact your service provider.
You are not within the
network’s service area.
Check the service area with
your service provider.
Poor signal. Move to an open space or if
you are inside a building, move
closer to a window.
Problem Possible causes Possible solutions
