Dell S2317HWi Monitor
User’s Guide
Model: S2317HWi
Regulatory model: S2317HWib
Notes, cautions, and warnings
NOTE: A NOTE indicates important information that helps you make better
use of your computer.
CAUTION: A CAUTION indicates potential damage to hardware or loss of
data if instructions are not followed.
WARNING: A WARNING indicates a potential for property damage,
personal injury, or death.
____________________
Copyright © 2016 Dell Inc. All rights reserved.
This product is protected by U.S. and international copyright and intellectual property laws.
Dell™ and the Dell logo are trademarks of Dell Inc. in the United States and/or other
jurisdictions. All other marks and names mentioned herein may be trademarks of their
respective companies.
2016 - 02 Rev. X01
Safety Information | 3
Safety Information
WARNING: Safety Instructions
WARNING: Use of controls, adjustments, or procedures other than those
specified in this documentation may result in exposure to shock, electrical
hazards, and/or mechanical hazards.
Please read safety and instructions for use before operating the device.
Please retain this user's guide for future reference.
For information on safety instructions, see the Safety, Environmental, and Regulatory
Information.
Positioning the Monitor
The monitor is equipped with an antenna of the radio transmitter, so we recommend that
you keep a safe distance of 20 cm at least between the monitor and you.
> 20 cm
Power connection - Monitor with external +19.5VDC power
adapter
•Power requirements: The monitor must be powered using the accompanied power
adapter.
•The power adapter must be powered by AC mains power.
•The power adapter is specified as a part of the monitor.
4 | Safety Information
Regulatory compliance information
FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE
STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
•Reorient or relocate receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
CAUTION: This equipment complies with FCC radiation exposure limits set forth
for an uncontrolled environment. This equipment should be installed and
operated with minimum distance 20cm between the radiator & your body.
About Your Monitor | 5
About Your Monitor
Introduction

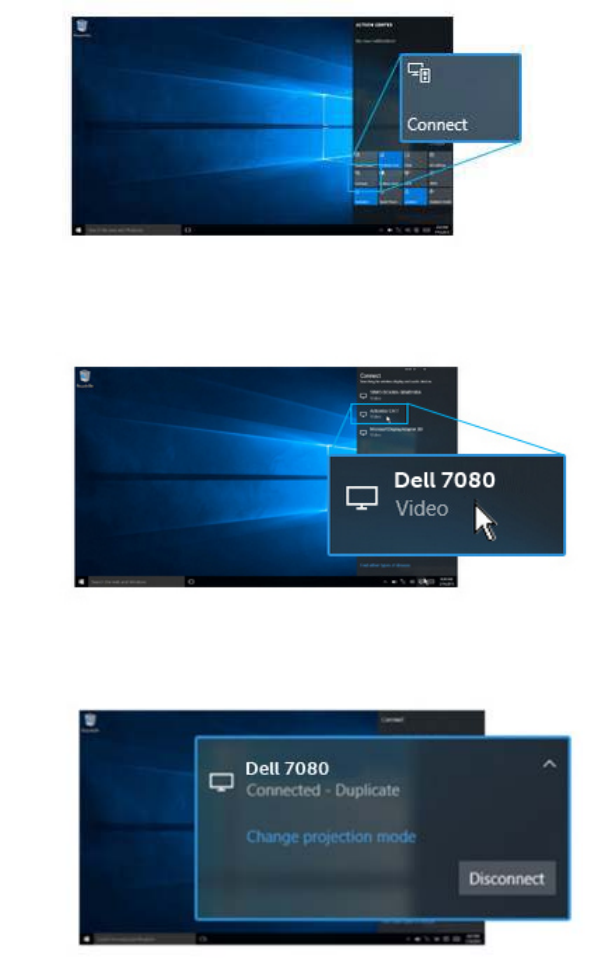

The Dell Wireless Monitor enables your laptop computer, Tablet & Mobile Phone devices
to display your screen image via WiFi Direct interface. When you connect the Laptop,
Tablet & Mobile Phone to the Dell Wireless Monitor, you can access the mouse &
keyboard connected to the Monitor to control the Compute device (Laptop, Tablet or
Mobile Phone).
Dell Wireless Monitor also enables your Laptop & Mobile Phone to be connected
simultaneously via WiFi Direct interface. The Laptop displayed in full screen and the
Mobile Phone will be displayed as an overlay (PiP) image.
Package Contents
Your monitor ships with the components shown below. Ensure that you have received all
the components and
Contact Dell
if something is missing.
Monitor
Stand Arm
NOTE: Some items may be optional and may not ship with your monitor. Some
features or media may not be available in certain countries.
NOTE: To set up with any other stand, please refer to the respective stand setup
guide for setup instructions.
Wireless Charging Base
Power Adapter
Power Cable (Varies by
Countries)
HDMI Cable
•Drivers and
Documentation
Media
•Quick Setup Guide
•Safety, Environmental,
and Regulatory
Information
•Wireless Safety and
Regulatory
Information
6 | About Your Monitor
About Your Monitor | 7
Product Features
The Dell S2317HWi flat panel display has an active matrix, Thin-Film Transistor (TFT),
Liquid Crystal Display (LCD) and LED backlight. The monitor features include:
•58.42 cm (23-inch) viewable area display (measured diagonally).
1920 x 1080 resolution, plus full-screen support for lower resolutions.
•Wide viewing angle to allow viewing from a sitting or standing position, or while
moving from side-to-side.
•Wireless charging stand base makes wireless charging possible for your
smartphones or mobile devices.
•Plug and play capability if supported by your system.
•HDMI connectivity makes it simple and easy to connect with legacy and new
systems.
•Build-in Speaker (3 W) x 2.
•On-Screen Display (OSD) adjustments for ease of set-up and screen optimization.
•Software and documentation media includes an Information File (INF), Image Color
Matching File (ICM), and product documentation.
•Dell Display Manager Software included (in the CD shipped with the monitor).
•Energy Saver feature for Energy Star compliance.
•Screenovate drivers/app to support additional/enhanced HID sharing features will
be included for Windows® 7/8.x/10.
•Security - lock slot.
•Capability to switch from wide aspect to standard aspect ratio while maintaining
the image quality.
•EPEAT Silver Rating.
•TCO-Certified Displays.
•BFR/PVC- Reduced.
•High Dynamic Contrast Ratio (8,000,000:1).
•0.3 W standby power when in the sleep mode.
•Energy Gauge shows the energy level being consumed by the monitor in real time
(consumption from the wireless charging base is not included).

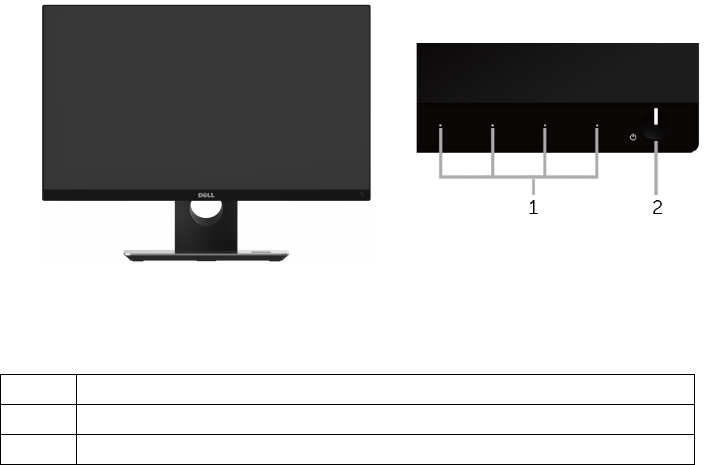

About Your Monitor | 9

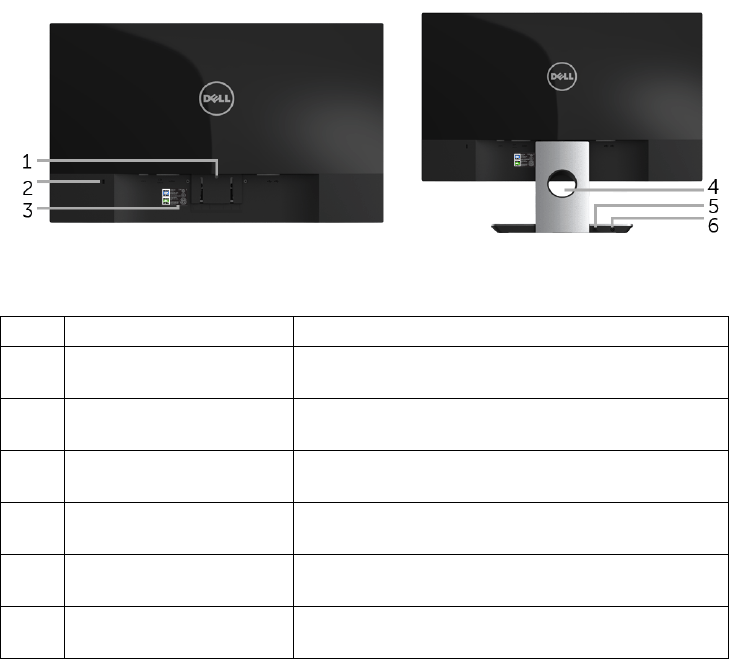

Back View
Back view with monitor stand
Label Description Use
1Stand release latch Releases stand from monitor by using a long
screwdriver to push.
2Security lock slot Secures monitor with security lock (optional
purchase).
3Barcode serial number
label
Refer to this label if you need to contact Dell for
technical support.
4Cable management slot Use to organize cables by placing them through
the slot.
5DC out cable Plugs to the power-adapter port on the monitor,
with a 19.5 V DC power supply.
6Power-adapter port Connect the power cable of the wireless charing
stand, with a 19.5 V DC power supply.

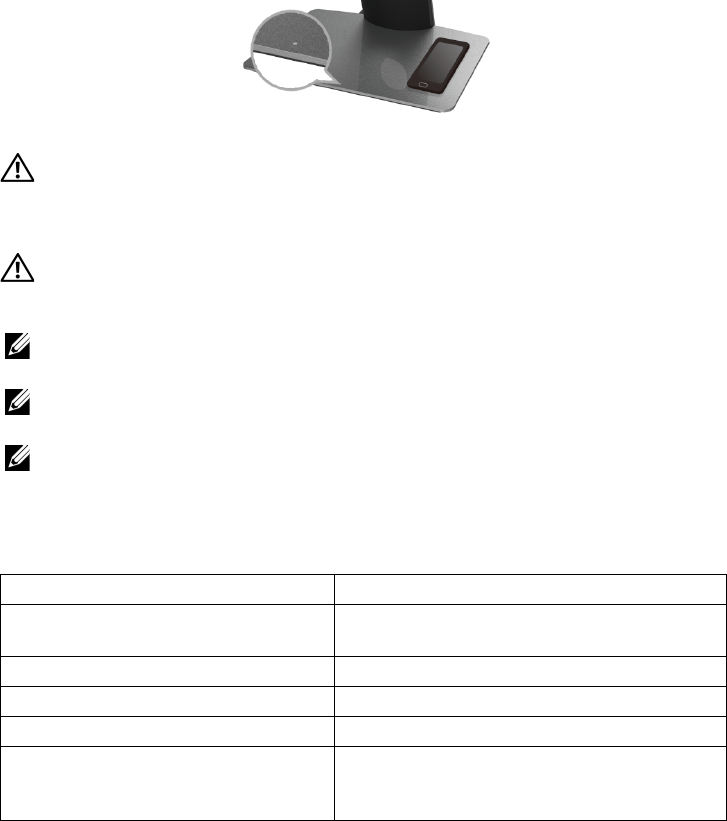

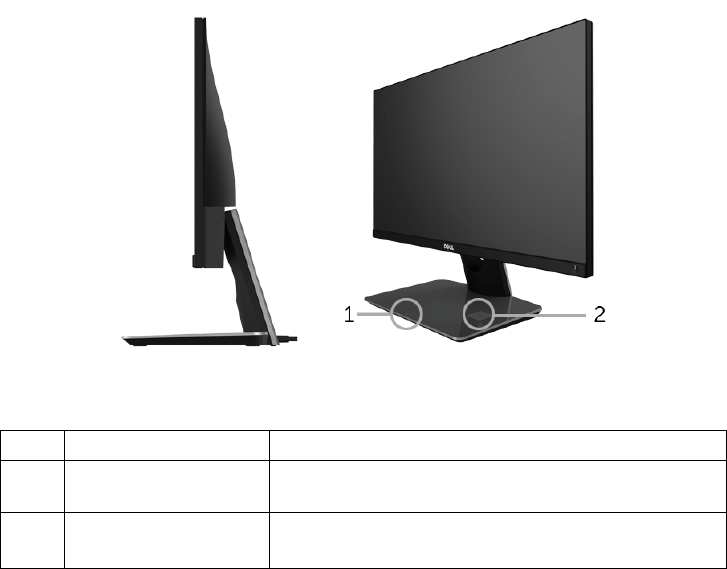

45-degree side view
Description Use
1Wireless charging LED Notifies the charging status of your Qi/PMA device.
(For more information, see
Indicator Lights
)
2Wireless charging pad •Charge your Qi (WPC) or PMA compliance devices.
•Align your device to the pad to get max charging.
10 | About Your Monitor
Side View
Label

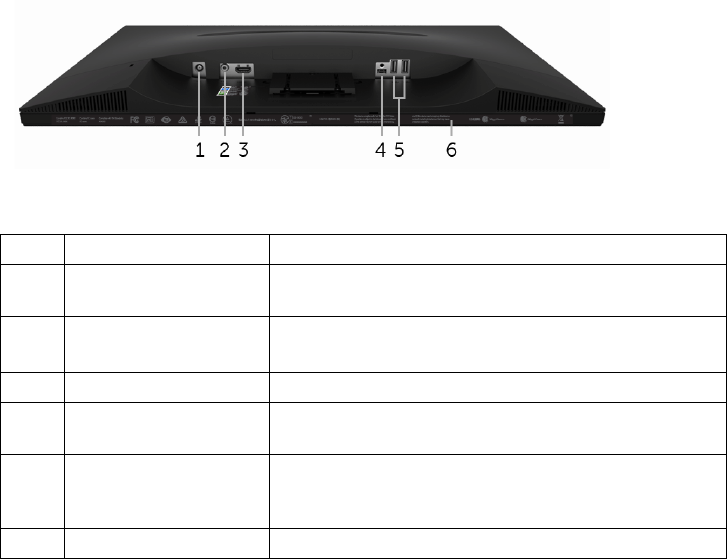

Bottom view without monitor stand
Description Use
1Power-adapter port Connects the DC out cable of the wireless charging
base.
2Line-out port Connect your speakers.
NOTE: This port does not support headphones.
3HDMI port Connect your computer with the HDMI cable.
4Micro-B port This port is for service or debugging only. (NOT for
end-user)
5USB downstream port Connect your USB keyboard and mouse. Other USB
devices are restricted to USB Ethernet, USB
Thumbdrive or USB 2.0 Hubs.
6Regulatory label Lists the regulatory approvals.
About Your Monitor | 11
Bottom View
Label
12 | About Your Monitor
Monitor Specifications
Flat Panel Specifications
Screen type Active matrix - TFT LCD
Panel type Wide view angle
Viewable image
Diagonal
Horizontal, Active Area
Vertical, Active Area
Area
584.2 mm (23 inches)
509.18 mm (20.05 inches)
286.41 mm (11.28 inches)
1458.34 mm2 (226.04 inch2)
Pixel pitch 0.265 mm x 0.265 mm
Viewing angle 178° (vertical) typical
178° (horizontal) typical
Luminance output 250 cd/m² (typical)
Contrast ratio 1000 to 1 (typical)
8,000,000 to 1 (typical Dynamic Contrast On)
Faceplate coating Anti-Glare with 3H hardness
Backlight LED edgelight system
Response time 8 ms (typical) for NORMAL mode
6 ms (typical) for FAST mode
Color depth 16.78 million colors
Color gamut 82% (typical)*
* Color gamut (typical) is based on CIE1976 (82%) and CIE1931 (72%) test standards.
Model S2317HWi
Horizontal scan range 30 kHz to 83 kHz(automatic)
Vertical scan range 56 Hz to 76 Hz (automatic)
Maximum preset resolution 1920 x 1080 at 60 Hz
About Your Monitor | 13
Resolution Specifications
Supported Video Modes
Video display capabilities 480p, 480i, 576p, 576i, 720p, 1080i, 1080p
Preset Display Modes
Display Mode Horizontal
Frequency (kHz)
Vertical
Frequency
(Hz)
Pixel Clock
(MHz)
Sync Polarity
(Horizontal/
Vertical)
Model S2317HWi
Model S2317HWi
VESA, 720 x 400 31.5 70.1 28.3 -/+
VESA, 640 x 480 31.5 60.0 25.2 -/-
VESA, 640 x 480 37.5 75.0 31.5 -/-
VESA, 800 x 600 37.9 60.3 40.0 +/+
VESA, 800 x 600 46.9 75.0 49.5 +/+
VESA, 1024 x 768 48.4 60.0 65.0 -/-
VESA, 1024 x 768 60.0 75.0 78.8 +/+
VESA, 1152 x 864 67.5 75.0 108.0 +/+
VESA, 1280 x 1024 64.0 60.0 108.0 +/+
VESA, 1280 x 1024 80.0 75.0 135.0 +/+
VESA, 1600 x 1200 75.0 60.0 162.0 +/+
VESA, 1920 x 1080 67.5 60.0 148.5 +/+
Video input signals HDMI 1.4, 600 mV for each differential line, 100 ohm
input impedance per differential pair
Inrush current 120 V:30 A (Max.) at 0 °C (cold start)
240 V:60 A (Max.) at 0 °C (cold start)
AC/DC
Adapter
Input voltage/
frequency/current
Delta adapter DA65NM111-00: 100 VAC to 240 VAC/50
Hz to 60 Hz ± 3 Hz/1.6 A (Max.)
Chicony adapter HA65NS5-00: 100 VAC to 240 VAC/50
Hz to 60 Hz ± 3 Hz/1.7 A (Max)
Output voltage/
current
Output: 19.5 V DC/3.34 A
14 | About Your Monitor
Electrical Specifications
Physical Characteristics
Model S2317HWi
Model S2317HWi

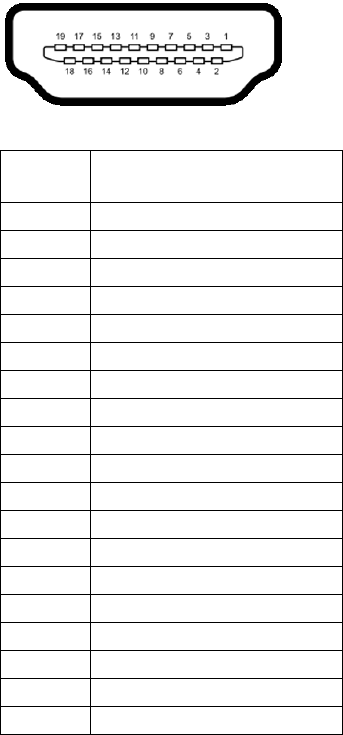

Signal cable type Digital: HDMI, 19 pins
Dimensions (with stand)
Height 408.1 mm (16.07 inches)
Width 520.7 mm (20.50 inches)
Depth 196.1 mm (7.72 inches)
Dimensions (without stand)
Height 311.6 mm (12.27 inches)
Width 520.7 mm (20.50 inches)
Depth 54.2 mm (2.13 inches)
Stand dimensions
Height 182.5 mm (7.19 inches)
Width 262.4 mm (10.33 inches)
Depth 196.1 mm (7.72 inches)
Weight
Weight with packaging 6.11 kg (13.47 lbs)
Weight with stand assembly and
cables
4.5 kg (9.92 lbs)
Weight without stand assembly 3.2 kg (7.05 lbs)
About Your Monitor | 15
Speaker Specifications
Speaker rated power 2 x 3 W
Frequency Response 200 Hz - 20 kHz
Impedance 8 ohm
Wireless Specifications
Standard 802.11 a/b/g/n/ac
Frequency Band 2.4GHz, 5GHz - Concurrent
Connectivity WiFi Direct, Miracast
Security WPA, WPA2
Content DRM HDCP 2.2
Environmental Characteristics
Operating 0 °C to 40 °C (32 °F to 104 °F)
Non-operating •Storage: -20 °C to 60 °C (-4 °F to 140 °F)
•Shipping: -20 °C to 60 °C (-4 °F to 140 °F)
Operating 10% to 80% (non-condensing)
Non-operating •Storage: 5% to 90% (non-condensing)
•Shipping: 5% to 90% (non-condensing)
Operating 5,000 m (16,404 ft) (maximum)
Non-operating 12,192 m (40,000 ft) (maximum)
•115.94 BTU/hour (maximum)
•78.43 BTU/hour (typical)
Weight of stand assembly 0.82 kg (1.81 lbs)
Front frame gloss Black frame - 85% gloss unit
Model S2317HWi
Model S2317HWi
Model S2317HWi
Temperature
Humidity
Altitude
Thermal dissipation
16 | About Your Monitor
Power Management Modes
If you have VESA's DPM™ compliance display card or software installed in your PC, the
monitor can automatically reduce its power consumption when not in use. This is
referred to as Power Save Mode*. If the computer detects input from the keyboard,
mouse, or other input devices, the monitor automatically resumes functioning. The
following table shows the power consumption and signaling of this automatic power
saving feature.
VESA Modes Horizontal
Sync
Vertical
Sync
Video Power
Indicator
Power
Consumption
Normal
operation
Active Active Active White TBD W (maximum)**
TBD W (typical)
Active-off
mode
Inactive Inactive Blanked White (Glowing) Less than 0.3 W
Switch off - - - Off Less than 0.3 W
Energy Star Power Consumption
On mode 20.9 W ***
* Zero power consumption in OFF mode can only be achieved by disconnecting the
main cable from the monitor.
** Maximum power consumption with max luminance, and USB active.
*** Energy consumption (On Mode) is tested at 230 Volts / 50 Hz. Measurements are
indicative for monitor head only without charging base turned on.
This document is informational only and reflects laboratory performance. Your product
may perform differently, depending on the software, components and peripherals you
ordered and shall have no obligation to update such information. Accordingly, the
customer should not rely upon this information in making decisions about electrical
tolerances or otherwise. No warranty as to accuracy or completeness is expressed or
implied.
NOTE: This monitor is ENERGY STAR®-compliant.
Pin
Number
19-pin Side of the
Connected Signal Cable
TMDS DATA 2+
TMDS DATA 2 SHIELD
TMDS DATA 2-
TMDS DATA 1+
TMDS DATA 1 SHIELD
TMDS DATA 1-
TMDS DATA 0+
TMDS DATA 0 SHIELD
TMDS DATA 0-
TMDS CLOCK+
TMDS CLOCK SHIELD
TMDS CLOCK-
CEC
Reserved (N.C. on device)
DDC CLOCK (SCL)
DDC DATA (SDA)
DDC/CEC Ground
+5V POWER
HOT PLUG DETECT
About Your Monitor | 17
Pin Assignments
HDMI Connector
Plug and Play Capability
You can install the monitor in any Plug and Play-compatible system. The monitor
automatically provides the computer system with its Extended Display Identification Data
(EDID) using Display Data Channel (DDC) protocols so the system can configure itself
and optimize the monitor settings. Most monitor installations are automatic; you can
select different settings if desired. For more information about changing the monitor
settings, see
Operating the Monitor
.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
18 | About Your Monitor

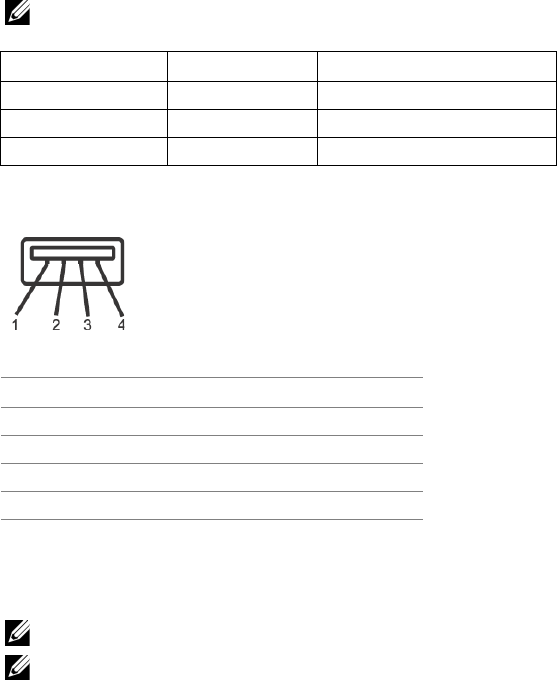

Universal Serial Bus (USB) Interface
This section gives you information about the USB ports that are available on the monitor.
Transfer Speed Data Rate Power Consumption*
High speed 480 Mbps 2.5 W (Max, each port)
Full speed 12 Mbps 2.5 W (Max, each port)
Low speed 1.5 Mbps 2.5 W (Max, each port)
NOTE: This monitor is High-Speed USB 2.0 compatible.
USB Downstream Connector
Pin Number 4-pin Side of the Connector
1VCC
2DMD
3DPD
4GND
USB Ports
•2 downstream - bottom
NOTE: USB 2.0 functionality requires a USB 2.0-capable computer.
NOTE: The monitor's USB interface works only when the monitor is On or in the
power save mode. If you turn Off the monitor and then turn it On, the attached
peripherals may take a few seconds to resume normal functionality.
LCD Monitor Quality and Pixel Policy
During the LCD Monitor manufacturing process, it is not uncommon for one or more
pixels to become fixed in an unchanging state which are hard to see and do not affect
the display quality or usability. For more information on Dell Monitor Quality and Pixel
Policy, see Dell Support site at: http://www.dell.com/support/monitors.
About Your Monitor | 19
Maintenance Guidelines
Cleaning Your Monitor
CAUTION: Read and follow the
Safety Instructions
before cleaning the monitor.
WARNING: Before cleaning the monitor, unplug the monitor power cable from
the electrical outlet.
For best practices, follow the instructions in the list below while unpacking, cleaning, or
handling your monitor:
•To clean your anti-static screen, lightly dampen a soft, clean cloth with water. If
possible, use a special screen-cleaning tissue or solution suitable for the anti-
static coating. Do not use benzene, thinner, ammonia, abrasive cleaners, or
compressed air.
•Use a lightly-dampened, warm cloth to clean the monitor. Avoid using
detergent of any kind as some detergents leave a milky film on the monitor.
•If you notice white powder when you unpack your monitor, wipe it off with a
cloth.
•Handle your monitor with care as a darker-colored monitor may get scratched
and show white scuff marks more than a lighter-colored monitor.
•To help maintain the best image quality on your monitor, use a dynamically
changing screen saver and turn Off your monitor when not in use.
20 | Operating the Monitor
Operating the Monitor
Setting up the Miracast
Miracast is a wireless display standard that is supported by Windows® 7, Windows® 8,
Windows® 8.1, Windows® 10, Android 4.2 or newer version operating systems. The
monitor can connect to a computer or an Android device wirelessly via Miracast.
Connect the monitor to a computer with Miracast
NOTE: The environment surrounding the monitor and the computer may affect
transmission signal and compromise signal strength. Remove all objects between
the monitor and the computer to ensure maximum signal transmittion and
reception.

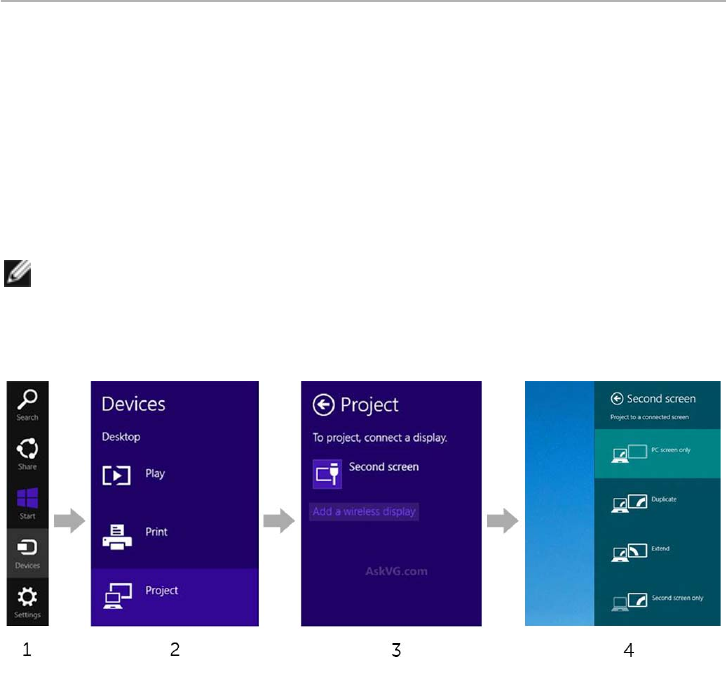

In Windows® 8.1:
1Select Devices from the Charms bar.
2Select Project from the Devices menu.
3Select monitor name as displayed on your monitor.
4Select your Projection Mode.
Operating the Monitor | 21
In Windows® 10:
1Select Connect from the Action Center.
2Select monitor name as displayed on your monitor.
3Select your Projection Mode.
22 | Operating the Monitor
Connect the monitor to an Android device with Miracast
To make a Miracast connection to an Android device, the Android device must support
Miracast connection.
Depending on you device manufacturer, you can make connection to your wireless
monitor via one of the following methods:
•Settings > Display > Cast
•Settings > Screen Mirroring
•Settings > Share & Connect > Miracast
NOTE: If your device settings differ from those shown above, please refer to your
device manual for Cast Screen connection instructions.
Android device list
NOTE: If your device is not listed above, please refer to your device manual or
contact your device manufacturer for compatibility.
1Asus Zenfone 2
2HTC One M8
3HTC One M9
4HTC One M9+ (Phablet)
5Huawei P8
6Huawei P8 Max (Phablet)
7LG G4
8LG G Flex 2
9LG G Pad 8.3
10 Nexus 5 (updated to Lollipop)
11 Nexus 7 (updated to Lollipop)
12 Samsung Galaxy S6
13 Sony Xperia X3+
14 Xiaomi Mi Note
15 Xiaomi Mi Note Pro (Phablet)
Operating the Monitor | 23
Using the Wireless Charging Stand
The stand of your monitor allows you to charge a Qi (WPC)/PMA certified smartphone or
mobile device wirelessly. For more information about wireless charging standards and
certified devices, please visit: http://www.wirelesspowerconsortium.com/ and http://
www.merger.powermatters.org/.
Setting Up the Wireless Charging Function
Before starting to charge your mobile device wirelessly, follow the instructions below:
1Ensure that the DC out cable and power cable are connected properly and secure,
as illustrated below.
2Press the button on the front to launch the OSD menu and display the main
menu.
3Press the or buttons to move to the Wireless Charing setting, and then
press to enter its submenu.
4Press the or buttons to select Enable.
5Press the button to save the changes and return to the main menu.
NOTE: Always enable the Wireless Charging function in OSD before you can use
the wireless charging function.
6The white LED appears for 3 seconds and then goes off to indicate that the wireless
charging function is turned On.
24 | Operating the Monitor
To turn Off the wireless charging function, select Disable under Wireless Charging in the
Energy menu.
Charging Your Mobile Device Wirelessly
NOTE: Always enable the Wireless Charging function in OSD before you can use
the wireless charging function. (See
Setting Up the Wireless Charging Function
for
details.)
To charge your mobile device wirelessly:
1Read the documentations that come with the mobile device for information on
how to use the wireless charging function correctly.
2Make sure that the charging area of the wireless charging stand is clear of any
object and then place your mobile device on the center of the charging area.
3When the device is properly placed on the charging area, the LED indicator lights in
white to indicate that your device starts to charge.
Operating the Monitor | 25
4When the battery of the device is fully charged (usually > 98%), the white LED light
goes out.
WARNING: Do not charge a non Qi (WPC)/PMA certified device, or place any
other object in the wireless charging area. If you use a Qi (WPC)/PMA certified
wireless charging cover for the mobile device, do not place the cover in the
charging area without the mobile device installed.
WARNING: Do not place any magnetic storage media (like floppy disks or credit
cards) near the charging area. Otherwise the data on the media will be
accidentally erased.
NOTE: The time required for fully charging the mobile device depends on the
device’s battery life/capacity and charging efficiency.
NOTE: To avoid any interference while your device is charging, do not place
anything around the device and the charging area.
NOTE: It's normal that the charging stand base and mobile device become warm
while charging.
Indicator Lights
The following table describes the status that LED indicator presents:
LED Indicator Activities
White LED appears for 3 seconds and
goes off
Power on.
No indication Not charging.
White LED Charging.
White LED goes off The battery of your device is fully charged.
White LED appears for 2 seconds and
goes off
Notifies that the battery of your device is
actually fully charged and you may want to
remove it from the charging pad.
Wireless Monitor and Wireless Charging Stand
Safety and Regulatory Information
www.dell.com/support
Safety
Dell Wireless devices, like other radio devices, emit radio frequency electromagnetic energy. Dell Wireless devices operate within
the guidelines found in radio frequency safety standards and recommendations. These standards and recommendations reflect the
consensus of the scientific community and result from deliberations of panels and committees of scientists who continually review
and interpret the extensive research literature. In some situations or environments, the use of Dell Wireless devices may be restricted
by the proprietor of the building or responsible representatives of the applicable organization.
Examples of such situations include the following:
• Using Dell Wireless devices on board airplanes, or
• Using Dell Wireless devices in any other environment where the risk of interference with other devices or services is
perceived or identified as being harmful.
If you are uncertain of the policy that applies to the use of wireless devices in a specific organization or environment (an airport, for
example), you are encouraged to ask for authorization to use a Dell Wireless device before you turn it on.
Explosive Device Proximity Warning:
Do not operate a portable transmitter (such as a wireless network device) near unshielded blasting caps or in an explosive
environment unless the device has been modified to be qualified for such use.
Use on Aircraft Caution:
Regulations of the FCC and FAA prohibit airborne operation of radio-frequency wireless devices because their signals could interfere
with critical aircraft instruments.
Regulatory Information
Dell Wireless devices must be installed and used in strict accordance with the manufacturer’s instructions as described in the
user documentation that comes with the product. Dell Inc. is not responsible for any radio or television interference caused by
unauthorized modification of the devices, or the substitution or attachment of connecting cables and equipment other than that
specified by Dell Inc. The correction of interference caused by such unauthorized modification, substitution or attachment is the
responsibility of the user. Dell Inc. and its authorized resellers or distributors are not liable for any damage or violation of government
regulations that may arise from the user failing to comply with these guidelines.
United States, FCC Notices
FCC Radiation Exposure Statement
WARNING: The radiated output power of this device is below the FCC radio frequency exposure limits. Nevertheless,
thisdevice should be used in such a manner that the potential for human contact during normal operation is minimized.
This device has been evaluated for and shown compliant with the FCC RF Exposure limits under mobile exposure
conditions (antennas are greater than 20cm from a person’s body). This device has also been evaluated for and shown
compliant with the FCC RF exposure limits under portable exposure conditions (antennas are within 20 cm of a person’s
body) when installed in certain specific configurations. Details of the authorized configurations can be found at:
https://allfoss.fcc.gov/oetcf/eas/reports/GenericSearch.cfm by entering the FCC ID number on the device.
Interference Statement
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
manufacturer’s instruction manual, may cause interference with radio and television reception. This equipment has been tested and
found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
1 This device may not cause harmful interference.
2 This device must accept any interference received, including interference that may cause undesired operation.
© 2015 Dell Inc.
2015-10
Notice: The FCC regulations provide that changes or modifications not expressly approved by Dell Inc. could void your authority
to operate this equipment. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference with radio or television reception, which can be determined by turning the equipment o and on, you are
encouraged to try to correct the interference by one or more of the following measures:
• Reorient the receiving antenna.
• Relocate the system with respect to the receiver.
• Move the system away from the receiver.
• Plug the system into a dierent outlet so that the system and the receiver are on dierent branch circuits.
If necessary, consult a representative of Dell Inc. or an experienced radio/television technician for additional suggestions.
NOTE: This Dell Wireless devise must be installed and used in strict accordance with the manufacturer’s instructions as described
in the user documentation that comes with the product. Any other installation or use will violate FCC Part 15 regulations.
Modifications not expressly approved by Dell could void your authority to operate the equipment.
FOR COUNTRY CODE SELECTION USAGE (WLAN DEVICES)
NOTE: The country code selection is for non-U.S.A. models only and is not available on all U.S.A. models. Per FCC regulation,
allWi-Fi products marketed in the U.S.A must be fixed to U.S.A. operation channels only.
Radio Frequency Interference Requirements (For wireless device using 802.11a (5 GHz))
WARNING: This device is restricted to indoor use due to its operation in the 5.15 GHz to 5.25 GHz frequency range.
TheFCC requires this product to be used indoors for the frequency range 5.15 GHz to 5.25 GHz to reduce the potential
for harmful interference to co-channel Mobile Satellite systems. High power radars are allocated as primary users of the
5.25GHz to 5.35 GHz and 5.65 GHz to 5.85 GHz bands. These radar stations can cause interference with this device,
or can cause damage to this device, or both.
Canada, Industry Canada (IC) Notices
Class B digital circuitry of this device complies with Canadian ICES-003.
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause
undesired operation of the device.
Under Industry Canada regulations, the radio transmitter(s) in this device may only operate using an antenna of a type and maximum
(or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna
type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for
successful communication.
Warning:
i The device for operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for harmful interference
to co-channel mobile satellite systems;
ii The maximum antenna gain permitted for devices in the bands 5250-5350 MHz and 5470-5725 MHz shall comply with the
e.i.r.p. limit; and
iii The maximum antenna gain permitted for devices in the band 5725-5825 MHz shall comply with the e.i.r.p. limits specified
for point-to-point and non point-to-point operation as appropriate.
iv The worst-case tilt angle(s) necessary to remain compliant with the e.i.r.p. elevation mask requirement set forth in
Section6.2.2(3) shall be clearly indicated.
v Users should also be advised that high-power radars are allocated as primary users (i.e. priority users) of the bands 5250-
5350 MHz and 5650-5850 MHz and that these radars could cause interference and/or damage to LE-LAN devices.
Radio Frequency (RF) Exposure Information
The radiated output power of this device is below the Industry Canada (IC) radio frequency exposure limits. This device has been
evaluated for and shown compliant with the IC Radio Frequency (RF) Exposure limits. The device should be used in such a manner
such that the potential for human contact during normal operation is minimized.
This device has been certified for use in Canada. Status of the listing in the Industry Canada’s REL (Radio Equipment List) can be
found at the following web address: http://www.ic.gc.ca/app/sitt/reltel/srch/nwRdSrch.do?lang=eng
Additional Canadian information on RF exposure also can be found at the following web address:
http://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf08792.html
The County Code Selection feature is disabled for products marketed in the U.S.A./ Canada.
________________________________________________________________________________________________
Canada, avis d’Industry Canada (IC)
La circuiterie numérique de Classe B de cet appareil est conforme à la norme canadienne ICES-003.
Cet appareil est conforme aux normes d’exemption de licence RSS d’Industry Canada. Son fonctionnement est soumis aux
deux conditions suivantes : (1) cet appareil ne doit pas causer d’interférence et (2) cet appareil doit accepter toute interférence,
notamment les interférences qui peuvent aecter son fonctionnement.
Conformément aux réglementations d’Industry Canada, les émetteurs radio de cet appareil ne peuvent fonctionner qu’à l’aide d’une
antenne dont le type et le gain maximal (ou minimal) pour ces émetteurs - transmetteurs sont approuvés par Industry Canada. Pour
réduire le risque d’interférence éventuelle pour les autres utilisateurs, le type et le gain de l’antenne doivent être choisis de manière à
ce que la puissance isotrope rayonnée équivalente (p.i.r.e.) minimale nécessaire à une bonne communication soit fournie.
Avertissement:
i Les dispositifs fonctionnant dans la bande 5 150-5 250 MHz sont réservés uniquement pour une utilisation à l’intérieur afin de
réduire les risques de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux;
ii Le gain maximal d’antenne permis pour les dispositifs utilisant les bandes 5 250-5 350 MHz et 5 470-5 725 MHz doit se
conformer à la limite de p.i.r.e.;
iii Le gain maximal d’antenne permis (pour les dispositifs utilisant la bande 5 725-5 825 MHz) doit se conformer à la limite de
p.i.r.e. spécifiée pour l’exploitation point à point et non point à point, selon le cas.
iv Les pires angles d’inclinaison nécessaires pour rester conforme à l’exigence de la p.i.r.e. applicable au masque d’élévation,
eténoncée à la section 6.2.2 3), doivent être clairement indiqués.
v De plus, les utilisateurs devraient aussi être avisés que les utilisateurs de radars de haute puissance sont désignés utilisateurs
principaux (c.-à-d., qu’ils ont la priorité) pour les bandes 5 250-5 350 MHz et 5 650-5 850 MHz et que ces radars pourraient
causer du brouillage et/ou des dommages aux dispositifs LAN-EL.
Informations sur l’exposition à la fréquence radio (FR)
La puissance rayonnée de sortie de cet appareil est inférieure aux limites d’exposition à la fréquence radio d’Industry Canada (IC).
Cet appareil a été évalué et jugé conforme aux limites d’exposition à la fréquence radio (FR) d’IC. Cet appareil devrait être utilisé de
manière à ce que le risque de contact humain au cours d’un fonctionnement normal soit réduit.
Cet appareil est homologué pour l’utilisation au Canada. Pour consulter l’entrée correspondant à l’appareil dans la liste d’équipement radio
(REL - Radio Equipment List) d’Industry Canada, rendez-vous sur : http://www.ic.gc.ca/app/sitt/reltel/srch/nwRdSrch.do?lang=eng
Pour des informations canadiennes supplémentaires sur l’exposition FR, rendez-vous sur :
http://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf08792.html
La fonction de sélection de l’indicatif du pays est désactivée pour les produits commercialisés aux États-Unis et au Canada.
________________________________________________________________________________________________
European Union, R&TTE Compliance Statement
Hereby, Dell Inc. declares that this Dell Wireless Device is in compliance with the essential requirements and other relevant
provisions of Directive 1999/5/EC
A minimum separation distance of 20 cm must be maintained between the user’s body and the device, including the antenna during
body-worn operation to comply with the RF exposure requirements in Europe.
________________________________________________________________________________________________
Европейски съюз, Декларация за съответствие с Директивата за радиосъоръжения и
крайни далекосъобщителни устройства (R&TTE)
С настоящото Dell Inc. декларира, че това безжично устройство на Dell™ отговаря на основните изисквания и другите съответни
условия на Директива 1999/5/EC.
________________________________________________________________________________________________
Evropská unie, prohlášení o shodě R&TTE
Společnost Dell Inc. tímto prohlašuje, že toto bezdrátové zařízení Dell je v souladu se základními požadavky a dalšími příslušnými
ustanoveními směrnice 1999/5/ES.
________________________________________________________________________________________________
EU-overensstemmelseserklæring, R&TTE
Hermed erklærer Dell Inc., at denne trådløse Dell-enhed er i overensstemmelse med de væsentligste krav og andre relevante
bestemmelse i EU-direktivet 1999/5.
________________________________________________________________________________________________
Europese unie, verklaring van naleving van de R&TTE-richtlijn
Hierbij verklaart Dell Inc. dat dit draadloze apparaat van Dell voldoet aan de essentiële vereisten en andere relevante bepalingen van
Richtlijn 1999/5/EC.
________________________________________________________________________________________________
Euroopa Liit, direktiivi R&TTE nõuetele vastavuse tunnistus
Dell Inc. kinnitab käesolevaga, et Dell Wireless Device vastab direktiivi 1999/5/EÜ olulistele nõuetele ja asjakohastele sätetele.
________________________________________________________________________________________________
Ey:N Vaatimustenmukaisuusvakuutus
Dell Inc. vakuuttaa täten, että tämä laite on direktiivin 1999/5/EY olennaisten vaatimusten ja muiden määräysten mukainen.
________________________________________________________________________________________________
Déclaration de conformité R&TTE, Union Européenne
Par la présente, Dell Inc. déclare que ce Périphérique sans fil Dell est conforme aux exigences essentielles et aux autres provisions
applicables de la Directive 1999/5/EC.
________________________________________________________________________________________________
Europäische Union, R&TTE-Einhaltungserklärung
Hiermit bestätigt die Dell Inc., dass dieses Wireless-Gerät von Dell in Übereinstimmung mit den grundlegenden Anforderungen und
anderen relevanten Bestimmungen der 1999/5/EC-Richtlinie steht.
________________________________________________________________________________________________
Ευρωπαϊκή Ένωση, Δήλωση Συμμόρφωσης R&TTE
Δια του παρόντος, η Dell Inc. δηλώνει ότι αυτή η ασύρματη συσκευή της Dell συμμορφώνεται με τις βασικές απαιτήσεις και όλους τους
σχετικούς όρους της Οδηγίας 1999/5/ΕΚ.
________________________________________________________________________________________________
Európai Unió, megfelelőségi nyilatkozat a rádióberendezésekről és távközlő végberendezésekről
szóló (R&TTE) irányelvvel
A Dell Inc. ezúton kijelenti, hogy a Dell vezeték nélküli készülék megfelel az 1999/5/EK direktíva alapvető követelményeinek és egyéb
lényeges rendelkezéseinek.
________________________________________________________________________________________________
Unione Europea, Dichiarazione di conformità R&TTE
Con la presente, Dell Inc. dichiara che questa periferica senza fili Dell è conforme ai requisiti essenziali e ad altri provvedimenti
importanti della Direttiva 1999/5/CE.
________________________________________________________________________________________________
Paziņojums par atbilstību Eiropas Savienības Radioiekārtu un telekomunikāciju iekārtu Direktīvai
Līdz ar to Dell Inc. paziņo, ka šī Dell bezvadu ierīce atbilst Direktīvā 1999/5/EK noteiktajām pamatprasībām un citiem tās
atbilstošajiem noteikumiem.
________________________________________________________________________________________________
Europos Sąjunga, pareiškimas apie radijo ryšio įrenginių ir telekomunikacijų galinių įrenginių
(R&TTE) direktyvos atitikimą
Šiuo kompanija Dell Inc. pareiškia, kad šis Dell bevielis įrenginys atitinka direktyvos 1999/5/EB esminius reikalavimus ir kitas
atitinkamas nuostatas.
________________________________________________________________________________________________
Unjoni Ewropea, R&TTE Dikjarazzjoni tal-Konformità
Hawnhekk, Dell Inc., tiddikjara li dan id-Dell Wireless Device hu konformi mal-ħtiġijiet essenzjali u provvedimenti rilevanti oħrajn ta’
Direttiva 1999/5/KE.
________________________________________________________________________________________________
Unia Europejska, deklaracja zgodności z dyrektywą 1999/5/WE
Niniejszym firma Dell Inc. oświadcza, że to urządzenie bezprzewodowe firmy Dell spełnia zasadnicze wymogi oraz inne odnośne
przepisy dyrektywy 1999/5/WE.
________________________________________________________________________________________________
União Europeia, Declaração de conformidade da R&TTE
Pelo presente, a Dell Inc. declara que este Dispositivo Sem Fios Dell está em conformidade com os requisitos essenciais e outras
provisões relevantes da Directiva 1999/5/EC.
________________________________________________________________________________________________
Uniunea Europeană, Declaraţie de Conformitate R&TTE
Dell declară prin prezenta, că acest dispozitiv fără fir Dell™ respectă cerinţele esenţiale precum şi alte dispoziţii relevante ale
Directivei 1999/5/EC.
________________________________________________________________________________________________
Európska únia, vyhlásenie o zhode podľa R&TTE
Spoločnosť Dell Inc. týmto vyhlasuje, že toto bezdrôtové zariadenie Dell spĺňa základné požiadavky iné príslušné ustanovenia
smernice 1999/5/ES.
________________________________________________________________________________________________
Evropska unija, izjava o ustreznosti radijske in telekomunikacijske terminalske opreme
Evropska unija, izjava o ustreznosti radijske in telekomunikacijske terminalske opreme Podjetje Dell Inc. izjavlja, da je ta brezžična
naprava Dell v skladu z glavnimi zahtevami in drugimi pomembnimi določbami Direktive 1999/5/ES.
________________________________________________________________________________________________
Unión Europea, Declaración de conformidad con R&TTE
Por el presente, Dell Inc. declara que este Dispositivo inalámbrico Dell cumple con los requisitos esenciales y otras provisiones
relevantes de la Directiva 1999/5/EC.
________________________________________________________________________________________________
EU, meddelande om överensstämmelse med R&TTE-direktivet
Dell Inc. deklarerar härmed att denna trådlösa Dell-enhet överensstämmer med de viktiga kraven och andra relevanta bestämmelser
i direktivet 1999/5/EC.
________________________________________________________________________________________________
Avrupa Birliği, R&TTE Uygunluk Bildirimi
Burada, Dell Inc. bu Dell Kablosuz Aygıtının Directive 1999/5/EC kararının esas şartları ve diğer ilgili hükümleri ile uyumlı olduğunu
beyan eder.
________________________________________________________________________________________________
台灣: 國家通訊傳播委員會
低功率電波輻射性電機管理辦法
第十二條經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加大功率或變更原設計之特性及功能。
第十四條低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並改善至無干擾時方得繼續使用。
前項合法通信，指依電信法規定作業之無線電通信。低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。
해당 무선설비는 전파혼신 가능성이 있으므로 인명안전과 관련된 서비스는 할 수 없음
La operación de este equipo está sujeta a las siguientes dos condiciones: (1) es posible que este equipo o dispositivo no cause
interferencia perjudicial y (2) este equipo o dispositivo debe aceptar cualquier interferencia, incluyendo la que pueda causar su
operación no deseada.
Radio Approvals
It is important to ensure that you only use your radio device in countries where the device is approved for use. To determine whether
you are allowed to use your wireless network device in a specific country, check to see if the radio type number that is printed on the
identification label of your device or listed on the radio approval list posted on the general Dell support site at www.dell.com/support
