DUAL BAND HANDHELD RADIO
INSTRUCTION MANUAL
CAUTIONS
transceivers are designed with advanced technology and the following tips will be helpful for the safe usage
of this transceiver and maintaining warranty.
1. Keep the transceiver and accessories away from children.
2. Do not open or modify the transceiver in any way.
3. Use only factory approved battery and charger to avoid damage.
4. Use only factory approved antenna to prevent damage and ensure proper communication distance.
5. Avoid exposing the radio to sunshine for long periods or storing it in hot places. High temperatures will shorten the life of
electronic devices and may cause res.
6. Avoid storing the radio in dusty, dirty or damp areas. Remove battery during long storage periods.
7. Keep the radio dry. Do not wash radio with harsh chemicals or detergents.
8. Do not transmit without an antenna.
9. When using this transceiver, we recommend transmitting for 1 minute then receiving for 4 minutes. Continuously
transmitting for a long time on high power may heat the back of the transceiver. Do not place the transceiver's hot back
close to any plastics.
10. If any abnormal smell or smoke comes from the transceiver, turn off the power, remove the battery and contact your
local dealer.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference o radio or television
reception, which can be determined by turning the equipment off and on, the user encouraged to try to
correct the interference by one or more of the following measure:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired
operation.
Changes or modications to this unit not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
I
TABLE OF CONTENTS
UNPACKING .................................................................................................................................................................................................... 01
Supplied Accessories ......................................................................................................................................................................... 01
STANDARD ACCESSORIES .................................................................................................................................................................. 02
Standard Accessories .......................................................................................................................................................................... 02
OPERATION MODE (AMATEUR TRANSCEIVER OR PROFESSIONAL TRANSCEIVER) ................................. 03
WORKING MODE ........................................................................................................................................................................................04
BATTERY INFORMATION ........................................................................................................................................................................ 05
Charging Operation ..............................................................................................................................................................................05
Battery Charger Type........................................................................................................................................................................... 05
Notice for Charging Battery .............................................................................................................................................................. 05
How to Charge ........................................................................................................................................................................................ 06
Charging Prompt .................................................................................................................................................................................... 08
How to Store the Battery .................................................................................................................................................................... 08

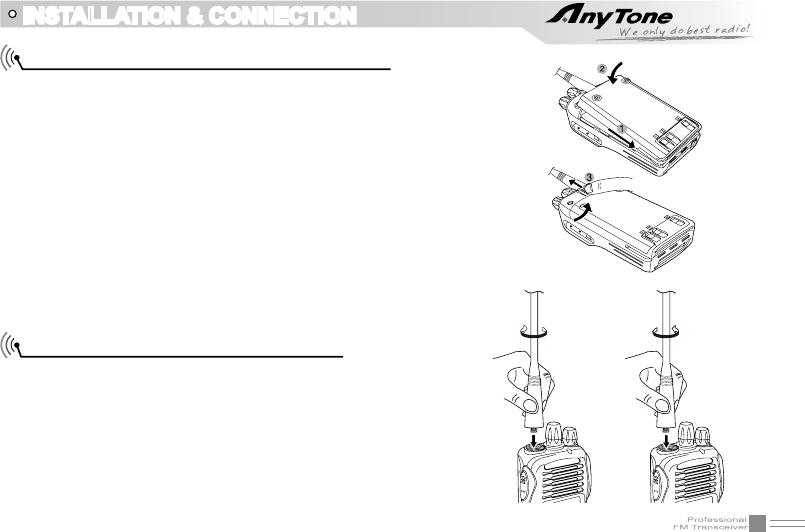

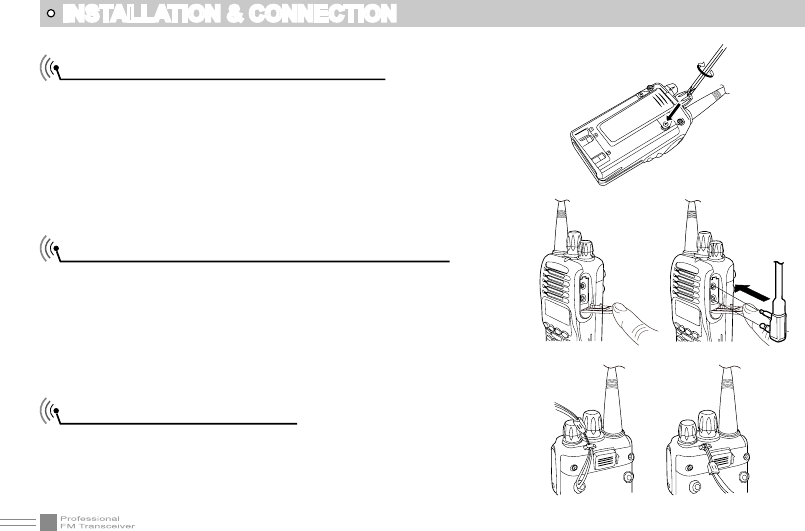

INSTALLATION & CONNECTION ........................................................................................................................................................ 09
Installing / Removing the Li-ion Battery ...................................................................................................................................... 09
Installing / Removing the Antenna................................................................................................................................................. 10
Installing / Removing the Belt Clip ................................................................................................................................................ 10
Installing Optional Speaker / Microphone .................................................................................................................................. 10
GETTING ACQUAINTED .......................................................................................................................................................................... 11

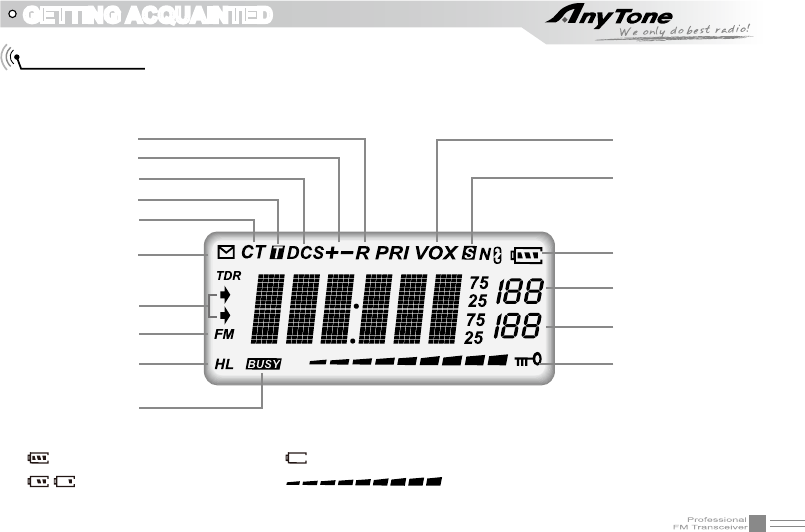

LCD Display ............................................................................................................................................................................................. 11
BASIC OPERATIONS ................................................................................................................................................................................. 14

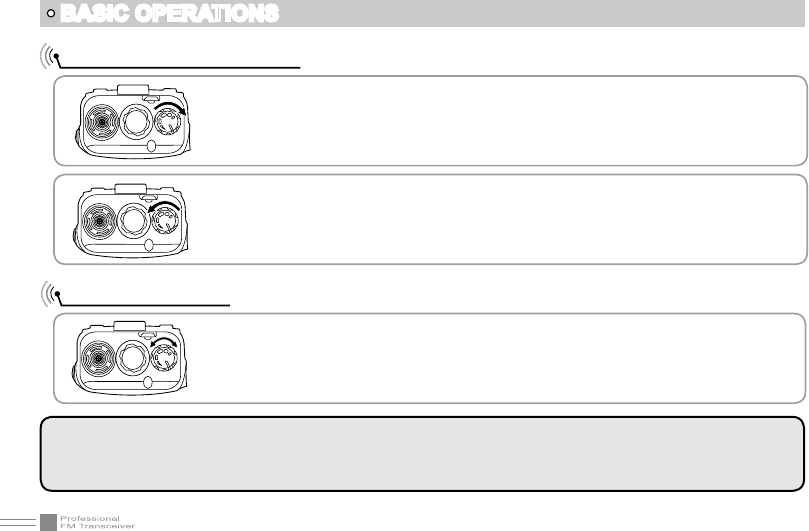

Turn the Radio On & OFF ................................................................................................................................................................. 14
Adjusting Volume ................................................................................................................................................................................... 14
Switch between Main band and Sub band ...............................................................................................................................15
Switch between Channel mode and VFO mode .................................................................................................................... 15
II
TABLE OF CONTENTS
Channel Adjusting ................................................................................................................................................................................. 15
Frequency Adjusting ............................................................................................................................................................................. 15
Frequency Input by Keypad ............................................................................................................................................................. 16
Channel Input by Keypad .................................................................................................................................................................. 16
Squelch Off Momentary / Squelch Off .........................................................................................................................................16
Receiving ................................................................................................................................................................................................... 17
Transmitting ..............................................................................................................................................................................................17
Emergency Alarm .................................................................................................................................................................................. 18
Side Key [PF1] function instruction ............................................................................................................................................... 18
Side key [PF2] function instruction................................................................................................................................................ 19
Edit channel .............................................................................................................................................................................................. 19
Delete channel ........................................................................................................................................................................................ 19
SHORTCUT OPERATIONS ..................................................................................................................................................................... 21

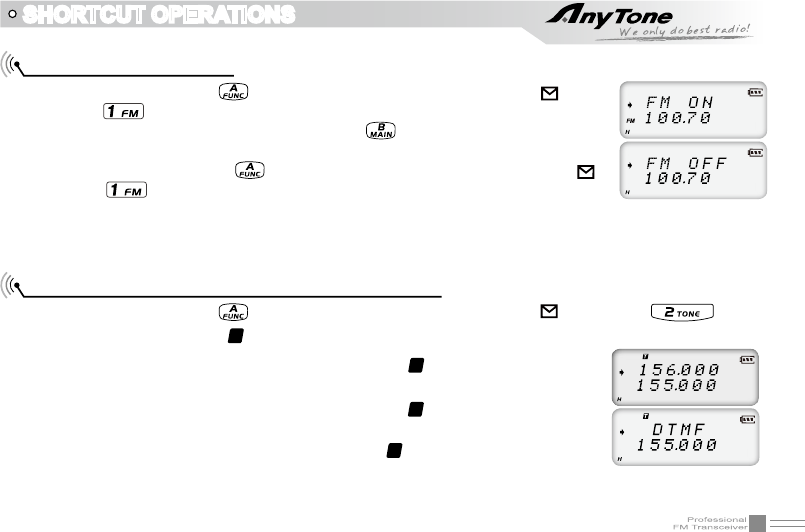

Turn On/ Off FM Radio........................................................................................................................................................................ 21
Add/Cancel Optional signal decode function ........................................................................................................................... 21
CTCSS/DCS Scan ................................................................................................................................................................................ 22

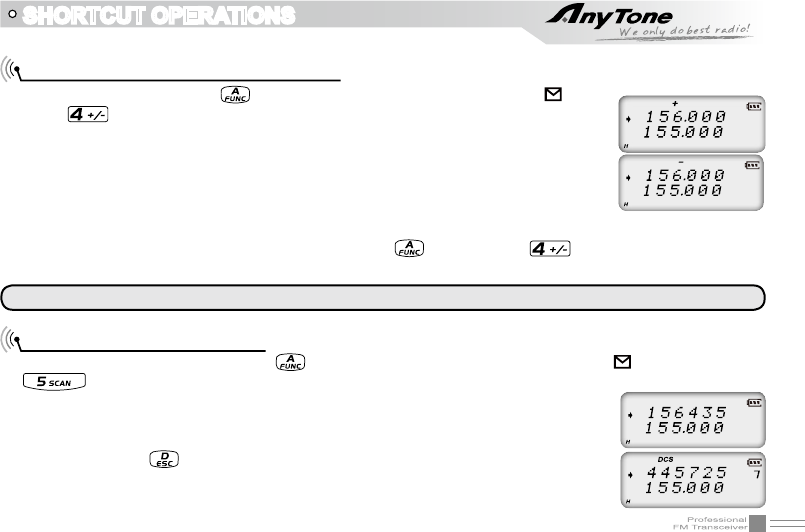

Offset Frequency Direction Setup ................................................................................................................................................. 23
Frequency/Channel Scan .................................................................................................................................................................. 23
Channel Scan Skip ............................................................................................................................................................................... 24
Frequency Reverse .............................................................................................................................................................................. 24

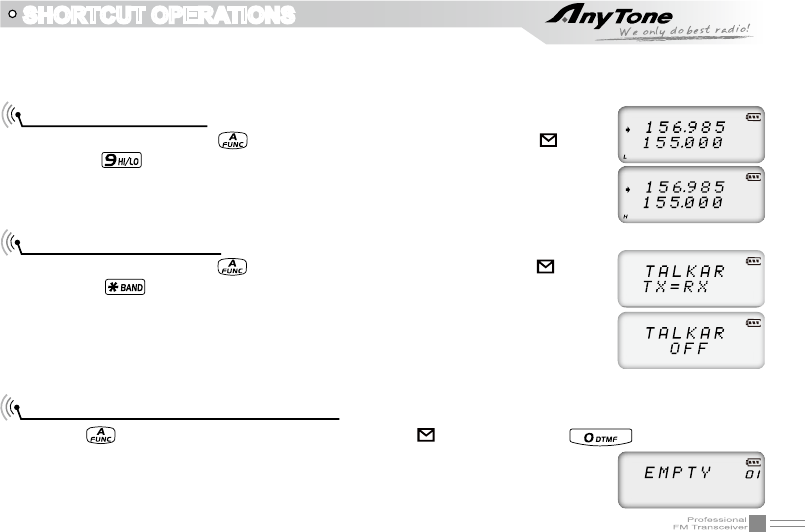

TX Power selection ............................................................................................................................................................................... 25
Talk Around function ............................................................................................................................................................................. 25

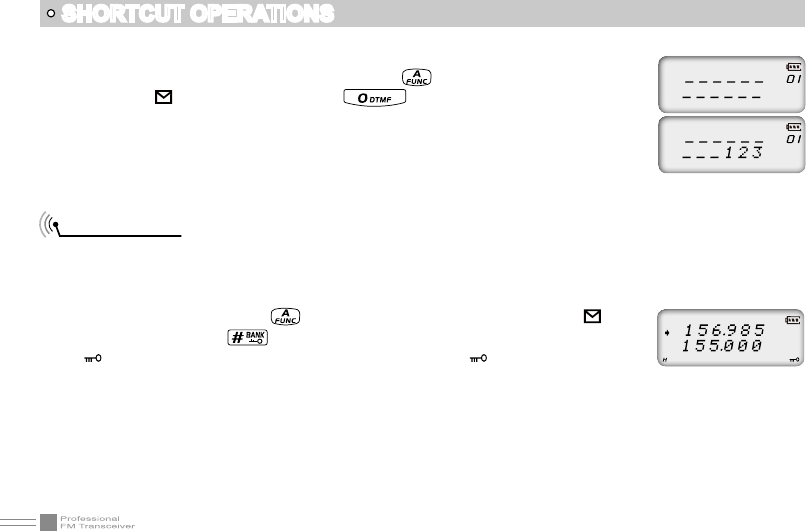

DTMF code Transmit and Enquiry ................................................................................................................................................ 25
Keypad lock .............................................................................................................................................................................................. 26
Single-band Switching ......................................................................................................................................................................... 27

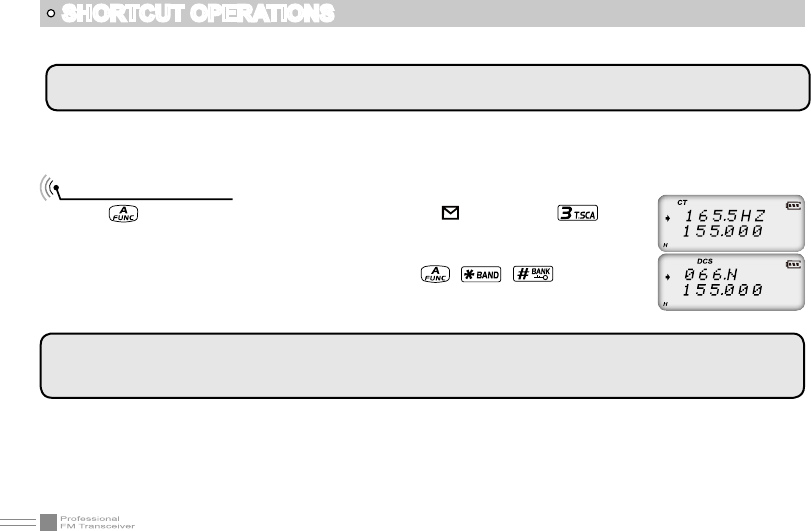

CTCSS/DCS Encode and Decode................................................................................................................................................ 27
III
TABLE OF CONTENTS

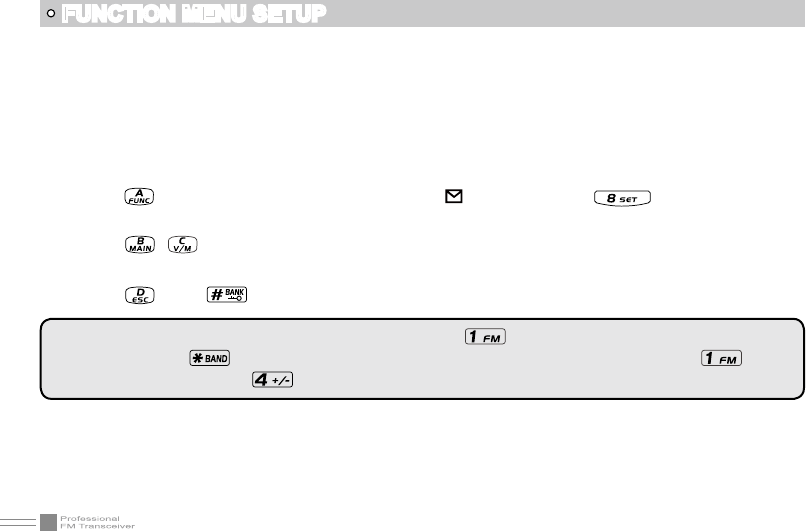

Function Menu Setup ................................................................................................................................................................................28
Senior Function Operations ................................................................................................................................................................. 35

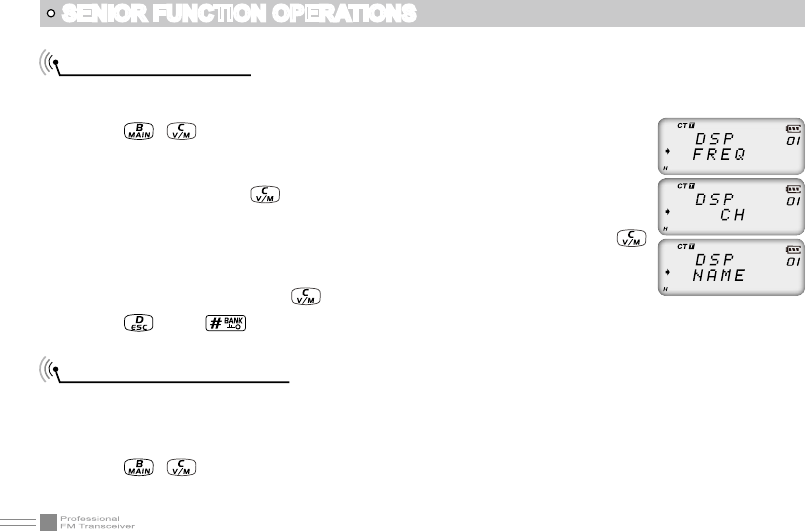

Display Mode Setup ............................................................................................................................................................................. 35

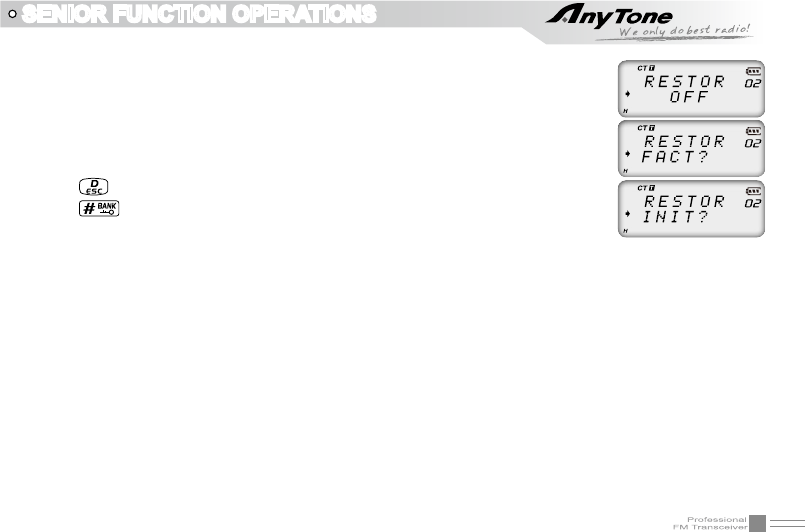

Resume Factory Default .................................................................................................................................................................... 35

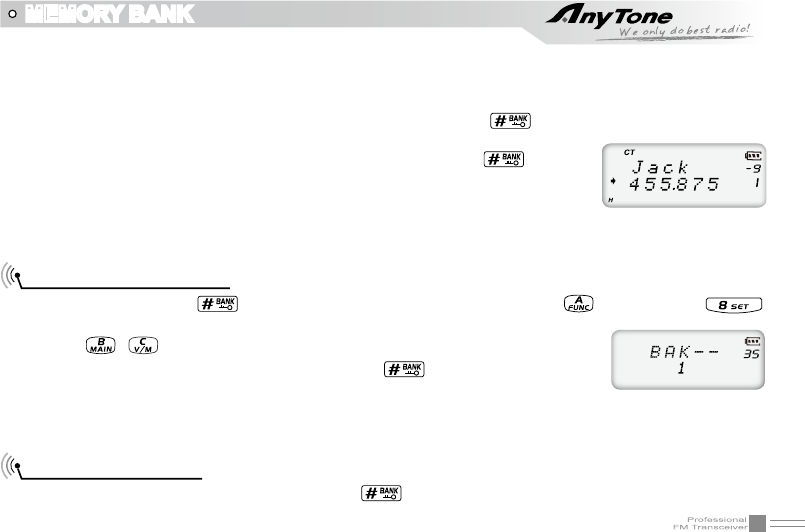

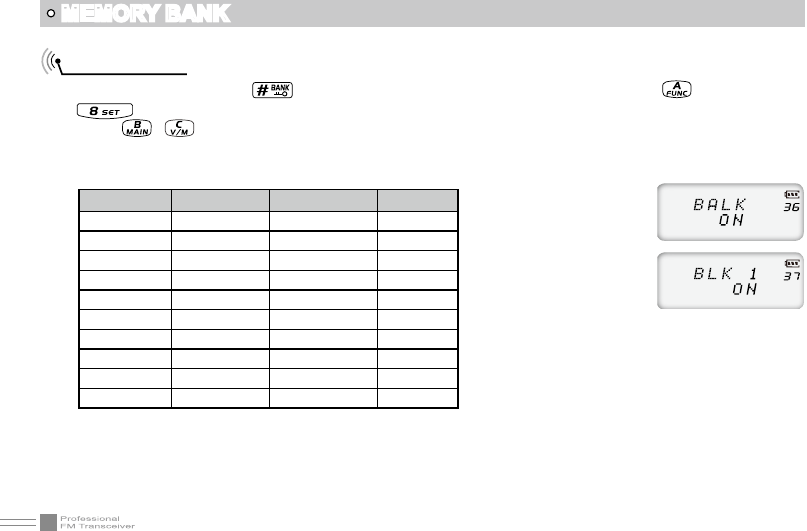

Memory Bank ................................................................................................................................................................................................. 37
Memory Bank Switch ........................................................................................................................................................................... 37
Memory Bank Exit ................................................................................................................................................................................. 37
Bank Linking ............................................................................................................................................................................................. 38
TECHNICAL SPECIFICATION ............................................................................................................................................................... 39
TROUBLE SHOOTING GUIDE .............................................................................................................................................................. 41
ATTACHED CHART ..................................................................................................................................................................................... 43
CTCSS Frequency Chart ................................................................................................................................................................... 43
1024 groups DCS Frequency Chart ............................................................................................................................................. 44
01
UNPACKING
Please carefully unpack the transceiver. We recommend that you identify the items listed in the following
table before discarding the packing material.
If any items are missing or have been damaged during shipment, please contact your dealer immediately.
Item Number Quantity
Antenna QA09UV1 1
Li-ion Battery QB-26L 1
Battery Charger QBC-26L 1
AC Adaptor QPS-01 1
Belt Clip BC01 1
Hand Strap GS01 1
Instruction Manual 1
Certicate 1
Supplied Accessories
02
STANDARD ACCESSORIES
Standard Accessories
Antenna*1
QA09UV1 Li-ion Battery
QB-26L(1500mAh)
Instruction
Manual
Battery Charger
QBC-26L
AC Adaptor
(12V/500mA)
QPS-01
Belt Clip
BC01
Hand Strap
GS01
*1.Note: For frequency band of antenna, please refer to label
indicated in the bottom of the antenna.
*2.Note:Car Charger should be workable with QBC-26L charger.
03
This transceiver is a high performance amateur transceiver with dual band, dual standby, dual display and
other functions. Depending on your need, you can set the radio to operate as an Amateur Transceiver or
Professional Transceiver. There are 3 levels of operation menu to set functions as you need. It is easy and
convenient.
Operation Mode:1.
Please refer to "Display Mode" in Page 42.
Amateur Transceiver Mode:2. Except setting as CH mode, others considered
as Amateur transceiver mode. Under this mode, press key to switch
between Channel mode and VFO.

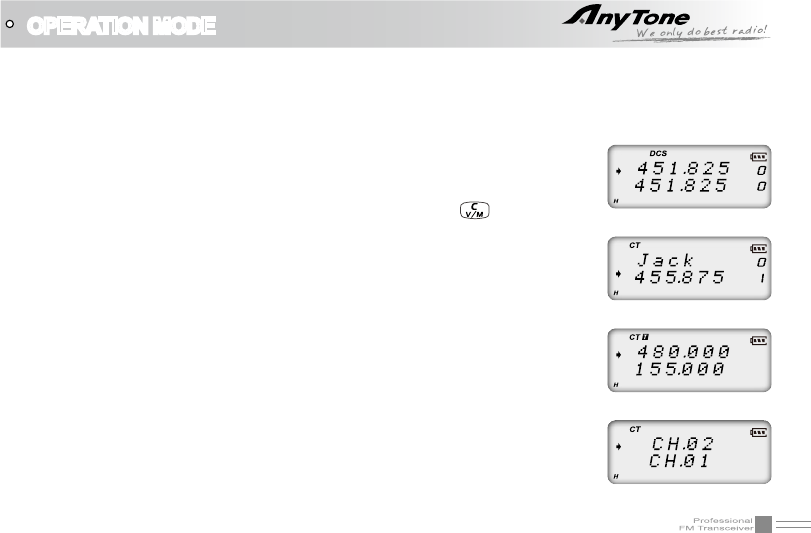

Frequency + Channel mode: A. At this mode, When set display as "FREQ", it
enters into Frequency+Channel mode, new setting of channel operation and
shortcut operation can be temporarily used by user. Once the radio is turned
off or switched to another channel, the temporary setting will be erased and
back to initial settings.(As pic 1)
Channel+Name Tag Mode:B. When set display as "NAME", it enters into
Channel+Name Tag Mode. At this mode, it will display corresponding
channel name when the current channel is edited with name. Otherwise, it
will display frequency + channel. Its operations are the same as frequency +
channel mode. (As pic 2)
VFO Mode(Frequency mode): C. This mode shows only frequency on the
display. Shortcut operation and Channel setting will be changed & stored as
the latest value permanently. Once the radio is turned off or changed to new
OPERATION MODE
(Pic 1)
(Pic 2)
(Pic 3)
(Pic 4)
04
VFO frequency, the value is remained until next change.(As pic 3)
Under every mode, background operations can be changed and saved.
3.
OPERATION MODE
05
BATTERY INFORMATION
Charging Operation
The battery is not charged at the factory, please charge it before use. Charging the battery for the rst time
after purchase or extended storage (more than 2 months) may not bring the battery to its normal operating
capacity. After fully repeating the charge/ discharge cycle for two or three times, the operating capacity will
reach the best performance. The battery life is over when its operating time decreases even though it is
fully and correctly charged. Replace the battery.
Battery Charger Type
Please use our company's designated charger, other models may cause explosion and injure people. After
installing the battery, if the radio red light twinkles and remind changing battery, please charge the battery.
Notice for Charging Battery
Do not short circuit the charger. Never attempt to remove the battery case or modify it in any way. ▲
The ambient temperature should be between 5 ▲℃ and 40℃ when charging. Charging outside this range
may not fully charge the battery.
Always switch off the transceiver before charging the battery, otherwise it will interfere with correct ▲
charging.
To avoid interfering the charging procedure, please do not cut off the power or take out the battery ▲
during charging.
Do not recharge the battery if it is already fully charged. This may shorten the life of the battery or ▲
damage the battery.
06

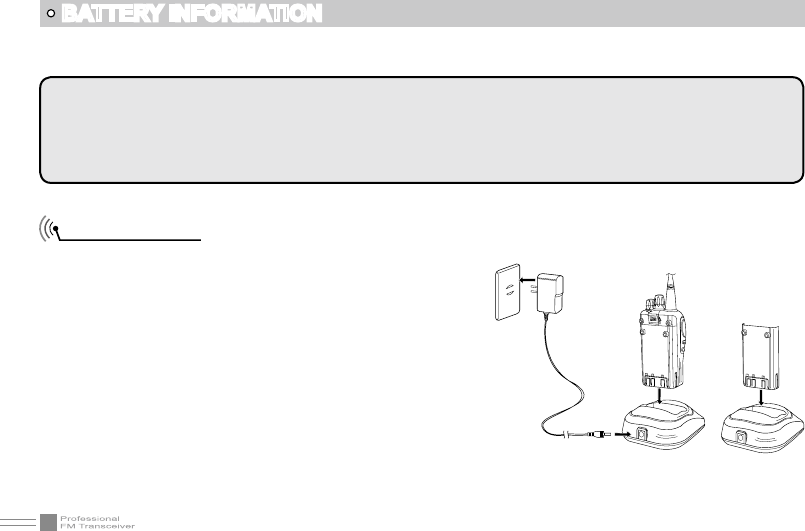

How to Charge
Plug the AC adaptor into the AC outlet, then plug the 1.
cable of AC adaptor into the DC jack, the indicator
lights orange for 1s and turns into GREEN---waits to
charge.
Slide the battery or transceiver with battery into the 2.
charger; make sure the battery terminals are in contact
with the charging terminals. LED turns into twinkling
RED---pre-charging begins.
Pre-charging for about 5 minutes, LED twinkles stop 3.
then charging begins.
It takes about 4 hours to fully charge the battery, 4.
when LED turns into GREEN— full charged.
BATTERY INFORMATION
WARNING:
When keys, coins, ornamental chains and other conductive metals make contact with the battery terminals,
the battery may cause fire or physical harm. If the battery terminals short circuit, it will generate a lot of heat
and possible fire, so please be careful when you handle or use the battery, please store battery and/or radio
in an insulated container. Do not put it into a metal container.
Do not charge the battery or transceiver if it is damp. Dry it before charging to avoid danger. ▲
Ac Input
07
NOTE: When charging a powered-on transceiver equipped with battery, the LED will not turn green to
show the full charge status. Only when the transceiver is off, can the LED indicate normally.
When the transceiver is powered on, it will consume energy and the charger cannot indicate if the battery
has been fully charged.
BATTERY INFORMATION
STATUS self-examine
when power on (No battery) Pre-charging Charge
normally
Full
Charged Trouble
LED Orange
(for 1 second) Green Red light twinkles
for 5 minutes Red Green Red twinkles
for a long time
Charging Process:
5.
LED Indicator:6.
NOTE: Trouble means battery heating, battery short-circuit or charger short-circuit.
Status LED
Standby (self-examine orange lights
1second when power on)
Pre-charging (pre-charging stage)
Charging (charge in constant currency)
Full charged (charge in constant voltage)
Green light
Red light twinkles for about 5 minutes
RED light lightens for about 4 hours
Green light
08
How to Store the Battery
If the battery needs to be stored for a long 1.
period, the battery should be removed from
the radio. It's state of charge should be 50-
100% of full charge.
It should be kept in low temperature, dry 2.
environment.
To keep away from hot places and direct 3.
sunlight.
Charging Prompt
Self- examination: When charging, ORANGE light twinkles for 1 second and goes out. That means the 1.
charger has passed its self-examination and it can charge the battery normally. If the light remains orange
or the red light twinkles, it means the charger can not pass its self-examination or charge the battery.
Trickle pre-charging: When the battery has been inserted into the charger and red light twinkles, which 2.
means the remnant voltage is low, the charger trickle charges the battery (pre-charging status), until the
battery reaches a certain electric quantity, then the charger automatically turns to normal charging. If the
red light stops twinkling, it means the remnant voltage meets a certain electric quantity, and the charger
will charge the battery normally.
BATTERY INFORMATION
NOTE:The time for Trickle pre-charging should not exceed 30 min. If after 30 min, the red indicator is still
twinkling, it means it is unable to charge battery. Please kindly check battery and charger.
WARNING
▲Do not short circuit battery terminals.
▲Never attempt to remove the casing from the battery
pack.
▲Never assemble the battery in dangerous surroundings,
spark may cause explosion.
▲Do not put the battery in hot environment or throw it
into fire, it may also cause explosion.
09
INSTALLATION & CONNECTION
Match the three grooves of the battery pack with the corresponding 1.
guides on the back of the transceiver and push.
Press the battery pack and transceiver rmly together until the
2.
release latch on the top of the transceiver locks. After hearing a
"click" sounds, the battery has been locked.
To remove the battery pack, slide up the release latch and
3.
remove the pack away from the transceiver.
Installing / Removing the Li-ion Battery
Installing / Removing the Antenna
■ Installing the Antenna:
Screw the antenna into the connector on the top of the transceiver
by holding the antenna base and turning it clockwise until secure.
■ Removing the Antenna:
Turn the antenna anticlockwise to remove it.
10
INSTALLATION & CONNECTION
Installing Optional Speaker / Microphone
Unveil the MIC-SP jack cover and then insert the
Speaker/Microphone plug into MIC-SP jack.
Note:The transceiver is less water resistant while using the
Speaker/Microphone.
Installing the Hand Strap
Slide the loop of the hand strap through the eyelet on
the upper rear of the transceiver, pull the entire hand
strap through the loop to secure the hand strap in place.
Installing / Removing the Belt Clip
■ Installing the Belt Clip:
Place the belt clip over the corresponding holes on the
back of the transceiver, and install supplied screws .
11
GETTING ACQUAINTED
LCD Display
On LCD display screen, you will see various icons which stand for the selected functions and sometimes
you may forget the meaning of them. Here you will nd the following table extremely useful.
Frequency
Reverse
Offset Frequency
DCS
Optional Signaling
CTCSS
FUNC Icon
The arrow points to
main channel
FM radio
TX Power
Busy Channel
VOX Function
Scan Skip
Battery Capacity
Function Menu
Number, Channel
Number
FM Channel Number
channel Number
Keypad Lock
NOTE:
Battery capacity indicator(full) No power, replace battery pack or charge battery
Real time display receiving signal
strength/Power Indicator
Battery capacity remnant
12
GETTING ACQUAINTED
1
3
2
7
4
8
5
9
6
1211
10
13
GETTING ACQUAINTED
1 Antenna
2 Selector Knob
3 Power/Volume switch
Rotate it clockwise to turn on transceiver, rotate it anticlockwise until heard "click" to turn off the
transceiver.
When transceiver is power on, rotate it clockwise to increase volume, anticlockwise to reduce volume.
4 TX/RX indicator, RX is GREEN or BLUE, TX is RED
5 LCD display
Displays current frequency/channel and operations
6 Keypad
Enters desired frequency/channel or operations by keypad
7 PTT key
Press PTT key to talk, release this key to receive.
8 PF1 key
9 PF2 key
10 Speaker/Microphone jack
11 Single-band Switching
12 Memory Bank Operation
14
Turn the Radio On & OFF
NOTE:
Press the side key of Squelch Off to monitor the background noise. Turn [POWER] / [VOLUME] to adjust the
volume. Turn [Selector Knob] to adjust squelch level for current channel.
BASIC OPERATIONS
Under power-off state, turn [POWER]/ [VOLUME] clockwise to turn on the
transceiver.
Under power-on state, turn [POWER]/ [VOLUME] anticlockwise to turn off the
transceiver.
Under power-on state, turn [POWER] / [VOLUME] to adjust volume. Clockwise-up,
anticlockwise -down.
When adjusting the volume, user can press the key of Squelch Off to monitor
volume level.
Adjusting Volume
15

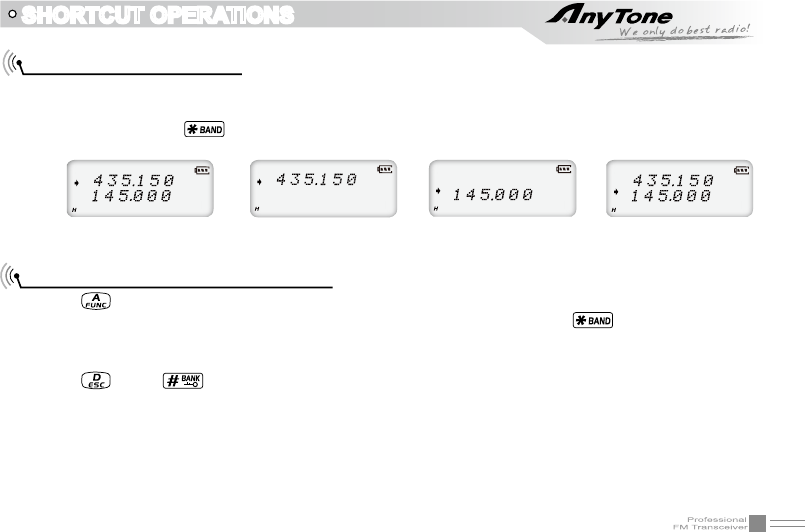

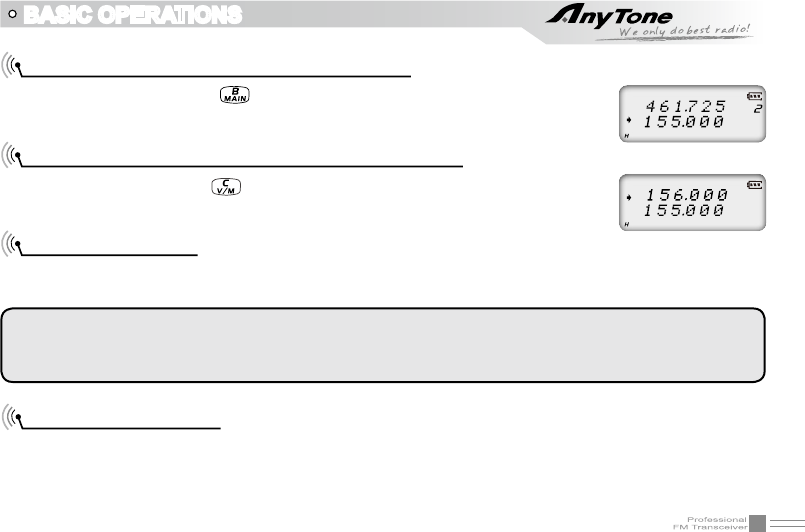

Switch between Main band and Sub band
Under standby state, press key to switch between Main band and Sub band.
Arrow indicates the Main band.
Switch between Channel mode and VFO mode
Under standby state, press key to set main band as Channel mode or frequency
mode (VFO).
NOTE: In transceiver mode, arrow directs the main band channel.
Rotating channel switch will step through only saved channels. Unsaved channels will be skipped.
BASIC OPERATIONS
Channel Adjusting
With transceiver in Channel mode or FM radio channel mode, rotate channel switch to adjust channel. Rotate
channel switch clockwise to increase channel number, anticlockwise to decrease channel number.
Frequency Adjusting
With transceiver in VFO mode or FM radio frequency mode, rotate channel switch to adjust frequency.
Rotate channel switch clockwise to increase frequency, anticlockwise to decrease frequency. Frequency
change depends on chosen frequency step.
16
BASIC OPERATIONS
Frequency Input by Keypad
Under frequency mode or FM radio frequency mode, you can directly enter frequency through keypad.
When your transceiver is under Channel mode, press
1. key to switch into VFO.
NOTE: When the transceiver is under Channel mode, it shows current channel
number on the right of main frequency.
Enter the desired frequency by keypad.
2.
NOTE: The frequency input of main channel or FM radio is relevant to the stepping and transceiver
frequency range. If frequency setup is beyond range or not matching with step size, the input is unavailable.
Under the FM radio mode, the frequency step size input by numeric keys is 100k.
NOTE: Channel step:2.5K, 5K, 6.25K, 10K, 12.5K, 20K, 25K in total 7 for optional.
Channel Input by Keypad
Under channel mode of transceiver or FM radio, you can switch to desired channel
by entering three numbers (000-199). If the entered channel is not a saved channel,
the transceiver will emit beep to prompt wrong input and return to current channel.
For example, entering 001 is channel 1, 030 is channel 30, 125 is channel 125.
Squelch Off Momentary / Squelch Off
Side key [PF2] can be setup for Squelch off Momentary or Squelch off function.
17
BASIC OPERATIONS
Transmitting
According to [PF2] key setup, hold [PF2] key to monitor the channel to ensure it is not busy, press PTT key
and talk to speaker.
Please keep the distance between mouth and speaker to be 2.5-5CM, speak in normal tone to get the best
acoustic delity.
Receiving
When your transceiver is called by other party, green or blue LED light will be on, LCD backlight will be on
at the same time, and the arrow icon will ash, you can hear the calling.
NOTE: You may not receive the calling when your transceiver is set at high squelch level. If current channel
is set with decode signal, only the same signaling call can be heard.
Squelch off: Press [PF2] key, squelch circuit is not mute, back-ground noise can be heard. Press [PF2]
1.
key again, squelch circuit is mute.
Squelch off Momentary: Press and hold [PF2] key, squelch circuit is not mute, back-ground noise can be 2.
heard. Release [PF2] key, squelch circuit is mute.
NOTE: When press and hold PTT key, transceiver is transmitting if the red LED light is on, release PTT key
to receive calls.
NOTE: The above functions are only available after [PF2] key setup.
When in channel mode, opening squelch will show the frequency of the channel.
18
BASIC OPERATIONS
Emergency Alarm
Under standby state, press and hold [PF1] key (when it is ALARM function) until LCD displays "ALARM",
Emergency alarm function is started. This transceiver has 4 Alarm modes. Power off transceiver to exit
Alarm.
Side Key [PF1] function instruction
[PF1] key can be setup in Function Menu 45 for below functions:
VOLT:
1. Battery capacity inquiry: Under standby, press [PF1] key, LCD displays current battery capacity,
press this key again to exit.
CALL:
2. Transmit the prestored DTMF/5TONE Encode signal in channel.
ALARM:
3. Long pressing [PF1] key, LCD display "ALARM", transceiver will enable the preset alarm function.
SUBPTT:
4. Press [PF1] key, transceiver will transmit on sub-band frequency.
Transmit tone pulse frequency:
5. Press and hold PTT key, then press [PF1] key to transmit selected tone
pulse frequency.
NOTE: The tone pulse frequency can be set to 1750Hz, 1450Hz, 1000Hz or 2100Hz.
Please refer to function menu No.32 Tone plus frequency setup (Page 33).
19
BASIC OPERATIONS
Side key [PF2] function instruction
Squelch off: Press [PF2] key, squelch circuit is not mute, back-ground noise can be heard. Press [PF2] 1.
key again, squelch circuit is mute.
Squelch off Momentary: Press and hold [PF2] key, squelch circuit is not mute, back-ground noise can
2.
be heard. Release [PF2] key, squelch circuit is mute.
Transmit DTMF/5TONE/2TONE signaling: Press and hold [PTT] key, then press [PF2] key to transmit
3.
selected DTMF/5TONE/2TONE signaling.
Press and hold [PF2] key to turn on transceiver, until transceiver emits "DU" beep, transceiver enter into
4.
general functions setup.
Delete channel
Under standby state, press 1. key, the top left corner of LCD displays " " icon, press key to
switch into channel mode, channel number ashes.
Edit channel
Under frequency mode (VFO), enter desired frequency and settings, press 1. key, the top left corner of
LCD displays " " icon, press key to switch into channel mode, channel number ashes.
Rotate channel switch to select desired editing channel number.2.
Press 3. key, the top left corner of LCD displays " " icon, press and hold key until transceiver
emits "DUDU" beep, channel is stored successfully.
20
BASIC OPERATIONS
Rotate channel switch to select desired deleting channel number.2.
Press 3. key, the top left corner of LCD displays " " icon, press and hold key until transceiver
emits "DUDU" beep and clear up frequency information of current channel, deletion is successful.
NOTE: This process can be applied for deleting FM radio channels.
21

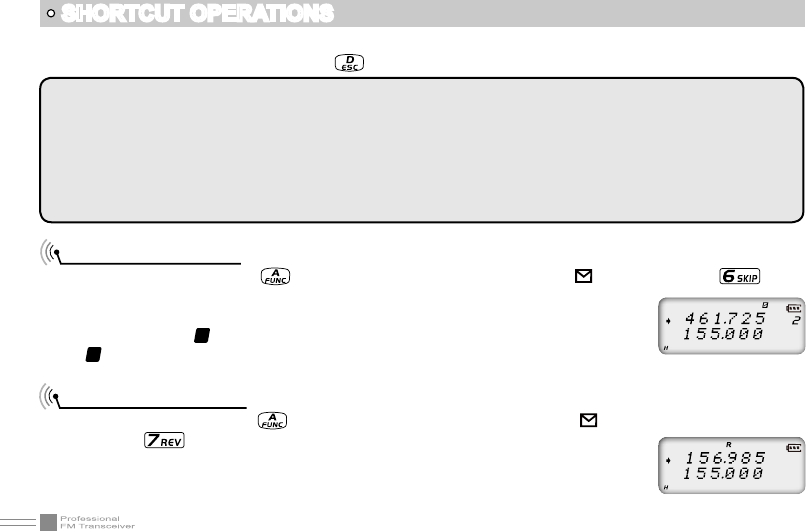

SHORTCUT OPERATIONS
Add/Cancel Optional signal decode function
Under standby state, press key, the top left corner of LCD displays " " icon, press key.
LCD display "
1. DTMF" and "
T
" icon, DTMF signal add in current channel.
Turn On/ Off FM Radio
Under standby state, press key, the top left corner of LCD displays " " icon,
then press key, LCD displays "FM ON" and current FM radio frequency, FM
radio function is on. When FM radio is on, press key, LCD displays "FM OFF",
FM radio is mute.
When FM radio is on, press key, the top left corner of LCD displays " "
icon, press key to turn off FM radio and return to transceiver state. Re-start
transceiver also can exit FM radio function.
Repeat above operation, LCD display "2. 5TONE" and "
T
" icon, 5TONE signal add
in current channel.
Repeat above operation, LCD display "3. 2TONE" and "
T
" icon, 2TONE signal add
in current channel.
Repeat above operation, LCD display "4. OFF", the "
T
" icon disappear, no optional
signal in current channel.
22
SHORTCUT OPERATIONS
CTCSS/DCS Scan
Press key, the top left corner of LCD displays " " icon, press key to
enter into CTCSS/DCS scan. Under this state, rotate channel switch to change scan
direction. When scan the matching CTCSS/DCS signaling, it will stay 5seconds and
then go on scanning. Press any other keys except , , key to exit.
NOTE: When this function is on, user must setup 07th menu to be TONE option, then DTMF/5TONE/2TONE/
MSK can be used.
NOTE: This function is invalid when transceiver works in professional mode or the arrow directed channel
no setting CTCSS/DCS signaling.
In current channel, if signaling set as CTCSS, it will scan CTCSS, if sets as DCS, it will scan DCS.
23
SHORTCUT OPERATIONS
Offset Frequency Direction Setup
Under standby state, press key, the top left corner of LCD displays " " icon,
press key to choose offset frequency direction. There are 3 options, Positive
offset, Minus offset, shut off offset.
(+) Positive offset:1. Indicates TX frequency is higher than RX frequency. When
enable reverse function, the RX frequency is higher than TX frequency.
(-) Minus offset:2. Indicates TX frequency is lower than RX frequency. When
enable reverse function, the RX frequency is lower than TX frequency.
None:3. Indicates shut offset off.
Under frequency mode (VFO) or channel mode, press key then press key to choose positive offset
direction(+), minus offset direction (-) , shut offset off one by one (Please refer to offset frequency setup).
NOTE: This function is unavailable in professional transceiver mode.
Frequency/Channel Scan
Under corresponding mode, press key, the top left corner of LCD displays " " icon, then press
key to start frequency scan or channel scan.
Frequency Scan1.
Under VFO mode, frequency scan is available. This function is used for monitoring
signal of various communication frequency by transceiver ‘step’ setup, press
numeric key or key to exit.
Channel Scan
2.
Under channel mode, this function is used for monitoring signal of each channel
24
SHORTCUT OPERATIONS
▼
▼
▼
NOTE:
Frequency scan is of all bands scan, it scans upwards as your STEPPING setting.
In channel scan, the skipped channel is not in the line of scanning. Scan upwards as per channel no.
(please refer to channel scan skip).
Frequency/channel scan can change scan direction by rotating channel switch, when find a matching carrier
wave and signaling, the transceiver will stay 5 seconds then go on scanning. (Please refer to scan setup)
If turn off radio in scan mode, when re-power on, radio will resume scanning automatically.
Channel Scan Skip
Under channel mode, press key, the top left corner of LCD displays " " icon, then press key to
set current arrow directed channel as Channel scan skip. Repeat above operation
to cancel channel scan skip.
LCD displayed 1. "
S
" means the current channel will not be scanned.
"
2.
S
" icon disappeared means the current channel will be scanned.
Frequency Reverse
Under standby state, press key, the top left corner of LCD displays " " icon,
then press key to set arrow directed channel as frequency reverse, repeat
above operation to turn off frequency reverse.
When LCD displays "
1. R" icon, it means current arrow directed channel open the
frequency reverse function, the TX frequency and RX frequency is interchanged,
in this mode. Press numeric key or key to exit.
25
SHORTCUT OPERATIONS
TX Power selection
Under standby state, press key, the top left corner of LCD displays " " icon,
then press key to choose High/Low power for current arrow directed channel.
When LCD displays "
1. L" icon, it means low power is chosen.
When LCD displays "2. H" icon, it means high power is chosen.
Talk Around function
Under standby state, press key, the top left corner of LCD displays " " icon,
then press , the arrow directed channel will enable talk around, repeat the
above operation to close talk around.
TX=RX:
1. Enable talk around, current channel transmit at RX frequency, if CTCSS/
DCS signaling is set, it will interchange decoding CTCSS/DCS as encoding.
OFF:
2. Close talk around.
if CTCSS/DCS signaling is set, it will also interchange.
When "
2. R" icon disappears, it means reverse function is close.
DTMF code Transmit and Enquiry
Press 1. key, the top left corner of LCD displays " " icon, then press key, LCD displays
DTMF data and group number (total 16groups) of current group.
Rotate channel switch to choose desired group and DTMF data, press PTT key 2.
to transmit selected DTMF signaling. If current group not edit DTMF data, LCD
26
SHORTCUT OPERATIONS
Keypad lock
In order to prevent wrong operation, user can make use of keypad lock function.
When keypad lock is turned on, only channel selector is available for changing channels, all other keys are
locked. Keypad lock operation can be done through radio itself.
Under standby state, press key, the top left corner of LCD displays " " icon,
then press and hold key until transceiver emits "DU" beep, LCD displays
" " icon, keypad is locked. Repeat above operation, " " icon disappears, key
lock function is cancelled.
displays "EMPTY".
When current group displays "3. EMPTY", press key, the top left corner of LCD
displays " " icon, press and hold key until transceiver emits "DU"
beep, transceiver enters into DTMF edit state, LCD displays "___________",
now you can enter desired DTMF data by keypad.
When nished editing, press side key [PF2] to save DTMF signaling.4.
27
SHORTCUT OPERATIONS
Single-band Switching
CTCSS/DCS encode and decode
To reduce interference from the sub-band when only the main-band is needed. You can use the single-band
switching function to turn off the sub-band quickly.
Continuous pressing of will cycle LCD display to show Main + Sub-Band / Sub-Band Only / Main-Band
Only.
Press
1. key then press [PF2] to enter into setup.
Press [PF2] key to choose CTCSS, DCS or OFF, when choose DCS, press 2. key to select positive
or negative code.
Rotate Channel selector to choose desired CTCSS/DCS encode and decode.3.
Press 4. key or key to conrm and exit.
28
FUNCTION MENU SETUP
Menu 1-16 of this transceiver are channel operations. Channel operations temporarily changed the functions
of current channel. When power off or channel has been changed, the relevant setup will be erased. Only
under VFO mode, the channel operations will be saved until next change.
Menu 17-47 are background operations(menu 37-46 are memory bank setup, please refer to page 45-46),
it is valid for all channels, the relevant setup will be saved until next change.
The operating methods are as follows:
Press
1. key, the top left corner of LCD displays " " icon, then press key to enter function
menu.
Press
2. / key to choose desired function.
Rotate channel switch to choose desired setting.
3.
Press 4. key or key to conrm and exit.
Note: When setup CTCSS/DCS encode and decode, press key to choose CTCSS,DCS or off, when
choose DCS, press key to switch positive and negative code. When edit the name, press key to
shift the cursor down, press key to shift the cursor up.
29
FUNCTION MENU SETUP
Menu
No. LCD Display Function Options Description
1T-CDC CTCSS/DCS
Encode
OFF No CTCSS/DCS Encode
62.5HZ-254.1Hz+Self
dened
51 groups xed CTCSS encode+1 group
selfdened encode
000N-777I 1024 groups DCS Encode
2R-CDC CTCSS/DCS
Decode
OFF No CTCSS/DCS Decode
62.5HZ-254.1Hz+Self
dened
51 groups xed CTCSS decode+1 group
selfdened decode
000N-777I 1024 groups DCS decode
3RT-CDC
CTCSS/DCS
Encode/Decode
Synchronous
OFF No CTCSS/DCS encode/decode
62.5HZ-254.1Hz+Self
dened
51 groups xed CTCSS encode/decode + 1 group
self-dened CTCSS encode/decode
000N-777I 1024 group DCS encode/decode
45T-ENC 5TONE Encode list CALL00-31 32 groups 5TONE encode list
52T-ENC 2TONE Encode list CALL00-31 32 groups 2TONE encode list
6 TONDEC Optional signaling
setup DTMF/5TONE/2TONE Current optional signal is DTMF/5TONE/2TONE
72T-DEC 2TONE Decode list DEC 00-31 32 groups 2TONE decode list
30
FUNCTION MENU SETUP
8SIGNAL Squelch mode
setup
SQ
When current channel received matching RF
signals, transceiver can hear the talking from the
other party.
CTCSS/DCS
When current channel received matching RF signals
and matching CTCSS/DCS signaling, transceiver can
hear the talking from the other party.
TONE
When current channel received matching RF signals
and matching optional signaling, transceiver can
hear the talking from the other party.
CT&TO
When current channel received matching RF
signals + matching optional signaling + matching
CTCSS/DCS signaling, transceiver can hear the
talking from the other party.
CT/TO
When current channel received matching RF
signals, or matching optional signaling, or matching
CTCSS/DCS signaling, transceiver can hear the
talking from the other party.
9 STEP Frequency step
size setup 2.5K-50K 9 options in total
11 REV Frequency
Reverse
ON Turn on Frequency reverse function, TX and RX
frequency of current channel will be interchanged.
OFF Close Frequency reverse function
31
FUNCTION MENU SETUP
12 TALKAR Talk Around TX=RX
Turn on Talk Around function, current channel will
transmit at RX frequency, if CTCSS/DCS signaling
is set, it will interchange decoding CTCSS/DCS as
encoding.
OFF Close Talk Around function.
13 OFFSET Offset Frequency
setup 0-70MHz RX:UHF, TX:VHF or RX:VHF, TX:UHF
14 NAME Editing Channel
name a-Z, 0-9 In channel name display mode, will display the
edited channel name.
15 RPLOCK Busy Channel
Lockout
BUSY Carrier wave lock, transmitting is prohibited when
received matching carrier wave.
REPEAT
Signaling lock, transmitting is prohibited when
received matching carrier but with mismatching
CTCSS/DCS
OFF Close BCLO function
16 TX TX OFF ON/OFF TX function is enabled/disabled in current channel.
17 BAND VFO band limit ON/OFF Turn on/off band limit function
18 DSPSUB Sub band display
setup
FREQ Display sub band frequency or channel
VOLT Display current battery voltage
OFF Sub band display is disabled
19 BEEP Keypad Voice
prompt setup ON/OFF Turn on/off keypad voice prompt function
32
FUNCTION MENU SETUP
20 TOT Time-Out-Timer OFF Turn off time-out timer
1-27MIN Total 27 levels for optional, each level step 1minute
21 VOX
Voice Operated
Transmission
(VOX) Setup
OFF Turn off VOX function
1--10 Total 10 VOX levels for optional
22 VDELAY VOX Delay Setup 0.5S-3S Total 27 levels for optional, each interval is 0.1S
23 APO Automatic Power
Off Setup
OFF Disable the Automatic power off function
30MIN-2HOUR 30minutes ~ 2hours: Total 3 levels for optional
24 DTMF DTMF
Transmitting Time 50MS-500MS Total 5 kinds of DTMF transmitting time for
optional.
25 SQL Squelch level
Setup 00-09 10 levels of squelch in total for optional, "00" is
minimum setup value (normally open)
26 SCAN Scan Dwell Time
Setup
5ST-15ST When scanning matched signal, transceiver will
stop scanning for 5-15seconds then resume.
2SP
When scanning matched signal, transceiver will
stop scanning, 2seconds after signal disappeared,
then resume.
27 SPEED Scan speed setup QUICK Fast Scan
NORMAL Normal Scan
28 FTIME Function Icon
Stay Time
FUNCT When nished function setting or enter into
function menu, icon disappeared
1SEC-3SEC When nished function setting or enter into function
menu, icon stay 1-3seconds then disappeared
ALWAYS Function icon is always display, only when pressing
function key again, the icon will disappear
33
FUNCTION MENU SETUP
29 LIGHT LCD Backlight ON/OFF Always on/off
AUTO Backlight will automatic closed after a period.
30 COLOR LCD Backlight
Color BLUE/ORG/PUR Blue/Orange/Purple
31 ID Self ID inquiry 001/12345 LCD displays radio self ID, DTMF ID is 3 digits.
5TONE ID is 5 digits.
32 TBST
Tone Pulse
Frequency
Selection
1750Hz/2100Hz
/1450Hz/ 1000Hz
Tone plus frequency is
1750Hz/2100HZ/1450Hz/1000Hz
33 SAVE Battery Save
Setup
OFF Turn off battery save function
1:2-1:8 Battery save time is 1:2-1:8
AUTO Battery save ratio is adjusting automatically
34 RADIO FM radio ON/OFF Allow/Prohibit using FM radio
35 BAK -- Group Selection 0-9 Display current working group
36 BALK Group linking OFF Turn off group linking, menu 37-46 is hide.
ON Turn on group linking, menu 37-46 display.
37 BLK 1 Link Group 1 OFF/ON Add or remove the group 1 in group linking
38 BLK 2 Link Group 2 OFF/ON Add or remove the group 2 in group linking
39 BLK 3 Link Group 3 OFF/ON Add or remove the group 3 in group linking
40 BLK 4 Link Group 4 OFF/ON Add or remove the group 4 in group linking
41 BLK 5 Link Group 5 OFF/ON Add or remove the group 5 in group linking
42 BLK 6 Link Group 6 OFF/ON Add or remove the group 6 in group linking
34
FUNCTION MENU SETUP
43 BLK 7 Link Group 7 OFF/ON Add or remove the group 7 in group linking
44 BLK 8 Link Group 8 OFF/ON Add or remove the group 8 in group linking
45 BLK 9 Link Group 9 OFF/ON Add or remove the group 9 in group linking
46 BLK 0 Link Group 0 OFF/ON Add or remove the group 0 in group linking
47 PF1 Self dene PF1
key function
VOLT Displays current battery capacity.
CALL Call function.
ALARM Emergency alarm function
SUBPTT Sub band PTT
OFF No function.
35
SENIOR FUNCTION OPERATIONS
Display Mode Setup
There are three kinds of display modes for optional.
Press [PF2] key to turn on radio, hold [PF2] key until transceiver emits beep.1.
Press 2. / key to choose No.01 function item, it shows "DSP" on LCD.
Rotate channel switch to choose desired setup.3.
FREQ: Frequency+Channel mode, transceiver displays current channel name +
frequency, press key to switch into VFO mode.
CH: Channel mode, 1~24 items of function menu will hide automatically, user can
only operate some functions. It is unable to switch into VFO by pressing
key. This model can be used for Amateur mode.
NAME: Channel+Name Tag mode, transceiver displays current channel number
+channel name, press key to switch into VFO mode.
Press
4. key or key to conrm and exit.
Resume Factory Default
You can make all the settings of transceiver return to the factory default settings when transceiver can not
work normally because of wrong operation or error setup.
Press [PF2] key to turn on radio, hold [PF2] key until transceiver emits beep.
1.
Press 2. / key to choose No.02 function item, it shows "RESTOR" on LCD.
Rotate channel switch to choose desired setup.3.
36
SENIOR FUNCTION OPERATIONS
OFF: No operations.
FACT: Resume all items to factory default, including channel and background
settings.
INIT: Resume background settings to factory default, channel operations are
keeping.
Press
4. key to exit current selection.
Press 5. key to conrm current selection.
37
Memory Bank Exit
Memory Bank Switch
10 memory banks 0-9 are available for 3318UV, bank 0 includes all edited channels. Bank 1-9 can be
assigned maximum 32channels, a channel can be assigned to more groups.
Assign channel to memory bank:
In Memory channel mode, cho
1. ose a memory channel, press key, bank number show in the
channel number position as "-X" twinkling.
Turn Channel selector to choose desired memory bank, press 2. key, the
memory channel will be assigned to the bank.
If the bank already has 32 channels, the new assigned channel will replace 3.
the last channel in bank.
When transceiver in memory bank mode, press key twice to exit and return to channel mode.
In Channel mode, press key twice to enter memory bank mode, press key then press
key to enter into function menu.
Press
1. / key to choose menu 35(A)/18(D/E), LCD show "BAK--".
Turn Channel switch to choose bank 0--9, press 2. key conrm
Rotate the channel switch clockwise to enter into desired memory bank.3.
Note: When the bank linking is on, if no channel in the selected bank, radio will enter into the next linking bank.
When the bank linking is off, if no channel in the selected bank, current channel will be assigned to this bank.
MEMORY BANK
38
Bank linking
In channel mode, press 1. key twice to enter into memory bank mode, press key then press
key to enter into function menu.
Press 2. / key to choose menu 36, LCD show "BALK".
ON: Turn on Bank linking.
The following menus allow adding or deleting banks.
MEMORY BANK
OFF: Turn off Bank linking, hide menu 37-46.
When bank linking is on, one or more banks can be added into scan list. In memory bank mode, enable the
scanning function, transceiver will scan the channels in current bank. During scanning, long pressing key
0-9 will add or delete the corresponding memory bank.
Version A LCD display Funtion Option
Menu37 BLK1 Link Group 1 OFF/ON
Menu38 BLK2 Link Group 2 OFF/ON
Menu39 BLK3 Link Group 3 OFF/ON
Menu40 BLK4 Link Group 4 OFF/ON
Menu41 BLK5 Link Group 5 OFF/ON
Menu42 BLK6 Link Group 6 OFF/ON
Menu43 BLK7 Link Group 7 OFF/ON
Menu44 BLK8 Link Group 8 OFF/ON
Menu45 BLK9 Link Group 9 OFF/ON
Menu46 BLK0 Link Group 10 OFF/ON
39
General
Frequency Range 3318UV
TX RX
VHF:144~148MHz
UHF:420~450MHz
VHF:136~174MHz
UHF:400~512MHz
Channel Capacity 200 channels
Channel Spacing 12.5KHz
Phase-locked Step 0.1KHz
Operation Voltage 7.4V DC ±20%
Battery Life More than 12 Hours(1500mAh), by 5-5-90 working cycle
Frequency Stability ±2.5ppm
Operation Temperature -20℃~ +55℃
Size 117.5x60x35.5mm (with battery)
Weight 235g (with battery)
TECHNICAL SPECIFICATION
40
TECHNICAL SPECIFICATION
Receiving Part
Sensitivity
(12dB SINAD) ≤0.35μV
Adjacent Channel Selecitvity ≥60dB
Intermodulation ≥60dB
Spurious Rejection ≥70dB
Hum & Noise ≥40dB
Audio Distortion ≤5%
Audio Power Output 1000mW/10%
Transimitting Part
Power Output VHF:5W/1W UHF:4W/1W
Modulation 11KΦF3E
Adjacent Channel Power ≥60dB
Hum & Noise ≥40dB
Spurious Emission ≤-36dB
Audio Distortion ≤5%
41
TROUBLE SHOOTING GUIDE
Problem Corrective Action
No power
A.The battery may be exhausting. Recharge or replace the battery.
B.The battery may not be installed correctly. Remove the battery
and install it again.
C.The power switch is broken; send it to local dealers to repair.
D.Battery touch is broken; send it to local dealers to repair.
Battery power dies shortly after
charging. The battery life is nished. Replace the battery pack with a new one.
Transceiver cannot scan The channels are not in scan list. (Professionals set it.)
All band noisy Turn on squelch. Non-professionals are advised not rammed to adjust
this function.
No sound after using earphone.
for a while Earphone jack is broken. Please contact with local dealers to repair.
Communication distance
becomes short, and Low
sensitivity
A.Check whether the antenna is in good conduction and the antenna
base do not come adrift.
B.Antenna connector is broken or not or with sundries. Whether it
has set in low power output. (Please contact with local dealers to
repair.)
Cannot talk or hear other
members in your group
A.Different frequency or channel, please change it.
B.Different CTCSS/DCS/DTMF, please reset it.
C.Out of communication range.
42
Can not power on or frequent
power off Check weather the battery touch is out of sharp or broken.
The receiving sound gets low or
intermittent
Check weather the MIC is stoppage. Otherwise, please contact with
local dealers to repair it.
Receiving intermittent with in
big noise
A.Out of communication range or obstruct by tall buildings or in big
noise.
B.450 lter is broken, Please contact with local dealers to repair.
Loudspeaker become lower or
with"ka ka"sound after using a
certain time
Check whether the loudspeaker is broken, Iron powder or sundries is
in the loudspeaker. Please contact with local dealers to repair.
Receive voice from the other
party but can not transmit Check [PTT] key.
Receiving indicator with green
light but no sound
A.Low volume, please clockwise to turn on.
B.Loudspeaker is broken, please contact with local dealers to repair.
C.Earphone jack is broken, please contact with local dealers to repair.
D.Volume switch is broken.
TROUBLE SHOOTING GUIDE
43
ATTACHED CHART
CTCSS Frequency Chart
1 62.5 12 94.8 23 136.5 34 177.3 45 218.1
2 67.0 13 97.4 24 141.3 35 179.9 46 225.7
3 69.3 14 100.0 25 146.2 36 183.5 47 229.1
4 71.9 15 103.5 26 151.4 37 186.2 48 233.6
5 74.4 16 107.2 27 156.7 38 189.9 49 241.8
6 77.0 17 110.9 28 159.8 39 192.8 50 250.3
7 79.7 18 114.8 29 162.2 40 196.6 51 254.1
8 82.5 19 118.8 30 165.5 41 199.5 52 user-dened
9 85.4 20 123.0 31 167.9 42 203.5
10 88.5 21 127.3 32 171.3 43 206.5
11 91.5 22 131.8 33 173.8 44 210.7
44
ATTACHED CHART
1024 groups DCS frequency chart
000 001 002 003 004 005 006 007
010 011 012 013 014 015 016 017
020 021 022 023 024 025 026 027
030 031 032 033 034 035 036 037
040 041 042 043 044 045 046 047
050 051 052 053 054 055 056 057
060 061 062 063 064 065 066 067
070 071 072 073 074 075 076 077
100 101 102 103 104 105 106 107
110 111 112 113 114 115 116 117
120 121 122 123 124 125 126 127
130 131 132 133 134 135 136 137
140 141 142 143 144 145 146 147
150 151 152 153 154 155 156 157
160 161 162 163 164 165 166 167
170 171 172 173 174 175 176 177
200 201 202 203 204 205 206 207
210 211 212 213 214 215 216 217
220 221 222 223 224 225 226 227
230 231 232 233 234 235 236 237
240 241 242 243 244 245 246 247
45
ATTACHED CHART
250 251 252 253 254 255 256 257
260 261 262 263 264 265 266 267
270 271 272 273 274 275 276 277
300 301 302 303 304 305 306 307
310 311 312 313 314 315 316 317
320 321 322 323 324 325 326 327
330 331 332 333 334 335 336 337
340 341 342 343 344 345 346 347
350 351 352 353 354 355 356 357
360 361 362 363 364 365 366 367
370 371 372 373 374 375 376 377
400 401 402 403 404 405 406 407
410 411 412 413 414 415 416 417
420 421 422 423 424 425 426 427
430 431 432 433 434 435 436 437
440 441 442 443 444 445 446 447
450 451 452 453 454 455 456 457
460 461 462 463 464 465 466 467
470 471 472 473 474 475 476 477
500 501 502 503 504 505 506 507
510 511 512 513 514 515 516 517
520 521 522 523 524 525 526 527
530 531 532 533 534 535 536 537
46
540 541 542 543 544 545 546 547
550 551 552 553 554 555 556 557
560 561 562 563 564 565 566 567
570 571 572 573 574 575 576 577
600 601 602 603 604 605 606 607
610 611 612 613 614 615 616 617
620 621 622 623 624 625 626 627
630 631 632 633 634 635 636 637
640 641 642 643 644 645 646 647
650 651 652 653 654 655 656 657
660 661 662 663 664 665 666 667
670 671 672 673 674 675 676 677
700 701 702 703 704 705 706 707
710 711 712 713 714 715 716 717
720 721 722 723 724 725 726 727
730 731 732 733 734 735 736 737
740 741 742 743 744 745 746 747
750 751 752 753 754 755 756 757
760 761 762 763 764 765 766 767
770 771 772 773 774 775 776 777
ATTACHED CHART
NOTE: N stands for positive code. I stands for inverted code. 1024 groups of DCS in total.
