STEP
1
IQ MICRO DW S-LINE QUICK INSTALL GUIDE
✓
Exterior Doors
✓
Sliding
glass
doors
Windows
✓

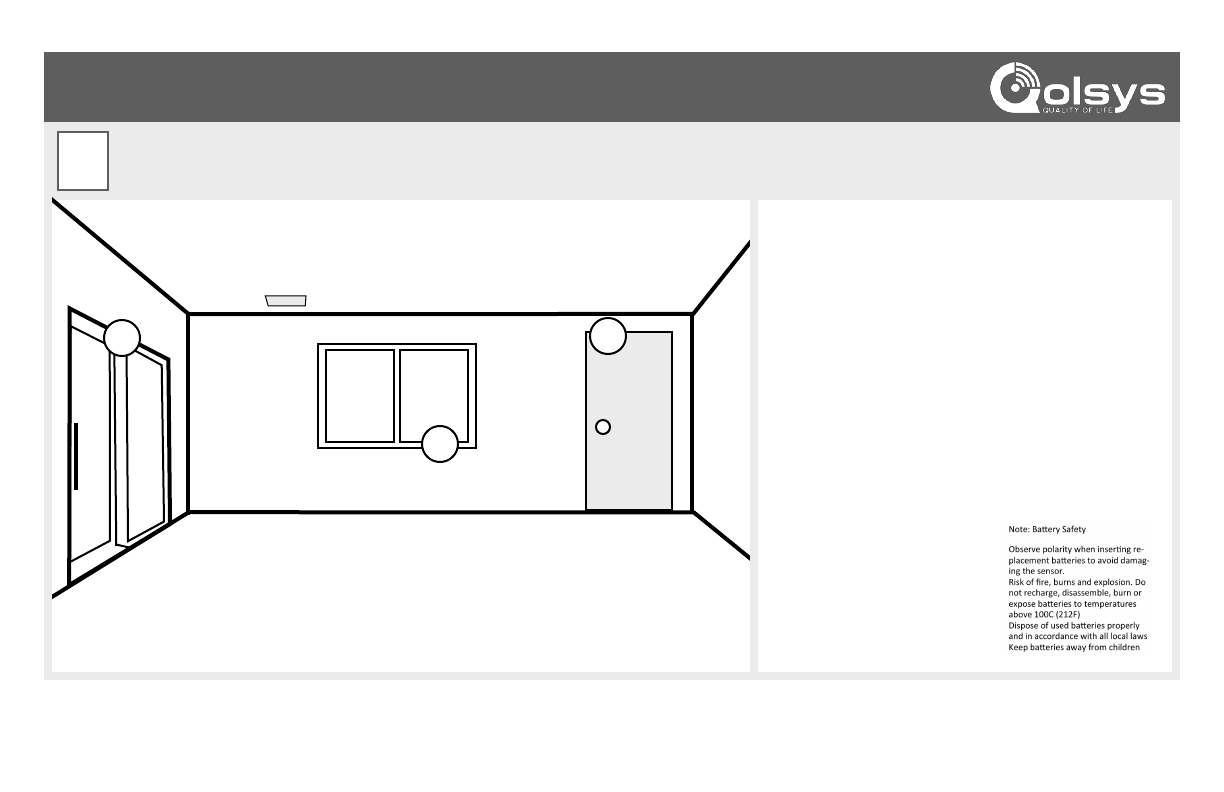

CHOOSE
INSTALLATION
LOCATION
Also great for:
Medicine cabinets
Gun safes
Garage doors
Interior doors
SPECIFICATIONS
SEE REVERSE FOR REMAINING STEPS
Sensor: 1.83”H x .87”W x .4”D
Wireless signal range: 600ft (200M), open air.
Code outputs: tamper, tamper restore, alarm, alarm
restore, low battery.
Transmitter frequency: SECURE 319.5 MHz (S-Line)
Unique code ID
Supervisory keep-alive interval: 70 minutes.
RF Peak Strength: 69.32 dBμV/m at 3m
Operating Temperature: -10C~50C
Relative Humidity: 5-95% Non-Condensing
Storage Temperature: -40-80C
Replace battery with 3V Lithium (x1).
(1) -Panasonic CR1632
-Energizer CR1632
-Duracell DL1632
This is a quick guide for experienced installers only. Refer to http://dealers.qolsys.com (login required)
STEP
2
STEP
4
STEP
5
SECURE
SENSOR &
MAGNET
STEP
6
Document#: IQ-MICRO-SQG-12-18
Revision#: 1/9/19
Issue Date: JAN 2019
Qolsys Product #: QS1132-840/QS1130-840

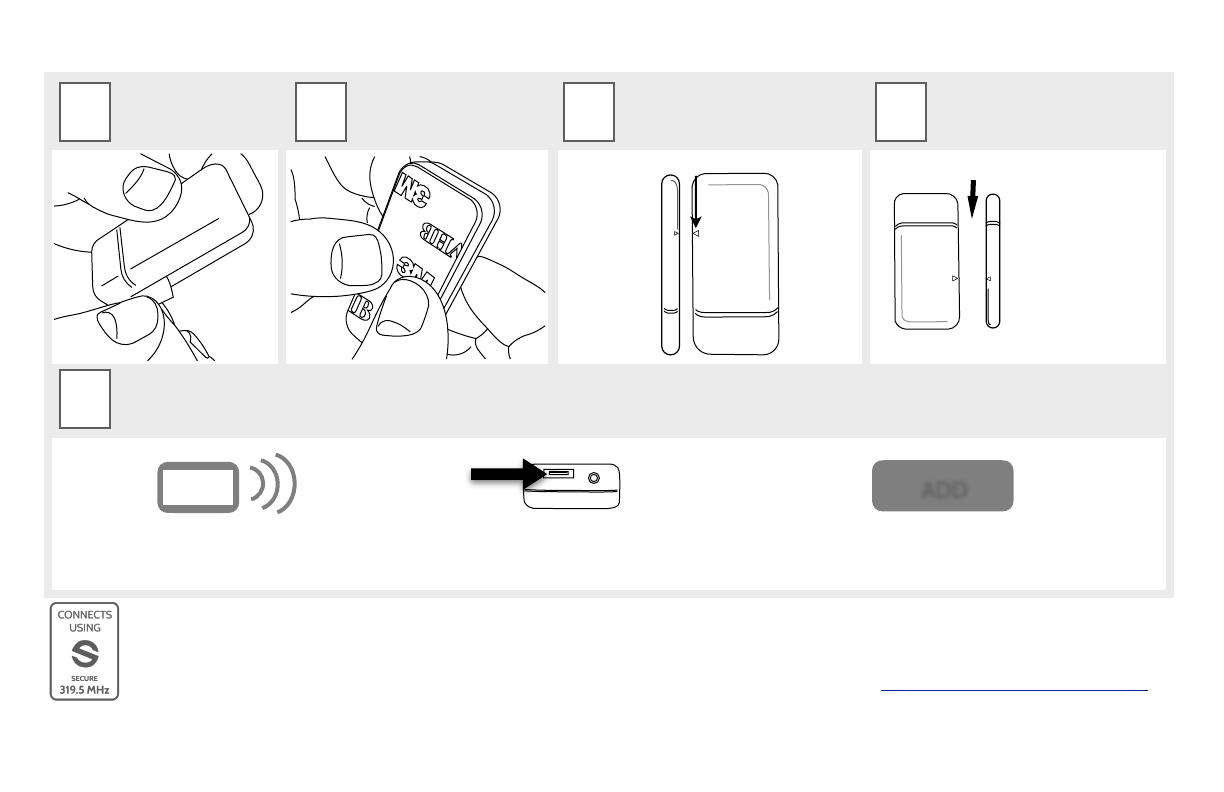

APPLY
ADHESIVE
REMOVE
BATTERY
TABS
1”
Apply provided
adhesive strips to
the back of
sensor and
magnet.
Magnet gap
should not
exceed 1”
STEP
3
LEARN
INTO
PANEL
Customize name and settings
as desired and and touch “ADD”
ADD
Place your panel in
“autolearn" mode
Open and close the case
to “tamper” the device
Magnet locator mark
Magnet
Sensor
LINE UP
SENSOR &
MAGNET
