IQ MOTION- INSTALLATION MANUAL
QOLSYS CONFIDENTIAL AND PROPRIETARY PAGE 1 OF 6
© Last revised 2/27/15 All rights reserved

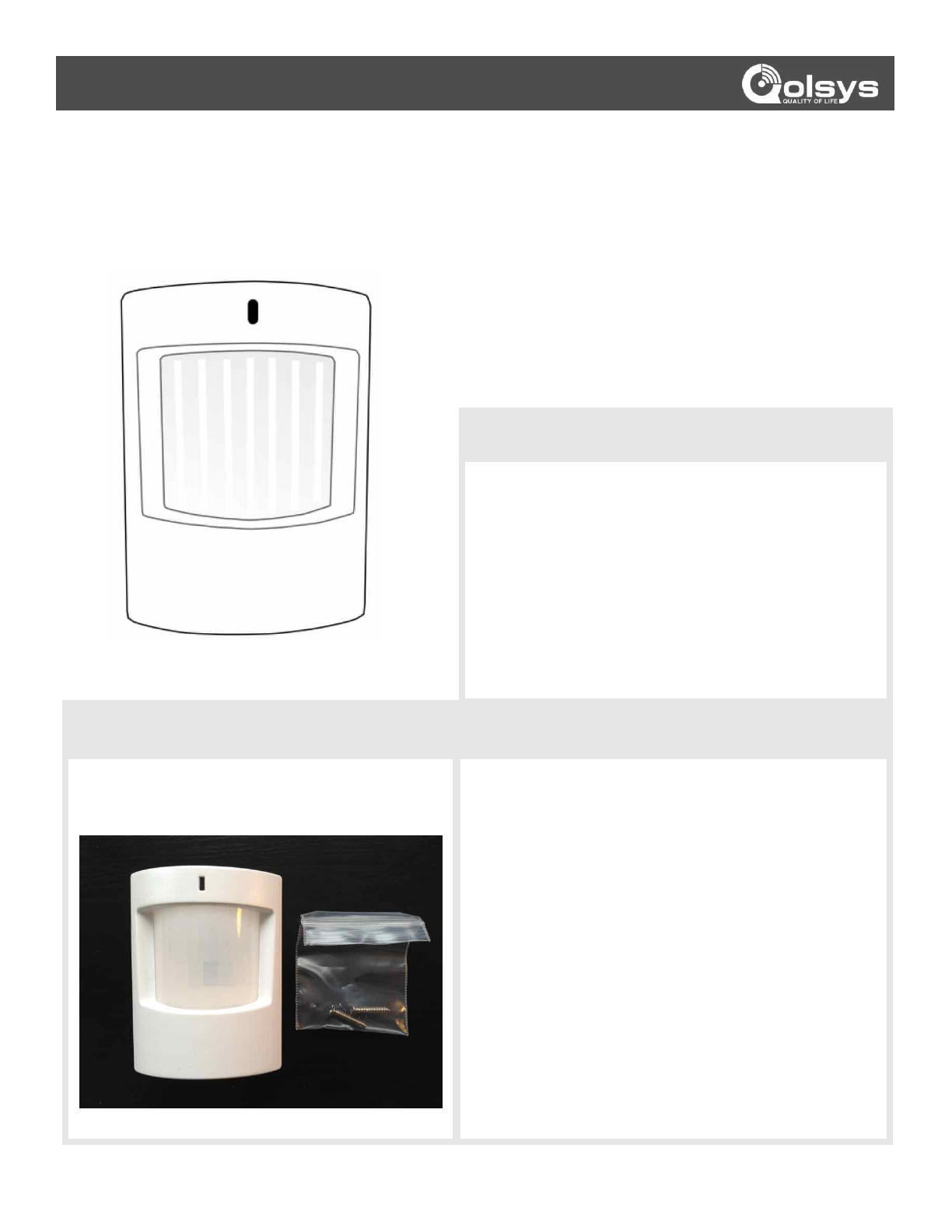

The Qolsys IQ Motion is a high-performance wireless motion
sensor that uses advanced power circuit technology to extend
battery life. The tamper-resistant casing along with an
electronic sensor discourages physical tampering and the
sensor is equipped with a pet immunity feature that prevents
accidental triggers by household pets. The IQ Motion works
seamlessly with the Qolsys IQ Panel.
•Advanced circuit technology resulting in ultra-low power
consumption
•Tamper detection/reporting
•Rigid wall mounting for discreet placement
•Pet immunity
•Easy to install batteries
•Supervisory health messaging
•Sensor Motion detection
•Transmits 2 signals per 5 minute period
PIR (Passive Infrared) Motion Sensors
2 Mounting screws
2 AAA Alkaline batteries
PRODUCT FEATURESPARTS INCLUDED
IQ MOTION
•Wireless signal range: 600 ft (200 m), open air
•Code outputs: paring, tamper, tamper restore, alarm detect
motion, alarm restore, supervisory, low battery
•Transmitter frequency: 319.5MHZ +-15KHz
•Transmitter bandwidth: 24KHZ
•Modulation type: ASK-OOK
•RF output power!91.1dBuV +/- 5% at 3m
•Sensor Range 30 ft (9.1 m) x 50 ft (15.2 m)
•Maximum Horizontal Sensing Angle 80°
TECHNICAL SPECIFICATIONS
IQ MOTION- INSTALLATION MANUAL
QOLSYS CONFIDENTIAL AND PROPRIETARY PAGE 2 OF 6
© Last revised 2/27/15 All rights reserved
•IQMotionSensor is designed for
indoor use and is compatible with
homes where pets up to 40 lbs (18
kg) are present. To minimize the
possibility of false alarms the
following guidelines should be
followed:
•The sensor may be mounted in a
corner or on a flat wall that is free
of vibrations.
•If possible, mount the sensor
within 100 ft (30.5 m) of the
panel. While the transmitter may
have a range of 600 ft (200 m) or
more out in the open, the
environment at the installation site
can have a significant effect on
transmitter range. Verify actual
transmitter range for each
installation.
•Position the sensor to protect an
area where an intruder is most
likely to walk across the detection
pattern.
•Mount the sensor permanently
on a flat wall or in a corner.
•Mount the sensor on an interior
wall facing in.
•Position the sensor so it faces a
solid reference point, such as a
wall.
•Close all windows in an area with
an armed motion sensor.
DO NOT:
•Aim the sensor at windows,
fireplaces, air conditioners, area
heaters, or forced air heating vents.
•Place the sensor in direct sunlight
as sudden changes in temperature
may trigger a false alarm.
•Mount the sensor near duct work
or other large metallic surfaces
that may affect the RF signals.
•Set the sensor on a shelf.
GUIDELINES

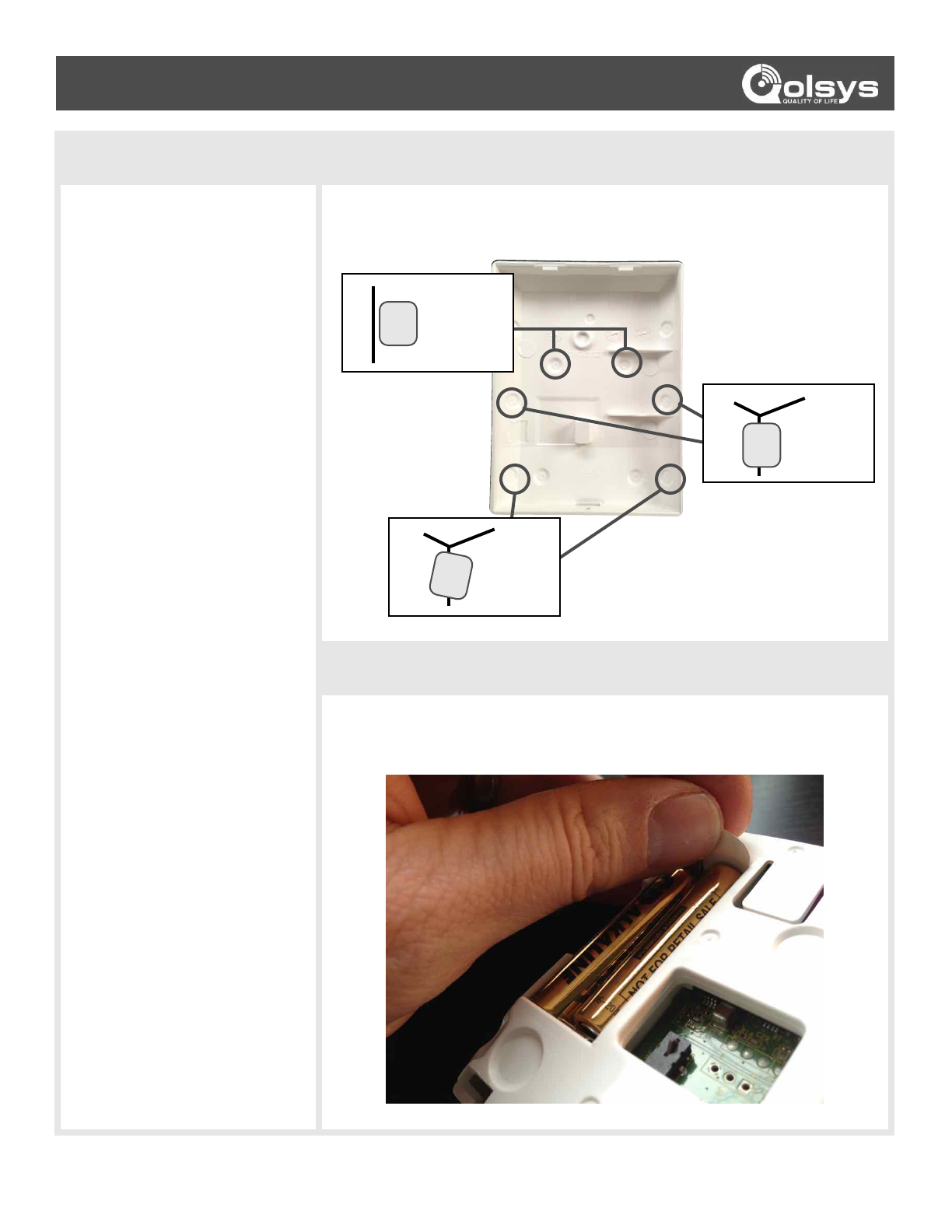

Flush-mount or corner-mount the sensor depending on the selected location and
desired coverage area
MOUNTING OPTIONS
BATTERY ACTIVATION
To activate the batteries in the sensor, remove the cover and pull out the plastic tab
between the batteries and the contacts.
CORNER
STRAIGHT
MOUNT
CORNER
ANGLE
DOWN
MOUNT
FLUSH
WALL
MOUNT
For pet immunity from a corner
For pet immunity
No pet immunity
IQ MOTION- INSTALLATION MANUAL
QOLSYS CONFIDENTIAL AND PROPRIETARY PAGE 3 OF 6
© Last revised 2/27/15 All rights reserved

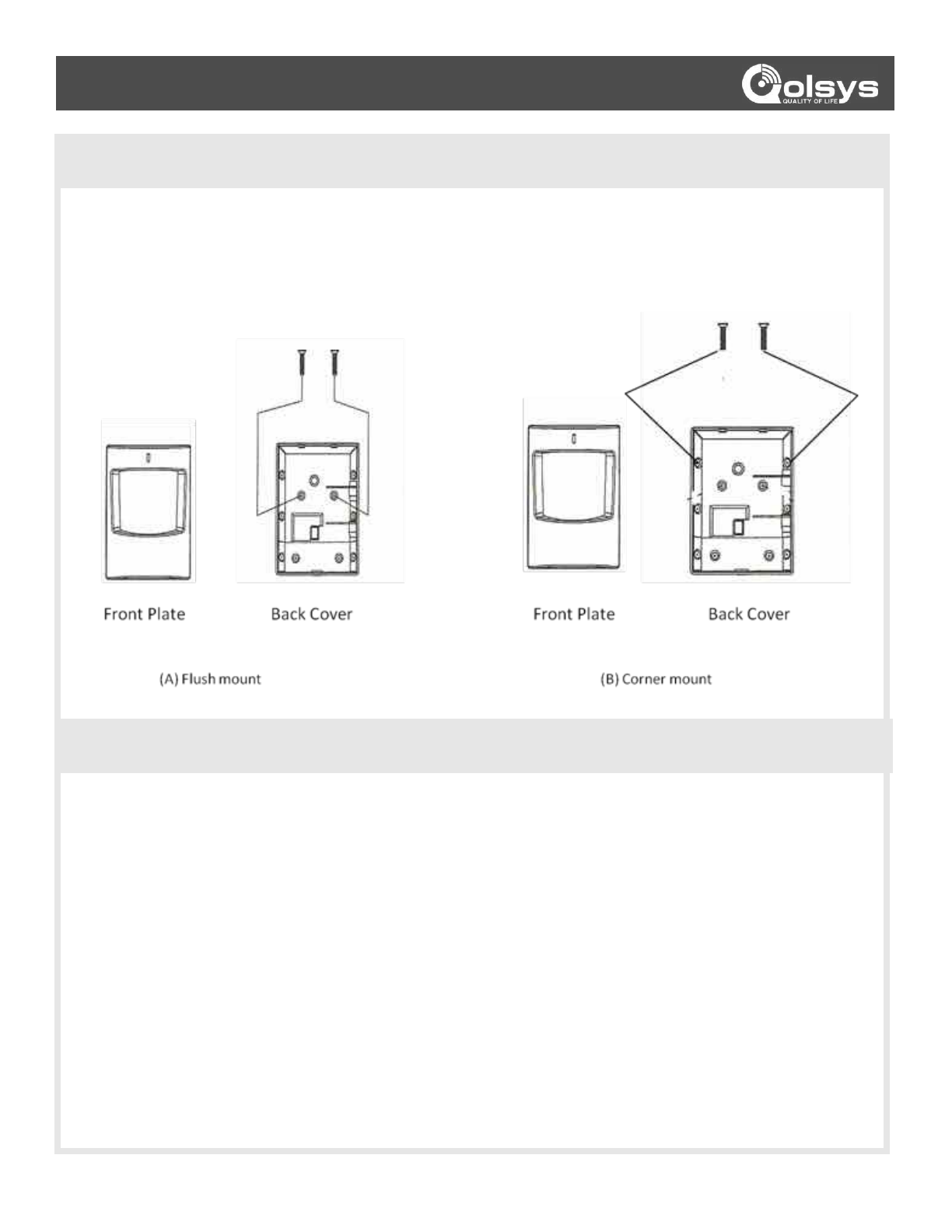

MOUNTING INSTRUCTIONS
Remove back cover by pressing bottom button and sliding back cover off in an upward motion.
If a flush mount is required screw in the back cover on the wall using the screw templates as shown.
If corner mount is required use the screw templates as shown.
MOUNTING FOR PET SENSITIVITY
Mount the sensor 6.5 to 7 ft (0.9 and 1.5 m) high. For best results, install the sensor higher than the highest point the pet
might reach in the detection area.
Use the following formula to calculate the optimal mount height:
mount height = pet’s stature + (distance/20).
That means when the farthest sense area to sensor is 33 ft (10 m), and the pet’s stature is 2.6 ft (0.8 m), mount 4.25 ft (1.3
m) from the floor. (Do not exceed the highest 5 ft [1.5 m]).
If the detection area contains furniture or other objects on which the pet can climb or jump, either (a) remove these
objects, (b) mount the sensor a safe distance above these objects, or (c) mask these areas.
IQ MOTION- INSTALLATION MANUAL
QOLSYS CONFIDENTIAL AND PROPRIETARY PAGE 4 OF 6
© Last revised 2/27/15 All rights reserved

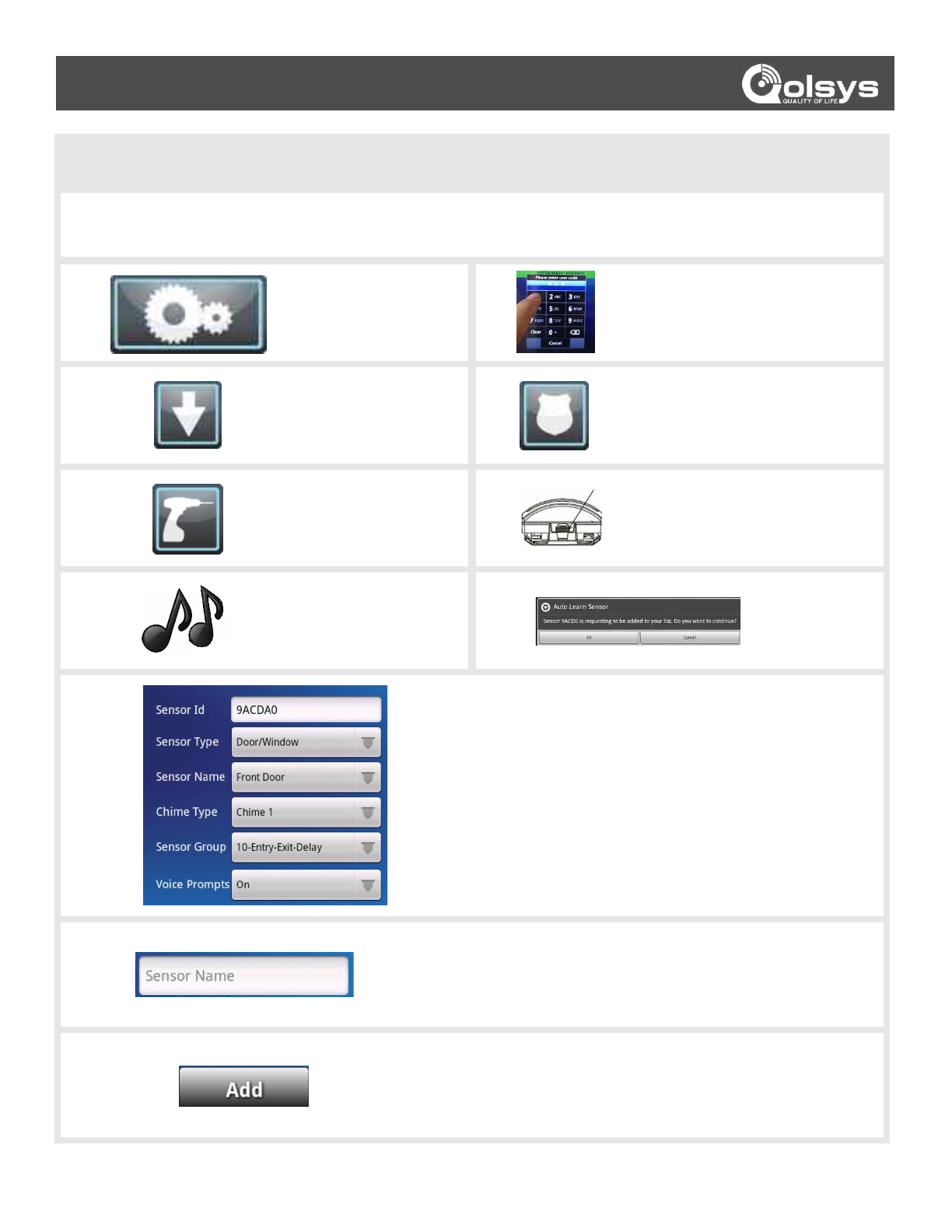

PROGRAMMING THE IQ DOOR/WINDOW
The$following$steps$describe$general$guidelines$for$programming$(learning)$the$sensor$into$the$IQ$Panel.$Refer$to$
the$IQ$Panel's$installation$instructions$for$complete$programming$details.$
From the home screen of
the IQ panel, touch the
“Settings” icon
Enter$the$installer$passcode.$$
Default$installer$passcode$is$11111 2
Touch the “Installation” app Touch the “Security Sensors” app
3 4
Touch the “AutoLearn
Sensor” app
Tamper$the$sensor$by$pressing$the$
tab$and$liBing$off$the$cover.$$5 4
A chime will sound Touch$“Ok”
6 7
8
Check the auto-populated fields to ensure accuracy. Change the
settings as you see fit.
Be sure to select the proper “Sensor Group”
9Create custom names by selecting “Sensor name” and choosing “Custom
description.” A box will appear to the right. Selecting that box will open a
keyboard, allowing you to type the name of your choice into the field.
10 Touch “Add” to complete the process
IQ MOTION- INSTALLATION MANUAL
QOLSYS CONFIDENTIAL AND PROPRIETARY PAGE 5 OF 5
© Last revised 2/27/15 All rights reserved

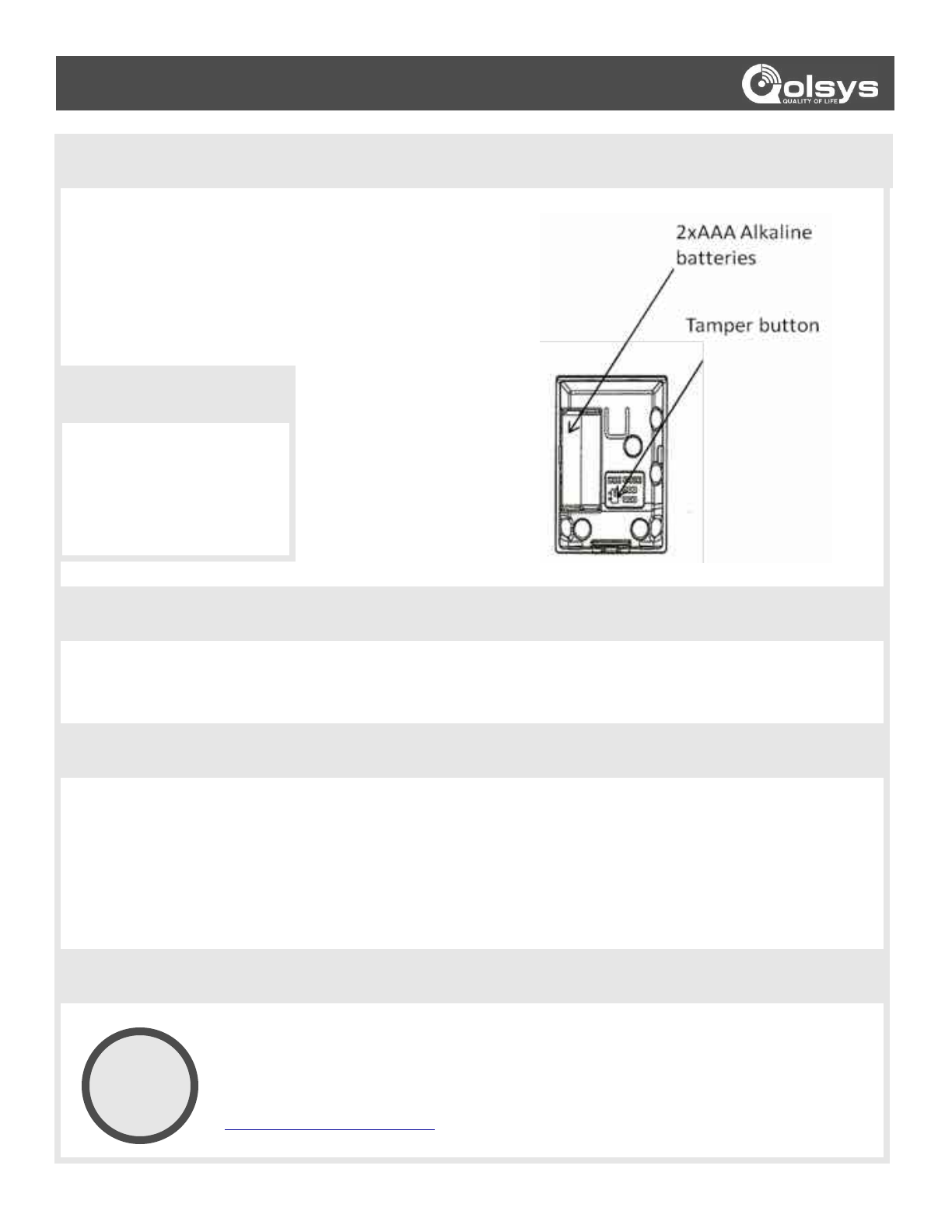

BATTERY REPLACEMENT
To replace batteries:
•Push button on side of sensor and lift off cover.
•Remove old batteries and replace with new ones.
•Close cover by snapping the cover back onto the sensor.
AAA Alkaline (2 per sensor)
Battery life expectancy: 3
years. (Lifetime may vary
depending on number of
activations, environmental
conditions, etc.)
BATTERY TYPE
Operating Temperature: -10C~50C (TBD)
Relative Humidity: 5-85%
Storage Temperature: -40-80C
ENVIRONMENTAL CHARACTERISTICS
Sensor: 3.4H x 2.4W x 1.5D in. (7.7x6.0x4.3 cm)
Number of sensing elements: 2
Spectral Response: 5um – 14um
Sensor Responsivity (500K, 1Hz): 3.6mVp-p
Pet Immune to 50 lbs. Pets must not be allowed to
jump up on tables or furniture within the detection
area.
SPECIFICATIONS
SUPPORT
GOT QUESTIONS?
CONTACT TECH SUPPORT
TechSupport@Qolsys.com
?
IQ DOOR/WINDOW- INSTALLATION MANUAL
IMPORTANT INFORMATION
15.21
§ 15.21 Information to user.
The users manual or instruction manual for an intentional or unintentional radiator shall caution the user that changes
or modifications not expressly approved by the party responsible for compliance could void the user’s authority to
operate the equipment.
CAUTION:! Any changes or modifications not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
!
15.105(b)
§ 15.105 Information to the user.
!
(b) NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
RSS-GEN Section 8.4
8.4 User manuals for licence-exempt radio apparatus shall contain the following text, or an equivalent notice that shall be
displayed in a conspicuous location, either in the user manual or on the device, or both:
This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that may cause undesired operation of the device.
QOLSYS CONFIDENTIAL AND PROPRIETARY PAGE 6 OF6
© Last revised 2/27/15 All rights reserved
Document#: IQM-IM-02-15
Revision#: 2/27/15
Issue Date: FEB 2015
Qolsys Part #: QS-1200-p01
Firmware : 0B_20130627
Conforms to ANSI/UL Std. 639
Certified to ULC Sub S306
Qolsys Inc. proprietary.
Reproduction without permission is not permitted.
