Installation Manual
This manual is aimed at a technical level reader who is expected to be familiar with all safetyprecautions relevant to the use of electrical and electronic equipment.This system operates with 48v DC power supply. To maintain warranty only Quail Digitalapproved parts should be used. Do not attempt to power the Quail Digital Pro7 HeadsetSystem using Power over Ethernet (PoE) adaptors, as they may cause damage to the BaseStation.|page 2
ContentsSystem Overview 4Q-P7BS - Pro7 Base 5Q-P7HS - Pro7 Headset 7Q-P7CH - Pro7 Charger 8Q-P7MK12 - Pro7 12 Button Keypad 8System Installation 9Deciding how many Bases 9Installation rules 10RJ45 wiring 10Remote registration switch 11Registering the headsets 12Locating the charger 12Keypad installation 13System Test 16System Specification 18|page 3
System OverviewQuail Digital Pro7 system is a DECT wireless headset system using multiple Bases Stations (Bases) tocover large areas with up to 30 wireless headsets. Once the headsets are registered to the Base/sthey all listen and up to 6 users talk simultaneously.The system allows the configuration of a large DECT wireless network, connected and powered viaCat5 cable giving the flexibility to position Bases for wide area, multi-room, multi floor coverage. Upto 20 bases can be deployed on the same network. Interconnecting Bases use Cat5 cable for powerand data transmission. The system can be used in conjunction with wireless keypads for transmissionof pre-recorded messages activated from keypads or other device to the headsets.Keypads are mainly used at tills and call points in retail applications to transmit assistance messages.All headsets hear all the messages.The standard range for each base is 50 metres (150ft) from the Base inside and up to 100 metres(300ft) in open spaces. Internal walls, partitions, building fabrics and ceiling heights can affect range.|page 4

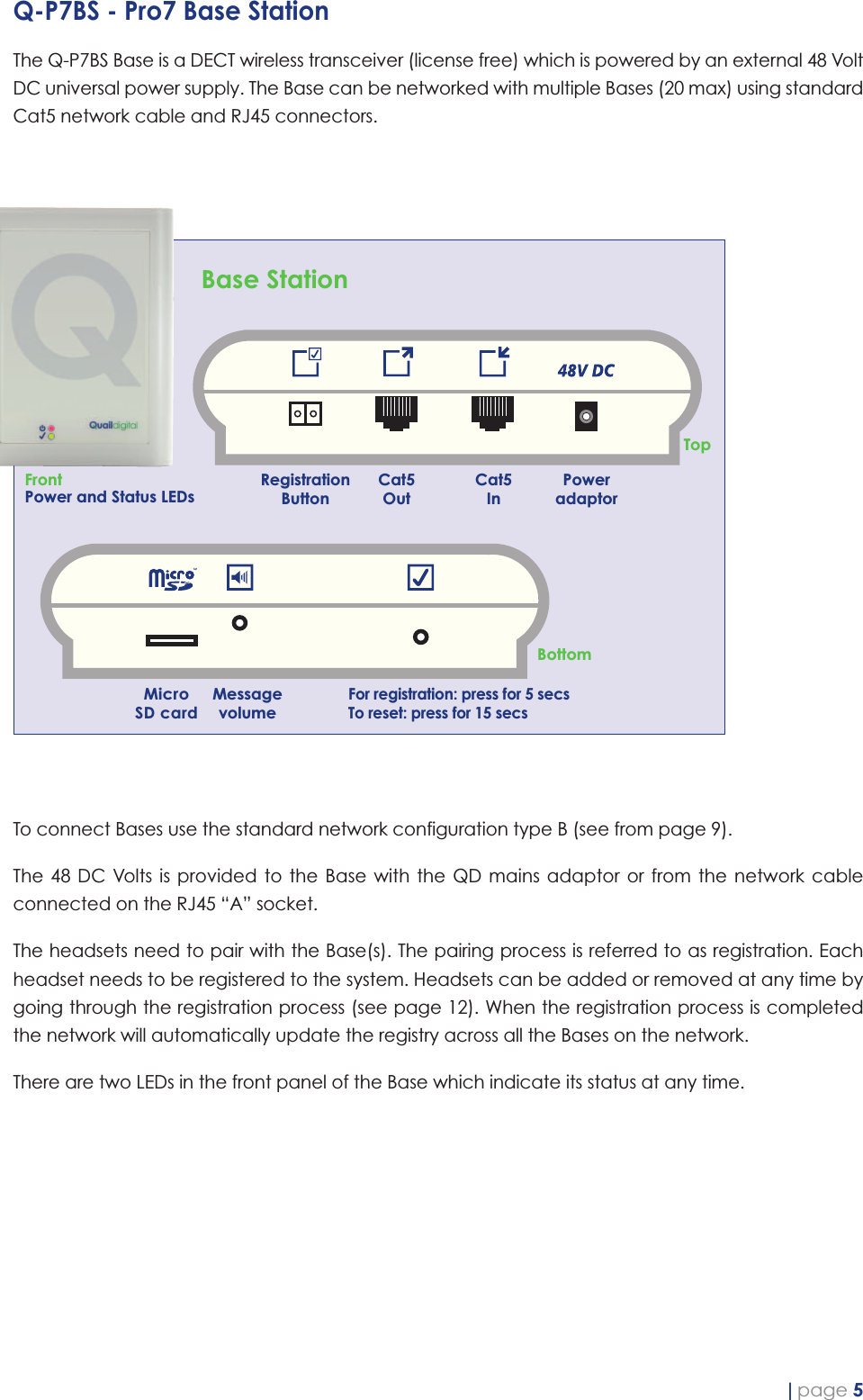

Q-P7BS - Pro7 Base StationThe Q-P7BS Base is a DECT wireless transceiver (license free) which is powered by an external 48 VoltDC universal power supply. The Base can be networked with multiple Bases (20 max) using standardCat5 network cable and RJ45 connectors.To connect Bases use the standard network configuration type B (see from page 9).The 48 DC Volts is provided to the Base with the QD mains adaptor or from the network cableconnected on the RJ45 “A” socket. The headsets need to pair with the Base(s). The pairing process is referred to as registration. Eachheadset needs to be registered to the system. Headsets can be added or removed at any time bygoing through the registration process (see page 12). When the registration process is completedthe network will automatically update the registry across all the Bases on the network.There are two LEDs in the front panel of the Base which indicate its status at any time.|page 5RegistrationButtonCat5OutCat5InPoweradaptorMicroSD cardMessage volumeFor registration: press for 5 secsTo reset: press for 15 secsFrontPower and Status LEDsBase StationBottomTop
Q-P7BS Base functionsRegistration button and registration socketThis button allows you to put the Base into registration mode. Use a pencil or narrow tippedscrewdriver to activate the button in the housing of the Base. Press the registration button for 5 secondsto enter this mode. Pressing the wall mounted registration socket for 5 seconds does the same.Resetting the Base or networkThe Base should be reset or ‘synchronised’ whenever additional bases are added or when the systemis reconfigured for any reason or when the SIMcard is updated. To reset the system pressing theregistration button on the master Base, or the wall mounted registration button for 15 seconds, whichresets the complete network. Don’t reset the Base by removing the power adapter, it will only resetthe bases supplied from that particular socket.Micro SD cardThis card is used to store the WAV audio files triggered by the remote keypads. For instructions onrecording the audio files, naming protocol and programming of the keypads refer to page 15. Onlyuse SanDisk MicroSD cards, formatted as Fat32, file size allocation 4096.Keypad messagesThe Base is fitted with an FM receiver for communication with the remote keypads. Up to 256 keypadscan work with one single base or network. For the recording of audio files, naming protocol andprogramming refer to the system installation section.Message volume adjustmentThe volume adjustment is located at the bottom of the Base. This increases/decreases the audiolevel of the messages played in the headsets. Use a thin flat tipped screwdriver and gently turn tothe right to increase the volume and to the left, to decrease.RJ45 networking socketsUse these two sockets on the top of the base to network two or more bases.|page 6POWER LED STATUS LEDBooting upBase is master and readyBase is slave and readySynchronization signalreceiving OKActive call or calls on thisBaseBOTH LEDs FLASHING CORRECTIVE ACTIONPower too low to boot up Check the individual power supplieson the network for possible failure; orbeing switched off; or consider addingan extra power supply to the networkBase in registration mode The system will time-out of this mode in10 minutes but you can press theregistration switch to exit theregistration mode manually
Q-P7HS - Pro7 HeadsetThe headset can be worn on either ear. The headset is available with a headband or neckband.Volume: There are 5 volume settings. Use the toggle at the rear of the headset to adjust volume bypressing upwards for each step.Speech: The headset can be used in 2 speech modes, TalkLock, and PTT (push to talk).TalkLock: This mode puts the headset in hands free mode. To activate, press the silver button for lessthan 1 second, the headset is then hands-free, to deactivate it, press silver button again. This will shutoff microphone.PTT: Press silver button while you are talking, release when finished.Talk-lock featureThe user engages TalkLock mode by pressing ‘Page’ button for under a second. The headset willremain in hands-free talk-lock mode until the ‘Page’ button is pressed again. The system reaches fullchannel capacity when 6 users engage talk-lock. At full capacity, ie when 6 headsets are onTalkLock, other headsets cannot enter a call. To ensure the system is operating efficiently it self-monitors, and if it detects no voice activity for 5 minutes on a headset in talk-lock mode, itautomatically drops the TalkLock mode on the first headset to reach that condition freeing capacityfor all other users.The table below shows the different audible tones for the different headsets status:|page 7Volume - slide up/downPush to Talk switchBattery - to remove the battery, hold the micboom firmly in your hand and slide the ear padand the battery towards the mic boom tipSTATUS TONERegistration mode 1 beep every secondOut of range 2 beeps every 10 secondsBattery low 3 beeps every 60 secondsRegistration complete 1 long beep (3 seconds)Busy tone 3 long beepsHeadset not registered 1 beep every 3 secondsBase capacity full As per busy toneCall drop Bloop-bleep tone
Q-P7CH - Pro7 ChargerThe system comes with an 8 port charger andstorage unit. This should be located within thetransmit range of the Base so that the headsetslog on to the network automatically whenthey’re uplifted from the charger rack. If thecharger is located out of range of the Base, logon will be delayed until the headsets arecarried into range. Note that headsets out of range of the Base will be de-registered if the registrationbutton is pressed. The charger should remain plugged in at all times, ideally on a 24 hour constantsupply to maintain charging. (See red LED on front surface). When a headset is not in use it should be placed back into the charger/storage rack. Charge timeis approximately 2.5 hours to full charge. When headsets are charging the blue light on the headsetwill flash every 5 seconds. When fully charged, the blue light is constant.Headsets will last for up to 8 hours between charges, slightly less on TalkLock mode. 3 beeps every60 seconds indicate that the battery is getting low and that user should swap headsets.Q-P7MK12 - Pro7 12 Button KeypadThe wireless message keypad is a transmitter used for sending pre-recordedvoice messages to the headset wearers using a license-free FM frequency.When a key is pressed, the message will go via the Base to each headset. Keypads are powered by 2 x AA batteries. When a button on the keypad ispressed the green transmit indicator flashes for 2 seconds. If the red LED is on,the batteries need replacing.Please refer to keypad installation section for more details on how to record,name and store the files and how to program the keypads for the differentlocations. |page 8AccessoriesNeckband Q-RH7NBHeadband Q-RH7HBBattery Q-RH7BATPower Adapter Q-48VHeadset Charger Shelf Q-P7SHELFHygiene Covers (box of 200) Q-RH7HC
System InstallationBefore permanently installing the system, it is advisable to carry out a site survey by temporarilyplacing the Base/s in different locations to optimize coverage. You should also identify power socketsand cable routes for Cat5 if you intend to use multiple Bases.Important Note: Power to the Bases should use a constant 24hr power outlet. If one or more mainscircuit is switched off it may affect the operation of the entire Base network.The following cable and tools are required for any Pro7 network installation:•Cat5 cable•RJ45 plugs and crimping tool•LAN +RJ45 cable testerIt is important to check RJ45 connectors and cables with a LAN tester before connecting to the baseas the 48V DC could be introduced in the wrong pin causing possibledamage to the base or entirenetwork.Deciding how many basesSingle Base installationsFor small premises you may require just one Base. Try temporarily locating it in different locations tocheck and optimise coverage. Use a registered headset to test audiable range. Before selectingthe final position, make sure there is power nearby. Recommended height of the Base is between 2-4 metres (6-12ft) from floor level.On a single Base installation the LEDs on the front of the Base will show Power LED red and Status LED green.If you are using remote keypads or other messaging device on the network the MicroSD card alwaysgoes into the ‘master’ Base, remove the SD card from any secondary Bases.Multiple Base installationsLarger sites need thorough planning for positioning of Bases. Using a registered headset and pluggingin Bases in temporary locations around the premises, experiment with the coverage. If you placeyour ‘next’ Base 15 metres out of the range of the previous Base, you’ll be giving yourself plenty ofoverlap coverage.Once you’ve achieved the coverage you want follow the ‘installation rules’ on the next page. Thefirst Base you install in the line should be defined as the ‘master’. Consequent Bases in the networkbecome ‘secondary’ Bases and take their registration and synchronisation instructions from the‘master’. The network identifies which Base is the ‘master’ because it’s the only one without an ‘IN’Cat5 cable. You can identify which Base is the master because the power LED is RED. When wiringconsequent Bases note that the RJ45 cable goes to the ‘IN’ socket on the next Base and thenfrom the ‘OUT’ socket to the next Base’s ‘IN’ socket, and so on. Youcan identify which Bases are ‘secondary’ because their power LED is GREEN.Refer to the Installation rules section on maximum cable lengths between Bases, and the number ofBases powered from a single source. Power can be supplied to the network from any of the Bases,it does not have to come from the master. If you exceed the rules of either cable length or numberof Bases from a single power source you may find there’s insufficient power to activate the network.|page 9
If both front panel LEDS on any Base are flashing orange it means there’s insufficient power to thatBase to boot up. Check cable, connector and power supply. If each of these is OK it indicates anadditional power source is required. If one or more additional power sources are added the BaseStatus LEDs will change from flashing orange to solid orange indicating synchronisation with thenetwork. The LED will then turn solid green when synchronised.The larger the network the longer it takes to boot up and synchronise the Bases. Allow up to 5 minutesto synchronise larger systems.Installation rulesaIdeal height for Bases is between 2 and 4 metres (6-12ft) above floor level.aThe maximum cable length between any two Bases should not exceed 100m (300ft).aThe maximum cable length between two power sources should not exceed 200m (600ft).aThe maximum number of Bases a single power supply should support is four within 200m (600ft) overall cable.aWhen ‘mapping’ the premises, as a general rule, place the next Base 10m beyond the point where the headset loses range from the previous Base.aLabel the Cat5 cables that go into the top of the Base IN and OUT respectively to avoid miss-connection at a later date.aPower to the Bases should use constant 24hr power outlet. If one or more mains circuits are switched off, it may affect the operation of the entire network.aAlways reset the network when you’ve completed the fixed part of your installation to ensure proper synchronization between bases.aIf you are using keypad messages, ensure there is only one micro SD card in the network. Remove SD cards from any other bases.RJ45 wiring The cable that connects the base stations is a Cat5 UTP cable, with 4 pairs of conductors and RJ45connectors at each end. The RJ45 plug at either end should have the following type B standardwiring:After crimping each plug it is important to use a networktester to check its correct functionality before inserting it inthe base. If the color code is not correct it can causedamage to the base. It is also advisable to label the “IN” and “OUT” on eachcable to facilitate any future changes in the network. |page 10TYPE B STANDARD
Remote registration switchThe remote registration switch allows you to extend the ‘pin hole’registration/reset switch on the base to a lower location to provide betteraccess to the user.This switch is connected to the two screwterminal connector located at the top of thebase and should be located just out of easy reach to avoid casualpressing. Any 2-core cable can be used.Please see pictures below showing how to open the remoteregistration switch to make connections and locate it on the wall. |page 111. Unclip cover 2. Remove 4 screws 3. Connect 2 wires toswitch terminals and fixrear casing to the wall.4m2m0mBaseRegistrationButtonPin Wire colour Signal1 White-Orange Audio data Out +2 Orange Audio data Out -3 White-Green Synchronization signal +4 Blue Audio data In +5 White-Blue Audio data In -6 Green Synchronization signal -7 White-Brown GROUND8 Brown POWER (+48V)See wiring colour code below:
Registering the headsetsBefore using the system each headset needs to be registered to the network. Thereafter, any new oradditional headset being added also has to be registered. The Pro7 Headset System can register upto 30 headsets.When registering one or more new headsets, follow this procedure1 Make sure the new headset(s) has been in the charger and is fully charged.2. Make sure all the headsets in use on the system are in range of of all the Bases on the network. Ifa headset isn’t in range or has a missing or flat battery during the registration process it will bedeleted from the system. Headsets in a charger that’s in range of a Base do not need removingfrom the charger during the registration process.3. Enter the Base in registration mode either by pressing the registration button on the Base (bottomface) or by pressing the remote registration switch on the wall for 5 seconds. Both LEDs will flashgreen when the system is in registration mode.4. Put new headset(s) only in registration mode by placing the headset on your right ear andpressing large silver switch and volume toggle down for about 3 seconds. Wait for the blips tochange their frequency and tone to one blip every second. 5. A 3 seconds long blip signifies successful registration.6. You may also hear a double blip tone that will indicate it is ready to use.7. As soon as headset(s) is registered the system is ready to use. Press registration switch again toexit registration process or leave it to time out after 10 minutes. If there are multiple Bases on the network, the entire network will go into registration mode. This willallow you to register the headsets from any location in the coverage area.All consecutive Bases receive the registry of headsets from the master Base automatically.Locating the chargerThe Headset Charger should be positioned on a worktop and plugged into a socket that is aconstant 24hr power outlet. The charger should be located within range of a Base so that headsetsremain linked to the base/network at all times. The headsets do not need to be active on the chargerduring the registration process but they do need to be within range to avoid being deleted duringtthe registration process.Return headsets to the charger when not in use. Charge time is approximately 2.5 hours. Whencharging, the blue light on the headset will flash every five seconds. When fully charged the bluelight is constant. Headsets will last up to 8 hours between charges, slightly less in TalkLock mode. 3beeps every 60 seconds indicate the battery is getting low.|page 12
Keypad installationThe Pro7 Headset System is available with a remote messaging facility using RF transmission keypads.The keypad is battery operated; typically lasting in the region of 6 - 9 months. If batteries are suppliedwith the unit, remove the battery housing cover and remove the battery saver leaf from the contactterminal to begin using the keypad. There is no on/off switch - the keypads are powered all the time.Install the keypad in the desired location. We recommend Velcro to attach the keypad to a flatsurface.The keypads have a programmable location ID and 12 programmable button messages. You canprogram the keypads by using the internal 8 way dip switches to for their ID and the 4 way internaldip switches for the type of message and zone.On the 8 way DIP switch, select the keypad “Address/ID” up to 256 different addresses can beobtained. Each keypad, in an installation, should be programmed with a unique address. Refer tokeypad Binary Addresses for a list of the possible binary addresses.On the 4 way DIP switch, switches 1 and 2 select the 'Zone' of the remote keypad. Up to 4 differentzones of keypads may be used in the same area. These switches are reserved for future usage andtherefore should always be off. Also on the 4 way DIP switch, switches 3 and 4 select the “Type” of aremote keypad. Using a different type will cause a different set of audio messages to play when abutton is pressed.Keypad Binary AddressesThe keypads use DIP switches to set their address, zone and type as described above.All available addresses are presented on Table 1. The address DIP switches are numbered from 1 to8 on the table and the same numbering appears on the keypad pcb whenever in Table 1 a “1”appears the corresponding DIP switch should be on the ON position, otherwise it should be OFF(opposite the ON label).|page 13Buttons Bank 3 Dip 4 DipBank 0 Off OffBank 1 Off OnBank 2 On OffBank 3 On On
|page 14Address DIP Switches1 2 3 4 5 6 7 80 0 0 0 0 0 0 0 01 1 0 0 0 0 0 0 02 0 1 0 0 0 0 0 03 1 1 0 0 0 0 0 04 0 0 1 0 0 0 0 05 1 0 1 0 0 0 0 06 0 1 1 0 0 0 0 07 1 1 1 0 0 0 0 08 0 0 0 1 0 0 0 09 1 0 0 1 0 0 0 010 0 1 0 1 0 0 0 011 1 1 0 1 0 0 0 012 0 0 1 1 0 0 0 013 1 0 1 1 0 0 0 014 0 1 1 1 0 0 0 015 1 1 1 1 0 0 0 016 0 0 0 0 1 0 0 017 1 0 0 0 1 0 0 018 0 1 0 0 1 0 0 019 1 1 0 0 1 0 0 020 0 0 1 0 1 0 0 021 1 0 1 0 1 0 0 022 0 1 1 0 1 0 0 023 1 1 1 0 1 0 0 024 0 0 0 1 1 0 0 025 1 0 0 1 1 0 0 026 0 1 0 1 1 0 0 027 1 1 0 1 1 0 0 028 0 0 1 1 1 0 0 029 1 0 1 1 1 0 0 030 0 1 1 1 1 0 0 031 1 1 1 1 1 0 0 032 0 0 0 0 0 1 0 033 1 0 0 0 0 1 0 034 0 1 0 0 0 1 0 035 1 1 0 0 0 1 0 036 0 0 1 0 0 1 0 037 1 0 1 0 0 1 0 038 0 1 1 0 0 1 0 039 1 1 1 0 0 1 0 040 0 0 0 1 0 1 0 041 1 0 0 1 0 1 0 042 0 1 0 1 0 1 0 0431 1 0 1 0 1 0 044 0 0 1 1 0 1 0 045 1 0 1 1 0 1 0 046 0 1 1 1 0 1 0 047 1 1 1 1 0 1 0 048 0 0 0 0 1 1 0 049 1 0 0 0 1 1 0 050 0 1 0 0 1 1 0 0511 1 0 0 1 1 0 052 0 0 1 0 1 1 0 053 1 0 1 0 1 1 0 054 0 1 1 0 1 1 0 055 1 1 1 0 1 1 0 056 0 0 0 1 1 1 0 057 1 0 0 1 1 1 0 058 0 1 0 1 1 1 0 059 1 1 0 1 1 1 0 060 0 0 1 1 1 1 0 061 1 0 1 1 1 1 0 062 0 1 1 1 1 1 0 063 1 1 1 1 1 1 0 064 0 0 0 0 0 0 1 065 1 0 0 0 0 0 1 066 0 1 0 0 0 0 1 067 1 1 0 0 0 0 1 068 0 0 1 0 0 0 1 069 1 0 1 0 0 0 1 070 0 1 1 0 0 0 1 071 1 1 1 0 0 0 1 072 0 0 0 1 0 0 1 073 1 0 0 1 0 0 1 074 0 1 0 1 0 0 1 075 1 1 0 1 0 0 1 076 0 0 1 1 0 0 1 077 1 0 1 1 0 0 1 078 0 1 1 1 0 0 1 079 1 1 1 1 0 0 1 080 0 0 0 0 1 0 1 081 1 0 0 0 1 0 1 082 0 1 0 0 1 0 1 083 1 1 0 0 1 0 1 084 0 0 1 0 1 0 1 085 1 0 1 0 1 0 1 086 0 1 1 0 1 0 1 087 1 1 1 0 1 0 1 0
Creating Audio FilesThe audio files must be *.WAV files encoded in mono u-law at 16 kHz. This is easily achieved withfreeware software like MediaHuman Audio Converter, Fre:AC, Audacity or SoX.Naming the Audio FilesTwo different files can be used to play a complete audio message, the file naming scheme for thosefiles is as follows:Keypad ID files: id-xxx-#.wavWhere xxx is the keypad address/ID setting from 0 to 255 and # is the keypad type setting from 0to 3 (i.e. there can be 4 different sets of ID messages using type 0-3).Button Pressed files: but-xx-#.wavWhere xx is the button number from 1 to 12 and # is the keypad type setting from 0 to 3 (i.e. therecan be 4 different sets of button messages using type 0-3).How the Audio files are playedThere is a distinction on which files are played based on their address/ID:Keypads whose address/ID is between 0 and 199, will play files as follows:Play the ‘Keypad ID’ file that matches the keypads address/ID followed by the ‘Button Pressed’file that matches the keypad button number pressedKeypads whose address/ID is between 200 and 255 files are played back as follows:Play the ‘Keypad ID’ file that matches the keypads address/IDThis distinction allows special/custom messages to be played in keypads whose address/ID is above200.How the Audio files are storedAudio files are stored on a Micro SD memory card which is inserted on the SD card slot at the bottomof the base. Any micro-SDCard currently available on the market should work as long as it is correctlyformatted as a FAT32 file system with default settings.To update or copy the audio files to the SDCard, simply insert the micro-SDCard into an SDCardadapter connected to a PC and it will usually appear as a new disk drive in Windows Explorer formatit using FAT32. Copy the files onto the drive. Do not use folders, simply put the files directly into theroot directory of the drive. When the files have been copied you will usually need to stop the cardusing the Windows ‘Unplug or Eject Hardware’ function.Before inserting the memory card in the system please follow these rules: aWhen inserting the micro-SDCard, the system always has to be powered down.aOn booting up, the system will detect which base has the micro-SDCard and inform everyother base of the micro-SDCard holder address.aAfter the system attributes the micro-SDCard holder address, the micro-SDCard cannot bechanged to other base. If it is changed, the system will not be able to play messages. aYou can remove and reinsert the micro-SDCard holder address, as long as it is reinserted in theoriginal base.|page 15
aIf you want to reinsert the micro-SDCard in a different base, is it mandatory to reset the wholesystem to have message playing capabilities.aThe network will not boot up if there is more than 1 micro-SDCard inserted in the system.Keypad messaging trouble shooterIMPORTANT NOTE: Do not insert or remove the SD card while Base is ON. If you do, it will corrupt theSD card and will require reformatting and copying the files. |page 16PROBLEM CHECKMessages not playingBase volume settingMake sure keypad is within range of the base/sCheck transmit led on the keypad flashes when pressing anybuttonKeypads batteries are fitted and full chargedFormat SD as FAT32 and copy the files againCheck file type is WAV and not MP3Check correct naming of the filesButton ID message playing onlyMake sure ID dip switches inside the keypads are set to the rightaddressCheck correct naming of the files
System TestOnce all bases are installed, reset the system to synchronise the bases. Then register the headsets. 1. All headsets are registered and audio is okCollect all registered headsets and one by one, press the ‘Page’ button while talking to confirmthat you can hear your own voice. Repeat this step on all registered headsets.2. Check coverage Take a headset and place it on TalkLock. Whilst talking on the headsets, walk around the entirearea you wish to cover noting any blind spots. The audio should be clear and free of drop out.The side tone on the headset enables you to hear your voice broadcast so you can carry out thisexercise yourself. When you walk from the zone of one base to the zone of another, you will seethe Status LED blinking GREEN as the call is active on that particular base.3. Check all bases and handoverWalk around with all headsets on standby mode. As you stand in front of each base, press “page”on one of the headsets and make sure that the Status LED starts blinking GREEN on the base you’renearest to. Then check the audio on the headset. Come out of talk mode and take a secondheadset to repeat the same operation. Follow the same sequence and go through this procedureon all the headsets for each Base installed.4. Check remote registration switch If the remote registration wall button is installed, while wearing a headset activate both of itsfunctions. For registration, press for 5 seconds seconds you will hear 2 bleeps in your ear to confirmregistration is in process. For reset, keep pressing for 15 seconds you will see the power LED on theBase turns orange>green.5. Check remote keypadsWhile wearing a headset, press all buttons on all keypads installed with a minimum of 5 secondsbetween presses to make sure that you hear all messages. If presses are too fast (below 3 seconds)the press will be ignored. Pay attention at the ID or location messages making sure that the rightkeypad is placed in the correct location. |page 17
|page 18Base Station Q-P7BSOperating frequency 1.88GHz-1.90GHz EMEA, Asia1.910 GHz-1.930 GHz North AmericaDect Transmission power 250 mW EMEA125 mW North AmericaMounting/recommended operating height 3 metresMulti-base expansion detail (inc max) Network via Cat5 cable and up to 20 BasesMultiple base data update procedure SD card Expansion using CAT5 cable. Max length + supplementary power max 100 m cable length between BasesFacilities messaging Keypad messages with volume adjustmentPower requirements 100-240v AC voltage sensing (mains cable supplied)Dimensions 170 x 130 x 35mmWeight 200gRegistration process Wireless pairingVolume adjustment Inbound messagesSD card Audio messages storageCapacity of headsets Up 30 headsets all listening with a max of 6simultaneous participants Front display LEDs Power LEDSolid orange Booting upSolid red Base is master and readySolid green Base is secondary and readyStatus LEDSolid green Synchronization signal received OKBlinking green Active call or calls on this BasePower & Status LEDsFlashing red Power too lowFlashing green Base in registration modeWall-mounted registration point YesSystem Specification
|page 19Registration Button Q-P7RS Ordered Separately Wall mounted switch to allow lower levelregistration activation Dimensions 52 x 63 x 87mmWeight 100gHeadset Q-P7HSOperating frequency 1.88GHz-1.90GHz EMEA, Asia1.910 GHz-1.930 GHz North AmericaOperating modes TalkLock and PTT facilities as standardAudio promptsRegistration mode 1 beep every secondOut of range 2 beeps every 10 secondsBattery low 3 beeps every 60 secondsRegistration OK 1 long beep (3 seconds)Busy tone 3 long beeps Headset not registered 1 beep every 3 secondsRegistry full as per busy toneCall Drop ‘bloop-bleep’ toneBattery capacity 8 hours PTT, 6 hours TalkLockCharge time 2.5 hoursVolume adjustment 5-stage, slide button up/downBattery type - part number Lithium Ion 3.7v - Q-RH7BATWeight 50gHeadband - part number Q-RH7HBNeckband - part number Q-RH7NBMicrophone type (noise cancelling) Noise cancelling electret mic
|page 208 Port Charger Q-P7CHCharge mode Fast chargeMounting Desktop mounted onlyPower requirements 12v external power supply (supplied)Power supply part noDimensions 110 x 390 x 100mmWeight 1200gLED mode of headsets in charger Blinking - chargingPermanent - chargedKeypad Messaging Q-P7MK12 Operating frequency 433 MHz Power requirements 2 x AA cells (not supplied)Dimensions 69 x 142 x 25mmWeight 150g / 200g with batteriesRange 100mMax qty on system 256LED modes Green flash - message transmitted OKRed flash - battery low

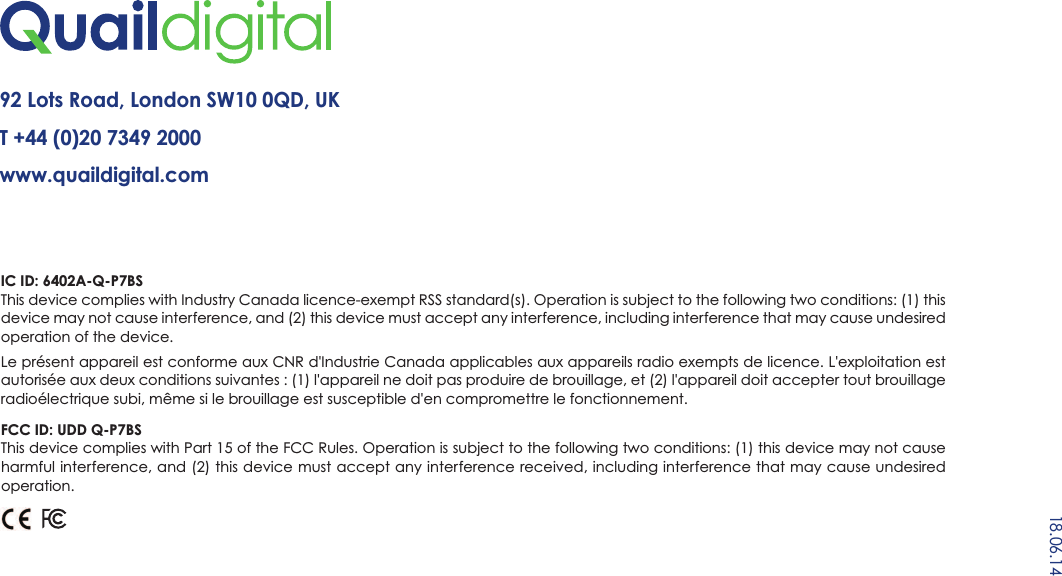

92 Lots Road, London SW10 0QD, UKT +44 (0)20 7349 2000 www.quaildigital.com18.06.14IC ID: 6402A-Q-P7BSThis device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) thisdevice may not cause interference, and (2) this device must accept any interference, including interference that may cause undesiredoperation of the device.Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation estautorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'appareil doit accepter tout brouillageradioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.FCC ID: UDD Q-P7BSThis device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not causeharmful interference, and (2) this device must accept any interference received, including interference that may cause undesiredoperation.
