Quanta Computer KMP6J1BH1 GSM Tri-Band Cellphone User Manual N343i KPN v1 01 English Master
Quanta Computer Inc GSM Tri-Band Cellphone N343i KPN v1 01 English Master
Users Manual
NEC
Model name: KPN
File name: N343i_KPN_TWN_V1.01_English_Mater.fm
Software version:050519n
No. Date Phone File name Reviewed by
1 2005/4/21 SI3-TWN_V1.00_English_Master.fm
2 2005/05/19 N343i_KPN_v1.01_English_Master.fm
2
Important Information 5
Read this information before using your phone ........... 5
Safety And Precautions 6
Emergency services ..................................................... 6
General care ................................................................ 6
Aircraft safety ............................................................... 6
Hospital safety ............................................................. 6
General safety .............................................................. 6
Road safety .................................................................. 6
Vehicles equipped with an air bag ............................... 7
Third party equipment .................................................. 7
Service ......................................................................... 7
Non-ionizing radiations ................................................ 7
Efficient use ................................................................. 7
Radio frequency energy ............................................... 7
Disposing of your used NEC products ......................... 7
Exposure to radio frequency energy ............................ 7
Licenses ....................................................................... 8
Before You Start 9
Cellphone system structure ......................................... 9

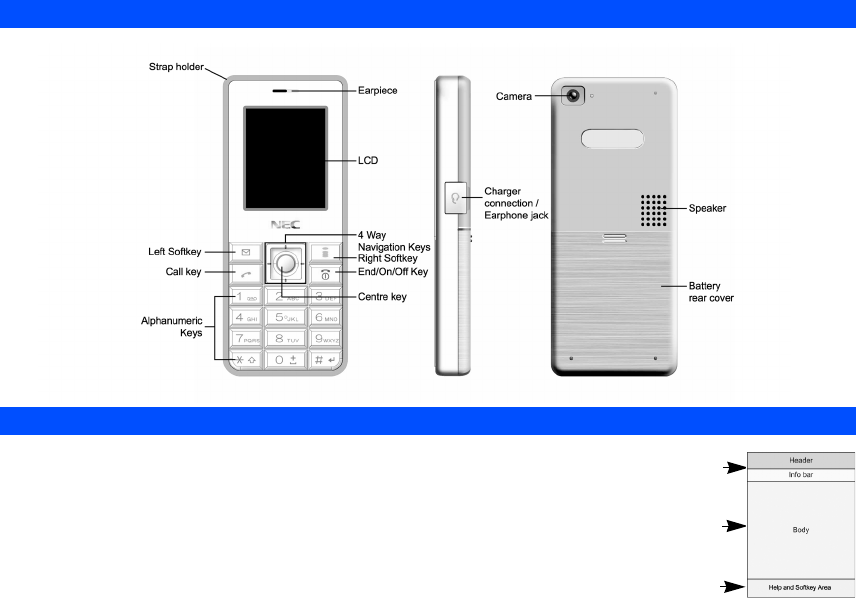

Parts and functions .................................................... 10
Display information .................................................... 10
Key functions ............................................................. 11
Main menu ................................................................. 11
Keypad shortcuts ....................................................... 12
Main phone features .................................................. 13
Displayed icons for LCD .............................................14
Overview of menu function .........................................15
Getting Started 16
SIM card .....................................................................17
Preparing the battery ..................................................18
Powering on the phone ...............................................20
Basic Calls and Phone Use 21
Making an emergency call ..........................................21
Dialing calls ................................................................21
Ending a call ...............................................................21
Using handsfree .........................................................22
Receiving calls ............................................................22
Placing a call on hold ..................................................23
Making a second call ..................................................23
Receiving a second call (subscription dependent) .....23
Making multi-party calls (subscription dependent) .....23
Unsuccessful calls/Auto redial ....................................24
Call features ...............................................................24
Keylock/Auto key lock .................................................25
Screen Saver ..............................................................25
Call Options 26
Dialed calls .................................................................26
Call lists ......................................................................26
Charge Info .................................................................26
Charge settings ..........................................................27
3
Personalizing Settings 28
Voice volume .............................................................. 28
Answer options ........................................................... 28
Minute reminder ......................................................... 29
Auto key lock .............................................................. 29
ALS setup ................................................................... 29
Time/date ................................................................... 29
FAK setting ................................................................. 30
Language ................................................................... 30
Phone modes ............................................................. 31
Power on greetings/animations .................................. 33
Wallpaper ................................................................... 34
Colour style ................................................................ 34
Animation ................................................................... 34
Brightness .................................................................. 34
Contrast ...................................................................... 35
Calls ........................................................................... 35
Security ...................................................................... 37
Network ...................................................................... 39
T9 input ...................................................................... 40
Reset settings ............................................................ 40
Text Entry 41
Mode change ............................................................. 41
Text edit screen option menu ..................................... 41
T9 language ............................................................... 42
Message 44
Message overview ......................................................44
Predefined text ...........................................................46
Message settings ........................................................47
Memory status ............................................................47
Cell broadcast .............................................................48
i-mode 49
What is i-mode ............................................................49
What Can be Downloaded? ........................................49
i-mode icon .................................................................50
i-mode Settings ...........................................................50
iMenu ..........................................................................51
Mail .............................................................................51
Java application ..........................................................56
SMS ............................................................................56
Bookmarks ..................................................................57
Go to webpage ...........................................................57
Saved pages ...............................................................58
Settings .......................................................................58
Camera 59
Taking a picture ..........................................................59
Camera (before taking a picture) ...............................60
Camera ption menu (after saving a picture) ...............61
4
Phonebook 62
Lists ............................................................................ 62
Storing numbers & name in phonebook ..................... 63
Own number .............................................................. 67
My data 68
Record Voice ............................................................. 68
Photos and pictures ................................................... 69
Sounds ....................................................................... 71
Memory status ........................................................... 72
JavaTM application 73
Accessory 74
Scheduler ................................................................... 74
ToDo list ..................................................................... 75
Notepad ..................................................................... 76
Alarm clock ................................................................ 77
Auto off ....................................................................... 77
Auto on ....................................................................... 77
Countdown ................................................................. 78
Stopwatch .................................................................. 78
Calculator ................................................................... 78
Currency converter .................................................... 79
Composer .................................................................. 80
Voice memo ............................................................... 80
PC sync ...................................................................... 81
Index 82
5
Conditions of Use
Operation of this NEC mobile phone is subject to the following two
conditions; (1) this device may cause harmful interference, and (2) this
device must accept any interference received, including interference
that may cause undesired operation. This NEC mobile phone
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio or television reception, which can be
determined by turning the device on and off, the user is encouraged to
try to correct the interference by one or more of the following measures:
1Reorient or relocate the receiving internal antenna.
2Increase the distance between the device and receiver.
3Connect the device into an outlet on a circuit different from that to
which the receiver is connected.
4Consult the dealer or an experienced radio/TV technician for help.
The radiated output power of this internal wireless radio is far below the
FCC radio frequency exposure limits. Nevertheless, the wireless radio
shall be used in such a manner that the radio is 2.5 cm or further from
the human body. However, the user of wireless radios may be restricted
in some places or situations, such as aboard airplanes. If you are
unsure of restrictions, you are encouraged to ask for authorization
before turning on the wireless radio. Several restrictions and cautions of
using mobile phone are listed in the Safety and Precautions in the next
chapter.
FCC RF Exposure Information
In August 1996 the Federal Communication (FCC) of the United States
with its action in Report and Order FCC 96-326 adopted an updated
safety standard for human exposure to radio frequency (RF)
electromagnetic energy emitted by FCC regulated transmitters. Those
guidelines are consistent with the safety standard previous set by both
U.S.and international standards bodies.The design of this phone
complies with the FCC guidelines and these international standards.
Use only the supplied or an approved internal antenna. Unauthorized
antennas, modifications, or attachments could impair call quality,
damage the phone, or result in violation of FCC regulations.
Body-worn Operation
This device was tested for typical body-worn operations. To comply with
FCC RF exposure requirements, a minimum separation distance of 0.6
inches (1.5 cm) must be maintained between the user's body and the
phone, including the antenna.Third-party belt-clips, holsters, and similar
accessories used by this device should not contain any metallic
components.Body-worn accessories that do not meet these
requirements may not comply with FCC RF exposure requirements and
should be avoided.
For more information about RF exposure, please visit the FCC website
at www.fcc.gov.
Declaration of Conformity
The product was shown to meet the requirements of the R&TTE
Directive through third party tests to harmonized standards.
Hereby, Quanta Computer Inc., declares that this NEC mobile phone is
in compliance with the essential requirements and other relevant
provisions of Directive 1999/5/EC.
Important Information
Read this information before using your phone
6
Emergency services
To make an emergency call in any country
•Press 112, the worldwide emergency number.
• Ask the operator for the service which you require: Police, Ambulance, Fire Brigade,
Coastguard or Mountain Rescue Services. Give your location and, if possible, remain stationary
to maintain phone contact.
The 112 emergency number service is available on every digital network service. The number
999 is an alternative emergency number for UK only, and can only be used with a valid SIM
card.
•Due to the nature of the cellular system, the success of emergency calls cannot be
guaranteed.
•For customized local emergency numbers, please check with your local units for the number.
General care
A cellphone contains delicate electronic circuitry, magnets, and battery systems. You should
treat it with care and give particular attention to the following points.
•Do not allow the phone or its accessories to come into contact with liquid or moisture at any
time.
•Do not place anything in the phone.
•Do not expose your phone to extreme high or low temperatures.
•Do not expose your phone to naked flame, cigars or cigarettes.
•Do not paint your phone.
•Do not drop or subject your phone to rough treatment.
•Do not place the phone alongside computer disks, credit cards, travel cards and other
magnetic media. The information contained on disks or cards may be affected by the phone.
•Do not leave the phone or the battery in places where the temperature could exceed 60
degrees celsius; e.g. on a car dashboard or on a window sill, behind glass in direct sunlight,
etc.
•Do not remove the phone’s battery while the phone is switched on.
•Take care not to allow metal objects, such as coins or key rings, to contact or short-circuit the
battery terminals.
•Do not dispose battery packs in a fire. Your phone's Li-ion batteries may be safely disposed at
Li-ion recycling points.
•Do not put your phone's battery in your mouth as battery electrolytes may be toxic if
swallowed.
•Do not attempt to dismantle the phone or any of its accessories.
•This equipment is fitted with an internal battery that can only be replaced by a qualified
service engineer. There is a risk of explosion if the battery is replaced by an incorrect type.
Disposal of used battery must be in accordance with the manufacturer's instructions.
•Using any battery pack, AC adapter or Vehicle power adapter (option) not specified by the
manufacturer for use with this phone creates a potential safety hazard.
•The earpiece may become warm during normal use and the unit itself may become warm
during charging.
•Use a damp or anti-static cloth to clean the phone. Do NOT use a dry cloth or electrostatically
charged cloth. Do not use chemical or abrasive cleaners as these could damage the casing.
•Recycling: the cardboard packaging supplied with this phone is ideal for recycling.
•Do not leave the battery pack empty or disconnected for a long time, otherwise certain data
may be initialized.
•Your phone contains metal which may cause itching, rashes or eczema depending on your
constitution or physical condition.
•Take care not to put your phone in the back pocket of your trousers or skirt and then sit on it.
Also, do not put your phone at the bottom of a bag which may be subjected to excessive
weight or pressure. Doing so may damage the LCD and camera lens and cause them to
malfunction.
Aircraft safety
•Switch off your cellphone and remove its battery when inside or near the aircraft. The use of
cellphones in the aircraft is illegal. It may be dangerous to the operation of the aircraft and
may disrupt the cellular network.
Failure to observe this instruction may lead to suspension or denial of cellphone service to the
offender, or legal action, or both.
•Do not use your phone on the ground without the permission of the ground crew.
Hospital safety
•Switch off your phone in areas where the use of cellphones is prohibited. Follow the
instructions given by the respective medical facility regarding the use of cellphones on their
premises.
General safety
•Observe “Turn off 2-way radio” signs, such as those near stores of fuel, chemicals or
explosives.
•Do not allow children to play with the phone, charger or batteries.
•Small parts are included in your phone. Keep them out of reach of small children, for whom it
could cause a choking hazard.
•The operation of some medical electronic devices, such as hearing aids and pacemakers,
may be affected if a cellphone is used next to them. Observe any warning signs and
manufacturer's recommendations.
•If you have a weak heart, you should take extra precautions when setting functions such as
the Vibrator and Voice volume functions for incoming calls.
•If you set the Vibrator setting to anything other than OFF, be careful that the phone is not near
a source of heat (e.g. a heater) and that it does not fall from a desk due to the vibration.
Road safety
•You MUST exercise proper control of your vehicle at all times. Give full attention to driving.
•Observe all the recommendations contained in your local traffic safety documentation.
•Pull off the road and park before making or answering a call if driving conditions so require.
•You MUST NOT stop on the hard shoulder of a motorway to answer or make a call, except in
Safety And Precautions
7
an emergency.
•Switch off your cellphone at the refuelling point, such as a petrol station, even if you are not
refuelling your own car.
•Do not store or carry flammable or explosive materials in the same compartment where a
radio transmitter is placed, such as a cellphone.
•Electronic vehicle systems, such as anti-lock brakes, speed control and fuel injection systems
are not normally affected by radio transmissions. The manufacturer of such equipment can
advise if it is adequately shielded from radio transmissions. If you suspect vehicle problems
caused by radio transmissions, consult your dealer and do not switch on your phone until it
has been checked by qualified and approved installers.
Vehicles equipped with an air bag
An air bag inflates with great force. Do not place objects, including either installed or portable
wireless equipment, in the area over the air bag or in the air bag deployment area. Improper
installation of wireless equipment in vehicle could result in serious injury when the air bag
inflates.
Third party equipment
The use of third party equipment, cables or accessories, not manufactured or authorised by
NEC, may invalidate the warranty of your cellphone and also adversely affect the phone's
operation. For example use only the NEC mains cable supplied with the AC charger.
Service
The cellphone, batteries and charger contain no user-serviceable parts. We recommend that
your NEC cellphone be serviced or repaired by an NEC authorised service centre. Please
contact your Service Provider or NEC for advice.
Non-ionizing radiations
The radio equipment shall be connected to the antenna via a non-radiating cable (e.g. coax).
The antenna shall be mounted in a position such that no part of the human body will normally
come into contact with any part of the antenna unless there is an intervening metallic screen, for
example, the metallic roof.
Use only the internal antenna that has been specifically designed for your phone. Use of
unauthorized antennas, modifications or attachments could damage the mobile phone and may
violate the appropriate regulations, causing loss of performance and radio frequency (RF)
energy above the recommended limits.
Efficient use
For optimum performance with minimum power consumption, please note the following:
•Your phone has the internal antenna. Do not cover part of the internal antenna of the phone
with your hands. This affects call quality, may cause the mobile phone to operate at a higher
power level than needed and may shorten talk and standby times.
Radio frequency energy
Your phone is a low-power radio transmitter and receiver. When it is turned on, it intermittently
receives and transmits radio frequency (RF) energy (radio waves). The system that handles the
call controls the power level at which the phone transmits.
Disposing of your used NEC products
•In the European Union
EU-wide legislation as implemented in each Member State requires that used
electrical and electronic products carrying the mark (left) must be disposed of
separately from normal household waste. This includes mobile telephones or
electrical accessories, such as chargers or headsets. When you dispose of
such products, please follow the guidance of your local authority and/or ask the shop where you
purchased teh product. THe mark on the electrical and electroinc products only applies to the
current European Union Member States.
•Outside the European Union
If you wish to dispose of used electrical and electronic products outside the European Union,
please contact yoru local authority and ask for the correct method of disposal.
Exposure to radio frequency energy
Your mobile phone is designed not to exceed the limits for exposure to RF energy set by
national authorities and international health agencies. * These limits are part of comprehensive
guidelines and establish permitted levels of radio wave exposure for the general population.
The guidelines were developed by independent scientific organizations such as ICNIRP
(International Commission on Non-Ionizing Radiation Protection) through periodic and through
evaluation of scientific studies. The limits include a substantial safety margin designed to assure
the safety of all persons, regardless of age and health, and to account for any variations in
measurements.
* Examples of radio frequency exposure guidelines and standards that your phone is designed
to conform to:
•ICNIRP, “Guidelines for limiting exposure to time-varying electric, magnetic, and
electromagnetic fields (up to 300 G Hz)-International Commission on Non-Ionizing Radiation
Protection (ICNIRP)”, Health Physics, vol. 74. pp, 494-522, April 1998.
•99/519/EC, Council Recommendation on the limitation of exposure to the general public to
electromagnetic fields 0 Hz-300 GHz, Official Journal of the European Communities, July 12,
1999.
•ANSI/IEEE C95.1-1992. “Safety levels with respect to human exposure to radio frequency
electromagnetic fields, 3kHz to 300 GHz”. The Institute of Electrical and Electronics
Engineers Inc., New York, 1991.
•FCC Report and Order, ET Docket 93-62, FCC 96-326, Federal Communications
Commission (FCC), August 1996.
•Radio communications (Electromagnetic Radiation Human Exposure) Standard 1999,
Australian Communications Authority (ACA), May 1999.
8
Licenses
•T9® Text Input and the T9® logo are registered trademarks of Tegic Communication."T9 Text
Input is licensed under one or more of the following:
U.S. Pat. Nos. 5,187,480, 5,818,437, 5,945,928, 5,953,541, 6,011,554, 6,286,064, 6,307,548,
6,307,549, and 6,636,162, 6,646,573; Australian Pat. Nos. 727539, 746674, and 747901;
Canadian Pat. Nos. 1,331,057, 2,302,595, and 2,227,904; Japan Pat. No. 3532780, 3492981;
United Kingdom Pat. No. 2238414B; Hong Kong Standard Pat. No. HK1010924; Republic of
Singapore Pat. No. 51383, 66959, and 71979; European. Pat. Nos. 0 842 463 (96927260.8),
1 010 057 (98903671.0), 1 018 069 (98950708.2); Republic of Korea Pat. Nos. KR201211B1
and KR226206B1. People's Republic of China Pat. Application Nos. 98802801.8,
98809472.X and 96196739.0; Mexico Pat. No. 208141; Russian Federation Pat. No.
2206118; and additional patents are pending worldwide"
•©2002 Music Airport Inc., http://www.music-airport.com/Compact NetFront, JV-Lite, AVE,
AVE-SSL and AVE-TCP are trademarks or registered trademarks of ACCESS CO., LTD. in
Japan and other countries.
•Java and all Java-based trademarks and logos are trademarks or registered trademarks of
Sun Microsystems, Inc in the U.S. and other countries.
•This product contains ACCESS Co., LTD's Compact NetFrontTM Plus internet browser
software.
Copyright ©1998-2005 ACCESS CO., LTD.
Compact NetFrontTM is a registered trademark or trademark of ACCESS CO., LTD in Japan
and selected countries worldwide.
•i-mode and i-mode logos are trademarks or registered trademarks of NTT DoCoMo.
For the purpose of improvement, the specifications for this product and its accessories are
subject to complete or partial change without prior notice.
9
Every time you use your phone, there are several components involved for the phone to operate successfully and to process a call:
All the features described in this user manual are supported by your phone. However, for all these features to work, you must have a valid SIM card
(supplied by your service provider) that also supports these features. If the network that transmits your calls does not support a certain feature, the
feature will not work even if you have a fully featured SIM card. This last point is especially important when you are roaming networks.
User Guide Legend
This type of paragraph contains important information worth noting.
This type of paragraph contains details of where to find relatied information to the topic being explained.
This type of paragraph contains important information.
Before You Start
Cellphone system structure
The people that
make your phone
Service provider Network i-mode provider
The people that supply
your SIM card and bills
The people that
transmit your calls
The people that provide
your Internet services
10
LCD graphic display area
This area contains the greetings graphic on power up, status graphics, as well as information when searching for
networks and making calls. The standby screen shows the current network, vibrator status, current active mode,
current time and date and whatever you have keyed using the phone’s keypad.
Status icon area
This area contains icons that indicate battery strength, new SMS or MMS messages received, new voice mail or i-
mode status messages received, whether GPRS is activated, connection status, network signal strength etc.
Help and softkey area
Depending on the current mode, this area contains applicable information or context dependent softkey functions.
When ”Menu” is displayed above the Left Softkey area of the LCD, press Left Softkey to access the available
options under “Menu”.
Parts and functions
Display information
Status
Icons
Graphic
Display
Help and
Softkey
Area
The title of the selected
options will be displayed in
the header.
11
The following describes the key functions of the navigation keys and left/right Softkeys and key of your phone:
navigation key: Press to scroll left or move the cursor to the left of the screen. Also serves as a shortcut key to
Phonebook
menu from the
standby screen.
navigation key: Press to scroll right or move the cursor to the right of the screen. Also serves as a shortcut key to
Message
menu from the
standby screen.
navigation key: Press to scroll up or move up the cursor. Also serves as a shortcut key to
Phone modes
menu from the standby screen.
navigation key: Press to scroll down or move down the cursor. Also serves as a shortcut key to
My data
menu from the standby screen.
Centre key: Press to confirm the function. Press to display main menu screen from the standby screen. Press to display the option menu
screen from the main menu screen. Press to toggle your desired function On/Off in the each menu screen.
(End or On/Off) key:Press to return to the standby screen in a function, power on/off the phone, or end a call.
(Call) key: Press to make a call. Press once to display the
Dialed calls
list.
Left Softkey: Press to activate the function displayed on the screen directly above it (bottom left of the screen). Also serves as a shortcut
key to
Mail
from the standby screen.
Right Softkey: Press to activate the function displayed on the screen directly above it (bottom right of the screen). Also serves as a shortcut key
to
i-mode
from the standby screen.
The phone will return to standby mode when key is pressed, but not when the phone is in the following functions: PC sync,
camera, SMS/MMS/JAVATM editor, MFE(Multi-field editor), Call control, etc.
The menu structure starts with the main menu. Main menu consists of nine different display screens that indicate main functions. To access each
main menu function, press key from the standby screen. When the settings screen is displayed, use the and navigation keys to scroll
through the main menu functions or press number keys (1-9) to access the following menus.
The following describes the main menu screens in the order of appearance:
1Settings : provides various settings of your phone. Refer to page 28 for details.
2Message : provides messaging functions. Refer to page 44 for details.
3i-mode : provides access to i-mode network. Refer to page 49 for details.
4Phonebook : displays, adds and edits the list of phonebook entries. Refer to page 62 for details.
5Camera: provides access to the camera function. Refer to page 59 for details.
6My data : displays the list of sound and picture files stored in your phone. Refer to page 68 for details.
7JavaTM : provides access to JavaTM. Refer to page 73 for details.
Key functions
Main menu
12
8Accessory : provides such as appointments, notes and more. Refer to page 74 for details.
9STK : provides SIM related functions (this will be replaced by
Call options
icon if the SIM card does not support STK services).
Main menu screens, menus, check boxes/radio buttons
The different functions and settings of your phone can be accessed by selecting
Options
menus, and check boxes / radio buttons:
• Main menu screens
A screen represents a category or a particular function. To access each main menu function, press key from the standby screen. When the
settings screen is displayed, use the and navigation keys to scroll through the main menu functions. Then press key/Left Softkey to
confirm or directly press the number keys when the
Settings
screen is displayed.
• Option menus
A menu is a named link to a function or setting. The different types of
Options
menu operations include: accessing a function, adjusting levels,
selecting an option, and to toggle a function on or off. To select a menu, move the navigation key to highlight the required option and press Left
Softkey or the corresponding shortcut number key designated for the
Options
menu.
• Check box/ Radio button
A check box enables / disables an option as displayed in the
Options
menu and multiple check boxes can be selected at the same time.
Selecting a radio button automatically cancels the previous selection, hence only one radio button can be selected at one time. A check box /
radio button option can be selected / canceled by highlighting it and pressing Left Softkey.
Options menu operation example
Changing of the phone modes using the
Options
menu is carried out as follows:
• From the standby screen, press key.
• Press Left Softkey to access the
Options
menu for
Phone modes
.
• Select
Activate
to activate the phone mode, or
Change settings
to edit the phone mode settings.
The following single key shortcuts are available from the standby screen (the screen that automatically appears when the phone is on and not in
use)
• Press the navigation key to access
Phonebook
.
• Press the navigation key to access
Message
.
• Press the navigation key to access
Phone modes
.
• Press the navigation key to access
My data
.
• Press the key to access the main menu.
• Press the Left Softkey to access the
Mail
.
• Press the Right Softkey to access
i-mode
unless you have a missed call or a new message to read.
• Press key once to access the
Dialed calls
list.
Keypad shortcuts
13
• Press key twice to redial the last called number.
• Press and hold the Right Softkey to access
Java
TM
.
• Press and hold the navigation key to switch on/off all signal tones.
• Press and hold the navigation key to access
Java
TM
.
• Press and hold 0 to enter + when making an international call.
• Press and hold 1 to call the voice mailbox centre.
• Press and hold # to lock/unlock the keypad.
• Press and hold * to switch the ALS line 1/2 (if the SIM card support ALS).
• Press and hold 2-9 number keys to access FAK (fast access key) functions. For
FAK settings
, please see page 30.
The GSM/GPRS phone can be used in almost any part of the world with the Tri-band (GSM 900/1800/1900 bands) features.
Your phone has the following features:
Main phone features
•
2 S
o
ftk
eys
• Li-ion Battery
• Alternate Line Service (ALS) compatible
• Calculator
• Caller ID alert and vibrator
• Currency converter
• Date, Time & Alarm functions
• Phonebook pictures and ring tones
• Main-LCD screen: 128 (width) by 160 (height) pixels with 65,000
colour
• Camera: 300,000 pixels
• Messaging (SMS, EMS, MMS, Email)
• Short Messaging Service (SMS)
• Enhanced Messaging Service (EMS)
• Multi-media Messaging Service (MMS)
• Multi-party call capability (conference call)
• Scheduler, ToDo list, Notepad
•
Al
arm
c
l
oc
k
,
A
u
t
o
o
ff
,
A
u
t
o
on,
C
oun
td
own,
St
opwa
t
c
h
• Composer
• Voice memo
• Personalize your phone
• 40-layer polyphonic ring tones
• Wallpapers
• Power on animations
• Picture caller ID
• Phonebook (can store up to 250 records)
• SIM memory phonebook (can store up to 255 records, depending
on the SIM capacity)
• T9® Text Input
• Phone mode settings (Normal, Meeting, Pocket and Car)
• Voice mail
• i-mode
• Camera
• JavaTM
14
Indicates the battery level.
Appears during charging.
Indicates that the SMS SIM in your
phone is full.
Indicates that the SMS ME in your phone
is full.
Indicates that there is a new message on
sever.
Indicates that new EMS in your phone.
Indicates that the mail & MMS in sever.
(green)
i-mode mail on server.
(blue)
MMS on server.
(pink)
Both i-mode mail and MMS on Server.
(orange)
new i-mode mail/MMS in phone.
Indicates that the Inbox in your phone is
full.
Indicates that there is an unread SMS.
Indicates that new voice mail messages
are on the network.
Java active.
Indicates secured communication on
SSL.
i-mode lock.
i-mode net access.
GPTS attached.
GPRS Deactive.
ALS 1
ALS 2
Indicates the signal strength level.
Appears when you are outside the
service area.
Indicates Line status (ALS Line 1/No
ALS).
Indicates Line status (ALS Line 2
Unencrypted).
Indicates that the alarm is set.
Indicates that the volume is at the lowest
(silent) setting.
Indicates that Car mode is set to ON.
Indicates that Pocket mode is set to ON.
Indicates that Meeting mode is set to ON.
Indicates the call diversion is set.
Date
Day of the week
Indicates that there is a missing call.
Indicates that there is a message SMS.
Indicates that there is a missed alarm.
Indicates key lock enabled.
Local time
Indicates the IR modem is set to on, the
auto start of a JavaTM application has
failed.
Displayed icons for LCD
30.05.2005
9
1
19
12
14
13
2
0
6
8
42 5
15
11
10
83 7
2
1
4
17
4
18
16
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
2
0
2
1
15
Overview of menu function
Standby screen
Right Softkey
Main menu screen To access each main menu function, press key
from the standby screen and use the
and
keys to scroll through the main menu functions.
Press key again to confirm the main menu.
Alternatively, press the main menu key number
directly (see the following table).
Pressing 0 from the main menu will display your own
number.
Key Main menu 2nd Level menu
1 Settings Phone
Phone modes
Display
Calls
Security
Network
T9 input
Reset settings
2 Message Create
Inbox
Draft
Outbox
Predefined text
Settings
Memory status
Cell broadcast
3 i-mode Settings
i-mode
4 Phonebook Lists
Call options
5 Camera <View finder>
6 My data Photos
Pictures
Sounds
Record voice
Memory status
7Java
TM <Java file list>
<List of folders>
Key Main menu 2nd Level menu
8 Accessory Organizer
Clock
Calculator
Composer
Voice memo
PC sync
9 STK (SIM
related
functions) or
Call options
Key Main menu 2nd Level menu
16
Your phone is equipped with a battery and a charger. Other optional accessories can customize your phone for maximum performance and mobility.
All the features described in this user guide are supported by your phone.
For all the features to work, you must have a valid SIM card (included in the package supplied by your service provider) that also supports these
features.
Even if you have a fully featured SIM card, any feature not supported by the network transmitting your call will not work. This last point is especially
important when you are roaming among networks.
Before you attempt to use your phone, check that you have:
• A valid SIM card inserted in the phone
• Fully charged battery
Service activation
Before you can use your new NEC phone, the service must be activated by your service provider. Please contact your local service provider
regarding phone activation.
Voice mail messaging and text messaging
Voice mail messaging and text messaging services, when available, are provided by your service provider. Before you can receive voice or text
messages with your phone, you must subscribe to these service options. Contact your service provider for information on the availability and setup of
these services.
Phone password
When your service is activated, a 4-8 digit PIN is programmed into the SIM. The PIN locks and unlocks your phone, and provides access to restricted
phone settings. Check with your service provider for additional information on your security PIN.
Getting Started
17
Before using your phone, you must sign-up/register with a wireless network service provider to receive a personal SIM (Subscriber Identity Module). The
SIM card contains a computer chip that keeps track of your phone number, the services included in your subscription, and your SIM phonebook
information. It is stored in a recess in the battery compartment.
The phone is unusable (except for emergency calls) until a valid SIM card is inserted. It is possible to transfer your SIM card to another compatible
phone and access your network services. Your phone will display a warning message if the SIM card is not inserted properly.
The SIM card contains personal data such as your electronic phonebook, messages, as well as details of the network services you
have subscribed to. The phone will not work (except for emergency calls on some networks) unless a valid SIM is inserted.
If the phone or the SIM card is lost or stolen, you should contact your service provider immediately in order to prevent unauthorized
use.
Inserting a SIM card
Before inserting a SIM card, make sure the power is switched off.
Be sure to turn the phone off before inserting and removing a SIM card. Otherwise, damage to the SIM card can occur.
1Press down the rear cover.
2 While pressing down the rear cover, slide the rear cover about 3 mm in the direction indicated by the arrow.
3Remove the rear cover.
4 Press the slit of the battery in the direction shown by the arrow.
5 While pressing the battery, slide the battery to reveal the SIM card holder.
6 Place the SIM card by pressing and sliding gently in the direction shown by the arrow, with the gold contacts facing down and the edge in the
correct corner. Make sure that the SIM card is fully inserted in the holder.
Do not bend or scratch your SIM card.
If the SIM card is not fully inserted when the battery is replaced, damage to the SIM card can occur.
SIM card
18
Be careful not to damage electric parts of the SIM card holder when inserting a SIM card.
Do not apply extreme stress to the rear cover. Damage may occur to the rear cover, LCD, or keypads of the phone.
Removing a SIM card
1 Press the SIM card gently in the direction shown as the arrow.
2 While pressing the SIM card, slide the SIM card in the direction shown by the arrow.
3 Remove the SIM card.
The phone supports a number of languages and the keyboard symbols have been chosen for world-wide operation.
If the SIM card is already inserted, see “Powering on the phone” on page 20.
Charging the battery for the first time
Your phone is powered by a rechargeable battery. A new phone battery must be fully charged before using your
phone for the first time.
• Before attempting to use your phone, insert the phone's battery. Place the battery metallic end towards
phone’s metallic part. Lower the battery towards the phone to lock into place and slide back the rear cover until
you hear a click.
• Connect the NEC battery charger supplied with your phone to a suitable main power socket.
• Connect the charger plug into the connector at the base of the phone.
• Check that the battery icon becomes animated on the LCD. Leave the phone charging until the battery icon
stops moving to ensure that the battery is fully charged.
DO NOT connect a charger or any other external DC source if the phone's battery is not inserted.
Preparing the battery
Charger connector
19
Checking the battery
The battery charge indicator shows the approximate charge level of the battery while the phone is in use and not being charged.
• Check the icon at the top right corner of the screen.
The blocks on the display show the charge status of your battery pack.
Full battery power
Partial battery power
Low battery power
Battery empty (red)
Low battery indication
When the battery voltage falls below the working level, a message “Battery is low” will be displayed along with an empty battery icon on the top left corner
of the screen. When displaying battery low notification, the phone also emit a short alert tone. Once these indicators are observed, the phone battery has
approximately one minute of use remaining. After which, the phone powers off automatically.
Please charge the battery as much as possible when the battery is very low.
Charging the battery
The charger unit begins to restore the battery power when it is connected to the phone.
• Connect the charger plug to the connector at the base of the phone.
• Check that the battery icon is displayed and the screen is lighted up.
During charging, the battery icon becomes animated on the LCD. Leave the phone charging until the battery icon
stops moving to ensure that the battery is fully charged.
Do not connect/disconnect the charger plug forcibly. Damage to the charger connector can occur.
When disconnecting the charger, hold the plug, not the cord.
Do not try to charge the battery if the temperature is below 5oC(41F) or above 35oC(95F).
Please charge the battery as much as possible when the battery is very low.
You are recommended to switch off the phone while charging. If you need to receive calls, your phone can be
switched on and left in standby while being charged, although the total time taken to charge is then
increased.
The phone is designed to be charged with NEC equipment listed with the specifications of your phone.
Using any battery pack or AC adapter not specified by NEC for use with this phone may be dangerous and
may invalidate any warranty and approval given to the phone. Do not leave the charger connected to the
power supply when it is not in use.
Charge connector
Charger
plug
20
Changing the battery
Make sure the phone is switched off. Some settings, stored numbers, and messages may be lost if the battery is removed while the power is on.
1Press down the rear cover.
2While pressing down the rear cover, slide the rear cover about 3 mm in the direction indicated by the arrow.
3Remove the rear cover.
4Put the new battery into place in the direction indicated by the arrow, making sure that the metallic part in the right direction and the tabs of
the battery fit properly into the notches in the phone.
5Lower the battery towards the phone to lock into place.
6Place the rear cover about 3 mm away from the end with the notches and slide the rear cover in the direction indicated by the arrows until a
click is heard.
Switching the phone on
Press and hold key for at least two seconds to switch on.
The screen is either blank, displays an animation, or displays a greetings message during the powering on process. After the powering on process,
the phone displays the standby screen.
You may need to enter your PIN code or password.
The greetings message may not be as indicated if any locks have been set or the wrong SIM has been inserted.
Switching the phone off
Press and hold key for at least two seconds to switch off.
When you switch off and switch on your phone, the data in the phonebook list and messages folder will take some time to initialise
before they can be properly displayed.
Powering on the phone
21
You can make a call in the same way as a normal push-button phone. Press key after entering the area code and phone number.
You may make an emergency call when your SIM card is not inserted in your phone. Simply power on your phone and dial the emergency number of
your local region. For local emergency number, please contact your local authorities.
Use the full STD area code even if you are calling to a person in the same town.
• Enter the phone number in the standby screen and check the number on the display.
• Press key to dial the call.
• To end the call at any time, press key to return to the standby screen.
During the call, the screen displays either the phone number dialed and a connection graphic, or the name and picture ID of the called party if they
have been previously allocated to the number dialed.
The number dialed and its related information will be stored in the
Dialed calls
list.
Each time a call is made after the
Dialed calls
list is full, the oldest call information will automatically be replaced by the latest call made and be
placed at the top of the list.
Accessing the dialed calls list
• Press key to access the
Dialed calls
list.
Highlight the number to be dialed by pressing the and navigation keys and press key to start dialing.
Press Left Softkey to display the
Options
menu for the
Dialed calls
list. Select to either
Extract number
,
Copy to
the phonebook,
Delete
the
individual number or
Delete all
the numbers in the call list.
Accessing the other dialed lists
• Press key from the standby screen and the and navigation keys to access
Received calls
and
Missed calls
.
• Press key to end a call and return to the standby screen.
If you hold down key, your phone will be switched off.
Basic Calls and Phone Use
Making an emergency call
Dialing calls
Ending a call
22
Insert the handsfree to the charger/earphone jack at the side of the phone. When there is an incoming call:
• Under
Auto answer
mode, the call will be connected automatically.
• Under manual answering mode, press key to connect the call.
When you receive a call:
• The phone rings (if ring tone is set to ON).
• The number of the calling party may be displayed on the screen if the caller has activated calling line identification.
• The calling party’s number along with the name and caller ID picture may be displayed if the caller’s information is already stored in the
phonebook.
If the caller has withheld his/her caller ID, the message “Restricted” is displayed to show that the number is being withheld. If the network service
provider cannot identify the number, the message “Unknown” is displayed to show that number is not known.
When your phone is receiving MMS, the incoming call signal may be ignored. The caller may be notified that the line is currently
unavailable.
Accepting a call
• Press key or Left Softkey.
You can set your phone to answer a call by pressing any key except key. See “Answer options” on page 28. If you are making a call, the
phone gives priority to receiving a call unless you have already pressed key.
Rejecting a call
• Press key or Right Softkey. The call will be transferred to the voice mailbox automatically.
You can also choose to put your calls on hold or to activate
Call waiting
or
Call diversion
. These options are dependent on your network and
subscription plans with your local mobile service provider.
If a call is received but not answered, the screen will display an icon.
Information of received and answered calls are stored in
Received calls
.
Calling line identification is subscription dependent. If you have subscribed to the service and the caller has allowed his number to be
transmitted over the network, the number of the caller or the corresponding name will be displayed on the handphone screen.
Using handsfree
Receiving calls
23
You can place a received or dialed call on hold by pressing Right Softkey. Press Right Softkey again to return to the call.
If a call is received but not answered, the caller’s information is stored in
Missed calls
.
To return to a missed call:
Press key to return to the standby screen. Select
Phonebook
>
Call options
>
Missed calls
from the main menu.
Alternatively, press key from the standby screen to access the
Dialed calls
list and press navigation key to display
Missed
calls
.
Dial the second call while on the first call. This will put the first call on hold.
• To toggle between the first and second call, select
Swap
by pressing Right Softkey.
• To end the active call, press key.
You can answer a second call while already on the first call if you have subscribed to call waiting service. Your phone will emit a tone to alert you if
there is a second incoming call.
• To accept the second call, press key to put the first call on hold and answer the second call.
• To toggle between the first and second call, select
Swap
by pressing Right Softkey.
• To end the active call, press key.
You may hold a conversation with up to two parties at the same time in a conference.
• Make a call to the first party. When it is connected, proceed to dial the second call to the next party. The first call is put on hold.
•
When the second call is connected, press
Left Softkey
to select
Menu
, then highlight
Conference
and press
Left Softkey
.
• The first and second party is now connected.
• To split the call, press Left Softkey to select
Menu
, then highlight
Private call
and press Left Softkey.
• Highlight any number on the list and press Left Softkey and the call will be splitted.
• To end the multiparty call, press key.
Multi-party call facilities are SIM card and network dependent.
Placing a call on hold
Making a second call
Receiving a second call (subscription dependent)
Making multi-party calls (subscription dependent)
24
With Auto redial activated, your phone will redial a number up to 10 times if the first attempt is not successful.
When a dialed number cannot be connected, a tone is heard and an alert message will be shown on the display. The phone returns to the standby screen
and the number will be automatically dialed again after a short delay. The phone will try to redial the number up to 10 times. Failure to connect a call might
be due to network problems or if the party you are calling is busy or engaged.
To end a redial attempt, press Right Softkey.
To redial the last number you have made, press key twice.
Fast dial
Fast dials can be activated in the Abbreviated Dialing Numbers by entering a number between 1 to 255 (depending on your SIM card) and pressing
#. The phone details that correspond to the record number will be displayed. Press key to dial.
Each phonebook entry will be saved either in the
SIM
card or
Phone
.
Voice mail
Most mobile service providers offer this external voice mail service to their subscribers. The voice mail function enables you to divert received calls to
a voice mail centre where callers can leave voice messages in the voice mailbox under the following circumstances:
• if your phone is switched off or is not able to receive signals;
• if you did not answer the call;
• if you are currently on the phone and did not activate
Call waiting
.
You will be notified of a voice mail message by an icon in the standby screen. If voice mail service is not included in your mobile service provider's
package, you will have to subscribe to the service separately and configure the settings manually. The voice mail service is network dependent.
Contact your mobile service provider for more details regarding your voice mail number.
The voice mail service is SIM card and network dependent. Contact your service provider for details on your voice mail number.
To set the voice mailbox number
From the standby screen, press navigation key until the
Voice mailbox
screen is displayed or from the main menu, select
Phonebook
>
Lists
, then press navigation key until the
Voice mailbox
screen is displayed.
Highlight
Number:
and press Left Softkey to edit the voice mail number. Press Left Softkey to confirm and return to the
Voice mailbox
display
screen.
To retrieve a voice mail
Use the navigation key to highlight
Voice mailbox
and press Left Softkey to call the voice mail centre.
Alternatively, press and hold 1 in the standby screen to call your
Voice mailbox
directly.
Unsuccessful calls/Auto redial
Call features
25
To divert a received call to the voice mail centre
Make sure the correct voice mail mailbox number is set beforehand. When you receive a call you wish to divert, press key or Right Softkey
to divert the call to the voice mail centre.
Volume control
To adjust the earpiece volume during a call, use the / navigation key to increase volume and the / navigation key to decrease volume.
To lock/unlock the key pad, press and hold the # key. To automatically lock the keypad, from the main menu, select
Settings
>
Phone
>
Auto key
lock
. Press Left Softkey to activate the function and the phone locks the keypad when the phone is in idle for more than a minute.
You can make a emergency call eve if the keypads are locked.
The phone is designed with the screen saver function. When the phone is not in use for 30 seconds, the screen saver activates automatically.
Keylock/Auto key lock
Screen Saver
26
From the main menu, select
Phonebook
>
Call options
to access this function.
A quick way to view received and dialed calls list from the standby screen is to press key and scroll to the respective lists using
the and navigation keys.
The
Dialed calls
screen will display the date and time of the last 15 calls made on your phone.
From the main menu, select
Phonebook
>
Call options
>
Dialed calls
.
• Press Right Softkey to return to
Call options
screen.
There is a total of 3 call lists in your phone's memory:
1. Dialed calls
2. Missed calls
3. Received calls
From the main menu, select
Phonebook
>
Call options
.
• Press 1 for
Dialed calls
, 2 for
Missed calls
and 3 for
Received calls
.
In the Dialed calls list, press Left Softkey to display the
Options
menu. Use the and navigation keys to highlight an option in the list and
press Left Softkey on the following menus:
•
Extract number
to display the phone number. Press Left Softkey to store the number in the SIM/Phone phonebook.
•
Copy to
to store the number in the SIM/Phone phonebook.
•
Delete
to delete the number.
•
Delete all
to delete all the numbers in the list.
The
Charge Info
screen will display the duration and costs of the different types of calls made from your phone.
From the main menu, select
Phonebook
>
Call options
>
Charge Info
.
• Use the and navigation keys to highlight and press Left Softkey to view the time/charge information for the following:
Last call
,
All
voice calls
,
Total incoming
,
Total outgoing
and
Cost left
. You can press Right Softkey to
Reset
the calls counter or Left Softkey to
return to the
Charge info
screen.
Call Options
Dialed calls
Call lists
Charge Info
27
The Charge settings feature enables you to set a limit in units so your phone cannot be used once the limit is reached.
The charge settings service is SIM card and network dependent.
From the main menu, select
Phonebook
>
Call options
>
Charge settings
.
• Select
Currency
to edit the unit price of each call. You will have to enter your PIN2 before changes can be made.
• Select
Cost/unit
to set the cost per unit and per min. You will have to enter your PIN2 before changes can be made.
• Select
A/c limit
to edit
Display credit
and
Max cost
. You will have to enter your PIN2 before changes can be made.
• Select
Auto display
to toggle On/Off the display of call duration and charges after each call is made. When this function is activated, a tick will
appear in the check box.
Charge settings
28
To adjust the volume during a call, use the / navigation key to increase volume and the / navigation key to decrease volume.
When you are not making any calls, use the following procedure:
From the main menu, select
Settings
>
Phone
>
Voice volume
to display the
Volume
screen with a volume slider.
• Use the / navigation key to increase, or use the / navigation key to decrease the volume to the required level.
• Press Left Softkey to save the current setting and return to
Phone
menu.
• Press Right Softkey to reject any volume changes and return to
Phone
menu.
• Press key to reject any volume changes and return to the standby screen.
Voice volume can also be adjusted by pressing the number key on the Volume screen.
Your phone allows you to select one or more of the following three answer modes:
• Any key answer
• Ring silencer
Any key answer
When this feature is enabled, you can answer an incoming call by pressing any key except key.
From the main menu, select
Settings
>
Phone
>
Answer options
.
• Highlight
Any key answer
and press Left Softkey to toggle Any key answer On/Off. A tick will appear in the check box beside the option.
• Press Right Softkey to accept changes and return to the
Phone
menu.
Ring silencer
When this feature is enabled, the phone is switched to silent mode.
• From the main menu, select
Settings
>
Phone
>
Answer options
.
• Highlight
Ring silencer
and press Left Softkey to toggle Ring silencer On/Off. A tick will appear in the check box beside the option.
• Press Right Softkey to return to the
Phone
menu.
Personalizing Settings
Voice volume
Answer options
29
You can access this function to set the reminder that tells you how long you are talking on the phone by minute.
From the main menu, select
Settings
>
Phone
>
Minute reminder
.
Use the and navigation keys or press the Right Softkey to toggle the reminder On/Off. Use the navigation key to move down to the next
field to set a
Timer
for the reminder. Press Left Softkey to save and return to the
Phone
menu.
You can select your keypad keys by activating the Auto key lock; that way, you may prevent your keypad from being accidentally pressed. From the
main menu, select
Settings
>
Phone
>
Auto key lock
to toggle on/off the feature by pressing Left Softkey. A tick in the check box indicates that
the function has been activated. If your key pad is not used for a minute, the phone automatically locks the key pad.
If your SIM card supports Alternate Line Service (ALS), you can set which line to use for your phone:
• From the main menu, select
Settings
>
Phone
>
ALS setup
.
• Use the and navigation keys to highlight the desired line options.
• Press Left Softkey to turn on the radio button for the highlighted option and return to the
Phone
menu.
ALS setup function is SIM card and network related and may only be available from your mobile service provider.
You can access this function to set the time/date displayed in your phone and hence enable other related functions. For example: the alarm function.
Use the following procedure to set the time and date:
Set timezone
• From the main menu, select
Settings
>
Phone
>
Time/date
>
Set timezone
.
• Press and navigation keys to move along the world map to select the city/time zone closest to you. Press Left Softkey to confirm the
time zone selection.
• The phone will prompt you as to whether
Daylight saving
is required. Press Left Softkey if it is required or press Right Softkey if it is not.
• Subsequently, your phone will prompt you whether to set the selected city as your local city, press Left Softkey to confirm or press Right
Softkey to reject. The phone returns to the
Time / date
menu display.
Minute reminder
Auto key lock
ALS setup
Time/date
30
Set date/time
From the main menu, select
Settings
>
Phone
>
Time/date
>
Set date/time
.
• Press the Left Softkey to start editing the date using the text editor.
• Use the navigation key to move to the
Time
field and edit the time.
• After editing, press the Left Softkey to save all changes made. The phone returns to the
Time / date
menu screen.
Set time format
From the main menu, select
Settings
>
Phone
>
Time/date
>
Set time format
.
• Use the and navigation keys to highlight
12 Hour
/
24 Hour
format. Press Left Softkey to confirm the selection and turn on the radio
button. The phone returns to the
Time / date
menu screen.
Set date format
From the main menu, select
Settings
>
Phone
>
Time/date
>
Set date format
.
• Use and navigation keys to highlight either
DD/MM/YYYY
,
DD.MM.YYYY
,
MM/DD/YYYY
,
MM.DD.YYYY
,
YYYY/MM/DD
or
YYYY.MM.DD
format.
• Press Left Softkey to confirm the selection and turn on the radio button. The phone returns to the
Time/date
menu screen.
FAK (Fast Access Key) is a shortcut to the major functions of the phone by simply pressing the key itself.
You can also press the number key from the standby screen, press Left Softkey twice and select the function to allocate for the
number key.
• From the main menu, select
Settings
>
Phone
>
FAK setting
.
• Use the and navigation keys to highlight the Fast Access Key (2 to 9) that you want to set up. Press Left Softkey to select and display the
Option menu for the list of functions.
• Use the and navigation keys to highlight the function to be assigned to the FAK and press Left Softkey to confirm the selection (turns on
the radio button) and return to the
FAK setting
display menu.
• To use FAK, press the number key and Left Softkey from the standby screen.
If the display is showing any language other than your own, use the following procedure:
• From the main menu, select
Settings
>
Phone
>
Language
.
• Use the and navigation keys to select the required language and press Left Softkey to confirm the selection and turn on the radio button.
The phone returns to
Phone
menu screen.
When you have changed the display language, please wait until the new setting becomes effective.
If you select
Automatic
, the language specified in your SIM card or the default language is automatically selected.
FAK setting
Language
31
You can set your phone to operate in any one of four modes in the
Phone modes
menu:
• Normal mode
• Meeting mode
• Pocket mode
• Car mode
Phone mode selection
From the main menu, select
Settings
>
Phone modes
. Use the and navigation keys to highlight a phone mode in the list. Press the Left
Softkey to display the
Options
menu. You can choose to either
Activate
the phone mode or to
Change settings
by pressing the Left Softkey
when your selection is highlighted.
Alternatively, press navigation key to display the
Phone modes
menu from the standby screen.
Phone mode settings
When a phone mode is selected, some of your phones settings will be altered according to the selected phone mode. The phone functions that can
be altered include:
• Ringer setting (On/Off)
• Ringer (for Any call/Phonebook call/Alarm/Message/Friends/Colleagues/Family/Biz partner/VIP)
• Ringer volume (for Any call/Phonebook call/Alarm/Message/Friends/Colleagues/Family/Biz partner/VIP)
• Key tone (On/Off)
• Info tones (On/Off for Warning tone/Cell broadcast/Message sent)
• Vibrator (On/Off)
• Earphone setting(On/Off for Earphone&Speaker/Earphone)
• Illumination (Off/LCD only/Key & LCD)
• Auto answer (On/Off, only available for the Car mode)
Any changes made to the Ringer setting options in a phone mode are stored and used when that mode is selected again.
Use the and navigation keys to move the highlight bar to the previous or next item in a list.
To toggle an option On/Off: On (a tick is displayed in the check box beside the option) Off (the check box beside the option is empty)
Changing phone mode settings
To change the settings of a particular phone mode, use the following procedure.
With the standby screen displayed, press navigation key or select
Settings
>
Phone modes
from the main menu.
Use the and navigation keys to highlight the phone mode you wish to change from the following:
Phone modes
32
•
Normal mode
;
•
Meeting mode
;
•
Pocket mode
;
•
Car mode
.
Press Left Softkey to display the
Option
menu. Use the and navigation keys to highlight either
Activate
to activate the phone mode or
Change settings
to change the phone mode’s settings, then press Left Softkey. When you select
Change settings
, you can make the following
changes:
Ringer setting
To change the ringer setting, highlight
Ringer setting
and press Left Softkey to toggle Ringer setting between On (a tick appears in the check
box) and Off (the tick disappears).
Ringer
To change the ring tone or melody, select
Ringer
to display the Ringer menu screen.
• Highlight the type of calls to change from the menu:
Any call
/
Phonebook call
/
Alarm
/
Message
/
Friends
/
Colleagues
/
Family
/
Biz partner
/
VIP
.
• Press Left Softkey to access the
Sounds
folder.
• Highlight the desired ringtone and press Left Softkey to select and return to the
Ringer
menu screen.
Ringer volume
To change the ring volume settings, select
Ringer volume
to display the Ringer volume screen.
• Highlight the type of calls to change and press Left Softkey to select:
Any call
/
Phonebook call/Alarm/Message
/
Friends
/
Colleagues
/
Family
/
Biz partner
/
VIP
.
• The volume screen showing the level of ring volume is displayed. Use the navigation key to increase or navigation key to decrease the
volume setting to the level required (the level bar moves in the direction corresponding to the key pressed).
• Press Left Softkey to save the current ring volume setting or Right Softkey to reject any ring volume changes.
• The phone returns to the
Ringer volume
screen.
Key tone
To change the settings, highlight
Key tone
and press Left Softkey to toggle between On ( a tick appears in the check box) and Off (the tick dis-
appears).
Info tones
To change the Info tones settings, select
Info tones
to display the Info tones screen.
• Use the and navigation keys to highlight the type of Info tones you wish to change:
Warning tone
/
Cell broadcast
/
Message sent
.
• Press Left Softkey to toggle between On (a tick appears in the check box) and Off (the tick disappears).
• Press Right Softkey to accept the changes and return to the previous
Profiles
menu.
33
Vibrator
To change the setting, highlight
Vibrator
and press Left Softkey to toggle between On (a tick appears in the check box) and Off (the tick disap-
pears).
Earphone setting
To change the seting, select
Eaephone setting
and pressing Left Softkey.
Illumination
To change the
illumination settings, select
Illumination
to display the Illumination
screen with radio button selections:
Off
, illuminate
LCD only
or illuminate
Key & LCD
.
• Use the and navigation keys to highlight your desired setting and press the Left Softkey to confirm and turn on the radio button.
With the illumination always on, the battery life is reduced.
Auto answer
Auto answer
option is only available for
Car
mode
. The Auto answer feature allows a received call to be connected automatically if you are
using your phone as a car phone or with a hands-free kit. To change the Auto answer settings:
• Highlight
Auto answer
and press Left Softkey to toggle between On (a tick appears in the check box) and Off (the tick disappears).
Auto answer only works if your phone is working with a handsfree kit or a headset.
Two types of greeting/animation screens can be displayed when the phone is power-on:
• No greeting (standard powering on screen display animation).
• Text greeting (standard powering on screen with text greeting).
The type of greeting to display can be selected as follows:
• From the main menu, select
Settings
>
Display
.
• Highlight
Greetings
and press Left Softkey to toggle power-on text greeting on. The text editor screen is displayed. Enter a text greeting.
• Press Left Softkey to save the greeting and return to
Display
menu. Press key to return to
Display
menu screen.
• To switch the text greeting function off, highlight
Greetings
and press Left Softkey from the
Display
menu screen. The text editor screen is
displayed. Long press Right Softkey to clear the text and press Left Softkey to save. A tick in the check box beside the option disappears.
For more information on “Text entry”, please refer to page 41.
Power on greetings/animations
34
You can select an image file from
Photos
/
Pictures
folders to be displayed as a background to the standby screen.
To select the wallpaper and its style, use the following procedure:
• From the main menu, select
Settings
>
Display
>
Wallpaper
.
• Use the and navigation keys to highlight either
Set wallpaper
or
Style
. Press the Left Softkey to enter each option.
• In the
Set wallpaper
display screen, select
Photos
/
Pictures
to display the folder for the selection of the desired wallpaper or select
Off
to set
the background display off (a blank screen will be displayed at standby mode).
• With the
Photos
/
Pictures
folder
displayed, highlight your desired wallpaper from the list. Press Left Softkey to confirm the selection. Press
key to return to the standby screen. The selected wallpaper is displayed.
• In the
Style
display screen
,
select
Fit to screen
/
Tile
/
Best fit
/
center
to confirm the selection of wallpaper display style. The radio button for the
selected style is turned on.
You can select from the different colour styles available in your phone:
• From the main menu, select
Settings
>
Display
>
Colour style
.
• Use the or navigation keys to highlight a colour style and press Left Softkey to confirm the selection.
• The LCD menu screen will be displayed in the selected colour style.
You can select one of the two available animations available in your phone:
• From the main menu, select
Settings
>
Display
>
Animation
.
• Use the or navigation keys to highlight either
Animation 1
or
Animation 2
. Press Left Softkey to confirm the selection and turn on the
radio button.
To alter the brightness of your phone's display screen, use the following procedure:
• From the main menu, select
Settings
>
Display
>
Brightness
.
• Use the and navigation keys to highlight the desired brightness level for your phone:
Low
/
Medium
/
High
/
Max
.
• Press Left Softkey to confirm the selection and turn on the radio button.
Wallpaper
Colour style
Animation
Brightness
35
To alter the contrast of your phone's display screen, use the following procedure:
• From the main menu, select
Settings
>
Display
>
Contrast
.
• Use the / navigation key to increase the contrast level or the / navigation key to decrease the contrast level until the screen reaches a
suitable contrast level.
• Press Left Softkey to save any contrast changes, or press Right Softkey to reject any contrast changes.
The Calls screen allows you to activate
Call diversion
,
Call waiting
,
Auto redial
, and
Withhold ID
. From the main menu, select
Settings
>
Calls
.
Call diversion
You may preset your phone to divert incoming calls to a specified phone number for the following conditions:
• Divert for all calls (All incoming calls to your phone will be diverted to the number you have specified)
• Not reachable (Calls will be diverted if your phone is switched off or is out of range for signals to reach)
• No reply (An incoming call will be diverted if the phone is not answered after the time period determined by the network. The period can be set
to a maximum of 30 seconds in 5-second intervals)
• Busy (Call divert will be activated if you are in the middle of a call. If call waiting is activated, a call waiting tone can be heard during the call)
• Receiving fax (Divert all fax calls to a number with a fax connection)
• Receiving data (Divert all data calls to a phone number with a PC connection)
The divert status and details that you have selected will be stored in the network and not in your phone. (e.g., the divert status will
remain even when the SIM card is changed).
Setting up call divert and editing the number
• From the main menu, select
Settings
>
Calls
>
Call diversion
.
• Use the and navigation keys to highlight the desired condition to divert your incoming calls.
• Press Left Softkey to display the Option menu.
• Highlight
Set
and press Left Softkey to display the edit screen.
• Enter or make necessary amendments to the phone number in which the calls will be diverted to, or press Left Softkey to choose a number
from the phonebook.
• Press Left Softkey to confirm the entered number. After a short pause, the network will confirm your setting.
There may be additional charge for this service depending on your network.
There may be unavailable settings depending on your network.
Check call divert status for a condition or to disable call divert
Contrast
Calls
36
• From the main menu, select
Settings
>
Calls
>
Call diversion
.
• Use the and navigation keys to highlight the condition that you need to check.
• Press Left Softkey to display the Option menu.
• Highlight
Check status
and press Left Softkey for the network to transmit and display the status of the selected condition.
• To disable call divert for the selected condition, highlight
Clear
from the
Options
menu and press Left Softkey to confirm.
There will be a short delay while the network sends the divert status of your phone.
Status check and cancellation of all call diverts
Status check
allows you to check the current divert status for all the different conditions.
• From the main menu, select
Settings
>
Calls
>
Call diversion
>
Status check
. After a short pause, the network transmits and displays all the
call divert status previously set.
Cancel all
call diverts allows you to clear all call diverts that has been set previously.
• From the main menu, select
Settings
>
Calls
>
Call diversion
>
Cancel all
. Press Left Softkey to confirm or Right Softkey to reject the
cancellation.
Only the call types supported by the Network are displayed on the current status screen.
Call waiting
Call waiting allows you to answer an incoming call during another call. A call waiting tone can be heard during the call to alert the user of another
incoming call.
Setting call waiting On/Off
• From the main menu, select
Settings
>
Calls
>
Call waiting
.
• Select
Active
to set call waiting on.
• Select
Cancel
to set the call waiting off.
The setting is saved and a confirmation message from the network will be displayed.
Checking status of call waiting
• From the main menu, select
Settings
>
Calls
>
Call diversion
>
Call waiting
.
• Select
Status
from the menu. A message from the network will be displayed to indicate whether call waiting is activated or cleared.
Auto redial
The
Auto redial
option allows your phone to re-dial an unsuccessful call up to 10 times. To set the auto redial on or off, use the following procedure:
• From the main menu, select
Settings
>
Calls
.
• Highlight
Auto redial
and press the Left Softkey to toggle automatic redial On/Off. A tick in the check box beside the option indicates the
activation of Auto redial.
37
Withhold ID
The feature allows you to withhold your ID when making a call to others.
• From the main menu, select
Settings
>
Calls
>
Withhold ID
.
• Press Left Softkey to withhold for all calls and Right Softkey to cancel.
The security settings protects your phone from improper and unauthorized use.
These confidential numbers should be kept in a safe place for future access, if required.
You may be required to enter one of the following security codes as shown below. When the phone prompts you for one of these codes, use the
keypad to enter the appropriate number and press Left Softkey to confirm.
• PIN code (provided by your network to protect your SIM card if it is stolen)
• PIN2 code (provided by your network for charge information and FDN services protection)
• PUK/PUK2 code (respective personal unblocking code in case you forget the PIN/PUK code)
• Phone code (provided along with the phone and have to be entered at the first security setting)
If you forget any of these codes, ALWAYS contact your service provider as they are the ONLY source for your codes.
If the PIN2 code is entered incorrectly 3 times, you will need to contact your service provider for a PUK2 code.
The PIN codes and security codes are between 4 to 8 digits.
Change PINs
The PIN will be requested most of the times when the phone is switched on. This feature can be deactivated, at the risk of unauthorized usage of your
phone. Some mobile service providers do not permit the deactivation of this control.
You can set up your phone to require your
PIN code
entered when the phone is switched on before the phone can be used and receive any
incoming calls. If you entered your
PIN code
incorrectly for more than three times (not necessarily in the same session), you will have to contact your
mobile service provider for a
PUK code
to unblock your SIM card.
Your phone supports advanced features (e.g. FDN) that may require a PIN2 code to be entered before they can be accessed or
modified.
To activate PIN
• From the main menu, select
Settings
>
Security
. Highlight
PIN activate
and press Left Softkey to toggle PIN activate Enable/Disable. You
will have to key in a
PIN code
for activation. A tick in the check box beside the option indicates that
PIN activate
has been activated.
Security
38
PIN/PIN2/Phone code change
• From the main menu, select
Settings
>
Security
>
Code
.
• Select either
Change PIN
/
Change PIN2
/
Chg. phone code
.
• Key in the current code. You will be prompted to enter the new code when the correct current code is entered. Enter the new code again and
press Left Softkey to confirm the new code.
• A confirmation screen is displayed momentarily and the phone returns to
Code
display menu.
The PIN2 code is SIM card related and may only be available from your service provider.
Phone lock
The Phone lock menu allows you to lock your SIM card from unauthorized usage. If
Phone lock
is On, SIM data can be accessed only when the
correct PIN code is entered. To enable/disable
Phone lock
, proceed as follows:
• From the main menu, select
Settings
>
Security
.
• Highlight
Phone lock
and press Left Softkey to toggle
Phone lock
On/Off. A tick in the check box beside the option indicates that
Phone lock
has
been activated. You will have to key in a
Phone code
to activate Phone lock.
Bar calls
This feature allows you to restrict the following type of calls made or received on your phone. You will need a 4-digit password provided by your mobile
service provider to activate ring. You may have to register separately for each type of ring.
• All outgoing (All outgoing calls, except emergency numbers 112 and 999 will be barred)
• Outgoing international (International outgoing - Only calls within the home country can be made on the phone)
• Outgoing international except home (International outgoing without home country - International calls not permitted. However calls can still be
made to your home country when you're abroad)
• All incoming (All incoming calls will be barred, including the forwarding of the calls to the mailbox)
• When roaming (You will not be able to receive calls when you are outside your home network. This means that no charges will be incurred for
incoming calls)
To place restrictions on certain type of calls:
From the main menu, select
Settings
>
Security
>
Bar calls
. Use the and navigation keys to highlight the type of calls you want to restrict
and press Left Softkey to display the
Options
menu.
• Select
Set
to activate. You will be prompted to enter the bar password.
• Select
Clear
to disable ring for the selected type of calls. You will be prompted to enter the bar password.
• Select
Check status
for the network to transmit and display the ring status of the selected type of calls.
Change password
• To change the password for ring, select
Settings
>
Security
>
Bar calls
>
Change password
from the main menu. Enter the call barring
password. You will then be prompted to enter a new password twice. Press Left Softkey to confirm the password.
39
Status check
To check the status of calls barring for all the different types of calls, select
Settings
>
Security
>
Bar calls
>
Status check
from the main menu.
After a short pause, the network transmits and displays all the ring status previously set.
Cancel all
To cancel all barrings previously set, select
Settings
>
Security
>
Bar calls
>
Cancel all
from the main menu. The password provided by your
mobile service provider will be needed for this function. Press Left Softkey to confirm or Right Softkey to reject the cancellation.
Fixed dialing
This function allows you to restrict the use of dialed number to FDN only. To change the settings for Fixed dialing:
• From the main menu, select
Settings
>
Security
.
• Highlight
Fixed dialing
and press Left Softkey to toggle
Fixed dialing
On/Off. You will have to key in the
PIN2 code
to display a message to
activate/deactivate Fixed dialing. A tick in the check box beside the option indicates that
Fixed dialing
has been activated.
• Roaming allows you to use your phone in many parts of the world and to pay all charges through your home network Mobile Service Provider.
Your network operator usually has agreements with named networks in other countries. The phone also allows you to set network preferences
of your own. When dialing you will need to add the international access codes when required, so storing all numbers with the codes (such as 01
for the US) is helpful.
Call your service provider to activate international service options.
Before leaving your home country you should select preferences such as call block or call transfer.
You will be charged for calls forwarded to you while you are roaming.
The FDN facility is network dependent.
Network info
• From the main menu, select
Settings
>
Network
>
Network info
.
• Use the and navigation keys to highlight the network you want to connect to and press Left Softkey to select. The screen will return to
standby mode after a confirmation message is displayed.
Choose network
• From the main menu, select
Settings
>
Network
>
Choose network
. Press Left Softkey to confirm. This will restart the network search that
will be very useful if you are not on your home network or you need to register on a different network.
Set automatic or manual network selection
• From the main menu, select
Settings
>
Network
.
• Highlight
Auto network
and press Left Softkey to toggle the automatic network search On/Off. A tick in the check box beside the option
indicates the activation of Auto network.
Before you manually select a network, ensure it is covered under the agreement you have with your mobile service provider.
Network
40
View/Edit/Delete network list
When "Automatic network" is activated, the network will be selected according to the ranking order in your Pref. network. You can manually select a
separate network from the list of the GSM networks available.
• From the main menu, select
Settings
>
Network
>
Pref. network
to display the Pref. Network screen with Home Network information.
• Press Left Softkey to display the list of networks you have added to your list. To edit this list, press Left Softkey and select
Insert
or
Add to
end
with Left Softkey to display the
Net operator
screen, listing the major net operators.
• Use and navigation keys to highlight the net operator you wish to add to your list and press Left Softkey to confirm adding it to your list.
The phone returns to the
Network
menu screen.
• To delete a network from the list, select
Settings
>
Network
>
Pref. network
. Press Left Softkey, highlight the network you wish to delete and
press Left Softkey again to display the Option menu. Select
Delete
to confirm the deletion.
Before editing your pref. network, please contact and consult with your mobile service provider.
Band
• From the main menu, select
Settings
>
Network
>
Band
. Use and navigation keys to highlight the required band and press Left
Softkey to select and turn on the radio button. The phone returns to the
Network
screen.
• The available bands are
900MHz
;
1800MHz
;
1900MHz
;
900/1800MHz
;
900/1900MHz
Frequency bands must be adjusted to suit the location when roaming (Europe, U.S., etc.), for the phone to work properly.
GPRS Info
GPRS info displays details about the size and time of the data that has been transferred to your phone via GRPS frequency. From the main menu,
select
Settings
>
Network
>
GPRS info
. From the GPRS info screen, press Left Softkey to reset the parameter or Right Softkey to go
back to
Network
.
Transfer rate
Select an appropriate data transfer rate for your phone. From the main menu, select
Settings
>
Network
>
Transfer rate
. Press Left Softkey to
select from 115.2kb/s, 57.6kb/s, 38.4kb/s, and 19.2kb/s or press Right Softkey to return to
Network
.
Please refer to page 42 for details.
To revert your phone to its default factory settings, select
Settings
>
Reset settings
from the main menu and press Left Softkey. Press Left
Softkey again confirm resetting or press Right Softkey to abort resetting and return to
Settings
menu. You will be prompted to enter your
phonecode.
Reverting to the default factory settings will NOT reset data in My data, Message and the Phonebook menu.
If you have set the security code on your phone, you will be prompted to enter the security code in order to restore to factory settings.
T9 input
Reset settings
41
This section describes how you can enter text (letters, numbers and symbols). The same method of text entry can be used in all of the phone’s
editing display.
In the text entry screen, pressing * key can change the text entry mode in the normal text input or when T9® is activated. Pressing and holding the #
key will toggle T9® input On/Off. The sequence of the entry mode is as follows:
Press Left Softkey in
Edit
mode when typing or editing text to display the
Options
menu. These options are available:
Inserting object
Highlight
Insert object
and press Left Softkey to display the following options:
• Highlight
Predefined sounds
and press Left Softkey to select built-in sound clips to be inserted into your message. Use and navigation
keys to select the desired sound clip to be inserted and press Left Softkey to confirm.
• Highlight
Predefined animations
and press Left Softkey to select the animation icons to be inserted into your message. Use and
navigation keys to select the desired animation icon to be inserted and press Left Softkey to confirm.
• Highlight
Own animations
/
Own pictures
/
Own sounds
to select animations, tones, or pictures stored in the phone to be inserted into your
message. Use and navigation keys to select the desired attachment and press Left Softkey to confirm.
Text Entr y
Mode change
Normal Text Input
abc (All lower case)
Abc (Sentence case)
ABC (All upper case)
Numeric Input (123)
T9 Input Activated
T9 abc (T9® English)
T9 Abc (T9® English)
T9 ABC (T9® English)
Numeric Input (123)
Text edit screen option menu
42
Format
Highlight
Format
and press Left Softkey to display the following options:
• Highlight
Text format
and press Left Softkey to choose the following text formats for your message:
Underline
/
Strikethrough/Italics/Bold
or
choose the desired
Font
(
Mid font
/
Large font
) for your text. Highlight your selection and press Left Softkey to confirm. A tick appears in the
corresponding check box beside the option. Continue with your selection and press the Right Softkey to save the format settings and return to the
previous Option menu.
• Highlight
Text color
and press Left Softkey. Use and navigation keys to edit the
Text color
and
Background color
of your text
message. In each highlighted field, use and navigation keys to choose the desired colour for your message. Press Left Softkey to save
and return to the message
Text formats like
Italics
and
Bold
cannot be applied simultaneously to your messages.
Predefined text
You may add a predefined text into your message editing screen. Highlihgt
Predefined text
and use and navigation keys to scroll through a
list of texts and press Left Softkey to open the
Options
menu: either
Select
or
View
the text. Once you choose either option, the phone returns to
the edit screen.
Insert number
You may attach a phone number to the message that you are editing and send it. Highlight
Insert number
and use the and navigation keys to
scroll through the phonebook and press Left Softkey to attach the number.
T9 preferred
To select whether to activate
T9
input
, use the following procedure:
• From the main menu, select
Settings
>
T9 input
. Highlight
T9
preferred
and press Left Softkey to toggle T9® preferred On/Off. A tick in the
check box indicates that
T9
input
has been activated.
Alternatively, you can press and hold the # key in the text entry screen to toggle T9® input On/Off.
T9 English text input
Your phone supports T9® Text Input and will try to deduce the correct word by individually comparing the entered letters with an extensive in-built
dictionary, enabling fast and intuitive text input.
For each letter to be keyed in, you will only need to press the number key corresponding to the alphabet once. The screen will display the word you
may require based on the in-built English dictionary of the mobile phone. An example of it shown as follows:
• With the text entry screen displayed, press * key to switch to desired T9® English input case(T9 abc/T9 Abc/T9 ABC) before entering the word/
sentence.
• To enter the word “good”, press 4, 6, 6 and 3 then press 0 to complete the word with a spacing after the word.
T9 language
43
• To enter “Peter is good”, press 7, 3, 8, 3 and 7 to display ‘Peter’, then press 0 to confirm.
• Press 4 and 7 to display ‘is’, then press 0 to confirm.
• Press 4, 6, 6 and 3 to display “good”, then press 0 to confirm. The sentence is now completed.
Other key functions
• 0: To insert a space and/or complete the word.
• Left Softkey: To display other words with the same combination of letters (eg. words like home, gone and etc. can be formed by pressing the
number keys 4, 6, 6, 3 and Left Softkey).
• Right Softkey: To delete the letter to the left of the cursor
• / navigation key: To move the cursor around and each of the words keyed will be highlighted.
• * key: To toggle the different modes of text entry.
• # key: To activate the symbol list; Press and hold to toggle T9® input On/Off.
Normal text input (ABC)
With the text entry screen is displayed, long press * key until the entry mode is Normal text (ABC) input.
Use number keys to enter letters. For example, to enter e, press 3 twice; to enter f, press 3 three times.
Other key functions
• 0: To insert a space.
• Right Softkey: To delete the letter to the left of the cursor.
• / navigation key: To move the cursor around.
• * key: To toggle the different modes of text entry.
• # key: Press to activate the symbol list; Press and hold to toggle T9® input On/Off.
Numeric input
With the text entry screen is displayed, press * key until the entry mode is Numeric input (123).
44
From the main menu, select
Message
. Using this function, you can send and receive text messages with attached sound, image files, etc.
Alternatively, you can press navigation key to access the
Message
menu directly from the standby screen.
The following folders in the
Message
menu have the following functions:
• Inbox : The received messages are saved. (To enter, select
Inbox
from
Message
menu screen.)
• Draft: The edited messages are saved.(To enter, select
Draft
from
Message
menu screen)
• Outbox: The sent messages are saved and specified. (To enter, select
Outbox
from
Message
menu screen.)
When the storage memory is full, your sent messages will not be stored in the Outbox.
Your phone supports the following messaging services:
• SMS (Short Messaging Service) allows you to send short messages. To send an SMS message, the destinated
phone number must be a mobile phone with an SMS service subscription. A text messages of up to 1520
characters can be transmitted and received via your phone. When long SMS messages are sent or received by
the phone, they are automatically broken down into a series of short SMS messages. (Do take note of the higher
charges for these long messages sent). Pictures and sounds can also be included inside the SMS.
• EMS (Enhanced Messaging Service) is similar to SMS and allows you to send to another EMS capable
mobile phone. In your EMS message, you can include formatted text, small graphics, animations and musical
sounds. If the destinated phone is only capable of SMS, only the text part of the message will be received.
The Short Messaging Service and linking of SMS messages are network dependent.
Message list screen options menu
The following options will be displayed when Left Softkey is pressed in the message list (
Inbox
/
Draft
/
Outbox
)screen:
• View-Display the message contents.
• Reply via SMS - Display the SMS
Edit
screen to type a message to reply to the sender and select options
menu:
New SMS
,
Edit
,
Answer is Yes
and
Answer is no
.(available for Inbox only)
• Forward - Display the
Edit
screen for the forwarding of the message. (available for Inbox only)
• Detail-Display the date, time and sender’s information.(available for Inbox/View mode only)
• Edit - Display the message in the
Edit
screen for editing. (available for Draft/Outbox only)
• Delete - Delete the highlighted message
• Delete all - Delete all the messages in the current folder.
• Extract number - Display the phone number of the message.
Message
Message overview
This number indicates the
size of the message
equivalent to the number of
SMS messages (maximum
of 10).
45
To select an option, highlight the option and press Left Softkey.
Depending on the type of message you are viewing, the available options menu may change.
SMS edit screen options menu
When creating an SMS in the
Edit
screen, press Left Softkey to access the following options:
• Send - Send the edited SMS and subsequently save it in
Outbox
.
• Save - Save the edited SMS in
Draft
.
• Insert object - Insert pictures, sound or animations into the edited SMS.
• Format - Change the format of the fonts.
• Predefined text - Insert a pre-defined user message into the edited SMS.
• Insert number - Insert a phone number from the Complete Phonebook.
To select an option, highlight the option and press Left Softkey.
To read a message
Select
Message
from the main menu or press navigation key directly from the standby screen.
• Press Left Softkey to display the message list of the highlighted mailbox (
Inbox
/
Draft
/
Outbox
).
• Highlight the message to be read and press Left Softkey. Select
View
from the
Options
menu. The message contents will be displayed.
Please review message only after the whole series of SMS has been received by your phone. When the phone has not finished
receiving the long message, there will be a popup notification that the message is incomplete and it cannot be viewed.
If you receive a message at the same time the alarm is due to ring, you will not receive any popup notification that a new message is
received; as alarm clock is a higher priority event. Likewise, no notification will be received when the message is received during a
call or when there is an incoming call. The phone will emit a beep tone only if the call is put on hold.
Creating and sending a message
The following describes the operations related to creating and sending a message.
To create and send a new SMS message
Select
Message
from the main menu or press navigation key directly from the standby screen.
• Select
Create
to display
Edit
screen.
• Input your message.
• When done, press Left Softkey to display the
Options
menu. Highlight
Send
and press Left Softkey. Input the recipient’s number using the text
editor.
• To send the SMS to a number in the phonebook list, press Left Softkey and highlight
Phonebook
from the
Options
menu, then press Left
Softkey again and choose accordingly.
• Press Left Softkey to insert a number from the phonebook list.
46
• To send, press Left Softkey to display the
Options
menu, then press Left Softkey again to send. After sending, the SMS will be saved in the
Outbox
.
For more information on ‘Inserting object’ and ‘Format’, please refer to page 41 and 42.
To reply SMS to a received message
Select
Message
from the main menu or press navigation key directly from the standby screen.
• Select
Inbox
from the
Message
menu screen. Highlight the message to reply to, press Left Softkey for the
Options
menu. Select
Reply via
SMS
and select options:
New SMS
,
Edit
,
Answer is Yes
and
Answer is no
.
• The
Edit
screen will be displayed with the text editor.
• Input the message and press Left Softkey for the
Options
menu when the SMS reply is done. Highlight
Send
and press Left Softkey to send
the SMS reply. The message is sent and saved in
Outbox
.
To forward a received message
Select
Message
from the main menu or press navigation key directly from the standby screen.
• Select
Inbox
from the
Message
menu screen. Highlight the message to forward and press Left Softkey for the
Options
menu. Highlight
Forward
and press Left Softkey.
• If necessary, press Left Softkey again for the
Options
menu. Highlight
Send
and press Left Softkey to forward SMS.
Useful Tips For SMS and EMS
The useful tips for writing and sending a message are shown below:
Saving an unfinished and unsent message:
In the message
Edit
screen, press Left Softkey, select
Save
to save the message in
Draft
.
Editing and sending a message saved in Draft:
Displaying the
Draft
message list screen, highlight the saved message.
• Press Left Softkey, select
Edit
. After editing the message, press Left Softkey to display the
Options
menu. Select
Send
to send the
message.
From the main menu, select
Message
>
Predefined text
. The list of predefined text for you to add into your messages will be displayed. Highlight
the desired message and press Left Softkey to either
Select
or
View
.
• Highlight
Select
and press Left Softkey to display the message editing display. After changes are made, press Left Softkey to either
Send
and save
or just
Save
the message.
Predefined text
47
The following describes the setting items for SMS/EMS settings and Cell broadcast settings:
Service centre
• Use the and navigation keys to highlight
Service centre
and press Left Softkey to edit the SMS Message centre number.
• Press Left Softkey to save any changes made to the number. This number is saved in the SIM card.
Message type
• Use the and navigation keys to highlight
Message type
and press the Left Softkey to display the
Message type
screen.
• Use the and navigation keys to highlight the different options and press Left Softkey to select:
Standard text
/
Fax
/
X.400
/
Paging
/
E-
mail
/
ERMES
/
Voice mail
. The corresponding radio button beside the option will be turned on.
Validity period
Select the duration that the SMS/EMS message will be stored in the SMS/EMS centre while trying to deliver the message.
• Use the and navigation keys to highlight
Validity period
and press the Left Softkey.
• Highlight
1 hour
/
12 hours
/
1 day
/
1 week
/
Maximum
. Press Left Softkey to select and turn on the radio button of the highlighted option. The
phone returns to the
Setting
menu screen.
Status report
Select this option to request for a receipt when the SMS message is sent successfully.
• Use the and navigation keys to highlight
Status report
and press Left Softkey. A tick in the check box indicates that
Status
report
is
activated.
The status report facility is network dependent.
Direct reply
• Use the and navigation keys to highlight
Direct reply
and press Left Softkey to toggle it On/Off. A tick in the check box indicates that
Direct reply
is activated.
SMS via GPRS
• Use the and navigation keys to highlight
SMS via GPRS
and press Left Softkey to toggle it On/Off. A tick in the check box indicates that
this function is activated.
The available memory and the used-up memory will be displayed.
• With the standby screen displayed, press navigation key or select
Message
from the main menu.
• Select
Memory status
to display the SMS memory status of the phone and the SIM memory status.
Message settings
Memory status
48
From the main menu, select
Message
>
Cell broadcast
.
When cell broadcast service is activated, the phone operating time will be reduced.
Broadcast messages service is network dependent. Please contact your service provider for details.
Message list
Select
Message list
to display the list of received cell broadcast messages.
Broadcast
Highlight
Broadcast
and press
Left Softkey to toggle the receiving of the cell broadcast messages On/Off. A tick in the check box indicates that the
receiving of cell broadcast messages is activated.
Topic list
Any number of topics can be added to this personal list. You can enter at least five entries using the channel number (ID) and if required, the name
itself.
• To add a new topic, select
Topic list
>
User defined
>
<Add new>
to display the
Enter msg ID:
screen. Enter the ID and press Left Softkey.
Enter the name and press Left Softkey.
• To add to a current topic, select
Topic list
>
Current
>
<Add Topic>
to display a list of topics to choose from.
• To delete a topic, highlight the topic, press Left Softkey and select
Delete
.
Auto display
Turns the automatic display function On/Off for cell broadcast messages to be displayed in standby mode.
• Use the and navigation keys to highlight
Auto display
and press Left Softkey to toggle it On/Off. A tick in the check box indicates that
Auto display
has been activated.
CB languages
The language in which you wish to receive cell broadcast messages in can be specified.
• Select
CB languages
to display the list of available languages. To add a new language, press Left Softkey and select
Insert
. Highlight the
desired language to add to the list and press Left Softkey to confirm selection. The phone returns to the
Cell broadcast
display menu.
Cell broadcast
49
Your phone allows you to use the i-mode feature. With it, you can connect to Internet websites and use the mail function. This chapter guides you
through setting up and using i-mode.
To access the i-mode service, you need to:
• Contact your service provider and subscribe to it.
• Set up the i-mode options in your phone.
i-mode is a platform for mobile phone communications. With i-mode, cellular phone users get easy access to Internet sites, as well as specialized
services such as e-mail/Multimedia Message Service (MMS), online shopping and banking, ticket reservations, and so on.
i-mode website connection
With simple key operations, users can link to a variety of websites offered by content service providers.
E-mail/Multimedia Message Service (MMS)
In addition to the basic calling/receiving functions, your phone allows you to receive and send e-mails/MMS via the Internet.
Website Browsing
In addition to visiting the websites already provided by the i-mode service, you may also access to your preferred websites by directly entering their
URLs into your phone.
You may download the following four types of content from any i-mode website:
• Ring tones
• Wallpapers
• Animations (Startup screens)
• JavaTM applications
What is a Ring tone?
The ring tone sounds when your phone receives an incoming call, SMS, e-mail, and multimedia message service (MMS).
i-mode
What is i-mode
What Can be Downloaded?
50
What is a Wallpaper?
This is the picture displayed when your cell phone is in the idle or power-saving mode. You may download any of the 65536-colour pictures on the
website to your phone.
What is a Startup Screen Animation?
The animation is played when you power on your phone. You may download any of the 65536-colour animations on the website to your phone.
What is JavaTM applications?
See “JavaTM applications” on page 73 for details.
See “i-mode icon” on page 14 for details.
From the main menu, select
i-mode
>
Settings
.
Ringer time
The function allows you to set the length of
Ringer time
when you receive an e-mail or MMS:
• Select
Ringer time
from the
Settings
menu.
• Press
Clear
to delete the current settings on the screen.
• Enter the preferred time length (3-10 Sec.) by pressing keypad keys and press to save the setting.
Connection No.
The function allows you to select the
Connection No.
you have set to connect to the i-mode service. You can choose from the factory or user
settings.
• When you select
Connection No.
menu, you will see the current connection number that is in use with the radio button on.
• Select the preferred setting and press Left Softkey
to activate the number.
Required parameter information includes APN, Proxy host, Proxy port, SSL port, Portal host, Mail URL, MMS URL, Username, and
Password.
To customize the connection number, follow the steps below:
• Select setting you want to change and press
Edit
to enter the parameter. You will be prompted to enter the phonecode.
• Enter the information required in the parameter fields and press
Save
to confirm your changes.
i-mode icon
i-mode Settings
51
i-mode lock
If the
i-mode lock
function is activated, users can not apply any i-mode service and receive/send e-mail/MMS.
• Select
i-mode lock
, the screen shows the lock status to be on or off. Press
Change
to toggle between lock/unlock mode. You will be prompted
to enter the phonecode.
If i-mode lock is activated, the phone screen shows a lock icon.
From the main menu, select
i-mode
>
iMenu
.
When connected to an i-mode website, it displays a list of options depending on the website. You can press the Left Softkey and the phone displays
a list of browser
Options
menu:
From the main menu, select
i-mode
>
i-mode
>
Mail
.
Alternatively, you can access Mail menu by pressing Left Softkey from the standby screen.
Compose mail
This function allows you to edit, send and save email.
• Select
Compose mail
and enter the editing screen.
• Select the item you would like to change and press . The phone displays the entry screen.
iMenu
Add bookmark
Add the current web page to the Bookmarks.
Bookmarks
Display a list of Bookmarks, which shows only when there is more than one Bookmark.
Save image
Save the images on the current web page.
Save page
Save the current web page.
Save phone#
Save the number on the web page to your phone book.
Certificate info
Display the certificate Information of the current web page, which must be a SSL webpage.
Go to webpage
Go to the website address or Select form the list.
Reload
Update the information on the current webpage.
Page info
Display the URL of the current webpage.
Create message
Create a message or display a message edit screen. You can Select to insert reference: Page address or Link and then edit
the content of message.
Mail
52
• Enter the
Mailing address
(To1 item), Subject (Max. 30 alphannmeric characters) and Message (Max. 4000 alphannmeric characters) of the
mail, press . The mail-editing screen displays again, showing that the subject has been added.
• Select
Attachment
, press and enter the attaching file screen.
• Select the file you would like to attach and press
Select
to display the preview screen. After the file is attached, the
Attachment
item will
display the file name.
• Press
Send
to deliver the email.
While you are editing or writing an email, press
Menu
to have the following options:
Select
Send
and press to deliver the e-mail and the phone returns to the Mail menu. Select
Save
and press to save the message as a draft
and the phone returns again to the Mail menu.
Send
Send the e-mail.
Save
Save the e-mail that you are editing as a draft.
Attach file
Attach a file.
Delete attachment
Delete the attached file.
Play/View file
Play the audio file or view the image file.
Open phonebk.
Access the phonebook to add the mailing address.
Add To
Add more recipients' addresses.
Add Cc
Add courtesy copy recipients' addresses.
Add Bcc
Add blind courtesy copy recipients' addresses.
Change to To
Change the Cc. or Bcc recipients to To recipients.
Change to Cc
Change To or Bcc recipients to Cc recipients.
Change to Bcc
Change To or Cc recipients to Bcc recipients.
Del. address
Delete the chosen e-mail address.
Attach header
Add headers before a text.
Attach sign.
Add a signature after the text.
Del. message
Delete the message.
Del. mail
Delete the message currently edited.
53
Compose MMS
This function allows you to edit, send and save MMS.
• Select
Compose MMS
to enter the item directly.
• Select the item you would like to change and press . The phone displays the entry screen.
• Enter the
Mailing address/phone number
(To1 item),
Subject
(Max. 30 alphannmeric characters) of the MMS, press . The mail-editing
screen displays again, showing the subject is added.
• When you are editing MMS, press
Menu
to have the following functions:
Attach file, Delete attachment and Play/View file are not available for MMS. They are always grayouted.
Select
Send
and press to deliver the
MMS
and the phone returns to the
Mail
menu. Select
Save
and press to save the
MMS
as a draft and
the phone returns again to the
Mail
menu.
Send
Send the e-mail.
Save
Save the e-mail that you are editing as a draft.
Attach file
Attach a file.
Delete attachment
Delete the attached file.
Play/View file
Play the audio file or view the image file.
Open phonebk.
Access the phonebook to add the mailing address.
Add To
Add more recipients' addresses.
Add Cc
Add courtesy copy recipients' addresses.
Add Bcc
Add blind courtesy copy recipients' addresses.
Change to To
Change the Cc. or Bcc recipients to To recipients.
Change to Cc
Change To or Bcc recipients to Cc recipients.
Change to Bcc
Change To or Cc recipients to Bcc recipients.
Del. address
Delete the chosen e-mail address.
Attach header
Add headers before a text.
Attach sign.
Add a signature after the text.
Del. message
Delete the message.
Del. mail
Delete the message currently edited.
54
Inbox
This function allows you to read and manage received mails and MMS.
Read mails/MMS
Select
Inbox
to enter the item.
Select the message you would like to read and press read it. You may press menu to have the following options:
Displaying a message, you may press menu to have the following functions:
Show all
Show all messages.
Show unread
Show unread messages.
Show read
Show read messages.
Show protect.
Show protected messages.
Delete one
Delete chosen message.
Delete read mail
Delete read messages
Delete all
Delete all messages
Title sort
Sorts the messages by title.
Address sort
Sorts the messages by address
Date sort
Sorts the messages by the date
Reply
Reply to the message.
Reply quoted
Reply with a quoted message.
Reply all
Reply to all messages.
Reply quoted all
Reply to the quoted parts of all messages.
Forward
Forward the message.
Delete
Delete the message.
Save address
Save the address of the message .into the phone book.
Add to phonebook
Add the phone number of the message to phonebook.
Create message
Create a new message.
Save melody
Save the message melody.
Save attachment
Save the attachment.
55
Sent mail
This function allows you to see the list of sent messages.
Select
Sent
mail to enter the option directly, and press
Menu
to have the following functions.
When choosing a mail/MMS, press to read the content. The following options become available:
Copy message
Copy the message for later use.
Copy subject
Copy the subject for later editing.
Copy address
Copy the address.
Play SMIL
Play SMIL file.
Browse SMIL
Browsing the MMS content.
Protect On/Off
If the mail is unprotected, the function is turned on. If the mail is protected, the function is turned off.
Title sort
Sorts the messages by title.
Address sort
Sorts the messages by address.
Date sort
Sorts the messages by date.
Delete one
Delete the chosen message.
Delete all
Delete all messages.
Re-edit
Re-edit the message.
Delete
Delete the message.
Save address
Save the address of the message into the phonebook.
Add to phonebook
Add the phone number of the message to Phonebook.
Create message
Create a new message.
Copy message
Copy the message for later use.
Copy subject
Copy the subject for later editing
Play SMIL
Play SMIL file.
Browse SMIL
Browse the MMS content.
Protect On/Off
If the mail is unprotected, the function is turned on. If the mail is protected, the function is turned off.
56
Draft
Select
Draft
to enter the item directly, and you may press menu to have two options:
Delete one
or
Delete all
.
Select the draft you would like to edit (please refer to the above "
Compose mail
" for detailed information.)
Selective retrieval
Displays the list of stored mail/MMS on the mail server, and lets you select whether to retrieve or delete each one.
Check new mail
Select
Check
new mail to enter the item directly, and the phone will access to mail server and check if there is new mail.
Mail settings
Select
Mail settings
to enter the option directly, and you will see the following options:
Back
Return to the i-mode menu.
Please see “JavaTM application” on page 73 for detail.
Please see “Message overview” on page 44 and “SMS/EMS settings” on page 47.
Edit header
Edit a header.
Edit signature
Edit your signature.
Reply marker
Select your reply marker.
Auto play
Set the phone to play the attachment or MMS automatically.
Auto reception
Set the phone to download mails automatically.
Receive attachment
The option allows you to receive the attached image and MIDI file.
Attachment data
The option allows you to received attached MFi file.
Check settings
This displays all the current settings of all the Mail menu options.
Back
Return to the Mail menu.
Java application
SMS
57
The option shows a list of
Bookmarks
, allowing you to edit again, change the title, delete or access the webpage listed in the
Bookmarks
.
Under the i-mode screen, you may either select
Bookmarks
to directly enter the
Bookmarks
.
Select the preferred
Bookmarks
and press menu, and you will see a list of options:
With the function, you may select to enter a specific URL or select from the URL history list.
Under the i-mode menu screen, select
Go to Webpage
to enter it.
Enter address
• Select to enter the item, and you may use keypad keys to enter website address.
• Select
OK
to save your entry or cancel to delete the entry.
Address history
• Select
Address history
to enter the item .
• Select the preferred
URL
and press to open the website address entry screen again.
• Select
OK
and press to link to the webpage.
Back
Select the item to go back to the menu screen.
Bookmarks
Open
Connect to the website and display the web page
Copy address
Copy the address of the chosen bookmark
Edit title
Edit the title of the chosen bookmark.
Create message
Create a message or display the message edit screen and the address of the chosen bookmark will be inserted to the text of
the mail.
Delete one
Delete the bookmark that you select..
Delete all
Delete all the bookmarks.
Go to webpage
58
Select the item to enter the Saved Pages.
Press menu to have the following options:
After you've chosen the preferred Saved pages, press menu to have the following options:
Under i-mode menu, Select settings and press to directly enter the item. Entering Settings, you will see the following options:
Saved pages
Open
Open the saved pages.
Edit title
Edit the title you have saved.
Protect On/Off
If the screen data is unprotected, the function will be turned on. If the data is protected, the function is turned off.
Delete one
Delete the page you want to discard.
Delete all
Delete all the saved pages.
Save image
Save the image on the Saved Pages.
Edit title
Edit the title on the Saved Pages.
Certificate info
Display the certificate information of the currently displayed website. The function is available when it is SSL webpage.
Page info
Display the URL of the currently displayed webpage.
Protect On/Off
If the screen data is unprotected, the function is turned on. If the data is protected, the function is turned off.
Delete
Delete the current page.
Settings
Set time out
The function allows you to set the automatic time out (60/90 Sec. or Disabled). Select the preferred time out option and then
select OK to confirm your change.
Load images
The function allows you load images from the webpage. Select either Yes or No to confirm or cancel the choice.
Certificates
The function allows you to look at the certificate details and set the certificates to either valid or invalid. Select the preferred
certificate, press menu and 1 to check the certificate information or press menu and 2 to set the certificate to either valid or invalid.
Send terminal info
You may also send the terminal information.
Check settings
The function allows you to check the current settings of all options. Select
Check settings
to enter the option.
Back
Go back to the i-mode menu.
59
The integrated digital camera in the phone allows you to take photos and send them out via the Multimedia Messaging Service (MMS) or as an e-
mail attachment. The photos will be stored in JPG format in the phone, and can be viewed by most picture viewing programs.
To take and save a picture inside your phone, use the following procedure:
• From the main menu, select
Camera
. The Camera finder screen will appear in the main LCD and the actual composition of the picture will be
shown.
• Press key to capture the picture. Check the picture and press key to save the picture you just taken. When the preview screen is
displayed, press Left Softkey to send the picture, Right Softkey to return to the camera finder screen without saving the picture.
• The default file name for the picture is image+serial number, for instance image0001.
• To return to the camera finder screen, press Right Softkey.
• To switch off the camera function, press key to return to the standby screen.
Your phone’s camera is constructed using extremely high precision technology, but there may be lines or dots on the screen that appear
permanently dark or bright. Note also that the amount of noise in the image (white lines etc.) may increase noticeably when you take
pictures in dimly-lit places.
Be careful not to apply force to the lens. This could damage the lens.
Be considerate of other people’s privacy when you take a picture using the camera of your phone and send it to others.
Remember to turn off the camera after using to save power.
Zoom
When taking a picture in the camera finder screen, you can zoom in by pressing navigation key. To zoom out, press navigation key.
The zoom function cannot be activated when an image size of 640 x 480 is selected. For a selected image size of 320 x 240, you can
zoom in only once, and for a selected image size of 160 x 120, you can zoom in twice.
You can display the Quick keys by pressing # key on the camera finder screen.
Brightness
Press the or navigation keys to control the brightness level of the picture when taking a picture in the camera finder screen.
Camera
Taking a picture
60
When in camera mode, the phone returns to standby mode after 3 minutes of idling.
Press Left Softkey from the camera finder screen to display the
Options
menu for the camera to set the following:
Self timer
• Highlight
Self timer
and press Left Softkey to toggle this function On/Off. The picture is taken after 10 seconds after is pressed during
picture taking.
Twilight
• Highlight this function and press Left Softkey to toggle this function On/Off. The exposure time will be increased during photo taking due to the
poor light conditions.
Close up
• You can take a close up photo by activating this mode.
• Highlight
Close up
and press Left Softkey to toggle this function On/Off
Normal/Full screen
• You can switch the screen between Normal mode or Full mode.
• Highlight
Normal/Full screen
and press Left Softkey to toggle this function On/Off.
Photo size
The image size can be set for external usage (e.g., on a PC) regardless of the image shown in the display screen (which will be at the default of
VGA (640 x 480)
).
• Highlight
Photo size
and press the Left Softkey to display the
Options
menu. Use the and navigation keys to highlight the image size
that best suits your needs and press Left Softkey to confirm the selection.
• The available sizes are:
VGA (640 x 480)
;
QVGA (320 x 240)
;
QQVGA (160 x120)
.
• A larger image size will take up more memory space.
Brightness
• Highlight
Brightness
and Left Softkey to adjust the brightness for the photo shoot with the use of and navigation keys. Press Left
Softkey to confirm the setting.
Image quality
• Highlight
Image quality
and press the Left Softkey to display the
Options
menu. The quality of the photos can be set as
Fine
/
Normal
/
Economy
. Use the and navigation keys to highlight and select the quality by pressing Left Softkey.
• A '
Fine
' quality photo implies that the photos taken will be of better quality. However, the total number of pictures that can be taken will be
reduced.
Camera (before taking a picture)
61
Images shot in your phone cannot be used in ways that infringe copyright laws without the consent of the copyright holder, unless
intended only for personal use. Note that some restrictons apply to the photographing of stage performances, entertainments and
exhibits, even when intended purely for personal use.
Users are also asked to note that the transfer of images protected under copyright laws is only permissible within the restrictions
imposed by those copyright laws.
Effect
• Highlight
Effect
and press the Left Softkey to display the
Options
menu.
• Use the and navigation keys to highlight and select the different colour tint to take your photo:
Normal
/
Monochrome
/
Sepia
/
Bluish
.
Change the colour tint setting by pressing Left Softkey. The radio button beside the option will be turned on.
Flicker control
When taking pictures under a fluorescent light, flickers may occur. To prevent flickers, use the following procedure:
• Highlight
Flicker control
and press Left Softkey to display the
Options
menu.
• Use the and navigation keys to select
50Hz
/
60Hz
and press Left Softkey to confirm your selection. The radio button beside the option
will be turned on.
Default setting
By selecting this menu you can return the
Options
menu to the default settings.
• Highlight
Default setting
and press Left Softkey to reset the camera
Options
menu.
Send via iMail
• By selecting this menu, you can attach the saved picture to an mail.
Send as MMS
• By selecting this menu, you can attach the saved picture to an MMS.
Set as wallpaper
• By selecting this menu, you can set the saved picture as the wallpaper.
View finder
• By selecting this menu, you can return to the camera finder screen.
Go to my photos
• By selecting this menu, you can access the
photos
folder in
My data
.
Camera ption menu (after saving a picture)
62
Your phone can store up to 8 different contacts phonebooks:
• Complete (a list of all the numbers stored in the other phonebooks(Phone,SIM,FDN) except SDN numbers)
• Personal directories (ADN) in SIM
• Personal directories (ADR) in your phone memory (Phone)
• Own number
• Service dialing numbers (SDN)
• Fixed dialing numbers (FDN)
• Groups
• Voice mailbox
The phone number of a contact is displayed when the name is highlighted in the phonebook.
When viewing any of the directories described, you can switch to the other directories (if your SIM card supports them) by using the
navigation key.
From the main menu, select
Phonebook
>
Lists
to display the phonebook entries. Alternatively, press navigation key directly from the standby
screen. To display the other phonebooks, press either or navigation keys till the desired phonebook is displayed. The name of the type of
phonebook list is displayed at the top of the list.
The next time you press navigation key from the standby screen, the phonebook displayed will be the last one in use before you exit the
phonebook and return to the standby screen.
Personal Directory (ADN)
The personal directory numbers are known as Abbreviated Dialing Numbers (ADN). Up to 255 numbers can be stored (along with only one name for
each number) on your SIM (depending on your SIM card capacity). Up to 250 numbers can be stored along with a name, ring melody and a
phonebook picture in your phone memory. The phone memory also allows you to store 4 phone numbers, 2 e-mail addresses, note, company, street,
post code, country, city, and URL under one name. You can also group names in your phone memory to simplify searching. The numbers from either
of these personal phonebooks can be viewed, altered and dialed when you need to do so.
The maximum number of 250 phone numbers that can be stored on a SIM card is shared between the ADN, FDN, and SDN directories.
Service Dialing Numbers (SDN)
The numbers stored in the SDN phonebook are supplied, ready to use, and installed by your service provider. The SDN phonebook contains
numbers and services that cannot be edited by you. You will not be able to see the number that is dialed as only the associated text title will be
shown.
Although SDN is supported by your phone, it must be present on your SIM. Check with your service provider.
Phonebook
Lists
63
Fixed Dialing Numbers (FDN)
Fixed dialing numbers is a function to limit the numbers that can be called using your phone. With the FDN feature turned ON, only contacts you
stored in the FDN phonebook and emergency numbers can be called from your phone.
Although FDN is supported by your phone, it must be present on your SIM. Check with your service provider.
Starting and recall stored number
The phone numbers in your personal phonebook can be located and then called using one of the following methods:
Alphabetical contacts phonebook list
From the main menu, select
Phonebook
>
Lists
to display the phonebook entries.
• To change phonebooks (e.g. from phone memory to SIM), press either or navigation key. The entries in the other personal phonebook will
be displayed.
• Use the and navigation keys as appropriate to scroll through your phonebook directory or hold them down to scroll down continuously. To
jump directly to names starting with a specific character, press the corresponding number key (e.g. press 5 once to jump to names beginning
with J or twice to jump to names beginning with K). To jump to a name beginning with specific letters, press the corresponding number keys for
the first few letters of the desired name.
• To call the highlighted phone record number displayed, press the key.
When the phone number saved in the phonebook contains 8 digits, the name of the caller might not display on the screen when there
is an incoming call, or in the missed calls and received calls list. When the phone number saved in the phonebook contains 11 digits
and an 8-digit phone number is dialed, the name of the called party might not be displayed under the dialed calls list.
Search by group
From the main menu, select
Phonebook
>
Lists
to display the phonebook entries. Press either or navigation key till the
Groups
list screen
is displayed. Use the and navigation keys as appropriate to scroll through the
Groups
list. When the required group name is highlighted,
press Left Softkey to display the
Options
menu. Select
View group
to display the names of the entries in the selected group.
• Use the and navigation keys as appropriate to scroll through the names.
• To call the phone record number, press the key.
The cursor is positioned on the right of the title bar in the phonebook list. This allows you to enter the characters to perform a search
for the contact you wish to recall.
To call numbers in the SDN directory, press the navigation key until the SDN directory is displayed and then use either the
scrolling or searching method to locate and call the number.
Storing numbers & name in phonebook
64
Editing or personalizing phone memory numbers
The edit function enables any phone number stored in the phone memory to be edited and have additional information/attributes added to the number.
Accessing the option menu
From the main menu, select
Phonebook
>
Lists
to display the phonebook entries.
• Press either or navigation key until the desired phonebook is displayed:
Complete
,
SIM
,
Phone
,
Own number
,
SDN
,
FDN
,
Groups
, or
Voice mailbox
.
• When the desired phonebook record (name or number) is highlighted, press Left Softkey to display the
Options
menu, highlight
View
and
press Left Softkey to display the
Edit entry
screen.
If the FDN function is set to ON, only numbers in the FDN directory can be called.
SIM memory edit
The
Edit
function can be used to alter the existing information in a SIM memory record as follows:
• When a SIM memory record has been accessed for editing purposes, the following fields can be edited:
Name
,
Phone number
,
Location
and
Record no.
.
• Use the and navigation keys to highlight the fields to be edited.
• Use the text editing feature to make any changes necessary to the name or number and then press Left Softkey to save the changes and
return to the previous screen and re-display the contact details.
To select a country code/ area code for the number while editing an entry, press Right Softkey to access the
+List
menu and select
the desired country.
Phone memory edit
The
Edit
function can be used to alter the existing information in a phone memory record. You can alter the following information:
• Name
• Phone number
You can also add the following information to a record in the phone memory:
• Other phone numbers (Office number, Mobile number, Fax number).
• 2 additional e-mail addresses.
• A phonebook picture ID for the caller.
• A specific ringtone/melody for the caller.
• Other personal information into the information fields (Note, Company, Street, Post code, Country, City).
• A URL.
• Allocate the phone number to a group or remove the phone number from a group.
65
Editing existing phone memory information
• With the required phone record details displayed in the
Edit entry
screen, use the and navigation keys to highlight the fields to be edited
and use the text editor to make the necessary changes to the details of the record.
• Press Left Softkey to save the entries and return to the previous screen.
To set the Caller picture and Caller ringtone, you can select from options by pressing .
Groups
Creating a group name
There are 6 groups available to allocate phone numbers to (including ‘No group’).
To change the group names, use the following procedure:
• With the standby screen displayed, press navigation key or select
Phonebook
>
Lists
from the main menu to display the phonebook
entries.
• Press either or navigation key till the
Groups
list screen is displayed.
• Use the and navigation keys to highlight the group name you wish to rename and press Left Softkey to display the
Options
menu.
Select
Rename group
to display the editing display screen. Make the necessary changes to the name and press Left Softkey to save and
return to the
Groups
list screen. Press key to return to the standby screen.
Add a phone contact to a group
With the group function, it is now possible to allocate specific members to be under a certain group. For example work, golf, and family, etc. When
a member of the group calls, the assigned group image and melody will be activated.
• With the desired phone record to be added to the group displayed, go to
Edit entry
and use the and navigation keys to highlight
Group
field and press Left Softkey to change. Use the and navigation keys to toggle between the different groups (Friends, Colleagues, Biz
partner etc.) available.
• Press Right Softkey to save changes and press key to return to the standby screen.
Ungroup a phone number or remove all entries from the group
To remove a contact from the allocated group, use the above-mentioned procedure but scroll to
<No group>
and save the changes. To remove
all contacts from the allocated group, use the and navigation keys to highlight the desired group from the
Groups
list screen and press Left
Softkey to display the
Options
menu. Highlight
Remove entries
and press Left Softkey twice to confirm the removing of all the contacts in the
selected group.
66
Change a group image
To change the group image, use the following procedure:
• With the
Groups
list screen displayed, use the and navigation keys to highlight the desired group and press Left Softkey to display the
Options
menu. Highlight
Group image
and press Left Softkey to display the default group image.
• Use the and navigation keys to scroll to the different default group images and press Left Softkey to confirm the selection of the new
allocated image. The phone returns to the
Groups
list screen.
• Press key to return to the standby screen.
Assign a ringtone/melody to a group
To assign a specific ringtone/melody stored in your phone to a group, use the following procedure:
• With the
Groups
list screen displayed, use the and navigation keys to highlight the desired group and press Left Softkey to display the
Options
menu. Highlight
Set ring tone
and press Left Softkey to display the
Sounds
folder.
• Use the and navigation keys to scroll through the list of ringtones/melodies and press Left Softkey to confirm the selection of desired
ringtone/melody for the group. The phone returns to the
Groups
list screen.
• Press key to return to the standby screen.
Deleting a single phonebook record
When any phonebook record is highlighted, press Left Softkey, highlight
Delete
and press Left Softkey. The confirmation screen displays. Press
Left Softkey to confirm the deletion or Right Softkey to cancel the action. Press key to return to the standby screen.
Record to SIM/Protected SIM
When
Edit entry
screen is displayed in the SIM phonebook, select location field and press Right Softkey to toggle
SIM/Protected SIM
(protected
area in the SIM card). You will have to enter your PIN2 code when you select
Protected SIM
as the location before you store the record. Press the
Left Softkey to save the changes made. The phone returns to the phonebook list display.
Moving from phone to SIM / SIM to phone
To move a phonebook entry in SIM to Phone or Phone to SIM, press Left Softkey for the
Options
menu. Highlight
Copy to phone
(or
Copy to
SIM
) and press Left Softkey to confirm. To move all the SIM contacts over to the phonebook, highlight
Copy all to phone
and press Left Softkey
to confirm.
Copy from phone to SIM/SIM to phone
To copy a phonebook entry in SIM to Phone or Phone to SIM, press Left Softkey for the
Options
menu. Highlight
Copy to phone
(or
Copy to SIM
)
and press Left Softkey to confirm. To copy all the SIM contacts over to the phonebook, highlight
Copy all to phone
and press Left Softkey to
confirm.
67
Delete all phone records
To delete all phone records in your
Phone
/
SIM
memory, use the following procedure.
• When any phonebook record is highlighted, press Left Softkey, highlight
Delete all
and press Left Softkey to delete. The confirmation screen
displays.
• Press Left Softkey to confirm the deletion of all phone records or Right Softkey to cancel the action.
• Press key to return to the standby screen.
Assign a record number
• When any phonebook record in the SIM phonebook is displayed, press Left Softkey for the option menu. Highlight
Go to location
and press
Left Softkey to key in a record number.
Scratchpad number
Your phone has a scratchpad function that enables you to key in a telephone number even during a call and to dial it after the current call ended. This
scratchpad number can also be saved for future use.
Noting & calling a scratchpad number
During a call, key in the number using the keypad. The number is displayed on the display screen. Press key to end the current call. The
number that was keyed in is still displayed. Press key to dial the number.
Storing a scratchpad number
• With the scratchpad number still displayed, press Left Softkey to display the SIM/Phone phonebook edit screen. Key in the necessary details
and press Left Softkey to save the name entry. The location of the saved record will be displayed.
Own number
menu allows you to enter and display your own numbers. To add an entry, use the following procedure:
• From the main menu, select
Phonebook
>
Lists
to display the phonebook entries.
• Press navigation key until
Own number
menu screen is displayed.
• Use the and navigation keys to select one of the <Empty> slots and press Left Softkey to display the
Options
menu.
• Select
View
from the
Options
menu. Enter the desired phone number and name using the text editor. Press Left Softkey to save and return
to
Own number
menu screen.
• To display the
Capacity
of the SIM card, select
Memory status
from the Option menu.
To delete a saved entry, highlight the entry from
Own number
menu screen and press Left Softkey to display the
Options
menu. Select
Delete
and press Left Softkey to confim the deletion.
Alternatively, press 0 from the main menu directly.
The Own number service is SIM card dependent.
Own number
68
You can use this menu function to manage all the pictures and sounds saved in the phone. You can playback sound, ringtones or display pictures/
wallpapers downloaded from the Internet, or photos captured with the built-in camera function.
From the main menu, select
My data
.
You can also get to the
My data
display screen by pressing navigation key from the standby screen.
When your phone memory is full, you may not be able to rename the files.
The
Record Voice
function allows you to record a sound file and send it as MMS. Or you may record a sound file and play it later.
Display the record voice menu list screen
From
My data
display screen, highlight
Record voice
folder and press Left Softkey to view the submenu of the option in your phone.
Or you may enter
Accessory
menu display screen, highlight
Voice memo
and press Left Softkey to enter the submenu, and highlight again the
Record Voice
and press Left Softkey to confirm.
Recording Voice
From
Record Voice
display menu, press Left Softkey to select
Options
. Press Left Softkey again to select
Add new
. Once you choose the
option, a message shows:
Please start recording
. You may press Right Softkey to
Record
or press Left Softkey to see the detailed information
of the sound file. To stop/pause recording, you may press Left Softkey/Right Softkey.To resume recording after selecting pause function, press
Right Softkey to continue recording. Once you stop the recording, you may choose to either save or play the recording. Press Left Softkey to save
the recording but you need to edit the name for the file first. After the editing is done, press Left Softkey to save the file.
Record Voice option menu
Use or navigation keys to scroll through the list of sound files and press Left Softkey to display the
Options
menu:
Add new
Highlight
Add new
to create a new sound file.
Send as MMS
Highlight
Send
as MMS and press Left Softkey to display MMS editing screen with the selected sound file. Proceed with the MMS editing before
sending it out.
Rename
Highlight
Rename
to change the name of the sound file.
Delete
Highlight
Delete
to delete the selected sound file.
My data
Record Voice
69
Delete all
Highlight
Delete All
to delete all the sound files in the folder.
Info
Highlight
Info
to see the details of the sound file.
The Photos and Pictures folders manage the photos and pictures in your phone respectively. You can choose to display and edit the images and
animations that are either captured by the built-in camera or downloaded from the Internet. You can also attach the images and animations to the
MMS you are sending out.
Display the photos/pictures list screen
From
My data
display screen, highlight either
Photos
or
Pictures
folder and press Left Softkey to view the list of photos or pictures in your phone.
Alternatively, you can access the
Photos
folder by selecting
Go to my photos
in the
Options
menu for the camera after taking and
saving a picture.
Selecting and displaying an image
To view a certain photo/picture from the
Photos
/
Pictures
list display screen, use the and navigation keys to highlight an image file you want to
display and press Left Softkey to display the
Options
menu. Highlight
View
and press Left Softkey to display the picture. Press Right Softkey to
return to the
Photos
/
Pictures
display list screen.
You can display the previous/next picture by pressing the and navigation keys.
Photos/Pictures options menu
Use the and navigation keys to scroll through the list of photos and pictures and press Left Softkey to display the
Options
menu:
View
Highlight
View
and press Left Softkey to display the picture.
Send as MMS (not for preset wallpaper)
Highlight
Send as MMS
and press Left Softkey to display the MMS editing screen with the selected picture attached. Proceed with the MMS
editing before sending it out.
Send via email (not for preset wallpaper)
Highlight
Send via email
and press Left Softkey to display the mail editing screen with the selected picture attached. Proceed with the mail edit-
ing before sending it out.
Set as wallpaper
Highlight
Set as wallpaper
and press Left Softkey to set the selected picture as the wallpaper for the standby screen. The phone returns to the
Photos
/
Pictures
display list screen.
Photos and pictures
70
Rename (not for preset wallpaper)
You can use the
Rename
function to edit the names of the photos/pictures. Highlight
Rename
and press Left Softkey. Key in the new name for
the picture and press Left Softkey to save the changes made.
You can only input "0-9", "a-z", "A-Z" and "_" for filenames. Changing of text entry mode is not available in this menu.
Delete (not for preset wallpaper)
This option allows you to delete the highlighted photo/picture file. Highlight
Delete
and press Left Softkey to delete the file. When the confirma-
tion message appears, press Left Softkey to confirm or press Right Softkey to cancel the deletion.
Delete all (not for preset wallpaper)
This option allows you to delete all the photo/picture files in the folder. Highlight
Delete all
and press Left Softkey to delete all the files. When the con-
firmation message appears, press Left Softkey to confirm or press Right Softkey to cancel the deletion.
Info
You can display the details of the selected image file using this function. The following details will be displayed:
• File name
• Resolution
• Bit depth
• Creation time
• File type
• File size
Copy (not for preset wallpaper)
You can use the
copy
function to duplicate the highlighted photo/picture file. Highlight copy and press Left Softkey to duplicate the file.
Cut (not for preset wallpaper)
You can use the
Cut
function to cut down the highlighted photo/picture file.
Highlight
Cut
and press Left Softkey to cut down the file.
Paste
You can use
Paste
function to paste the copied/cut photo/pictures to the desired folder. Highlight
Paste
and press Left Softkey to paste the file.
71
The
Sounds
folders manage the ringtones and other melodies in your phone.
• From
My data
display screen, highlight
Sounds
folder and press Left Softkey to view the list of ringtones/melodies in your phone.
If voices or sounds are recorded in the folder when the user opens it, it sounds automatically.
Sounds option menu
The phone plays back the ringtone/melody that is highlighted from the list in the
Sounds
folder. Use the and navigation keys to highlight the
desired ringtone/melody and press Left Softkey to display the Options menu:
Send as MMS (for downloaded ringtone/melody)
Highlight
Send as MMS
and press Left Softkey to send the selected ringtone/melody attached to an MMS.
Send via iMail (for downloaded ringtone/melody)
Highlight
Send via iMail
and press Left Softkey to send the selected ringtone/melody attached to an MMS.
Set as ringtone (for preset and downloaded ringtone/melody)
Highlight
Set as ringtone
and press Left Softkey to set the selected ringtone/melody as the default ringtone for the following type of calls:
• Any call
• Phonebook call
• Alarm
• Message
• Cell broadcast
• Friends, Colleagues, Family, Biz partner, and VIP
Highlight the type of call you want to set the ringtone and press Left Softkey. The phone returns to the
Sounds
list screen.
Rename (for downloaded ringtone/melody)
You can use the
Rename
function to edit the file name for the selected ringtone/melody. Highlight
Rename
and press Left Softkey. Key in the
new name for the ringtone/melody and press Left Softkey to save the changes made.
Paste (for preset and downloaded ringtone/melody)
Highlight
Paste
and press Left Softkey to paste the copied/cut file
Delete (for downloaded ringtone/melody)
Highlight
Delete
and press Left Softkey to delete the selected ringtone/melody.
Delete all (for downloaded ringtone/melody)
Highlight
Delete all
and press Left Softkey to delete all the downloaded ringtone/melody.
Sounds
72
Info (for preset and downloaded ringtone/melody)
You can display the details of the selected ringtone/melody using this function. The following details will be displayed:
• File name
• Creation time
• File type
• File size
This feature allows you to check the memory space in your phone. From
My data
display screen, highlight
Memory status
folder and press Left
Softkey to view the details in your phone.
Memory status
73
Select
Java
TM
from the main menu. Alternatively select
Java
TM
application from the i-mode menu. After you selected the item, a list of JavaTM
applications is displayed.
Alternatively, you can start JavaTM application by pressing and holding Right Softkey or navigation key from the standby screen.
Select
Menu
from the JavaTM application, five options are offered:
Select
Option
from the JavaTM application, five options are offered:
JavaTM application
Description Setting
Select to enable or disable the function.
Delete all
Delete all the information.
Storage status
Information such as Used bytes, Free bytes, and the storage of the chosen game is displayed.
Trace Info.
Select to delete Trace Info.
About
Other information about the JavaTM application.
Properties
Display the properties of the JavaTM application.
Upgrade
Confirm if you would like to upgrade JavaTM application.
Delete
Delete the JavaTM application.
Network
connecting
Connect to the Network/Do not connect to the Network/Confirm every application starts.
Auto start setting
Confirm to activate the Auto Start Setting.
74
From the main menu, select
Accessory
to access the various functions provided by your phone as listed below:
• Organizer (Scheduler, ToDo list, Notepad)
• Clock (Alarm clock, Auto off, Auto on, Countdown, Stopwatch)
• Calculator (Calculator, Currency conv.)
• Composer
• Voice memo (Record voice, Data rate)
• PC sync
From the main menu, select
Accessory
>
Organizer
>
Scheduler
. The default will be the monthly display. Press the Left Softkey and select
Week
to view the calendar in week display.
There is a 20 seconds delay before the phone emits an alert tone for the scheduled appointment time.
Agenda
You can use the
Agenda
function in the calendar menu to key in your appointments. Time and date must be preset first before the calendar can work
correctly. When the appointment time reaches, a signal tone can be heard.
Even if the phone has been switched off, the phone automatically switches itself on at the specified time if the
Agenda
function is
turned on.
To register a new event in the agenda function, use the following procedure:
• With the calendar displayed, press Left Softkey to display the
Options
menu, select
Agenda
.
• Select
<Add new>
to display the editing screen for the agenda.
• Use the and navigation keys to select the desired
type
of appointment that you are creating:
Memo
,
Call
,
Meeting mode
.
• Use navigation key to move down to the
Description
field. Key in the necessary details for this agenda.
• Use navigation key to move down to the
Status
field. Use the and navigation keys to change the status of the agenda, either to
Activate
or
Deactivate
it.
• Use navigation key to move down to the
Reoccurrence
field. Use the and navigation keys to change the reoccurance of the agenda:
Once
,
Daily
,
Weekly
,
Month
,
Annual
.
• Edit the
Start date
,
Start time
,
End date
, and
End time
fields accordingly.
• Press Left Softkey to save agenda settings and return to the
Agenda
display screen.
If you miss an appointment alarm, you can check it by pressing Right Softkey from the standby screen when there is a note-shaped
icon displayed in the Softkey area.
Accessory
Scheduler
75
Option menus for existing agenda
An option menu is displayed when an existing agenda is selected and Left Softkey is pressed. The options are described below:
• View
Display the details of the selected agenda.
• Edit
Display an edit screen for the highlighted agenda. Use the and navigation keys to toggle between the different choices in the different fields
to edit the agenda settings and use the and navigation keys to move along the different fields. Press Left Softkey to save the changes
made and return to the list of agendas.
• Add new
Display a new entry screen.
• Delete/Delete all
To delete an existing agenda, highlight the agenda press Left Softkey, select
Delete
. A confirmation screen is displayed. Press Left Softkey to
confirm the deletion or Right Softkey to cancel the action. To delete all existing agendas, select
Delete all
.
• Capacity
Display the maximum number of agendas (max = 50) allowed and the remaining capacity for new agendas.
The ToDo list allows you to set up reminders and appointments for a particular time and day (up to 50 appointments can be stored).
To register an event in the ToDo list, use the following procedure:
• From the main menu, select
Accessory
>
Organizer
>
ToDo list
to display ToDo list display screen with previously entered reminders/
appointments, if any.
• Highlight
<Add new>
and press Left Softkey to display the editing screen for the appointment.
• Use the and navigation keys to select the desired type of appointment that you are creating:
Memo
,
Call
,
Meeting mode
.
• Use the navigation key to move down to the
Description
field. Key in the necessary details for this appointment.
• Use the navigation key to move down to the
Status
field. Use the and navigation keys to change the status of the appointment, either
to
Activate
or
Deactivate
it.
• Use navigation key to move down to the
Reoccurrence
field. Use the and navigation keys to change the reoccurrence of the
appointment:
Once
,
Daily
,
Weekly
,
Month
,
Annual
.
• If you choose
Weekly
, you can toggle On/Off, the required days of the week by highlighting and pressing Right Softkey. To save the settings,
press Left Softkey.
• Edit the
Start date
,
Start time
,
End date
, and
End time
fields accordingly.
• Press Left Softkey to save appointment settings and return to
ToDo list
display screen.
ToDo list
76
Option menus for existing reminders/appointments
An option menu is displayed when an existing reminder/appointment is selected and Left Softkey is pressed. To access each option, highlight the
option and press Left Softkey again. The options are described below:
• View
Display the details of the selected reminder/appointment.
• Edit
Display an edit screen for the highlighted reminder/appointment. Use the and navigation keys to toggle between the different choices in the
different fields to edit the reminder/appointment settings and use the and navigation keys to move along the different fields. Press Left
Softkey to save the changes made and return to the list of ToDo list.
• Add new
Display a new entry screen.
• Delete/Delete all
To delete an existing appointment, highlight the appointment, press Left Softkey, select
Delete
. A confirmation screen is displayed. Press Left
Softkey to confirm the deletion or Right Softkey to cancel the action. To delete all existing appointments, select
Delete all
.
• Capacity
Display the maximum number of appointments (max = 50) allowed and the remaining capacity for new appointments.
The notepad application allows you to write text files and save them in your phone as reference.
From the main menu, select
Accessory
>
Organizer
>
Notepad
. Use and navigation keys to highlight the existing notes or highlight
<Add
new>
to create a new note.
Notepad option menus
Highlight an existing note and press Left Softkey to display the
Options
menu for the Notepad. The options are described below:
• View: Display the note for reading.
• Edit: Display an editing screen for the highlighted text note.
• Add new: Display a new entry screen.
• Delete: Delete the highlighted text note.
• Delete all: Delete all the existing text notes.
• Send: Send the note via SMS to a recipient (you may select a phone number from the phonebook list or enter a Recipient’s number).
• Capacity: Display the memory left in your phone for saving other text notes. Up to a maximum of 10 notes can be saved.
Notepad
77
The alarm will start ringing at the time you set (even after the phone is switched off).
When the alarm sounds, other events will just display on the screen until the alarm stops.
• From the main menu, select
Accessory
>
Clock
>
Alarm clock
.
• Use and navigation keys to highlight one of the 4 time fields and press Left Softkey to display the
Options
menu.
• Select
Edit
to display the editing screen. Key in the time you want to activate the alarm clock in the
Time
field.
• Use navigation key to move to the next field to select the day(s) of the week to activate the alarm. Use and navigation keys to move to
select the day(s) of the week to. Press Right Softkey to display a tick in the respective check box.
• Use navigation key to move to the
Status
field. Use and navigation keys or press Right Softkey to toggle between activating or
deactivating the alarm.
• Each icon in the
Alarm clock
display screen indicates if the settings is activated/deactivated. An icon will appear on the LCD as well when
activated.
• If necessary, use the navigation key to move to the
Description
field and key in the reason for the alarm.
• Press Left Softkey to save this alarm setting and return to the
Alarm clock
display screen.
• When the alarm sounds, press Left Softkey to turn off the alarm clock or press Right Softkey to pause the alarm clock, which keeps ringing
every other 6 minutes. This resembles the snooze function. During the snooze period, you may press Left Softkey to stop the alarm clock or go
to
Accessory
>
Clock
>
Alarm clock
to deactivate the alarm.
Even if the phone has been switched off, the phone automatically switches itself on at the specified time if the alarm is turned on.
Once you set the time, the alarm will ring every day(s) of the week you have set until you deactivate the settings.
When this function is activated, the phone will be automatically switched off at the pre-set time everyday.
• From the main menu, select
Accessory
>
Clock
. Highlight
Auto off
and press Left Softkey.
• Press Right Softkey or use and navigation keys to toggle the function
On
/
Off
.
• Use navigation key to move down to the
Time
field (when the function is toggled on) to set the auto off time.
• Press Left Softkey to save the settings and return to the
Clock
menu screen. A tick in the check box indicates that the function is activated.
When this function is activated, the phone will be automatically switched on at the pre-set time everyday.
• From the main menu, select
Accessory
>
Clock
. Highlight
Auto on
and press Left Softkey.
• Press Right Softkey or use and navigation keys to toggle the function
On
/
Off
.
Alarm clock
Auto off
Auto on
78
• Use navigation key to move down to the
Time
field (when the function is toggled on) to set the auto on time.
• Press Left Softkey to save the settings and return to the
Clock
menu screen. A tick in the check box indicates that the function is activated.
After a preset time elapsed, the function will indicate last 3 seconds of the countdown timer by a beep tone. At the end of the countdown time, a
special beep can be heard.
• From the main menu, select
Accessory
>
Clock
>
Countdown
.
• Press Left Softkey to set a desired duration for the countdown. Edit the countdown timer and press Right Softkey to save the setting. Press
Right Softkey to start the countdown.
• To pause the countdown, press Right Softkey. Press Right Softkey again to continue with the countdown.
• To reset the countdown timers after pausing, press Left Softkey.
From the main menu, select
Accessory
>
Clock
>
Stopwatch
. A maximum of two timings can be registered with the stopwatch.
• Press Left Softkey to start the timing. To register the first timing, press Left Softkey. To register the next timing, press Left Softkey again.
• To register only one timing with the stopwatch, press Left Softkey to start timing and Right Softkey to stop.
• To reset all time counters, press Left Softkey.
You can perform addition, subtraction, multiplication and division of numbers with the calculator function. You can enter up to 8 digits. The calculator
can display a result of up to 9 digits, with a maximum of 6 decimal places.
If a calculation results in a number exceeding the maximum, “Over range” appears in the calculation field.
Calculator key
The following keys are assigned with different functions under the calculator:
• navigation key: Addition (+)
• navigation key: Subtraction (-)
• navigation key: Multiplication (x)
• navigation key: Division (÷)
• Left Softkey: Equals to (=)
• Right Softkey: Clear
• : Back to the standby screen
Countdown
Stopwatch
Calculator
79
• # key: Decimal point (.)
• * key: Negative (-)
Activating calculator
To start the calculator function, use the following procedure:
• From the main menu, select
Accessory
>
Calculator
>
Calculator
.
Terminating calculator
Press key to return to the standby screen.
Calculating
To calculate using the calculator, for example 52 + 37, use the following procedure:
• Input 52 on Calculator.
• Press the navigation key.
• Input 37.
• Press Left Softkey.
• The answer 89 appears in the calculation field.
Deleting a digit
To delete a digit, press Right Softkey.
Deleting all digits
• To delete all digits input, press and hold Right Softkey.
From the main menu, select
Accessory
>
Calculator
>
Currency conv.
. You are able to calculate the exchange rates between two currencies
using this function:
Rate setting
From the
Currency conv.
display screen, select
Rate setting
. Enter the exchange rate for the domestic currency and foreign currency. Press # to
enter a decimal point. Press Left Softkey to calculate the conversion.Save the settings by pressing Left Softkey.
Rate compute
From the
Currency conv.
display screen, select
Rate compute
. Use and navigation keys to move along the fileds. Enter the sum to be
converted at either domestic currency or foreign currency field. Press Left Softkey to
Convert
. The results will be displayed at the other field.
Currency converter
80
From the main menu, select
Accessory
>
Composer
to display the list of preset melodies. Press Left Softkey on the selected preset melody to
display the
Options
menu. Highlight
Composer
and press Left Softkey to display
Composed melody
screen. You will have the options to
compose one main track and three sub tracks in each preset melody.
You can compose your own melodies (maximum of five) using the following keys in each track:
• Number keys 1 to 7: Represent notes C, D, E, F, G, A, B in this order.
• and navigation keys: To move the keyed melody one note up or down.
• * key: Increase/Decrease length of notes/rests.
• Number key 0: Represents rest note.
• # key: Raises/lower the note by a semitone.
• After composing, press Left Softkey to select one of these available options:
Play
/
Tempo
/
Instrument
/
Save
.
• Press key to exit the composed melody and press Left Softkey to select
Composer
again to edit other tracks.
The
Voice memo
function allows you to record up to 50 seconds of sound/voice (at the lowest data rate) using your phone’s microphone. You can
also send the
Voice memo
as an MMS attachment.
From the main menu, select
Accessory
>
Voice memo
.
Record voice
• Select
Record voice
to display the
Record voice
display screen.
• To add a new voice recording, press Left Softkey to display the
Options
menu. Highlight
Add new
to enter the recording mode.
• Press Right Softkey to start recording. To pause, press Right Softkey.
• Press Left Softkey to stop the recording.
• To play and listen to the recording, press Right Softkey.
• To save the recording, press Left Softkey, edit the title if necessary, and press Left Softkey.
Data rate
• Select
Data rate
to display Data rate display screen.
• Highlight a desired value (the smaller the value, the longer the recording time allowed) for the data rate and press Left Softkey to confirm and
turn on the radio button.
Composer
Voice memo
81
To transfer any stored data from the phone to the PC or from the PC to the phone, select
Accessory
>
PC sync
from the main menu. Press Left
Softkey to start synchronization.
If you wish to synchronise (download/upload) data between PC and phone, you must start the PC sync application and stay at the
application window. Otherwise, the connection will abort.
PC sync
82
A
Accepting a Call .....................22
ADN ........................................62
Agenda ...................................74
Alarm clock .............................77
Alternate Line Service (ALS) ..29
Any key answer ......................28
Auto answer ...........................33
Auto network ..........................39
Auto off ...................................77
Auto on ...................................77
auto redial ..............................36
B
Band .......................................40
Bar calls .................................38
Brightness ..............................34
C
Calculator ...............................78
Call diversion ..........................35
Call list
Dialed calls .......................26
Missed calls ......................26
Received calls ..................26
Call options ............................26
Call waiting .............................36
Calls .......................................35
Camera
Brightness .........................59
Default settings ................ 61
Effect ................................ 61
Flicker control .................. 61
Image quality ................... 60
Photo size ........................ 60
Self timer .......................... 60
Twilight ............................. 60
Zoom ................................ 59
Cell broadcast .................. 46, 48
Auto display ..................... 48
CB languages .................. 48
Topic list ........................... 48
Change PINs ......................... 37
Changing the battery ............. 20
Charge settings ..................... 27
Auto display ..................... 27
Currency .......................... 27
Display credit ................... 27
Max cost .......................... 27
Charging the battery .............. 20
Colour styles .......................... 34
Composer .............................. 80
Countdown ............................ 78
Currency converter ................ 79
D
Date format ............................ 30
Draft ....................................... 44
E
Earphone setting ....................33
Emergency services .................6
F
Factory settings ..................... 40
FAK (Fast Access Key) .......... 30
Fast Dial ................................. 24
FDN ................................. 39, 63
G
Group
Add a phone contact ........65
Assign a ring tone ............ 66
Creating a group name ....65
Groups ................................... 65
H
Holding a call .........................23
I
Illumination ............................. 33
i-mode Service .......................49
Inbox ...................................... 44
Info Tone ................................ 32
Inserting a SIM Card .............. 17
K
Key tone .................................32
Keylock/Auto key lock ............25
L
Language ...............................30
LCD Contrast .........................35
M
Messages ...............................44
Minute reminder .....................29
Missed calls ............................26
My data ..................................68
N
Network info ...........................39
Notepad ..................................76
Numeric input .........................43
O
Outbox ....................................44
P
Password ...............................16
Personalizing settings ............28
Phone lock .............................38
Phone memory edit ................64
Phone mode
Car ....................................31
Meeting .............................31
Normal ..............................31
Pocket ...............................31
Index
83
Phonebook
Delete all .......................... 67
Deleting a record .............. 66
Photos .................................... 69
Pictures .................................. 69
PIN code ................................ 37
PUK code ............................... 37
R
Received calls ........................ 26
Receiving Calls ...................... 22
Rejecting a call ...................... 22
Removing a SIM Card ........... 18
Ring tones .............................. 49
Ringer setting .........................32
Ringer volume ........................32
Roaming ................................ 39
S
Scheduler ...............................74
Scratchpad number ............... 67
Calling .............................. 67
Storing .............................. 67
SDN ....................................... 62
Security settings .................... 37
SIM memory edit .................... 64
SMS via GPRS ...................... 47
Sounds ................................... 71
Stopwatch .............................. 78
T
T9® English text input ............ 42
T9® Preferred ........................ 42
Taking a picture ......................59
Text Entry ...............................41
Time format ............................30
Time/charge ...........................26
Timezone ...............................29
ToDo list .................................75
Topic list .................................48
V
Vibrator ...................................33
Voice mail ...............................24
Voice volume ..........................28
Volume control .......................25
W
Wallpaper .........................33, 34
1_02505
