USER MANUAL
BCM92046 Solution
Bluetooth Module for Lenovo
Contents
SECTION ONE: INTRODUCTION........................................................................................... 1
1.1 FEATURES................................................................................................................................... 1
1.2 HARDWARE REQUIREMENTS ...................................................................................................... 1
SECTION TWO: BLUETOOTH INSTALLATION .......................................................................... 3
2.1 ACTIVEPERL INSTALLATION ........................................................................................................ 3
2.2 BLUETOOL INSTALLATION ............................................................................................................ 7
2.3 DRIVER IN BTWUSB ................................................................................................................... 9
SECTION THREE: FCC NOTICE ................................................................................................ 11
3.1 FCC COMPLIANCE ............................................................................................................... 11
3.2 FCC CLASS B STATEMENT .................................................................................................. 12
The information contained in this manual has been verified at the time of this manual printing.
The manufacturer reserves the right to make any changes and improvements in the product
described in this manual at any time and without notice.
All registered trademarks are the property of their respective owners.
Section One: Introduction
The Bluetooth Module use a monolithic single-chip, Foxconn BCM92046 and it can compliant Bluetooth
2.1.This Bluetooth module is base on the highly integrated BCM92046 stand-alone baseband processor with an
integrated 2.4GHz transceiver. It is fully compliant with the Bluetooth radio specification and incorporates new
modulation schemes to support enhanced data rate(EDR) of 3MBps.
1.1 Features
1.1.1 Bluetooth Function
o Bluetooth radio firmware is upgradeable for bug fixes, initial version compatible with Bluetooth
specification version 2.1
o Fully compliant to Bluetooth SIG (BQB) compatibility testing.
o USB Pin assignment is to use MDC reserve pin to communicate with Host.interface
o Bluetooth Profile Support
- Pim Item Transfer
- Pim Synchronization
- Network Access
- Dial-up Networking
- Bluetooth Serial Port
- Fax
- Audio Gateway
- Headset
- Bluetooth Imaging
o Drivers support Windows 98, 98SE, ME, 2000, XP.
o Supports Power Management
1.2 Hardware Requirements
Supply Voltage 3.3V
Frequency Range 2.400-2.4835 GHz
Antenna Load 50 Ohm
Receive Sensitivity –78 dBm@0.1% BER
Maximum Receiver Signal -20 dBm
TX Power 4 dBm maximum (class 2)
RF Power Control Step Size 2 dB
Range 10 meters at 0 dBm TX power (class 2)
Radio Compliant with Bluetooth radio specification and incorporates
new modulation schemes to supports enhance data rate (EDR)
of 3Mbps
Pico Net 1 master to 7 slaves
Operating Channels 79 channels of 1 MHz BW
Security Full support of Bluetooth security provisions including
hardware support for full length 128 bit encryption keys.
Host Interface (USB) USB specification 2.1 compliant and using MDC reserve pin to
communicate with Host
Software Requirements Windows 98SE, ME, 2000, XP.
Mechanical Requirements 26mm x 14mm
Section Two: Bluetooth Installation
The following steps provide instructions for installing Bluetooth.
1. Make sure your Bluetooth device already insert into your notebook.
2. Make sure your notebook operating system support Windows 98SE or ME or 2000 or XP.
2.1 ActivePerl Installation
Proceed to the following section.

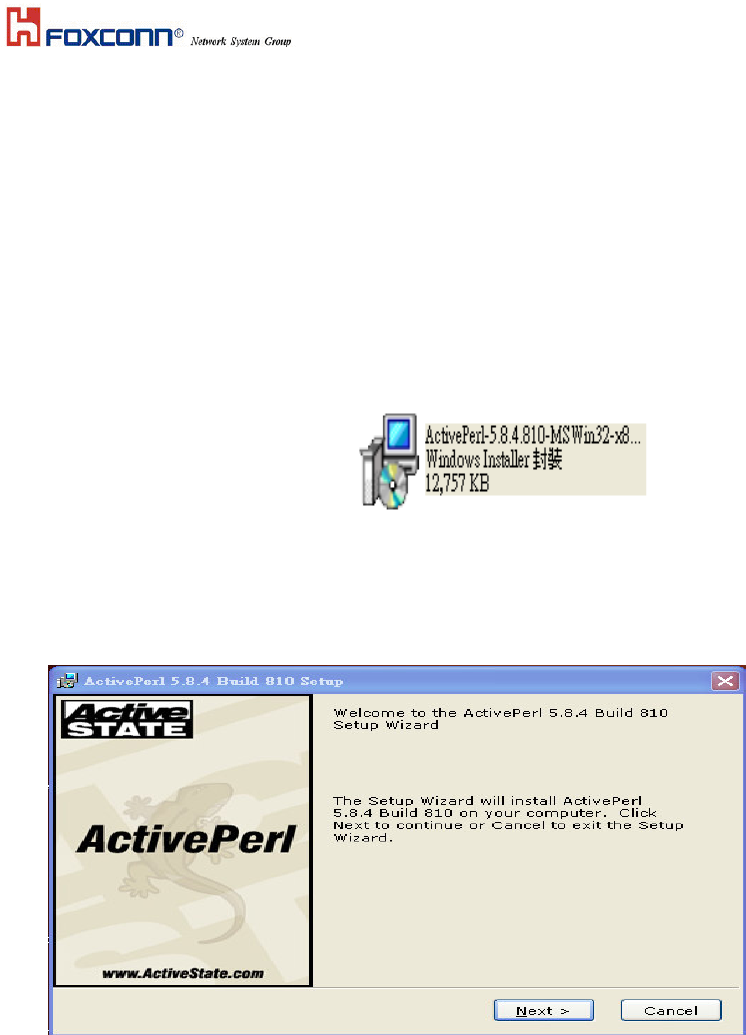

Double click the program “ActivePerl-5.8.4.810-MSWin32-x86.msi” to execute theTo execute ActivePerl
in the software package：
Windows shows the welcome dialog as below, click the “Next” to begin the process：

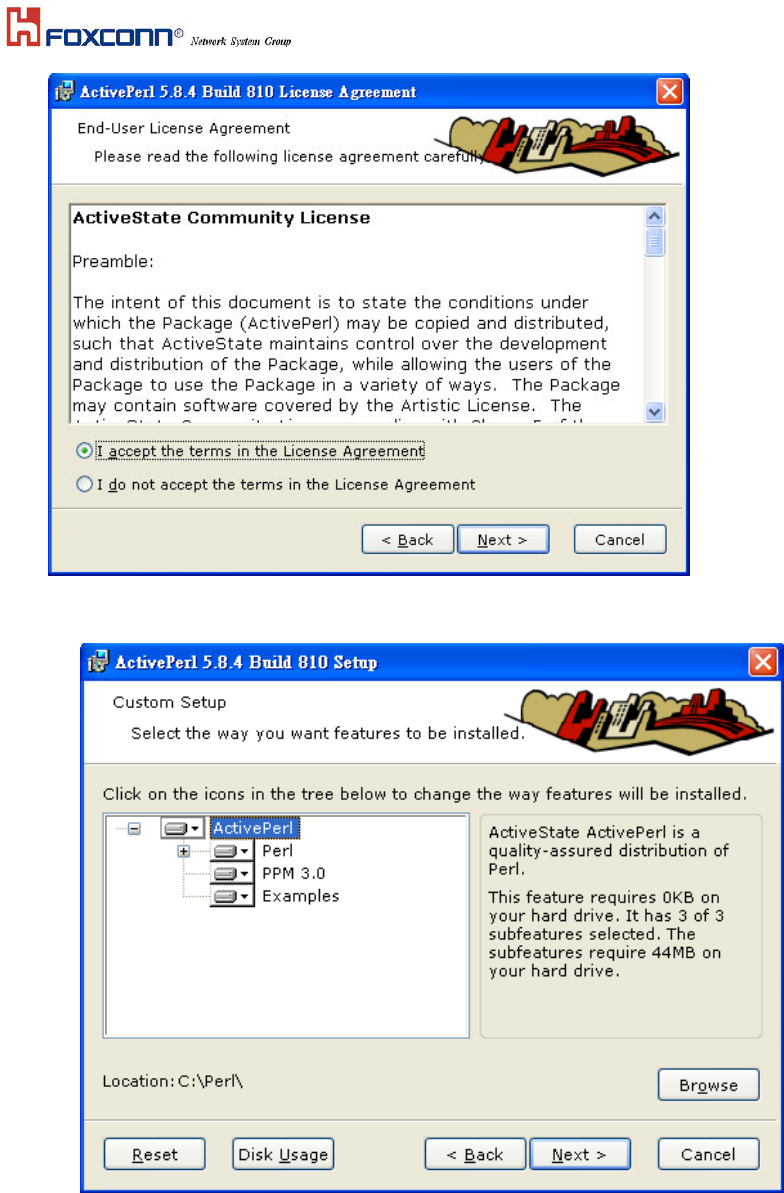

1. The license agreement dialog will pop up, please read it carefully. If you agree it, choose “I
accept the terms in the license agreement” and click “Next”：
2. Windows show the custom setup, select the way you want features to be installed, and then
click Next”：.

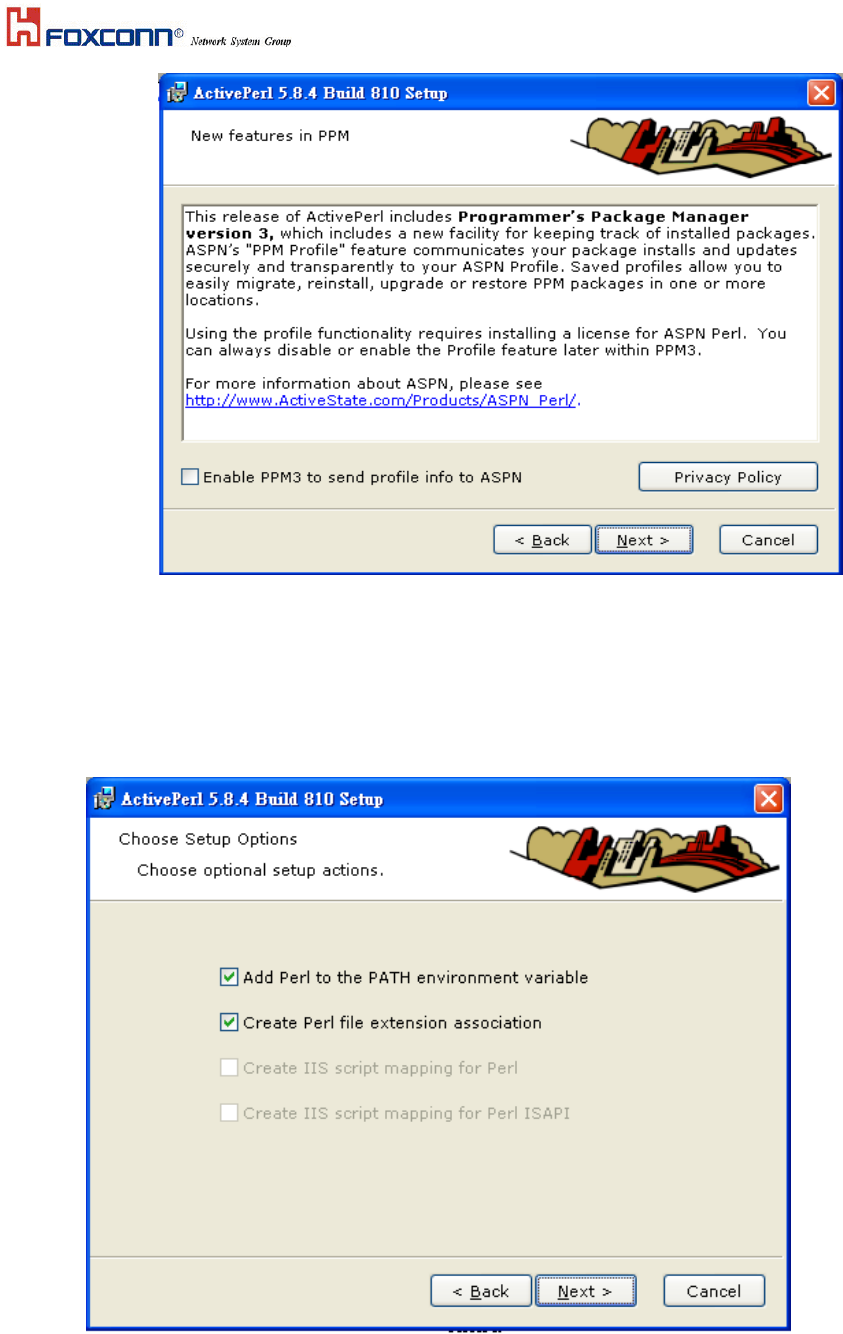

4 Show the new features in PPM, then select “Next”：
5 Choosing setup options shows, and you should choose the first and second items,
then click “Next”：

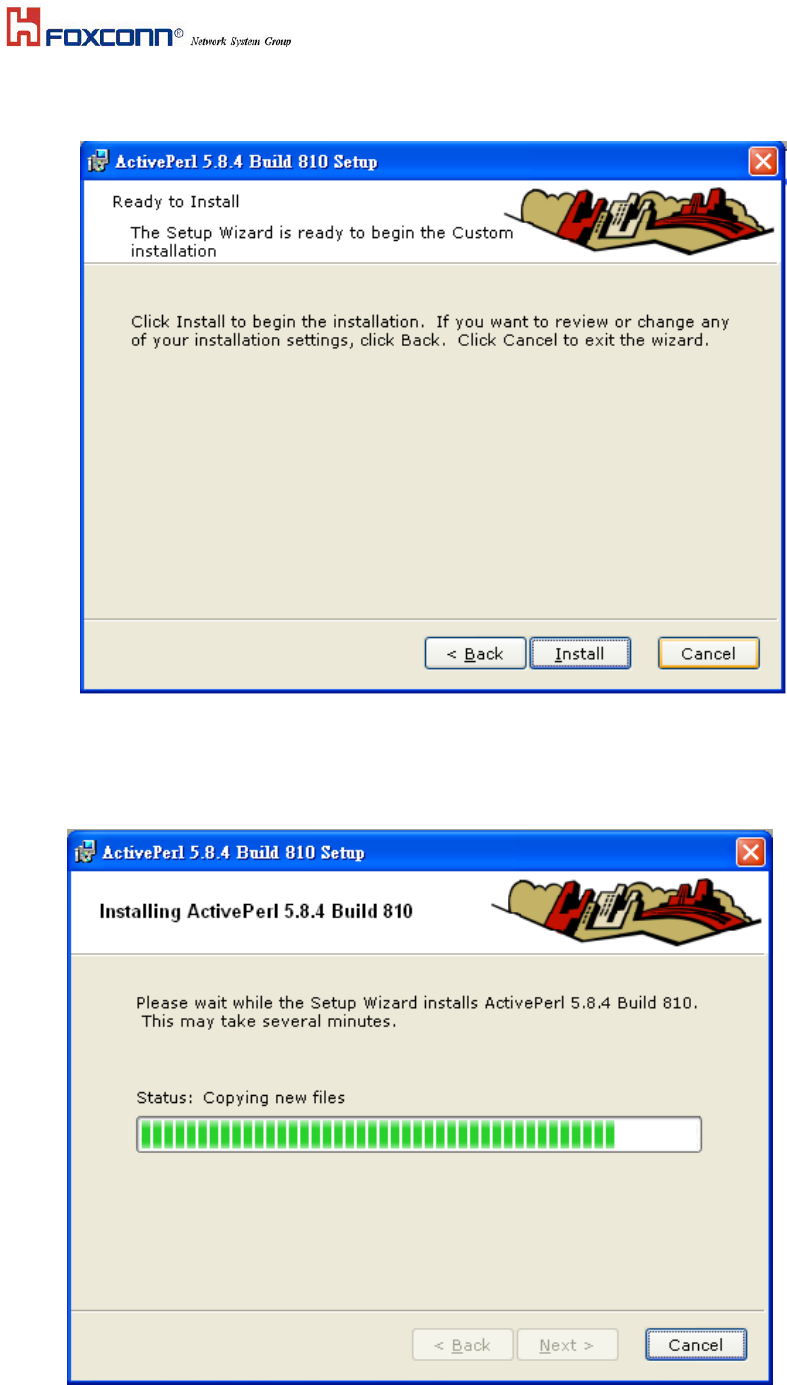

6 It’s ready to install the tool, click “Install” to run it”.
7 Installing ActivePerl 5.8.4 Build 810.

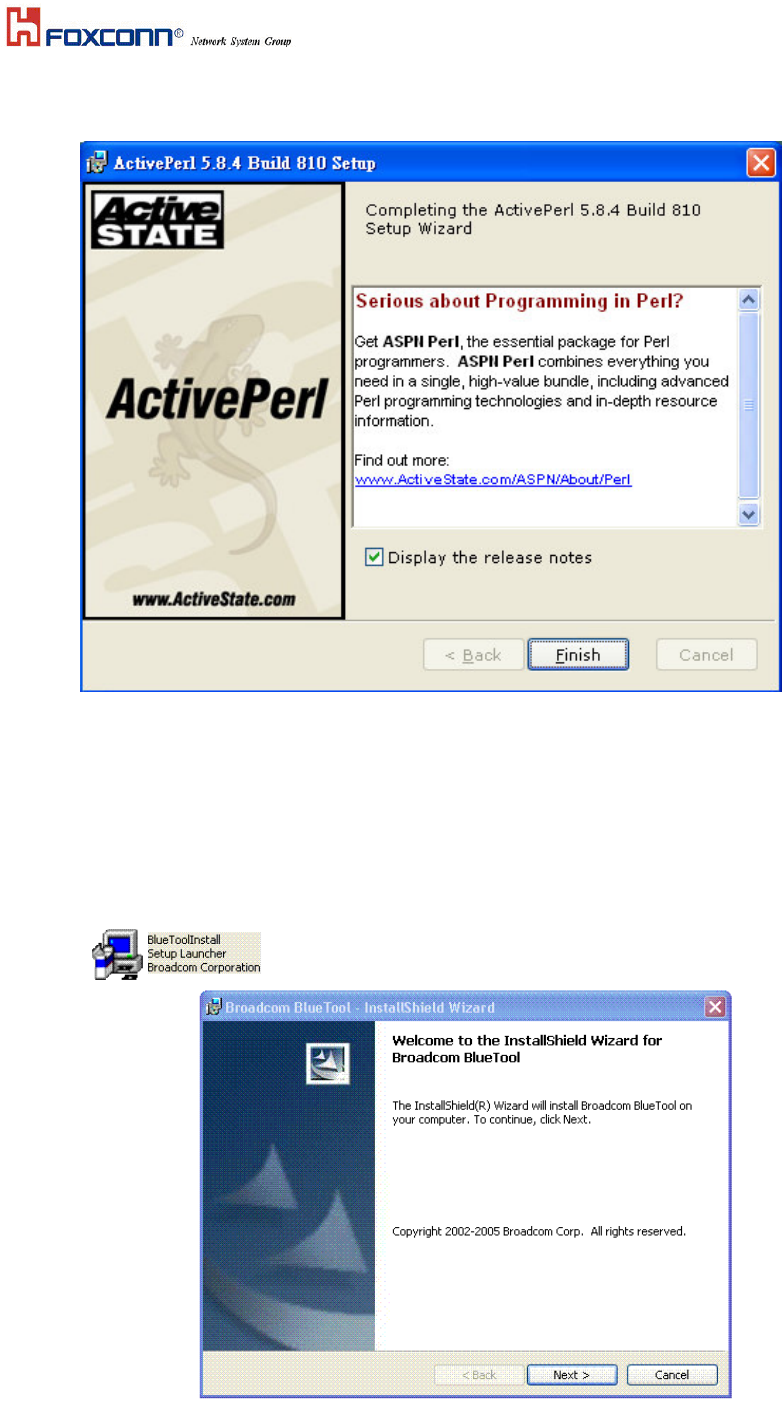

8 Click the “Finish” button, completing the setup wizard.
2.2 Bluetool Installation
Double click the program “BlueToolInstall_v1.0.0.3.exe
” to execute BluetoolInstall in the software package：
1 Show the welcome dialog as below, click the “Next” to begin the process:

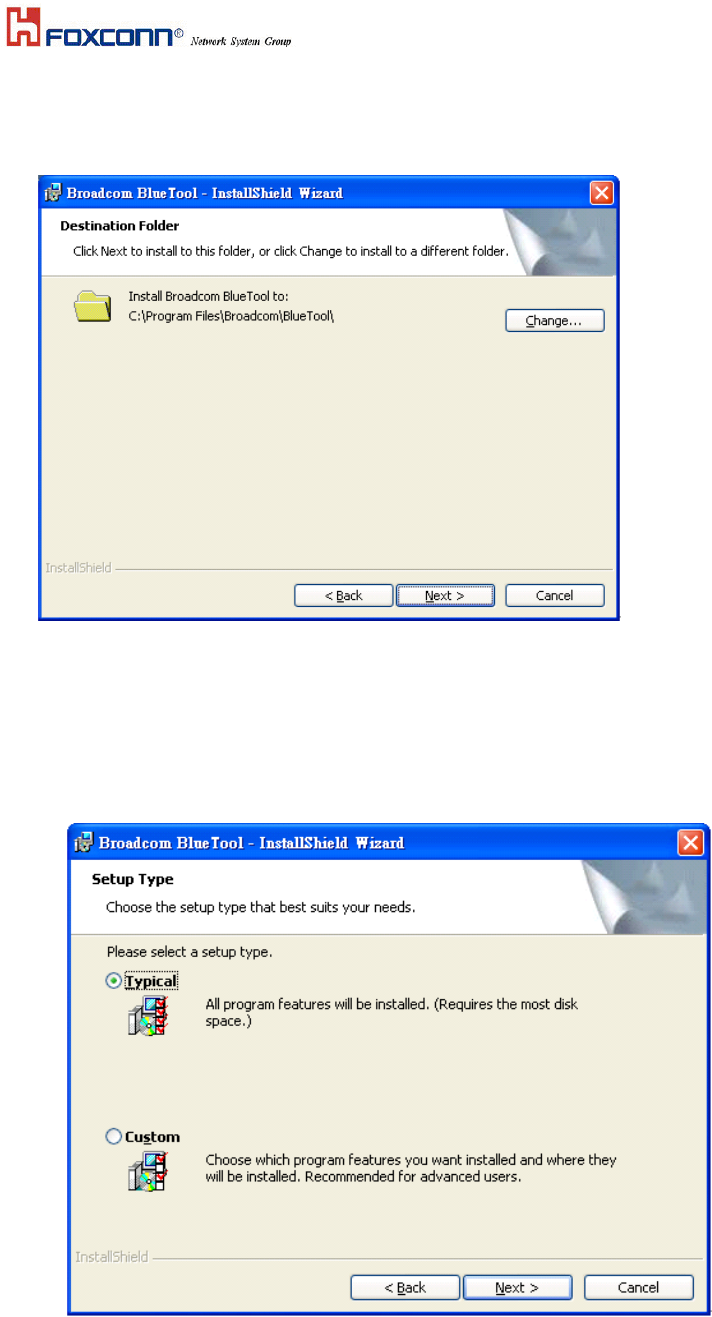

2 Specify the destination folder in your local system, which you want the software install to. You
may use the default folder or click “Change” to install to different folder, then click “Next”：
3 Choose the setup type you need, here you could select the typical type for your test , then
click “Next”：

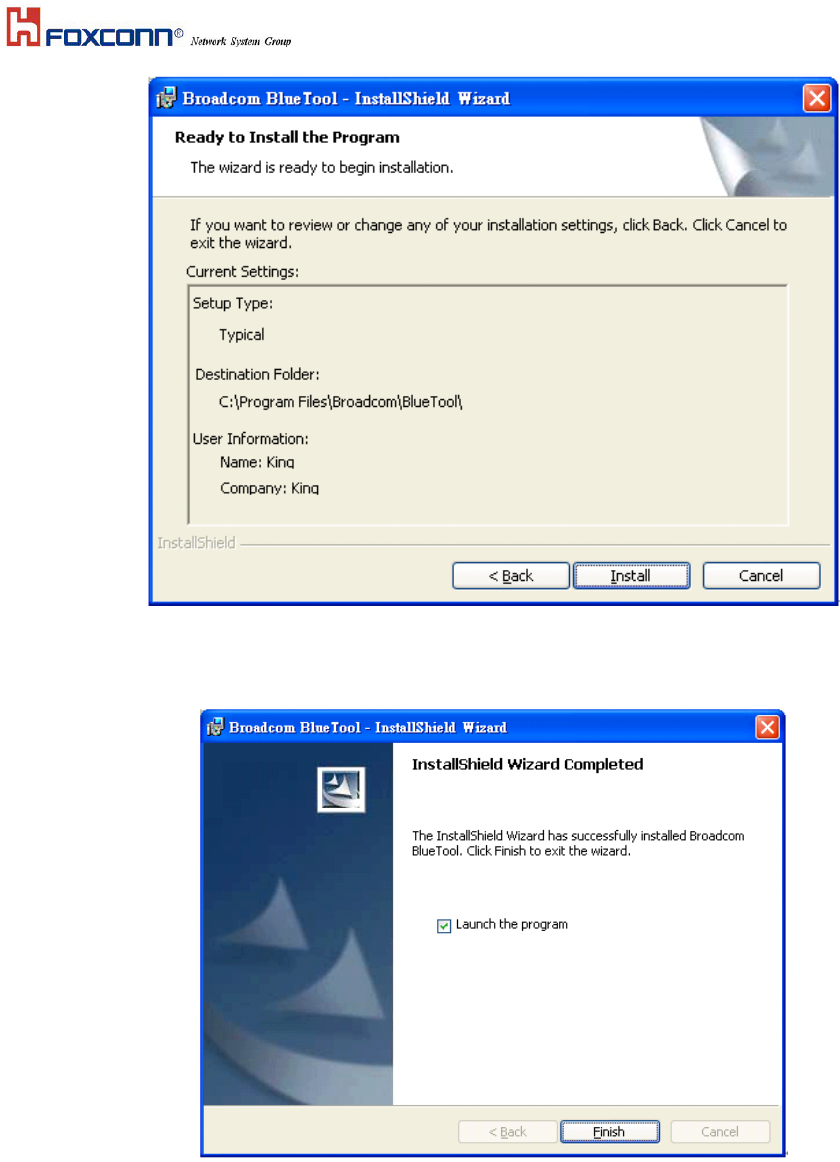

3. The wizard is ready to begin installation, and shows the setup type and destination folder you
have chosen, then click “Next”：
4. The dialog “installshied wizard completed” shows, after selecting the item launch the
program ,click “Finish”：
2.3 Driver in BTWUSB
1
11
1

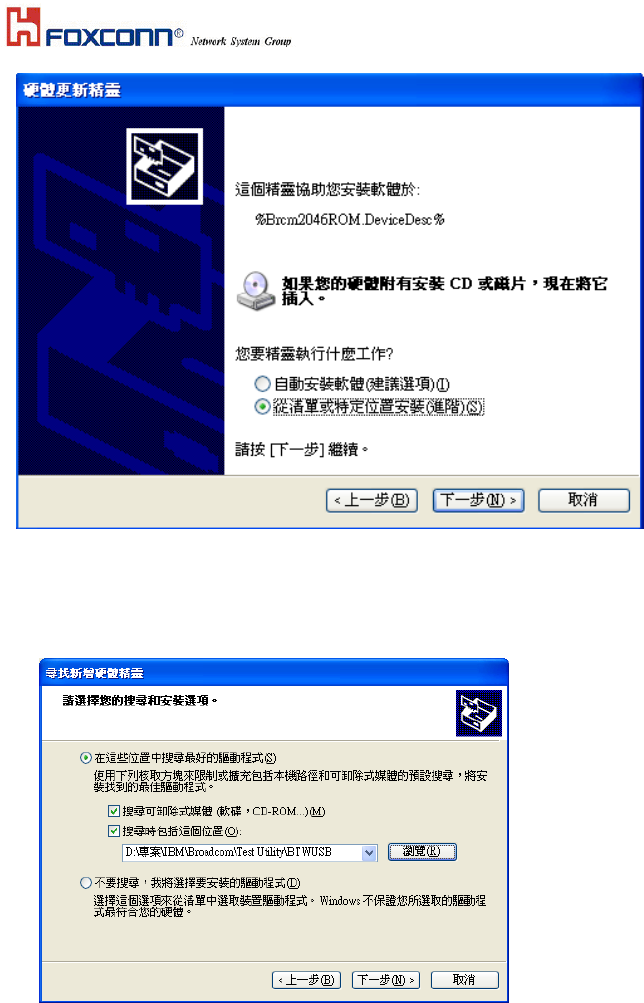

After inserting the bluetooth module, it will search driver of BTWUSB as below, you could select
the destination of the driver from the second option, then click “next”
2
22
2
Then Select the Driver location and click “Next”:
3
33
3
Searching for the driver, please wait for it.
4 Finishing searching for the driver, and the driver is installed, then click the “Finish” to finish the
installation.
Section Three: FCC Notice
3.1 FCC Compliance
This Equipment complies with Part 68 of the FCC Rules. On this equipment is a label that contains, among
other information, the FCC registration number and Ringer Equivalence Number (REN) for this equipment. You
must, upon request, provide this information to your telephone company.
If your telephone equipment causes harm to the telephone network, the Telephone Company may discontinue
your service temporarily. If posible, they will be notify in advience. But if advance notice isn’t practical, you
will notified as soon as possible. You will be informed of your right to file a complaint with the FCC.
Your telephone company may make changes in its facilities, equipment, operations or procedures that could
affect proper operation of your equipment. If they do, you will be notified in advance to give you an opportunity
you maintain uninterrupted telephone service.
The FCC prohibits this equipment’s should fail to operate properly, disconnect the equipment from the phone
line to determine if it is causing the problem. If the problem is with the equipment, discontinue use and contact
your dealer or vendor.
3.2 FCC Class B Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not
installed and used in accordance with the instructions, may cause harmful interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on , the user is encouraged to try to correct the interference
by one or more of the following measures:
Reorient or relocate the receiving antenna
increase the separation between the equipment and the receiver
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected
Consult the dealer or an experienced radio/TV technician for help
Notice: (1)Shielded cables, if any, must be used in order to comply with the emission limits. (2) Any change
or modification not expressly approved by the grantee of the equipment authorized could void the user authority
to operate the equipment.
Caution: Please make sure you already disconnect the phone cable before you want to touch or remove
modem module.
