Quanta Microsystems US302 IEEE 802.11n WLAN USB 2.0 module User Manual 1
Quanta Microsystems, Inc. IEEE 802.11n WLAN USB 2.0 module 1
User manual
Quanta Microsystems, Inc.
Tel
：
+886-3-3979000 Fax
：
+886-3-397990
5F, No.188, WenHwa 2nd RdKuei Shan Hsiang,
Taoyuan Shien, 333,Taiwan
Product Specification
US302-RL
Model Name: IEEE 802.11n WLAN
USB 2.0 Module
Version: 0.4
Date: 2008/9/15
第 2 頁，共 7 頁
Contents
1. Revision History ................................................................................................... 3
2. Related Documents .............................................................................................. 3
3. Overview ............................................................................................................... 4
3.1. Scope .......................................................................................................... 4
3.2. Features ...................................................................................................... 4
3.3. Specification .............................................................................................. 5
3.4. Mechanical Characteristics ........................................................................ 6
3.5. Module function Block Diagram ............................................................... 7
3.6. RoHS Compliant ........................................................................................ 7
4. Engineering sheets ............................................................................................... 7
Pins Out and Pin Descriptions ............................................................................... 7
第 3 頁，共 7 頁
1. Revision History
Date
Release
Author
Description
2008/5/24
0.1
Richard Chou
First release
2008/6/15
0.2
Richard Chou
Rx parameters modified
2008/8/15
0.3
Richard Chou
Tx power modified
2008/9/15
0.4
Richard Chou
Add mechanical drawing
2. Related Documents
Date
Author
Document(s)
2008/6/10
Ralink
RT3070 datasheet
第 4 頁，共 7 頁
3. Overview
3.1. Scope
This document describes the specifications of US302 WLAN USB
module. The low power consumption and smaller size are suitable for USB
adapter.
US302 implements half-duplex OFDM, CCK, and DSSS baseband
processing supporting all IEEE 802.11n data rates. The MAC supports the
IEEE 802.11 wireless MAC protocol as well as 802.11i security, receive
and transmit filtering, error recovery, and quality of service(QoS), and
Extended Range technology, dramatically increasing WLAN performance
3.2. Features
BPSK, QPSK, 16 QAM, 64 QAM, DBPSK, DQPSK and CCK
modulation technique
Operates at 2.4GHz frequency band
802.11e compatible bursting
Supports Windows XP, Windows Vista, Linux kernel 2.6.10.
USB bus powered, external power is no required.
Support Pre-IEEE 802.11n (TGn draft 6.0), short GI and long GI,
20MHz and 40 MHz bandwidth. Data rate up to 150Mbps maximum.
Supports Ad-hoc mode in IEEE 802.11b, Ad-hoc G (802.11g OFDM
rates) and Ad-hoc N (802.11n rates) mode.
802.11n SSN technique (1Transmit/1Receive).
Supports Infrastructure mode in 802.11n,802.11b and 802.11g modes
Supports Site survey: 802.11n/g/b BSS and IBSS.
Supports USB adapter hot-swap, device driver disable/enable
Supports Radio On/Off in software.
Supports IEEE 802.1X,
i Authentication modes: Open system, Share Key, Auto Switch,
IEEE 802.1x, WPA, WPA-PSK, WPA2, WPA2-PSK
ii Encryption method: WEP 64/128, TKIP, AES
USB 2.0(High/Full Speed) and backward compatible with USB 1.1
(Full Speed).
第 5 頁，共 7 頁
3.3. Specification
Standards
Conformity
IEEE 802.11n(draft 3.0)
Frequency
Range
11b/g/n: 2.412~2.4835GHz
Type
USB 2.0 with 6pins connector
Channels
11b/g: CH1~11
11n (HT20): CH1~11
11n (HT40): CH3~9
Modulation
Technique
OFDM/ BPSK/ QPSK/ CCK
Data Rate
(Mbps)
1Mbps to 11Mbps for 11b,
6Mbps to 54Mbps for 11g,
MCS0 to MCS7 for 11n HT20/HT40
Device Drivers
Windows XP SP2 32bit/64bit
Linux kernel 2.6.16
Windows Vista 32/64bit
Security
Supports 64-bit & 128-bit WEP for
legacy mode
WPA/WPA2/WPS for all mode
Operating
Voltage
DC 3.3V via USB bus power
Coverage
Area
60Meters (Indoor)
80Meters (Outdoor)
Warranty
1 year warranty limited
Temperature
0 ~ 60°C (Operation),
-20~70°C (Storage)
Sensitivity
(AntA+AntB)
Data rate
Typical
11Mbps CCK (11b)
- 85 dBm
54Mbps OFDM(11g)
- 70 dBm
11n HT20 MCS7
- 66 dBm
11n HT40 MCS7
- 63 dBm
Output Power
(AntA)
Data rate
Typical
11Mbps CCK (11b)
+16 dBm
54Mbps OFDM(11g)
+13 dBm
6Mbps OFDM (11g)
+16 dBm
HT20 MCS7
+12 dBm
HT40 MCS7
+12 dBm
Current
Consumption
(AntA+AntB)
Mode
Watts/mA@3.3v
11b TX
0.660/200
11g TX
0.594/180
11n HT20 TX
0.627/190
11n HT40 TX
0.660/200
11b RX
0479/145
11g RX
0.479/145
11n HT20 RX
0.479/145
11n HT40 RX
0.627/190
WLAN off
0.165/50
第 6 頁，共 7 頁

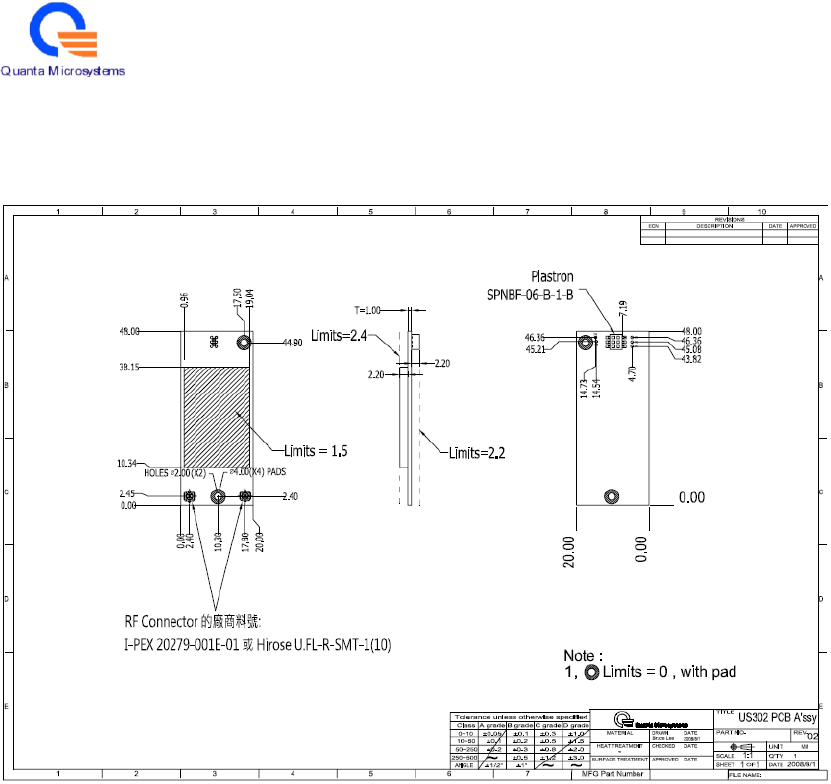

3.4. Mechanical Characteristics
第 7 頁，共 7 頁

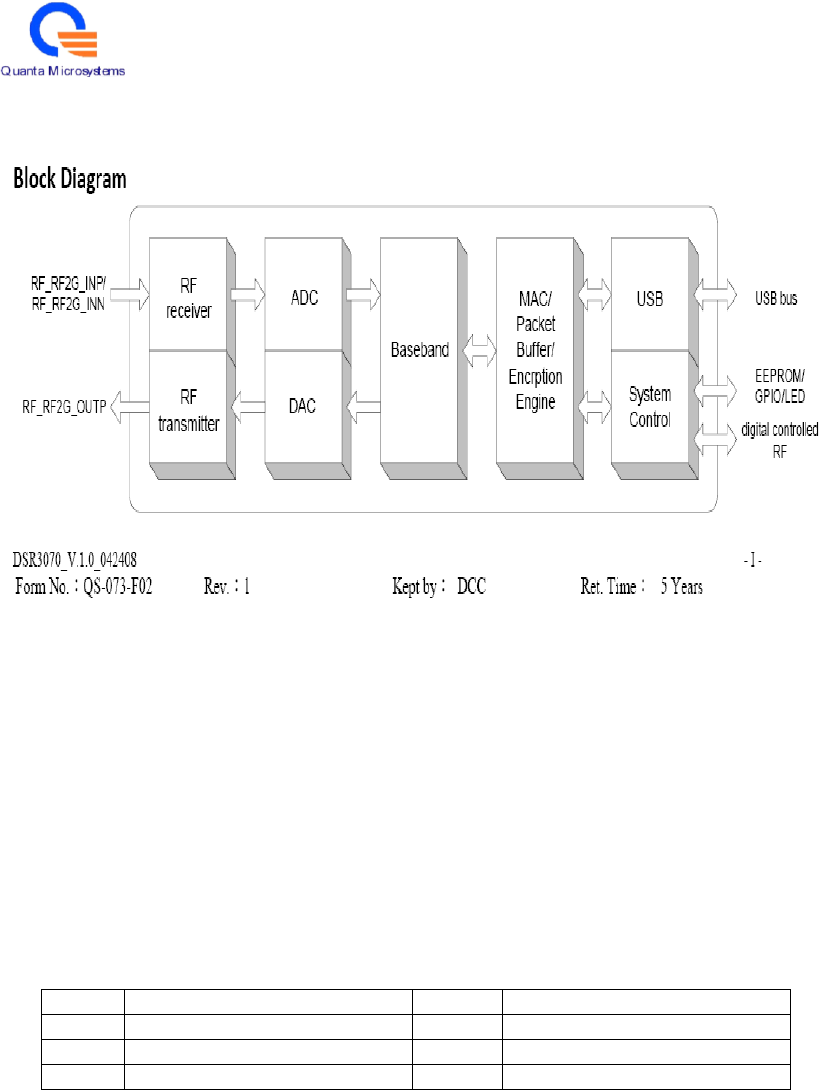

3.5. Module function Block Diagram
3.6. RoHS Compliant
US302RL is fully compliant with RoHS requirement.
4. Engineering sheets
Pins Out and Pin Descriptions
Pin no.
Definition
Pin no.
Definition
1
USB data differential input
2
USB data differential input
3
Reset
4
Ground
5
3.3V
6
Ground
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15/RSS-210 of the FCC/IC Rules.These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one of
the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC/IC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this equipment.
This device complies with Part 15/RSS-210 of the FCC/IC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including interference that
may cause undesired operation.
Radiation Exposure Statement:
This equipment complies with FCC/IC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator & your body. This transmitter must not
be co-located or operating in conjunction with any other antenna or transmitter.
This device is intended only for OEM integrators under the following conditions:
1. The antenna must be installed such that 20 cm is maintained between the
antenna and users, and
2. The transmitter module may not be co-located with any other transmitter or
antenna,
IMPORTANT NOTE: In the event that these conditions can not be met (for example
certain laptop configurations or co-location with another transmitter), then the FCC/IC
authorization is no longer considered valid and the FCC/IC ID can not be used on the final
product. In these circumstances, the OEM integrator will be responsible for re-evaluating
the end product (including the transmitter) and obtaining a separate FCC/IC authorization.
End Product Labeling
This transmitter module is authorized only for use in device where the antenna may be
installed such that 20 cm may be maintained between the antenna and users. The
final end product must be labeled in a visible area with the following: “Contains
FCC ID:T5U-US106”.
Manual Information To the End User
The OEM integrator has to be aware not to provide information to the end user
regarding how to install or remove this RF module in the user’s manual of the end
product which integrates this module.
The end user manual shall include all required regulatory information/warning as show
in this manual.
