Quanta Microsystems ZM108 ZigBee 2.4GHz Module (1T1R) User Manual Product Spec ZM108 v02

Quanta Microsystems, Inc. ZigBee 2.4GHz Module (1T1R) Product Spec ZM108 v02

User Manual

Design Specification
Model No.: ZM108
Model name: ZM108
IEEE
802.15.4
RF4CE
ZigBee
transceiver
module
Version: v0.1
Date: July 15, 2010
Quanta
Microsystems,
Inc.
Tel
：
+886-3-3979000 Fax
：
+886-3-397990
5F,
No.188,
WenHwa
2nd
RdKuei
Shan
Hsiang, Taoyuan
Shien,
333,Taiwan
U.S. Regulatory Wireless Notice
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this
equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
This device is intended only for OEM integrators under the following
conditions:
1) The antenna must be installed such that 20 cm is maintained between the
antenna and users, and
2) The transmitter module may not be co-located with any other transmitter or
antenna,
As long as 2 conditions above are met, further transmitter test will not be
required. However, the OEM integrator is still responsible for testing their end-
product for any additional compliance requirements required with this module
installed
IMPORTANT NOTE: In the event that these conditions can not be met (for
example certain laptop configurations or co-location with another transmitter),
then the FCC authorization is no longer considered valid and the FCC ID can
not be used on the final product. In these circumstances, the OEM integrator will
be responsible for re-evaluating the end product (including the transmitter) and
obtaining a separate FCC authorization.
IMPORTANT NOTE: In the event that these conditions can not be met (for
example certain laptop configurations or co-location with another transmitter),
then the FCC authorization is no longer considered valid and the FCC ID can
not be used on the final product. In these circumstances, the OEM integrator will
be responsible for re-evaluating the end product (including the transmitter) and
obtaining a separate FCC authorization.
End Product Labeling
This transmitter module is authorized only for use in device where the antenna
may be installed such that 20 cm may be maintained between the antenna and
users. The final end product must be labeled in a visible area with the following:
“Contains FCC ID: T5U-ZM108”.
Manual Information To the End User
The OEM integrator has to be aware not to provide information to the end user
regarding how to install or remove this RF module in the user’s manual of the end
product which integrates this module.
The end user manual shall include all required regulatory information/warning as
show in this manual.
Contents
1. Revision History ............................................................................................................... 3
2. Overview ........................................................................................................................... 4
2.1. Scope...................................................................................................................... 4
2.2. Features .................................................................................................................. 4
2.3. Specification .......................................................................................................... 5
2.4. Mechanical Characteristics .................................................................................... 6
2.5. Interface definition................................................................................................. 7
2.6. RoHS Compliant .................................................................................................... 8
2.7. EMI EMC certifications......................................................................................... 8
Page
2
1. Revision History
Date
Re
l
ease
Author
Descr
i
pt
i
on
Ju
l
15,
2010
0.1
Jack
Ong
F
i
rs
t
re
l
ease
Page
3
2. Overview
2.1. Scope
This document describes the specifications of ZM108 IEEE 802.15.4
transceivers module. The low power consumption and smaller size are
suitable for consumer electronic. ZM108 also provides a cost-effective solution
for short-range data links and networks.
2.2. Features
Extremely low cost
Ease of implementation
Reliable data transfer
Short range operation
Very low power consumption
Appropriate levels of security
Can be used globally
Page
4
2.3. Specification
Absolute Maximum Ratings
Rating Symbol Value Unit
Power Supply Voltage VBATT, VDDINT -
O
.3 to 3.9 Vdc
RF Input Power Pmax 1
O
dBm
Storage Temperature Range Tstg -2
O
to 7
O
°C
Operating conduction
Rating Symbol Min Typ Max Unit
Power Supply Voltage VBATT, VDDINT 2.
O
3.0 3.6 VDC
Operation Temperature Rang TA -1
O
25 6
O
°C
Operation Frequency f 2.4
O
5 2.48 GHz
Transmit Center Frequency Tolerance -4
O
+4
O
ppm
Characteristic (operating voltage=3.
O
VDC ; temperature=25°C)
Characteristic Min Typ Max Unit
DC Electrical Characteristics
Normal mode current 20 40 mA
Idle mode current 1 6 mA
Transmit
Transmit Power -4
O
3 dBm
Error Vector Magnitude (EVM) (over temp.) --- 18 35
R
eceive
r
Sensitivity for 1% Packet Error Rate (PER) -92 -86
dBm
Maximum Input Power 10
dBm
Ch
a
nnel
R
e
ection fo
r
1% PER
(
des
i
red s
i
g
na
l
-82 dB
m
)
+
/
-5 MHz (
a
d
j
a
cent ch
a
nnel) -4
O
dBm
+/-1
O
MHz (alternate channel) -35 dBm
>= 15 MHz -35 dBm
Energy Detect / Link Quality Indicator -5 5 dB
Page
5

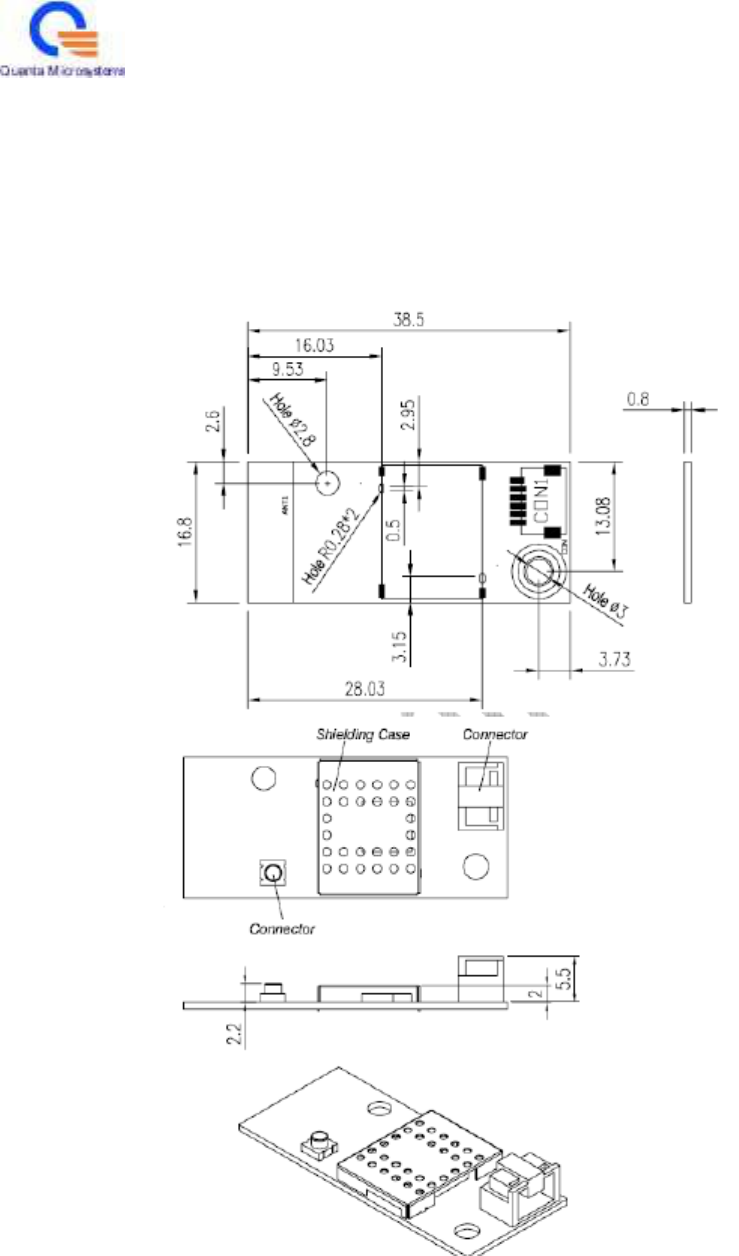

2.4. Mechanical Characteristics
Outline dimension drawing
Page
6
2.5. Interface Definition
CON6
Pin Pin Name
1 Reserve
2 RST_N
3 GND
4 RX (TBD)
5 TX (TBD)
6 Voltage input
Page
7
2.6. RoHS Compliant
ZM1
O
8 is fully compliant to RoHS requirement.
2.7. EMI EMC Certifications
ZM1
O
8 is fully compliant with FCC, CE regulatory requirements.
Page
8
