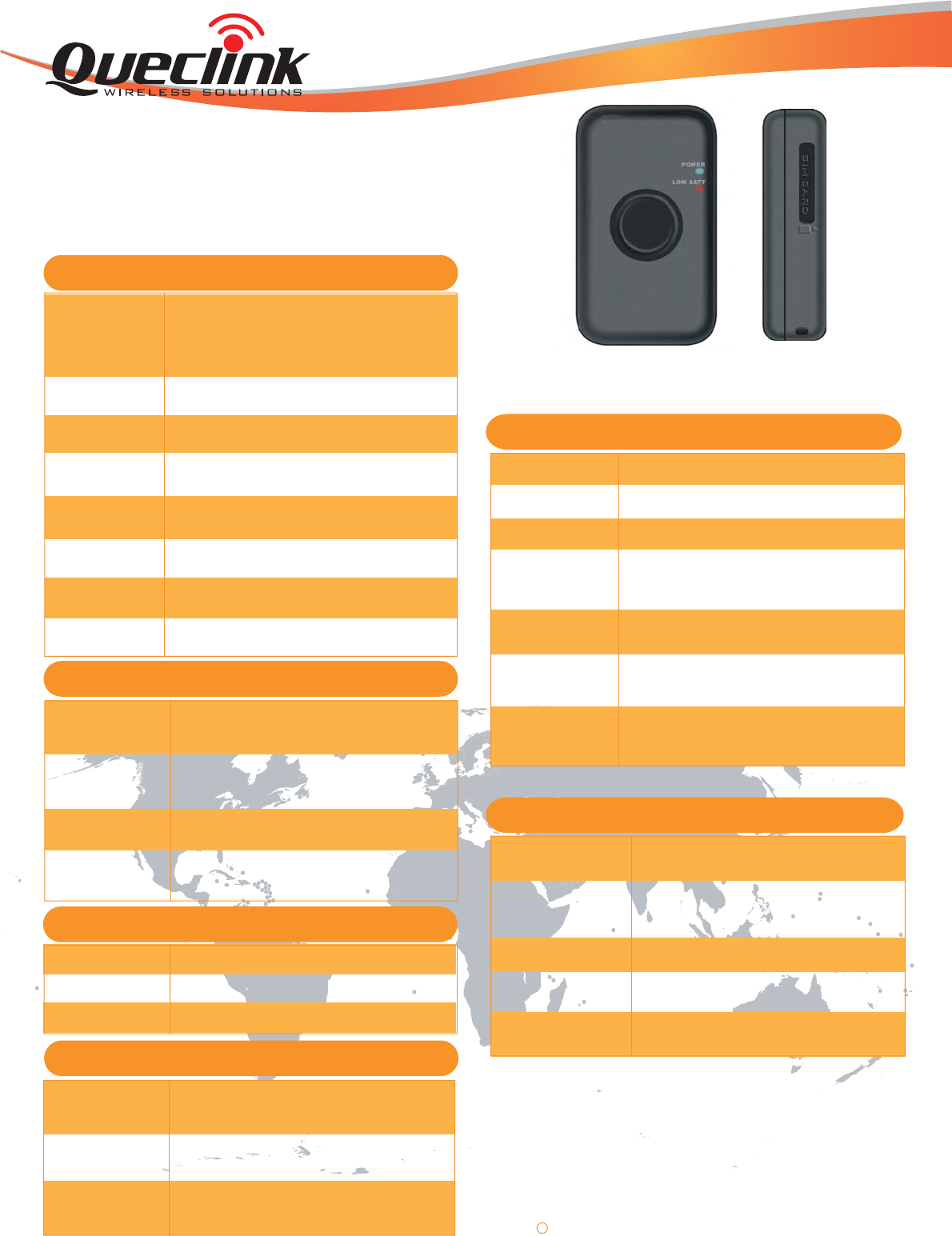

CP100
GPS Locator With
Compact Size
Super Sensitivity and High
Accuracy
Water Resistance
Quad Band GSM/GPRS
Low Power Consumption
WIFI IEEE 802.11g/b Compliant
Embedded Full-Featured
@Track Protocol
CP100 is a powerful GPS Tracker designed for student, pet and asset
tracking. With superior receive sensitivity, fast TTFF (Time to First Fix) and
Quad-band GSM frequencies 850/900/1800/1900 its location can be monitored
or periodically reported to a backend server or other device. Based on the
embedded @Track protocol, the CP100 can communicate with the backend
server through the WIFI/GPRS/GSM network (or SMS) to report Emergency
Alerts, Multi Cell ID , Multi WIFI MAC Address ,Low Battery and scheduled
GPS positions along with several other advanced reporting features. System
Integrators can easily setup their custom tracking platforms to communicate
with the CP100 based on the @Track protocol.
Water Resistance.
Built in uBlox GPS chipset with -165dBm tracking sensitivity , –147 dBm
autonomous sensitivity for fast TTFF and high accuracy.
Built in MTK WIFI chipset with IEEE 802.11b/gCompliant.
Low power consumption.
Quad band GSM/GPRS frequencis 850/900/1800/1900
Fully power management. Can be connected to external DC power or
battery.
Embedded full-featured @Track protocol
Certificated with PTCRB/FCC
AdvantagesAdvantages
RoHS Compliant
GPS Locator With
Compact Size
Queclink Wireless Solutions
Address :Room 501, Building 9, No.99,
Tianzhou Road, Shanghai , China
Tel : +86 21 51082965
Fax: +86 21 54451990
Web: http://www.queclink.com/
Email : sales@queclink.com
Copyright C 2010 Queclink Wireless Solutions Company Limited , All Rights
69mm * 39.5mm * 17mm
60 g
GPS Specifications
GPS Chipset uBlox All-In-One GPS Receiver Sensitive,
Fast and Accurate
Sensitivity Autonomous-148dBm
Hot start -160dBm
Tracking -165dBm
Position
Accuracy
Without Aid: 3.0 m 2D-RMS
DGPS : 2.5 m
TTFF (Open Sky)
Cold start 35s average
Warm start <35s
Hot start <1.2 s
General Specifications
69mm * 39.5mm * 17mm
Dimension:
Weight
Backup Battery
Standby Time
Li-Polymer 850 mAh , 3.7 V
5V DC
External DC
Voltage
Air Interface Protocol
Transmit Protocol
Scheduled
Timing Report
Report Position follows a pre-set fix
interval and report interval
TCP,UDP,SMS
Low Battery Alarm Alarm when backup battery is low
Report when the device is powered on
Power On Report
SOS alarm when Power key is pressed
SOS/Emergency
Alarm
Without reporting :100 to 200 Hours
5 minutes reporting: 48 to 72 Hours
10 minutes reporting: 72 to 96 Hours
External
Battery Voltage
Water
Resistance
3.4V to 4.2V DC
Follow IPX5 Standard
Mini USB
Connector
Power Button
SIM Card Holder
Include external power and UART
For power on and power off. Can be
disabled by the air interface protocol.
Support 1.8V/3V SIM Card.
GPRS
GSM Specifications
Frequency
Quad-Band: 850/900/1800/1900MHz
Compliant to GSM phase 2/2+
-Class 4 (2W @ 850/900MHz)
-Class 1 (1W @ 1800/1900MHz)
GPRS multi-slot class 12
GPRS mobile station class B
5 deg
33.0dBm ± 2dBm
Max Out RF
Power
Dynamic
Input Range -15 ~ -102 dBm
Receiving
Sensitivity
Stability Of
Frequency
Max Frequency
Error
Class II RBER2ˁ˄-102dBm˅
Greater than 2.5ppm
± 0.1ppm
RMS Phase
Error
CP100
User Interface Protocol
WIFI Specifications
WIFI Specifications
WIFI Chipset MTK MAC/BB WLAN Chip.
WIFI Frequency 2.412G - 2.462GHz.
WIFI Compatible IEEE 802.11b/gCompliant.
