Queclink Wireless Solutions CP100 GSM/GPRS/WiFi/GPS Tracker User Manual CP100

Queclink Wireless Solutions Co.,Ltd GSM/GPRS/WiFi/GPS Tracker CP100

Contents

User Manual

GSM/GPRS/WIFI/GPS Tracker CP100
User Manual
TRACCP100UM001
Revision: 1.01
http://www.queclink.com
sales@queclink.com
CP100 User Manual
TRACCP100UM001 - 1 -
Document Title CP100 User manual
Version 1.01
Date 2011-3-3
Status Release
Document Control ID TRACCP100UM001
General Notes
Queclink offers this information as a service to its customers, to support application and
engineering efforts that use the products designed by Queclink. The information provided is
based upon requirements specifically provided to Queclink by the customers. Queclink has
not undertaken any independent search for additional relevant information, including any
information that may be in the customer’s possession. Furthermore, system validation of this
product designed by Queclink within a larger electronic system remains the responsibility of
the customer or the customer’s system integrator. All specifications supplied herein are
subject to change.
Copyright
This document contains proprietary technical information which is the property of Queclink
Limited., copying of this document and giving it to others and the using or communication of
the contents thereof, are forbidden without express authority. Offenders are liable to the
payment of damages. All rights reserved in the event of grant of a patent or the registration of
a utility model or design. All specification supplied herein are subject to change without
notice at any time.
Copyright © Queclink Wireless Solutions Ltd. 2011
CP100 User Manual
TRACCP100UM001 - 2 -
Contents
Contents ............................................................................................................................................2
0. Revision history ............................................................................................................................3
1. Introduction...................................................................................................................................4
2. Specification……………………………………………………………………………………...5
3. Product Overview .........................................................................................................................6
2.1. Appearance..........................................................................................................................6
2.2. Buttons/Mini USB/SIM-Card Interface Description...........................................................6
2.3. LEDs Description................................................................................................................6
4. Getting Started ..............................................................................................................................8
3.1. Parts List..............................................................................................................................8
3.2. Battery Charging .................................................................................................................8
3.3. Install SIM Card..................................................................................................................8
3.4. Turn on/Turn off..................................................................................................................9
5. Troubleshooting and Safety info.................................................................................................10
4.1. Troubleshooting.................................................................................................................10
4.2. Safety info.........................................................................................................................10
CP100 User Manual
TRACCP100UM001 - 3 -
0. Revision history
Revision Date Author Description of change
1.01 2011-3-3 Johnson Jiang Initial
CP100 User Manual
TRACCP100UM001 - 4 -
1. Introduction
CP100 is a powerful GPS Tracker designed for student, pet and asset tracking. With superior
receive sensitivity, fast TTFF (Time to First Fix ) and Dual-band GSM frequencies
850 / 1900MHz, its location can be monitored or periodically reported to a backend server or other
device . Based on the embedded CP100@ Track protocol , the CP100 can communicate with the
backend server through the GPRS/GSM/ WIFI network (or SMS) to report emergency alerts, low
battery and scheduled GPS positions along with several other advanced reporting features. System
Integrators can easily setup their custom tracking platforms to communicate with the CP100 based
on the CP100@Track protocol.
This device complies with part 22 and part 24,part 15.247 of the FCC rules. Operation is
subject to the following two conditions: (1) this device may not cause harmful interference
(2) this device must accept any interference, including interference that may cause undesired operation.
Changes or modifications to this unit not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
CP100 User Manual
TRACCP100UM001 - 5 -
2. Product Overview
GSM/GPS/WIFI Specifications
GSM Frequency Dual-Band: 850/1900MHz
GPS Chipset uBlox All-In-One GPS Receiver Sensitive, Fast and
Accurate
GPS Sensitivity Cold start: -147dBm
Reacquisition: -160dBm
Tracking: -160dBm
Position Accuracy Autonomous: < 2.5 m
SBAS: 2.0 m
TTFF (Open Sky) Cold start 29s
Warm start <29s
Hot start <1s
WIFI Chipset MTK MAC/BB WLAN Chip .
WIFI Frequency 2.412G – 2.462GHz .
WIFI Compatible IEEE 802.11g/b Compliant .
User Interfaces
Mini USB Connector Include external power and UART
SIM Card Holder Support 1.8V/3V SIM Card.
Power Button For power on .
Gerneral Specifications
Dimension 69mm* 39.5mm * 17mm
Weight 60g
Backup Battery Li-ion 850mAh , 3.7V
Standby Time Full work 2 hours when power off above one
month in emergency
Charge Voltage 5V DC
External Battery Voltage 3.4 V to 4.2 V DC
CP100 User Manual
TRACCP100UM001 - 6 -

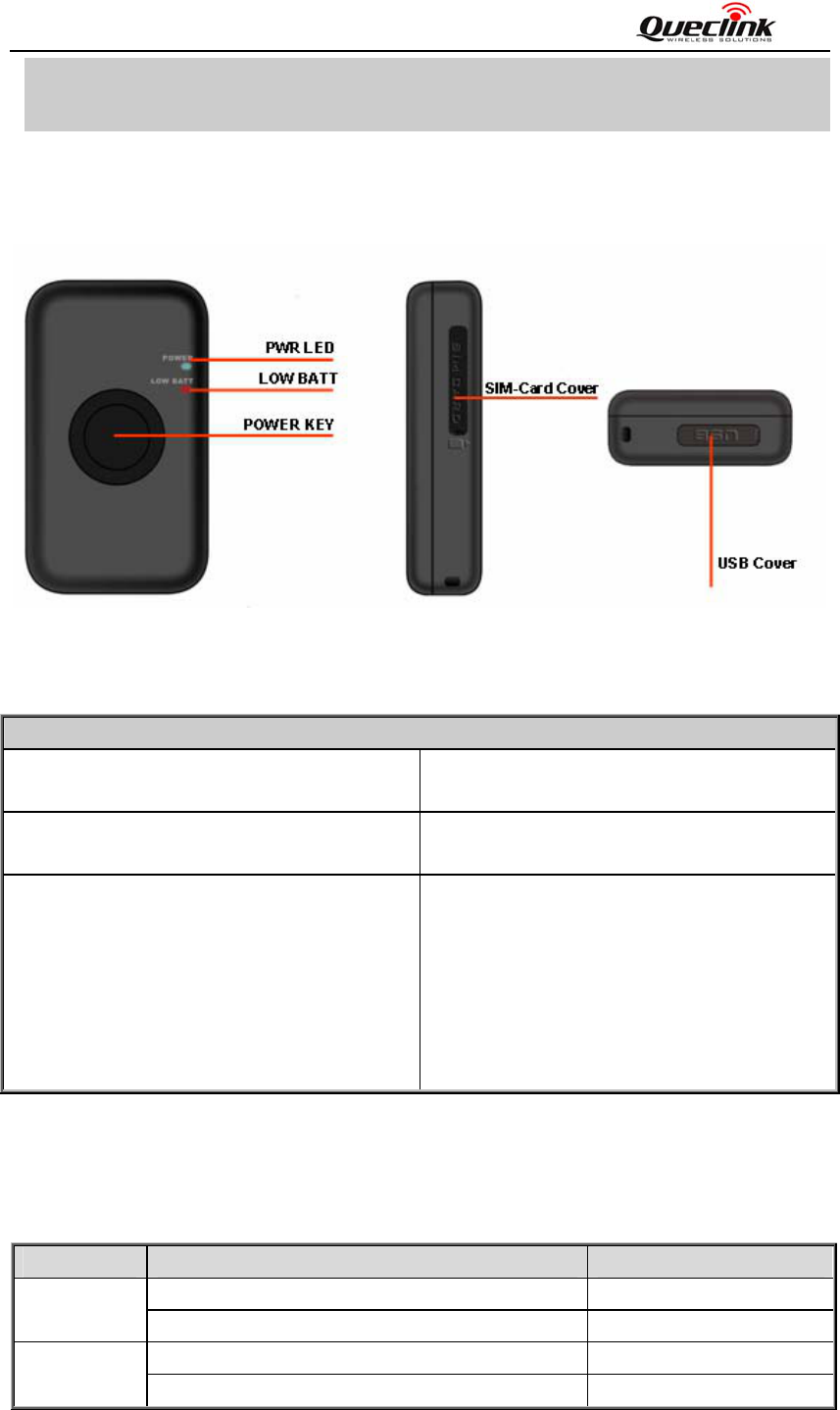

3. Product Overview
3.1. Appearance
3.2. Buttons/Mini USB/SIM-Card Interface Description
Button /Mini USB Interface Description
Power Key z Turn on CP100
SIM-Card Interface z Insert 1.8V/3V SIM-Card
Mini USB Interface z Connect a 3.7V Li-ion or Li-Polymer
battery
z Connect 5V DC adapter can charge
internal battery
z Only Backend server developer or
administrator can use the Data_Cable_M
to configure CP100
3.3. LEDs Description
There are two LEDs in CP100, the description as following.
light Event State
Battery voltage is lower than 3.8v Red Light Solid Low Battery
light Battery voltage is higher than 4.0v Dark
Power on and normal Green light Solid Power light
Charging Exception Bule Light flash quickly
CP100 User Manual
TRACCP100UM001 - 7 -
Power key was pressed and prepare to power off Fast flash
Abnormal Fast flash
Power low alert Slow flash
Power off or turn off the power light by command Dark
On Charging Bule Light flash slowly
Power Off Charging finished Blue Light Solid
On Charging
Greed light flash twice,
then Blue light flash twice,
and the whole process will
be repeated
Power On
Charging finished
Greed light flash once,then
Blue light flash once, and
the whole process will be
repeated
CP100 User Manual
TRACCP100UM001 - 8 -
4. Getting Started

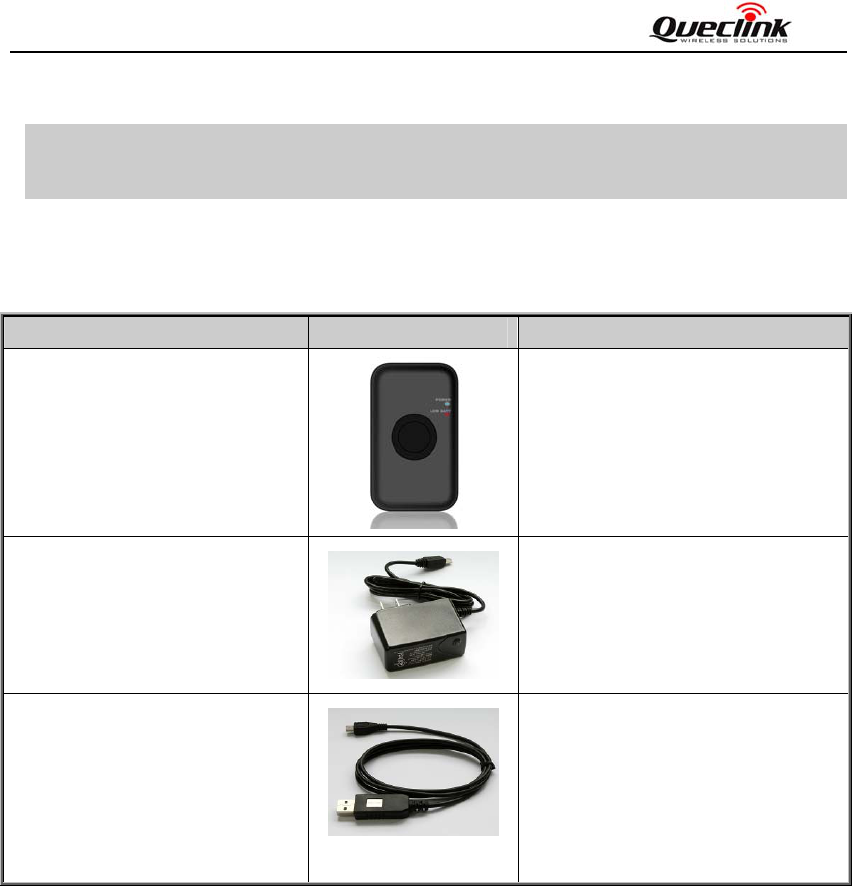

4.1. Parts List
Name Picture Remark
CP100 Locator
The GSM/GPRS/GPS locator.
AC-DC Power Adapter
(Standard accessory)
It is used to charge the internal
battery of CP100.
CP100 Data Cable
(Optional accessory)
It is the USB data cable which can
be used for firmware upgrading and
configuration.(Please note , it only
for backend server developer or
administrator ,It is not in delivery
list of CP100)
4.2. Battery Charging
z Please connect AC-DC power adapter with CP100.
z Insert the AC-DC power adapter into the power socket.
z During charging, the PWR LED is flashing fast. When the battery is full charged, the PWR LED
will be Ever-light.
z You can also charge the battery by USB cable which connects CP100 with the PC.
z Charging time is about 5 hours.
Note: Before the first time using CP100, please full charge the battery.

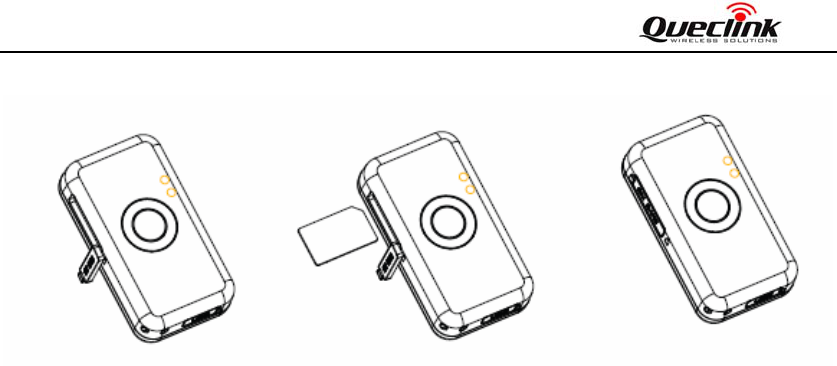

4.3. Install SIM Card
z First, open the cover of SIM-card..
z Then insert the SIM card into the slot of SIM card according to the direction shown.
CP100 User Manual
TRACCP100UM001 - 9 -
z Finally, cover the slot.
4.4. Turn on/Turn off
z Turn on:
Method 1: Press the Power key at least 3 seconds and release it to turn on CP100. At
the same time, PWR LED will light on.
z Turn off:
Method 1: Turn off device by manage tool ,use GTRTO ,parameter set to 5 (PWROFF).
Method 2: Turn off device by server command GTRTO, parameter set to 5 (PWROFF).
CP100 User Manual
TRACCP100UM001 - 10 -
5. Troubleshooting and Safety info
5.1. Troubleshooting
Trouble Possible Reason Solution
After CP100 is turned on, the
PWR LED flashes quickly
always.
Charging is abnormal. Please unplug wall charger
from CP100 and check wall
charger.
The SIM card in CP100
doesn’t support GPRS.
Try a GPRS supported SIM
card.
APN is wrong. Some APN
can not visit the internet
directly.
Ask the network operator for
the right APN.
Messages can’t be reported to
the backend server by GPRS.
The IP address or port of the
backend server is wrong.
Make sure the IP address for
the backend server is an
identified address in the
internet.
Unable to power off CP100. The function was disabled. Please use manage tool to turn
off or by server command.
Remove the Data_Cable_M,
and plug it in again. After this
operation, CP100 will exit
from power saving mode for 10
seconds.
No response from UART when
configure CP100 through
UART
CP100 is in power saving
mode.
Re-try CP100 manager tool
again, it will try to wake up
device.
Please move CP100 to a place
with open sky.
CP100 can’t get successful
GPS fixing.
The GPS signal is weak.
It is better to let the top surface
face to sky.
5.2. Safety info
z Please do not disassemble the device by yourself.
z Please do not put the device on the overheating or too humid place, avoid exposure to direct
sunlight. Too high temperature will damage the device or even cause the battery explosion.
z Please do not use CP100 on the airplane or near medical equipment.
