0. Revision history
RevisionDateAuthorDescriptionofchange
1.002015/5/25Hazard.Zhang Initial

SuperEasyGSMModuleUserManual
TRACSuperEasyUM0010
1. Introduction
The water resistant GL300W is a powerful GPS locator designed for lone worker, vehicle,
pet and asset tracking applications. The thumb sized button makes this device ideal for
applications requiring rapid notification of emergency alert or regular setting of geo-fences
based on current location. Its built-in GPS receiver has superior sensitivity and fast time to
first fix. Its WCDMA allows the GL300W's location to be monitored in real time or
periodically tracked by a backend server and mobile devices. Its built-in 3-axis
accelerometer allows motion detection and extends battery life through sophisticated
power management algorithms. System integration is straightforward as complete
documentation is provided for the full featured @Track protocol. The @Track protocol
supports a wide variety of reports including emergency, geo-fence boundary crossings,
low battery and scheduled GPS position.

SuperEasyGSMModuleUserManual
TRACSuperEasyUM0011
2. Product Overview

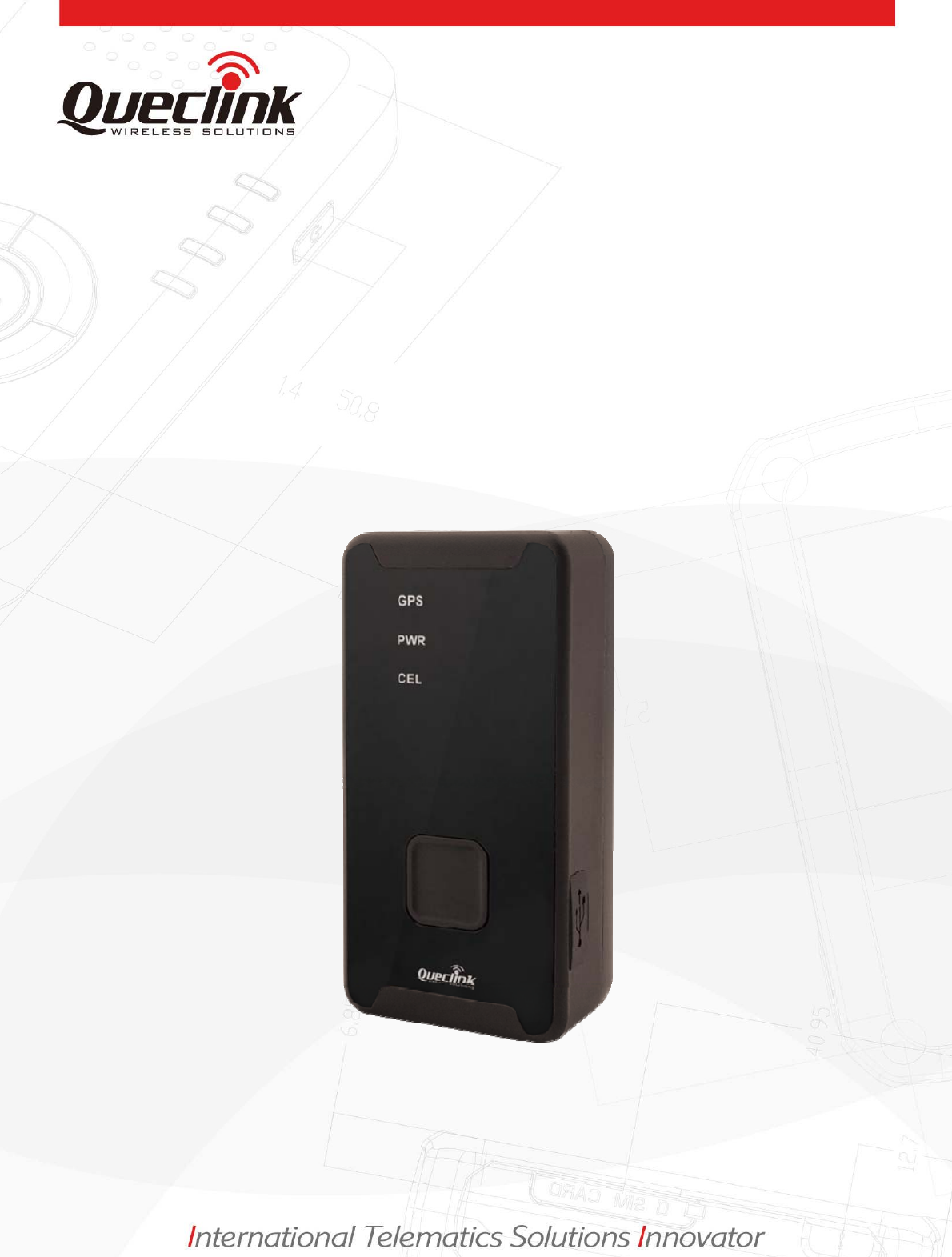

2.1. Appearance
2.2. Buttons/Mini USB Interface Description
Button /Mini USB Interface Description
Power Key TurnonGL300W
TurnoffGL300Wwhenwithoutcharging.(Ifpowerkeyis
enabled)
Function Key Geo‐Fencemode
Long press the key to enable/disable Geo-Fence ID0
Geo‐Fenceincurrentpositionmode
Long press the key to enable/disable Geo-Fence ID0. If
enable Geo-Fence ID0, using the current position as the
center of Geo-Fence 0.
SOSmode(default)
Long press the key to active SOS alarm
Mini USB interface Connecta5VDCadaptercanpowerGL300Wandchargethe
internalbattery
Connecta3.7VLi‐ionorLi‐Polymerbatterycanpower
GL300W
Backendserverdeveloperoradministratorcanusethe
Data_Cable_MtoconfigureGL300W

SuperEasyGSMModuleUserManual
TRACSuperEasyUM0012
2.3. LEDs Description
There are three LED in GL300W, the description as following.
2.4. External Power Interface
2.4.1. External DC Charger Interface
The Pin2 on Mini-USB connector are used for charging and named as VCHG pin, It can
be connected to a 5V DC power supply to power GL300W and charge the internal battery.
LED Event State
CELL LED Searching network Fast flash
Network has been registered Slow flash
Power off Dark
SIM-PIN Locked Solid
<LED on> is 2 Dark
GPS LED GPS has fixed Solid
GPS is in fixing Fast flash
GPS is on and GPS data wrong Slow flash
GPS is off Dark
If <LED on> is 0, 150 seconds later after powers on. Dark
<LED on> is 2 Dark
PWR LED Power on and normal Dark
Charger inserted and charging completed Solid
Charger inserted and charging Fast flash
Power key was pressed and prepare to power off Fast flash
Abnormal Fast flash
Power low alert Slow flash
Power off or turn off the power light by command Dark
<LED on> is 2 Dark

SuperEasyGSMModuleUserManual
TRACSuperEasyUM0013
2.4.2. External Battery Interface

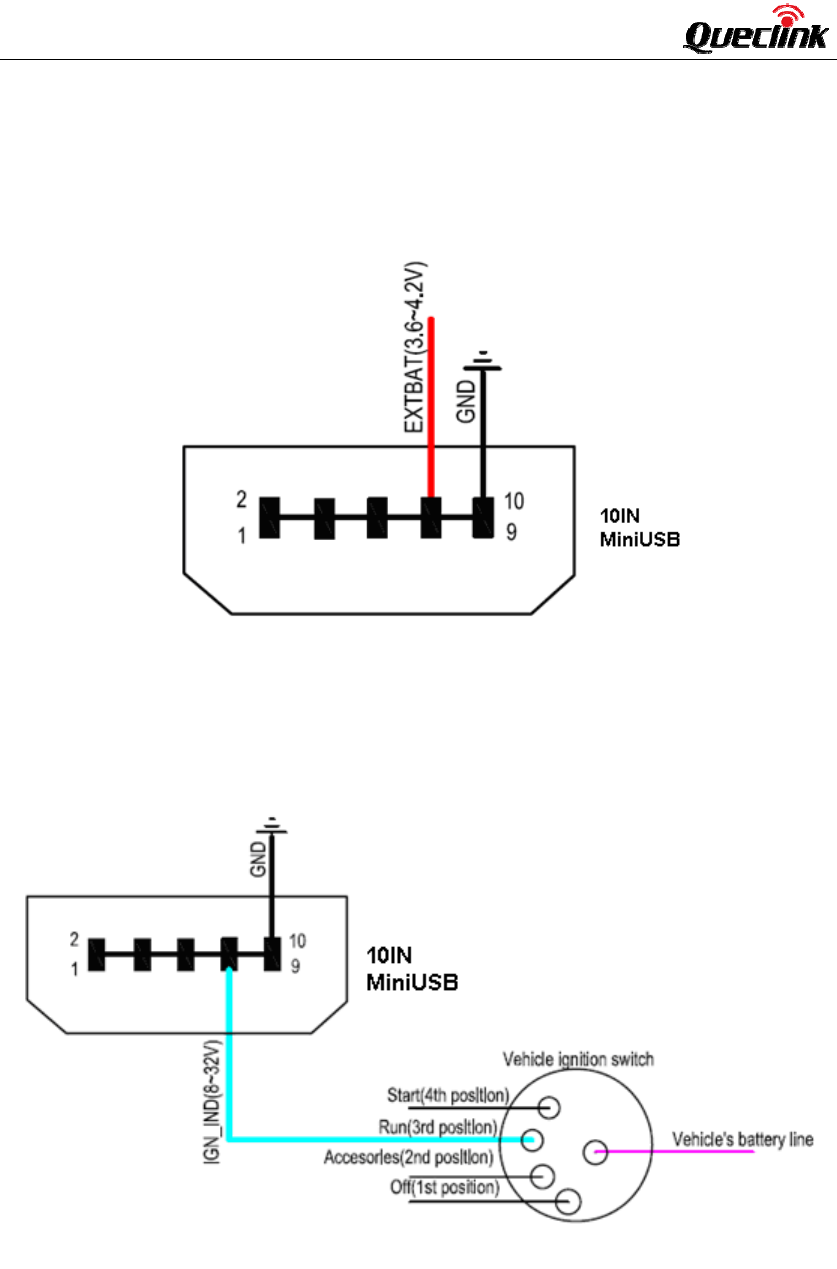

The Pin 8 on Mini-USB connector is for external battery and named as EXTBAT pin, It can
be connected to 3.7V Li-ion or Li-Polymer battery to power GL300W.
2.5. Ignition Detection
The Pin 7 on Mini-USB connector is for ignition detection when GL300W is used in vehicle
tracking application, It is named as IGN_IND pin.
AnothereasywayistoconnectPIN7toapoweroutputinthefuseboxofthevehiclewhich
isonlyenabledafterthevehicleisignitionon.Forexample:thepoweroutputforradioFM.
2.6. External Input Interface
The Pin 5 on Mini-USB connector is a negative trigger input in newer hardware version, It
is named as NSW pin.

SuperEasyGSMModuleUserManual
TRACSuperEasyUM0014
Fornegativetriggerinputtheelectricalconditionsare:
LogicalStateElectricalState
Active0Vto0.8V
Inactive1.7Vto32VorOpen
An input example is shown as following figures:
Example of NSW pin connect to a panic button
3. Getting Started
3.1. Parts List
Name PictureRemark
GL300WLocater
TheWCDMA/GPRS/GPS
locator.
AC‐DCPowerAdapter
(Standardaccessory)
Itisusedtochargetheinternal
batteryofGL300W.

SuperEasyGSMModuleUserManual
TRACSuperEasyUM0015
GL300WDataCable
(Optionalaccessory)
ItistheUSBdatacablewhich
canbeusedforfirmware
upgradingandconfiguration.
GL300WExternalCable
(Optionalaccessory)
Itistheextendcablewhich
includethechargerinterface
andexternalbatteryinterface
onGL300W.Italsoincludesthe
ignitiondetectioninterfaceon
theGL300W.
3.2. Battery Charging
PleaseconnectAC‐DCpoweradapterwithGL300W.
InserttheAC‐DCpoweradapterintothepowersocket.
Duringcharging,thePWRLEDisflashingfast.Whenthebatteryisfullcharged,thePWRLED
willbeEver‐light.
YoucanalsochargethebatterybyUSBcablewhichconnectsGL300WwiththePC.
Chargingtimeisabout5hours.
Note:BeforethefirsttimeusingGL300W,pleasefullchargethebattery.
3.3. GL300W External Cable Interface
GL300WExternalCableisacablewithaMiniUSBconnectorandsixwireswhichinclude
theexternalpowerinterface,ignitiondetectandinputinterfaceforGL300W.Please
findthedetaildescriptioninfollowingtable.
ColorNameRemark
REDExternalDCIN(5V)Pleasereferto2.4.1fordetail
BlackGroundPleasereferto2.4.1fordetail
BlueExternalBatteryIN(DC3.4Vto4.2V)Pleasereferto2.4.2fordetail

SuperEasyGSMModuleUserManual
TRACSuperEasyUM0016
WhiteIgnitionDetectPleasereferto2.5fordetail
GreenNSW(negativetriggerinput)Pleasereferto2.6fordetail
3.4. Turn on/Turn off
Turnon:
Method1:PressthePowerkeyatleast3secondsandreleaseittoturnonGL300W.At
thesametime,PWRLEDwilllighton.
Method2:Connectdevicetochargerorexternalbattery,anditwillturnon
automatically,PWRLEDwilllighton.
Turnoff:
Method1:Pressthepowerkeyabout2seconds;PWRLEDwillfastflashandthenturn
off,itindicatesthatGL300Wisturnedoff.Thetimeofpoweroffisdependedonthe
qualityofnetwork.Themaximumtimeofpoweroffis90seconds.Itisonlyvalidto
turnoffwhenusinginternalbattery.Pleasenotetheend‐usercannotpoweroff
GL300Wwhenthepowerkeyisdisabledbyprotocol.
Method2:Ifusingexternalbattery,devicewillpowerturn‐offwhenexternalbattery
disconnect.

SuperEasyGSMModuleUserManual
TRACSuperEasyUM0017
4. Troubleshooting and Safety info
4.1. Troubleshooting
Trouble Possible Reason Solution
After GL300W is turned on,
the WCDMA LED flashes
quickly always.
The signal is too weak;
GL300W can’t register to the
network.
Please move GL300W into
place with good WCDMA
coverage.
Messages can’t be reported
to the backend server by
GPRS.
APN is wrong. Some APN
cannot visit the internet directly.
Ask the network operator for
the right APN.
The IP address or port of the
backend server is wrong.
Make sure the IP address for
the backend server is an
identified address in the
internet.
Unable to power off
GL300W.
The function of power key was
disabled by AT+GTFKS.
Enable the function of power
key by AT+GTFKS.
Unable to power off GL300W if
charger connected or using
external battery.
Disconnect charger or external
battery, and try again.
No response from UART
when configure GL300W
through UART
GL300W is in power saving
mode.
Remove the Data_Cable_M,
and plug it in again. After this
operation, GL300W will exit
from power saving mode for 10
seconds.
Re-try GL300W manager tool
again, it will try to wake up
device.
GL300W can’t get
successful GPS fixing.
The GPS signal is weak. Please move GL300W to a
place with open sky.
It is better to let the top surface
face to sky. (The same surface
with indication LED)
4.2. Safety info
Pleasedonotdisassemblethedevicebyyourself.
Pleasedonotputthedeviceontheoverheatingortoohumidplace,avoidexposureto
directsunlight.Toohightemperaturewilldamagethedeviceorevencausethebattery
explosion.
PleasedonotuseGL300Wontheairplaneornearmedicalequipment.

SuperEasyGSMModuleUserManual
TRACSuperEasyUM0018
WARNING:
Thisdevicecomplieswithpart15oftheFCCRules.Operationissubjecttothefollowingtwo
conditions:
(1) Thisdevicemaynotcauseharmfulinterference,and
(2) Thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycause
undesiredoperation.Changesormodificationsnotexpresslyapprovedbytheparty
responsibleforcompliancecouldvoidtheuser’sauthoritytooperatetheequipment.
NOTE:
ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,
pursuanttopart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonable
protectionagainstharmfulinterferenceinaresidentialinstallation.
Thisequipmentgenerates,usesandcanradiateradiofrequencyenergyand,ifnotinstalledand
usedinaccordancewiththeinstructions,maycauseharmfulinterferencetoradio
communications.However,thereisnoguaranteethatinterferencewillnotoccurinaparticular
installation.Ifthisequipmentdoescauseharmfulinterferencetoradioortelevisionreception,
whichcanbedeterminedbyturningtheequipmentoffandon,theuserisencouragedtotryto
correcttheinterferencebyoneormoreofthefollowingmeasures:
‐Reorientorrelocatethereceivingantenna.
‐Increasetheseparationbetweentheequipmentandreceiver.
‐Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiveris
connected.
‐Consultthedealeroranexperiencedradio/TVtechnicianforhelp.
RF Exposure Information and Statement:
TheSARlimitofUSA(FCC)is1.6W/kgaveragedoveronegramoftissue,andtheSARlimitofEu
(CE)is2W/kgaveragedoveronegramoftissue.
Devicetypes:GL300W(FCCID:YQD‐GL300W)hasalsobeentestedagainstthisSARlimit.
ThehighestSARvaluereportedunderthisstandardduringproductcertificationforuseonthe
bodyis1.375W/kgfor1g(FCC)andfor10g(CE)is0.857W/kg.
Thesafetydistanceis6.2cmforthisdevice.
