GV300C User manual
TRACGV3SUM001 - 1 -
CDMA2000-1X/GPS Tracker GV300C
User Manual
Application Notes: TRACGV300CUM001
Revision: 1.01
Hhttp://www.queclink.com
Hsales@queclink.com
GV300C User manual
TRACGV300CUM001 - 2
-
Document Title GV300C User Manual
Version 1.01
Date 2013-11-14
Status Release
Document Control ID TRACGV300CUM001
General Notes
Queclink offers this information as a service to its customers, to support application and
engineering efforts that use the products designed by Queclink. The information provided is
based upon requirements specifically provided to Queclink by the customers. Queclink has
not undertaken any independent search for additional relevant information, including any
information that may be in the customer’s possession. Furthermore, system validation of this
product designed by Queclink within a larger electronic system remains the responsibility of
the customer or the customer’s system integrator. All specifications supplied herein are
subject to change.
WARNING:
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must acce
pt any interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance cou
ld void the user’s authority to operate the equipment.
FCC RF Exposure Statement:
For the product,under normal use condition is at least 20cm away from the body of the
user,the user must keeping at least 20cm distance to the product.
NOTE:
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
GV300C User manual
TRACGV300CUM001 - 3
-
-Consult the dealer or an experienced radio/TV technician for help.
Copyright
This document contains proprietary technical information which is the property of Queclink
Limited., copying of this document and giving it to others and the using or communication of
the contents thereof, are forbidden without express authority. Offenders are liable to the
payment of damages. All rights reserved in the event of grant of a patent or the registration of
a utility model or design. All specification supplied herein are subject to change without
notice at any time.
Copyright © Shanghai Queclink Wireless Solutions Co., Ltd. 2013
Contents
Contents ............................................................................................................................................ 3
0. Revision History ....................................................................................................................... 6
1. Introduction ............................................................................................................................... 7
1.1 Reference .................................................................................................................. 7
1.2 Terms and Abbreviations ........................................................................................... 7
2. Product Overview ..................................................................................................................... 8
2.1. Check Part List .......................................................................................................... 8
2.2. Parts List ................................................................................................................... 9
2.3. Interface Definition ................................................................................................. 10
2.4. GV300C User Cable Colour ................................................................................... 11
3. Getting Started ........................................................................................................................ 12
3.1. Opening the Case .................................................................................................... 12
3.2. Closing the Case ...................................................................................................... 12
3.3. Installing the Internal Backup Battery..................................................................... 13
3.4. Switch ON the Backup Battery ............................................................................... 13
3.5. Installing the External GPS Antenna (Optional) ..................................................... 14
3.5.1. GPS Antenna Specification ............................................................................. 14
3.6. Power Connection ................................................................................................... 15
3.7. Ignition Detection .................................................................................................... 16
3.8. Digital Inputs ........................................................................................................... 17
3.9. Analog Inputs .......................................................................................................... 17
3.10. Digital Outputs ........................................................................................................ 1 8
3.11. Device Status LED .................................................................................................. 19
3.12. Serial Port / UART Interface ................................................................................... 21
3.12.1. Connect With Garmin GPS Set ....................................................................... 21
GV300C User manual
TRACGV300CUM001 - 4
-
Table Index
TABLE 1. GV300C PROTOCOL REFERENCE ............................................................................. 7
TABLE 2. TERMS AND ABBREVIATIONS .................................................................................. 7
TABLE 3. PART LIST ...................................................................................................................... 9
TABLE 4. DESCRIPTION OF 16 PIN CONNECTIONS .............................................................. 10
TABLE 5. GV300C USER CABLE COLOUR DEFINITION ....................................................... 11
TABLE 6. GPS ANTENNA SPECIFICATION .............................................................................. 14
TABLE 7. ELECTRICAL CHARACTERISTICS OF IGNITION DETECTION ......................... 16
TABLE 8. ELECTRICAL CHARACTERISTICS OF THE DIGITAL INPUTS ........................... 17
TABLE 9. ELECTRICAL CHARACTERISTICS OF DIGITAL OUTPUTS ................................ 18
TABLE 10. DEFINITION OF DEVICE STATUS AND LED ......................................................... 19
GV300C User manual
TRACGV300CUM001 - 5
-
Figure Index
FIGURE 1. APPEARANCE OF GV300C ......................................................................................... 8
FIGURE 2. THE 16 PIN CONNECTOR ON THE GV300C ........................................................... 10
FIGURE 3. OPENING THE CASE .................................................................................................. 12
FIGURE 4. CLOSING THE CASE .................................................................................................. 12
FIGURE 5. BACKUP BATTERY INSTALLATION ....................................................................... 13
FIGURE 6. SWITCH AND ON/OFF POSITION ............................................................................ 13
FIGURE 7. GPS ANTENNA OF GV300C ...................................................................................... 14
FIGURE 8. TYPICAL POWER CONNECTION ............................................................................. 15
FIGURE 9. TYPICAL IGNITION DETECTION ............................................................................ 16
FIGURE 10. TYPICAL DIGITAL INPUT CONNECTION .............................................................. 17
FIGURE 11. TYPICAL ANALOG INPUT CONNECTION ............................................................. 17
FIGURE 12. DIGITAL OUTPUT INTERNAL DRIVE CIRCUIT .................................................... 18
FIGURE 13. TYPICAL CONNECTION WITH RELAY .................................................................. 18
FIGURE 14. TYPICAL CONNECTION WITH LED ....................................................................... 19
FIGURE 15. GV300C LED ON THE CASE ..................................................................................... 19
FIGURE 16. TYPICAL CONNECTION WITH RS232 PORT ......................................................... 21
FIGURE 17. GV300C CONNECTION WITH GARMIN GPS SET ................................................. 21
GV300C User manual
TRACGV300CUM001 - 6
-
0. Revision History
Revision Date Author Description of change
1.00 2013-6-7 York.zhu Initial
1.01 2013-11-14 Cid.Xu Updated related images;
GV300C User manual
TRACGV300CUM001 - 7 -
1. Introduction
The GV300C is a compact GPS tracker designed for a wide variety of vehicle tracking
applications. The GV300C has multiple input/output interfaces that can be used for monitoring or
controlling external devices. Its built in GPS receiver has superior sensitivity and fast time to first
fix. It’s dual band CDMA2000-1x subsystem supports 800/1900MHz allowing the GV300C's
location to be monitored in real time or periodically tracked by a backend server and mobile
devices. It’s built in 3-axis accelerometer allows driver behaviour, motion detection and extended
battery life through sophisticated power management algorithms. System integration is
straightforward as complete documentation is provided for the full featured @Track protocol. The
@Track protocol supports a wide variety of reports including; emergency, geo-fence boundary
crossings, driver behaviour, low battery or scheduled GPS position and many other useful
functions.
1.1 Reference
Table 1. GV300C Protocol Reference
SN Document name Remark
[1] GV300C @Track Air Interface Protocol The air protocol interface between
GV300C and backend server.
1.2 Terms and Abbreviations
Table 2. Terms and Abbreviations
Abbreviation Description
AGND Analog Ground
AIN Analog Input
DIN Digital Input
DOUT Digital Output
GND Ground
RXD Receive Data
TXD Transmit Data
NC No Connect
GV300C User manual
TRACGV300CUM001 - 8 -
2. Product Overview
2.1. Check Part List
Before starting, check all the following items have been included with your GV300C. If anything
is missing, please contact your supplier.

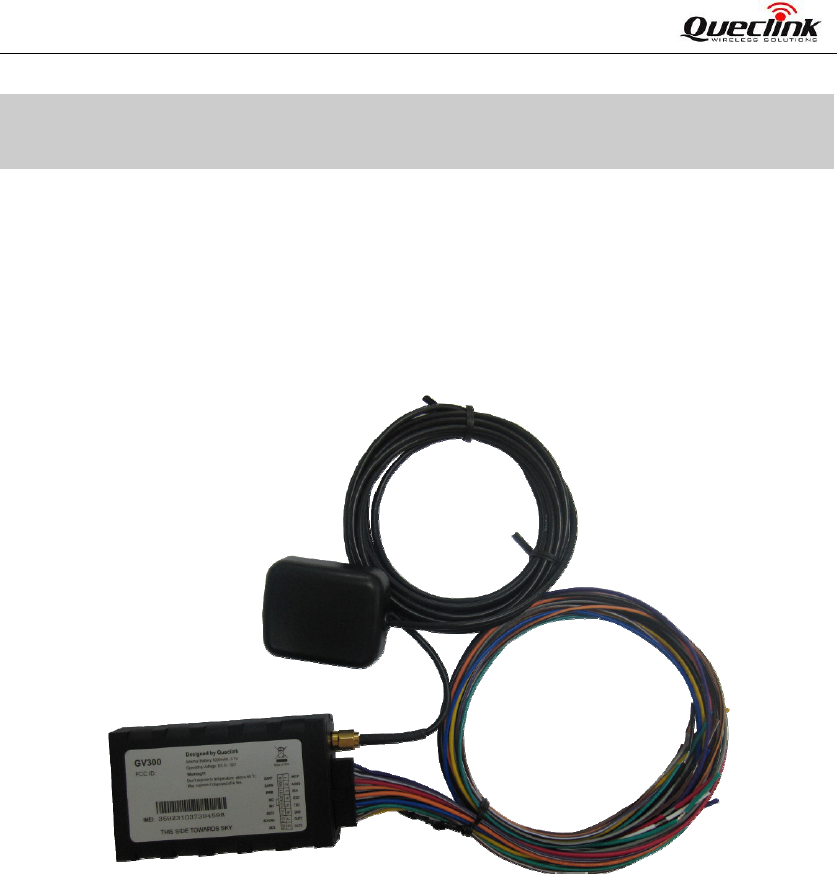

Figure 1. Appearance of GV300C
GV300C User manual
TRACGV300CUM001 - 9
-

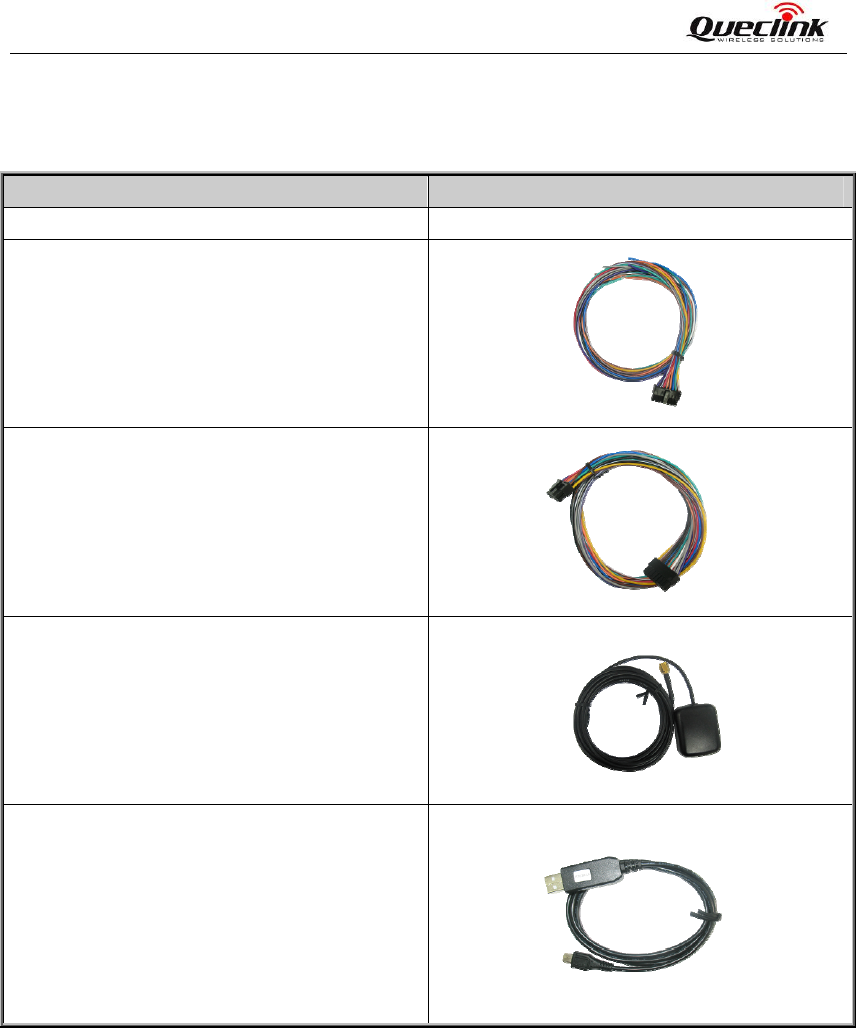

2.2. Parts List
Table 3. Part List
Name Picture
GV300C Locator 80*49*26 mm
User Cable
Extend Cable (Optional)
GPS Antenna (Optional)
DATA_CABLE_M (Optional)
GV300C User manual
TRACGV300CUM001 - 10
-
2.3. Interface Definition
The GV300C has a 16 PIN interface connector. It contains the connections for power, I/O, RS232,
etc. The sequence and definition of the 16PIN connector are shown in following figure:

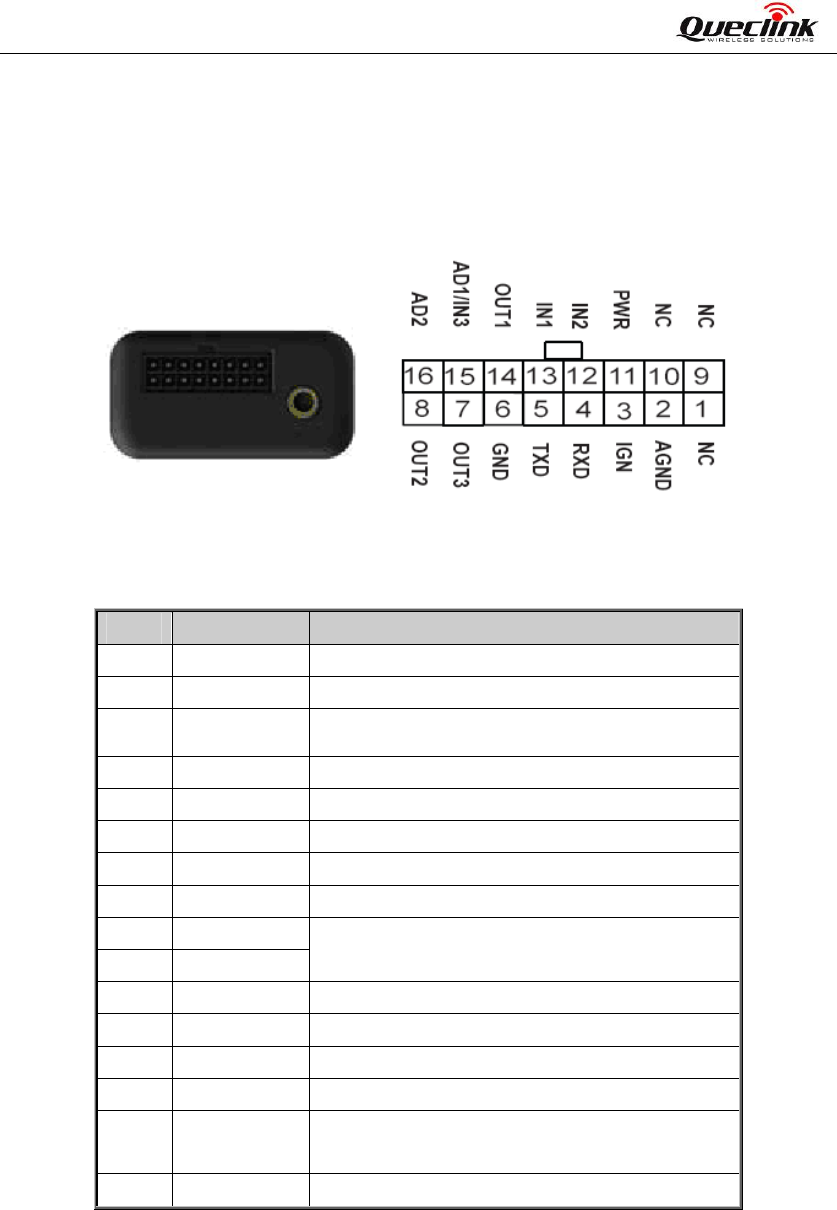

Figure 2. The 16 PIN connector on the GV300C
Table 4. Description of 16 PIN Connections
Index Description Comment
1 NC Leave it floating
2 AGND Analog Ground
3 IGN Ignition input, positive trigger
4 RXD UART RXD, RS232
5 TXD UART TXD, RS232
6 GND Power and digital ground
7 OUT3 Open drain, 150mA max
8 OUT2 Open drain, 150mA max
9 NC Leave it floating
10 NC
11 PWR External DC power input, 8-32V
12 IN2 Digital input, negative trigger
13 IN1 Digital input, negative trigger
14 OUT1 Open drain, 150mA max ,with latch circuit
15 AD1/IN3 Multifunction input, analog or digital input
0-16V
16 AD2 Analog input 0.3-16v
GV300C User manual
TRACGV300CUM001 - 11
-

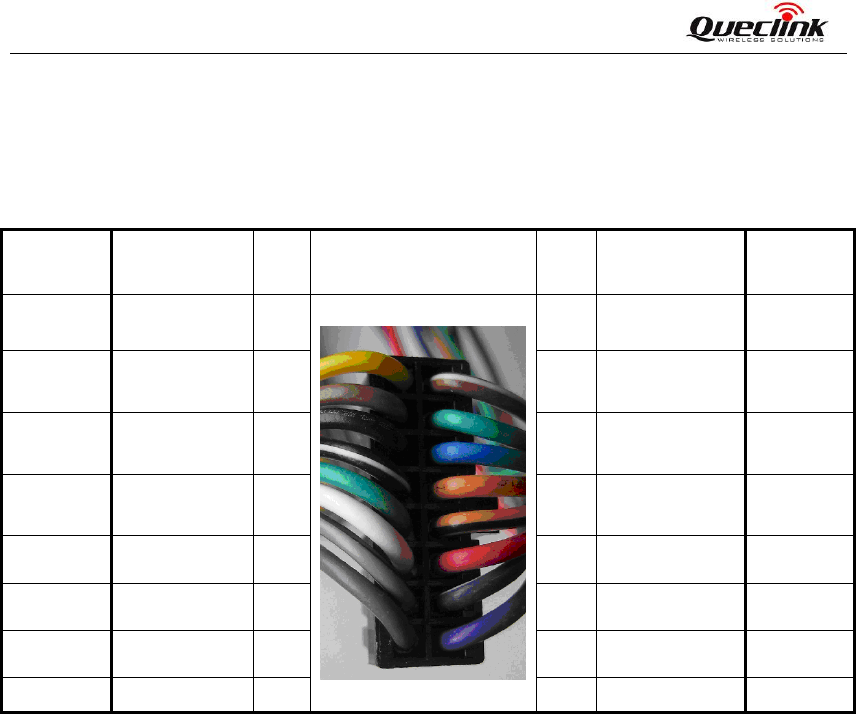

2.4. GV300C User Cable Colour
Table 5. GV300C User Cable Colour definition
Definition Color PIN
No Cable PIN
No Color Definition
OUT2 Yellow 8 16 Brown/White AD2
OUT3 Brown 7 15 Green AD1/IN3
GND Black 6 14 Blue OUT1
TXD White/Black 5 13 Orange IN1
RXD Green or Pink 4 12 Orange/Black IN2
IGN White 3 11 Red PWR
AGND Gray/ Black 2 10 Purple/White NC
NC Gray 1 9 Purple NC
GV300C User manual
TRACGV300CUM001 - 12
-
3. Getting Started
3.1. Opening the Case
Figure 3. Opening the Case
Insert the triangular-pry-opener into the gap of the case as shown below, push the opener up until
the case unsnapped.
3.2. Closing the Case
Figure 4. Closing the Case
Place the cover on the bottom in the position as shown in the following figure. Slide the
cover against the direction of the arrow until it snapped.
GV300C User manual
TRACGV300CUM001 - 13
-

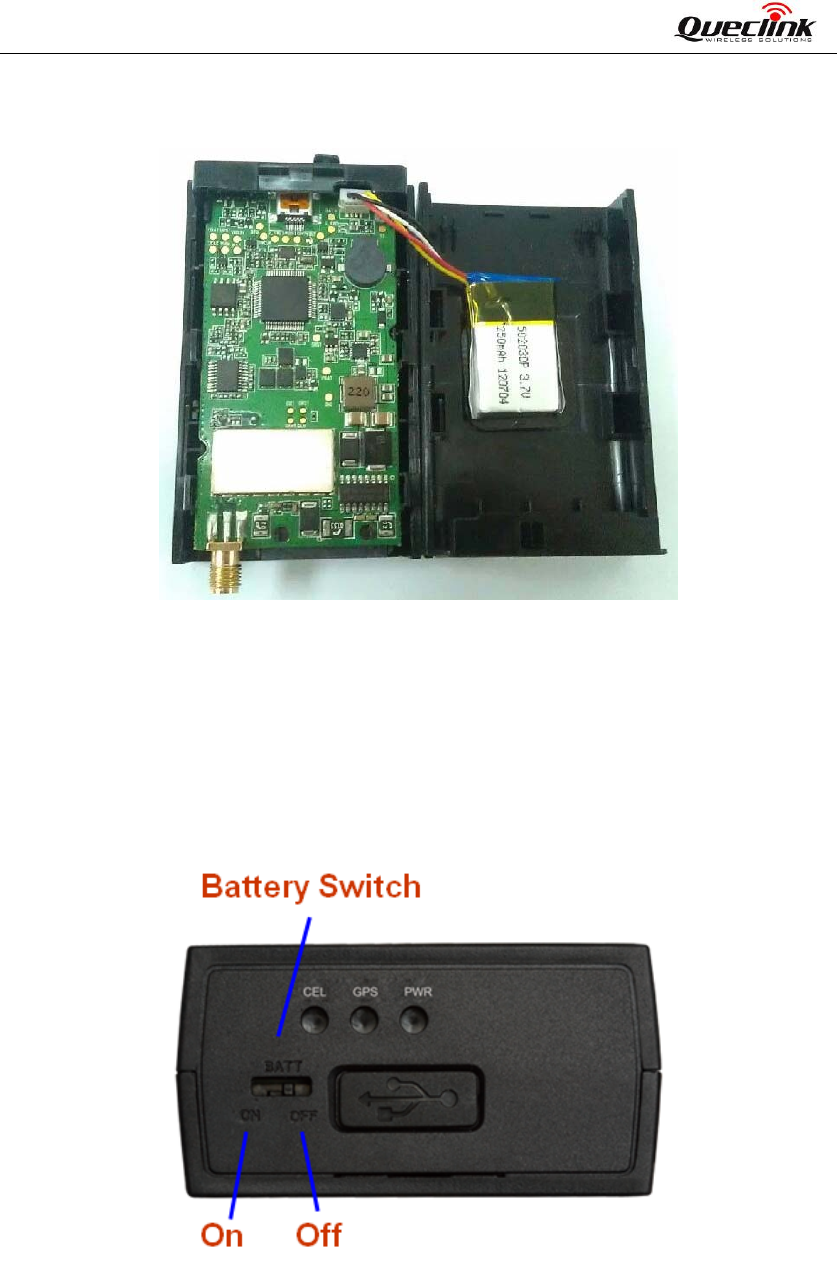

3.3. Installing the Internal Backup Battery
Figure 5. Backup Battery Installation
There is an internal backup Li-ion battery,
3.4. Switch ON the Backup Battery
To use the GV300C backup battery, the switch must be at the ON position. Switch on the case and
ON/OFF position are shown below.
Figure 6. Switch and ON/OFF position
Note:
1. The switch must be on the “OFF” position when shipped on an aircraft.
2. When the switch is on the “OFF” position, the battery cannot be charged or discharged.
GV300C User manual
TRACGV300CUM001 - 14
-
3.5. Installing the External GPS Antenna (Optional)
There is a SMA GPS antenna connector on GV300C. The GV300C will automatically detect and
use an external antenna when connected.

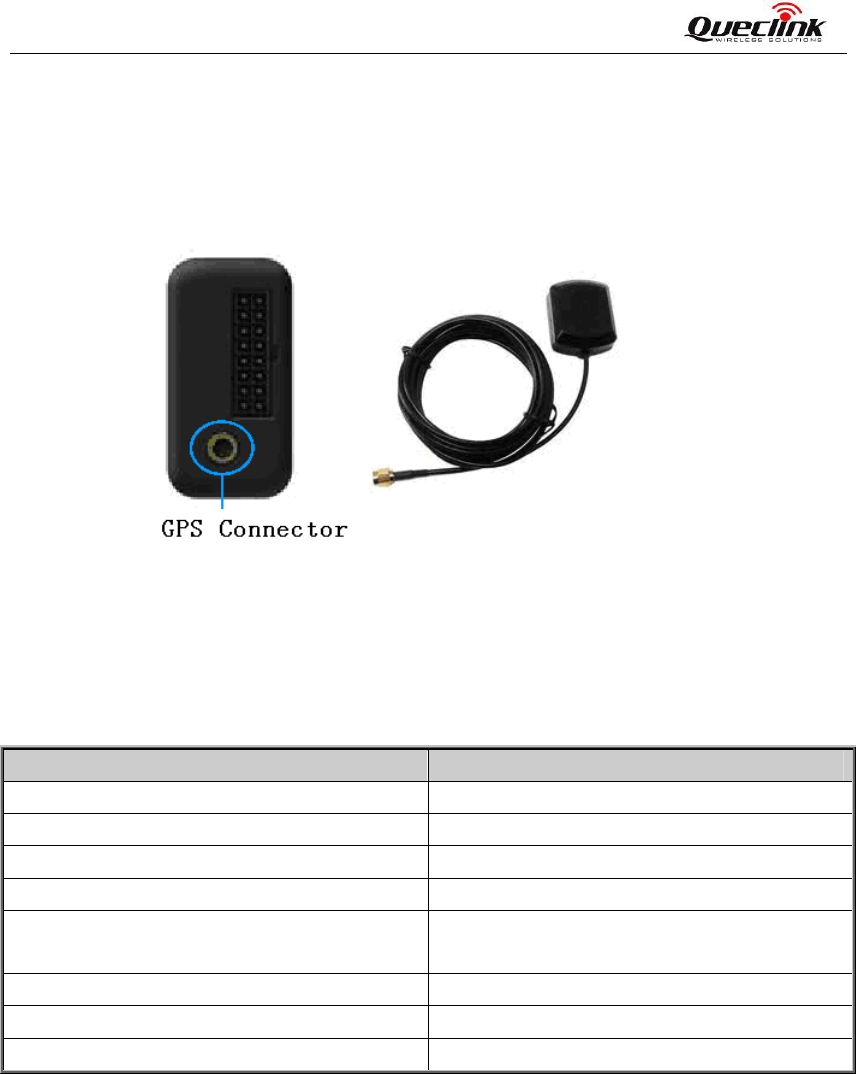

Figure 7. GPS Antenna of GV300C
3.5.1. GPS Antenna Specification
Table 6. GPS Antenna Specification
GPS antenna: Frequency: 1575.42MHz
Bandwidth: >5MHz
Beam width: >120 deg
Supply voltage: 2.7V-3.3V
Polarization: RHCP
Gain: Passive: 0dBi min
Active: 15dB
Impedance: 50Ω
VSWR: <2
Noise figure: <3
GV300C User manual
TRACGV300CUM001 - 15
-
3.6. Power Connection
PWR (PIN12) / GND (PIN6) are the power input pins. The input voltage range for this device is
from 8V to 32V. The device is designed to be installed in vehicles that operate on 12V or 24V
systems without the need for external transformers.

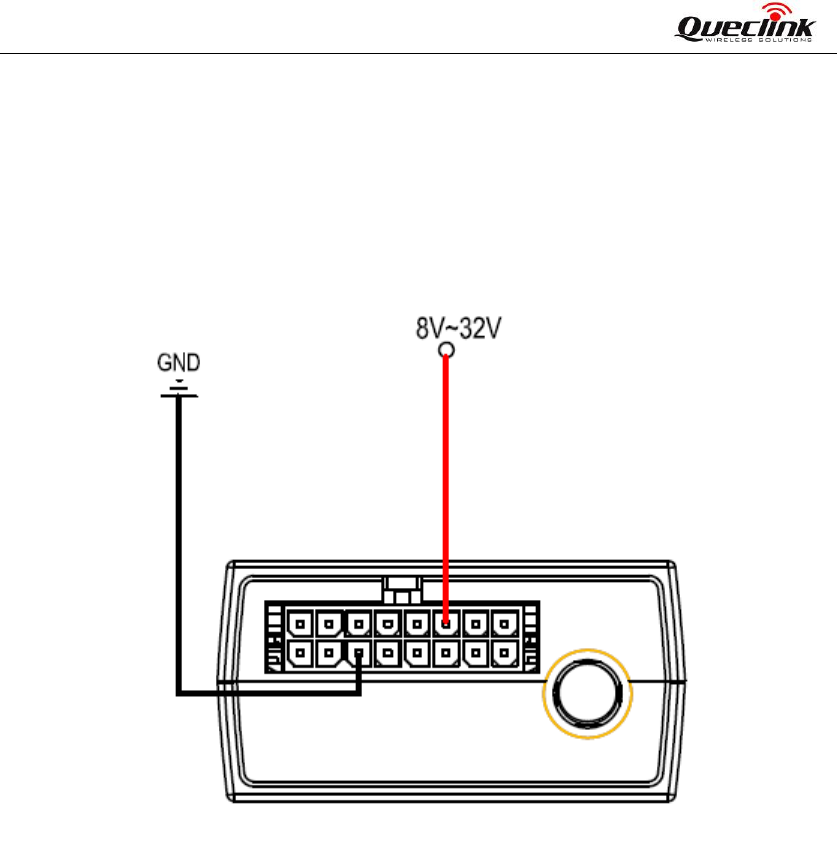

Figure 8. Typical Power Connection
GV300C User manual
TRACGV300CUM001 - 16
-
3.7. Ignition Detection
Table 7. Electrical Characteristics of Ignition Detection
Logical State Electrical State
Active 5.0V to 32V
Inactive 0V to 3V or Open

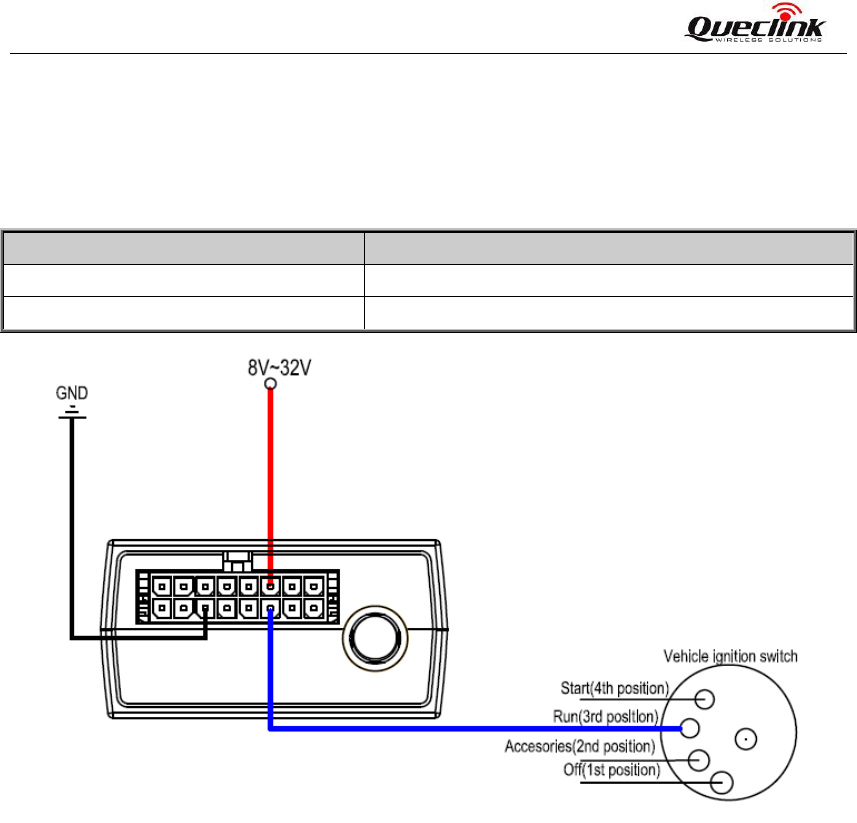

Figure 9. Typical Ignition Detection
IGN (Pin3)is used for ignition detection. It is strongly recommended to connect this pin to ignition
key “RUN” position as shown up.
An alternative to connecting to the ignition switch is to find a non permanent power source that is
only available when the vehicle is running. For example the power source for the FM radio.
IGN signal can be configured to start transmitting information to backend server when ignition is
on; and enter power saving mode when ignition is off.
There are three general purpose digital inputs on GV300C. They are all negative trigger.
GV300C User manual
TRACGV300CUM001 - 17
-
3.8. Digital Inputs
Table 8. Electrical Characteristics of the digital inputs
Logical State Electrical Characteristics
Active 0V to 0.8V
Inactive Open
The following diagram shows the recommended connection of a digital input.

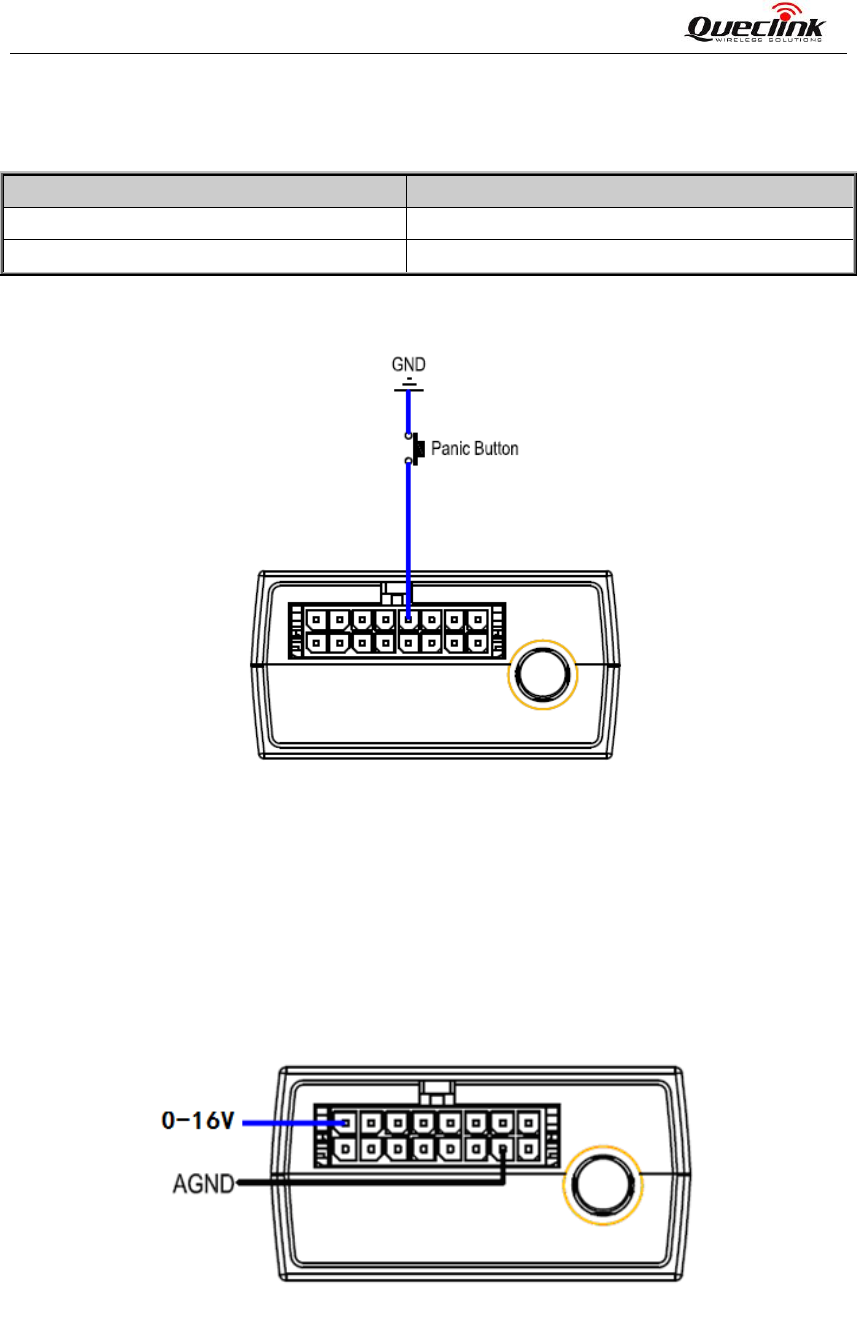

Figure 10. Typical Digital Input Connection
3.9. Analog Inputs
There are two analog inputs on GV300C, the analog input voltage range is from 0 to 16V. The
following diagram shows the recommended connection.
Figure 11. Typical Analog Input Connection
Note:
PIN 15 is a multifunction pin: it can be configured as a digital input or an analog input.
GV300C User manual
TRACGV300CUM001 - 18
-
3.10. Digital Outputs
There are three digital outputs on GV300C. All are of open drain type and the maximum drain
current is 150 mA. Each output has the built-in over current and recovery PTC fuse

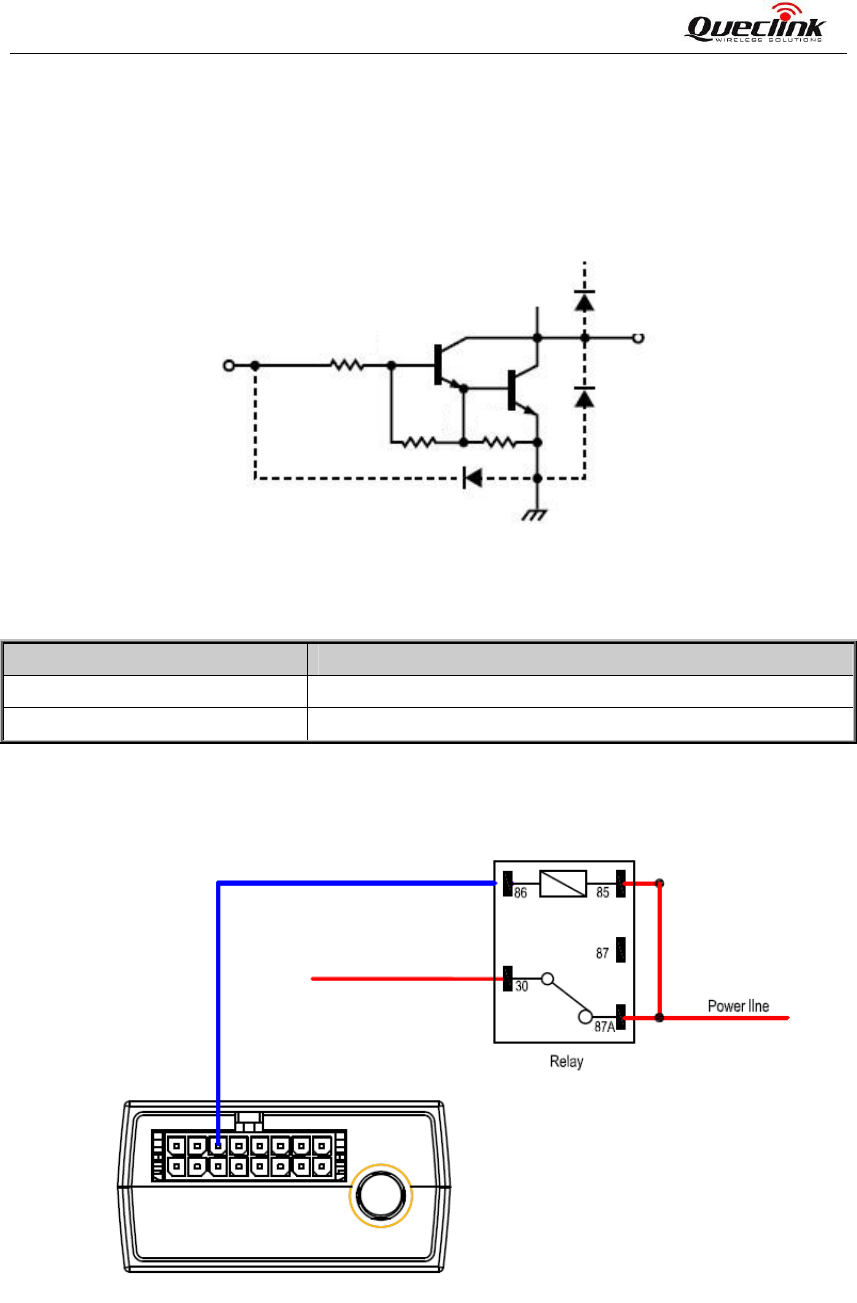

Figure 12. Digital Output Internal Drive Circuit
Table 9. Electrical Characteristics of Digital Outputs
Logical State Electrical Characteristics
Enable <1.5V @150mA
Disable Open drain
Figure 13. Typical Connection with Relay
GV300C User manual
TRACGV300CUM001 - 19
-
Figure 14. Typical Connection with LED
Note:
1. OUT1 will latch the output state during reset.
2. All outputs are internally pulled up to PWR pin by a diode. So no external fly back diode is
needed when the output is connected to an inductive load.
3.11. Device Status LED
Figure 15. GV300C LED on the Case
Table 10. Definition of Device status and LED
CELL LED
GV300C User manual
TRACGV300CUM001 - 20
-
Note:
1. CDMA2000 LED cannot be configured.
2. GPS LED and PWR LED can be configured to turn off after a period of time using the
configuration tool
3. Fast flashing is about 60ms ON/ 780ms OFF
4. Slow flashing is about 60ms ON/ 1940ms OFF
LED Device status LED status
CELL
(note1)
Device is searching CDMA2000 network Fast flashing
(Note3)
Device has registered to CDMA2000 network. Slow flashing
(Note4)
SIM card needs pin code to unlock. ON
GPS
(note 2)
GPS chip is powered off OFF
GPS sends no data or data format error. Slow flashing
GPS chip is searching GPS info. Fast flashing
GPS chip has gotten GPS info. ON
PWR
(note 2)
No external power and internal battery voltage is lower
than 3.35V.
OFF
No external power and internal battery voltage is
below 3.5V.
Slow flashing
External power in and internal battery is charging Fast flashing
External power in and internal battery is fully charged ON
GV300C User manual
TRACGV300CUM001 - 21
-
3.12. Serial Port / UART Interface
There are two lines dedicated to the Serial Port / UART interface (TXD and RXD).TXD / RXD
are standard RS232 signal.
Figure 16. Typical Connection with RS232 Port
3.12.1. Connect With Garmin GPS Set
GV300C can communicate with Garmin GPS Set. The following typical connection is using
Queclink AG100 cable.
Figure 17. GV300C connection with Garmin GPS set
Note:
GV300C some version maybe connects with Garmin GPS set by Garmin FMI10/FMI15 cable,
please consult with Queclink for detail information.
