The GV50LTA is a powerful GPS locator designed for vehicle or asset tracking. It has superior
receiver sensitivity, fast TTFF (Time to First Fix) and supports Dual-Band 4G-LTE B4&B13
Band, and its location can be monitored in real time or periodically tracked by a backend
server or other specified terminals. The GV50LTA has multiple input/output interfaces that
can be used for monitoring or controlling external devices. Based on the integrated @Track
protocol, the GV50LTA can communicate with a backend server through the 4G-LTE network
over which it transfer reports of emergency, geo-fence boundary crossings, low backup
battery or scheduled GPS position as well as many other useful functions. Users can also use
GV50LTA to monitor the status of a vehicle and control the vehicle by its external relay
output. System Integrators can easily set up their tracking systems based on the
full-featured @Track protocol.
1.1. Reference
Table 1: GV50LTA Protocol Reference
SN
Document name
Remark
[1]
GV50LTA @Track Air Interface Protocol
The air protocol interface between
GV50LTA and backend server.
1.2. Terms and Abbreviations
Table 2: Terms and Abbreviations
Abbreviation
Description
AGND
Analog Ground
AIN
Analog Input
DIN
Digital Input
DOUT
Digital Output
GND
Ground
RXD
Receive Data
TXD
Transmit Data
Queclink
GV50LTA Manage Tool User Guide
- 7 -
2. Product Overview
2.1. Appearance

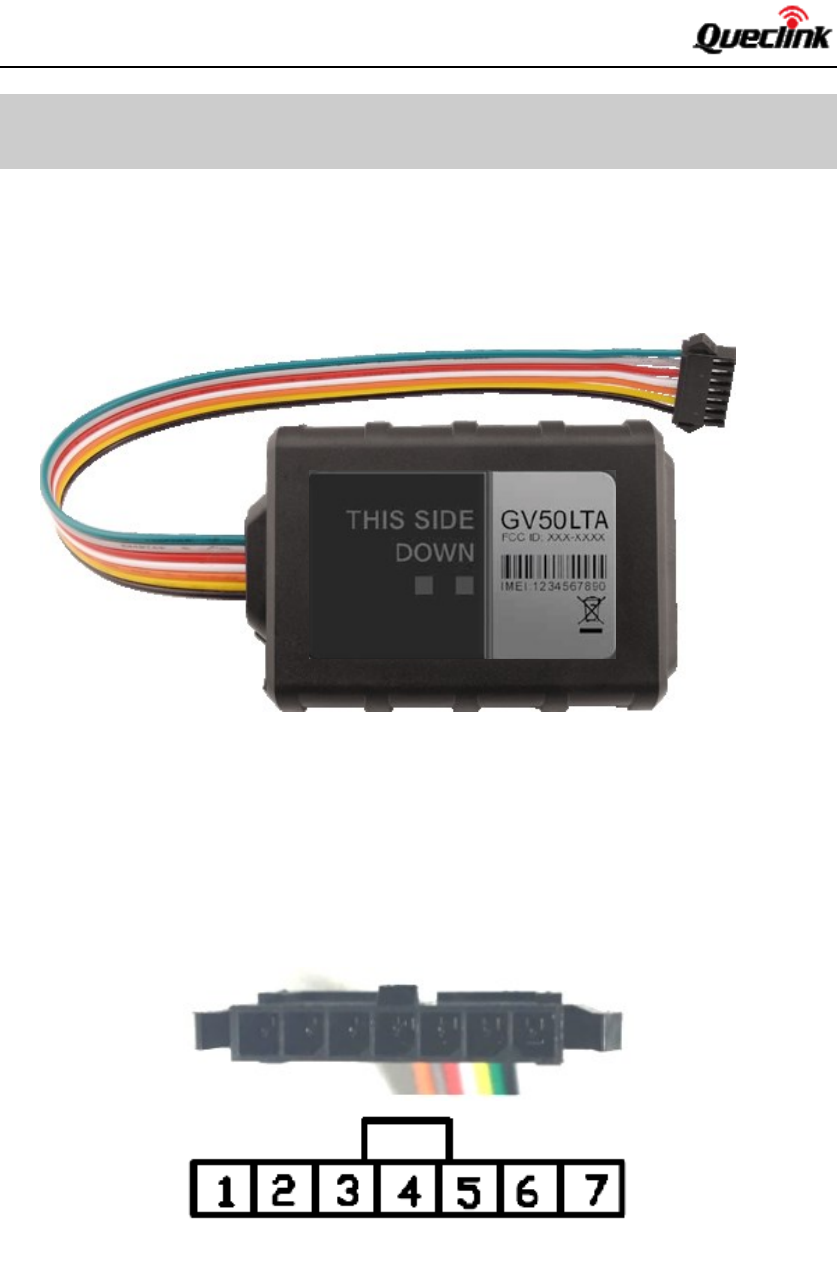

Figure 1: GV50LTA Appearance
2.2. Interface Definition
The GV50LTA has a 7 PIN interface connector. It contains the connections for power, and I/O.
The sequence and description of the 7PIN connector are shown in the following figure:
Figure 2: 7PIN Connector on the GV50LTA
Queclink
GV50LTA Manage Tool User Guide
- 8 -
Table 3: Description of 7 PIN Connections
Index
Description
Comment
1
RXD
UART RXD; TTL
2
TXD
UART TXD; TTL
3
VIN
External DC power input, 8-32V
4
IGN
Ignition input, positive trigger
5
OUT1/IN1
Digital output/ input; Open drain,150mA
max
6
OUT2
Open drain, 150mA max
7
GND
GND
2.3. LED Description
GV50LTA has two status LEDs which are CELL LED (Blue color) and GPS LED (Green color).
CELL
Device is searching CELL network.
Fast flashing
Device has registered to CELL network.
ON
Device is in low power mode.
Slow flashing
GPS
GPS is unfixed.
OFF
GPS is fixed.
ON
Device is in low power mode.
Slow flashing
Table 4: LED Description
Note:
1. Fast flashing is about 500ms ON / 1sec OFF.
2. Slow flashing is about 500ms ON / 15sec OFF.
2.4. Power Connection
VIN(PIN3)/GND (PIN7) are the power input pins. The input voltage range for this device is
from 8V to 32V. The device is designed to be installed in vehicles that operate on 12V/24V
vehicle without the need for external transformers.
Figure 3: Typical Power Connection
DC Power
GND
Queclink
GV50LTA Manage Tool User Guide
- 9 -
2.5. Ignition Detection

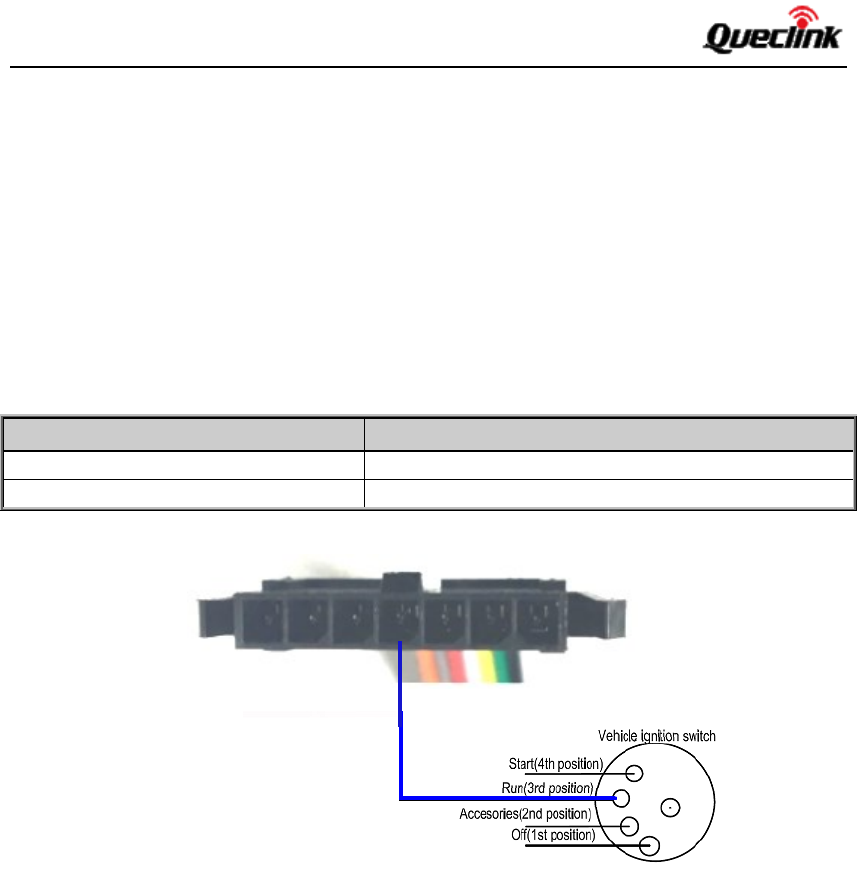

IGN (Pin4) is used for ignition detection. It is strongly recommended to connect this pin to
ignition key “RUN” position as shown below.
An alternative to connecting to the ignition switch is to find a non-permanent power source that
is only available when the vehicle is running. For example, the power source for the FM radio.
IGN signal can be configured to start transmitting information to backend server when ignition is
on, and enter power saving mode when ignition is off.
Table 5: Electrical Characteristics of Ignition Detection
Logical State
Electrical State
Active
5.0V to 32V
Inactive
0V to 3V or Open
Figure 4: Typical Ignition Detection
OUT1/IN1 (PIN5) is a digital Output/Input connection on GV50LTA. It is of open drain type
and the maximum drain current is 150mA. The OUT1/IN1 (PIN5) can be used as a digital
Output and a (negative trigger) digital Input.
2.6. Digital Output/ Input Connection
Queclink
GV50LTA Manage Tool User Guide
- 10 -

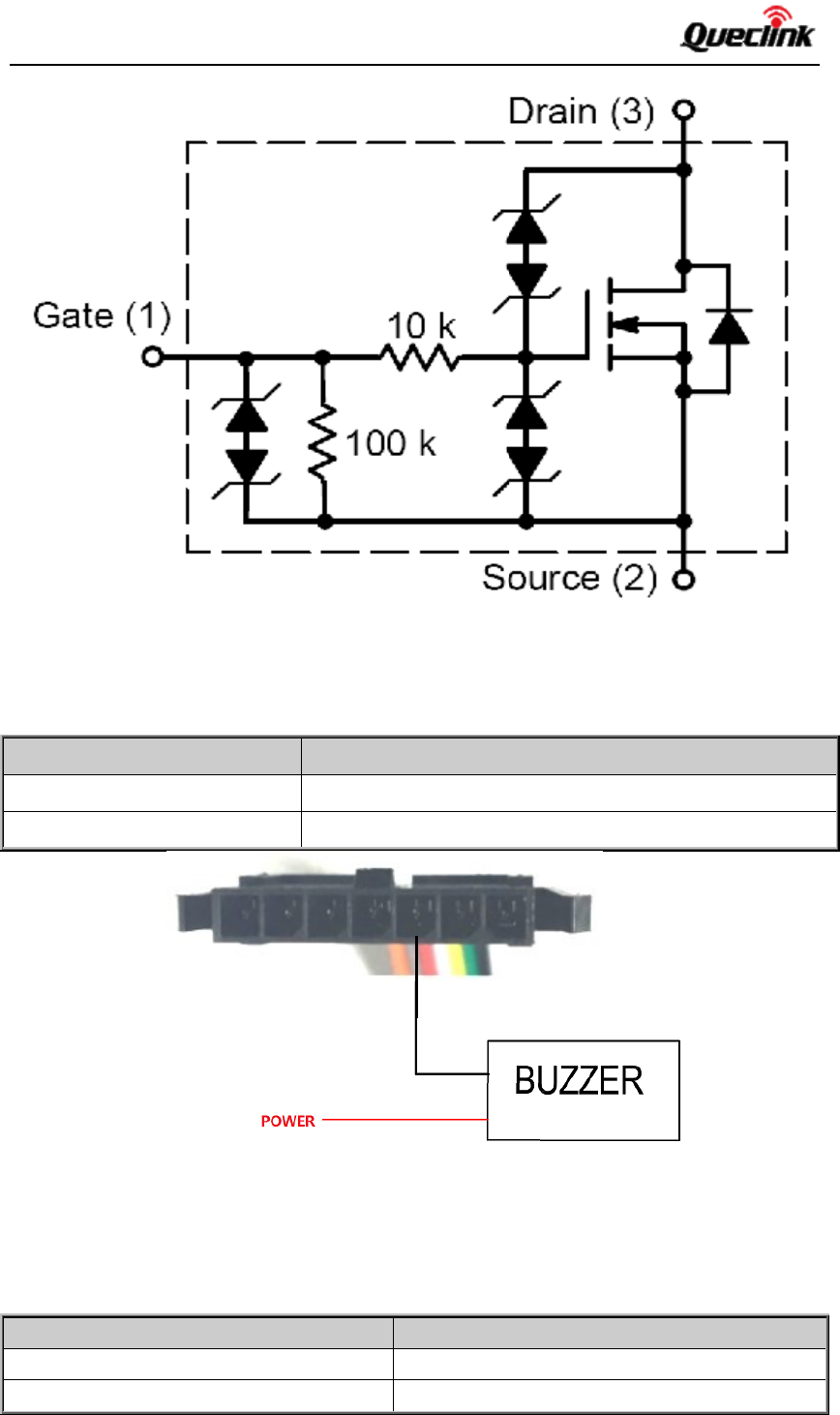

Figure 5: As Digital Output Internal Drive Circuit
Table 6: Electrical Characteristics of Digital Outputs
Logical State
Electrical Characteristics
Enable
<1.5V @150mA
Disable
Open drain
Figure 6: Typical Connection with Buzzer As Digital Output
Table 7: Electrical Characteristics of Digital Inputs
Logical State
Electrical Characteristics
Active
0V to 0.8V
Inactive
Open
Queclink
GV50LTA Manage Tool User Guide
- 11 -
The following shows the recommended connection of a digital input.

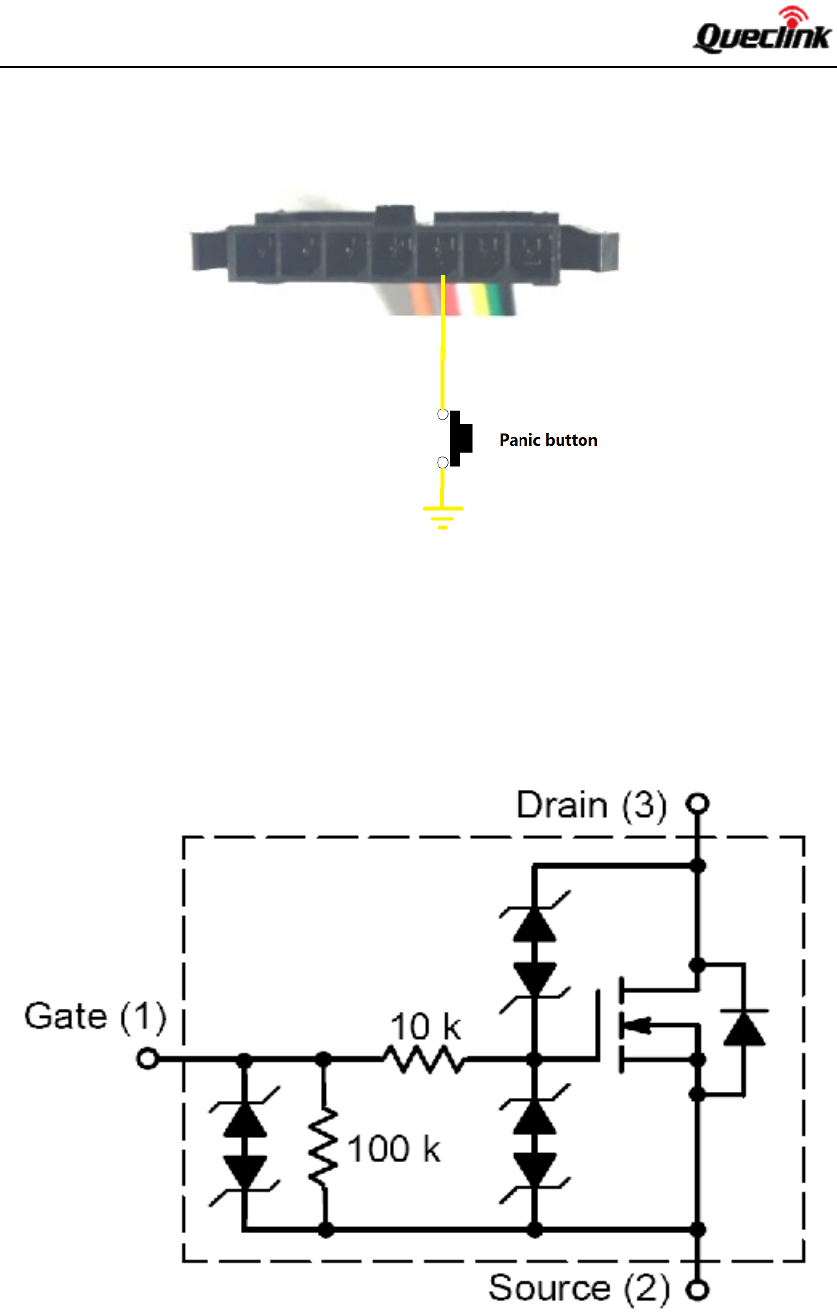

Figure 7: Typical Digital Input Connection
There is a digital output (PIN6) on GV50LTA. It is of open drain type and the maximum drain
current is 150mA.
Figure 8: Digital Output Internal Drive Circuit
2.7. Digital Output
Queclink
GV50LTA Manage Tool User Guide
- 12 -
Table 8: Electrical Characteristics As Digital Outputs
Logical State
Electrical Characteristics
Enable
<1.5V @150mA
Disable
Open drain

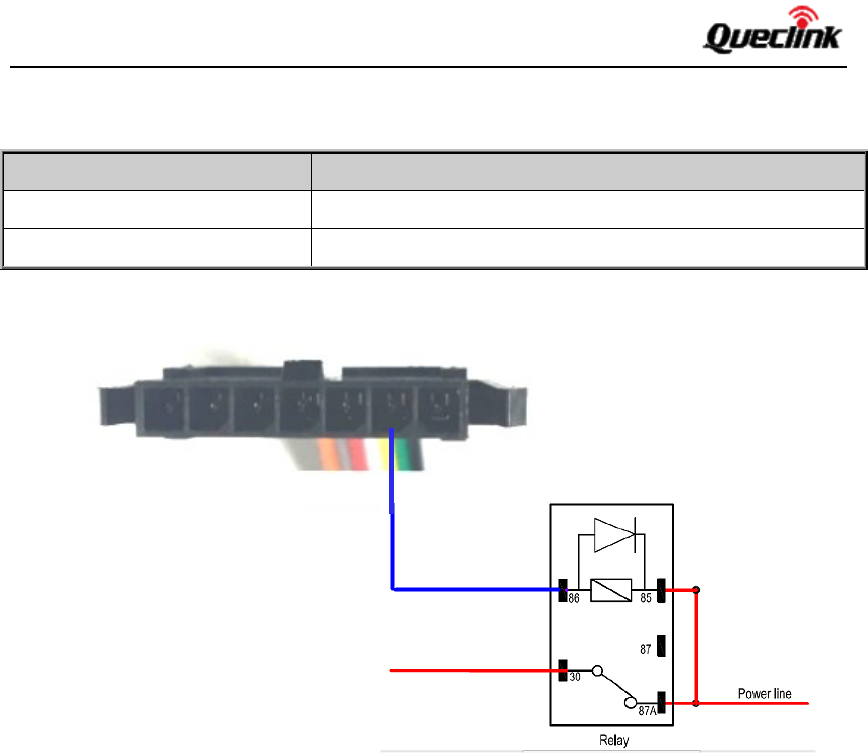

Figure 9: Typical Connection with Relay
Queclink
GV50LTA Manage Tool User Guide
- 13 -
3. Getting Started

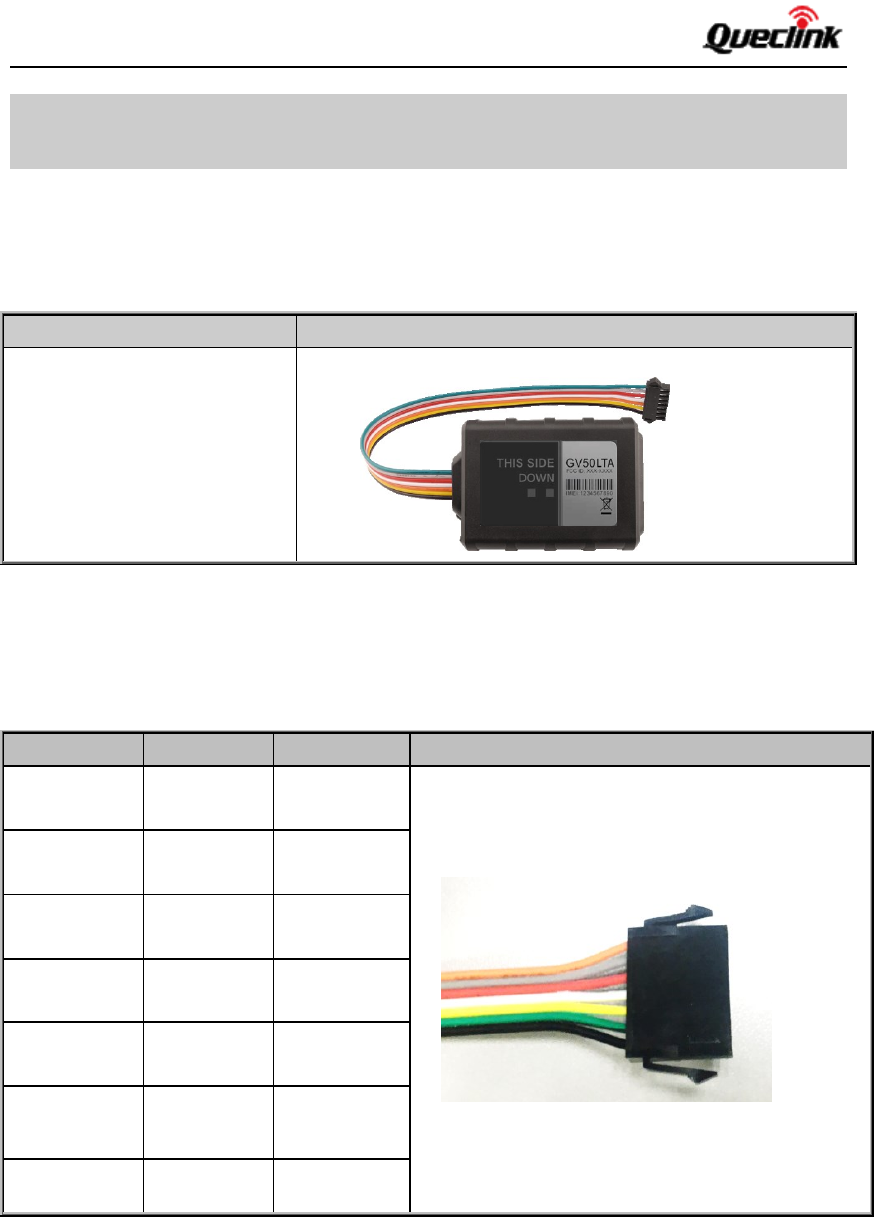

3.1. Parts List
Table 9: Parts List
Name
GV50LTA Locator
90mm*55mm*13mm
3.2. GV50LTA External Cable Interface
Table 10: GV50LTA User Cable Colour Definition
Definition
Colour
PIN No
Cable
RXD
Orange
1
TXD
Gray
2
VIN
Red
3
IGN
White
4
OUT1/IN1
Yellow
5
OUT2
Green
6
GND
Black
7
Queclink
GV50LTA Manage Tool User Guide
- 14 -
3.3. Open the SIM Card cover

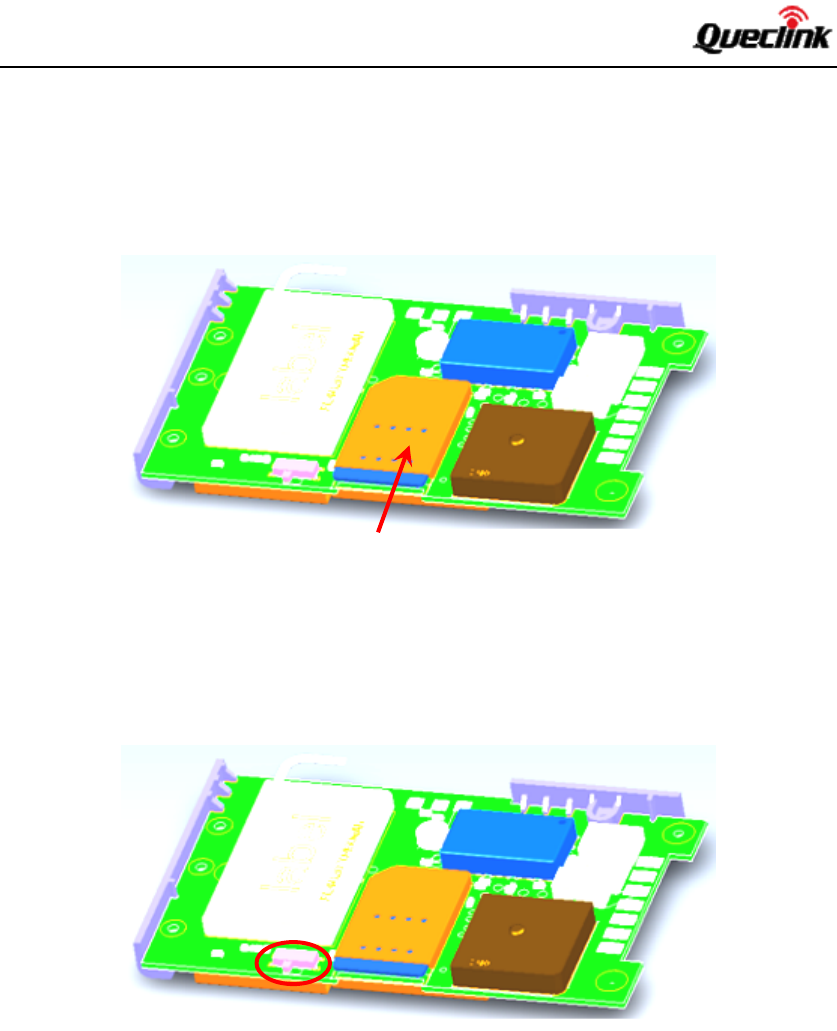

Figure 1. Open the SIM card cover
Follow the direction on the case and push to open the SIM card cover.
3.4. Clos the SIM Card cover
Figure 2. Close the SIM card cover
Aligning and push to close the SIM card cover.
Queclink
GV50LTA Manage Tool User Guide
- 15 -
3.5. Install a SIM Card
Open the SIM case and ensure the unit is not powered (unplug the 7Pin cable to the OFF
position). Slide the holder right to open the SIM card holder. Insert the SIM card into the holder
as shown below with the orange colour. Take care to align the cut mark. Then close the case.
Figure 3. SIM Card Installation
3.6. Switch on the Backup Battery
To use the GV50LTA backup battery, the switch must be in the ON position. The switch on the
case and the ON/OFF position are shown below.
Figure 4. Switch and ON/OFF Position
Note:
1. The switch must be in the “OFF” position when the GV50LTA is shipped on an aircraft.
2. When the switch is in the “OFF” position, the battery cannot be charged or discharged and
cannot be turned on.
ON
OFF
Queclink
GV50LTA Manage Tool User Guide
- 16 -
4. Troubleshooting and Safety Info
4.1. Troubleshooting
1 Trouble
Possible reason
Solution
After GV50LTA is turned
on, the CELL LED always
flashes quickly.
GV50LTA isn’t registered to
the ISP.
Please register the GV50LTA
again and make sure the device
gets the correct MDN.
The signal is too weak;
GV50LTA can’t be
registered to the network.
Please move GV50LTA into
places with good LTE coverage.
Messages can’t be
reported to the backend
server by LTE.
The IP address or port of
the backend server is
wrong.
Make sure the IP address for the
backend server is an identified
address on the Internet.
GV50LTA cannot power off
no matter the device was
in charge or not.
Unable to power off
GV50LTA if charger is
connected.
Disconnect charger, and try
again.
GV50LTA can’t get
successful GPS fixing.
The GPS signal is weak.
Please move GV50LTA to a place
with open sky.
It is better to let the top surface
face to sky. (The device has an
LED indicator on the top
surface.)
4.2. Safety Info
Please do not disassemble the device by yourself.
Please do not put the device in over heated too humid place, and avoid exposure to direct
sunlight. Too high temperature will damage the device or even cause battery explosion.
Please do not use GV50LTA on the airplane or near medical equipment.
