User Manual
GV55Usermanual
TRACGV3SUM001‐1‐
GSM/GPRS/GPS Tracker
User Manual
TRACGV55NUM001
Version:[1.00]
GV55
GV55NUsermanual
TRACGV55NUM001 ‐2‐
Document Title GV55N User Manual
Version 1.00
Date 2015-03-18
Status Release
Document Control ID TRACGV55NUM001
GeneralNotes
Queclink offers this information as a service to its customers, to support application and
engineering efforts that use the products designed by Queclink. The information provided
is based upon requirements specifically provided to Queclink by the customers. Queclink
has not undertaken any independent search for additional relevant information, including
any information that may be in the customer’s possession. Furthermore, system validation
of this product designed by Queclink within a larger electronic system remains the
responsibility of the customer or the customer’s system integrator. All specifications
supplied herein are subject to change.
WARNING:
This device complies with part 15 of the FCC Rules. Operation is subject to the following t
wo conditions: (1) This device may not cause harmful interference, and (2) this device mu
st accept any interference received, including interference that may cause undesired oper
ation.
Changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
FCC RF Exposure Statement:
For the product,under normal use condition is at least 20cm away from the body of the
user,the user must keeping at least 20cm distance to the product.
NOTE:
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
- Reorient or relocate the receiving antenna.
GV55NUsermanual
TRACGV55NUM001 ‐3‐
- Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV technician for help.
Copyright
This document contains proprietary technical information which is the property of Queclink
Limited., copying of this document and giving it to others and the using or communication
of the contents thereof, are forbidden without express authority. Offenders are liable to the
payment of damages. All rights reserved in the event of grant of a patent or the
registration of a utility model or design. All specification supplied herein are subject to
change without notice at any time.
Copyright©QueclinkWirelessSolutionsCo.,Ltd.2015
Contents
1 Introduction .................................................................................................................... 7
1.1. Reference ............................................................................................................. 7
1.2. Terms and Abbreviations ...................................................................................... 7
2 Product Overview ........................................................................................................... 8
2.1. Check Part List ..................................................................................................... 8
2.2. Parts List ............................................................................................................... 9
2.3. Interface Definition ................................................................................................ 9
2.4. GV55N User Cable Colour ................................................................................. 10
3 .Getting Started ............................................................................................................ 11
3.1. Opening the Case ............................................................................................... 11
3.2. Closing the Case ................................................................................................ 11
3.3. Installing a SIM Card .......................................................................................... 12
3.4. Installing the Internal Backup Battery ................................................................. 12
3.5. Switch ON the Backup Battery ............................................................................ 13
3.6. Power Connection .............................................................................................. 13
3.7. Ignition Detection ................................................................................................ 14
3.8. Digital Inputs ....................................................................................................... 15
3.9. Digital Outputs .................................................................................................... 15
3.10. Device Status LED ............................................................................................ 17
3.11. Motion Sensor direction .................................................................................... 19
GV55NUsermanual
TRACGV55NUM001 ‐4‐
TableIndex
Table 1. GV55N Protocol Reference .................................................................................. 7
Table 2. Terms and Abbreviations ...................................................................................... 7
Table 3. Part List ................................................................................................................ 9
Table 4. Description of 6 PIN Connections ....................................................................... 10
Table 5. GV55N User Cable Colour definition .................................................................. 10
Table 6. Electrical Characteristics of Ignition Detection .................................................... 14
Table 7. Electrical Characteristics of the digital inputs ..................................................... 15
Table 8. Electrical Characteristics of Digital Outputs ........................................................ 16
Table 9. Definition of Device status and LED ................................................................... 18
GV55NUsermanual
TRACGV55NUM001 ‐5‐
FigureIndex
Figure 1. Appearance of GV55N ....................................................................................... 8
Figure 2. The 6 PIN connector on the GV55N .................................................................. 9
Figure 3. Opening the Case ............................................................................................ 11
Figure 4. Closing the Case .............................................................................................. 11
Figure 5. SIM Card Installation ........................................................................................ 12
Figure 6. Backup Battery Installation ............................................................................... 12
Figure 7. Switch and ON/OFF position ............................................................................ 13
Figure 8. Typical Power Connection ............................................................................... 14
Figure 9. Typical Ignition Detection ................................................................................. 14
Figure 10. Typical Digital Input Connection ..................................................................... 15

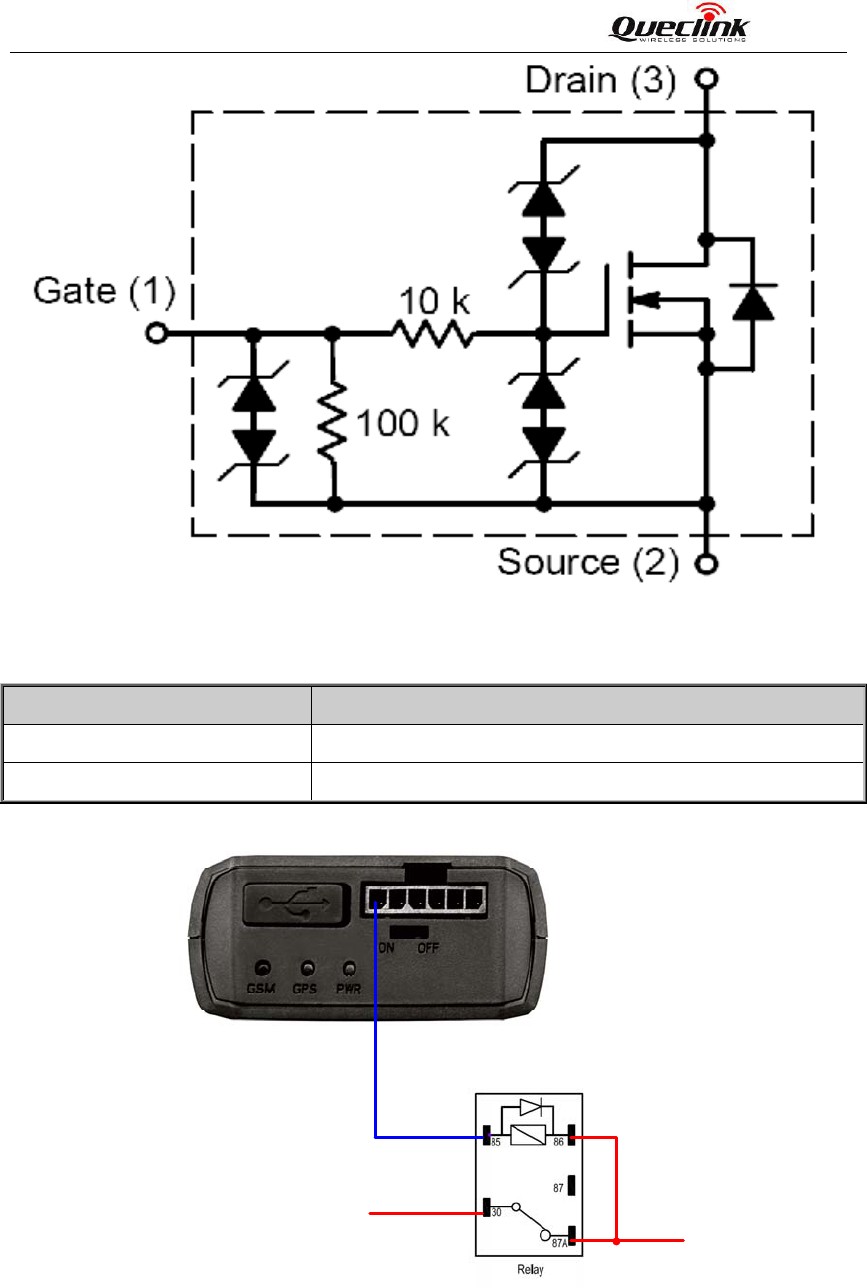

Figure 11. Digital Output Internal Drive Circuit ................................................................ 16
Figure 12. Typical Connection with Relay ....................................................................... 16

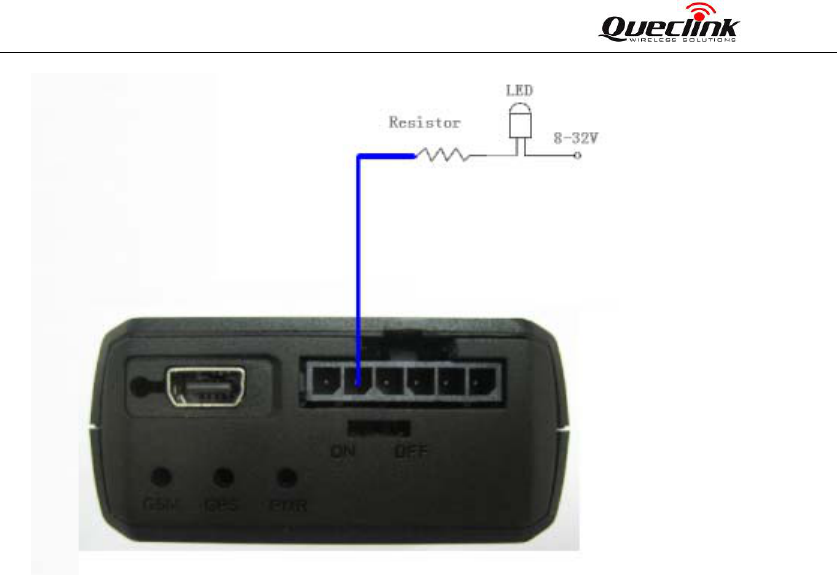

Figure 13. Typical Connection with LED ......................................................................... 17

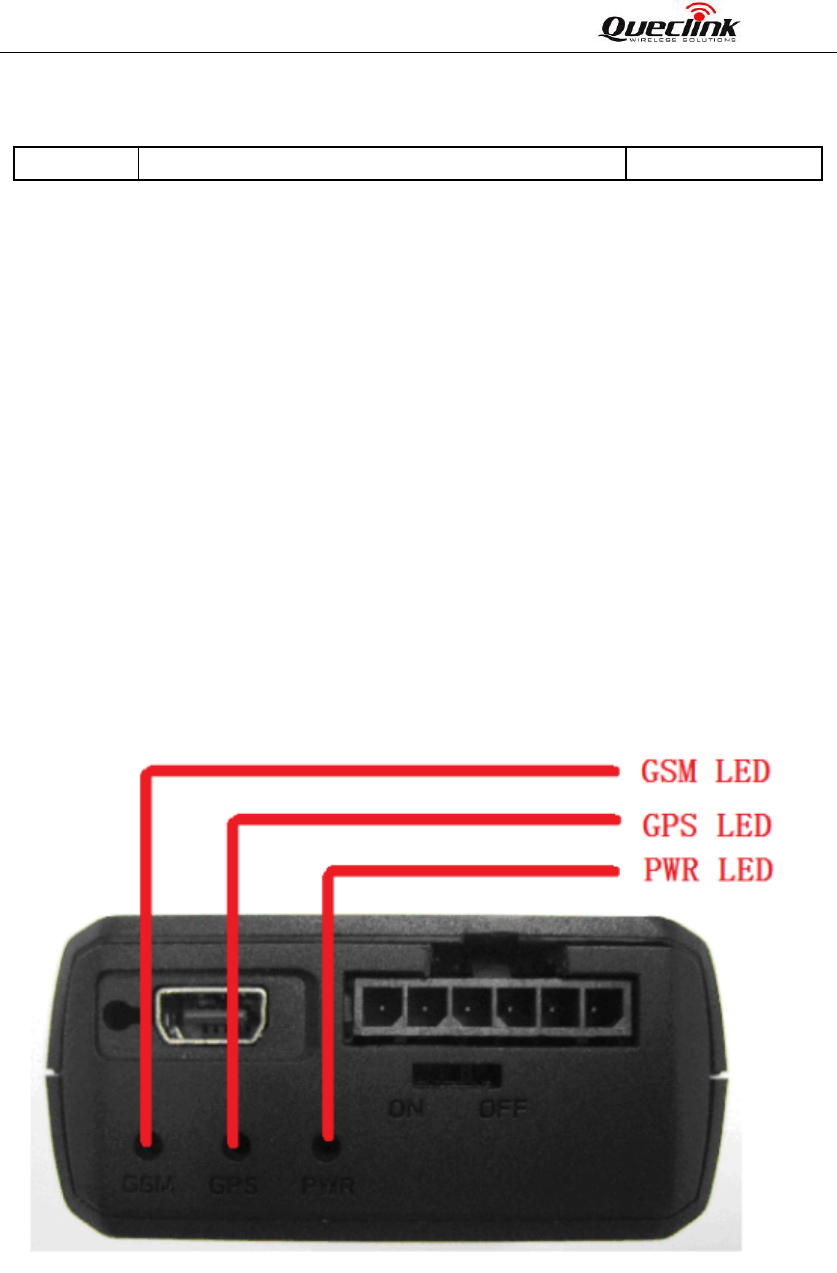

Figure 14. GV55N LED on the Case ............................................................................... 18

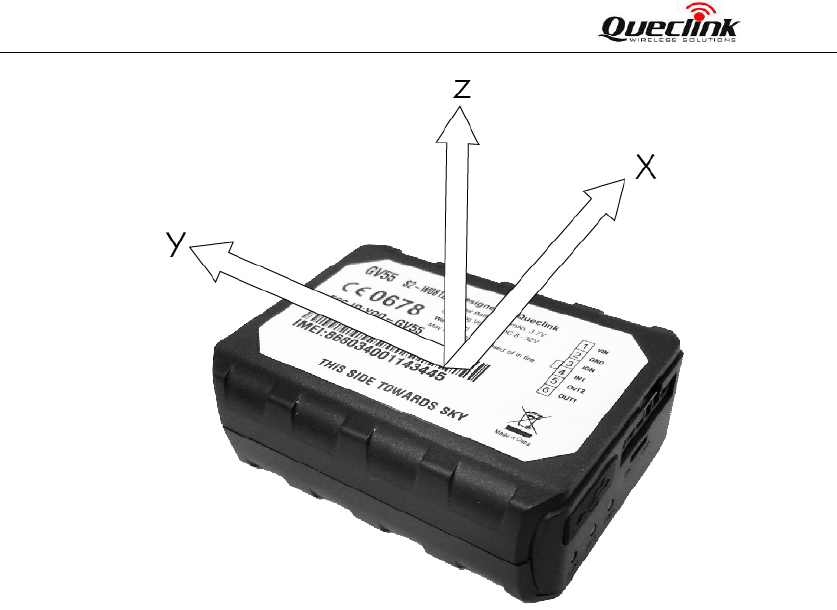

Figure 15. Motion sensor direction .................................................................................. 20
GV55NUsermanual
TRACGV55NUM001 ‐6‐
Revision History
Revision Date Author Description of change
1.00 2015-3-18 Richard Deng Initial
GV55NUsermanual
TRACGV55NUM001‐7‐
1 Introduction
The GV55N is a powerful GPS locator designed for vehicle or asset tracking. It has
superior receiver sensitivity, fast TTFF (Time to First Fix) and supports Dual-Band GSM
frequencies 850/900/1800/1900, its location can be monitored in real time or be
periodically tracked by a backend server or other specified terminals. The GV55N has
multiple input/output interfaces that can be used for monitoring or controlling external
devices. Based on the integrated @Track protocol, the GV55N can communicate with a
backend server through the GPRS/GSM network to transfer reports of Emergency,
geo-fence boundary crossings, low backup battery or scheduled GPS position as well as
many other useful functions. Users can also use GV55N to monitor the status of a vehicle
and control the vehicle by its external relay output. System Integrators can easily setup
their tracking systems based on the full-featured @Track protocol.
Table 1. GV55N Protocol Reference
SN Document name Remark
[1] GV55N @Track Air Interface Protocol The air protocol interface between
GV55N and backend server.
Table 2. Terms and Abbreviations
Abbreviation Description
AGND Analog Ground
AIN Analog Input
DIN Digital Input
DOUT Digital Output
GND Ground
MIC Microphone
RXD Receive Data
TXD Transmit Data
SPKN Speaker Negative
SPKP Speaker Positive
1.1. Reference
1.2. TermsandAbbreviations
GV55NUsermanual
TRACGV55NUM001‐8‐
2 ProductOverview
Before starting, check all the following items have been included with your GV55N. If
anything is missing, please contact your supplier.

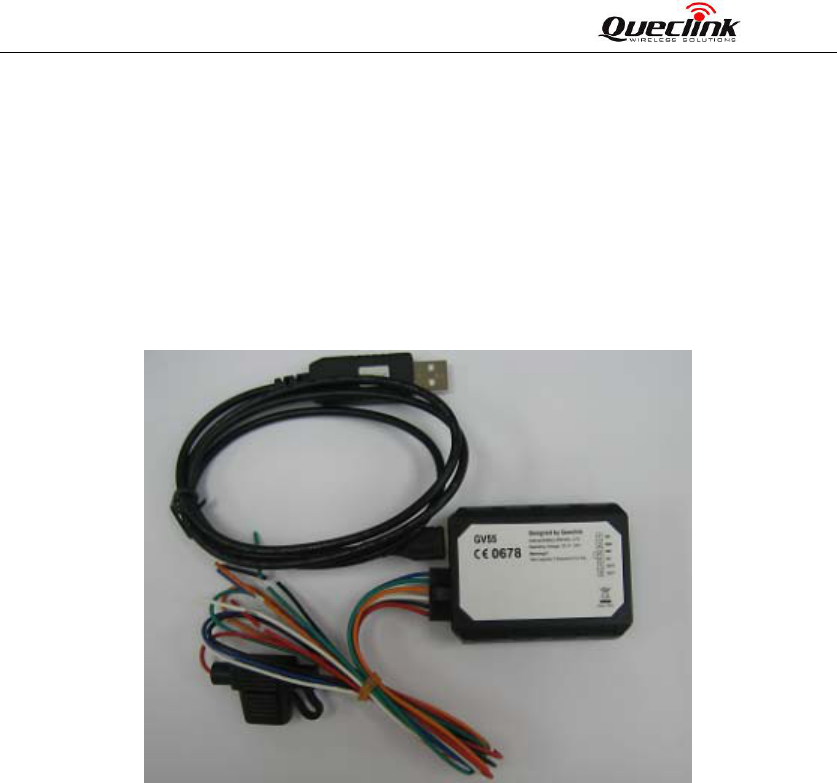

Figure 1. Appearance of GV55N
2.1. CheckPartList
GV55NUsermanual
TRACGV55NUM001 ‐9‐

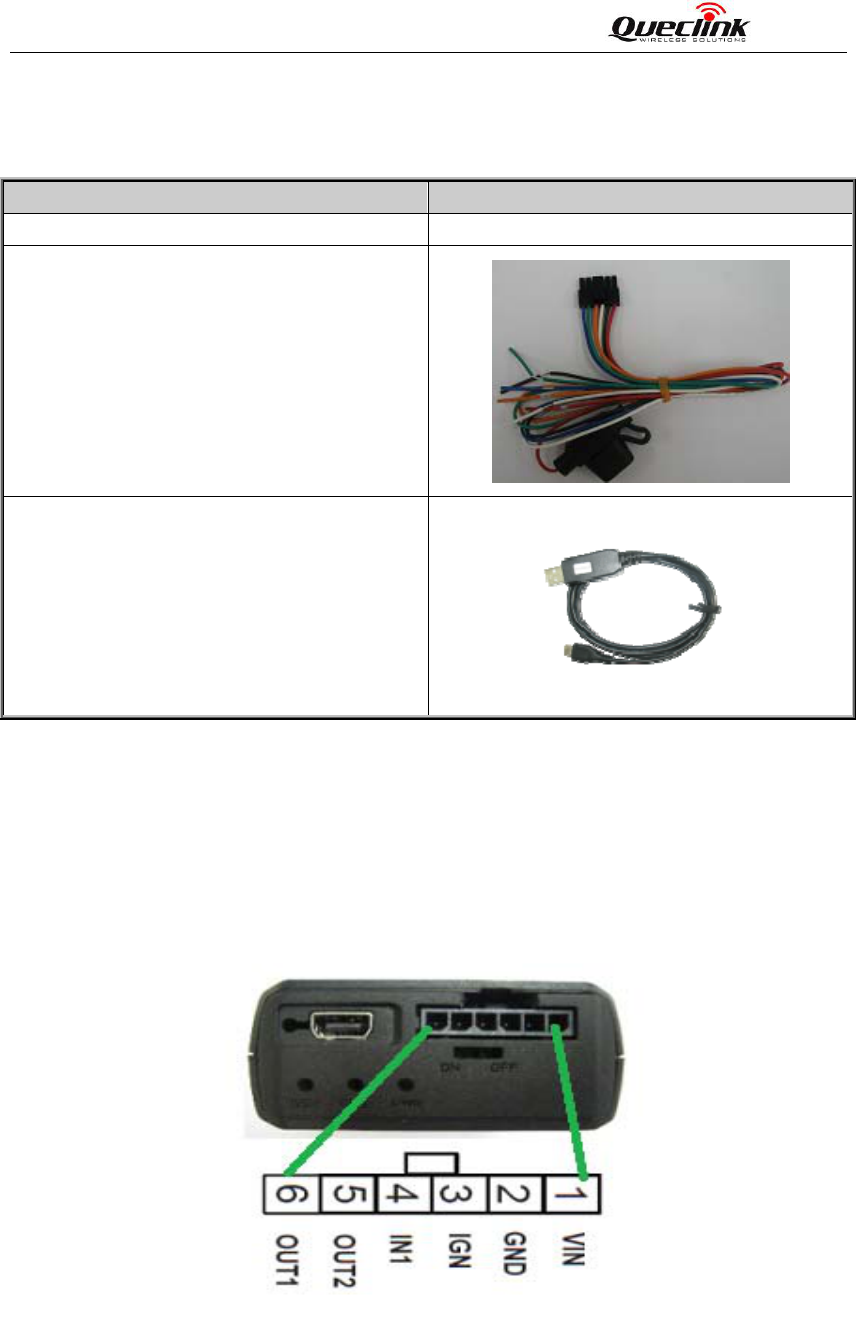

Table 3. Part List
Name Picture
GV55N Locator 63mm*50mm*21.8mm
User Cable
DATA_CABLE_M (Optional)
The GV55N has a 6 PIN interface connector. It contains the connections for power, I/O.
The sequence and definition of the 6PIN connector are shown in following figure:
Figure 2. The 6 PIN connector on the GV55N
2.2. PartsList
2.3. InterfaceDefinition
GV55NUsermanual
TRACGV55NUM001 ‐10‐

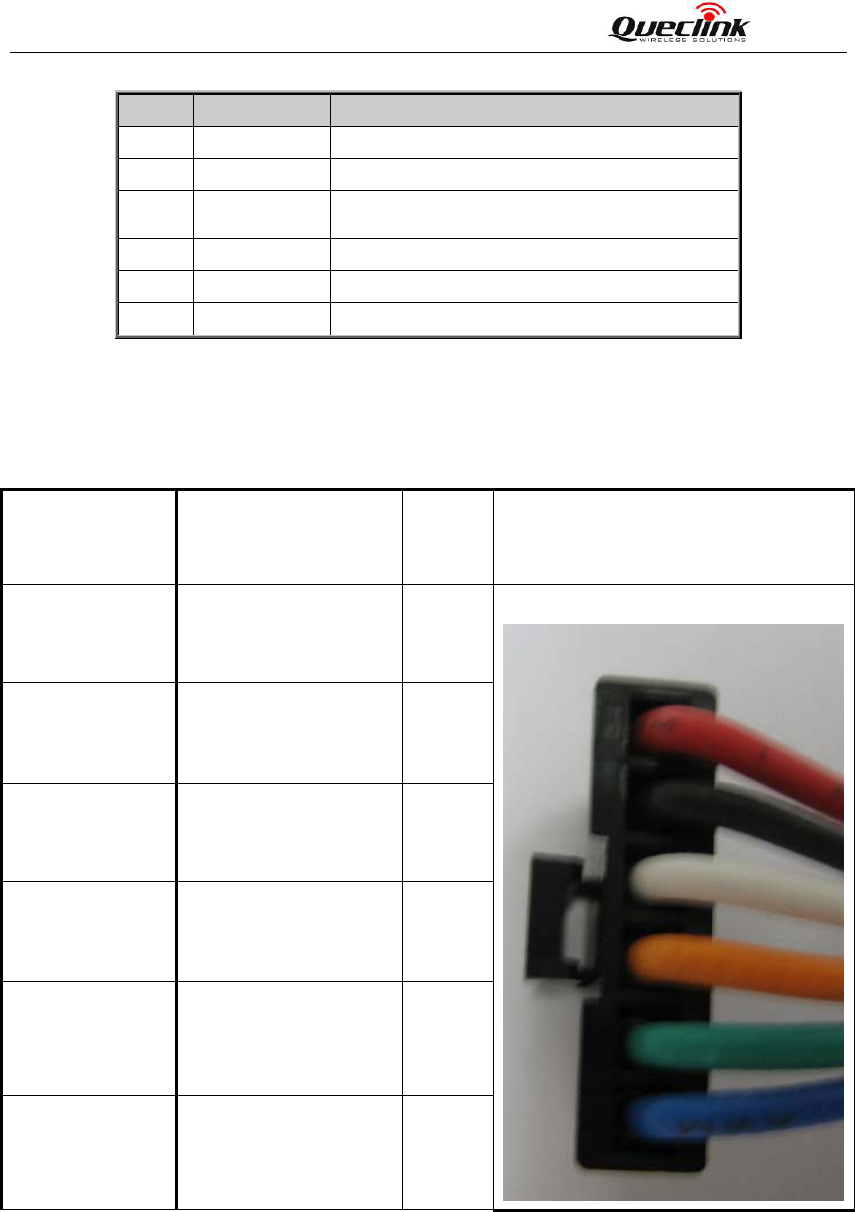

Table 4. Description of 6 PIN Connections
Index Description Comment
1 VIN External DC power input, 8-32V
2 GND GND
3 IGN Ignition input, positive trigger
4 IN1 Digital input, negative trigger
5 OUT2 Open drain, 150mA max
6 OUT1 Open drain, 150mA max ,with latch circuit
Table 5. GV55N User Cable Colour definition
Definition
Color PIN
No Cable
VIN Red 1
GND Black 2
IGN White 3
IN1 Orange 4
OUT2 Green 5
OUT1 Blue 6
2.4. GV55NUserCableColour
GV55NUsermanual
TRACGV55NUM001‐11‐
3 .GettingStarted

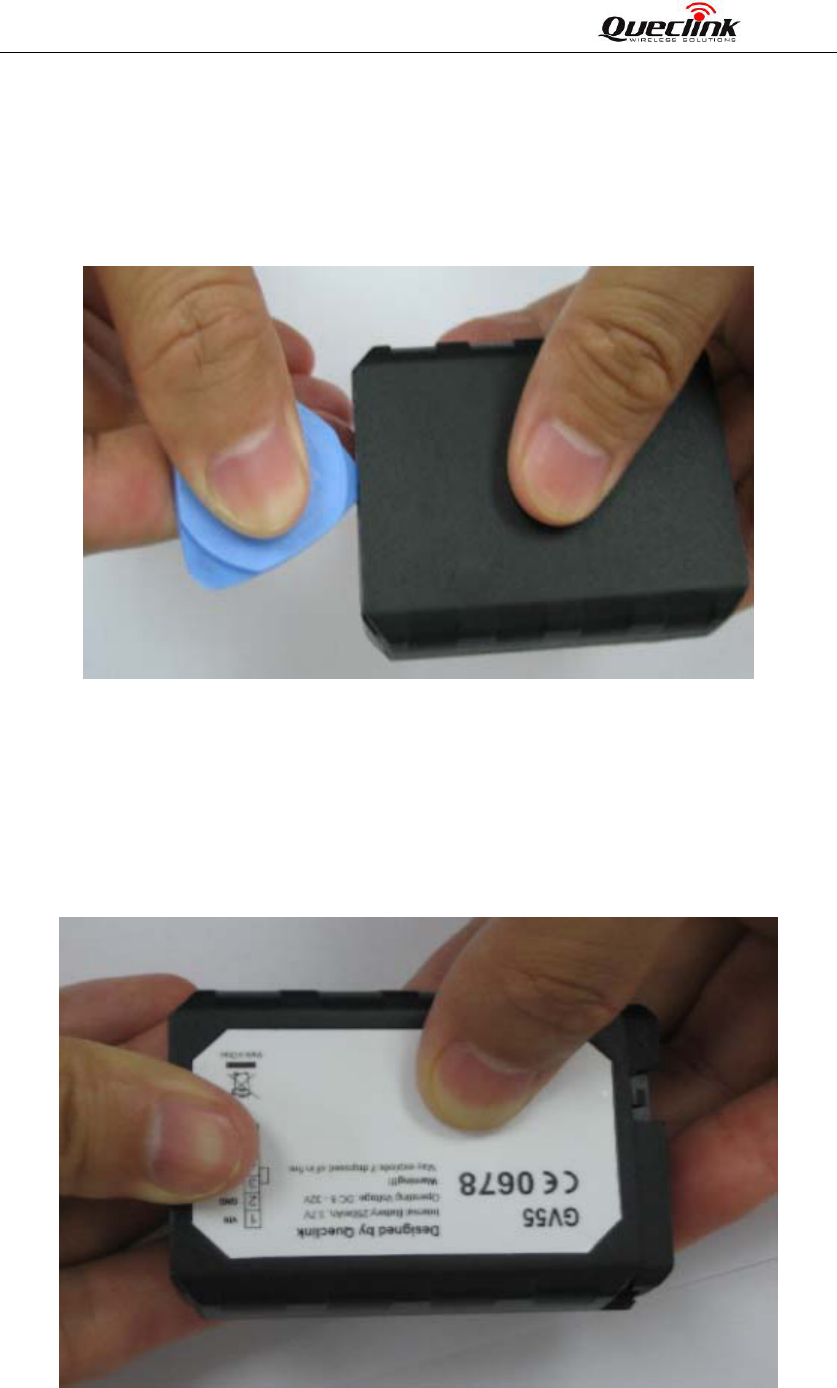

Figure 3. Opening the Case
Insert the triangular-pry-opener into the gap of the case as shown below, push the opener
up until the case unsnapped.
Figure 4. Closing the Case
3.1. OpeningtheCase
3.2. ClosingtheCase
GV55NUsermanual
TRACGV55NUM001 ‐12‐
Place the cover on the bottom in the position as shown in the following figure. Slide the
cover against the direction of the arrow until it snapped.
Open the case and ensure the unit is not powered (unplug the 6Pin cable and switch the
internal battery to off position). Slide the holder right to open the SIM card. Insert the SIM
card into the holder as shown below with the gold-colored contact area facing down taking
care to align the cut mark. Close the SIM card holder. Close the case.

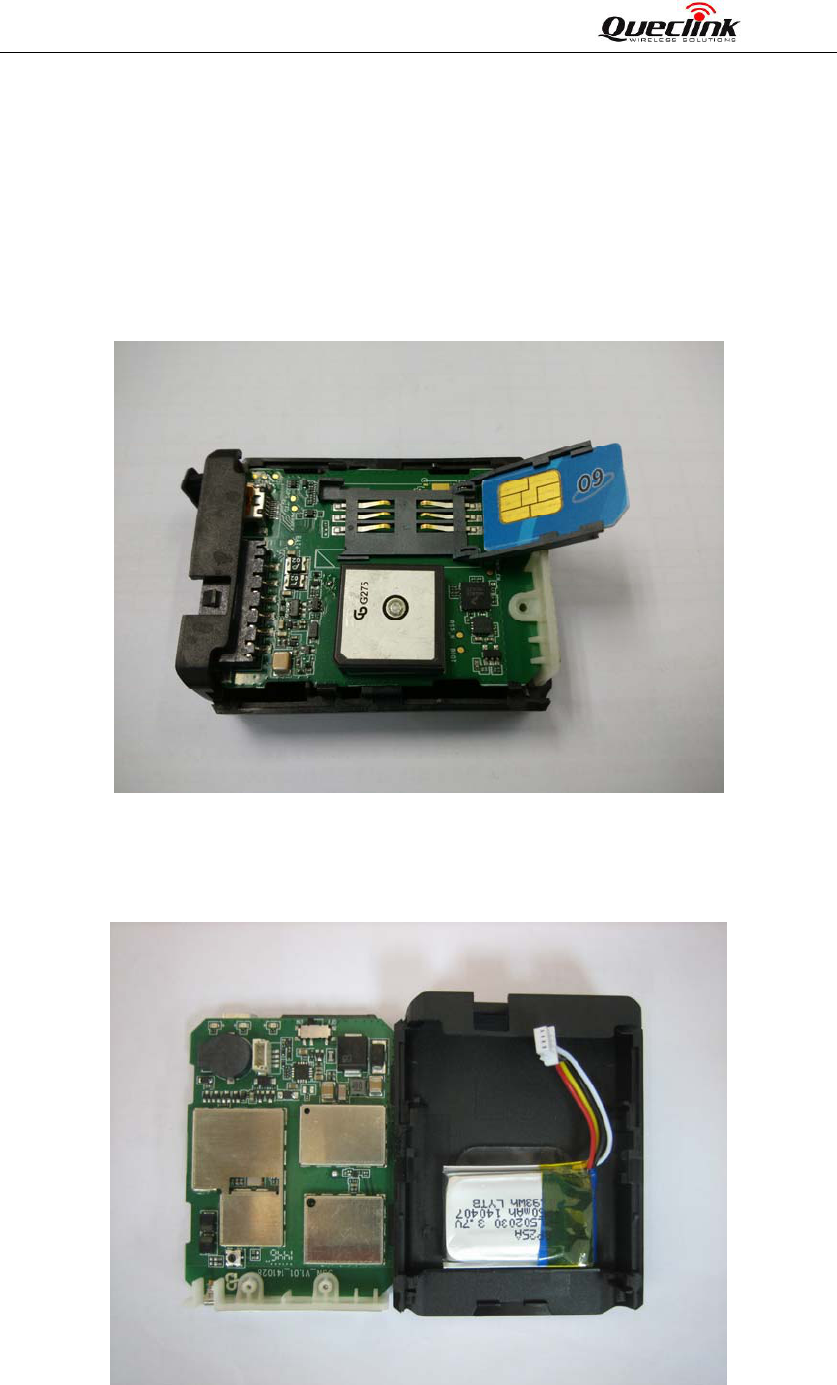

Figure 5. SIM Card Installation
Figure 6. Backup Battery Installation
There is an internal backup Li-ion battery,
3.3. InstallingaSIMCard
3.4. InstallingtheInternalBackupBattery
GV55NUsermanual
TRACGV55NUM001 ‐13‐
To use the GV55N backup battery, the switch must be at the ON position. Switch on the
case and ON/OFF position are shown below.
Figure 7. Switch and ON/OFF position
Note:
1-The switch must be on the “OFF” position when shipped on an aircraft.
2-When the switch is on the “OFF” position; the battery cannot be charged or discharged.
3-To reset the device: Remove the external DC power and second switch off the backup
battery. And then supply the external power and switch on the backup battery.
PWR (PIN1) / GND (PIN2) are the power input pins. The input voltage range for this
device is from 8V to 16V. The device is designed to be installed in vehicles that operate on
12V vehicle without the need for external transformers.
3.5. SwitchONtheBackupBattery
3.6. PowerConnection
GV55NUsermanual
TRACGV55NUM001 ‐14‐

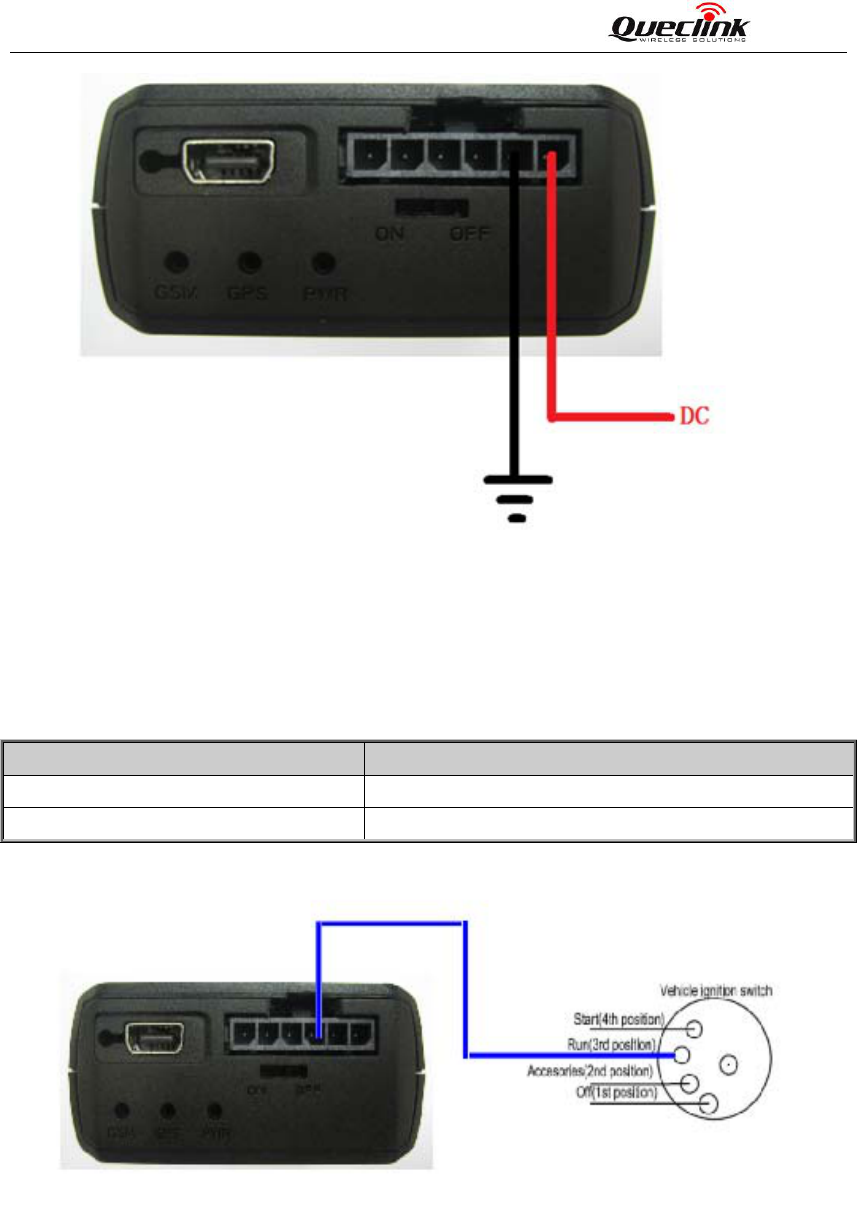

Figure 8. Typical Power Connection
Table 6. Electrical Characteristics of Ignition Detection
Logical State Electrical State
Active 5.0V to 32V
Inactive 0V to 3V or Open
Figure 9. Typical Ignition Detection
IGN (Pin3)is used for ignition detection. It is strongly recommended to connect this pin to
ignition key “RUN” position as shown up.
An alternative to connecting to the ignition switch is to find a non permanent power source
that is only available when the vehicle is running. For example the power source for the
FM radio.
3.7. IgnitionDetection
GV55NUsermanual
TRACGV55NUM001 ‐15‐
IGN signal can be configured to start transmitting information to backend server when
ignition is on; and enter power saving mode when ignition is off.
There are one general purpose digital inputs on GV55N. They are all negative trigger.
Table 7. Electrical Characteristics of the digital inputs
Logical State Electrical Characteristics
Active 0V to 0.8V
Inactive Open
The following diagram shows the recommended connection of a digital input.
Figure 10. Typical Digital Input Connection
There are two digital outputs on GV55N. All are of open drain type and the maximum drain
current is 150mA. Each output has the built-in over current and recovery PTC fuse
3.8. DigitalInputs
3.9. DigitalOutputs
GV55NUsermanual
TRACGV55NUM001 ‐16‐
Figure 11. Digital Output Internal Drive Circuit
Table 8. Electrical Characteristics of Digital Outputs
Logical State Electrical Characteristics
Enable <1.5V @150mA
Disable Open drain
Figure 12. Typical Connection with Relay
GV55NUsermanual
TRACGV55NUM001 ‐17‐
Figure 13. Typical Connection with LED
Note:
1 - OUT1 will latch the output state during reset.
2‐Many modern relays come with a flyback diode pre-installed internal to the relay itself. If
the relay has this diode, insure the proper relay polarity connected is used. If this diode is
not internal, it should be added externally. A common diode such as a 1N4004 will work in
most circumstances.
3.10. DeviceStatusLED
GV55NUsermanual
TRACGV55NUM001 ‐18‐
Figure 14. GV55N LED on the Case
GV55N has three status led that GSM GPS PWR led.
Table 9. Definition of Device status and LED
LED Device status LED status
GV55NUsermanual
TRACGV55NUM001 ‐19‐
Note:
1 - GSM LED cannot be configured.
2 - GPS LED and PWR LED can be configured to turn off after a period of time using the
configuration tool
3 - Fast flashing is about 60ms ON/ 780ms OFF
4 - Slow flashing is about 60ms ON/ 1940ms OFF
3.11. MotionSensordirection
GV55N has an internal 3-axis accelerometer supporting driving behavior monitoring,
power conservation and motion detection.The following is the direction of the motion
sensor.
GSM
(note1)
Device is searching GSM network Fast flashing
(Note3)
Device has registered to GSM network. Slow flashing
(Note4)
SIM card needs pin code to unlock. ON
GPS
(note 2)
GPS chip is powered off OFF
GPS sends no data or data format error. Slow flashing
GPS chip is searching GPS info. Fast flashing
GPS chip has gotten GPS info. ON
PWR
(note 2)
No external power and internal battery voltage is
lower than 3.35V.
OFF
No external power and internal battery voltage is
below 3.5V.
Slow flashing
External power in and internal battery is charging Fast flashing
External power in and internal battery is fully
charged
ON
GV55NUsermanual
TRACGV55NUM001 ‐20‐
Figure 15. Motion sensor direction
