1 Introduction

The GV55 is a powerful GPS locator designed for vehicle or asset tracking. It has superior

receiver sensitivity, fast TTFF (Time to First Fix) and supports Dual-Band GSM

frequencies 850/900/1800/1900, its location can be monitored in real time or be

periodically tracked by a backend server or other specified terminals. The GV55 has

multiple input/output interfaces that can be used for monitoring or controlling external

devices. Based on the integrated @Track protocol, the GV55 can communicate with a

backend server through the GPRS/GSM network to transfer reports of Emergency,

geo-fence boundary crossings, low backup battery or scheduled GPS position as well as

many other useful functions. Users can also use GV55 to monitor the status of a vehicle

and control the vehicle by its external relay output. System Integrators can easily setup

their tracking systems based on the full-featured @Track protocol.

Table 1. GV55 Protocol Reference

SN Document name Remark

[1] GV55 @Track Air Interface Protocol The air protocol interface between

GV55 and backend server.

Table 2. Terms and Abbreviations

Abbreviation Description

AGND Analog Ground

AIN Analog Input

DIN Digital Input

DOUT Digital Output

GND Ground

MIC Microphone

RXD Receive Data

TXD Transmit Data

SPKN Speaker Negative

SPKP Speaker Positive

1.1. Reference

1.2. Terms and Abbreviations

GV55 User manual

TRACGV55LITEUM001 - 8 -

2 Product Overview

Before starting, check all the following items have been included with your GV55. If

anything is missing, please contact your supplier.

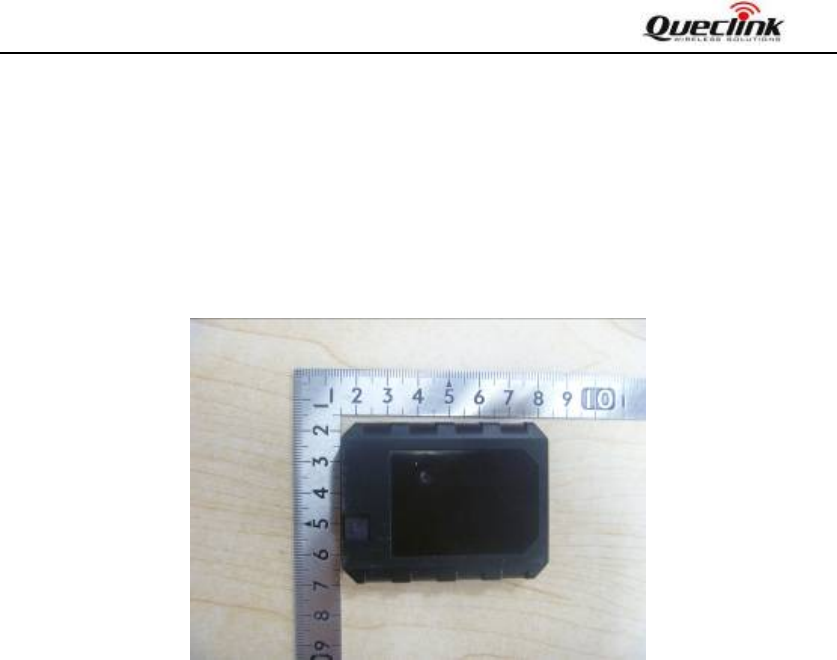

Figure 1. Appearance of GV55

2.1. Check Part List

GV55 User manual

TRACGV55LITEUM001 - 9 -

Table 3. Part List

Name Picture

GV55 Locator 63mm*50mm*13.2mm

User Cable

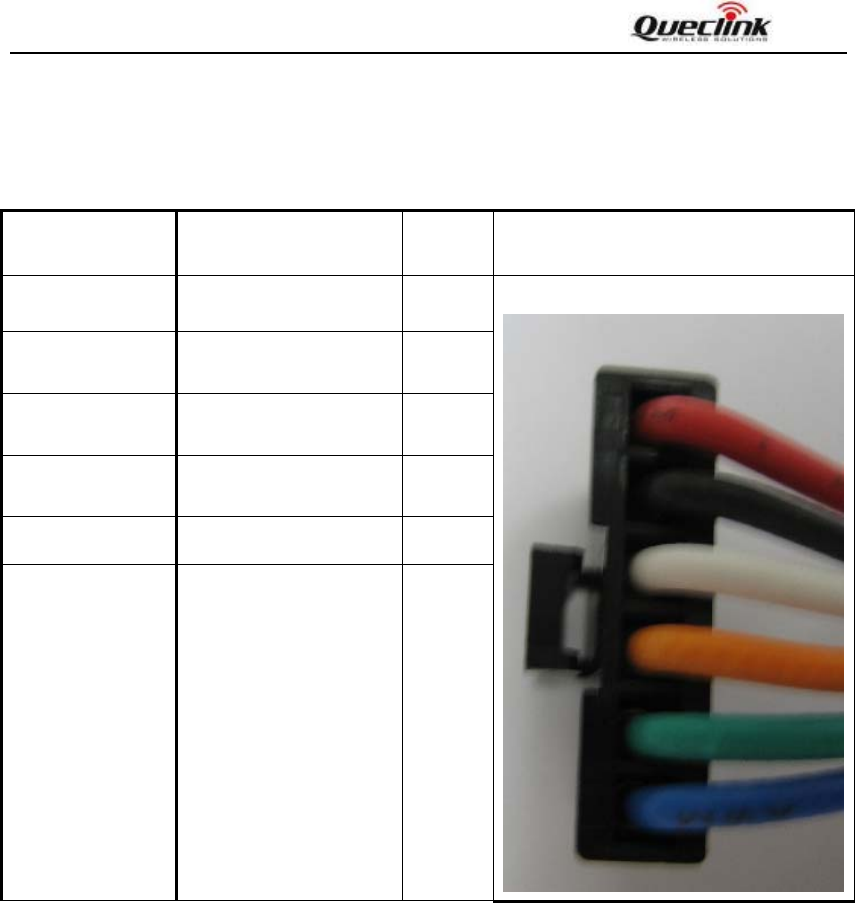

The GV55 has a 6 PIN interface connector. It contains the connections for power, I/O. The

sequence and definition of the 6PIN connector are shown in following figure:

Figure 2. The 6 PIN connector on the GV55

Table 4. Description of 6 PIN Connections

Index Description Comment

1 VIN External DC power input, 8-32V

2 GND GND

3 IGN Ignition input, positive trigger

4 IN1 Digital input, negative trigger

5 OUT2 Open drain, 150mA max

6 OUT1 Open drain, 150mA max ,with latch circuit

2.2. Parts List

2.3. Interface Definition

GV55 User manual

TRACGV55LITEUM001 - 10 -

Table 5. GV55 User Cable Colour definition

Definition Color PIN

No Cable

VIN Red 1

GND Black 2

IGN White 3

IN1 Orange 4

OUT2 Green 5

OUT1 Blue 6

2.4. GV55 User Cable Colour

GV55 User manual

TRACGV55LITEUM001 - 11 -

3 .Getting Started

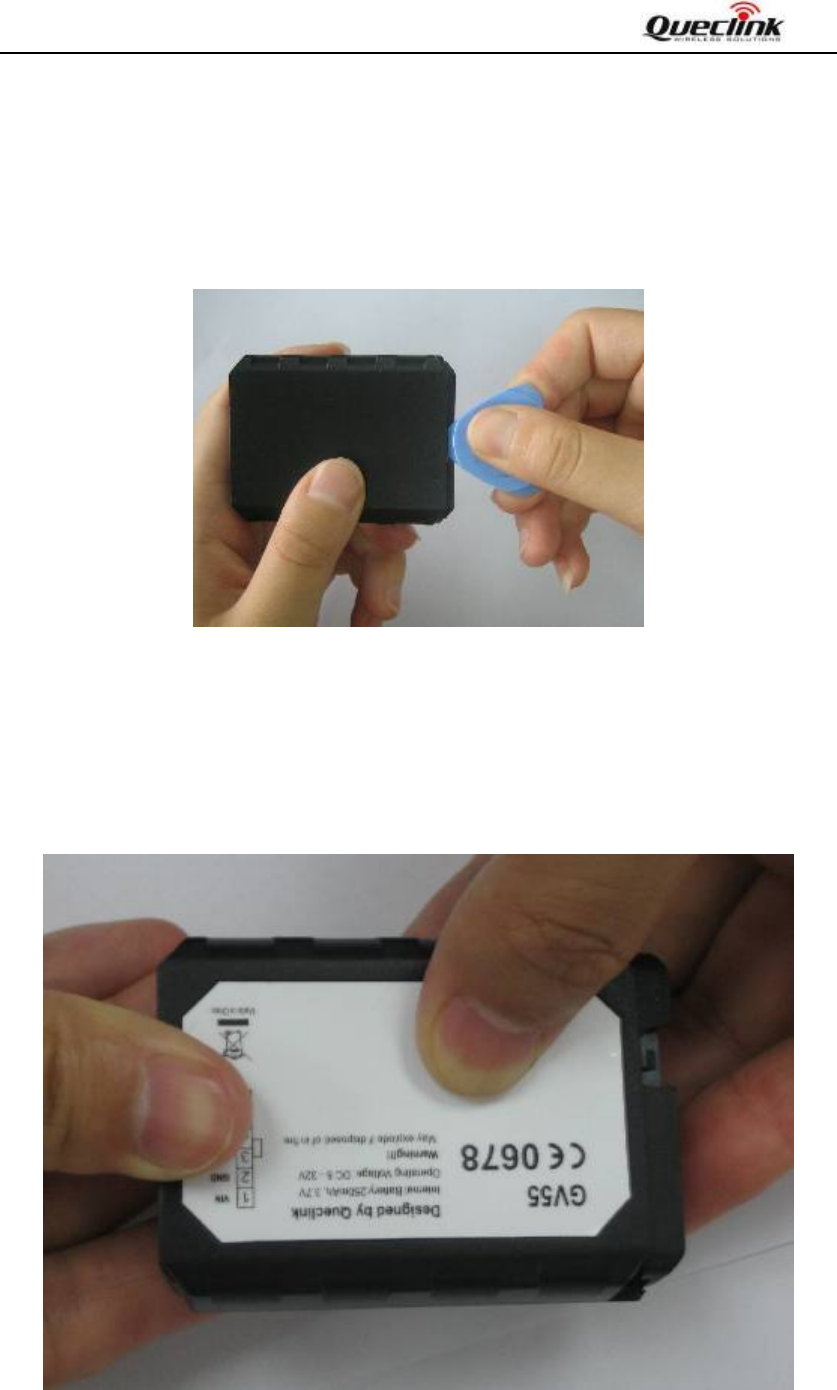

Figure 3. Opening the Case

Insert the triangular-pry-opener into the gap of the case as shown below, push the opener

up until the case unsnapped.

Figure 4. Closing the Case

3.1. Opening the Case

3.2. Closing the Case

GV55 User manual

TRACGV55LITEUM001 - 12 -

Place the cover on the bottom in the position as shown in the following figure. Slide the

cover against the direction of the arrow until it snapped.

Open the case and ensure the unit is not powered (unplug the 6Pin cable). Slide the

holder right to open the SIM card. Insert the SIM card into the holder as shown below with

the gold-colored contact area facing down taking care to align the cut mark. Close the SIM

card holder. Close the case.

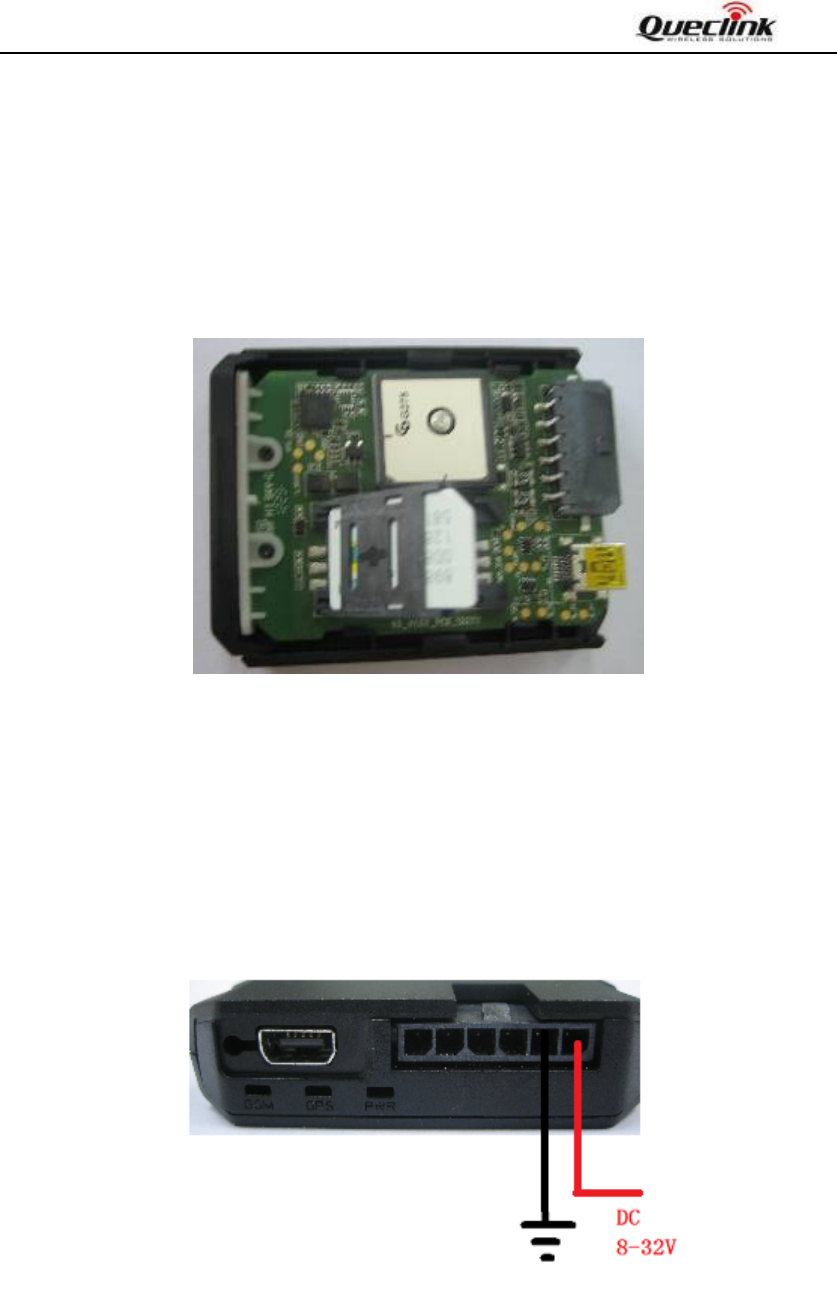

Figure 5. SIM Card Installation

PWR (PIN1) / GND (PIN2) are the power input pins. The input voltage range for this

device is from 8V to 32V. The device is designed to be installed in vehicles that operate on

12V or 24V systems without the need for external transformers.

Figure 6. Typical Power Connection

3.3. Installing a SIM Card

3.4. Power Connection

GV55 User manual

TRACGV55LITEUM001 - 13 -

Table 6. Electrical Characteristics of Ignition Detection

Logical State Electrical State

Active 5.0V to 32V

Inactive 0V to 3V or Open

Figure 7. Typical Ignition Detection

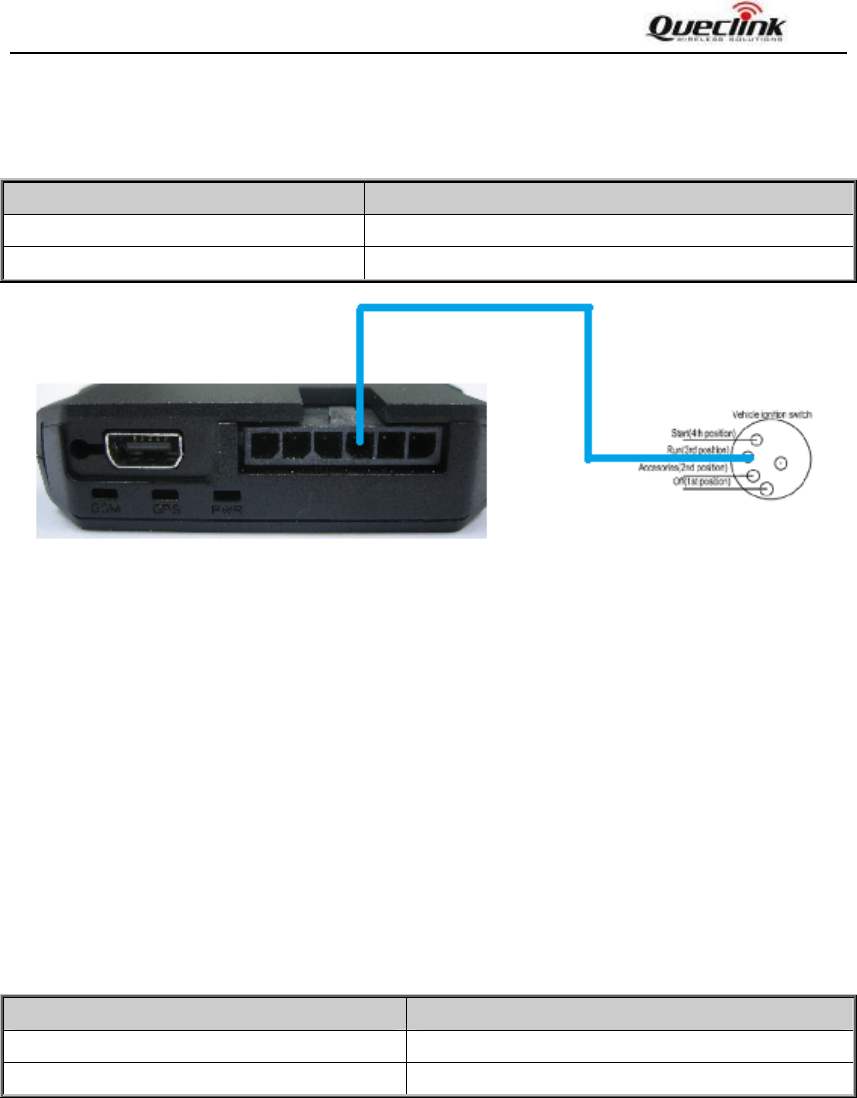

IGN (Pin3)is used for ignition detection. It is strongly recommended to connect this pin to

ignition key “RUN” position as shown up.

An alternative to connecting to the ignition switch is to find a non permanent power source

that is only available when the vehicle is running. For example the power source for the

FM radio.

IGN signal can be configured to start transmitting information to back-end server when

ignition is on; and enter power saving mode when ignition is off.

There are one general purpose digital inputs on GV55. They are all negative trigger.

Table 7. Electrical Characteristics of the digital inputs

Logical State Electrical Characteristics

Active 0V to 0.8V

Inactive Open

The following diagram shows the recommended connection of a digital input.

3.5. Ignition Detection

3.6. Digital Inputs

GV55 User manual

TRACGV55LITEUM001 - 14 -

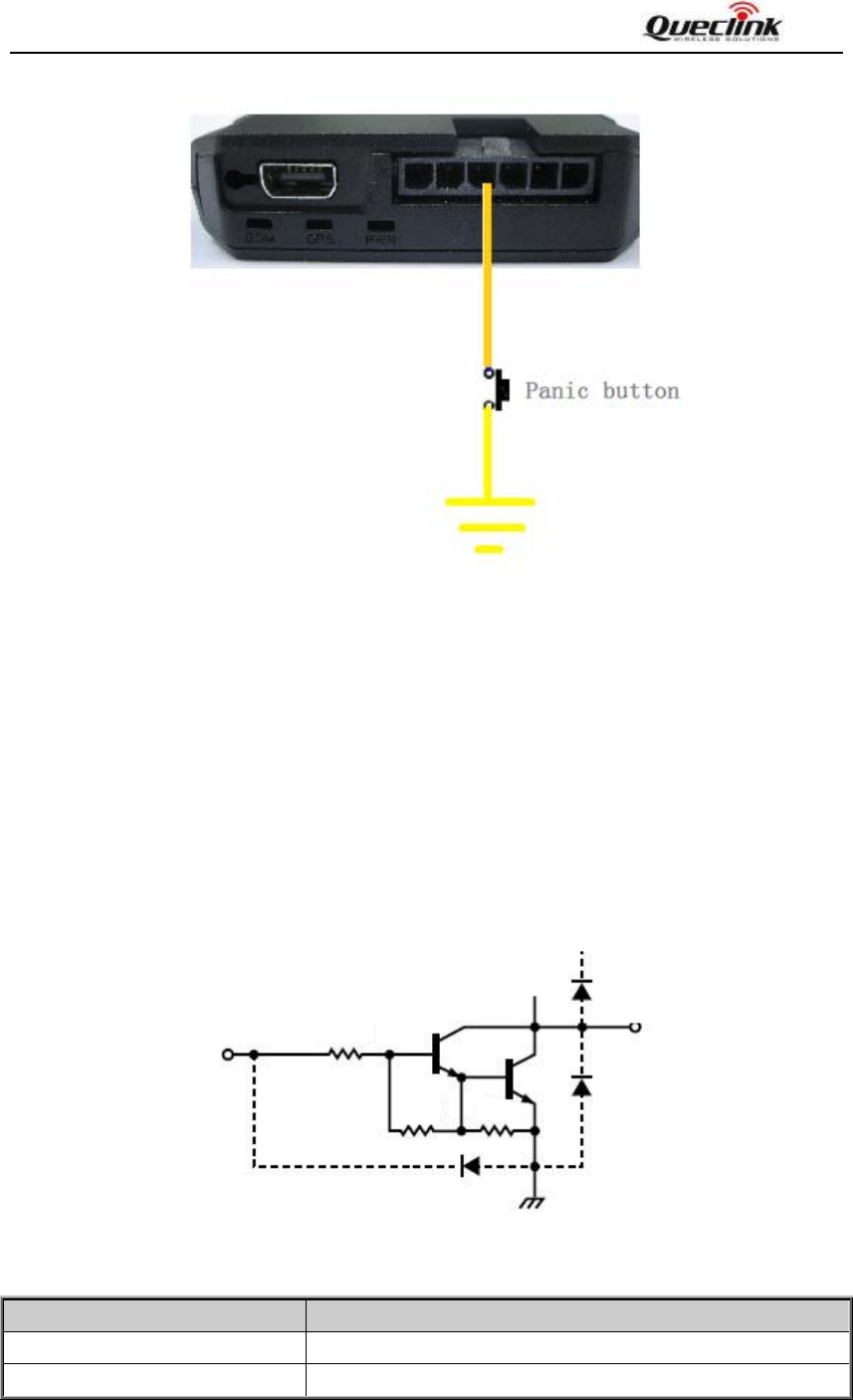

Figure 8. Typical Digital Input Connection

There are two digital outputs on GV55. All are of open drain type and the maximum drain

current is 150mA. Each output has the built-in over current and recovery PTC fuse

Figure 9. Digital Output Internal Drive Circuit

Table 8. Electrical Characteristics of Ddigital Outputs

Logical State Electrical Characteristics

Enable <1.5V @150mA

Disable Open drain

3.7. Digital Outputs

GV55 User manual

TRACGV55LITEUM001 - 15 -

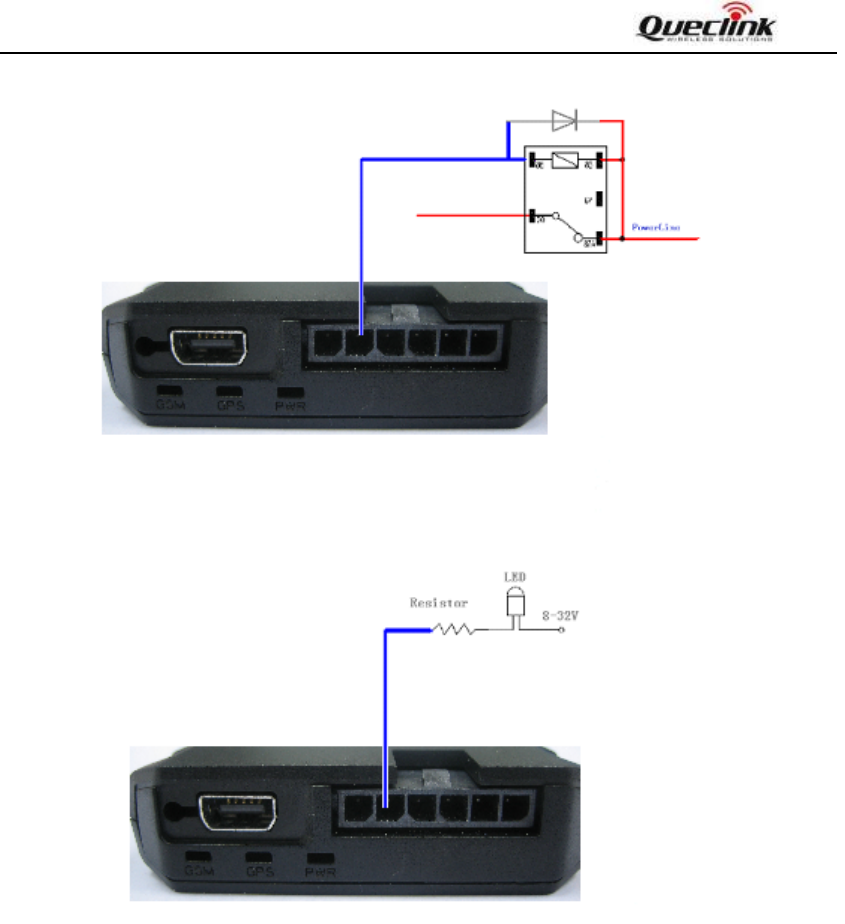

Figure 10. Typical Connection with Relay

Figure 11. Typical Connection with LED

Note:

1 - OUT1 will latch the output state during reset.

2- All outputs are internally without pulled up to PWR pin by a diode. So an external

flyback diode is needed when the output is connected to an inductive load.

3.8. Device Status LED

GV55 User manual

TRACGV55LITEUM001 - 16 -

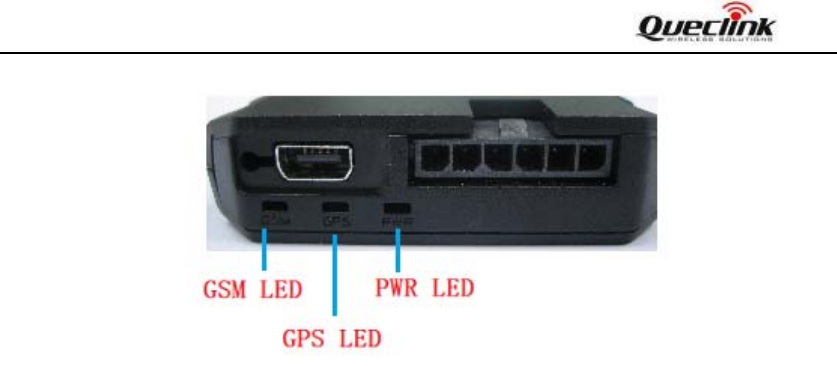

Figure 12. GV55 LED on the Case

GV55 has three status led that GSM GPS PWR led.

Table 9. Definition of Device status and LED

GV55 User manual

TRACGV55LITEUM001 - 17 -

Note:

1 - GSM LED cannot be configured.

2 - GPS LED and PWR LED can be configured to turn off after a period of time using the

configuration tool

3 - Fast flashing is about 60ms ON/ 780ms OFF

4 - Slow flashing is about 60ms ON/ 1940ms OFF

LED Device status LED status

Device is searching GSM network Fast flashing

(Note3)

Device has registered to GSM network. Slow flashing

(Note4)

GSM

(note1)

SIM card needs pin code to unlock. ON

GPS chip is powered off OFF

GPS sends no data or data format error. Slow flashing

GPS chip is searching GPS info. Fast flashing

GPS

(note 2)

GPS chip has gotten GPS info. ON

No external power and internal battery voltage is

lower than 3.35V.

OFF

No external power and internal battery voltage is

below 3.5V.

Slow flashing

External power in and internal battery is charging Fast flashing

PWR

(note 2)

External power in and internal battery is fully

charged

ON

Queclink Wireless Solutions GV55 GPS Locator User Manual GV55 20120809

Queclink Wireless Solutions Co.,Ltd GPS Locator GV55 20120809

Contents

Users Manual

Navigation menu

Namespaces

Views

Navigation
