Users Manual
LTE Module Series
BG96 Hardware Design
BG96_Hardware_Design Confidential / Released 1 / 71
Our aim is to provide customers with timely and comprehensive service. For any
assistance, please contact our company headquarters:
Quectel Wireless Solutions Co., Ltd.
Office 501, Building 13, No.99, Tianzhou Road, Shanghai, China, 200233
Tel: +86 21 5108 6236
Email: info@quectel.com
Or our local office. For more information, please visit:
http://www.quectel.com/support/salesupport.aspx
For technical support, or to report documentation errors, please visit:
http://www.quectel.com/support/techsupport.aspx
Or email to: Support@quectel.com
GENERAL NOTES
QUECTEL OFFERS THE INFORMATION AS A SERVICE TO ITS CUSTOMERS. THE INFORMATION
PROVIDED IS BASED UPON CUSTOMERS’ REQUIREMENTS. QUECTEL MAKES EVERY EFFORT
TO ENSURE THE QUALITY OF THE INFORMATION IT MAKES AVAILABLE. QUECTEL DOES NOT
MAKE ANY WARRANTY AS TO THE INFORMATION CONTAINED HEREIN, AND DOES NOT ACCEPT
ANY LIABILITY FOR ANY INJURY, LOSS OR DAMAGE OF ANY KIND INCURRED BY USE OF OR
RELIANCE UPON THE INFORMATION. ALL INFORMATION SUPPLIED HEREIN IS SUBJECT TO
CHANGE WITHOUT PRIOR NOTICE.
COPYRIGHT
THE INFORMATION CONTAINED HERE IS PROPRIETARY TECHNICAL INFORMATION OF
QUECTEL CO., LTD. TRANSMITTING, REPRODUCTION, DISSEMINATION AND EDITING OF THIS
DOCUMENT AS WELL AS UTILIZATION OF THE CONTENT ARE FORBIDDEN WITHOUT
PERMISSION. OFFENDERS WILL BE HELD LIABLE FOR PAYMENT OF DAMAGES. ALL RIGHTS
ARE RESERVED IN THE EVENT OF A PATENT GRANT OR REGISTRATION OF A UTILITY MODEL
OR DESIGN.
Copyright © Quectel Wireless Solutions Co., Ltd. 2017. All rights reserved.
LTE Module Series
BG96 Hardware Design
BG96_Hardware_Design Confidential / Released 2 / 71
About the Document
History
Revision
Date
Author
Description
1.0
2017-01-05
Lyndon LIU/
Daryl DU/
Allen WANG
Initial
1.1
2017-03-16
Allen WANG
1. Updated operating frequencies of the module in
Table 1.
2. Added GSM features in Table 2.
1.2
2017-03-28
Allen WANG/
Lyndon LIU
1. Updated function diagram in Figure 1.
2. Updated pin assignment (top view) in Figure 2.
3. Added the description of SPI interface in Chapter
3.12.
1.3
2017-04-11
Allen WANG
1. Updated model and frequency band of the module in
Table1.
2. Updated download and upload rates of the module
in Table 2.
3. Added the description of NEMA UART interface in
Table 4 and Table 13.
1.4
2017-04-28
Allen WANG
1. Updated the function diagram in Figure 1.
2. Updated the pin assignment (top view) in Figure 2.

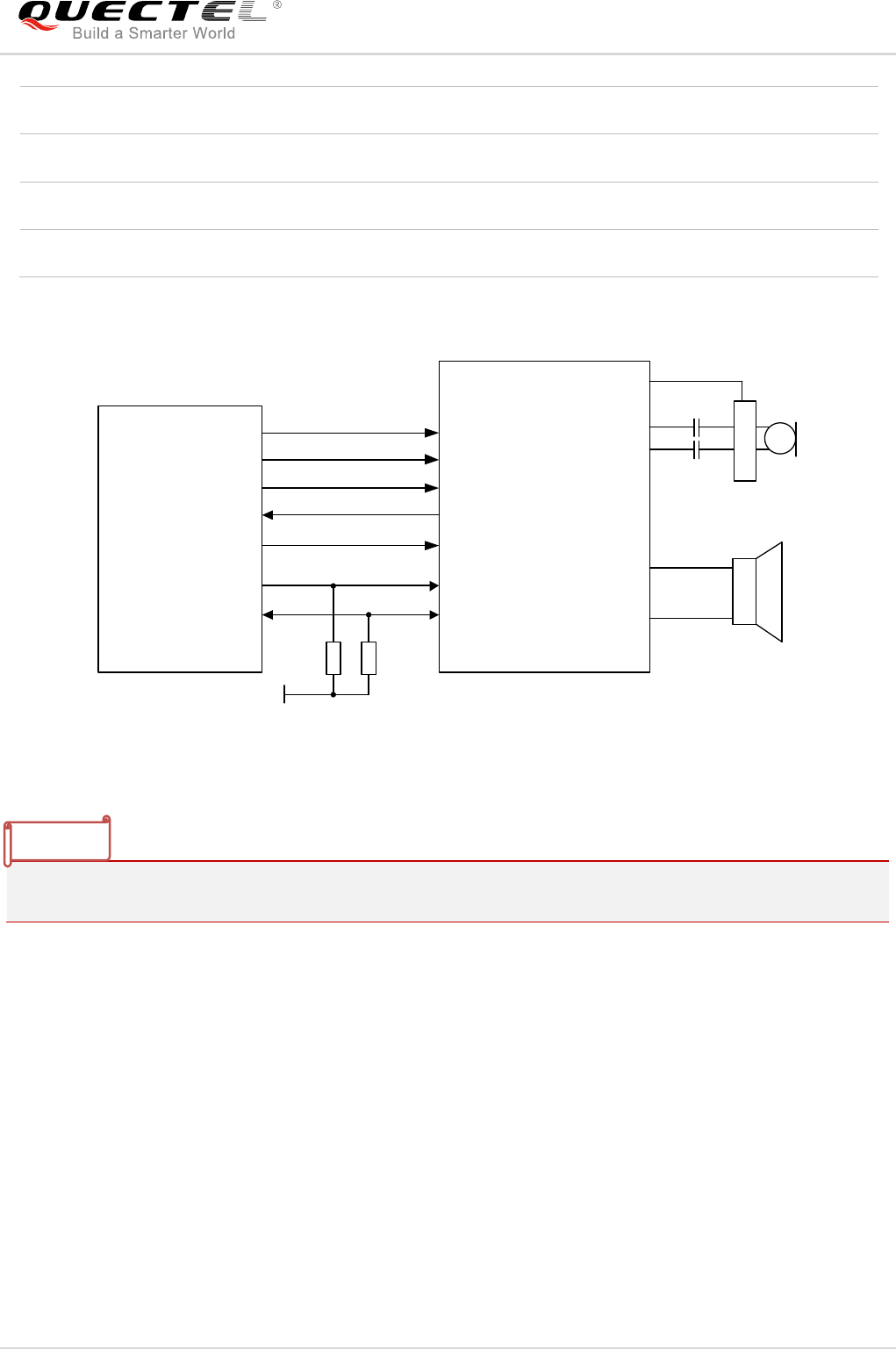

3. Added the reference circuit of I2S application with
audio codec (Figure 20).
4. Added the description of power saving mode (PSM)
and the note in Chapter 3.3.
5. Updated the timing of resetting module in Figure 14.
1.5
2017-05-31
Allen WANG
1. Updated the functional diagram (Figure 1).
2. Added specification requirements for GNSS antenna
in Table 27.
3. Updated the recommended footprint (Figure 35).
4. Added the recommended stencil design (Figure 36).
LTE Module Series
BG96 Hardware Design
BG96_Hardware_Design Confidential / Released 3 / 71
Contents
About the Document ................................................................................................................................... 2
Contents ....................................................................................................................................................... 3
Table Index ................................................................................................................................................... 6
Figure Index ................................................................................................................................................. 7
1 Introduction .......................................................................................................................................... 9
1.1. Safety Information.................................................................................................................... 10
2 Product Concept ................................................................................................................................ 11
2.1. General Description ................................................................................................................. 11
2.2. Directives and Standards ........................................................................................................ 12
2.2.1. FCC Statement .............................................................................................................. 12
2.3. Key Features ........................................................................................................................... 13
2.4. Functional Diagram ................................................................................................................. 15
2.5. Evaluation Board ..................................................................................................................... 16
3 Application Interfaces ....................................................................................................................... 17

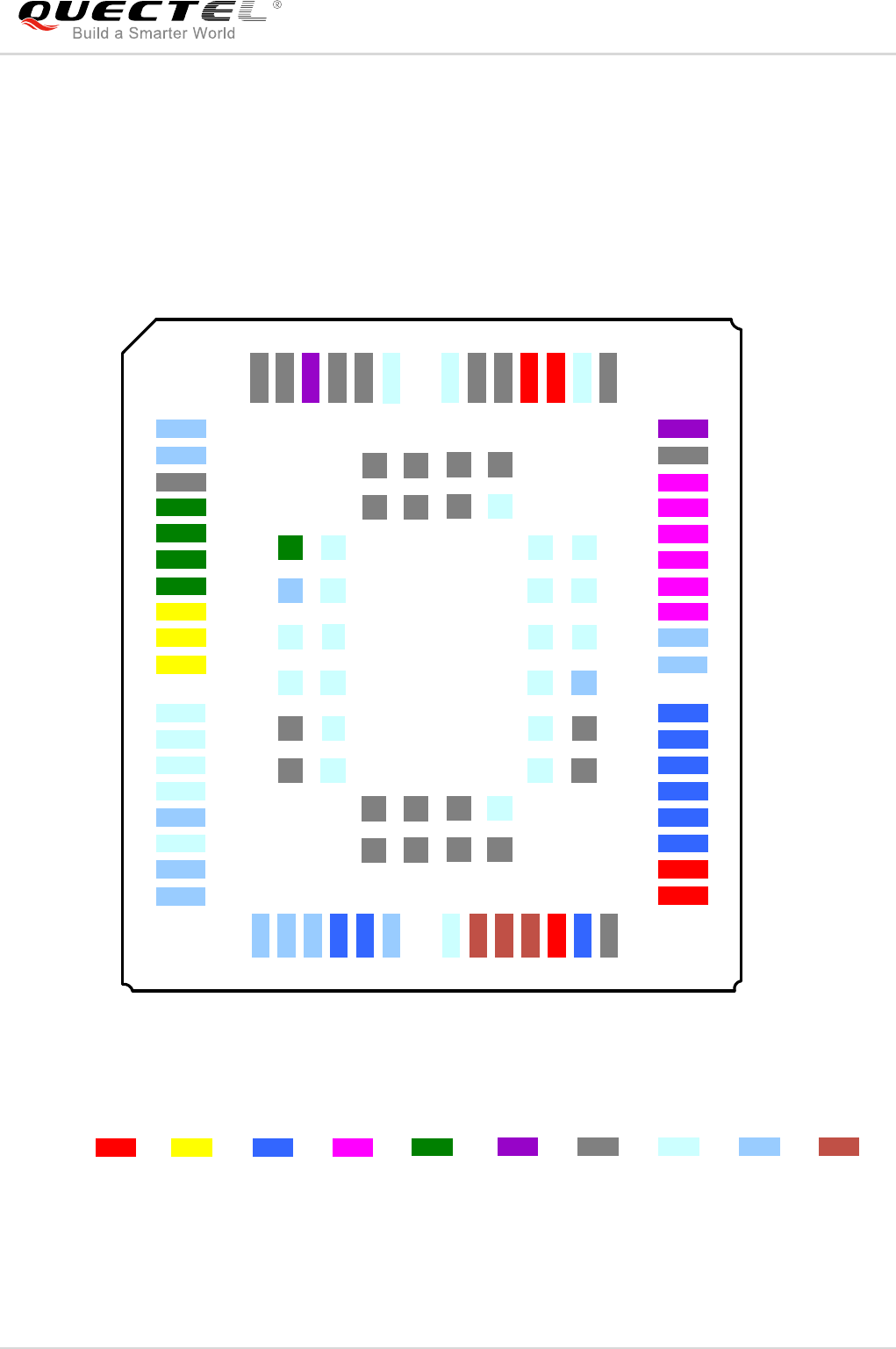

3.1. Pin Assignment ........................................................................................................................ 18
3.2. Pin Description ......................................................................................................................... 19
3.3. Operating Modes ..................................................................................................................... 25
3.4. Power Saving ........................................................................................................................... 26
3.4.1. Sleep Mode .................................................................................................................... 26
3.4.1.1. UART Application ................................................................................................. 26
3.4.1.2. USB Application with USB Remote Wakeup Function ........................................ 27
3.4.1.3. USB Application with USB Suspend/Resume and RI Function .......................... 27
3.4.1.4. USB Application without USB Suspend Function ................................................ 28
3.4.2. Airplane Mode ................................................................................................................ 29
3.5. Power Supply ........................................................................................................................... 29
3.5.1. Power Supply Pins ......................................................................................................... 29
3.5.2. Decrease Voltage Drop .................................................................................................. 30
3.5.3. Monitor the Power Supply .............................................................................................. 31
3.6. Turn on and off Scenarios ....................................................................................................... 31

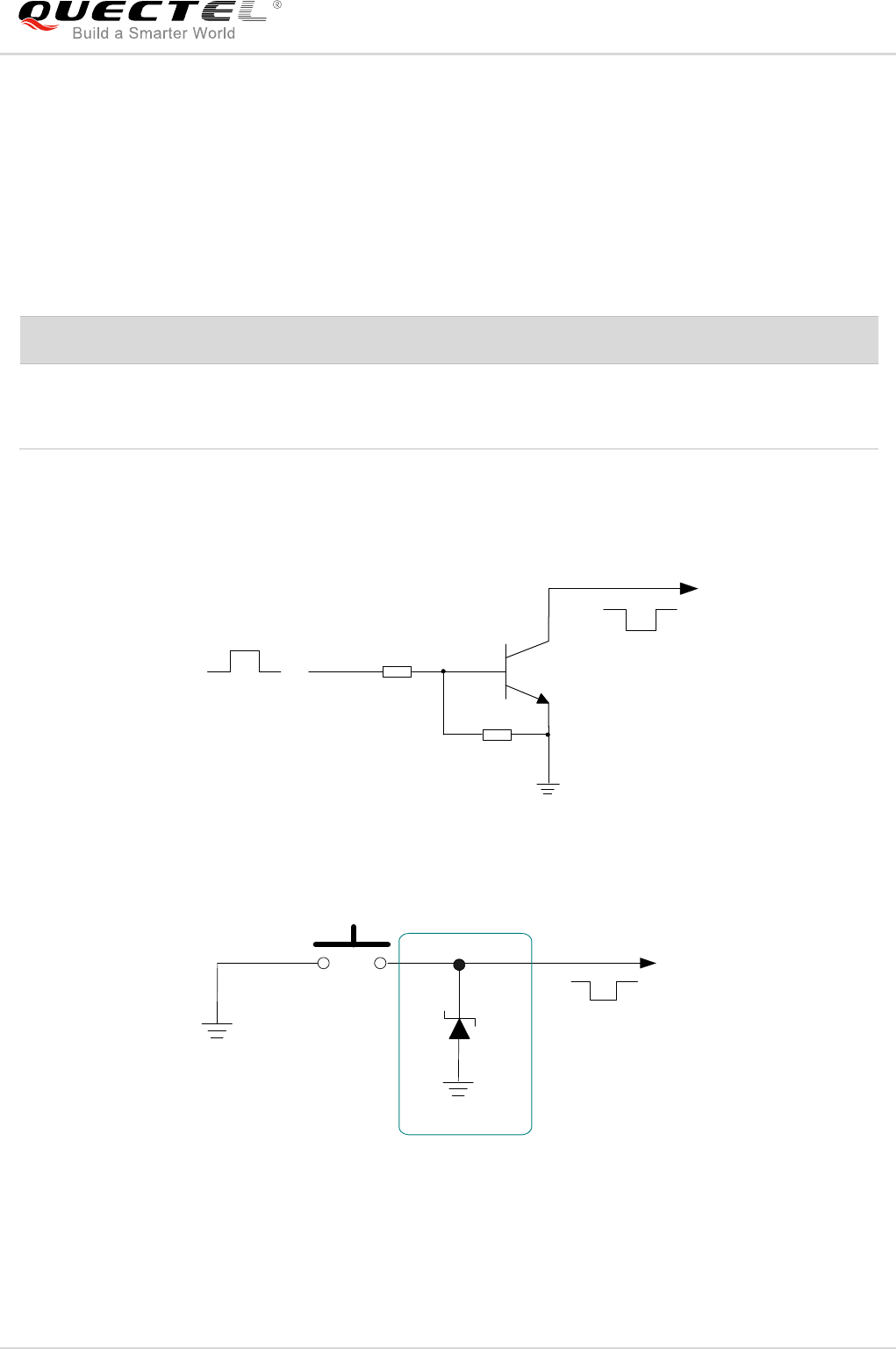

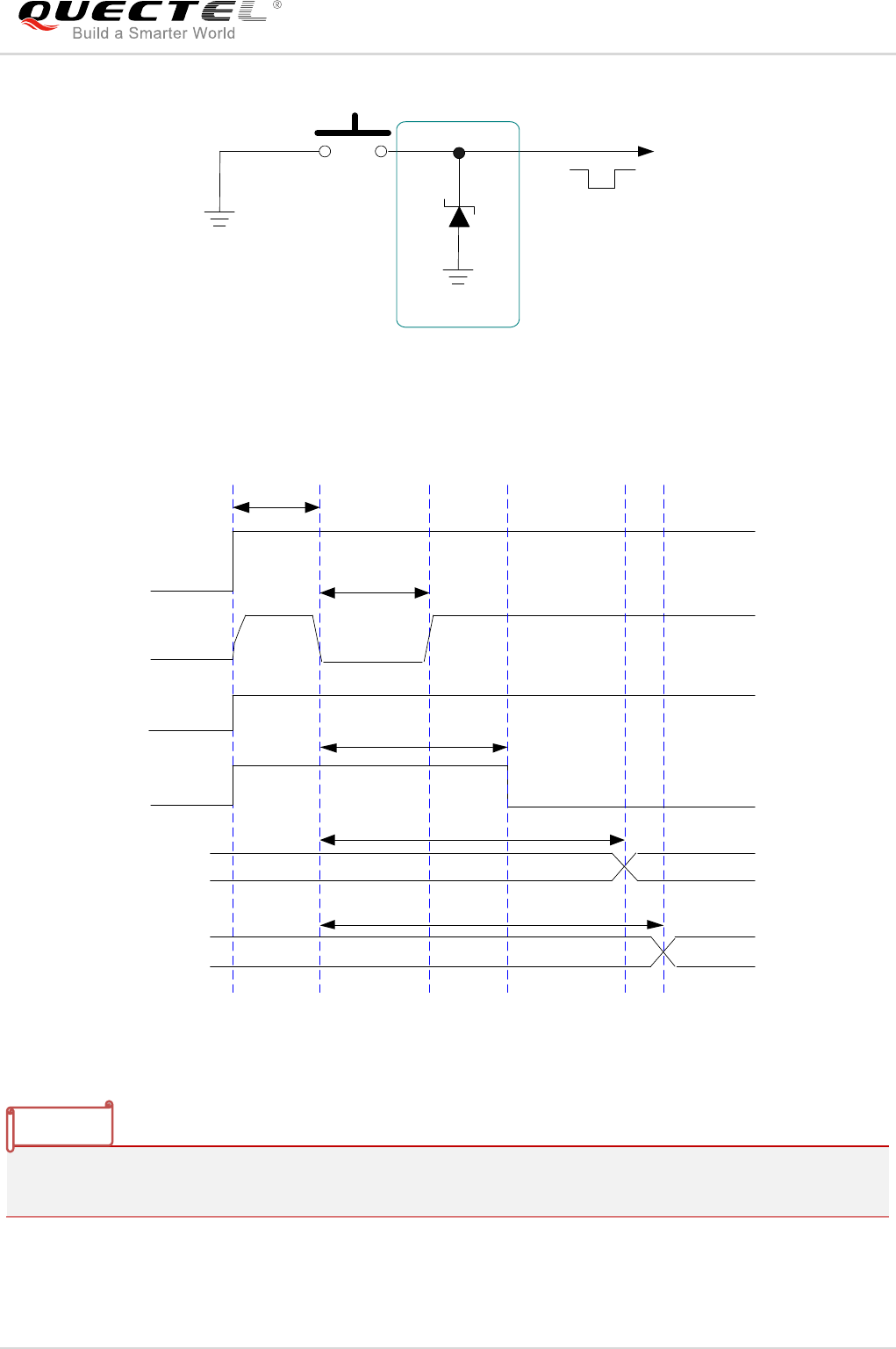

3.6.1. Turn on Module Using the PWRKEY Pin ....................................................................... 31
3.6.2. Turn off Module .............................................................................................................. 33
3.6.2.1. Turn off Module Using the PWRKEY Pin ............................................................. 33
3.6.2.2. Turn off Module Using AT Command ................................................................... 33
3.7. Reset the Module..................................................................................................................... 34
3.8. (U)SIM Card Interface ............................................................................................................. 35

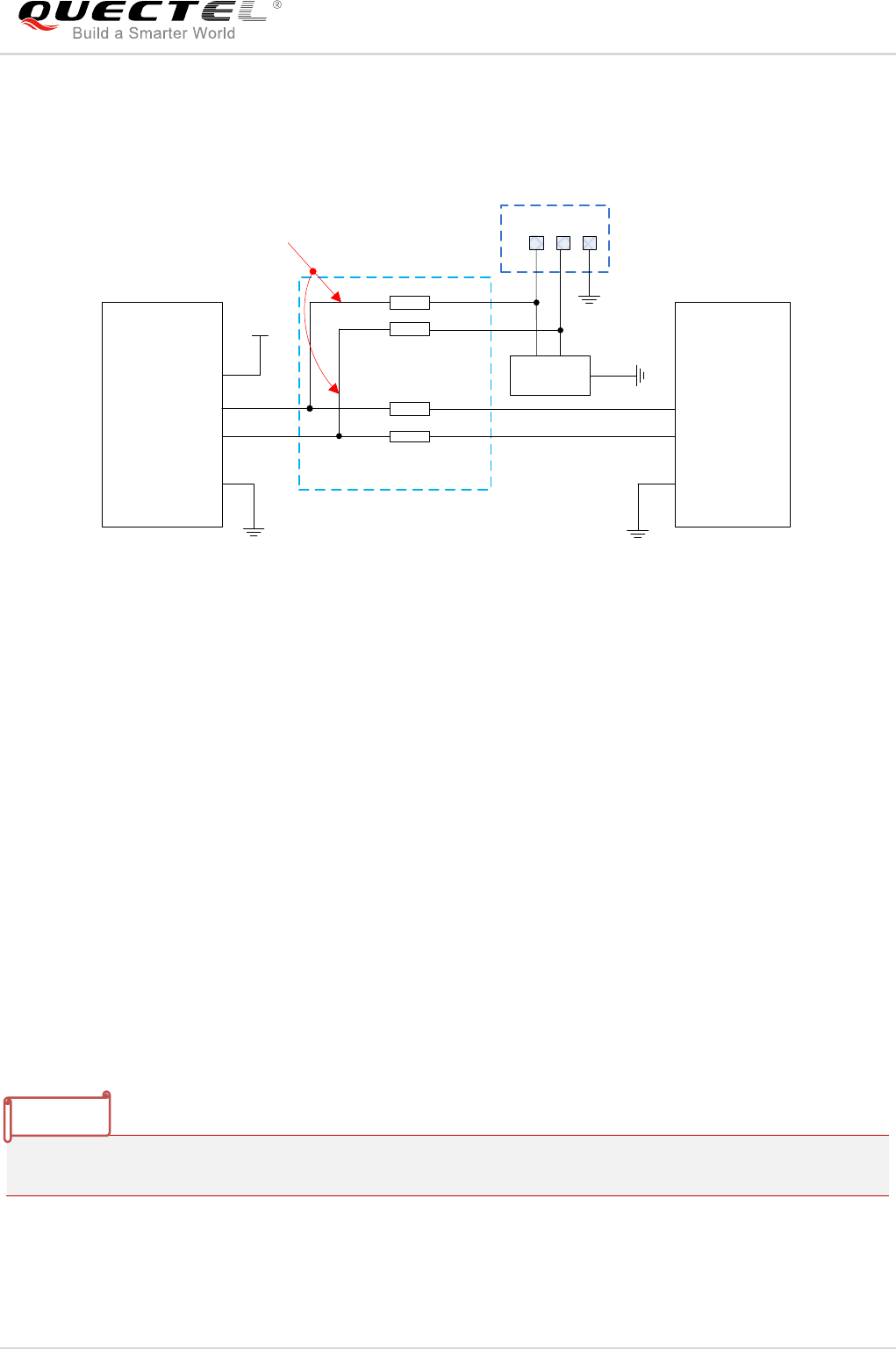

3.9. USB Interface .......................................................................................................................... 37

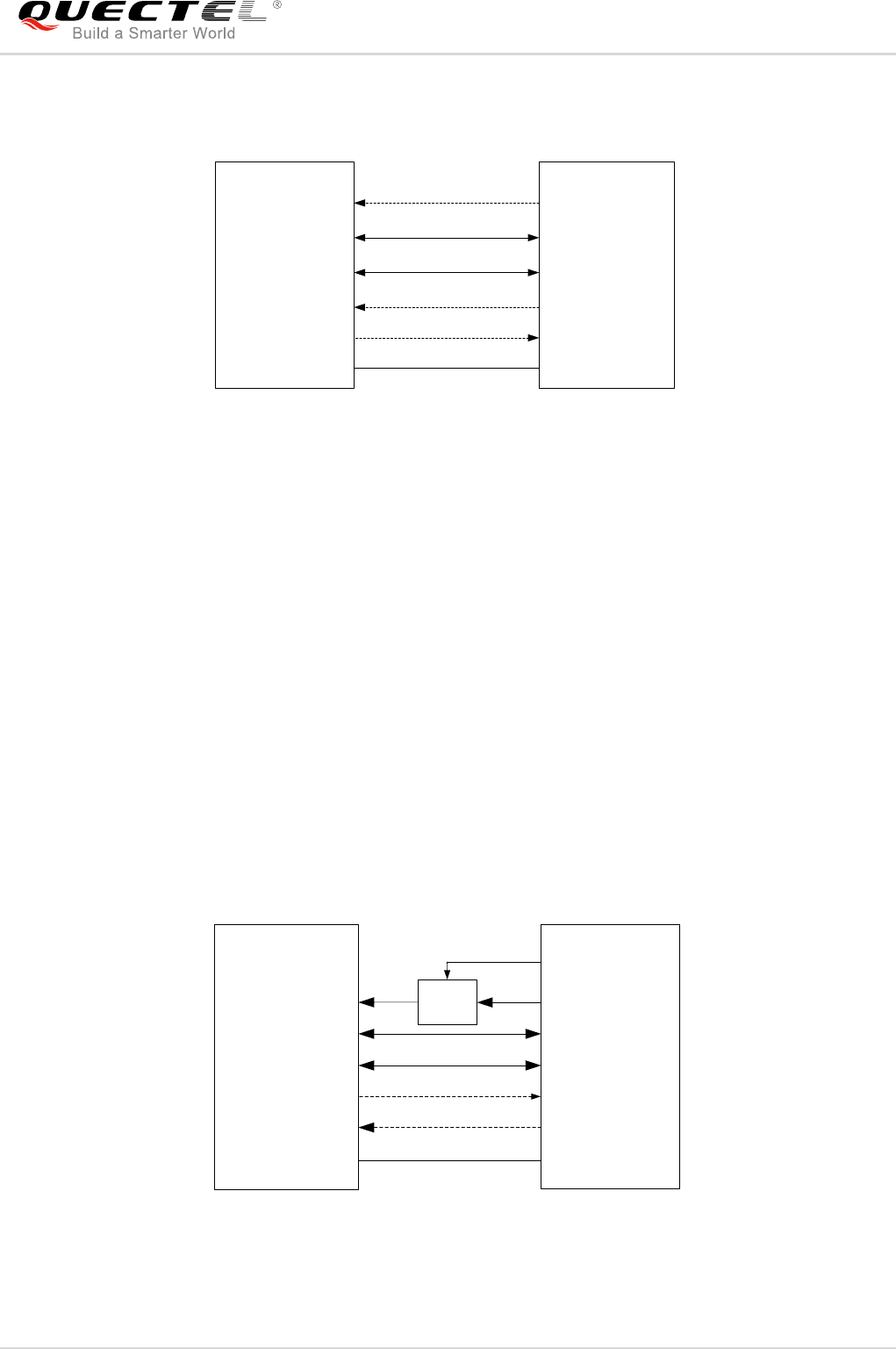

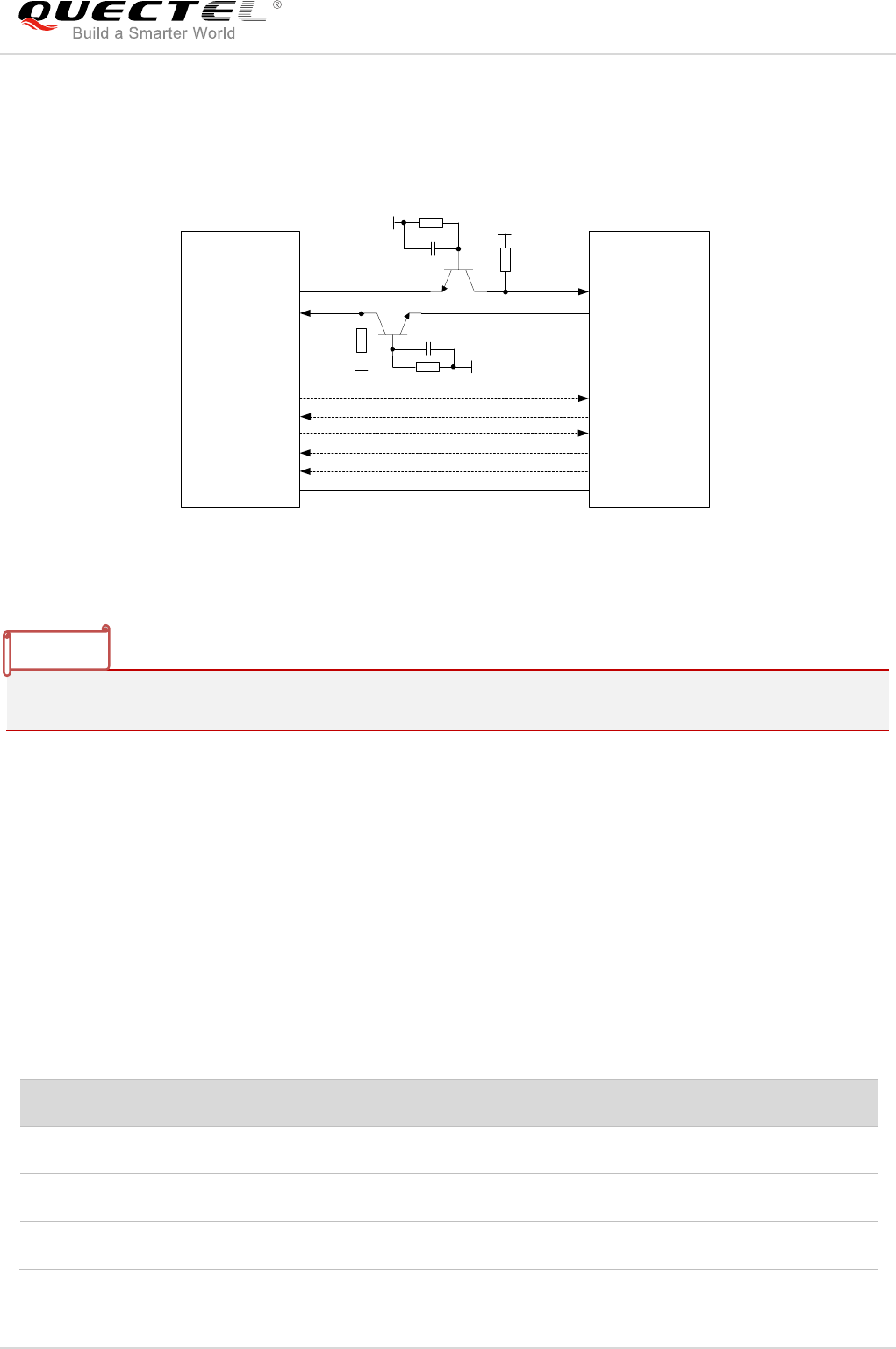

3.10. UART Interfaces ...................................................................................................................... 39
3.11. I2S* and I2C Interfaces ........................................................................................................... 41
LTE Module Series
BG96 Hardware Design
BG96_Hardware_Design Confidential / Released 4 / 71
3.12. SPI* Interface ........................................................................................................................... 42

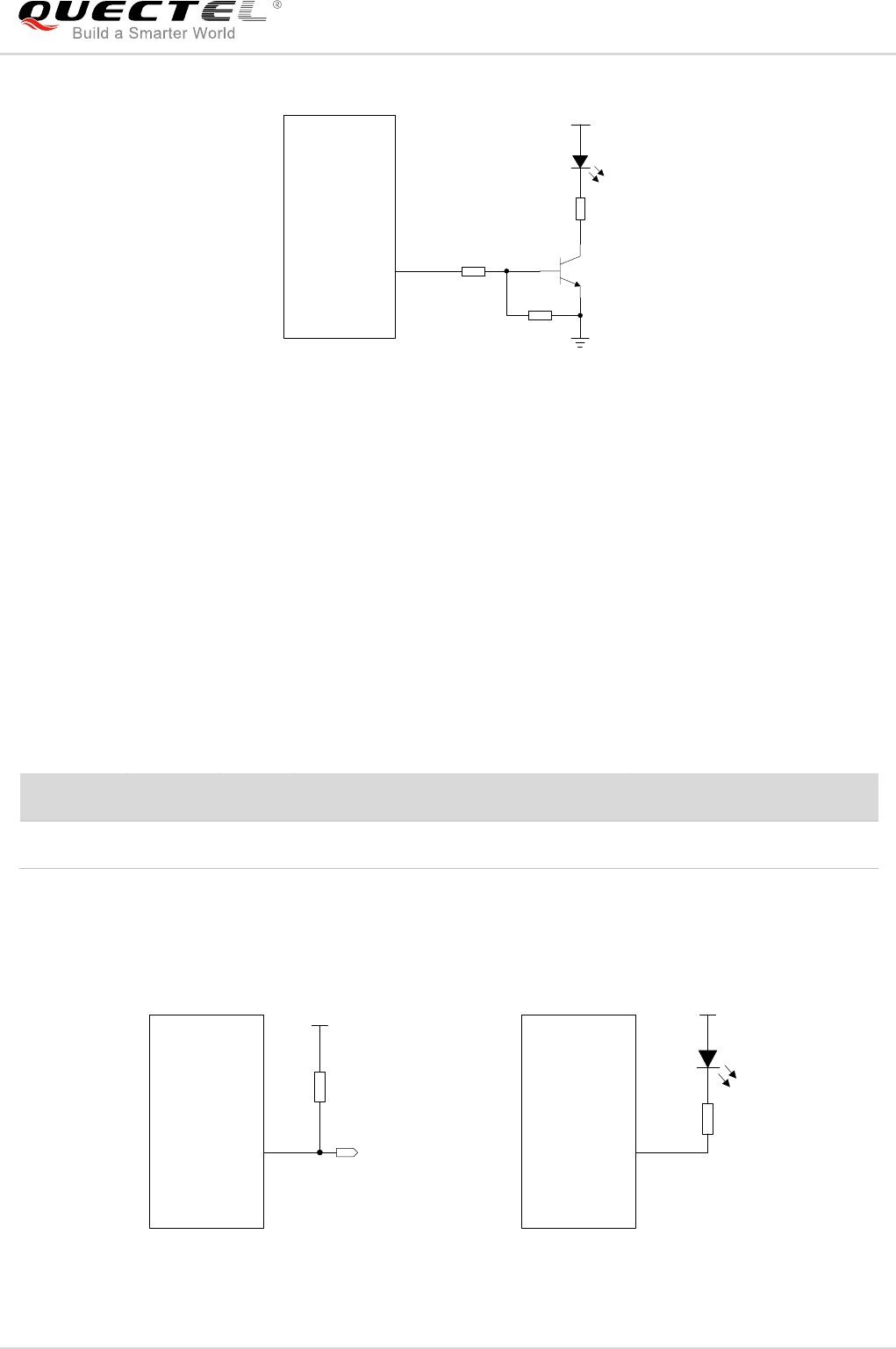

3.13. Network Status Indication ........................................................................................................ 43
3.14. STATUS ................................................................................................................................... 44
3.15. Behaviors of RI ........................................................................................................................ 45
3.16. USB_BOOT Interface .............................................................................................................. 45
4 GNSS Receiver ................................................................................................................................... 47
4.1. General Description ................................................................................................................. 47
4.2. GNSS Performance ................................................................................................................. 47
4.3. Layout Guidelines .................................................................................................................... 48
5 Antenna Interfaces ............................................................................................................................. 49
5.1. Main Antenna Interface ........................................................................................................... 49
5.1.1. Pin Definition .................................................................................................................. 49
5.1.2. Operating Frequency ..................................................................................................... 49

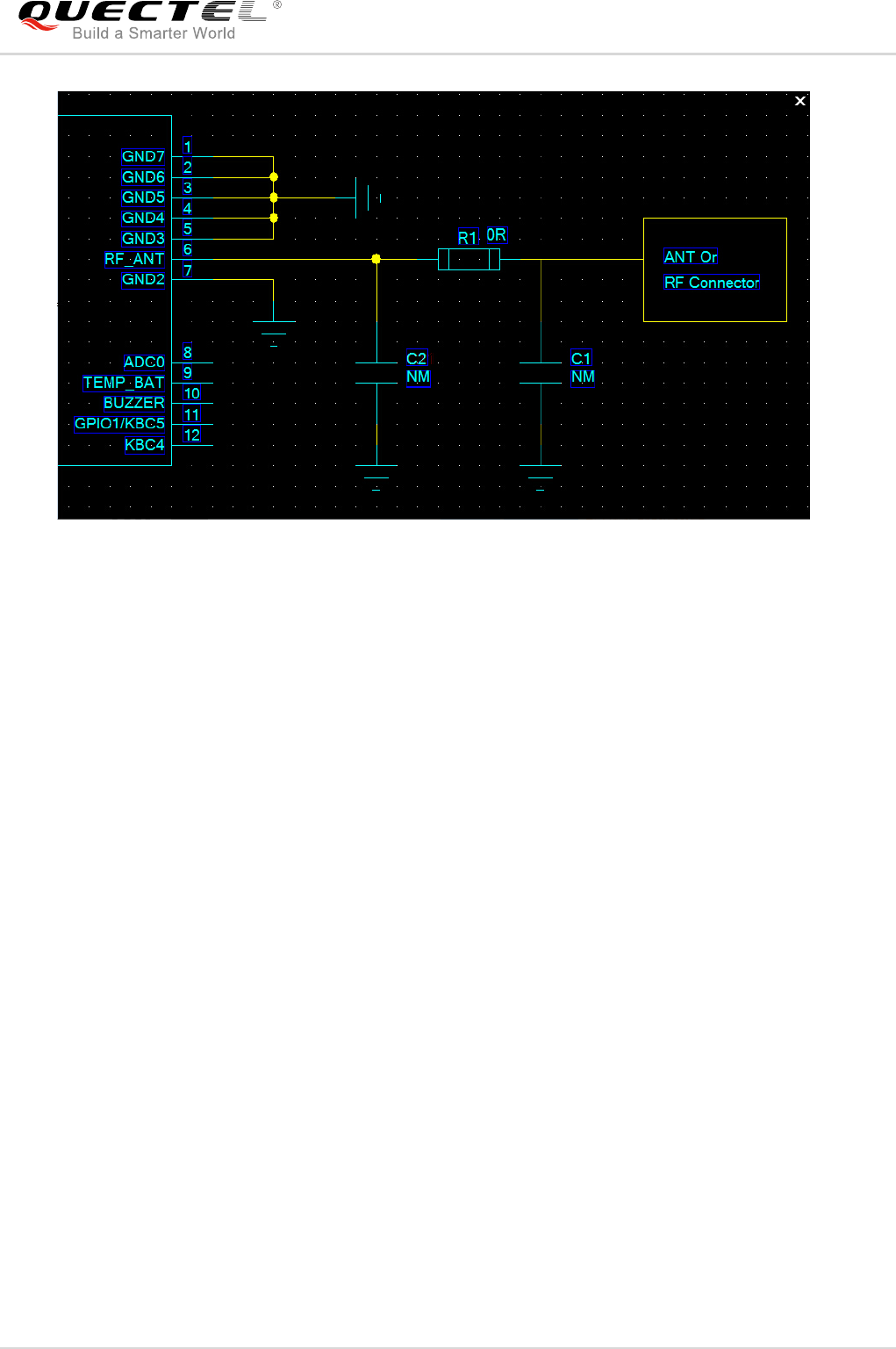

5.1.3. Reference Design of RF Antenna Interface ................................................................... 50
5.1.4. Reference Design of RF Layout..................................................................................... 50
5.2. GNSS Antenna Interface ......................................................................................................... 52
5.3. Antenna Installation ................................................................................................................. 54
5.3.1. Antenna Requirements .................................................................................................. 54

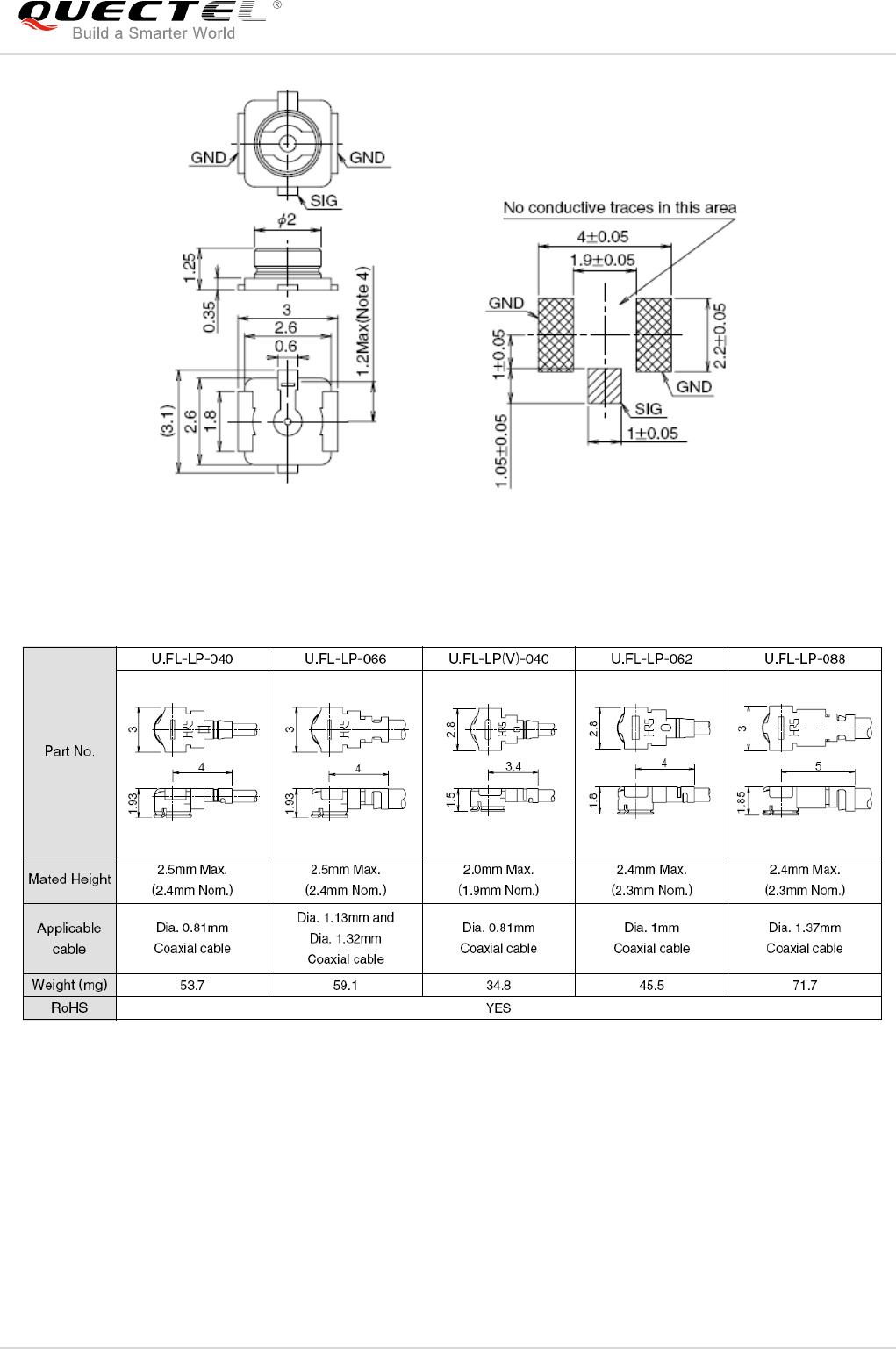

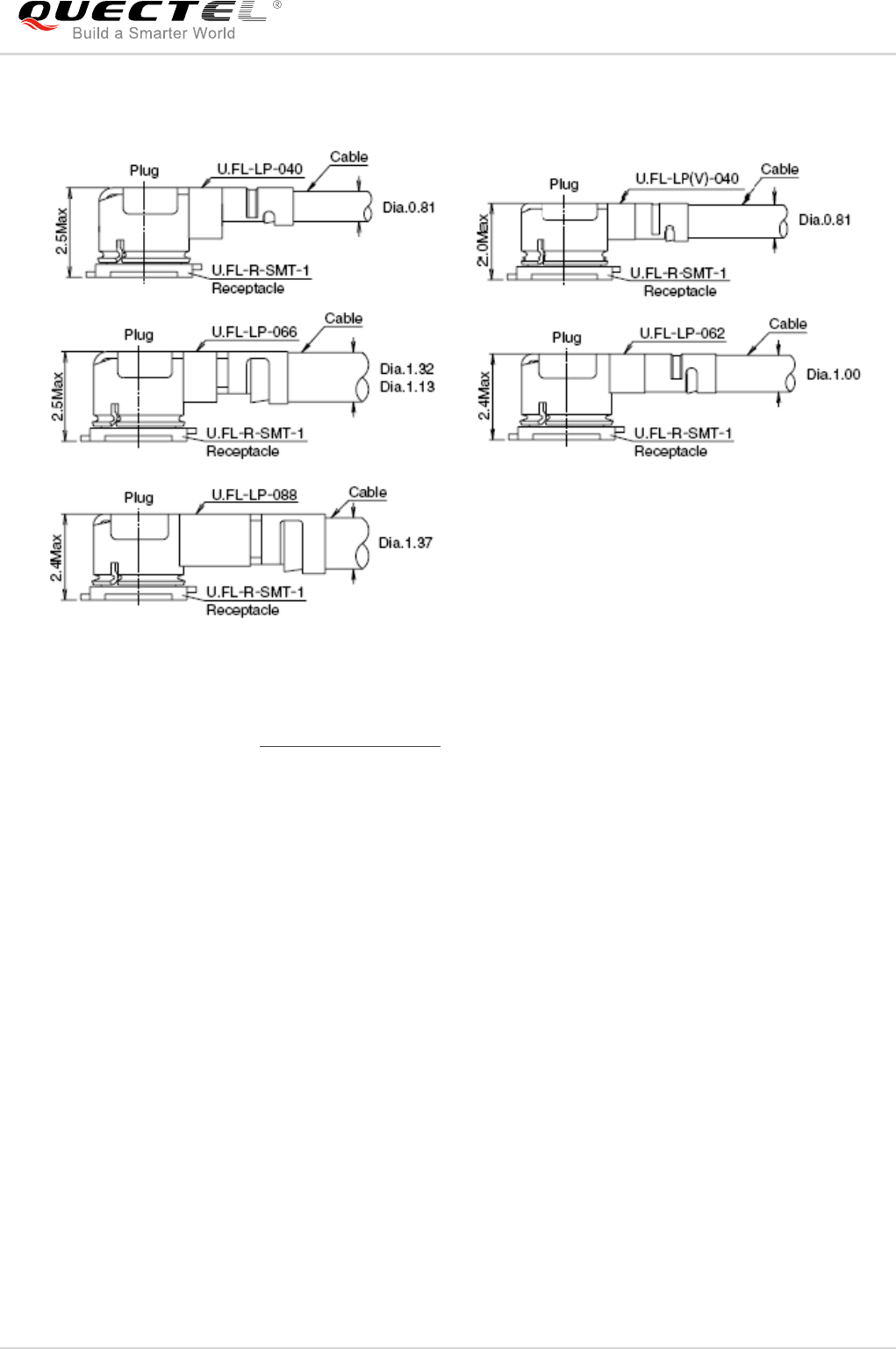

5.3.2. Recommended RF Connector for Antenna Installation ................................................. 54
5.3.3. RF Reference Schematic Diagram ................................................................................ 56

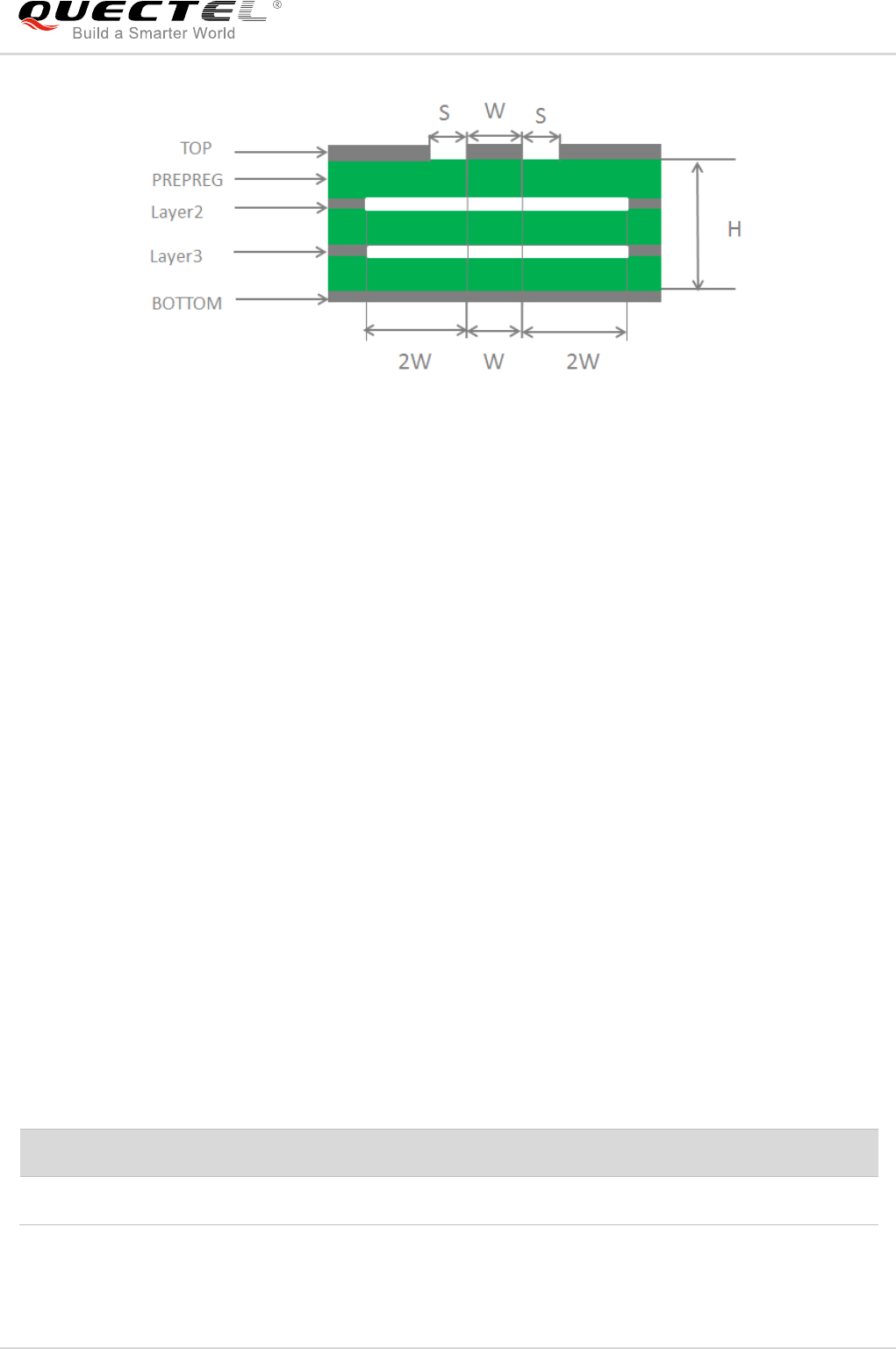

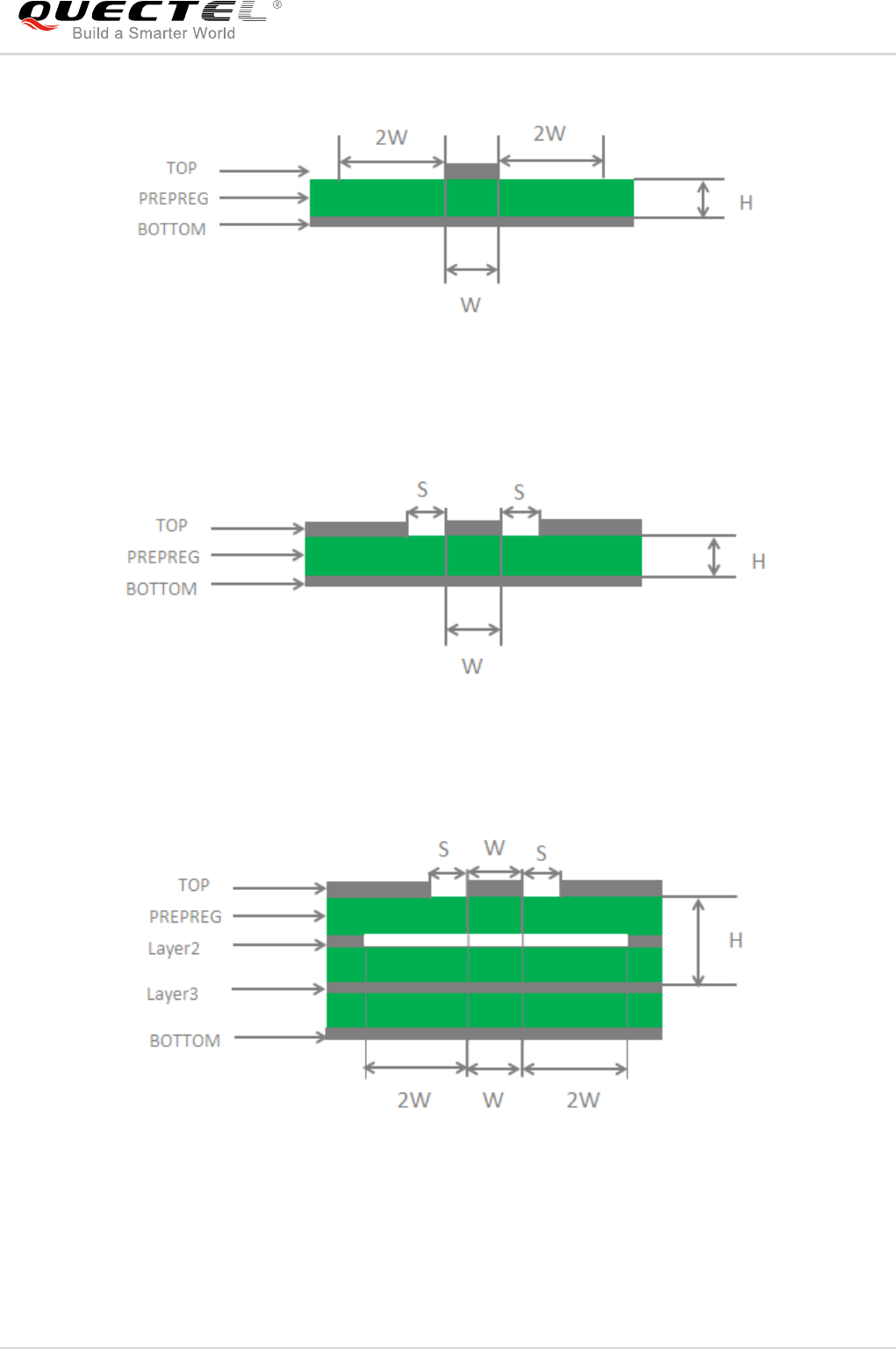

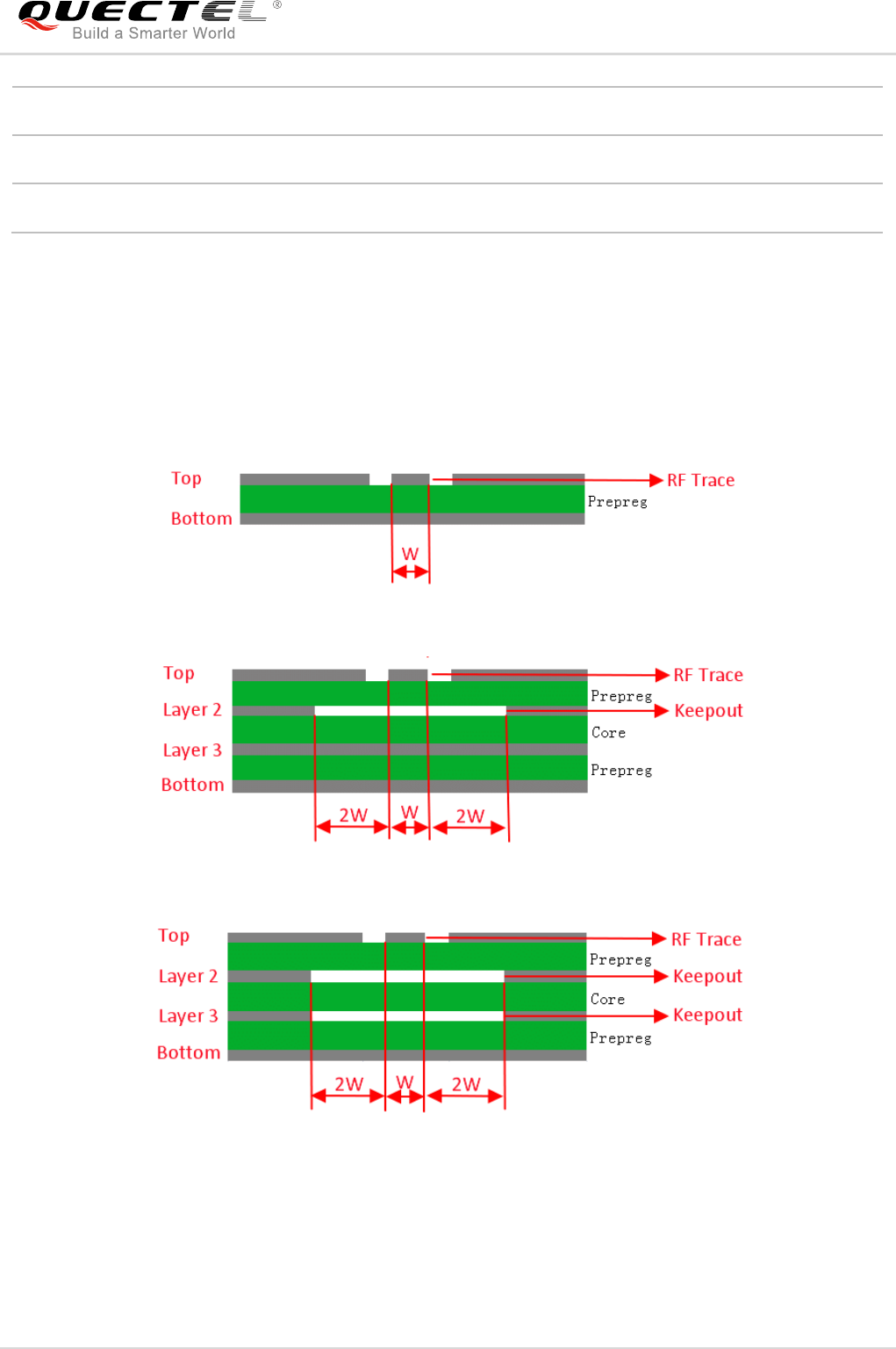

5.3.4. Coplanar Waveguide Structure Design.......................................................................... 58

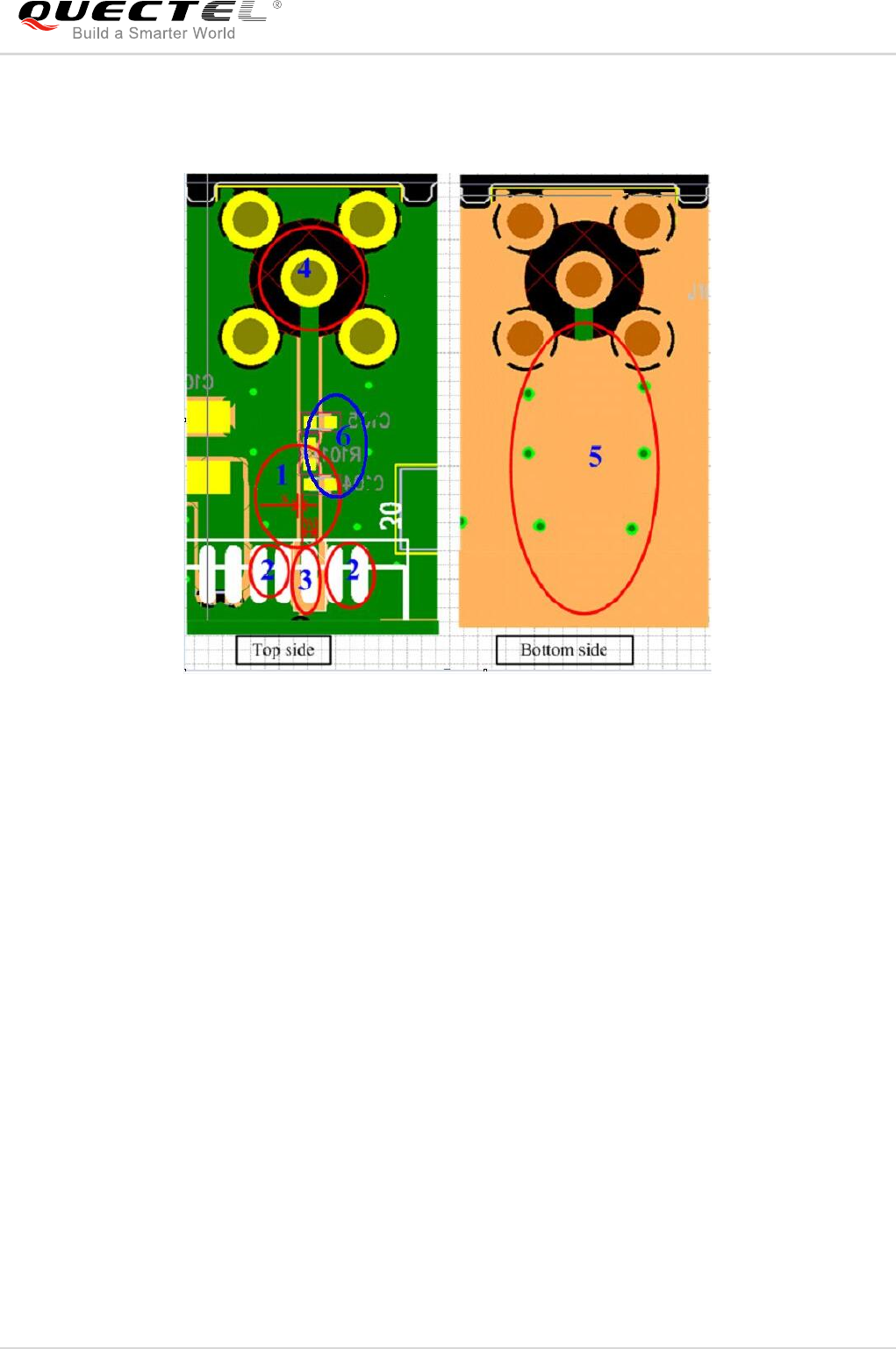

5.3.5. Coplanar WG PCB Layout Example and Guidelines..................................................... 60
6 Electrical, Reliability and Radio Characteristics ............................................................................ 62
6.1. Absolute Maximum Ratings ..................................................................................................... 62
6.2. Power Supply Ratings ............................................................................................................. 62
6.3. Operation Temperature ............................................................................................................ 63
6.4. Current Consumption .............................................................................................................. 63
6.5. RF Output Power ..................................................................................................................... 63
6.6. RF Receiving Sensitivity .......................................................................................................... 64
6.7. Electrostatic Discharge ............................................................................................................ 64
7 Mechanical Dimensions .................................................................................................................... 65

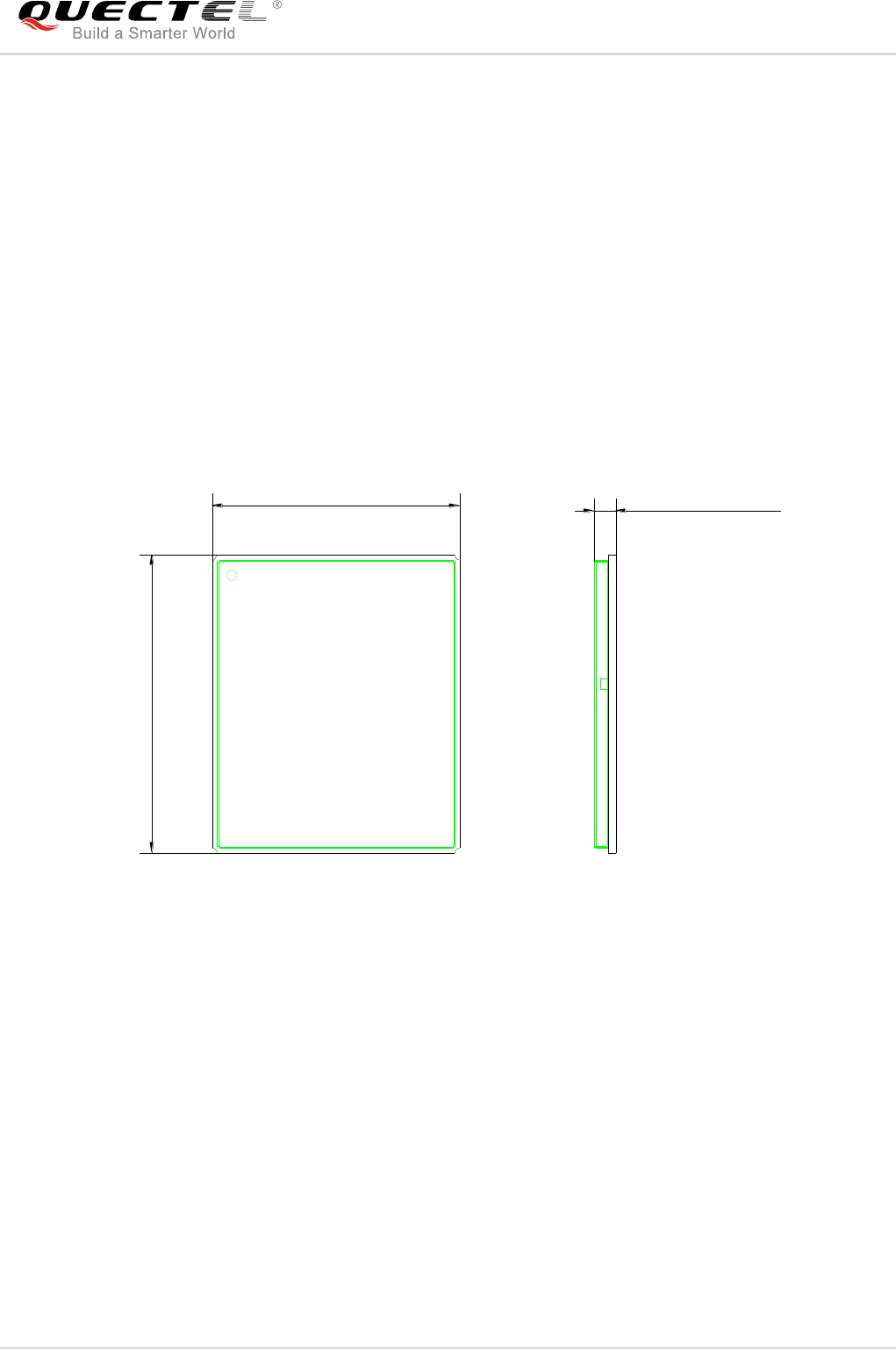

7.1. Mechanical Dimensions of the Module.................................................................................... 65

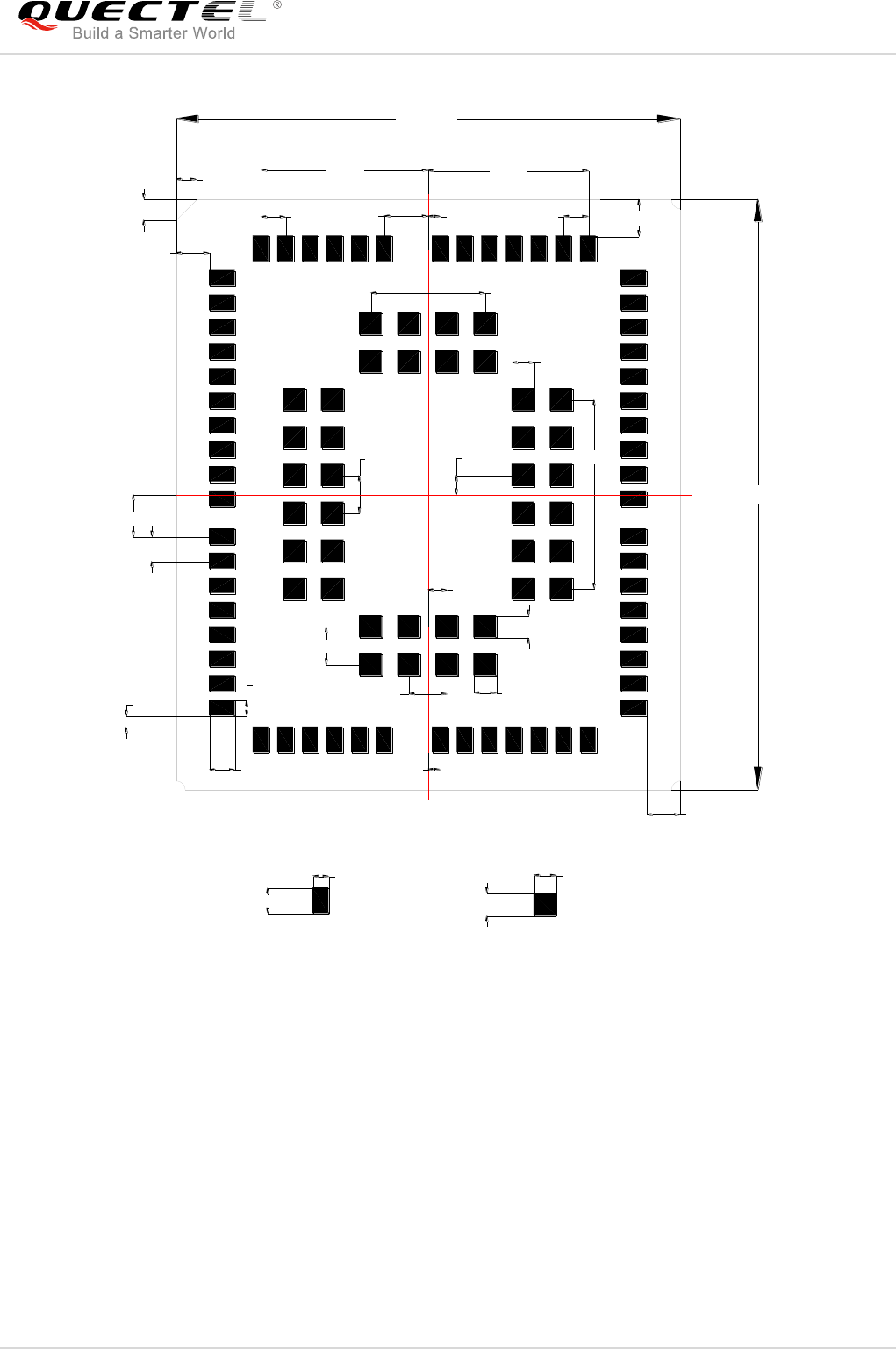

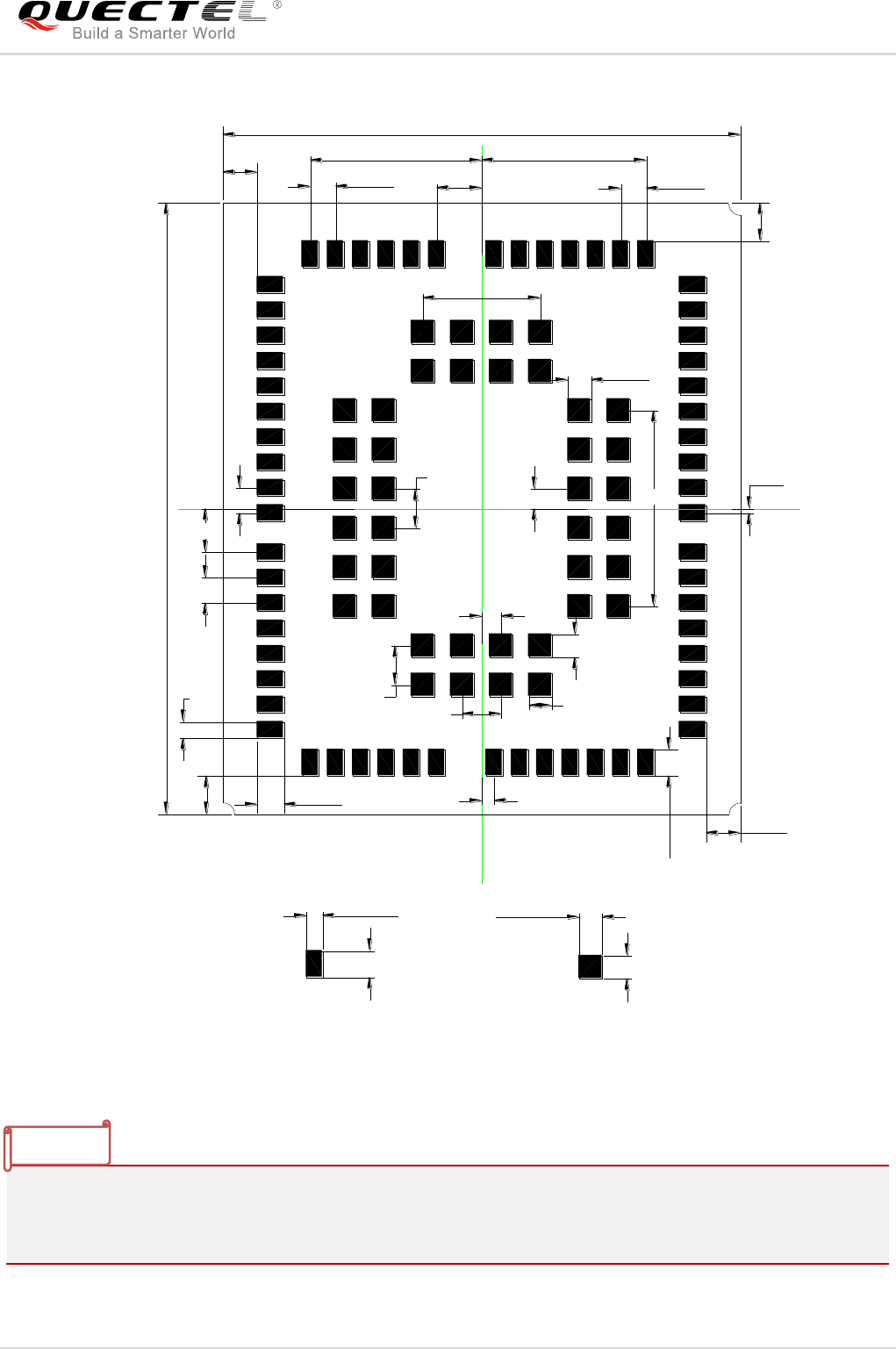

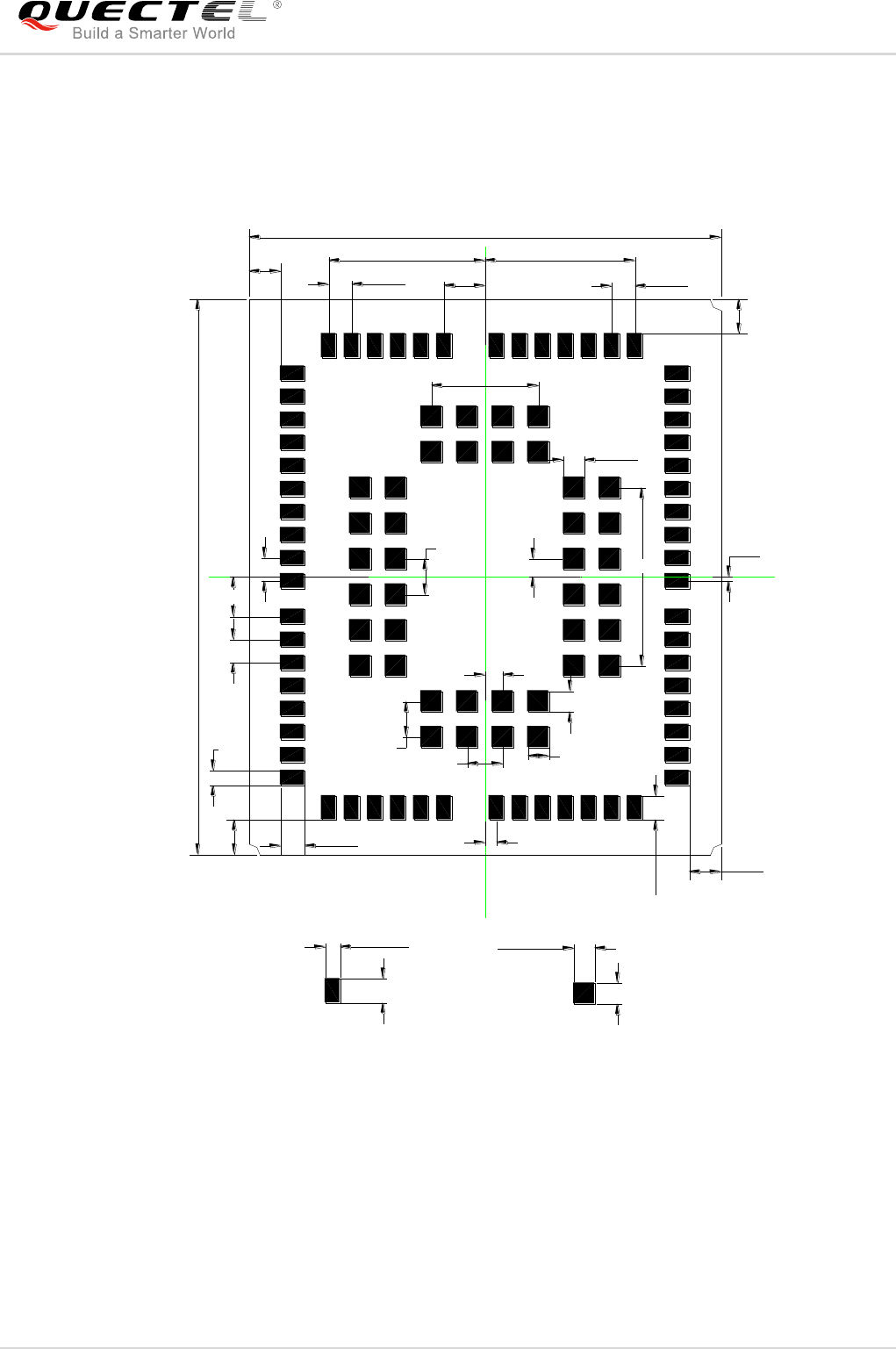

7.2. Recommended Footprint and Stencil Design .......................................................................... 67
7.3. Design Effect Drawings of the Module .................................................................................... 69
8 Storage, Manufacturing and Packaging .......................................................................................... 70
8.1. Storage .................................................................................................................................... 70

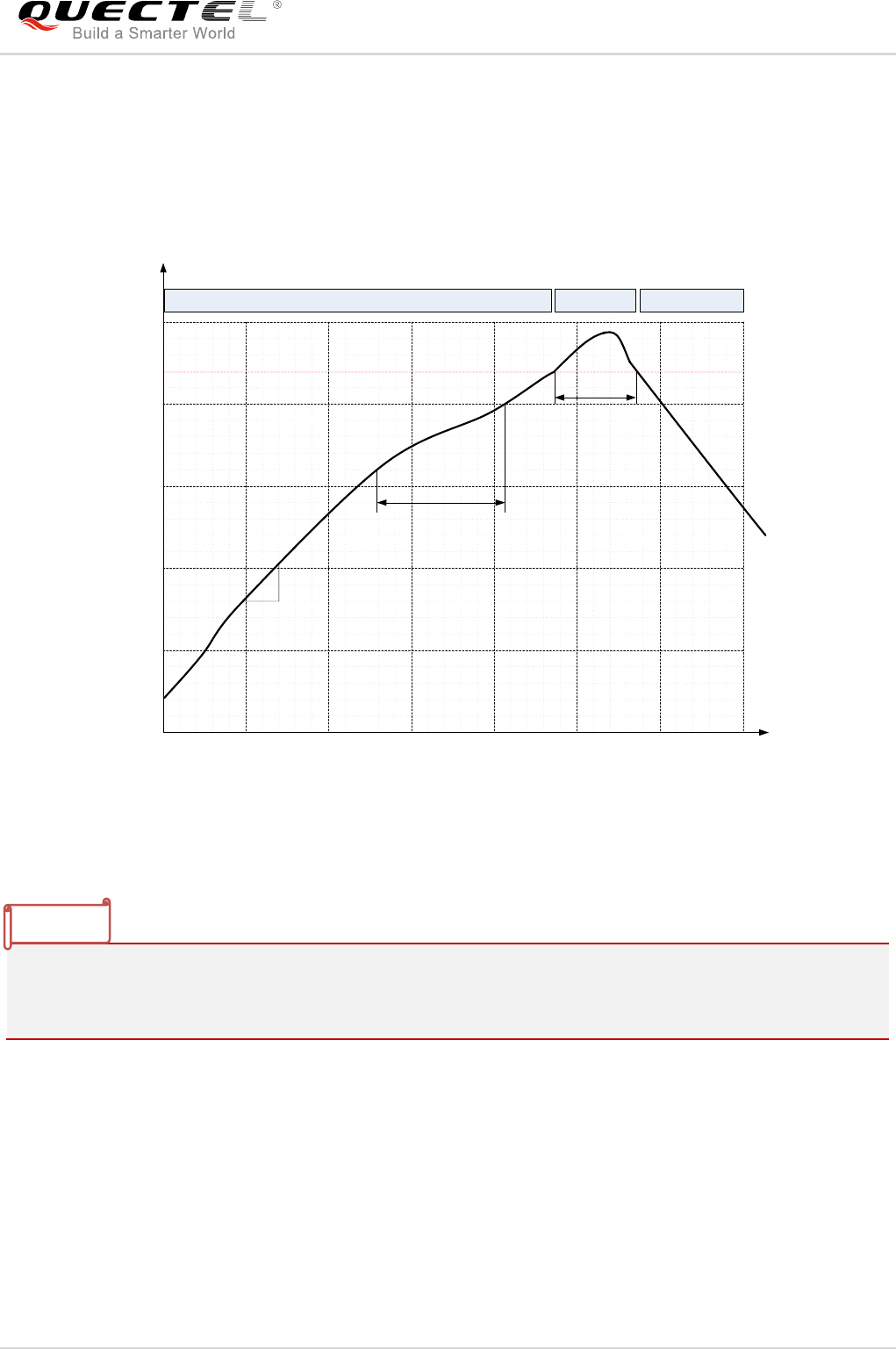

8.2. Manufacturing and Soldering .................................................................................................. 70
8.3. Packaging ................................................................................................................................ 71
9 Appendix A References ..................................................................................................................... 72
10 Appendix B GPRS Coding Schemes ............................................................................................... 75
LTE Module Series
BG96 Hardware Design
BG96_Hardware_Design Confidential / Released 5 / 71
11 Appendix C GPRS Multi-slot Classes .............................................................................................. 76
12 Appendix D EDGE Modulation and Coding Schemes ................................................................... 77
LTE Module Series
BG96 Hardware Design
BG96_Hardware_Design Confidential / Released 6 / 71
Table Index
TABLE 1: FREQUENCY BANDS OF BG96 MODULE ....................................................................................... 11
TABLE 2: KEY FEATURES OF BG96 ............................................................................................................... 13
TABLE 3: DEFINITION OF I/O PARAMETERS ................................................................................................. 19
TABLE 4: PIN DESCRIPTION ........................................................................................................................... 19
TABLE 5: OVERVIEW OF OPERATING MODES ............................................................................................. 25
TABLE 6: VBAT AND GND PINS ....................................................................................................................... 30
TABLE 7: PIN DEFINITION OF PWRKEY ........................................................................................................ 31
TABLE 8: RESET_N PIN DESCRIPTION ......................................................................................................... 34
TABLE 9: PIN DEFINITION OF (U)SIM CARD INTERFACE ............................................................................ 35
TABLE 10: PIN DEFINITION OF USB INTERFACE ......................................................................................... 37
TABLE 11: PIN DEFINITION OF UART1 INTERFACE ..................................................................................... 39
TABLE 12: PIN DEFINITION OF UART2 INTERFACE ..................................................................................... 39
TABLE 13: PIN DEFINITION OF UART3 INTERFACE ..................................................................................... 40
TABLE 14: LOGIC LEVELS OF DIGITAL I/O .................................................................................................... 40
TABLE 15: PIN DEFINITION OF I2S* AND I2C INTERFACES ........................................................................ 41
TABLE 16: PIN DEFINITION OF SPI* INTERFACE ......................................................................................... 43
TABLE 17: PIN DEFINITION OF NETWORK STATUS INDICATOR ................................................................ 43
TABLE 18: WORKING STATE OF THE NETWORK STATUS INDICATOR ...................................................... 43
TABLE 19: PIN DEFINITION OF STATUS ........................................................................................................ 44
TABLE 20: DEFAULT BEHAVIORS OF RI ........................................................................................................ 45
TABLE 21: PIN DEFINITION OF USB_BOOT INTERFACE ............................................................................. 45
TABLE 22: GNSS PERFORMANCE ................................................................................................................. 47
TABLE 23: PIN DEFINITION OF MAIN ANTENNA INTERFACE ...................................................................... 49
TABLE 24: MODULE OPERATING FREQUENCIES ........................................................................................ 49
TABLE 25: PIN DEFINITION OF GNSS ANTENNA INTERFACE ..................................................................... 52
TABLE 26: GNSS FREQUENCY ....................................................................................................................... 53
TABLE 27: ANTENNA REQUIREMENTS .......................................................................................................... 54
TABLE 28: ABSOLUTE MAXIMUM RATINGS .................................................................................................. 62
TABLE 29: POWER SUPPLY RATINGS ........................................................................................................... 62
TABLE 30: OPERATION TEMPERATURE ........................................................................................................ 63
TABLE 31: RF OUTPUT POWER ........................................................................................... 错误!未定义书签。
TABLE 32: BG96 CONDUCTED RF RECEIVING SENSITIVITY ..................................................................... 64
TABLE 33: RELATED DOCUMENTS ................................................................................................................ 72
TABLE 34: TERMS AND ABBREVIATIONS ...................................................................................................... 72
TABLE 35: DESCRIPTION OF DIFFERENT CODING SCHEMES .................................................................. 75
TABLE 36: GPRS MULTI-SLOT CLASSES ...................................................................................................... 76
TABLE 37: EDGE MODULATION AND CODING SCHEMES ........................................................................... 77
LTE Module Series
BG96 Hardware Design
BG96_Hardware_Design Confidential / Released 7 / 71
Figure Index

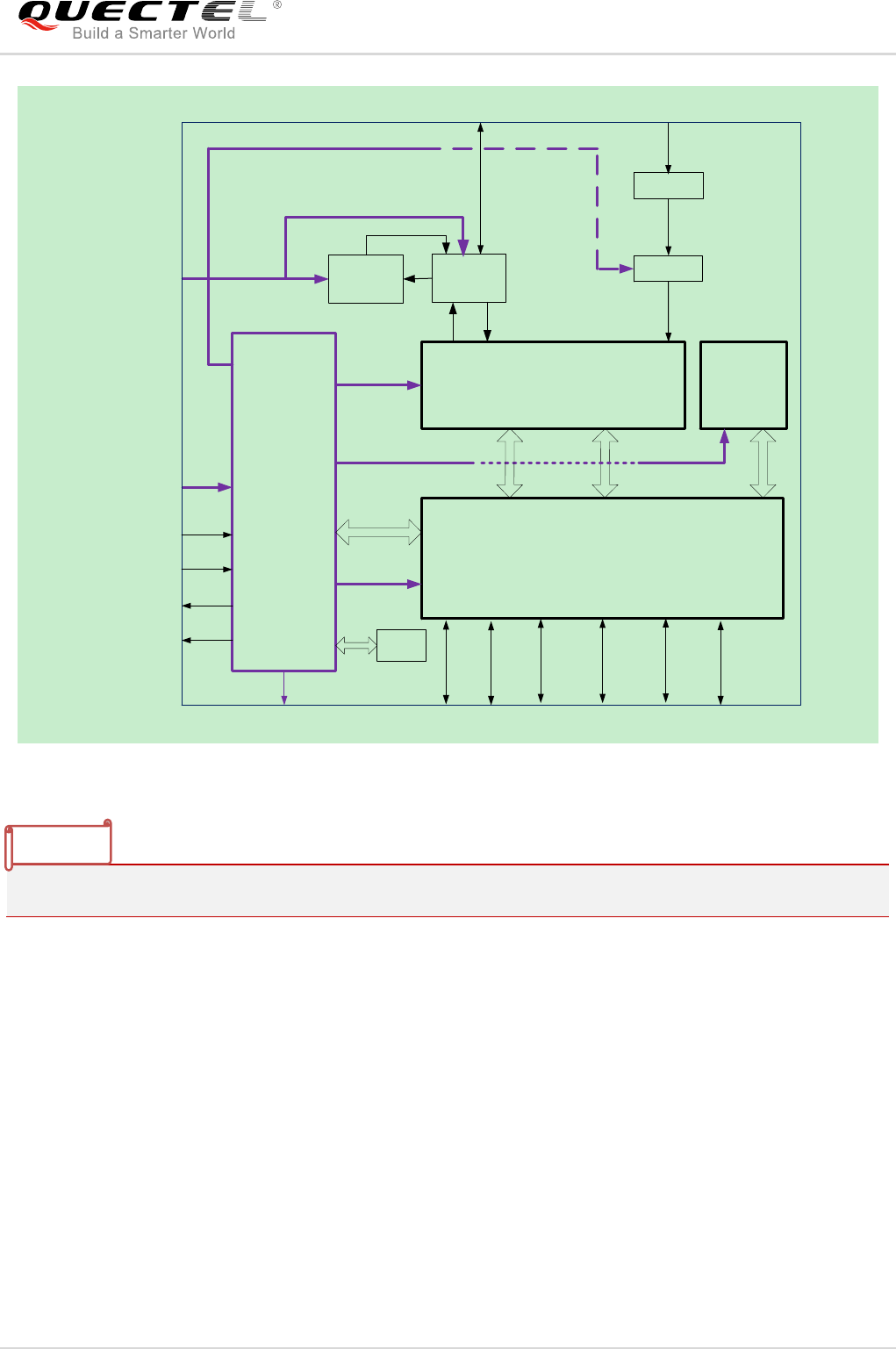

FIGURE 1: FUNCTIONAL DIAGRAM ............................................................................................................... 16
FIGURE 2: PIN ASSIGNMENT (TOP VIEW)..................................................................................................... 18
FIGURE 3: SLEEP MODE APPLICATION VIA UART ....................................................................................... 26
FIGURE 4: SLEEP MODE APPLICATION WITH USB REMOTE WAKEUP .................................................... 27
FIGURE 5: SLEEP MODE APPLICATION WITH RI ......................................................................................... 28
FIGURE 6: SLEEP MODE APPLICATION WITHOUT SUSPEND FUNCTION ................................................ 28

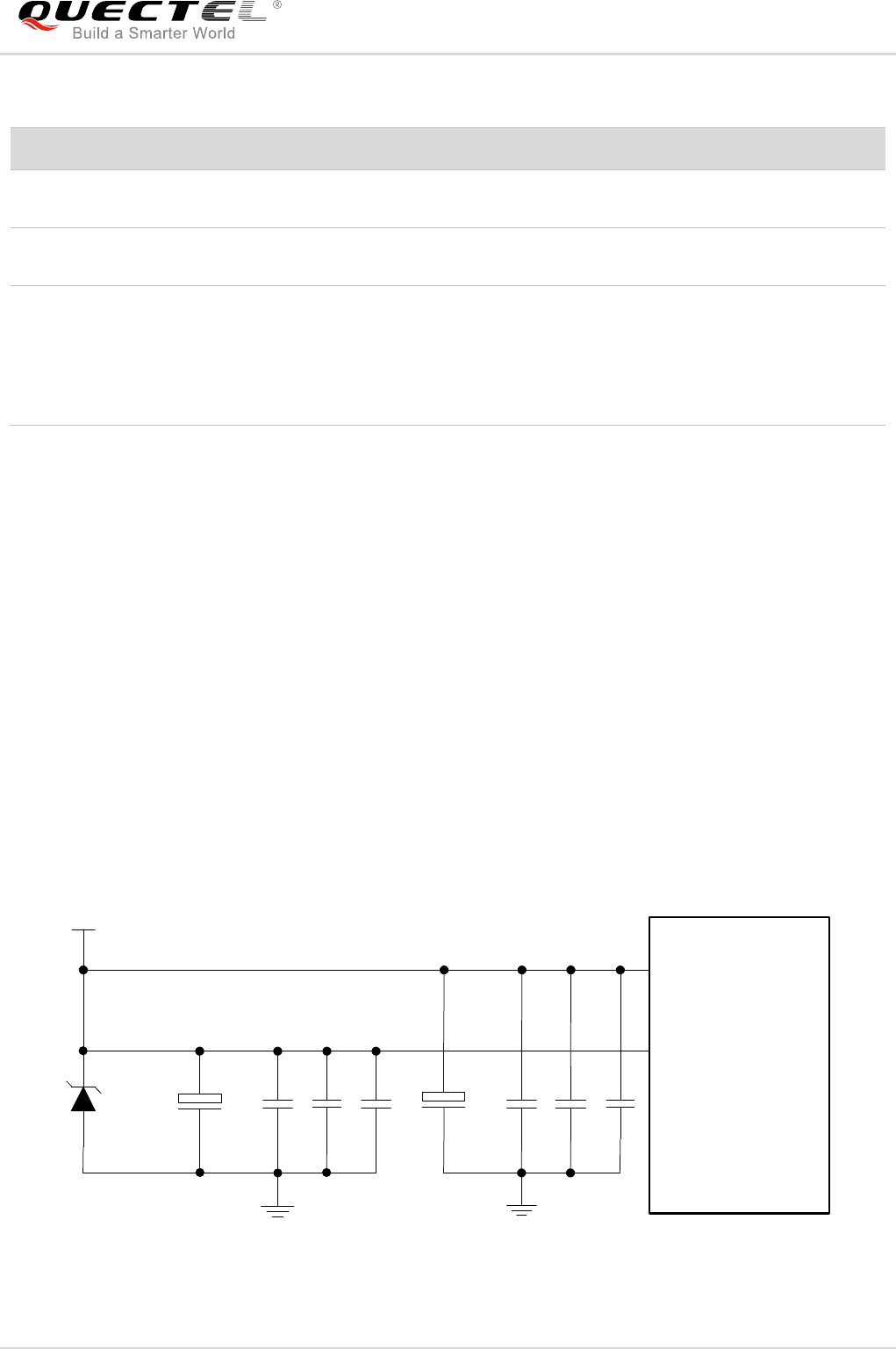

FIGURE 7: STAR STRUCTURE OF THE POWER SUPPLY............................................................................ 30
FIGURE 8: TURN ON THE MODULE USING DRIVING CIRCUIT ................................................................... 31
FIGURE 9: TURN ON THE MODULE USING KEYSTROKE ........................................................................... 32
FIGURE 10: TIMING OF TURNING ON MODULE ........................................................................................... 32
FIGURE 11: TIMING OF TURNING OFF MODULE .......................................................................................... 33

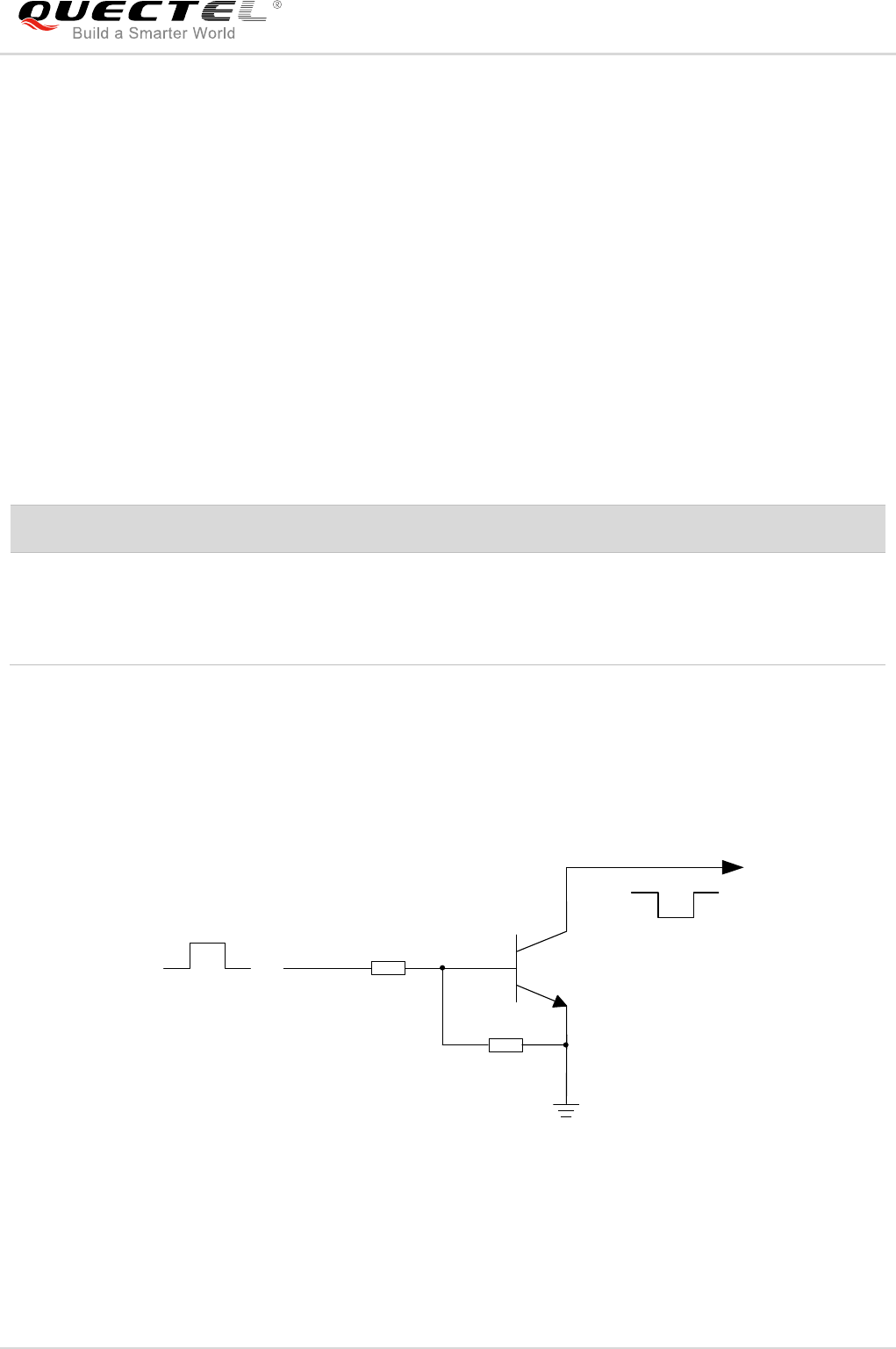

FIGURE 12: REFERENCE CIRCUIT OF RESET_N BY USING DRIVING CIRCUIT ...................................... 34
FIGURE 13: REFERENCE CIRCUIT OF RESET_N BY USING BUTTON ...................................................... 34

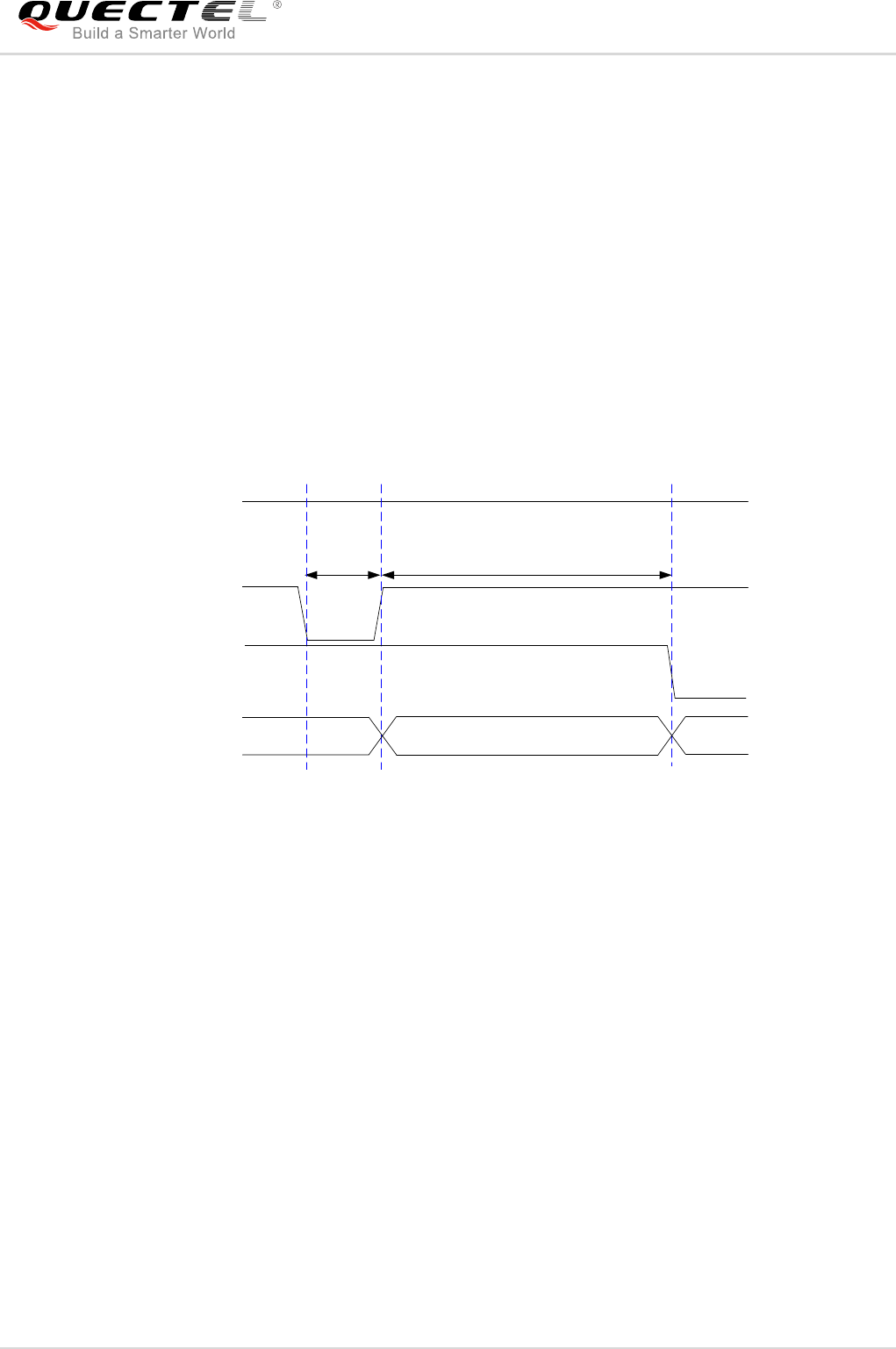

FIGURE 14: TIMING OF RESETTING MODULE ............................................................................................. 35

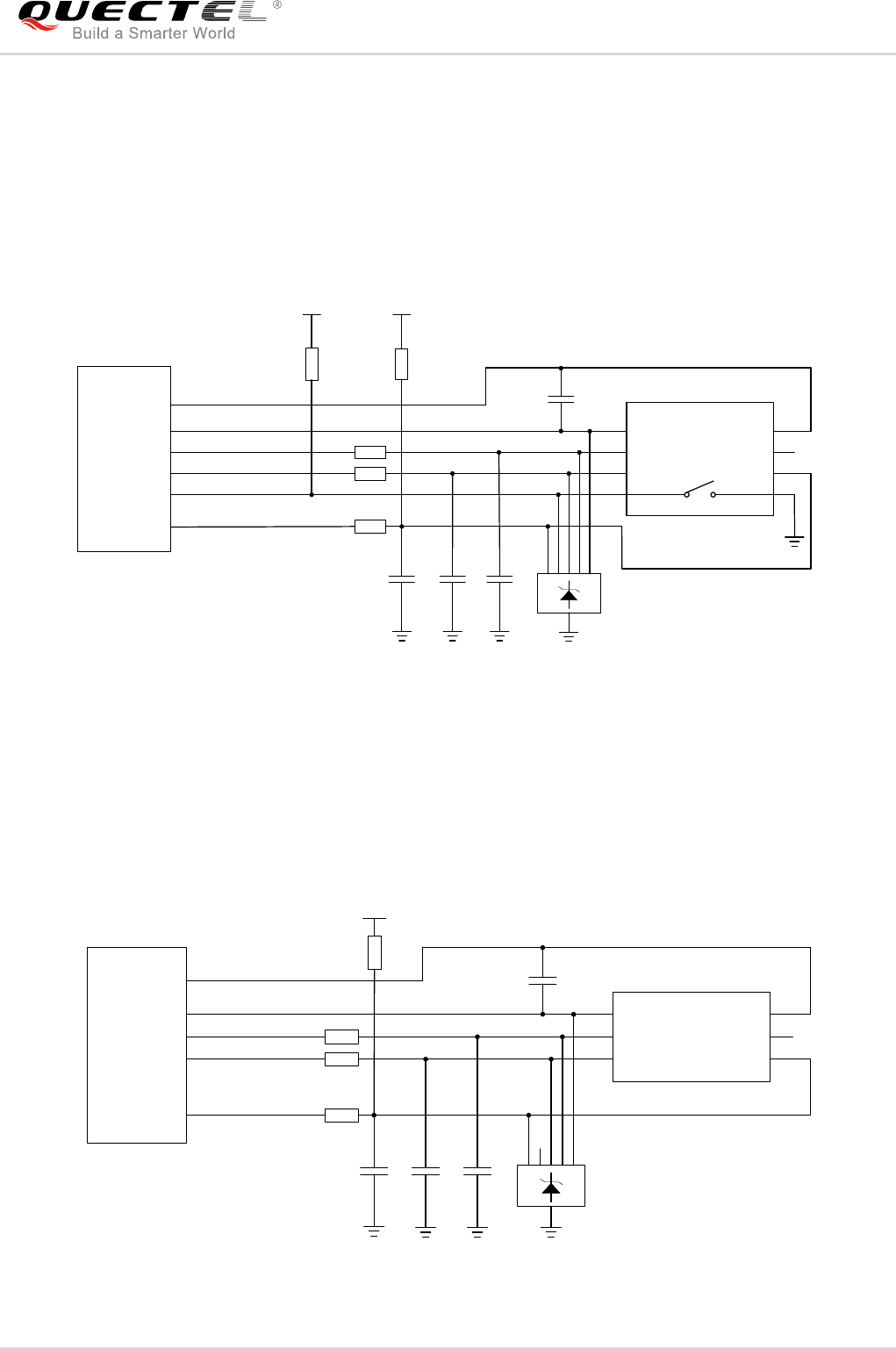

FIGURE 15: REFERENCE CIRCUIT OF (U)SIM CARD INTERFACE WITH AN 8-PIN (U)SIM CARD
CONNECTOR .................................................................................................................................................... 36
FIGURE 16: REFERENCE CIRCUIT OF (U)SIM CARD INTERFACE WITH A 6-PIN (U)SIM CARD
CONNECTOR .................................................................................................................................................... 37
FIGURE 17: REFERENCE CIRCUIT OF USB APPLICATION ......................................................................... 38

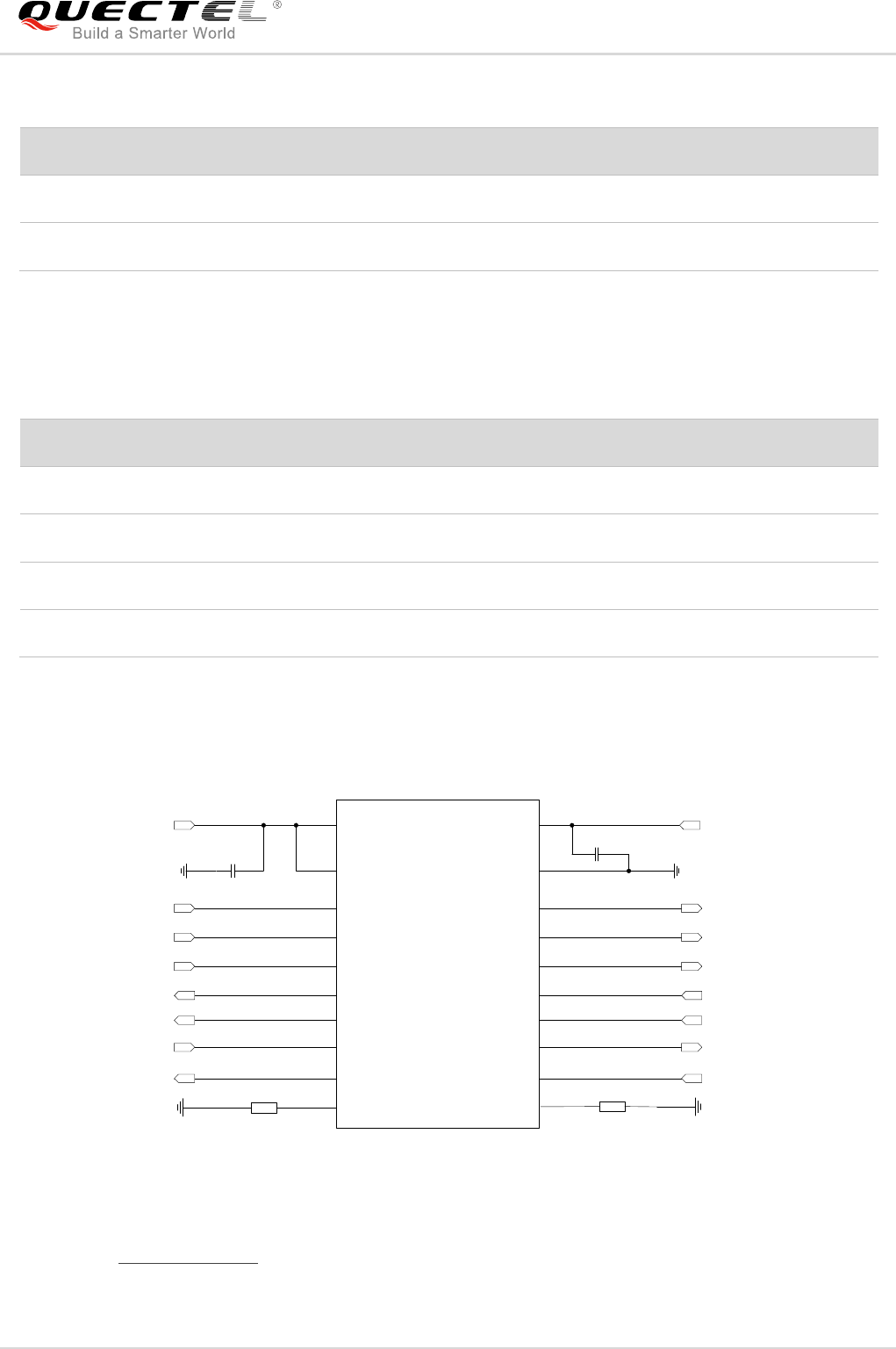

FIGURE 18: REFERENCE CIRCUIT WITH TRANSLATOR CHIP ................................................................... 40
FIGURE 19: REFERENCE CIRCUIT WITH TRANSISTOR CIRCUIT .............................................................. 41
FIGURE 20: REFERENCE CIRCUIT OF I2S APPLICATION WITH AUDIO CODEC ....................................... 42
FIGURE 21: REFERENCE CIRCUIT OF THE NETWORK STATUS INDICATOR ........................................... 44
FIGURE 22: REFERENCE CIRCUIT OF STATUS ........................................................................................... 44
FIGURE 23: REFERENCE CIRCUIT OF USB_BOOT INTERFACE ................................................................ 46
FIGURE 24: REFERENCE CIRCUIT OF RF ANTENNA INTERFACE ............................................................. 50
FIGURE 25: MICROSTRIP LINE DESIGN ON A 2-LAYER PCB ...................................................................... 51

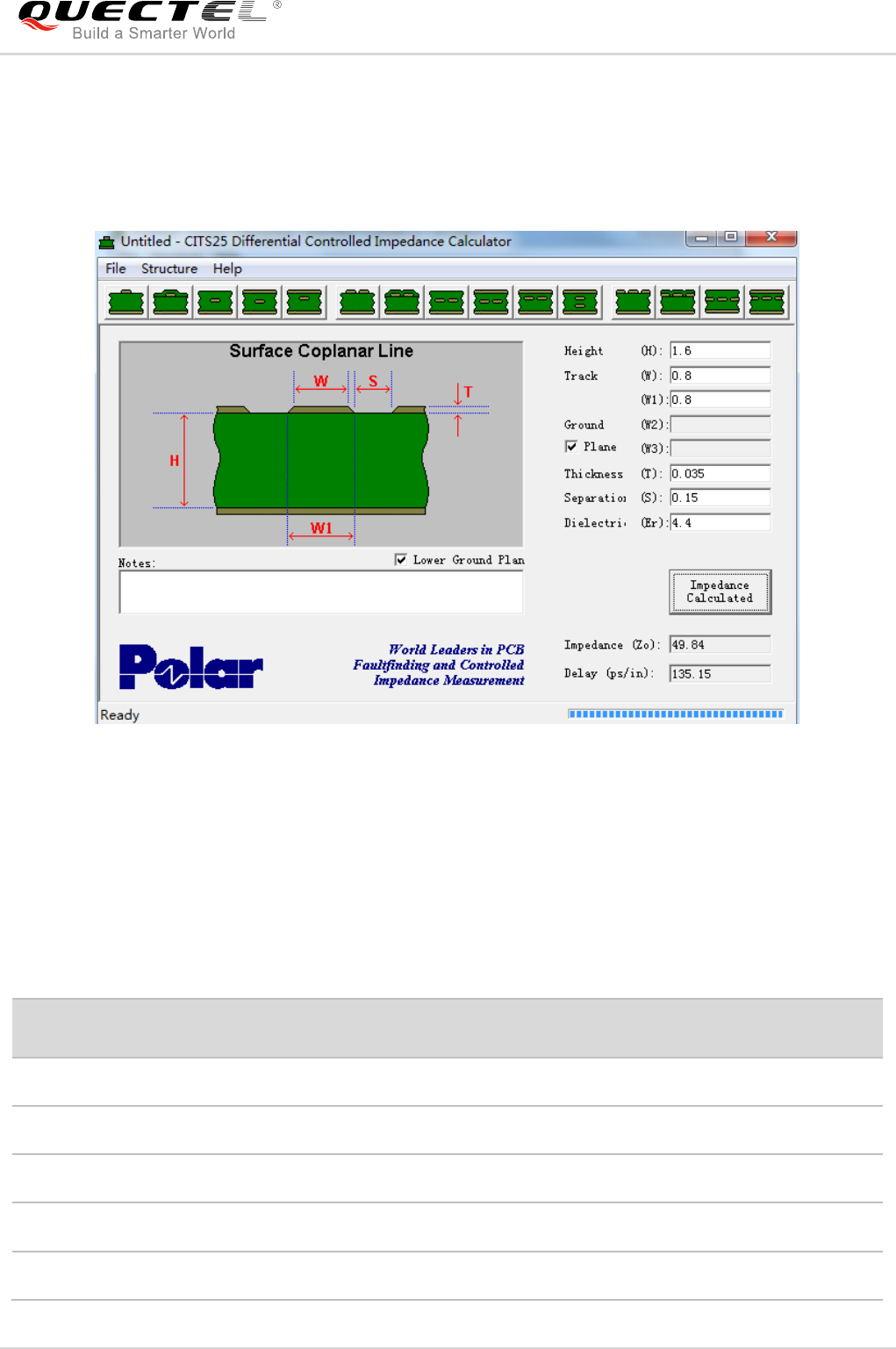

FIGURE 26: COPLANAR WAVEGUIDE LINE DESIGN ON A 2-LAYER PCB .................................................. 51
FIGURE 27: COPLANAR WAVEGUIDE LINE DESIGN ON A 4-LAYER PCB (LAYER 3 AS REFERENCE
GROUND) .......................................................................................................................................................... 51
FIGURE 28: COPLANAR WAVEGUIDE LINE DESIGN ON A 4-LAYER PCB (LAYER 4 AS REFERENCE
GROUND) .......................................................................................................................................................... 52

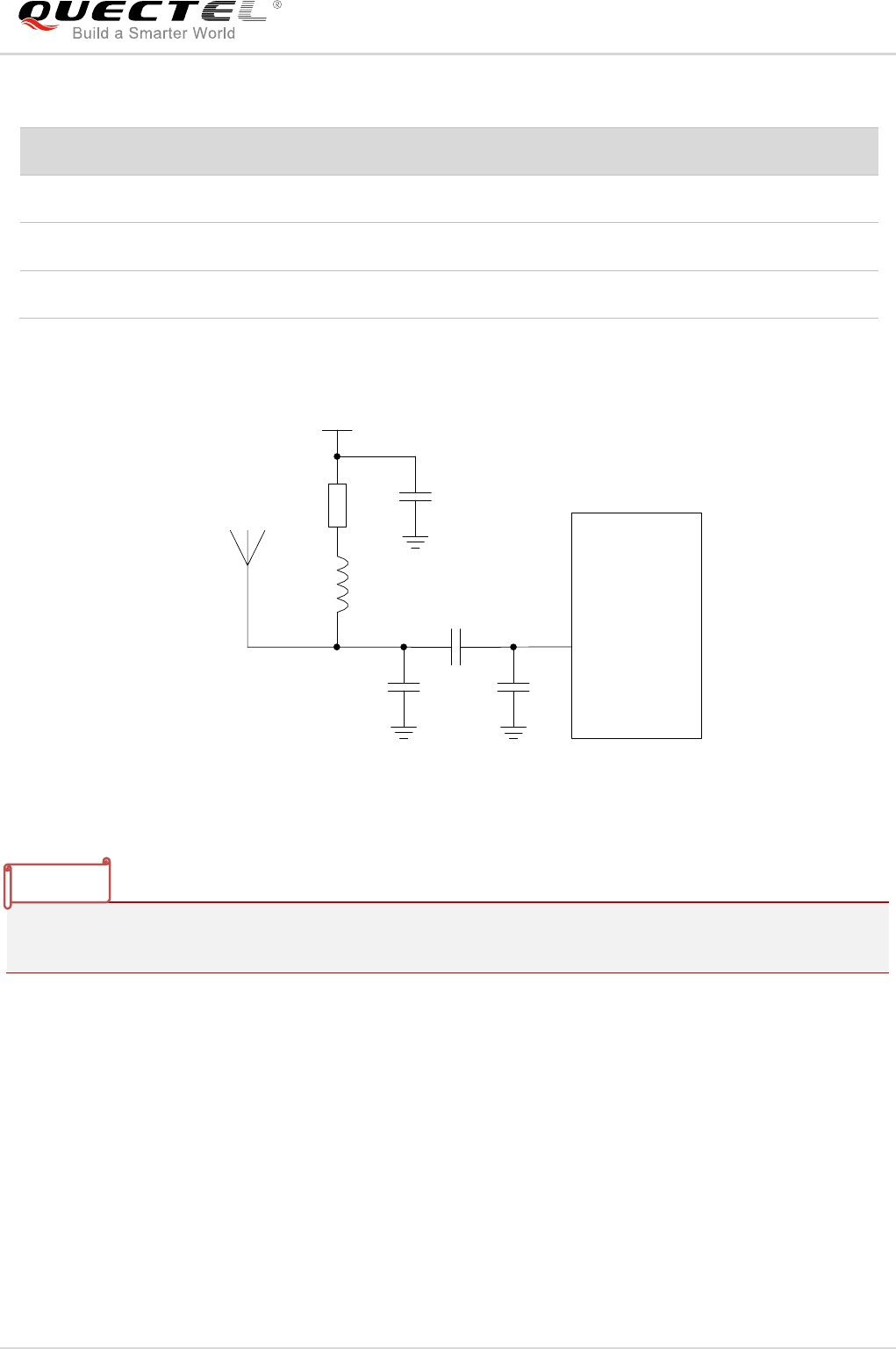

FIGURE 29: REFERENCE CIRCUIT OF GNSS ANTENNA INTERFACE ........................................................ 53
FIGURE 30: DIMENSIONS OF THE UF.L-R-SMT CONNECTOR (UNIT: MM) ................................................ 55
FIGURE 31: MECHANICALS OF UF.L-LP CONNECTORS ............................................................................. 55
FIGURE 32: SPACE FACTOR OF MATED CONNECTOR (UNIT: MM) ........................................................... 56
FIGURE 33: MODULE TOP AND SIDE DIMENSIONS ..................................................................................... 65
FIGURE 34: MODULE BOTTOM DIMENSIONS (BOTTOM VIEW) ................................................................. 66
FIGURE 35: RECOMMENDED FOOTPRINT (TOP VIEW) .............................................................................. 67
FIGURE 36: RECOMMENDED STENCIL DESIGN (TOP VIEW) ..................................................................... 68
FIGURE 37: TOP VIEW OF THE MODULE ...................................................................................................... 69
LTE Module Series
BG96 Hardware Design
BG96_Hardware_Design Confidential / Released 8 / 71
FIGURE 38: BOTTOM VIEW OF THE MODULE .............................................................................................. 69
FIGURE 39: REFLOW SOLDERING THERMAL PROFILE .............................................................................. 71
LTE Module Series
BG96 Hardware Design
BG96_Hardware_Design Confidential / Released 9 / 71
1 Introduction
This document defines BG96 module and describes its air interface and hardware interfaces which are
connected with customers’ applications.
This document can help customers quickly understand the interface specifications, electrical and
mechanical details, as well as other related information of BG96. To facilitate its application in different
fields, reference design is also provided for customers’ reference. Associated with application note and
user guide, customers can use the module to design and set up mobile applications easily.
LTE Module Series
BG96 Hardware Design
BG96_Hardware_Design Confidential / Released 10 / 71
1.1. Safety Information
The following safety precautions must be observed during all phases of the operation, such as usage,
service or repair of any cellular terminal or mobile incorporating BG96. Manufacturers of the cellular
terminal should send the following safety information to users and operating personnel, and incorporate
these guidelines into all manuals supplied with the product. If not so, Quectel assumes no liability for the
customers’ failure to comply with these precautions.
Full attention must be given to driving at all times in order to reduce the risk of an
accident. Using a mobile while driving (even with a handsfree kit) causes
distraction and can lead to an accident. You must comply with laws and regulations
restricting the use of wireless devices while driving.
Switch off the cellular terminal or mobile before boarding an aircraft. Make sure it is
switched off. The operation of wireless appliances in an aircraft is forbidden, so as
to prevent interference with communication systems. Consult the airline staff about
the use of wireless devices on boarding the aircraft, if your device offers an
Airplane Mode which must be enabled prior to boarding an aircraft.
Switch off your wireless device when in hospitals, clinics or other health care
facilities. These requests are designed to prevent possible interference with
sensitive medical equipment.
Cellular terminals or mobiles operating over radio frequency signal and cellular
network cannot be guaranteed to connect in all conditions, for example no mobile
fee or with an invalid (U)SIM card. While you are in this condition and need
emergent help, please remember using emergency call. In order to make or
receive a call, the cellular terminal or mobile must be switched on and in a service
area with adequate cellular signal strength.
Your cellular terminal or mobile contains a transmitter and receiver. When it is ON,
it receives and transmits radio frequency energy. RF interference can occur if it is
used close to TV set, radio, computer or other electric equipment.
In locations with potentially explosive atmospheres, obey all posted signs to turn
off wireless devices such as your phone or other cellular terminals. Areas with
potentially explosive atmospheres include fuelling areas, below decks on boats,
fuel or chemical transfer or storage facilities, areas where the air contains
chemicals or particles such as grain, dust or metal powders, etc.
LTE Module Series
BG96 Hardware Design
BG96_Hardware_Design Confidential / Released 11 / 71
2 Product Concept
2.1. General Description
BG96 is an embedded IoT (LTE Cat.M1) wireless communication module without receive diversity. It
supports LTE-TDD and Half-Duplex LTE-FDD wireless communication, which provides data connectivity
on LTE-TDD/FDD networks. It also provides GNSS1) function and voice2) interface to meet customers’
specific application demands. The following table shows the frequency bands of BG96 module.
Table 1: Frequency Bands of BG96 Module
1. 1) GNSS function is optional.
2. 2) BG96 does not support VoLTE (Voice over LTE) function temporarily.
With a compact profile of 22.5mm × 26.5mm × 2.3mm, BG96 can meet almost all requirements for M2M
applications such as automotive, smart metering, tracking system, security, router, wireless POS, mobile
computing device, PDA phone, tablet PC, etc.
BG96 is an SMD type module which can be embedded into applications through its 102 LGA pads. BG96
supports internet service protocols like TCP, UDP and PPP. Extended AT commands have been
developed for customers to use these internet service protocols easily.
Module
LTE Bands
GSM
Rx-diversity
GNSS 1)
BG96
Cat.M1:
LTE-FDD:
B1/B2/B3/B4/B5/B8/B12/
B13/ B20/B26/B28
LTE-TDD: B39
GSM850/GSM900/
DCS1800/PCS1900
Not
Supported
GPS,
GLONASS,
BeiDou/Compass,
Galileo, QZSS
NOTES
LTE Module Series
BG96 Hardware Design
BG96_Hardware_Design Confidential / Released 12 / 71
2.2. Directives and Standards
The BG96 module is designed to comply with the FCC statements. FCC ID: XMR201707BG96
The Host system using BG96 should have label “contains FCC ID: XMR201707BG96
2.2.1. FCC Statement
According to the definition of mobile and fixed device is described in Part 2.1091(b), this device is a
mobile device.
And the following conditions must be met:
1. This Modular Approval is limited to OEM installation for mobile and fixed applications only.
The antenna installation and operating configurations of this transmitter, including any applicable
source-based time- averaging duty factor, antenna gain and cable loss must satisfy MPE categorical
Exclusion Requirements of 2.1091.
2. The EUT is a mobile device; maintain at least a 20 cm separation between the EUT and the user’s
body and must not transmit simultaneously with any other antenna or transmitter.
3. A label with the following statements must be attached to the host end product: This device contains
FCC ID: XMR201707BG96.
4. To comply with FCC regulations limiting both maximum RF output power and human exposure to RF
radiation, maximum antenna gain (including cable loss) must not exceed:
❒LTE B1/B2/B3/B4/B5/B8/B12/B13/B20/B26/B28 <4dBi
❒GSM 850/900/1800/1900 <4dBi
5. This module must not transmit simultaneously with any other antenna or transmitter
6. The host end product must include a user manual that clearly defines operating requirements and
conditions that must be observed to ensure compliance with current FCC RF exposure guidelines.
For portable devices, in addition to the conditions 3 through 6 described above, a separate approval is
required to satisfy the SAR requirements of FCC Part 2.1093.
If the device is used for other equipment that separate approval is required for all other operating
configurations, including portable configurations with respect to 2.1093 and different antenna
configurations.
For this device, OEM integrators must be provided with labeling instructions of finished products. Please
refer to KDB784748 D01 v07, section 8. Page 6/7 last two paragraphs:
A certified modular has the option to use a permanently affixed label, or an electronic label. For a
permanently affixed label, the module must be label led with an FCC ID - Section 2.926 (see 2.2
Certification (labeling requirements) above). The OEM manual must provide clear instructions explaining
LTE Module Series
BG96 Hardware Design
BG96_Hardware_Design Confidential / Released 13 / 71
to the OEM the labeling requirements, options and OEM user manual instructions that are required (see
next paragraph).
For a host using a certified modular with a standard fixed label, if (1) the module’s FCC ID is not visible
when installed in the host, or (2) if the host is marketed so that end users do not have straight forward
commonly used methods for access to remove the module so that the FCC ID of the module is visible;
then an additional permanent label referring to the enclosed module: “Contains Transmitter Module FCC
ID:XMR201707BG96” or “Contains FCC ID: XMR201707BG96” must be used. The host OEM user
manual must also contain clear instructions on how end users can find and/or access the module and the
FCC ID.
The final host / module combination may also need to be evaluated against the FCC Part 15B criteria for
unintentional radiators in order to be properly authorized for operation as a Part 15 digital device.
The user’s manual or instruction manual for an intentional or unintentional radiator shall caution the user
that changes or modifications not expressly approved by the party responsible for compliance could void
the user's authority to operate the equipment. In cases where the manual is provided only in a form other
than paper, such as on a computer disk or over the Internet, the information required by this section may
be included in the manual in that alternative form, provided the user can reasonably be expected to have
the capability to access information in that form.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the manufacturer could void the user’s authority to
operate the equipment.
To ensure compliance with all non-transmitter functions the host manufacturer is responsible for ensuring
compliance with the module(s) installed and fully operational. For example, if a host was previously
authorized as an unintentional radiator under the Declaration of Conformity procedure without a
transmitter certified module and a module is added, the host manufacturer is responsible for ensuring that
the after the module is installed and operational the host continues to be compliant with the Part 15B
unintentional radiator requirements.
2.3. Key Features
The following table describes the detailed features of BG96.
Table 2: Key Features of BG96
Features
Details
LTE Module Series
BG96 Hardware Design
BG96_Hardware_Design Confidential / Released 14 / 71
Power Supply
Supply voltage: 3.3V~4.3V
Typical supply voltage: 3.8V
LTE Features
Support up to LTE Cat.M1
Support 1.08MHz RF bandwidth
Support SISO in DL direction
Cat.M1: Max. 375kbps (DL)/375kbps (UL)
GSM Features
GPRS:
Support GPRS multi-slot class 12 (12 by default)
Coding schemes: CS-1, CS-2, CS-3 and CS-4
Maximum of four Rx time slots per frame
GPRS: Max. 85.6kbps (DL)/85.6kbps (UL)
EDGE:
Support EDGE multi-slot class 12 (12 by default)
Support GMSK and 8-PSK for different MCS (Modulation and Coding
Scheme)
Downlink coding schemes: CS 1-4 and MCS 1-9
Uplink coding schemes: CS 1-4 and MCS 1-9
EDGE: Max. 236.8kbps (DL)/236.8kbps (UL)
Internet Protocol
Features*
Support TCP/UDP/PPP protocols
Support PAP (Password Authentication Protocol) and CHAP (Challenge
Handshake Authentication Protocol) protocols which are usually used for
PPP connections
SMS*
Text and PDU mode
Point to point MO and MT
SMS cell broadcast
SMS storage: ME by default
(U)SIM Card Interface
Support (U)SIM card: 1.8V, 3.0V
Audio Feature*
Support one digital audio interface: I2S interface
USB Interface
Compliant with USB 2.0 specification (slave only) and the data transfer rate
can reach up to 480Mbps
Used for AT command communication, data transmission, GNSS NEMA
output, software debugging and firmware upgrade
Support USB drivers for Windows XP, Windows Vista, Windows 7,
Windows 8/8.1, Windows 10, Windows CE 5.0/6.0/7.0*, Linux 2.6/3.x/4.1,
Android 4.x/5.x/6.0
UART Interfaces
UART1:
Used for data transmission and AT command communication
Baud rate reach up to 3000000bps; 115200bps by default
Support RTS and CTS hardware flow control
UART2:
Used for module debugging and log output
115200bps baud rate
UART3/SPI*:
LTE Module Series
BG96 Hardware Design
BG96_Hardware_Design Confidential / Released 15 / 71
UART3 is the default configuration when the module is used as a modem.
In this case, it is used for outputting GNSS data or NEMA sentences.
When the module is used as the core board, the port can be multiplexed
into SPI* interface for data transferring.
AT Commands
3GPP TS 27.007 and 3GPP TS 27.005 AT commands, as well as
Quectel enhanced AT commands
Network Indication
One NETLIGHT pin for network connectivity status indication
Antenna Interfaces
Including main antenna (ANT_MAIN) and GNSS antenna (ANT_GNSS)
interfaces
Physical Characteristics
Size: 22.5mm × 26.5mm × 2.3mm
Weight: approx. 3.1g
Temperature Range
Operation temperature range: -35°C ~ +75°C 1)
Extended temperature range: -40°C ~ +85°C 2)
Firmware Upgrade
USB interface and DFOTA*
RoHS
All hardware components are fully compliant with EU RoHS directive
1. “*” means under development.
2. 1) Within operation temperature range, the module is 3GPP compliant.
3. 2) Within extended temperature range, the module remains the ability to establish and maintain a
voice, SMS, data transmission, emergency call, etc. There is no unrecoverable malfunction. There
are also no effects on radio spectrum and no harm to radio network. Only one or more parameters like
Pout might reduce in their value and exceed the specified tolerances. When the temperature returns to
the normal operating temperature levels, the module will meet 3GPP specifications again.
2.4. Functional Diagram
The following figure shows a block diagram of BG96 and illustrates the major functional parts.
Power management
Baseband
DDR+NAND flash
Radio frequency
Peripheral interfaces
NOTES
LTE Module Series
BG96 Hardware Design
BG96_Hardware_Design Confidential / Released 16 / 71
Baseband
PMIC
Transceiver NAND
DDR2
SDRAM
PA
RF5212A
Filter
ANT_MAIN ANT_GNSS
VBAT_BB
VBAT_RF
PWRKEY
VDD_EXT USB USIM I2S* I2C
RESET_N
19.2M
XO
STATUS
GPIOs
Control
IQ Control
LNA
Tx PRx GNSS
UART/SPI*
NETLIGHT
PA
RF3628
Figure 1: Functional Diagram
“*” means under development.
2.5. Evaluation Board
In order to help customers develop applications conveniently with BG96, Quectel supplies the evaluation
board (EVB), USB data cable, earphone, antenna and other peripherals to control or test the module.
NOTE
LTE Module Series
BG96 Hardware Design
BG96_Hardware_Design Confidential / Released 17 / 71
3 Application Interfaces
BG96 is equipped with 62-pin 1.1mm pitch SMT pads and 40-pin ground/reserved pads that can be
connected to customers’ cellular application platforms. The following sub-chapters will provide detailed
description of interfaces listed below:
Power supply
(U)SIM card interface
USB interface
UART interfaces
I2S* interface
UART3/SPI* interface
Status indication
USB_BOOT interface
LTE Module Series
BG96 Hardware Design
BG96_Hardware_Design Confidential / Released 18 / 71
3.1. Pin Assignment
The following figure shows the pin assignment of BG96.
PSM_IND
I2S_WCLK*
I2S_BCLK*
I2S_D0*
I2S_D1*
RESERVED
RESERVED
PWRKEY1)
RESERVED
RESET_N
W_DISABLE#
1
2
3
4
5
6
7
11
12
13
14
15
16
17
50
51
52
53
54
55
58
59
60
61
62
USB_DM
AP_READY
STATUS
NETLIGHT
DBG_RXD
DBG_TXD
ADC0
RESERVED
GPIO/SPI_CLK*
UART3_TXD/SPI_MOSI*
UART3_RXD/SPI_MISO*
VDD_EXT
DTR
GND
USIM_CLK
USIM_DATA
USIM_RST
USIM_VDD
RI
DCD
CTS
TXD
RXD
VBAT_BB
VBAT_BB
USIM_GND
GND
RESERVED
31
30
29
28
27
26
23
22
21
20
19
10
9
USB_DP
USB_VBUS
ADC1
GND
RESERVED
RESERVED
RTS
I2C_SCL
I2C_SDA
8
49
48
47
46
45
44
43
40
41
42
39
38
37
36
35
34
33
32
24
57
56
GND
GND
ANT_MAIN
GND
GND
VBAT_RF
VBAT_RF
GND
GND
ANT_GNSS
RESERVED
GND
USIM_PRESENCE
63
64
65
66
67
68
83
84
85
86
87
88
98
97
96
95
94
93
78
77
76
75
74
73
91 92
89 90
71 72
69 70
80 79
82 81
100 99
102 101
POWER USB UART USIM OTHERS
GND RESERVED
I2S ANT
25
I2S_MCLK*
RESERVED
USB_BOOT
18
SPI
GPIO*
Figure 2: Pin Assignment (Top View)
LTE Module Series
BG96 Hardware Design
BG96_Hardware_Design Confidential / Released 19 / 71
1. Keep all RESERVED pins and unused pins unconnected.
2. GND pads should be connected to ground in the design.
3. 1) PWRKEY output voltage is 0.8V because of the diode drop in the Qualcomm chipset.
4. “*” means under development.
3.2. Pin Description
The following tables show the pin definition and description of BG96.
Table 3: Definition of I/O Parameters
Type
Description
IO
Bidirectional
DI
Digital input
DO
Digital output
PI
Power input
PO
Power output
AI
Analog input
AO
Analog output
OD
Open drain
Table 4: Pin Description
Power Supply
Pin Name
Pin No.
I/O
Description
DC
Characteristics
Comment
VBAT_BB
32, 33
PI
Power supply
for module
baseband part
Vmax=4.3V
Vmin=3.3V
Vnorm=3.8V
VBAT_RF
52, 53
PI
Power supply
for module RF
Vmax=4.3V
Vmin=3.3V
NOTES
LTE Module Series
BG96 Hardware Design
BG96_Hardware_Design Confidential / Released 20 / 71
part
Vnorm=3.8V
VDD_EXT
29
PO
Provide 1.8V for
external circuit
Vnorm=1.8V
IOmax=50mA
Power supply for external
GPIO’s pull up circuits.
GND
3, 31, 48,
50, 54, 55,
58, 59, 61,
62, 67~74,
79~82,
89~91,
100~102
Ground
Turn on/off
Pin Name
Pin No.
I/O
Description
DC
Characteristics
Comment
PWRKEY
15
DI
Turn on/off the
module
VIHmax=2.1V
VIHmin=1.3V
VILmax=0.5V
The output voltage is
0.8V because of the
diode drop in the
Qualcomm chipset.
RESET_N
17
DI
Reset signal of
the module
VIHmax=2.1V
VIHmin=1.3V
VILmax=0.5V
If unused, keep this pin
open.
Status Indication
Pin Name
Pin No.
I/O
Description
DC
Characteristics
Comment
STATUS
20
OD
Indicate the
module’s
operation status
VOHmin=1.35V
VOLmax=0.45V
1.8V power domain.
If unused, keep this pin
open.
NETLIGHT
21
DO
Indicate the
module’s
network activity
status
VOHmin=1.35V
VOLmax=0.45V
1.8V power domain.
If unused, keep it open.
USB Interface
Pin Name
Pin No.
I/O
Description
DC
Characteristics
Comment
USB_VBUS
8
PI
USB detection
Vmax=5.25V
Vmin=3.0V
Vnorm=5.0V
USB_DP
9
IO
USB differential
data bus (+)
Compliant with
USB 2.0 standard
specification.
Require differential
impedance of 90Ω.
LTE Module Series
BG96 Hardware Design
BG96_Hardware_Design Confidential / Released 21 / 71
USB_DM
10
IO
USB differential
data bus (-)
Compliant with
USB 2.0 standard
specification.
Require differential
impedance of 90Ω.
(U)SIM Card Interface
Pin Name
Pin No.
I/O
Description
DC
Characteristics
Comment
USIM_GND
47
Specified
ground for
(U)SIM card
USIM_VDD
43
PO
Power supply
for (U)SIM card
For 1.8V (U)SIM:
Vmax=1.9V
Vmin=1.7V
For 3.0V (U)SIM:
Vmax=3.05V
Vmin=2.7V
IOmax=50mA
Either 1.8V or 3V is
supported by the module
automatically.
USIM_DATA
45
IO
Data signal of
(U)SIM card
For 1.8V (U)SIM:
VILmax=0.6V
VIHmin=1.2V
VOLmax=0.45V
VOHmin=1.35V
For 3.0V (U)SIM:
VILmax=1.0V
VIHmin=1.95V
VOLmax=0.45V
VOHmin=2.55V
USIM_CLK
46
DO
Clock signal of
(U)SIM card
For 1.8V (U)SIM:
VOLmax=0.45V
VOHmin=1.35V
For 3.0V (U)SIM:
VOLmax=0.45V
VOHmin=2.55V
USIM_RST
44
DO
Reset signal of
(U)SIM card
For 1.8V (U)SIM:
VOLmax=0.45V
VOHmin=1.35V
For 3.0V (U)SIM:
VOLmax=0.45V
VOHmin=2.55V
LTE Module Series
BG96 Hardware Design
BG96_Hardware_Design Confidential / Released 22 / 71
USIM_
PRESENCE
42
DI
(U)SIM card
insertion
detection
VILmin=-0.3V
VILmax=0.6V
VIHmin=1.2V
VIHmax=2.0V
1.8V power domain.
If unused, keep it open.
UART1 Interface
Pin Name
Pin No.
I/O
Description
DC
Characteristics
Comment
RI
39
DO
Ring indicator
VOLmax=0.45V
VOHmin=1.35V
1.8V power domain.
If unused, keep it open.
DCD
38
DO
Data carrier
detection
VOLmax=0.45V
VOHmin=1.35V
1.8V power domain.
If unused, keep it open.
RTS
37
DI
Request to
send
VILmin=-0.3V
VILmax=0.6V
VIHmin=1.2V
VIHmax=2.0V
1.8V power domain.
If unused, keep it open.
CTS
36
DO
Clear to send
VOLmax=0.45V
VOHmin=1.35V
1.8V power domain.
If unused, keep it open.
TXD
35
DO
Transmit data
VOLmax=0.45V
VOHmin=1.35V
1.8V power domain.
If unused, keep it open.
RXD
34
DI
Receive data
VILmin=-0.3V
VILmax=0.6V
VIHmin=1.2V
VIHmax=2.0V
1.8V power domain.
If unused, keep it open.
DTR
30
DI
Data terminal
ready. Sleep
mode control.
VILmin=-0.3V
VILmax=0.6V
VIHmin=1.2V
VIHmax=2.0V
1.8V power domain.
Pull-up by default. Low
level wakes up the
module.
If unused, keep it open.
UART2 Interface
Pin Name
Pin No.
I/O
Description
DC
Characteristics
Comment
DBG_TXD
23
DO
Transmit data
VOLmax=0.45V
VOHmin=1.35V
1.8V power domain.
If unused, keep it open.
DBG_RXD
22
DI
Receive data
VILmin=-0.3V
VILmax=0.6V
VIHmin=1.2V
VIHmax=2.0V
1.8V power domain.
If unused, keep it open.
UART3/SPI* Interface
Pin Name
Pin No.
I/O
Description
DC
Characteristics
Comment
LTE Module Series
BG96 Hardware Design
BG96_Hardware_Design Confidential / Released 23 / 71
GPIO/
SPI_CLK*
26
DO
GPIO/SPI
master clock
VOLmax=0.45V
VOHmin=1.35V
1.8V power domain.
If unused, keep it open.
UART3_TXD/
SPI_MOSI*
27
DO
Transmit data/
Master Out
Salve In of SPI
interface
VOLmax=0.45V
VOHmin=1.35V
1.8V power domain.
If unused, keep it open.
UART3_RXD/
SPI_MISO*
28
DI
Receive data/
Master In Slave
Out of SPI
interface
VILmin=-0.3V
VILmax=0.6V
VIHmin=1.2V
VIHmax=2.0V
1.8V power domain.
If unused, keep it open.
I2S* Interface
Pin Name
Pin No.
I/O
Description
DC
Characteristics
Comment
I2S_MCLK*
63
DO
I2S master
clock
VOLmax=0.45V
VOHmin=1.35V
1.8V power domain.
If unused, keep it open.
I2S_BCLK*
4
DO
I2S bit clock
VOLmax=0.45V
VOHmin=1.35V
1.8V power domain.
If unused, keep it open.
I2S_WCLK*
5
DO
I2S data frame
clock
VOLmax=0.45V
VOHmin=1.35V
1.8V power domain.
If unused, keep it open.
I2S_D0*
6
IO
I2S data 0
VILmax=0.6V
VIHmin=1.2V
VOLmax=0.45V
VIHmin=1.35V
1.8V power domain.
If unused, keep it open.
I2S_D1*
7
IO
I2S data 1
VILmax=0.6V
VIHmin=1.2V
VOLmax=0.45V
VIHmin=1.35V
1.8V power domain.
If unused, keep it open.
I2C Interface
Pin Name
Pin No.
I/O
Description
DC
Characteristics
Comment
I2C_SCL
40
OD
I2C serial clock.
Used for
external codec.
External pull-up resistor is
required.
1.8V only. If unused, keep
it open.
I2C_SDA
41
OD
I2C serial data.
Used for
external codec.
External pull-up resistor is
required.
1.8V only. If unused, keep
it open.
Antenna Interfaces
Pin Name
Pin No.
I/O
Description
DC
Characteristics
Comment
LTE Module Series
BG96 Hardware Design
BG96_Hardware_Design Confidential / Released 24 / 71
ANT_MAIN
60
IO
Main antenna
interface
50Ω impedance
ANT_GNSS
49
AI
GNSS antenna
interface
50Ω impedance
If unused, keep it open.
Other Pins
Pin Name
Pin No.
I/O
Description
DC
Characteristics
Comment
PSM_IND*
1
DO
Power saving
mode indicator
VILmin=-0.3V
VILmax=0.6V
VIHmin=1.2V
VIHmax=2.0V
1.8V power domain.
If unused, keep it open.
W_DISABLE#
18
DI
Airplane mode
control
VILmin=-0.3V
VILmax=0.6V
VIHmin=1.2V
VIHmax=2.0V
1.8V power domain.
Pull-up by default.
In low voltage level, the
module can enter into
airplane mode.
If unused, keep it open.
AP_READY*
19
DI
Application
processor sleep
state detection
VILmin=-0.3V
VILmax=0.6V
VIHmin=1.2V
VIHmax=2.0V
1.8V power domain.
If unused, keep it open.
USB_BOOT
75
DI
Force the
module to boot
from USB port
VILmin=-0.3V
VILmax=0.6V
VIHmin=1.2V
VIHmax=2.0V
1.8V power domain.
If unused, keep it open.
GPIO*
64
IO
General-
purpose input/
output interface
VILmin=-0.3V
VILmax=0.6V
VIHmin=1.2V
VIHmax=2.0V
1.8V power domain.
If unused, keep it open.
ADC Interface
Pin Name
Pin No.
I/O
Description
DC
Characteristics
Comment
ADC1
2
AI
General
purpose analog
to digital
converter
interface
Voltage range:
0.3V to VBAT_BB
If unused, keep it open.
ADC0
24
AI
General
purpose analog
to digital
converter
interface
Voltage range:
0.3V to VBAT_BB
If unused, keep it open.
LTE Module Series
BG96 Hardware Design
BG96_Hardware_Design Confidential / Released 25 / 71
RESERVED Pins
Pin Name
Pin No.
I/O
Description
DC
Characteristics
Comment
RESERVED
11~14, 16,
25, 51, 56,
57, 65,66,
76~78,
83~88,
92~99
Reserved
Keep these pins
unconnected.
1. Keep all RESERVED pins and unused pins unconnected.
2. “*” means under development.
3.3. Operating Modes
The table below briefly summarizes the various operating modes referred in the following chapters.
Table 5: Overview of Operating Modes
Mode
Details
Normal
Operation
Idle
Software is active. The module has registered on network, and it is
ready to send and receive data.
Talk/Data
Network connection is ongoing. In this mode, the power consumption is
decided by network setting and data transfer rate.
Minimum
Functionality
Mode
AT+CFUN command can set the module to a minimum functionality mode without
removing the power supply. In this case, both RF function and (U)SIM card will be invalid.
Airplane
Mode
AT+CFUN command or W_DISABLE# pin can set the module to airplane mode. In this
case, RF function will be invalid.
Sleep Mode
In this mode, the current consumption of the module will be reduced to the minimal level.
During this mode, the module can still receive paging message, SMS, voice call and
TCP/UDP data from the network normally.
PSM*
A UE may adopt the PSM (Power Saving Mode) for reducing its power consumption.
PSM is similar to power-off, but the UE remains registered on the network and there is no
need to re-attach or re-establish PDN connections. When the module is successfully
entered into the PSM, PSM_IND* outputs a low level.
NOTES
LTE Module Series
BG96 Hardware Design
BG96_Hardware_Design Confidential / Released 26 / 71
Power Down
Mode
In this mode, the power management unit shuts down the power supply. Software is not
active. The serial interface is not accessible. Operating voltage (connected to VBAT_RF
and VBAT_BB) remains applied.
1. In PSM or sleep mode, it is recommended to use UART interface for module connection. USB
connection is NOT recommended as it will cause increase in power consumption.
2. “*” means under development.
3.4. Power Saving
3.4.1. Sleep Mode
BG96 is able to reduce its current consumption to a minimum value during sleep mode. The following
describes the power saving procedure of BG96 module.
3.4.1.1. UART Application
If the host communicates with module via UART interface, the following preconditions can let the module
enter into sleep mode.
Execute AT+QSCLK=1 command to enable sleep mode.
Drive DTR to high level.

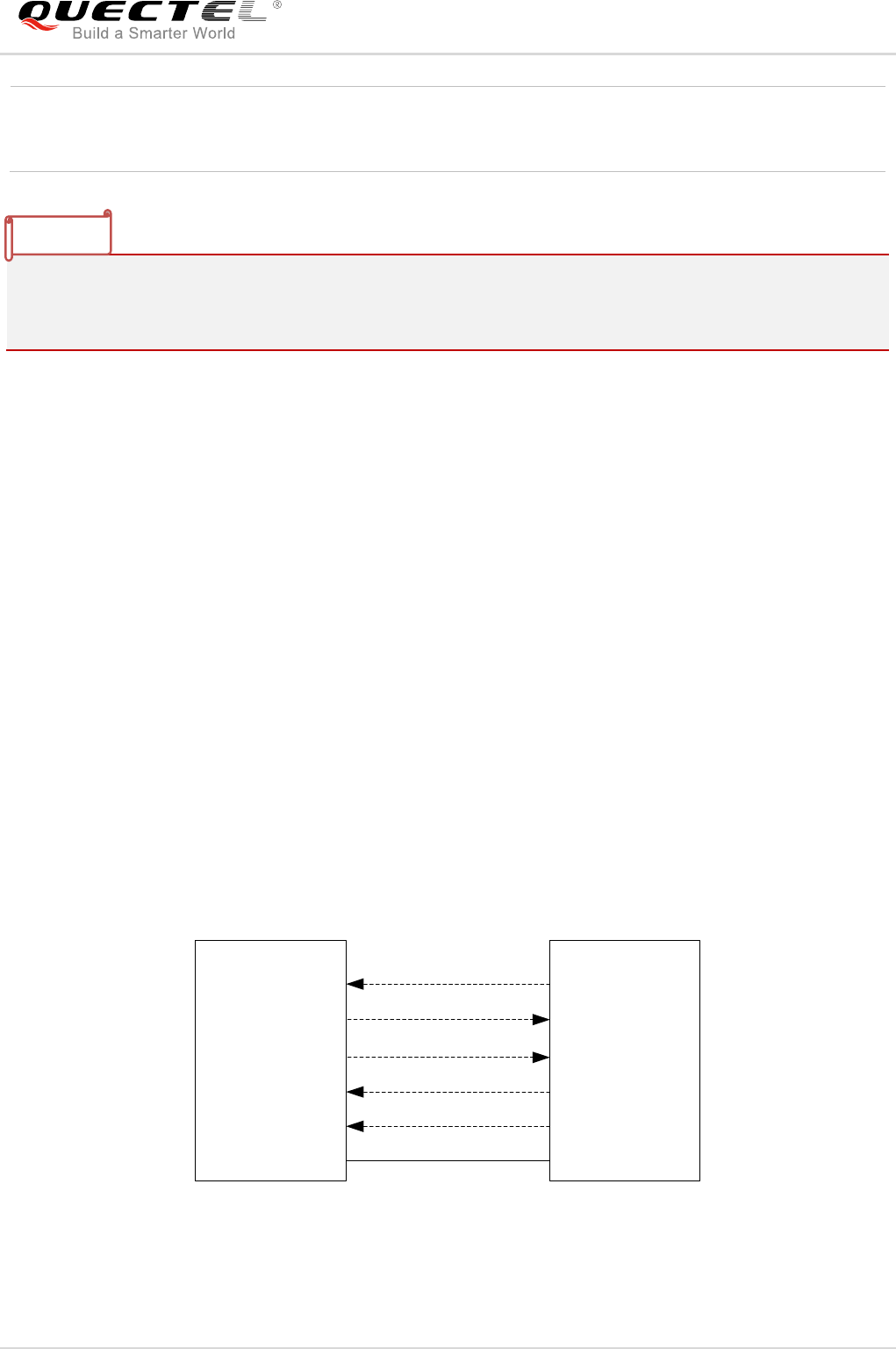

The following figure shows the connection between the module and the host.
RXD
TXD
RI
DTR
AP_READY*
TXD
RXD
EINT
GPIO
GPIO
Module Host
GND GND
Figure 3: Sleep Mode Application via UART
NOTES
LTE Module Series
BG96 Hardware Design
BG96_Hardware_Design Confidential / Released 27 / 71
Driving the host DTR to low level will wake up the module.
When BG96 has URC to report, RI signal will wake up the host. Refer to Chapter 3.15 for details
about RI behaviors.
AP_READY* will detect the sleep state of the host (can be configured to high level or low level
detection). Please refer to AT+QCFG=“apready” command for details.
3.4.1.2. USB Application with USB Remote Wakeup Function
If the host supports USB suspend/resume and remote wakeup functions, the following three preconditions
must be met to let the module enter into sleep mode.
Execute AT+QSCLK=1 command to enable the sleep mode.
Ensure the DTR is held in high level or keep it open.
The host’s USB bus, which is connected with the module’s USB interface, enters into suspended
state.
The following figure shows the connection between the module and the host.
USB_VBUS
USB_DP
USB_DM
AP_READY*
VDD
USB_DP
USB_DM
GPIO
Module Host
GND GND
Figure 4: Sleep Mode Application with USB Remote Wakeup
Sending data to BG96 through USB will wake up the module.
When BG96 has URC to report, the module will send remote wake-up signals via USB bus so as to
wake up the host.
3.4.1.3. USB Application with USB Suspend/Resume and RI Function
If the host supports USB suspend/resume, but does not support remote wake-up function, the RI signal is
needed to wake up the host. There are three preconditions to let the module enter into sleep mode.
Execute AT+QSCLK=1 command to enable sleep mode.
Ensure the DTR is held in high level or keep it open.
The host’s USB bus, which is connected with the module’s USB interface, enters into suspended
state.
LTE Module Series
BG96 Hardware Design
BG96_Hardware_Design Confidential / Released 28 / 71
The following figure shows the connection between the module and the host.
USB_VBUS
USB_DP
USB_DM
AP_READY*
VDD
USB_DP
USB_DM
GPIO
Module Host
GND GND
RI EINT
Figure 5: Sleep Mode Application with RI
Sending data to BG96 through USB will wake up the module.
When BG96 has a URC to report, RI signal will wake up the host.
3.4.1.4. USB Application without USB Suspend Function
If the host does not support USB suspend function, USB_VBUS should be disconnected via an additional
control circuit to let the module enter into sleep mode.
Execute AT+QSCLK=1 command to enable sleep mode.
Ensure the DTR is held in high level or keep it open.
Disconnect USB_VBUS.
The following figure shows the connection between the module and the host.
USB_VBUS
USB_DP
USB_DM
AP_READY
VDD
USB_DP
USB_DM
GPIO
Module Host
RI EINT
Power
Switch
GPIO
GND GND
Figure 6: Sleep Mode Application without Suspend Function
LTE Module Series
BG96 Hardware Design
BG96_Hardware_Design Confidential / Released 29 / 71
Switching on the power switch to supply power to USB_VBUS will wake up the module.
1. Please pay attention to the level match shown in dotted line between the module and the host. Refer
to document [1] for more details about BG96 power management application.
2. “*” means under development.
3.4.2. Airplane Mode
When the module enters into airplane mode, the RF function does not work, and all AT commands
correlative with RF function will be inaccessible. This mode can be set via the following ways.
Hardware:
W_DISABLE# is pulled up by default. Driving it to low level will let the module enter into airplane mode.
Software:
AT+CFUN=<fun> command provides choice of the functionality level, through setting <fun> into 0, 1 or 4.
AT+CFUN=0: Minimum functionality mode. Both (U)SIM and RF functions are disabled.
AT+CFUN=1: Full functionality mode (by default).
AT+CFUN=4: Airplane mode. RF function is disabled.
1. Airplane mode control via W_DISABLE# is disabled in firmware by default. It can be enabled by
AT+QCFG=“airplanecontrol” command. The command is still under development.
2. The execution of AT+CFUN command will not affect GNSS function.
3.5. Power Supply
3.5.1. Power Supply Pins
BG96 provides four VBAT pins for connection with an external power supply. There are two separate
voltage domains for VBAT.
Two VBAT_RF pins for module’s RF part.
Two VBAT_BB pins for module’s baseband part.
The following table shows the details of VBAT pins and ground pins.
NOTES
NOTES
LTE Module Series
BG96 Hardware Design
BG96_Hardware_Design Confidential / Released 30 / 71
Table 6: VBAT and GND Pins
Pin Name
Pin No.
Description
Min.
Typ.
Max.
Unit
VBAT_RF
52, 53
Power supply for module’s RF
part
3.3
3.8
4.3
V
VBAT_BB
32, 33
Power supply for module’s
baseband part
3.3
3.8
4.3
V
GND
3, 31, 48, 50,
54, 55, 58, 59,
61, 62, 67~74,
79~82, 89~91,
100~102
Ground
-
-
-
-
3.5.2. Decrease Voltage Drop
The power supply range of the module is from 3.3V to 4.3V. Please make sure that the input voltage will
never drop below 3.3V.
To decrease voltage drop, a bypass capacitor of about 100µF with low ESR should be used, and a
multi-layer ceramic chip capacitor (MLCC) array should also be used to provide the low ESR. The main
power supply from an external application has to be a single voltage source and can be expanded to two
sub paths with star structure. The width of VBAT_BB trace should be no less than 1mm, and the width of
VBAT_RF trace should be no less than 2mm. In principle, the longer the VBAT trace is, the wider it will be.
Three ceramic capacitors (100nF, 33pF, 10pF) are recommended to be applied to the VBAT pins. These
capacitors should be placed close to the VBAT pins. In addition, in order to get a stable power source, it is
suggested that you should use a zener diode of which reverse zener voltage is 5.1V and dissipation
power is more than 0.5W. The following figure shows the star structure of the power supply.
Module
VBAT_RF
VBAT_BB
VBAT
C1
100uF
C6
100nF
C7
33pF
C8
10pF
+
+
C2
100nF
C5
100uF
C3
33pF
C4
10pF
D1
5.1V
Figure 7: Star Structure of the Power Supply
LTE Module Series
BG96 Hardware Design
BG96_Hardware_Design Confidential / Released 31 / 71
3.5.3. Monitor the Power Supply
AT+CBC command can be used to monitor the VBAT_BB voltage value. For more details, please refer to
document [2].
3.6. Turn on and off Scenarios
3.6.1. Turn on Module Using the PWRKEY Pin
The following table shows the pin definition of PWRKEY.
Table 7: Pin Definition of PWRKEY
Pin Name
Pin No.
Description
DC Characteristics
Comment
PWRKEY
15
Turn on/off the module
VIHmax=2.1V
VIHmin=1.3V
VILmax=0.5V
The output voltage is
0.8V because of the
diode drop in the
Qualcomm chipset.
When BG96 is in power down mode, it can be turned on to normal mode by driving the PWRKEY pin to a
low level for at least 100ms. It is recommended to use an open drain/collector driver to control the
PWRKEY. After STATUS pin (require external pull-up) outputting a low level, PWRKEY pin can be
released. A simple reference circuit is illustrated in the following figure.
Turn on pulse
PWRKEY
4.7K
47K
≥100ms
Figure 8: Turn on the Module Using Driving Circuit
The other way to control the PWRKEY is using a button directly. When pressing the key, electrostatic
strike may generate from finger. Therefore, a TVS component is indispensable to be placed nearby the
button for ESD protection. A reference circuit is shown in the following figure.
LTE Module Series
BG96 Hardware Design
BG96_Hardware_Design Confidential / Released 32 / 71
PWRKEY
S1
Close to S1
TVS
Figure 9: Turn on the Module Using Keystroke
The turn on scenario is illustrated in the following figure.
VIL≤0.5V
VIH≥1.3V
VBAT
PWRKEY
≥100ms
RESET_N
STATUS
(OD)
Inactive Active
UART
NOTE
Inactive Active
USB
TBD
TBD
TBD
Figure 10: Timing of Turning on Module
Make sure that VBAT is stable before pulling down PWRKEY pin. The time between them is no less than
30ms.
NOTE
LTE Module Series
BG96 Hardware Design
BG96_Hardware_Design Confidential / Released 33 / 71
3.6.2. Turn off Module
The following procedures can be used to turn off the module:
Normal power down procedure: Turn off the module using the PWRKEY pin.
Normal power down procedure: Turn off the module using AT+QPOWD command.
3.6.2.1. Turn off Module Using the PWRKEY Pin
Driving the PWRKEY pin to a low level voltage (the specific time is TBD), the module will execute
power-down procedure after the PWRKEY is released. The power-down scenario is illustrated in the
following figure.
VBAT
PWRKEY
TBDTBD
RUNNING Power-down procedure OFF
Module
Status
STATUS
Figure 11: Timing of Turning off Module
3.6.2.2. Turn off Module Using AT Command
It is also a safe way to use AT+QPOWD command to turn off the module, which is similar to turning off the
module via PWRKEY pin.
Please refer to document [2] for details about AT+QPOWD command.
LTE Module Series
BG96 Hardware Design
BG96_Hardware_Design Confidential / Released 34 / 71
3.7. Reset the Module
The RESET_N pin can be used to reset the module. The module can be reset by driving RESET_N to a
low level voltage for time between 150ms and 460ms.
Table 8: RESET_N Pin Description
Pin Name
Pin No.
Description
DC Characteristics
Comment
RESET_N
17
Reset signal of the
module
VIHmax=2.1V
VIHmin=1.3V
VILmax=0.5V
The recommended circuit is similar to the PWRKEY control circuit. An open drain/collector driver or button
can be used to control the RESET_N.
Reset pulse
RESET_N
4.7K
47K
150~460ms
Figure 12: Reference Circuit of RESET_N by Using Driving Circuit
RESET_N
S2
Close to S2
TVS
Figure 13: Reference Circuit of RESET_N by Using Button
The reset scenario is illustrated in the following figure.
LTE Module Series
BG96 Hardware Design
BG96_Hardware_Design Confidential / Released 35 / 71
VBAT
≥150ms
Resetting
Module
Status Running
RESET_N
Restart
≤460ms
VIL≤0.5V VIH≥1.3V

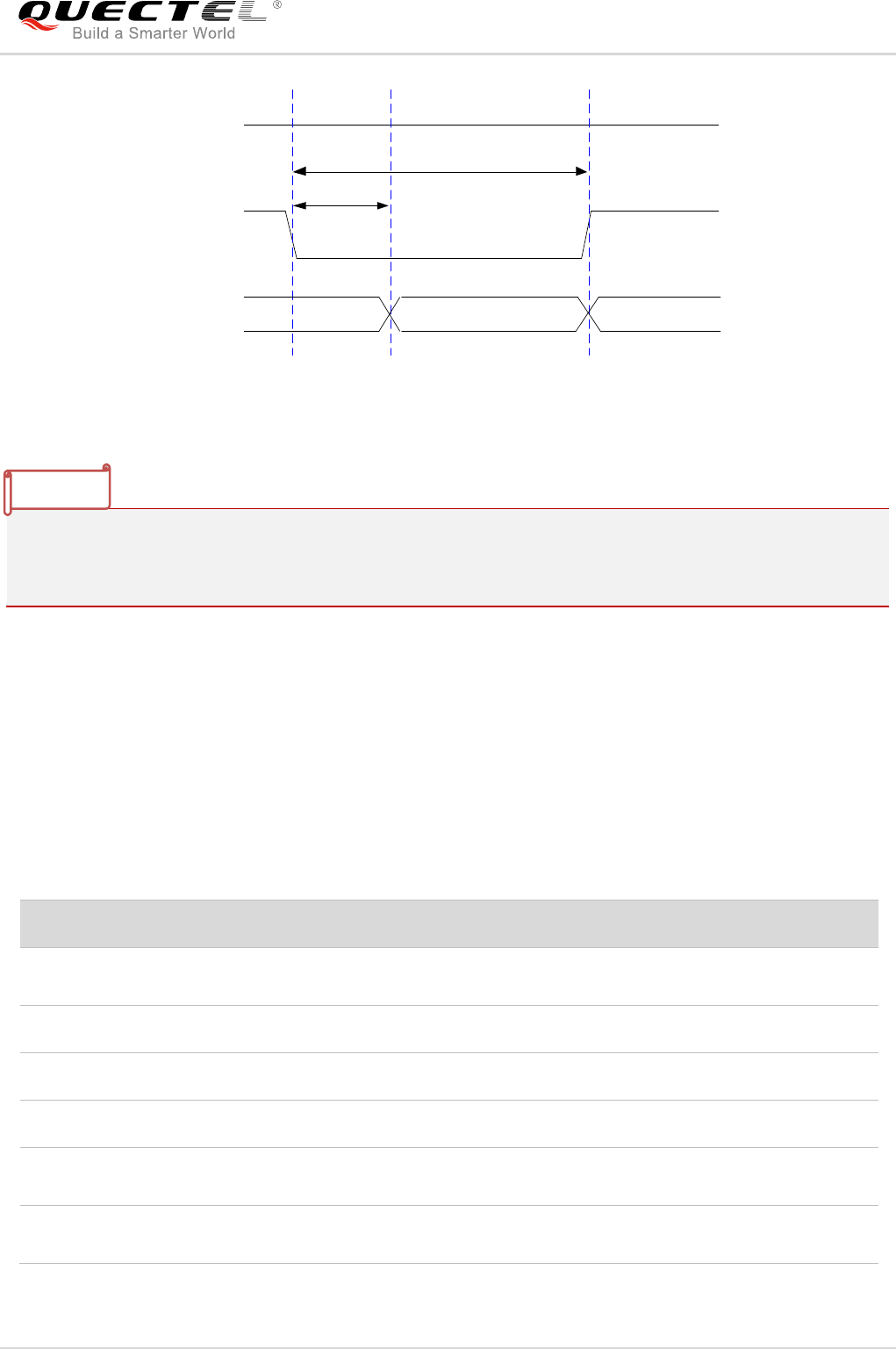

Figure 14: Timing of Resetting Module
1. Use RESET_N only when turning off the module by AT+QPOWD command and PWRKEY pin both
failed.
2. Ensure that there is no large capacitance on PWRKEY and RESET_N pins.
3.8. (U)SIM Card Interface
The (U)SIM card interface circuitry meets ETSI and IMT-2000 requirements. Both 1.8V and 3.0V (U)SIM
cards are supported.
Table 9: Pin Definition of (U)SIM Card Interface
Pin Name
Pin No.
I/O
Description
Comment
USIM_VDD
43
PO
Power supply for (U)SIM card
Either 1.8V or 3.0V is supported
by the module automatically.
USIM_DATA
45
IO
Data signal of (U)SIM card
USIM_CLK
46
DO
Clock signal of (U)SIM card
USIM_RST
44
DO
Reset signal of (U)SIM card
USIM_
PRESENCE
42
DI
(U)SIM card insertion detection
USIM_GND
47
Specified ground for (U)SIM
card
NOTES
LTE Module Series
BG96 Hardware Design
BG96_Hardware_Design Confidential / Released 36 / 71
BG96 supports (U)SIM card hot-plug via the USIM_PRESENCE pin. The function supports low level and
high level detections, and is disabled by default. Please refer to document [2] about AT+QSIMDET
command for details.
The following figure shows a reference design of (U)SIM card interface with an 8-pin (U)SIM card
connector.
Module
USIM_VDD
USIM_GND
USIM_RST
USIM_CLK
USIM_DATA
USIM_PRESENCE
22R
22R
22R
VDD_EXT
51K
100nF (U)SIM Card Connector
GND
GND
33pF 33pF 33pF
VCC
RST
CLK IO
VPP
GND
GND
USIM_VDD
15K
Figure 15: Reference Circuit of (U)SIM Card Interface with an 8-Pin (U)SIM Card Connector
If (U)SIM card detection function is not needed, please keep USIM_PRESENCE unconnected. A
reference circuit for (U)SIM card interface with a 6-pin (U)SIM card connector is illustrated in the following
figure.
Module
USIM_VDD
USIM_GND
USIM_RST
USIM_CLK
USIM_DATA 22R
22R
22R
100nF (U)SIM Card Connector
GND
33pF 33pF 33pF
VCC
RST
CLK IO
VPP
GND
GND
15K
USIM_VDD
LTE Module Series
BG96 Hardware Design
BG96_Hardware_Design Confidential / Released 37 / 71
Figure 16: Reference Circuit of (U)SIM Card Interface with a 6-Pin (U)SIM Card Connector
In order to enhance the reliability and availability of the (U)SIM card in applications, please follow the
criteria below in (U)SIM circuit design:
Keep layout of (U)SIM card as close to the module as possible. Keep the trace length as less than
200mm as possible.
Keep (U)SIM card signals away from RF and VBAT traces.
Assure the ground between the module and the (U)SIM card connector short and wide. Keep the
trace width of ground and USIM_VDD no less than 0.5mm to maintain the same electric potential.
To avoid cross-talk between USIM_DATA and USIM_CLK, keep them away from each other and
shield them with surrounded ground.
In order to offer good ESD protection, it is recommended to add a TVS diode array with parasitic
capacitance not exceeding 50pF. The 22Ω resistors should be added in series between the module
and the (U)SIM card so as to suppress EMI spurious transmission and enhance ESD protection. The
33pF capacitors are used for filtering interference of GSM900. Please note that the (U)SIM peripheral
circuit should be close to the (U)SIM card connector.
The pull-up resistor on USIM_DATA line can improve anti-jamming capability when long layout trace
and sensitive occasion are applied, and should be placed close to the (U)SIM card connector.
3.9. USB Interface
BG96 contains one integrated Universal Serial Bus (USB) interface which complies with the USB 2.0
specification and supports high-speed (480Mbps) and full-speed (12Mbps) modes. The USB interface is
used for AT command communication, data transmission, software debugging and firmware upgrade. The
following table shows the pin definition of USB interface.
Table 10: Pin Definition of USB Interface
Pin Name
Pin No.
I/O
Description
Comment
USB_VBUS
8
PI
USB connection detection
Typically 5.0V
USB_DP
9
IO
USB differential data bus (+)
Require differential
impedance of 90Ω
USB_DM
10
IO
USB differential data bus (-)
Require differential
impedance of 90Ω
GND
3
Ground
For more details about USB 2.0 specification, please visit http://www.usb.org/home.
LTE Module Series
BG96 Hardware Design
BG96_Hardware_Design Confidential / Released 38 / 71
The USB interface is recommended to be reserved for firmware upgrade in your design. The following
figure shows a reference circuit of USB interface.
USB_DP
USB_DM
GND
USB_DP
USB_DM
GND
R1
R2
Close to Module
R3
R4
Test Points
ESD Array
NM_0R
NM_0R
0R
0R
Minimize these stubs
Module MCU
USB_VBUS
VDD
Figure 17: Reference Circuit of USB Application
In order to ensure signal integrity of USB data lines, components R1, R2, R3 and R4 must be placed
close to the module, and also these resistors should be placed close to each other. The extra stubs of
trace must be as short as possible.
The following principles should be complied with when design the USB interface, so as to meet USB 2.0
specification.
It is important to route the USB signal traces as differential pairs with total grounding. The impedance
of USB differential trace is 90Ω.
Do not route signal traces under crystals, oscillators, magnetic devices and RF signal traces. It is
important to route the USB differential traces in inner-layer with ground shielding on not only upper
and lower layers but also right and left sides.
Pay attention to the influence of junction capacitance of ESD protection components on USB data
lines. Typically, the capacitance value should be less than 2pF.
Keep the ESD protection components to the USB connector as close as possible.
BG96 module can only be used as a slave device.
NOTE
LTE Module Series
BG96 Hardware Design
BG96_Hardware_Design Confidential / Released 39 / 71
3.10. UART Interfaces
The module provides three UART interfaces: UART1, UART2 and UART3 interfaces. The following are
their features.
UART1 interface supports 9600, 19200, 38400, 57600, 115200, 230400, 460800, 921600 and
3000000bps baud rates, and the default is 115200bps. This interface is used for data transmission
and AT command communication.
UART2 interface supports 115200bps baud rate. It is used for module debugging and log output.
UART3 interface is used for outputting GNSS data or NEMA sentences. It can be multiplexed into
SPI* interface.
The following tables show the pin definition of the three UART interfaces.
Table 11: Pin Definition of UART1 Interface
Pin Name
Pin No.
I/O
Description
Comment
DTR
30
DI
Sleep mode control
1.8V power domain
RXD
34
DI
Receive data
1.8V power domain
TXD
35
DO
Transmit data
1.8V power domain
CTS
36
DO
Clear to send
1.8V power domain
RTS
37
DI
Request to send
1.8V power domain
DCD
38
DO
Data carrier detection
1.8V power domain
RI
39
DO
Ring indicator
1.8V power domain
Table 12: Pin Definition of UART2 Interface
Pin Name
Pin No.
I/O
Description
Comment
DBG_TXD
23
DO
Transmit data
1.8V power domain
DBG_RXD
22
DI
Receive data
1.8V power domain
LTE Module Series
BG96 Hardware Design
BG96_Hardware_Design Confidential / Released 40 / 71
Table 13: Pin Definition of UART3 Interface
Pin Name
Pin No.
I/O
Description
Comment
UART3_TXD
27
DO
Transmit data
1.8V power domain
UART3_RXD
28
DI
Receive data
1.8V power domain
The logic levels are described in the following table.
Table 14: Logic Levels of Digital I/O
Parameter
Min.
Max.
Unit
VIL
-0.3
0.6
V
VIH
1.2
2.0
V
VOL
0
0.45
V
VOH
1.35
1.8
V
The module provides 1.8V UART interface. A level translator should be used if your application is
equipped with a 3.3V UART interface. A level translator TXS0108EPWR provided by Texas Instrument is
recommended. The following figure shows a reference design.
VCCA VCCB
OE
A1
A2
A3
A4
A5
A6
A7
A8
GND
B1
B2
B3
B4
B5
B6
B7
B8
VDD_EXT
RI
DCD
RTS
RXD
DTR
CTS
TXD
51K 51K
0.1uF 0.1uF
RI_MCU
DCD_MCU
RTS_MCU
RXD_MCU
DTR_MCU
CTS_MCU
TXD_MCU
VDD_MCU
Translator
Figure 18: Reference Circuit with Translator Chip
Please visit http://www.ti.com for more information.
LTE Module Series
BG96 Hardware Design
BG96_Hardware_Design Confidential / Released 41 / 71
Another example with transistor translation circuit is shown as below. The circuit design of dotted line
section can refer to the circuit design of solid line section, in terms of both module input and output circuit
designs, but please pay attention to the direction of connection.
MCU/ARM
TXD
RXD
VDD_EXT
10K
VCC_MCU 4.7K
10K
VDD_EXT
TXD
RXD
RTS
CTS
DTR
RI
RTS
CTS
GND
GPIO DCD
Module
GPIO
EINT
VDD_EXT
4.7K
GND
1nF
1nF
Figure 19: Reference Circuit with Transistor Circuit
Transistor circuit solution is not suitable for applications with high baud rates exceeding 460Kbps.
3.11. I2S* and I2C Interfaces
BG96 provides one Inter-IC Sound (I2S) digital interface* and one I2C interface.
The following table shows the pin definition of I2S* and I2C interfaces which can be applied on audio
codec design.
Table 15: Pin Definition of I2S* and I2C Interfaces
Pin Name
Pin No.
I/O
Description
Comment
I2S_MCLK*
63
DO
I2S master clock
1.8V power domain.
I2S_BCLK*
4
DO
I2S bit clock
1.8V power domain
I2S_WCLK*
5
DO
I2S data frame clock
1.8V power domain
NOTE
LTE Module Series
BG96 Hardware Design
BG96_Hardware_Design Confidential / Released 42 / 71
I2S_D0*
6
IO
I2S data 0
1.8V power domain
I2S_D1*
7
IO
I2S data 1
1.8V power domain
I2C_SCL
40
OD
I2C serial clock
Require external pull-up to 1.8V
I2C_SDA
41
OD
I2C serial data
Require external pull-up to 1.8V
The following figure shows a reference design of I2S* and I2C interfaces with an external codec IC.
I2S_D0
I2S_WCLK
I2S_BCLK
I2S_MCLK
I2C_SCL
I2C_SDA
Module
1.8V
4.7K
4.7K
MCLK
BCLK
WCLK
ADC
SCL
SDA
BIAS
MICBIAS
INP
INN
LOUTP
LOUTN
Codec
I2S_D1 DAC
Figure 20: Reference Circuit of I2S Application with Audio Codec
“*” means under development.
3.12. SPI* Interface
BG96 provides one Serial Peripheral Interface (SPI) digital interface* which is multiplexed from UART3
(default configuration).
The following table shows the pin definition of SPI* interface which can be used to transfer data.
NOTE
LTE Module Series
BG96 Hardware Design
BG96_Hardware_Design Confidential / Released 43 / 71
Table 16: Pin Definition of SPI* Interface
Pin Name
Pin No.
I/O
Description
Comment
SPI_CLK*
26
DO
SPI master clock
1.8V power domain.
SPI_MOSI*
27
DO
Master Out Slave in of SPI
interface
1.8V power domain
SPI_MISO*
28
DI
Master In Slave Out of SPI
interface
1.8V power domain
“*” means under development.
3.13. Network Status Indication
BG96 provides one network indication pin: NETLIGHT. The pin is used to drive a network status indication
LED. The following tables describe the pin definition and logic level changes of NETLIGHT in different
network activity status.
Table 17: Pin Definition of Network Status Indicator
Pin Name
Pin No.
I/O
Description
Comment
NETLIGHT
21
DO
Indicate the module’s network activity
status
1.8V power domain
Table 18: Working State of the Network Status Indicator
Pin Name
Logic Level Changes
Network Status
NETLIGHT
Flicker slowly (200ms High/1800ms Low)
Network searching
Flicker slowly (1800ms High/200ms Low)
Idle
Flicker quickly (125ms High/125ms Low)
Data transfer is ongoing
Always high
Voice calling
A reference circuit is shown in the following figure.
NOTE
LTE Module Series
BG96 Hardware Design
BG96_Hardware_Design Confidential / Released 44 / 71
4.7K
47K
VBAT
2.2K
Module
NETLIGHT
Figure 21: Reference Circuit of the Network Status Indicator
3.14. STATUS
The STATUS pin is an open drain output for indicating the module’s operation status. It can be connected
to a GPIO of DTE with a pulled up resistor, or as LED indication circuit as below. When the module is
turned on normally, the STATUS will present a low state. Otherwise, the STATUS will present
high-impedance state.
Table 19: Pin Definition of STATUS
Pin Name
Pin No.
I/O
Description
Comment
STATUS
20
OD
Indicate the module’s operation status
Require external pull-up
The following figure shows different circuit designs of STATUS, and you can choose either one according
to your application demands.
VDD_MCU
10K
Module
STATUS MCU_GPIO
Module
STATUS
VBAT
2.2K
Figure 22: Reference Circuit of STATUS
LTE Module Series
BG96 Hardware Design
BG96_Hardware_Design Confidential / Released 45 / 71
3.15. Behaviors of RI
AT+QCFG=“risignaltype”,“physical” command can be used to configure RI behavior.
No matter on which port URC is presented, URC will trigger the behavior of RI pin.
URC can be outputted from UART port, USB AT port and USB modem port, through configuration via
AT+QURCCFG command. The default port is USB AT port.
The default behaviors of RI are shown as below.
Table 20: Default Behaviors of RI
State
Response
Idle
RI keeps in high level.
URC
RI outputs 120ms low pulse when new URC returns.
The default RI behaviors can be configured flexibly by AT+QCFG=“urc/ri/ring” command. AT+QCFG
command is still under development. For more details, please refer to document [2].
3.16. USB_BOOT Interface
BG96 provides a USB_BOOT pin. During development or factory production, USB_BOOT pin can force
the module to boot from USB port for firmware upgrade.
Table 21: Pin Definition of USB_BOOT Interface
Pin Name
Pin No.
I/O
Description
Comment
USB_BOOT
75
DI
Force the module to boot from USB
port
1.8V power domain.
Active high.
If unused, keep it open.
NOTE
LTE Module Series
BG96 Hardware Design
BG96_Hardware_Design Confidential / Released 46 / 71

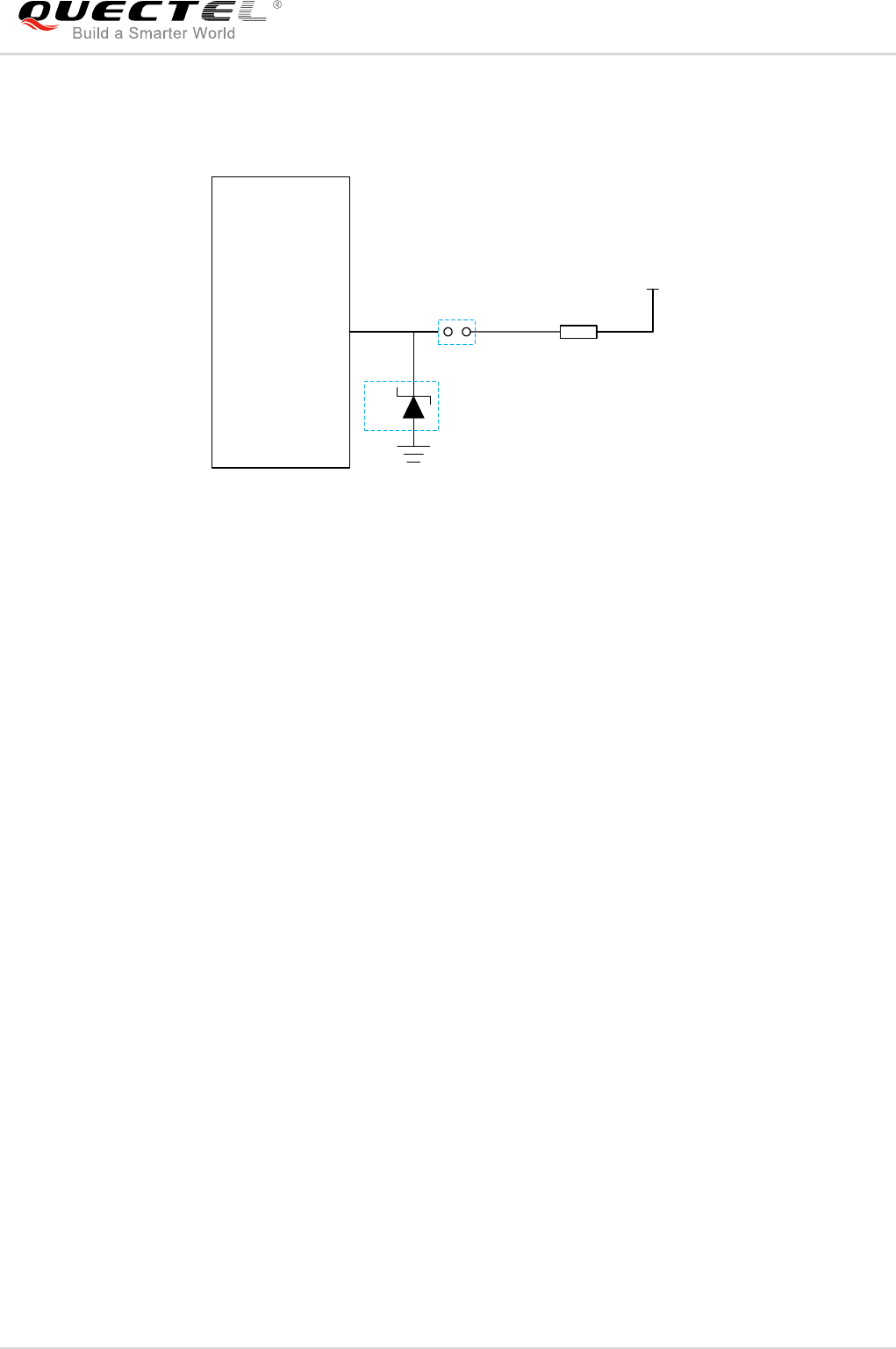

The following figure shows a reference circuit of USB_BOOT interface.
Module
USB_BOOT
VDD_EXT
10K
Test point
TVS Close to test point
Figure 23: Reference Circuit of USB_BOOT Interface
LTE Module Series
BG96 Hardware Design
BG96_Hardware_Design Confidential / Released 47 / 71
4 GNSS Receiver
4.1. General Description
BG96 includes a fully integrated global navigation satellite system solution that supports Gen8C-Lite of
Qualcomm (GPS, GLONASS, BeiDou/Compass, Galileo and QZSS).
BG96 supports standard NMEA-0183 protocol, and outputs NMEA sentences at 1Hz data update rate via
USB interface by default.
By default, BG96 GNSS engine is switched off. It has to be switched on via AT command. For more
details about GNSS engine technology and configurations, please refer to document [3].
4.2. GNSS Performance
The following table shows the GNSS performance of BG96.
Table 22: GNSS Performance
Parameter
Description
Conditions
Typ.
Unit
Sensitivity
(GNSS)
Cold start
Autonomous
TBD
dBm
Reacquisition
Autonomous
TBD
dBm
Tracking
Autonomous
TBD
dBm
TTFF
(GNSS)
Cold start
@open sky
Autonomous
TBD
s
XTRA* enabled
TBD
s
Warm start
@open sky
Autonomous
TBD
s
XTRA* enabled
TBD
s
Hot start
Autonomous
TBD
s
LTE Module Series
BG96 Hardware Design
BG96_Hardware_Design Confidential / Released 48 / 71
@open sky
XTRA* enabled
TBD
s
Accuracy
(GNSS)
CEP-50
Autonomous
@open sky
TBD
m
1. Tracking sensitivity: the lowest GNSS signal value at the antenna port on which the module can keep
on positioning for 3 minutes.
2. Reacquisition sensitivity: the lowest GNSS signal value at the antenna port on which the module can
fix position again within 3 minutes after loss of lock.
3. Cold start sensitivity: the lowest GNSS signal value at the antenna port on which the module fixes
position within 3 minutes after executing cold start command.
4. “*” means under development.
4.3. Layout Guidelines
The following layout guidelines should be taken into account in your design.
Maximize the distance between GNSS antenna and main antenna.
Digital circuits such as (U)SIM card, USB interface, camera module, display connector and SD card
should be kept away from the antennas.
Use ground vias around the GNSS trace and sensitive analog signal traces to provide coplanar
isolation and protection.
Keep 50Ω characteristic impedance for the ANT_GNSS trace.
Please refer to Chapter 5 for GNSS antenna reference design and antenna installation information.
NOTES
LTE Module Series
BG96 Hardware Design
BG96_Hardware_Design Confidential / Released 49 / 71
5 Antenna Interfaces
BG96 includes a main antenna interface and a GNSS antenna interface. The antenna interfaces have an
impedance of 50Ω.
5.1. Main Antenna Interface
5.1.1. Pin Definition
The pin definition of main antenna interface is shown below.
Table 23: Pin Definition of Main Antenna Interface
Pin Name
Pin No.
I/O
Description
Comment
ANT_MAIN
60
IO
Main antenna interface
50Ω impedance
5.1.2. Operating Frequency
Table 24: Module Operating Frequencies
3GPP Band
Transmit
Receive
Unit
B1
1920~1980
2110~2170
MHz
B2 (PCS1900)
1850~1910
1930~1990
MHz
B3 (DCS1800)
1710~1785
1805~1880
MHz
B4
1710~1755
2110~2155
MHz
B5 (GSM850)
824~849
869~894
MHz
B8 (GSM900)
880~915
925~960
MHz
B12
699~716
728~746
MHz
LTE Module Series
BG96 Hardware Design
BG96_Hardware_Design Confidential / Released 50 / 71
B13
777~787
746~757
MHz
B20
832~862
791~821
MHz
B26
814~848.9
859~893.9
MHz
B28
703~748
758~803
MHz
B39
1880~1920
1880~1920
MHz
5.1.3. Reference Design of RF Antenna Interface
A reference design of ANT_MAIN antenna pad is shown as below. A π-type matching circuit should be
reserved for better RF performance, and the π-type matching components (R1/C1/C2) should be placed
as close the antenna as possible. The capacitors are not mounted by default.
ANT_MAIN
R1 0R
C1
Module
Main
antenna
NM
C2
NM
Figure 24: Reference Circuit of RF Antenna Interface
5.1.4. Reference Design of RF Layout
For user’s PCB, the characteristic impedance of all RF traces should be controlled as 50Ω. The
impedance of the RF traces is usually determined by the trace width (W), the materials’ dielectric constant,
the distance between signal layer and reference ground (H), and the clearance between RF trace and
ground (S). Microstrip line or coplanar waveguide line is typically used in RF layout for characteristic
impedance control. The following are reference designs of microstrip line or coplanar waveguide line with
different PCB structures.
LTE Module Series
BG96 Hardware Design
BG96_Hardware_Design Confidential / Released 51 / 71
Figure 25: Microstrip Line Design on a 2-layer PCB
Figure 26: Coplanar Waveguide Line Design on a 2-layer PCB
Figure 27: Coplanar Waveguide Line Design on a 4-layer PCB (Layer 3 as Reference Ground)
LTE Module Series
BG96 Hardware Design
BG96_Hardware_Design Confidential / Released 52 / 71
Figure 28: Coplanar Waveguide Line Design on a 4-layer PCB (Layer 4 as Reference Ground)
In order to ensure RF performance and reliability, the following principles should be complied with in RF
layout design:
Use impedance simulation tool to control the characteristic impedance of RF traces as 50Ω.
The GND pins adjacent to RF pins should not be hot welded, and should be fully connected to
ground.
The distance between the RF pins and the RF connector should be as short as possible, and all the
right angle traces should be changed to curved ones.
There should be clearance area under the signal pin of the antenna connector or solder joint.
The reference ground of RF traces should be complete. Meanwhile, adding some ground vias around
RF traces and the reference ground could help to improve RF performance. The distance between
the ground vias and RF traces should be no less than two times the width of RF signal traces (2*W).
For more details about RF layout, please refer to document [4].
5.2. GNSS Antenna Interface
The following tables show the pin definition and frequency specification of GNSS antenna interface.
Table 25: Pin Definition of GNSS Antenna Interface
Pin Name
Pin No.
I/O
Description
Comment
ANT_GNSS
49
AI
GNSS antenna interface
50Ω impedance
LTE Module Series
BG96 Hardware Design
BG96_Hardware_Design Confidential / Released 53 / 71
Table 26: GNSS Frequency
Type
Frequency
Unit
GPS/Galileo/QZSS
1575.42±1.023
MHz
GLONASS
1597.5~1605.8
MHz
BeiDou
1561.098±2.046
MHz
A reference design of GNSS antenna is shown as below.
GNSS
Antenna
VDD
Module
ANT_GNSS
47nH
10R 0.1uF
100pF
NMNM
Figure 29: Reference Circuit of GNSS Antenna Interface
1. An external LDO can be selected to supply power according to the active antenna requirement.
2. If the module is designed with a passive antenna, then the VDD circuit is not needed.
NOTES
LTE Module Series
BG96 Hardware Design
BG96_Hardware_Design Confidential / Released 54 / 71
5.3. Antenna Installation
5.3.1. Antenna Requirements
The following table shows the requirements on main antenna and GNSS antenna.
Table 27: Antenna Requirements
Antenna Type
Requirements
LTE/GSM
VSWR: ≤ 2
Gain (dBi): 1
Max Input Power (W): 50
Input Impedance (Ω): 50
Polarization Type: Vertical
Cable Insertion Loss: < 1dB
(LTE B5/B8/B12/B13/B20/B26/B28
GSM850/GSM900)
Cable Insertion Loss: < 1.5dB
(LTE B1/B2/B3/B4/B39, DCS1800/PCS1900)
GNSS
Frequency range: 1561~1615MHz
Polarization: RHCP or linear
VSWR: <2 (Typ.)
Passive antenna gain: >0dBi
Active antenna noise figure: <1.5dB
Active antenna gain: >-2dBi
Active antenna embedded LNA gain: 20dB (Typ.)
Active antenna total gain: >18dBi (Typ.)
5.3.2. Recommended RF Connector for Antenna Installation
If RF connector is used for antenna connection, it is recommended to use the UF.L-R-SMT connector
provided by HIROSE.
LTE Module Series
BG96 Hardware Design
BG96_Hardware_Design Confidential / Released 55 / 71
Figure 30: Dimensions of the UF.L-R-SMT Connector (Unit: mm)
U.FL-LP serial connectors listed in the following figure can be used to match the UF.L-R-SMT.
Figure 31: Mechanicals of UF.L-LP Connectors
LTE Module Series
BG96 Hardware Design
BG96_Hardware_Design Confidential / Released 56 / 71
The following figure describes the space factor of mated connector.
Figure 32: Space Factor of Mated Connector (Unit: mm)
For more details, please visit http://www.hirose.com.
5.3.3. RF Reference Schematic Diagram
LTE Module Series
BG96 Hardware Design
BG96_Hardware_Design Confidential / Released 57 / 71
Figure 33: RF Reference Schematic Diagram
C1, R1 and C2 form a “PI” type matching circuit which is reserved for antenna optimization. By default, R1
is 0ohm while C1 and C2 are both Not Mounted (NM).
LTE Module Series
BG96 Hardware Design
BG96_Hardware_Design Confidential / Released 58 / 71
5.3.4. Coplanar Waveguide Structure Design
The recommended coplanar waveguide structure is shown as Figure 2.
Figure 34: Structure of Coplanar WG
The factors which influence impedance include dielectric constant (usually 4.2~4.6, here is 4.4), dielectric
height (H), RF trace width (W), the space between RF trace, the ground (S) and copper thickness (T).
When T=0.035mm, the recommended value of W and S for 50 ohm coplanar WG under different PCB
structure is listed in Table 1.
Table 28: Recommended Value of W and S for 50 ohm Coplanar WG under Different PCB Structure
Dielectric Height (H)
RF Trace Width (W)
Space between RF Trace and the
Ground (S)
0.076mm
0.1188mm
0.15mm
0.1mm
0.1623mm
0.2mm
0.15mm
0.24mm
0.2mm
0.8mm
0.8mm
0.18mm
1.0mm
0.8mm
0.17mm
LTE Module Series
BG96 Hardware Design
BG96_Hardware_Design Confidential / Released 59 / 71
If there are two layers, the TOP layer is the signal layer, and the BOTTOM layer is the reference ground,
as shown in Figure 3. If there are 4 layers, the reference ground could be the second layer, the third layer
or the fourth layer. If third layer is chosen, the second layer should be kept out and the width of keepout
area should be at least five times of the trace width, as shown in Figure 4. If the fourth layer is chosen,
both the second and third layer should be kept out and the width of keepout area should be at least five
times of the trace width, as shown in Figure 5. Same as 6 or more layers.
Figure 35: Two Layers PCB Layout
Figure 36: Four Layers PCB Layout (Third Layer as Reference Ground)
Figure 37: Four Layers PCB Layout (Fourth Layer as Reference Ground)
1.2mm
0.8mm
0.16mm
1.6mm
0.8mm
0.15mm
2mm
0.8mm
0.14mm
LTE Module Series
BG96 Hardware Design
BG96_Hardware_Design Confidential / Released 60 / 71
5.3.5. Coplanar WG PCB Layout Example and Guidelines
Figure 38: An example of PCB layout
There are 6 guidelines should be taken into account, as marked in the above figure:
1. Control corresponding W and S of 50 ohm coplanar waveguide. Use the common PCB as FR4
medium (dielectric constant is 4.2) and take copper clad of 35 um thickness as an example. Values of
W and S for 50 ohm coplanar WG under different PCB structure is shown as Table 1. Keep in mind to
remind PCB manufacturers to keep the accuracy of W and S.
2. Do not hot sealing the PIN in this position and make it contacted with the ground closely enough.
3. Keep out pouring copper in the surface layer and reduce parasitic effect. The RF trace line should be
as short as possible. It will be better for RF trace line to avoid vertical angle layout. The RF trace
line should be kept 135 degree angle around the corner.
4. Keep a certain distance between signal pad and ground when packaging the device. Refer to Figure
6. If the signal pad is in SMD type, pouring copper on the corresponding signal pad.
5. Ensure the corresponding reference ground of RF trace line is integrated and do not forget to add
more ground via to help RF reflow. The ground and RF trace should be kept at least two times of the
trace width. Guarantee the contact area which is in the same layer with RF trace is as large as
LTE Module Series
BG96 Hardware Design
BG96_Hardware_Design Confidential / Released 61 / 71
possible and its corresponding reference ground in the opposite layer is as integrated as possible,
meanwhile ensure the two layer ground is connected by amount of ground hole.
6. Three components consist of PI type matching circuit shown as Figure 6. Place the pad to antenna
as close as possible, as shown in Figure 6. If the distance between SMA and RF PIN is too short to
place the three pin of PI type matching circuit, PI type matching circuit can be changed into L
matching circuit.
LTE Module Series
BG96 Hardware Design
BG96_Hardware_Design Confidential / Released 62 / 71
6 Electrical, Reliability and Radio Characteristics
6.1. Absolute Maximum Ratings
Absolute maximum ratings for power supply and voltage on digital and analog pins of the module are
listed in the following table.
Table 29: Absolute Maximum Ratings
Parameter
Min.
Max.
Unit
VBAT_RF/VBAT_BB
-0.3
4.7
V
USB_VBUS
-0.3
5.5
V
Peak Current of VBAT_BB
0
TBD
A
Peak Current of VBAT_RF
0
TBD
A
Voltage at Digital Pins
-0.3
2.3
V
6.2. Power Supply Ratings
Table 30: Power Supply Ratings
Parameter
Description
Conditions
Min.
Typ.
Max.
Unit
VBAT
VBAT_BB and
VBAT_RF
Voltage must stay within the
min/max values, including
voltage drop, ripple and
spikes.
3.3
3.8
4.3
V
IVBAT
Peak supply current
(during transmission
slot)
TBD
TBD
A
LTE Module Series
BG96 Hardware Design
BG96_Hardware_Design Confidential / Released 63 / 71
Parameter
Description
Conditions
Min.
Typ.
Max.
Unit
USB_VBUS
USB detection
3.0
5.0
5.25
V
6.3. Operation Temperature
The operation temperature is listed in the following table.
Table 31: Operation Temperature
Parameter
Min.
Typ.
Max.
Unit
Operation Temperature Range 1)
-35
+25
+75
ºC
Extended Temperature Range 2)
-40
+85
ºC
1. 1) Within operation temperature range, the module is 3GPP compliant.
2. 2) Within extended temperature range, the module remains the ability to establish and maintain a
voice, SMS, data transmission, emergency call, etc. There is no unrecoverable malfunction. There
are also no effects on radio spectrum and no harm to radio network. Only one or more parameters
like Pout might reduce in their value and exceed the specified tolerances. When the temperature
returns to the normal operating temperature levels, the module will meet 3GPP specifications again.
6.4. Current Consumption
The information will be added in the future version of this document.
6.5. RF Output Power
The following table shows the RF output power of BG96 module.
NOTES
LTE Module Series
BG96 Hardware Design
BG96_Hardware_Design Confidential / Released 64 / 71
6.6. RF Receiving Sensitivity
The following table shows the conducted RF receiving sensitivity of BG96 module.
Table 32: BG96 Conducted RF Receiving Sensitivity
Frequency
Primary
Diversity
SISO
3GPP
LTE-FDD B1
TBD
Not Supported
TBD
-102.7dBm
LTE-FDD B2
TBD
Not Supported
TBD
-100.3dBm
LTE-FDD B3
TBD
Not Supported
TBD
-99.3dBm
LTE-FDD B4
TBD
Not Supported
TBD
-102.3dBm
LTE-FDD B5
TBD
Not Supported
TBD
-100.8dBm
LTE-FDD B8
TBD
Not Supported
TBD
-99.8dBm
LTE-FDD B12
TBD
Not Supported
TBD
-99.3dBm
LTE-FDD B13
TBD
Not Supported
TBD
-99.3dBm
LTE-FDD B20
TBD
Not Supported
TBD
-99.8dBm
LTE-FDD B26
TBD
Not Supported
TBD
-100.3dBm
LTE-FDD B28
TBD
Not Supported
TBD
-100.8dBm
LTE-TDD B39
TBD
Not Supported
TBD
-103dBm
GSM850/GSM900
TBD
Not Supported
TBD
-102.4dBm
DCS1800/PCS1900
TBD
Not Supported
TBD
-102.4dBm
6.7. Electrostatic Discharge
The information will be added in the future version of this document.
LTE Module Series
BG96 Hardware Design
BG96_Hardware_Design Confidential / Released 65 / 71
7 Mechanical Dimensions
This chapter describes the mechanical dimensions of the module. All dimensions are measured in mm.
7.1. Mechanical Dimensions of the Module
22.50±0.1
26.50±0.1
2.3±0.2
Figure 39: Module Top and Side Dimensions
LTE Module Series
BG96 Hardware Design
BG96_Hardware_Design Confidential / Released 66 / 71
22.50
26.50
0.92
0.92
1.50
1.10
7.45 7.15
1.95 0.55 1.10 1.66
5.10
1.00
8.50
0.85
1.70
0.85
1.00
1.00
1.70
1.70
0.55
1.50
1.15
1.90
1.10
0.50 0.70
40x1.0
40x1.0
62x0.7
62x1.15
Figure 40: Module Bottom Dimensions (Bottom View)
LTE Module Series
BG96 Hardware Design
BG96_Hardware_Design Confidential / Released 67 / 71
7.2. Recommended Footprint and Stencil Design
1.00
1.70
0.70
0.55
0.85
1.00
1.70
1.70
62x0.7
40x1.00
40x1.00
22.50
26.50
1.65
1.50
1.50
1.65
1.15
1.15
7.45 7.15
0.85
5.10
0.20
1.10
1.90
1.10
1.95
1.00
1.10 1.10
62x1.15
8.50
Figure 41: Recommended Footprint (Top View)
LTE Module Series
BG96 Hardware Design
BG96_Hardware_Design Confidential / Released 68 / 71
1.00
1.70
0.70
0.55
0.85
1.00
1.70
1.70
62x0.7
40x1.00
40x1.00
22.50
26.50
1.65
1.50
1.50
1.65
1.15
1.15
7.45 7.15
0.85
5.10
0.20
1.10
1.90
1.10
1.95
1.00
1.10 1.10
62x1.15
8.50
Figure 42: Recommended Stencil Design (Top View)
1. For easy maintenance of the module, please keep about 3mm between the module and other
components in the host PCB.
2. All Reserved pins MUST be kept open.
NOTES
LTE Module Series
BG96 Hardware Design
BG96_Hardware_Design Confidential / Released 69 / 71

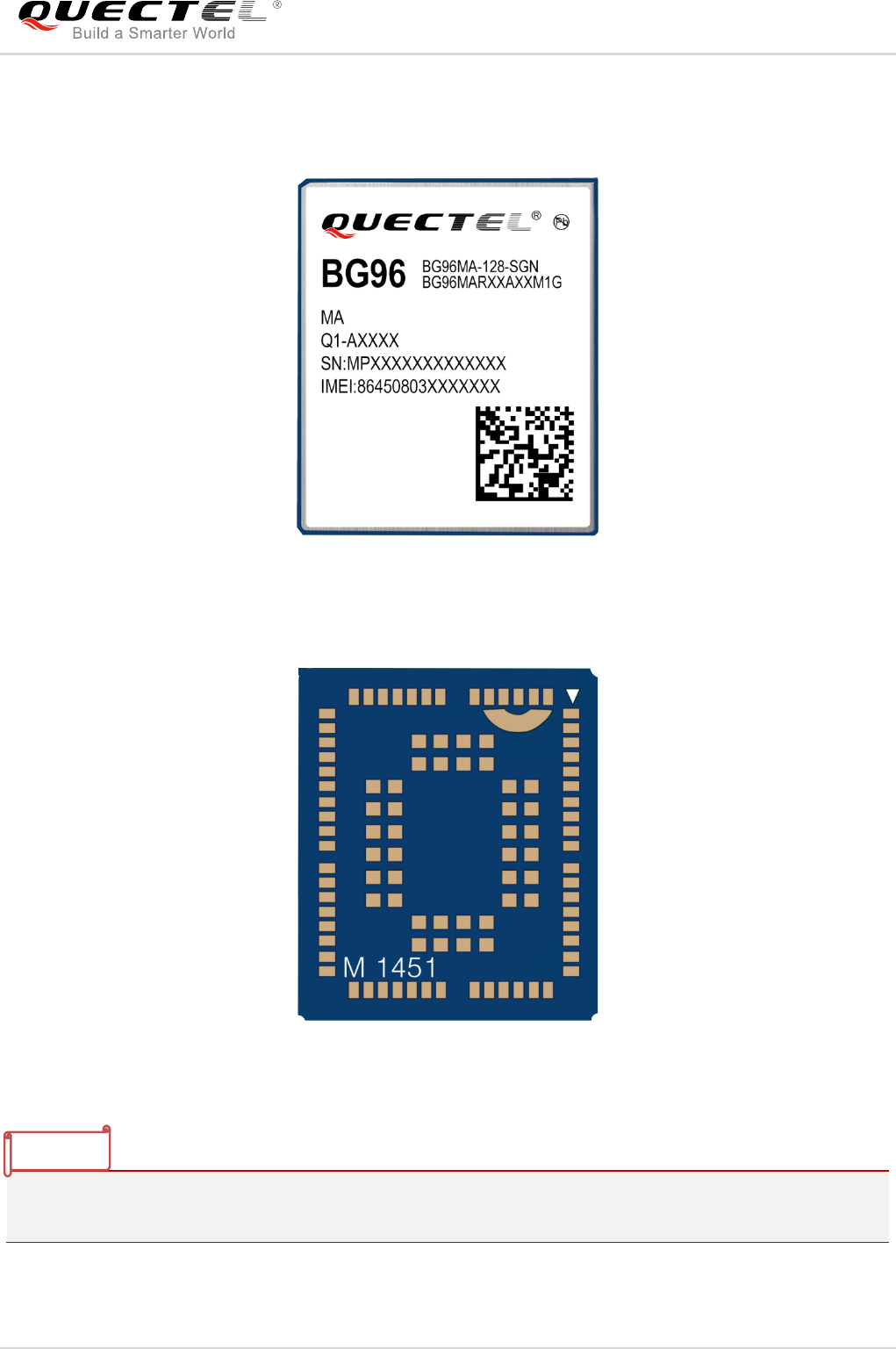

7.3. Design Effect Drawings of the Module
Figure 43: Top View of the Module
Figure 44: Bottom View of the Module
These are design effect drawings of BG96 module. For more accurate pictures, please refer to the
module that you get from Quectel.
NOTE
LTE Module Series
BG96 Hardware Design
BG96_Hardware_Design Confidential / Released 70 / 71
8 Storage, Manufacturing and Packaging
8.1. Storage
BG96 is stored in a vacuum-sealed bag. The storage restrictions are shown as below.
1. Shelf life in the vacuum-sealed bag: 12 months at <40ºC/90%RH.
2. After the vacuum-sealed bag is opened, devices that will be subjected to reflow soldering or other
high temperature processes must be:
Mounted within 168 hours at the factory environment of ≤30ºC/60%RH.
Stored at <10%RH.
3. Devices require baking before mounting, if any circumstance below occurs.
When the ambient temperature is 23ºC±5ºC and the humidity indication card shows the humidity
is >10% before opening the vacuum-sealed bag.
Device mounting cannot be finished within 168 hours at factory conditions of ≤30ºC/60%
4. If baking is required, devices may be baked for 48 hours at 125ºC±5ºC.
As the plastic package cannot be subjected to high temperature, it should be removed from devices
before high temperature (125ºC ) baking. If shorter baking time is desired, please refer to
IPC/JEDECJ-STD-033 for baking procedure.
8.2. Manufacturing and Soldering
Push the squeegee to apply the solder paste on the surface of stencil, thus making the paste fill the
stencil openings and then penetrate to the PCB. The force on the squeegee should be adjusted properly
so as to produce a clean stencil surface on a single pass. To ensure the module soldering quality, the
thickness of stencil for the module is recommended to be 0.18mm. For more details, please refer to
document [5].
NOTE
LTE Module Series
BG96 Hardware Design
BG96_Hardware_Design Confidential / Released 71 / 71
It is suggested that the peak reflow temperature is 235~245ºC (for SnAg3.0Cu0.5 alloy). The absolute
max reflow temperature is 260ºC. To avoid damage to the module caused by repeated heating, it is
suggested that the module should be mounted after reflow soldering for the other side of PCB has been
completed. Recommended reflow soldering thermal profile is shown below.
Time
50 100 150 200 250 300
50
100
150
200
250
160ºC
200ºC
217
0
70s~120s
40s~60s
Between 1~3ºC/s
Preheat Heating Cooling
ºC
s
Liquids Temperature
Temperature
Figure 45: Reflow Soldering Thermal Profile
During manufacturing and soldering, or any other processes that may contact the module directly, NEVER
wipe the module label with organic solvents, such as acetone, ethyl alcohol, isopropyl alcohol,
trichloroethylene, etc.
8.3. Packaging
The information will be added in the future version of this document.
NOTE
LTE Module Series
BG96 Hardware Design
BG96_Hardware_Design Confidential / Released 72 / 71
9 Appendix A References
Table 33: Related Documents
SN
Document Name
Remark
[1]
Quectel_BG96_Power_Management_Application_Note
BG96 Power Management Application
Note
[2]
Quectel_BG96_AT_Commands_Manual
BG96 AT Commands Manual
[3]
Quectel_BG96_GNSS_AT_Commands_Manual
BG96 GNSS AT Commands Manual
[4]
Quectel_RF_Layout_Application_Note
RF Layout Application Note
[5]
Quectel_Module_Secondary_SMT_User_Guide
Module Secondary SMT User Guide
Table 34: Terms and Abbreviations
Abbreviation
Description
AMR
Adaptive Multi-rate
bps
Bits Per Second
CHAP
Challenge Handshake Authentication Protocol
CS
Coding Scheme
CTS
Clear To Send
DC-HSPA+
Dual-carrier High Speed Packet Access
DFOTA
Delta Firmware Upgrade Over The Air
DL
Downlink
DTR
Data Terminal Ready
DTX
Discontinuous Transmission
EFR
Enhanced Full Rate
LTE Module Series
BG96 Hardware Design
BG96_Hardware_Design Confidential / Released 73 / 71
ESD
Electrostatic Discharge
FDD
Frequency Division Duplex
FR
Full Rate
GMSK
Gaussian Minimum Shift Keying
GSM
Global System for Mobile Communications
HR
Half Rate
HSPA
High Speed Packet Access
HSDPA
High Speed Downlink Packet Access
HSUPA
High Speed Uplink Packet Access
I/O
Input/Output
Inorm
Normal Current
LED
Light Emitting Diode
LNA
Low Noise Amplifier
LTE
Long Term Evolution
MIMO
Multiple Input Multiple Output
MO
Mobile Originated
MS
Mobile Station (GSM engine)
MT
Mobile Terminated
PAP
Password Authentication Protocol
PCB
Printed Circuit Board
PDU
Protocol Data Unit
PPP
Point-to-Point Protocol
QAM
Quadrature Amplitude Modulation
QPSK
Quadrature Phase Shift Keying
RF
Radio Frequency
RHCP
Right Hand Circularly Polarized
Rx
Receive
LTE Module Series
BG96 Hardware Design
BG96_Hardware_Design Confidential / Released 74 / 71
SISO
Single Input Single Output
SMS
Short Message Service
TDD
Time Division Duplexing
TX
Transmitting Direction
UL
Uplink
UMTS
Universal Mobile Telecommunications System
URC
Unsolicited Result Code
(U)SIM
(Universal) Subscriber Identity Module
Vmax
Maximum Voltage Value
Vnorm
Normal Voltage Value
Vmin
Minimum Voltage Value
VIHmax
Maximum Input High Level Voltage Value
VIHmin
Minimum Input High Level Voltage Value
VILmax
Maximum Input Low Level Voltage Value
VILmin
Minimum Input Low Level Voltage Value
VImax
Absolute Maximum Input Voltage Value
VImin
Absolute Minimum Input Voltage Value
VOHmax
Maximum Output High Level Voltage Value
VOHmin
Minimum Output High Level Voltage Value
VOLmax
Maximum Output Low Level Voltage Value
VOLmin
Minimum Output Low Level Voltage Value
VSWR
Voltage Standing Wave Ratio
WCDMA
Wideband Code Division Multiple Access
LTE Module Series
BG96 Hardware Design
BG96_Hardware_Design Confidential / Released 75 / 71
10 Appendix B GPRS Coding Schemes
Table 35: Description of Different Coding Schemes
Scheme
CS-1
CS-2
CS-3
CS-4
Code Rate
1/2
2/3
3/4
1
USF
3
3
3
3
Pre-coded USF
3
6
6
12
Radio Block excl.USF and BCS
181
268
312
428
BCS
40
16
16
16
Tail
4
4
4
-
Coded Bits
456
588
676
456
Punctured Bits
0
132
220
-
Data Rate Kb/s
9.05
13.4
15.6
21.4
LTE Module Series
BG96 Hardware Design
BG96_Hardware_Design Confidential / Released 76 / 71
11 Appendix C GPRS Multi-slot Classes
Twenty-nine classes of GPRS multi-slot modes are defined for MS in GPRS specification. Multi-slot
classes are product dependent, and determine the maximum achievable data rates in both the uplink and
downlink directions. Written as 3+1 or 2+2, the first number indicates the amount of downlink timeslots,
while the second number indicates the amount of uplink timeslots. The active slots determine the total
number of slots the GPRS device can use simultaneously for both uplink and downlink communications.
The description of different multi-slot classes is shown in the following table.
Table 36: GPRS Multi-slot Classes
Multislot Class
Downlink Slots
Uplink Slots
Active Slots
1
1
1
2
2
2
1
3
3
2
2
3
4
3
1
4
5
2
2
4
6
3
2
4
7
3
3
4
8
4
1
5
9
3
2
5
10
4
2
5
11
4
3
5
12
4
4
5
LTE Module Series
BG96 Hardware Design
BG96_Hardware_Design Confidential / Released 77 / 71
12 Appendix D EDGE Modulation and Coding Schemes
Table 37: EDGE Modulation and Coding Schemes
Coding
Schemes
Modulation
Coding Family
1 Timeslot
2 Timeslot
4 Timeslot
CS-1:
GMSK
/
9.05kbps
18.1kbps
36.2kbps
CS-2:
GMSK
/
13.4kbps
26.8kbps
53.6kbps
CS-3:
GMSK
/
15.6kbps
31.2kbps
62.4kbps
CS-4:
GMSK
/
21.4kbps
42.8kbps
85.6kbps
MCS-1
GMSK
C
8.80kbps
17.60kbps
35.20kbps
MCS-2
GMSK
B
11.2kbps
22.4kbps
44.8kbps
MCS-3
GMSK
A
14.8kbps
29.6kbps
59.2kbps
MCS-4
GMSK
C
17.6kbps
35.2kbps
70.4kbps
MCS-5
8-PSK
B
22.4kbps
44.8kbps
89.6kbps
MCS-6
8-PSK
A
29.6kbps
59.2kbps
118.4kbps
MCS-7
8-PSK
B
44.8kbps
89.6kbps
179.2kbps
MCS-8
8-PSK
A
54.4kbps
108.8kbps
217.6kbps
MCS-9
8-PSK
A
59.2kbps
118.4kbps
236.8kbps
