SCREENLOGIC® INTERFACE Wireless Connection Kit Installation Guide
IMPORTANT SAFETY INSTRUCTIONS
READ AND FOLLOW ALL INSTRUCTIONS
SAVE THESE INSTRUCTIONS
INSTALLATION GUIDE
SCREENLOGIC® INTERFACE
WIRELESS CONNECTION KIT
FOR INTELLITOUCH® AND EASYTOUCH® CONTROL SYSTEMS
SCREENLOGIC® INTERFACE Wireless Connection Kit Installation Guide
Technical Support
Phone: (800) 831-7133
Web sites: visit www.pentairpool.com and www.staritepool.com
Contents
Overview ........................................................................................................... 1
Wireless Connection Kit Contents ...................................................................... 1
Summary Installation Steps ................................................................................ 2
ScreenLogic Interface Connection Diagram ....................................................... 3
Mount the Outdoor Wireless Transceiver and Connect to the
IntelliTouch or EasyTouch Load Center .............................................................. 4
Connect the Indoor Wireless Transceiver to the ScreenLogic
Interface Protocol Adapter ................................................................................. 8
Connect the Indoor Wireless Transceiver to the ScreenLogic
Interface Protocol Adapter ................................................................................. 8
Cradle/Desk Mount the Indoor Wireless Transceiver ........................................... 8
Wall Mount the Indoor Wireless Transceiver........................................................ 8
i
FCC Regulatory Safety Notice
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
• Modifications not expressly approved by the party responsible for FCC compliance
could void the user’s authority to operate the equipment.
Industry Canada Statement
The device complies with industry Canada’s License Exempt RSSs. Operation is subject to the
following: (1) This device may not cause interference; and (2) This device must accept
interference that may cause undesired operation of the device.
This Class B digital apparatus complies with Canadian ICES-003.Cet appareil numérique de la
classe B est conforme à la norme NMB-003 du Canada. The term “IC” before the certification /
registration number only signifies that the Industry Canada technical specifications were met.
Le dispositif est conforme à la licence d'Industrie Canada Exempt CNR. Le fonctionnement est
soumis à la suivante. (1) Ce ne doit pas provoquer d'interférences ; et (2) Cet appareil doit
accepter les interférences qui peuvent causer un mauvais fonctionnement de l'appareil.
Notice: In order to comply with FCC RF Exposure requirements, a minimum separation
distance of 8 in (20 cm) must be maintained between the equipment and all persons during
normal operation.
SCREENLOGIC® INTERFACE Wireless Connection Kit Installation Guide
1
ScreenLogic® Interface Wireless Connection Kit Overview
The ScreenLogic® Interface Wireless Connection interface consists of an
indoor and outdoor wireless 902-928 MHz wireless transceiver.
Note: The wireless transceivers ship from the factory as a matched pair.
The ID numbers on each transceiver must be the same number to function
correctly. If needed, the transceivers are replaced as a matched pair . For
more information, call Customer Support (880) 831.7133.
The indoor and outdoor transceivers provide a wireless connection
between the ScreenLogic Interface Protocol adapter and the IntelliTouch®
or EasyTouch® Control System Load Center located at the equipment pad.
This wireless connection eliminates the existing hard wire connection from
inside your home to the equipment pad.
4X
Mounting hardware
2X
Outdoor
Transceive
r
enclosure
Indoor transceiver and base
AC transformer
Outdoor Cable
(white - 10 ft.)
NOTE (*): ID numbers
on Indoor and Outdoor
transceiver board must
match
Indoor hardware
Cable (for connection to
ScreenLogic
®
Interface
Protocol Adapter
(purchased separately)
2X 4X
2X
In this Installation Guide
This Installation Guide provides installation instructions for the ScreenLogic®
Interface Wireless Connection kit.
• For the ScreenLogic Interface system operating instructions, refer to the
ScreenLogic Interface User’s Guide (P/N 520493)
SCREENLOGIC INTERFACE
®
ScreenLogic Interface
Protocol Adapter
(purchased separately)
ScreenLogic Interface Wireless Connection Kit Contents
Wireless Connection Kit Contents

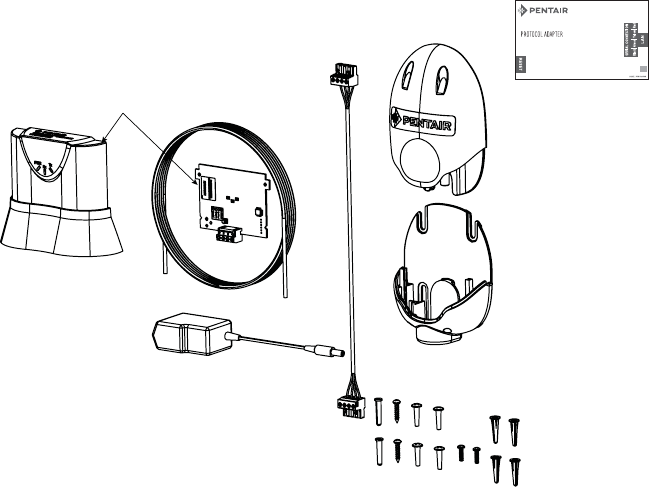

The following items are included in the Wireless Connection kit:
•One ScreenLogic Interface indoor wireless transceiver with AC power
adapter and 1 ft. long cable with attached plugs.
• One ScreenLogic Interface outdoor wireless transceiver with
10 ft. cable, enclosure and mounting hardware.
• ScreenLogic Interface Wireless Connection Installation Guide
(this manual).
SCREENLOGIC® INTERFACE Wireless Connection Kit Installation Guide
2

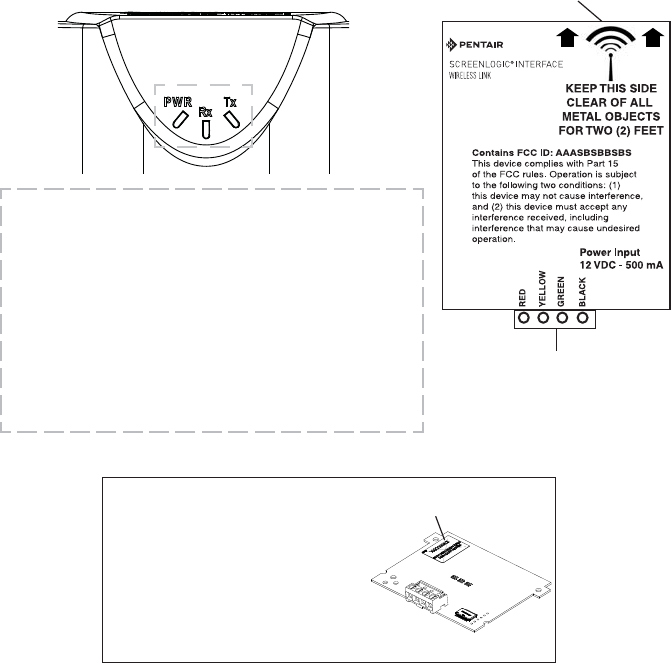

Antenna location
Indoor Wireless Transceiver
PWR: Green LED on: Power is on to the unit.
• PWR LED blinking: Not linked or lost link,
attempting to link or relink, no response.
• PWR LED blinking, TX and/or RX LED blinking:
not linked, attempting to link, getting responses.
• PWR LED on steady: Linked.
• PWR LED blinking: Lost link, Attempting to relink.
RX: Yellow LED indicates the unit is receiving data.
TX: Green LED indicates the unit is transmitting data.
Note: ScreenLogic Interface Indoor Wireless Transceiver (Note: For optimum
performance, mount indoor transceiver upright in the cradle or on an indoor
wall).
Summary Installation Steps
The ScreenLogic® Interface connection diagram on page 3 shows the
transceiver locations and connections. To install the ScreenLogic Interface
Wireless Connection kit:
RS-485 Connector
(to Protocol Adapter)
• Mount the outdoor transceiver antenna module near the IntelliTouch®
or EasyTouch® Control System Load Center (see page 4 for
mounting instructions). Using the provided 10 ft. cable, connect the
transceiver to the COM port connector located in the IntelliTouch or
EasyTouch Control System Load Center (see page 7).

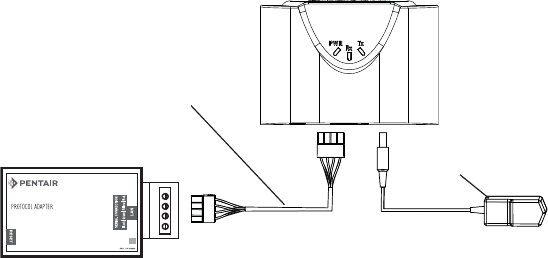

• Connect the ScreenLogic Interface indoor wireless transceiver to the
ScreenLogic Interface Protocol adapter using the 12 in cable. Plug
the AC power adapter into an AC wall-outlet and into the wireless
transceiver unit to power up the unit (see page 8).
ID number
(Outdoor transceiver)
IMPORTANT NOTICE: Be sure the
yellow ID label (9-digit ID number
XXXXXXXXX) located to the right of
the RS-485 connector on the front side
of the Indoor transceiver
enclosure and the ID number
on the ScreenLogic Interface Outdoor
Wireless transceiver are the same. See
page 1 for label location.
LED Indicators Description:
SCREENLOGIC® INTERFACE Wireless Connection Kit Installation Guide
1234
WAN
RJ11 RJ45
INTERNET
1234
WAN
- LAN -
Wired or wireless
router
(mandatory)
RJ11 for DSL
Coax for Cable
In-wall Touch
Screen
Outdoor Wireless
transceiver connected to
COM PORT on main circuit
board via 10 ft. cable
Protocol
Adapter
ScreenLogic®
Interface
Wireless router
Existing PC
Ethernet cable (RJ45 - CAT 5)
Ethernet cable
(RJ45 - CAT 5)
DSL or
Cable Modem
(RJ45)
Cable distance limits:
- Ethernet cable distance limit = 300 feet
- Four-wire cable distance limit = 1500 feet
Note: (*) Optional wiring for existing Indoor
Control Panel. Tap into the Indoor Control
Panel connector or pig tail off the four-wire
cable connected to the Control System Board.
Indoor Transceiver
connected to
ScreenLogic
Interface
Protocol adapter
EasyTouch®,
IntelliTouch® Control
Systems Load
Center
(Located outside at
equipment pad)
3
4-wire
one foot
cable
AC power
adapter
ScreenLogic® Interface Connection Diagram
IntelliTouch® or
EasyTouch® Indoor
Control Panel (*)
SCREENLOGIC® INTERFACE Wireless Connection Kit Installation Guide
4
Mount the Outdoor Wireless Transceiver and Connect to the
IntelliTouch® or EasyTouch® Control System Load Center
The following describes how to mount and connect the outdoor transceiver
to the IntelliTouch or EasyTouch Control System Load Center.
Mounting the Outdoor Transceiver Module

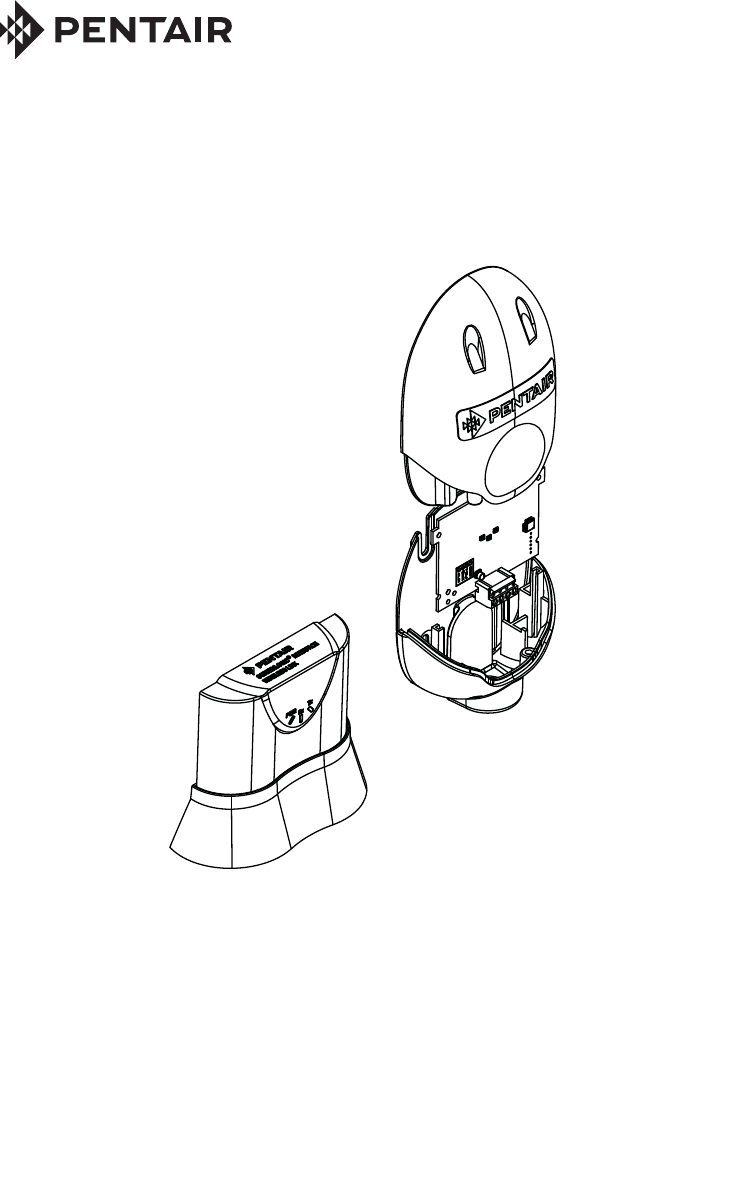

The outdoor transceiver is a two-way radio device with an attached antenna that
communicates with the IntelliTouch or EasyTouch Control System via the
10 ft. four-conductor communication cable.
Outdoor tranceiver mounting location: Choose a convenient location on a flat
vertical surface near the Load Center at a minimum of 5 ft above ground level to
optimize the transmit and receive operating range. For optimum performance
position the Outdoor transceiver with an unobstructed line-of-sight propagation
between the Indoor and Outdoor tranceiver.
1. Position the back plate against the mounting surface so that the
transceiver is oriented in an upright position with the antenna
pointing upwards. Use a pencil to mark the four mounting points.
Drill four 3/16 in. diameter holes into the mounting surface and insert
the four plastic anchors provided in the kit.
Note: To avoid signal interference, mount the transceiver a
minimum of 10 feet away from the load center, any metal
surface/structure, or air blower located in the immediate area
of the equipment pad.
2. Position the back plate over the mounting points and secure it with
the four mounting screws provided in the kit.
3. Carefully position the transceiver circuit board into the mounted back
plate. Route the communication cable wire up through the lower exit
hole at the bottom of the back plate. Carefully pull the communication
cable out the lower hole and position the circuit board in the back
plate.
4. Proceed to “Connect the wireless transceiver communication
cable to the COM Port on automation control systems circuit
board” on page 6.
5. Slide the case over the circuit board and antenna into the back plate.
Secure the circuit board in the case using the two retaining screws.
SCREENLOGIC® INTERFACE Wireless Connection Kit Installation Guide
5
Outdoor Wireless Transceiver
Case
Wireless transceiver
case retaining
screws (x2)
Back plate for
mounting circuit
board

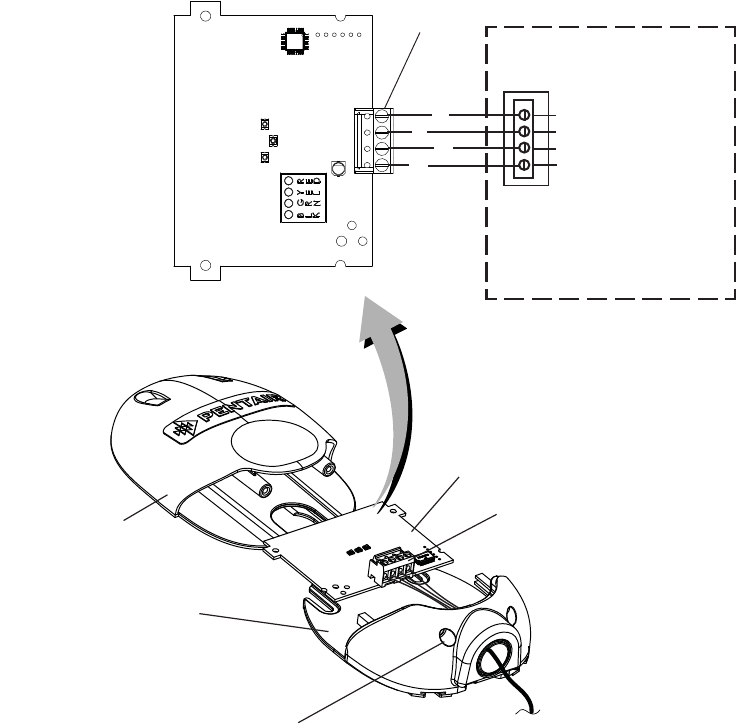

Outdoor wireless transceiver
circuit board
Connect 4-conductor
communication cable to
terminal screws.
Outdoor
Transceiver
connector
COM PORT (RS-485)
screw terminal connector on
IntelliTouch® or EasyTouch®
Control System circuit board
BLK
RED
YEL
GRN
BLK (GND - PIN 1)
GRN (- DT - PIN 2)
YEL (+ DT - PIN 3)
RED (15 V - PIN 4)
Outdoor
Transceiver
circuit
board
SCREENLOGIC® INTERFACE Wireless Connection Kit Installation Guide

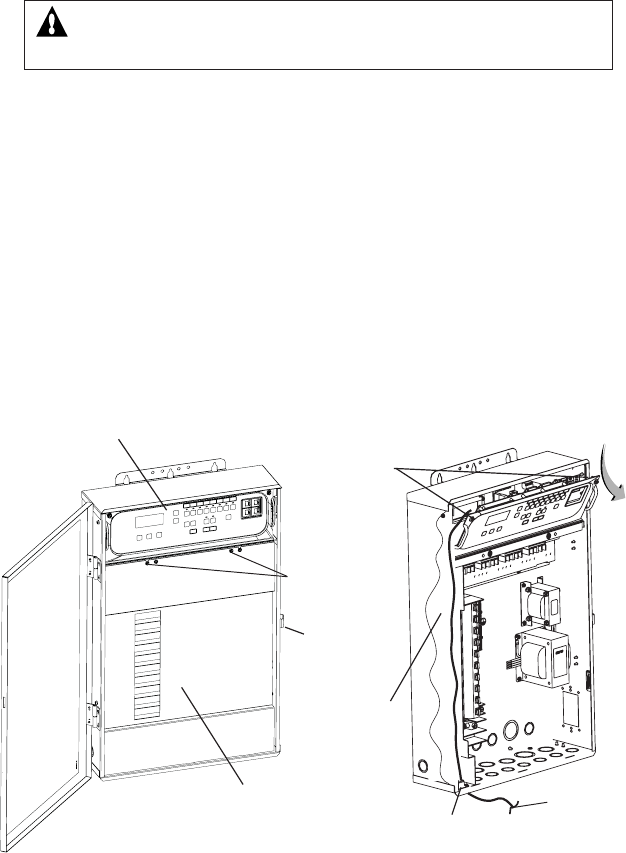

WARNING Switch OFF the main power to the Load Center
before making any connections.
1. Switch OFF the AC power to the enclosure at the main house panel
circuit breaker.
2. Unlatch the front door latch and open the front door. Remove the two
retaining screws from the High-Voltage Cover Panel and remove the
panel.
3. Loosen the two retaining screws securing from the top edge of the
Outdoor Control Panel. Fold down the Outdoor Control Panel to
access the circuit board sockets connectors for the electrical
connections. Remove the panel from the enclosure (see illustration
below).
4. Route the four conductor transceiver connection cable into the lower
plastic grommet, up through the low voltage raceway to the system
circuit board.
6
Connect the wireless transceiver communication cable to the COM
Port on automation control system circuit board
IntelliTouch® or EasyTouch® Control System Load Center
Retaining
screws
HIGH -VOLTAGE
FRONT COVER
PANEL
Outdoor
Control Panel
retaining
screw (x2)
Outdoor
transceiver
communication
cable
(connect to
COM port)
Outdoor
Control Panel
Grommet
(under side of
Load Center
Inside Low
voltage
raceway
Latch
SCREENLOGIC® INTERFACE Wireless Connection Kit Installation Guide
5. Strip the leads of the communication cable wires back ¼ in. Insert the
wires into the connector screw terminals. Using a small flat-blade
screwdriver, secure the wires with the COM PORT (J7/J8) terminal
screws. Note: Multiple wires may be inserted into a single screw
terminal. Be sure to match the color-coding of the wires:
Pin 4 - Red = +15 VDC
Pin 3 - Yellow = +DT
Pin 2 - Green = -DT
Pin 1 - Black = GND
7
IntelliTouch® (J7/J8) or
EasyTouch® Control
System COM Ports
(J20) screw terminal
connector
Note: Multiple wires may be
inserted into a single screw COM
PORT terminal. However, this can
cause an intermittent connection.
Note: For additional COM ports,
an optional Serial COM Port
Expansion Board (P/N 520818)
can be installed in the low voltage
compartment.
6. After the communication cable connection has been completed; close
the Outdoor Control Panel and tighten the two retaining screws.
Reinstall the High Voltage Panel: Insert the panel’s three tabs into the
lower slots on the enclosure. Secure the panel with the two (2)
retaining screws. Close the front door and secure it with the latch.
7. Switch ON AC power to the Load Center.
8. After the Power Center is powered up the Wireless Controller will
automatically synchronize with the system and will be ready for
operation. Note: The initial connection can take up to 2-3
minutes.
9. Proceed to the “Connecting the ScreenLogic Interface Indoor
Wireless Transceiver to the ScreenLogic Interface Protocol
Adapter” on page 8.
SCREENLOGIC® INTERFACE Wireless Connection Kit Installation Guide
8
Connecting the Indoor Wireless Transceiver and Protocol Adapter
Connect the Indoor Wireless Transceiver to the ScreenLogic®
Interface Protocol Adapter
Connect the ScreenLogic Interface indoor wireless transceiver to the
ScreenLogic Interface Protocol adapter as follow:
1. Using the 1 ft. connection cable, connect one end of the cable to the
Protocol Sdapter and the other end to the Indoor Wireless
Transceiver. See Figure 1 and Figure 2. The cable plugs are keyed for
easy connection.
2. Plug the 120 VAC Power Adapter into an AC grounded electrical
outlet.
Wall Mount the Indoor Wireless Transceiver (Figure 2 and Figure 3)
1. Cut out the wall mounting templating from the next page. Place the template
on an indoor flat surface or wall and mark the two screw hole positions.
2. Drill two holes (0.223 in) 2-1/2 inches apart as shown on the template (see
Figure 3 on next page).
3. Insert the wall plugs into both wall screw holes.
4. Insert the screws into the wall plug. Don’t insert the screws all the way into
the wall, leave about 1/16 in for the wireless transceiver to hang on the head
of the screws (see Figure 2 on next page).
5. Mount the wireless transceiver onto both screw heads.
Cradle/Desk Mount the Indoor Wireless Module (Figure 1)
1. Insert the power cable into the base of the Indoor transceiver cradle. Fasten
the cable into the cradle slot (see Figure 1 on next page).
2. Insert the connection cable into the base of the Indoor transceiver cradle.
Fasten the cable into the cradle slot (see Figure 1 on next page).
3. Place the cradle on a table or desk. Note: Keep the cradle and Indoor
transceiver clear of all objects for two feet.
Mount the Indoor Wireless Transceiver in its cradle as follows:
Mount the Indoor Wireless Transceiver on an indoor wall as follows:
SCREENLOGIC INTERFACE
®
Connection cable (1 ft)
(provided in kit)
120 VAC
Power Adapter
Indoor Wireless Transceiver
Protocol Adapter
SCREENLOGIC® INTERFACE Wireless Connection Kit Installation Guide
9
Wall Mount the Indoor Wireless Transceiver (Continued)
2½ in
Figure 3: Wall Mount Template for Indoor Wireless Transceiver
Indoor Wireless Module Mounting Screw Location
Figure 2: Wall Mount the Indoor Wireless Transceiver
Figure 1: Cradle/Desk Mount the Indoor Wireless Transceiver
Hang module on
screw head
(approx. 1/16 in
from wall surface)
1
16
"
(0.41 cm)
Mounting screw/plug (2x)
Screw hole (x2)
Wall screw
hole (2x)
Secure AC power
cable in slot in base
Secure
communication
cable in slot in base
120 VAC
power adapter
Protocol adapter
SCREENLOGIC INTERFACE
®
SCREENLOGIC® INTERFACE Wireless Connection Kit Installation Guide
1620 HAWKINS AVE., SANFORD, NC 27330 • (919) 566-8000
10951 WEST LOS ANGELES AVE., MOORPARK, CA 93021 • (805) 553-5000
WWW.PENTAIRPOOL.COM
All Pentair trademarks and logos are owned by Pentair or by one of its global affiliates. Pentair Aquatic
Systems™, ScreenLogic®, EasyTouch® and IntelliTouch® are trademarks and/or registered trademarks of
Pentair Water Pool and Spa, Inc. and/or its affiliated companies in the United States and/ or other countries.
iPhone® is a registered trademark of Apple Corporation. Unless expressly noted, names and brands of third
parties that may be used in this document are not used to indicate an affiliation or endorsement between the
owners of these names and brands and Pentair Water Pool and Spa, Inc. Those names and brands may be
the trademarks or registered trademarks of those third parties. Because we are continuously improving our
products and services, Pentair reserves the right to change specifications without prior notice. Pentair is an
equal opportunity employer.
© 2016 Pentair Water Pool and Spa, Inc. All rights reserved.
This document is subject to change without notice.
P/N 522633 REV. A 1/2016
*522633*
