FEATURES:
• Long Range
• Call Button
• Tamper Proof
• Ruggedized
• Long Battery Life
• Easy,Flexible
Mounting
• Compact Size
• FCC Complient
T40LR Tag
User’s Guide
A member of the PinPoint Critical family, the T40 long-range tag is ideally
suited for applications that require long-range, high-resolution location
information.

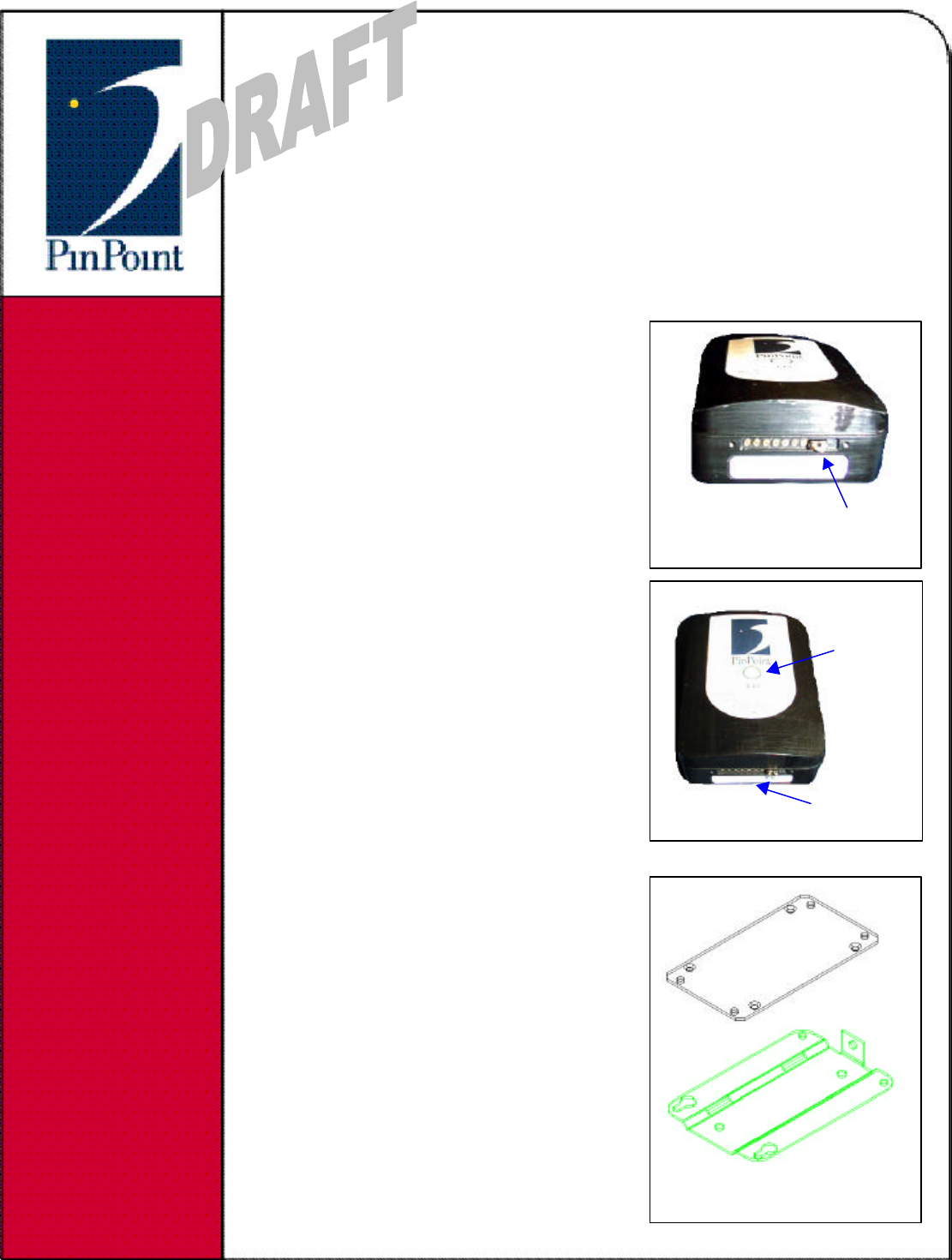

Activating the Tag
Two steps must be performed to see the
tag in the ViewPoint software.
First, the T40 tag must be turned on.
Simply remove the power jumper located in
the bottom of the tag. As shown in Figure
1. With the jumper plug removed, the tag
will exit sleep mode and become active.
Second, the Tag must be entered in the
ViewPoint Configurator Tag Builder Tool as
shown in figure 2.
Tag Features
Call Button
Tamper Proof Switch
Tag Mounting Options
Flat Bracket Mount
Multi-purpose Bracket Mount Figure 2
Call
Button
Tag ID Label
Power Jumper
Figure 1
Figure 3
About PinPoint
PinPoint Corporation, based in Billerica, MA, is a leading developer of solutions for Mobile Resource
Management in industries requiring a high degree of live information on resources and critical assets.
Today, PinPoint solutions are used to locate, monitor and manage resources, inventory and personnel in
industrial, manufacturing and healthcare environments. PinPoint solutions, based on the PinPoint Resource
Manager platform and industry-recognized Local Positioning System (LPS) technology, enable corporations
to leverage existing IT infrastructures and precisely and affordably manage valuable resources using
wireless technology.
© 2001 PinPoint Corp. All rights reserved. Specifications subject to change without notice. 02/0`
PinPoint Corp.
One Fortune Dr.
Billerica, MA
01821
tel 978.901.0028
fax 978.901.0050
www.pinpointco.com
T40LR Tag
User’s Guide
Mechanical
Dimensions: 2.49” x 3.85” x .49”
Weight: ?oz (.?kg)
Materials: ?
Color: ?
Mounting Type Aluminum Bracket
Electrical
Operating Frequency: 2.44 GHz Input
5.8 GHz Output
Power Source: 2 x 1.5V Silver Oxide Button Cells
Radiated Power: < 0.5 mWatt ERIP
Antenna Range:
Antenna Type:
Radiation Pattern: Half plan -directional, dual patch
(?°azimuth, ?° elevation)
Antenna Type: Omni-directional, dual patch
External I/O Port: 6-pin Power, Tamper, and Serial Data Output
Environmental
Operation Temperature: 0oC - 50oC (32oF – 122oF)
Storage Temperature: 0oC - 65oC (32o F 149o F)
Humidity: 5%-95% non-condensing
Water Resistance: ?
Vibration: ?
Shock: ?
Other
Compliance: FCC Part 15.249 Compliant Unlicensed
Product Specifications
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions.
(1) this device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Warnings:
• T40 Tags are water and shock resistant. However, immersion, high-pressure washing, or extreme force can
damage the Tags.
• When installing the Tags, keep in mind some materials reflect or absorb radio signals in the immediate area of
the Tag (i.e. metal doors) could hinder its performance.
• The Tags may be washed with a soft cloth that is lightly dampened with alcohol, diluted bleach, and diluted
ammonia. Harsher solutions may cause damage to the Tag’s exterior or seal.
• It is company policy that these Tags are transported by air while in non-active mode.
• Changes and modifications not approved by PinPoint Corporation could void the user’s authority to operate the
equipment.
