Users Manual
Preface
The PinPoint Asset Tracking and Management Solution uses
the PinPoint Asset tag to provide real-time locating and asset
management throughout a facility. The PinPoint Mobile
Resource Management software enables users to configure tags,
manage assets, and track equipment from any web enabled PC
or PDA. Refer to the PinPoint Asset Tracking and
Management Solutions Software and Configuration Guide for
details on tag configuration and the Mobile Resource
Management software.
Intended Audience
The PinPoint Asset Tracking Tag User Guide is intended for
facility personnel who uses the PinPoint Asset Tag. It provides
detailed information about the tag mounting and cleaning
instructions, as well as specifications and compliances.
Contact Information
•Find more information about RF Technologies, Inc. products at
www.rft.com.
•For technical support, contact (800) 669-9946 or (262) 790-1771.
•For questions or comments about documentation, contact the RF
Technologies Technical Publications team at techpubs@rft.com.
Product Warranty
Product Warranty information can be found on the system’s
CD-ROM or with your original system proposal and invoice.

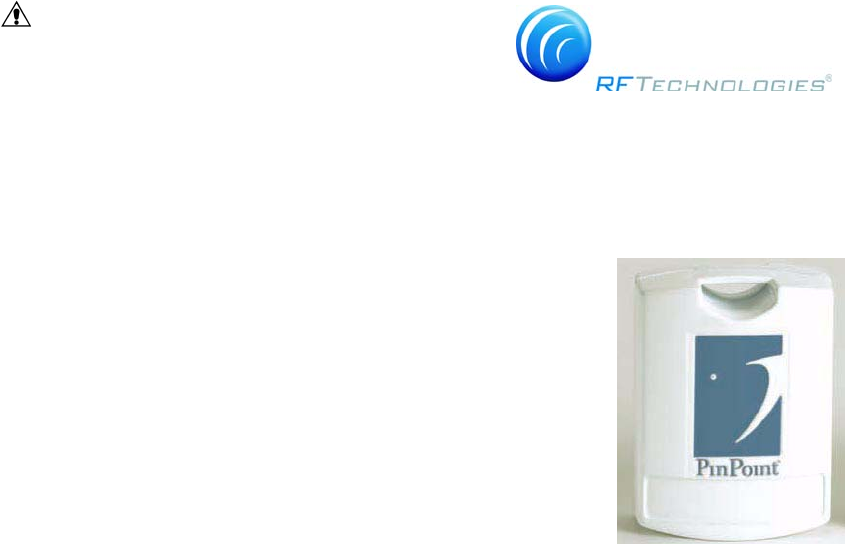

PinPoint Asset Tag
The PinPoint Asset Tag is a lightweight battery powered Wi-Fi
tag. It is designed to last for up to 3 years depending on the
check-in configuration and the motion of the tag. The tag
employs an on-board motion detector to maximize battery life.
The PinPoint Asset Tag transmits low battery alerts to enable
timely tag replacement.
The PinPoint Asset Tag is part of the PinPoint Asset Tracking
and Management Solutions. The tag aids in locating and
securing mobile assets and incorporates tamper detection
technology that alerts system users when a tag has been removed
from an asset.
Mounting Tags
Tags are small and can be attached to assets
using the adhesive tape that can be purchased
with the tags. Tags can also be mounted with a
lanyard or zip tie through the opening at the
top of the tag.
To apply the adhesive pad to the tag
1. Remove an adhesive pad from the strip of paper.
2. Place the tag face down.
3. Line the adhesive pad up with the back of the tag.
4. Apply the adhesive pad.
5. Verify that the pad is applied correctly and is not hanging over the
sides of the tag.
6. If correctly applied the tag will activate and auto enroll into the
Mobile Resource Management software. Refer to the
PinPoint Asset Tracking and Management Solutions
Configuration and Calibrations User Guide
To attach a tag to a asset using an adhesive pad
1. Obtain the asset to which you want to apply the tag. The asset
surface must be clean, dry and free of condensed moisture.
2. Remove the plastic covering from the outside of the adhesive pad.
3. Firmly attach the tag to the asset. Ideal application temperature
range is 70°F to 100°F (21°C to 38°C).
4. Press firmly and hold for approximately 10 seconds to activate the
pressure sensitive adhesive.
5. After application, the bond strength will increase as the adhesive
flows onto the surface. At room temperature, approximately 50% of
ultimate bond strength will be achieved after 20 minutes, 90% after
24 hours and 100% after 72 hours.
Mounting Tags Using a Lanyard or Zip Tie
Tags can also be mounted with a lanyard or zip tie through the
opening at the top of the tag.
Cleaning Tags
To clean a tag after use
1. If necessary, remove the tag from the asset. You can clean the tag on the asset
if you prefer.
2. Wet a cotton swab or paper towel with Isopropyl Alcohol.
3. Cleanse the tag.
4. Cleanse the surface of the asset.
5. Let the tag and the asset surface dry before reapplying the tag with a new
adhesive pad.
Specifications
WARNING: The PinPoint Asset Tracking and
Management Solutions is designed and intended to
work in conjunction with a facility’s overall asset
management and security program, including
reasonable operating policies and procedures. The
PinPoint Asset Management Solution, by itself,
cannot prevent the theft or loss of assets.
Size: 1.9 x 1.38 x 0.7
Weight: 0.95 ounces
Case: Welded, Waterproof
Color: White w/Blue Logo
Network Standard: 802.11b/g Compliant
Frequency: 802.11b Radio (2.4GHz),
RFID Low Frequency (262kHz)
Network Protocol: UDP, Static IP Addressed
Medium Access: CSMA/CA
Temperature: 0- 120° F
Humidity: 0-95% Non-Condensing
Battery Life: up to 3 Years
Shelf Life: 5 Years
Compliance: FCC part 15
Industry Canada: RSS 210
Compliance
Federal Communication Commission (FCC) Compliance
This device complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) this device may
not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause
undesired operation.
This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential
area is likely to cause harmful interference in which case the user
will be required to correct the interference at his own expense.
Changes or modifications not expressly approved by the party
responsible for compliance voids the user’s authority to operate
the equipment.
FCC and IC Radiation Exposure Statement for Portable
Devices
This equipment complies with FCC and IC radiation exposure
limits set forth for an uncontrolled environment. This
equipment is in direct contact with the body of the user under
normal operating conditions. This transmitter must not be co-
located or operating in conjunction with any other antenna or
transmitter.
Industry Canada Compliance
Changes or modifications not expressly approved by RF
Technologies could void the user’s authority to operate the
equipment. The Term “IC” before the radio certification
number only signifies that Industry Canada technical
specifications were met.
Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this device
must accept any interference received, including interference
that may cause undesired operation.
Industry Canada Label
RF Technologies, Inc.
Model#: TAG-80211B
IC: 2719A-80211B
FCC ID: KXU-80211B
RF Technologies, Inc.
3125 North 126th Street, Brookfield, WI 53005 USA
phone: 800.669.9946 web: www.rft.com
Important Warnings
It is important for your facility to implement and enforce the following
WARNINGS in order to keep all equipment functioning properly.
INSTRUCTIONS FOR SET UP AND USE—It is the
responsibility of the facility to follow the instructions for set up
and use carefully, as outlined in this manual, and to use the
components and supplies specified by RF Technologies, Inc. for
setup and use. Failure to follow the instructions for setup and
use and failure to use the components and supplies specified
by RF Technologies, Inc. may result in equipment and/or
system failure.
SYSTEM MAINTENANCE AND TESTING—It is the
responsibility of the facility to establish and facilitate a regular
maintenance schedule for your system. This includes visual
inspection, testing and care of your system as outlined in this
manual. Maintenance and testing of your system, including
records of maintenance and testing, must be done monthly. It is
also recommended that your facility keep records of
maintenance and test completions. Failure to provide regular
maintenance and testing of these products may result in
equipment and/or system failure.
USER TRAINING—It is the responsibility of the facility to
implement structured training procedures for all employees
using the system. Only users who have received adequate
training on the use of the system, as outlined in this manual,
should use the system. Failure to adequately train employees
may cause system failure due to user error. In addition,
incorrect use of the equipment may also result in system
failure.
DISPOSAL—At the end of their service life the products
described in this manual, as well as accessories (i.e.batteries,
mounting material, etc.), must be disposed of in compliance
with all applicable federal, state and local guidelines regulating
the disposal of products containing potential environmental
contaminants. Dispose of the packaging material by observing
the applicable waste control regulations.
PRODUCT WARRANTIES—Failure to follow the Warnings
and Cautions in this guide voids any and all Product
Warranties.
PinPoint®
Asset Tracking and Management
Solutions
Asset Tag User Guide
P/N: 0510-0259-A_Draft 3
Released: 04/10/07
Users must read this Guide before using the Product
(Patents Pending)
Copyright 2007 by RF Technologies, Inc.
All rights reserved. No part of this work may be reproduced or copied in
any form or by any means without written permission from
RF Technologies, Inc.
