2.2.6 High Power Amplifiers (HPAs)
The High Power Amplifiers the transmitted signal from a base station at the final stage of the
Booster and vice versa.

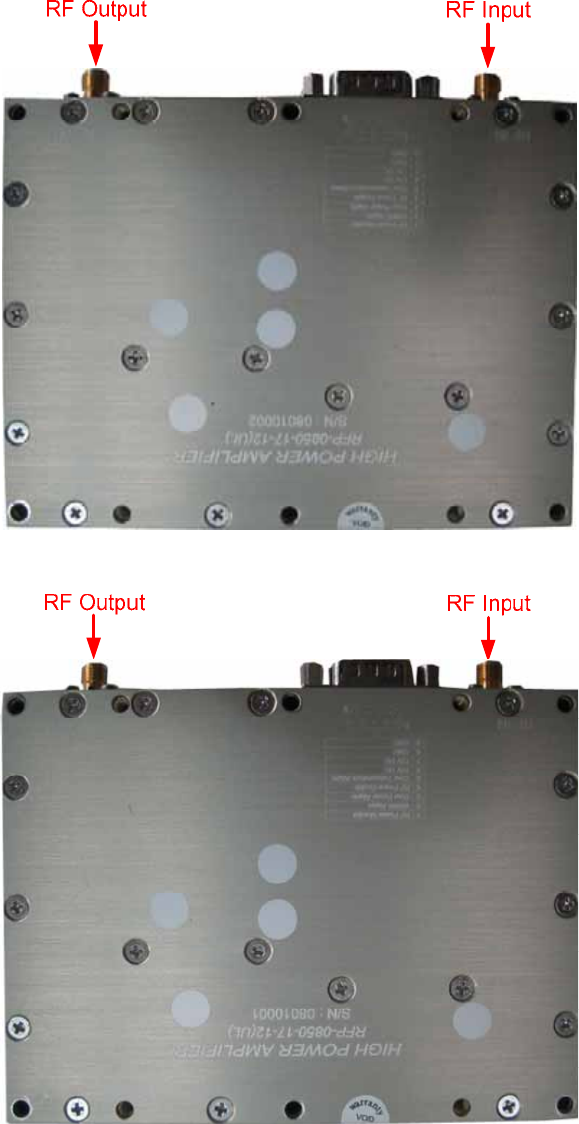

<iDEN UL HPA>
<iDEN DL HPA>
System Manual RSN-iDEN-15-DC
R-tron Proprietary & Confidential Page 13
Issue: 1.0

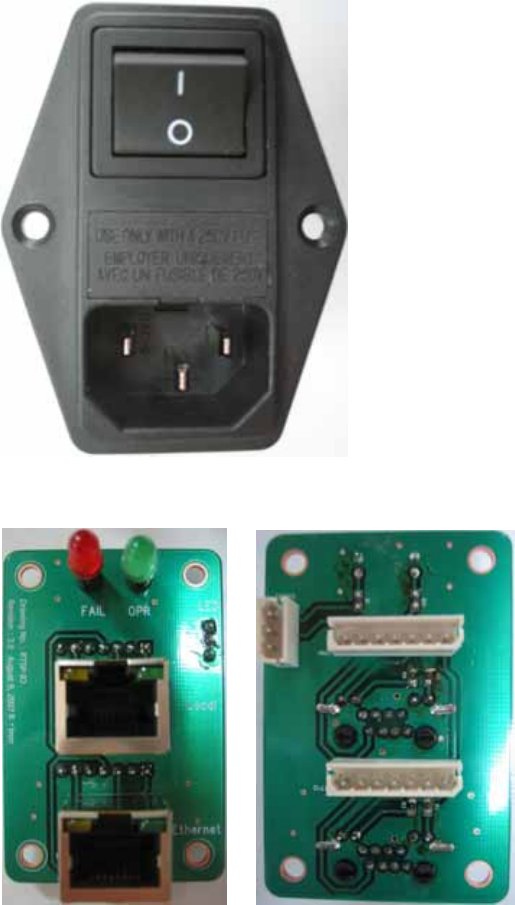

2.2.6 EMI Noise Filter
2.2.7 Communication & LED Board
System Manual RSN-iDEN-15-DC
R-tron Proprietary & Confidential Page 14
Issue: 1.0
* Hardware Installation
1. Setting for Command and Control
* iDEN MINI operates on a customer provided PC based platform with the following system
requirements.
Windows
®
XP Strong recommended
128 MB RAM or more
Pentium
Ⅲ
processor or more keyboard
RJ-45 jack

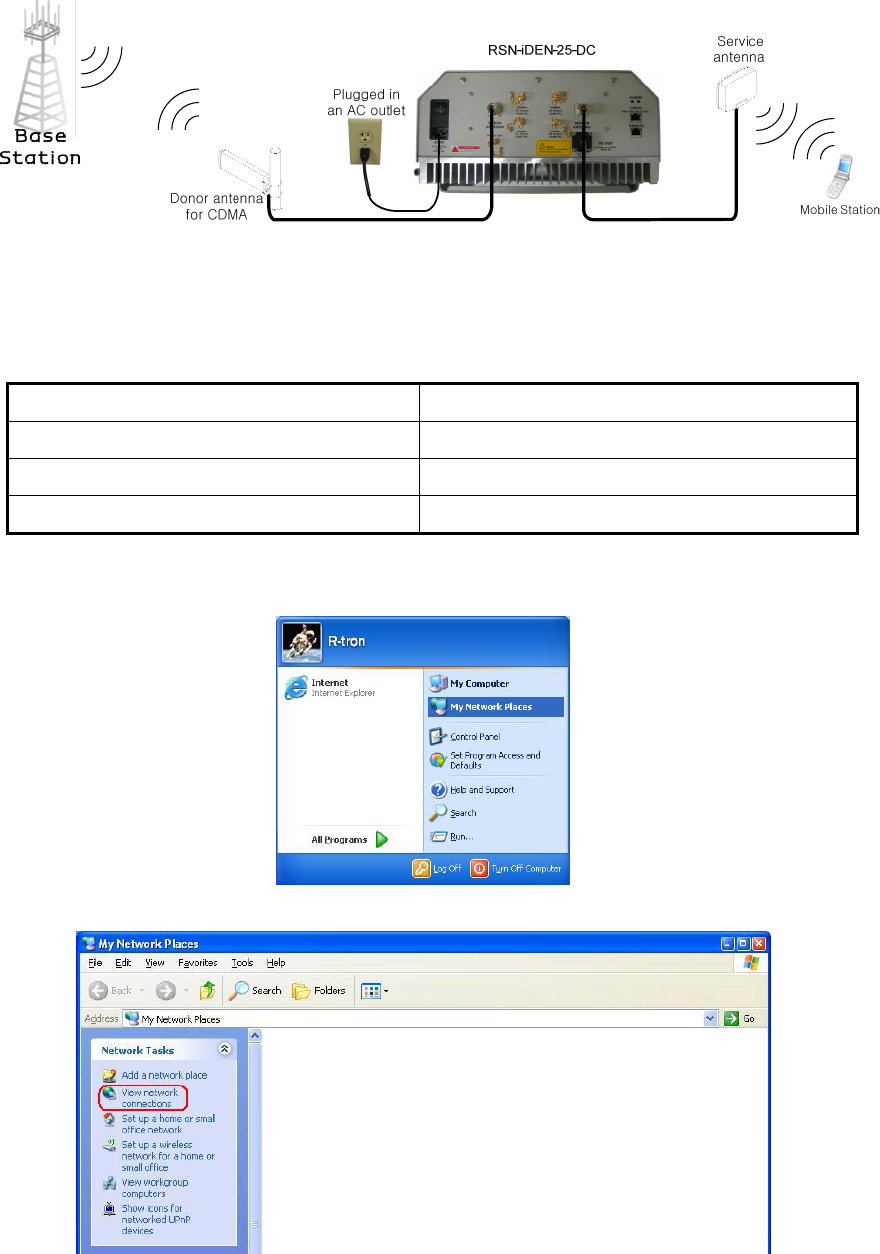

Step 1 Open My Network Places.
Step 2 Click the “View network connections”.
System Manual RSN-iDEN-15-DC
R-tron Proprietary & Confidential Page 15
Issue: 1.0

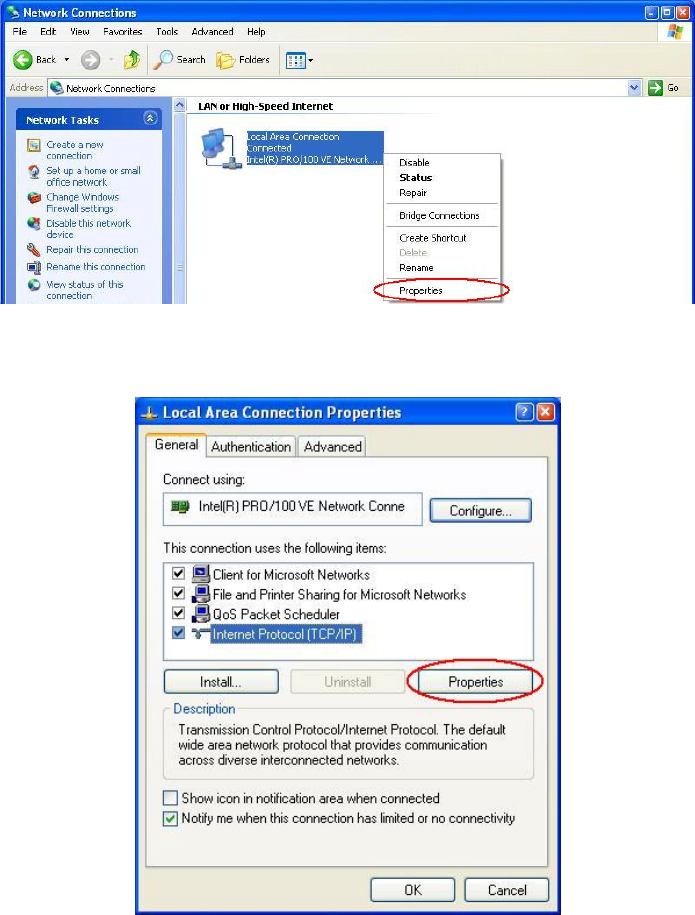

Step 3 Push the right button of mouse and select the properties.
Step 4 Click the properties of TCP/IP.
System Manual RSN-iDEN-15-DC
R-tron Proprietary & Confidential Page 16
Issue: 1.0
Step 5 Set the values and OK as the following. Close all windows.
Step 6 Open a new explorer window.
System Manual RSN-iDEN-15-DC
R-tron Proprietary & Confidential Page 17
Issue: 1.0

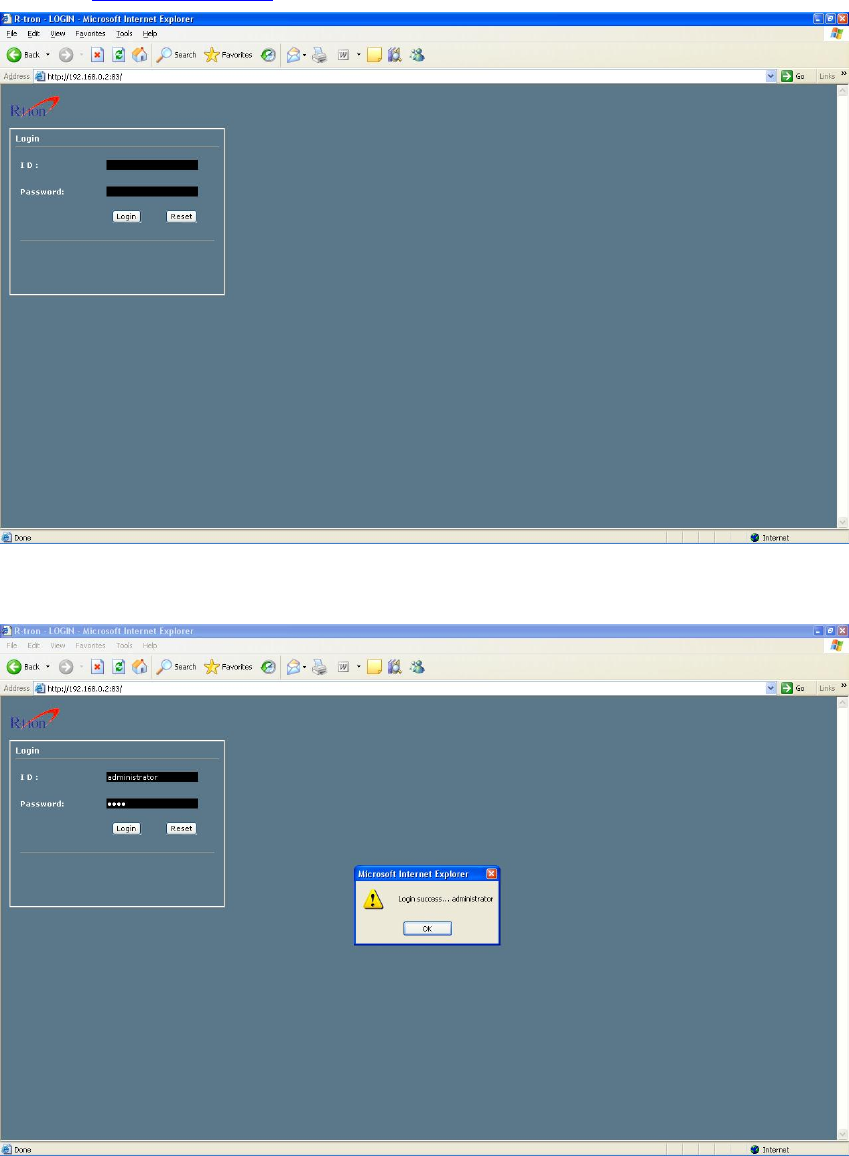

Step 7 Type http://192.168.0.1:83 in the address box and press “Enter” key.
Step 8 Login with “administrator” of ID and “1234” of password and “OK”.
System Manual RSN-iDEN-15-DC
R-tron Proprietary & Confidential Page 18
Issue: 1.0
2. Command and Control on the Web GUI.
A. iDEN 800.

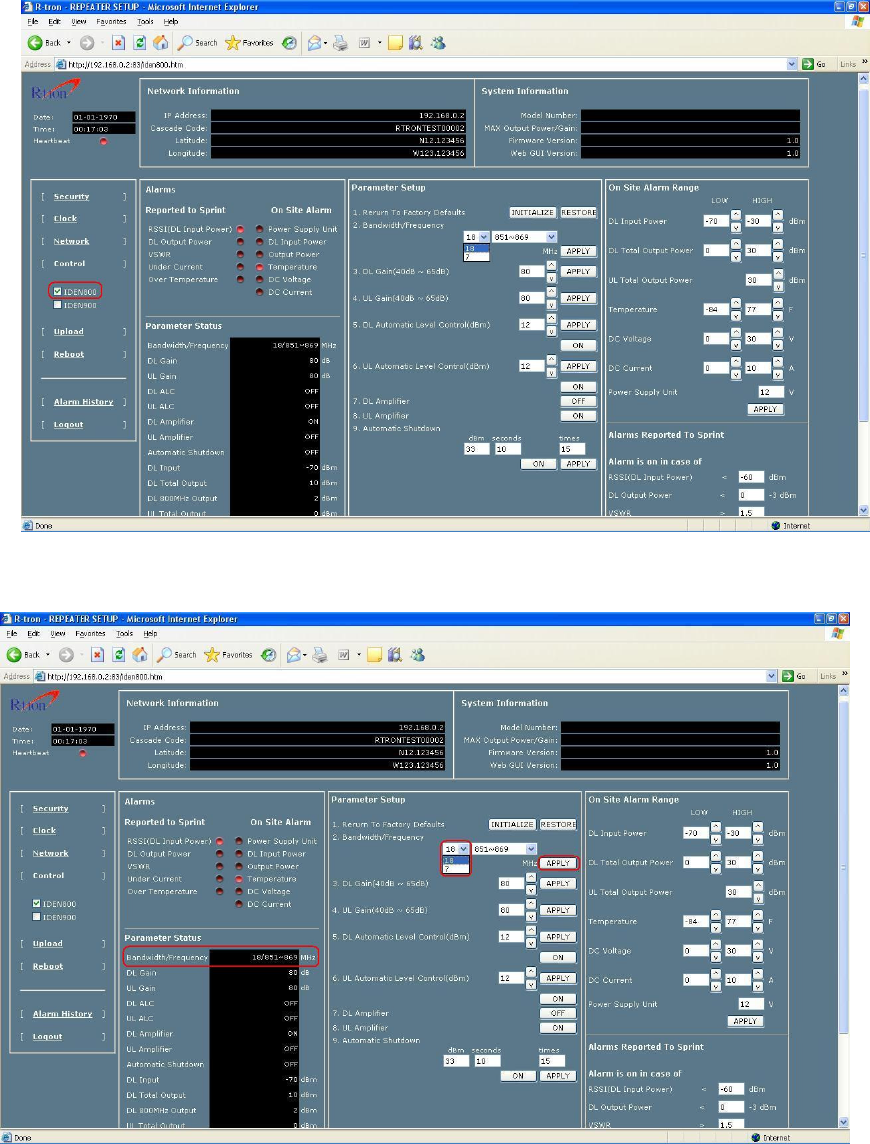

a. To control the iDEN 800, check the box of iDEN 800.
b. The operating bandwidth, 18MHz-bandwidth and 7MHz-bandwidth, is possibly selected.
Select the operating bandwidth and push the “APPLY” and check the bandwidth.
System Manual RSN-iDEN-15-DC
R-tron Proprietary & Confidential Page 19
Issue: 1.0

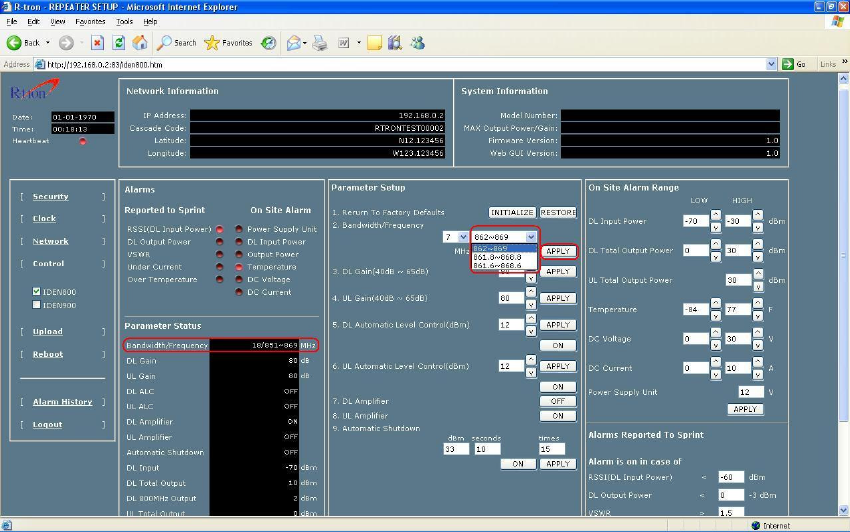

c. The operating frequency is able to be selected. Select the operating frequency and push the
“APPLY” and check the bandwidth and frequency.
System Manual RSN-iDEN-15-DC
R-tron Proprietary & Confidential Page 20
Issue: 1.0

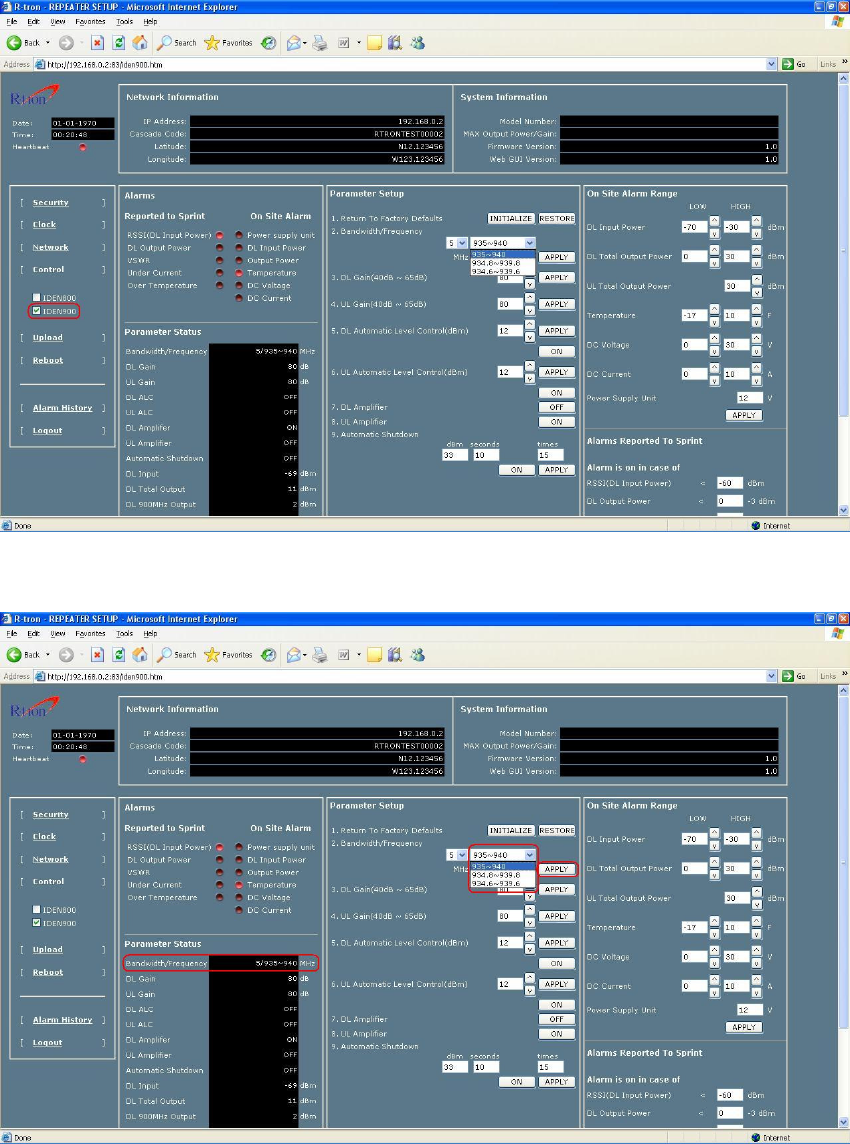

B. iDEN 900.
a. To control the iDEN 900, check the box of iDEN 900.
b. On the iDEN 900, 5MHz-bandwith is only available.
Select the operating frequency and push the “APPLY” and check the bandwidth and frequency.
System Manual RSN-iDEN-15-DC
R-tron Proprietary & Confidential Page 21
Issue: 1.0
C. DL and UL gain setting.
a. Set the DL gain and UL gain, 50dB to 80dB, and push the “APPLY” button.
* Set the gain of iDEN 900 as same as the iDEN 800 gain setting.
System Manual RSN-iDEN-15-DC
R-tron Proprietary & Confidential Page 22
Issue: 1.0

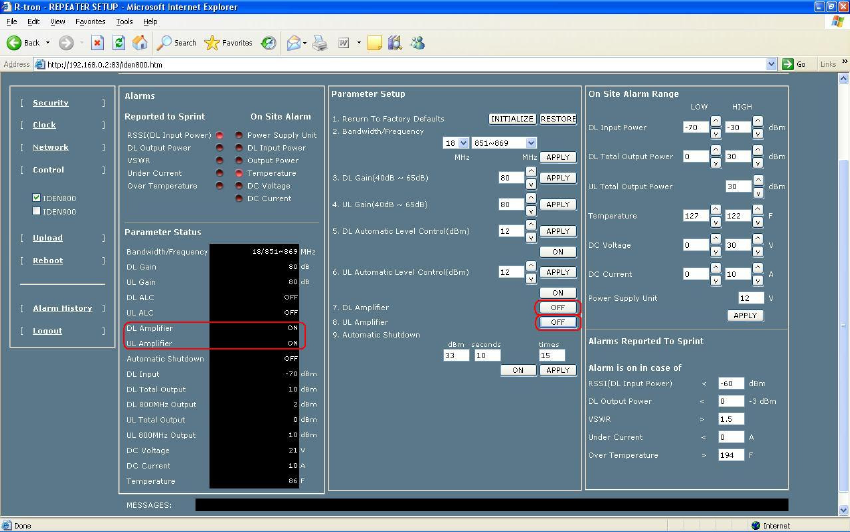

D. HPA on and off.
a. Press the “ON” and “OFF” and check the status.
The maximum output power for operating is +25dBm on both DL and UL.
System Manual RSN-iDEN-15-DC
R-tron Proprietary & Confidential Page 23
Issue: 1.0
* Reference
The Operating Bandwidth & Frequencies
Bandwidth
Operating Frequency
iDEN 800
18MHz-bandwidth
Downlink
851~869MHz
851~868.8MHz
851~868.6MHz
Uplink
806~824MHz
806~823.8MHz
806~823.6MHz
7MHz-bandwidth
Downlink
862~869MHz
862~868.8MHz
862~868.6MHz
Uplink
817~824MHz
817~823.8MHz
817~823.6MHz
iDEN 900
5MHz-bandwidth
Downlink
935~940MHz
935~939.8MHz
935~939.6MHz
Uplink
896~901MHz
896~900.8MHz
896~900.6MHz

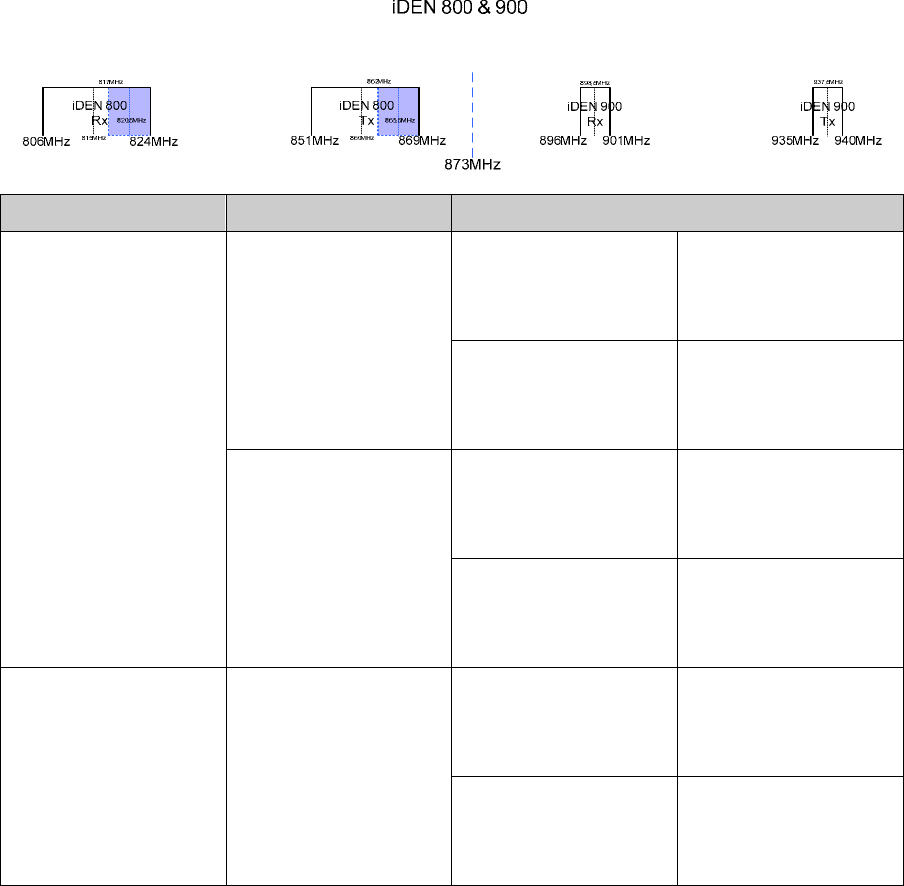

Operating bandwidth and Frequencies of iDEN
