Manual rev
R-tron Proprietary & Confidential Page 1
Issue: 1.0
RSN-iDEN-25-DC
Manual
R-tron Inc.
1
User’s Manual
Safety Precautions
Safety Precautions
Warning
Opening the iDEN MINI could result in electric shock and may cause severe injury.
Warning
Connect the equipment frame ground to building ground.
Warning
Operating the iDEN MINI with antennas in very close proximity facing each other
could lead to severe damage to the Booster.
Caution
RF EXPOSURE INFORMATION
A minimum separation distance of 7.9 inches (20cm) must be maintained between
the user and the external antenna of Booster to satisfy FCC RF exposure
requirements. For more information about RF exposure, please visit the FCC
website at www.fcc.gov
Caution
This equipment is for indoor use and enables the communication wiring to
communicate only inside the building.
RSN-iDEN-25-C (0213).indd 1 2008-02-13 ¿ÀÈÄ 2:53:04
System Manual RSN-iDEN-25-DC
R-tron Proprietary & Confidential Page 2
Issue: 1.0
1. Introduction
RSN-iDEN-25-DC Booster is used to fill out uncovered areas in iDEN mobile systems, such as
base station fringe areas, road tunnels, business and industrial buildings, etc.
An RSN-iDEN-25-DC Booster receives signals from a base station, amplifies and retransmits the
signals to mobile stations. Also it receives, amplifies and retransmits signals in the opposite direction.
Both directions are served simultaneously.
To be able to receive and transmit signals in both directions, the Booster is connected to a donor
antenna directed towards the base station and to a service antenna directed towards the area to
be covered.

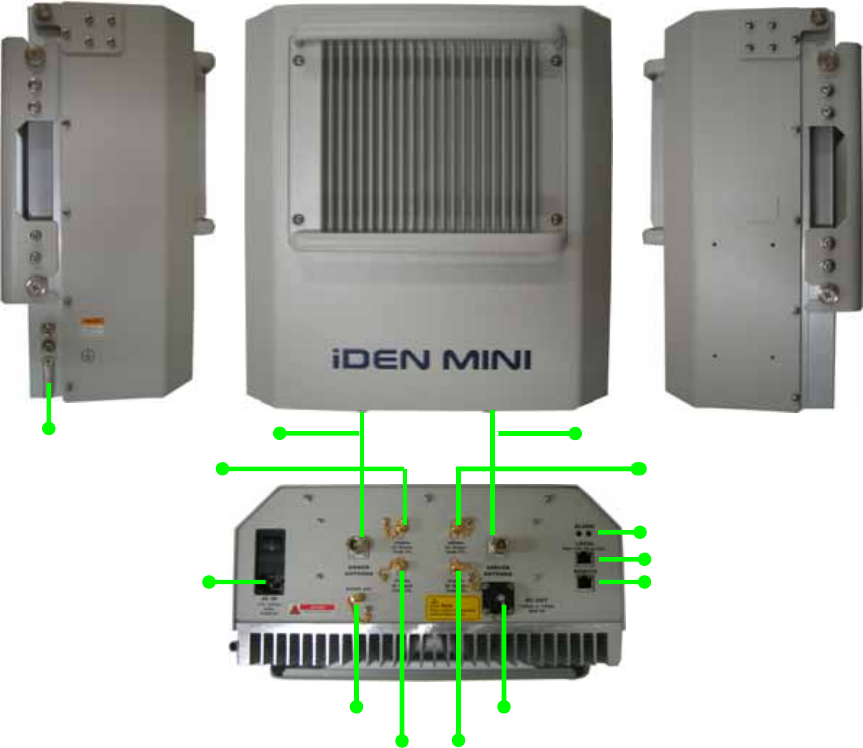

Control of the Booster is performed using a desktop or notebook loaded through the RJ-45 Jack
DC Outlet for external device
Remote port
Local port
Alarm LEDs
900MHz DL Output -30dB CPL
Server antenna port
800MHz DL Output
-30dB CPL
Donor antenna port
Modem Ant
AC in and Switch
900MHz UL Output
-30dB CPL
800MHz UL Output
-30dB CPL
Ground contact
System Manual RSN-iDEN-25-DC
R-tron Proprietary & Confidential Page 3
Issue: 1.0
which can communicate with the Booster. Remote operation can be performed.
RSN-iDEN-25-DC Booster work as bi-directional amplifiers.
A Booster receives, amplifies, and retransmits signals inbound and outbound simultaneously, i.e.
from the base station via the Booster to the mobile stations and from the mobile stations via the
Booster to the base station.
The Booster can be connected to a donor antenna directed towards the base station, and to a
server antenna directed towards the area to be covered. The donor antenna is connected to the
Booster with type-N connector. On the other hand, the server antenna is an external antenna.
The RSN-iDEN-25-DC Booster are controlled by powerful microprocessors. Operational status
LEDs are visible on the bottom of the Booster.

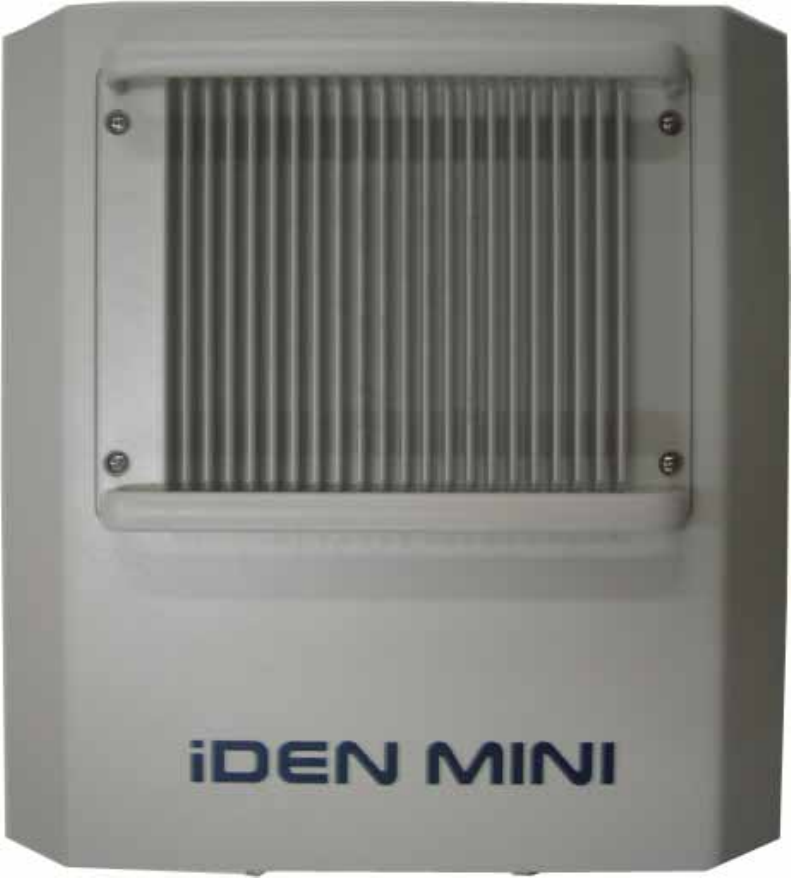

The Booster works with convection cooling without fan because it has a radiator behind the body
of RSN-iDEN-25-DC.
Operational parameters, such as gain, power levels, alarm condition, Automatic Gain Control
condition, etc. are set using a desktop or notebook and the RJ-45 jack, which communicate, either
locally or remotely via the UTP(Unshielded Twisted Pair Wire) cable, with the Booster.
System Manual RSN-iDEN-25-DC
R-tron Proprietary & Confidential Page 4
Issue: 1.0
2. System Design
2.1 RSN-iDEN-25-DC Specification

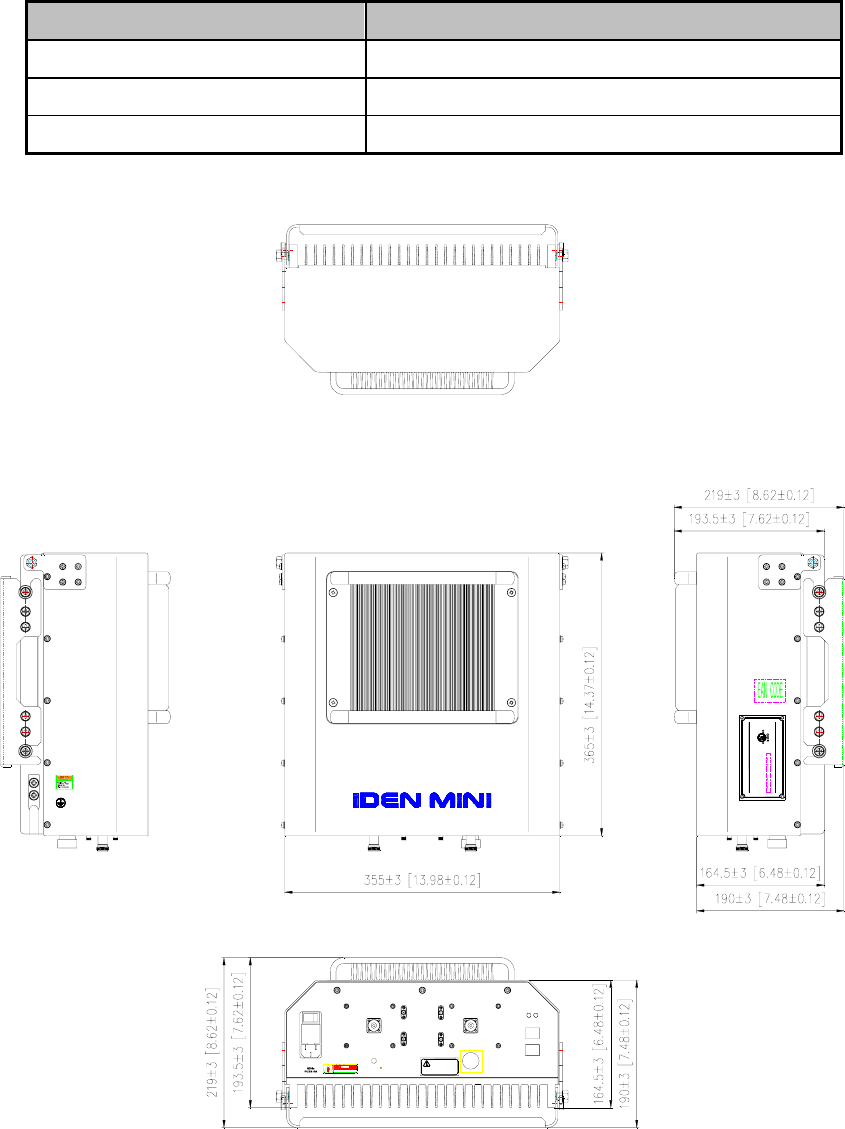

2.1.1 Mechanical Specification
Parameter Specification
RF Ports N-female x 2, SMA-female x 5
Size
13.98 X 14.37 X 7.62(inch), 355 X 365 X 193.5(mm)
Weight 17.154Kg(37.82lbs)
<Table 2-1> Mechanical Specification
DONOR
ANTENNA
MODEM ANT
DANGER
RISK OF ELECTRIC SHOCK
110 -125Vac
AC IN
SERVER
ANTENNA
Note
external devices only
Power outlet for compatible
http://192.168.0.1:83
LOCAL
MAX 2A
+12Vdc or -12Vdc
DC OUT
REMOTE
ALARM
800MHz
UL Out put
-30dB CPL.
900MHz
DL Output
-30dB CPL.
800MHz
DL Output
-30dB CPL.
900MHz
UL Out put
-30dB CPL.
COMPLIES WITH PART 90, FCC RULES.
MAKER
SERIAL NO. / DATE :
FCC REG. NO.
POWER
PRODUCT PART NUMBER
110 -125Vac , 60Hz , 2A
RSN- iDE N-25-C
R-tron lnc.:
: ST ESNI DEN2 5C
::
MADE IN KOREA
I.T.E
31CY
E258109
System Manual RSN-iDEN-25-DC
R-tron Proprietary & Confidential Page 5
Issue: 1.0
2.1.2 Electrical & Environmental Specification
A. Spectrum Characteristics
Parameter iDEN 800 iDEN 900
Operating
Frequency
DL 851MHz - 869MHz 935MHz ~ 940MHz
UL 806MHz ~ 824MHz 896MHz ~ 901MHz
Roll off
characteristics DL & UL
≥
65dBc
@±500kHz from each edge of operating band
(in all temperature)
Flatness
≤
2.5dB (in all temperature)
Gain DL & UL 50dB to 80dB(in all temperature)
Delay DL & UL 8.0µs Max.
VSWR DL & UL 1.5 Max.
Composite
Output Power
DL 25dBm
UL 25dBm
UL
Noise Figure
5dB Max. (@80dB Gain)
12dB Max. (@50dB Gain)
<Table 2-2> RF Specification
System Manual RSN-iDEN-25-DC
R-tron Proprietary & Confidential Page 6
Issue: 1.0
B. Environmental specification
Item Standard Remark
Power supply 110V~125V, 60Hz
Operating temperature -10
℃
~ 50
℃
Humidity 95 %
<Table 2-3> System Features
System Manual RSN-iDEN-25-DC
R-tron Proprietary & Confidential Page 7
Issue: 1.0
2.2 Sub Unit Overview

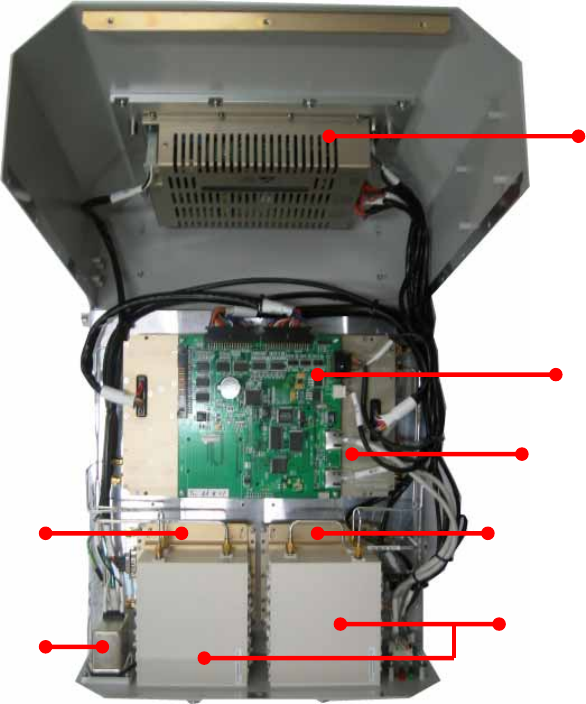

RSN-iDEN-25-DC is composed of the following sub units:
UDC(Up Down Converter)
HPAs(High Power Amplifiers)
Multiplexers
Main Control Unit (MCU)
Power Supply Unit (PSU)
EMI Filter
UDC
MCU
DL HPA
Multiplexers
UL HPA
EMI Filter
PSU
System Manual RSN-iDEN-25-DC
R-tron Proprietary & Confidential Page 8
Issue: 1.0

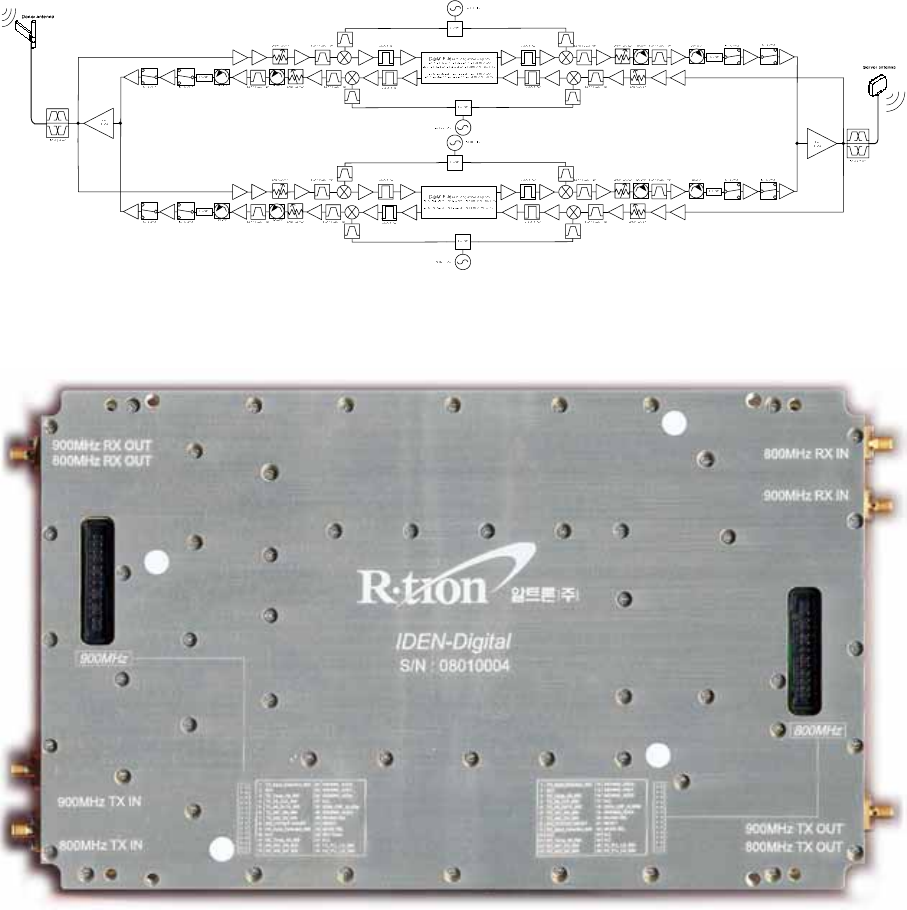

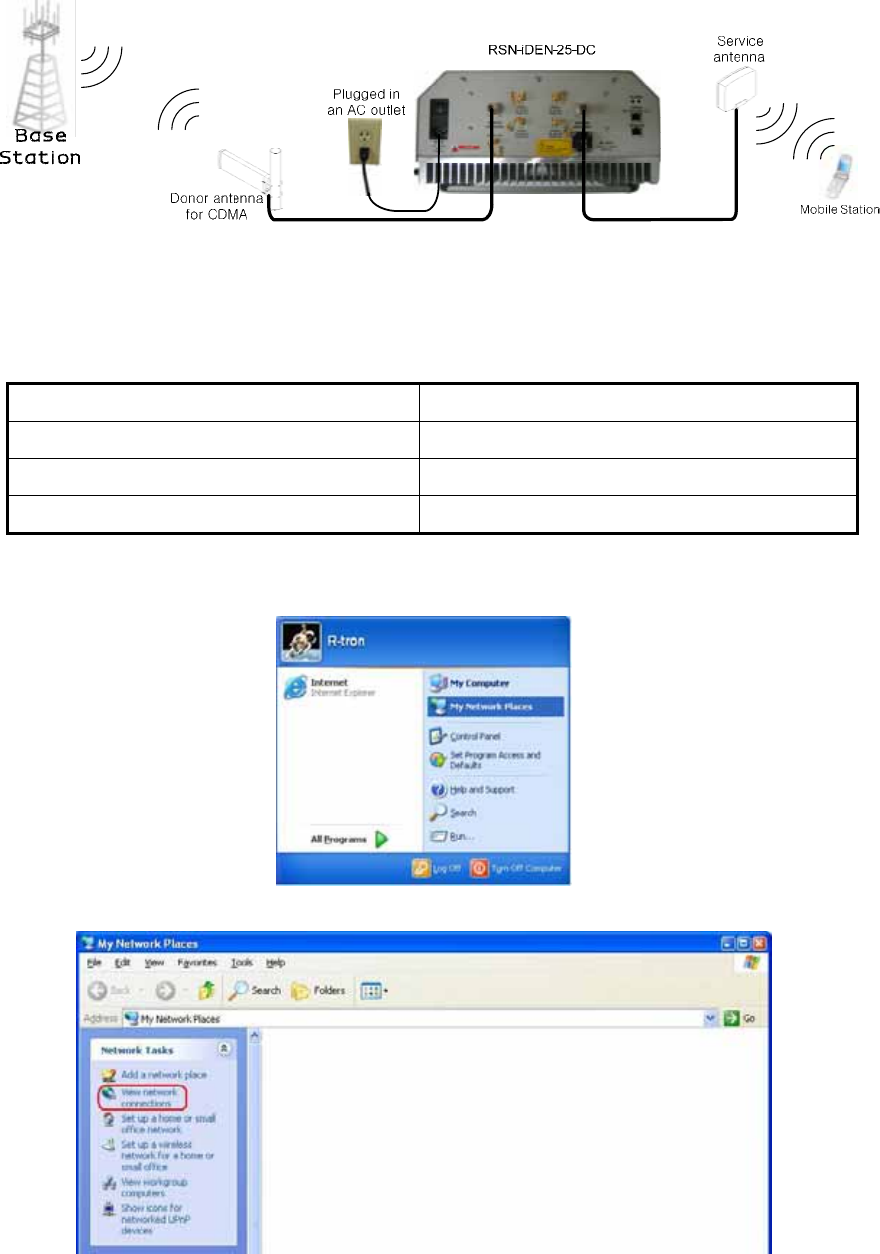

2.2.1 Block diagram
The following, Figure explains how the RSN-iDEN-25-DC serves signals.
2.2.2 UDC Modules
The UDC Module is basically a bi-directional amplifier that sharply filters out unwanted noise.
System Manual RSN-iDEN-25-DC
R-tron Proprietary & Confidential Page 9
Issue: 1.0

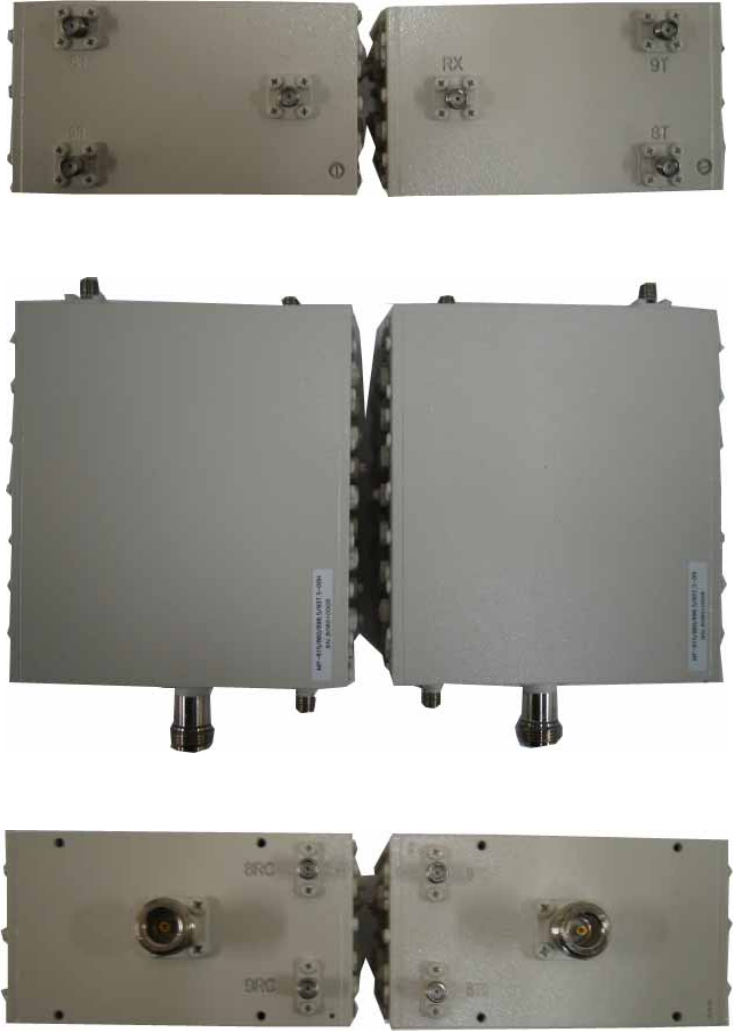

2.2.3 Multiplexers
<Rear view>
<Top view>
<Front view>
System Manual RSN-iDEN-25-DC
R-tron Proprietary & Confidential Page 10
Issue: 1.0
2.2.4 Main Control Unit (MCU)
MCU is the control unit of RSN-iDEN-25-DC. It controls and monitors operational parameters.
It also generates alarms, an event log and many other functions of the RSN-iDEN-25-DC.
*Pin Map*
Port Connected to
J6 MCU Vcc(+12V)
J7 -
J8 PSU Alarms / Status LEDs
J9 iDEN 900
J10 iDEN 800
P1 Local
P2 Remote
J9
J10
System Manual RSN-iDEN-25-DC
R-tron Proprietary & Confidential Page 11
Issue: 1.0

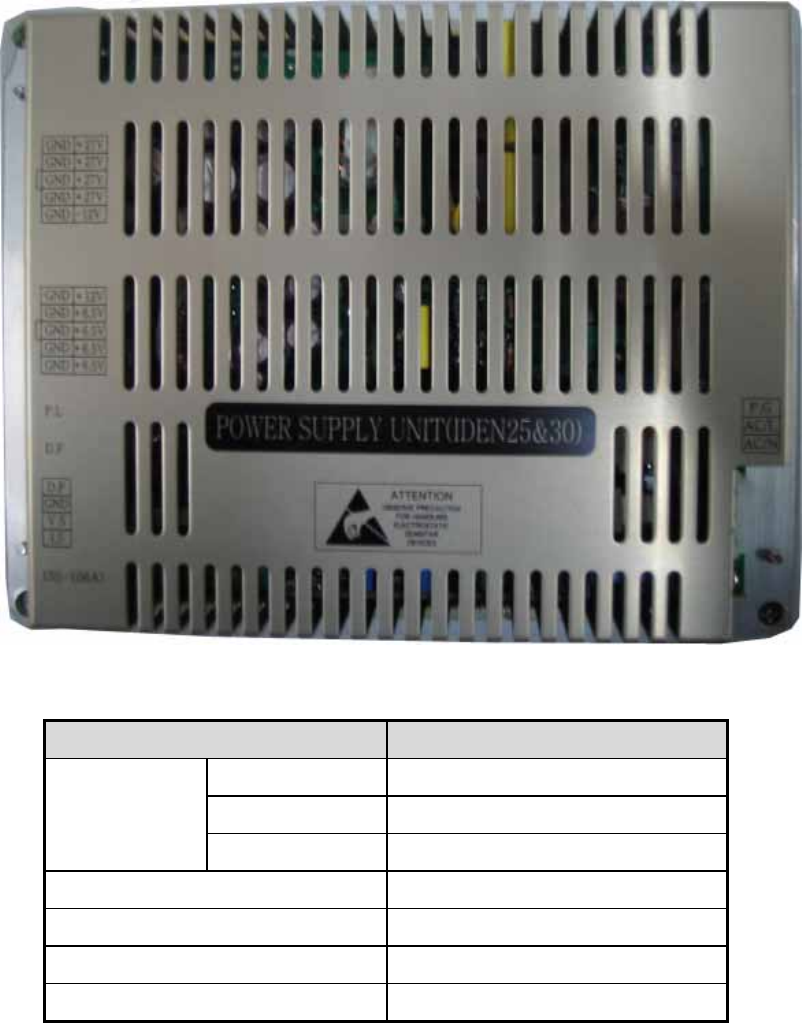

2.2.5 Power Supply
The Power Supply Unit (PSU) supplies a steady DC power to RSN-iDEN-25-DC by drawing
power from the general in-wall AC outlets
*Specification*
Item Specifications
Environmental
Operating Temp -10℃~ 50℃
Humidity 5%~95%
Cooling method Convection
Voltage AC110~125V
Current 4A Max / 6.5V, 12V, -12V , 27VDC
Frequency 60Hz typ
Leakage Current 0.5mA max.@110V AC
System Manual RSN-iDEN-25-DC
R-tron Proprietary & Confidential Page 12
Issue: 1.0

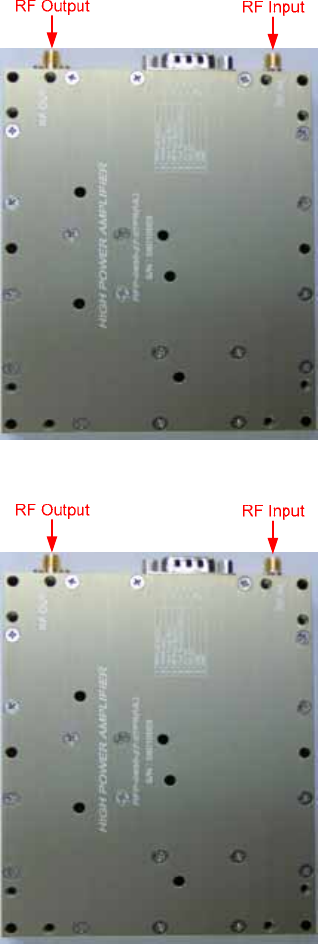

2.2.6 High Power Amplifiers (HPAs)
The High Power Amplifiers the transmitted signal from a base station at the final stage of the
Booster and vice versa.
<iDEN UL HPA>
<iDEN DL HPA>
System Manual RSN-iDEN-25-DC
R-tron Proprietary & Confidential Page 13
Issue: 1.0

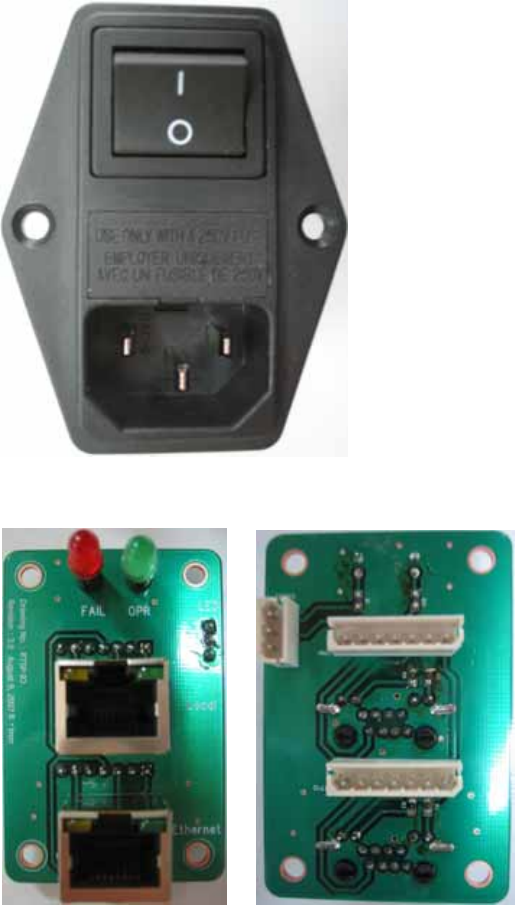

2.2.6 EMI Noise Filter
2.2.7 Communication & LED Board
System Manual RSN-iDEN-25-DC
R-tron Proprietary & Confidential Page 14
Issue: 1.0
* Hardware Installation
1. Setting for Command and Control
* iDEN MINI operates on a customer provided PC based platform with the following system
requirements.
Windows
®
XP Strong recommended
128 MB RAM or more
Pentium
Ⅲ
processor or more keyboard
RJ-45 jack

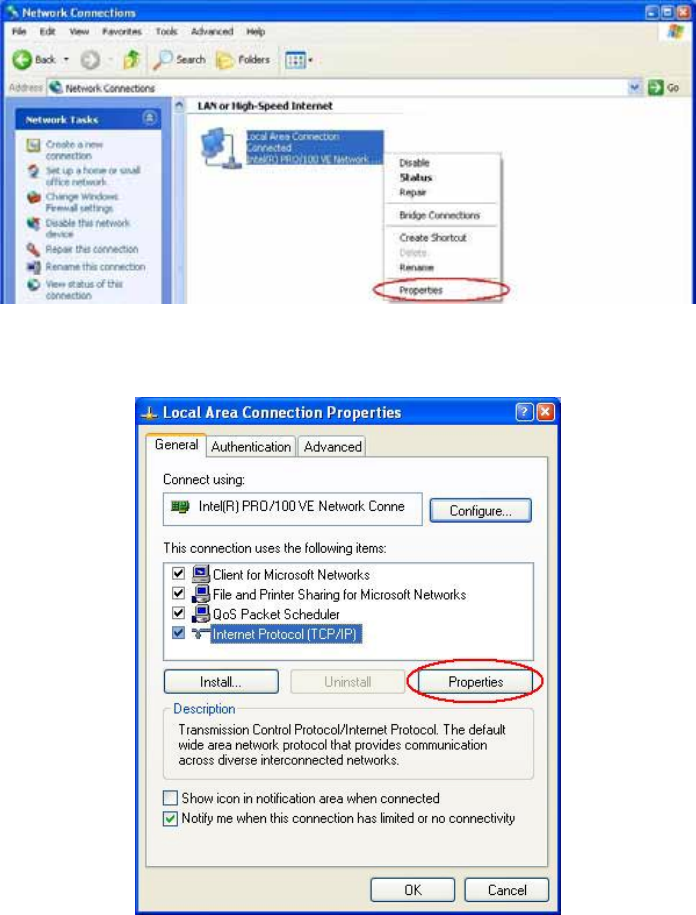

Step 1 Open My Network Places.
Step 2 Click the “View network connections”.
System Manual RSN-iDEN-25-DC
R-tron Proprietary & Confidential Page 15
Issue: 1.0
Step 3 Push the right button of mouse and select the properties.
Step 4 Click the properties of TCP/IP.
System Manual RSN-iDEN-25-DC
R-tron Proprietary & Confidential Page 16
Issue: 1.0

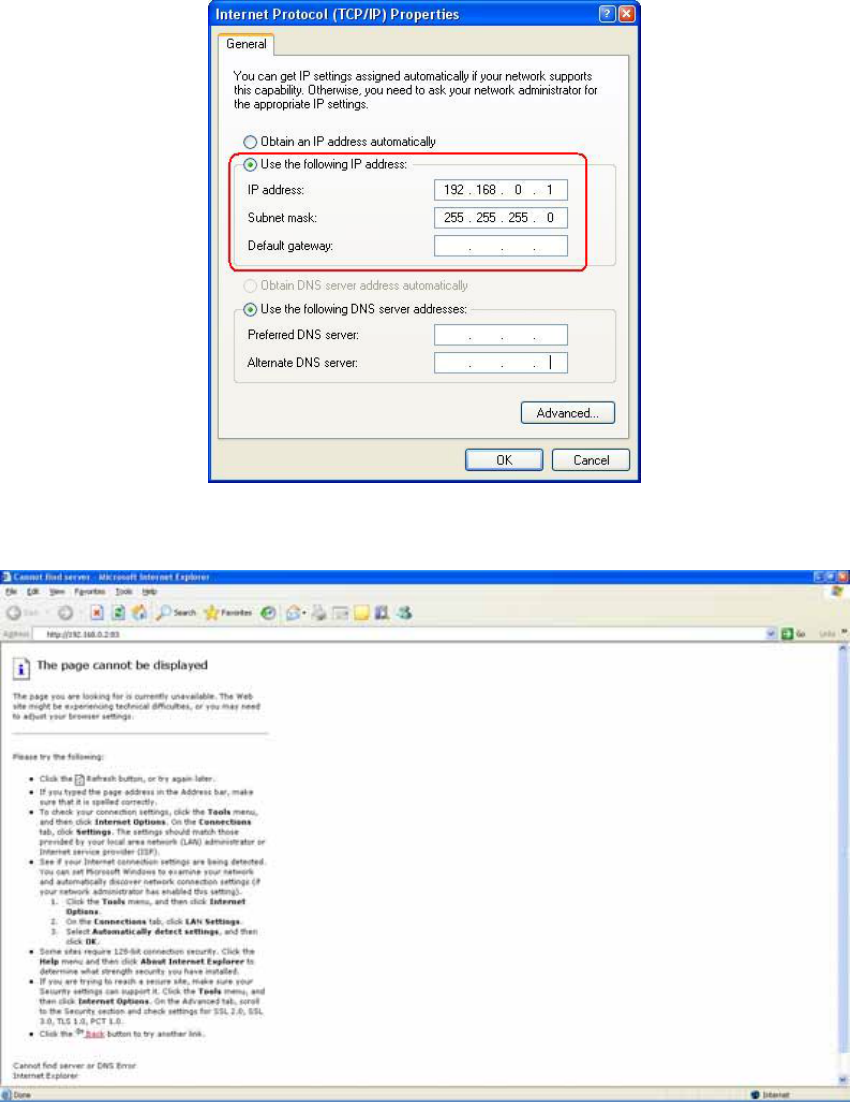

Step 5 Set the values and OK as the following. Close all windows.
Step 6 Open a new explorer window.
System Manual RSN-iDEN-25-DC
R-tron Proprietary & Confidential Page 17
Issue: 1.0

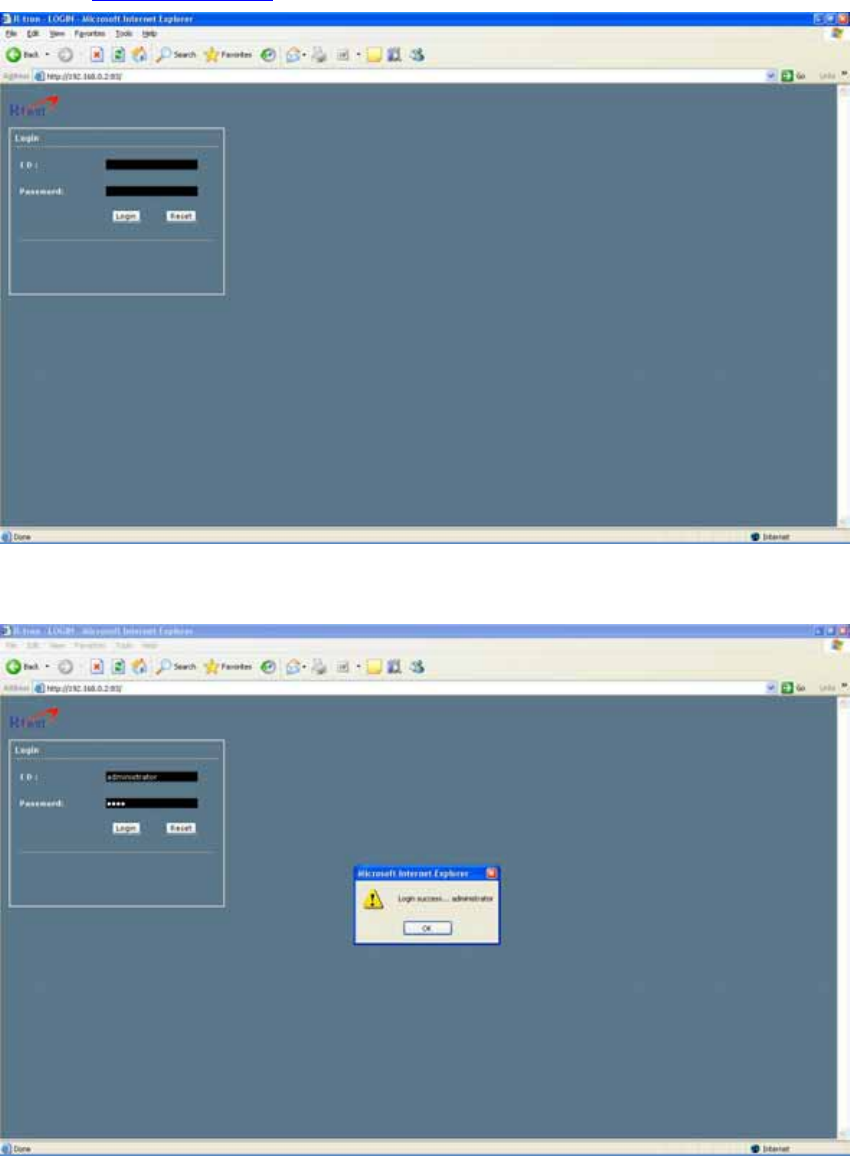

Step 7 Type http://192.168.0.1:83 in the address box and press “Enter” key.
Step 8 Login with “administrator” of ID and “1234” of password and “OK”.
System Manual RSN-iDEN-25-DC
R-tron Proprietary & Confidential Page 18
Issue: 1.0

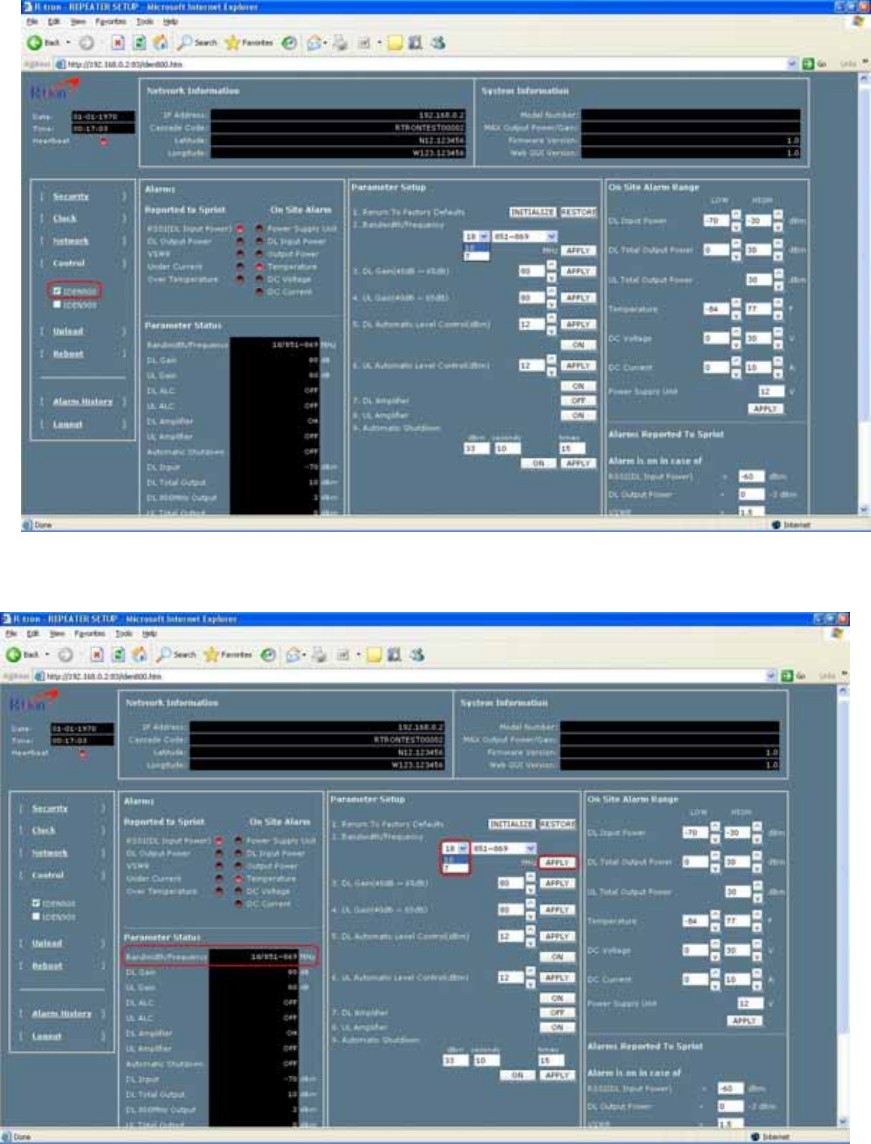

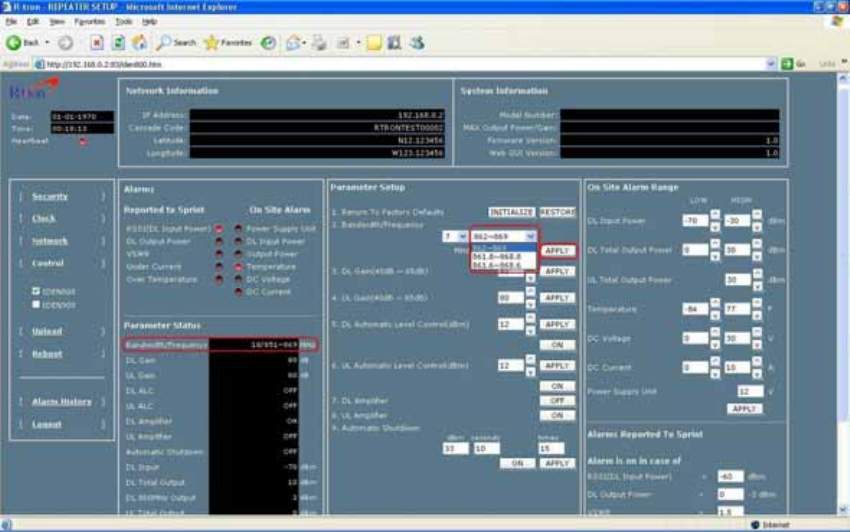

2. Command and Control on the Web GUI.
A. iDEN 800.
a. To control the iDEN 800, check the box of iDEN 800.
b. The operating bandwidth, 18MHz-bandwidth and 7MHz-bandwidth, is possibly selected.
Select the operating bandwidth and push the “APPLY” and check the bandwidth.
System Manual RSN-iDEN-25-DC
R-tron Proprietary & Confidential Page 19
Issue: 1.0
c. The operating frequency is able to be selected. Select the operating frequency and push the
“APPLY” and check the bandwidth and frequency.
System Manual RSN-iDEN-25-DC
R-tron Proprietary & Confidential Page 20
Issue: 1.0

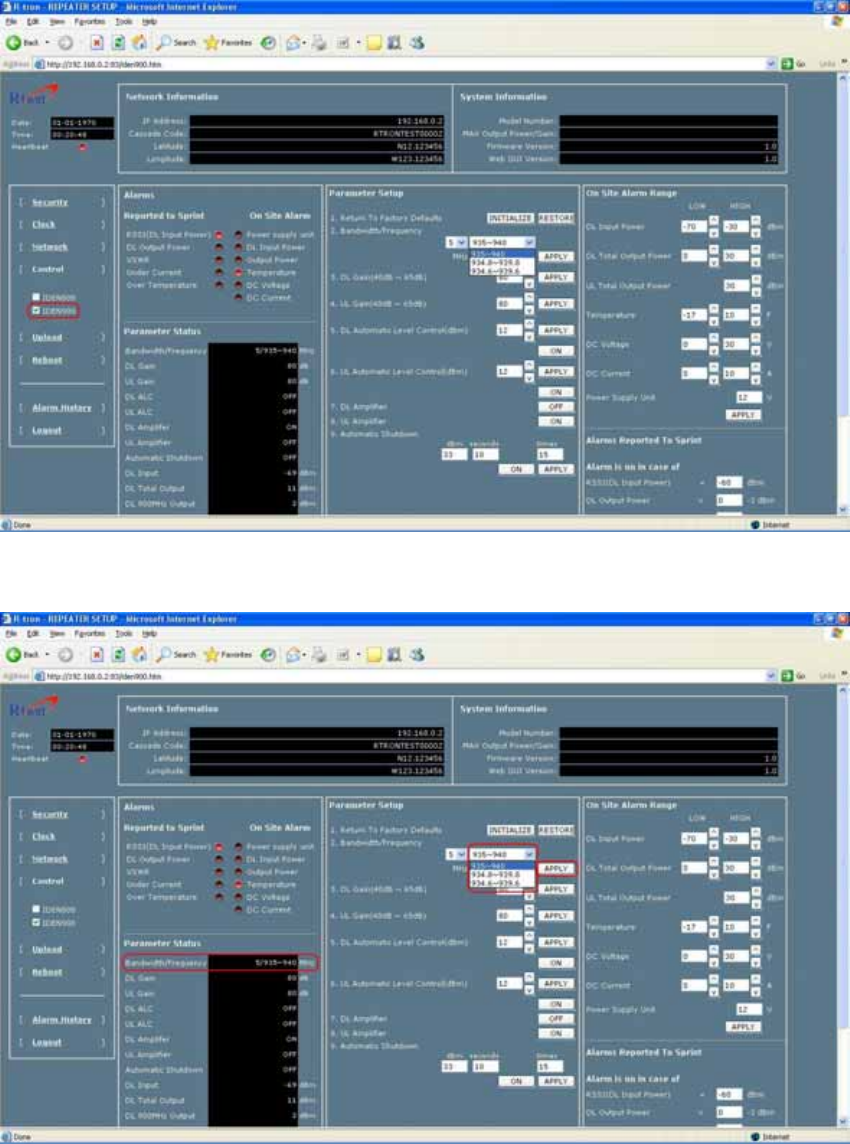

B. iDEN 900.
a. To control the iDEN 900, check the box of iDEN 900.
b. On the iDEN 900, 5MHz-bandwith is only available.
Select the operating frequency and push the “APPLY” and check the bandwidth and frequency.
System Manual RSN-iDEN-25-DC
R-tron Proprietary & Confidential Page 21
Issue: 1.0

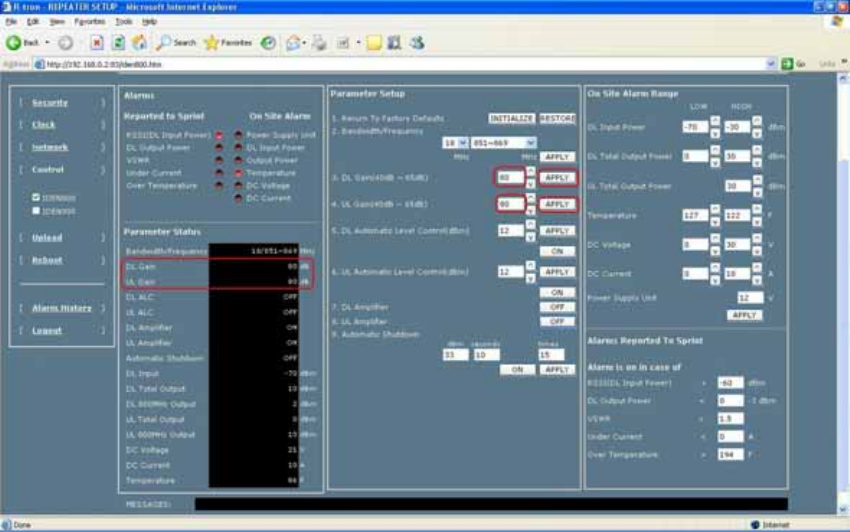

C. DL and UL gain setting.
a. Set the DL gain and UL gain, 50dB to 80dB, and push the “APPLY” button.
* Set the gain of iDEN 900 as same as the iDEN 800 gain setting.
System Manual RSN-iDEN-25-DC
R-tron Proprietary & Confidential Page 22
Issue: 1.0
D. HPA on and off.
a. Press the “ON” and “OFF” and check the status.
The maximum output power for operating is +25dBm on both DL and UL.
System Manual RSN-iDEN-25-DC
R-tron Proprietary & Confidential Page 23
Issue: 1.0

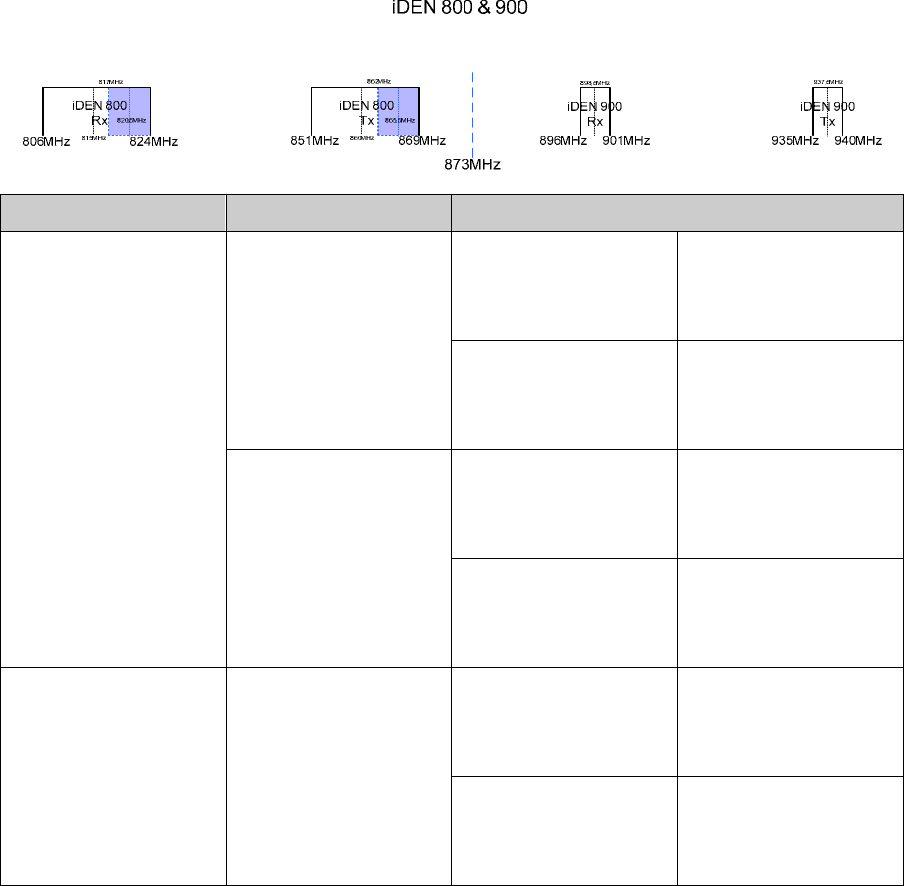

* Reference
The Operating Bandwidth & Frequencies
Bandwidth
Operating Frequency
iDEN 800
18MHz-bandwidth
Downlink
851~869MHz
851~868.8MHz
851~868.6MHz
Uplink
806~824MHz
806~823.8MHz
806~823.6MHz
7MHz-bandwidth
Downlink
862~869MHz
862~868.8MHz
862~868.6MHz
Uplink
817~824MHz
817~823.8MHz
817~823.6MHz
iDEN 900
5MHz-bandwidth
Downlink
935~940MHz
935~939.8MHz
935~939.6MHz
Uplink
896~901MHz
896~900.8MHz
896~900.6MHz
Operating bandwidth and Frequencies of iDEN
