1. Overview
Mini 30 will bring in those weak cellular phone signals reducing dropped calls and allowing you to use
cell phones ...even deep inside a building.
At the heart of all of our systems is a Mini 30 designed to improve coverage for wireless products
within a facility. Combined with interior ceiling mounted low profile antennas, and an exterior mounted
Yagi or Patch Antenna, the Mini 30 boosts the signal level for distribution within the interior areas,
reducing the problem of dropped calls and signal fades. The Mini 30 can also be used in mobile
applications, improving voice quality and range in areas of poor coverage.

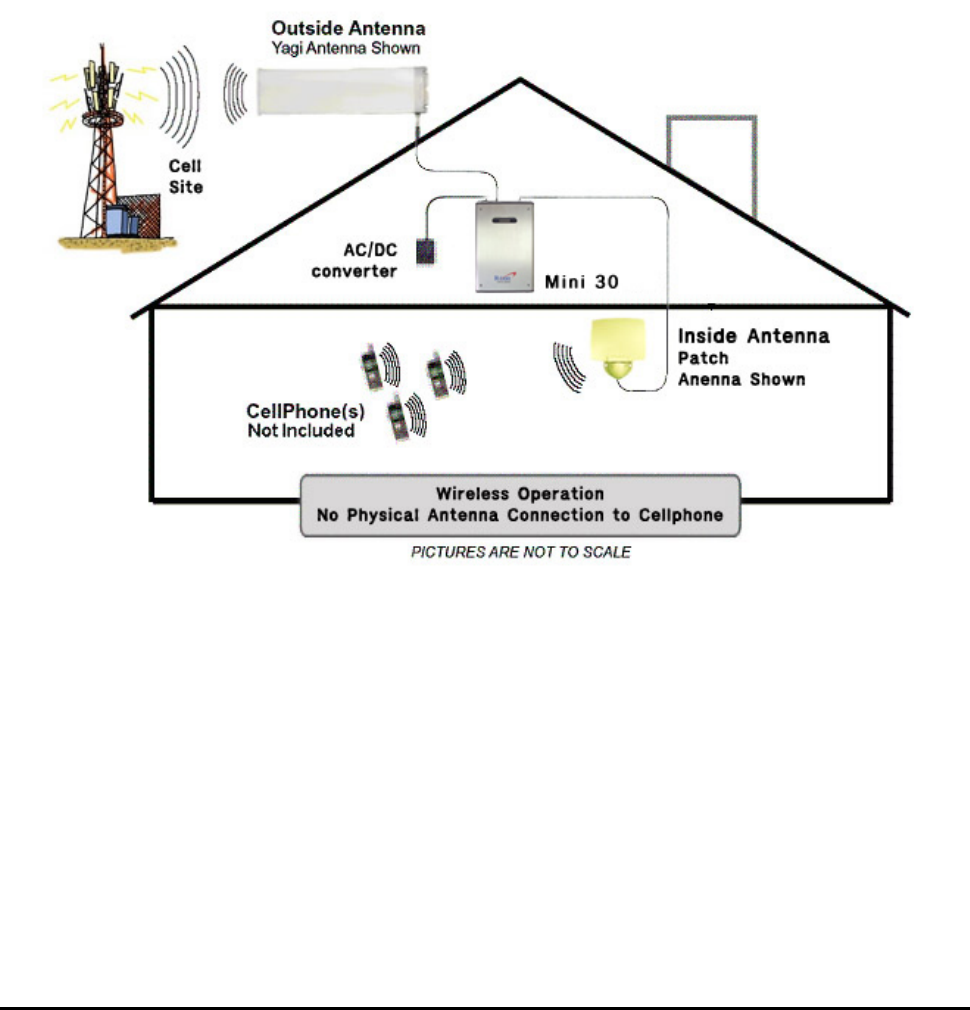

Figure 2.1 Fundamental configuration of Mini 30
All of our packages are engineered using only FCC approved amplified components. They are
designed not to disrupt local wireless communication but to add service to areas that otherwise would
not have the coverage that the customer requires. All of Mini 30 is easily installed.
Mini 30mW
User’s Manual
R-Tron., Inc. 6/15 page
2 Repeater Design
The Mini 30 is housed in an aluminum chassis that is waterproof for indoor use. The chassis has a
design suited for indoor use.
The Mini 30 has several RF amplifiers and components on a board with an aluminum body.
Furthermore, the RF components are implemented within RF CMOS IC or MMIC technologies. A
board that contains several RF amplifiers and components is shielded under a metal cover. This
amplifier board is different types depending on the supported system.
The followings are the Technical Specification of Mini 30.
2.1 System specification
2.1.1 Mechanical and Environmental conditions
Parameter Specification
Power supply AC 100~240V ; 50/60Hz ±5%
Operating temperature 0 ~ +50℃
Humidity 10% ~ 85%
Consumption power < 24W
RF connector N-female
Size(W X L X H) 160 X 252 X 80(mm) / 6.29 X 9.92 X 3.15(Inch)
Weight 3.7(kg) / 8.16 (lbs)
Table 2-1. Mechanical & Environmental Conditions
Mini 30mW
User’s Manual
R-Tron., Inc. 7/15 page
2.1.2 Electrical Specifications
A. Mini 30 Repeater
Parameter Specification Remark
Down Link 1930 – 1990 MHz Total 60 MHz
Frequency Band
Up Link 1850 – 1910 MHz Total 60 MHz
Down Link
Transmit
Maximum Power Up Link +14.8 dBm (30mW) Total Power on CDMA
Output Power on Coupled
Service Port MAX. 5 dBm Total Power on CDMA
Gain 70dB ± 1 dB
Gain Range 60 ~ 70dB
Gain Step 10 dB (1 dB Step)
Noise Figure < 5 dB
Bandwidth(Type 1) 5 MHz BW(Max. 3FA) Any 5MHz of Total 60MHz
(A1,A2,A3,D,B1,B2,B3,E,F,C1,C2,C3)
Bandwidth(Type 2) 10 MHz BW(Max. 7FA)
Any 10MHz of Total 60MHz
(A1A2,A2A3,A3D,DB1,B1B2,B2B3,
B3E,EF,FC1,C1C2,C2C3)
Bandwidth(Type 3) 15 MHz BW(Max. 7FA)
Any 15MHz of Total 60MHz
(A,A2A3D,A3DB1,DB1B2,B,B2B3E,
B3EF,EFC1,FC1C2,C)
Bandwidth(Type 4) 20 MHz BW(Max. 7FA)
Any 20MHz of Total 60MHz
(AD,A2A3DB1,A3DB1B2,DB,BE,B2
B3EF,B3EFC1,EFC1C2,FC1C2C3)
Passband Ripple < 2.5 dB P-P Operating Bandwidth
Delay < 12 microseconds
VSWR ≤1.5
Fc±885kHz ≥ -45 dBc RBW = 30 kHz
In-band Nosie Fc±1.98MHz ≥ -50 dBc RBW = 30 kHz
Spurious Emissions < -13 dBm (Fc ± 2.25 MHz) RBW = 1 MHz
Table 2-2. Repeater Features
Mini 30mW
User’s Manual
R-Tron., Inc. 8/15 page
B. Mini 30 (30mW) Antenna
Specification
Donor Internal
Distribution
External Distribution
(Optional)
Parameter
Yagi Patch Patch Omni
Frequency range 1850 - 1990MHz
Frequency bandwidth 140MHz
Antenna gain Min. 12dBi 2dBi 8dBi 2dBi
Horizontal Min. 28° 70° 70° 360°
Beam width
Vertical Min. 28° 70° 70° 70°
Polarization Vertical
VSWR Max. 1: 1.5 Max. 1 : 1.3 Max. 1 : 1.3 Max. 1 : 1.5
Power Capability 50Watts 10Watts 10Watts 10Watts
Antenna Connector
Port Type N-Female - N-Female
(-10dB Coupling)
N-Female
(-10dB Coupling)
670 / 1.48 670 / 1.48 50 / 0.11 225 / 0.5 270 / 0.6
Dimension
(W x H x D)(inch) 19.7x4.21x3.23 4.25x3.34x0.35 5.04x4.06x1.54 Φ 4.49 x 1.85
Impedance 50
Ω
Table 2-3 Antenna Features
Mini 30mW
User’s Manual
R-Tron., Inc. 9/15 page
3. Repeater Configurations
The Mini 30 consists largely of a body and an AC to DC SMPS Adapter. The body of the Mini 30 has
an RF unit, and a main control unit.
3.1 Body
The following is the picture of the body of Mini 30.

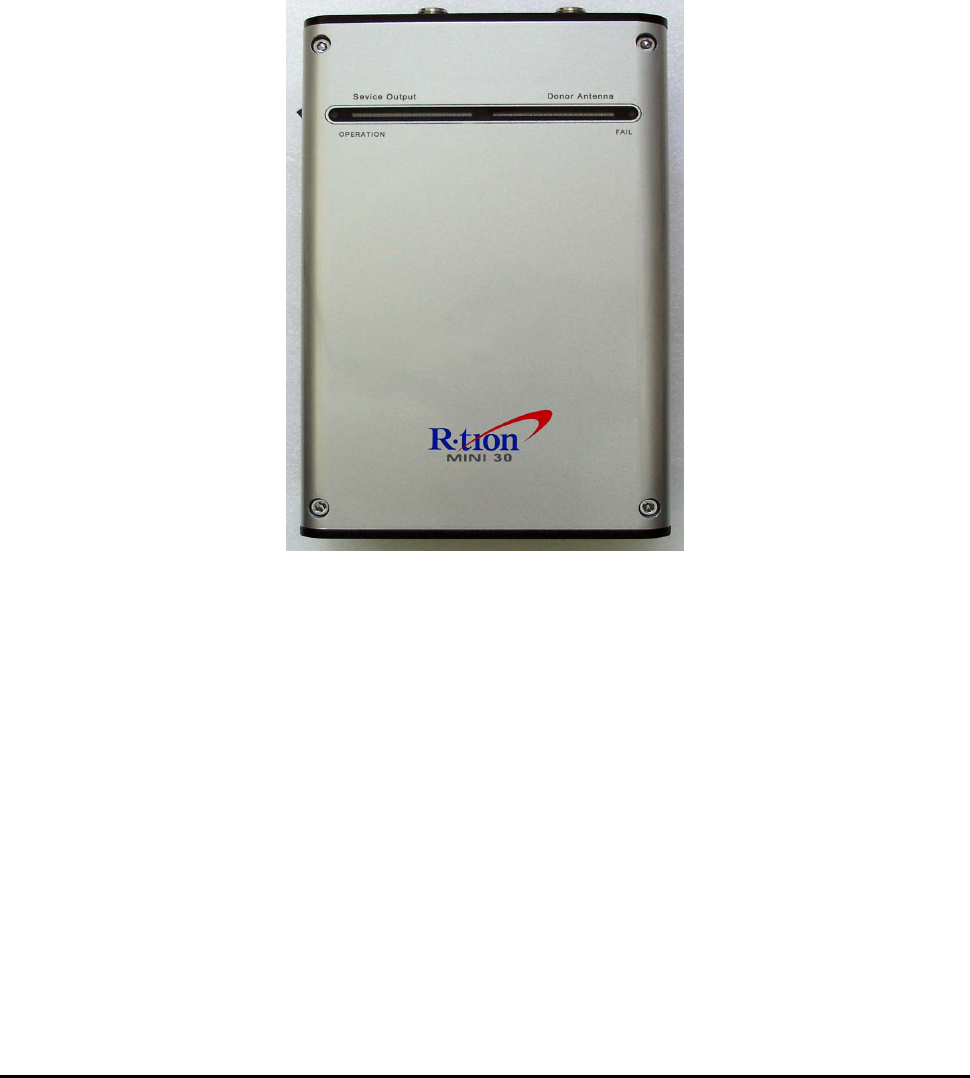

Figure 3.1 A body of the Mini 30
Mini 30mW
User’s Manual
R-Tron., Inc. 10/15 page
3.2 Antenna Unit
The Mini 30 has two antennas, a donor antenna and a distribution antenna, to provide a good
communication service.
3.2.1 Donor Antenna (Yagi Antenna)
A donor antenna is used for receiving the transmitted signal from a base station.

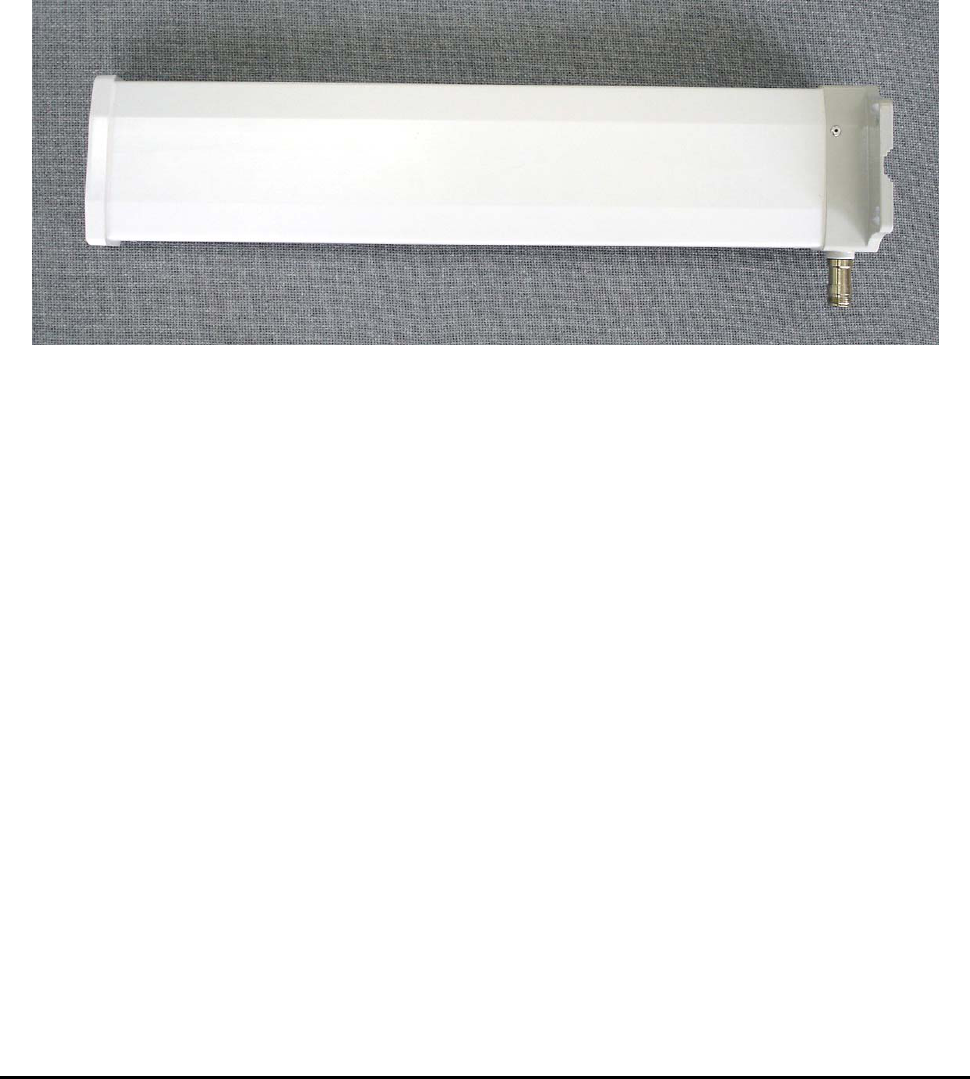

Figure 3.2 A Yagi antenna (Donor antenna)
Mini 30mW
User’s Manual
R-Tron., Inc. 11/15 page
3.2.2 Distribution Antenna
A distribution antenna serves to transmit the amplified signal to individual mobile station in the shaded
area.
A. Internal Patch Antenna
a. Rear view b. Front view

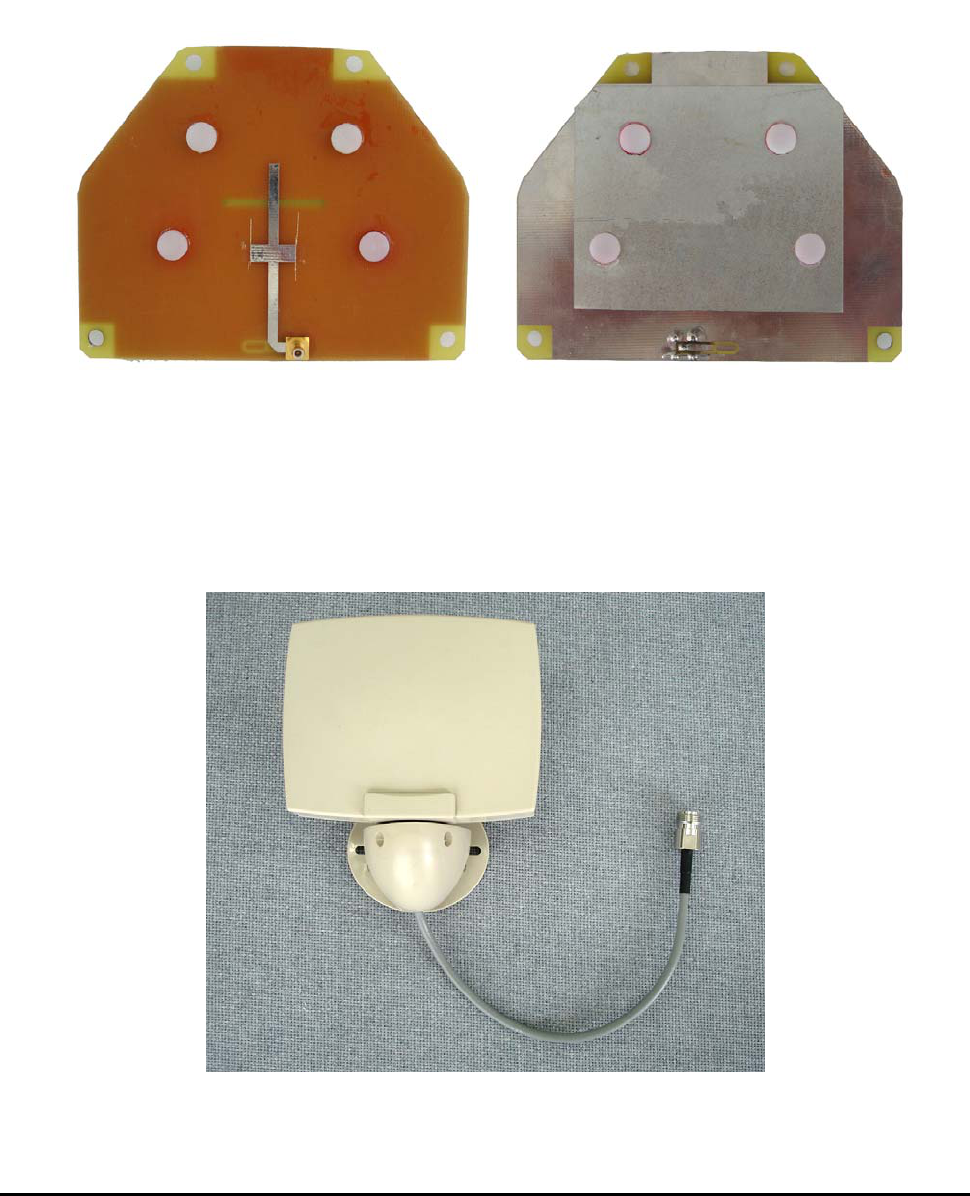

Figure 3.3 Internal Patch Antenna
B. External Patch Antenna (Optional)
Figure 3.4 External Patch Antenna
Mini 30mW
User’s Manual
R-Tron., Inc. 12/15 page
C. External Omni Antenna (Optional)

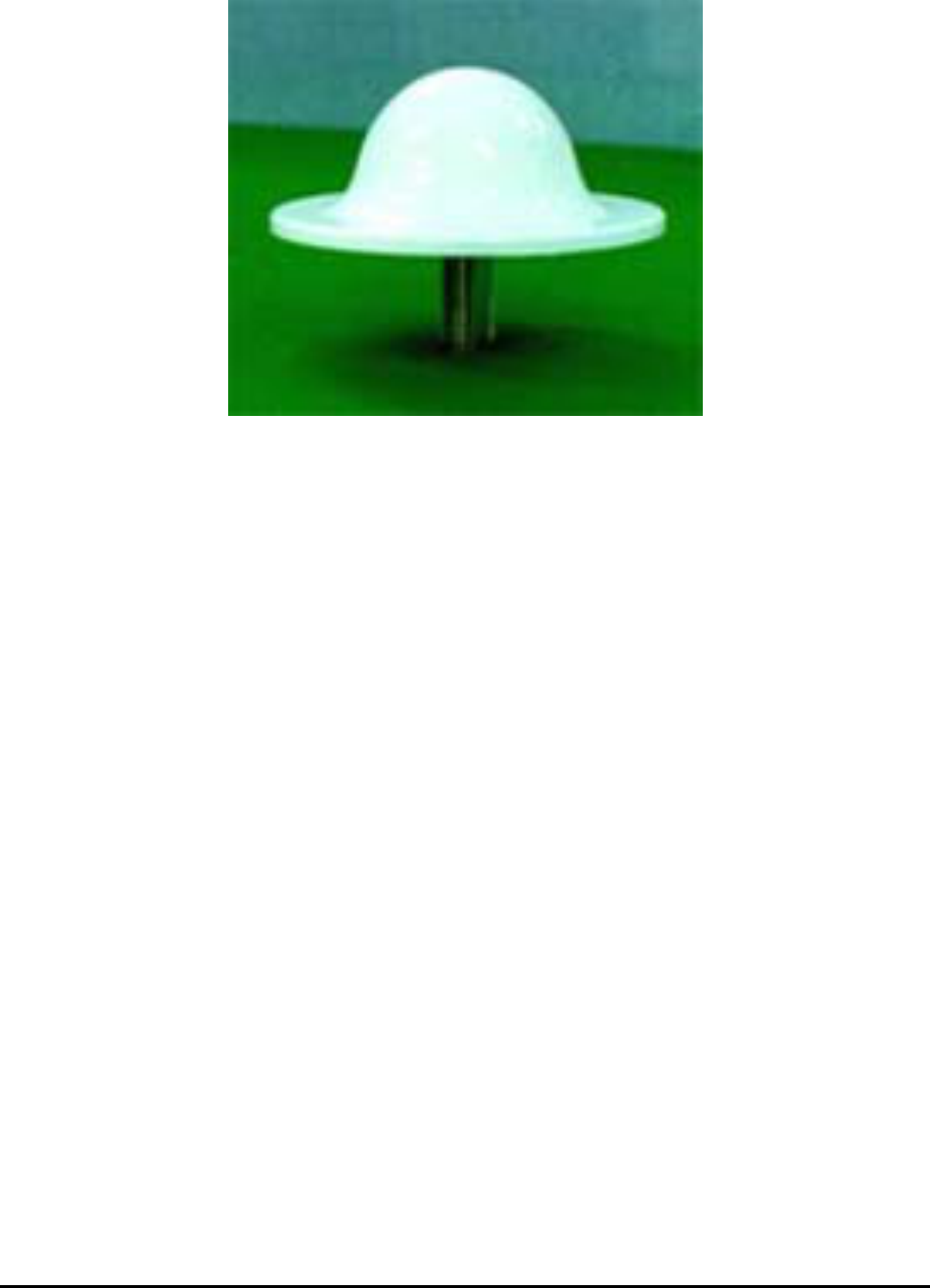

Figure 3.5 External Omni Antenna
Mini 30mW
User’s Manual
R-Tron., Inc. 13/15 page
3.3 AC to DC SMPS Adapter
A SMPS Adapter supply DC power to an Mini 30.

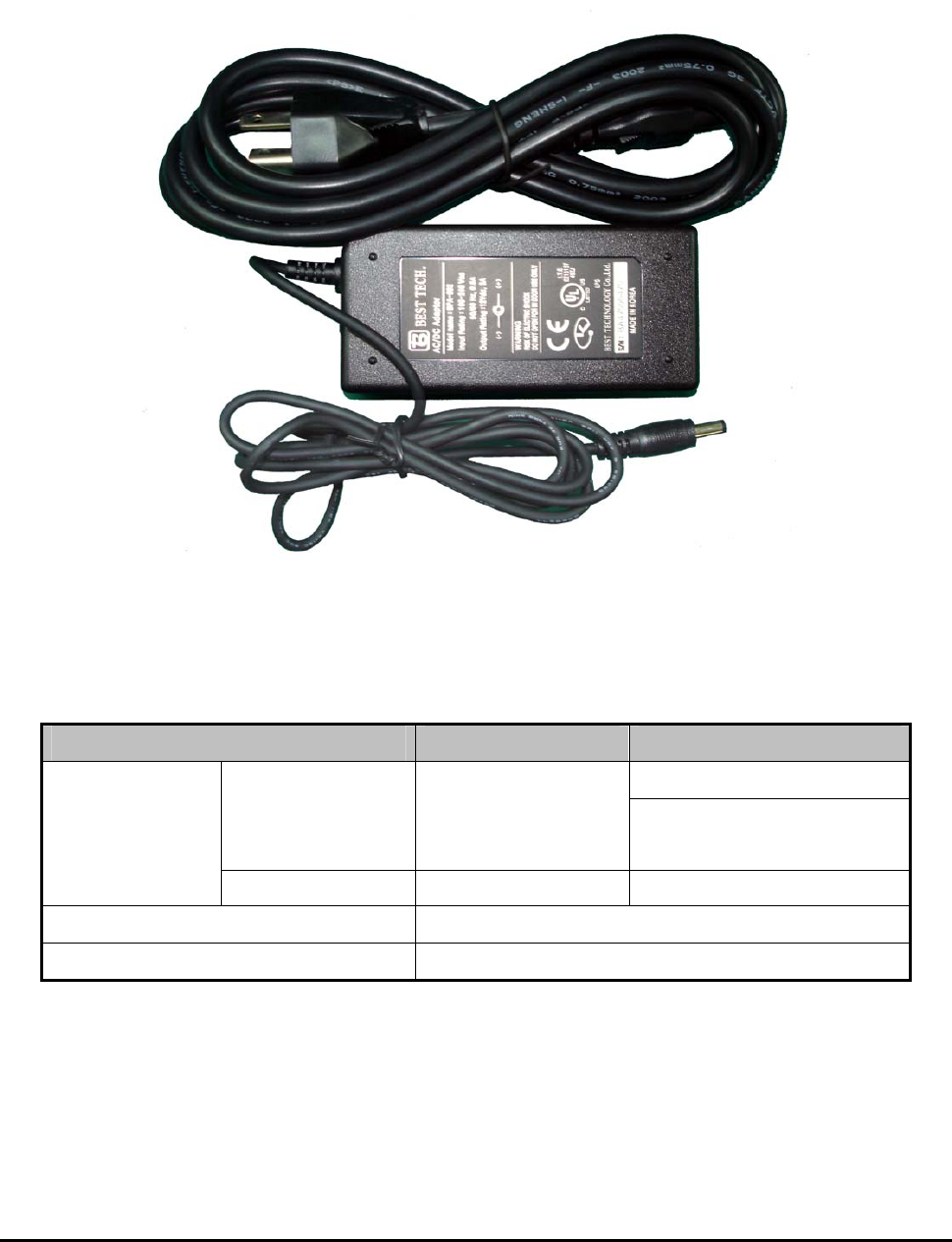

Figure 3.6 AC to DC SMPS Adapter
A. Specification overview
Item Input Output
DC 12V
Voltage AC 90 to 264V
50/60Hz ±5% Output Voltage Variation
Ratio: less than ±5%
AC to DC
Current 3.0A
Efficiency 75% Min. at full load
Power 36Watts
Table 3.1 The specification of AC to DC SMPS Adapter
Mini 30mW
User’s Manual
R-Tron., Inc. 14/15 page
4. Block Diagram
Duplexer
PLL:Variable
RF Input RF Output
15dBm/Total
Duplexer
PLL:Variable
-55dBm/Total
SAW
Attenuator
SAW SAW
PLL:VariablePLL:Variable
SAW
Attenuator
SAW
SAW

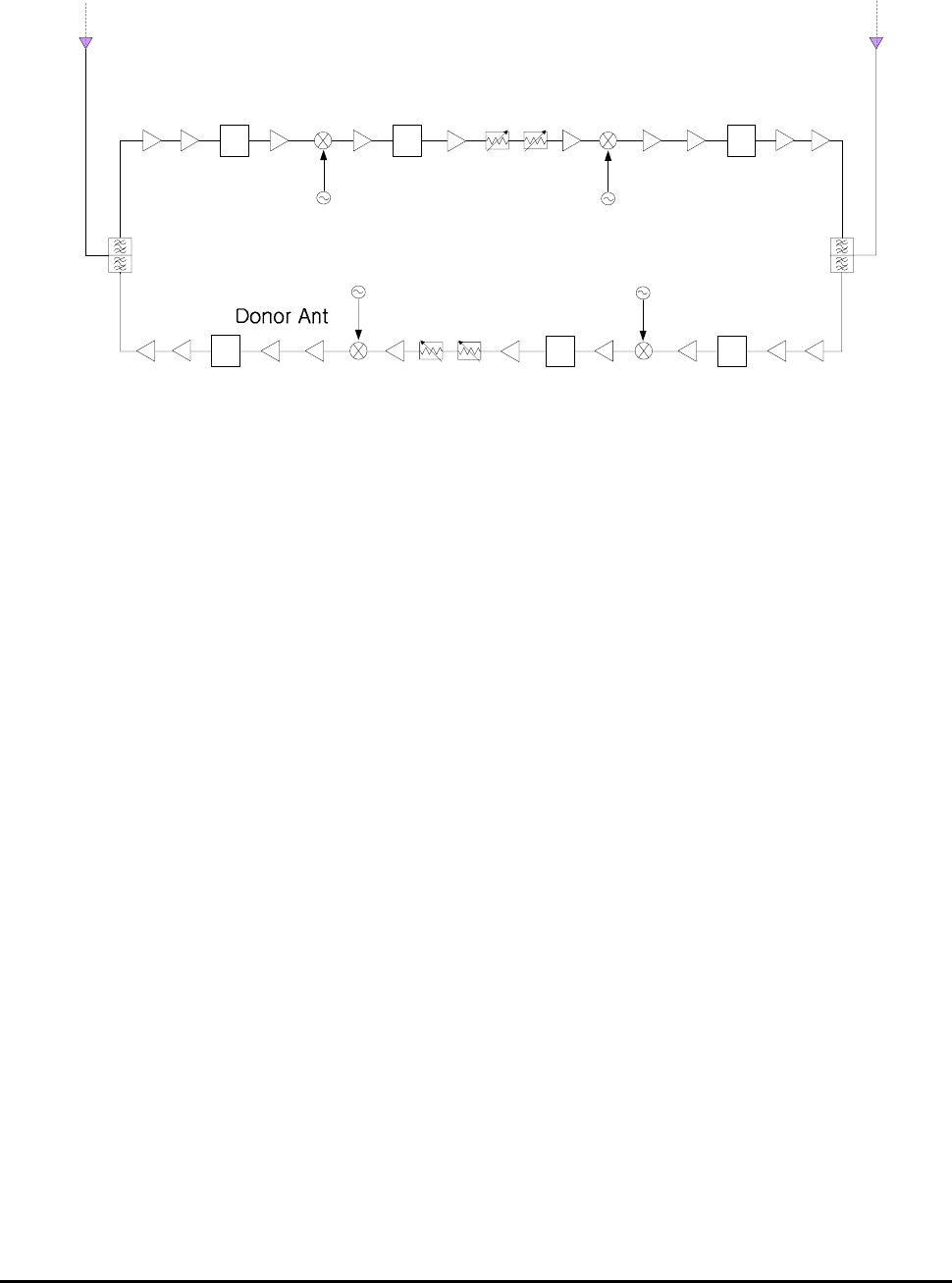

Figure 4.1 Block Diagram of Band Selective Repeater
Figure 4.1 shows a block diagram of a band selective repeater. This diagram is applicable to
repeaters for CDMA systems.
4.1 Downlink signal path
The downlink signal path, i.e. from the base station through the repeater to the mobile station, is
described for Mini 30 in the above block diagrams.
4.2 Uplink signal path
The uplink signal path, i.e. from the mobile station through the repeater to the base station, is identical
to the downlink path but the other way round. Only some levels and component values differ.
