General description
The CC2530-A1 RF Module is a low-power, highly integrated 2.4-GHz transceiver that
suitable for systems targeting compliance with worldwide radio-frequency. It’s a true
system-on-chip solution for 2.4-GHz IEEE802.15.4, ZigBee and RF4CE applications.
Features
z 2.4-GHz IEEE802.15.4 compliant RF transceiver
z Programmable output power up to 4.5dBm
z Accurate digital RSSI/LQI support
z Suitable for systems targeting compliance with
worldwide radio-frequency
z Data rate: 250kbps
z 256KB in-system programmable flash,
customization 32-,64-,128KB
z Two 64 bytes FIFO for TX & RX buffer
z CSMA/CA hardware support
z Battery monitor and temperature sensor
z AES security coprocessor
z 8KB RAM with retention in all power mode
z 32-kHz sleep timer with capture
z Wide Supply-Voltage Range (2 V–3.6 V)
Applications
z 2.4-GHz IEEE 802.15.4 systems
z RF4CE remote control systems (64-KB flash and higher)
z AMR – Automatic Meter Reading
z Two-way RKE – Remote Keyless Entry
z Home and building automation
z Wireless alarm and security systems
z Industrial monitoring and control
z Wireless Light Dimming
z Wireless sensor networks

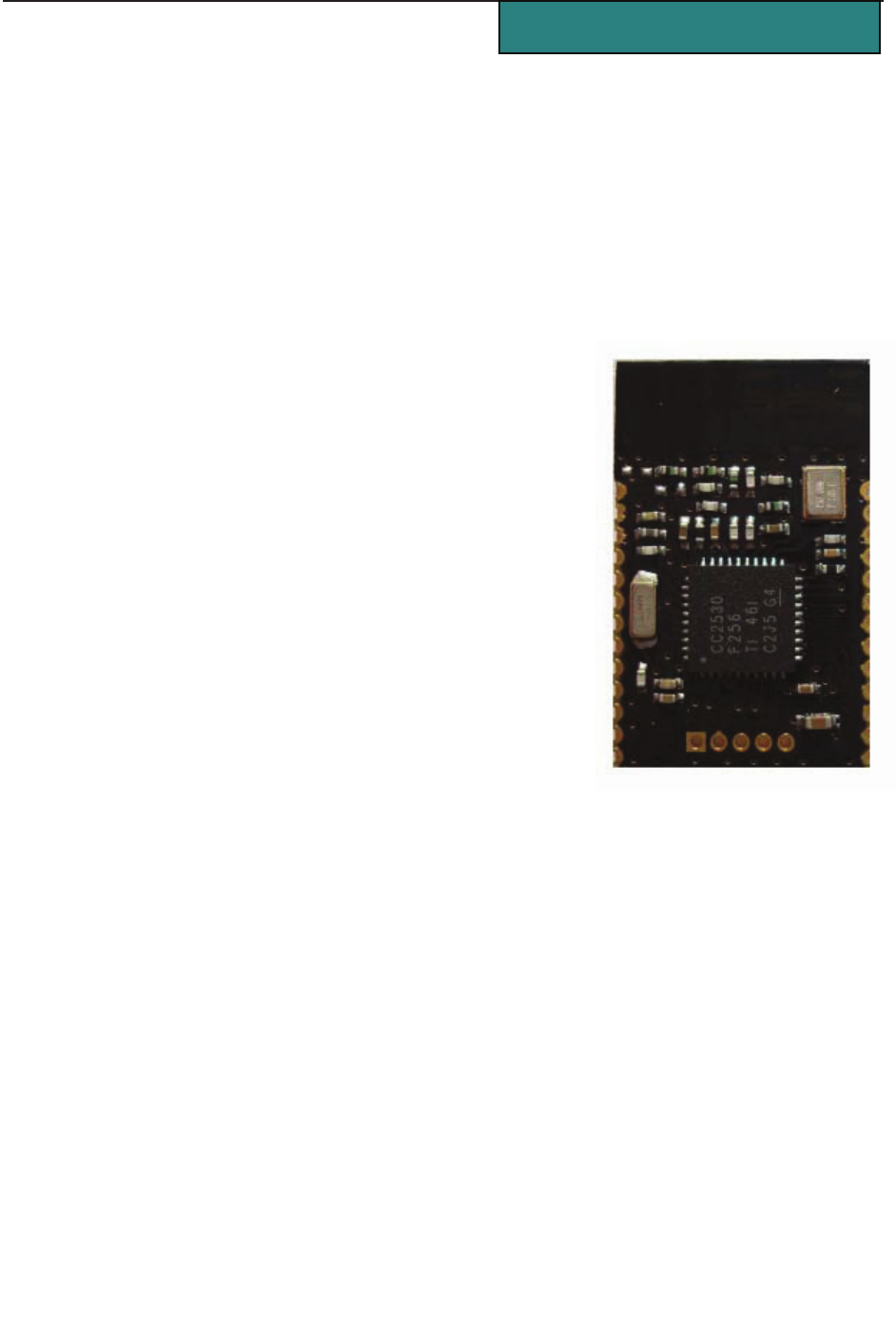

CC2530-A1Module
RadioLand
Smart Wireless Solutions
&RS\ULJKW#5DGLRODQG,QF 2
Electrical Characteristics
ITEM TEST REQUIREMENT REMARKS
Voltage supply 2.0Ё3.6V DC
Center frequency 2400Ё2483.5MHz
Frequency error̈́50KHz
Modulation O-QPSK
Output power0dBm Programmable
Receiving
sensitivity -93dBm High gain Mode
Receiving current 20.2mA High gain mode
Receiving current 17.9mA Standard mode
Transmitting
current 18.2mA TX Power 0dBm
Sleep consumption
At power mode2 1uA Sleep Timer ON
Sleep consumption
At power mode3 0.5uA External interrupts
Transmit distance >80M BER<0.1%
Antenna 50ohm
module size 15*24mm
RECOMMENDED OPERATING CONDITIONS
MIN MAX UNIT
Operating ambient temperature range, TA -30 85 °C
Operating supply voltage 2 3.6 V
CAUTION:
ESD sensitive device. Precautions should be used when handing the device in order
to prevent permanent damage.
CC2530-A1 Module
2405-2480MHz
RadioLand
Smart Wireless Solutions
&RS\ULJKW#5DGLRODQG,QF 3
Pin Assignment
Module PIN PIN name IC PIN Description
1 GND 1, Ground
2 RESET 20 N_RESET active-low
3 P0.0 19 Digital I/O
4 P0.1 18 Digital I/O
5 P0.2 17 Digital I/O RXD
6 P0.3 16 Digital I/O TXD
7 P0.4 15 Digital I/O
8 P0.5 14 Digital I/O
9 P0.6 13 Digital I/O
10 P0.7 12 Digital I/O
11 P1.0 11 Digital I/Ō20-mA drive capability
12 P1.1 9 Digital I/O
13 P1.2 8 Digital I/O
14 P1.3 7 Digital I/O
15 P1.4 6 Digital I/O
16 P1.5 5 Digital I/O
17 DP 2 Digital I/O
18 DM 3 Digital I/O
19 P1.6 5 Digital I/O
20 P1.7 37 Digital I/O
21 P2.0 36 Digital I/O
22 P2.1 35 Digital I/O Debug data
23 P2.2 34 Digital I/O Debug clock
24 VCC 214,24,27-31 23.6V power-supply
25 GND 1, Ground
26 ANT 50ohm/External antenna

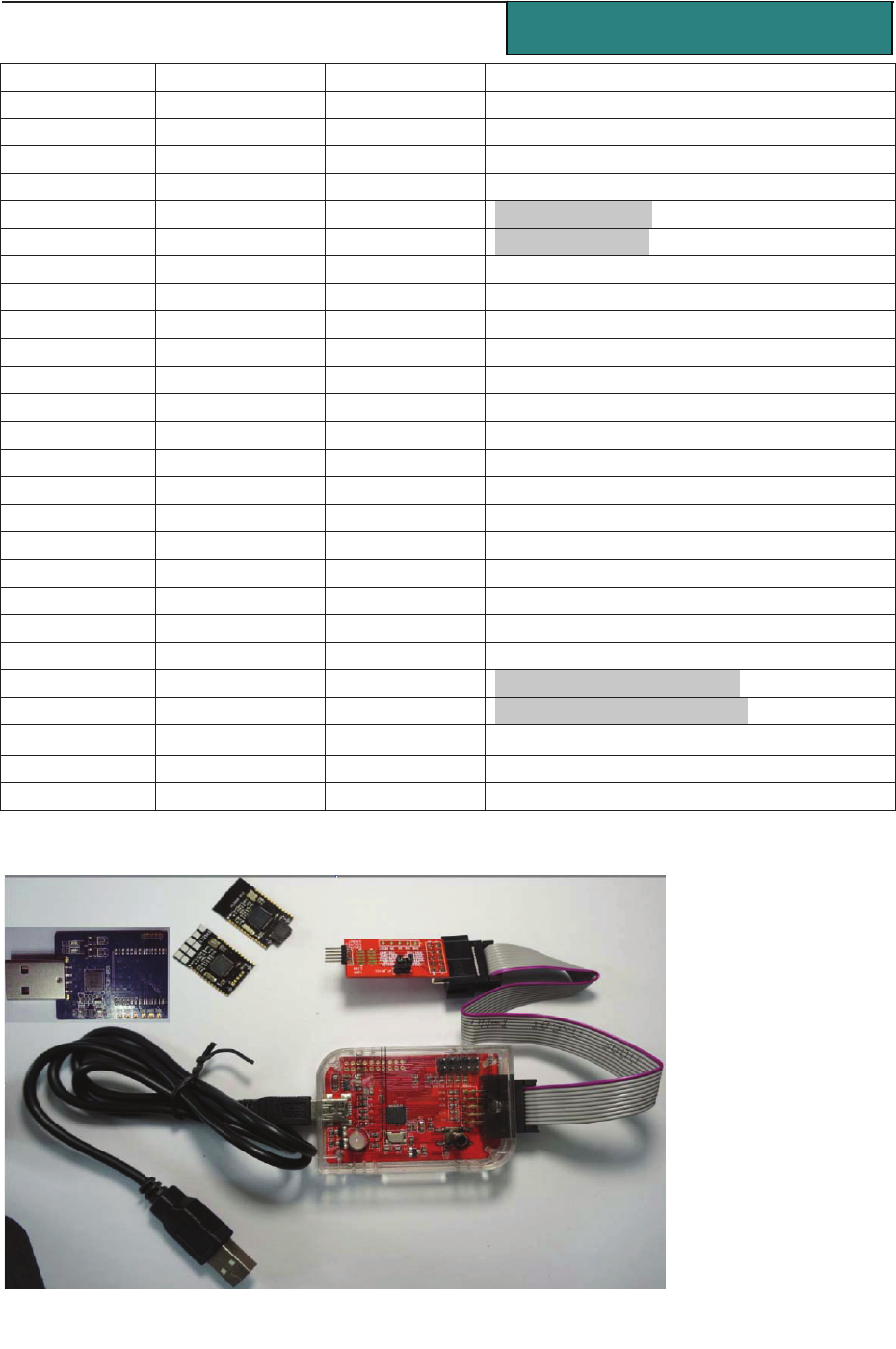

CC-Debugger and test boards
CC2530-A1 Module
RadioLand
Smart Wireless Solutions
&RS\ULJKW#5DGLRODQG,QF 4

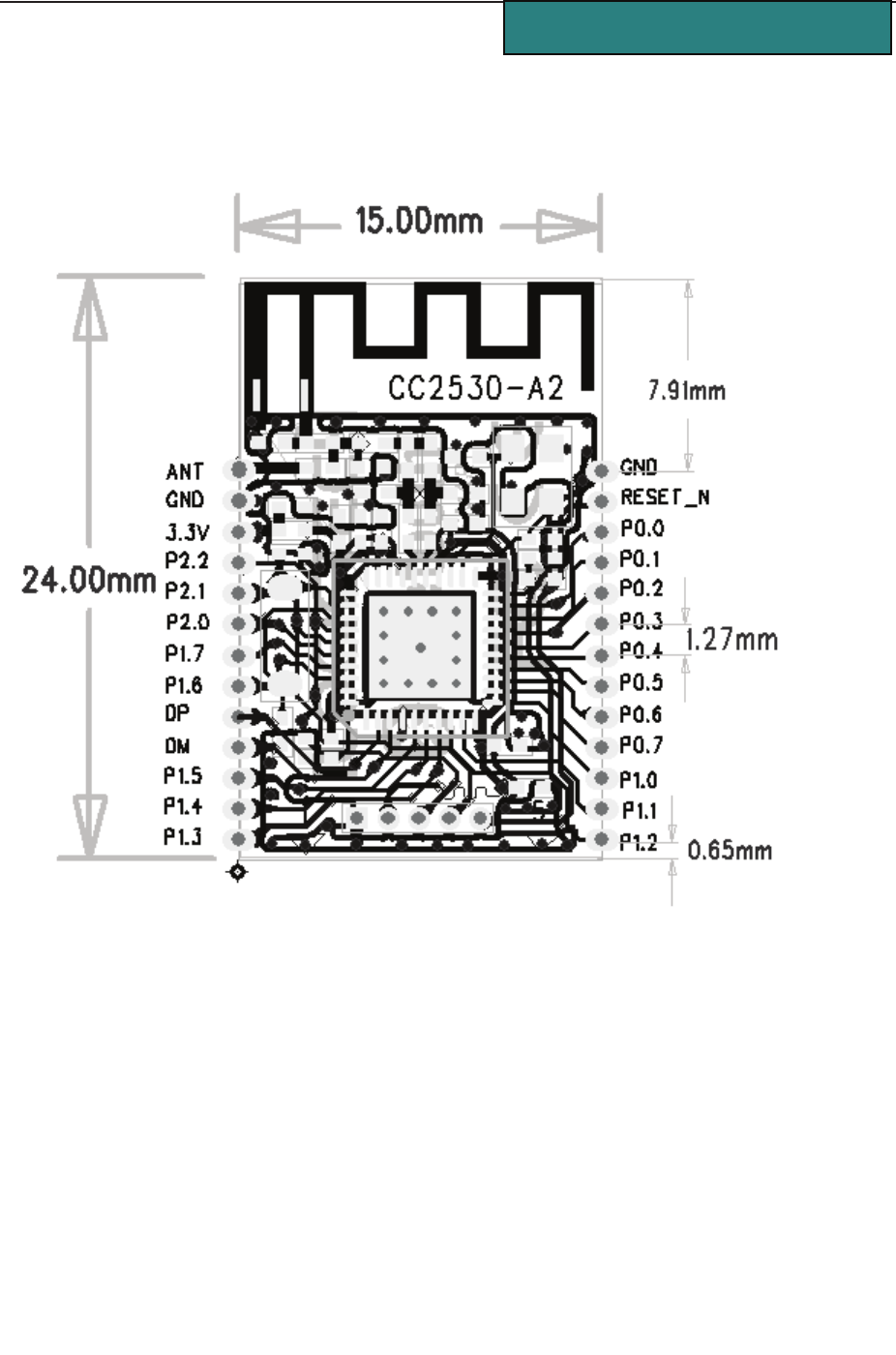

Outline and Size
NOTE:
Additional information on the Texas Instruments CC2530
device can be found in the company’s latest datasheet release at
http:// www.ti.com/product/CC2530
CC2530-A1 Module
