User Manual

Communications Systems

RDR4300 Series

Digital Radios QUICK START GUIDE

B4323LI

Li-Ion Battery

(2550 mAh)

CH4301

Desktop Rapid

Charger

PS4301

Power Supply

BC4300

Belt Clip

Antenna

ANH4300V - VHF

MIC

RDR4320

Handheld Radio

RDR4380

Handheld Radio

RDR4350

Handheld Radio

What’s Included:

Attaching the Battery:

Removing the Battery:

Attaching audio accessory / programming cable:

Attaching the Antenna:

Attaching the Belt Clip:

1. While laying ﬂat, put the battery

into the radio as shown,

horizontally push to the top along

the aluminum slot.

2. As shown, up the battery latch

forward until a click is heard.

1. As shown, hold the radio like

this.

2. As shown, push up the battery

latch with another hand.

3. Slide the battery as arrow

direction shown.

1. Rotate the screws counter-

clockwise to remove them.

2. Align the screw holes on the

belt clip with those on the

radio’s body, and then tighten

the screws clockwise.

Note: To remove the belt clip,

loosen the screws.

1. Open the accessory jack cover.

As shown, align the plug

with the accessory jack, then

connet it.

2. As shown, tighten the screw

clockwise on the plug.

Note: To remove accessories,

loosen the screw counter-

clockwise.

1. Turn the antenna clockwise to

attach it.

Note: To remove the antenna,

rotate it counter-clockwise.

1P1 Key (hot key) 2PTT Key (transmit key)

3P2 Key (hot key) 4Emergency Call Key

5Antenna 6LED Indicator

7Channel Knob 8Radio On-O/ Volume Knob

9Earpiece (RDR4350/RDR4380 only) 10 Simplex Microphone (RDR4350/

RDR4380 only)

11 LCD Display (RDR4350/RDR4380

only) 12 Function Keypad (RDR4350/RDR4380

only)

13 Speaker 14 Numeric Keypad (RDR4350/RDR4380

only)

15 Duplex Microphone (RDR4350/

RDR4380 only) 16 Battery Latch

17 Accessory Jack Cover 18 Strap hole

19 Belt Clip 20 Battery

21 Battery Pole Piece 22 Accessory Jack

23 Micro SD Encryption Card

Cover

Prodcut Overview

RDR4320 RDR4350 RDR4380

Programmable Keys

[P1] key, [P2] key, four direction keys, key, can be set as function or

menu shortcut keys by your RCA dealer. The default state of [P1] and [P2]

shortcuts are for high-low power switching. You only need to press the

corresponding shortcut key to quickly access the needed menu or function.

Function/Enter key

Receive/Call key

Back/Option key

Hangup key

Direction key

Function Keypad (RDR4350 / RDR4380 models)

LED indicator and charging status in charger

LED Indication Charging Status

LED Flashes Red Slowly Standby (no load)

LED Glows Red Charging

LED Glows Orange 85% Charged

LED Glows Green Fully Charged

LED Flashes Red Rapidly Error

STATUS INDICATION IN RADIO (RDR4350 / RDR4380 models)

LCD Icon

Icon Name Icon Radio Status

Battery Strength Icons Low battery power

More bars indicate more battery power

RSSI

No Signal

More bars indicate better signal strength

Message Icons

New message/unread message

Inbox is full

Operation Mode Icons

TMO mode

DMO mode

Analog mode

Power Icons

Transmit with lower power

Transmit with middle power

Transmit with high power

Proﬁles Icon

Silent mode

Ring

Vibrate

Custom

Audio Accessories Audio accessory has been connected

Call Status Icon On the phone

Group Selection Icon Select talk group

Encryption Icon Encryption ON

Radio LED indicator

LED Indication Radio Status

LED Glows Red Transmitting the call

LED Glows Green Receiving the call

LED Glows Red On Both

Sides Phone Call

LED Flashes Red Slowly Low Battery Power

LED Flashes Green Slowly Channel is Idle

LED Glows Orange Channel is Busy

Battery indicator

Battery Usage Status Indicator Light Status

Power > 40% Battery indicator light shut down

10% < Power < 40% Green light ﬂash

Power < 10% Red light ﬂash

No Power LED indicator light and battery indicator light

shut down

Basic Operations

Turning on/o radio

Rotate the Radio On-O/Volume knob clockwise / counter-clockwise until a

click is heard to turn on/o the radio.

Adjust the volume

After turning the radio on, rotate the Radio On-O/Volume knob clockwise to

increase the volume or counter-clockwise to decrease the volume.

Selecting a channel

According the series number on the Channel Knob to rotate and select the

desired channel. While rotating the knob, there is an automated channel

number Voice prompt.

Mode Switch

Through Channel Selector knob. Each channel of the radio can be set as

analog channel or digital channel by dealer. The user can set up through CPS

software.

Call

Group Call

Talk group can be set by dealer in advance the operation methods are the

same under DMO mode and TMO mode.

• Transmitting a group call

1. Select the desired talk group through Channel Knob.

2. Hold down [PTT] key to transmitt a group call.

• Receiving and replying a group call

You can receive the group call without any key operation. If reply is needed,

please hold down [PTT] key after the speech of the other side and then

speak to microphone.

Care and Cleaning

To guarantee optimal performance as well as a long service life of your radio,

please follow the tips below.

Radio Care

Keep the radio far away from substances that can corrode the electronic

circuit.

Do not hold the radio by its antenna or headset cable directly to prevent

damage to its normal use.

Attach the accessory jack cover whtn the radio is not in use.

Radio Cleaning

Clean up the dust and ﬁne particles on the radio surface and charging piece

with a clean and dry lint-free cloth or a brush regularly.

Use neutral cleanser and a non-woven fabric to clean the keys, control knobs

and front case after long-time use. Do not use chemical preparations such as

stain removers, alcohol, sprays or oil preparations, so as to avoid surface case

damage. Make sure that the radio is completely dry before use.

NOTE; Turn o the radio and remove tha battery before cleaning.

Charging the Battery

Charging Operation Steps

Use only the charger and battery speciﬁed by

RCA Communications Systems. Charger LED

can indicate the changing progress.

1. As shown, Connect the power adapter to AC power

socket and the jack at the back of the charger.

2. As shown, insert battery or radio with battery in

the charger, and make sure there is good contact

between battery and charging terminals.

3. The charging process starts when LED glows red.

4. LED glows green to indicate that charging is complete.

NOTE: The standard 2250mAh battery charging normally

takes about 4 hours, for optimal battery performance. Initial

charging for new battery should take up to 5 hours.

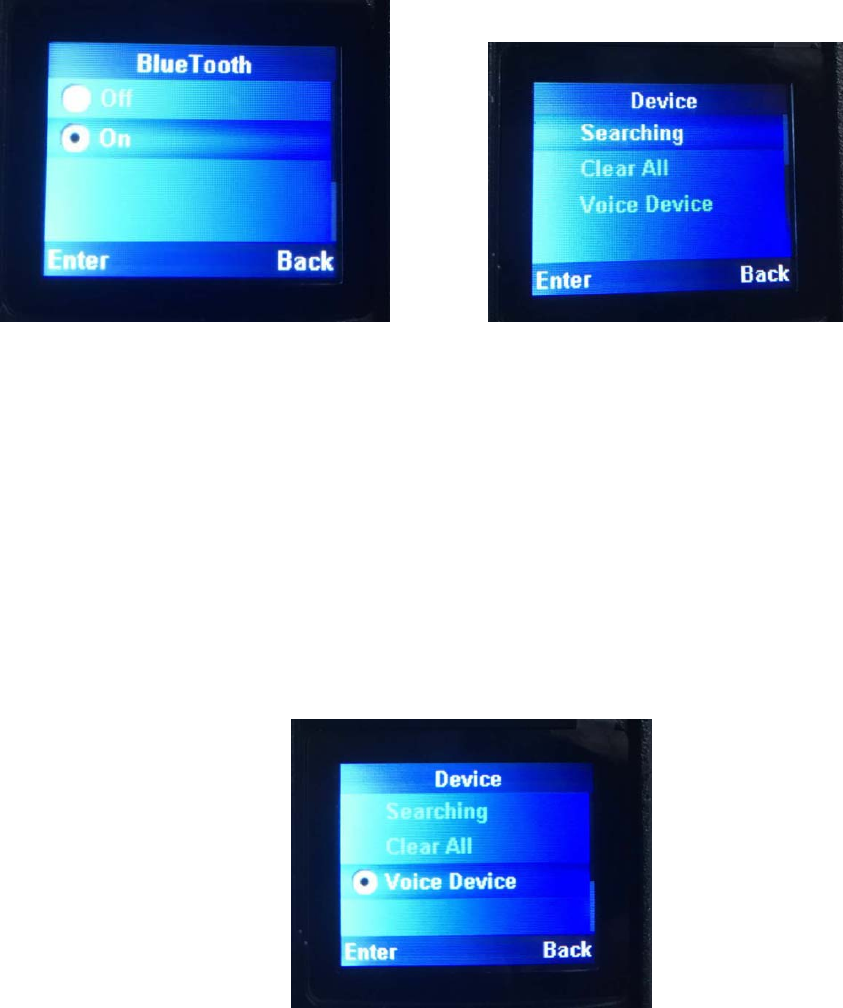

Bluetooth interfaceandoperatinginstructions:

1.ON/OFFcontrolandoperationinterface

Clickthe"Menu"button,select"Settings",select"Bluetooth",thatistoentertheBluetoothswitchoperation

interface,asshownbelow(Figure1.1.1).

 

Figure1.1.1Figure1.2.1



2. Bluetoothdevicesearchandclearoperationinterface,asshowninFigure1.2.1.

Description：

Theinterfacehasthreeoptions"Searching","ClearAll","VoiceDevice";

Click"Searching"tofindtheBluetoothdevice；

Click"ClearAll"toclearthepreviousBluetoothpairinginformation;"clearinformation"optionwillclear

theBluetoothmodule'sexistingpairinginformation.Itisrecommendedtousethisoptionifmultiple

connectionsareunsuccessful,andthenpairagain,orclearthemessageandconnectagainwhen

connectinganewdevice.

If"VoiceDevice"appears,theBluetoothdeviceisfoundbutitisnotconnected.

Ifadeviceissuccessfullyconnected,asshowninFigure1.2.3



Figure1.2.3



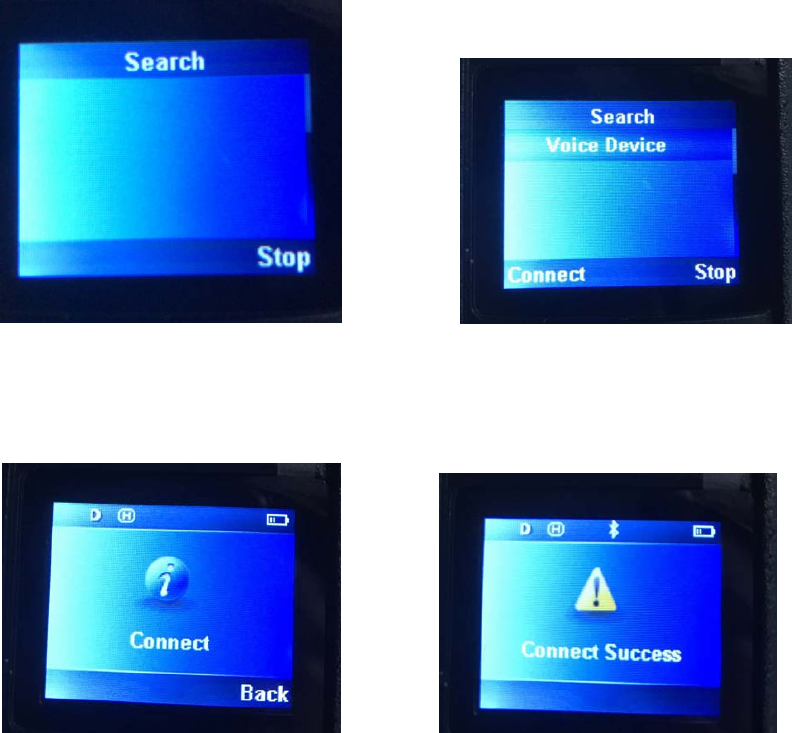

3.SearchBluetoothinterface

 

Figure1.3.1Figure1.3.2

In<BluetoothHome>Select"FindDevice"Canenterthe<searchinterface>,Enterthesearchinterface,the

modulewillenterthesearchmode,Ifanydeviceisfound,itwillbedisplayedbelow,asshowninFigure1.3.2

Thefollowingfigureshowsthatthedevicehasbeendiscoveredandisbeingconnected,asshowninFigure1.3.3.

 

Figure1.3.3Figure1.3.4

Thefollowingfigureshowsthattheconnectionissuccessful,asshowninFigure1.3.4



4. NOTE: 

(1)One‐on‐oneoperationisrequiredforpairing.DonotopenmultipleterminalsandBluetoothdevicesforpairing

atthesametime.

(2)Eachtimeyoure‐pairtheconnecteddevice,pleaseselect"ClearAll",cleartheoriginalpairinginformationof

themodule,andthensearchforthedevicetoperformpairingconnection.

(3)PleaseusethesupportingBluetoothheadsetprovidedbytheterminalmanufacturertoavoidinconvenienceto

yournormaluse.Thankyou!



FCC STATEMENT

This device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) This device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that may

cause undesired operation.

NOTE 1: This equipment has been tested and found to comply with the limits for a Class

B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful interference to

radio communications. However, there is no guarantee that interference will not occur in

a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the following

measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

-Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

-Consult the dealer or an experienced radio/TV technician for help.

NOTE 2: Any changes or modifications to this unit not expressly approved by the party

responsible for compliance could void the user's authority to operate the equipment.

RF Exposure Compliance and Control Guidelines and Operating Instructions

To control your exposure and ensure compliance with the occupational/controlled environment

exposure limits always adhere to the following procedures.

Guidelines:

• Do not remove the RF Exposure Label from the device.

• User awareness instructions should accompany device when transferred to other users.

• Do not use this device if the operational requirements described herein are not met.

Operating Instructions:

• Transmit no more than the rated duty factor of 50% of the time. To transmit (talk), push the

Push-To-Talk (PTT) button. To receive calls, release the PTT button. Transmitting 50 % of the

time, or less, is important because this radio generates measurable RF energy exposure only when

transmitting (in terms of measuring for standards compliance).

• Hold the radio in a vertical position in front of face with the microphone (and the other parts of

the radio, including the antenna) at least one inch (2.5 cm) away from the nose. Keeping the

radio at the proper distance is important because RF exposures decrease with distance from the

antenna. Antenna should be kept away from eyes.

• When worn on the body, always place the radio in a RCA’s approved clip

approved body-worn accessories is important because the use of RCA’s or other manufacturer’s

ries may result in exposure levels, which exceed the FCC’s occupational/

led environment RF exposure limits.

for this product. Using

non-approved accesso

control
