Television

User's Guide

Changing Entertainment. ain.

TOCOM 12A

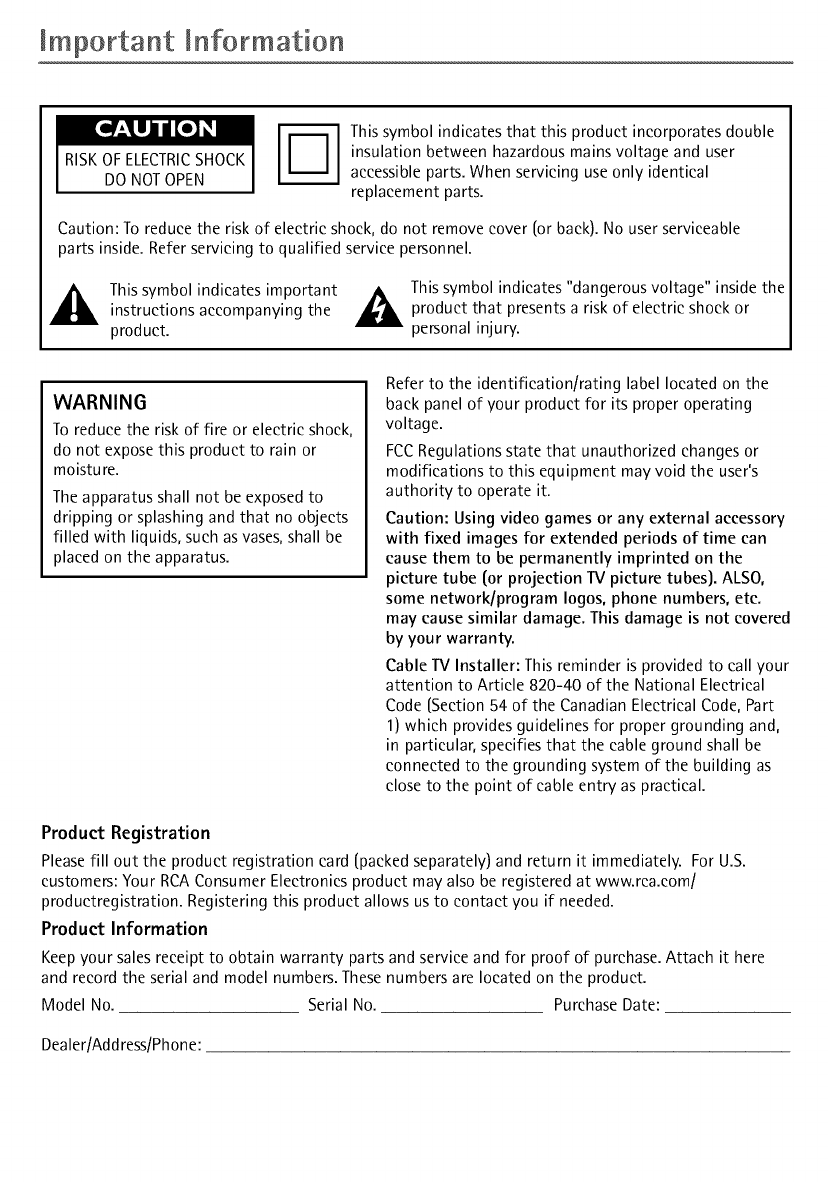

Important Information

[_l his symbol indicates that this product incorporates double

insulation between hazardous mains voltage and user

accessible parts. When servicing use only identical

replacement parts.

Caution: To reduce the risk of electric shock, do not remove cover (or back). No user serviceable

parts inside. Refer servicing to qualified service personnel.

This symbol indicates important _ This symbol indicates "dangerous voltage" inside the

instructions accompanying the _ product that presents a risk of electric shock or

product, personal injury.

WARNING

To reduce the risk of fire or electric shock,

do not expose this product to rain or

moisture.

The apparatus shall not be exposed to

dripping or splashing and that no objects

filled with liquids, such as vases, shall be

placed on the apparatus.

Refer to the identification/rating label located on the

back panel of your product for its proper operating

voltage.

FCC Regulations state that unauthorized changes or

modifications to this equipment may void the user's

authority to operate it.

Caution: Using video games or any external accessory

with fixed images for extended periods of time can

cause them to be permanently imprinted on the

picture tube (or projection IV picture tubes). ALSO,

some network/program Iogos, phone numbers, etc.

may cause similar damage. This damage is not covered

by your warranty.

Cable IV Installer: This reminder is provided to call your

attention to Article 820-40 of the National Electrical

Code (Section 54 of the Canadian Electrical Code, Part

1) which provides guidelines for proper grounding and,

in particular, specifies that the cable ground shall be

connected to the grounding system of the building as

close to the point of cable entry as practical.

Product Registration

Please fill out the product registration card {packed separately) and return it immediately. For U.S.

customers: Your RCA Consumer Electronics product may also be registered at www.rca.com/

productregistration. Registering this product allows us to contact you if needed.

Product Information

Keep your sales receipt to obtain warranty parts and service and for proof of purchase. Attach it here

and record the serial and model numbers. These numbers are located on the product.

Model No. Serial No. Purchase Date:

Dealer/Address/Phone:

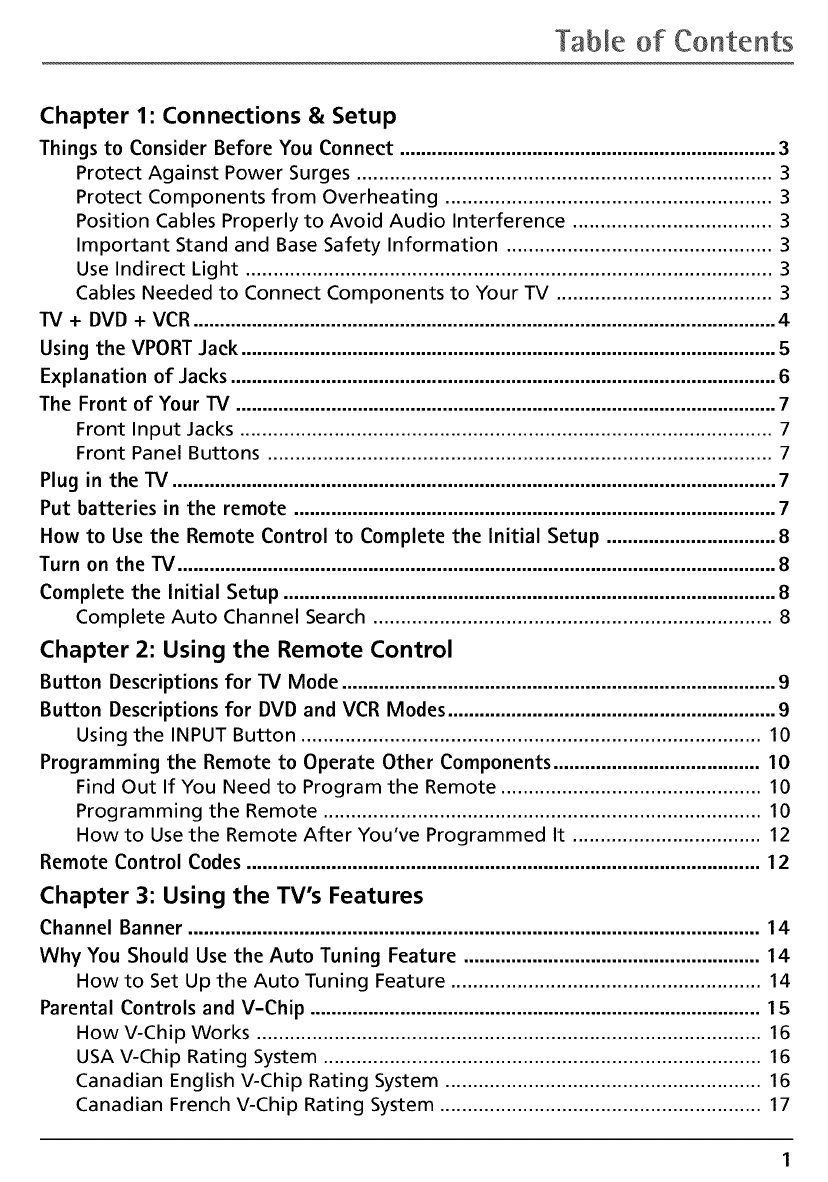

Table of Contents

Chapter 1" Connections & Setup

Things to Consider Before You Connect ....................................................................... 3

Protect Against Power Surges ........................................................................... 3

Protect Components from Overheating ........................................................... 3

Position Cables Properly to Avoid Audio Interference .................................... 3

Important Stand and Base Safety Information ................................................ 3

Use Indirect Light ............................................................................................... 3

Cables Needed to Connect Components to Your TV ....................................... 3

TV + DVD + VCR.............................................................................................................. 4

Using the VPORT Jack ..................................................................................................... 5

Explanation of Jacks ....................................................................................................... 6

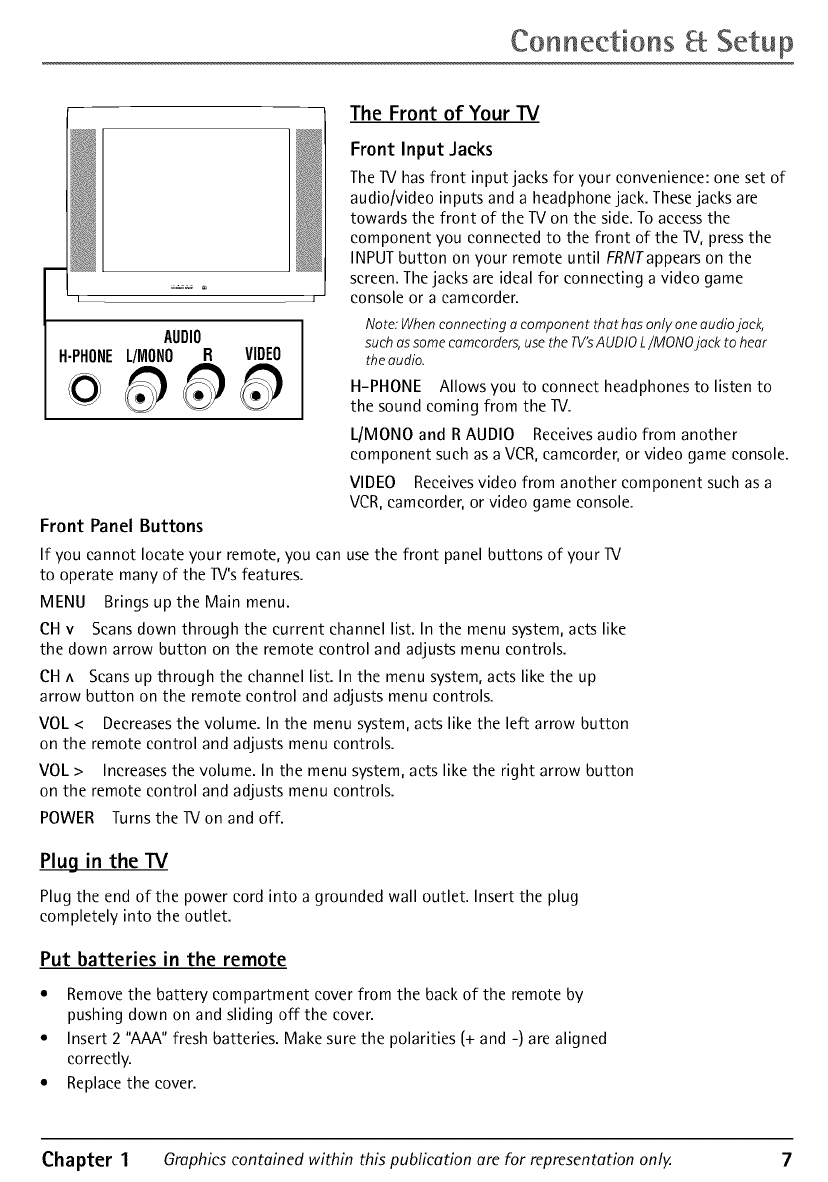

The Front of Your TV ...................................................................................................... 7

Front Input Jacks ................................................................................................ 7

Front Panel Buttons ........................................................................................... 7

Plug in the TV .................................................................................................................. 7

Put batteries in the remote ........................................................................................... 7

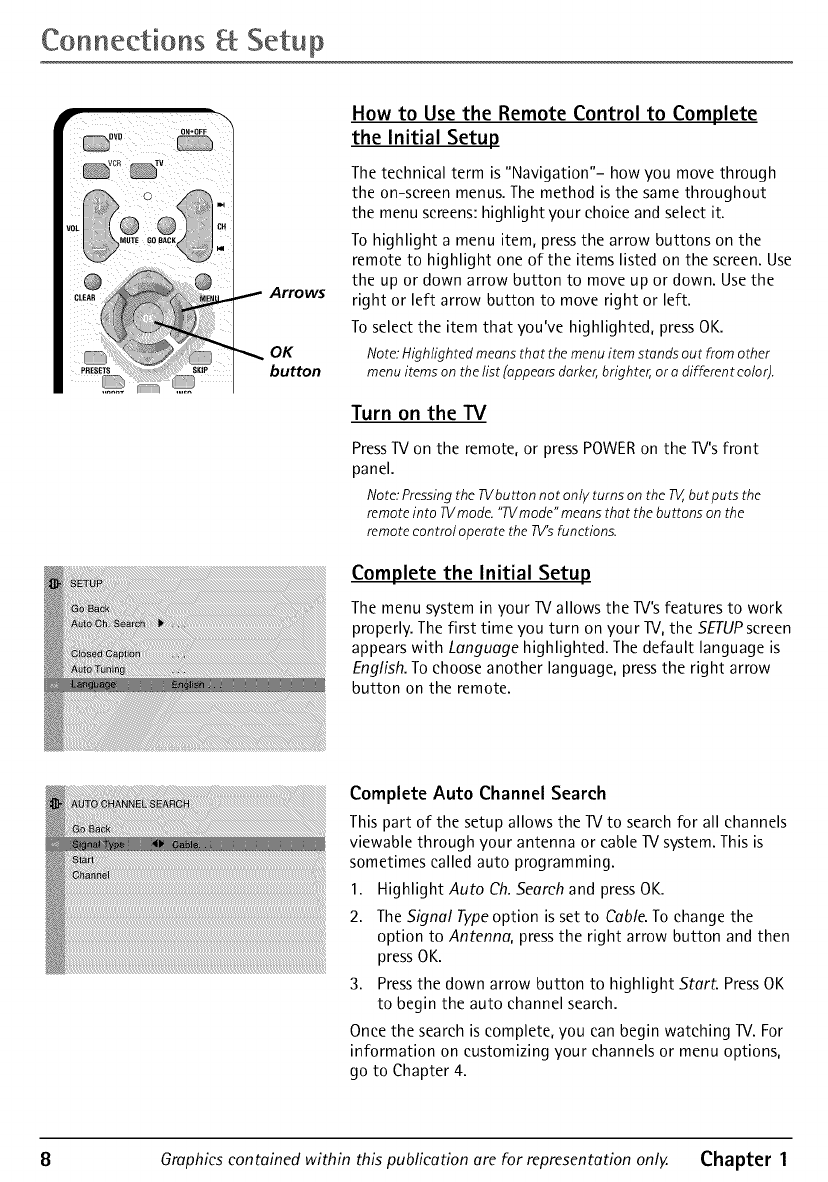

How to Use the Remote Control to Complete the Initial Setup ................................ 8

Turn on the TV ................................................................................................................. 8

Complete the Initial Setup ............................................................................................. 8

Complete Auto Channel Search ........................................................................ 8

Chapter 2: Using the Remote Control

Button Descriptions for TV Mode .................................................................................. 9

Button Descriptions for BVB and VCR Modes .............................................................. 9

Using the INPUT Button ................................................................................... 10

Programming the Remote to Operate Other Components ....................................... 10

Find Out If You Need to Program the Remote ............................................... 10

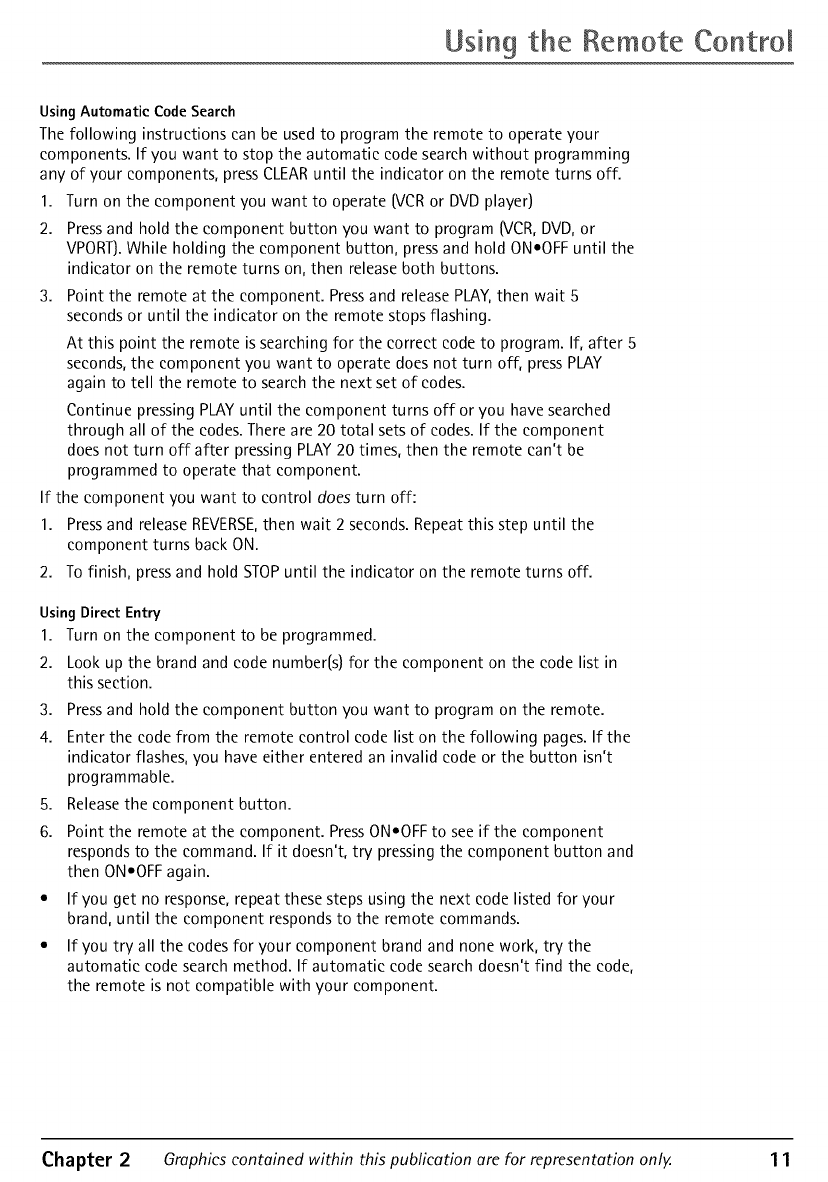

Programming the Remote ............................................................................... 10

How to Use the Remote After You've Programmed It .................................. 12

Remote Control Codes ................................................................................................. 12

Chapter 3: Using the TV's Features

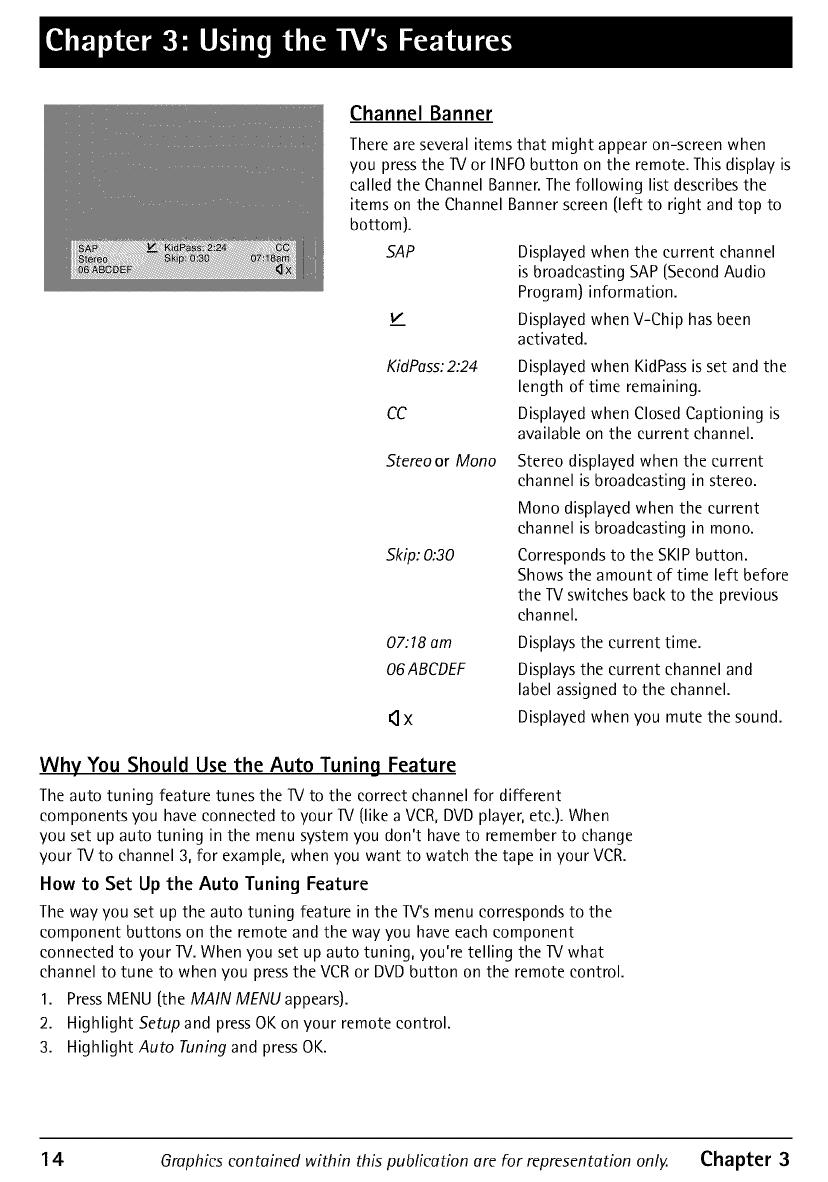

Channel Banner ............................................................................................................ 14

Why You Should Use the Auto Tuning Feature ........................................................ 14

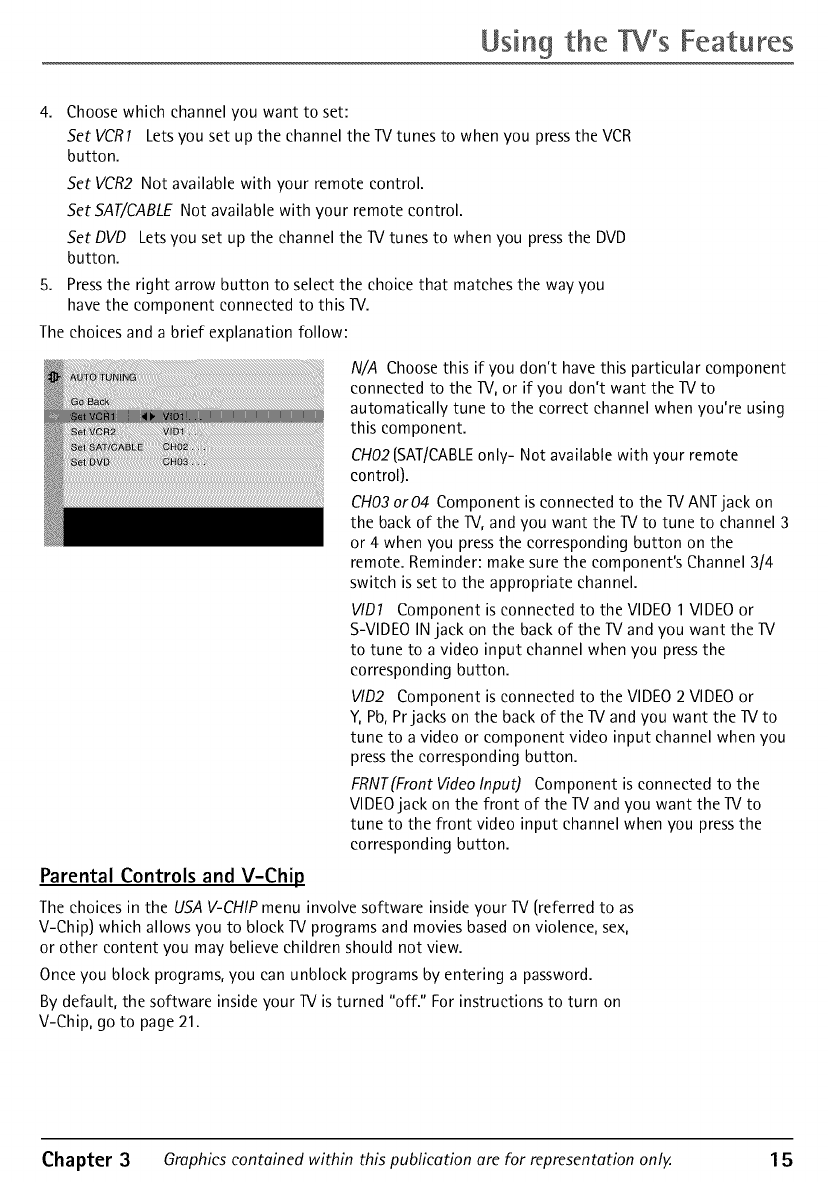

How to Set Up the Auto Tuning Feature ........................................................ 14

Parental Controls and V-Chip ..................................................................................... 15

How V-Chip Works ........................................................................................... 16

USA V-Chip Rating System ............................................................................... 16

Canadian English V-Chip Rating System ......................................................... 16

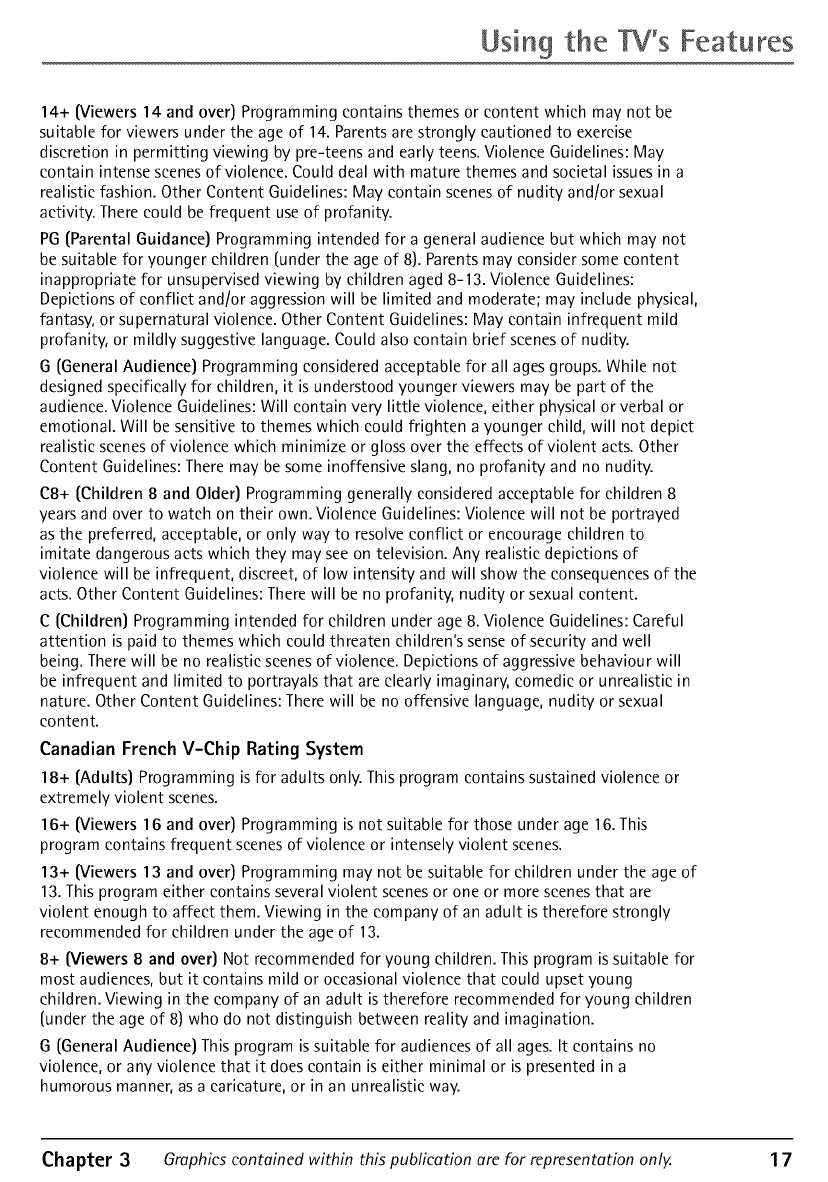

Canadian French V-Chip Rating System .......................................................... 17

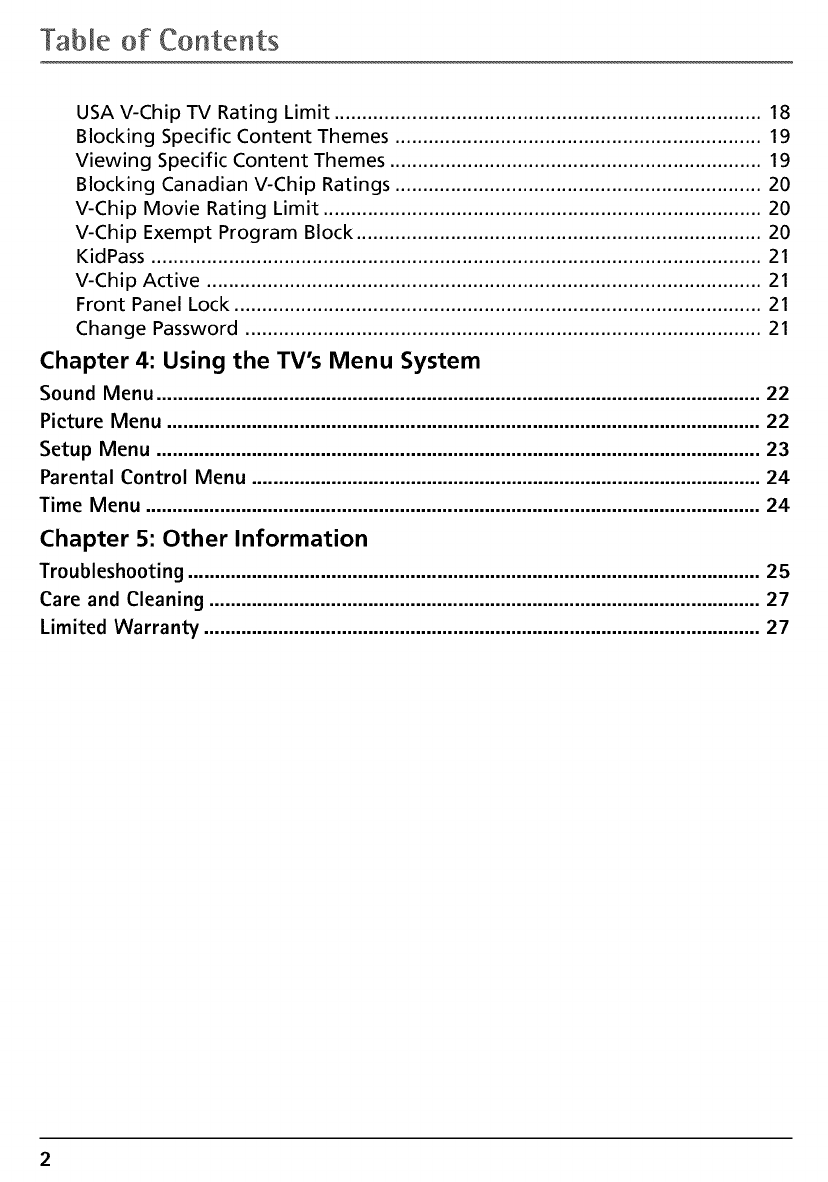

Table of Contents

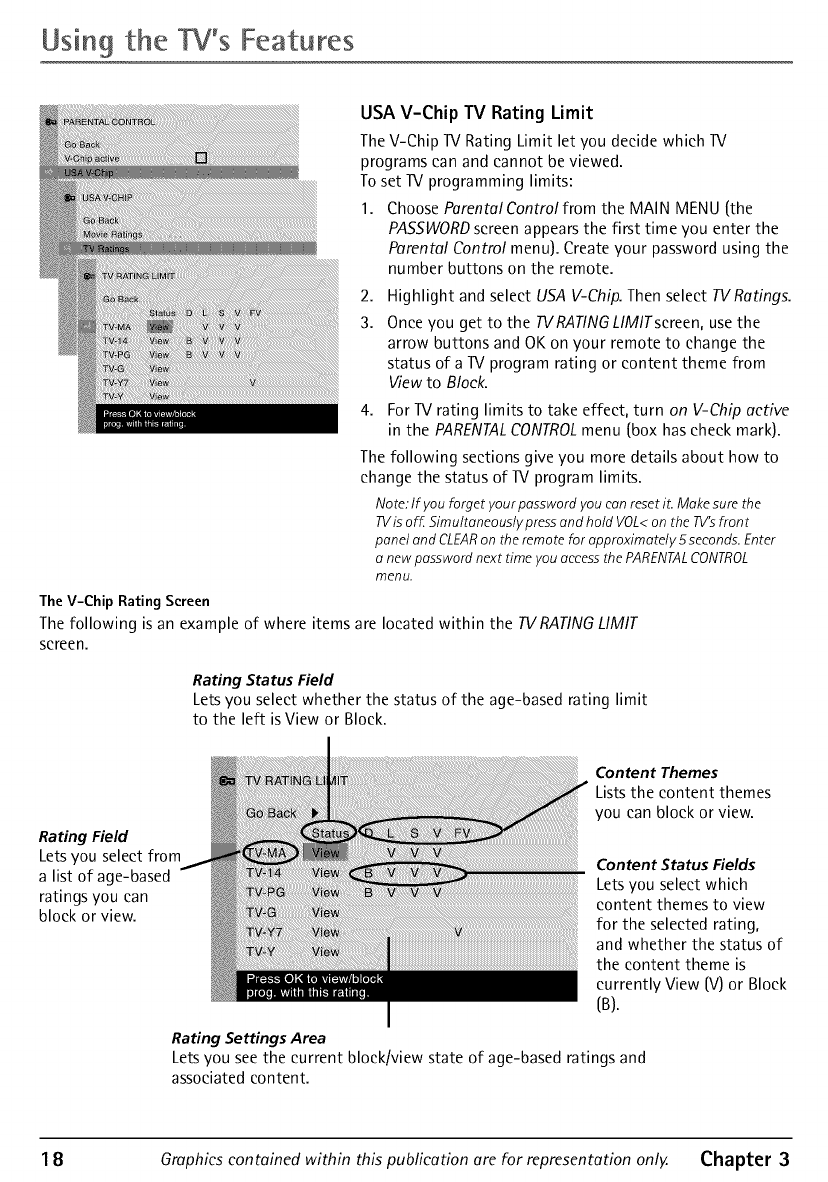

USA V-Chip TV Rating Limit ............................................................................. 18

Blocking Specific Content Themes .................................................................. 19

Viewing Specific Content Themes ................................................................... 19

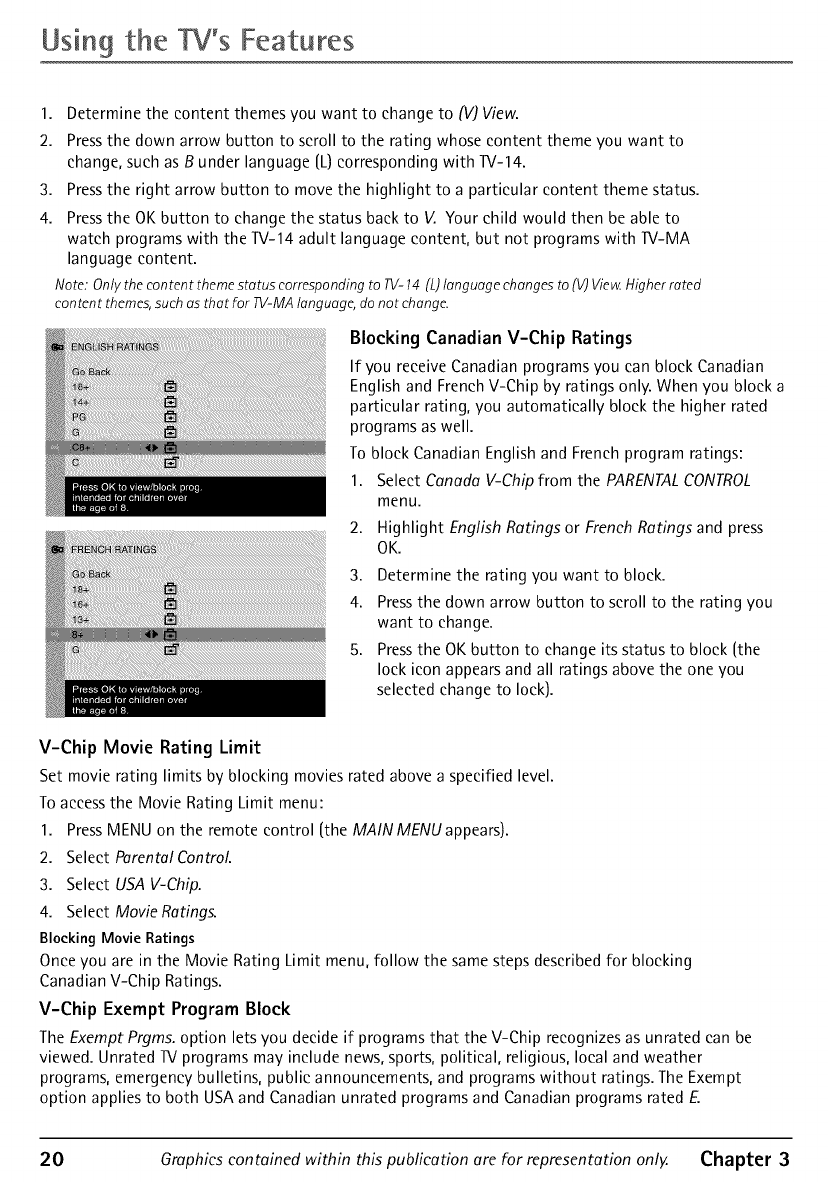

Blocking Canadian V-Chip Ratings .................................................................. 20

V-Chip Movie Rating Limit ............................................................................... 20

V-Chip Exempt Program Block ......................................................................... 20

KidPass .............................................................................................................. 21

V-Chip Active .................................................................................................... 21

Front Panel Lock ............................................................................................... 21

Change Password ............................................................................................. 21

Chapter 4: Using the TV's Menu System

Sound Menu .................................................................................................................. 22

Picture Menu ................................................................................................................ 22

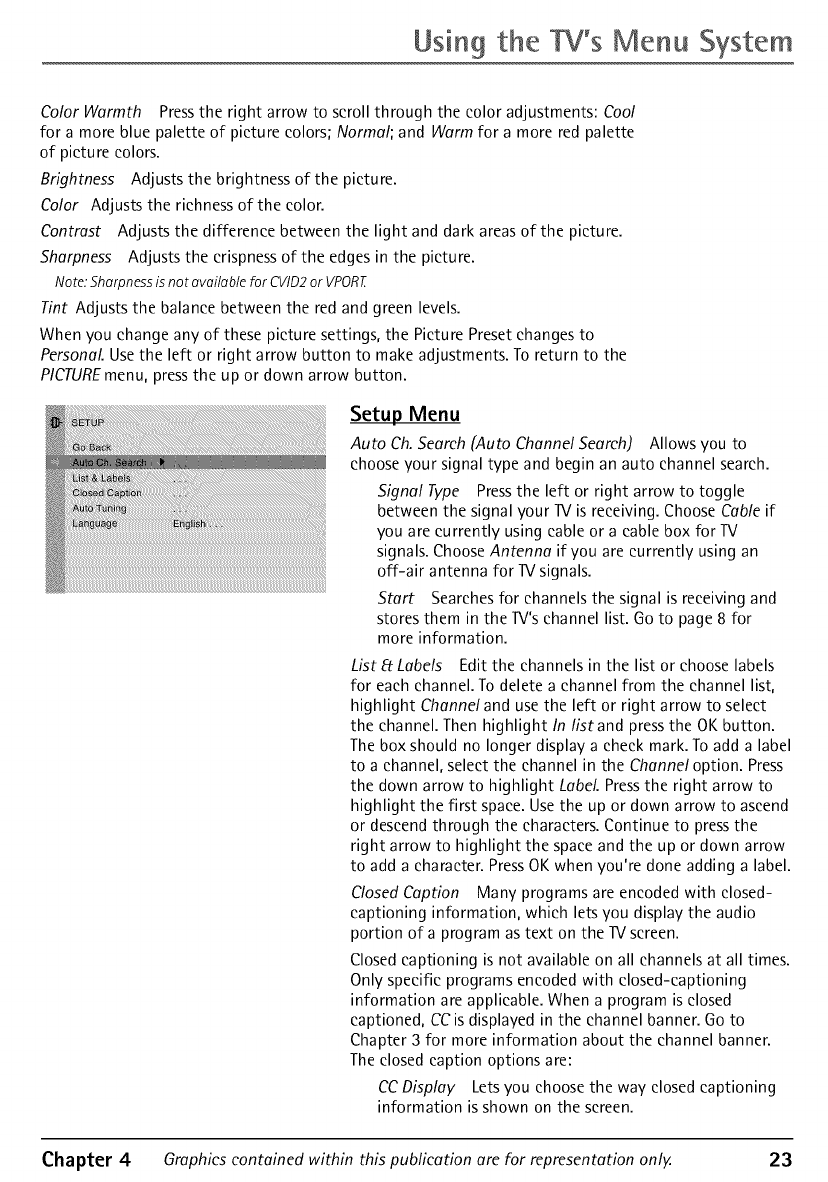

Setup Menu .................................................................................................................. 23

Parental Control Menu ................................................................................................ 24

Time Menu .................................................................................................................... 24

Chapter 5: Other Information

Troubleshooting ............................................................................................................ 25

Care and Cleaning ........................................................................................................ 27

Limited Warranty ......................................................................................................... 27

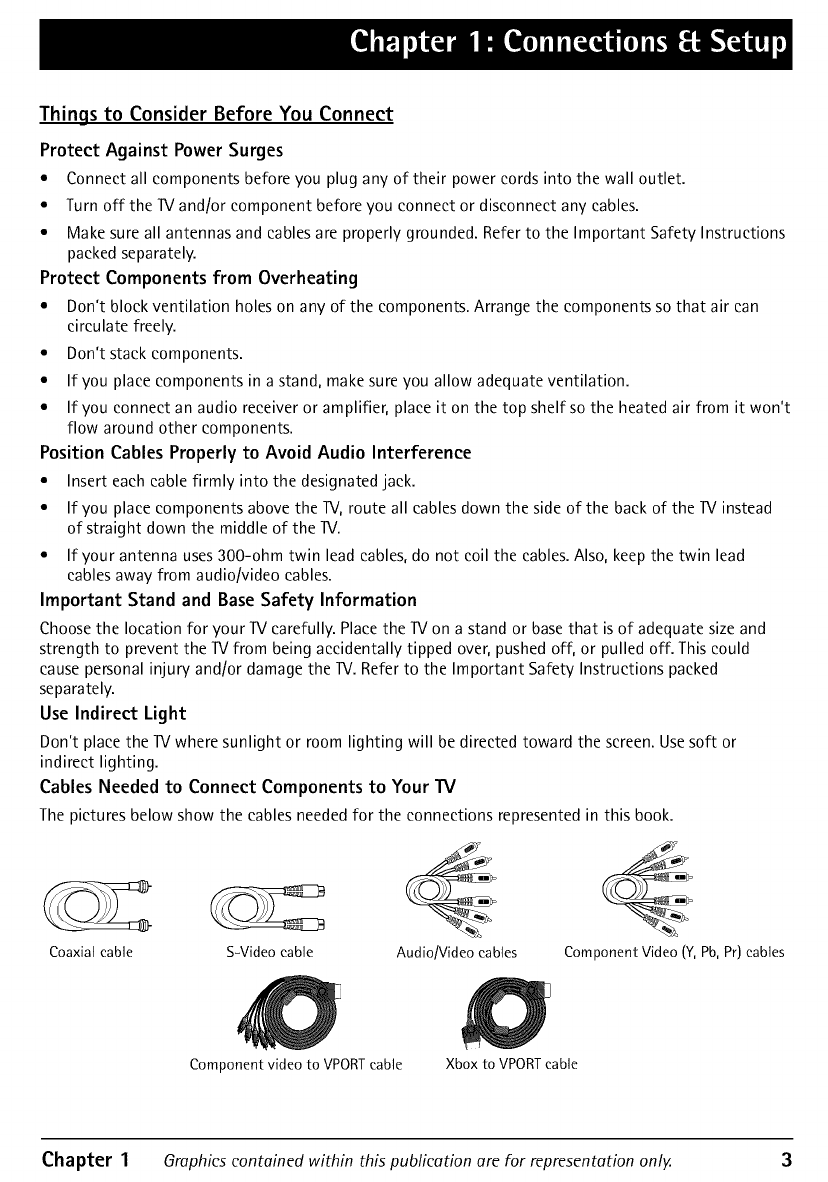

Things to Consider Before You Connect

Protect Against Power Surges

• Connect all components before you plug any of their power cords into the wall outlet.

•Turn off the IV and/or component before you connect or disconnect any cables.

• Make sure all antennas and cables are properly grounded. Refer to the Important Safety Instructions

packed separately.

Protect Components from Overheating

• Don't block ventilation holes on any of the components. Arrange the components so that air can

circulate freely.

• Don't stack components.

• If you place components in a stand, make sure you allow adequate ventilation.

• If you connect an audio receiver or amplifier, place it on the top shelf so the heated air from it won't

flow around other components.

Position Cables Properly to Avoid Audio Interference

• Insert each cable firmly into the designated jack.

• If you place components above the IV, route all cables down the side of the back of the IV instead

of straight down the middle of the IV.

• If your antenna uses 300-ohm twin lead cables, do not coil the cables. Also, keep the twin lead

cables away from audio/video cables.

Important Stand and Base Safety Information

Choose the location for your IV carefully. Place the IV on a stand or base that is of adequate size and

strength to prevent the IV from being accidentally tipped over, pushed off, or pulled off. This could

cause personal injury and[or damage the IV. Refer to the Important Safety Instructions packed

separately.

Use Indirect Light

Don't place the IV where sunlight or room lighting will be directed toward the screen. Use soft or

indirect lighting.

Cables Needed to Connect Components to Your TV

The pictures below show the cables needed for the connections represented in this book.

Coaxial cable S-Video cable Audio/Video cables Component Video (Y, Pb,Pr) cables

Component video to VPORT cable Xbox to VPORT cable

Chapter 1 Graphics contained within this publication are for representation only. 3

Connections Setup

VCR

_VIDEO AUDIO IN FROM ANT

FromCable

orAntenna

TV (back panel)

DVD

TV + DVD + VCR

* If you connect an S-Video cable, you must connect

the audio cables to the VIDEO 1 AUDIO jacks on the

back of the TV, no__tthe VIDEO 2 AUDIO jacks.

1. Connect your DVD Player to your TV.

A. Connect the audio [white and red) cables to the VIDEO 2 R and L/MONO AUDIO jacks on the back

of the TV and to the Audio Output jacks on the DVD player.

B. If your DVD player has Component Output Jacks {Y, Pb, Pr), connect three video grade cables to

the Y, Pb, Pr jacks on the DVD player and to the VIDEO 2 Y, Pb, Pr jacks on the back of the TV. If

your DVD player doesn't have Y, Pb, Pr jacks, go to C.

-OR-

C. If your DVD player has an S-Video jack, connect an S-Video cable to the S-Video jack on the DVD

player and to the S-VIDEO IN jack on the back of the TV. If your DVD player doesn't have an

S-Video jack, go to D.

Note: If youconnect an S-Videocable,you mustconnect the audiocablesto the VIDEO1AUDlOjacks on the back of the

TV,not the VIDEO2AUDIOjacks.

-OR-

D. Connect a video cable [yellow) to the Video Output Jack on the DVD player and to the VIDEO 2

VIDEO jack on the back of the TV.

2. Connect your TV to your VCR

Connect a coaxial cable to the TV ANT jack on your TVand to the Output Jack on your VCR

[sometimes labeled OUT TO TV).

Note: If your VCRhasA/Voutput jacks, you can connect your lV to your VCRusing audio/video cablesfor better quality

3. Make sure cable or antenna is connected to your VCR.

Connect the coaxial cable from your cable outlet or antenna to the antenna input on the VCR.

Go to page 7

4Graphics contained within this publication are for representation only. Chapter 1

Connections Setup

Xbox

DVD

TV (back panel)

10 VIDEOS-VIDEOINJ

FromCable,

CableBox,

or Antenna

Component video to

VPORT cable (not

supplied)

Xbox to VPORTcable

(not supplied)

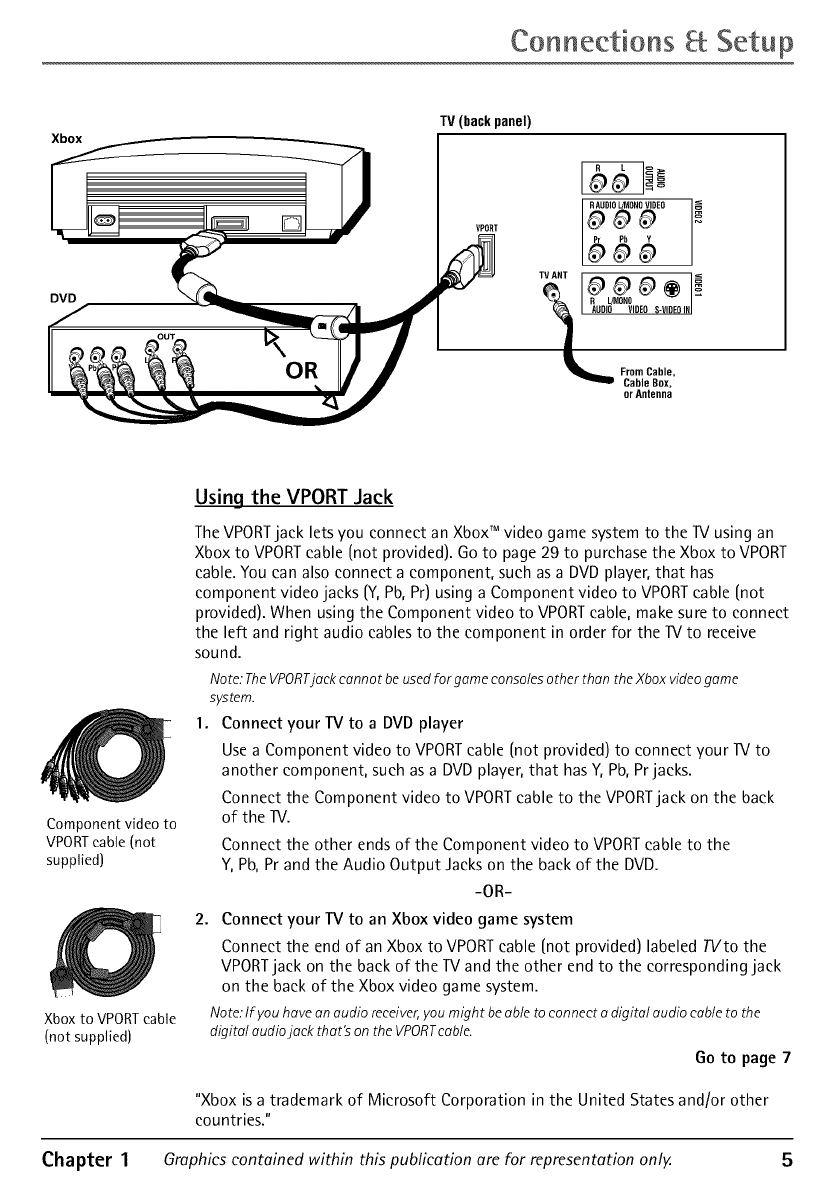

Using the VPORT Jack

The VPORT jack lets you connect an Xbox TM video game system to the TV using an

Xbox to VPORT cable {not provided). Go to page 29 to purchase the Xbox to VPORT

cable. You can also connect a component, such as a DVD player, that has

component video jacks {Y, Pb, Pr) using a Component video to VPORT cable {not

provided). When using the Component video to VPORT cable, make sure to connect

the left and right audio cables to the component in order for the TV to receive

sound.

Note: TheVPORTjaekcannot be usedfor game consolesother than the Xboxvideogame

system.

1. Connect your TV to a DVD player

Use a Component video to VPORT cable {not provided) to connect your TV to

another component, such as a DVD player, that has Y, Pb, Pr jacks.

Connect the Component video to VPORT cable to the VPORTjack on the back

of the TV.

Connect the other ends of the Component video to VPORT cable to the

Y, Pb, Pr and the Audio Output Jacks on the back of the DVD.

-OR-

2. Connect your TV to an Xbox video game system

Connect the end of an Xbox to VPORT cable {not provided) labeled Wto the

VPORTjack on the back of the TVand the other end to the corresponding jack

on the back of the Xbox video game system.

Note:If you havean audio receiver,you might beable to connect a digital audio cable to the

digital audiojack that's on the VPORTeable.

Go to page 7

"Xbox is a trademark of Microsoft Corporation in the United States and/or other

countries."

Chapter 1 Graphics contained within this publication are for representation only. 5

Connections Setup

Explanation of Jacks

This section describes the jacks you can use to make connections. There are several

ways to connect components to your TV.

VPORT Go to the previous page for VPORT explanation.

TV ANT Lets you connect a coaxial cable to receive the signal from the antenna,

cable, cable box, or if using the example on page 4, a VCR.

R L/MONO

AUDIO VIDEOS-VIDEOIN

RAUDIOI../MONOVIDEO

Pr Pb Y

VIDEO 1

VIDEO, AUDIO R and L/MONO Lets you connect a

.-_ component such as a VCR, DVD player, or laserdisc player.

• R {RIGHT) AUDIO Provides right audio connection. The

right audio connector is usually red.

• L/MONO AUDIO Provides left audio connection. The

left audio connector is usually white.

• VIDEO Provides composite video connection. The video

connector is usually yellow.

• S-VIDEO IN Provides better picture quality than the

video jacks because the color part of the signal is

separated from the black and white part of the picture.

When using S-VIDEO IN, make sure to connect left and

right audio cables to the L/MONO and R AUDIO Input

jacks.

VIDEO 2

VIDEO, AUDIO R and L/MONO and Y, Pb, Pr Lets you

_,_ connect a component video source, such as a DVD player.

• Y, Pb, Pr Provides optimum picture quality because the

video is separated into three signals. Use three video-

grade cables for the connection. When using VIDEO 2

Y, Pb, Pr, make sure to connect left and right audio cables

to the VIDEO 2 AUDIO Input jacks.

• R {RIGHT) AUDIO, L/MONO and VIDEO Their

description is the same as VIDEO 1.

AUDIO OUTPUT Lets you connect an amplifier or audio

receiver for improved sound quality.

6Graphics contained within this publication are for representation only. Chapter 1

Connections Setup

AUDIO

H-PHONE L/MONO R VIDEO

Front Panel Buttons

If you cannot locate your remote, you can

to operate many of the TV's features.

MENU Brings up the Main menu.

The Front of Your TV

Front Input Jacks

The TV has front input jacks for your convenience: one set of

audio/video inputs and a headphone jack. These jacks are

towards the front of the TV on the side. To access the

component you connected to the front of the TV, press the

INPUT button on your remote until FRNTappears on the

screen. The jacks are ideal for connecting a video game

console or a eamcorder.

Note: Whenconnecting a component that hasonly one audiojack,

such assomecamcorders,usethe TV'sAUDIOL/MONOjack to hear

the audio.

H-PHONE Allows you to connect headphones to listen to

the sound coming from the TV.

L/MONO and RAUDIO Receives audio from another

component such as a VCR, eamcorder, or video game console.

VIDEO Receives video from another component such as a

VCR, eamcorder, or video game console.

use the front panel buttons of your TV

(3Hv Scans down through the current channel list. In the menu system, acts like

the down arrow button on the remote control and adjusts menu controls.

CH ^Scans up through the channel list. In the menu system, acts like the up

arrow button on the remote control and adjusts menu controls.

VOL < Decreases the volume. In the menu system, acts like the left arrow button

on the remote control and adjusts menu controls.

VOL > Increases the volume. In the menu system, acts like the right arrow button

on the remote control and adjusts menu controls.

POWER Turns the TV on and off.

Plug in the TV

Plug the end of the power cord into a grounded wall outlet. Insert the plug

completely into the outlet.

Put batteries in the remote

•Remove the battery compartment cover from the back of the remote by

pushing down on and sliding off the cover.

• Insert 2 "AAA" fresh batteries. Make sure the polarities (+ and -) are aligned

correctly.

• Replace the cover.

Chapter 1 Graphics contained within this publication are for representation only. 7

Connections Setup

Arrows

OK

button

How to Use the Remote Control to Complete

the Initial Setup

The technical term is "Navigation"- how you move through

the on-screen menus. The method is the same throughout

the menu screens: highlight your choice and select it.

To highlight a menu item, press the arrow buttons on the

remote to highlight one of the items listed on the screen. Use

the up or down arrow button to move up or down. Use the

right or left arrow button to move right or left.

To select the item that you've highlighted, press OK.

Note: Highlighted meansthat the menu item stands out from other

menu items on the list (appearsdarker,t_righter,or a different color).

Turn on the TV

Press TV on the remote, or press POWER on the TV's front

panel.

Note: Pressing the TVt_utton not only turns on the TV,,t_utputs the

remote into TVmode. "TVmode" means that the t_uttons on the

remote control operate the TV's functions.

Complete the Initial Setup

The menu system in your TV allows the TV's features to work

properly. The first time you turn on your TV, the SETUPscreen

appears with Language highlighted. The default language is

English. To choose another language, press the right arrow

button on the remote.

Complete Auto Channel Search

This part of the setup allows the TV to search for all channels

viewable through your antenna or cable TV system. This is

sometimes called auto programming.

1. Highlight Auto Ch. Search and press OK.

2. The Signal Type option is set to Cable. To change the

option to Antenna, press the right arrow button and then

press OK.

3. Press the down arrow button to highlight Start. Press OK

to begin the auto channel search.

Once the search is complete, you can begin watching TV. For

information on customizing your channels or menu options,

go to Chapter 4.

8Graphics contained within this publication are for representation only. Chapter 1

Indicator Button Descriptions for TV Mode

Arrows Used to highlight different items in the TV menu and to adjust the menu

controls.

Indicator Indicates the programming mode when programming the remote to

control components. Lights when you press a valid button on the remote. Flickers

when a button is pressed and the batteries are low.

{0-9) Number Buttons Enter channel numbers and time settings directly

through the remote control.

To enter a one-digit channel, enter a zero first. To enter a two-digit channel, press

the two digits and expect a few seconds delay. This is if you want to enter a third

digit.

CH + or CH - Scans up or down through the current channel list. Press once to

change the channel up or down; press and hold to continue changing channels.

CLEAR Removes any menu or display from the screen and returns you to normal

viewing.

GO BACK Returns you to the previous channel.

INFO Brings up the channel banner.

INPUT Toggles through the available input sources (VID1/SVID1, VID2/CVID2,

FRNT, VPORTand current channel).

MENU Brings up the Main menu.

MUTE Reduces the TV's volume to its minimum level. Press again to restore the

volume.

OK When in the menu system, selects highlighted items.

ONeOFF When in TV mode, turns the TV on and off. If in another mode (VCR,

DVD, etc.) and programmed, will turn the component on and off.

PRESETS Brings up sound and picture presets.

SKIP Press once before changing channels and the TV will wait 30 seconds before

returning to the original channel. Press repeatedly to add more time.

TV Turns on the TV and puts the remote in TV mode. Also displays current status.

VPORT Tunes the TV to the VPORT input channel. You can program this button

to control a VCR or DVD player. When programmed, changes the mode of the

remote when the button is pressed. To restore the VPORT button to factory default

mode (unprogrammed), press and hold VPORT,then press 1, O,O, and O.

VOL - or VOL + Decreases or increases the TV's volume.

Button Descriptions for DVD and VCR Modes

AGAIN In DVD mode, replays the last several seconds of the title you're playing,

ANTENNA In VCR mode, functions as a 1V/VCR button,

DVD Puts the remote in DVD mode and, if auto tuning is enabled, will turn on

the 1V and tune to the correct video input channel,

GUIDE Ifyou're operating another component that has a guide, thisbutton

accesses the on-screen Guide.

Chapter 2 Graphics contained within this publication are for representation only. 9

Osin9 the Remote Contro

OPEN.CLOSE In DVD mode, opens or closes the DVD disc tray.

REVERSE, PLAY, FORWARD, RECORD, STOP, PAUSE If programmed, provides

transport control for some remote-controllable VCRs or DVD players.

SEARCH In VCR mode, accesses Index Search feature.

SPEED In VCR mode, selects a recording speed.

VCR Puts the remote in VCR mode and, if auto tuning is enabled, will turn on the

Tvand tune to the correct video input channel.

ZOOM In DVD mode, zooms in on the picture.

Using the INPUT Button

Use the INPUT button to scroll through the available video input channels and

view components you have connected to the TV.

1. Make sure the component you want to view is turned ON.

2. Press INPUT to tune to an available video input source and view the

component.

3. To return to the previous channel, continue pressing INPUT.

DVD and

VCR buttons

VPORT

button

REVERSE

and PLAY

buttons

ON,OFF

STOP

button

You'll use these buttons when

programming the remote.

Programming the Remote to Operate Other

Components

The universal remote can be programmed to operate most

brands of remote controllable components. The remote is

already programmed to operate most RCA, GE,and Proscan

components.

Note: TheTVbutton can't be programmed on this remote.

Find Out If You Need to Program the Remote

To determine whether the universal remote needs to be

programmed for your component, turn the component ON.

For example, to program the remote for a VCR, turn on the

VCR. Point the remote at the VCR, and press the VCR button.

Then press ON-OFF or CH + (channel up) or CH i(channel

down) to see if the VCR responds to the remote commands. If

the component does not respond, the remote needs to be

programmed.

Programming the Remote

There are two ways to program the remote control:

• automatic code search

• direct entry

10 Graphics contained within this publication are for representation only. Chapter 2

Osin9 the Remote Control

UsingAutomatic Code Search

The following instructions can be used to program the remote to operate your

components. If you want to stop the automatic code search without programming

any of your components, press CLEARuntil the indicator on the remote turns off.

1. Turn on the component you want to operate (VCR or DVD player)

2. Press and hold the component button you want to program (VCR, DVD, or

VPORT). While holding the component button, press and hold ONoOFF until the

indicator on the remote turns on, then release both buttons.

3. Point the remote at the component. Pressand release PLAY, then wait 5

seconds or until the indicator on the remote stops flashing.

At this point the remote is searching for the correct code to program. If, after 5

seconds, the component you want to operate does not turn off, press PLAY

again to tell the remote to search the next set of codes.

Continue pressing PLAY until the component turns off or you have searched

through all of the codes. There are 20 total sets of codes. If the component

does not turn off after pressing PLAY 20 times, then the remote can't be

programmed to operate that component.

If the component you want to control does turn off:

1. Press and release REVERSE,then wait 2 seconds. Repeat this step until the

component turns back ON.

2. To finish, press and hold STOP until the indicator on the remote turns off.

UsingDirect Entry

1. Turn on the component to be programmed.

2. Look up the brand and code number(s) for the component on the code list in

this section.

3. Press and hold the component button you want to program on the remote.

4. Enter the code from the remote control code list on the following pages. If the

indicator flashes, you have either entered an invalid code or the button isn't

programmable.

5. Release the component button.

6. Point the remote at the component. Press ONoOFFto see if the component

responds to the command. If it doesn't, try pressing the component button and

then ONoOFF again.

• If you get no response, repeat these steps using the next code listed for your

brand, until the component responds to the remote commands.

• If you try all the codes for your component brand and none work, try the

automatic code search method. If automatic code search doesn't find the code,

the remote is not compatible with your component.

Chapter 2 Graphics contained within this publication are for representation only. 1 1

Osin9 the Remote Contro

How to Use the Remote After You've Programmed It

Because this universal remote can operate several different components it uses

operational modes triggered by the component buttons. For example, if you want

the remote to operate the TV, you would press the TV button to put the remote

into TV mode before you could operate the TV.

I. Press the appropriate component button (DVD, VCR, VPORT) to set the remote

to operate the component.

2. Press ON-OFF to turn the component ON or OFE

3. Use the remote buttons that apply to that component.

Notes.

The remote ma)/ not be compatible with all brands and models of components. It also

ma)/ not operate all functions of the remote that came with )/our component.

If )/ou keep pressing buttons and nothing happens, the remote isprobably in the

wrong mode. You must press the component button that matches the component

you want to operate (i.e., if )/ou want to operate the VCR,press VCR on the remote

control to put the remote in VCRmode.)

VCR Codes

Remote Control Codes

Programmable for VCR and VPORT buttons.

Admiral .................................................................................... 2132

Adventura ................................................................................ 2026

Aiko .......................................................................................... 2027

Aiwa ......................................................................................... 2026

Akai ................. 2003, 2004, 2005, 2007, 2008, 2111, 2112, 2113

American High ........................................................................ 2021

Asha ......................................................................................... 2013

Audio Dynamics ........................................................... 2009, 2010

Audiovox ................................................................................. 2014

Emerson ............................. 2012, 2014, 2015, 2021, 2024, 2025,

.......... 2026, 2029, 2030, 2031, 2032, 2033, 2034,2035, 2036,

.......... 2037, 2038, 2039, 2040, 2041, 2042,2044, 2045, 2046,

............................................ 2047, 2065, 2113, 2116, 2117, 2130

Fisher ............. 2011, 2023, 2048, 2049, 2050, 2051, 2052, 2118

Fuji ................................................................................. 2021, 2119

Funai ........................................................................................ 2026

Garrard ..................................................................................... 2026

GE ....................................................................... 2000, 2001, 2013,

Bell _t Howell ........................................................................... 2011 ............................................. 2021, 2022, 2053, 2115, 2120, 2131

Beaumark ................................................................................. 2013 Goldstar ................................................... 2009, 2014, 2018, 2054

Broksonic ...................................................................... 2012, 2025 Gradiente ................................................................................. 2026

Calix ......................................................................................... 2014 Harley Davidson ..................................................................... 2026

Candle ..................................................... 2013, 2014, 2015, 2016, Harman Kardon ...................................................................... 2009

............................................................................. 2017, 2018, 2019 Harwood .................................................................................. 2061

Canon .................................................................. 2021, 2022, 2114 Headquarter .............................................................................. 2011

Capehart ......................................................................... 2020, 2110 Hitachi ......................................................................... 2055, 2056,

Carver ....................................................................................... 2062 ......................................................... 2057, 2107, 2111, 2120, 2122

CCE ................................................................................ 2027, 2061

Citizen ........................................................................... 2013, 2014,

............................................. 2015, 2016, 2017, 2018, 2019, 2027

Colortyme ................................................................................ 2009

Colt ........................................................................................... 2061

Craig ......................................................... 2013, 2014, 2023, 2061

Curtis-Mathes .................................................... 2000, 2009, 2013,

................................... 2016, 2018, 2021, 2022, 2024, 2115, 2131

Cybernex ................................................................................. 2013

Daewoo .......... 2015, 2017, 2019, 2025, 2026, 2027, 2028, 2110

Daytron ..................................................................................... 2110

DBX ................................................................................ 2009, 2010

Dimensia ........................................................................ 2000, 2131

Dynatech .................................................................................. 2026

Electrohome ................................................................. 2014, 2029

Electrophonic .......................................................................... 2014

Hi-Q .......................................................................................... 2023

Instant Replay ......................................................................... 2021

JCL ............................................................................................ 2021

JC Penney ................................................ 2009, 2010, 2011, 2013,

...................................................... 2014, 2021, 2022, 2055, 2056,

........................................................ 2058, 2059, 2060, 2107, 2118

Jensen ................................................................. 2055, 2056, 2111

JVC ....................................... 2009, 2010, 2011, 2018, 2111, 2123

Kenwood .................... 2009, 2010, 2011, 2016, 2018, 2111, 2123

KLH ........................................................................................... 2061

Kodak ............................................................................ 2014, 2021

Lloyd ........................................................................................ 2026

Logik ........................................................................................ 2061

LXI ............................................................................................ 2014

Magnavox ........................................................ 2021, 2022, 2062,

........................................................ 2063, 2104, 2105, 2108, 2124

12 Graphics contained within this publication are for representation only. Chapter 2

Osin9 the Remote Control

VCR Codes continued

Magnin ................................................................................... 2013

Marantz ........ 2009, 2010, 2011, 2016, 2018, 2021, 2062, 2064

Marta ...................................................................................... 2014

Masushita .............................................................................. 2021

Mei ......................................................................................... 2021

Memorex ...... 2011, 2013, 2014, 2021, 2023, 2026, 2104, 2132

MGA .................................................................. 2029, 2065, 2113

MGN Technology .................................................................. 2013

Midland .................................................................................. 2053

Minolta ............................................................. 2055, 2056, 2107

Mitsubishi ............ 2029, 2055, 2056, 2065, 2066, 2067, 2068,

........... 2069, 2070, 2071, 2072, 2073, 2074, 2106, 2113, 2123

Montgomery Ward .................................................... 2075, 2132

Motorola ..................................................................... 2021, 2132

MTC ............................................................................. 2013, 2126

Multiteeh .................................... 2013, 2016, 2026, 2053, 2061

NEC ............................................... 2009, 2010, 2011,2016, 2018,

............................................ 2064, 2076, 2078, 2079, 2111, 2123

Nikko ...................................................................................... 2014

Noblex .................................................................................... 2013

Olympus ................................................................................. 2021

Optimus ....................................................................... 2014, 2132

Optonica ................................................................................ 2096

Panasonie ......................... 2021, 2022, 2109, 2125, 2126, 2127

Pentax .......................................... 2016, 2055, 2056, 2107, 2120

Pentex Research .................................................................... 2018

Philco ..................................................... 2021, 2022, 2062, 2063

Philips .................................................... 2021, 2062, 2096, 2124

Pilot ........................................................................................ 2014

Pioneer ........................................ 2010, 2055, 2080, 2081, 2123

Portland .................................................. 2016, 2017, 2019, 2110

Proscan ............................................................. 2000, 2001, 2131

Protee ..................................................................................... 2061

Pulsar ..................................................................................... 2104

Quarter .................................................................................... 2011

Quartz ..................................................................................... 2011

Quasar ............................................................... 2021, 2022, 2125

RCA ...................... 2000, 2001, 2003, 2013, 2021, 2055, 2056,

.................. 2082, 2083, 2084, 2085, 2086, 2087, 2088, 2089,

....................... 2090, 2091, 2107, 2115, 2120, 2125, 2131, 2133

Radioshack/Realistic ............................ 2011, 2013, 2014, 2021,

.................... 2022, 2023, 2026, 2029, 2049, 2050, 2096, 2132

Radix ...................................................................................... 2014

Randex ................................................................................... 2014

Ricoh ...................................................................................... 2128

Runco ..................................................................................... 2104

Samsung ........................... 2005, 2013, 2015, 2033, 2053, 2112

Sanky ........................................................................... 2104, 2132

Sansui ..................................................... 2010, 2092, 2111, 2123

Sanyo ................................................................ 2011, 2013, 2023

Scott ............ 2012, 2015, 2025, 2032, 2038, 2065, 2093, 2116

Sears ............................................ 2011, 2014, 2021, 2023, 2048,

............................... 2049, 2050, 2051, 2055, 2056, 2107, 2118

Sharp ..................... 2017, 2029, 2094, 2095, 2096, 2097, 2132

Shintom ................................................. 2004, 2056, 2061, 2098

Shogun ................................................................................... 2013

Signature ............................................................................... 2132

Singer ................................................................ 2021, 2061, 2128

Sony ....................................................... 2004, 2098, 2099, 2119

STS ............................................................................... 2021, 2107

Sylvania ................ 2021, 2022, 2026, 2062, 2063, 2065, 2124

Symphonic ............................................................................ 2026

Tandy ...................................................................................... 2011

Tashiko ................................................................................... 2014

Tatung ..................................................................................... 2111

TEAC ..................................................................... 2026, 2085, 2111

Technics .......................................................................... 2021, 2109

Teknika ........................................... 2014, 2021, 2026, 2100, 2129

TMK ...................................................................... 2013, 2024, 2047

Toshiba ....................... 2015, 2049, 2051, 2055, 2065, 2093, 2116

Totevsion ........................................................................ 2013, 2014

Uniteeh ....................................................................................... 2013

Vector Research ........................................ 2009, 2010, 2015, 2016

Victor ......................................................................................... 2010

Video Concepts ............................... 2009, 2010, 2015, 2016, 2113

Videosonic ................................................................................. 2013

Wards ........................................................ 2013, 2014, 2015, 2021,

........................................... 2023, 2026, 2029, 2055, 2056, 2061,

.................................... 2096, 2101, 2102, 2103, 2107, 2116, 2132

XR-IO00 .............................................................. 2021, 2026, 2061

Yamaha ............................................. 2009, 2010, 2011, 2018, 2111

Zenith ............................................... 2004, 2098, 2104, 2119, 2128

DVD codes

Programmable for DVD and VPORT buttons.

Aiwa ........................................................................................... 3009

Apex ................................................................................ 3023, 3024

GE ............................................................................................... 3000

Hitachi ....................................................................................... 3008

JVC .................................................................................. 3002, 3010

Konka ............................................................................... 3011, 3012

Magnavox ................................................................................. 3003

Mitsubishi .................................................................................. 3004

Panasonie .................................................................................. 3013

Philips ....................................................... 3003, 3019, 3021, 3022

Pioneer ....................................................................................... 3005

Proscan ...................................................................................... 3000

RCA ................................................................................. 3000, 3001

Samsung .................................................................................... 3025

Sanyo ......................................................................................... 3014

Sony ..................................................................... 3006, 3015, 3016

Toshiba ................................................................. 3007, 3017, 3020

Zenith ......................................................................................... 3018

Chapter 2 Graphics contained within this publication are for representation only. 13

Channel Banner

There are several items that might appear on-screen when

you press the IV or INFO button on the remote. This display is

called the Channel Banner. The following list describes the

items on the Channel Banner screen (left to right and top to

bottom).

SAP Displayed when the current channel

KidPass:2:24

CC

Stereoor Mono

Skip: 0:30

07:18 am

06ABCDEF

is broadcasting SAP (Second Audio

Program) information.

Displayed when V-Chip has been

activated.

Displayed when KidPass is set and the

length of time remaining.

Displayed when Closed Captioning is

available on the current channel.

Stereo displayed when the current

channel is broadcasting in stereo.

Mono displayed when the current

channel is broadcasting in mono.

Corresponds to the SKIP button.

Shows the amount of time left before

the TV switches back to the previous

channel.

Displays the current time.

Displays the current channel and

label assigned to the channel.

Displayed when you mute the sound.

Why You Should Use the Auto Tuning Feature

The auto tuning feature tunes the IV to the correct channel for different

components you have connected to your IV {like a VCR, DVD player, etc.). When

you set up auto tuning in the menu system you don't have to remember to change

your IV to channel 3, for example, when you want to watch the tape in yourVCR.

How to Set Up the Auto Tuning Feature

The way you set up the auto tuning feature in the Iv's menu corresponds to the

component buttons on the remote and the way you have each component

connected to your IV. When you set up auto tuning, you're telling the IV what

channel to tune to when you press the VCR or DVD button on the remote control.

1. Press MENU (the MAIN MENU appears).

2. Highlight Setup and press OK on your remote control.

3. Highlight Auto Tuning and press OK.

14 Graphics contained within this publication are for representation only. Chapter 3

Usin 9 the W°s Features

4. Choosewhich channel you want to set:

Set VCR1 Letsyou set up the channel the TVtunes to when you pressthe VCR

button.

Set VCR2 Not available with your remote control.

Set SAT/CABLENot available with your remote control.

Set DVD Letsyou set up the channel the TVtunes to when you pressthe DVD

button.

5. Pressthe right arrow button to selectthe choice that matchesthe way you

havethe component connected to this TV.

The choicesand a brief explanation follow:

N/A Choosethis if you don't have this particular component

connected to the TV,or if you don't want the TVto

automatically tune to the correct channel when you're using

this component.

CH02(SAT/CABLEonly- Not available with your remote

control).

CH03or04 Component isconnected to the TVANTjack on

the back of the TV,and you want the TVto tune to channel 3

or 4 when you pressthe corresponding button on the

remote. Reminder: makesure the component's Channel 3/4

switch is set to the appropriate channel.

VID1 Component isconnected to the VIDEO1 VIDEOor

S-VIDEOINjack on the back of the TVand you want the TV

to tune to a video input channel when you pressthe

corresponding button.

VID2 Component isconnected to the VIDEO2 VIDEOor

Y, Pb,Prjacks on the back of the TVand you want the TVto

tune to a video or component video input channel when you

pressthe corresponding button.

FRNT(Front VideoInput) Component is connected to the

VIDEOjack on the front of the TVand you want the TVto

tune to the front video input channel when you pressthe

corresponding button.

Parental Controls and V-Chip

The choicesin the USAV-CHIPmenu involve software inside your TV (referred to as

V-Chip) which allows you to block TV programsand movies basedon violence, sex,

or other content you may believe children should not view.

Onceyou block programs,you can unblock programs by entering a password.

By default, the software inside your TVis turned "off." For instructions to turn on

V-Chip, go to page 21.

Chapter 3Graphics contained within this publication are for representation only. 15

Usin 9 the W°s Features

How V-Chip Works

V-Chip reads the program's age-based rating [TV-MA, TV-14, etc.) and content themes

[(Violence (V), Adult Language (L), etc.)]. If you have blocked the rating and/or content

themes that the program contains, you will receive the message This channel has not

been approved for viewing. Change channel or press OK to enter password and temporarily

deactivate the Parental ControL

Broadcasters are not required to provide content themes, so programs received with no

content themes will only be blocked if you block their age-based rating. You can also

block out programs that have been given a rating of Not Rated, and programs that are

considered unrated. The TV age-based ratings and content themes you can block follow:

USA V-Chip Rating System

TV-MA (Mature Audience Only) Specifically designed to be viewed by adults and may

be unsuitable for children under 17. It contains one or more of the following content

themes: crude indecent language (L), explicit sexual activity (S), or graphic violence (V).

TV-14 (Parents Strongly Cautioned) Contains some material that many parents would

find unsuitable for children under 14. Parents are strongly urged to exercise greater

care in monitoring this program and are cautioned against letting children under the

age of 14 watch unattended. This program contains one or more of the following

content themes: intensely suggestive dialogue (D), strong coarse language (L), intense

sexual situations (S), or intense violence (V).

TV-PG (Parental Guidance Suggested) Contains material that parents may find

unsuitable for younger children. Many parents may want to watch it with their

younger children. The program contains one or more of the following content themes:

some suggestive dialogue (D), infrequent coarse language (L), some sexual situations (S),

or moderate violence (V).

TV-G (General Audience) Most parents would find this program suitable for all ages. It

contains little or no sexual dialogue (D) or situations (S), no strong language (L), and

little or no violence (V).

TV-Y7 (Directed to Children 7 years and older) Designed for children ages 7 and

above. It may be more appropriate for children who have acquired the developmental

skills needed to distinguish between make-believe and reality. Themes and elements in

this program may include mild fantasy violence (FV) or comedic violence, or may

frighten children under the age of 7.

TV-Y (All Children) Themes and elements in this program are designed for a young

audience, including children from ages 2-6. It is not expected to frighten younger

children.

Canadian English V-Chip Rating System

18+ (Adults) Programming intended for adults 18 and older. It may contain elements

of violence, language, and sexual content which could make it unsuitable for viewers

under 18. Violence Guidelines: May contain violence integral to the development of the

plot, character or theme, intended for adult audiences. Other Content Guidelines: May

contain graphic language and explicit portrayals of nudity and/or sex.

1 6 Graphics contained within this publication are for representation only. Chapter 3

Usin 9 the W°s Features

14+ {Viewers 14 and over) Programming contains themes or content which may not be

suitable for viewers under the age of 14. Parents are strongly cautioned to exercise

discretion in permitting viewing by pre-teens and early teens. Violence Guidelines: May

contain intense scenes of violence. Could deal with mature themes and societal issues in a

realistic fashion. Other Content Guidelines: May contain scenes of nudity and/or sexual

activity. There could be frequent use of profanity.

PG {Parental Guidance) Programming intended for a general audience but which may not

be suitable for younger children {under the age of 8). Parents may consider some content

inappropriate for unsupervised viewing by children aged 8-13. Violence Guidelines:

Depictions of conflict and/or aggression will be limited and moderate; may include physical,

fantasy, or supernatural violence. Other Content Guidelines: May contain infrequent mild

profanity, or mildly suggestive language. Could also contain brief scenes of nudity.

G {General Audience) Programming considered acceptable for all ages groups. While not

designed specifically for children, it is understood younger viewers may be part of the

audience. Violence Guidelines: Will contain very little violence, either physical or verbal or

emotional. Will be sensitive to themes which could frighten a younger child, will not depict

realistic scenes of violence which minimize or gloss over the effects of violent acts. Other

Content Guidelines: There may be some inoffensive slang, no profanity and no nudity.

C8+ {Children 8 and Older) Programming generally considered acceptable for children 8

years and over to watch on their own. Violence Guidelines: Violence will not be portrayed

as the preferred, acceptable, or only way to resolve conflict or encourage children to

imitate dangerous acts which they may see on television. Any realistic depictions of

violence will be infrequent, discreet, of low intensity and will show the consequences of the

acts. Other Content Guidelines: There will be no profanity, nudity or sexual content.

C {Children) Programming intended for children under age 8. Violence Guidelines: Careful

attention is paid to themes which could threaten children's sense of security and well

being. There will be no realistic scenes of violence. Depictions of aggressive behaviour will

be infrequent and limited to portrayals that are clearly imaginary, comedic or unrealistic in

nature. Other Content Guidelines: There will be no offensive language, nudity or sexual

content.

Canadian French V-Chip Rating System

18+ {Adults) Programming is for adults only. This program contains sustained violence or

extremely violent scenes.

16+ {Viewers 16 and over) Programming is not suitable for those under age 16. This

program contains frequent scenes of violence or intensely violent scenes.

13+ {Viewers 13 and over) Programming may not be suitable for children under the age of

13. This program either contains several violent scenes or one or more scenes that are

violent enough to affect them. Viewing in the company of an adult is therefore strongly

recommended for children under the age of 13.

8+ {Viewers 8 and over) Not recommended for young children. This program is suitable for

most audiences, but it contains mild or occasional violence that could upset young

children. Viewing in the company of an adult is therefore recommended for young children

{under the age of 8) who do not distinguish between reality and imagination.

G {General Audience) This program is suitable for audiences of all ages. It contains no

violence, or any violence that it does contain is either minimal or is presented in a

humorous manner, as a caricature, or in an unrealistic way.

Chapter 3Graphics contained within this publication are for representation only. 17

Using the W°s Features

USA V-Chip TV Rating Limit

The V-Chip TV Rating Limit let you decide which TV

programs can and cannot be viewed.

To set TV programming limits:

1. Choose ParentalControlfrom the MAIN MENU (the

PASSWORD screen appears the first time you enter the

Parental Control menu). Create your password using the

number buttons on the remote.

2. Highlight and select USA V-Chip. Then select R/Ratings.

3. Once you get to the R/RATINGLIMITscreen, use the

arrow buttons and OK on your remote to change the

status of a TV program rating or content theme from

View to Block.

4. For TV rating limits to take effect, turn on V-Chip active

in the PARENTAL CONTROL menu (box has check mark).

The following sections give you more details about how to

change the status of TV program limits.

Note:If you forget your passwordyou canresetit. Makesure the

TVis off. Simultaneouslypressand hold VOL<on the TV'sfront

panel and CLEARon the remote for approximately 5 seconds.Enter

a new password next time youaccessthe PARENTALCONTROL

menu.

The V-Chip Rating Screen

The following is an example of where items are located within the R/RAtiNG LIMIT

screen.

Rating Status Field

Lets you select whether the status of the age-based rating limit

to the left is View or Block.

Rating Field

Lets you select from

a list of age-based

ratings you can

block or view.

Content Themes

Lists the content themes

you can block or view.

Content Status Fields

Lets you select which

content themes to view

for the selected rating,

and whether the status of

the content theme is

currently View (V) or Block

(B).

Rating Settings Area

Lets you see the current block/view state of age-based ratings and

associated content.

18Graphics contained within this publication are for representation only. Chapter 3

Usin 9 the W°s Features

Hierarchy of Age-Based Ratings

W-MA Mature Audience Only

11/-14 Parents Strongly Cautioned

IV-PG Parental Guidance Suggested

IV-G General Audience

IV-Y7 Directed to Children 7 years and

older

W-Y All Children

Content Themes

D Sexually explicit dialogue

L Adult language

S Sexual situations

V Violence

FV Fantasy Violence

Blocking Age-Based Ratings

You can automatically block all program ratings above a

specified age-based rating level.

To block programs with higher ratings:

1. Press the up or down arrow button to scroll to the rating

corresponding with the lowest rating you do not want

the child to watch.

2. Press the OK button to toggle between View and Block.

The status for the rating listed to the left and all higher

ratings automatically changes to Block.

3. Press the up or down arrow button to highlight Go back

and press OK.

4. Turn on V-Chip active in the PARENTAL CONTROLmenu

(box has check mark) for rating limits to take effect.

Viewing Age-Based Ratings

After you block age-based ratings, you can change some of

the ratings back to View.

1. Press the up or down arrow button to select the rating

with a status of Block.

2. Press OK to select View.

Blocking Specific Content Themes

You can block programs based on their content. (Content is

represented by the D, L, S, V and FV on your screen.) When

you block a content theme for a particular rating, you

automatically block that content theme for higher rated

programs as well.

To block program content:

1. Determine the content themesyou want to block.

2. Press the down arrow button to scroll to the rating

whose content theme you want to change.

3. Press the right arrow button to move the highlight to a

particular content theme status.

4. Press the OK button to change its status to B. (In the

example to the left, you block the language {L)

corresponding with TV-14. The language for TV-MA is

blocked as well).

Notes.Broadcastersarenot required to provide content themesor

age-t_asedratings.

Youmust remember to activate Parental Controlsfor rating limits to

takeeffect.

Viewing Specific Content Themes

If you block specific content themes, you have the option of

going back and changing some of the content themes back

to (V) View:

Chapter 3 Graphics contained within this publication are for representation only. 19

Usin 9 the W°s Features

1. Determine the content themes you want to change to (VJ View.

2. Press the down arrow button to scroll to the rating whose content theme you want to

change, such as Bunder language (L) corresponding with TV-14.

3. Press the right arrow button to move the highlight to a particular content theme status.

4. Press the OK button to change the status back to V. Your child would then be able to

watch programs with the TV-14 adult language content, but not programs with TV-MA

language content.

Note: Only the content themestatus correspondingto 11/-14 (L)language changesto (V)Vie_zHigher rated

content themes,such as that for TV-MAlanguage, do not change.

Blocking Canadian V-Chip Ratings

If you receive Canadian programs you can block Canadian

English and French V-Chip by ratings only. When you block a

particular rating, you automatically block the higher rated

programs as well.

To block Canadian English and French program ratings:

1. Select Canada V-Chip from the PARENTAL CONTROL

menu.

2. Highlight English Ratings or French Ratings and press

OK.

3. Determine the rating you want to block.

4. Press the down arrow button to scroll to the rating you

want to change.

5. Press the OK button to change its status to block (the

lock icon appears and all ratings above the one you

selected change to lock).

V-Chip Movie Rating Limit

Set movie rating limits by blocking movies rated above a specified level.

To access the Movie Rating Limit menu:

1. Press MENU on the remote control (the MAIN MENU appears).

2. Select Parental ControL

3. Select USA V-Chip.

4. Select Movie Ratings.

Blocking Movie Ratings

Once you are in the Movie Rating Limit menu, follow the same steps described for blocking

Canadian V-Chip Ratings.

V-Chip Exempt Program Block

The Exempt Prgms. option lets you decide if programs that the V-Chip recognizes as unrated can be

viewed. Unrated TV programs may include news, sports, political, religious, local and weather

programs, emergency bulletins, public announcements, and programs without ratings. The Exempt

option applies to both USA and Canadian unrated programs and Canadian programs rated E.

20 Graphics contained within this publication are for representation only. Chapter 3

Usin 9 the W°s Features

Unlocked All unrated programs are available.

Locked All unrated programs are not available.

Note: Youmust rememberto activate V-Chipfor rating limits to takeeffect.

Press the down arrow to highlight Exempt Prgms. Then press the right arrow to toggle between

the lock and unlock icon.

KidPass

The KidPass feature allows parents to set a certain amount of time every day of the week that a

child can watch TV. To set KidPass:

1. Select Parental Controlfrom the main menu.

2. Select KidPass (the KIDPASS menu appears with Current Day highlighted).

Note: If you can't selectKidPass,you needto set the time.Highlight GoBack,pressthe right arrow,then select

Time.Highlight Time,then enter the time using the number buttons.

3. Press the right arrow to select the current day.

4. Press the down arrow button to choose the day of the week.

5. After you've chosen the day of the week, press the right arrow to select the amount of time:

Free and 00:30 up to 16:00 [30 minute increments).

6. When you're done setting KidPass, select Go Back.

7. Highlight KidPass active and press the right arrow to activate the KidPass settings [box has

check mark). The KidPass takes effect immediately.

When the time has expired, the TV shuts off. If you turn on the TV the same day it shut off, the

password screen appears {enter the password used for V-Chip).

V-Chip Active

Selecting this option lets you activate and deactivate parental control settings.

1. From the PARENTAL CONTROL menu, press the up or down arrow to highlight V-Chip active.

2. Press the right or left arrow to turn on {box has check mark) or off {box doesn't have check

mark) V-Chip active.

If you do not activate V-Chip, none of the settings for V-Chip will take effect.

If you forget your password you can reset it. Make sure the TV is off. Simultaneously press and

hold VOL< on the TV's front panel and CLEAR on the remote for approximately 5 seconds. Enter a

new password next time you access the PARENTAL CONTROL menu.

Front Panel Lock

Selecting this option lets you lock {disable) or unlock {enable) the TV's front panel. The remote still

tunes to any channel. When using this as a Parental Control method, remove access to any remote

that is capable of operating the television.

1. From the PARENTAL CONTROL menu, press the up or down arrow to highlight Lock Fr. PaneL

2. Press the right or left arrow to turn on {box has check mark) or off {box doesn't have check

mark) front panel lock.

Change Password

Selecting this option lets you simply create a new password at any time. Once you enter a new

password from Change Passwd. in the PARENTAL CONTROL menu it is the password you use until

you change it again.

Chapter 3Graphics contained within this publication are for representation only. 21

Sound Menu

Treble Increases or decreases the treble.

Bass Increases or decreases the bass.

Balance Press the right arrow to increase the audio output

in the right speaker; press the left arrow to increase the

audio output in the left speaker.

Sound Type Press the right arrow to scroll through the

available audio types, which control the way the sound

comes through your speakers: Mono plays the sound in mono

only. Use this setting when receiving broadcasts with weak

stereo signals; Stereo to split the incoming stereo audio

signal into left and right channels; and Enhanced for

simulated surround sound. Most TV programs and recorded

materials have stereo audio. The word Stereo appears on the

TV when you tune to a program that is broadcast in stereo.

SAP [Second Audio Program) Plays the program's audio in

a second language, if one is available. The TV displays the

word SAP when you tune to a program that is broadcast with

SAP information. SAP audio is broadcast in mono. SAP is also

used to broadcast a program's audio with descriptions of the

video for the visually impaired.

Auto Vol level (Auto Volume Level) Reduces the annoying

blasts in volume during commercial breaks. Eliminates the

need to constantly adjust volume control.

Audio Output Press the right arrow to scroll through the

available output settings: Fixed allows fixed output from the

TV's audio output jacks to an external component such as a

surround sound amplifier; and Variable allows variable

output from the TV's audio output jacks.

Int. Speakers (Internal Speakers) Turns the TV's internal

speakers on or off. Turn off the internal speakers if you have

an audio receiver or amplifier connected to the TV.

Picture Menu

The PICTURE menu options apply to the video for the main

TV and video input selections.

Picture Preset Press the right arrow to scroll through the

available picture preset settings: Natural, Bright, Soft, and

Personal Choose the setting that is best for your viewing

environment.

Auto Color Turn this option on to automatically correct the

color of the picture. This is especially useful for tracking

realistic flesh tone colors as you switch channels.

22 Graphics contained within this publication are for representation only. Chapter 4

Usin 9 the W°s Menu System

Color Warmth Press the right arrow to scroll through the color adjustments: Cool

for a more blue palette of picture colors; Normal; and Warm for a more red palette

of picture colors.

Brightness Adjusts the brightness of the picture.

Color Adjusts the richness of the color.

Contrast Adjusts the difference between the light and dark areas of the picture.

Sharpness Adjusts the crispness of the edges in the picture.

Note: Sharpnessisnot available for CVID2or VPORT

Tint Adjusts the balance between the red and green levels.

When you change any of these picture settings, the Picture Preset changes to

Personal Use the left or right arrow button to make adjustments. To return to the

PICTURE menu, press the up or down arrow button.

Setup Menu

Auto Ch. Search (Auto Channel Search) Allows you to

choose your signal type and begin an auto channel search.

Signal Type Press the left or right arrow to toggle

between the signal your TV is receiving. Choose Cable if

you are currently using cable or a cable box for TV

signals. Choose Antenna if you are currently using an

off-air antenna for TV signals.

Start Searches for channels the signal is receiving and

stores them in the TV's channel list. Go to page 8 for

more information.

List Ef Labels Edit the channels in the list or choose labels

for each channel. To delete a channel from the channel list,

highlight Channel and use the left or right arrow to select

the channel. Then highlight In listand press the OK button.

The box should no longer display a check mark. To add a label

to a channel, select the channel in the Channel option. Press

the down arrow to highlight LabeL Press the right arrow to

highlight the first space. Use the up or down arrow to ascend

or descend through the characters. Continue to press the

right arrow to highlight the space and the up or down arrow

to add a character. Press OK when you're done adding a label.

Closed Caption Many programs are encoded with closed-

captioning information, which lets you display the audio

portion of a program as text on the TV screen.

Closed captioning is not available on all channels at all times.

Only specific programs encoded with closed-captioning

information are applicable. When a program is closed

captioned, CCis displayed in the channel banner. Go to

Chapter 3 for more information about the channel banner.

The closed caption options are:

CC Display Lets you choose the way closed captioning

information is shown on the screen.

Chapter 4 Graphics contained within this publication are for representation only. 23

Usin 9 the W°s Menu System

Off No captioning information displayed.

On Captioning information always appears, when available.

Muted=On Displays captioning information, when available, whenever

the TV's sound is muted by pressing the MUTE button. The captioning

information is not displayed when the sound is not muted.

CCMode Choose which captioning mode is used for displaying captioning

information. If you are unsure of the differences among the modes, you may

prefer to leave the closed captioned mode set to CC1, which displays complete

text of the program in the primary language in your area.

Auto Tuning Displays a choice list that lets you set up the TV to automatically

tune to the correct input channel when you press a component button (VCR or

DVD) on the remote. Go to Chapter 3 for details about the Auto Tuning feature.

Language Lets you select your preferred language for the menus.

Parental Control Menu

The Parental Control menu was explained in Chapter 3. Go to page 15 for more

information.

Time Menu

Sleep Timer Lets you set the TV to turn off after a given

time. Press the right arrow to add 15 minutes to the clock

(up to four hours).

Time ref. Ch Choose a channel so the TV sets the time for

you. Note that local channels usually broadcast the time.

Time Time is set if you select a reference channel (see

above). If time is not obtained, then enter it manually. If it is

8:25, for example, you must first press the number 0 on the

remote, then number 8, then 2 and then 5. Use the OK

button to choose between AM and PM.

Wake-Up Timer Lets you set the TV to turn itself on.

Note: Whenthe TVturns on by the wake-up timer and no remote or

front panel buttons arepressedfor 2hours,the TVwill turn itself of£

Wake-Up Time Lets you set the time you want the TV to

turn itself on.

Wake-Up Ch Lets you select a specific channel the TV tunes

to when the wake-up timer is set.

24 Graphics contained within this publication are for representation only. Chapter 4

Troubleshooting

Most problems you encounter with your TV can be corrected by consulting the following

troubleshooting list.

Note: If youprefer,we canprovide you with the name of anAuthorized ServiceRepresentativewho will visit your home

for afee to install your electronicentertainment systemand to instruct you in its operation.Fordetails a_out this

service,call 1-888-206-3359. Foradditional assistancewhile using your RCAproduct, pleasevisit ww_zrca.com/

customersupport.

TV Problems

TV won't turn on

• Press the TV button.

• Make sure the TV is plugged in.

• Check the wall receptacle (or extension cord) to make sure it is "live" by plugging in something else.

• Something might be wrong with your remote control. Pressthe POWERbutton on the front of the TV. If

the TVturns on, check the remote control solutions on page 26.

• The front panel controls may be locked (disabled). Usethe remote control to unlock the front panel

controls by selecting the Lock Ft. Panel in the PARENTALCONTROLmenu and press OK (box won't have

check mark).

Buttons don't work

• If you're using the remote control, pressthe TV button first to make sure the remote is in TV mode.

• The front panel controls may be locked (disabled). Usethe remote control to unlock the front panel

controls by selecting the Lock Ft. Panel in the PARENTALCONTROLmenu and press OK (box won't have

check mark).

• Unplug the TVfor two minutes and then plug it back in. Turn the TV on and try again.

TV turns off unexpectedly

•Sleep timer may have been activated. Go to page 24 for instructions.

• KidPass may have been activated. Go to page 21 for instructions.

• Wake-Up timer turned on the TV and no remote or front panel buttons were pressed for two hours.

• Electronic protection circuit may have been activated because of a power surge. Wait 30 seconds and then

turn on again. If this happens frequently, the voltage in your house may be abnormally high or low.

• Unplug TV. Wait five minutes. Plug it in again.

TV turns on unexpectedly

• Wake-Up timer might have been activated. Go to page 24 for instructions.

• You might have pressed CH+, CH- or OK on the remote accidentally.

Blank screen

• Make sure the component connected to the TV is turned on.

• Try another channel.

No sound, picture okay

• Maybe the sound is muted. Try pressing the volume up button to restore sound.

• If using S-Video or Y, Pb, Pr, remember to also connect the component's left and right audio output jacks

to the TV'sAUDIO jacks.

• Make sure the Int. Speakers option in the SOUND menu is turned on.

Can't select certain channel

• Channel may be blocked or not approved through the V-Chip.

• If using a VCR, make sure the TViVCRbutton on the VCR is in the correct mode (press the TV/VCR button

on your VCR).

Chapter 5Graphics contained within this publication are for representation only. 25

Other nformation

Noisy stereo reception

•May be a weak station. Access the SOUND menu, highlight Sound Type and then choose Mono.

No picture, no sound but TV is on

•Maybe the signal type is set wrong. Go to page 23 for detailed instructions.

• The channel might be blank- change channels.

• If you're watching your VCR and it's connected with coaxial cable to the TV ANT jack, tune the TV to

channel 3 or 4 (whichever channel is selected on the 3/4 switch on the back of your VCR). Also make sure

the TV/VCR button on the VCR is in the correct mode (press the TV/VCRbutton on your VCR).

Sound okay, picture poor

•Check antenna connections. Make sure all of the cables are firmly connected to the jacks.

• Try adjusting sharpness function to improve weak signals. Go to page 23 for more instructions.

Black box appears on the screen

• Closed-captioning might be on. Check Closed Caption in the SETUPmenu. Go to page 23 for more

instructions.

PASSWORD menu appears

• KidPass option is activated and you try to reset the time.

• You turn the TVon after KidPassshut off the TV.

The Remote Control Doesn't Work

• Something might be between the remote and the remote sensor on the component. Make sure there is a

clear path.

• Maybe the remote isn't aimed directly at the component (TV,VCR,etc.) that you're trying to operate.

• Maybe remote is not in TV Mode. Pressthe TV button so the remote will operate the TV.

• Maybe batteries in remote are weak, dead, or installed incorrectly. Put new batteries in the remote. (Note,

if you remove the batteries, you may have to reprogram the remote to operate other components.)

• You might need to drain the remote's microprocessor: remove batteries and press the number 1 button for

at least 60 seconds. Releasethe 1 button, replace the batteries, and (if necessary) program the remote

again.

Problems with V-Chip/Parental Controls

The rating limits don't work

• You must activate the settings. Go to the MAIN MENU (press MENU on your remote), select Parental

Control, highlight and turn on V-Chip active (box has check mark).

I don't remember my password and I want to unlock the TV

• If you forget your password you can reset it. Make sure the TV is off. Simultaneously pressand hold VOL<

on the TV's front panel and CLEARon the remote for approximately 5 seconds. Enter a new password next

time you access the PARENTALCONTROLmenu.

The V-Chip won't let me watch aprogram even though it's not rated as violent.

•Maybe the movie was given an NR (Not Rated) status. After you block movie ratings, you must unlock NR

separately in order to view movies with an NR rating.

Problems with VPORT Connection

No picture

• Press the INPUTbutton until VPORTappears on-screen.

•If using the Component video to VPORTcable, make sure the cables to the other component are connected

correctly.

26 Graphics contained within this publication are for representation only. Chapter 5

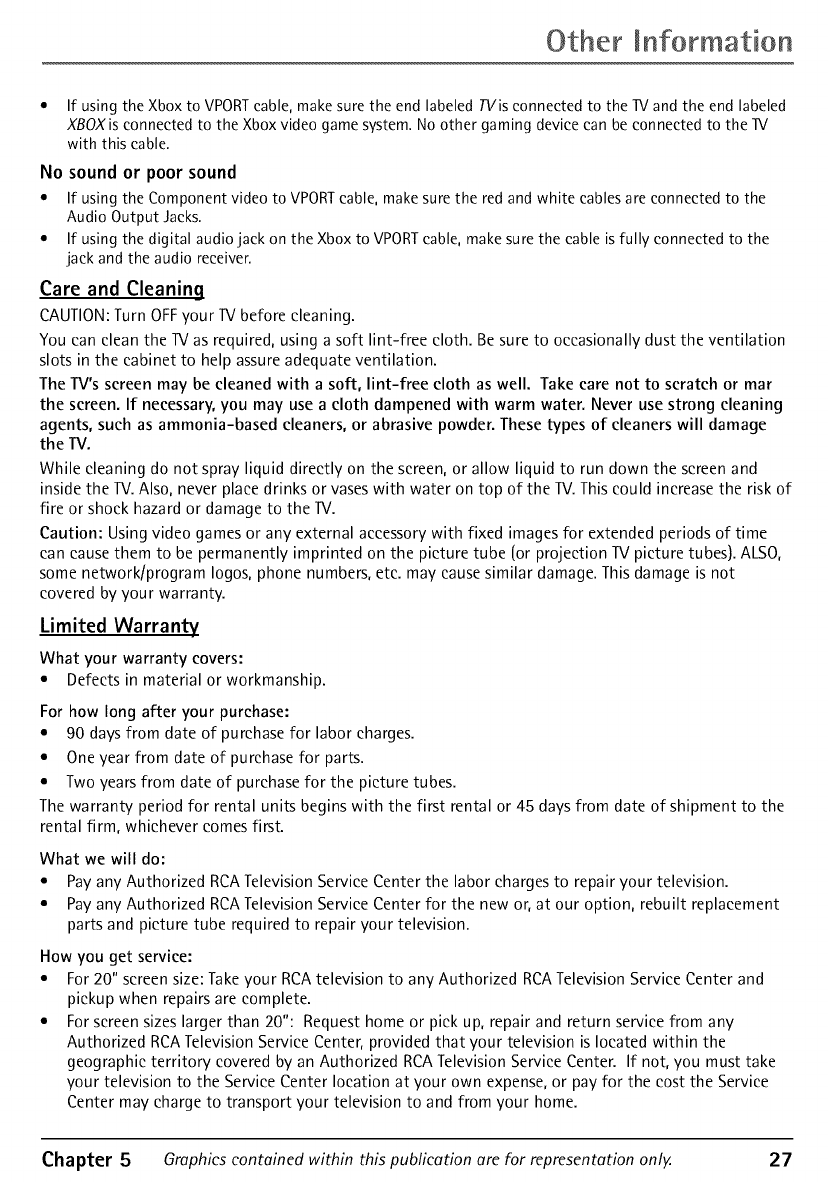

Other Information

• If using the Xbox to VPORTcable, make sure the end labeled TVis connected to the TV and the end labeled

XBOX is connected to the Xbox video game system. No other gaming device can be connected to the TV

with this cable.

No sound or poor sound

•If using the Component video to VPORTcable, make sure the red and white cables are connected to the

Audio Output Jacks.

• If using the digital audio jack on the Xbox to VPORTcable, make sure the cable is fully connected to the

jack and the audio receiver.

Care and Cleaning

CAUTION: Turn OFFyour TV before cleaning.

You can clean the TV as required, using a soft lint-free cloth. Be sure to occasionally dust the ventilation

slots in the cabinet to help assure adequate ventilation.

The TV's screen may be cleaned with a soft, lint-free cloth as well. Take care not to scratch or mar

the screen. If necessary, you may use a cloth dampened with warm water. Never use strong cleaning

agents, such as ammonia-based cleaners, or abrasive powder. These types of cleaners will damage

the IV.

While cleaning do not spray liquid directly on the screen, or allow liquid to run down the screen and

inside the TV. Also, never place drinks or vases with water on top of the TV. This could increase the risk of

fire or shock hazard or damage to the TV.

Caution: Using video games or any external accessory with fixed images for extended periods of time

can cause them to be permanently imprinted on the picture tube {or projection TV picture tubes). ALSO,

some network/program Iogos, phone numbers, etc. may cause similar damage. This damage is not

covered by your warranty.

Limited Warranty

What your warranty covers:

• Defects in material or workmanship.

For how long after your purchase:

•90 days from date of purchase for labor charges.

• One year from date of purchase for parts.

• Two years from date of purchase for the picture tubes.

The warranty period for rental units begins with the first rental or 45 days from date of shipment to the

rental firm, whichever comes first.

What we will do:

• Pay any Authorized RCA Television Service Center the labor charges to repair your television.

• Pay any Authorized RCA Television Service Center for the new or, at our option, rebuilt replacement

parts and picture tube required to repair your television.

How you get service:

• For 20" screen size: Take your RCA television to any Authorized RCA Television Service Center and

pickup when repairs are complete.

• For screen sizes larger than 20": Request home or pick up, repair and return service from any

Authorized RCA Television Service Center, provided that your television is located within the

geographic territory covered by an Authorized RCA Television Service Center. If not, you must take

your television to the Service Center location at your own expense, or pay for the cost the Service

Center may charge to transport your television to and from your home.

Chapter 5 Graphics contained within this publication are for representation only. 27

Other nformation

• To identify your nearest Authorized RCA Service Center, ask your dealer, visit www.rca.com, look in

the Yellow Pages, or call 1-800-336-1900.

• Proof of purchase in the form of a bill of sale or receipted invoice which is evidence that the product

is within the warranty period must be presented to obtain warranty service. For rental firms, proof

of first rental is also required.

What your warranty does not cover:

• Customer instruction. (Your Owner's Manual describes how to install, adjust, and operate your

product. Any additional information should be obtained from your dealer.)

• Installation and related adjustments.

• Signal reception problems not caused by your television.

• Damage from misuse or neglect.

• Batteries.

• Customer replacement fuses.

• Damage from images burnt onto the screen.

• A television that has been modified or incorporated into other products or is used for institutional or

other commercial purposes.

• Acts of nature, such as but not limited to lightning damage.

• A television purchased or serviced outside the U.S.A.

Product Registration:

• Please complete and mail the Product Registration Card packed with your TV or register on-line at

www.rca.com/productregistration. It will make it easier to contact you should it ever be necessary.

The return of the card is not required for warranty coverage.

Limitation of Warranty:

• THE WARRANTY STATED ABOVE IS THE ONLY WARRANTY APPLICABLE TO THIS PRODUCT. ALL

OTHER WARRANTIES, EXPRESSOR IMPLIED {INCLUDING ALL IMPLIED WARRANTIES OF

MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE) ARE HEREBY DISCLAIMED. NO

VERBAL OR WRITTEN INFORMATION GIVEN BY THOMSON INC., ITS AGENTS OR EMPLOYEES

SHALL CREATE A GUARANTY OR IN ANY WAY INCREASE THE SCOPE OF THIS WARRANTY.

REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY OF

THE CONSUMER. THOMSON INC. SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL

DAMAGES RESULTING FROM THE USE OF THIS PRODUCT OR ARISING OUT OF ANY BREACH OF

ANY EXPRESSOR IMPLIED WARRANTY ON THIS PRODUCT. THIS DISCLAIMER OF WARRANTIES

AND LIMITED WARRANTY ARE GOVERNED BY THE LAWS OF THE STATE OF INDIANA. EXCEPTTO

THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF MERCHANTABILITY

OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED TO THE APPLICABLE

WARRANTY PERIOD SET FORTH ABOVE.

How state law relates to this warranty:

•Some states do not allow the exclusion nor limitation of incidental or consequential damages, or

limitations on how long an implied warranty lasts, so the above limitations or exclusions may not

apply to you.

• This warranty gives you specific legal rights, and you also may have other rights that vary from state

to state.

If you purchased your product outside the United States:

• This warranty does not apply. Contact your dealer for warranty information,

Service calls which do not involve defective materials or workmanship are not covered by this

warranty. Costs of such service calls are the sole responsibility of the purchaser.

28 Graphics contained within this publication are for representation only. Chapter 5

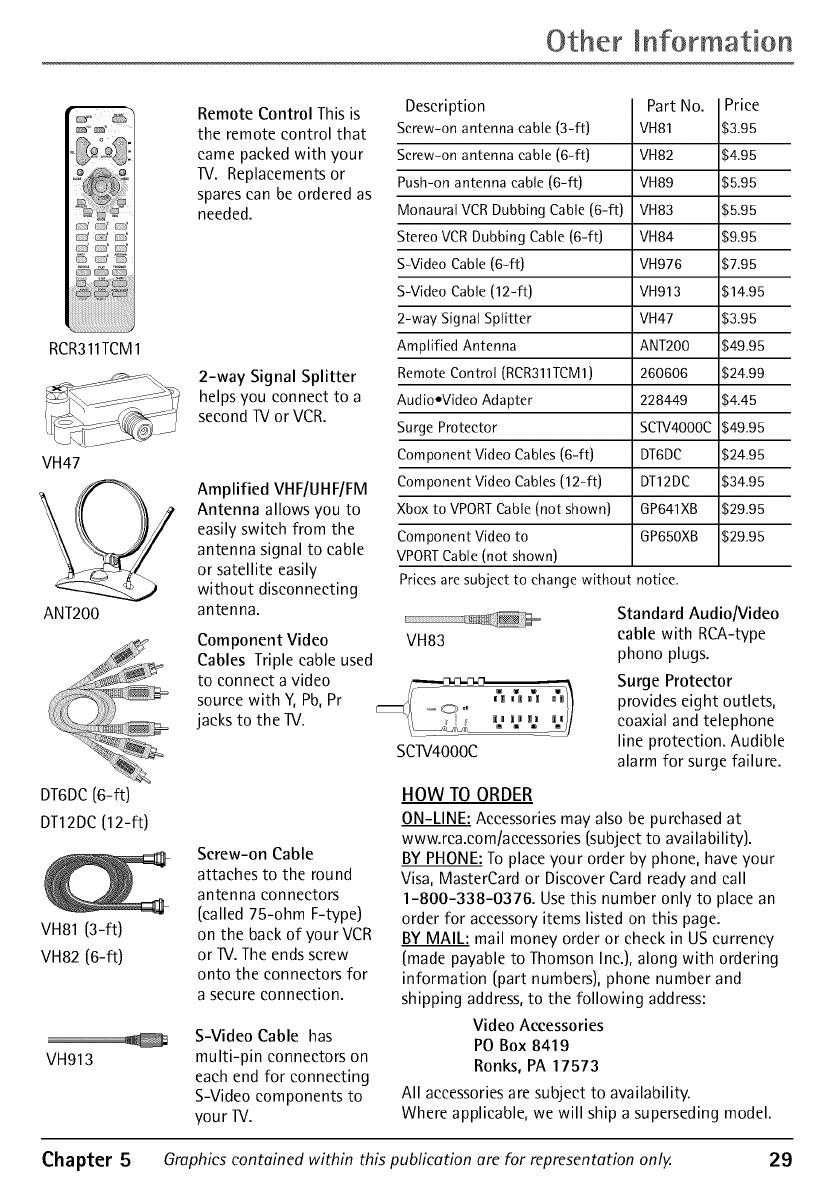

Other Information

Ef '_

_'_ D _

RCR311TCM1

VH47

ANT200

DTGDC {6-ft)

DT12DC {12-ft)

VH81 {3-ft)

VH82 (6-ft)

Remote Control This is

the remote control that

came packed with your

TV. Replacements or

spares can be ordered as

needed.

2-way Signal Splitter

helps you connect to a

second TV or VCR.

Amplified VHF/UHF/FM

Antenna allows you to

easily switch from the

antenna signal to cable

or satellite easily

without disconnecting

antenna.

Component Video

Cables Triple cable used

to connect a video

source with Y, Pb, Pr

jacks to the TV.

Screw-on Cable

attaches to the round

antenna connectors

(called 75-ohm F-type)

on the back of your VCR

or TV. The ends screw

onto the connectors for

a secure connection.

S-Video Cable has

VH913 multi-pin connectors on

each end for connecting

S-Video components to

you r TV.

Description

Screw-on antenna cable (3-ft)

Screw-on antenna cable (6-ft)

Push-on antenna cable (6-ft)

Monaural VCR Dubbing Cable (6-ft)

Stereo VCR Dubbing Cable (6-ft)

S-Video Cable (6-ft)

S-Video Cable (12-ft)

2-way Signal Splitter

Amplified Antenna

Remote Control (RCR311TCM1)

AudioeVideo Adapter

Surge Protector

Component Video Cables (6-ft)

Component Video Cables (12-ft)

Xbox to VPORT Cable (not shown)

Component Video to

VPORT Cable (not shown)

Prices are subject to change without

Part No.

VH81

VH82

VH89

VH83

VH84

VH976

VH913

VH47

ANT200

260606

228449

SCTV4000C

DT6DC

DT12DC

GP641XB

GP650XB

notice.

Price

$3.95

$4.95

$5.95

$5.95

$9.95

$7.95

$14.95

$3.95

$49.95

$24.99

$4.45

$49.95

$24.95

$34.95

$29.95

$29.95

VH83

_2_2_ 2

SCW4000C

Standard Audio/Video

cable with RCA-type

phono plugs.

Surge Protector

provides eight outlets,

coaxial and telephone

line protection. Audible

alarm for surge failure.

HOW TO ORDER

ON-LINE: Accessories may also be purchased at

www.rca.com/accessories (subject to availability).

BY PHONE: To place your order by phone, have your

Visa, MasterCard or Discover Card ready and call

1-800-338-0376. Use this number only to place an

order for accessory items listed on this page.

BY MAIL: mail money order or check in US currency

(made payable to Thomson Inc.), along with ordering

information (part numbers), phone number and

shipping address, to the following address:

Video Accessories

PO Box 8419

Ronks, PA 17573

All accessories are subject to availability.

Where applicable, we will ship a superseding model.

Chapter 5 Graphics contained within this publication are for representation only. 29

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment generates, uses, and can radiate radio

frequency energy and, if not installed and used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no guarantee that interference will not occur in

a particular installation. If this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment offand on, the user is encouraged to try

to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

• Consult the dealer or an experienced radio/TV technician for help.

This Class B digital apparatus complies with Canadian ICES-OO3

Visit the RCA web site at www.rca.com

Please do not send any products to the Indianapolis address listed in this manual or on

the carton. This will only add delays in service for your product.

Thomson Inc,

10330 North Meridian Street

Indianapolis, IN 46290

©2003 Thomson Inc.

Trademark(s)® Registered

Marca(s) Registrada(s)

TOCOM 1616232A

OMSON

THOMSON
