RDI Technology M270 WIRELESS LCD MONITOR User Manual 2

RDI Technology (Shenzhen) Co., Ltd. WIRELESS LCD MONITOR 2

USERS MANUAL

900MHz Wireless Color Baby Camera System
Includes: Color Video/Audio Camera & LCD Monitor
Congratulations on your purchase of the 900MHz Wireless Baby Care Color Camera System
(CMS2727). The System consists of a wireless LCD Monitor and a wireless color day & night
Baby Camera. An ideal product for watching the baby, elder or patient application.
Features ///
* 900MHz wireless technology
* Plug & play installation
* The system supports up to 3 cameras
* 2.4 inch TFT-LCD screen for good picture display
* The Brightness, Alarm volume, and Audio volume can be adjusted
* LCD Monitor can work with 3 modes: Scan, Auto and Manual
* Monitor with A/V output port connecting to TV
* Adjustable dwell/cycle time between cameras in Auto mode
* Baby Camera with sound trigger & night vision
* Baby Camera with friendly designation of night light
* Camera with Velcro for cradle mounting
* Both camera and monitor can be operated by rechargeable battery pack
* Both LCD Monitor and Baby Camera can be wall mounted or table top

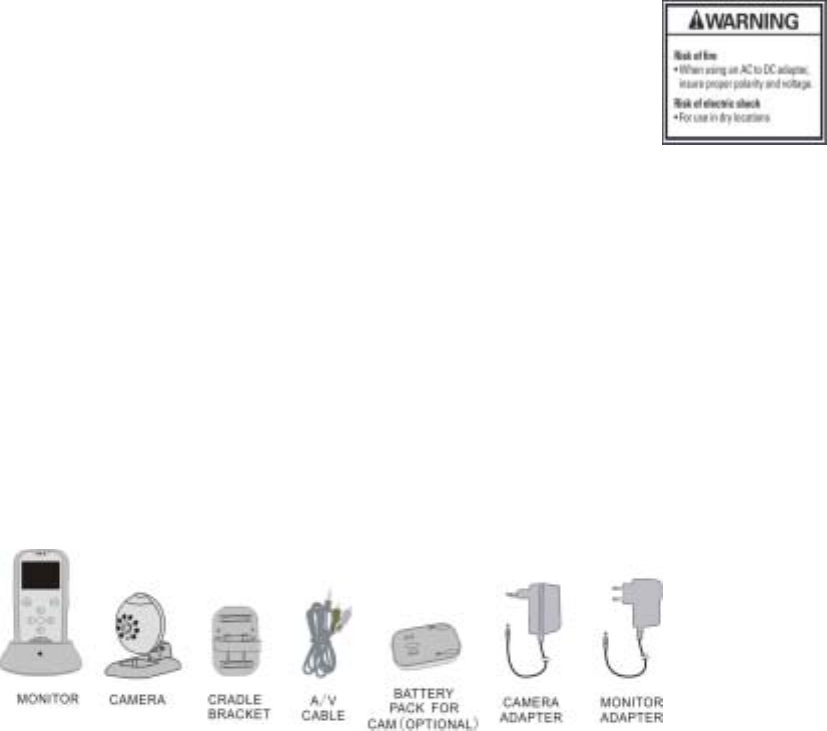

System Contents ///
Identify all parts before proceeding with installation
Things to Consider before Installation ///
For best performance, follow these simple guidelines:
* The camera should be aimed accordingly to optimize viewing area
* For best transmission, avoid installation where there are thick walls or major obstructions
between the camera and LCD monitor

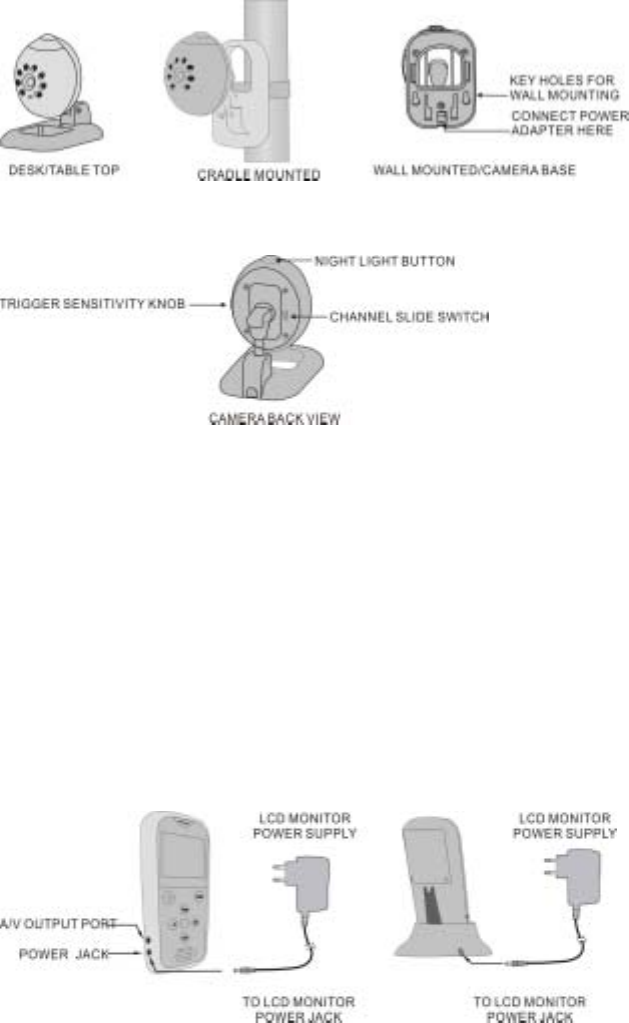

Installing the Camera (Transmitter) ///
1. Unpack the Camera
2. Decide on wall or desk mounting the Camera. If wall mounting, there is a useful guide on the
back cover of the instructions, and the rechargeable battery pack should not be used then.
If cradle mounted, use the Velcro in the package to mount the camera on the cradle. Anyway,
the Camera head can be rotatable for ideal or required position.
3. To use the camera power adapter, connect power jack to the input on the back of the
Camera base. Make sure the Camera is positioned no more than 5 feet from an AC power outlet.
4. You can adjust the sensitivity for the sound alert feature by adjusting the SOUND TRIGGER
knob found on the side of the Camera.
5. The Camera (Transmitter) installation is now complete.
Night Vision ///
The Camera includes IR LEDs, which allows viewing up to 5 feet in the dark automatively when
used with the adapter. Adjust the “brightness” knob may get better display for darkness use.
Night Light ///
The friendly designation is the button for night light which is located on the top of the camera.
When press the button, the top of the camera will be lightened. The soft light avoids dazzling
baby's eyes in the dark.
Installing the LCD Monitor (Receiver) ///
Main Operation
1. If use the rechargeable battery base (see the right picture), Plug the LCD Monitor AC power
supply into the power jack in the battery recess of the battery base. If not (see the left picture),
Plug the LCD Monitor AC power supply into the power jack in the battery recess of the LCD
2. Turn on the LCD Monitor by pressing the front panel power button.
3. Choose the channel to match the camera and you can see the image from camera.
Optimizing the Wireless Camera System ///
* The 900MHz video signal passes easily through your home’s interior walls, but the signal may
be reflected by power wires or plumbing inside the wall.
* Sound Level can be adjusted using the volume control button on the panel of the Monitor.
* Adjust Brightness as required using +/- button on the right side of the LCD Monitor.
* The Sensitivity of Sound Trigger can be adjusted by Baby Camera’s TRIGGER LEVEL knob.
* The most common source of interference are microwave ovens, WiFi products. Try to avoid
mounting the LCD Monitor near a microwave oven or other source of RF interference such as
cordless phones, WiFi products.
* To avoid the interference from camera, we recommend you set your WiFi at channel 10.
Multi-camera Operation ///
The Wireless Baby Care Color Camera System (CMS2724L) is designed to work with up to
3 Cameras. Additional Camera are sold separately.
IMPORTANT:
When using more than one Camera, make sure each Camera is assigned to a specific channel
by adjusting the corresponding DIP switch down.
Accordingly the DIP switch located on the bottom of the LCD Monitor should be
adjusted to reflect the channel in use.
Sound-Trigger Cameras ///
The baby Camera has the Sound Trigger Feature. When a Camera detects sound, an audio
alert sounds on the LCD Monitor(The audio alert is adjustable). The Sensitivity of the Sound
Trigger can be adjusted by the Baby Camera’s TRIGGER LEVEL knob on side of the Camera
head.
Operating Modes ///
The system can be set to operate in one of 3 modes: SCAN, AUTO or MANUAL.
The desired operating mode can be selected using the buttons on the front panel of the LCD
Monitor.
SCAN
Pressing the SCAN button places the system in Scan mode. The LCD Monitor screen blanks
into a standby mode while the system continuously scans active Cameras. If a Camera detects
sound above the preset sound trigger level, the LCD Monitor displays the Camera picture and
the beeper will sound. Four minutes after the last detection, the screen returns to standby mode
and the LCD Monitor resumes scanning. Pressing the MANUAL or AUTO button will cancel
this mode.
AUTO
Pressing the AUTO button places the system in Auto mode. In this mode, the system
automatically rotates through all active Cameras. When a Camera detects sound above the preset
level, the LCD Monitor will display the picture from the Camera for a few seconds, and the beeper
will sound. To avoid searching the channels that do not have cameras/transmitters assigned to
them, set the dip switches (located on the bottom of the LCD Monitor) for those corresponding
channels to the OFF position.
The dwell/cycle time (time taken to switch between cameras) is preset to four seconds and can be
adjusted between 2-30 seconds. To adjust the dwell/cycle time, press both the AUTO and
MANUAL buttons simultaneously. Each flash of the LED increases the dwell time by one second.
MANUAL
To select a specific Camera to LCD Monitor, press the MANUAL button. The LCD Monitor will
switch to a different Camera each time the MANUAL button is pressed. To avoid searching
channels that do not have Cameras assigned to them, set the dip switches (located on the back
panel of the LCD Monitor) for those corresponding channels to the OFF position.

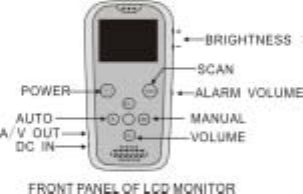

Monitor Functions ///
POWER
Press to turn the Monitor on/off.
ALARM VOLUME
The ALARM VOLUME of the LCD Monitor can be adjusted by tuning the Alarm Volume tuner
on the side of the LCD Monitor.
VOLUME
You may adjust the Sound Level by pressing “+” or “-” on the Volume button.
BRIGHTNESS
You can press "+" or "-" on the right side of the LCD Monitor to adjust the brightness of the
picture if necessary.
Trouble Shooting ///
If you are having trouble operating this product, please consult the guide below;
SYMPTOM REMEDIES
No camera picture 1. Check all connectors. Make sure camera (s) and monitor
are switched ON.
2. Ensure camera (s) and monitor are set to correct channel(s)
3. Make sure camera is within range of monitor (receiver).
Blank monitor 1. Make sure monitor is switched ON.
2. If using AC adapter, make sure it is plugged in.
3. Make sure rechargeable battery is charged.
Interference on 1. Make sure each camera (transmitter) is within range, and
camera picture
that no large obstructions are blocking the signal.
2. Try repositioning the camera, monitor or both to improve
the reception quality.
3. Reposition other nearby equipment transmitting on
900MHz frequency.
Audio problems 1. Ensure the volume is turned up sufficiently on the monitor.
2. Make sure the sound is within the microphone range.
3. If the unit emits a loud wailing sound
(feeds back), try moving the camera away from
the monitor or angle the monitor differently.
Specifications
///
Camera
(Transmitter)
TV System NTSC or PAL standard
Integrated Lens 5.6mm, fixed focus
Resolution 360 horizontal TV lines
Signal/Noise Ratio 48dB
Image Sensor 1/3” CMOS
Min. Illumination 0.1 lux Current
Consumption 150 mA
Frequency Range 910, 920MHz
Modulation FM
Channel Selection Electronic tuning with PLL
Overall Size 2.0"W*3.2"H*3.1"D
Monitor (Receiver) Frequency Range 910, 920MHz
Current Consumption 350 mA
Channel Selection Electronic tuning with PLL
Signal/Noise Ratio 38dB
Battery (for Monitor) Voltage 7.4V
Li-polymer Battery Pack approx. 2.5 hrs. Continuous
(Build-in) > 5 hrs. standby
Battery (for Camera) Rechargeable Battery Pack approx. 4 hrs. Continuous
(Optional)
General Operating Temperature -10oC to 40oC
14oC to 104oF
Humidity Less than 85%
Approvals
///
This device complies with part 15 of the FCC rules. Operation is subject to the following two
conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
FCC NOTE:
The manufacturer is not responsible for any radio or TV interference caused by unauthorized
modifications to this equipment. Such modifications could void the user's authority to operate the
equipment.
CE directive 95/5/EEC, EMC directive 89/336/EEC, LV directive 73/23/EEC. This class B
digital apparatus complies with Canadian ICES-003.
Warranty
///
This product has o one year manufacturers warranty which covers parts and labor only.
In the Unlikely event that you encounter a problem, the unit should be returned to the place
of purchase.

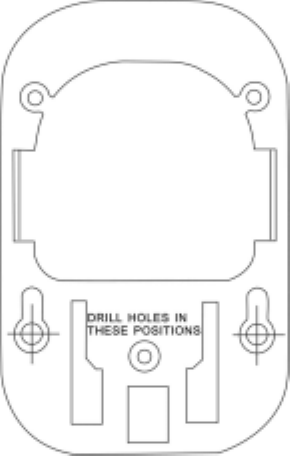

Drilling Template for Wall Mounting Camera (s) ///
For wall-mounting Camera (s), drill two holes using a 1/4” drill bit and the template below.
Insert supplied wall anchors into holes and secure Camera to wall with supplied screws.
.
