REEBOK Treadmill Manual L0520513
User Manual: REEBOK REEBOK Treadmill Manual REEBOK Treadmill Owner's Manual, REEBOK Treadmill installation guides
Open the PDF directly: View PDF
.
Page Count: 34

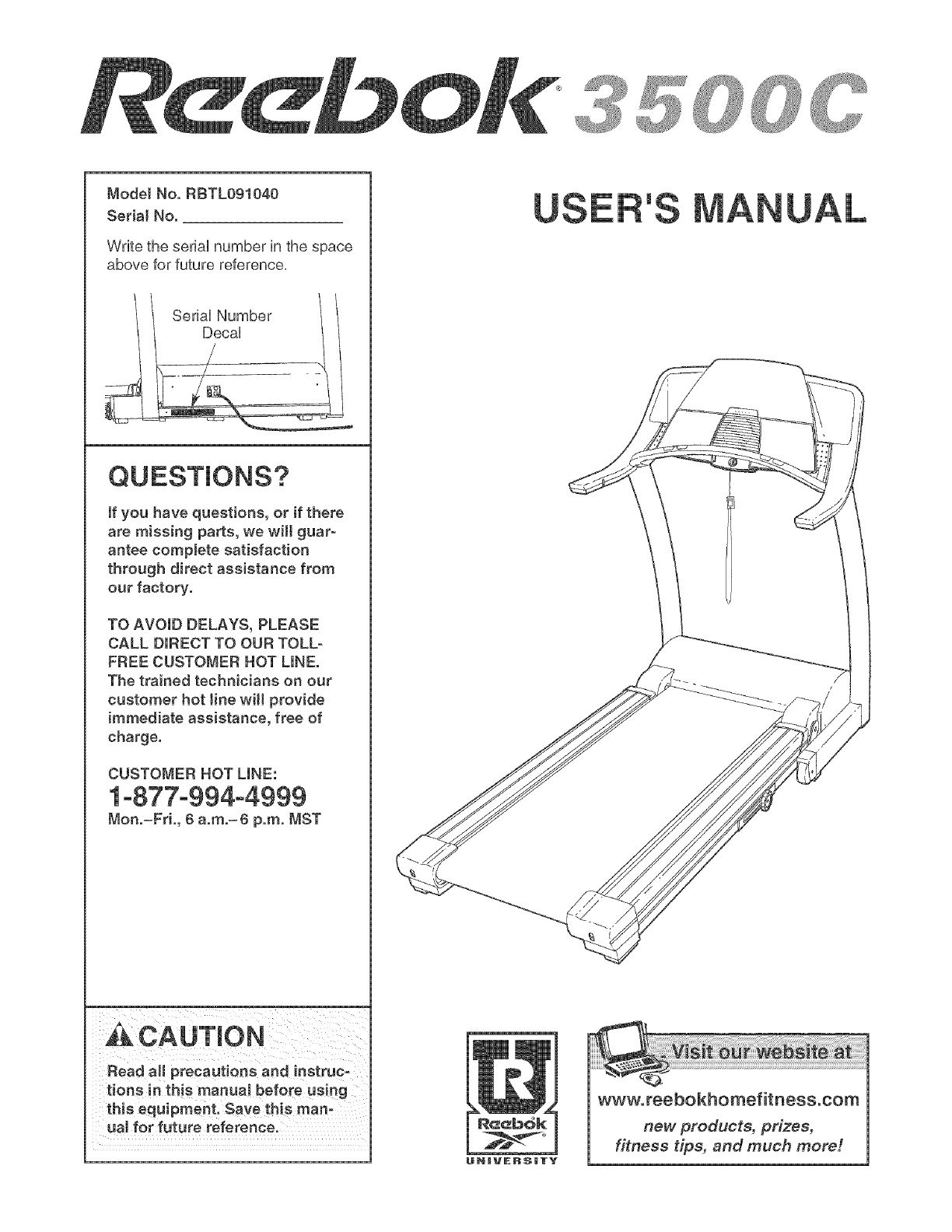

3 000
Model No. RBTL091040
Sedal No.
Write the seriaUnumber in the space
above for future reference,
Serial Number
Decal
Jfyou have questions, or if there
are missing parts, we wilt guar-
antee complete satisfaction
through direct assistance from
our factory.
TO AVOID DELAYS, PLEASE
CALL DIRECT TO OUR TOLL-
FREE CUSTOMER HOT LINE.
The trained technicians on our
customer hot tine will provide
immediate assistance, free of
charge.
CUSTOMER HOT LINE:
1°877°994°4999
Mon.-Fri., 6 a.m.-6 p.m. MST
CAUTION
Read all precautions and instruc-
tions in this manual before _sing
this equipment. Save this man-
uaJ for future reference.
'S
www.reebokhomefitness.com
new products, prizes,
fitness tips, and much morel
3 00C

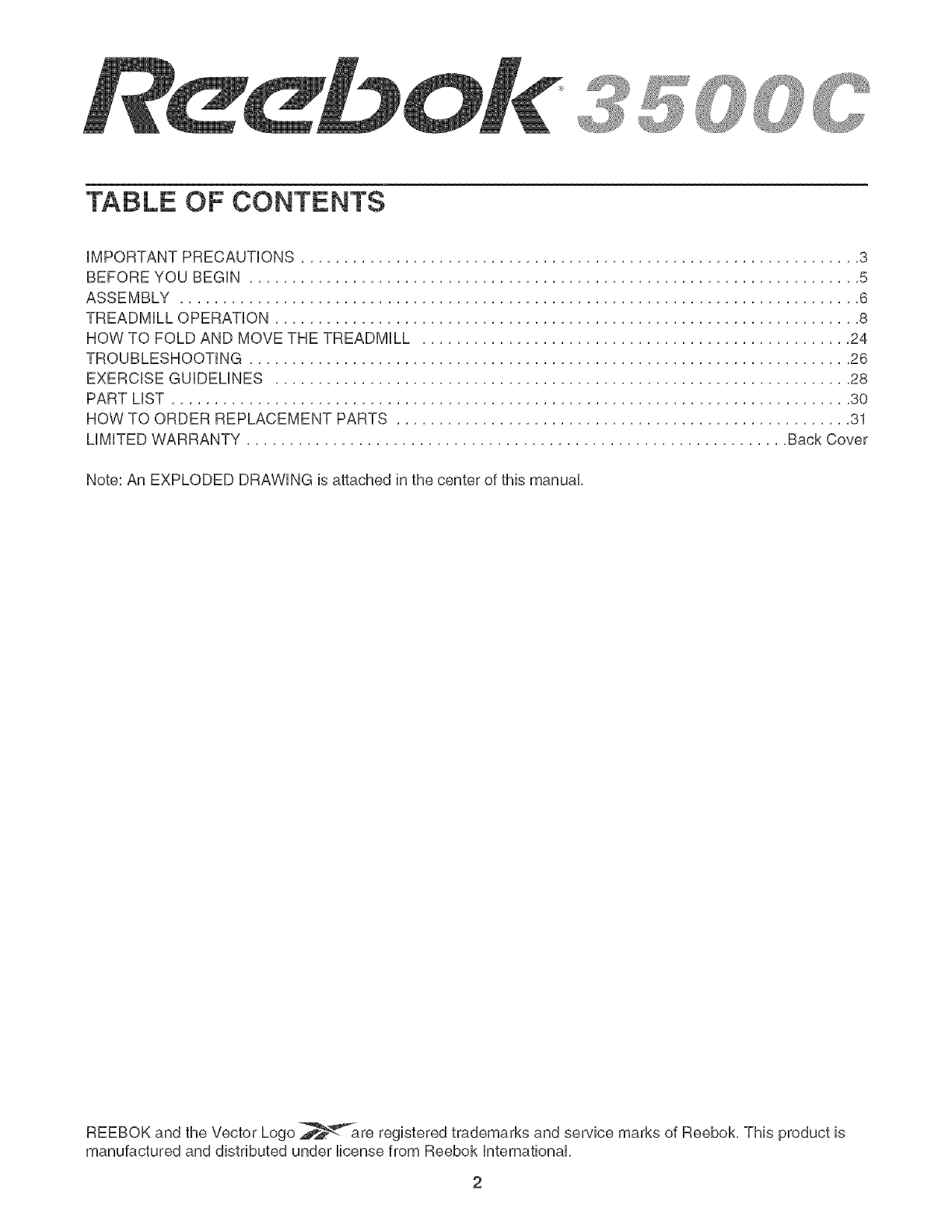

TABLE OF CONTENTS
iMPORTANT PRECAUTIONS ................................................................. 3
BEFORE YOU BEGIN ....................................................................... 5
ASSEMBLY ............................................................................... 6
TREADMHLL OPERATHON .................................................................... 8

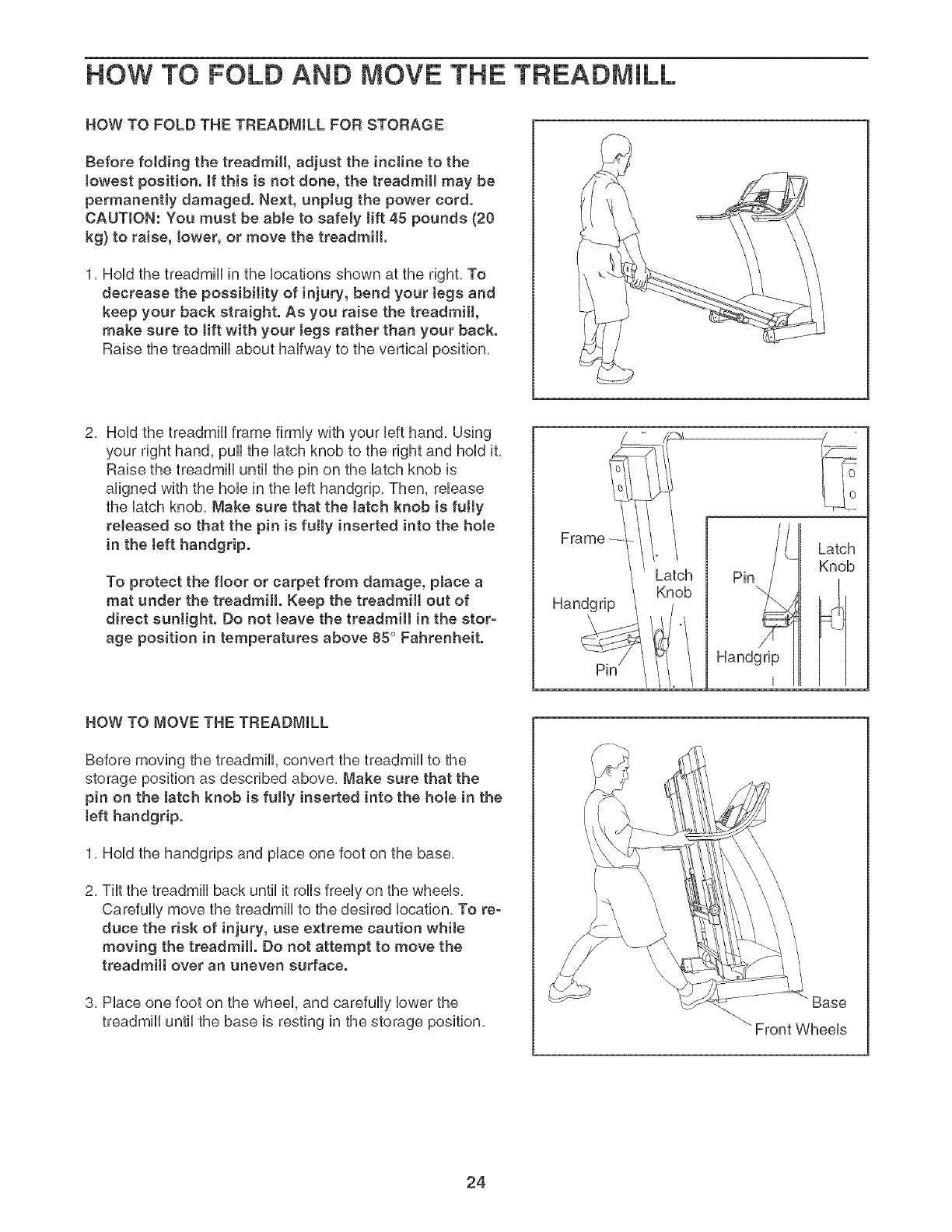

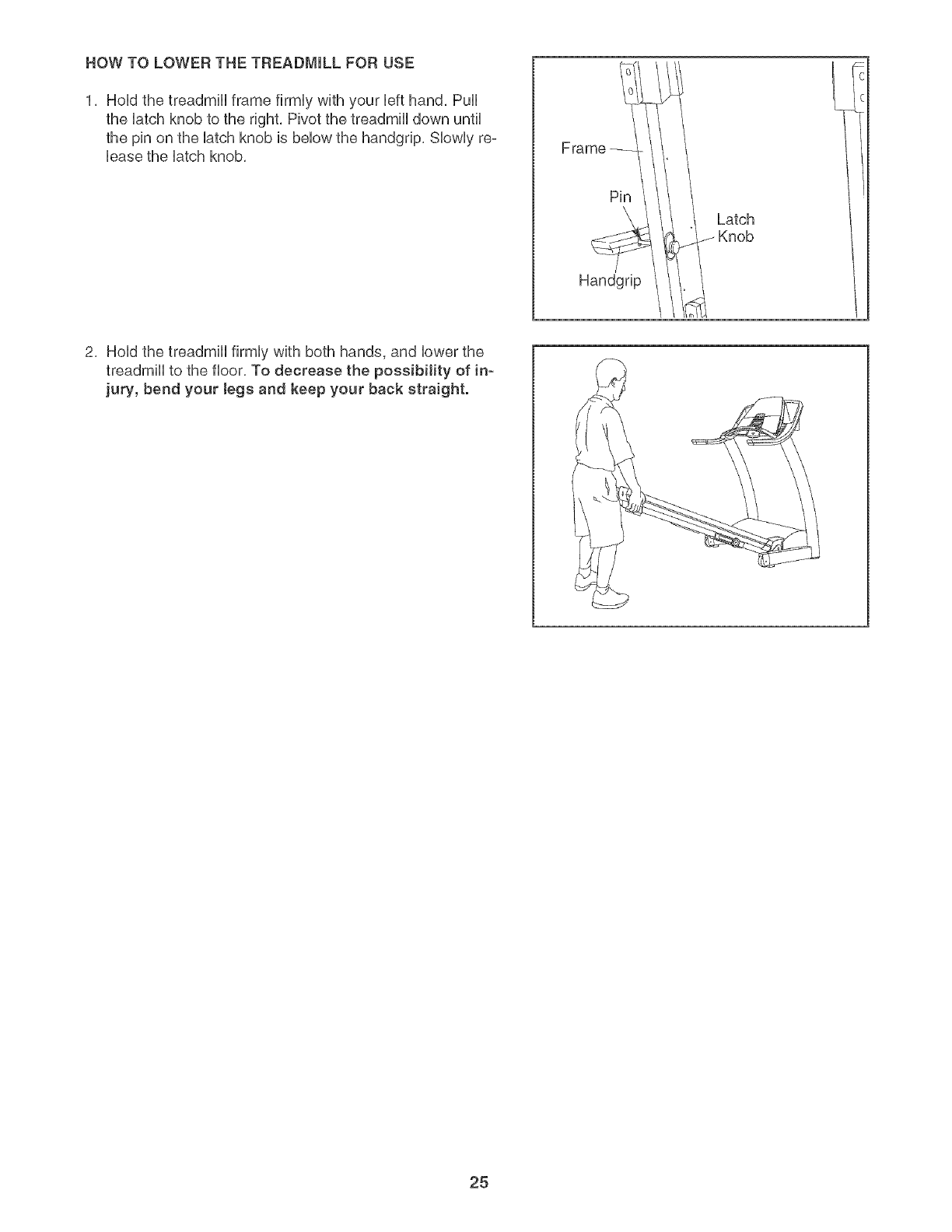

HOW TO FOLD AND MOVE THE TREADMHLL .................................................. 24

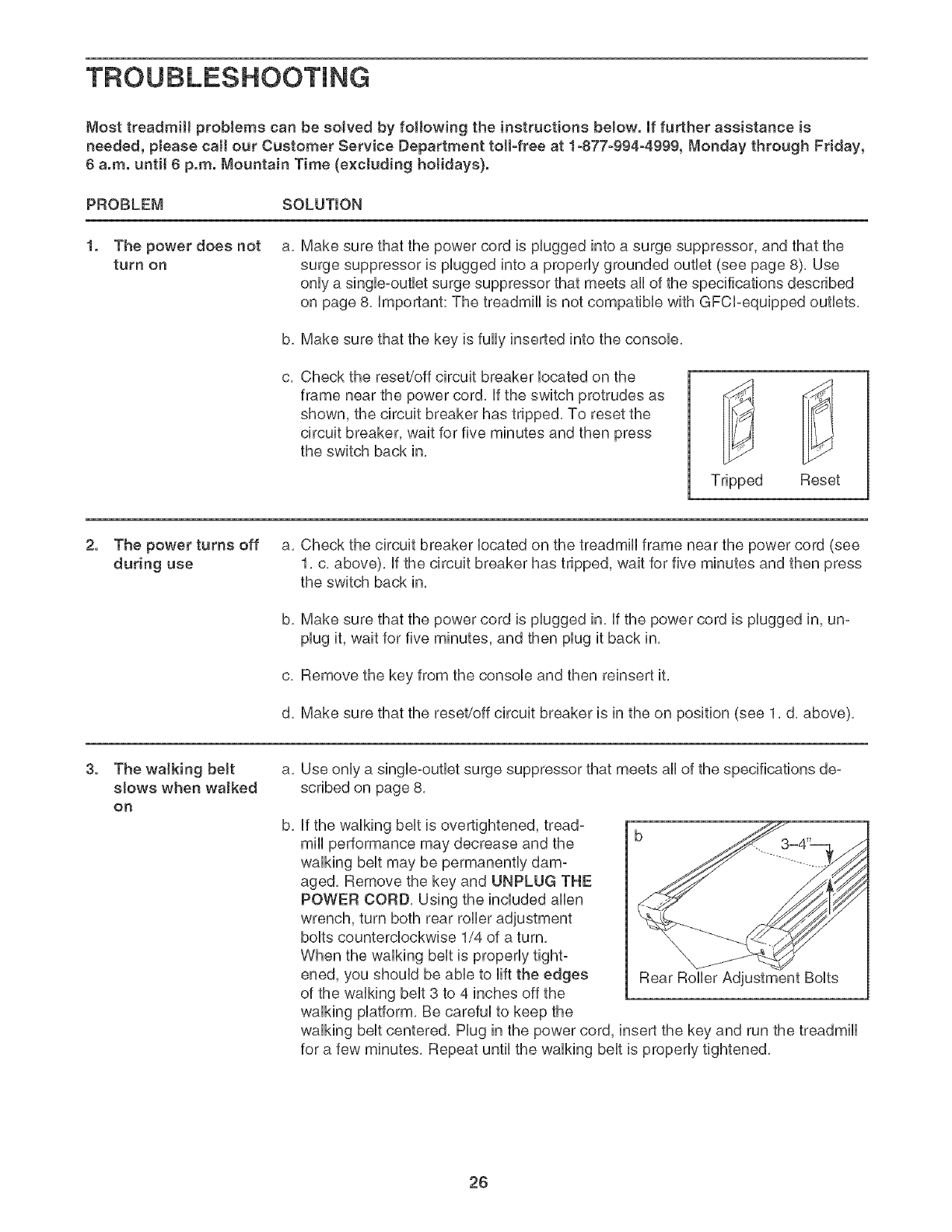

TROUBLESHOOTHNG ...................................................................... 26

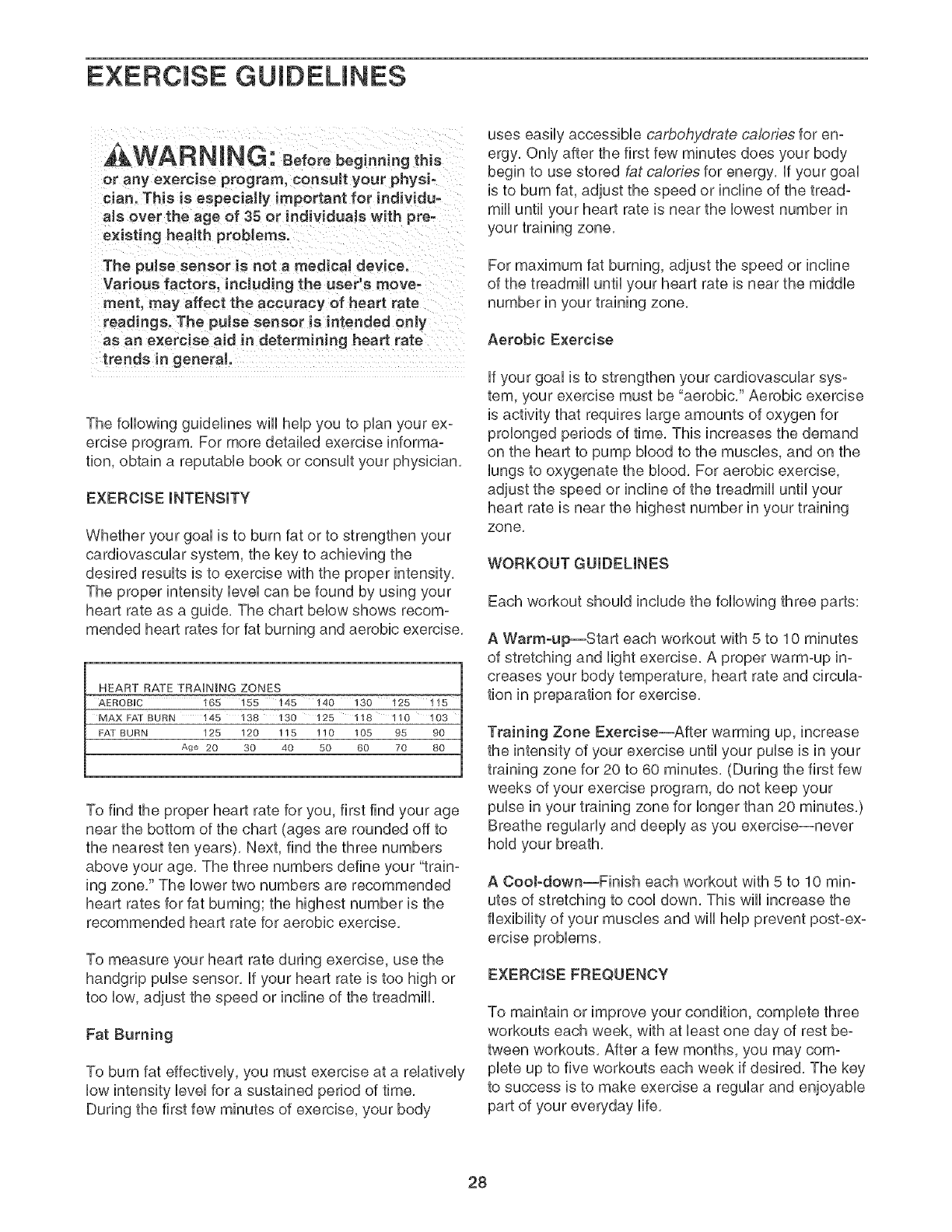

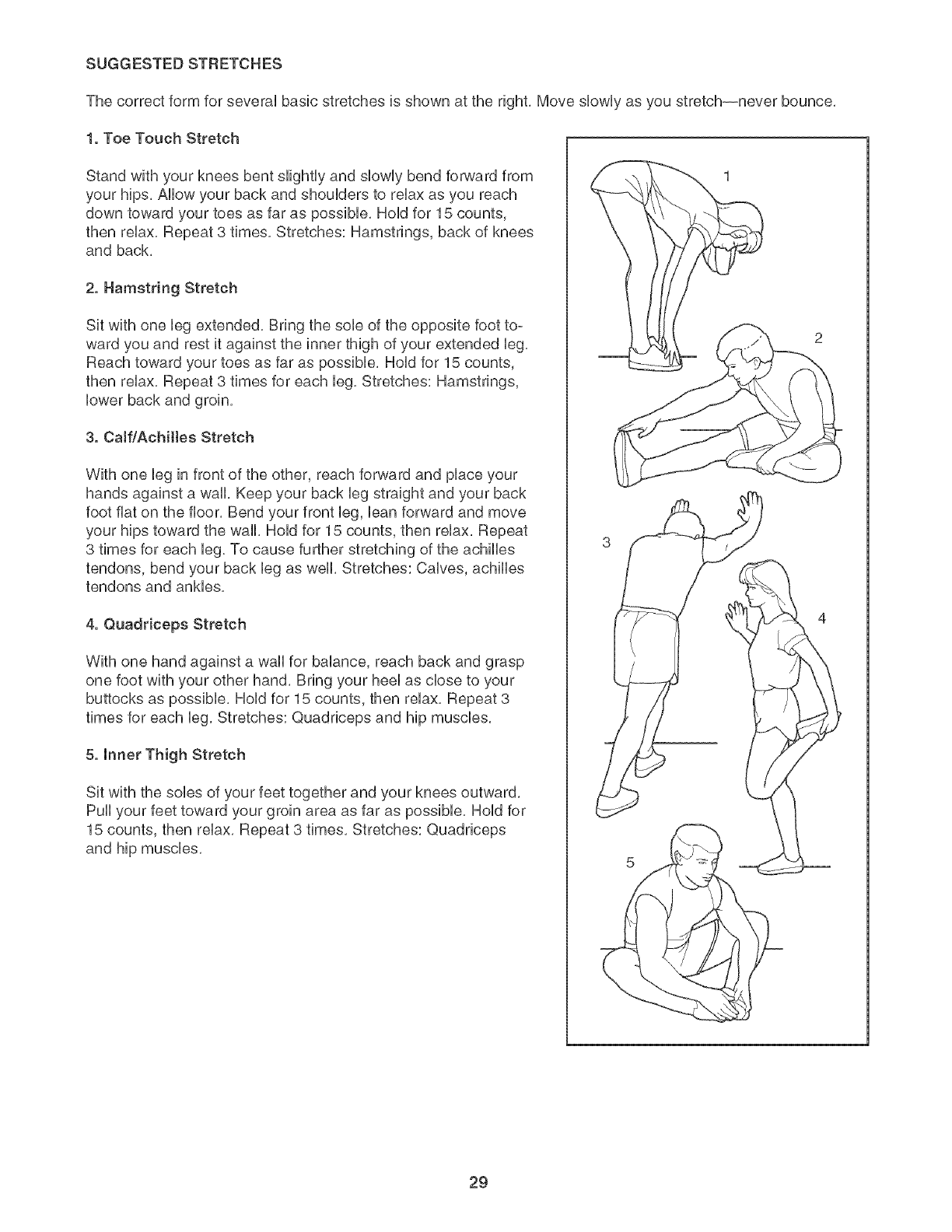

EXERCHSE GUHDELHNES ................................................................... 28

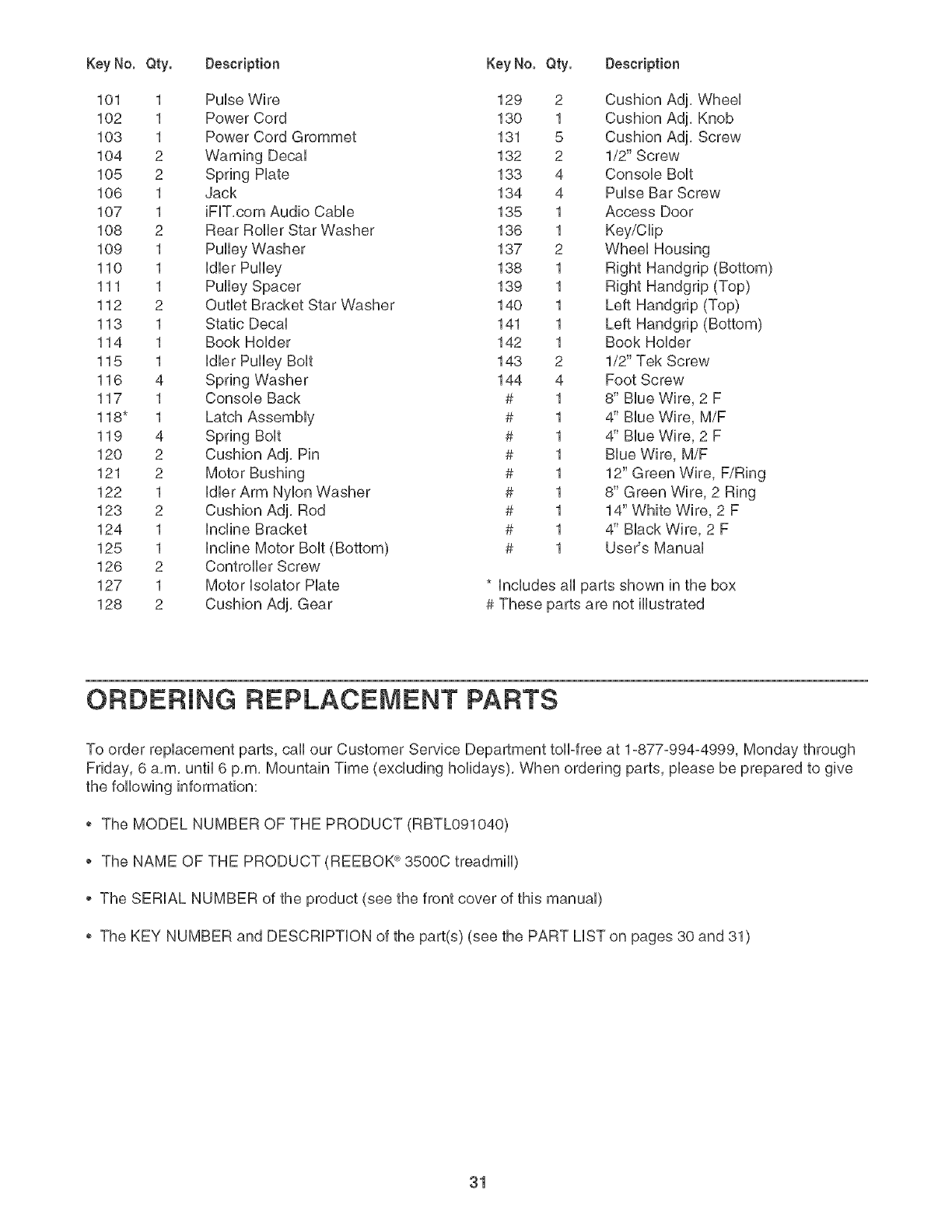

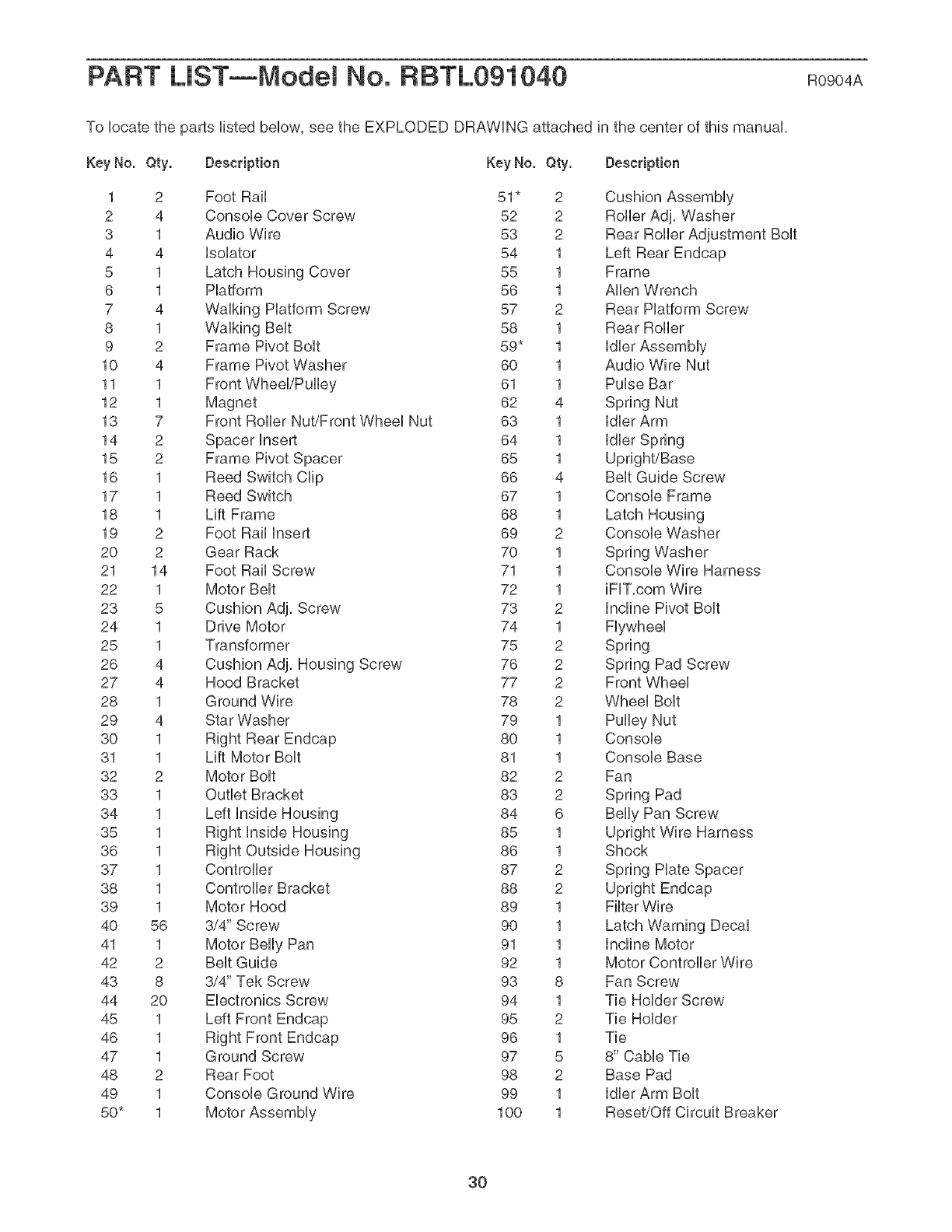

PART LiST ............................................................................... 30
HOW TO ORDER REPLACEMENT PARTS ..................................................... 31

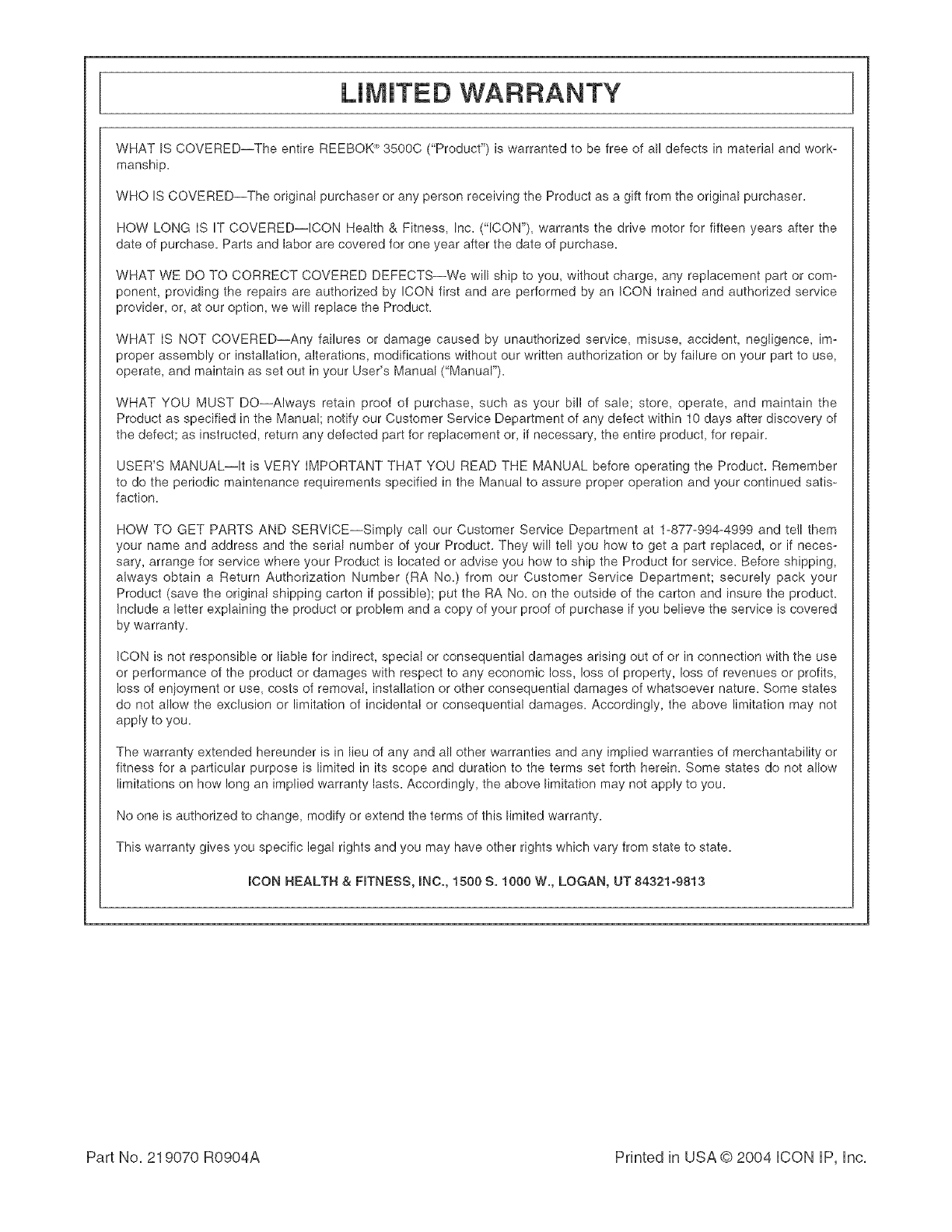

LHMHTEDWARRANTY ............................................................... Back Cover

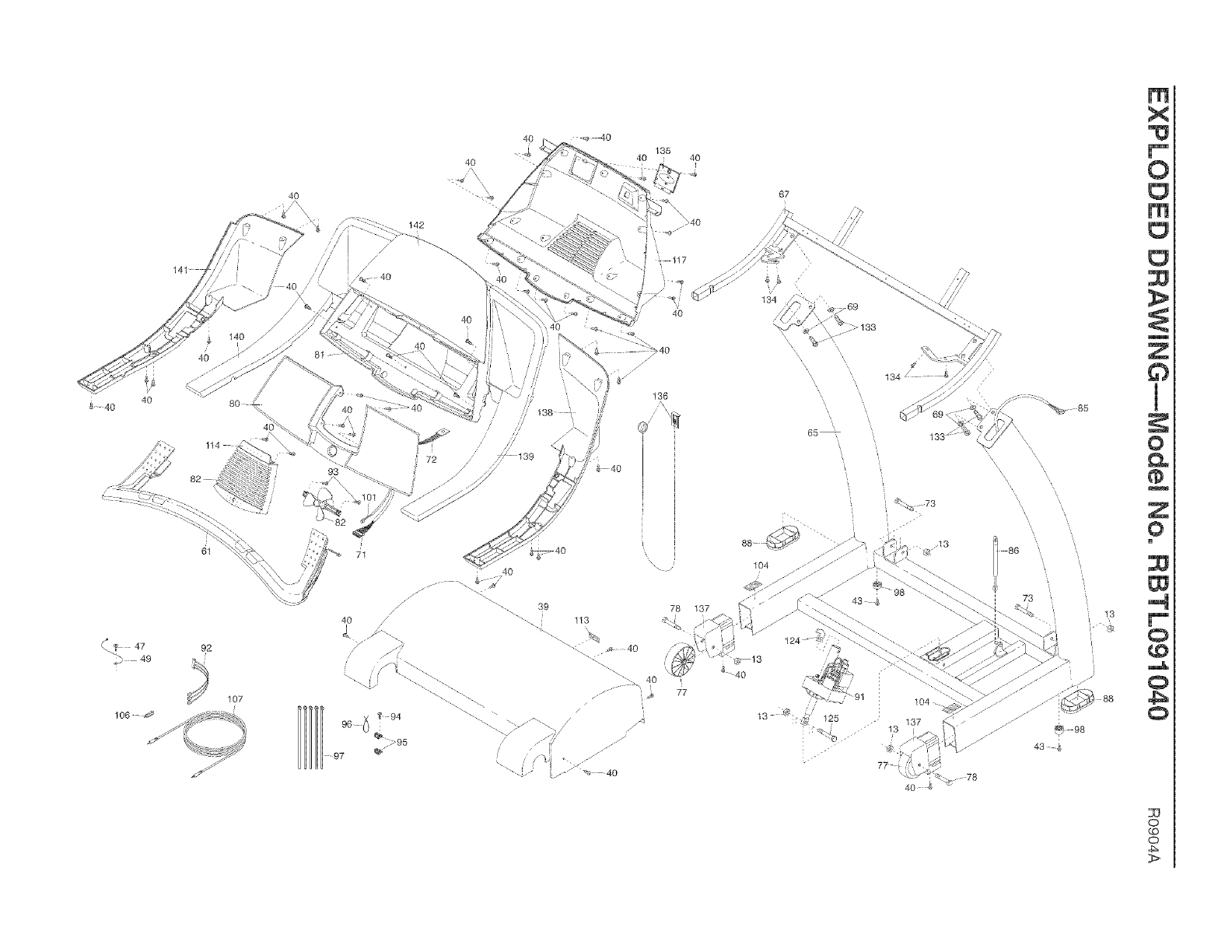

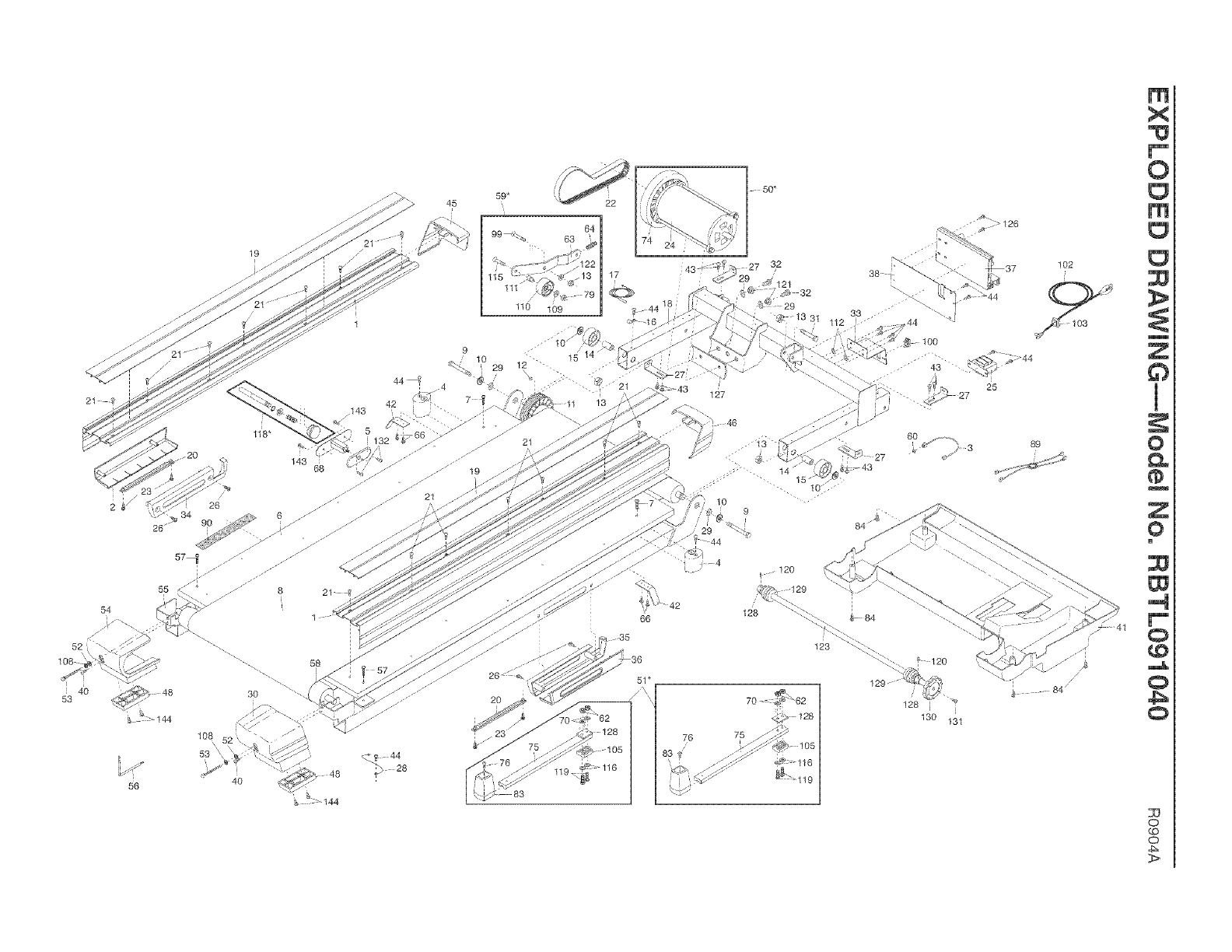

Note: An EXPLODED DRAWHNG is attached in the center of this manual
REEBOK and the Vector Logo _--_"L'_re registered trademarks and service marks of Reebok. This product is
manufactured and distributed under Hcense from Reebok HntemationaH.
2

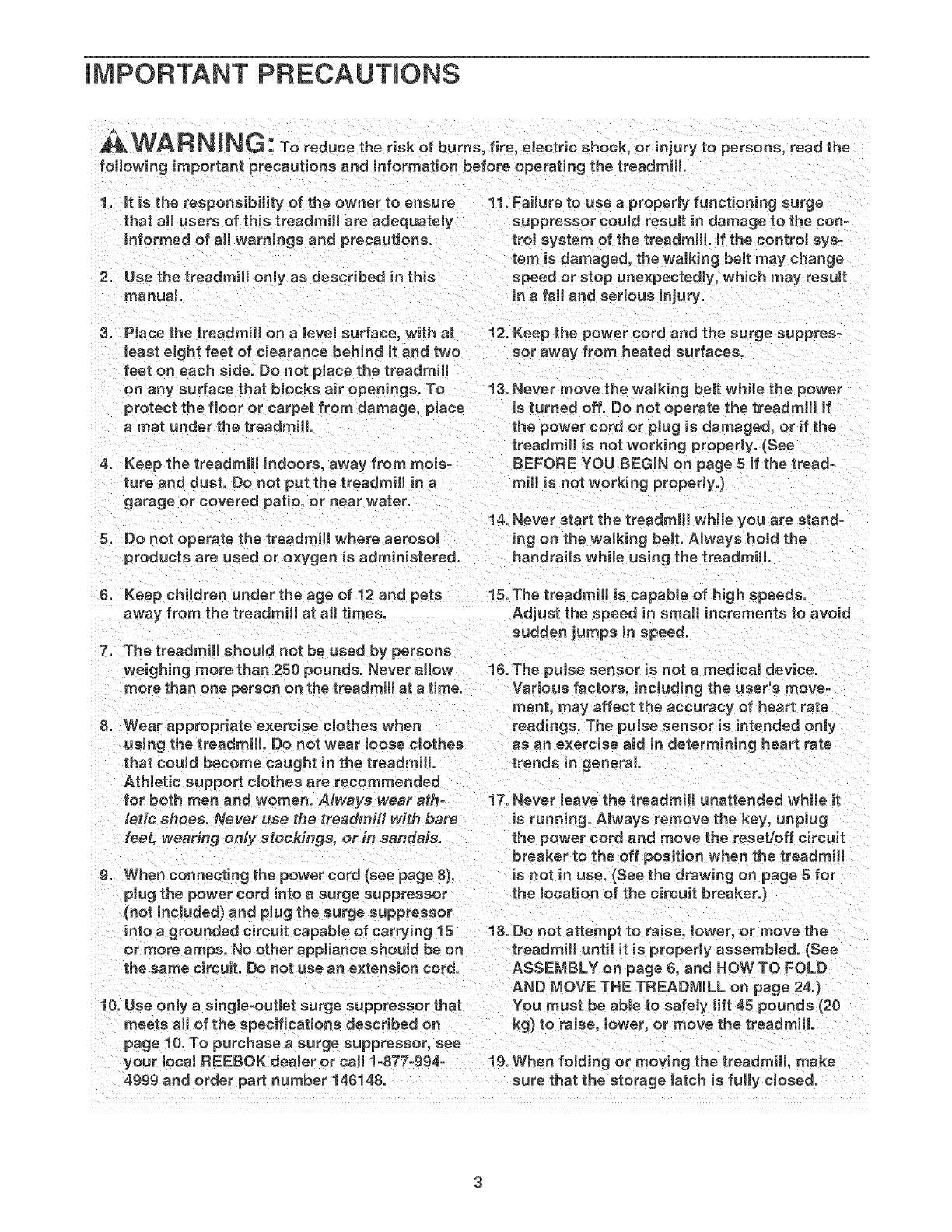

iMPORTANT PRECAUTIONS
WARNING: Toreducetheriskofburns,f re,eJectricshock,or njurytopersons,readthe
following important precautions and information before operating the treadmill.
1. it is the responsibility of the owner to ensure
that aH users of this treadmill are adequately
informed of all warnings and precautions.
2. Use the treadmill onJy as described in this
manual.
11. FaiJure to use a properly functioning surge
suppressor could result in damage to the con=
trol system of the treadmill ff the control sys-
tem is damaged, the walking belt may change
speed or stop unexpectedly, which may result
in a fall and serious injury.
3=
4. Keep the treadmill indoors, away from mois-
ture and dust. Do not put the treadmill in a
garage or covered patio, or near water.
Place the treadmill on a level surface, with at 12. Keep the power cord and the surge suppres-
least eight feet of clearance behind it and two sor away from heated surfaces.
feet on each side. Do not place the treadmill
on any surface that blocks air openings. To 13. Never move the walking belt while the power
protect the fJoor or carpet from damage, place is turned off. Do not operate the treadmill if
a mat under the treadmill the power cord or plug is damaged, or if the
treadmill is not working properJy. (See
BEFORE YOU BEGIN on page 5 if the tread-
mill is not working properly.)
5. Do not operate the treadmill where aerosol
products are used or oxygen is administered.
14. Never start the treadmill while you are stand°
ing on the waJking belt. AJways hoJd the
handrails while using the treadmill
6. Keep children under the age of 12 and pets 15. The treadmill is capable of high speeds.
away from the treadmill at all times. Adjust the speed in small increments to avoid
sudden jumps in speed.
7. The treadmill shouJd not be used by persons
weighing more than 250 pounds. Never allow 16. ]'he puJse sensor is not a medical device.
more than one person on the treadmill at a time. Various factors, including the user's move-
ment, may affect the accuracy of heart rate
8. Wear appropriate exercise clothes when readings. The pulse sensor is intended only
_sing the treadmill Do not wear loose clothes as an exercise aid in determining heart rate
that could become caught in the treadmill, trends in general.
AtHetic support clothes are recommended
for both men and women. Always wear ath- 17. Never leave the treadmill unattended while it
letic shoes. Never use the treadmiH with bare is running. AJways remove the key, unplug
feet, wearing only stockings, or in sandals, the power cord and move the resetJoff circuit
breaker to the off position when the treadmill
9. When connecting the power cord (see page 8), is not in use. (See the drawing on page 5 for
plug the power cord into a surge suppressor the location of the circuit breaker.)
[not included) and plug the surge suppressor
into a grounded circuit capable of carrying 15 18. Do not attempt to raise, lower, or move the
or more amps. No other appJiance should be on treadmill until it is properly assembJed. (See
the same circuit. Do not use an extension cord. ASSEMBLY on page 6, and HOW TO FOLD
AND MOVE THE TREADMILL on page 24.)
10. Use onJy a singJe-outlet surge suppressor that You mast be able to safeJy lift 45 pounds (20
meets aH of the specifications described on kg) to raise, lower, or move the treadmill.
page 10. To purchase a surge suppressor, see
your local REEBOK dealer or car 1-877=994- 19. When foJding or moving the treadmill make
4999 and order part number 146148. sure that the storage latch is fury closed.

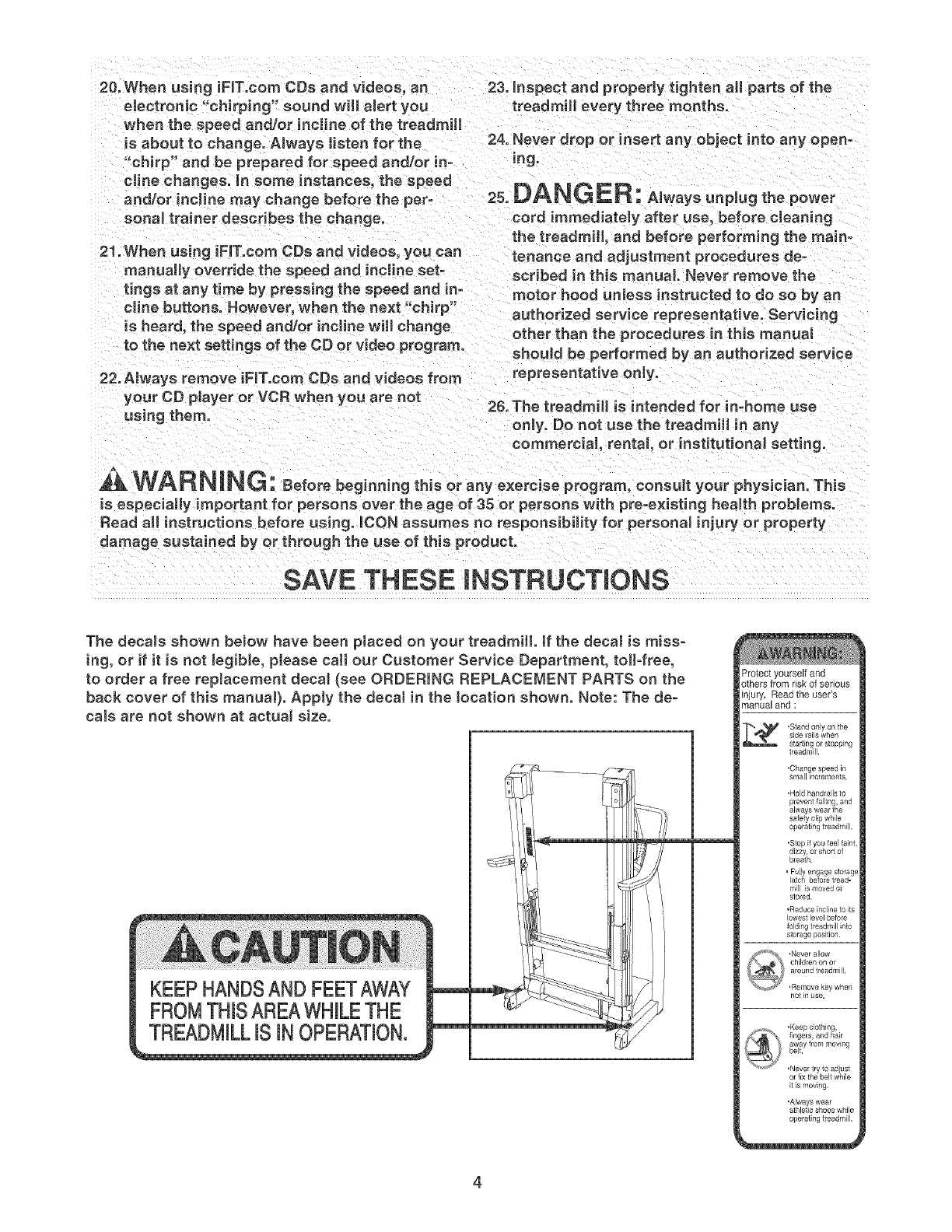

20.When using iFIT.com CDe and videos, an
electronic "chirping" sound will alert you
when the speed and/or incline of the treadmill
is about to change. Always listen for the
•'chirp" and be prepared for speed and/or ino
oiine changes. In some instances, the speed
and/or incline may change before the per-
sonal trainer describes the change.
21. When usi ng iFIT.com CDe and videos, you can
manually override the speed and incJine set-
tinge at any time by pressing the speed and in=
dine buttons. However, when the next "chirp"
is heard, the speed and/or incline will change
to the next settings of the CD or video program.
22. Always remove iRT.com CDs and videos from
your CD player or VCR when you are not
using them.
23. inspect and properly tighten aJl parts of the
treadmill every three months.
24. Never drop or insert any object into any open-
ing.
=5.DANG EF{:AJwaye..plugthepower
cord immediately after use, before deaning
_he treadmill, and before performing the main=
tenance and adiuetment procedures de-
scribed in this manual Never remove the
motor hood unless instructed to do so by an
authorized service representative. Servicing
other than the procedures in this manual
should be performed by an authorized service
representative only.
26. The treadmill is intended for in-home use
oniyo Do not use the treadmill in any
commercial rental or institutional setting.
WA F{NING: Sefo,ebeginningtheeoranye.erciseprogram,eoneu,you,phyeie an7his
is especially important for persons over the age of 35 or persons with pro-existing heaJth problems.
Read aH instructions before using, iCON assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.
SAVE THESE mNSTRUCTIONS
The decaJs shown below have been pJaced on your treadmill if the decal is miss-
ing, or if it is not legible, please call our Customer Service Department, toll-free,
to order a free replacement decal (see ORDERING REPLACEMENT PARTS on the
back cover of this manuaJ). Appty the decaJ in the tocation shown. Note: The de-
cals are not shown at actuaJ size.
KEEP HANDSAND FEETAWAY
FROMTHISAREAWHILETHE
TREADMILLIS iN OPERATION.
_mtect yourself and
gthers from risk of serious
njury. Read the user's
"nanual and ;
.Stand only on the
side rails when
starting or stopping
treadmill.
•Hold handrails to
prevent lalling, and
always wear the
safety clip while
operating treadmill,
"Stop if you feel faint,
dizzy, onshort of
bleath.
• Fully engage storage
latch before tread=
mill is moved or
stored.
,Reduce incline to its
lowest level befole
folding treadmill nto
storage position
notin use,
,Keepclothing,
fingers, and hair
away frommoving
belt.
,Never try to adiust
ol fix the belt while
it is moving,
operating treadmill,
4

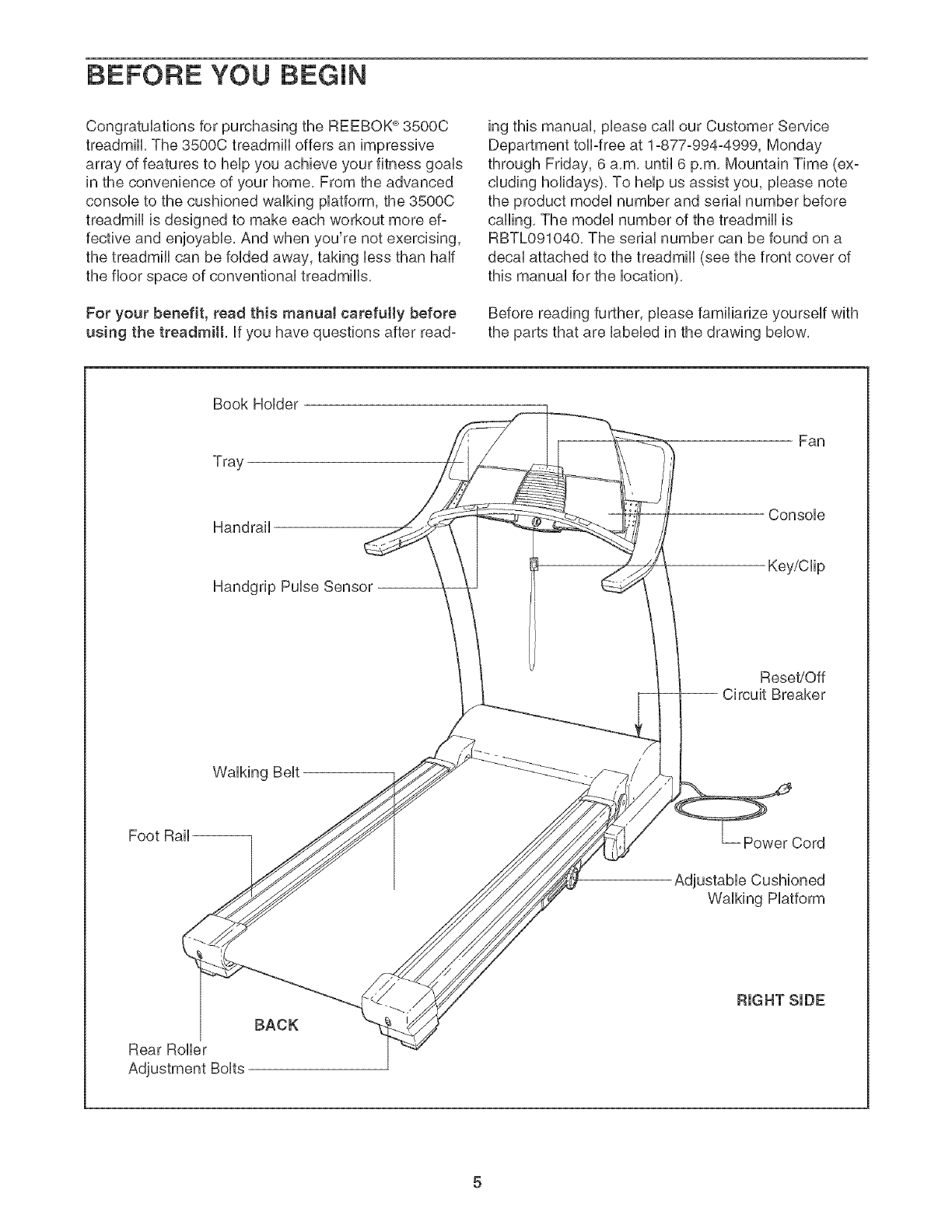

BEFORE YOU BEGIN
Congratulations for purchasing the REEBOK ®3500C
treadmill, The 3500C treadmill offers an impressive
array of features to help you achieve your fitness goals
in the convenience of your home, From the advanced
console to the cushioned walking platform, the 3500C
treadmill is designed to make each workout more ef-
fective and enjoyable, And when you're not exercising,
the treadmill can be folded away, taking less than half
the floor space of conventional treadmills,
For your benefit, read this manual carefully before
using the treadmill, if you have questions after read-
ing this manual, please call our Customer Service
Department toll-free at 1-877-994°4999, Monday
through Friday, 6 a,m, until 6 p,m, Mountain Time (ex°
cluding holidays), To help us assist you, please note
the product model number and serial number before
calling, The model number of the treadmill is
RBTL091040, The serial number can be found on a
decal attached to the treadmill (see the front cover of
this manual for the location),
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below,
Book Holder
Tray
Fan
Handrail
Handgrip Pulse Sensor
Console
Key/Clip
Reset/Off
-- Circuit Breaker
Walking Belt
Foot Rail Power Cord
Adjustable Cushioned
Walking Platform
Rear Roller
BACK
RIGHT SIDE
5

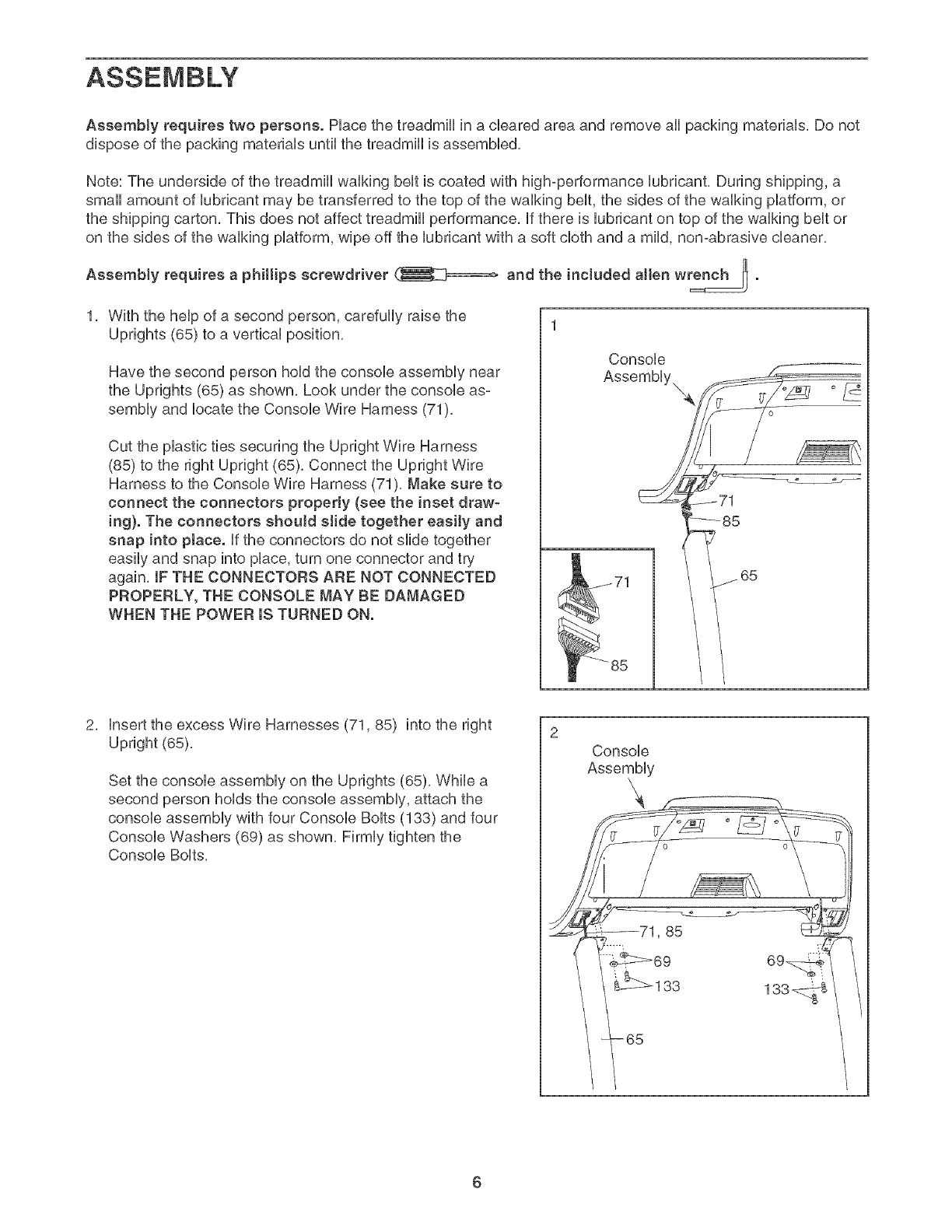

Assembly requires two persons. Hace the treadmHUin a cbared area and remove aH packing matedaUs, Do not
dispose of the packing matedaUsuntil the treadmHUis assembbd,
Note: The underside of the treadmHUwaUking beUtis coated with high-performance Uubdcant, During shipping, a
small amount of Uubdcant may be transferred to the top of the waUking beUt,the sides of the waUking pUatform, or
the shipping carton, This does not affect treadmHUperformance, ff there is Uubdcant on top of the waUking beUtor
on the sides of the walking platform, wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner,
screwdriver _ and the included allen wrench _
Assembly requires aphi[lips @
1, With the help of a second person, carefully raise the
Uprights (65) to a vertical position,
Have the second person hold the console assembly near
the Uprights (65) as shown, Look under the console as-
sembly and locate the Console Wire Harness (71),
Cut the plastic ties securing the Upright Wire Harness
(85) to the right Upright (65), Connect the Upright Wire
Harness to the Console Wire Harness (71), Make sure to
connect the connectors properly (see the inset draw-
ing). The connectors should sJide together easi[y and
snap into pIace. If the connectors do not slide together
easily and snap into place, turn one connector and try
again, IF THE CONNECTORS ARE NOT CONNECTED
PROPERLY, THE CONSOLE MAY BE DAMAGED
WHEN THE POWER IS TURNED ON.
1
Console
insert the excess Wire Harnesses (71,85) into the right
Upright (65),
Set the console assembly on the Uprights (65), While a
second person holds the console assembly, attach the
console assembly with four Console Bolts (188) and four
Console Washers (69) as shown, Firmly tighten the
Console Bolts,
Console
Assembly
k
_133
6

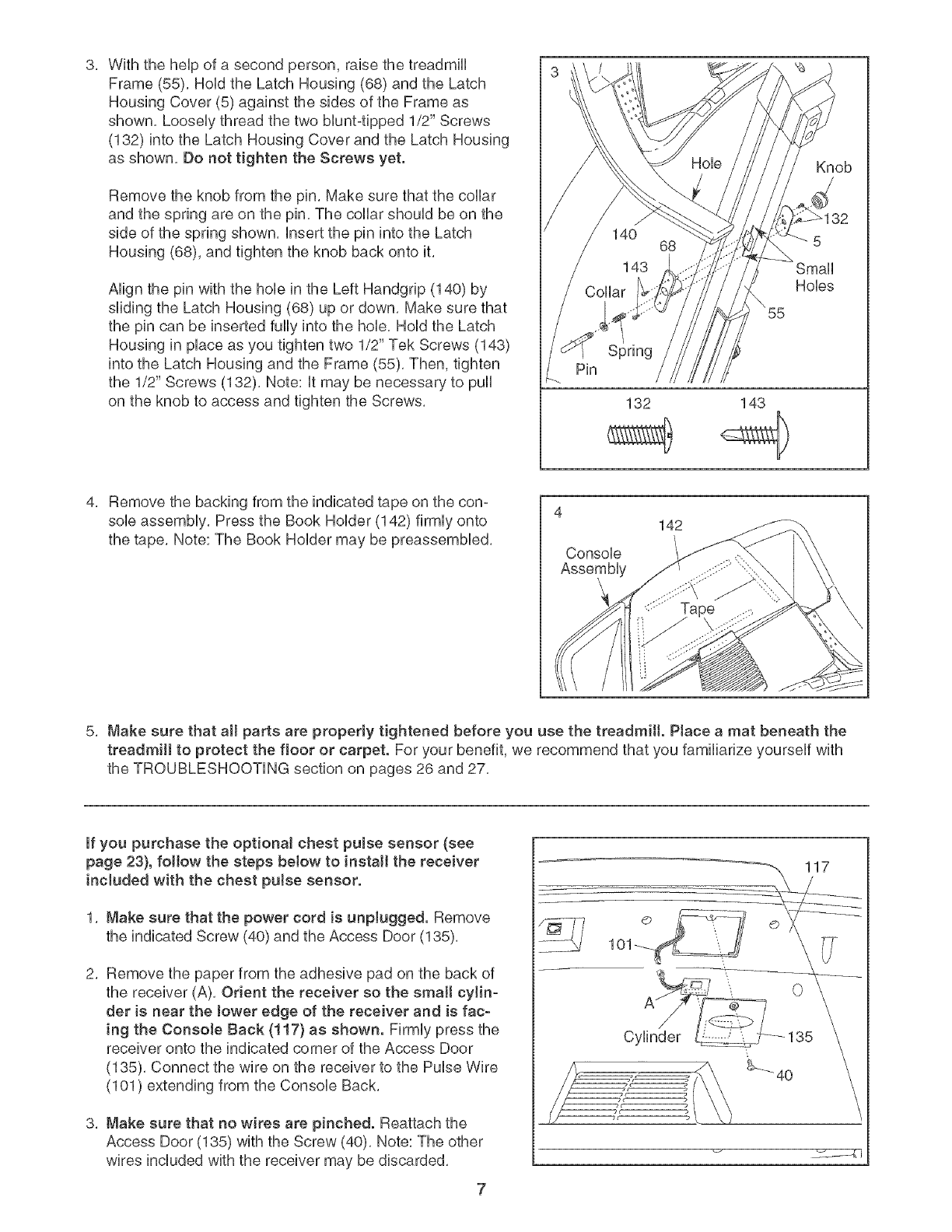

With the help of a second person, raise the treadmll
Frame (55), Hold the Latch Housing (68) and the Latch
Housing Cover (5) against the sides of the Frame as
shown, Loosely thread the two blunt-tpped 1/2" Screws
(132) into the Latch Housing Cover and the Latch Housing
as shown, Do not tighten the Screws yet.
Remove the knob from the pin, Make sure that the colar
and the spring are on the pin, The colar should be on the
side of the spring shown, insert the pin into the Latch
Housing (68), and tighten the knob back onto it,
Align the pin with the hob in the Left Handgrip (140) by
sliding the Latch Housing (68) up or down, Make sure that
the pin can be inserted fully into the hob, Hold the Latch
Housing in place as you tighten two 1/2" Tek Screws (143)
into the Latch Housing and the Frame (55), Then, tighten
the 1/2" Screws (132), Note: it may be necessary to pull
on the knob to access and tighten the Screws,
Spring
Pin
132 143
4142
Console
Assembly
Knob
}2
5
Small
Hobs
Remove the backing from the indicated tape on the con-
sob assembly, Press the Book Holder (142) firmly onto
the tape, Note: The Book Holder may be preassembled,
5, Make sure that al parts are properly tightened before you use the treadmill. Place a mat beneath the
treadmll to protect the floor or carpet. For your benefit, we recommend that you familiarize yourself with
the TROUBLESHOOTING section on pages 26 and 27,
If you purchase the optional chest pulse sensor (see
page 23}, folow the steps below to instal the receiver
included with the chest pulse sensor.
1, Make sure that the power cord is unplugged. Remove
the indicated Screw (40) and the Access Door (135),
2, Remove the paper from the adhesive pad on the back of
the receiver (A), Orient the receiver so the sinai cyln-
tier is near the tower edge of the receiver and is fac-
ing the Consote Back (1!7) as shown. Firmly press the
receiver onto the indicated corner of the Access Door
(135), Connect the wire on the receiver to the Pulse Wire
(101) extending from the Console Back,
3, Make sure that no wires are pinched. Reattach the
Access Door (135) with the Screw (40), Note: The other
wires included with the receiver may be discarded,
TREADMILL OPERATION
THE PERFORMANT LUBE TM WALKmNG BELT
Your treadmHUfeatures a waUking beUtcoated with
PERFORMANT LUBE TM, a high@erformance Uubrbant,
IMPORTANT: Never apply silicone spray or other
substances to the walking belt or the walking plat-
form. Such substances will deteriorate the walking
belt and cause excessive wear.
HOW TO PLUG IN THE POWER CORD
DANG ER: Improperconnection
of the equipment-grounding conductor can
result in an increased risk of electric shock.
Check with a qualified electrician or service=
man if you are in doubt as to whether the
product is properly grounded. Do not modify
the plug provided with the product--if it wiJl
not fit the outlet, have a proper ouUet
installed by a qualified eJectdcian.
Your treadmill, like any other type of sophisticated
electronic equipment, can be seriously damaged by
sudden voltage changes in your home's power,
Voltage surges, spikes, and noise interference can
result from weather conditions or from other appliances
being turned on or off, To decrease the possibility of
your treadmill being damaged, aJways use a surge
suppressor with your treadmill (see drawing 1 at
the right}. To purchase a surge suppressor, see
your tocaJ REEBOK dealer or call 1-877-994-4999
and order part number 148148.
Use onJy a singJe-ouflet surge suppressor that is
UL 1449 tisted as a transient voltage surge sup-
pressor (TVSS). The surge suppressor must have a
UL suppressed voltage rating of 400 voJts or tess
and a minimum surge dissipation of 450 jouJes.
The surge suppressor must be electrically rated
for 120 voJts AC and 15 amps. There must be a
monitoring light on the surge suppressor to indi-
cate whether it is functioning property. Failure to
use a propedy functioning surge suppressor could
resutt in damage to the control system of the
treadmill. If the controJ system is damaged, the
waJking belt may change speed or stop une×pect-
edty, which may result in a fall and serious injury.
This product must be grounded, if it should maifunc°
tion or break down, grounding provides a path of least
resistance for electric current to reduce the risk of ebc°
tric shock, This product is equipped with a cord having
an equipment-grounding conductor and a grounding
plug, Ptug the power cord into a surge suppressor,
and plug the surge suppressor into an appropriate
outlet that is properly installed and grounded in
accordance with aH local codes and ordinances.
Important: The treadmill is not compatible with
GFCl-equipped outJets.
This product is for use on a nominal 120-volt circuit,
and has a grounding plug that looks like the plug illus-
trated in drawing 1 below, A temporary adapter that
looks like the adapter illustrated in drawing 2 may be
used to connect the surge suppressor to a 2-pole
receptacle as shown in drawing 2 if a properly
grounded outlet is not available,
i-Grounded Outlet Box
_-.l _ Surge Suppressor
_J.. Grounding Pin
_rounded Outlet Box
Adapter Surge Suppressor
The temporary adapter should be used only until a
properly grounded outlet (drawing 1) can be installed
by a qualified electrician,
The greemcolored rigid ear, lug, or the like extending
from the adapter must be connected to a permanent
ground such as a properly grounded outlet box cover,
Whenever the adapter is used it must be held in place
by a metal screw, Some 2-poJe receptacle outJet box
covers are not grounded. Contact a qualified elec-
trician to determine if the outlet box cover is
grounded before using an adapter.
Note:Iftherearethinsheetsofclear
plastcontheconsole,removethem.
o o o o
Key

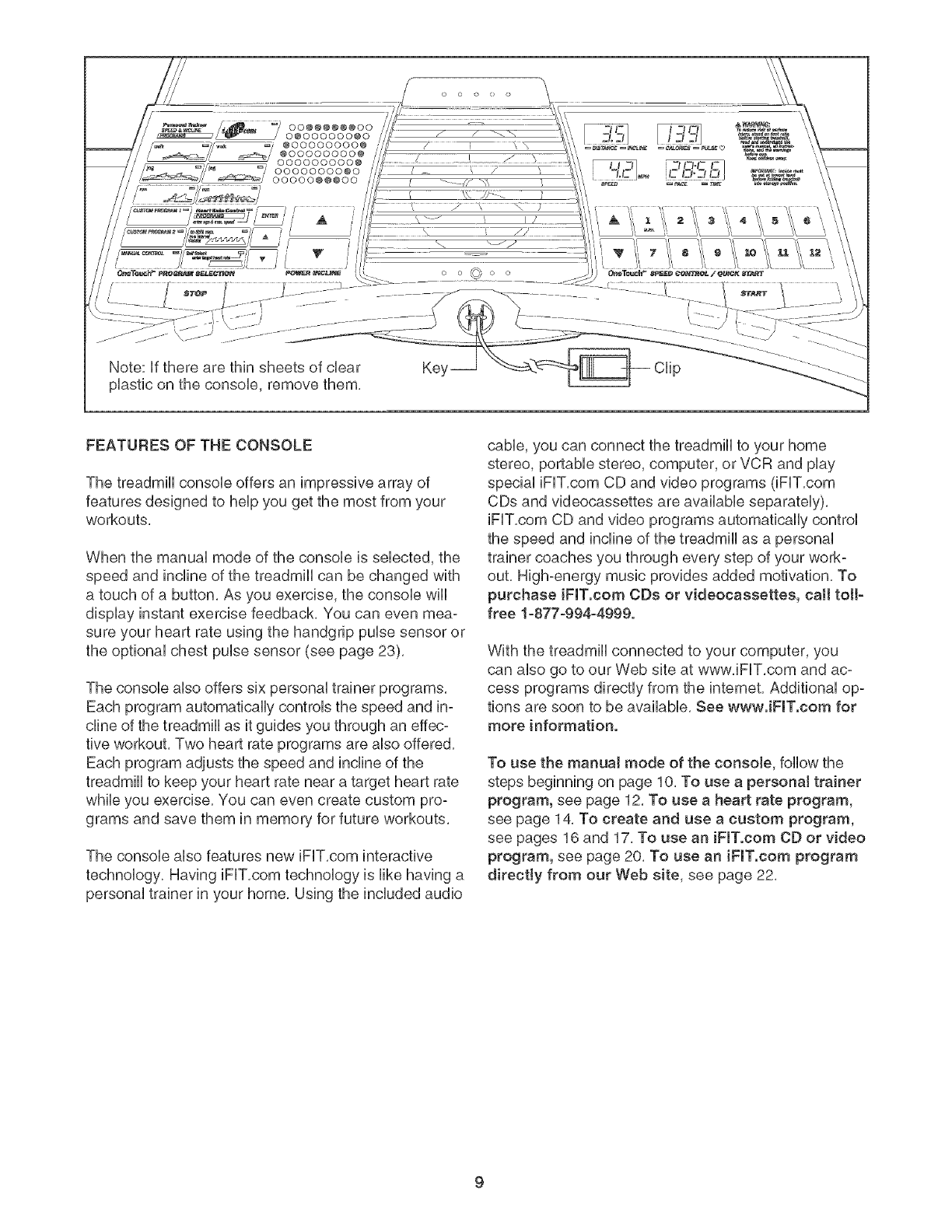

FEATURES OF THE CONSOLE
The treadmill console offers an impressive array of
features designed to help you get the most from your
workouts.
When the manual mode of the console is selected, the
speed and incline of the treadmill can be changed with
a touch of a button. As you exercise, the console will
display instant exercise feedback. You can even mea-
sure your heart rate using the handgrip pulse sensor or
the optional chest pulse sensor (see page 23).
The console also offers six personal trainer programs.
Each program automatically controls the speed and in-
cline of the treadmill as it guides you through an effec-
tive workout. Two heart rate programs are also offered.
Each program adjusts the speed and incline of the
treadmill to keep your heart rate near a target heart rate
while you exercise. You can even create custom pro-
grams and save them in memory for future workouts.
The console also features new iFIT.com interactive
technology. Having iFIT.com technology is like having a
personal trainer in your home. Using the included audio
cable, you can connect the treadmill to your home
stereo, portable stereo, computer, or VCR and play
special iFIT.com CD and video programs (iFIT.com
CDs and videocassettes are available separately).
iFIT.com CD and video programs automatically control
the speed and incline of the treadmill as a personal
trainer coaches you through every step of your work-
out. High-energy music provides added motivation. To
purchase iFIT.com CDs or videocassettes, cal toll-
free 1-877-994-4999.
With the treadmill connected to your computer, you
can also go to our Web site at www.iFIT.com and ac-
cess programs directly from the internet. Additional op-
tons are soon to be available. See wwwJFIT.com for
more information.
To use the manua! mode of the console, follow the
steps beginning on page 10. To use a personal trainer
program, see page 12. To use a heart rate program,
see page 14. To create and use a custom program,
see pages 16 and 17. To use an iFIT.com CD or video
program, see page 20. To use an iFIT.com program
directly from our Web site, see page 22.

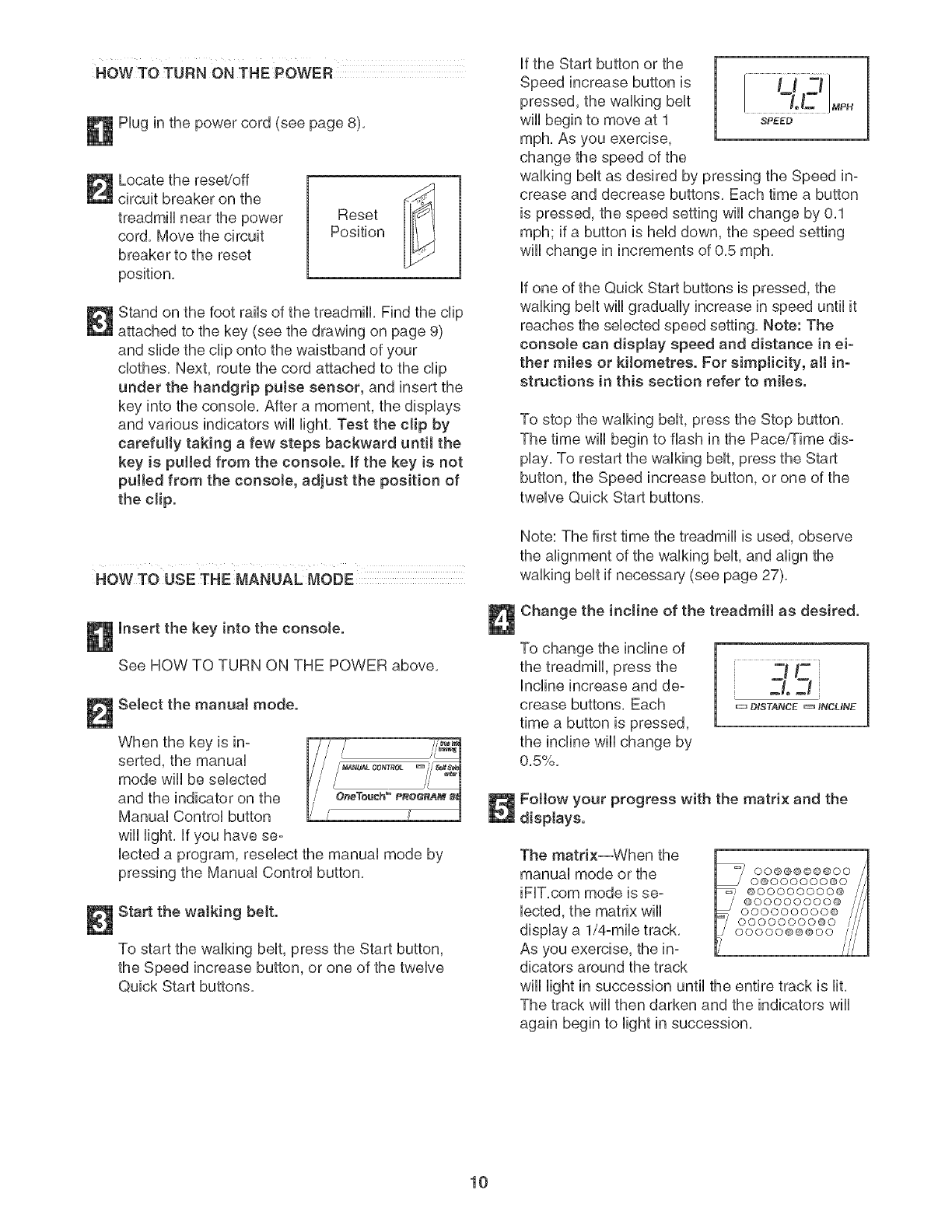

HOWTOTURNONTHEPOWER
Huginthepowercord(seepage8).
Locatethereset/off
circuitbreakeronthe
treadmHUnearthepower
cord.Movethecircuit
breakertothereset
position.
Reset
Position
StandonthefootrailsofthetreadmillFindthedip
attachedtothekey(seethedrawingonpage9)
andslidethedip ontothewaistbandofyour
clothes.Next,routethecordattachedtothedip
underthehandgdppulsesensor,andinsertthe
keyintotheconsob.Aftera moment,thedispUays
andvariousindicatorswHUHght.Testtheclip by
carefullytakingafewstepsbackwarduntil the
keyis pulledfromtheconsole.Ifthekeyis not
pulledfrom theconsole,adjustthepositionof
theclip.
HOWTO USE THE MANUAL MODE
Insert the key into the consote.
See HOW TO TURN ON THE POWER above.
Select the manual mode.
When the key is in-
serted, the manual
mode will be selected
and the indicator on the
Manual Control button
will light. If you have se-
bcted a program, resebct the manual mode by
pressing the Manual Control button.
Start the walking belt.
To start the walking belt, press the Start button,
the Speed increase button, or one of the twelve
Quick Start buttons,
If the Start button or the
Speed increase button is
pressed, the walking belt
will begin to move at 1
mph. As you exercise,
change the speed of the
/t,t
-Lt2
SPESD
walking belt as desired by pressing the Speed in-
crease and decrease buttons. Each time a button
is pressed, the speed setting will change by 0.1
mph; if a button is held down, the speed setting
will change in increments of 0.5 mph.
if one of the Quick Start buttons is pressed, the
walking belt will gradually increase in speed until it
reaches the selected speed setting, Note: The
console can display speed and distance in ei-
ther mites or kHometres. For simplicity, aH in-
structions in this section refer to miles.
To stop the walking belt, press the Stop button.
The time will begin to flash in the Pace/Time dis-
play. To restart the walking belt, press the Start
button, the Speed increase button, or one of the
twelve Quick Start buttons.
Note: The first time the treadmill is used, observe
the alignment of the walking belt, and align the
walking belt if necessary (see page 27),
Change the incline of the treadmill as desired.
To change the incline of
the treadmill, press the
Incline increase and de-
crease buttons, Each
time a button is pressed,
the incline will change by
0.5%.
c=_ DJSTANCE _ INCMNE
Fottow your progress with the matrix and the
displays.
The matdx--VVhen the
manual mode or the
iFIT.com mode is se=
lected, the matrix will
display a 1/4-mile track.
As you exercise, the in-
dicators around the track
will light in succession until the entire track is lit.
The track will then darken and the indicators will
again begin to light in succession.
10

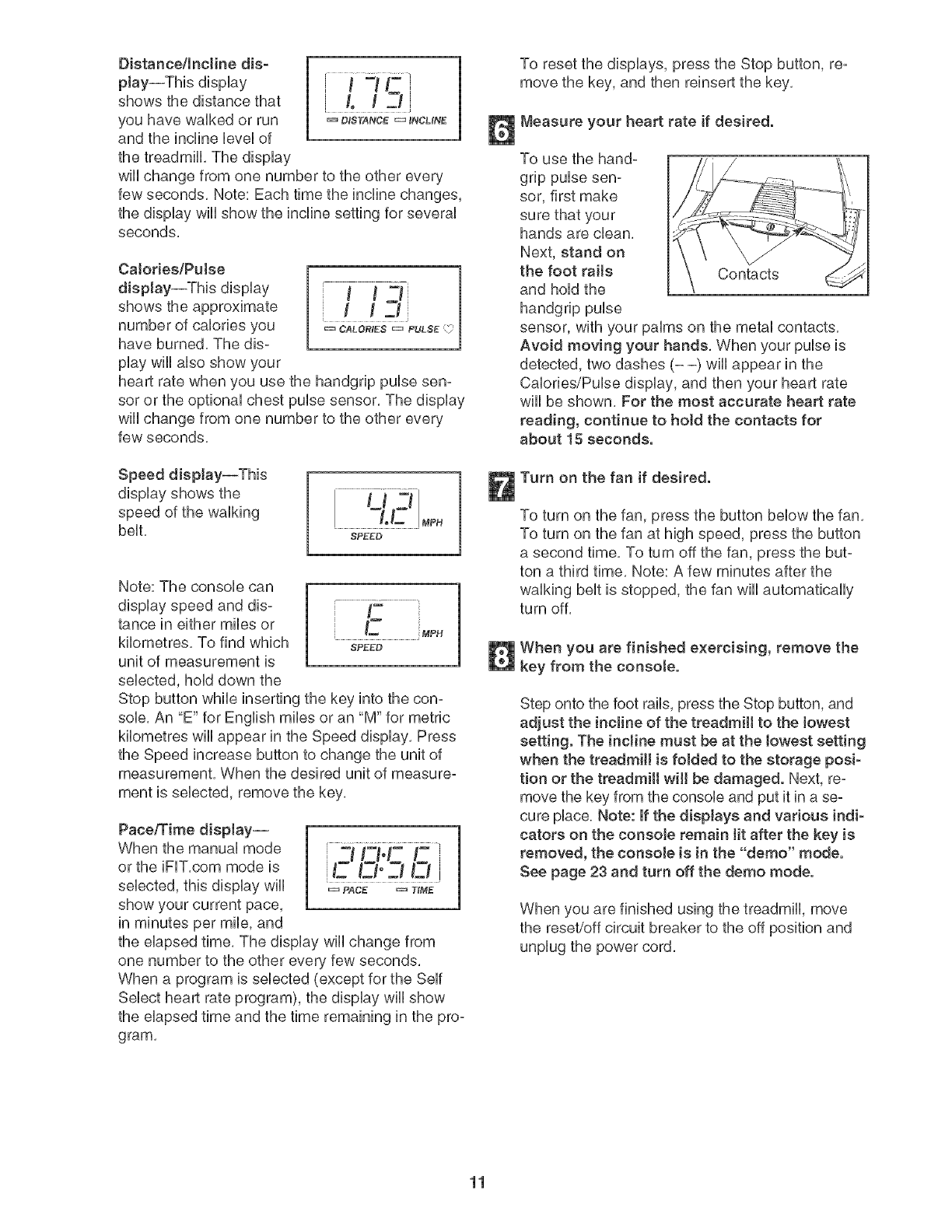

Distance/mncline dis-
play--This dispiay
shows the distance that
you have waiked or run
and the incline ievei of
the treadmill The dispiay
wHichange from one number to the other every
few seconds, Note: Each time the incline changes,
the dispiay wHi show the incline setting for severai
seconds,
LI_
D#STANCE c=_ JNCLINE
CaJodes/Putse
dispiay--Thb dispiay
shows the approximate
have burned, The dis-
play wHIalso show your
I 13i
CALORIES _ PULSE ' _
heart rate when you use the handgrip pulse sen-
sor or the optional chest pulse sensor. The display
will change from one number to the other every
few seconds.
Speed display--This
display shows the
speed of the walking
belt, -LC
SPEED
Note: The console can
display speed and dis- l-
tance in either miles or i_ MP.
kilometres. To find which SPEED
unit of measurement is
selected, hold down the
Stop button while inserting the key into the con-
sob. An "E" for English miles or an "M" for metric
kilometres will appear in the Speed display. Press
the Speed increase button to change the unit of
measurement. When the desired unit of measure-
ment is selected, remove the key.
Pace/Time display--
When the manual mode i _1"_ F"_°/-- /_ 'i
or the iFIT.com mode is !t._ _J° _J _t i
selected, this display wiii =PACE = T_ME
show your current pace,
in minutes per mile, and
the elapsed time, The display will change from
one number to the other every few seconds,
When a program is selected (except for the Self
Select heart rate program), the display will show
the elapsed time and the time remaining in the pro-
gram,
To reset the displays, press the Stop button, re-
move the key, and then reinsert the key,
Measure your heart rate if desired.
To use the hand-
grip pulse sen-
sor, first make
sure that your
hands are dean.
Next, stand on
the foot raits
and hold the
handgrip pulse
sensor, with your palms on the metal contacts,
Avoid moving your hands, When your pulse is
detected, two dashes (- -) will appear in the
Calories/Pulse display, and then your heart rate
will be shown, For the most accurate heart rate
reading, continue to hotd the contacts for
about 15 seconds,
Turn on the fan if desired.
To turn on the fan, press the button below the fan,
To turn on the fan at high speed, press the button
a second time, To turn off the fan, press the but-
ton a third time, Note: A few minutes after the
walking belt is stopped, the fan wiii automatically
turn off.
When you are finished exercising, remove the
key from the consote,
Step onto the foot rails, press the Stop button, and
adjust the incline of the treadmill to the lowest
setting, The incline must be at the lowest setting
when the treadmill is foJded to the storage posi-
tion or the treadmill will be damaged. Next, re-
move the key from the console and put it in a se-
cure place. Note: if the displays and various indi-
cators on the console remain Jitafter the key is
removed, the console is in the "demo" mode.
See page 23 and turn off the demo mode.
When you are finished using the treadmill, move
the reset/off circuit breaker to the off position and
unplug the power cord.
11
HOW TO USE PERSONAL TRAmNER _ROGRAMS
mnsert the key into the console.
See HOW TO TURN ON THE POWER on page
10,
Select one of the personaJ trainer programs.
To sebct a personaU
trainer program, press
one of the WaUk,Jog, or
Run buttons, The indi-
cator on the button that
you press wHUHght,
When a personaU trainer program is sebcted, the
Speed dispUay wHUflash the maximum speed set-
ting of the program for a few seconds, and the
Dbtance/hcHne dispUay wHUflash the maximum in-
dine setting, The Pace/Time dispUay wHUshow
how bng the program wHUlast,
The matrix wiii show
the first seven speed
settings of the program,
Note: The diagrams on
the Walk, Jog, and Run
buttons show how the
speed and incline of
the treadmill will change during the personal
trainer programs, For example, the diagram on
the right Walk button shows that the speed and in-
cline will gradually increase during the first half of
the program and then gradually decrease during
the last haiti
Press the Start button or the Speed increase
button to start the program.
A moment after the button is pressed, the tread-
mill will automatically adjust to the first speed and
incline settings of the program, Hold the handrails
and begin walking,
Each program is divided into several time seg-
ments of different lengths, One speed setting and
one incline setting are programmed for each seg-
ment, Note: The same speed setting and/or in-
cline setting may be programmed for two or more
consecutive segments,
The speed setting for the
first segment is shown in
the flashing Current
Segment column of the
matrix, (The incline set-
tings are not shown in
the matrix,) The speed
settings for the next
seven segments are
shown in the seven columns to the right,
Current Segment
When only three seconds remain in the first seg-
ment of the program, both the Current Segment
column and the column to the right wiii flash and a
series of tones will sound, if the speed and/or in-
cline of the treadmill is about to change, the Speed
display and/or the Distance/Incline display wiii
flash to alert you, When the first segment ends, ai/
speed settings wifl move one column to the left,
The speed setting for the second segment will then
be shown in the flashing Current Segment column
and the treadmill will automatically adjust to the
speed and incline settings for the second segment,
Note: if all of the indicators in the Current Segment
column are lit after the speed settings have moved
to the left, the speed settings may move downward
so that only the highest indicators appear in the
matrix, if some of the indicators in the Current
Segment column are not lit when the speed set-
tings move to the left again, the speed settings will
move back up,
The program will continue in this way until the
speed setting for the last segment is shown in the
Current Segment column and the last segment
ends, The walking belt wiii then slow to a stop,
if the speed or incline setting is too high or too low
at any time during the program, you can manually
override the setting by pressing the Speed or
Incline buttons, Every few times a Speed button is
pressed, an additional indicator will light or darken
in the Current Segment column, (if any of the
columns to the right of the Current Segment cop
umn have the same number of lit indicators as the
Current Segment column, an additional indicator
may light or darken in those columns as well,)
Note: When the next segment of the program
begins, the treadmill will automatically adjust
to the speed and incline settings for the next
segment.
12

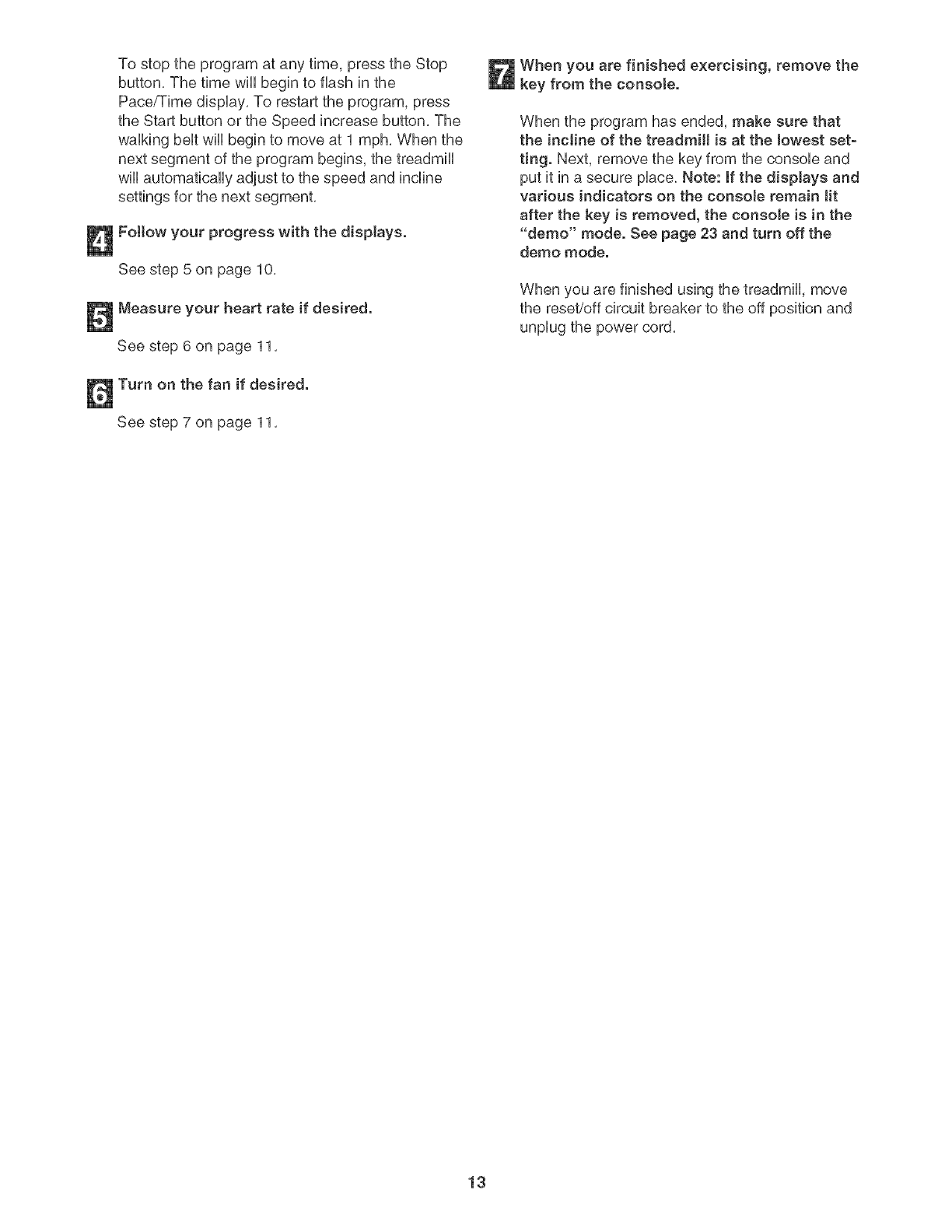

To stop the program at any time, press the Stop
button, The time wili begin to flash in the
Pace/Time display, To restart the program, press
the Start button or the Speed increase button, The
walking belt will begin to move at 1 mph, When the
next segment of the program begins, the treadmill
will automatically adjust to the speed and incline
settings for the next segment,
Follow your progress with the displays.
See step 5 on page 10,
Measure your heart rate if desired.
See step 6 on page 11,
Turn on the fan if desired.
See step 7 on page 11,
When you are finished exercising, remove the
key from the console.
When the program has ended, make sure that
the incline of the treadmill is at the Jowest set-
ting. Next, remove the key from the consoUe and
put it in a secure pUace,Note: If the displays and
various indicators on the console remain lit
after the key is removed, the console is in the
"demo" mode. See page 23 and turn off the
demo mode.
When you are finished using the treadmHU,move
the reset/off circuit breaker to the off position and
unpUugthe power cord,
13
HOW TO USE HEART RATE PROGRAMS
lems, or if you are over 60 years of age and
have been inactive, do not use the heart rate
programs, ff you are taking medication regu-
larly, consuJt your physician to find whether
the medication will affect your exercise heart
rate.
Put on the optionaJ chest pulse sensor.
You must wear the optional chest puJse sensor
(see page 23) to use a heart rate program.
mnsert the key into the console.
See HOW TO TURN ON THE POWER on
page 1O,
Select a heart rate program.
To sebct a heart rate
program, press the
85% Max or Self Select
button, The indicator on
the button that you
press wiii light,
During the 85% Max program, your heart rate wiii
reach approximately 85% of your estimated maxi-
mum heart rate; during the Self Select program,
your heart rate will remain near a level that you
select. Note: Your estimated maximum heart rate
is determined by subtracting your age from 220,
For example, if you are 30 years old, your esti-
mated maximum heart rate is 190 beats per
minute (220 - 30 = 190),
During heart rate pro-
grams, the matrix wiii
show a moving graphic
that represents your
heart rate, Each time a
heartbeat is detected, a
peak will appear,
Enter your age.
When a heart rate pro-
gram is selected, the
word "AGE" and the cur-
rent age setting will flash
in the Calories/Pulse
display, if you have al-
ready entered your age, simply press the Enter
button, if you have not entered your age, press
the increase and decrease buttons below the
Enter button to enter your age, Then, press the
Enter button,
RbE
CALORIES _PULSE ({}
Enter a maximum speed.
After you have entered
your age, the letters
"SPd" and the maximum
speed setting of the pro-
gram will flash in the
Speed display, if de-
9P,:lo .
SPEED
sired, press the increase and decrease buttons
below the Enter button to adjust the maximum
speed setting, When the desired setting is shown,
press the Enter button,
If the 85% Max program is seJected, go to step
7. If the Self Select program is selected, go to
step 6.
Enter a target heart rate.
The letters "PLS" and
the target heart rate set-
ting for the program will
flash in the Calories/
Pulse display, if desired,
press the increase and
decrease buttons below the Enter button to adjust
the target heart rate setting, When the desired
setting is shown, press the Enter button,
Press the Start button or the Speed increase
button to start the program.
A moment after the button is pressed, the tread-
mill will automatically adjust to the first speed and
incline settings of the program, Hold the handrails
and begin walking,
14

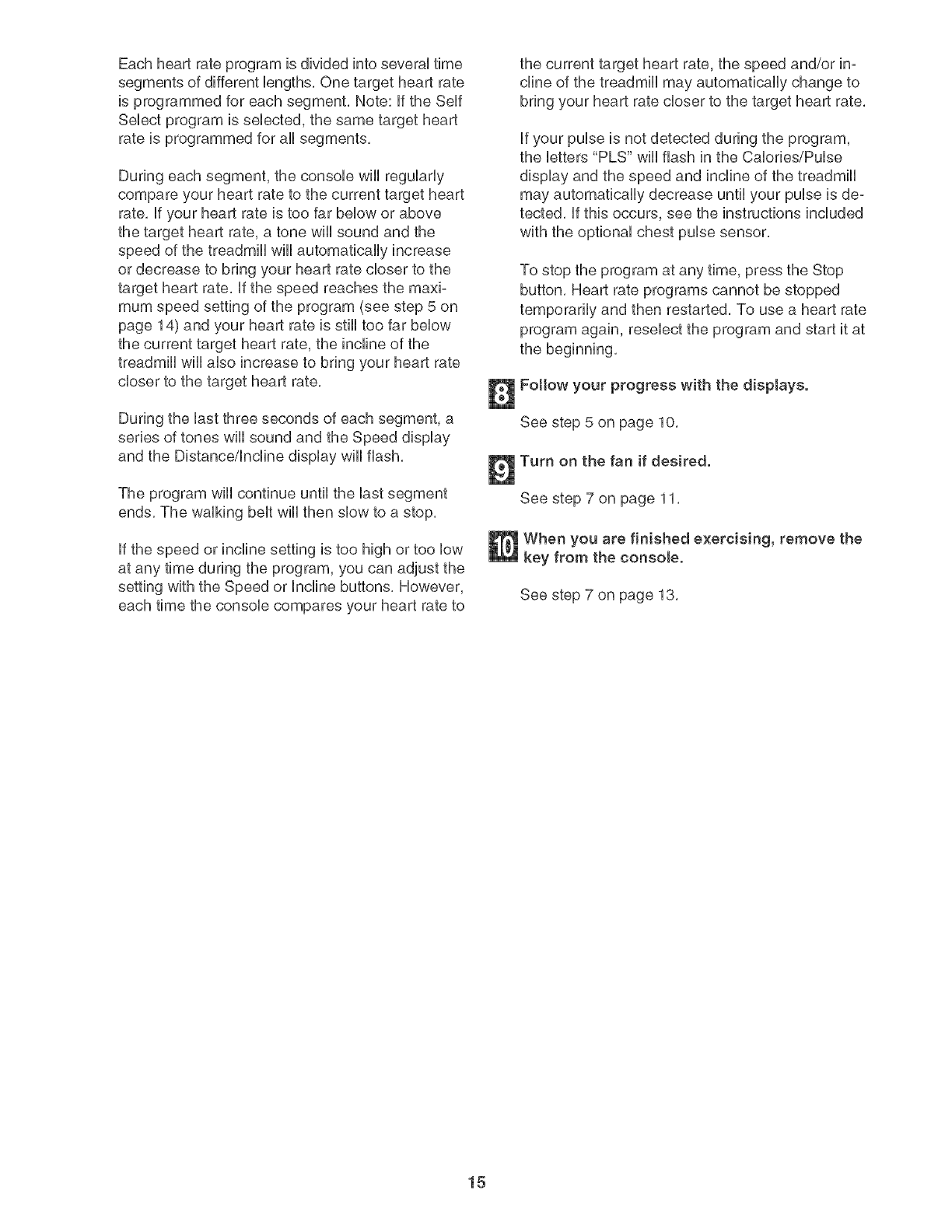

Each heart rate program is divided into severaUtime
segments of different bngths, One target heart rate
is programmed for each segment, Note: if the SeUf
Sebct program is sebcted, the same target heart
rate is programmed for aH segments,
During each segment, the console wiii regularly
compare your heart rate to the current target heart
rate, if your heart rate is too far below or above
the target heart rate, a tone will sound and the
speed of the treadmill will automatically increase
or decrease to bring your heart rate closer to the
target heart rate, if the speed reaches the maxio
mum speed setting of the program (see step 5 on
page 14) and your heart rate is still too far below
the current target heart rate, the incline of the
treadmill will also increase to bring your heart rate
closer to the target heart rate.
During the last three seconds of each segment, a
series of tones will sound and the Speed display
and the Distance/Incline display wiii flash,
The program wili continue until the last segment
ends, The walking belt will then slow to a stop,
if the speed or incline setting is too high or too low
at any time during the program, you can adjust the
setting with the Speed or Incline buttons, However,
each time the console compares your heart rate to
the current target heart rate, the speed and/or ino
cline of the treadmill may automatically change to
bring your heart rate closer to the target heart rate,
if your pulse is not detected during the program,
the letters "PLS" wiii flash in the Calories/Pulse
display and the speed and incline of the treadmill
may automatically decrease until your pulse is deo
tected, if this occurs, see the instructions included
with the optional chest pulse sensor,
To stop the program at any time, press the Stop
button, Heart rate programs cannot be stopped
temporarily and then restarted, To use a heart rate
program again, reselect the program and start it at
the beginning,
Follow your progress with the displays.
See step 5 on page 10,
Turn on the fan if desired.
See step 7 on page 11,
When you are finished exercising, remove the
key from the console.
See step 7 on page 13,
15
HOW TO CREATE CUSTOM _ROGRAMS
mnsert the key into the console.
See HOW TO TURN ON THE POWER on page
10,
Select one of the custom programs.
To seUecta custom pro-
gram, press the Custom
Program 1 button or the
Custom Program 2 but-
ton, The indicator on the
button that you press wHU
Hght.
Press the Start button or the Speed increase
button and program the desired speed and in-
cline settings.
A moment after the button is pressed, the walking
belt will begin to move, Hold the handrails and
begin walking,
See the matrix, Each
custom program is di- Current Segment
vided into one-minute
segments, One speed
setting and one incline
setting can be pro-
grammed for each seg-
ment, The speed setting
for the first segment will
be shown in the flashing Current Segment column
of the matrix, (The incline settings are not shown
in the matrix,) To program a speed setting and an
incline setting for the first segment, simply adjust
the speed and incline of the treadmill as desired
by pressing the Speed and Incline buttons, Every
few times one of the Speed buttons is pressed, an
additional indicator wiii light or darken in the
Current Segment column,
During the last three seconds of the first segment,
both the Current Segment column and the column
to the right will flash, a series of tones will sound,
and the Speed display and the Distance/Incline
display will flash, When the first segment ends, the
current speed setting and the current incline set-
ting will be saved in memory, and all speed set°
tings in the matrix will move one column to the left,
The speed setting for the second segment will
then be shown in the flashing Current Segment
column, Program a speed setting and an incline
setting for the second segment as described
above,
Continue programming speed and incline settings
for as many segments as desired; custom pro-
grams can have up to forty segments, When you
are finished with your workout, press the Stop but-
ton twice, The speed and incline settings that you
have programmed and the number of segments
that you have programmed wiii then be saved in
memory,
When the program is finished, remove the key.
See step 7 on page 13,
16

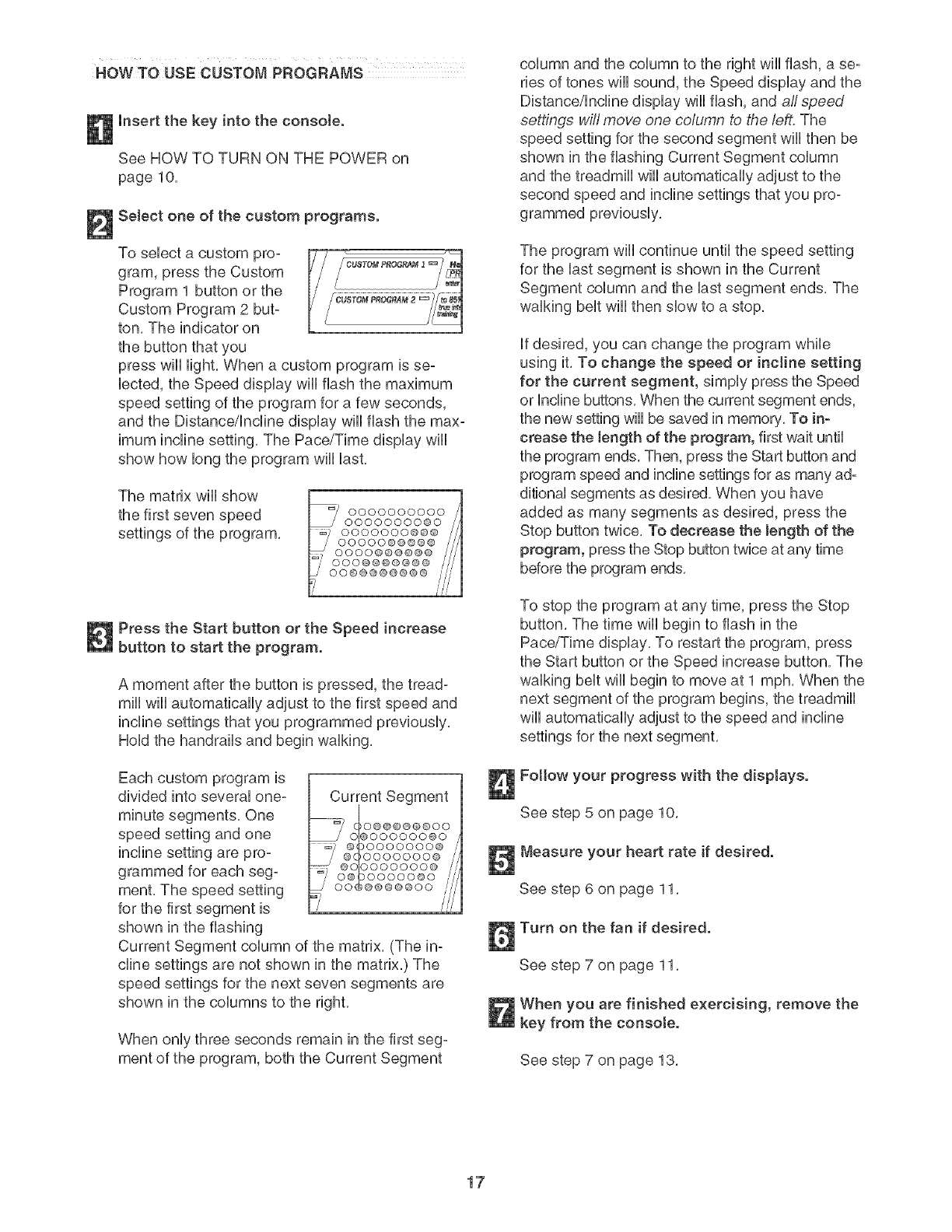

HOW TO USECUSTOM _ROGRAMS
mnsert the key into the console.
See HOW TO TURN ON THE POWER on
page 1O.
Select one of the custom programs.
To seUecta custom pro-
gram, press the Custom
Program 1 button or the
Custom Program 2 but-
ton. The indicator on
the button that you
press wHUHght. When a custom program is se-
bcted, the Speed dispUay wHUflash the maximum
speed setting of the program for a few seconds,
and the Distance/hcHne dispUay wHUflash the max-
imum incline setting. The Pace/Time dispUay wHU
show how bng the program wHUUast.
The matrix wHUshow
the first seven speed
settings of the program.
Press the Start button or the Speed increase
button to start the program.
A moment after the button is pressed, the tread-
mHUwill automatically adjust to the first speed and
incline settings that you programmed previously.
Hold the handrails and begin walking.
Each custom program is
divided into several one- Current Segment
minute segments. One
speed setting and one
incline setting are pro-
grammed for each seg-
ment. The speed setting
for the first segment is
shown in the flashing
Current Segment column of the matrix. (The in-
cline settings are not shown in the matrix.) The
speed settings for the next seven segments are
shown in the columns to the right.
When only three seconds remain in the first seg-
ment of the program, both the Current Segment
column and the column to the right will flash, a se-
ries of tones will sound, the Speed display and the
Distance/incline display will flash, and all speed
settings will move one column to the left, The
speed setting for the second segment will then be
shown in the flashing Current Segment column
and the treadmill will automatically adjust to the
second speed and incline settings that you pro-
grammed previously.
The program wiii continue until the speed setting
for the last segment is shown in the Current
Segment column and the last segment ends, The
walking belt wiii then slow to a stop,
if desired, you can change the program while
using it. To change the speed or incline setting
for the current segment, simply press the Speed
or Incline buttons. When the current segment ends,
the new setting will be saved in memory. To in-
crease the length of the program, first wait until
the program ends. Then, press the Start button and
program speed and incline settings for as many ad-
ditional segments as desired. When you have
added as many segments as desired, press the
Stop button twice. To decrease the length of the
program, press the Stop button twice at any time
before the program ends.
To stop the program at any time, press the Stop
button. The time wiii begin to flash in the
Pace/Time display. To restart the program, press
the Start button or the Speed increase button. The
walking belt will begin to move at 1 mph. When the
next segment of the program begins, the treadmill
will automatically adjust to the speed and incline
settings for the next segment.
Fottow your progress with the displays.
See step 5 on page 10.
Measure your heart rate if desired.
See step 6 on page 11.
Turn on the fan if desired.
See step 7 on page 11.
When you are finished exercising, remove the
key from the consote.
See step 7 on page 13.
17
HOW TO CONNECT THE TREADMmLL TO
YOUR CD PLAYER, VCR, OR COMPUTER
To use iFIT.com CDs, the treadmHHmust be con-
nected to your portable CD pHayer,portabHestereo,
home stereo, or computer with CD pHayer, See pages
18 and 19 for connecting instructions, To use iFIT.com
videocassettes, the treadmHHmust be connected to
your VCR, See page 20 for connecting instructions, To
use iFIT.com programs directly from our Web site,
the treadmHHmust be connected to your home com-
puter, See page 19 for connecting instructions,
HOW TO CONNECT YOUR PORTABLE CD PLAYER
Note: if !our CD player has separate LINE OUT and
PHONES jacks, see instruction A be!ow, If your CD
player has only one jack, see instruction B,
A, Hug one end of the audio came into the jack on the
front of the treadmHHnear the power cord, Hug the
other end of the came into the LHNEOUT jack on
your CD pHayer, Hug your headphones into the
B, Hug one end of the audio came into the jack on the
front of the treadmiHHnear the power cord, Hug the
other end of the came into a 3,5mm Y-adapter
(avaiHabHeat eHectronics stores), Hug the Y-adapter
into the PHONES jack on your CD pHayer, Hug your
headphones into the other side of the Y-adapter,
m
m
Audio
CaMe
i PHONES®i
u
3,5mm
Y-adapter
Headphones
HOW TO CONNECT YOUR PORTABLE STEREO
Note: if your stereo has an RCA-type AUDIO OUT
jack, see instruction A below, if your stereo has a
3,5mm LINE OUT jack, see instruction B, If your
stereo has only a PHONES jack, see instruction C,
A, Hug one end of the audio came into the jack on the
front of the treadmiHHnear the power cord, Hug the
other end of the came into the incHudedadapter, Hug
the adapter into an AUDHO OUT jack on your stereo,
...................•.. Audio
@i CaMe
u
....'u._'.°2Z..,
_..ZL .
Adapter
B, Hug one end of the audio came into the jack on the
front of the treadmiHHnear the power cord, Hug the
other end of the came into the LHNEOUT jack on
you r stereo,
LIN_T
C, Hug one end of the audio came into the jack on the
front of the treadmiHHnear the power cord, Hug the
other end of the came into a 3,5mm Y-adapter
(avaiHabHeat electronics stores), Hug the Y-adapter
into the PHONES jack on your stereo, Hug your
headphones into the other side of the Y-adapter,
o uJ:
3,SmL_ i
:..................: Audio Y-adapter l_
i[ Cabne
-" Headphones____,.44E_
18
HOW TO CONNECT YOUR HOME STEREO HOW TO CONNECT YOUR COMPUTER
Note: If your stereo has an unused UNE OUT jack,
see instruction A below. Jf the UNE OUT jack is
being used, see instruction B.
A, Hug one end of the audio came into the jack on the
front of the treadmHUnear the power cord, Hug the
other end of the came into the included adapter,
Hug the adapter into the UNE OUT jack on your
stereo,
..................." Audio
[+_++-]@i CaMs
iUNEOUT@
...........++n++
Adapter_
B, Hug one end of the audio came into the jack on the
front of the treadmHUnear the power cord, Hug the
other end of the came into the included adapter,
Hug the adapter into an RCA Y-adapter (available
at electronics stores), Next, remove the wire that is
currently plugged into the LINE OUT jack on your
stereo and plug the wire into the unused side of the
Y-adapter, Plug the Y-adapter into the LINE OUT
jack on your stereo,
...................•.RCA Y-adapter--
@i Audb
...................:Cable Adapter
Wire removed from
LINE OUT jack
Note: If your computer has a 3.5ram LINE OUT jack,
see instruction A. If your computer has only a
PHONES jack, see instruction B.
A. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into the LINE OUT jack on
you r computer.
A
UNE_T
B
7.................."_ Audio
tL 2t:°J
B, Hug one end of the audio cable into the jack on the
front of the treadmill near the power cord, Hug the
other end of the cable into a 3,5mm Y-adapter
(available at electronics stores), Hug the Y-adapter
into the PHONES jack on your computer, Hug your
headphones or speakers into the other side of the
Y-adapter,
B
............... amm_'
Audio
Cable
i..!!°!!!..¢i
__ 3,5mm
Y-adapter
Headphones/Speakers-H_c:::::_>_
19
HOW TO CONNECT YOUR VCR
Note: if your VCR has an unused AUDIO OUT jack,
see instruction A below, if the AUDIO OUT jack is
being used, see instruction B. ff you have a TV
with a builtqn VCR, see instruction B. ff your VCR
is connected to your home stereo, see NOW TO
CONNECT YOUR HOME STEREO on page 19.
A, Hug one end of the audio came into the jack on the
front of the treadmHUnear the power cord, Hug the
other end of the came into the included adapter,
Hug the adapter into the AUDIO OUT jack on your
VCR,
.....$i
LER
B, Hug one end of the audio came into the jack on the
front of the treadmHUnear the power cord, Hug the
other end of the came into the included adapter,
Hug the adapter into an RCA Y-adapter (avaHabb
at electronics stores), Next, remove the wire that is
currently plugged into the AUDIO OUT jack on your
VCR and plug the wire into the unused side of the
Y-adapter, Plug the Y-adapter into the AUDIO OUT
jack on your VCR,
®®i RCA Y-adapter--I
Audio
Cable Adapter
Wire removed from_
AUDIO OUT jack
HOW TO USE mFmT:COMCD AND VmDEO
PROGRAMS
To use iFF,com CDs or videocassettes, the treadmill
must be connected to your portable CD player, portable
stereo, home stereo, computer with CD player, or
VCR, See HOW TO CONNECT THE TREADMILL TO
YOUR CD PLAYER, VCR, OR COMPUTER on page
18, Note: To purchase iFiT.com CDs or iFlT.com
videocassettes, can toil-free 1-877-994-4999.
Follow the steps below to use an iFIT,com CD or video
program,
Insert the key into the consote.
See HOWTO TURN ON THE POWER on page 10,
Select the iFiT.com mode.
To use an iFIT,com CD
or video program, press
the iFIT,com button, The
indicator on the button
will light,
Insert the iFlT.com CD or videocassette.
if you are using an iFIT,com CD, insert the CD into
your CD player, if you are using an iFIT,com video-
cassette, insert the videocassette into your VCR,
Press the PLAY button on your CD player or
VCR.
A moment after the button is pressed, your per-
sonal trainer wiii begin guiding you through your
workout, Simply follow your personal trainer's
instructions, Note: if the time is flashing in the
Pace/Time display, press the Start button or the
Speed increase button on the console, The tread-
miii wiii not respond to a CD or video program
while the Pace/Time display is flashing,
During the CD or video program, an electronic
"chirping" sound wiii alert you when the speed
and/or incline of the treadmill is about to change,
CAUTION: AJways Hsten for the "chirp" and be
prepared for speed and/or incline changes. In
some instances, the speed and/or incJine may
change before the personal trainer describes
the change.
2O
if the speed or incline settings are too high or too
low, you can manually override the settings by
pressing the Speed or Incline buttons on the con-
sob, However, when the next "chirp" is heard,
the speed and/or incline wH[ change to the
next settings of the CD or video program.
To stop the walking belt at any time, press the
Stop button on the console, The time wiii begin to
flash in the Pace/Time display, To restart the pro-
gram, press the Start button or the Speed in-
crease button, After a moment, the walking belt
will begin to move at 1 mph, When the next
"chirp" is heard, the speed and incline wH[
change to the next settings of the CD or video
program,
When the CD or video program is completed, the
walking belt wiii stop and the time wiii begin to flash
in the Pace/Time display, Note: To use another
CD or video program, press the Stop button or re-
move the key and go to step 1 on page 20,
Note: If the speed or incline of the treadmill
does not change when a "chirp" is heard:
Make sure that the indicator on the iFIT.com
button is [it and that the time is not flashing in
the Pace/Time display. If the Pace/Time dis-
play is flashing, press the Start button or the
Speed increase button on the console.
Adjust the volume of your CD player or VCR.
If the volume is too high or too low, the con-
sole may not detect the program signals.
,,Make sure that the audio came is properly
connected, that it is fully plugged in, and that
it is not wrapped around a power cord.
* If you are using your portable CD player and
the CD skips, set the CD player on the floor or
another flat surface instead of on the console.
Follow your progress with the LED track and
the displays.
See step 5 on page 10,
Measure your heart rate if desired.
See step 6 on page 11,
Turn on the fan if desired.
See step 7 on page 11,
When you are finished exercising, remove the
key from the console.
See step 7 on page 13,
CAUTION: Always remove iFIT.com CDs and
videocassettes from your CD player or VCR
when you are finished using them.
21
HOWTO USE PROGRAMS DmRECTLY FROM
OUR WEB StaTE
Our Web site at wwwJFUT,com allows you to access
programs directly from the internet, AdditionaU options
are soon to be avaHabb, See wwwJFUT,com for more
information,
To use programs from our Web site, the treadmHUmust
be connected to your home computer, See HOW TO
CONNECT YOUR COMPUTER on page 19, in
addition, you must have an internet connection and
an internet service provider, A Hstof specific system re-
quirements is found on our Web site,
Follow the steps bebw to use a program from our
Web site,
Insert the key into the console.
See HOW TO TURN ON THE POWER on page 10,
Select the iFIT.com mode.
To use an iFUT,com CD
or video program, press
the iFUT,com button,
The indicator on the but-
ton will light,
Go to your computer and start an internet
connection.
Start your web browser, if necessary, and go to
our Web site at www.iFIT.com.
Follow the desired tinks on our Web site to se-
tecta program.
Read and follow the on-line instructions for using a
program,
Follow the on-tine instructions to start the
program.
When you start the program, an on-screen count-
down will begin,
Return to the treadmill and stand on the foot
rails. Find the clip attached to the key and slide
the clip onto the waistband of your clothes.
When the on-screen countdown ends, the program
wiii begin and the walking belt wiii begin to move,
Hold the handrails, step onto the walking belt, and
begin walking, During the program, an electronic
"chirping" sound will alert you when the speed
and/or incline of the treadmill is about to change,
CAUTION: AJways listen for the "chirp" and be
prepared for speed and/or incline changes.
if the speed or incline settings are too high or too
low, you can manually override the settings by
pressing the Speed or Incline buttons on the con-
sob, However, when the next "chirp" is heard,
the speed and/or incline wilt change to the next
settings of the program.
To stop the walking belt at any time, press the
Stop button on the console, The time wiii begin to
flash in the Pace/Time display, To restart the pro-
gram, press the Start button or the Speed in-
crease button, After a moment, the walking belt
will begin to move at 1 mph, When the next
"chirp" is heard, the speed and incline will
change to the next settings of the program,
When the program ends, the walking belt wiii stop
and the time wiii begin to flash in the Pace/Time
display, Note: To use another program, press the
Stop button and go to step 5,
Note: If the speed or incline of the treadmill
does not change when a "chirp" is heard, make
sure that the indicator on the iFIT.com button is
tit and that the Pace/Time dispJay is not flash-
ing. In addition, make sure that the audio cable
is properly connected, that it is fully plugged in,
and that it is not wrapped around a power cord.
Follow your progress with the LED track and
the displays.
See step 5 on page 10,
When you are finished exercising, remove the
key from the consote.
See step 7 on page 13,
22
THE mNFORMATmONMODE/DEMO MODE HOW TO ADJUST THE CUSHmONmNGSYSTEM
The consob features an information mode that keeps
track of the totaUnumber of hours that the treadmHUhas
been operated and the totaUnumber of miles or Home-
tres that the waUking beUthas moved, The information
mode abo allows you to switch the consob from miles
per hour to kHometres per hour, in addition, the infor-
mation mode allows you to turn on and turn off the
demo mode,
To sebct the information mode, hoUddown the Stop
button while inserting the key into the consob, When
the information mode is sebcted, the following informa-
tion will be shown:
The Distance/incline display
will show the total number of
miles (or kilometres) that the
walking belt has moved, c:::=DISTANCE c::::=INCMN[
5',5'
=:= PACE =:= T_ME
I"-
/_ MPH
SPEED
The Pace/Time display will
show the total number of
hours the treadmill has been
used,
An "E" for English miles or
an "M" for metric kilometres
will appear in the Speed dis-
play, Press the Speed in-
crease button to change the
unit of measurement,
iMPORTANT: The Calories/PuJse display should be
blank. If a "d" appears in the display, the console is m
the "demo" mode, This mode is intended to be used
only when a treadmill is displayed in a store, When the
console is in the demo mode, the power cord can be
plugged in, the key can be removed from the console,
and the displays and indicators on the console will au-
tomatically light in a preset sequence, although the
buttons on the console will not operate, If a "d" appears
in the Calories/Pulse display when the information
mode is seJected, press the Speed decrease button
so the disptay is blank.
To exit the information mode, remove the key,
The treadmill fea-
tures a cushion-
ing system that
reduces the im-
pact as you walk
or run on the
treadmill, To in-
crease the firm-
ness of the walk- Knob
ing platform, turn
the adjustment
knob counterclockwise, To decrease the firmness, turn
the knob clockwise, Note: The faster you run on the
treadmill, or the more you weigh, the firmer the
walking ptatform should be.
THE OPTIONAL CHEST PULSE SENSOR
An optional chest pulse sensor provides hands-free
operation and allows you to use the console's heart
rate programs, To purchase the optiona_ chest
pulse sensor, call toil-free 1-877-994-4999.
23
HOW TO FOLD AND MOVE THE TREADMILL
HOW TO FOLD THE TREADMmLL FOR STORAGE
Before folding the treadmill, adjust the incline to the
towest position, ff this is not done, the treadmill may be
permanentJy damaged. Next, unplug the power cord.
CAUTmON: You must be able to safely tift 45 pounds (20
kg) to raise, tower, or move the treadmill.
1, HoUdthe treadmHUin the bcafions shown at the right, To
decrease the possibility of injury, bend your tegs and
keep your back straight. As you raise the treadmill,
make sure to Jilt with your Jegs rather than your back.
Raise the treadmill about halfway to the vertical position,
2, Hold the treadmill frame firmly with your left hand, Using
your right hand, pull the latch knob to the right and hold it,
Raise the treadmill until the pin on the latch knob is
aligned with the hole in the left handgrip, Then, release
the latch knob, Make sure that the latch knob is fully
released so that the pin is fully inserted into the hote
in the teft handgrip.
To protect the floor or carpet from damage, pJace a
mat under the treadmill. Keep the treadmill out of
direct sunJight. Do not leave the treadmill in the stor-
age position in temperatures above 85° Fahrenheit.
HOW TO MOVE THE TREADMILL
Before moving the treadmill, convert the treadmill to the
storage position as described above, Make sure that the
pin on the latch knob is fully inserted into the hote in the
teft handgrip.
1. Hold the handgrips and place one foot on the base.
2, Tilt the treadmill back until it rolls freely on the wheels,
Carefully move the treadmill to the desired location, To re-
duce the risk of injury, use extreme caution while
moving the treadmill. Do not attempt to move the
treadmill over an uneven surface.
3, Place one foot on the wheel, and carefully lower the
treadmill until the base is resting in the storage position,
Handgrip Knob
Handgrip
Latch
Knob
_" Front Wheels
24
HOW TO LOWER THE TREADMmLL FOR USE
1, HoHdthe treadmHHframe firmHywith your Hefthand, PuHH
the Hatchknob to the right, Pivot the treadmHHdown until
the pin on the Hatchknob is bellow the handgrip, SHowilyre-
Heasethe Hatchknob, Frame
Latch
Handgrip
2, HoHdthe treadmHHfirmHywith both hands, and Howerthe
treadmHHto the floor, To decrease the possibility of in-
jury, bend your tegs and keep your back straight.
25
TROUBLESHOOTmNG
Most treadmill problems can be soJved by following the instructions below, if further assistance is
needed, please can our Customer Service Department toll-free at 1-877-994-4999, Monday through Friday,
8 a.m. until 8 p.m. Mountain Time (excluding holidays).
PROBLEM SOLUTmON
1. The power does not a,
turn on Make sure that the power cord is plugged into a surge suppressor, and that the
surge suppressor is plugged into a properly grounded outlet (see page 8). Use
only a single°outlet surge suppressor that meets all of the specifications described
on page 8. important: The treadmill is not compatible with GFCl°equipped outlets.
b. Make sure that the key is fully inserted into the console.
S, Check the reset/off circuit breaker located on the
frame near the power cord. if the switch protrudes as
shown, the circuit breaker has tripped. To reset the
circuit breaker, wait for five minutes and then press
the switch back in.
Tripped Reset
mThe power turns off
during use
a. Check the circuit breaker located on the treadmill frame near the power cord (see
1. c. above), if the circuit breaker has tripped, wait for five minutes and then press
the switch back in.
b. Make sure that the power cord is plugged in. if the power cord is plugged in, un-
plug it, wait for five minutes, and then plug it back in.
c. Remove the key from the console and then reinsert it.
d. Make sure that the reset!off circuit breaker is in the on position (see 1. d. above).
mThe walking belt
sJows when waJked
on
a. Use only a single-outlet surge suppressor that meets all of the specifications de-
scribed on page 8.
b, if the walking belt is overtightened, tread-
mill performance may decrease and the b
walking belt may be permanently dam-
aged. Remove the key and UNPLUG THE
POWER CORD. Using the included allen
wrench, turn both rear roller adjustment
bolts counterclockwise 1/4 of a turn.
When the walking belt is properly tight-
ened, you should be able to lift the edges Rear Roller Adjustment Bolts
of the walking belt 3 to 4 inches off the
walking platform. Be careful to keep the
walking belt centered. Hug in the power cord, insert the key and run the treadmill
for a few minutes. Repeat until the walking belt is properly tightened.
26
PROBLEM SOLUTION
.The walking belt is
off-center or slips
when walked on
a, Hfthe waHking bent is off-center, first remove
the key and UNPLUG THE POWER
CORD, If the walking belt has shifted to
the [eft, use the aHHenwrench to turn the
Heftrear roHHerboHtcHockwise 1/2 of a turn; if
the walking belt has shifted to the right,
turn the boHtcountercHockwise 1/2 of a turn,
Be carefuH not to overtighten the waHking
bent, Hug in the power cord, insert the key,
and run the treadmHHfor a few minutes,
Repeat until the waHking bent is centered,
b, Hfthe waHMngbentships when waHked on, b
first remove the key and UNPLUG TNE
POWER CORD, Using the aHHenwrench,
turn both rear roHHerboHtscHockwise 1/4 of a
turn, When the waHking bent is correctly
tightened, you shouHdbe abHeto Hilteach
side of the waHking bent 3 to 4 inches off the
waHking pHatform, Be carefuHto keep the
waHking bentcentered, Hug in the power
cord, insert the key, and waHkon the tread°
mirthfor a few minutes, Repeat untiHthe waHking bent is properHytightened,
.The displays of the
console do not func-
tion property
a, Remove the key from the consoHe and UN_
PLUG THE POWER CORD. Next, remove
the screws from the hood and carefuHHyre-
move the hood, Locate the Reed Switch
(17) and the Magnet (12) on the Heftside of
the PuHHey(11), Turn the PuHHeyuntiHthe
Magnet is aHigned with the Reed Switch,
Make sure that the gap between the
Magnet and the Reed Switch is about
1/8". Hfnecessary, Hoosenthe indicated
1/8 _
44 ....... _
Top
View 11'
Screw (44) and move the Reed Switch sHghtHy,Refighten the Screw, Re-attach the
hood and run the treadmiHHfor a few minutes to check for a correct speed reading,
27
EXERCmSE GUIDEUNES
WAFINmNG: Beforebeg no ogth s
or any exercise program, consult your physic
cian. This is especially important for individu=
ais over the age of 35 or individuals with pre-
existing health problems.
The pulse sensor is not a medical device.
Various factors, including the user's move-
ment, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
The following guidelines wiii help you to plan your ex-
ercise program. For more detailed exercise informa-
tion, obtain a reputable book or consult your physician.
EXERCISE iNTENSiTY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, the key to achieving the
desired results is to exercise with the proper
The proper intensity level can be found by using your
heart rate as a guide. The chart below shows recom-
mended heart rates for fat burning and aerobic exercise.
HEART RATE TRAINING ZONES
AEROBUC 165 155 145 140 130 125
MAX F'A1 BURN 145 138 130 125 118 110 I03
FAT BURN 125 120 115 110 105 95 90
Age 20 30 40 50 60 70 80
To find the proper heart rate for you, first find your age
near the bottom of the chart (ages are rounded off to
the nearest ten years). Next, find the three numbers
above your age. The three numbers define your "train-
ing zone." The lower two numbers are recommended
heart rates for fat burning; the highest number is the
recommended heart rate for aerobic exercise.
To measure your heart rate during exercise, use the
handgrip pulse sensor, if your heart rate is too high or
too low, adjust the speed or incline of the treadmill.
Fat Burning
To burn fat effectively, you must exercise at a relatively
low intensity level for a sustained period of time.
During the first few minutes of exercise, your body
uses easily accessible carbohydrate calories for en-
ergy. Only after the first few minutes does your body
begin to use stored fat calories for energy, if your goal
is to burn fat, adjust the speed or incline of the tread-
mill until your heart rate is near the lowest number in
your training zone.
For maximum fat burning, adjust the speed or incline
of the treadmill until your heart rate is near the middle
number in your training zone.
Aerobic Exercise
if your goal is to strengthen your cardiovascular sys-
tem, your exercise must be "aerobic." Aerobic exercise
is activity that requires large amounts of oxygen for
prolonged periods of time. This increases the demand
on the heart to pump blood to the muscles, and on the
lungs to oxygenate the blood. For aerobic exercise,
adjust the speed or incline of the treadmill until your
heart rate is near the highest number in your training
zone,
WORKOUT GUiDELiNES
Each workout should include the following three parts:
A Warm-up--Start each workout with 5 to 10 minutes
of stretching and light exercise. A proper warm-up in-
creases your body temperature, heart rate and circula-
tion in preparation for exercise.
Training Zone Exercise--After warming up, increase
the intensity of your exercise until your pulse is in your
training zone for 20 to 60 minutes. (During the first few
weeks of your exercise program, do not keep your
pulse in your training zone for longer than 20 minutes.)
Breathe regularly and deeply as you exercise--never
hold your breath.
A CooFdown--Finish each workout with 5 to 10 min-
utes of stretching to cool down. This will increase the
flexibility of your muscles and will help prevent post-ex-
EXERCISE FREQUENCY
To maintain or improve your condition, complete three
workouts each week, with at bast one day of rest be-
tween workouts. After a few months, you may com-
plete up to five workouts each week if desired. The key
to success is to make exercise a regular and enjoyable
part of your everyday life.
28
SUGGESTED STRETCHES
The correct form for several basic stretches is shown at the right, Move slowly as you stretch--never bounce,
1. Toe Touch Stretch
Stand with your knees bent slightly and slowly bend forward from
your hips, Allow your back and shoulders to relax as you reach
down toward your toes as far as possible, Hold for 15 counts,
then relax, Repeat 3 times, Stretches: Hamstrings, back of knees
and back,
2. Hamstring Stretch
Sit with one leg extended, Bring the sob of the opposite foot to-
ward you and rest it against the inner thigh of your extended leg,
Reach toward your toes as far as possible, Hold for 15 counts,
then relax, Repeat 3 times for each leg, Stretches: Hamstrings,
lower back and groin,
3. Calf,/Achiltes Stretch
With one leg in front of the other, reach forward and place your
hands against a wall, Keep your back leg straight and your back
foot fiat on the floor, Bend your front leg, ban forward and move
your hips toward the wall, Hold for 15 counts, then relax, Repeat
3 times for each leg, To cause further stretching of the achilles
tendons, bend your back leg as well, Stretches: Calves, achilles
tendons and ankles,
4. Quaddceps Stretch
With one hand against a wall for balance, reach back and grasp
one foot with your other hand, Bring your heel as dose to your
buttocks as possible, Hold for 15 counts, then relax, Repeat 3
times for each leg, Stretches: Quadriceps and hip muscles,
5. Inner Thigh Stretch
Sit with the sobs of your feet together and your knees outward,
Pull your feet toward your groin area as far as possible, Hold for
15 counts, then relax, Repeat 3 times, Stretches: Quadriceps
and hip muscles,
29
PART LiST--Model No. RBTL091040 R0904A
To Uocate the parts Hsted beUow,see the EXPLODED DRAWUNG attached in the center of this manual
Key No. Qty. Description Key No. Qty. Description
1 2 Foot Rail 51 *
2 4 ConsoUe Cover Screw 52
3 1 Audio Wire 53
4 4 UsoUator 54
5 1 Latch Housing Cover 55
6 1 Hatform 56
7 4 WaUMng Hatform Screw 57
8 1 WaUMng BeUt 58
9 2 Frame Pivot BoUt 59*
10 4 Frame Pivot Washer 60
11 1 61
12 1 Magnet 62
13 7 Front Rofler Nut/Front WheeUNut 63
14 2 Spacer Insert 64
15 2 Frame Pivot Spacer 65
16 1 Reed Switch CHp 66
17 1 Reed Switch 67
18 1 Lift Frame 68
19 2 Foot Rail Insert 69
20 2 Gear Rack 70
21 14 Foot Rail Screw 71
22 1 Motor BeUt 72
23 5 Cushion Adj, Screw 73
24 1 Drive Motor 74
25 1 Transformer 75
26 4 Cushion Adj, Housing Screw 76
27 4 Hood Bracket 77
28 1 Ground Wire 78
29 4 Star Washer 79
30 1 Right Rear Endcap 80
31 1 Lift Motor BoUt 81
32 2 Motor BoUt 82
33 1 Outlet Bracket 83
34 1 Left Unside Housing 84
35 1 Right Inside Housing 85
36 1 Right Outside Housing 86
37 1 Controller 87
38 1 Controller Bracket 88
39 1 Motor Hood 89
40 56 3/4" Screw 90
41 1 Motor Belly Pan 91
42 2 Belt Guide 92
43 8 3/4" Tek Screw 93
44 20 Electronics Screw 94
45 1 Left Front Endcap 95
46 1 Right Front Endcap 96
47 1 Ground Screw 97
48 2 Rear Foot 98
49 1 Console Ground Wire 99
50* 1 Motor Assembly 100
2
2
2
1
1
1
2
1
1
1
1
4
1
1
1
4
1
1
2
1
1
1
2
1
2
2
2
2
1
1
1
2
2
6
1
1
2
2
1
1
1
1
8
1
2
1
5
2
1
1
Cushion Assembly
Roller Adj, Washer
Rear Roller Adjustment Bolt
Left Rear Endcap
Frame
Allen Wrench
Rear Platform Screw
Rear Roller
Idler Assembly
Audio Wire Nut
Pulse Bar
Spring Nut
Idler Arm
Idler Spring
Upright/Base
Belt Guide Screw
Console Frame
Latch Housing
Console Washer
Spring Washer
Console Wire Harness
iFF,com Wire
Incline Pivot Bolt
Flywheel
Spring
Spring Pad Screw
Front Wheel
Wheel Bolt
Pulley Nut
Console
Console Base
Fan
Spring Pad
Belly Pan Screw
Upright Wire Harness
Shock
Spring Plate Spacer
Upright Endcap
Filter Wire
Latch Warning Decal
Incline Motor
Motor Controller Wire
Fan Screw
Tie Holder Screw
Tie Holder
Tie
8" Cable Tie
Base Pad
Idler Arm Bolt
Reset/Off Circuit Breaker
3O
Key No. Qty. Description
101 1 Pulse Wire
102 1 Power Cord
103 1 Power Cord Grommet
104 2 Warning Decal
105 2 Spring Hate
106 1 Jack
107 1 iFIT.com Audio Cable
108 2 Rear Roller Star Washer
109 1 Pulley Washer
110 1 Idler Pulley
111 1 Pulley Spacer
112 2 Outlet Bracket Star Washer
113 1 Static Decal
114 1 Book Holder
115 1 Idler Pulley Bolt
116 4 Spring Washer
117 1 Console Back
118" 1 Latch Assembly
119 4 Spring Bolt
120 2 Cushion Adj. Pin
121 2 Motor Bushing
122 1 Idler Arm Nylon Washer
123 2 Cushion Adj. Rod
124 1 Incline Bracket
125 1 Incline Motor Bolt (Bottom)
126 2 Controller Screw
127 1 Motor Isolator Hate
128 2 Cushion Adj. Gear
Key Ne. Qty. Description
129 2 Cushion Adj. Wheel
130 1 Cushion Adj. Knob
131 5 Cushion Adj. Screw
132 2 1/2" Screw
133 4 Console Bolt
134 4 Pulse Bar Screw
135 1 Access Door
136 1 Key/Clip
137 2 Wheel Housing
138 1 Right Handgrip (Bottom)
139 1 Right Handgrip (Top)
140 1 Left Handgrip (Top)
141 1 Left Handgrip (Bottom)
142 1 Book Holder
143 2 1/2" Tek Screw
144 4 Foot Screw
# 1 8" Blue Wire, 2 F
# 1 4" Blue Wire, M/F
# 1 4" Blue Wire, 2 F
# 1 Blue Wire, M/F
# 1 12" Green Wire, F/Ring
# 1 8" Green Wire, 2 Ring
# 1 14" White Wire, 2 F
# 1 4" Black Wire, 2 F
# 1 User's Manual
* Includes all parts shown in the box
# These parts are not illustrated
ORDERING REPLACEMENT PARTS
To order replacement parts, call our Customer Service Department toll-free at 1-877-994-4999, Monday through
Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). When ordering parts, please be prepared to give
the following information:
The MODEL NUMBER OF THE PRODUCT (RBTL091040)
The NAME OF THE PRODUCT (REEBOK ®3500C treadmill)
The SERIAL NUMBER of the product (see the front cover of this manual)
The KEY NUMBER and DESCRiPTiON of the part(s) (see the PART LiST on pages 30 and 31 )
31
m
x
2i/" 26
34 90
26
55
54
40
53
i._'J"
U_5-i
56
19
118"
3O
108
53
4O
143 68
45
7
594¸
66
35
102
25
10
15" 10 "
9
89
76
87 ¢
130 131
0
m
l
Z
1
0
t#
!
Z
0
m
#
0
¢0
0
4_
0
33
0
(.0
0
4_
8 40 4O
4O
142
107
//
/
40
I//
4O 4p
4O
184
\
, 134
65_
\
1o4
lO4 -
187
13 i
77
40 $ 78
m
x
0
m
l
Z
0
tD
!
Z
0
m
,,q
g
¢0
0
0
o
(D
0
4_
>
LiMiTED WARRANTY
WHAT IS COVERED--The entire REEBOK '_'3500C ("Product") is warranted to be free of all defects in material and work
manship.
WHO IS COVERED--The original purchaser or any person receiving the Product as a gift from the original purchaser.
HOW LONG IS IT COVERED--ICON Health & Fitness, Inc. ("ICON'), warrants the drive motor for fifteen years after the
date of purchase. Parts and labor are covered for one year after the date of purchase.
WHAT WE DO TO CORRECT COVERED DEFECTS--We will ship to you, without charge, any replacement part or com_
ponent, providing the repairs are authorized by ICON first and are performed by an ICON trained and authorized service
provider, or, at our option, we will replace the Product.
WHAT IS NOT COVERED--Any failures or damage caused by unauthorized service, misuse, accident, negligence, im-
proper assembly or installation, alterations, modifications without our written authorization or by failure on your part to use,
operate, and maintain as set out in your User's Manual ("Manuar').
WHAT YOU MUST DO--Always retain proof of purchase, such as your bill of salel store, operate, and maintain the
Product as specified in the Manual; notify our Customer Service Department of any defect within 10 days after discovery of
the defect; as instructed, return any defected part for replacement or, if necessary, the entire product, for repair.
USER'S MANUAL--It is VERY IMPORTANT THAT YOU READ THE MANUAL before operating the Product. Remember
to do the periodic maintenance requirements specified in the Manual to assure proper operation and your continued satis-
faction.
HOW TO GET PARTS AND SERVICE--Simply call our Customer Service Department at 1_877_994_4999 and tell them
your name and address and the serial number of your Product. They will tell you how to get a part replaced, or if neces-
sary, arrange for service where your Product is located or advise you how to ship the Product for service. Before shipping,
always obtain a Return Authorization Number (RA No.) from our Customer Service Departmentl securely pack your
Product (save the original shipping carton if possible); put the RA No. on the outside of the carton and insure the product.
Include a letter explaining the product or problem and a copy of your proof of purchase if you believe the service is covered
by warranty.
ICON is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the use
or performance of the product or damages with respect to any economic loss, loss of property, loss of revenues or profits,
loss of en}oyment or use, costs of removal, installation or other consequential damages of whatsoever nature. Some states
do not allow the exclusion or limitation of incidental or consequential damages. Accordingly, the above limitation may not
apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of merchantability or
fitness for a particular purpose is limited in its scope and duration to the terms set forth herein. Some states do not allow
limitations on how long an implied warranty lasts. Accordingly, the above limitation may not apply to you.
No one is authorized to change, modify or extend the terms of this limited warranty.
This warranty gives you specific legal rights and you may have other rights which vary from state to state.
iCON HEALTH & FmTNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321o9813
Part No, 219070 R0904A Printed in USA © 2004 iCON IP, Inc,
