RF Controls, LLC RF ID Interrogator User Guide

Contents

Users_Guide A-200 and A-202

SASL Installation Guide V2.13 - Part # ITCS-A-100-001v1.13 Sept 2012
1
User Guide
SASL™ (Signal Acquisition & Source Location unit)
RF Controls Intelligent Tracking and Control System (ITCS™)
ITCS-A-2xx Family
Models
ITCS-A-200
ITCS-A-202
SASL Installation Guide V2.13 - Part # ITCS-A-100-001v1.13 Sept 2012
2
Introduction
This SASL™ User Guide provides the basic information needed to install an individual SASL
antenna unit. This guide is not intended to provide instructions for installing, configuring and
calibrating the RF Controls Intelligent Tracking and Control System (ITCS™). Detailed instructions
are provided in the Technical Manual (ITCS-A-100-002) and Programmer’s Reference Guide
(ITCS-A-100-003).
INTENDED AUDIENCE
This guide is intended for those who will install and set up the RF Controls SASL (Signal
Acquisition and Source Location) unit. Before attempting to install, configure and operate this
product, you should be familiar with the following:
Windows based software installation and operation
Device communication parameters including Ethernet and serial communications
RFID reader configuration including antenna placement and RF Parameters
Electrical and RF safety procedures.
CONTENTS
1. SASL overview
2. Installation
3. Software
4. Specifications
5. Safety instructions
FCC NOTICE
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
CONTACT INFORMATION
RF Controls, LLC
1141 S. 7th Street
St. Louis
MO 63104-3623
USA
Phone: +1 314 571-6200 Fax: +1 314 832-0029
Web site: http://www.rf-controls.com
SASL Installation Guide V2.13 - Part # ITCS-A-100-001v1.13 Sept 2012
3
SASL OVERVIEW
SASL is a multi-protocol, multi-regional Radio Frequency Signal Acquisition & Source Location unit,
which is used to Identify and locate RFID tags operating in the UHF 860 – 960 MHz frequency
band. A number of SASL units may be used together with an ITCS Location Processor to form an
Intelligent Tracking and Control System (ITCS). SASL comprises an embedded multi-protocol,
multi-regional RFID reader/writer transceiver connected to the patented steerable phased array
antenna system. SASL is designed to operate from AC mains power and communicates with a host
computer using standard Ethernet TCP/IP and UDP protocol. Figure 1 illustrates the two versions of
SASL currently available. Both versions are equipped with identical RFID reader and Array
Controller.
ITCS-A-200 is constructed using eight Bi-directional Electronically Steerable Phased Arrays
(BESPA™) arranged to provide a single array with a circularly polarized gain of 11.6dBi.
ITCS-A-202 is constructed using four BESPAs arranged to provide a single array with a
circularly polarized gain of 7.6dBi.
The particular units used in an installation will depend on the system design and determined by a
qualified applications engineer. The two models may be intermixed as required in a single ITCS
system.
ITCS-A-200
ITCS-A-202

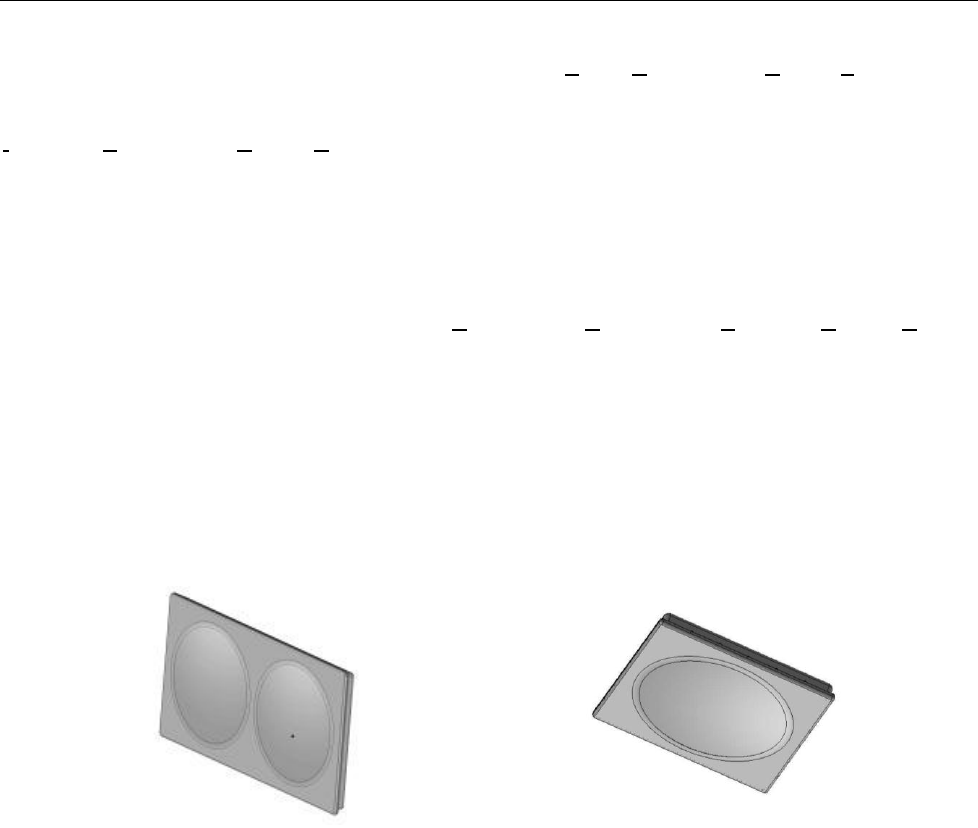

Figure 1
SASL (Signal Acquisition and Source Location) units
SASL Installation Guide V2.13 - Part # ITCS-A-100-001v1.13 Sept 2012
4
INDICATOR LIGHTS
Reader Indicator Lights
The SIRIT INfinity 610 is equipped with four status indicators located on the top of the enclosure.
From left to right, these LEDs provide indication according to the following table:
Position
Number
Indication
Color/State
1
Power
Off
Amber
Amber-
Flashing
Green
2
Activity
Off
Green
Green-Flash
Amber
3
User
Amber
4
Status
Off
Amber
Green-Flash
Red
Note that when the SIRIT reader is performing power on auto-test, the indicator lights will flash
momentarily.
Figure 2
SIRIT RFID Reader Indicator Lights.
SASL Installation Guide V2.13 - Part # ITCS-A-100-001v1.13 Sept 2012
5
Installation
MECHANICAL INSTALLATION
Each model of the ITCS-A-2xx family of SASL units is mounted slightly differently. SASL units
weigh up to 100 lbs (46.3 kg), so it is important to ensure that the structure, to which the SASL is to
be attached, is of sufficient strength. The SASL may be ceiling mounted, wall mounted or attached
to a suitable stand. A safety cable rated at three (3) times the hanging weight of the SASL and
associated hardware must be secured to a separate fixture and attached to the SASL mounting
bracket.
When mounting the SASL as a stand-alone unit, make sure that it is mounted the correct way up as
indicated by information in the Technical Manual, for the specific SASL. If the SASL is one of
several and is part of an ITCS network, then orient each SASL according to the ITCS system
installation drawings. If in doubt contact a member of our technical support team.
ITCS-A-200
The ITCS-A-200 SASL is provided in its standard configuration with a mounting bracket for
installation in a landscape orientation. When mounting the SASL refer to figure 3. Consult the
Technical Manual, for further information. Contact a member of our technical support team for
more information.
ITCS-A-202
The ITCS-A-202 SASL is only mounted in a landscape orientation because the array is symmetrical
there is no benefit to mounting the array in a portrait fashion. When mounting the SASL refer to
figure 3. Consult the Technical Manual, for further information. Contact a member of our technical
support team for more information.
When mounting the SASL as a stand-alone unit, make sure that it is mounted the correct way up as
indicated by information in the Technical Manual, for the specific SASL. If the SASL is one of
several and is part of an ITCS network, then orientate each SASL according to the ITCS system
installation drawings. If in doubt contact a member of our technical support team.
SAFETY WARNING
The ITCS-A-200 SASL weighs approximately 100 lbs. (49 kg), and ITCS-A-202 weighs
approximately 50 lbs (23kg). These units should only be installed using suitable safety and lifting
equipment. Ensure that the wall fixings or mounting hardware is suitably rated.
SASL Installation Guide V2.13 - Part # ITCS-A-100-001v1.13 Sept 2012
6
ELECTRICAL INSTALLATION
Electrical installation requires the connection of two plugs:
AC Mains Input
AC mains input is an IEC connector as shown in figure 3. Connect the provided IEC mains cord to
the power supply and plug it in to a suitable mains outlet. Note that the mains outlet must be located
in close proximity to the SASL and must be accessible to enable easy disconnection of the mains
supply to the SASL in case of emergency or when servicing. The form and location of the AC mains
input is the same on the ITCS-A-200 and ITCS-A-202.
Ethernet
The Ethernet LAN connection uses the industry standard RJ-45 connector. A suitable Ethernet
cable fitted with an RJ-45 plug is connected to the SASL Array Controller box as shown in figure 3.
The SASL is factory programmed with a fixed IP address which is shown on the label adjacent to
the Ethernet connector. The form and location of the Ethernet connection Input is the same on the
ITCS-A-200 and ITCS-A-202.

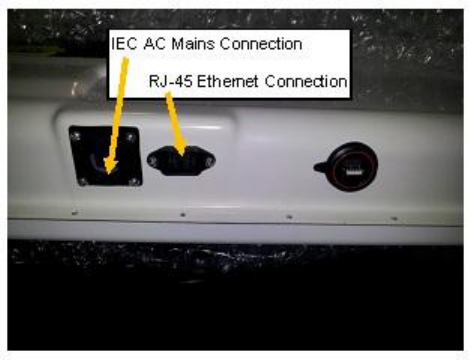

Figure 3
ITCS-A-200 and ITCS-A-202 Power and Ethernet Connections are similar in form and location.
SASL Installation Guide V2.13 - Part # ITCS-A-100-001v1.13 Sept 2012
7
WARNING
The SASL is not user serviceable. Dis-assembly or opening the SASL will cause damage to
its operation, will void any warranty and may invalidate the FCC type approval
NON IONIZING RADIATION
This unit incorporates a Radio Frequency Transmitter and should therefore be installed and
operated so as to avoid exposure of any persons to unsafe emissions. The FCC requires that any
antenna, which includes the SASL, be mounted so that a separation distance of at least 23cm is
provided from all persons. See FCC Radiation Exposure Statement in the Safety Instructions
section of this guide.
NOTICE FOR EUROPEAN INSTALLERS
The Installer shall ensure that he is familiar with any restrictions of the local EU Member
State on the use of this device and ensure compliance! Examples may include: restrictions
on geographic location or only for indoor use etc.
Due to differences between ETSI and FCC frequency bands, “Phase Ranging” Techniques
are not available with the ETSI version of the SASL.
USABLE FREQUENCY RANGE IN USA AND CANADA
In USA and Canada this device is factory programmed to operate in ISM 902MHz – 928MHz
band
SASL Installation Guide V2.13 - Part # ITCS-A-100-001v1.13 Sept 2012
8
MULTIPLE SASL UNITS CONFIGURED AS AN ITCS
Figure 4 shows how two or more ITCS-A-2xx SASL units may be connected via an Ethernet
network to an ITCS Location Processor. One Location Processor and multiple distributed SASLs
operate collaboratively to form RF Controls’ Intelligent Tracking and Control System (ITCS™). In
this example two SASL units have been attached to the network. Combinations of the various
model SASL units may be mixed and matched as required to suit a particular installation. The RF
Controls Technical Manual provides details on how to install, configure and calibrate an ITCS.
The Programmers Reference Guide provides details of the Application Program Interface (API)
used by the ITCS.

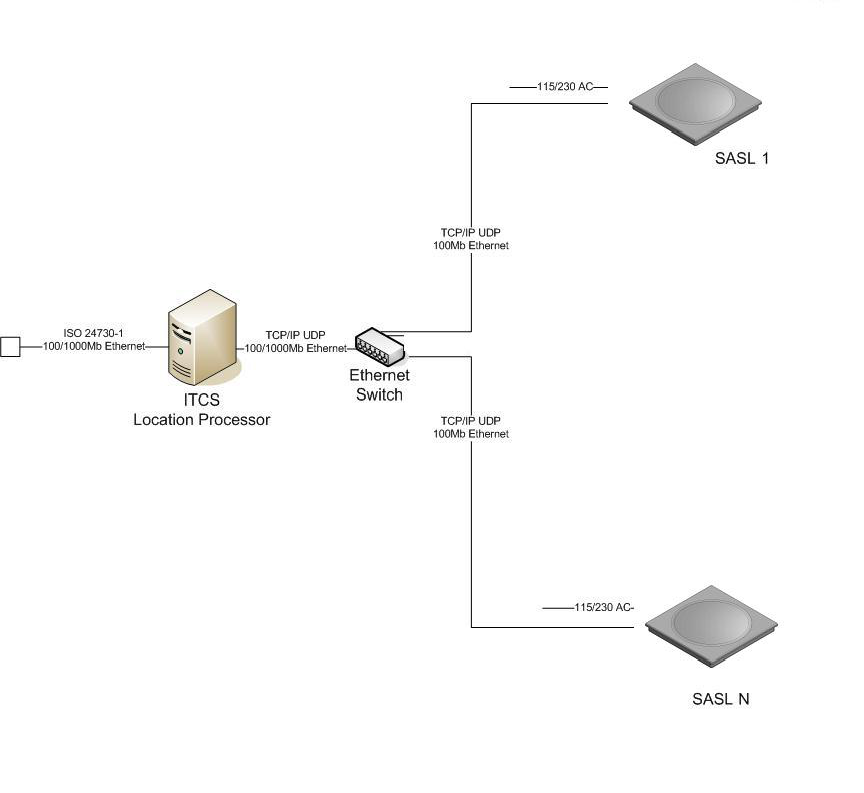

Figure 4
Intelligent Tracking and Control System comprising a number of SASL units connected via an
Ethernet Network to an ITCS Location Processor
SASL Installation Guide V2.13 - Part # ITCS-A-100-001v1.13 Sept 2012
9
Software
The SASL is provided with a basic test program on a CD, to run on a Microsoft™ Windows®
equipped Personal Computer. The program enables you to carry out a number of basic tests.
See the Technical Manual, ITCS-A-100-002 for further instruction on Software usage.
APPLICATION INTERFACE
The SASL uses an International Standard, Application Program Interface (API) as defined in
ISO/IEC 24730-1. Further details of the API and commands are contained in the Programmer’s
Reference Guide.
SASL Installation Guide V2.13 - Part # ITCS-A-100-001v1.13 Sept 2012
10
Specifications
General
ITCS-A-200
ITCS-A-202
Frequency
UHF band: 860 – 960 MHz1
RF Radiated Output
Power
Adjustable from 0.1 to 4 Watts EiRP
Regulatory Compliance
FCC, CFR47 Part 15.247
EN 302 208, EN 301 489-3, EN 301 489-1,
EN55022, EN55024, EN 60950-1:2005
Reading/writing
Protocols
ISO18000-6C / EPC UHF Gen 2
EM 4122 (TTO)
FCC ID
WFQITCSA200 WFQITCSA202
Application Interface
ISO/IEC 24730-1
Environmental
Operating Temperature
+14 to +130 °F (-10 to +55°C)
Storage Temperature
-40 to +85ºC
Relative Humidity
5 to 95% non-condensing
Dimensions
68 x 36 x 5”
(170 x 90 x 13 cm))
36in x 36in x 5in
(90 x 90 x 13 cm)
Weight
100 lbs (46 kg)
54 lbs (25 kg)
Ethernet LAN
Connector
RJ-45
Ethernet
10/100 BaseT
Indicators
Yellow – link operational
Green – network traffic detected
Signals
Pin 1
TXD+
Pin 5
NC
Pin 2
TXD -
Pin 6
RXD -
Pin 3
RXD+
Pin 7
NC
Pin 4
NC
Pin 8
NC
Power Supply
Input Connector
IEC/EN 60320 C14
Voltage
90 – 265 Volts AC
Frequency
47 – 63 Hz
Current
3A
Antenna
Gain2 (circularly
polarized)
11.6 dBi2
7.4 dBi2
1
The SASL uses the SIRIT INfinity 610 RFID reader which will be factory set at time of shipping, to suit the
country of installation and use.
2
Nominal maximum value. Precise gain depends on transmit frequency
SASL Installation Guide V2.13 - Part # ITCS-A-100-001v1.13 Sept 2012
11
Safety Instructions
This unit emits Radio Frequency non-ionizing radiation. The installer must ensure that the antenna
is located or pointed such that it does not create an RF field in excess of that permitted by the
Health and Safety Regulations applicable to the country of installation.
Setting RF Output Power
Enter the desired RF output power as a percentage of the maximum power into the Set Power box.
Click the set Power button. Note: the actual maximum Radiated RF Power is factory set to comply
with the radio regulations in the country of use. In the USA and Canada this is 4 Watts EiRP and
under EN 302 208 this is 2 Watts ERP (3.2 W EiRP).
FCC Radiation Exposure Statement
The antenna used on this equipment must be installed to provide a separation distance of at
least 23cm from all persons and must not be co-located or operated in conjunction with
another antenna or transmitter.
FCC Part 15 Notice
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
FCC and Industry Canada Modification Warning Statement
Modification of this device is strictly prohibited. Any modifications to the factory hardware or
software settings of this device will void all warranties and be deemed non-compliant with FCC and
Industry Canada Regulations.
La modification de ce dispositif est strictement interdite. Toutes les modifications apportées au
matériel d'usine ou les paramètres du logiciel de cet appareil annulera toutes les garanties et sera
considérée comme non conforme aux normes FCC et d'Industry Canada.
Industry Canada Statement
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject
to the following two conditions: (1) this device may not cause interference, and (2) this device
must accept any interference, including interference that may cause undesired operation of the
device.
Cet appareil est conforme aux normes d'Industrie Canada exempts de licence RSS (s). Son
fonctionnement est soumis aux deux conditions suivantes: (1) cet appareil ne doit pas provoquer
d'interférences, et (2) cet appareil doit accepter toute interférence, y compris les interférences qui
peuvent provoquer un fonctionnement non désiré de l'appareil.
Power Disconnect Device
The plug on the power supply cord is intended to be the power disconnect device. The power
source (socket or outlet) shall be located near the equipment and shall be easily accessible.
SASL Installation Guide V2.13 - Part # ITCS-A-100-001v1.13 Sept 2012
12
Statement of Compliance with R&TTE directive
RF Controls, LLC hereby declares that it’s ITCS-A-200, and ITCS-A-202 products are in
compliance with the essential requirements and other relevant provisions of European
Directive 1999/5/EC. The original Certificate of Conformity is available at
www.rf-controls.com
The SASL products and individual BESPA components are protected by one or more US and
International Patents pending.
The “RF Controls” logo, and the words “RF Controls, Identify, Locate, Track”, “ITCS”, “SASL” and
“BESPA” are registered Trademarks of RF Controls, LLC.
RF Controls, LLC
1141 S. 7th Street
St. Louis
MO 63104-3623
USA
Phone: +1 314 571 6200
Fax: +1 314 832 0029
e-mail: e-mail: techsupport@rf-controls.com
Web site: http://www.rf-controls.com

Navigation menu
