QUICK START GUIDE
pcProx® Plus SP Reader
![](/img.php?id=3985315&img=bg2.png)
This document provides
the following information:
I. Connector Options
II. Installing the
Configuration Utility
Software
III. Reader Setup
IV. Configuring the Reader
V. Troubleshooting

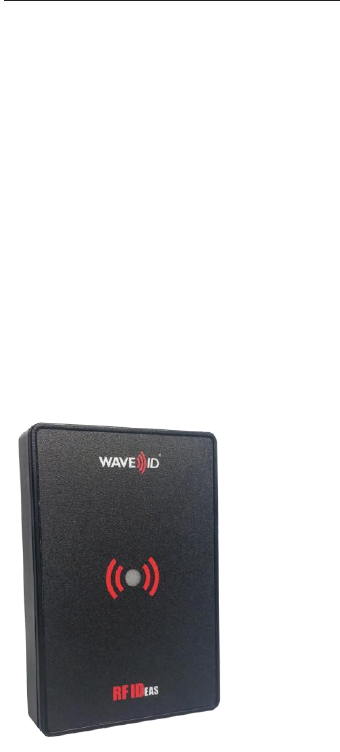

RF IDeas pcProx® Plus
SP Reader
Congratulations on the purchase of
your pcProx® or pcProx® Plus reader!
Configuration of RF IDeas readers is easy. With our
“plug and play” design, you will be able to quickly
take advantage of a more secure environment in your
business, school, or organization.
RF IDeas products are an integral part of a variety
of solutions in every market such as healthcare,
manufacturing, government, enterprise and other
markets. The number of applications is ever-increasing
and we maintain a strong relationship with our robust
list of software partners and resellers which are readily
found on our website.
Please contact our Sales department if you have
any questions or are interested in our OEM and
Independent Developers programs.
For more details about our product line, please visit
www.RFIDeas.com/knowledge-center or follow the
Support > Learning Center link for more details about
our various products.
Thank you,
The RF IDeas team
CONTACT INFORMATION
Phone: +1 (847) 870-1723
Toll Free: (866) 439-4884
Fax: (847) 483-1129
Email: Sales@RFIDeas.com
Support: TechSupport@RFIDeas.com
ADDRESS
RF IDeas, Inc.
4020 Winnetka Avenue
Rolling Meadows, IL 60008, USA
2
![](/img.php?id=3985315&img=bg3.png)
1. Connector Options

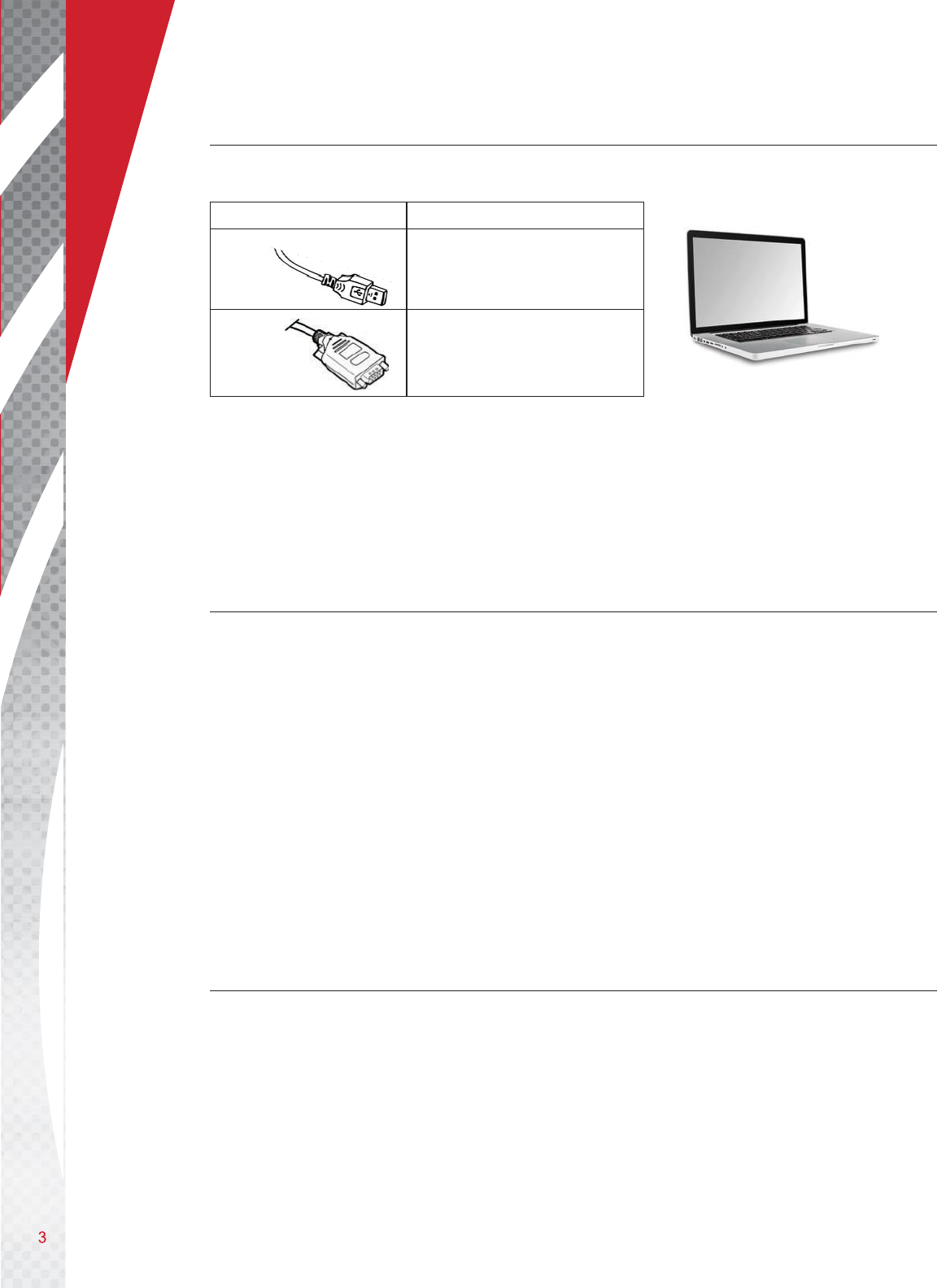

There are two connector options available with the reader for data input and output.
The product you have purchased may need to be configured before use.
The configuration software and support documents can be downloaded from our product support page at:
http://www.rfideas.com/support/product-support
The configuration section details the steps necessary to install the configuration utility software and update the
configuration to meet your requirements.
2. Installing the Configuration Utility Software
To install the configuration utility software, complete the following steps:
1.
Verify the system meets the following minimum requirements:
•
Hardware — Pentium class PC
•
Memory — 32 MB RAM
•
Disk — 25 MB hard disk space
•
I/O — 1 available DB9 or USB port, dependent upon the connector
•
Operating System – Any operating system that supports a USB keyboard including Microsoft Windows XP®,
7®, 8®, 10® and Linux. Can be used for keystroke applications.
2.
Install the pcProx Configuration Utility from the following Web page:
http://www.RFIDeas.com/Software/pcProxConfig/
3. Reader Setup
To set up the reader:
3.
Plug the connector into the workstation’s (or available on any peripheral) open RS-232, USB, or Ethernet plug.
4.
Place the device next to the monitor, beside the workstation, or where appropriate.
5.
The workstation should detect new hardware for USB and DB9 connections. Verify the workstation recognizes
this connection using Device Manager.
6.
For RS-232 products, verify the correct COM port for RS-232 DB9 connections using Windows
Device Manager.
Connector Type
Output Data Type
USB
USB Keystroke
SDK
Virtual Com Port: ASCII or SDK
DB9
ASCII
SDK
![](/img.php?id=3985315&img=bg4.png)
4. Configuring the Reader
To configure the Reader for operation, complete the following steps:
7.
Start the pcProx Configuration Utility software.
8.
Plug the reader into the workstation’s USB or DB9 port.
a.
If the reader has a USB connector, verify the workstation detected the connection automatically using
Windows Device Manager.
b.
If the reader has a DB9 connector, verify the correct COM port using Windows Device Manager.
9.
If your reader requires a custom configuration, refer to the pcProx Plus/pcProx Enroll Manual for detailed
information on the configuring the reader. The manual is available at www.RFIDeas.com > Support >
Product Manuals.
10.
After the configuration settings are correctly configured and written/saved to the device, unplug the reader.
The reader is now ready for use.
Troubleshooting

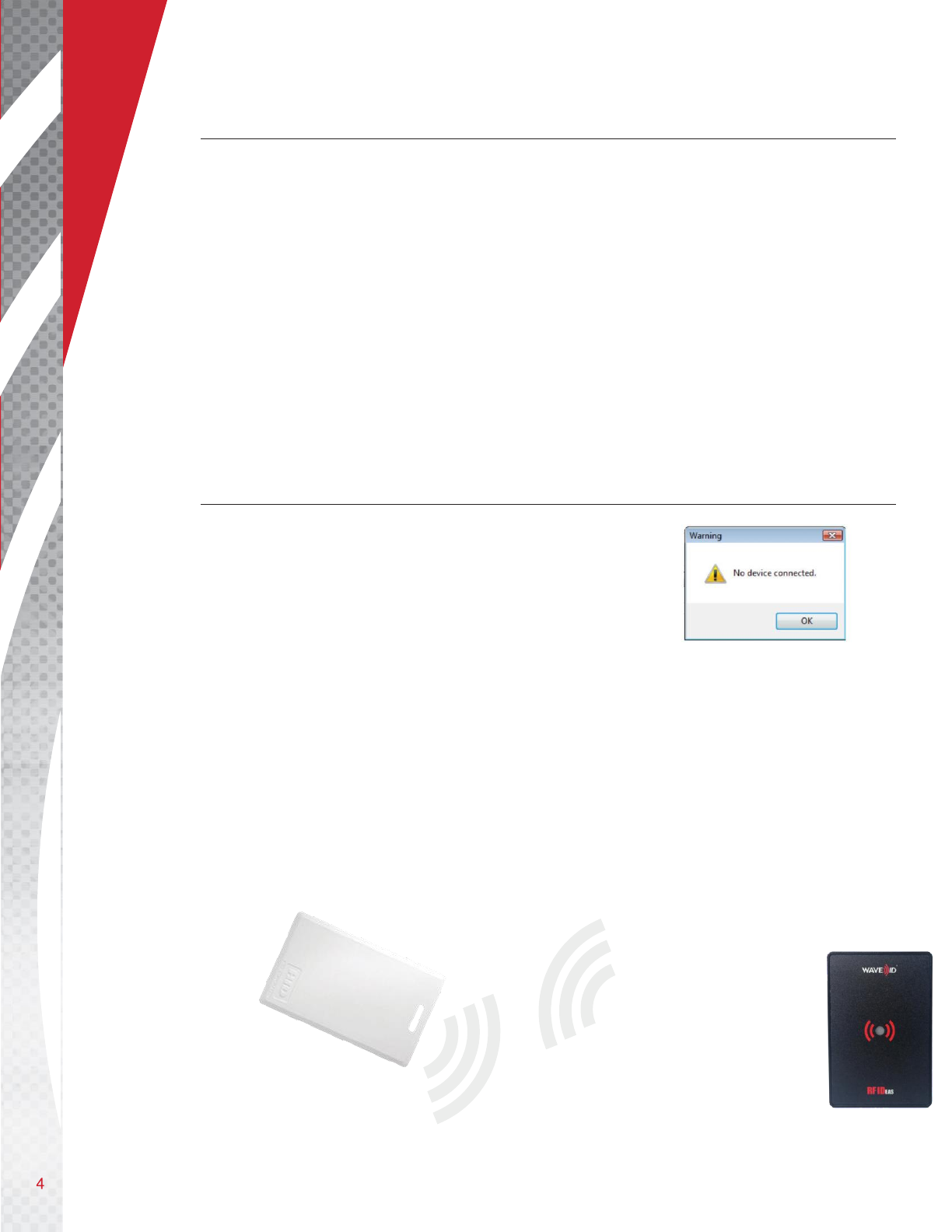

If the device is not working or the following error message is displayed:
11.
Check to be sure the device is connected to the USB or RS-232 port.
When the workstation is on and no card is being read, the LED is red.
A valid proximity card causes the LED to turn green, provided the
configuration is not set to only read certain bit lengths.
12.
Only one COM port application can own the RS-232 port at a time.
Make sure there is not another COM port application running. This
prevents our software from seeing the device.
13.
Verify the correct model and the software configuration screen agrees with the device attached.
14.
Verify the port agrees with the workstation connector.
15.
If the device still does not work, disconnect it, remove ‘General USB Device’ using Windows ‘Control Panel’ a
‘Add/Remove’ Hardware. Then reboot the workstation. When the workstation boots up, re-attach the device
USB and the OS should re-install the Windows driver automatically.
If the device does not read the card, contact the card manufacturer/vendor to verify that the card type is compatible
with the device model.
Reader
Radio Waves
Contactless Badge
![](/img.php?id=3985315&img=bg5.png)
License Agreement and End-User License Agreement
End-User License Agreement for RF IDeas™ SOFTWARE and
HARDWARE - RF IDeas’ pcProx®, Proximity Activated Readers, Software
Developer’s Kit, and Proximity Reader DLLs, and Protocol(s).
IMPORTANT-READ CAREFULLY: This End-User License Agreement
(“EULA”) is a legal agreement between you (either an individual or a single
entity) and the manufacturer RF IDeas (“Manufacturer”) with which you
acquired the RF IDeas software and hardware product(s) identified above
(“PRODUCT”). The PRODUCT includes the RF IDeas reader, computer
software, the associated media, any printed materials, and any “on
line” or electronic documentation. The SOFTWARE PORTION OF THE
PRODUCT includes the computer software, the associated media, any
printed materials, and any “on line” or electronic documentation. By
installing, copying or otherwise using the PRODUCT, you agree to be
bound by the terms of this EULA. If you do not agree to the terms of this
EULA, RF IDeas is unwilling to license the PRODUCT to you. In such
event, you may not use or copy the SOFTWARE PORTION OF THE
PRODUCT, and you should promptly contact the vendor you obtained
this PRODUCT from for instructions on return of the unused product(s)
for a refund.
The products described in this publication are intended for consumer
applications. RF IDeas assumes no liability for the performance of
product. RF IDeas products are not suitable for use in life-support
applications, biological hazard applications, nuclear control applications,
or radioactive areas. None of these products or components, software or
hardware, are intended for applications that provide life support or any
critical function necessary for the support of protection of life, property
or business interests. The user assumes responsibility for the use of any
of these products in any such application. RF IDeas shall not be liable
for losses due to failure of any of these products, or components of
these products, beyond the RF IDeas commercial warranty, limited to the
original purchase price.
SOFTWARE PRODUCT LICENSE: The PRODUCT is protected by
copyright laws and international copyright treaties, as well as other
intellectual property laws and treaties. The SOFTWARE PORTION OF
THE PRODUCT is licensed, not sold.
1.
GRANT OF LICENSE. This EULA grants you the following rights:
*Software. You may install and use one copy of the SOFTWARE
PORTION OF THE PRODUCT on the COMPUTER. *Network Services.
If the SOFTWARE PORTION OF THE PRODUCT includes functionality
that enables the COMPUTER to act as a network server, any number
of computers or workstations may access or otherwise utilize the basic
network services of that server. The basic network services are more
fully described in the printed materials accompanying the SOFTWARE
PORTION OF THE PRODUCT. *Storage/Network Use. You may also
store or install a copy of the computer SOFTWARE PORTION OF THE
PRODUCT on the COMPUTER to allow your other computers to use the
SOFTWARE PORTION OF THE PRODUCT over an internal network, and
distribute the SOFTWARE PORTION OF THE PRODUCT to your other
computers over an internal network.
1.1
General License Grant. RF IDeas grants to an individual, a personal,
nonexclusive license to make and use copies of the SOFTWARE
PRODUCT for the sole purposes of designing, developing, and testing
your software product(s) that are designed to operate in conjunction with
any RF IDeas designed proximity reader product. You may install copies
of the SOFTWARE PRODUCT on an unlimited number of computers
provided that you are the only individual using the SOFTWARE PRODUCT.
If you are an entity, RF IDeas grants the right to designate one individual
within your organization to have the sole right to use the SOFTWARE
PRODUCT in the manner provided above.
1.2
Documentation. This EULA grants an individual, a personal,
nonexclusive license to make and use an unlimited number of copies
of any documentation, provided that such copies shall be used only for
personal purposes and are not to be republished or distributed (either
in hard copy or electronic form) beyond the user’s premises and with
the following exception: you may use documentation identified in the
SOFTWARE PRODUCT as the file format specification for RF IDeas’
proximity readers solely in connection with your development of software
product(s) or an integrated work or product suite whose components
include one or more general purpose software products.
1.3
Storage/Network Use. You may also store or install a copy of the
SOFTWARE PRODUCT on a storage device, such as a network server,
used only to install or run the SOFTWARE PRODUCT on computers used
by a licensed end user in accordance with Section 1.1. A single license
for the SOFTWARE PRODUCT may not be shared or used concurrently
by other end users.
1.4
Sample Code. RF IDeas grants you the right to use and modify the
source code version of those portions of the SOFTWARE PRODUCT
identified as “Samples in the SOFTWARE PRODUCT (“Sample Code”) for
the sole purposes to design, develop, and test your software product(s),
and to reproduce and distribute the Sample Code, along with any
modifications thereof, only in object code form.
2.
DESCRIPTION OF OTHER RIGHTS AND LIMITATIONS. *Limitations
on Reverse Engineering, De-compilation and Disassembly. You may not
reverse engineer, decompile, or disassemble the PRODUCT, except and
only to the extent that such activity is expressly permitted by applicable
law notwithstanding this limitation *You may not reproduce or otherwise
emulate, in whole or in part, any form the protocol(s) defined within
this PRODUCT for use without a RF IDeas PRODUCT Redistributable
Code. If you are authorized and choose to redistribute Sample Code
(“Redistributables”) as described in Section 1.4, you agree to: (a)
distribute the Redistributables in object code only in conjunction with and
as a part of a software application product developed by you using the
PRODUCT accompanying this EULA that adds significant and primary
functionality to the SOFTWARE PRODUCT (“Licensed Product”); (b)
not use RF IDeas’ name, logo, or trademarks to market the Licensed
Product; (c) include a valid copyright notice on the Licensed Product;
(d) indemnify, hold harmless, and defend RF IDeas from and against any
claims or lawsuits, including attorney’s fees, that arise or result from the
use or distribution of the Licensed Product; (e) otherwise comply with
the terms of this EULA; and (f) agree that RF IDeas reserves all rights not
expressly granted. You also agree not to permit further distribution of the
Redistributables by your end users except: (1) you may permit further
redistribution of the Redistributables by your distributors to your end-
user customers if your distributors only distribute the Redistributables
in conjunction with, and as part of, the Licensed Product and you and
your distributors comply with all other terms of this EULA; and (2) in the
manner described in Section 1.4.
*Separation of Components. The PRODUCT is licensed as a single
product. Its component parts may not be separated for use on more
than one computer.
*Single COMPUTER. The PRODUCT is licensed with the COMPUTER as
a single integrated product. The PRODUCT may only be used with the
COMPUTER.
*Rental. You may not rent or lease the PRODUCT without permission
from RF IDeas.
*Software Transfer. You may permanently transfer all of your rights
under this EULA only as part of a sale or transfer of the COMPUTER,
provided you retain no copies, you transfer all of the PRODUCT (including
all component parts, the media and printed materials, any upgrades,
this EULA and, if applicable, the Certificate(s) of Authenticity), AND
the recipient agrees to the terms of this EULA. If the PRODUCT is an
upgrade, any transfer must include all prior versions of the PRODUCT.
*Termination. Without prejudice to any other rights, RF IDeas may
terminate this EULA if you fail to comply with the terms and conditions of
this EULA. In such event, you must destroy all copies of the SOFTWARE
PORTION OF THE PRODUCT and all of its component parts.
3.
UPGRADES. If the SOFTWARE PORTION OF THE PRODUCT is
an upgrade from another product, whether from RF IDeas or another
supplier, you may use or transfer the PRODUCT only in conjunction with
that upgraded product, unless you destroy the upgraded product. If the
SOFTWARE PORTION OF THE PRODUCT is an upgrade of a RF IDeas
product, you now may use that upgraded product only in accordance
with this EULA. If the SOFTWARE PORTION OF THE PRODUCT is an
upgrade of a component of a package of software programs which
you licensed as a single product, the SOFTWARE PORTION OF THE
PRODUCT may be used and transferred only as part of that single
product package and may not be separated for use on more than one
computer.
4.
OEM COPYRIGHT. All title and copyrights in and to the PRODUCT
(including but not limited to images, photographs, animations, video,
audio, music, text and “applets,” incorporated into the PRODUCT), the
accompanying printed materials, and any copies of the SOFTWARE
![](/img.php?id=3985315&img=bg6.png)
PORTION OF THE PRODUCT, are owned by RF IDeas or its suppliers.
The PRODUCT and SOFTWARE PORTION OF THE PRODUCT is
protected by copyright laws and international treaty provisions. You may
not copy the printed materials accompanying the PRODUCT.
5.
DUAL-MEDIA SOFTWARE. You may receive the SOFTWARE
PORTION OF THE PRODUCT in more than one medium. Regardless of
the type or size of medium you receive, you may use only one medium
that is appropriate for your single computer. You may not use or install
the other medium on another computer. You may not loan, rent, lease,
or otherwise transfer the other medium to another user, except as part of
the permanent transfer (as provided above) of the SOFTWARE PORTION
OF THE PRODUCT.
6.
OEM PRODUCT SUPPORT. Product support for the product is not
provided by RF IDeas or its subsidiaries. For product support, please refer
to the OEM supplies support number provided in the documentation.
Should you have any questions concerning the EULA, or if you desire to
contact OEM for any other reason, please refer to the address provided
in the documentation provided.
FOR THE LIMITED WARRANTIES AND SPECIAL PROVISIONS
PERTAINING TO YOUR PARTICULAR JURISDICTION, PLEASE REFER
TO YOUR WARRANTY BOOKLET INCLUDED WITH THIS PACKAGE OR
PROVIDED WITH THE SOFTWARE PRODUCT PRINTED MATERIALS.
Limited Warranty: RF IDeas warrants to the original buyer of this
product, that the hardware and related disk(s) are free of defects in
material and workmanship for a period of one year from date of purchase
from RF IDeas or from an authorized RF IDeas dealer. Should the
RF IDeas products fail to be in good working order at any time during
the one-year period, RF IDeas will, at its option, repair or replace the
product at no additional charge, provided that the product has not been
abused, misused, repaired or modified. This warranty shall be limited to
repair or replacement and in no event shall RF IDeas be liable for any loss
of profit or any commercial or other damages, including but not limited
to special, incidental, consequential or other similar claims. No dealer,
distributor, company, or person has been authorized to change or add
to the terms of this agreement, and RF IDeas will not be bound by any
representation to the contrary. RF IDeas SPECIFICALLY DISCLAIMS ALL
OTHER WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING BUT
NOT LIMITED TO IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS OF PURPOSE. Since some states do not allow such exclusion
of limitation of incidental or consequential damages for consumer
products, check the statute of the state in which your business resides.
This warranty gives you the specific legal rights in addition to any rights
that you have under the laws of the state in which your business resides
or operates.
Returns: RF IDeas products which require Limited Warranty service
during the warranty period shall be delivered to the nearest authorized
dealer or sent directly to RF IDeas at the address below with proof of
purchase and a Return Materials Authorization (RMA) Number provided
by RF IDeas Technical Support Dept. Replacement parts or complete
boards become the property of RF IDeas. If the returned board or unit
is sent by mail, the purchaser agrees to pre-pay the shipping charges
and insure the board or unit or assume the risk of loss or damage which
may occur in transit. The purchaser is expected to employ a container
equivalent to the original packaging. Copyright: Copyright by RF IDeas
2017. All rights reserved. Reproduction or distribution of this document
in whole or in part or in any form is prohibited without express written
permission from RF IDeas.
Trademarks: All RF IDeas products are trademarks of RF IDeas. All other
product names or names are trademarks or registered trademarks of
their respective holders.
Applicable Patents: RF IDeas pcProx Plus card readers supporting HID
formats retain US Patent No. 5,952,935 and U.S. Patent No. 7,439,862.
Disclaimer: This Reference Guide is printed in the U.S.A. Any resemblance
mentioned in the Reference Guide to persons living or dead, or to actual
corporations or products is purely coincidental. RF IDeas believes that the
information contained in this manual is correct. However, RF IDeas does
not assume any responsibility for the accuracy of the content of this User
Manual, nor for any patent infringements or other rights of third parties.
RF IDeas reserves the right to make any modifications in either product or
the manual without giving prior written notification.
FCC/ISED Compliance Statement
FCC ID: M9MHP8058X (Multi-protocol USB Card Reader)
“Pursuant to FCC 15.21 of the FCC rules, changes not expressly
approved by RF IDeas might cause harmful interference and void the
FCC authorization to operate this product.
Note: This device complies with Part 15 of the FCC Rules and Industry
Canada license-exempt RSS standard(s). Operation is subject to the
following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation. This product
complies with FCC OET Bulletin 65 radiation exposure limits set forth for
an uncontrolled environment.
The reader may not recognize value cards in the presence of high RF
fields. If the current reading is erratic, the user shall take the following
step: Move the equipment from any known transmitters nearby. For
more information contact Tech Support at (866) 439-4884 or
TechSupport@RFIDeas.com.
ISED French Compliance Statement
IC: 6571A-HP8058X (Multi-protocol USB Card Reader)
"Conformément à la FCC 15.21 de la réglementation FCC, les
changements ne sont pas expressément approuvés par les idées RF
peuvent causer des interférences nuisibles et annuler l'autorisation FCC
d'utiliser ce produit.
Note: Cet appareil est conforme à la Partie 15 des règlements de la
FCC et d'Industrie Canada exempts de licence standard RSS (s). Son
fonctionnement est soumis aux deux conditions suivantes: (1) Ce
dispositif ne doit pas causer d'interférences nuisibles, et (2) cet appareil
doit accepter toute interférence reçue, y compris les interférences
pouvant entraîner un fonctionnement indésirable. Ce produit est conforme
aux normes FCC OET Bulletin 65 l'exposition aux rayonnements limites
définies pour un environnement non contrôlé.
Le lecteur peut ne pas reconnaître des cartes de valeur, en présence de
champs RF élevées. Si la valeur actuelle est erratique, l'utilisateur doit
passer à l'étape suivante: Déplacer le matériel de toute émetteurs connus
proximité. Pour plus d'informations contactez le support technique
au 866.439.4884 or TechSupport@RFIDeas.com.
RF IDeas, Inc.
4020 Winnetka Avenue
Rolling Meadows, IL 60008
www.RFIDeas.com
Toll Free: 866-439-4884
Voice: 847-870-1723
Fax: 847-483-1129
® is a registered trademark of RF IDeas Inc. Trademarks not belonging to RF IDeas are property of their respective companies.
©2017 RF IDeas, Inc. All rights reserved. Products are subject to change without notice.
99009230
