RF Link Technology WD01 WIDI User Manual
Shenzhen RF-Link Technology Co.,Ltd WIDI
User manual
1
WD01 QUICK START GUIDE
Miracast
Function:
Miracast protocol is a way for screen your phone or tablet’s
display synchronous to the TV directly though wifi.This standard has
been set since 2012 by wifi alliance.(notes: miracast require your
android system at least 4.2.2 versions )
Operating mode specific as follows:
1 Connecting Setting:

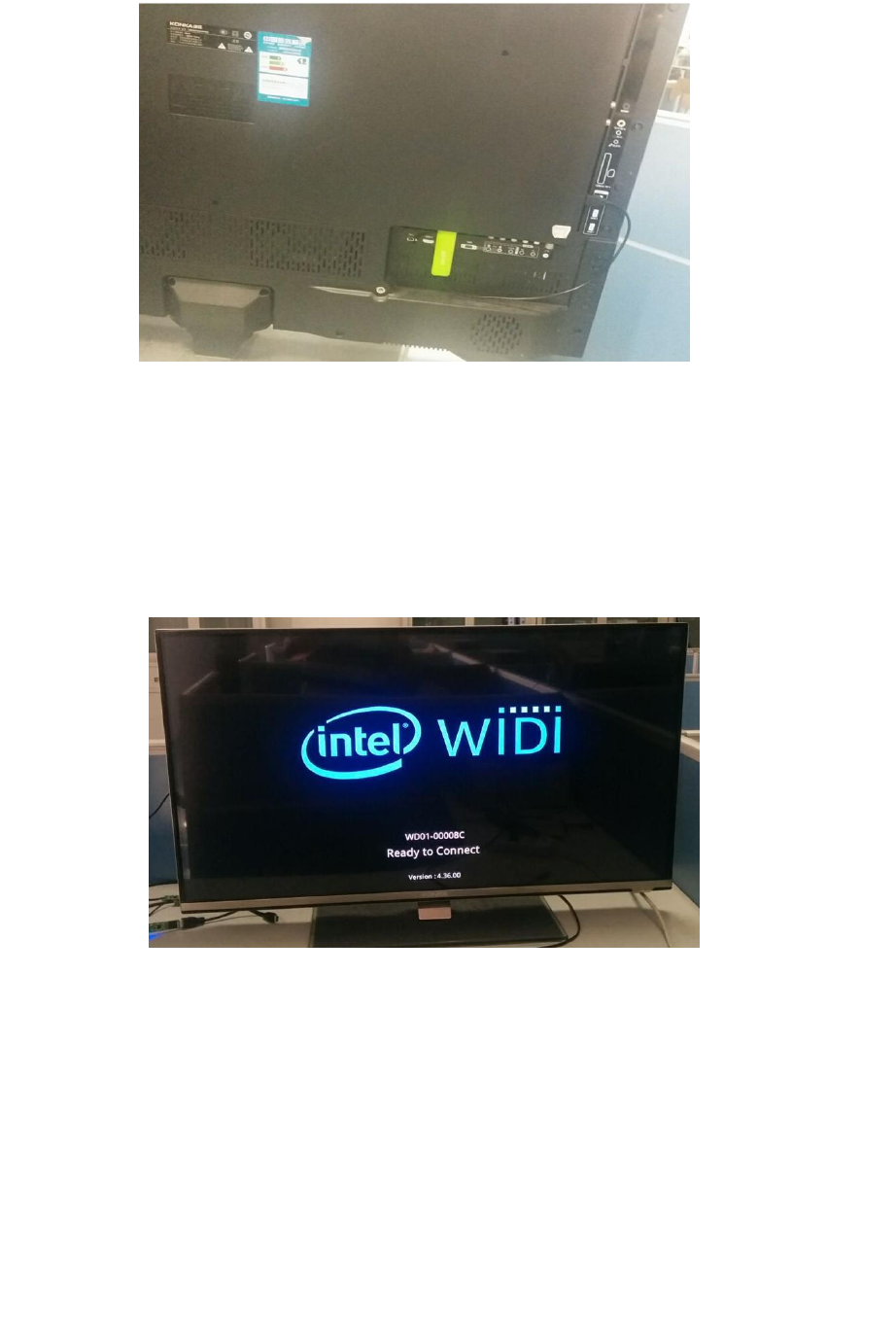

A,Connect devices: Inserted the WD01 dongle directly into the TV or
monitor though HDMI interface;
B,Power supply: insert the WD01 Dongle’s USB line into the TV’s USB
port for power supply.
Notes: It also can power on by 5V & 2A power adapter, if the display
device does not have USB port.
2
1-1
C、Settingg channel: select HMDI 1 channel if access to the HDMI 1
port, Screen will display boot animation after start firstly, and then
into the main screen.
1-2
2 Operating step:
A、For example: phone:zte V967S, Google nexus5, match Konka TV
A.1 Zte V967S :

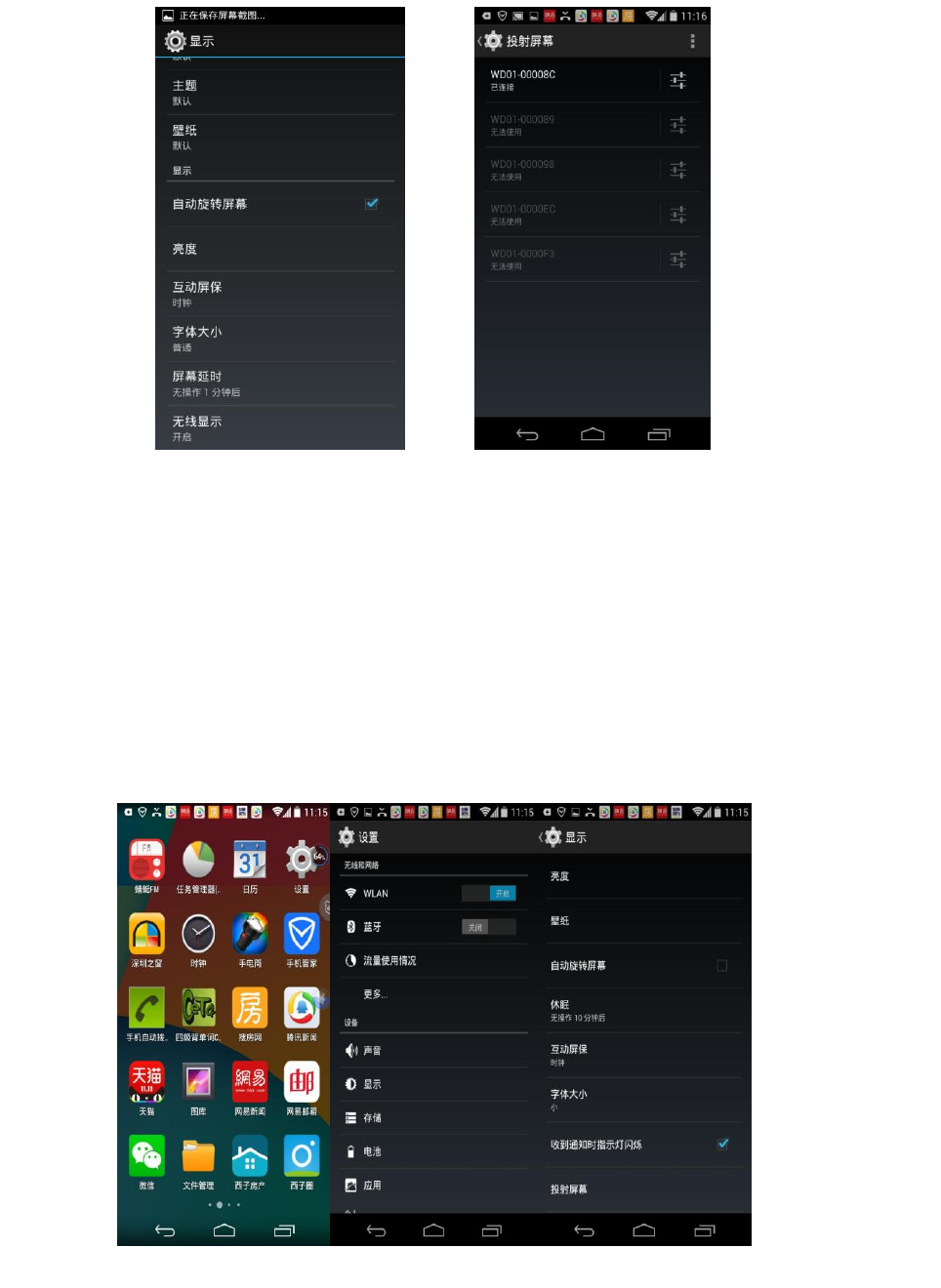

Setting Steps: enter the "Settings", "display", "wireless display"
- select available WD01 Dongle connection;
3
1-3

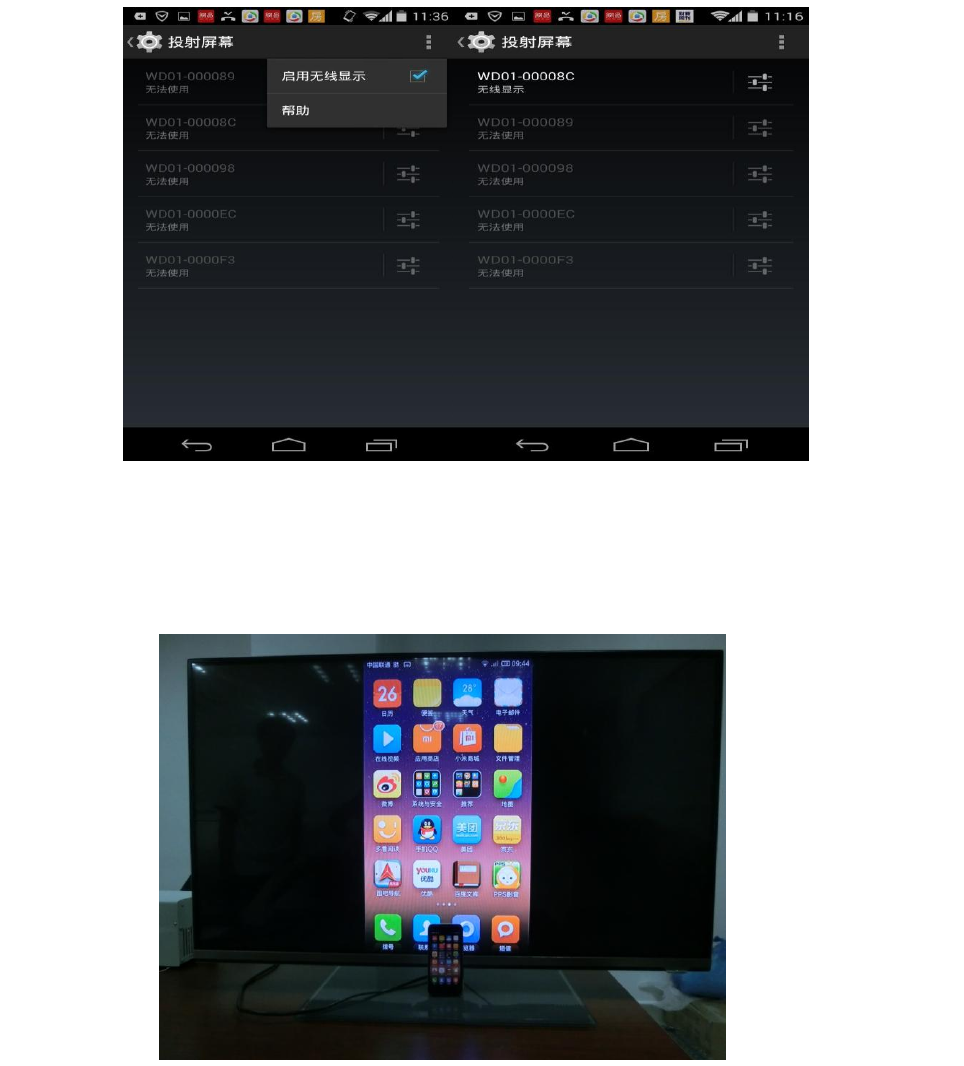

B、Google Nexus5:
Enter the "Settings" - "wlan" - "open"
Enter the "Settings", "display", "projection screen" - "to enable
wireless display" - select the corresponding WD01 Dongle connection;
1-4-1
4
1-4-2

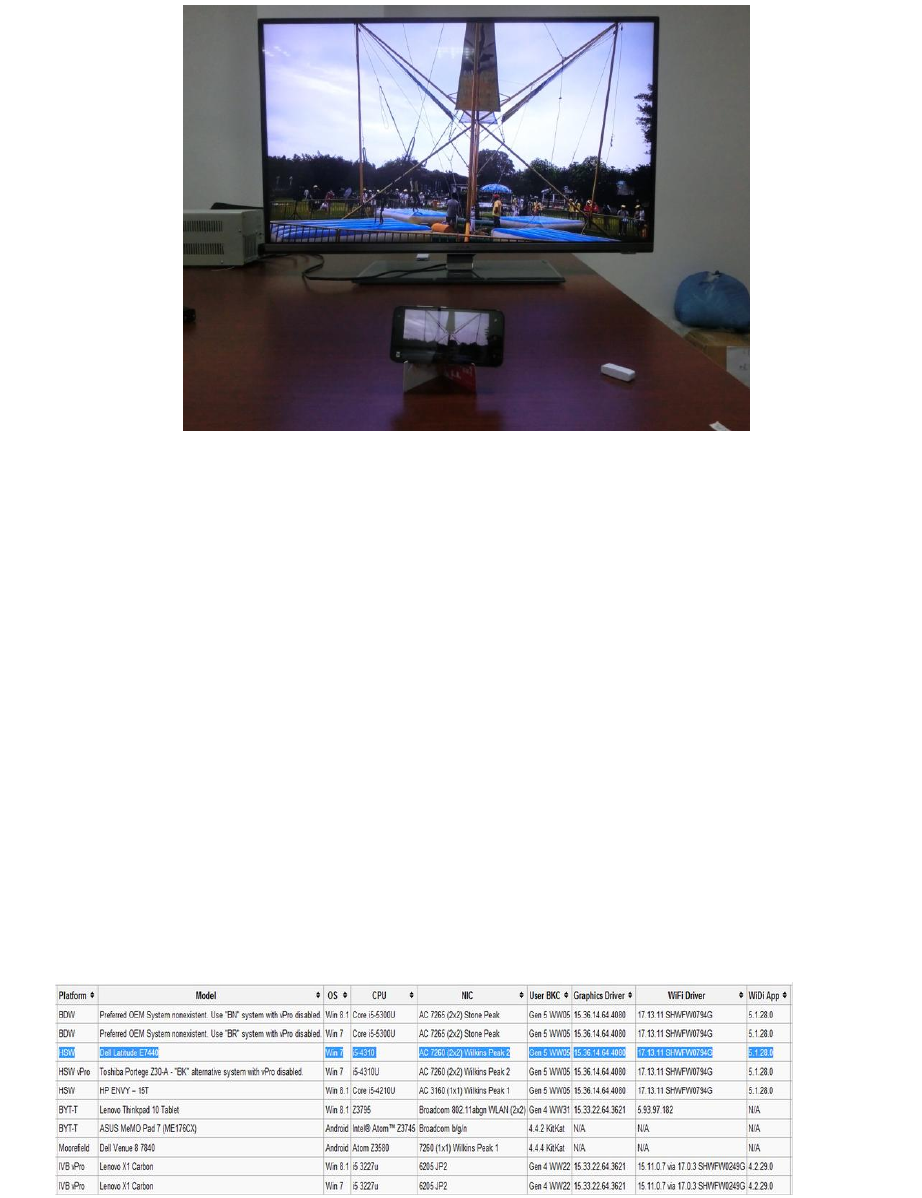

2, After connected successfully, it can wireless project your phone’s
display onto the TV screen.
5
C Hair windows tablet

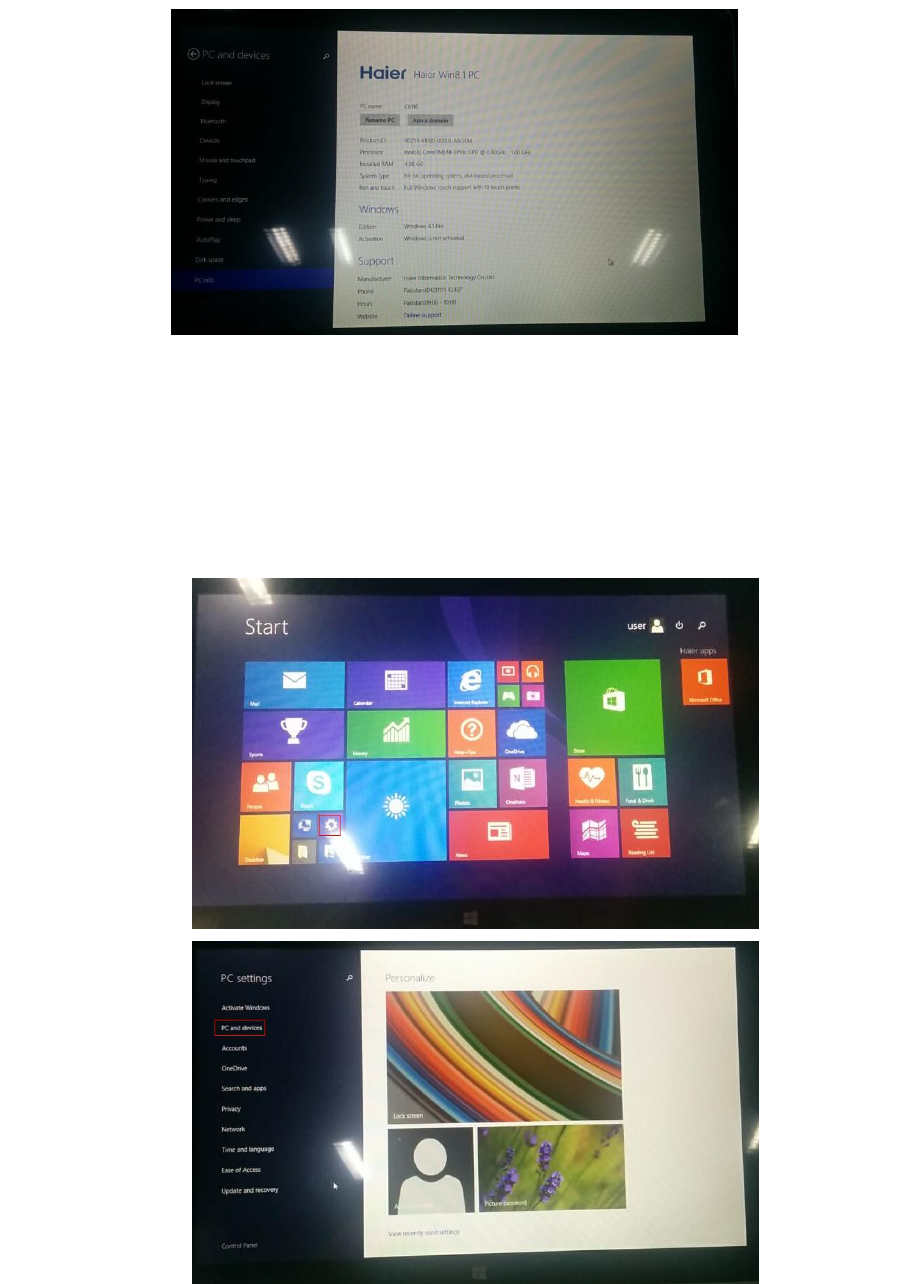

Use the WiDi technology to the laptop or tablet computer configuration
requirements:
CPU: the i5-4210 - u/i5-5300
Wireless network card: ac/ac/ac 3160 7265 7260
Pre-installed system: Windows 7 / win8.1 / win10
6
2-3
steps：

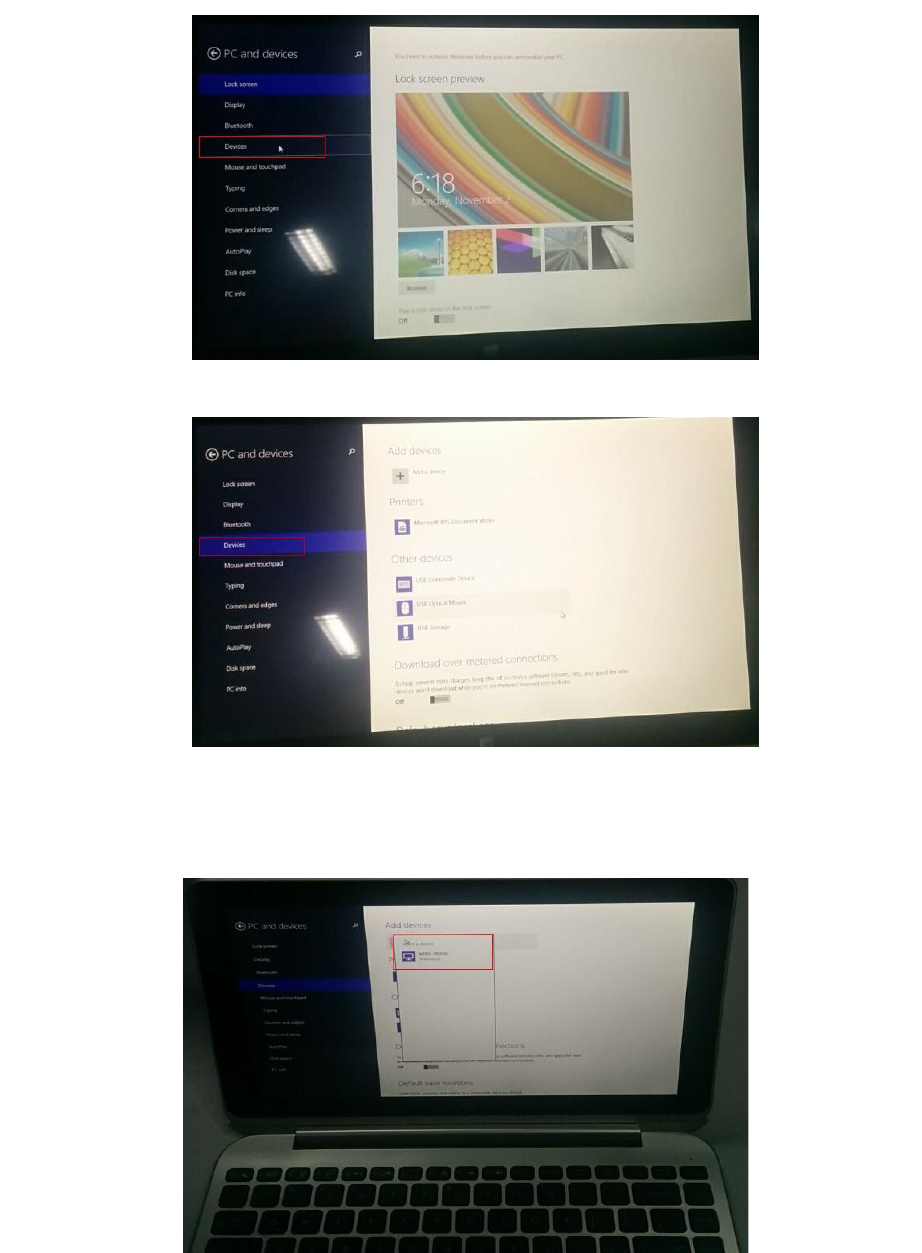

1、Setting the tablet，enter and select“PC setting”---“PC and devices”
---“Devices”；
7

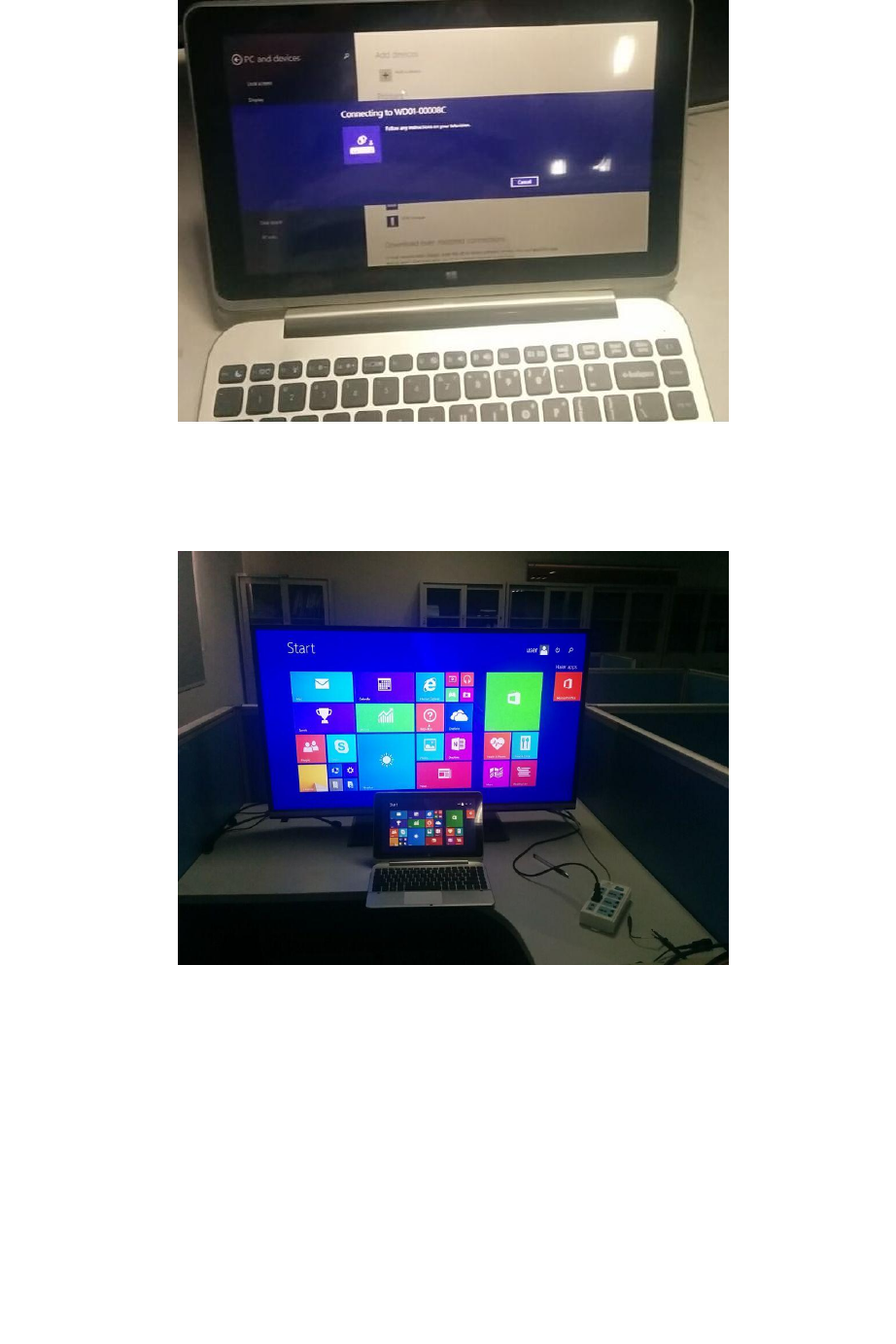

2、Tap”Add a device”,comes out”Select a device”,select WD01 Dongle
connected
8
3、After connected successfully, it can wireless project your tablet’s
display onto the TV screen.
NOTE:
The device is indoor use only；
temperature operating range:-20°C to + 70°C
voltage range :DC 4.8V~5.2V, 1A~2A
Frequency Stability：4ppm
50
9
FCC Statement：
1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference.and
(2) This device must accept any interference received, including interference that may cause
undesired operation.
2. Changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
NOTE:
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
The distance between user and products should be no less than 20cm
