Installation Guide

for EMPRESS™ 2.4GHz Active RFID Reader

(Model: HKRAR-EMWF)

Revision: 1

Before use, please read these instructions completely

Hong Kong RFID Limited

Add: Unit 207A, 2/F, Building 9, No.5 Science Park West Avenue, Hong Kong Science Park, Shatin, N.T., Hong Kong

Tel: (852) 2165 4708 Fax: (852) 3007 1901 Email: info@hk-rfid.com P.2

Disclaimer

The information and know-how included in this document are the exclusive property of Hong Kong RFID

Limited and are intended for the use of the addressee or the user alone. The addressees shall not forward to

another their right of using the information, know-how or document forwarded herewith, in whole or in part in

all matters relating or stemming from or involved therein, where for consideration or with consideration, and

shall not permit any third party to utilize the information, know-how or the documents forwarded herewith or

copies or duplicated thereof, unless at the company’s consent in advance and in writing.

Enterprise License

No part of this document may be reproduced, distributed, publicized or made publicly available in part or in

total without prior written consent of Hong Kong RFID Ltd. All content herein is solely owned by Hong Kong

RFID Ltd. All inquires should be directed to info@hk-rfid.com

Important Notice

All statements, technical information, and recommendations related to Hong Kong RFID’s products are

based on information believed to be reliable, but the accuracy or completeness is not guaranteed. Before

using this product, you must evaluate it and determine if it is suitable for your intended application. You

assume all risks and liability associated with such use. Any statements related to the product which are not

contained in 3M’s current publications, or any contrary statements contained on your purchase order shall

have no force or effect unless expressly agreed upon, in writing, by an authorized officer of Hong Kong RFID.

EMPRESS is a trademark of Hong Kong RFID.

Hong Kong RFID Limited

Add: Unit 207A, 2/F, Building 9, No.5 Science Park West Avenue, Hong Kong Science Park, Shatin, N.T., Hong Kong

Tel: (852) 2165 4708 Fax: (852) 3007 1901 Email: info@hk-rfid.com P.3

Contents

1.1 INTRODUCTION ...............................................................................................................................4

1.2 SYSTEM OVERVIEW ........................................................................................................................5

1.2.1 Components ...............................................................................................................................5

1.2.2 Setup ..........................................................................................................................................7

1.2.3 Application: Access Control System ..........................................................................................8

1.2.4 Application: Location System ....................................................................................................8

1.3 READER INDICATORS ......................................................................................................................9

1.3.1 Omni–directional Antenna for Empress Active Reader ........................................................... 10

1.3.2 Directional Antenna for Empress Active Reader (Optional) .................................................... 10

1.4 FIRST TIME INSTALLATION: ........................................................................................................... 13

1.5 WIRELESS CONNECTION CONFIGURATION GUIDE ......................................................................... 18

1.5.1 Briefly description ................................................................................................................... 18

1.5.2 Status-system ........................................................................................................................... 19

1.5.3 Status-Active Client ................................................................................................................. 19

1.5.4 Network Setting ........................................................................................................................ 20

1.5.5 Wireless Setting ........................................................................................................................ 21

1.5.6 Access Point Setup ................................................................................................................... 22

1.5.7 Client Mode Setup.................................................................................................................... 26

1.5.8 Security .................................................................................................................................... 27

1.5.9 Others ...................................................................................................................................... 29

1.6 COMPUTER SOFTWARE INSTALLATION .......................................................................................... 32

1.7 DEMO SOFTWARE USER GUIDE ..................................................................................................... 33

Hong Kong RFID Limited

Add: Unit 207A, 2/F, Building 9, No.5 Science Park West Avenue, Hong Kong Science Park, Shatin, N.T., Hong Kong

Tel: (852) 2165 4708 Fax: (852) 3007 1901 Email: info@hk-rfid.com P.4

1.1 Introduction

Thank you for purchasing EMPRESS™ Reader, it is wireless and therefore is easy to

install with low installation costs. It is a 2.4GHz Gain Adjustable Reader which uses the

advanced 0.18um CMOS IC, and is well-fitted for being a Data Collector.

Through IEEE 802.11b/g (EMWF version), the reader gathers and transmits data to the

wireless router or act as access point all by itself. Once powered, the HKRAR-EM series

is instantly connected and become part of the network.

HKRAR-EMWF Active reader is user friendly with a web interface. You can get data and

do analysis with a PC in an efficient way with its Wi-Fi feature. Its Omni-directional

antenna can identify tags from all directions. Users can adjust the identification distance

according to actual situations in order to make identification more accurate.

Hong Kong RFID Limited

Add: Unit 207A, 2/F, Building 9, No.5 Science Park West Avenue, Hong Kong Science Park, Shatin, N.T., Hong Kong

Tel: (852) 2165 4708 Fax: (852) 3007 1901 Email: info@hk-rfid.com P.5

1.2 System Overview

1.2.1 Specification

Direction

Omni-directional, standard rubber antenna

Range

30~50m (depends on different Active RFID Tags),

Frequency

2.4GHz--2.5GHz ISM

RF Output Power

0dBm

Sensitivity

-85dBm

Power

500mA,5V

Modulation

GFSK

Software Interface

XtractorTM, .Net Platform

Data Rate

1Mbps

Operating Temperature

-40~60`C

Operating Humidity

95%(Non-condensing)

Anti-collision

200 tags simultaneously, shown within 5 sec.

Interface

WI-FI, IEEE 802.11b/g. can act as AP

Dimension

125mm * 108mm * 26mm

PC or

Controller

Wireless Router

Empress 2.4GHz

Active Reader

Directional or

Omni-Directional

Antenna

Active Tags

Active Tags broadcast Tag ID and

listen for comments at defined

time interval (e.g 1 signal per

second)

Active Tag ID and information

passed to PC through reader itself

or other network devices

Hong Kong RFID Limited

Add: Unit 207A, 2/F, Building 9, No.5 Science Park West Avenue, Hong Kong Science Park, Shatin, N.T., Hong Kong

Tel: (852) 2165 4708 Fax: (852) 3007 1901 Email: info@hk-rfid.com P.6

1.2.2 Components

One standard package of this product consists of following items;

- EMPRESS Reader x 1 piece

- 2.4GHz Antenna x 2 pieces

- DC Power Adaptor 5V 2.5A x 1 piece

- A Cross Cat-5 Cable (optional)

Other Essential Components

- Active Transponders from Hong Kong RFID

- Personal Computer

Minimum PC Requirements: XXXXXX

NOTE:

Active Transponders are essential to test the system and they are sold separately. Please

contact your sales representative if you do not have any active transponders.

Hong Kong RFID Limited

Add: Unit 207A, 2/F, Building 9, No.5 Science Park West Avenue, Hong Kong Science Park, Shatin, N.T., Hong Kong

Tel: (852) 2165 4708 Fax: (852) 3007 1901 Email: info@hk-rfid.com P.7

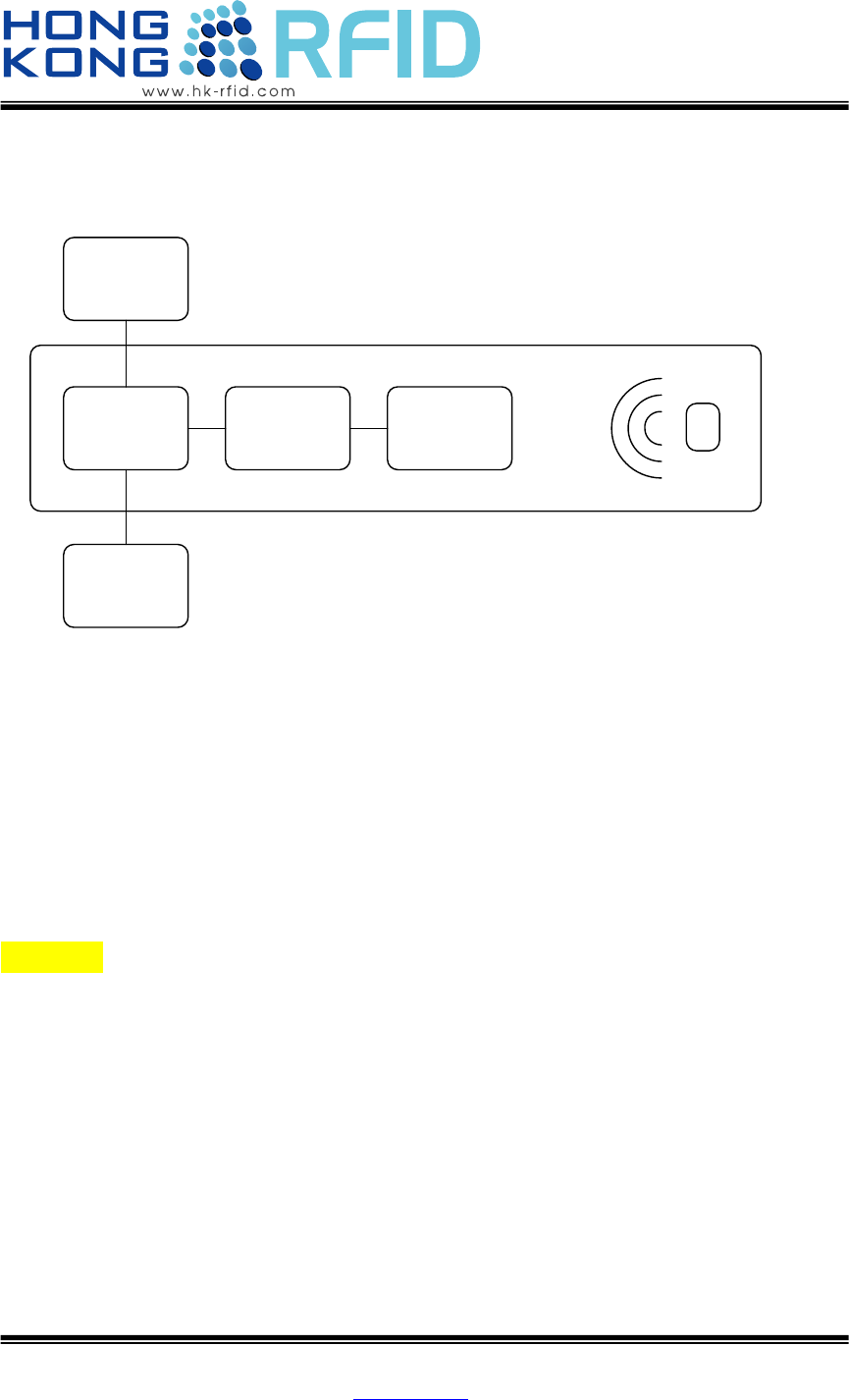

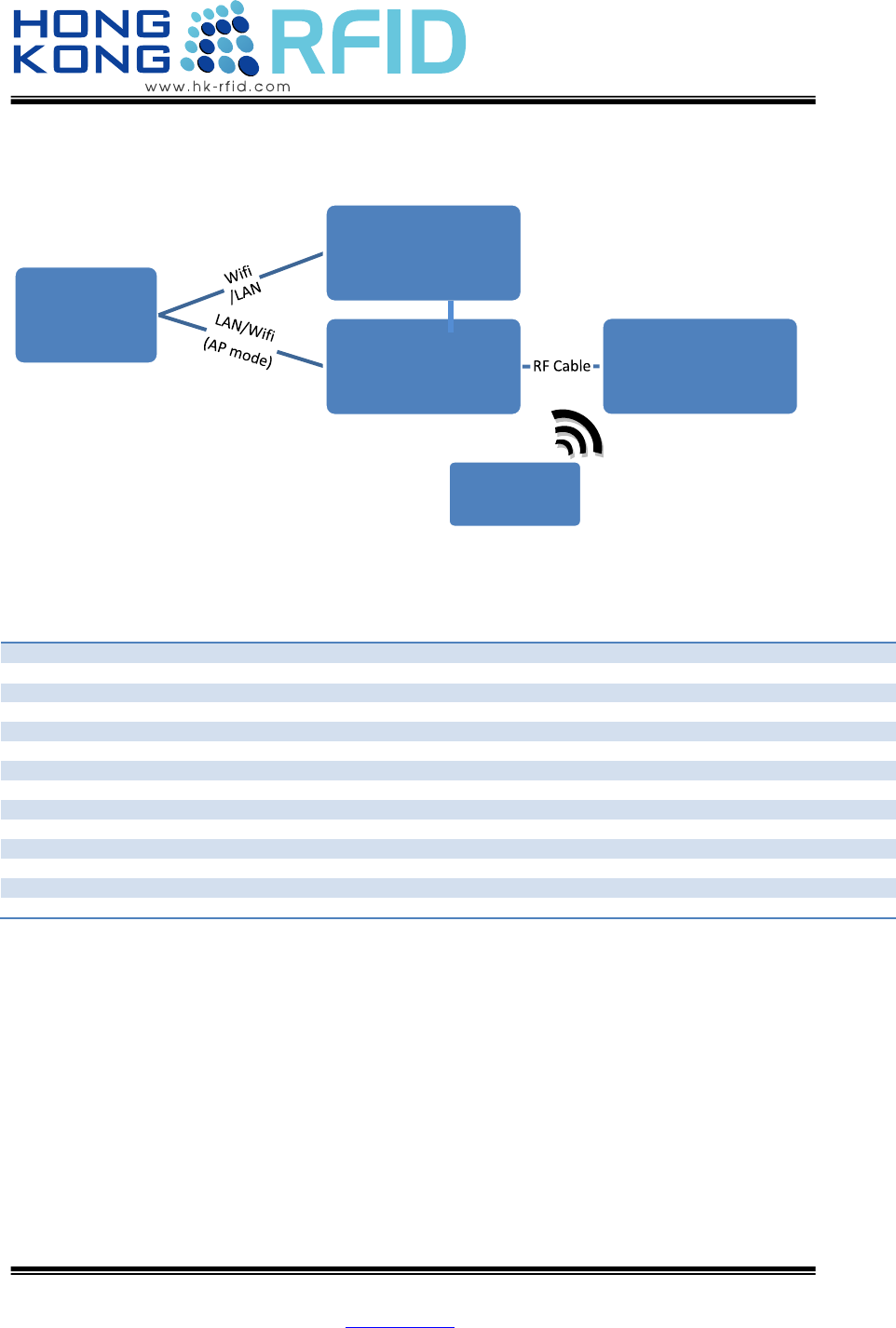

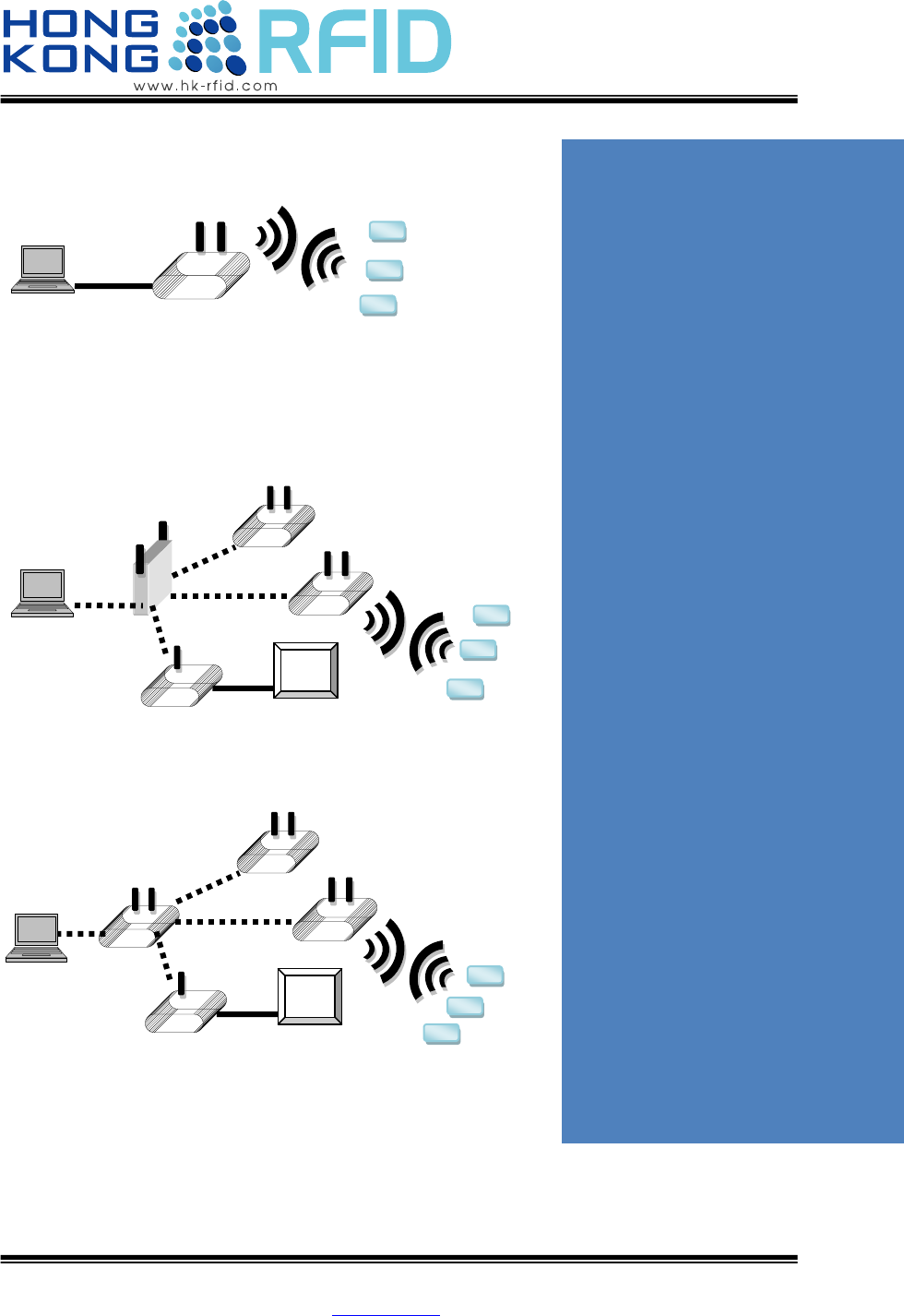

1.2.3 Network Setup

XXX mode

(external antenna for illustration)

AP mode

[Type sidebar content. A sidebar is a

standalone supplement to the main

document. It is often aligned on the left

or right of the page, or located at the

top or bottom. Use the Text Box Tools

tab to change the formatting of the

sidebar text box.

Type sidebar content. A sidebar is a

standalone supplement to the main

document. It is often aligned on the left

or right of the page, or located at the

top or bottom. Use the Text Box Tools

tab to change the formatting of the

sidebar text box.]

Hong Kong RFID Limited

Add: Unit 207A, 2/F, Building 9, No.5 Science Park West Avenue, Hong Kong Science Park, Shatin, N.T., Hong Kong

Tel: (852) 2165 4708 Fax: (852) 3007 1901 Email: info@hk-rfid.com P.8

1.2.4 Application: Access Control System

AntennaReaderController

Computer

Automatic Door

Tag

Access Control System

Fig.3 Overview of the access control system

The system can control an automatics door to achieve the purpose of access

control. The results of the reader captured are recorded in the Controller.

1.2.5 Application: Location System

XXXXXX

Hong Kong RFID Limited

Add: Unit 207A, 2/F, Building 9, No.5 Science Park West Avenue, Hong Kong Science Park, Shatin, N.T., Hong Kong

Tel: (852) 2165 4708 Fax: (852) 3007 1901 Email: info@hk-rfid.com P.9

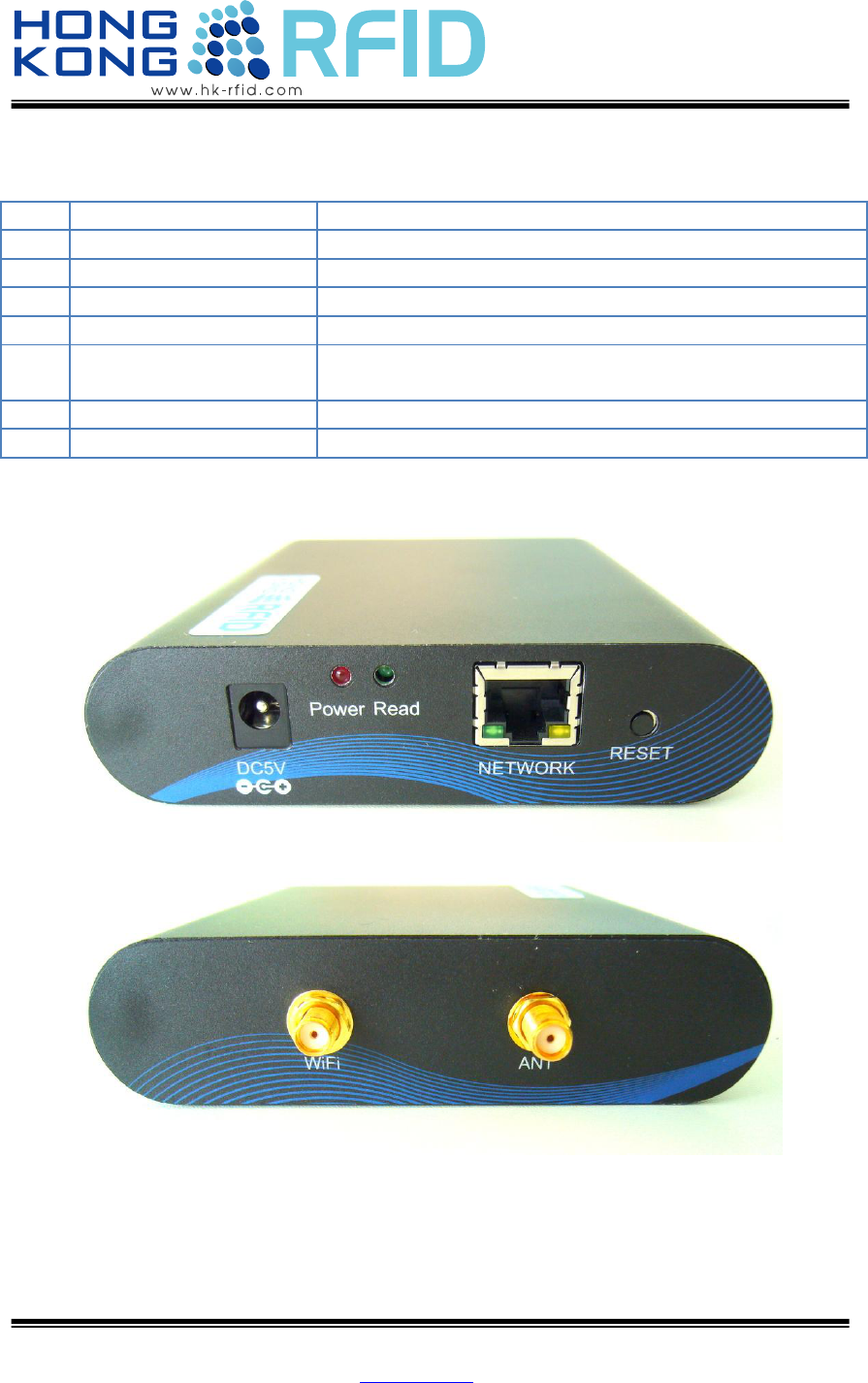

1.3 Reader Indicators

Name

Function / Description

1

DC Power Jack

Supply power

2

Red LED

Power ON

3

Green LED

Data processing identity

4

NETWORK

Connect to PC to reader

5

RESET

Reboot button

Please hold the button for 5sec

6

Wifi

For Wifi Antenna

7

ANT

For any 2.4GHz antenna, directional or omi-directional

1

2

3

4

5

6

7

Hong Kong RFID Limited

Add: Unit 207A, 2/F, Building 9, No.5 Science Park West Avenue, Hong Kong Science Park, Shatin, N.T., Hong Kong

Tel: (852) 2165 4708 Fax: (852) 3007 1901 Email: info@hk-rfid.com P.10

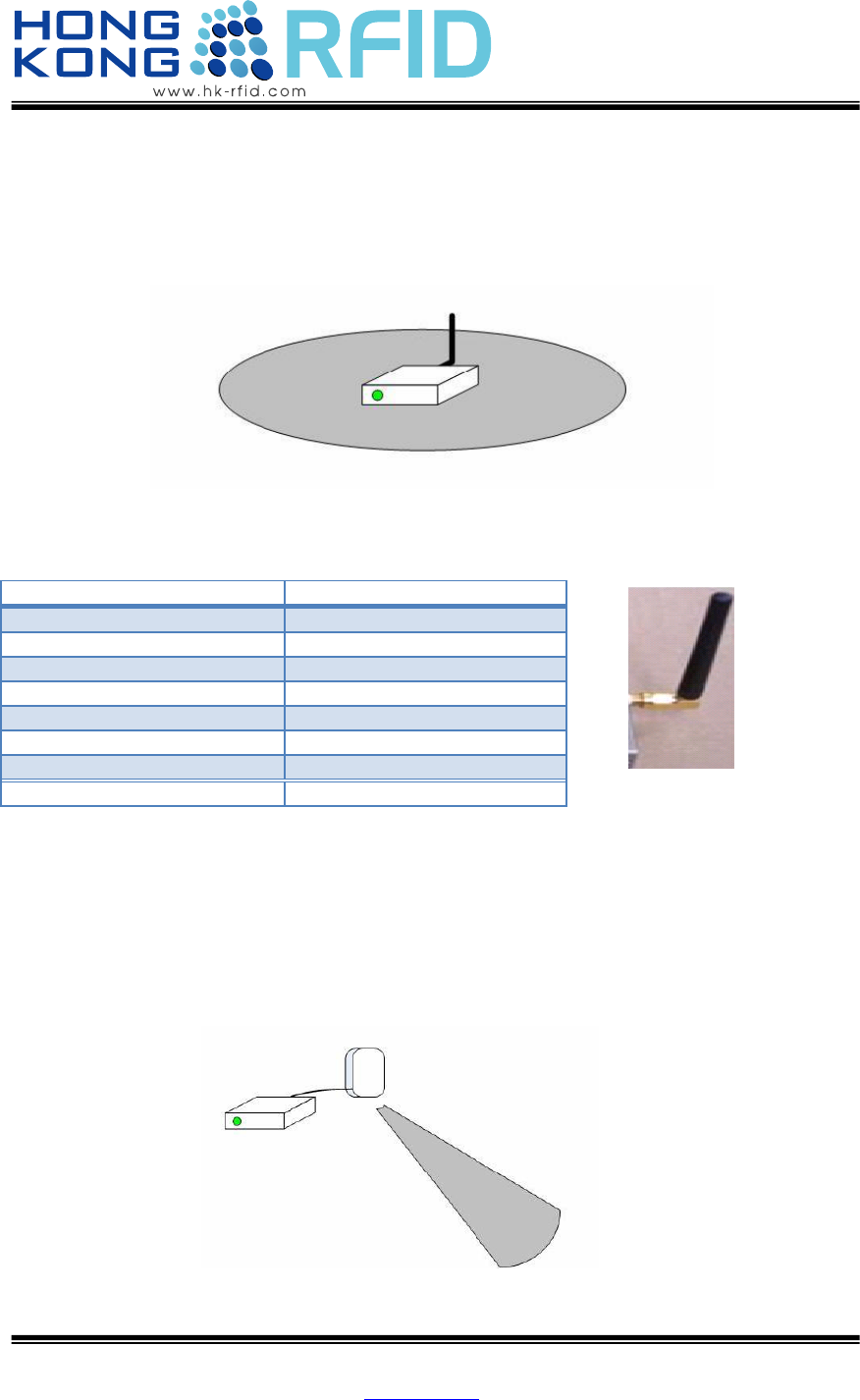

1.3.1 Omni–directional Antenna for Empress Active Reader

This antenna detects all tags in range from all angles.

Technical Specification:

1.3.2 Directional Antenna for Empress Active Reader (Optional)

Directional antenna only detects tags in specific angle. Please note that the antenna has

horizontal and vertical orientation.

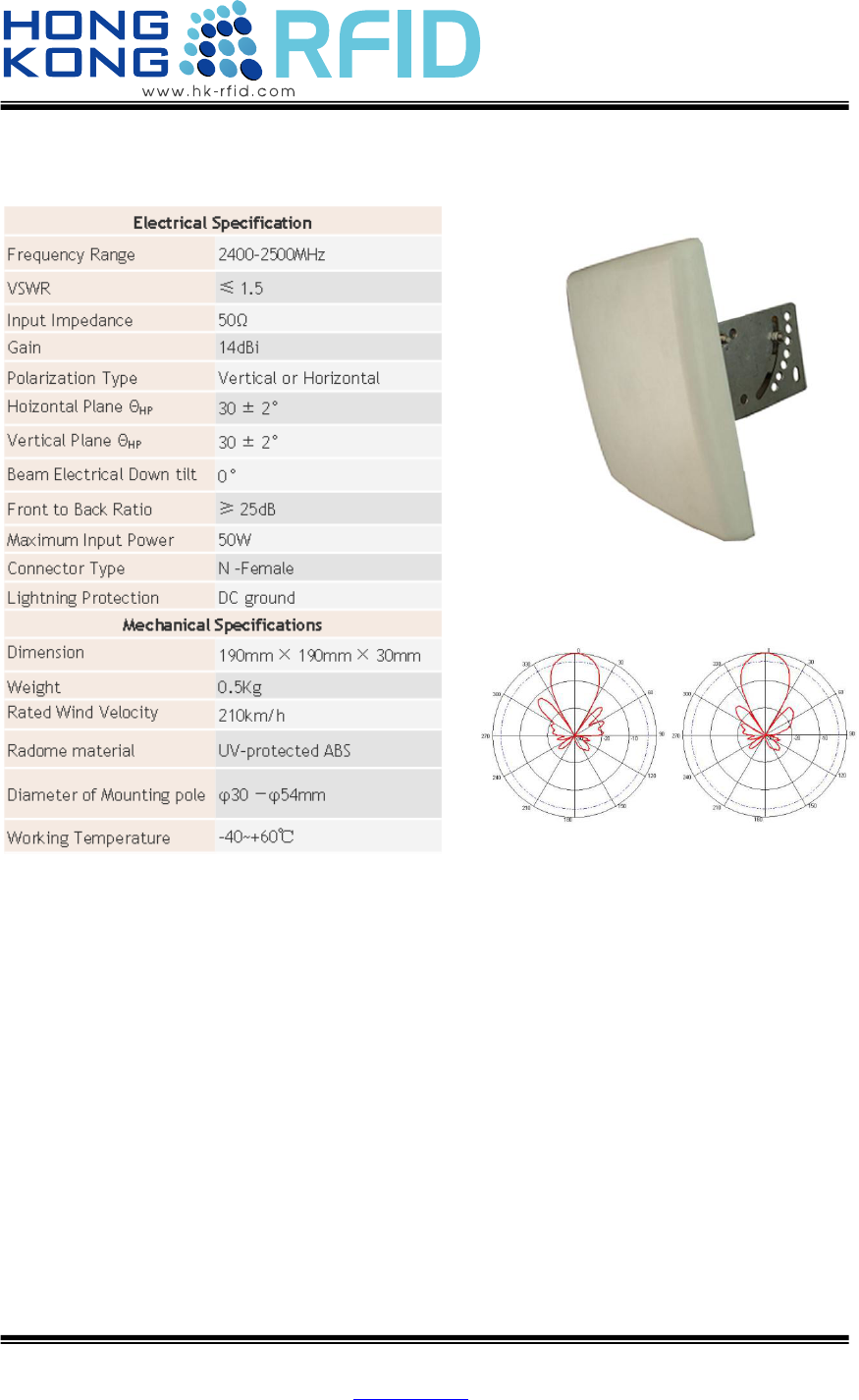

Frequency Range (MHz)

2400-2483

Bandwidth(MHz)

83

Gain (dBi)

8

VSWR

<=1.5

Impedance (ohm)

50

Max. Power (W)

50

Connector

N Female

Dimension (mm)

145 x 97 x 38

Weight (g)

210

Hong Kong RFID Limited

Add: Unit 207A, 2/F, Building 9, No.5 Science Park West Avenue, Hong Kong Science Park, Shatin, N.T., Hong Kong

Tel: (852) 2165 4708 Fax: (852) 3007 1901 Email: info@hk-rfid.com P.11

Long Range Directional 2.4GHz Antenna: HKRAA-2417

Electrical Specification

Frequency Range 2400-2500MHz

VSWR ≤1.5

Input Impedance 50Ω

Gain 17dBi

Polarization Type Vertical or Horizontal

Hoizontal Plane ΘHP 20 ±2°

Vertical Plane ΘHP 20 ±2°

Front to Back Ratio ≥26dB

Maximum Input Power 6W

Connector Type N -Female

Lightning Protection DC ground

Mechanical Specifications

Dimension 305mm ×305mm ×25mm

Weight 1.5Kg

Rated Wind Velocity 210km/h

Radome material UV-Resistance ABS

Working Temperature -40~60℃

Hong Kong RFID Limited

Add: Unit 207A, 2/F, Building 9, No.5 Science Park West Avenue, Hong Kong Science Park, Shatin, N.T., Hong Kong

Tel: (852) 2165 4708 Fax: (852) 3007 1901 Email: info@hk-rfid.com P.12

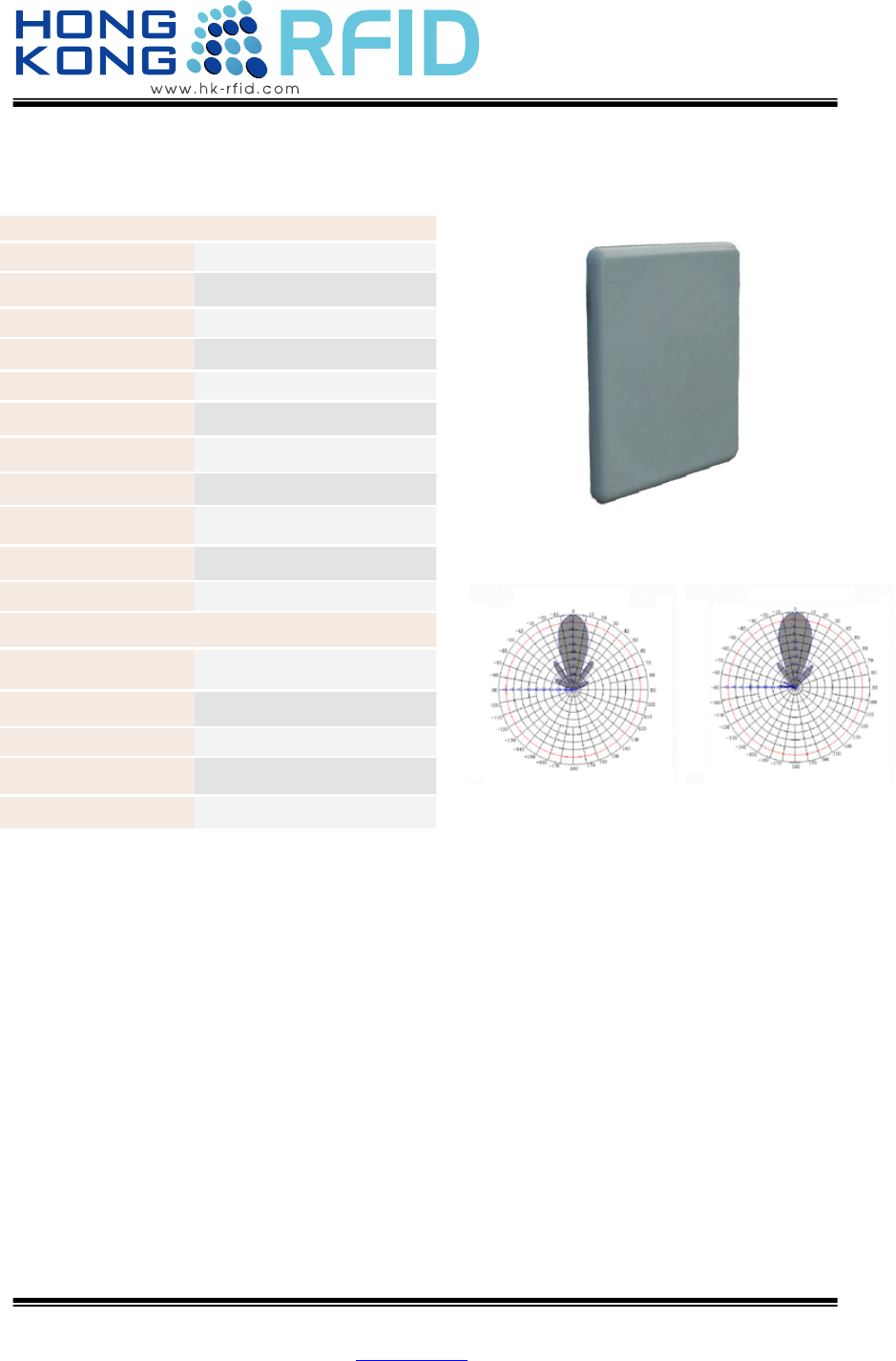

Mid Range Directional 2.4GHz Antenna HKRAA-2414

Hong Kong RFID Limited

Add: Unit 207A, 2/F, Building 9, No.5 Science Park West Avenue, Hong Kong Science Park, Shatin, N.T., Hong Kong

Tel: (852) 2165 4708 Fax: (852) 3007 1901 Email: info@hk-rfid.com P.13

1.4 First Time Installation:

1) Take out the reader from the box and connect the all two antenna (ANT and WiFi) at

the back of the reader

2) Plug the power adapter in the power jack. The red LED will turn on.

3) Connect the reader to a PC with Cross Cat 5 cable

4) Open your web browser and type 192.168.1.254 (if cannot open the setting page, try

to turn off other connections, e.g. WIFI)

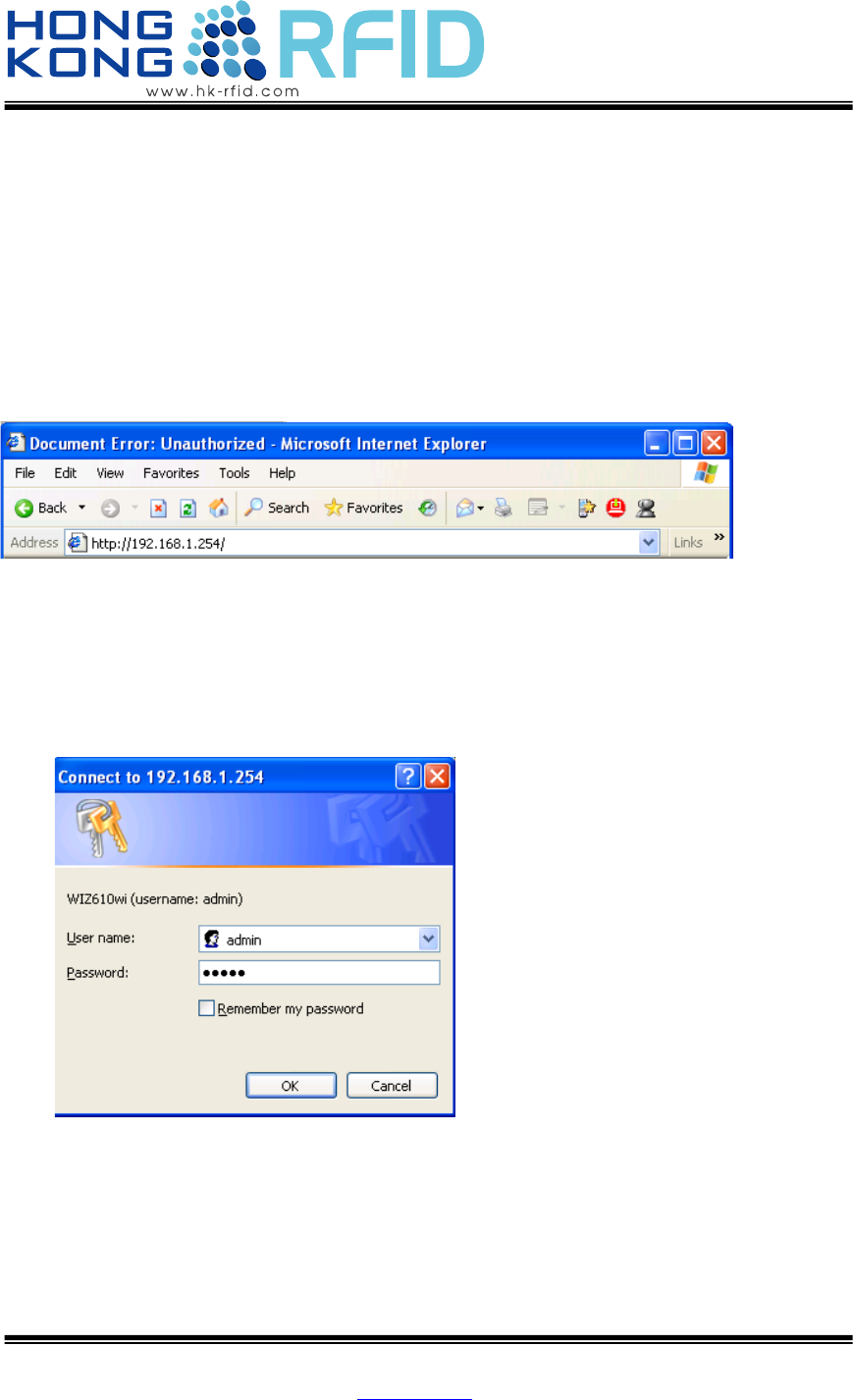

5) A dialog box will prompt you for the User name and Password. Enter the default

values and click OK. Default login of setup page

user name: admin

password : admin

6) Continue the following setting step, the setup page will be display after log-in.

Hong Kong RFID Limited

Add: Unit 207A, 2/F, Building 9, No.5 Science Park West Avenue, Hong Kong Science Park, Shatin, N.T., Hong Kong

Tel: (852) 2165 4708 Fax: (852) 3007 1901 Email: info@hk-rfid.com P.14

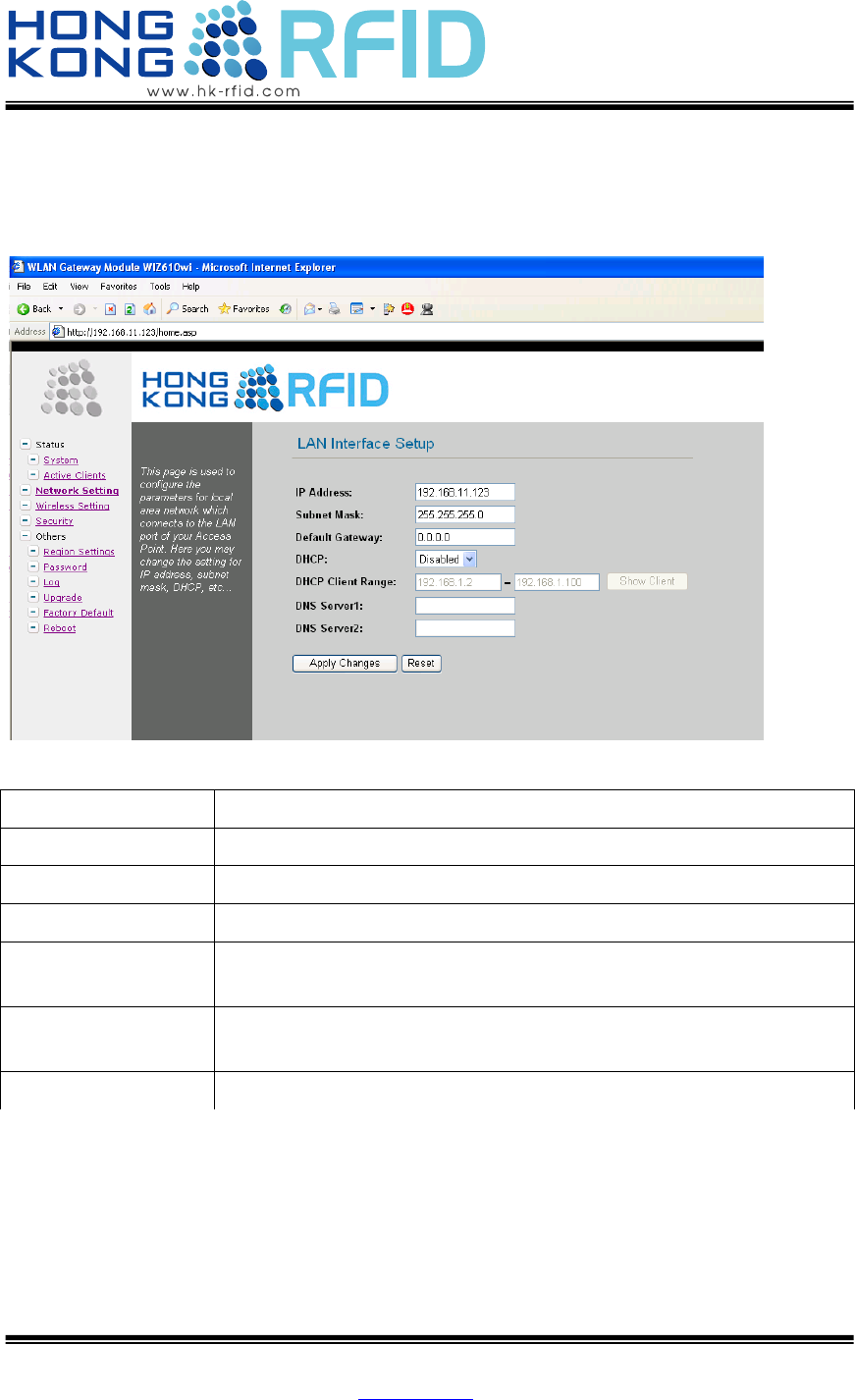

7) Select Network Setting on the left column. The LAN Interface Setup will display.

8) Select an idle IP address on your network and Enter in the IP Address. Enter the

Subnet Mask and Default Gatway of your network. Disabled DHCP. Press Apply

Changes.

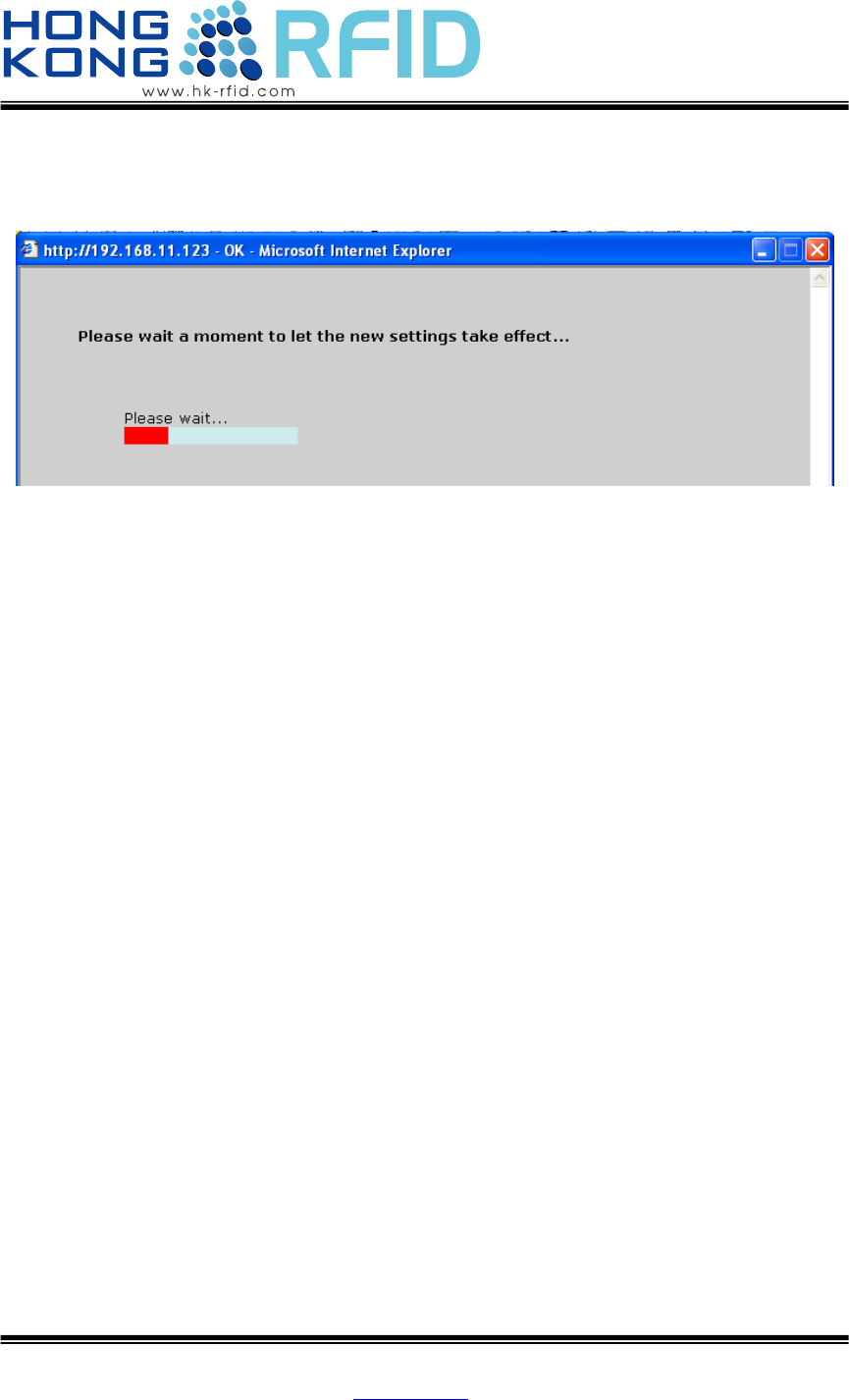

9) Successful message will show and click new IP Address to continuous setting.

Hong Kong RFID Limited

Add: Unit 207A, 2/F, Building 9, No.5 Science Park West Avenue, Hong Kong Science Park, Shatin, N.T., Hong Kong

Tel: (852) 2165 4708 Fax: (852) 3007 1901 Email: info@hk-rfid.com P.15

NOTE:

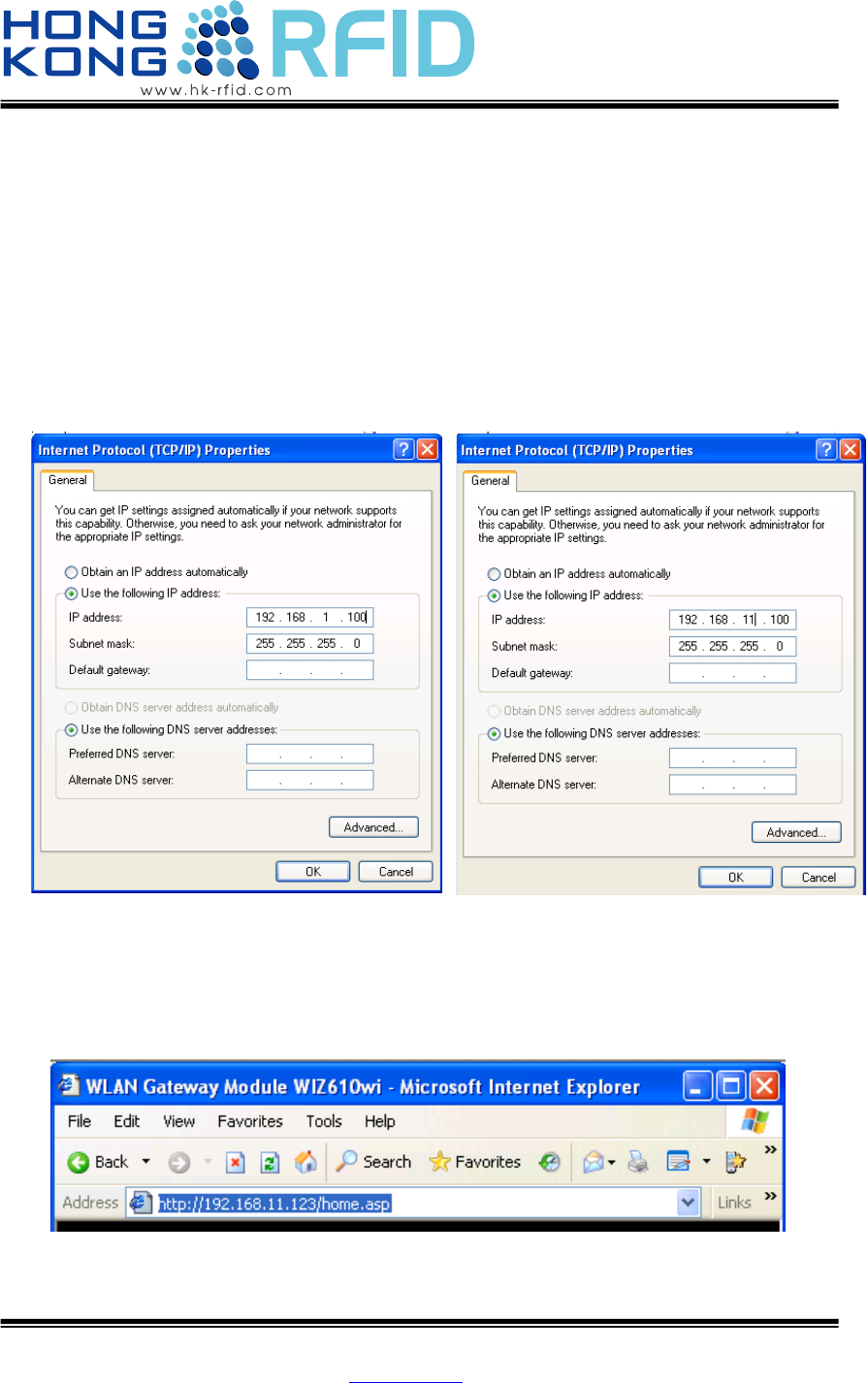

1) skip from here on if new IP address is in same subnet of previous one

Go the Start => settings => control panel => network connections.

2) Selection connection which connect to the reader.

3) Press properties

4) Select Internet Protocol(TCP/IP) and press properties

5) change the IP address which in the same domain with reader.

6) Press OK to close all the dialog.

7) Open Internet Explorer and type in the new IP address in the address field and

press Enter

Hong Kong RFID Limited

Add: Unit 207A, 2/F, Building 9, No.5 Science Park West Avenue, Hong Kong Science Park, Shatin, N.T., Hong Kong

Tel: (852) 2165 4708 Fax: (852) 3007 1901 Email: info@hk-rfid.com P.16

8) Select Wireless Setting on the left column. Operation Mode will show

9) Select Client and press Setup. It takes a moment applying the setting and Client

Mode Setting will show.

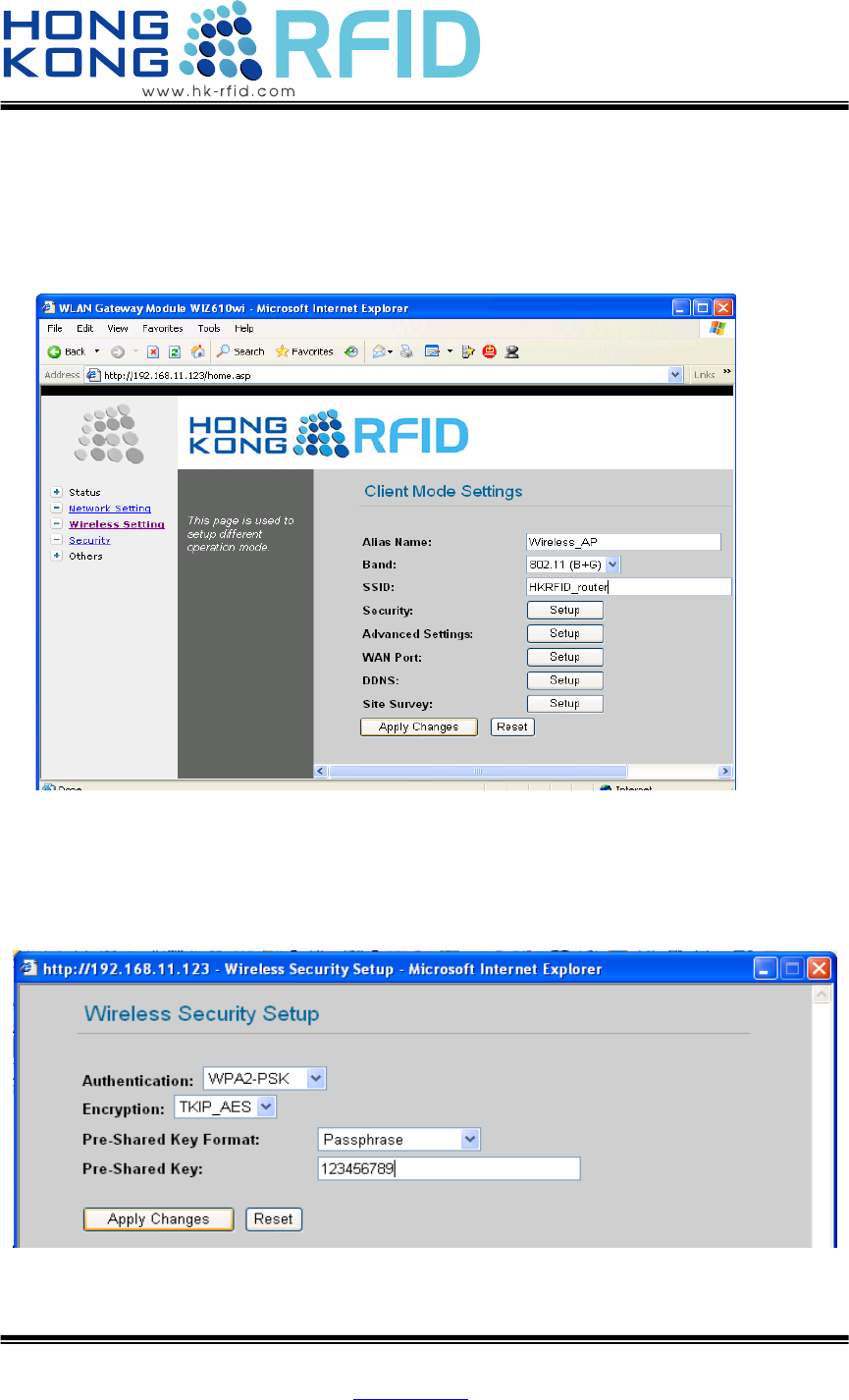

10) Enter the SSID name in of your wireless network and press Apply Changes.

11) Press Security Setup. A Wireless Security Setup dialog will show.

12) Select your network authentication and Select/Enter according information.

Press Apply Change.

Hong Kong RFID Limited

Add: Unit 207A, 2/F, Building 9, No.5 Science Park West Avenue, Hong Kong Science Park, Shatin, N.T., Hong Kong

Tel: (852) 2165 4708 Fax: (852) 3007 1901 Email: info@hk-rfid.com P.17

13) It takes a moment applying setting.

14) After loading the setting. Close the entire dialog.

15) All setting complete.

Hong Kong RFID Limited

Add: Unit 207A, 2/F, Building 9, No.5 Science Park West Avenue, Hong Kong Science Park, Shatin, N.T., Hong Kong

Tel: (852) 2165 4708 Fax: (852) 3007 1901 Email: info@hk-rfid.com P.18

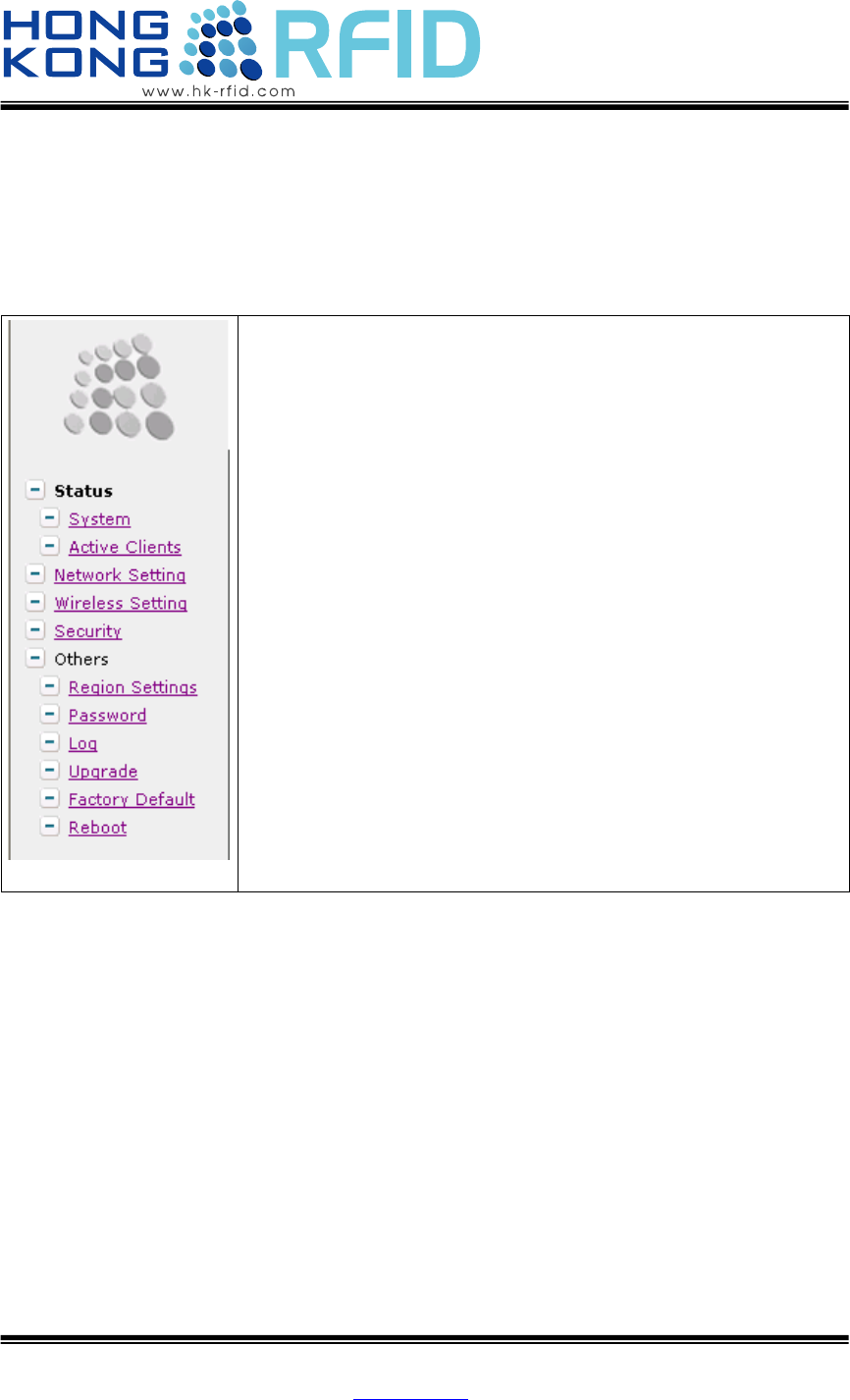

1.5 Wireless Connection Configuration Guide

1.5.1 Briefly description

< check the system status and reader configuration

<check the all active client status

< setting network config. e.g. IP address, subnet Mask, etc.

< setting the operation mode and the wireless connection

< setting the wireless connection security

< select the country code

< charge password

< for user setup/check the log file of the reader

< upgrade the firmware

< to reset all setting to factory default setting

< reboot the reader

Hong Kong RFID Limited

Add: Unit 207A, 2/F, Building 9, No.5 Science Park West Avenue, Hong Kong Science Park, Shatin, N.T., Hong Kong

Tel: (852) 2165 4708 Fax: (852) 3007 1901 Email: info@hk-rfid.com P.19

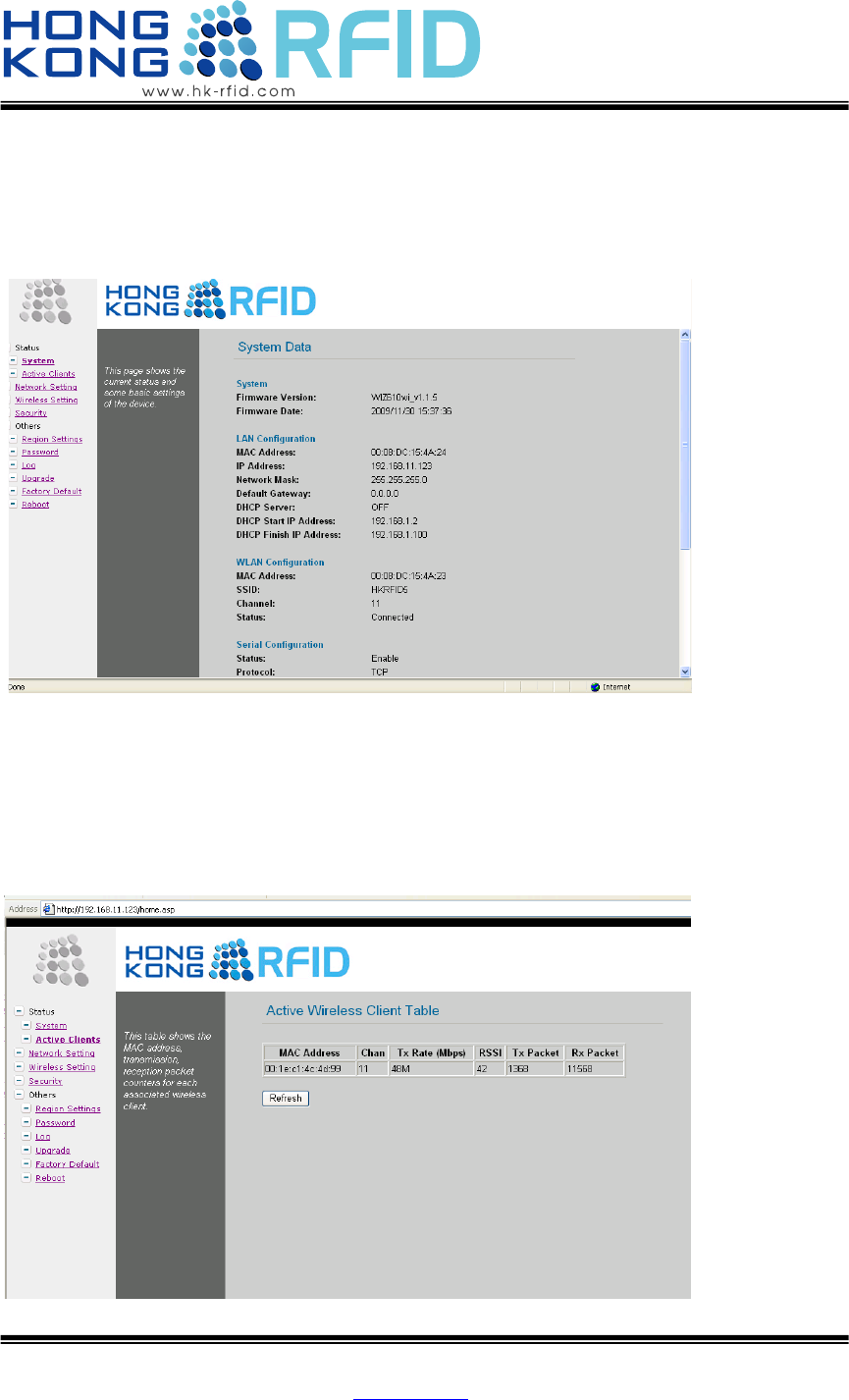

1.5.2 Status-system

It shows all the system information: firmware version, LAN configuration, WLAN

configuration, Serial configuration.

1.5.3 Status-Active Client

In this page, the information of clients connecting to WIZ610wi is displayed. If you click

“Refresh” button, the client list and information are updated.

Hong Kong RFID Limited

Add: Unit 207A, 2/F, Building 9, No.5 Science Park West Avenue, Hong Kong Science Park, Shatin, N.T., Hong Kong

Tel: (852) 2165 4708 Fax: (852) 3007 1901 Email: info@hk-rfid.com P.20

1.5.4 Network Setting

For user change the network setting of the reader.

Name

function

IP Address

Set the IP address to the reader

Subnet Mask

Set your network subnet mask to the reader

Default Gateway

Set the your network gateway to the reader

DHCP:

When the reader set as a server, you can set the reader activate the

DHCP function.

DHCP Client Range

When the reader set as a server and DHCP function is on, user

should set a range of IP address to the client for connection.

Show Client

To show the list of connected Clients

Hong Kong RFID Limited

Add: Unit 207A, 2/F, Building 9, No.5 Science Park West Avenue, Hong Kong Science Park, Shatin, N.T., Hong Kong

Tel: (852) 2165 4708 Fax: (852) 3007 1901 Email: info@hk-rfid.com P.21

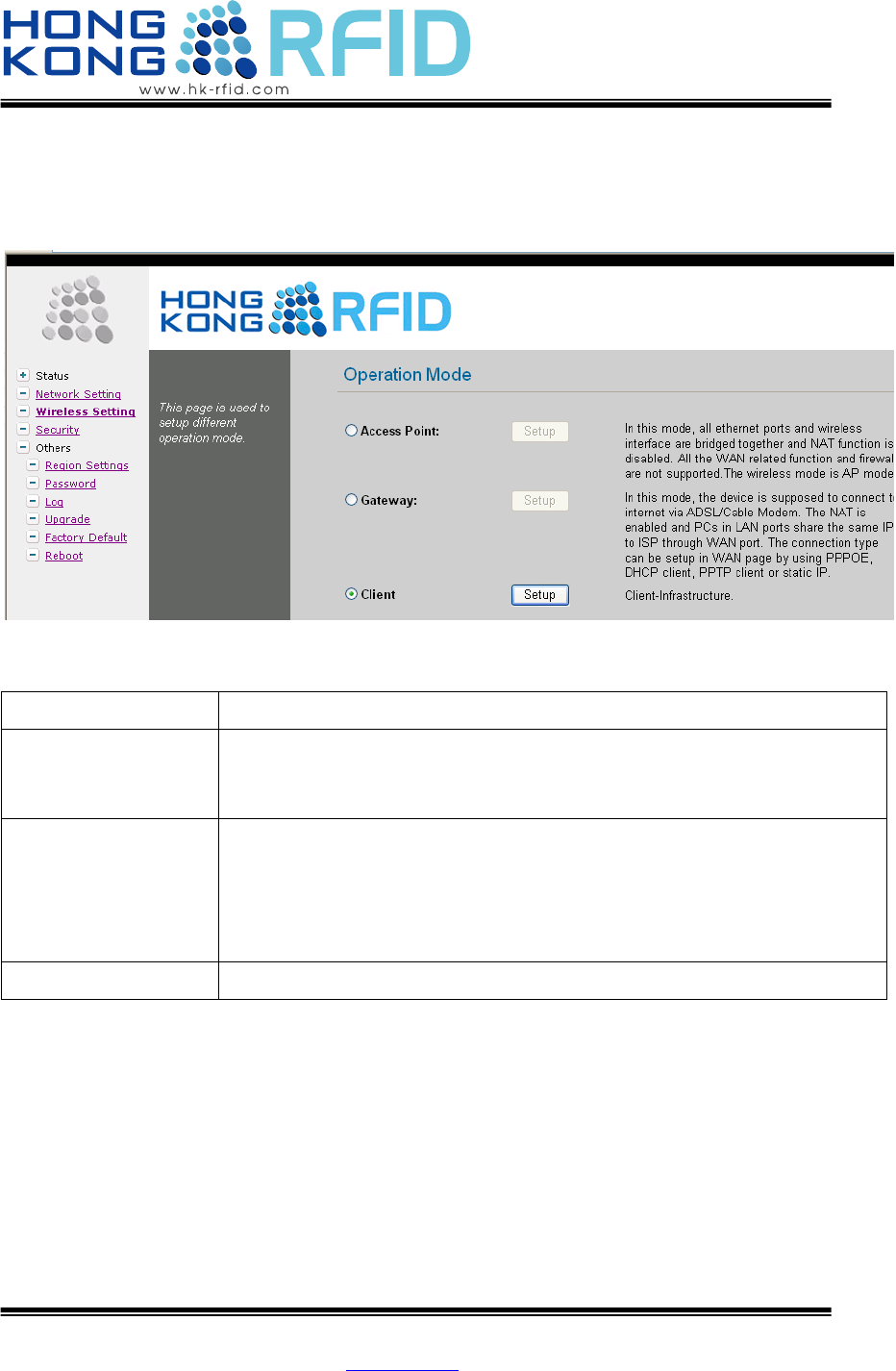

1.5.5 Wireless Setting

It selects the operation mode of the reader and the setup the selected mode

Mode

Function

Access Point

In this mode, all ethernet ports and wireless interface are bridged

together and NAT function is disabled. All the WAN related function

and firewall are not supported.The wireless mode is AP mode.

Gateway

In this mode, the device is supposed to connect to internet via

ADSL/Cable Modem. The NAT is enabled and PCs in LAN ports

share the same IP to ISP through WAN port. The connection type can

be setup in WAN page by using PPPOE, DHCP client, PPTP client or

static IP.

Client

Client-Infrastructure.

Hong Kong RFID Limited

Add: Unit 207A, 2/F, Building 9, No.5 Science Park West Avenue, Hong Kong Science Park, Shatin, N.T., Hong Kong

Tel: (852) 2165 4708 Fax: (852) 3007 1901 Email: info@hk-rfid.com P.22

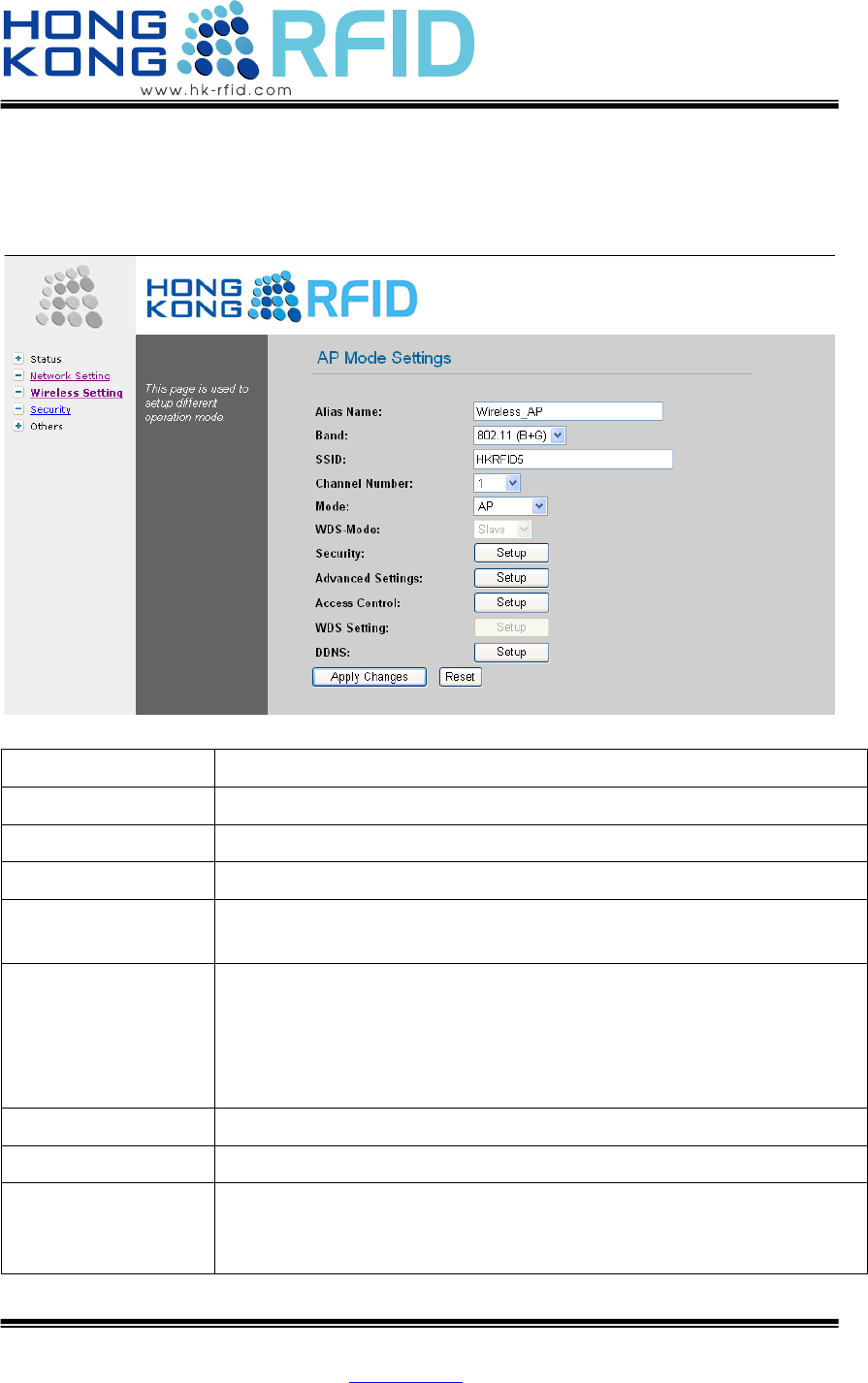

1.5.6 Access Point Setup

After selecting the AP mode and please click “Setup” button,

Name

Function

Alias Name:

Type in the reader name

Band

Select communication protocol

SSID

Input SSID for wireless communication.

Channel Number:

Select the channel frequency which you will use for wireless

communication.

Mode:

Select the mode of the

AP : set reader operates as Access Point.

AP+WDS : WDS(Wireless Distribution System) repeater, this

mode can let the reader communication each other. In this mode, the

reader will also operate with AP mode in the same time.

WDS-Mode:

Select the master/ salve when WDS is set

Security:

Setting the wireless connection security

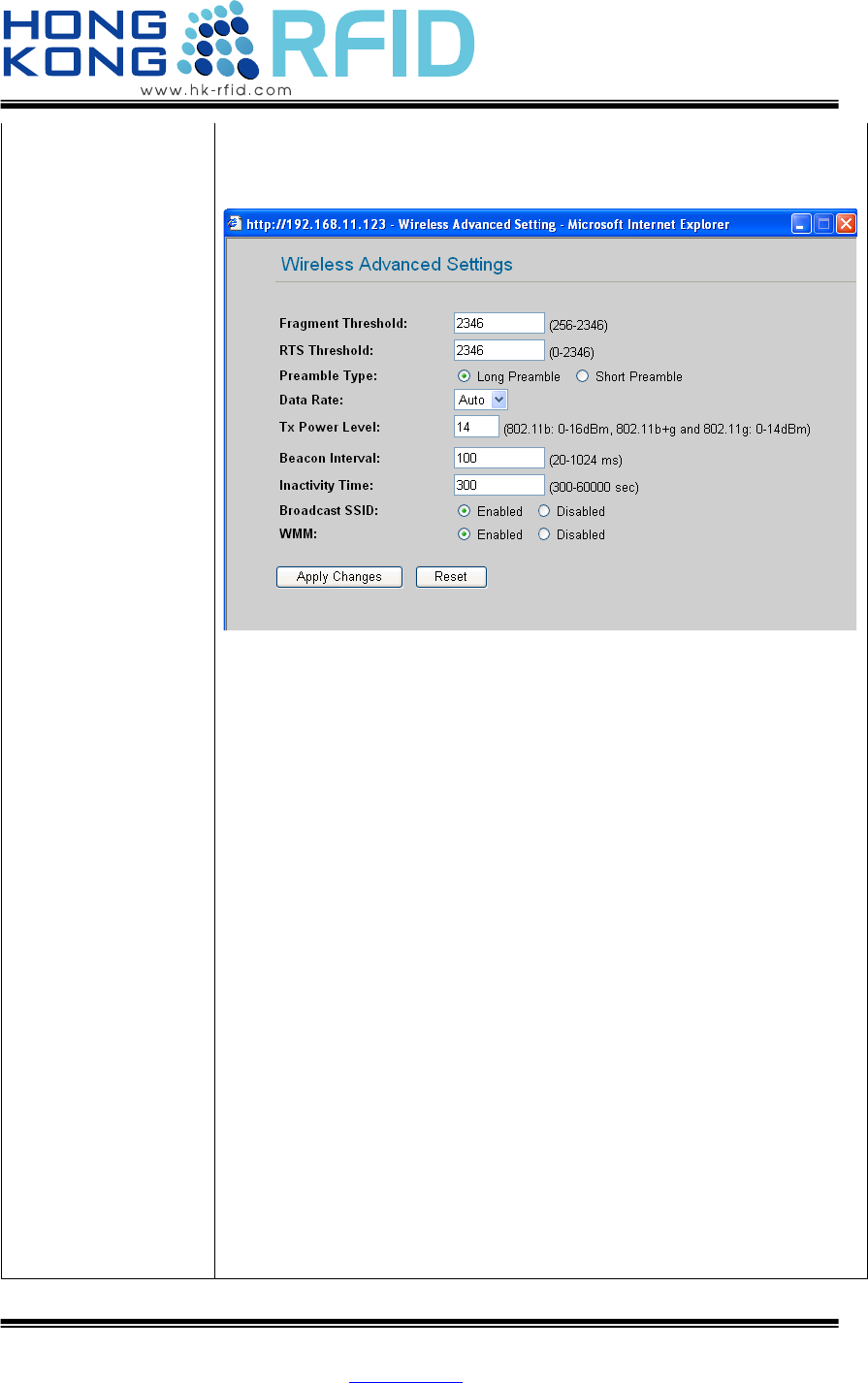

Advanced Settings:

Have a more advanced setting : Fragment Threshold, RTS

Threshold,Preamble Type, Beacon Interval

Hong Kong RFID Limited

Add: Unit 207A, 2/F, Building 9, No.5 Science Park West Avenue, Hong Kong Science Park, Shatin, N.T., Hong Kong

Tel: (852) 2165 4708 Fax: (852) 3007 1901 Email: info@hk-rfid.com P.23

-Fragment Threshold: This value specifies the maximum size for a

packet before data is fragmented into multiple packets. If you

experience a high packet error rate, you may slightly increase the

Fragmentation Threshold. Setting the Fragmentation Threshold too

low may result in poor network performance. Only minor reduction

of the default value is recommended. In most cases, it should remain

as its default value of 2346.

-RTS Threshold: When you encounter inconsistent data flow, only

minor reduction of the default value, 2347, is recommended. If a

network packet is smaller than the preset RTS threshold size, the

RTS/CTS mechanism will not be enabled. The Router frames to a

particular receiving of a data frame. After receiving responds with a

Clear to Send right to begin transmission. The as its default value of

2347.

-Beacon Interval: The default value is 100. Enter a value between 1

and 65,535milliseconds. The Beacon Interval value indicates the

frequency interval of the beacon. A beacon is a packet broadcast by

the Router to synchronize the wireless network.

Hong Kong RFID Limited

Add: Unit 207A, 2/F, Building 9, No.5 Science Park West Avenue, Hong Kong Science Park, Shatin, N.T., Hong Kong

Tel: (852) 2165 4708 Fax: (852) 3007 1901 Email: info@hk-rfid.com P.24

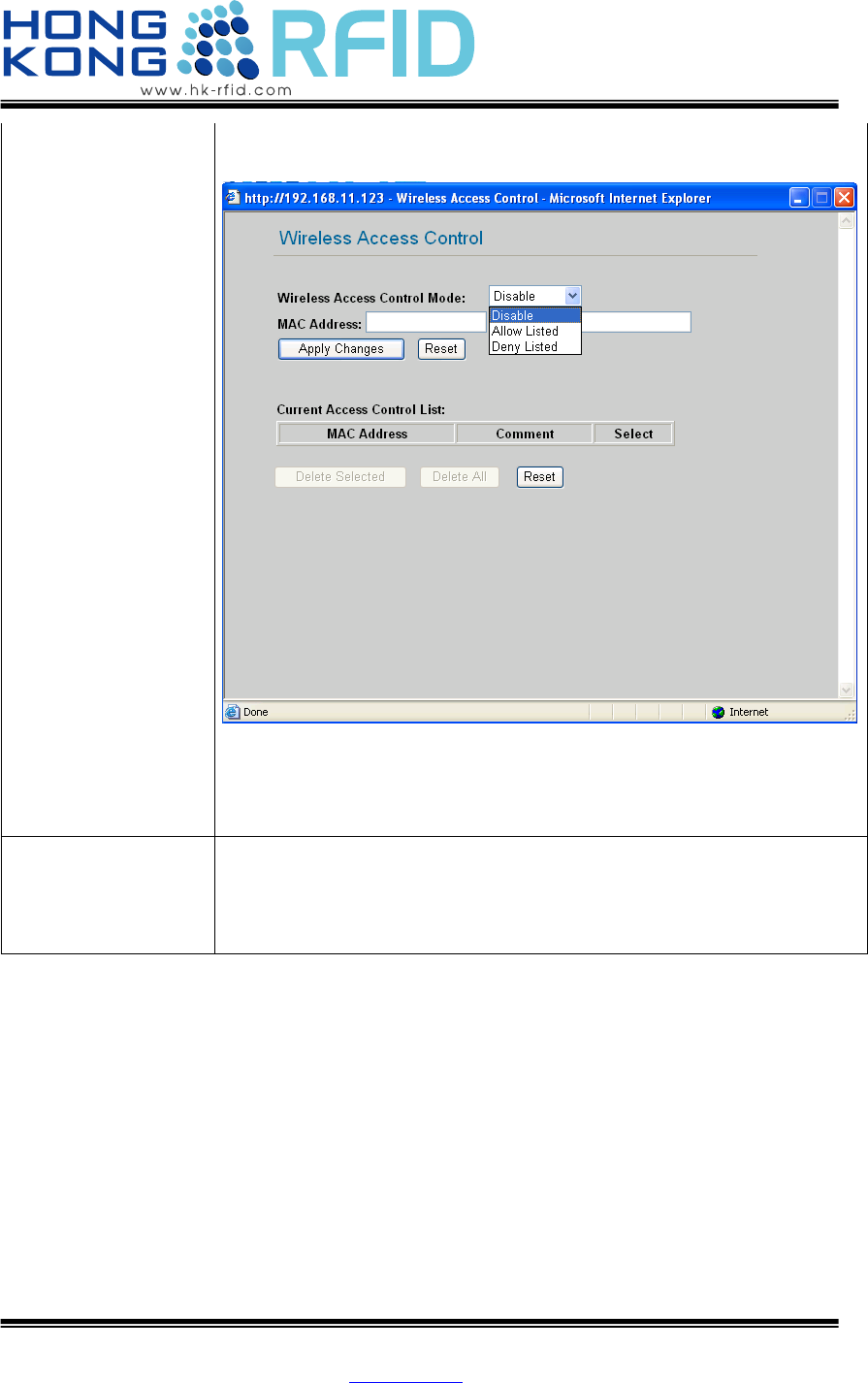

Access Control:

Setting the MAC address to allows or blocks clients access

Disable: the wire access control mode

Allow Listed: add the MAC address user in to allow mode

Deny Listed: add the MAC address client into deny mode

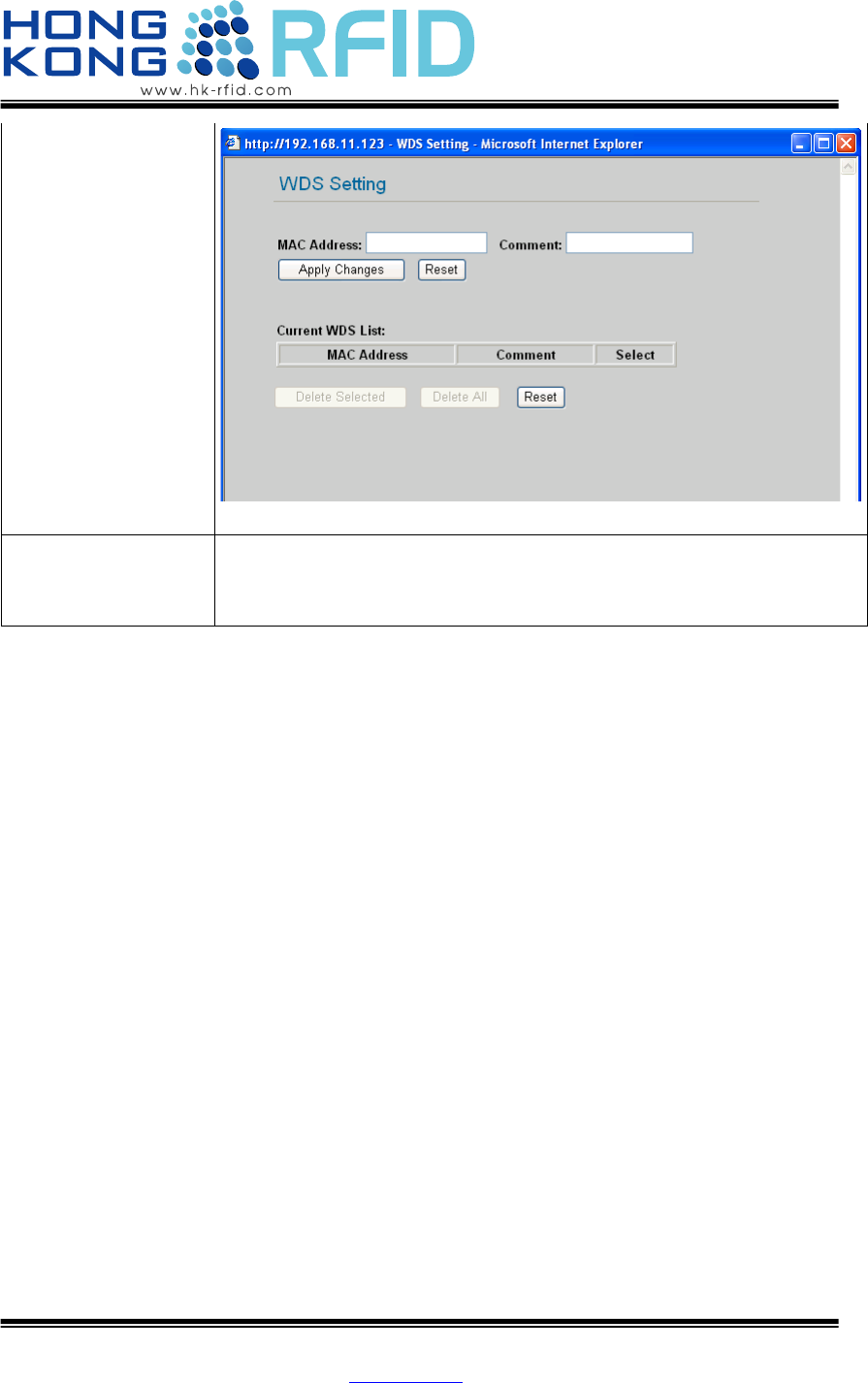

WDS Setting:

If AP mode is set as WDS Repeater, WDS Setting button is

activated. WDS

is Wireless Distribution System that is working as a wireless bridge

between AP and AP.

Hong Kong RFID Limited

Add: Unit 207A, 2/F, Building 9, No.5 Science Park West Avenue, Hong Kong Science Park, Shatin, N.T., Hong Kong

Tel: (852) 2165 4708 Fax: (852) 3007 1901 Email: info@hk-rfid.com P.25

DDNS:

DDNS: Dynamic DNS is a service that provides you with a valid,

unchanging, internet domain name (an URL) to go with that IP-

address. You can apply one at www.no-ip.com.

Hong Kong RFID Limited

Add: Unit 207A, 2/F, Building 9, No.5 Science Park West Avenue, Hong Kong Science Park, Shatin, N.T., Hong Kong

Tel: (852) 2165 4708 Fax: (852) 3007 1901 Email: info@hk-rfid.com P.26

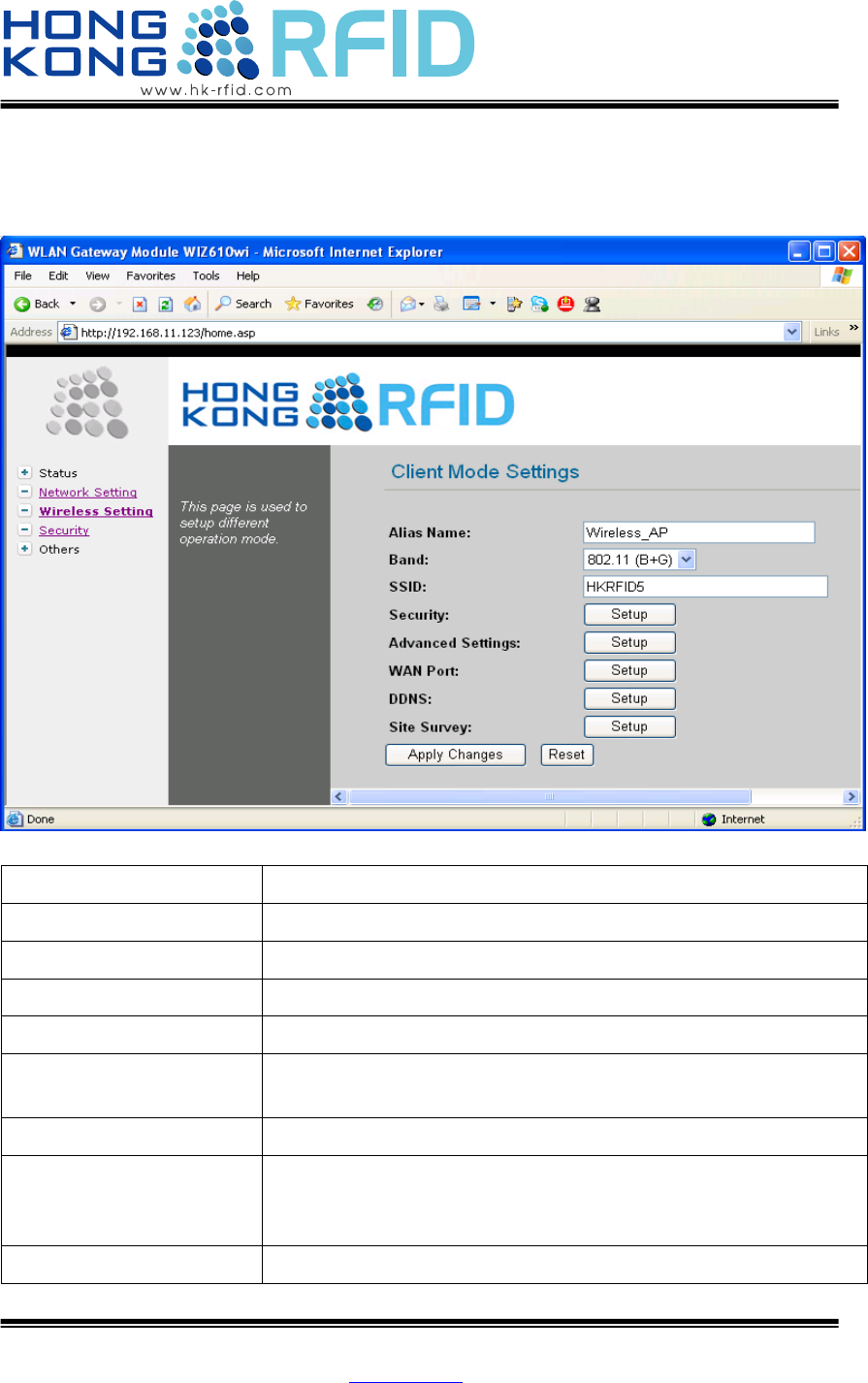

1.5.7 Client Mode Setup

After selecting the Client mode and please click “Setup” button

Name

function

Alias Name

Type in the reader name

Band

Select communication protocol

SSID

Input SSID for wireless communication.

Security

Setting the wireless connection security

Advanced Settings

Have a more advanced setting : Fragment Threshold, RTS

Threshold,Preamble Type, Beacon Interval

WAN Port

Setup the WAN Port

DDNS

DDNS: Dynamic DNS is a service that provides you with a

valid, unchanging, internet domain name (an URL) to go with

that IP-address. You can apply one at www.no-ip.com.

Site Survey

Look for the available wireless network

Hong Kong RFID Limited

Add: Unit 207A, 2/F, Building 9, No.5 Science Park West Avenue, Hong Kong Science Park, Shatin, N.T., Hong Kong

Tel: (852) 2165 4708 Fax: (852) 3007 1901 Email: info@hk-rfid.com P.27

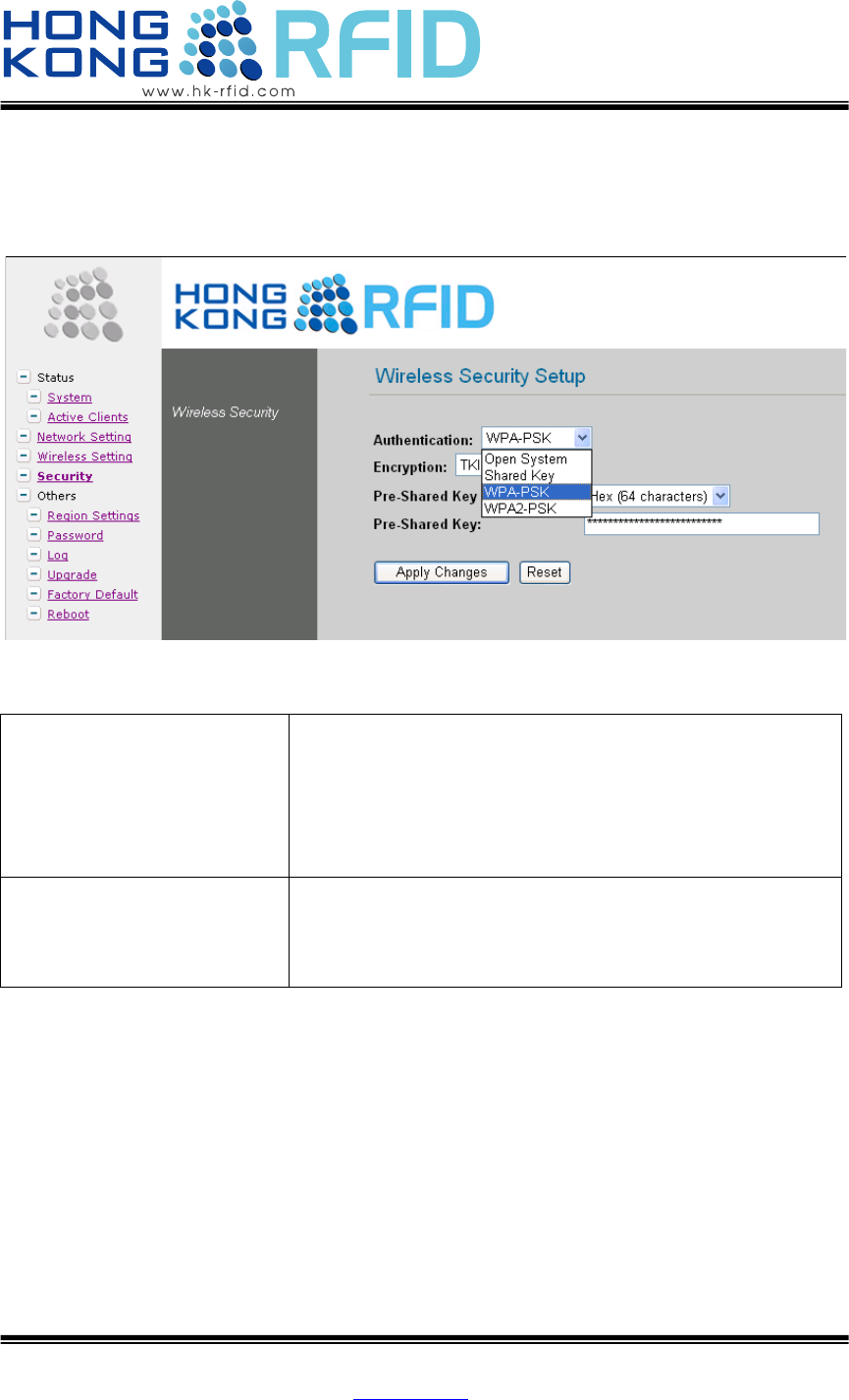

1.5.8 Security

Setting the wireless connection security.

Authentication

Select the authentication of the network to connect

the four selection:

-Open system

-Shared key

-WPA-PSK

-WPA2-PSK

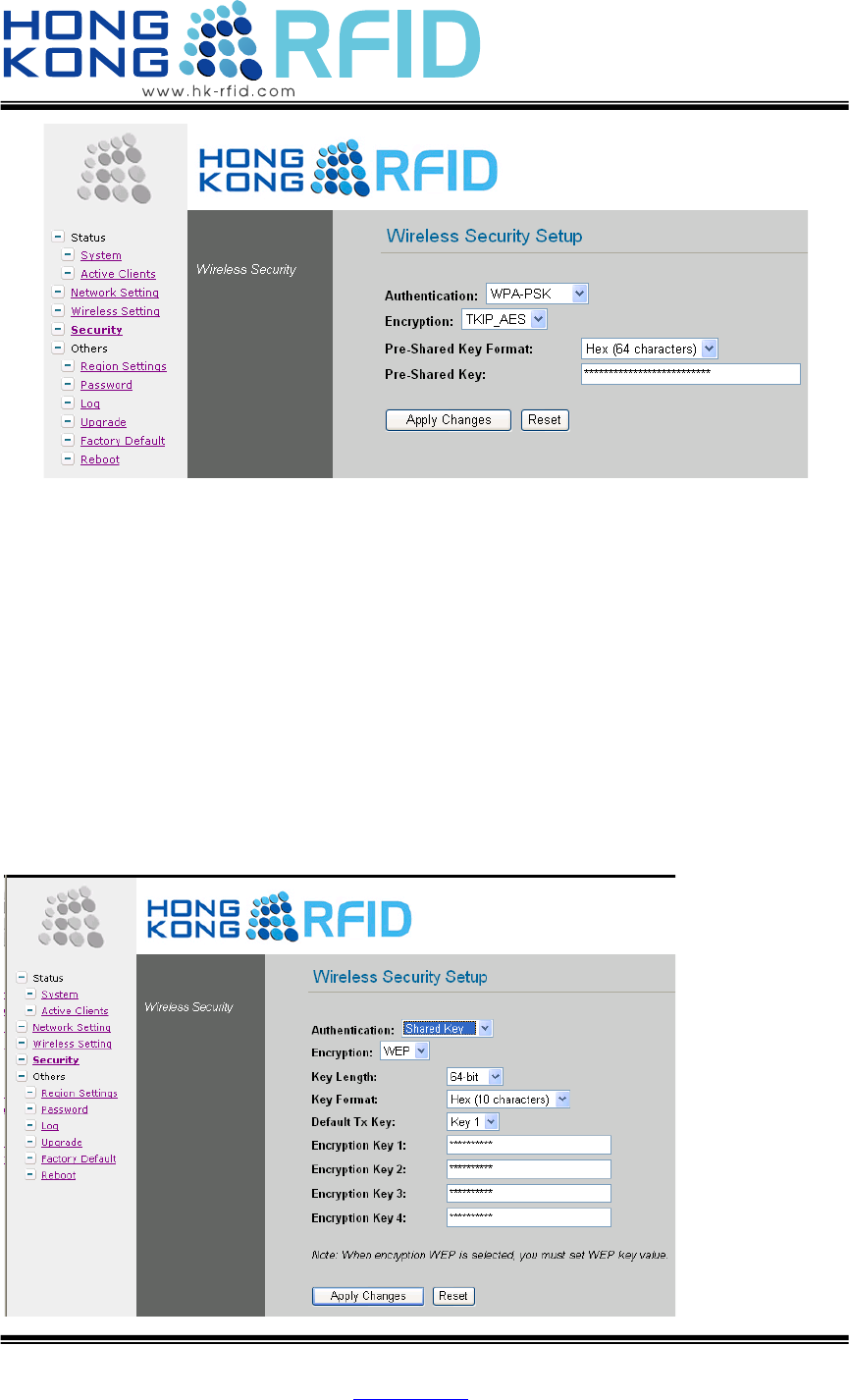

Encryption:

Select the encryption of the network to connect

the two selection:

-TKIP_AES

-WEP

The encryption is TKIP_AES

Encryption:

TKIP AES

Pre-Shared Key Format:

Select the key format

Pre-Shared Key:

Enter the Key

Hong Kong RFID Limited

Add: Unit 207A, 2/F, Building 9, No.5 Science Park West Avenue, Hong Kong Science Park, Shatin, N.T., Hong Kong

Tel: (852) 2165 4708 Fax: (852) 3007 1901 Email: info@hk-rfid.com P.28

The encryption is WEP

Encryption:

WEP

Key Length:

Select the key length :

64-bit or 128-bit

Key Format:

Select the key format:

ASCII (5 characters) or Hex (10 characters)

Default Tx Key:

Selection the Default Key

Encryption Key 1:

Enter the key

Encryption Key 2:

Enter the key (if any)

Encryption Key 3:

Enter the key (if any)

Encryption Key 4:

Enter the key (if any)

Hong Kong RFID Limited

Add: Unit 207A, 2/F, Building 9, No.5 Science Park West Avenue, Hong Kong Science Park, Shatin, N.T., Hong Kong

Tel: (852) 2165 4708 Fax: (852) 3007 1901 Email: info@hk-rfid.com P.29

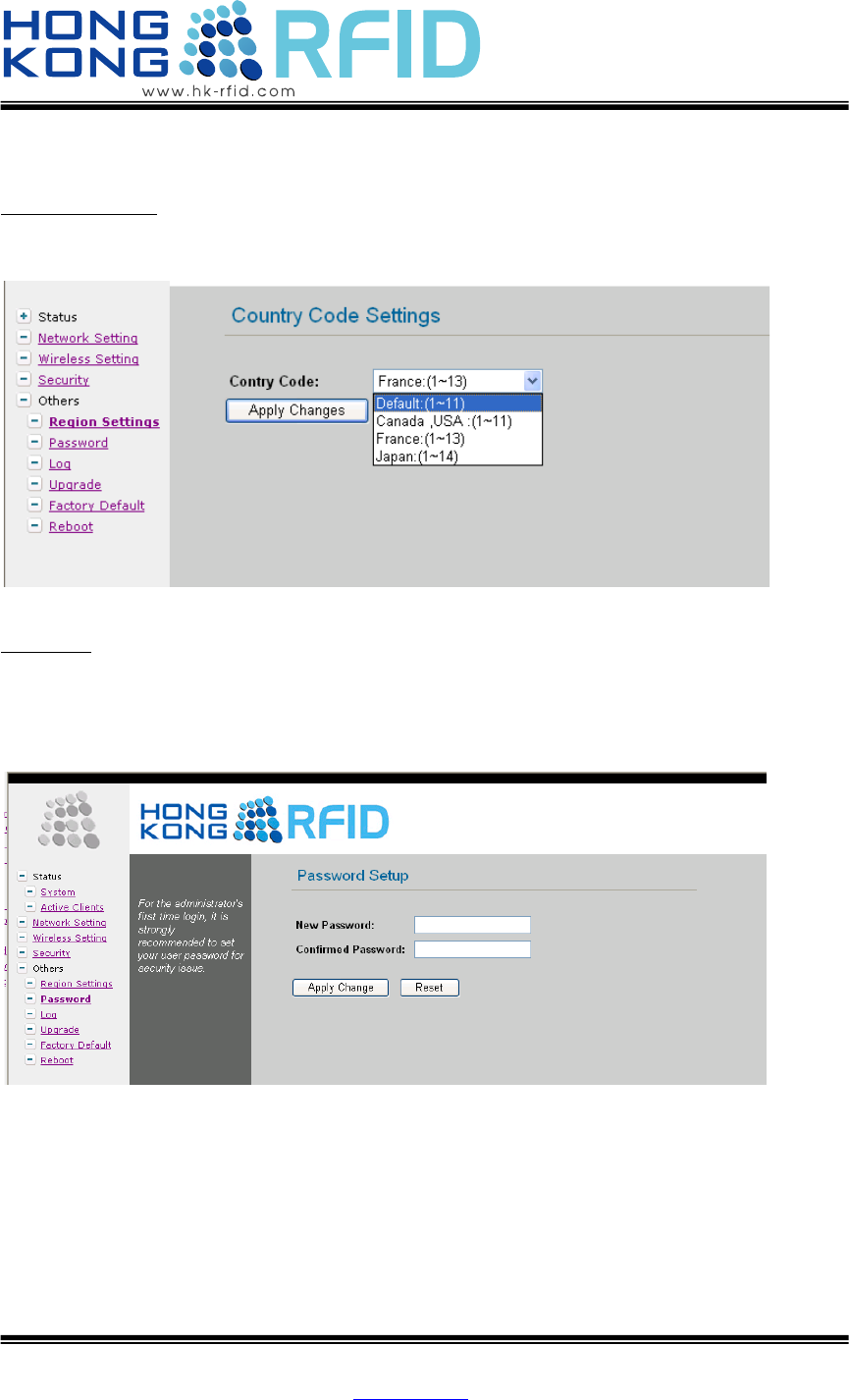

1.5.9 Others

Region Settings:

- select the country code

Password

- for user to change the password(strongly recommended to set your user

password for security issue. )

Hong Kong RFID Limited

Add: Unit 207A, 2/F, Building 9, No.5 Science Park West Avenue, Hong Kong Science Park, Shatin, N.T., Hong Kong

Tel: (852) 2165 4708 Fax: (852) 3007 1901 Email: info@hk-rfid.com P.30

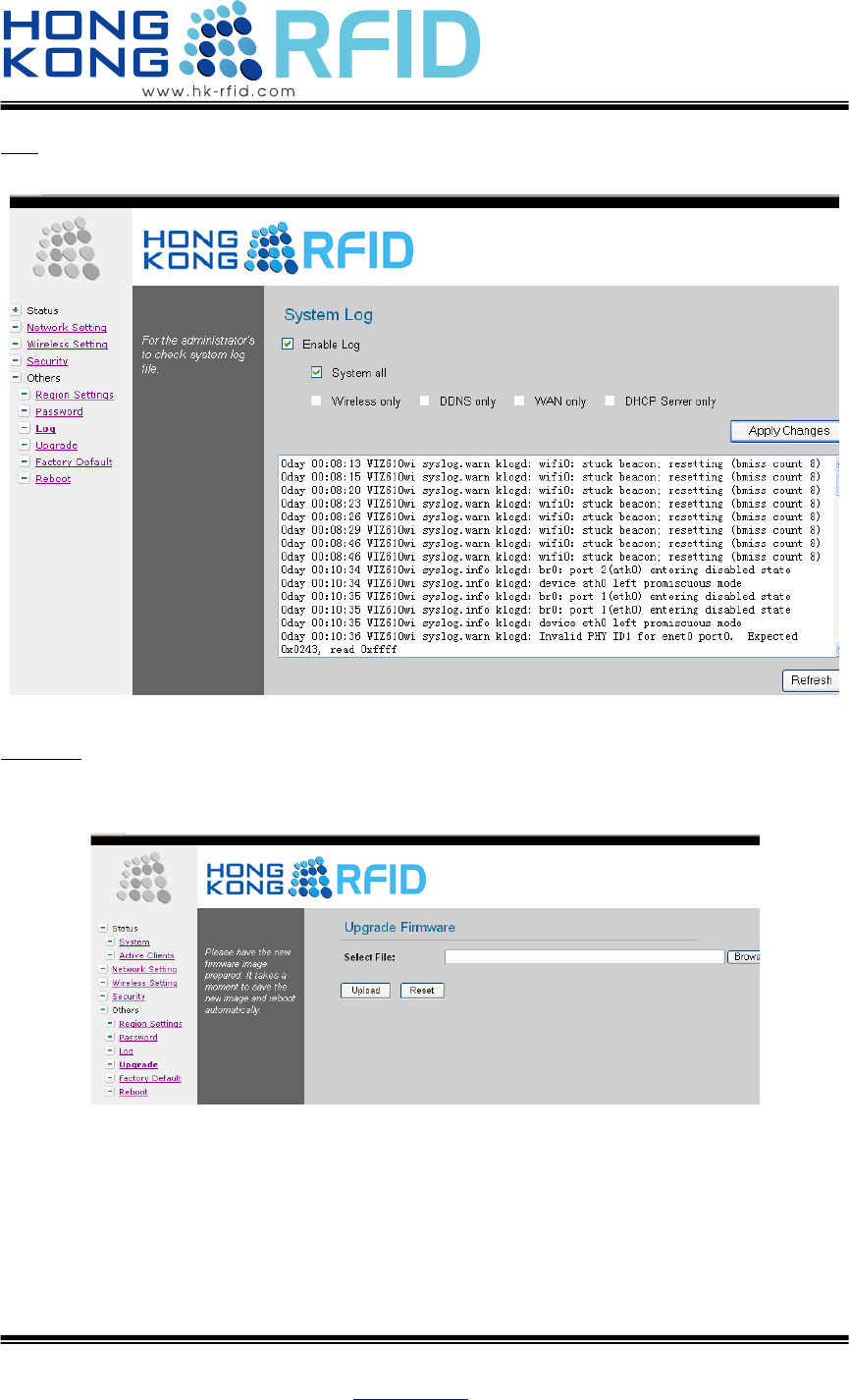

Log

- For the administrator's to setup the log function and check system log file.

Upgrade

- for user to upgrade the firmware of the reader.

Hong Kong RFID Limited

Add: Unit 207A, 2/F, Building 9, No.5 Science Park West Avenue, Hong Kong Science Park, Shatin, N.T., Hong Kong

Tel: (852) 2165 4708 Fax: (852) 3007 1901 Email: info@hk-rfid.com P.31

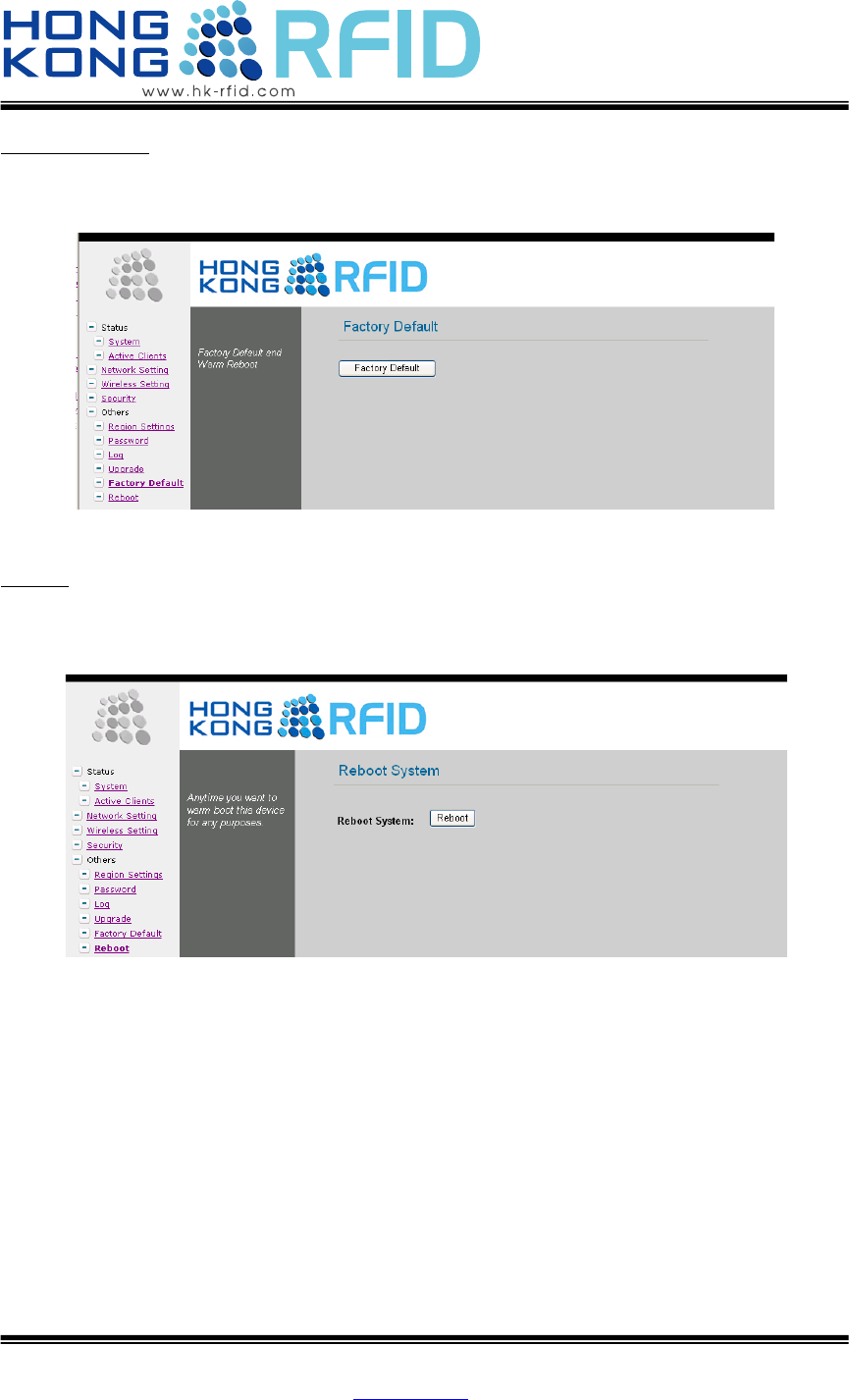

Factory Default

- to reset all setting to factory default setting

Reboot

- to reboot the reader

Hong Kong RFID Limited

Add: Unit 207A, 2/F, Building 9, No.5 Science Park West Avenue, Hong Kong Science Park, Shatin, N.T., Hong Kong

Tel: (852) 2165 4708 Fax: (852) 3007 1901 Email: info@hk-rfid.com P.32

1.6 Computer Software Installation

INSTALLATION STEPS

1) install the window .net framework 3.5

2) install the Xtractor Package

3) start the software

PROCEDURE

1) Install the window .net framework 3.5(if you already install before, ignore this part).

i. Double click the “WindowsInstaller-KB893803-v2-x86.exe” on the CD to

process the installation

2) Install the Xtractor Package

i. extract the file “Xtractor Package.zip” on the CD( you need a unzip

software)

ii. double click the “Installer.msi”to instal the Xtractor Package.

3) Start up the software

i)double click “Demo_HKRRAR-EM.exe” to start the software.

Hong Kong RFID Limited

Add: Unit 207A, 2/F, Building 9, No.5 Science Park West Avenue, Hong Kong Science Park, Shatin, N.T., Hong Kong

Tel: (852) 2165 4708 Fax: (852) 3007 1901 Email: info@hk-rfid.com P.33

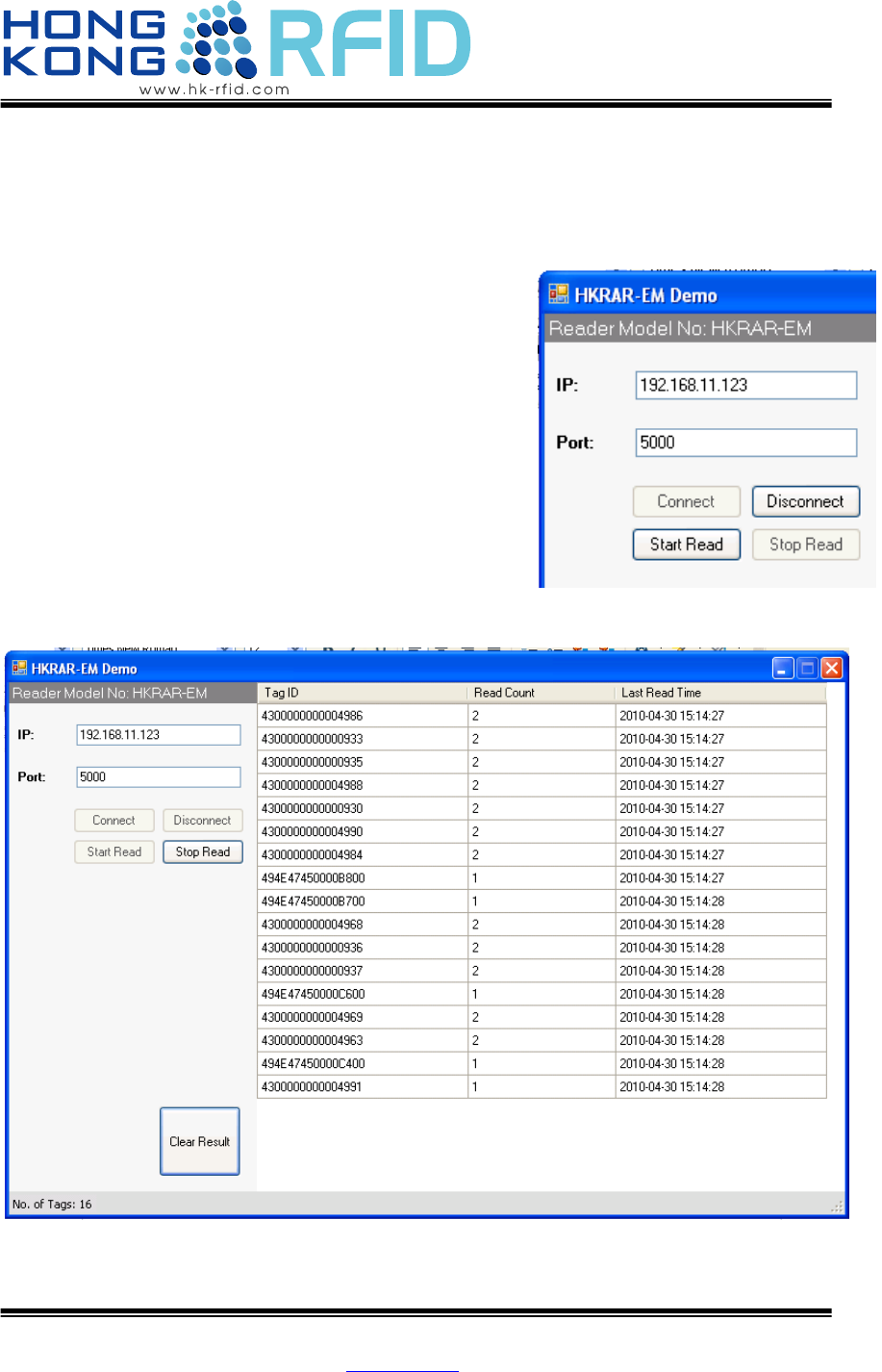

1.7 Demo Software User Guide

INSTALLATION STEPS

1) input the IP address of the reader in the IP field

2) input the port number of the reader( default is

5000)

3) press connect until the state bar show connected

4) press start read to receive tag information. And

the state bar show the no. of tag received.

5) Press stop when you finish read the tag

6) you may clear the result window by clicking

Clear Result and re-read the tag information

7) press disconnect to disconnect the reader

FCC WARNING

This device complies with Part 15 of the FCC Rules. Operation is

subject to the following two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that may cause

undesired operation.

This device must be installed to provide a separation distance of at least 20 cm from all persons

and must not be collocated or operating in conjunction with any other antenna or transmitter.

NOTE 1: This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates, uses

and can radiate radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the interference by one or more of

the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

-Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

-Consult the dealer or an experienced radio/TV technician for help.

NOTE 2: Any changes or modifications not expressly approved by the manufacturer could void

the user’s authority to operate the equipment.

NOTE 3: The manufacturer is not responsible for any radio or TV interference caused by

unauthorized modifications to this equipment. Such modifications could void the user’s authority

to operate the equipment.

RFID HKRAR001 WIRELESS 2.4GHz ACTIVE RFID READER User Manual 16 May 2007

Hong Kong RFID Ltd. WIRELESS 2.4GHz ACTIVE RFID READER 16 May 2007

Users Manual

Navigation menu

Namespaces

Views

Navigation
