SF-BTHFRD User Manual P. 1
SF-BTHFRD USER MANUAL
GENERAL DESCRIPTION
SF-BTHFRD is a high performance and portable Multi-Protocol HF tag reader supporting ISO15693, ISO14443TypeA/TypeB. It is
designed supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application
systems such as stock management, traceability system, personnel identification, access control and anti-counterfeit system.
FEATURES
Fashion, thin and well portable design;
Support Bluetooth 4.0 wireless communication;
Ultra-low power design;
Support interactive and trigger-activating work mode;
Support mainstream ISO15693, ISO14443TypeA/ Type B protocol tag;
Advanced anti-collision algorithm;
Built-in TX/RX antenna with up to 100mm effective distance*;
3 groups LED as working indicator;
CHARACTERISTICS
Absolute Maximum Rating
ITEM SYMBOL VALUE UNIT
Input Voltage VCC 6 V
Operating Temp. TOPR -10~+70
Storage Temp. TSTR -20~+85
Electrical Specification
*
*Effective distance depends on antenna, tag and working environment.
ITEM SYMBOL MIN TYP MAX UNIT
Input Voltage
VCC
4.2 5 5.5
V
Input Current IBAT 500 mA
Standby Current ISTBY 2 3 mA
Continuous RF
Current IRF 80 100 mA
Frequency FREQ 13.56 MHz
Effective Distance*DIS 0 80 100 mm
Size L×W×H 110 × 50 × 5.8 mm
SF-BTHFRD User Manual P. 2

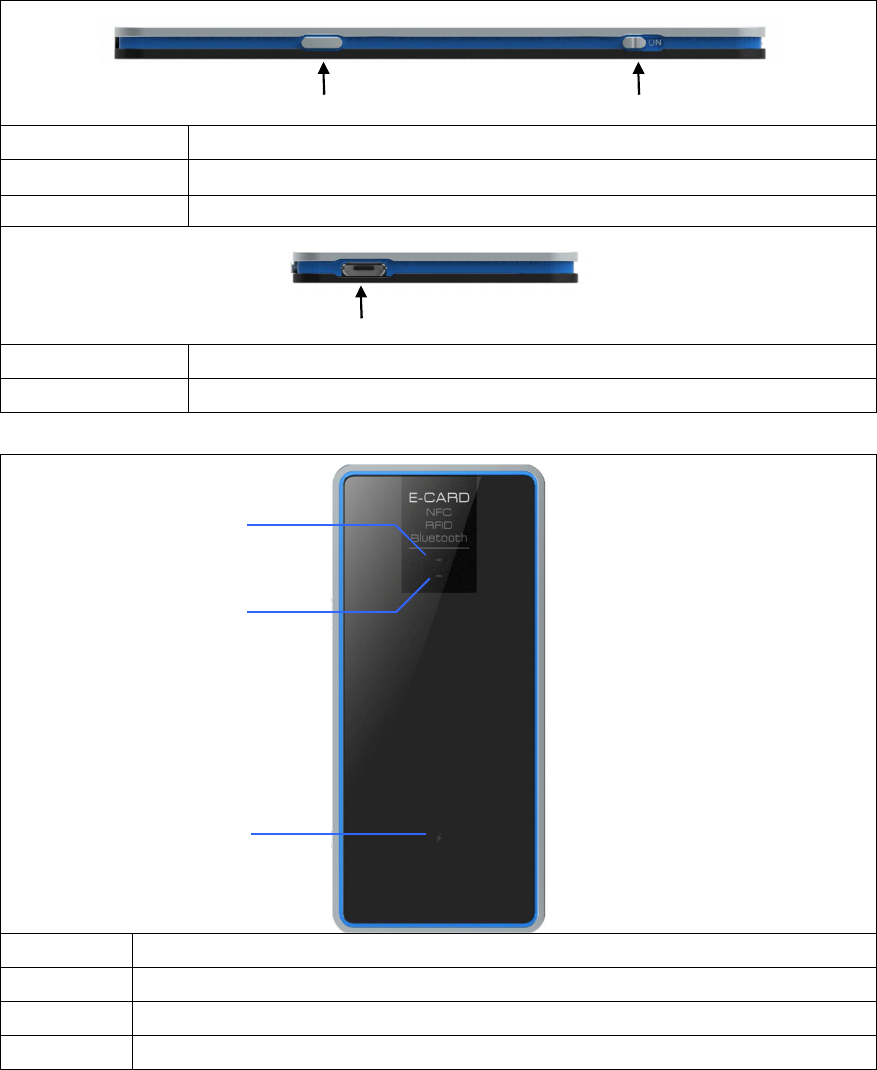

INTERFACE
1. Socket
Item Description
Trigger Button Single activate the reader to read 15693 or 14443A tag’s UID and send to host
Power Switch Set left for power on and right for power off
Item Description
Micro USB
Power Supply
2. Panel Indicator
Item Description
LED1 Red on during trigger-activating. Green flash when successfully reading a tag.
LED2 Red flash slowly shows the reader is power on.
LED3
Power Switch
Trigger Button
LED1
LED3
LED2
Micro USB
SF-BTHFRD User Manual P. 3
Disposal:
For indoor use only. The apparatus shall not be exposed to dripping or splashing.
No user replaceable parts inside, refer servicing to manufacturer specified agency or qualified service
personnel.
Only use a accessories/battery specified by the manufacturer.
Do not expose to excessive heat sources, sunshine, fire or the like
All electrical and electronic products including batteries should be disposed of separately from the
municipal waste stream via designated collection facilities appointed by the government or the local
authorities.
FCC Notice:
FCC ID: XNO-SF-BTHFRD
Model: SF-BTHFRD
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This device may not cause harmful
interference, and (2) This device must accept any interference received, including interference that
may cause undesired operation.
The grantee is not responsible for any changes or modifications not expressly approved by the party
responsible for compliance. Such modifications could void the user’s authority to operate the
equipment.
The RF Exposure Compliance distance is 20mm.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help.
