BT-410 Dongle (MASTER)

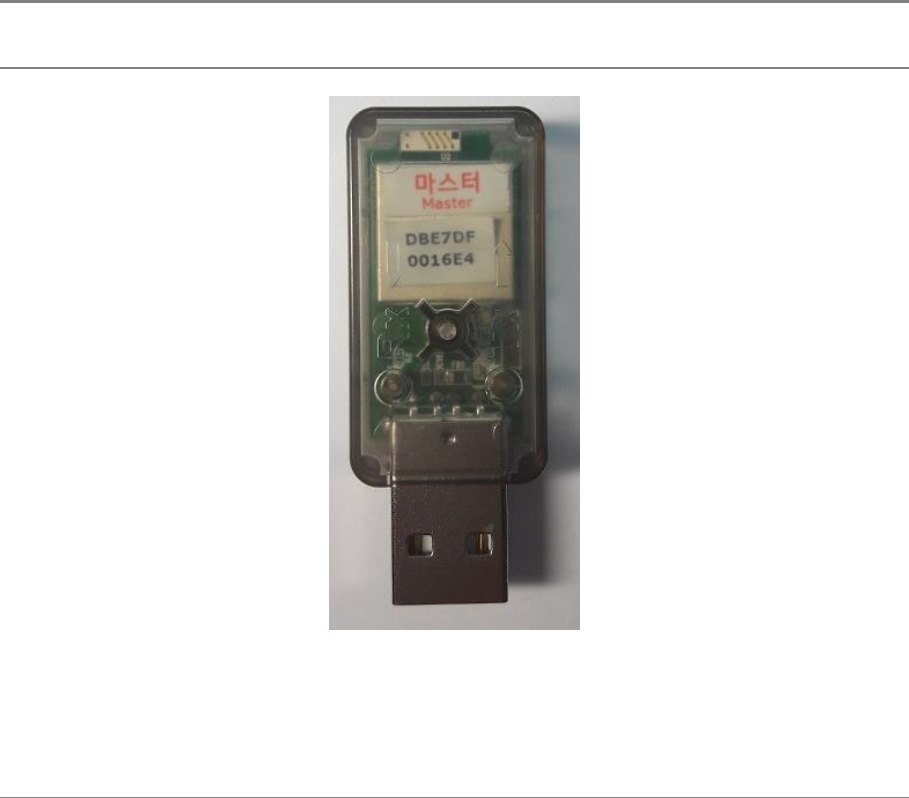

Device Image
[ Photo : BT-410 Dongle ]
Device Description
[BT-410 Dongle] has USB 2.0 interface and Bluetooth 4.0 Low Energy Standard communication interface
(MASTER). This device converts these two communication interfaces.
Therefore, you can plug [BT-410 Dongle] to [PC] and pair it to a [BT-410 SLAVE Module], then your
[PC] and [BT-410 SLAVE Module] can exchange data.
Wireless Communication modules CAN pair with BT-410 Dongle:
o BT-410 SLAVE Module
Wireless Communication modules CAN pair with BT-410 Dongle:
o BT-410 MASTER Module
o BT-210 MASTER Module
o BT-210 SLAVE Module
o BT-100/110A
o ZIG-100/110A

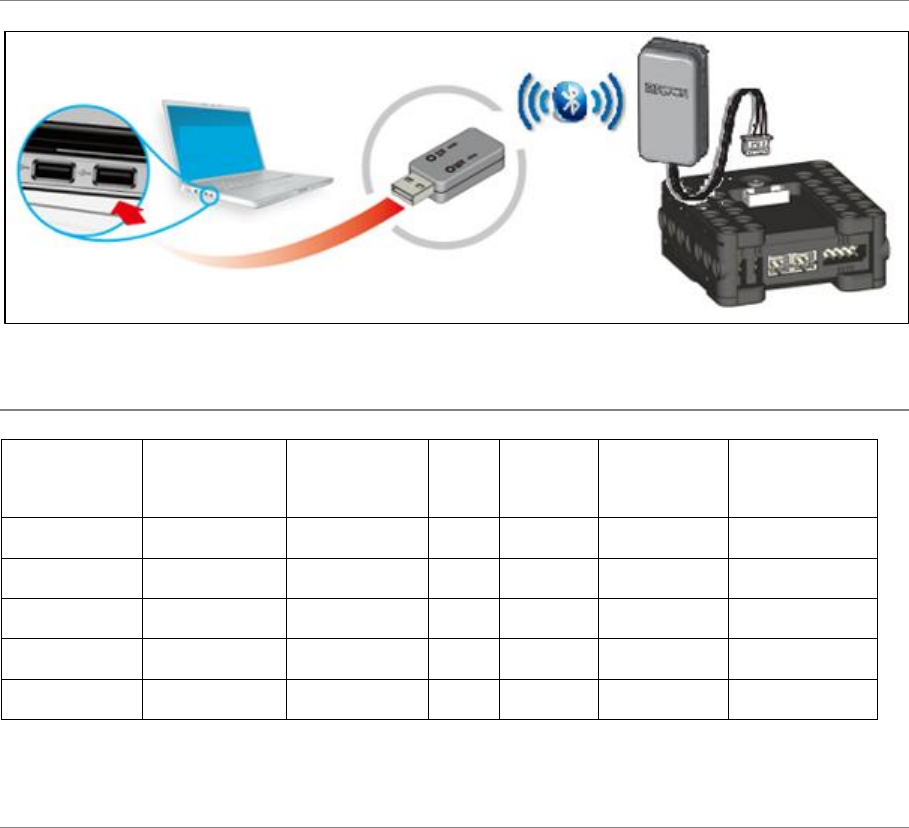

Example of application
Missions can achieved by BT-410 Dongle and BT-410 SLAVE Module
FW recovery
Manager 2.0
FW update
Manager 2.0
Entry
Scratch
Task 2.0
download
Motion 2.0
download
CM-150
O
O
-
-
O
-
CM-200
O
O
-
-
O
O
OpenCM7.0
O
O
O
O
O
-
CM-530
O
O
-
-
O
O
CarBot
-
-
O
O
-
-
Communication Modes
BT-410 Dongle can achieve reliable 1:1 communication.
[1:1 Communication]
Plug it to a powered usb port of PC, then the blue LED starts to blink. After paired to BT-410
SLAVE Module, the blue LED stays ON.
Auto-Pairing: When the blue LED of BT-410 Dongle blinks, put a BT-410 SLAVE Module close to
Dongle(less than 10cm), then these two devices will pair automatically. After this operation, those
two can find and communicate with each other through further distance.
H/W Specification
Weight : 7.5g
Dimensions : 50.5mm x 20.0mm x 10.5mm
Bluetooth specification : Bluetooth Specification 4.0 Low Energy Support
Communication range : 10m
Spectrum band : 2.4 GHz ISM Band
Bandwidth : MAX 128kbps
Default baudrate : 57600bps
Voltage range : 4.5V ~ 5.5V
Current consumption : 25mA (Max)
Temperature range : -0℃ ~ 40℃
Baudrate range : 1,200bps – 1,000,000bps
Antenna type : Chip Antenna
USB Interface : USB 2.0 Full Speed
Sensitivity : -81dBm (Typical)
Tx power : -6~4dBm(Class 2)
