RSI VIDEOTECHNOLOGIES DC00 Door/Window contact User Manual

RSI VIDEOTECHNOLOGIES Door/Window contact

Contents

user manual

Doc. - Ref. 219-IDC
Version : April 2014
Installation Guidelines
For easier installation, programming and RF testing should be done
to check for good communication between the control panel and all
system devices before mounting system devices. Install the detector
and other system devices in the following order:
> Programming/RF Testing - program detector and all other devices
into the control panel and test RFcommunication from each intended
device location to the control panel.
> Mounting - Mount detector at the tested location.
Mounting Rules
> Use proper tools and hardware.
> Mount indoors in a temperature controlled environment.
> Mount detector on frame and magnet assembly on movable
opening (door, window).
> Do not exceed 20 mm (6/8”) gap between detector and magnet.
> Magnet spacer must be used to match magnet height with detector
to ensure correct alignment and functionality.
> Do not install product on ferromagnetic surfaces.

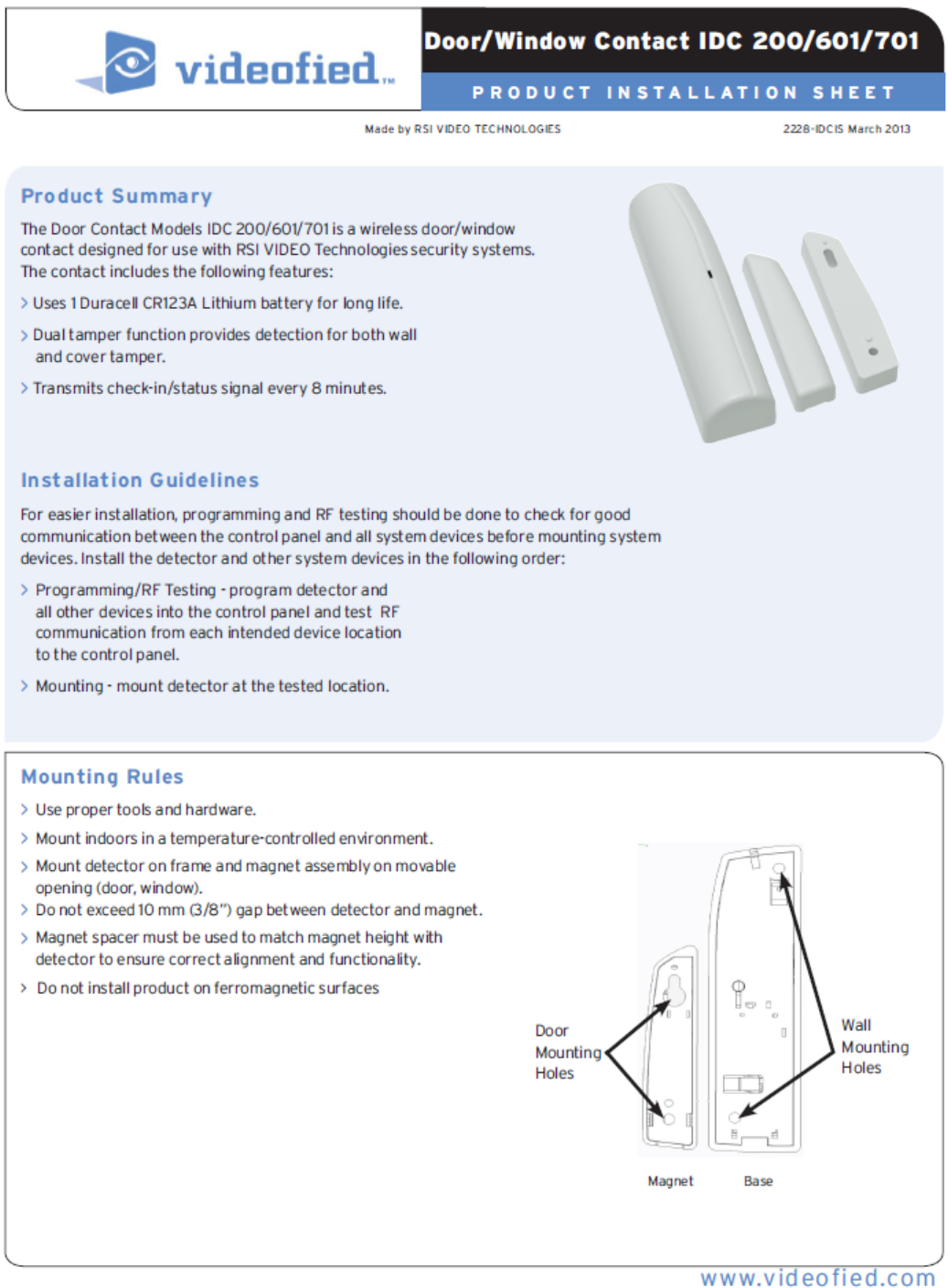

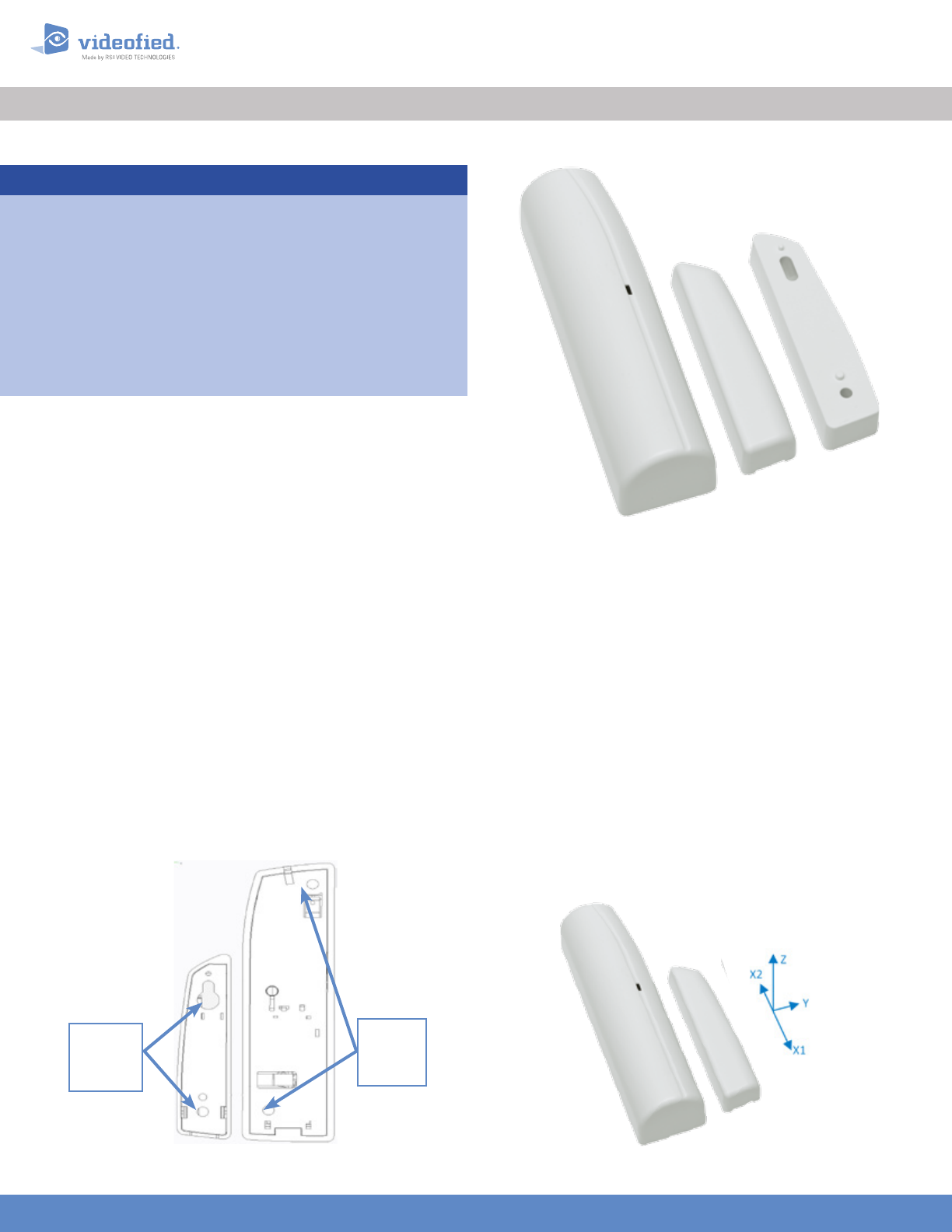

The Indoor Door Contact IDC 200/601/701 is a wireless
door/window contact designed for use with Videofied
security systems. The contact includes the following
features:
> Uses 1 Duracell CR123A Lithium battery for long life.
> Dual tamper function provides detection for both wall
and cover tamper.
> Transmits check-in/status signal every 8 minutes.
Product Summary
Door
Mounting
Holes
Wall
Mounting
Holes
Magnet Base
PRODUCT INSTALLATION SHEET
Indoor Door Contact
IDC200/601/702 (white) / IDC 210 (brown)
www.videofied.com

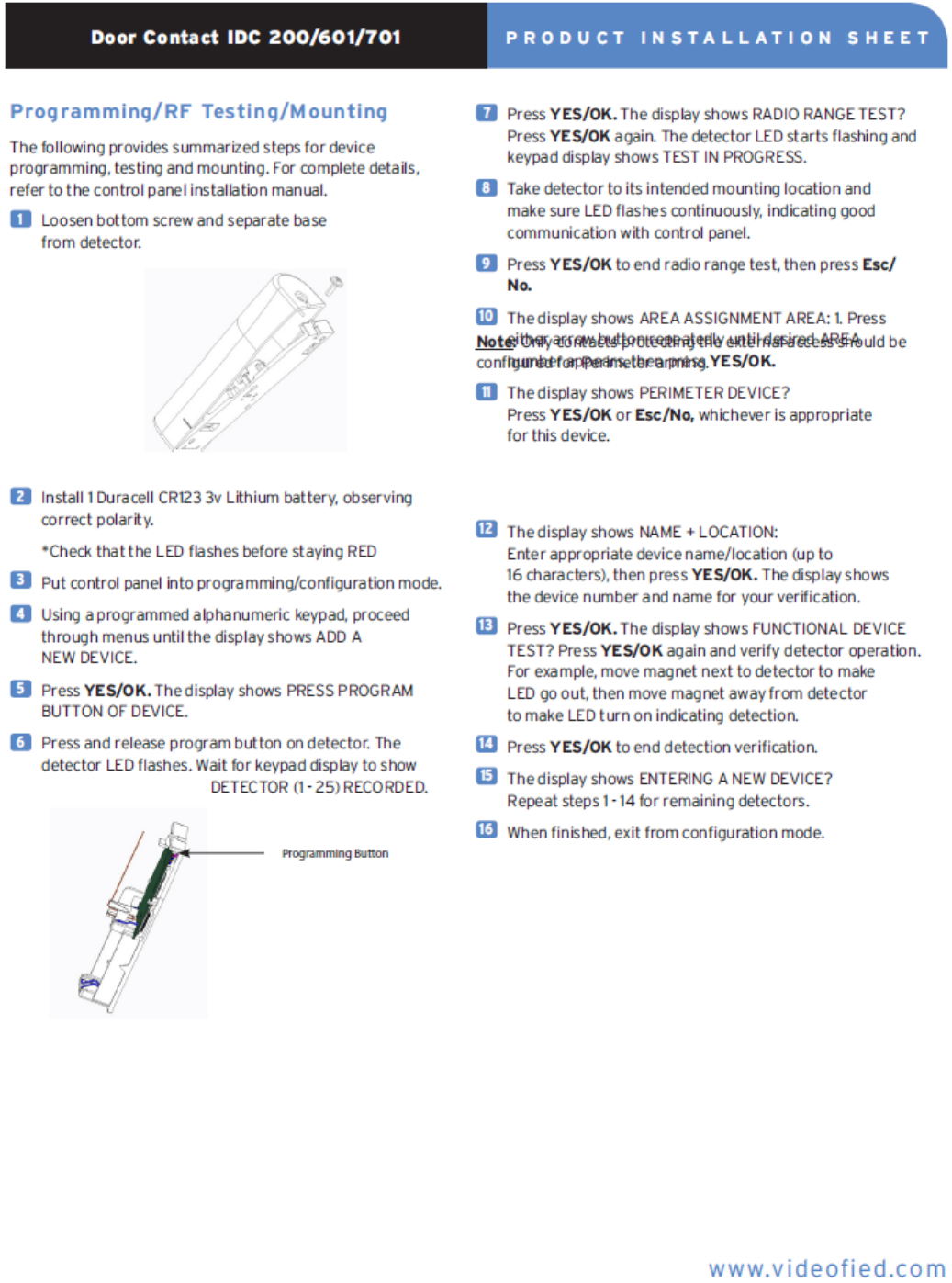

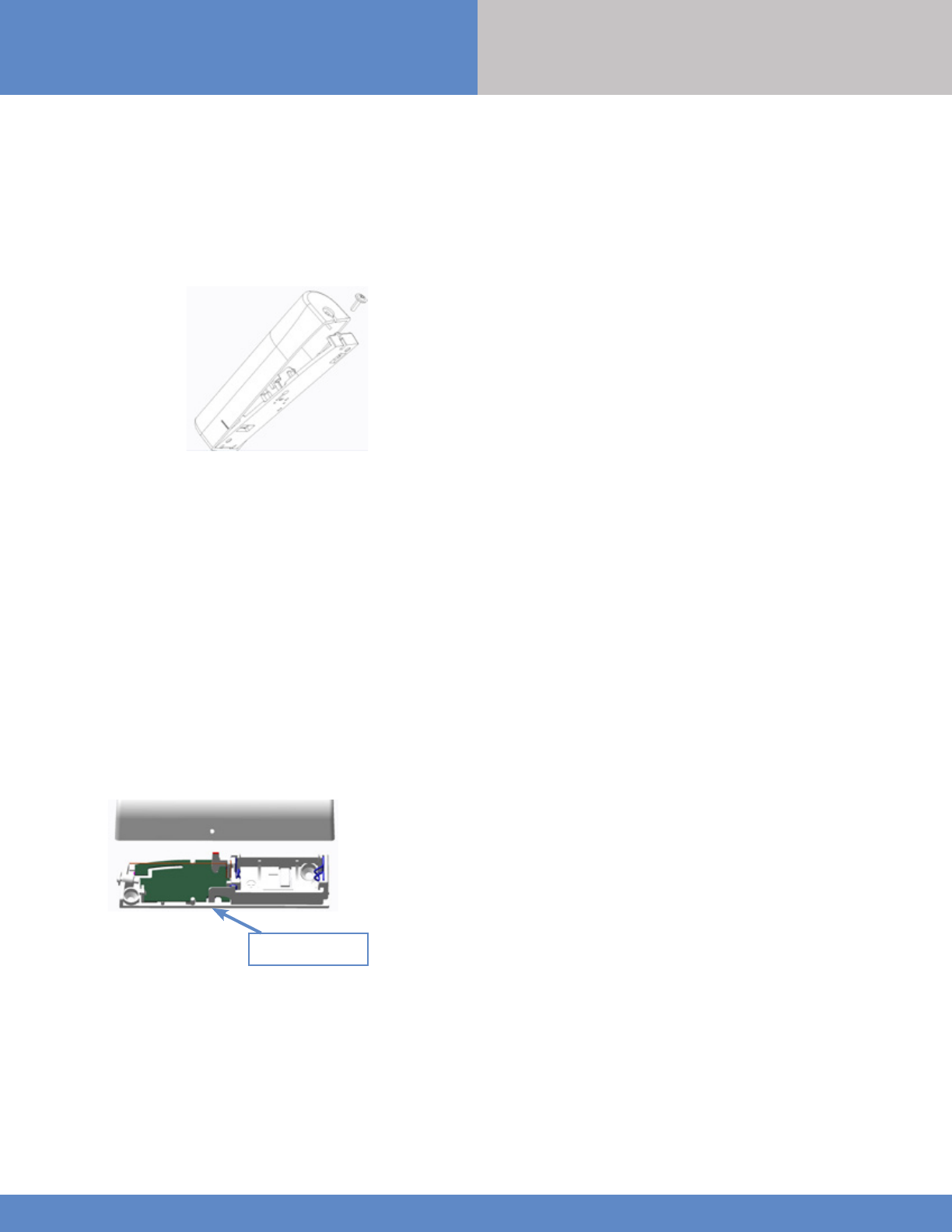

Programming/RF Testing/Mounting
The following provides summarized steps for device
programming, testing and mounting. For complete details, refer to
the control panel installation manual.
1 Loosen bottom screw and separate base from detector.
2 Install 1 Duracell CR123 3v Lithium battery, observing correct
polarity.
*Check that the LED flashes before staying RED
3 Put control panel into programming/configuration mode.
4 Using a programmed alphanumeric keypad, proceed through
menus until the display shows ADD A NEW DEVICE.
5 Press YES/OK. The display shows PRESS PROGRAM BUTTON OF
DEVICE.
6 Press and release program button on detector. The detector
LED flashes. Wait for keypad display to show DETECTOR (1 - 25)
RECORDED.
7 Press YES/OK. The display shows RADIO RANGE TEST?
Press YES/OK again. The detector LED starts flashing and
keypad display shows TEST IN PROGRESS.
8 Take detector to its intended mounting location and make sure
LED flashes continuously, indicating good communication with
control panel.
9 Press YES/OK to end radio range test, then press Esc/ No.
10 The display shows AREA ASSIGNMENT AREA: 1. Press either
arrow button repeatedly until desired AREA number appears, then
press YES/OK.
11 The display shows PERIMETER DEVICE?
Press YES/OK or Esc/No, whichever is appropriate for this device.
12 The display shows NAME + LOCATION:
Enter appropriate device name/location (up to 16 characters), then
press YES/OK. The display shows the device number and name for
your verification.
13 Press YES/OK. The display shows FUNCTIONAL DEVICE
TEST? Press YES/OK again and verify detector operation. For
example, move magnet next to detector to make LED go out, then
move magnet away from detector to make LED turn on indicating
detection.
14 Press YES/OK to end detection verification.
15 The display shows ENTERING A NEW DEVICE?
Repeat steps 1 - 14 for remaining detectors.
16 When finished, exit from configuration mode.
Note: Only contacts protecting the external access should be
configured for Perimeter arming.
Programming
Button
www.videofied.com
PRODUCT INSTALLATION
SHEET
2
Indoor Door Contact
IDC200/601/702 (white) / IDC 210 (brown)
(EN) Security notes / (FR) Notes de sécurité / (DE) Hinweise zur Sicherheit
English Francais Deutsch
> Remove batteries before any maintenance!
> WARNING, there is a risk of explosion if a
battery is replaced by an incorrect type!
> Observe polarity when setting up the
batteries!
> Do not throw used batteries! Bring them to
your installer or a collection point.
> Attention ! Il y a un risque d’explosion
si l’une des piles utilisées est remplacée
par une pile de type incorrect !
> Respectez la polarité lors de la mise en
place des piles !
> Ne jetez pas les piles usagées !
Ramenez-les à votre installateur ou à un
point de collecte spécialisé.
>
Batterien vor jeglichen Wartungsarbeiten
entfernen!
> Vorsicht, es besteht Explosionsgefahr,
wenn eine Batterie durch eine Batterie
falschen Typs ersetzt wird!
> Achten Sie beim Einsetzen der Batterien
auf die Polung!
> Entsorgen Sie Batterien nicht im
normalen Haushaltsmüll! Bringen Sie Ihre
verbrauchten Batterien zu den öffentlichen
Sammelstellen.
FCC Regulatory Information for USA and CANADA
FCC Part 15.21 Changes or modifications made to this equipment not expressly approved by RSI VideoTechnologies may void the FCC
authorization to operate this equipment.
FCC Part 15.105 Class B
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
> Reorient or relocate the receiving antenna.
> Increase the separation between the equipment and receiver.
> Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
> Consult the dealer or an experienced radio/TV technician for help.
Radio frequency radiation exposure information according 2.1091 / 2.1093 / OET bulletin 65
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed
and operated with minimum distance of 20 cm between the radiator and your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Cet équipement est conforme aux limites d’exposition aux rayonnements IC établies pour un environnement non contrôlé.
Cet équipement doit être installé et utilisé avec un minimum de 20 cm de distance entre la source de rayonnement et votre corps.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada.
Operation is subject to the following two conditions:
1 This device may not cause harmful interference, and
2 This device must accept any interference received, including interference that may cause undesired operation.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence.
L’exploitation est autorisée aux deux conditions suivantes:
1 L’appareil ne doit pas produire de brouillage, et
2 L’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le
fonctionnement.
www.videofied.com
PRODUCT INSTALLATION
SHEET
3
Indoor Door Contact
IDC200/601/702 (white) / IDC 210 (brown)

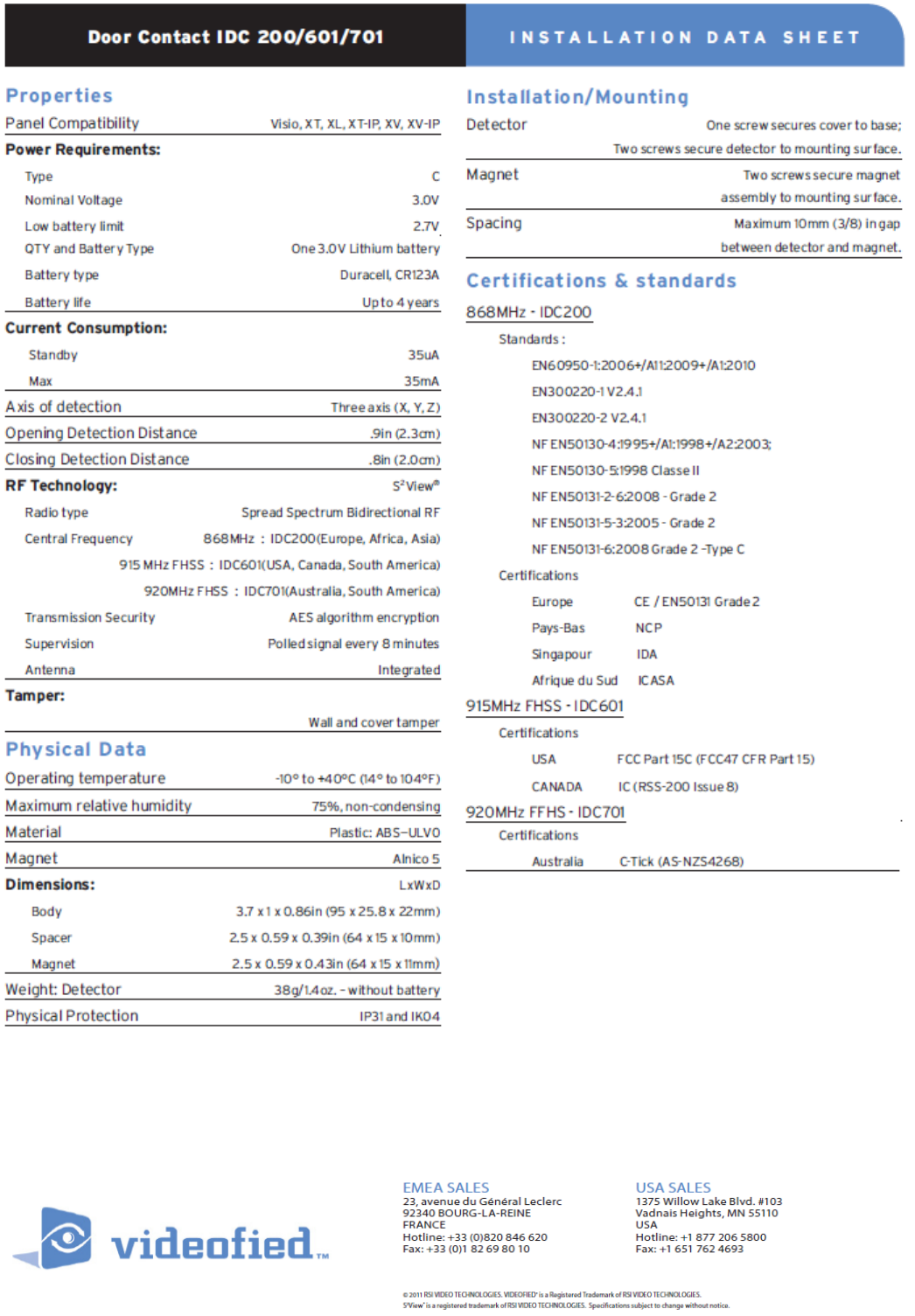

Properties
Panel Compatibility XL, XLL, Visio, XT, XV and their variants
Power Requirements
Nominal Voltage 3.0V
Low battery limit 2.7V
Battery Type Lithium
Quantity 1
Manufacturer and reference Duracell, CR123A
Battery life Up to 4 years
Current Consumption
Standby 35 µA
Max 35 mA
Magnet Detection
Detection axis (X1, X2, Y, Z)
Opening detection distance 20 / 20 / 29 / 41 (mm)
Closing detection distance 4 / 6 / 16 / 24 (mm)
Initialization delay 10s
Recovery delay 2s
RF Technology S2View®
Radio type Spread Spectrum Bidirectional RF
Central Frequency :
868MHz : IDC200 & (Europe, Africa, Asia)
915 MHz FHSS : IDC601 (USA, Canada, South America)
920MHz FHSS : IDC701 (Australia, South America)
Transmission Security AES algorithm encryption
Supervision Polled signal every 8 minutes
Antenna Integrated
Tamper Wall and cover tamper
Installation / Mounting
Detector
One screw secures cover to base;
Two screws secure detector to mounting surface.
Magnet
Two screws secure magnet assembly to mounting surface.
Standards
NF EN50131-2-6: 2008 Grade 2
RTC 50131-2-6: 2011
NF EN50131-5-3: 2005
NF EN50130-4: 2011
NF EN50130-5: 2011 Classe II
Certifying agency :
CNPP Cert.
Route de La Chapelle Réanville CS22265
F—27950 SAINT MARCEL
Tel : +33(0)2.32.53.63.63
Fax: +33(0)2.32.53.64.46
Sites Internet : http://www.cnpp.com
Email : certification@cnpp.com
Certifying agency :
AFNOR Certification
11, rue François de Pressensé
93571 Saint Denis La Plaine Cedex
Tel : +33(0)1.41.62.80.00
Fax: +33(0)1.49.17.90.00
Sites Internet : http://www.afnor.org
et http://www.marque-nf.com
Email : certification@afnor.org
Certifications CE / EN50131 / NF&A2P
Standards EN60950-1:2006+/A11:2009+/A1:2010
EN300220-1 V2.4.1
EN300220-2 V2.4.1
NF&A2P – 2 boucliers – suivant le référentiel NF324-H58
Matériels de sécurité électroniques, détection d’intrusion
DETECTEUR D’OUVERTURE A CONTACT
Commercial Brand : Videofied
Product reference : IDC200 (blanc) IDC210 (brun)
Certification Number : 2123200004A0 2123200004B0
Others Certifications Netherlands NCP
Singapour IDA
South Africa ICASA
915MHz FHSS - IDC601
Certifications USA FCC Part 15C (FCC47 CFR Part 15)
Canada IC (RSS-210 Issue 8)
920MHz FFHS - IDC702
Certifications Australie C-Tick (AS-NZS4268)
© 2013 RSI Video Technologies Videofied® and MotionViewer® are Registered Trademark of RSI Video Technologies.
Specifications subject to change without notice.
Physical Data
Operating temperature -10° to +55°C (14° to 131°F)
Maximum relative humidity 75%, non-condensing
Material Plastic: ABS—ULV0
Magnet Alnico 5
Dimensions LxWxD
Body 3.7 x 1 x 0.86in (95 x 25.8 x 22mm)
Spacer 2.5 x 0.59 x 0.39in (64 x 15 x 10mm)
Magnet 2.5 x 0.59 x 0.43in (64 x 15 x 11mm)
Weight: Detector 38g/1.4oz. – without battery
Physical Protection IP31 and IK04
Standards & Certifications
868MHz - IDC200 & IDC210
North American Headquarters
1375 Willow Lake Blvd, Suite 103
Vadnais Heights, MN 55110
USA
E-Mail : usasales@rsivideotech.com
EMEA SALES
23, avenue du Général Leclerc
92340 BOURG-LA-REINE
FRANCE
E-Mail : emeasales@rsivideotech.com
www.videofied.com 4
PRODUCT INSTALLATION
SHEET
Indoor Door Contact
IDC200/601/702 (white) / IDC 210 (brown)
